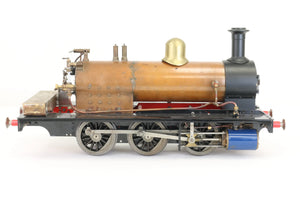

3 1/2 inch gauge "Rob Roy" 0-6-0T

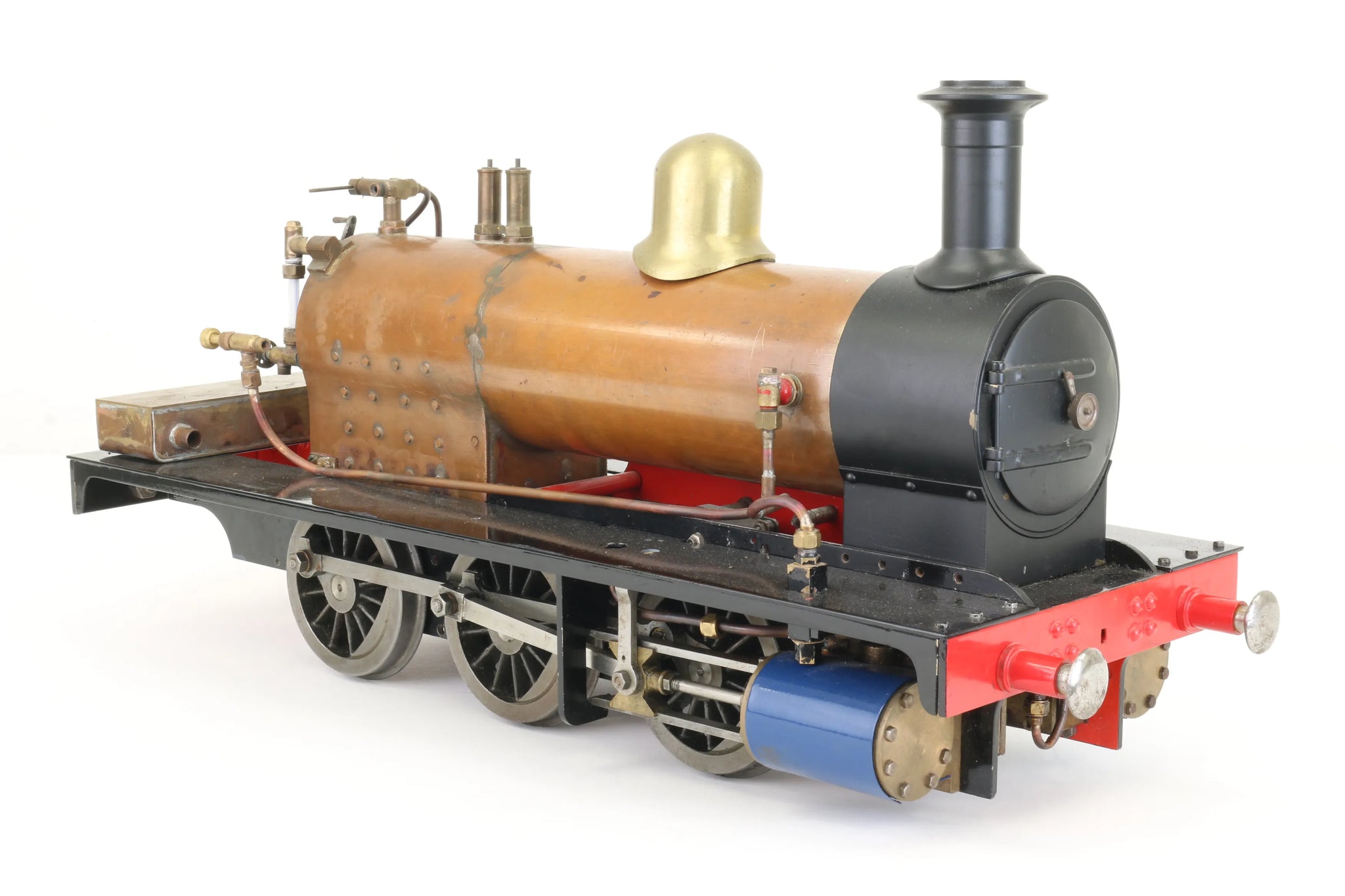

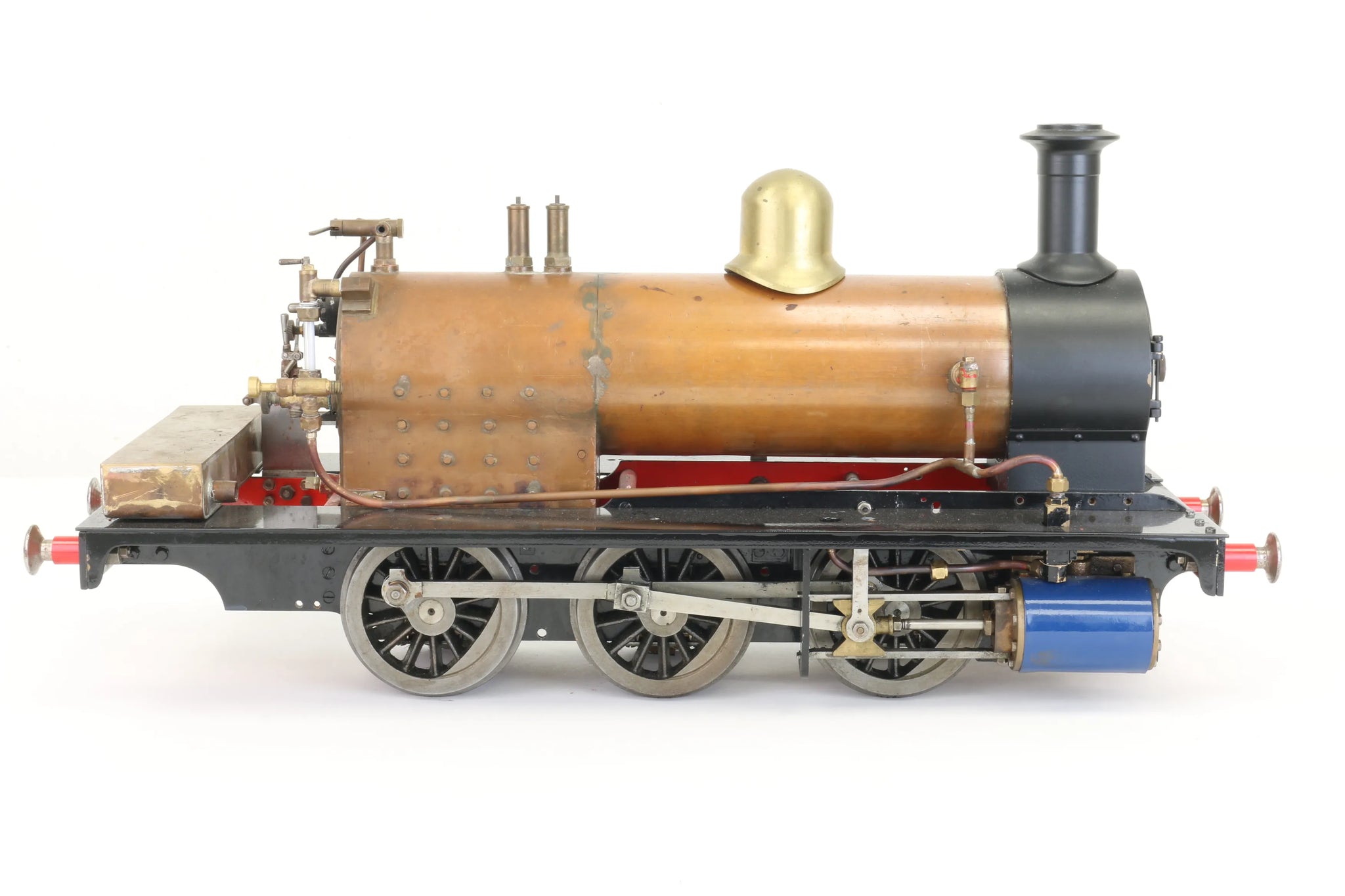

A well-advanced, if long in gestation 3 1/2 inch gauge "Rob Roy" to the Martin Evans design.

The commercially built boiler was supplied new by Morewood in 1983 and is complete with manufacturer's original test certificate (typewritten, on headed paper - those were the days!). In the intervening 35 years the locomotive has got to a stage where it's mainly platework and a few fittings to complete.

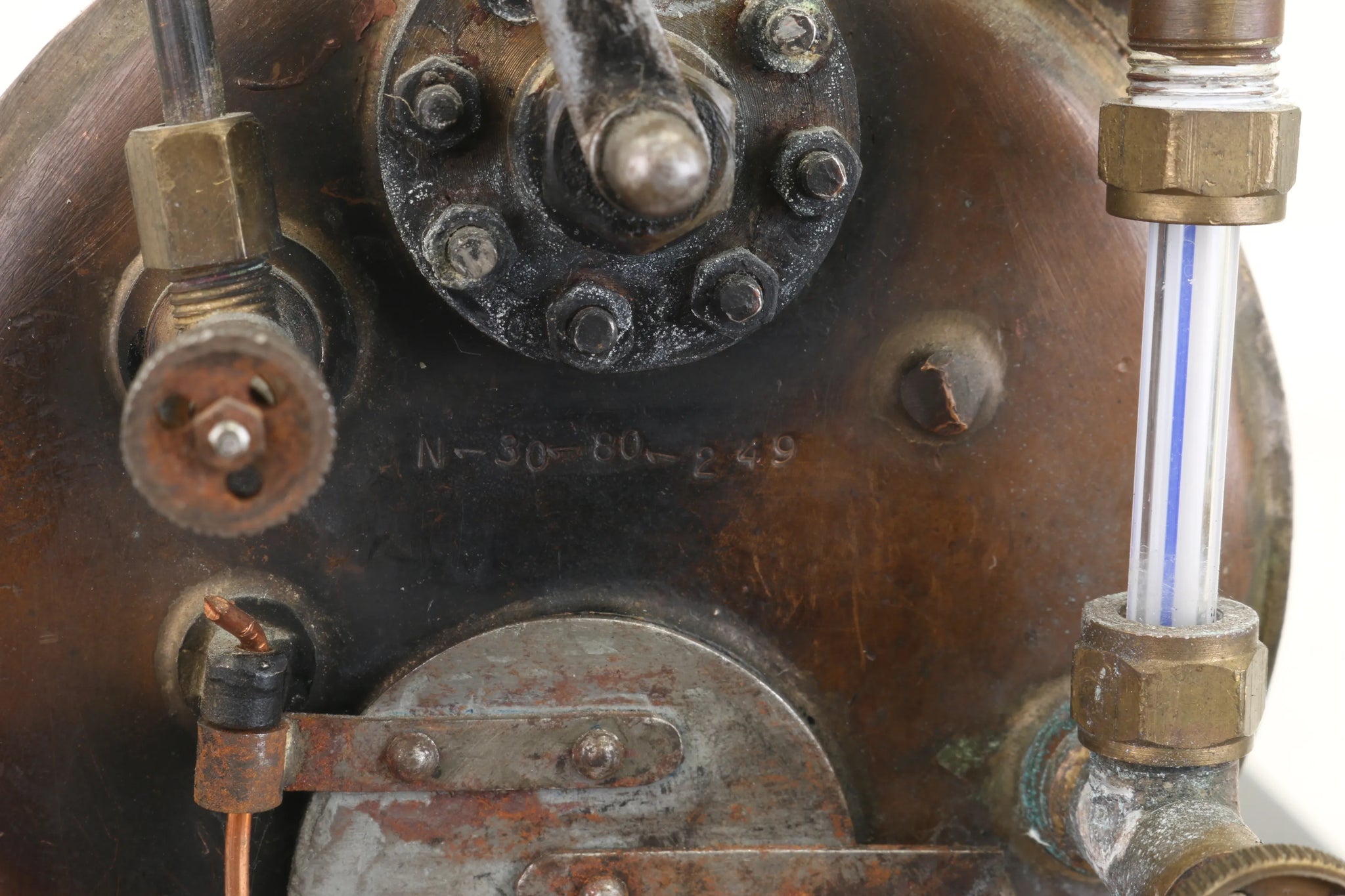

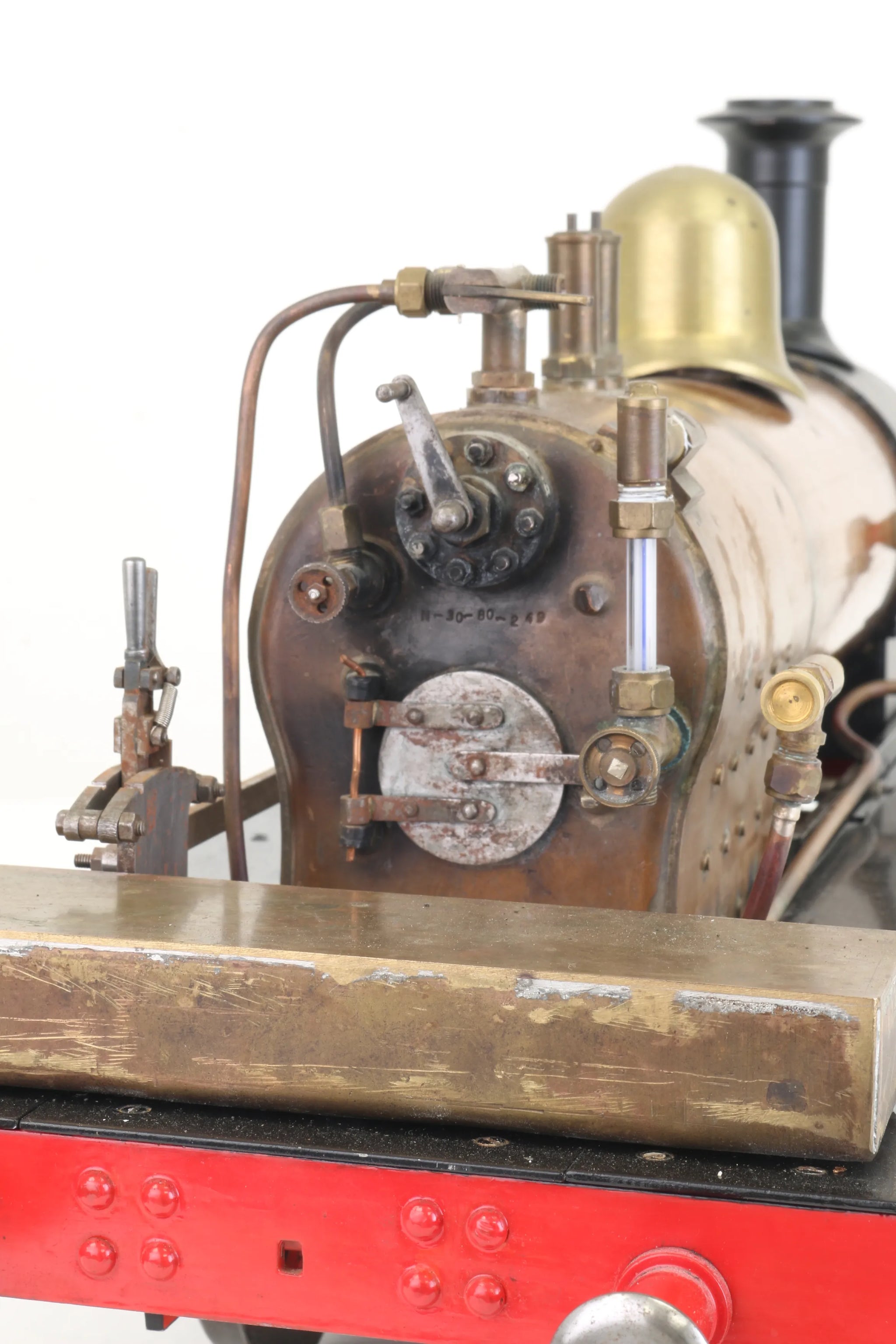

By 1996 it was ready for its initial twice working pressure hydraulic test at the club, at which time it was stamped up with a club boiler number on the backhead and a certificate issued.

At some stage it has been test-steamed, although from colour and condition of firebox it can't have been more than once or twice.

We reckon at current rate of progress there can't be more than another fifteen years work to complete.

No point in being hasty about these things...

Technical information

Stock code

7895

Gauge

3 1/2 inch

Length/inches

22

Width/inches

8

Height/inches

11

Wheel material

cast iron

Axlebox type

gunmetal, plain bearing

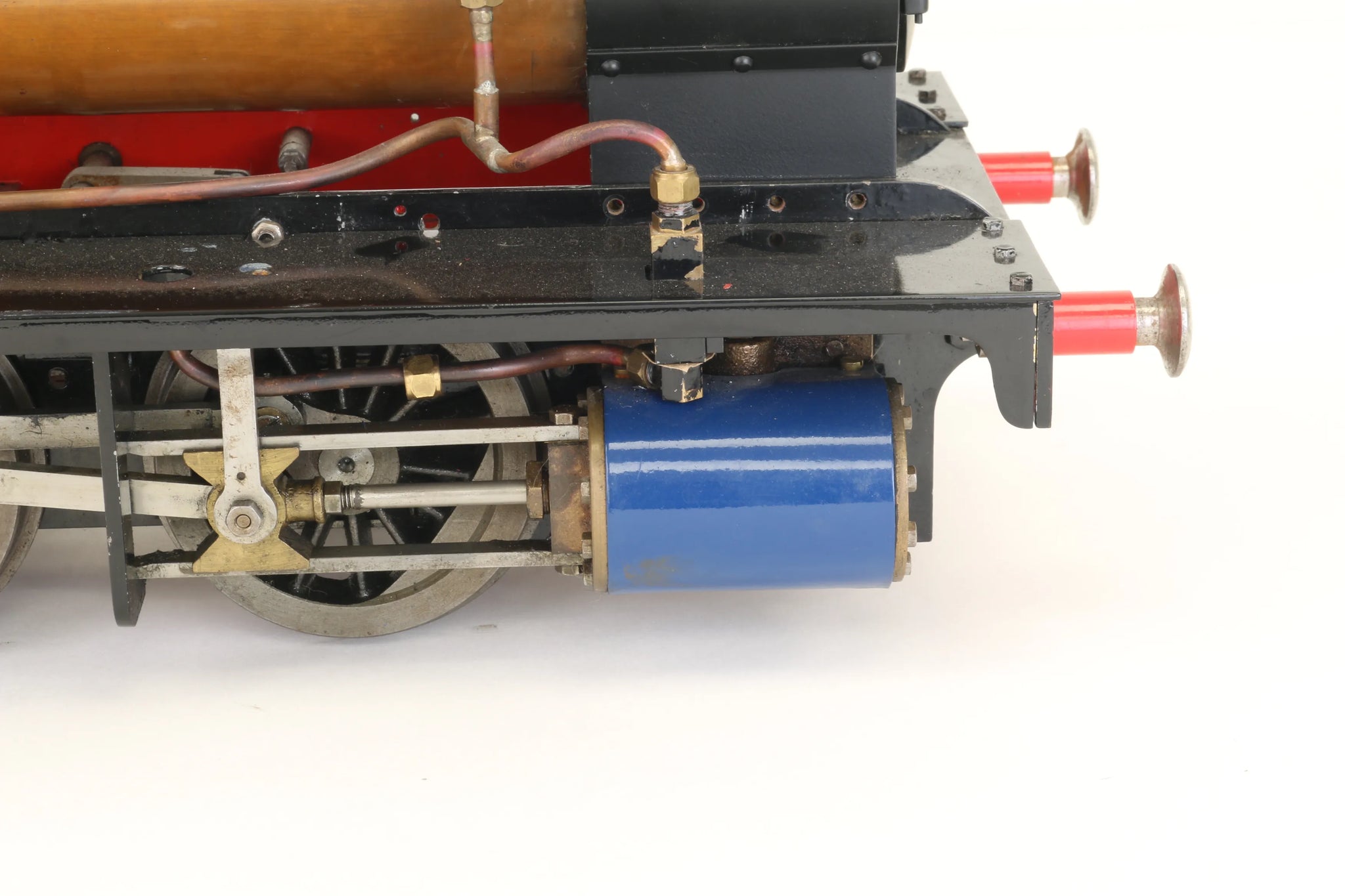

Cylinder material

gunmetal

Valve type

slide

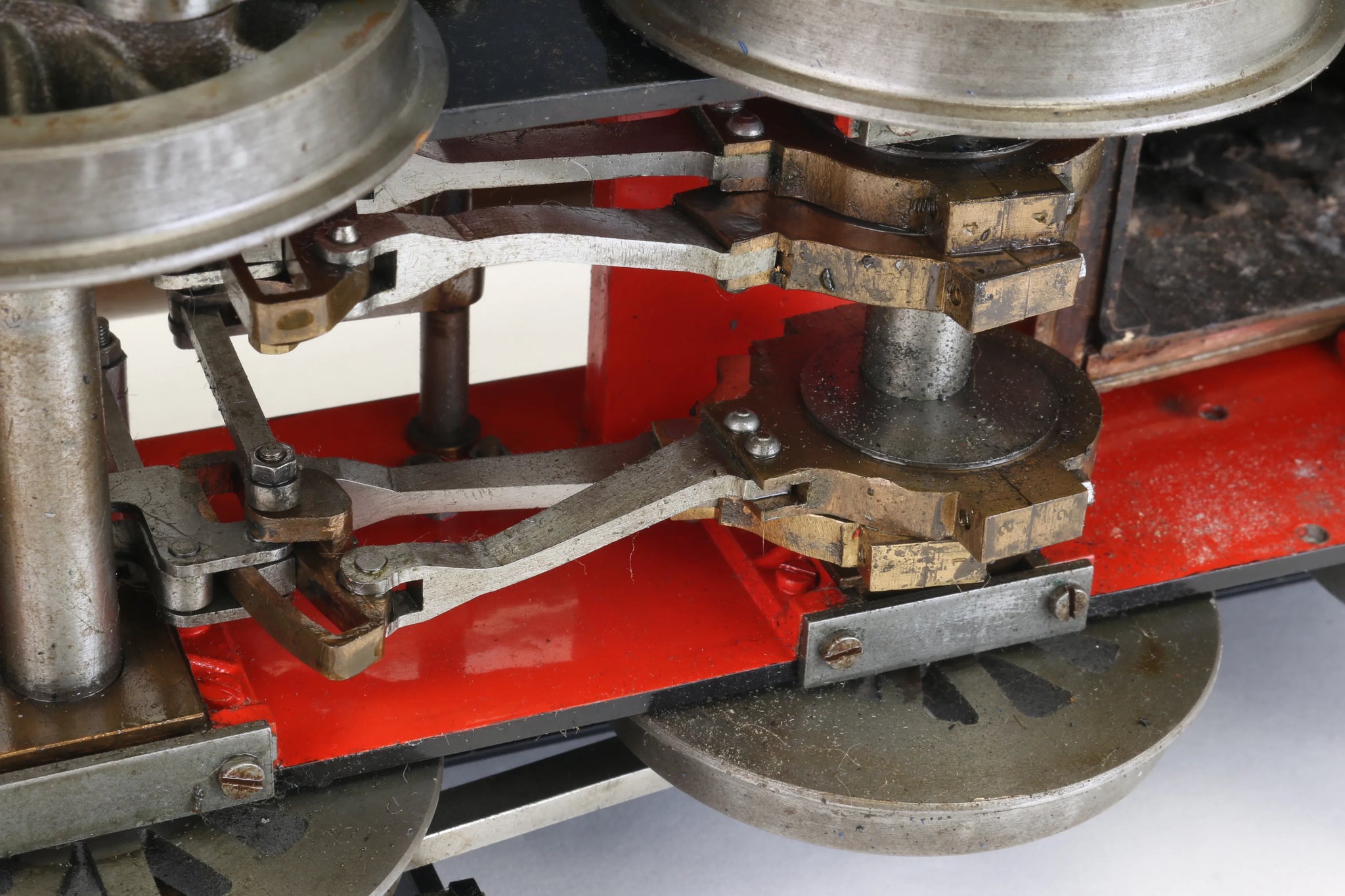

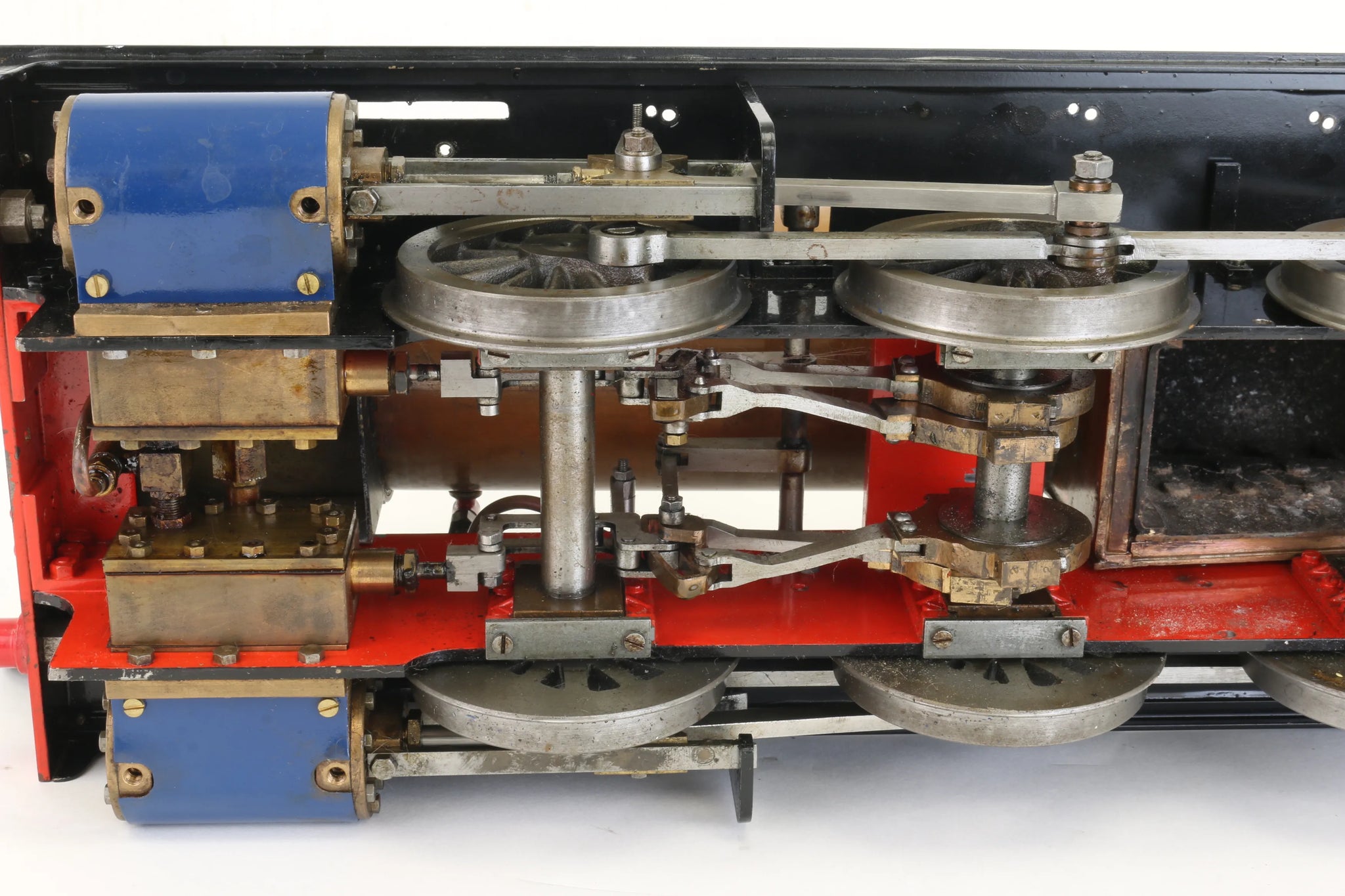

Valve gear

Stephensons

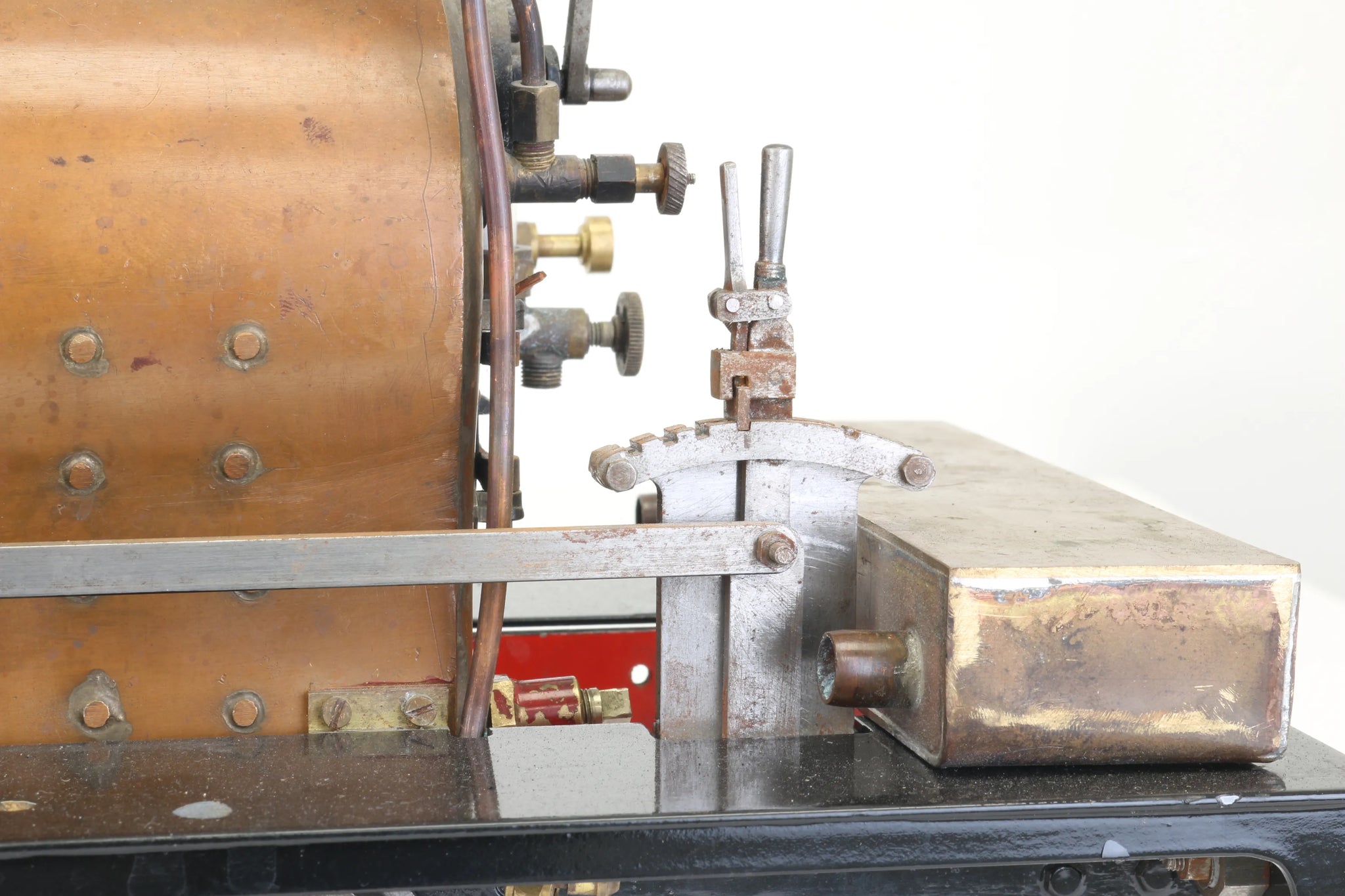

Reverser type

pole

Boiler maker

Morewood Boilers

Boiler type

locomotive

Boiler construction

silver soldered

Boiler material

copper

Working pressure

80

CE/UKCA mark

n/a - pre-2002

Year built

1983

Boiler number

405

Safety valve type

spring

Safety valve

2

Superheater type

flue tube

Superheater

2

Pack

Medium carton

Date out

May-18
