9781

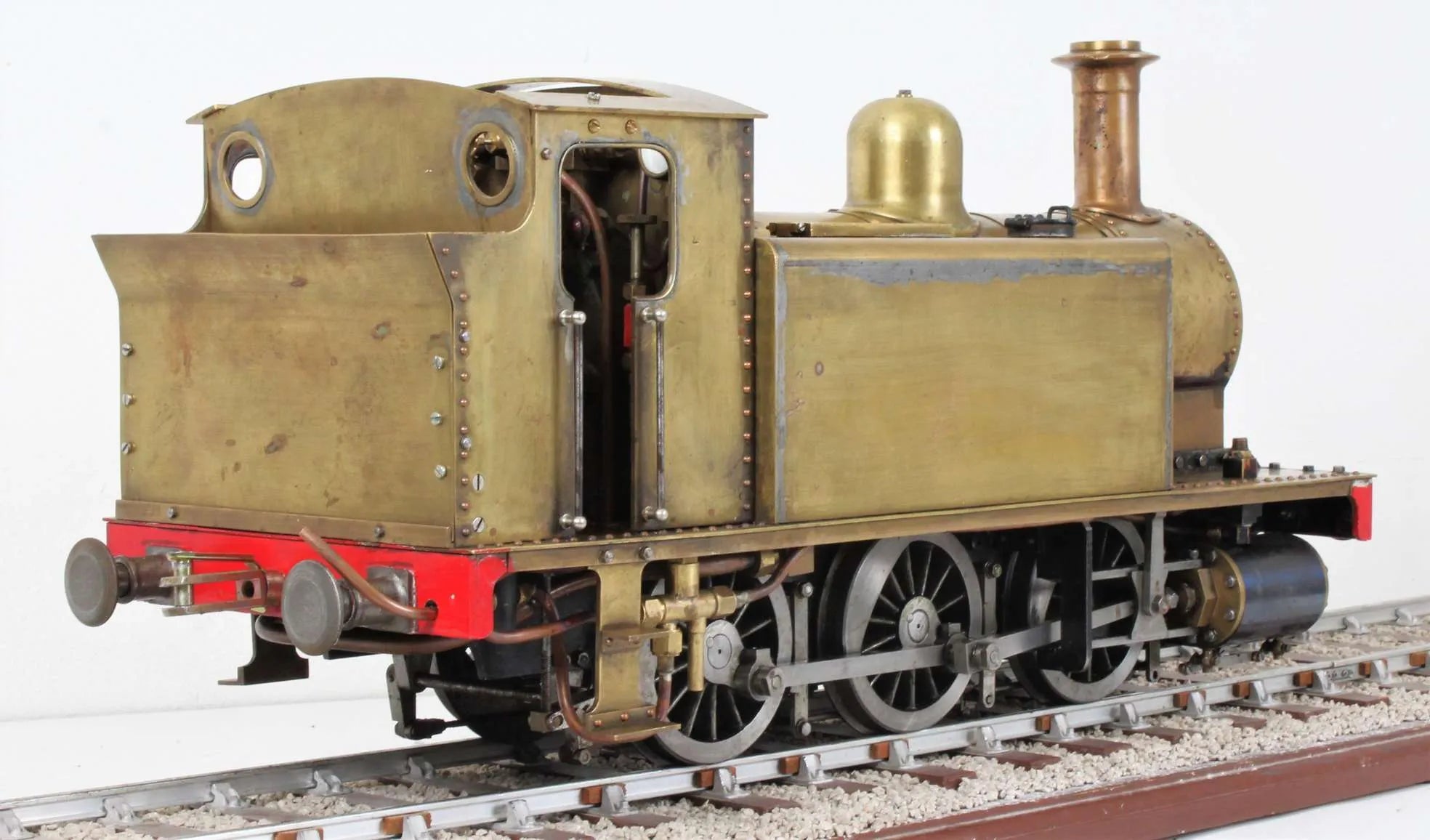

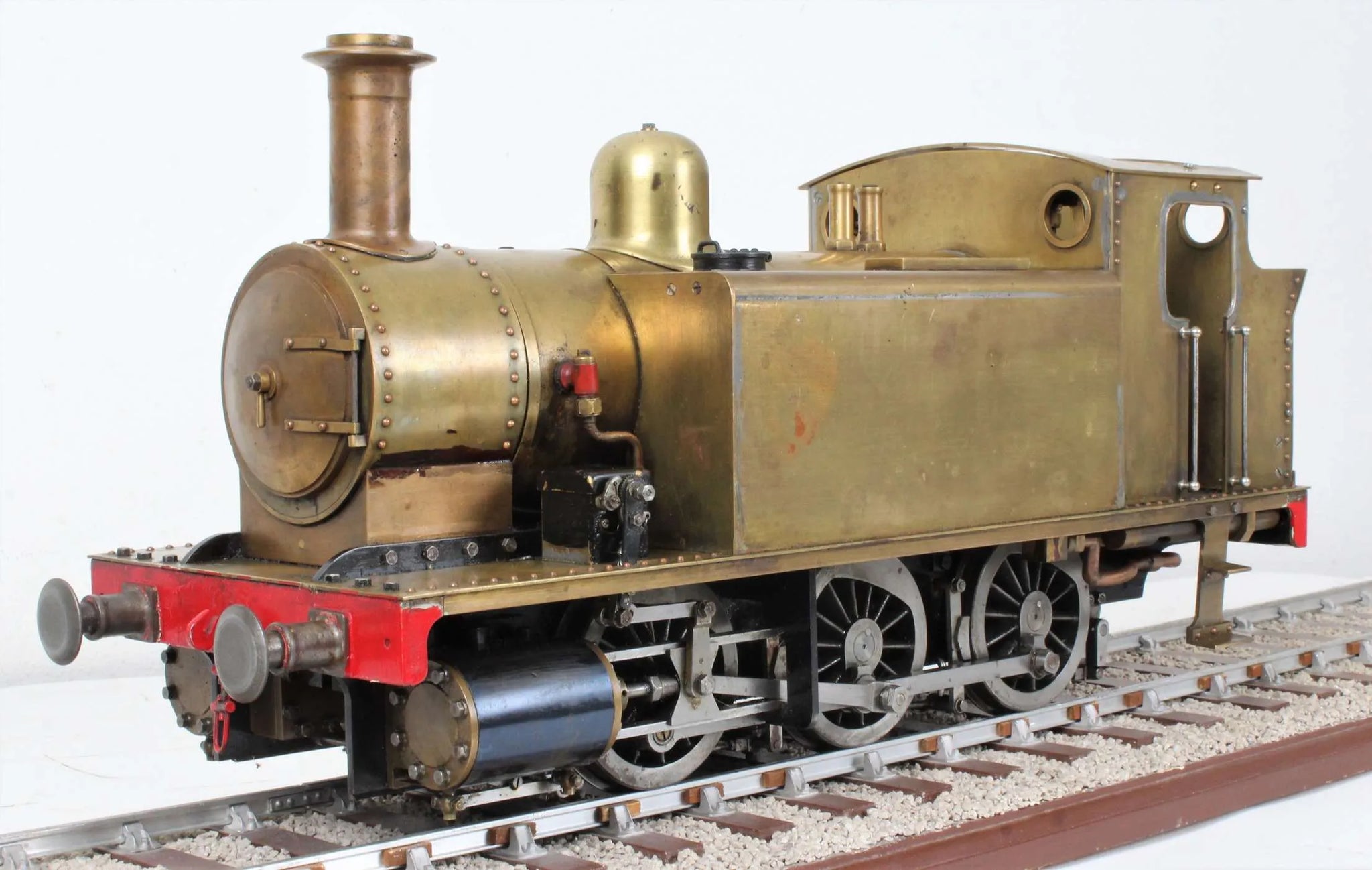

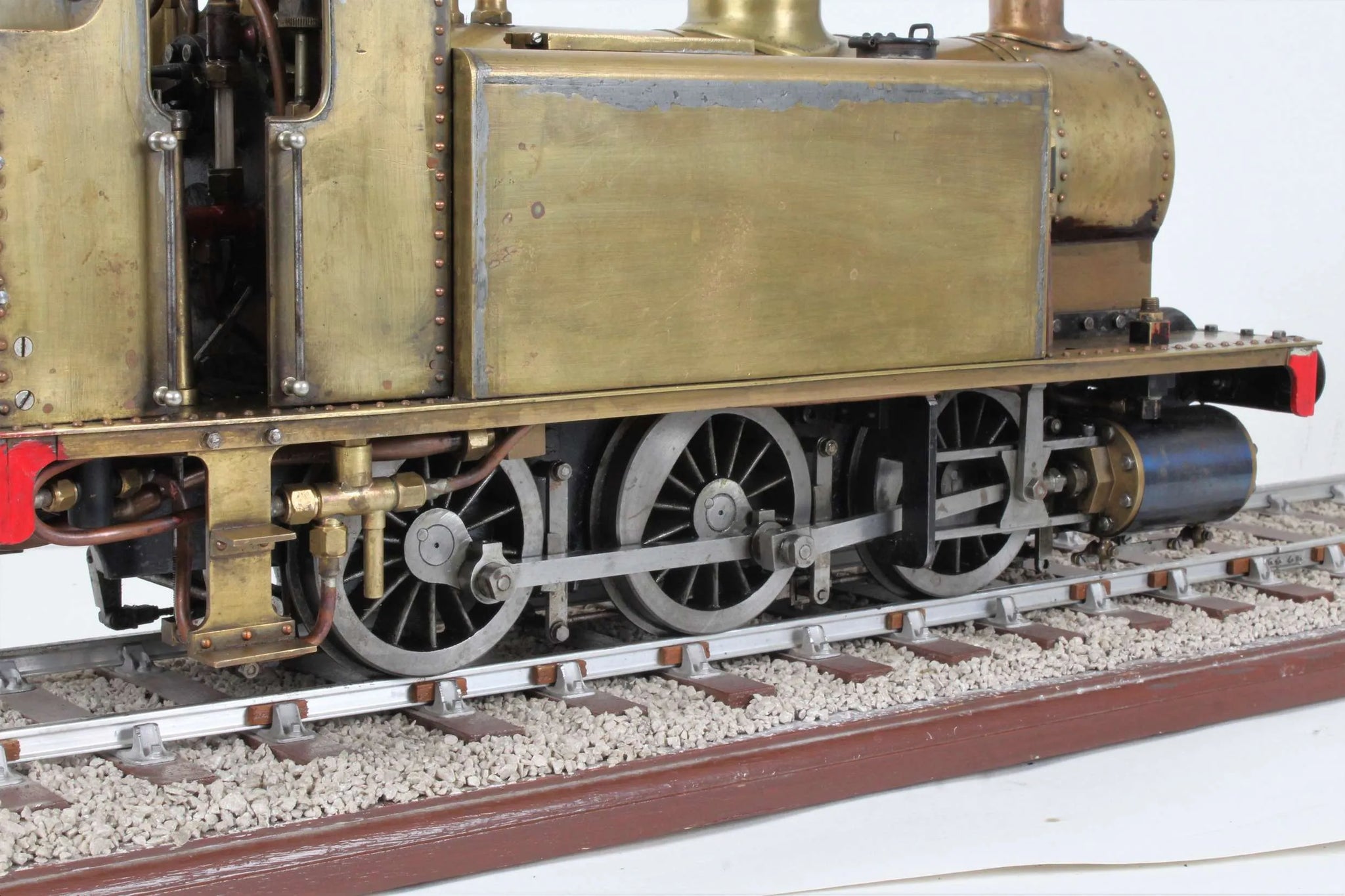

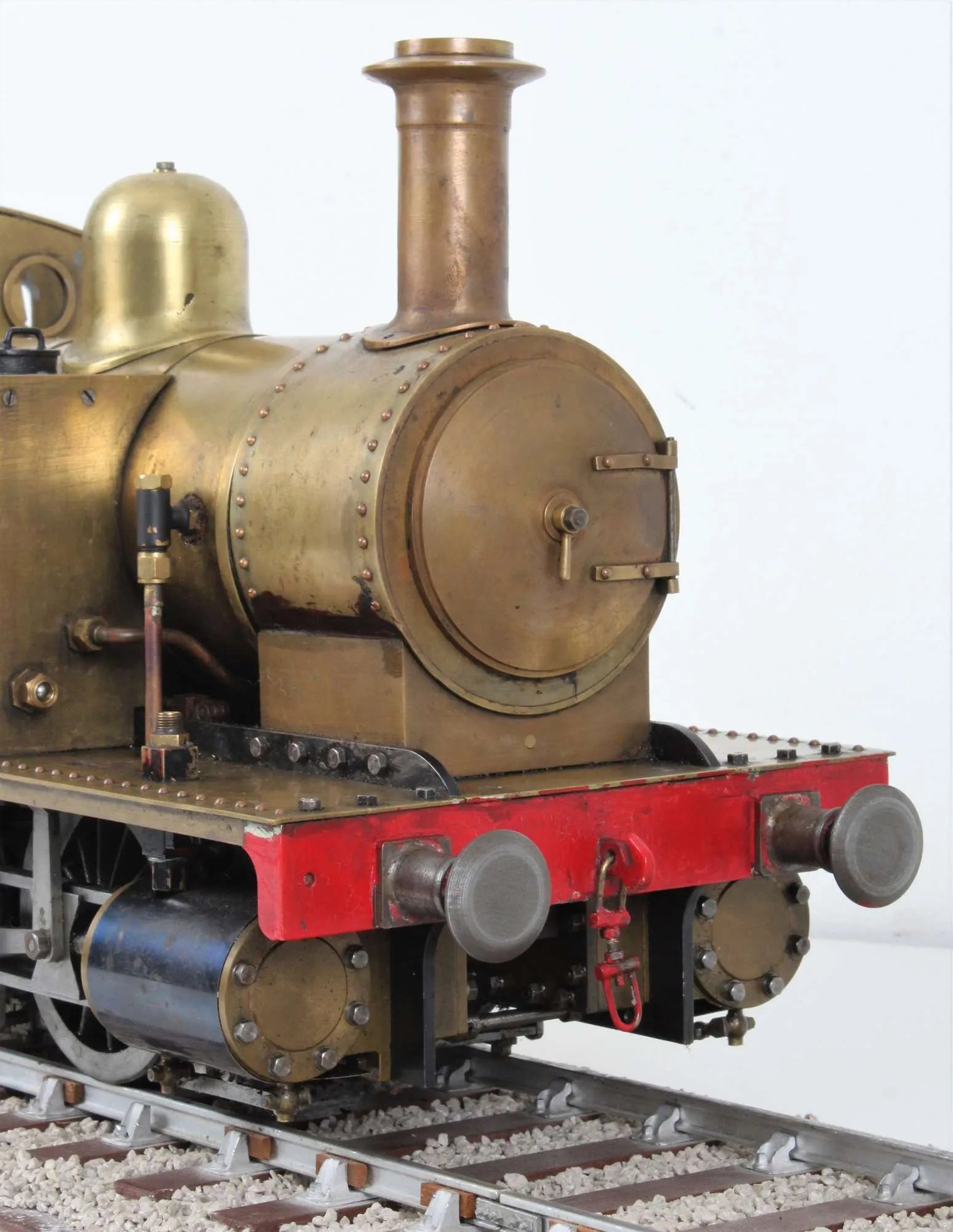

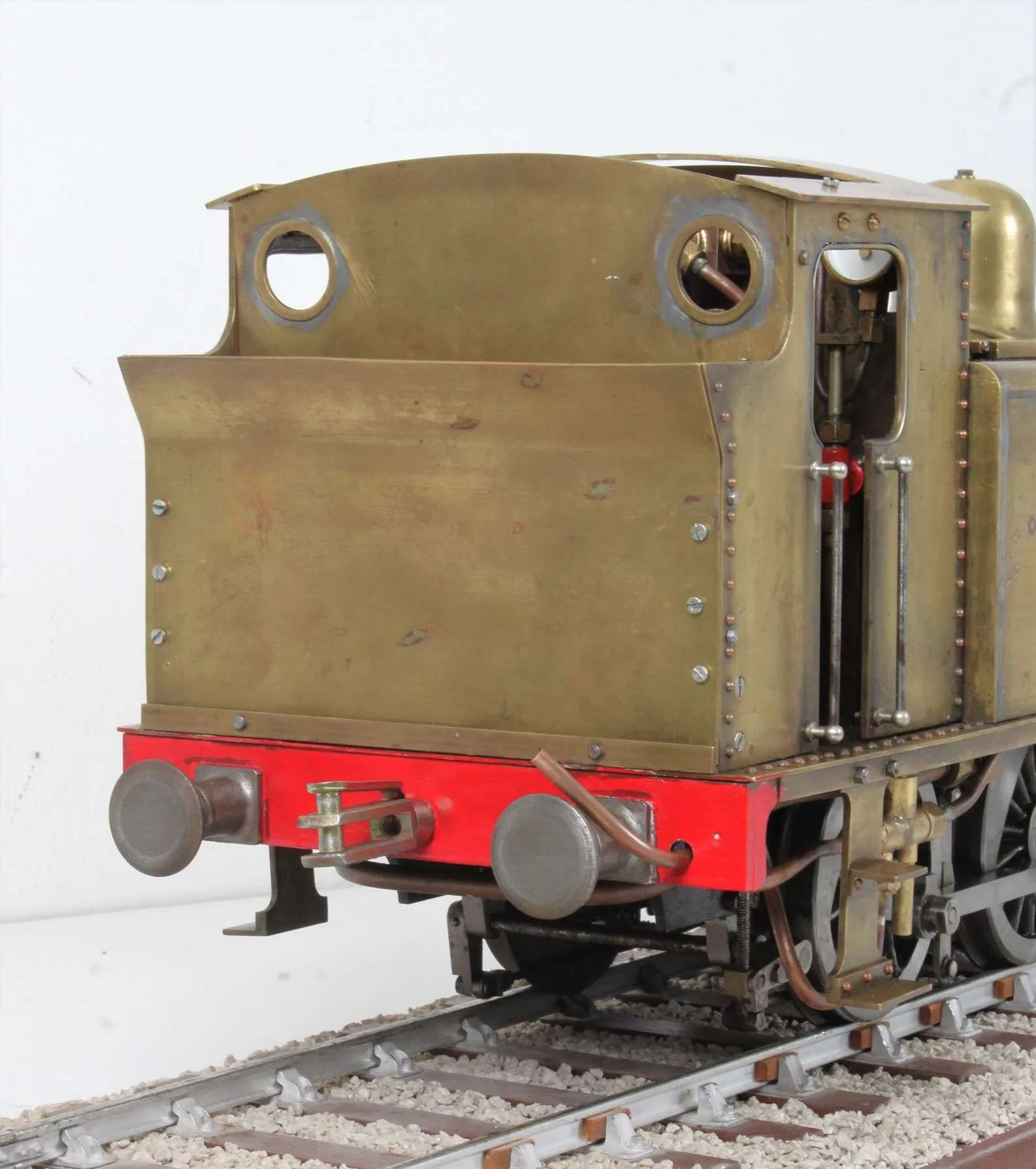

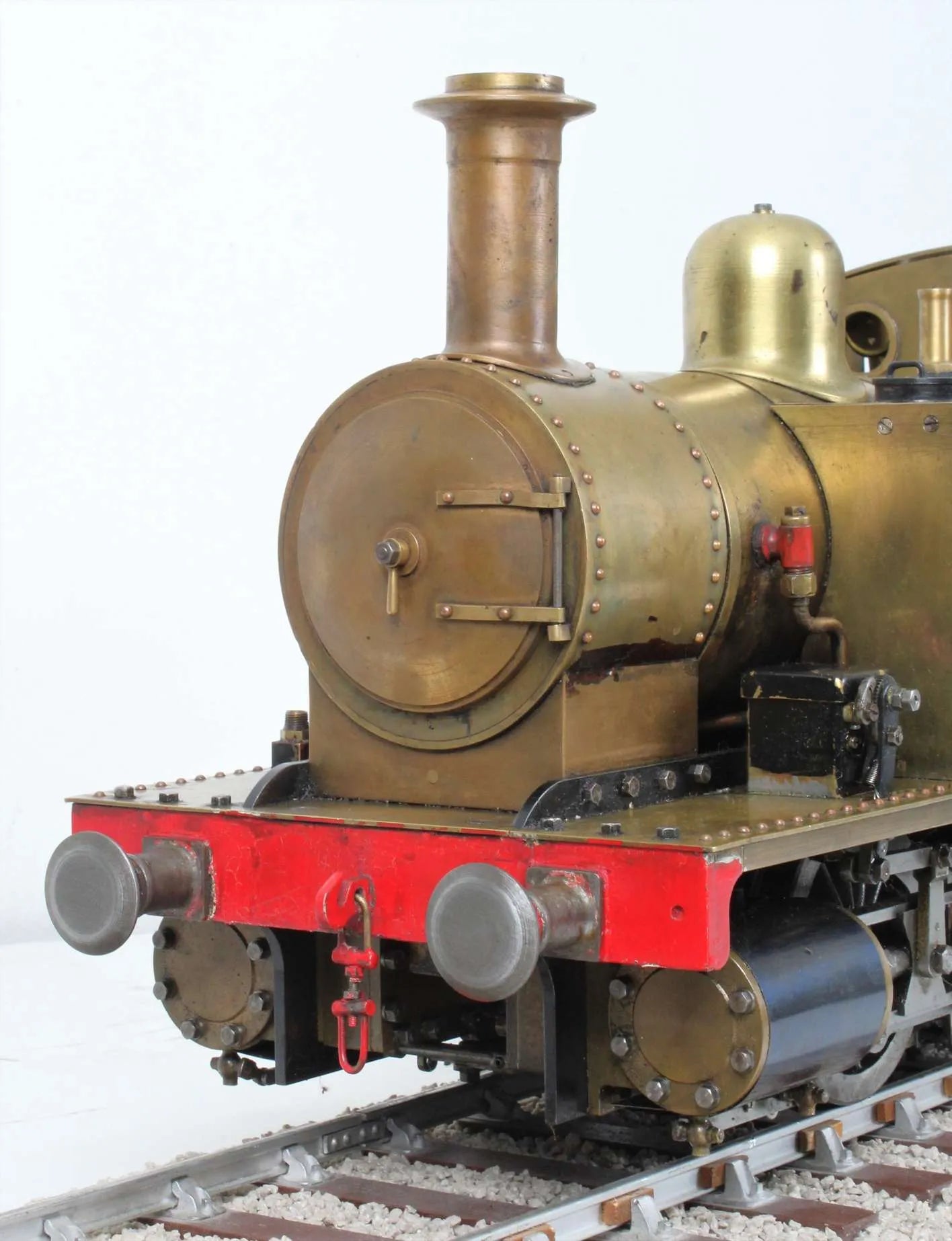

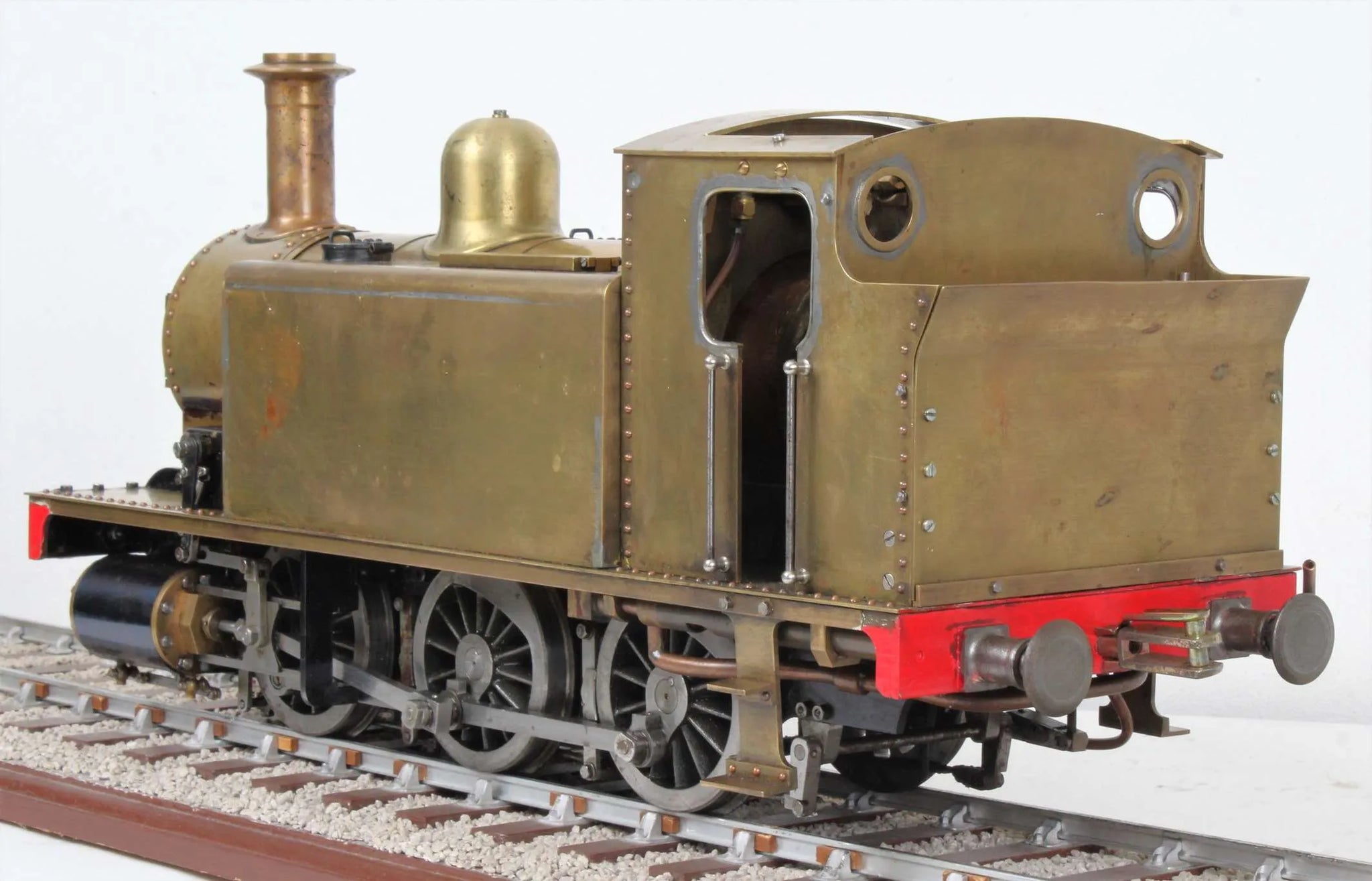

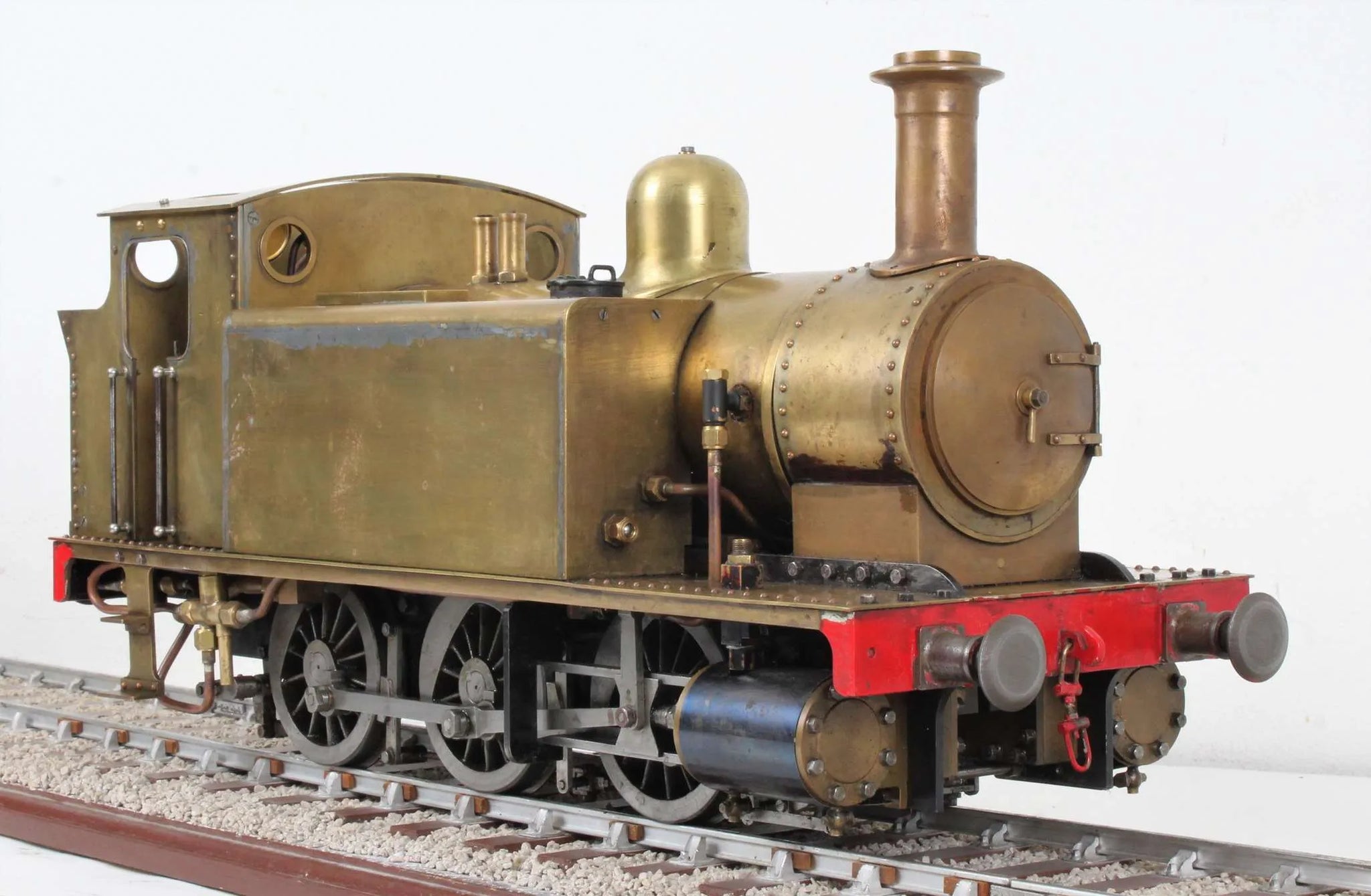

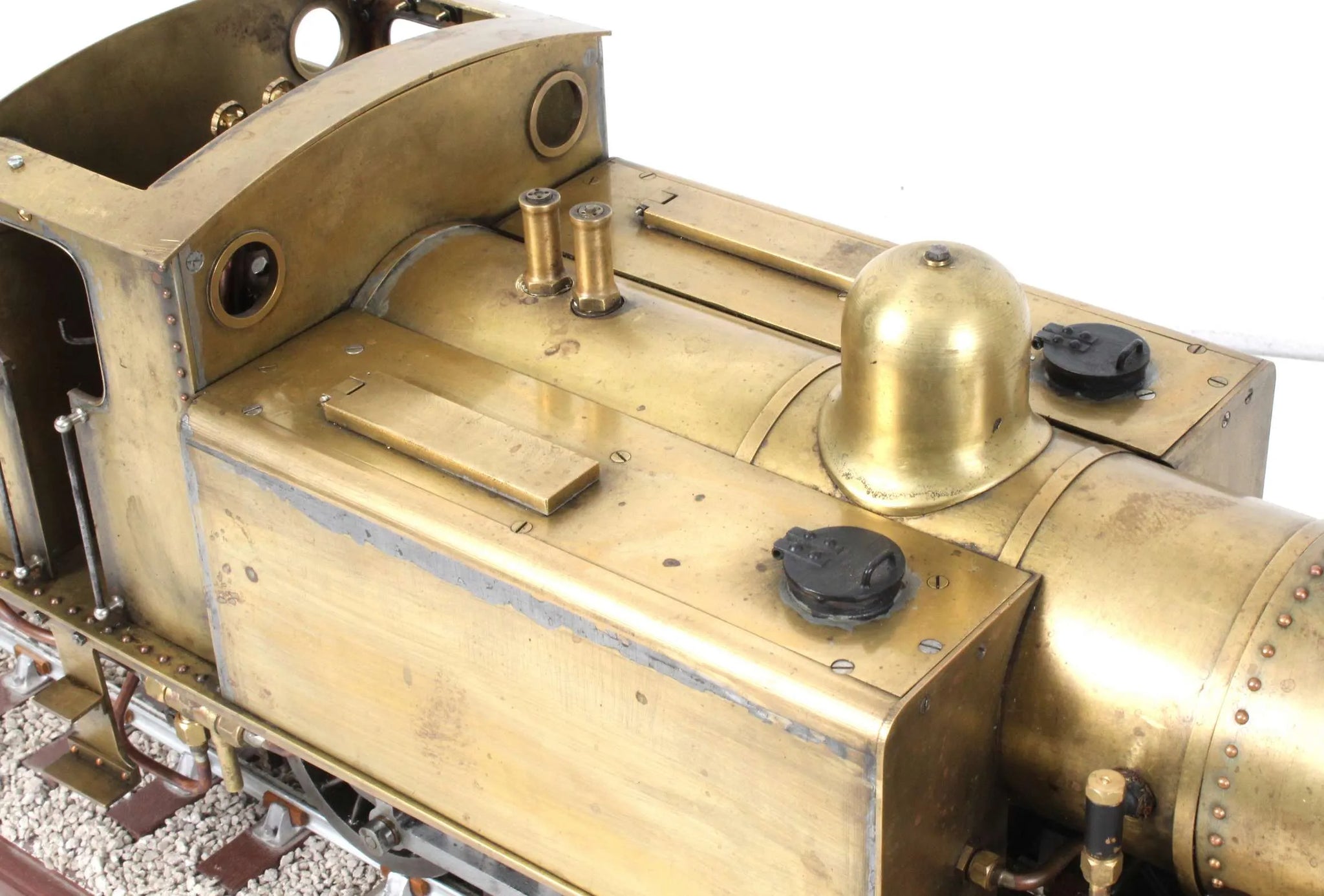

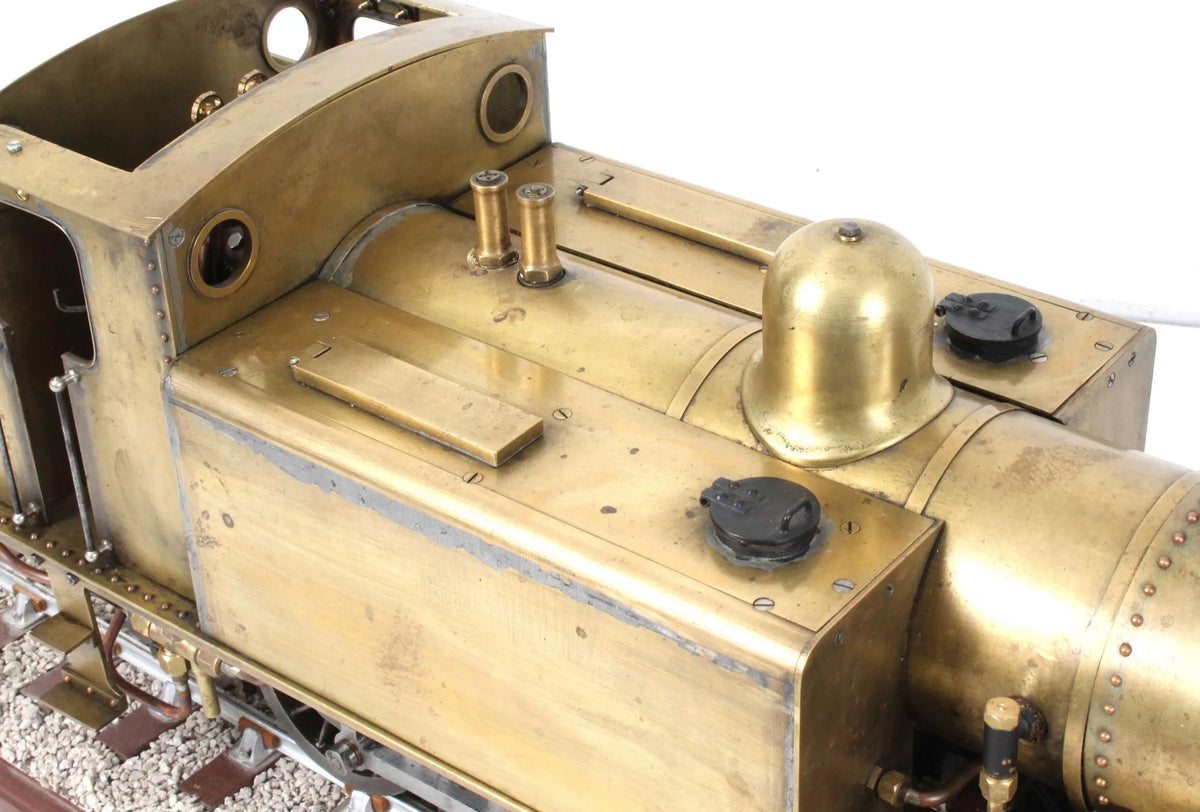

A particularly well-made example of a 3 1/2 inch gauge Caledonian Railway 0-6-0T built to Martin Evans' popular "Rob Roy" design.

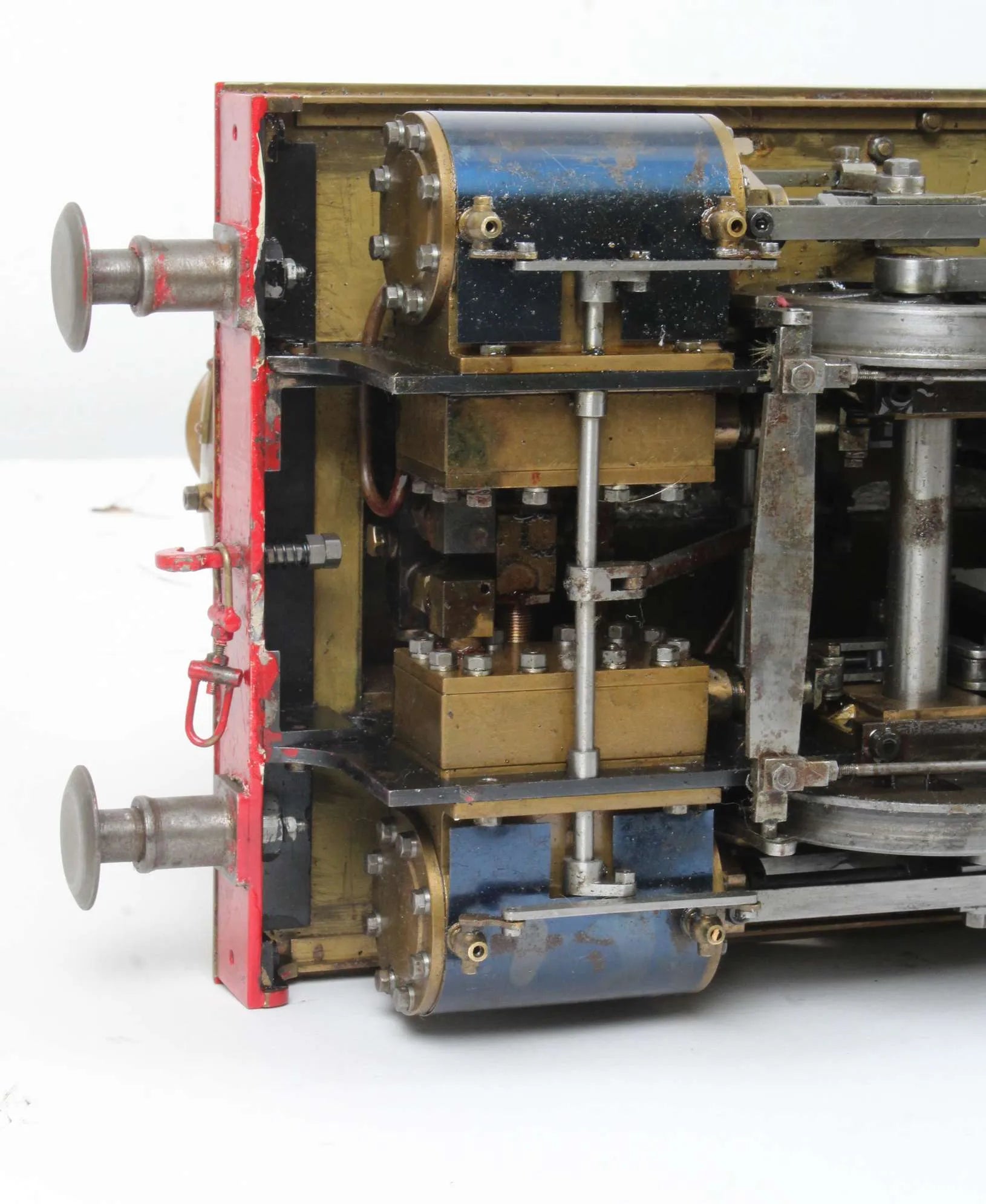

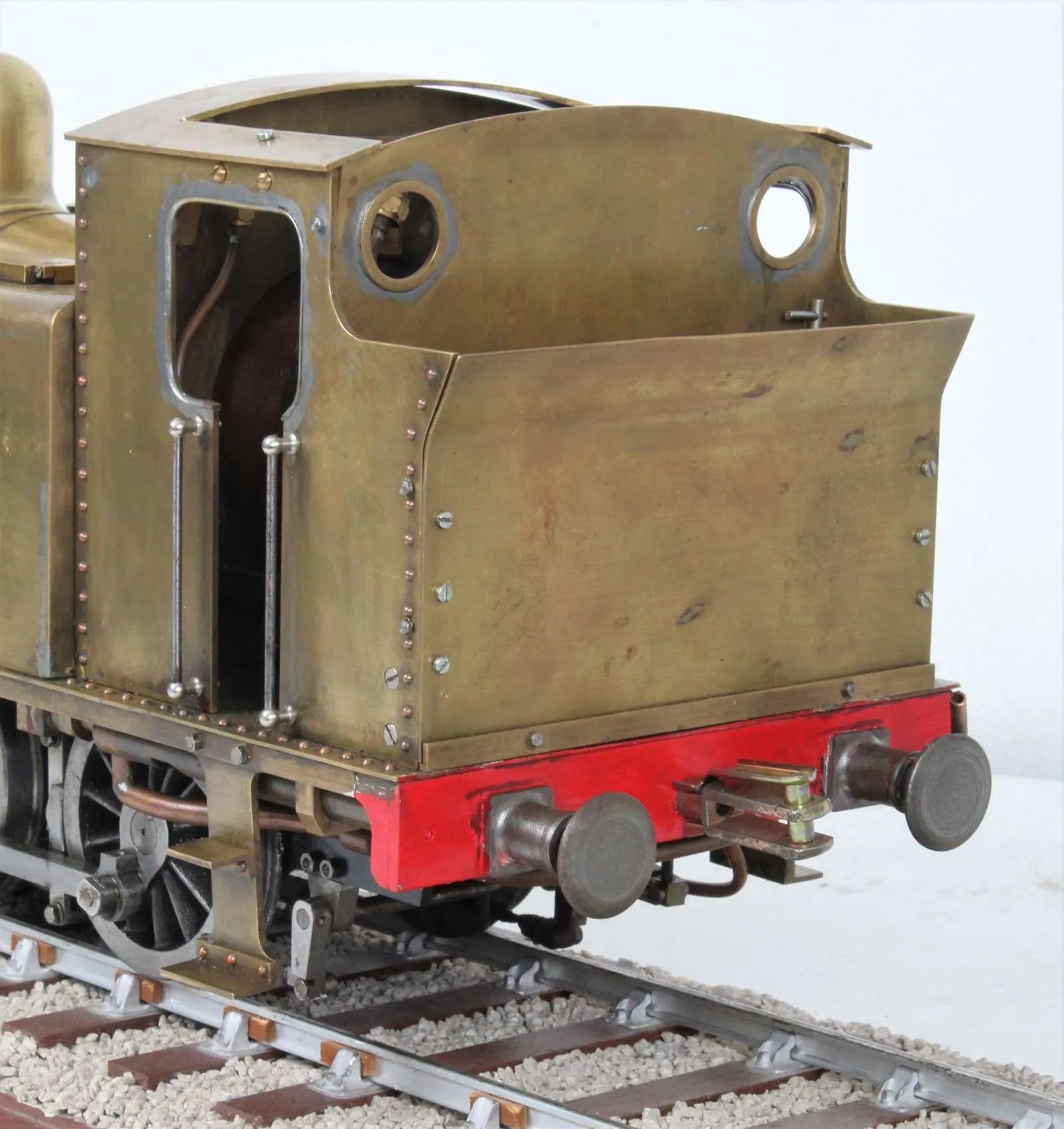

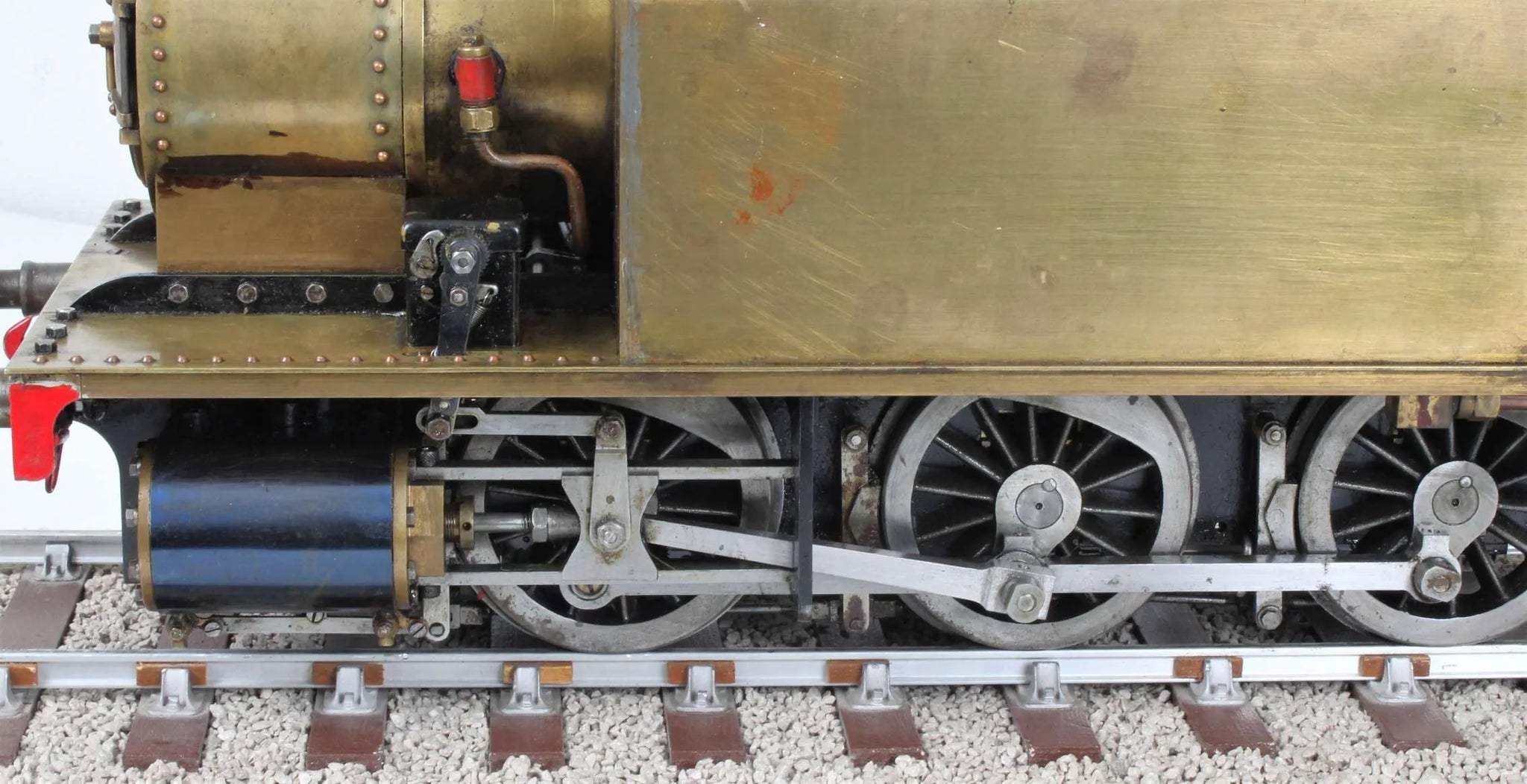

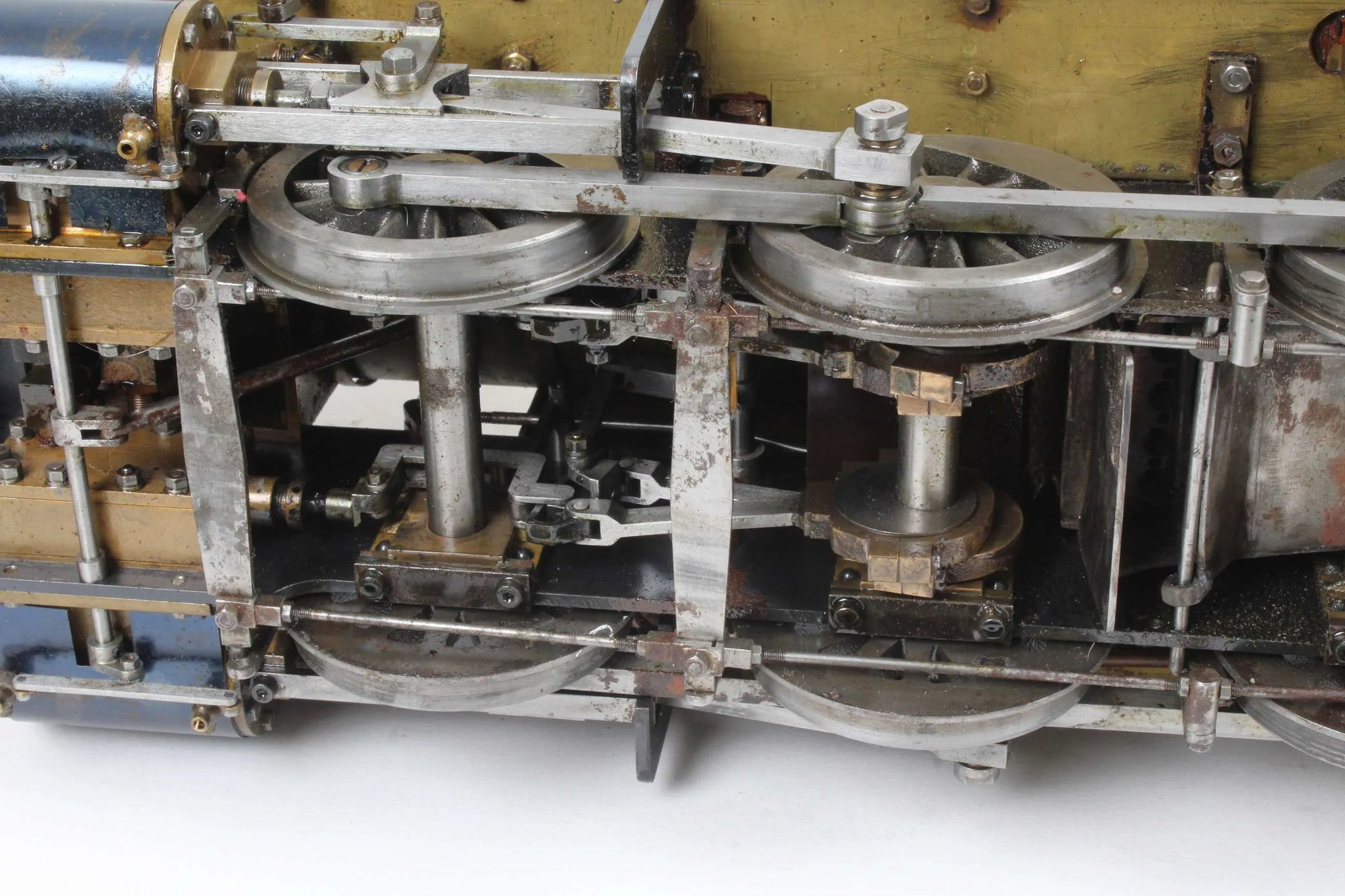

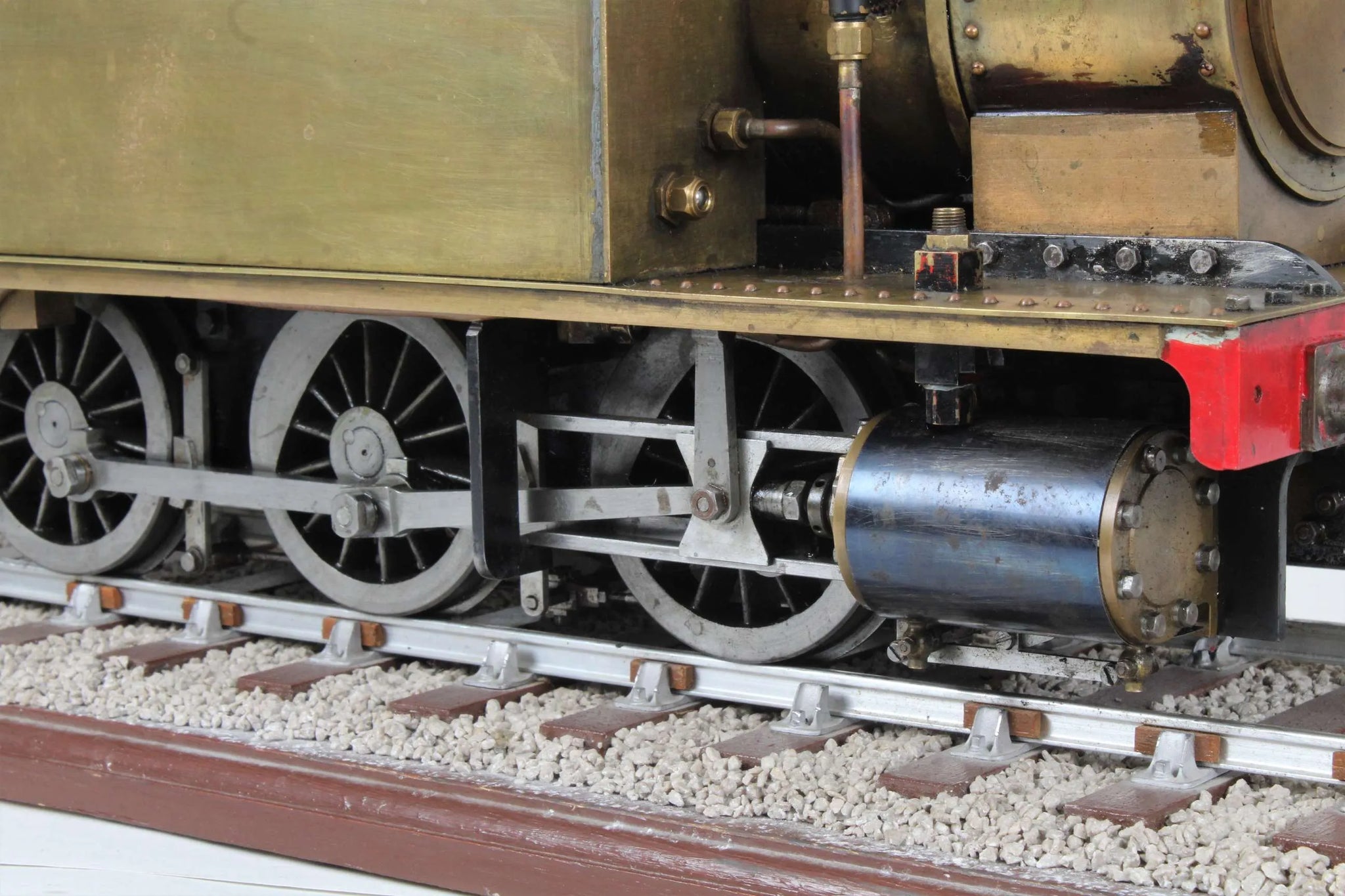

Complete, although unpainted from new, the engine has been steamed in the past. Fit and finish of motionwork and valve gear is to a high standard, platework is neatly formed.
Boiler has previous club history with hydraulic test valid to May 2025, steam test to May 2022.

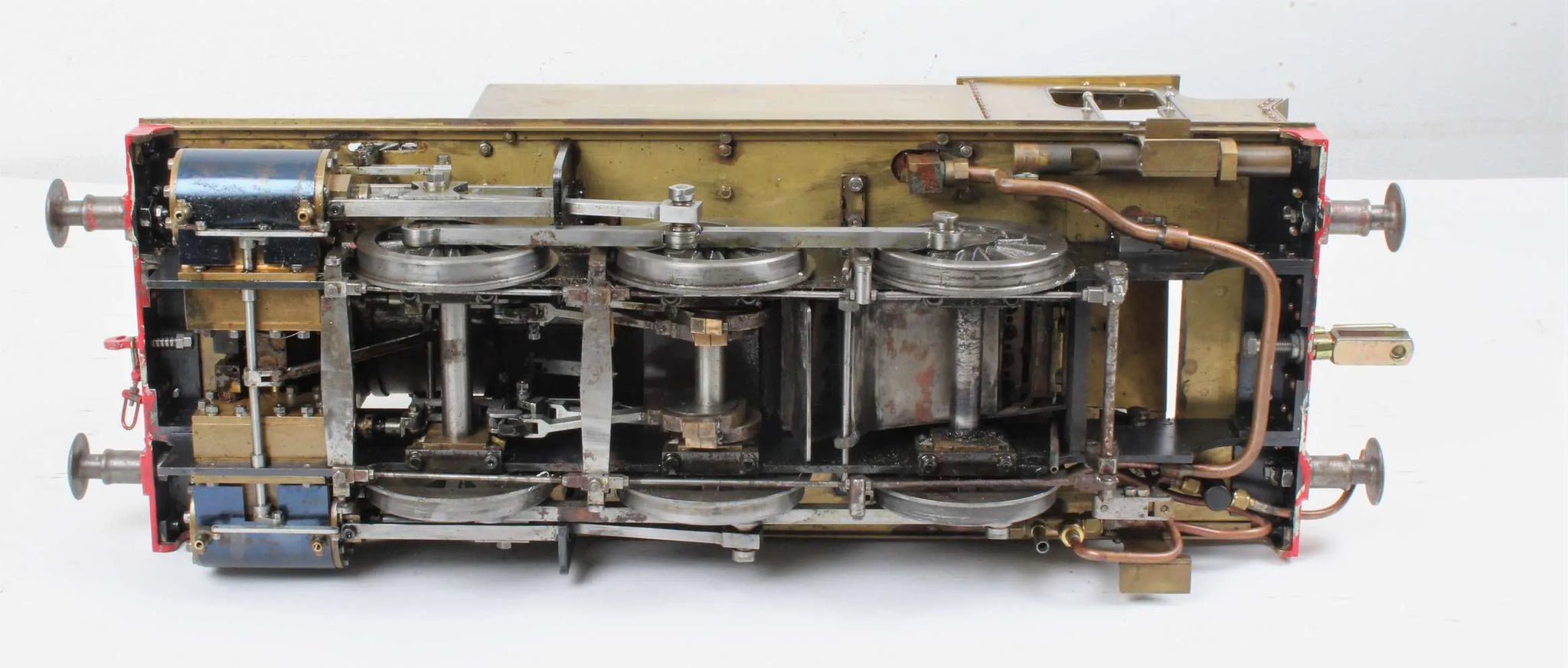

It's had recent hydraulic test in our workshop with certification issued for same, the chassis runs well on air.
Stock code |
9781 |
Gauge |
3 1/2 inch |
Length/inches |
21.5 |
Width/inches |
7.5 |
Height/inches |
10.5 |
Weight/Kg |
19 |
Wheel material |
cast iron |
Axlebox type |
plain bearing |
Cylinder material |
gunmetal |
Valve type |
slide |
Valve gear |
Stephensons |
Reverser type |
pole |
Lubricator type |
mechanical |
Boiler type |
locomotive |
Boiler construction |
silver soldered |
Boiler material |
copper |
Working pressure |
80 |
Boiler number |
N280377 |
Safety valve type |
spring |
Safety valve |
2 |
Whistle |
yes |
Hand pump |
1 |
Mechanical pump |
1 |
Injector |
1 |
Superheater type |
flue tube |
Superheater |
2 |
Date out |
Jan-25 |
Hydraulic test valid to |
18-Jul-25 |
