10217
Unused in some years the engine will require work to recommission for steaming; valves currently leak, we suspect they're stuck off the port face, the hand brake is ineffective.
Boiler has had recent hydraulic test, with new certification issued.
Stock code |
10217 |
Gauge |
3 1/2 inch |
Length/inches |
22 |
Width/inches |
7 |
Height/inches |
10.5 |
Weight/Kg |
17 |
Wheel material |
cast iron |
Axlebox type |
plain bearing |
Cylinder material |
gunmetal |
Valve type |
slide |

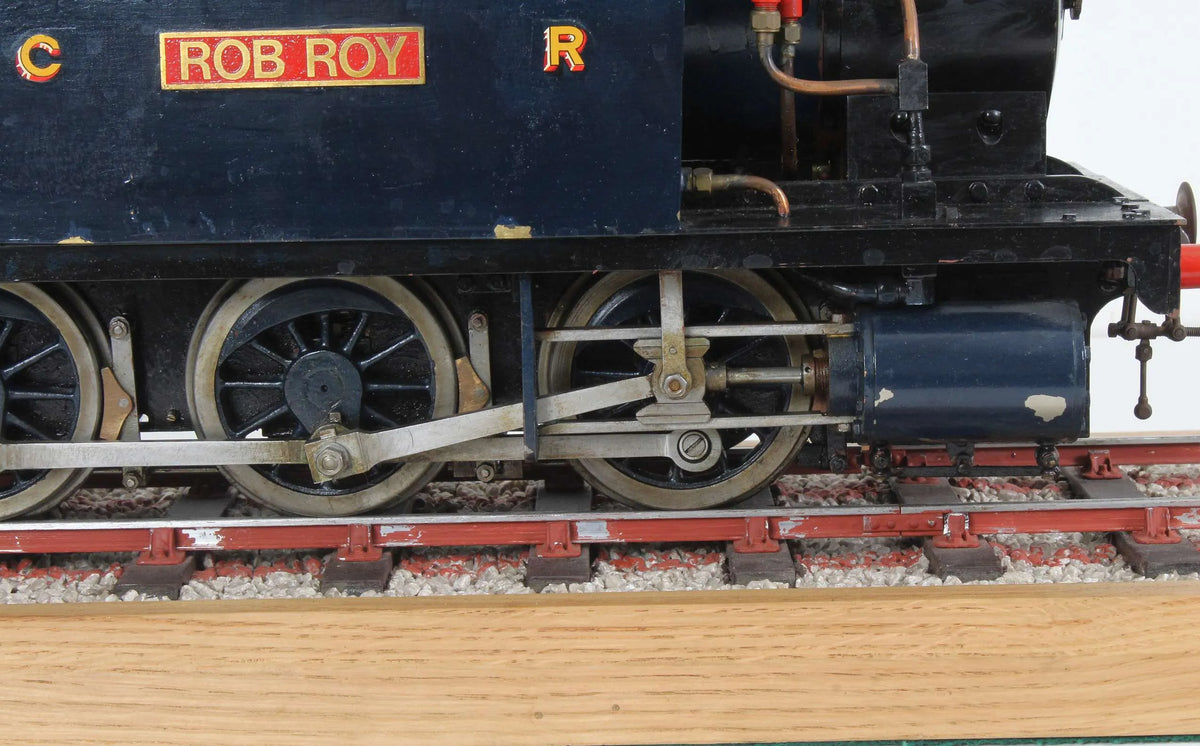

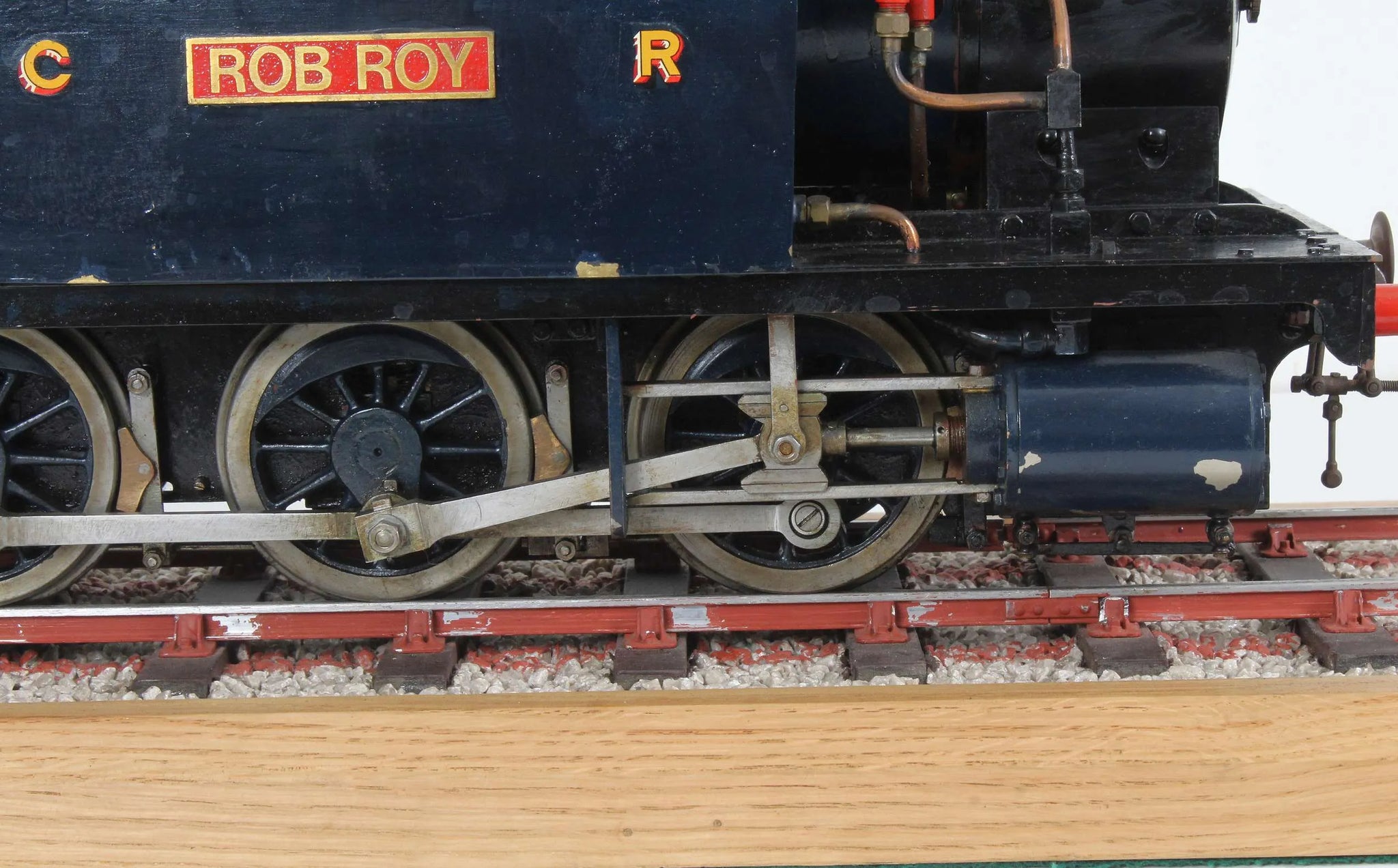

Valve gear |
Stephensons |
Reverser type |
pole |
Lubricator type |
mechanical |
Boiler type |
locomotive |
Boiler construction |
silver soldered |
Boiler material |
copper |
Working pressure |
80 |
CE/UKCA mark |
n/a pre-2002 |
Year built |
1985 |
Boiler number |
18183 |
Safety valve type |
spring |
Safety valve |
2 |
Whistle |
yes |
Hand pump |
1 |
Mechanical pump |
1 |
Superheater type |
flue tube |
Superheater |
2 |
Date out |
Jun-22 |
Hydraulic test valid to |
24-Jan-26 |
