10256

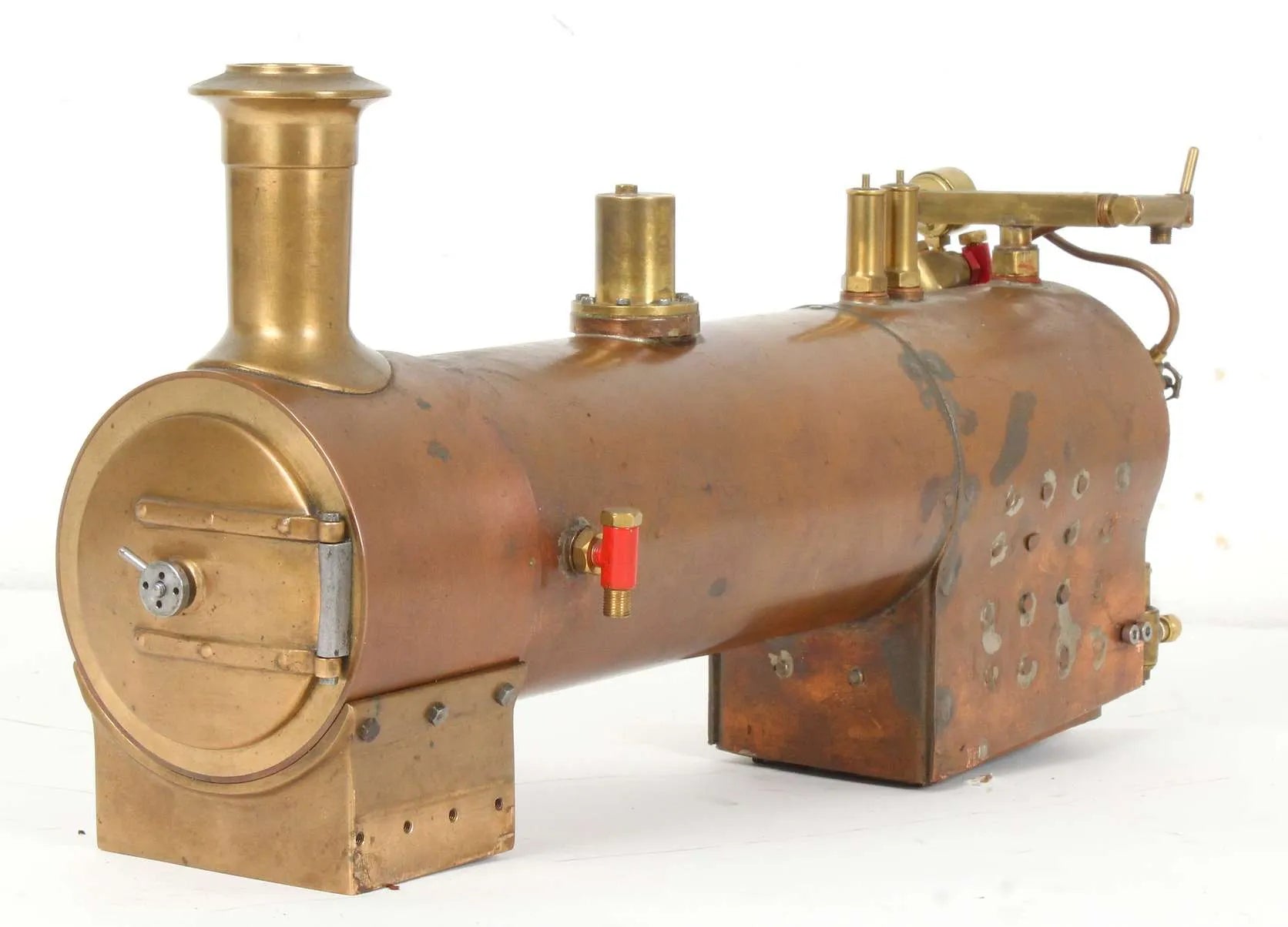

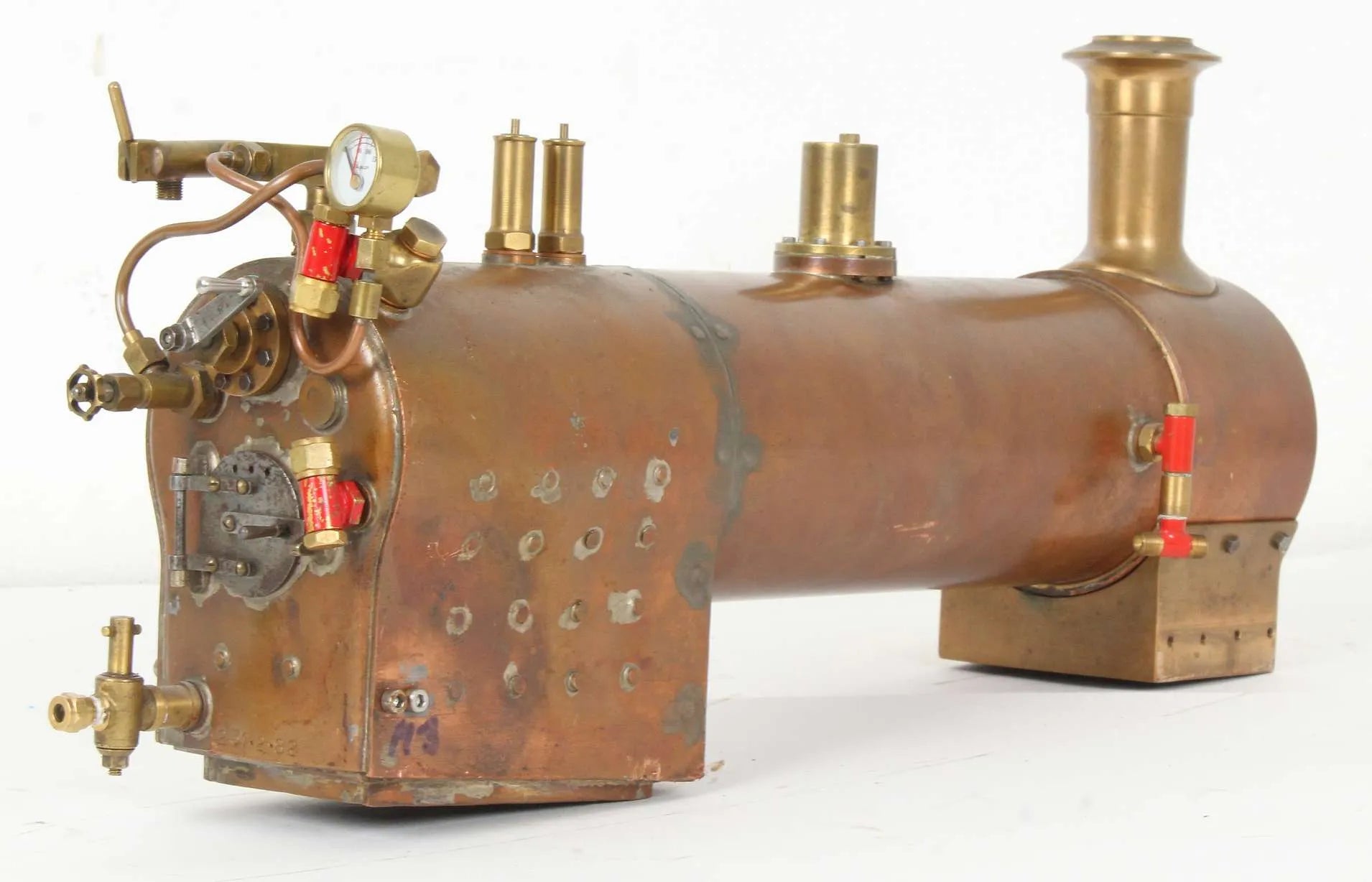

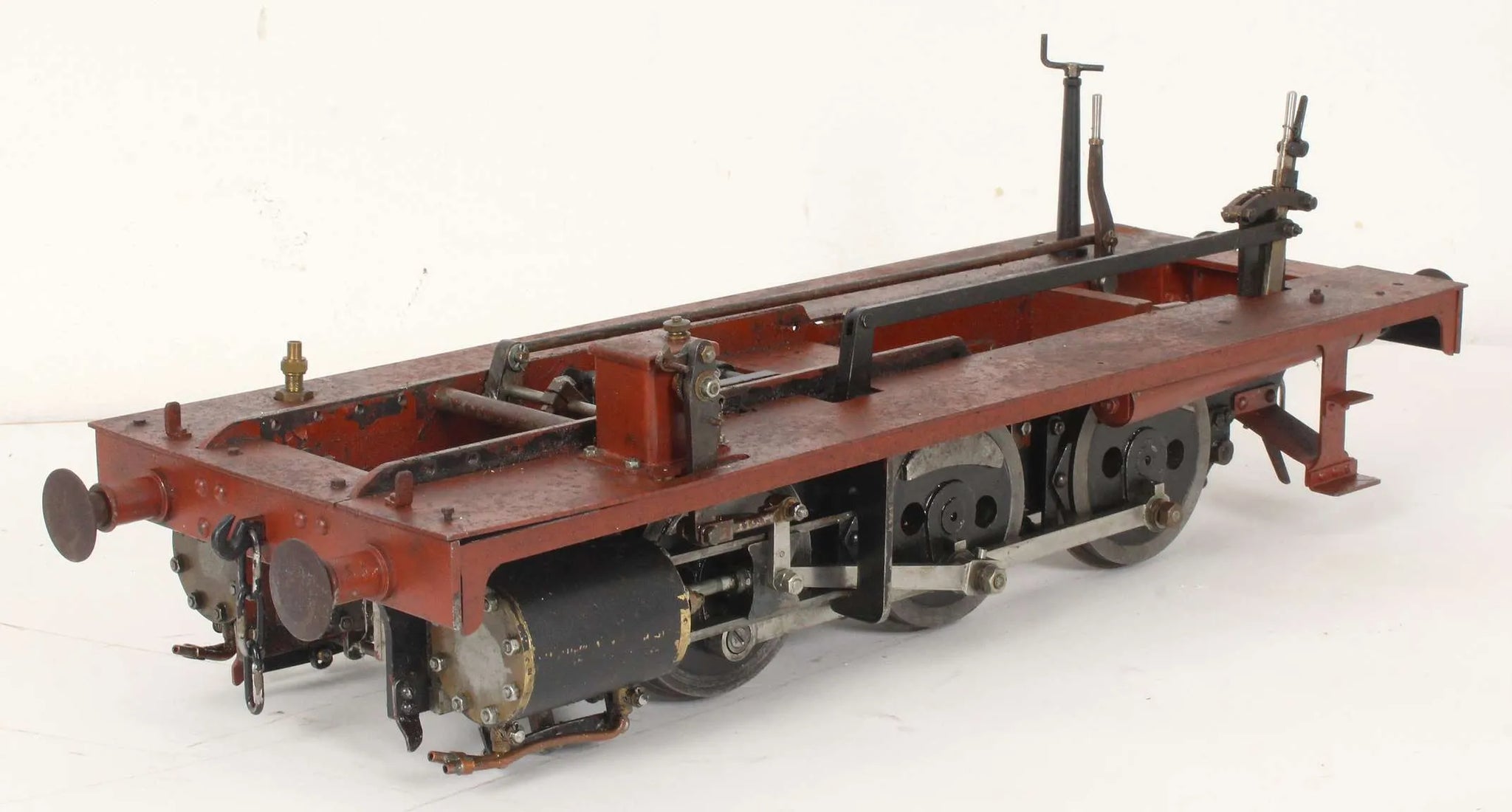

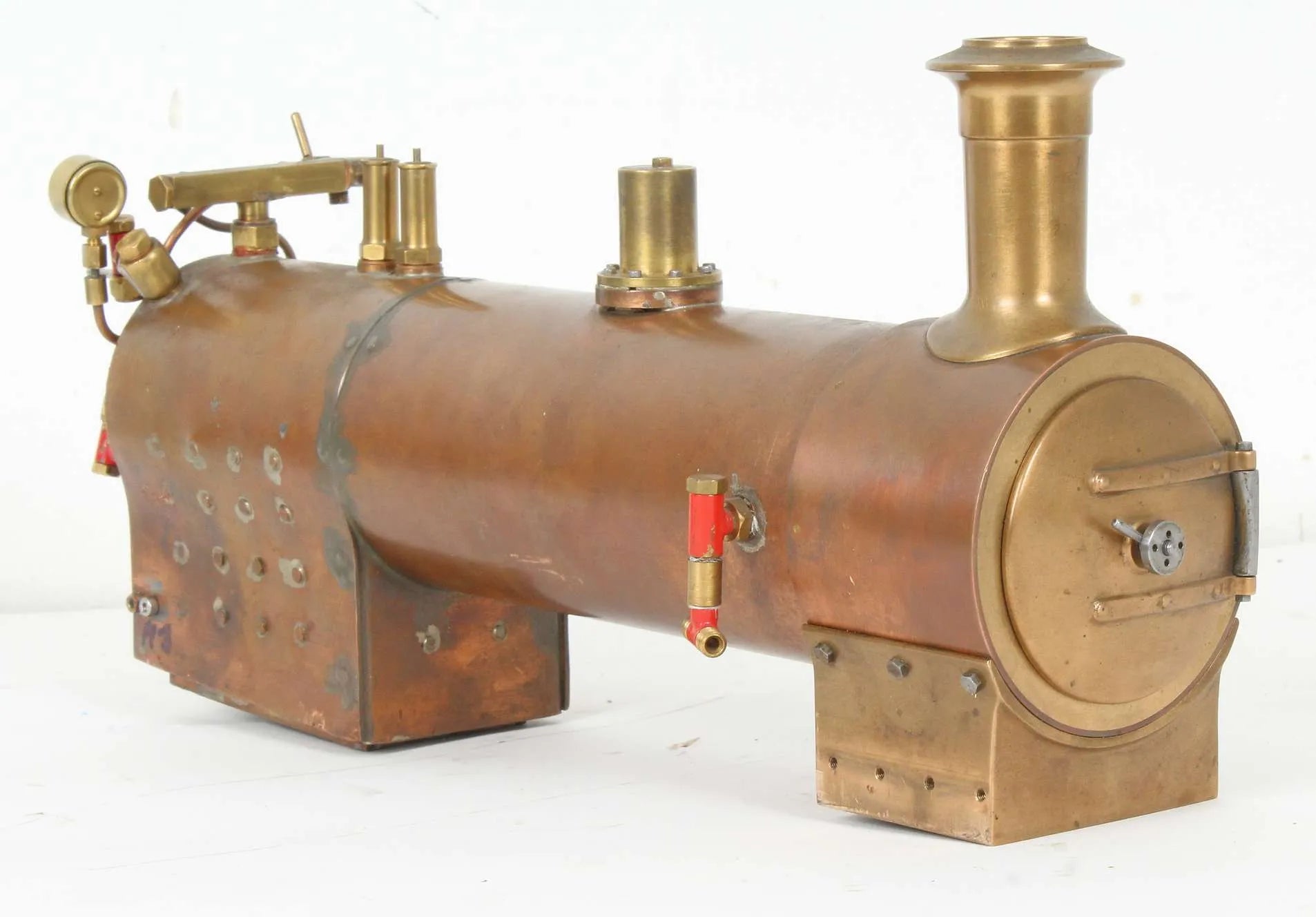

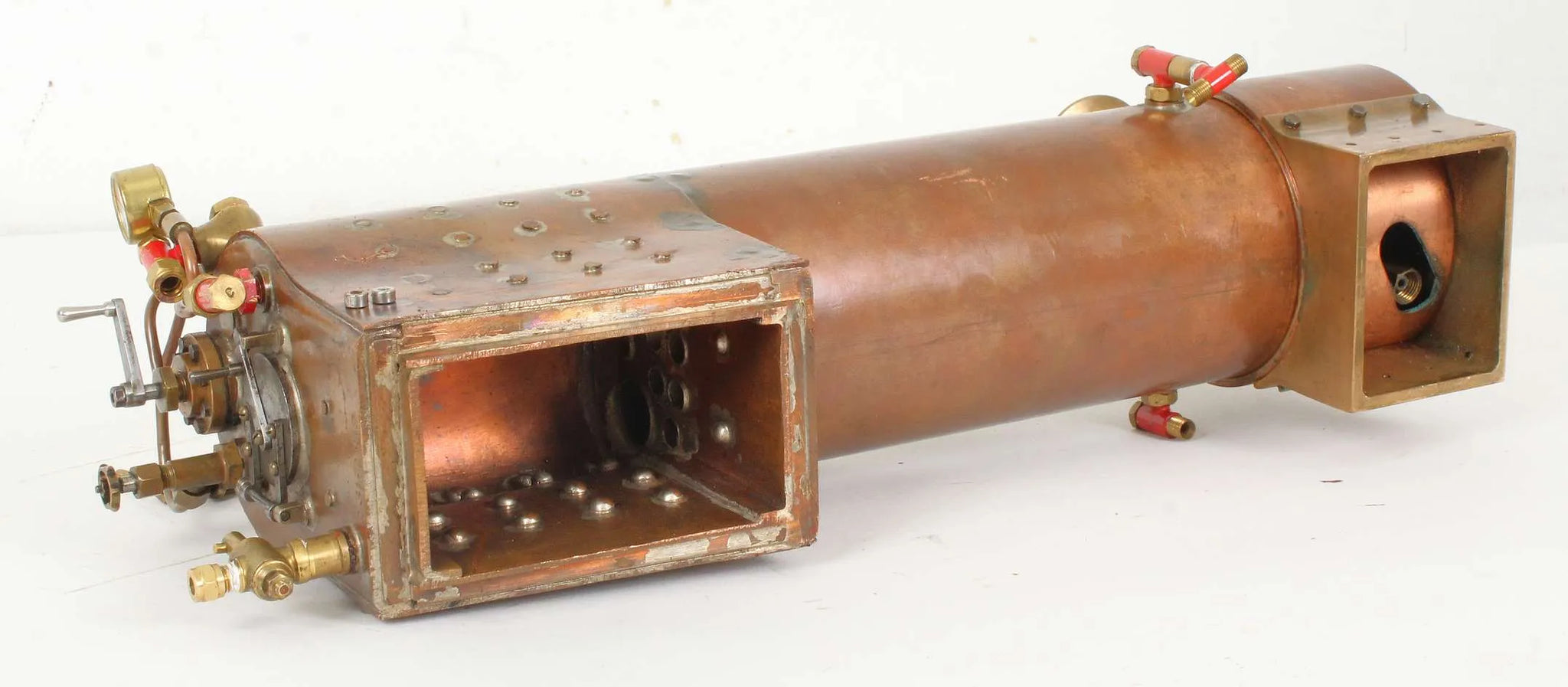

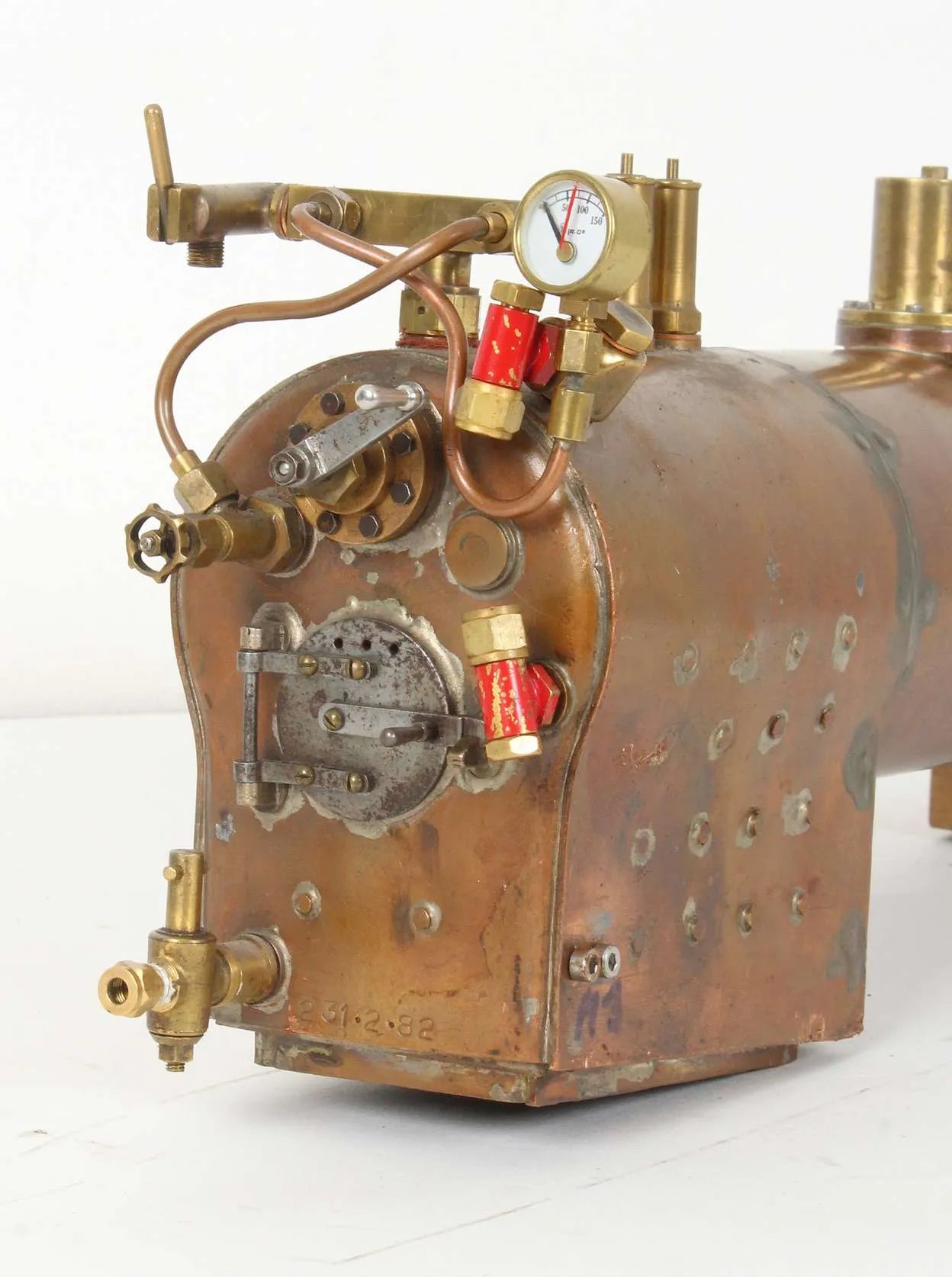

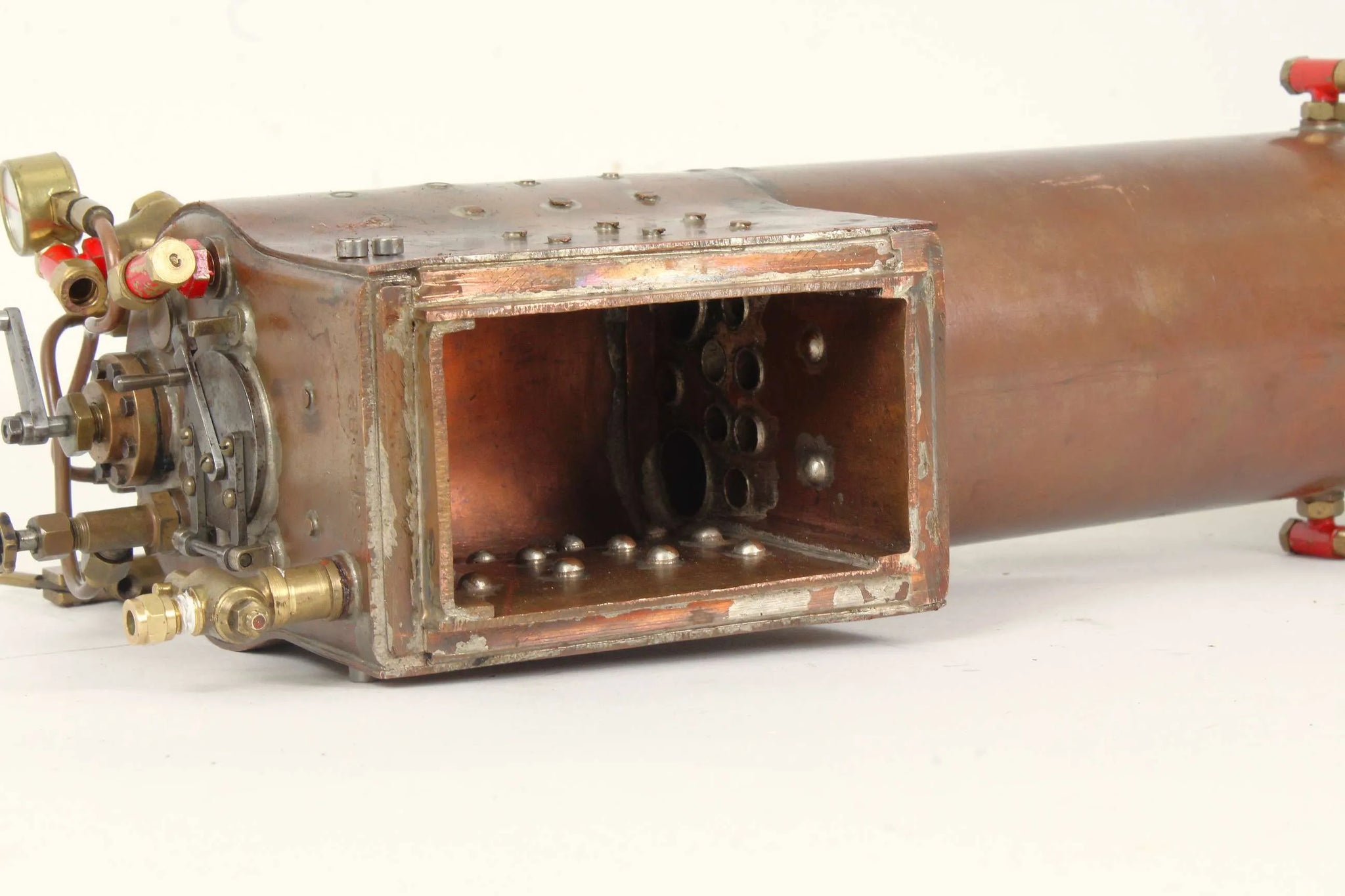

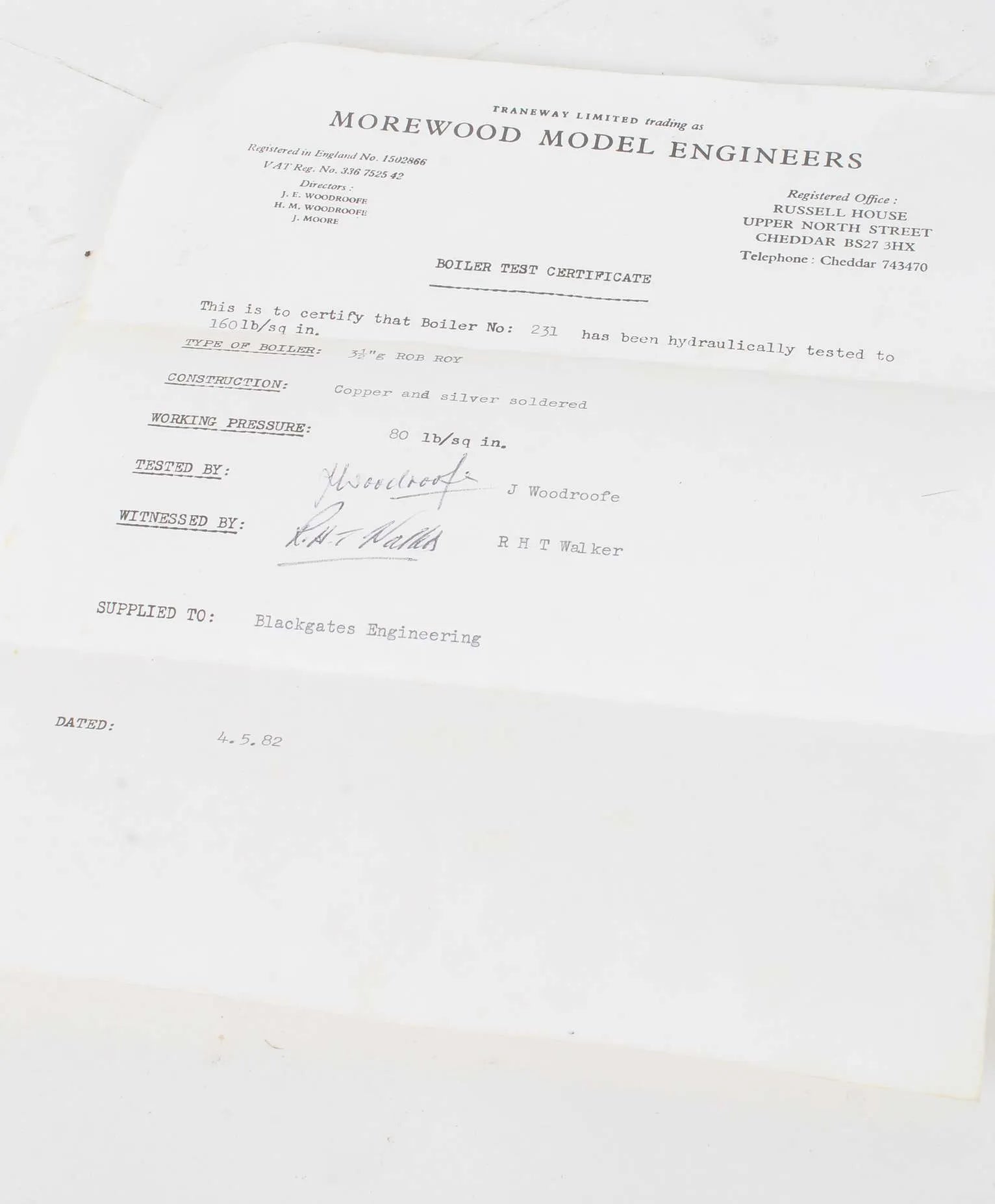

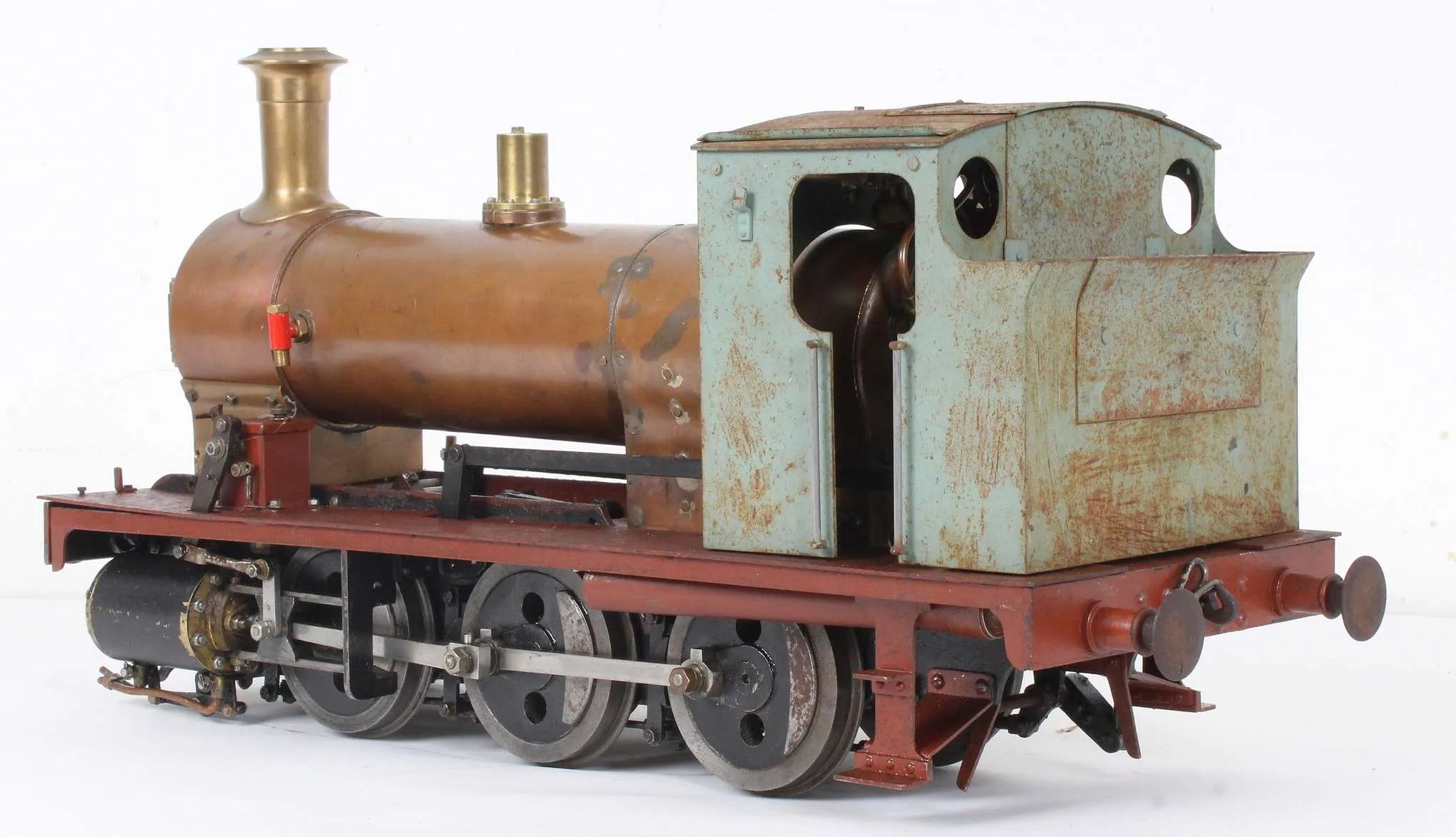

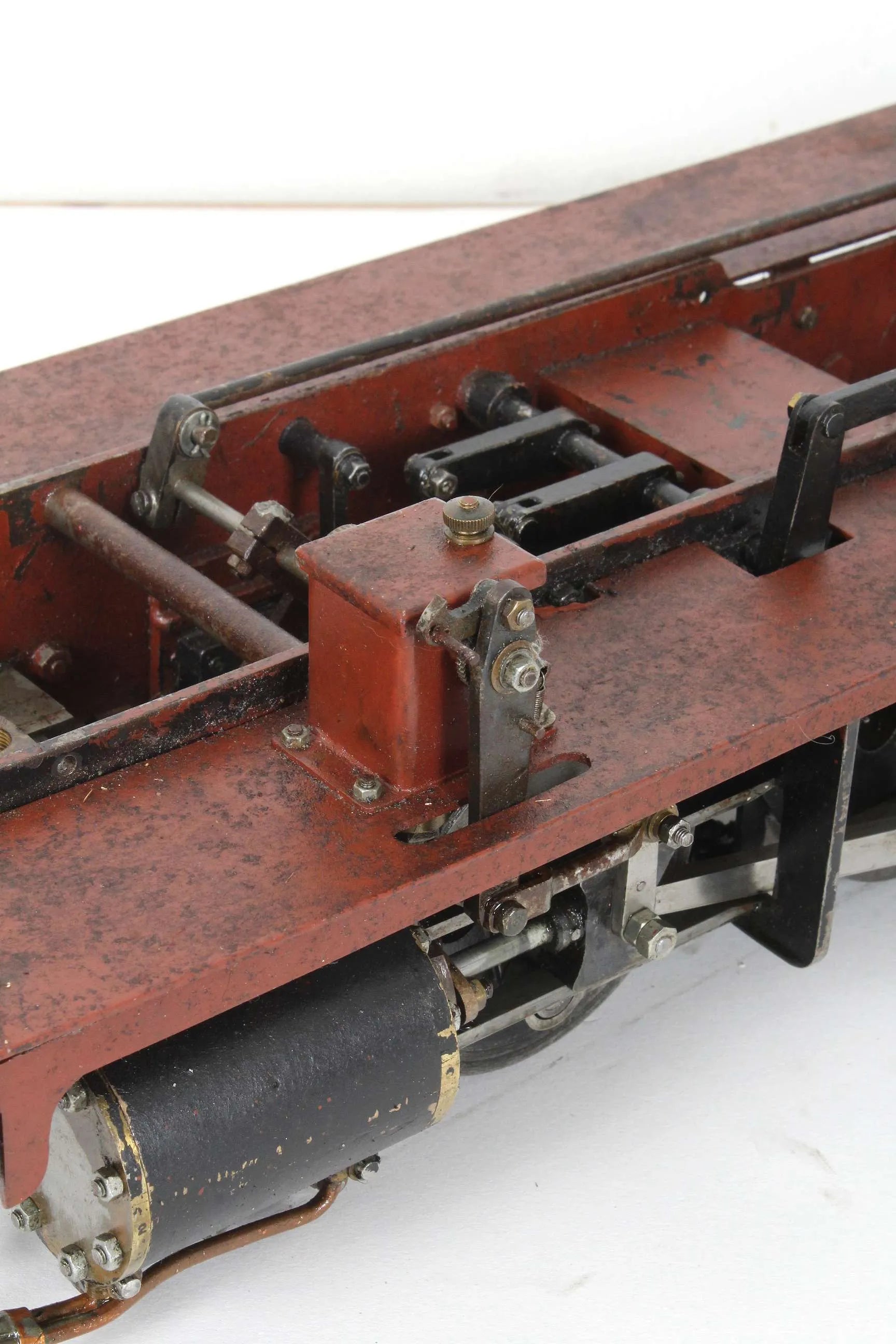

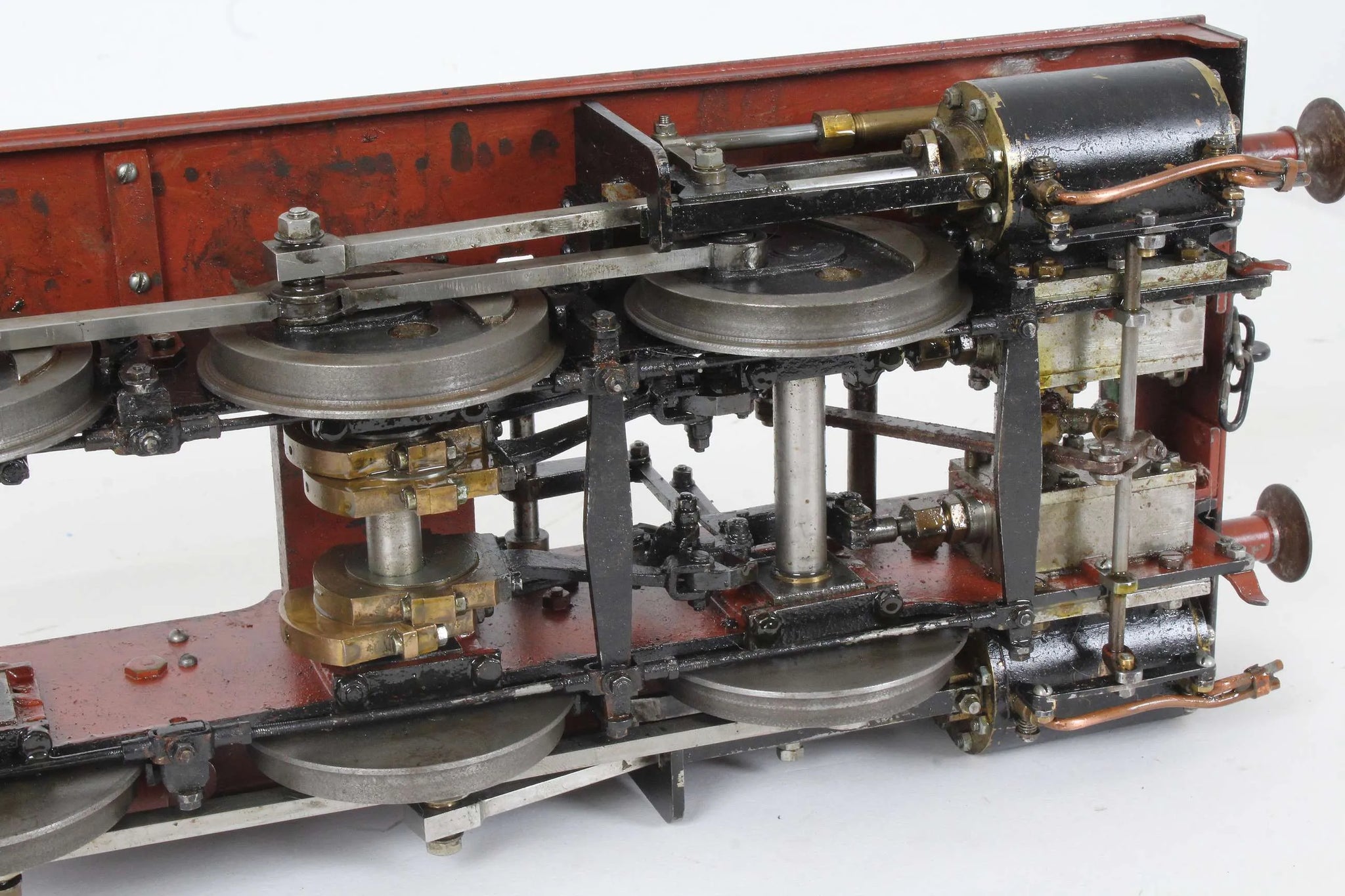

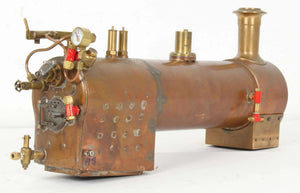

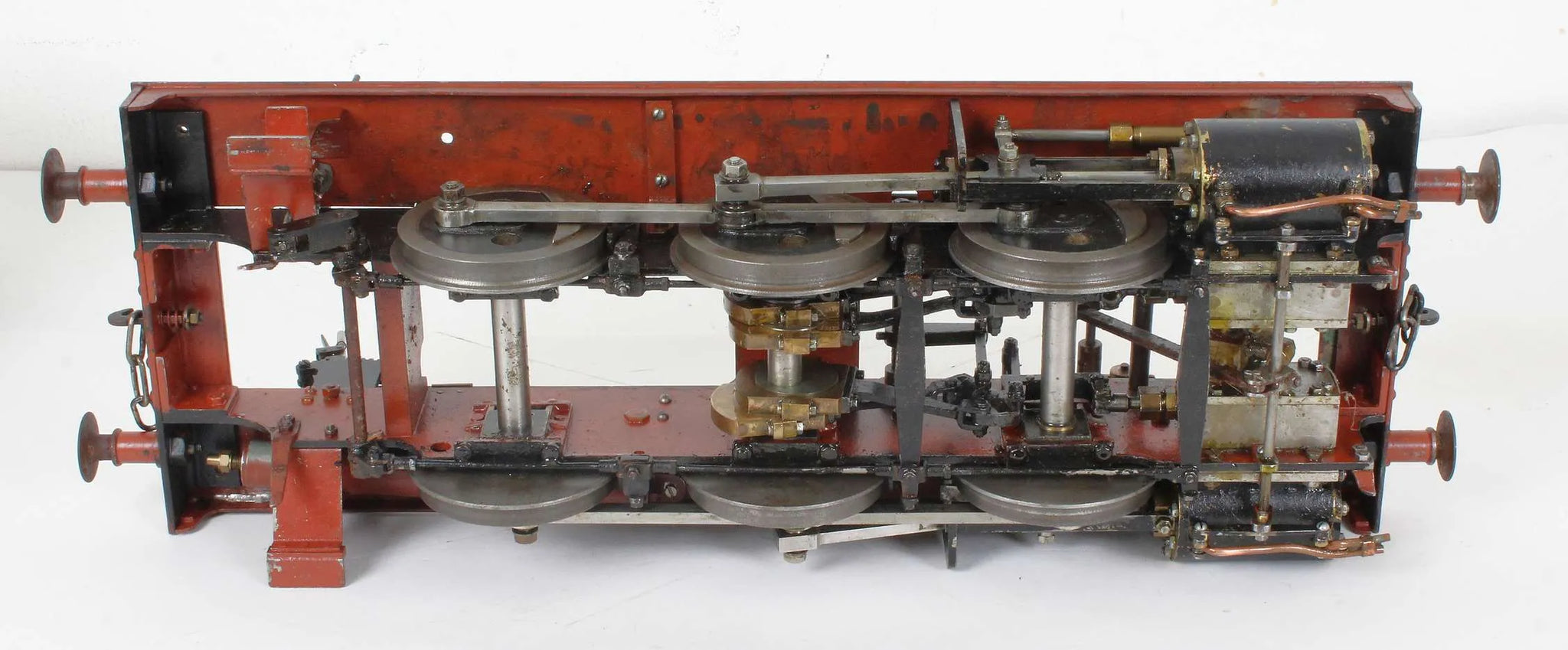

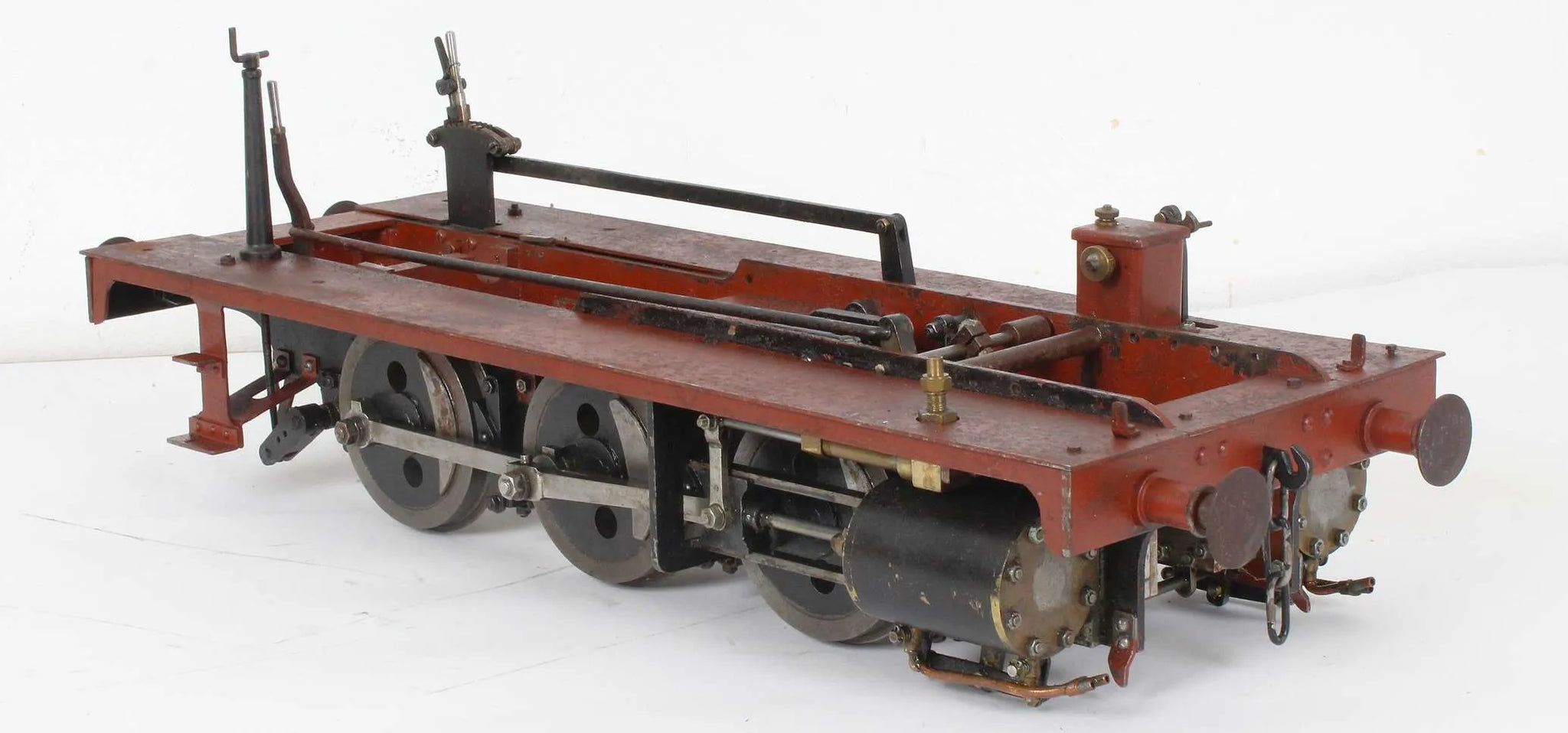

The commercially built, silver-soldered boiler by Morewood Boilers is complete with original documentation; the chassis is free-rolling and runs on air in both directions.
Model Engineers Laser list a comprehensive set of profiled parts for this design, including water tanks and running boards.
Stock code |
10256 |
Gauge |
3 1/2 inch |
Length/inches |
22 |
Width/inches |
7 |
Height/inches |
10.5 |
Wheel material |
cast iron |
Axlebox type |
plain bearing |
Cylinder material |
cast iron |
Valve type |
slide |
Valve gear |
Stephensons |
Reverser type |
pole |
Lubricator type |
mechanical |
Boiler maker |
Morewood Boilers |
Boiler type |
locomotive |
Boiler construction |
silver soldered |
Boiler material |
copper |
Working pressure |
80 |
CE/UKCA mark |
n/a - pre-2002 |
Year built |
1982 |
Boiler number |
231 |
Safety valve type |
spring |
Safety valve |
2 |
Whistle |
yes |
Mechanical pump |
1 |
Injector |
0 |
Superheater type |

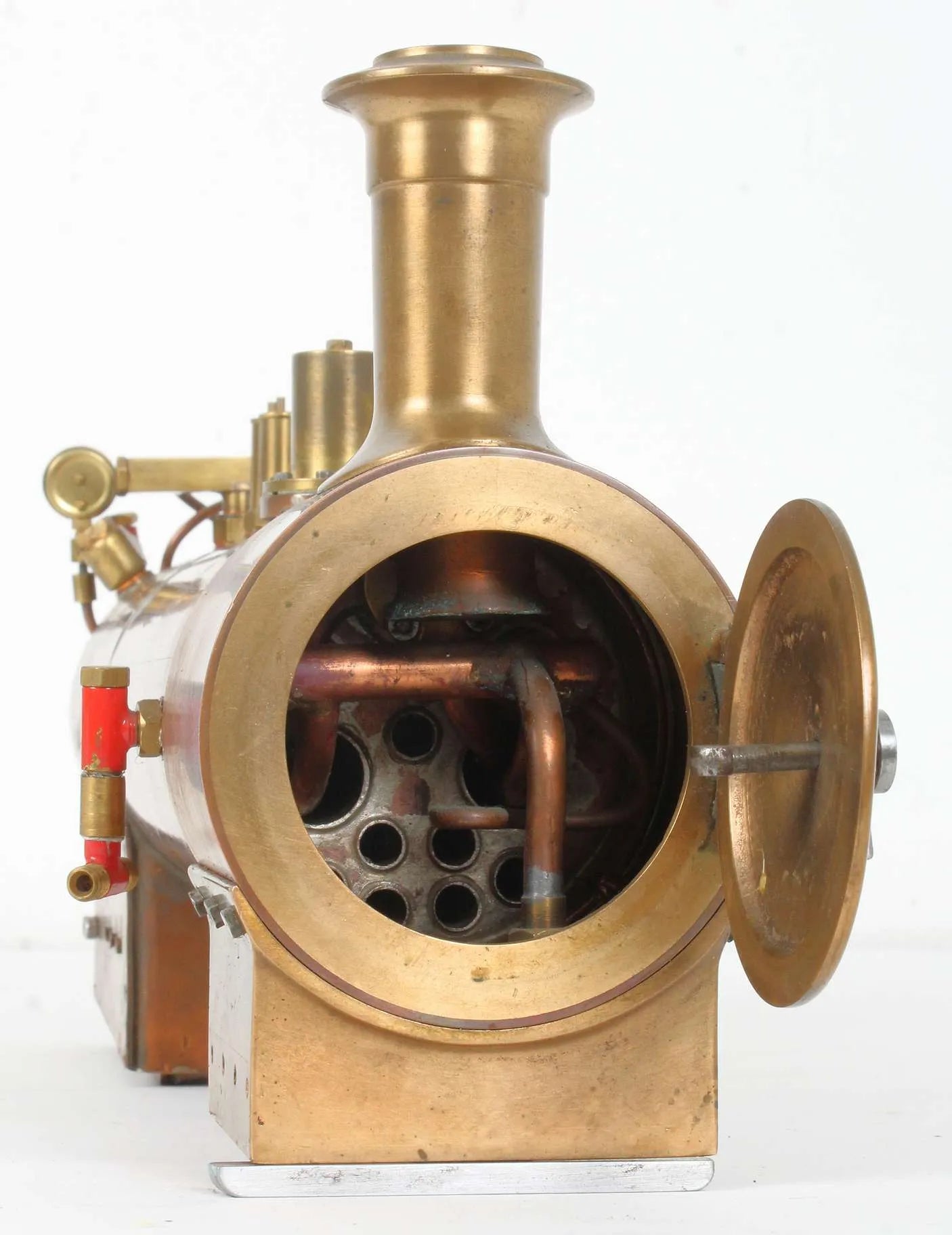

flue tube |
Superheater |
2 |
Date out |
Sep-22 |
