11298
The engine has come to us with no history for the boiler. It's had a twice working pressure hydraulic test at 160psi for 80psi working which showed no sign of leaks or deflection and we would warranty it as sound, however it will need to be lifted from the frames and the cladding removed for a repeat test before certification could be issued.
The chassis runs well on air.
Stock code |
11298 |
Gauge |
3 1/2 inch |
Length/inches |
22 |
Width/inches |
8 |
Height/inches |
10 |
Weight/Kg |
19 |
Wheel material |
cast iron |
Axlebox type |
plain bearing |
Cylinder material |
gunmetal |
Valve type |
slide |

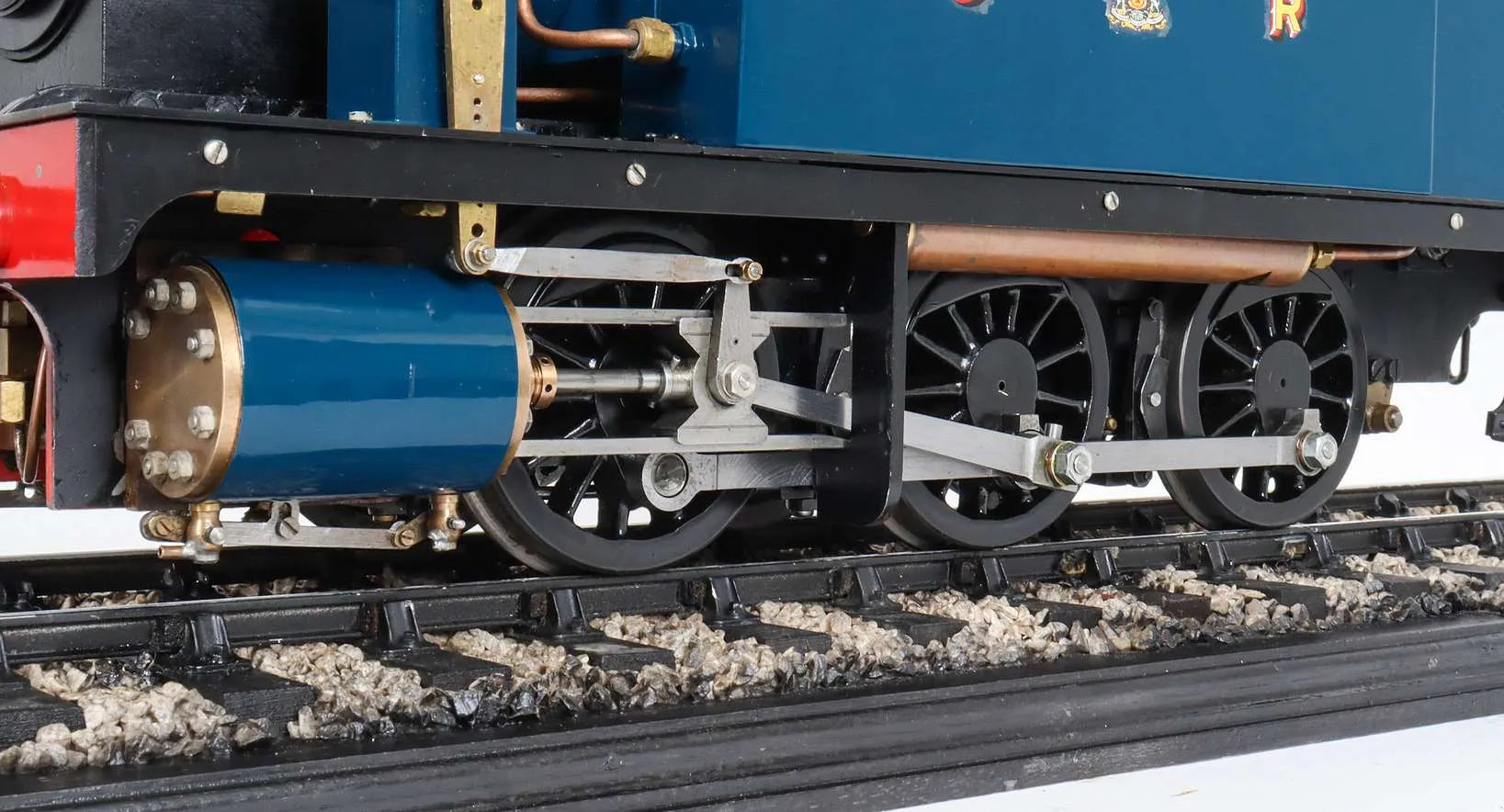

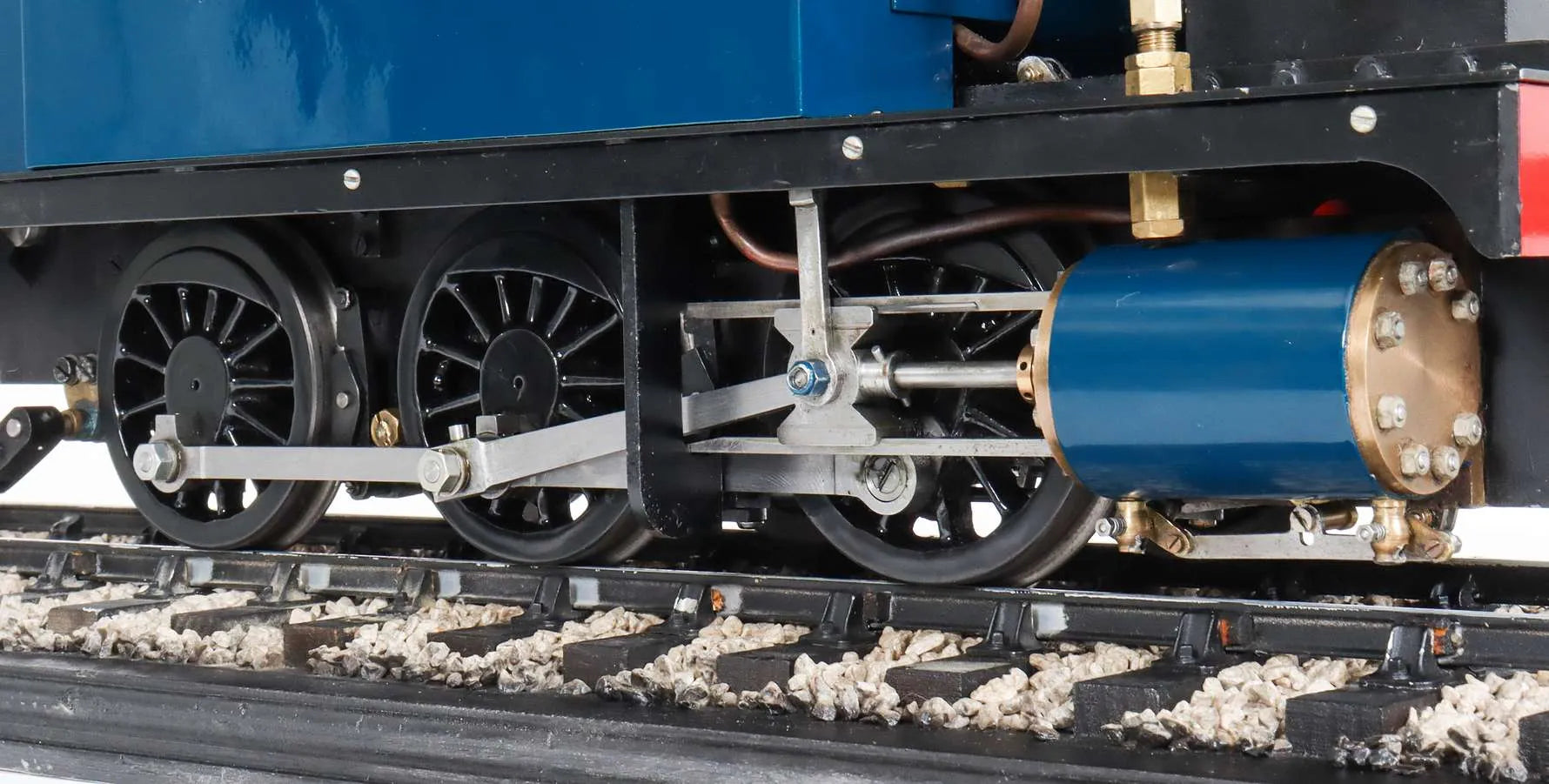

Valve gear |
Stephenson |
Reverser type |
pole |

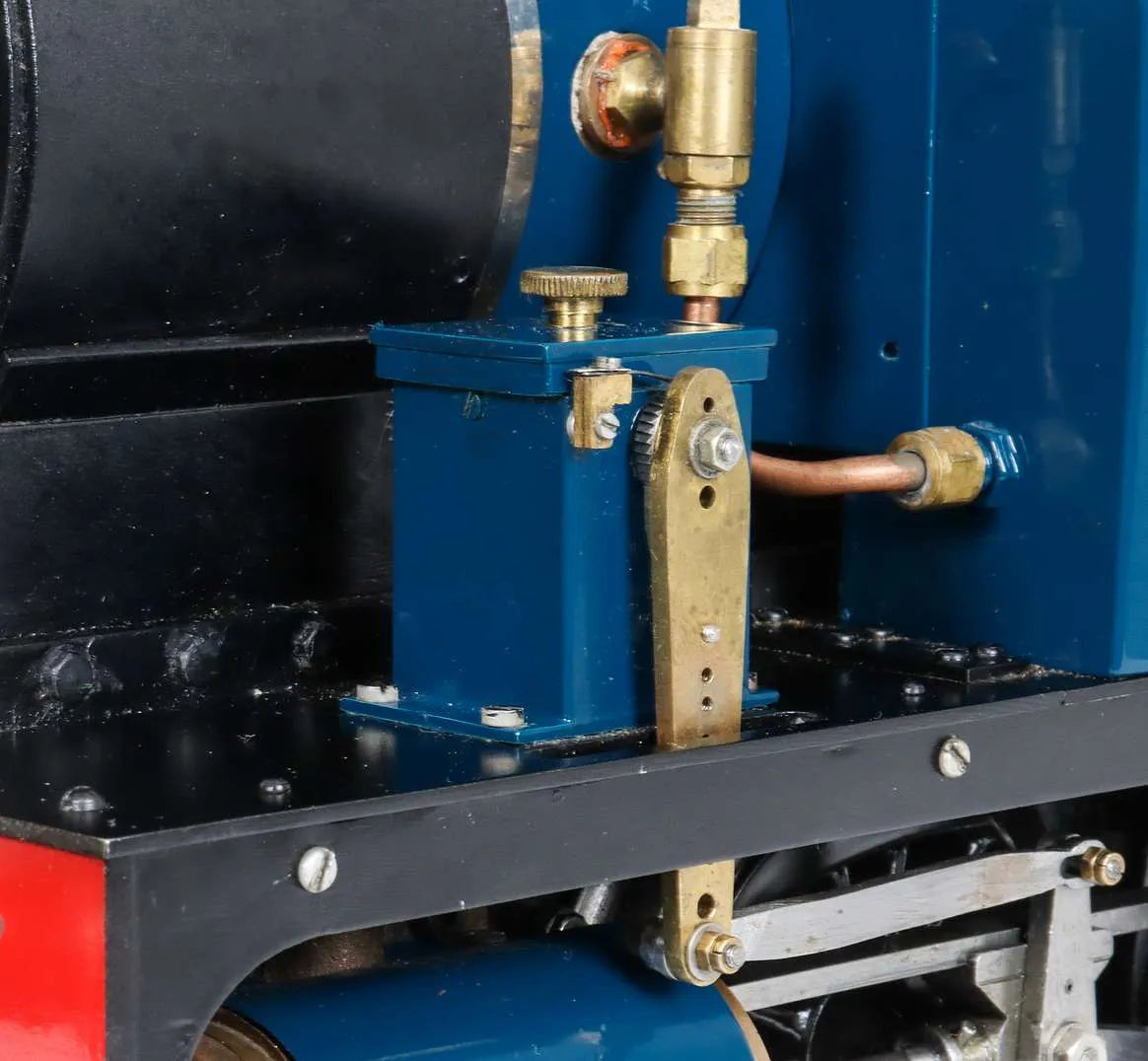

Lubricator type |
mechanical |
Boiler type |
locomotive |
Boiler construction |
silver soldered |
Boiler material |
copper |
Working pressure |
80 |
CE/UKCA mark |
n/a - non-commercial |
Year built |
unknown |

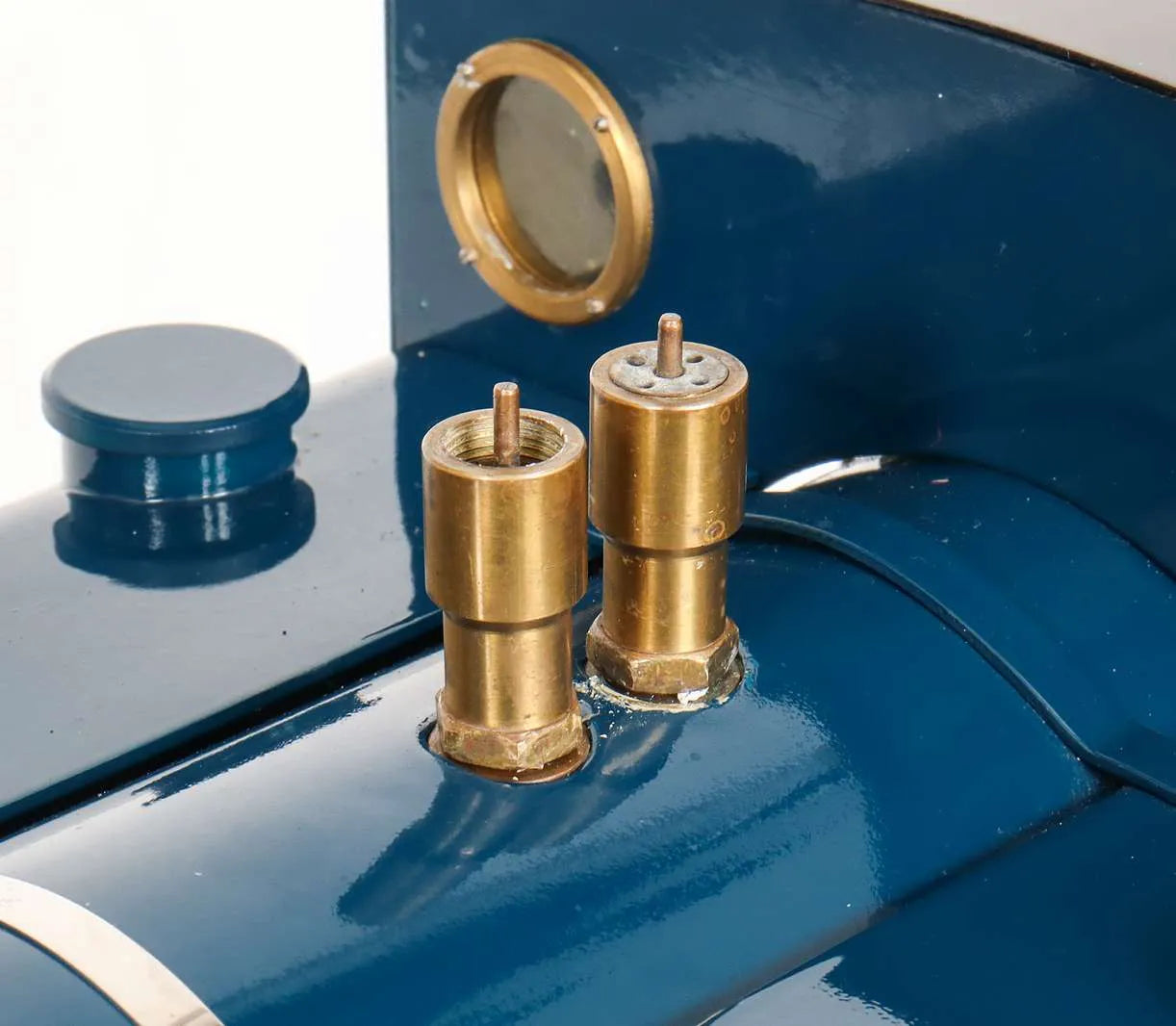

Safety valve type |
spring |
Safety valve |
2 |
Fusible plug |
no |
Whistle |
yes |
Hand pump |
1 |
Mechanical pump |
1 |
Superheater type |
flue tube |
Superheater |
2 |
Date out |
Sep-23 |
