11622

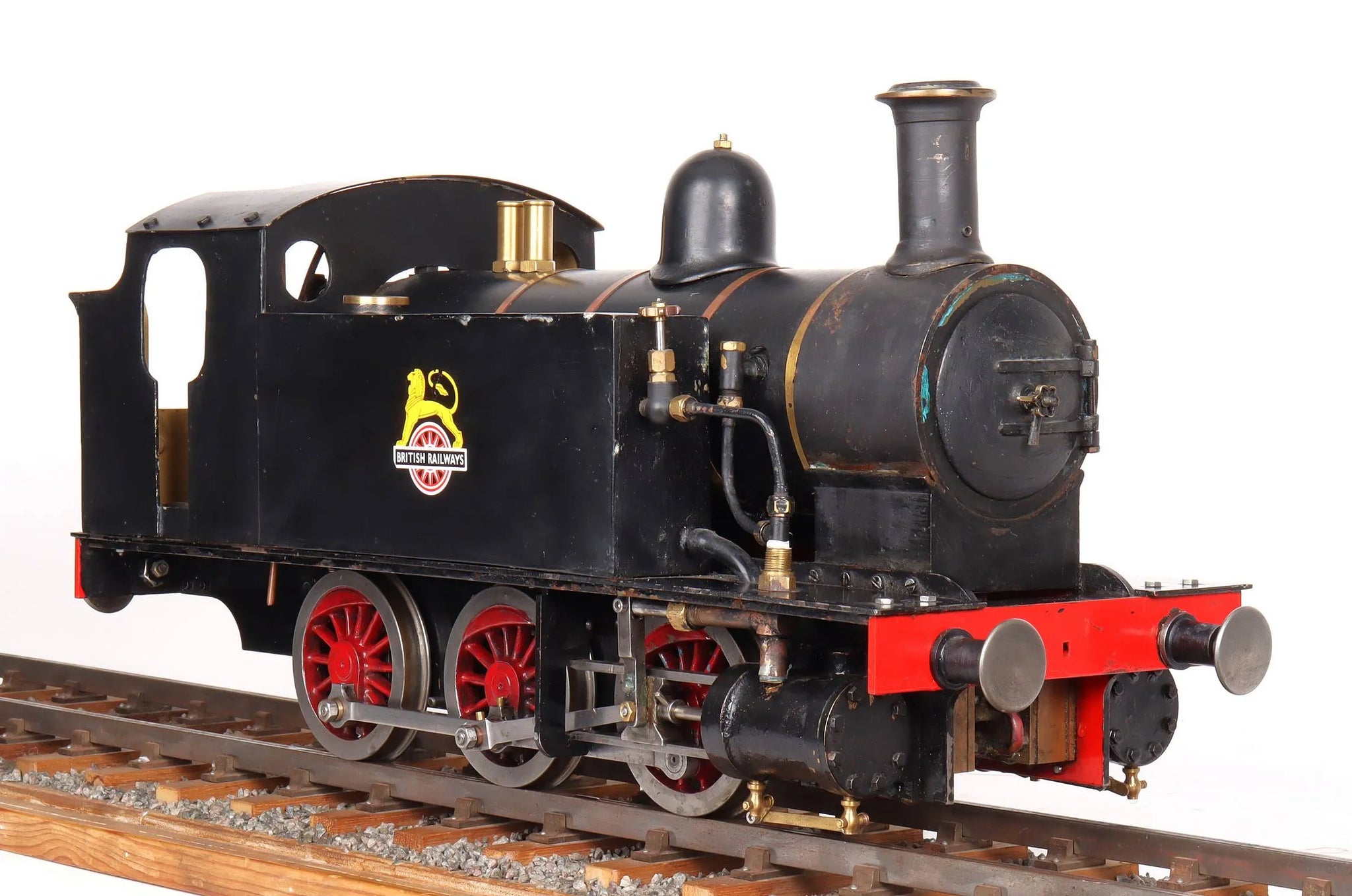

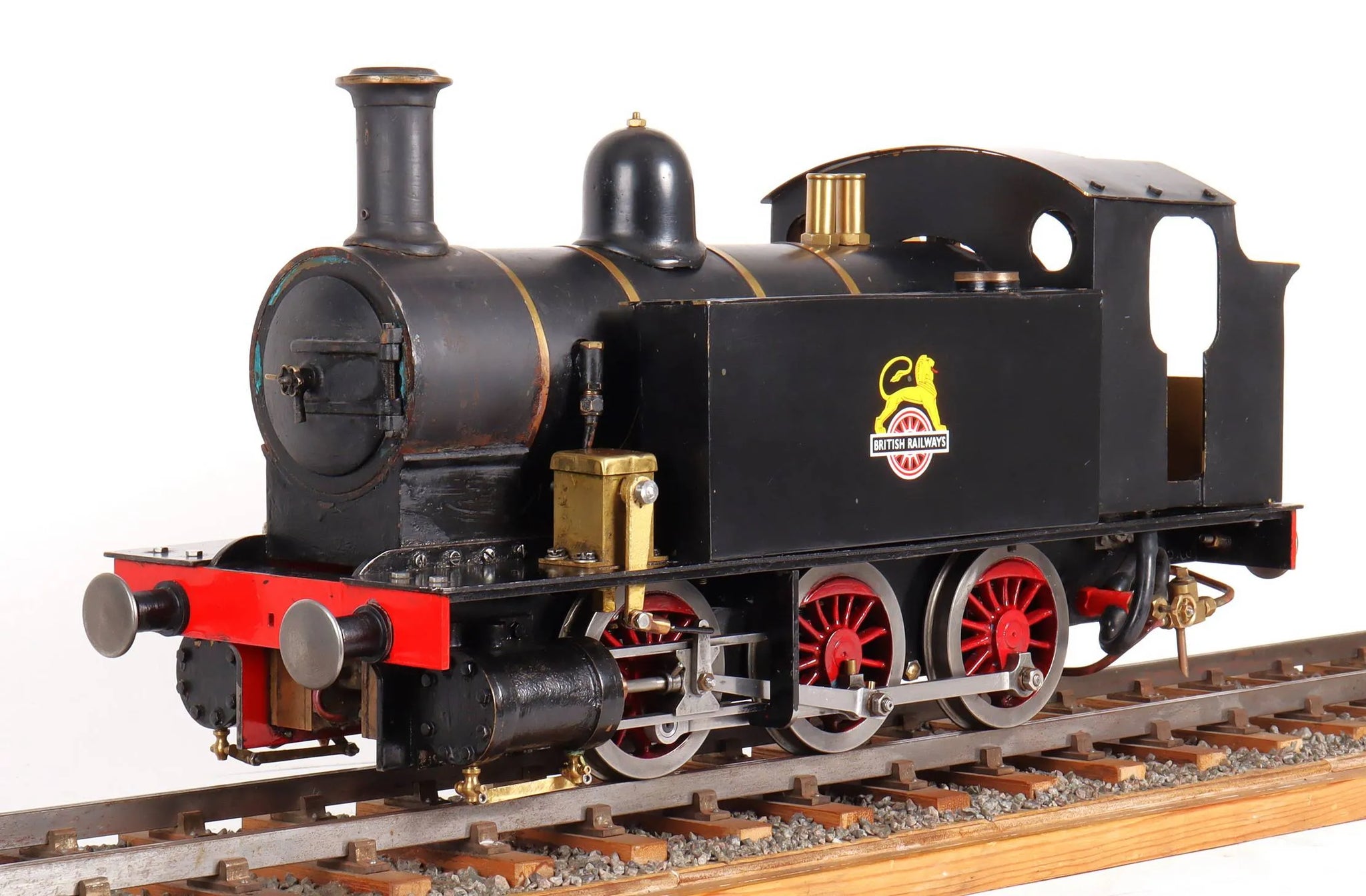

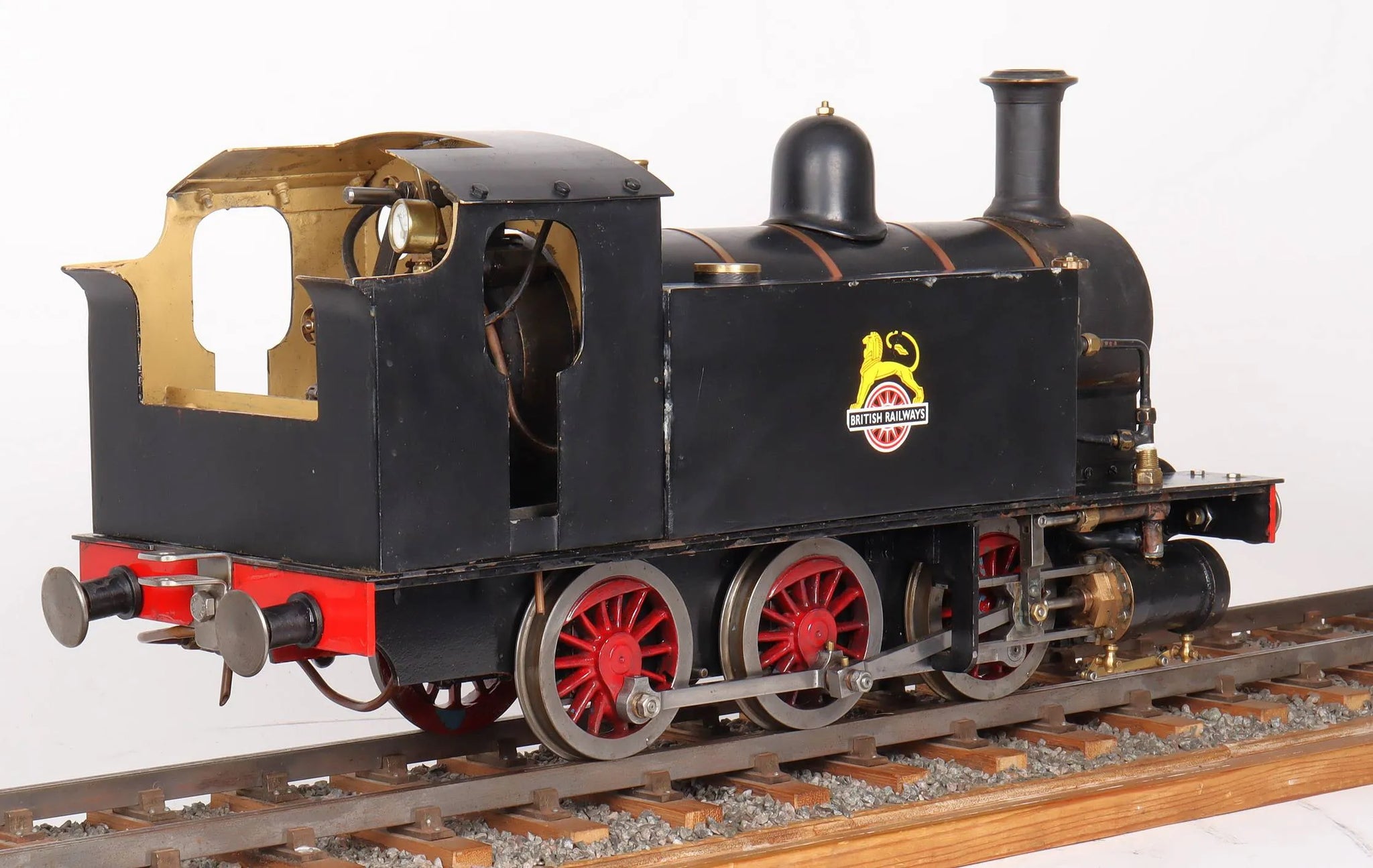

A nicely made engine, apparently not run for some time it will require recommissioning for steam.

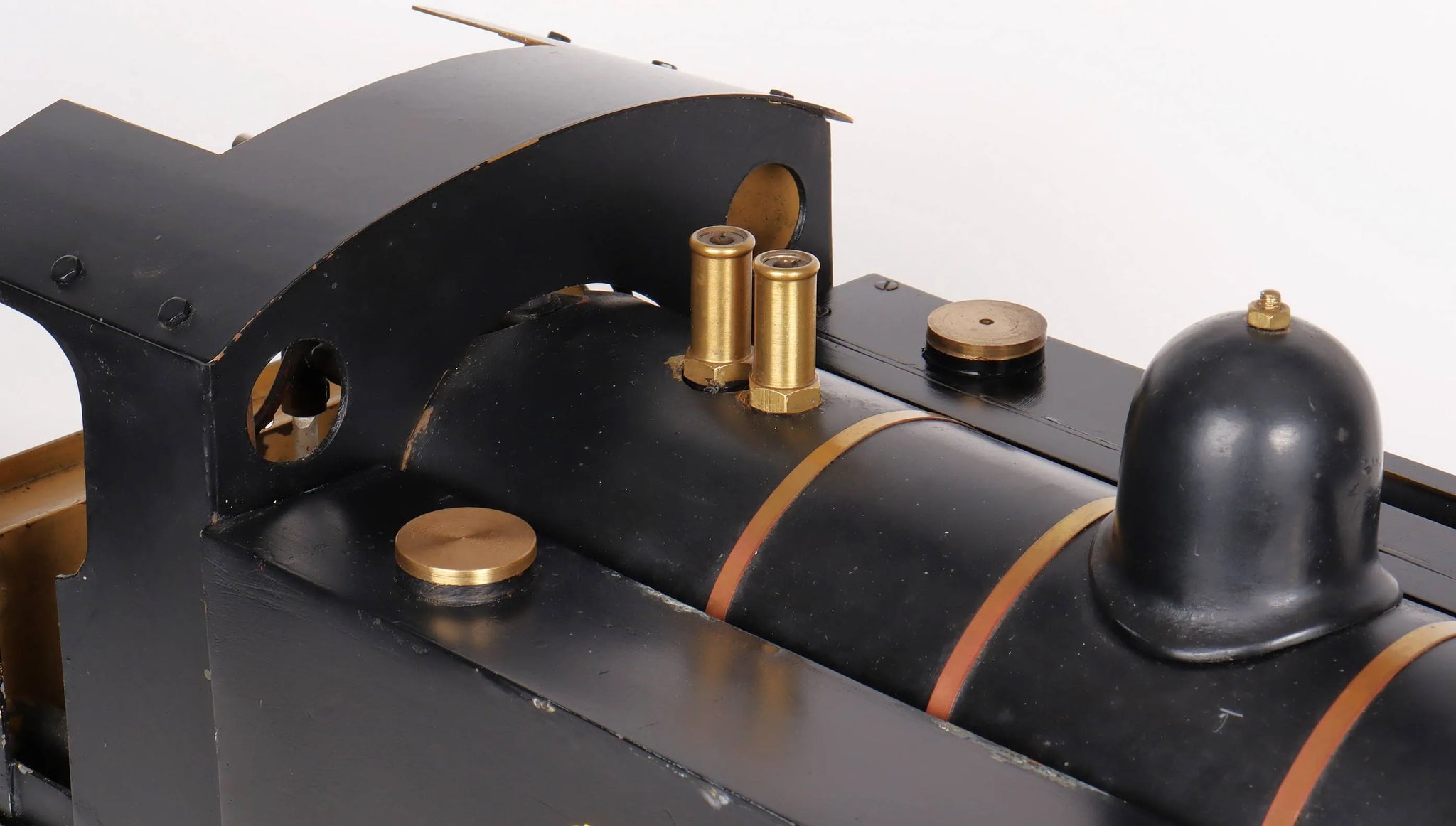

The boiler has had hydraulic test with new certification issued, nothing noted other than leaky regulator gasket, wet header studs and water gauge seals.

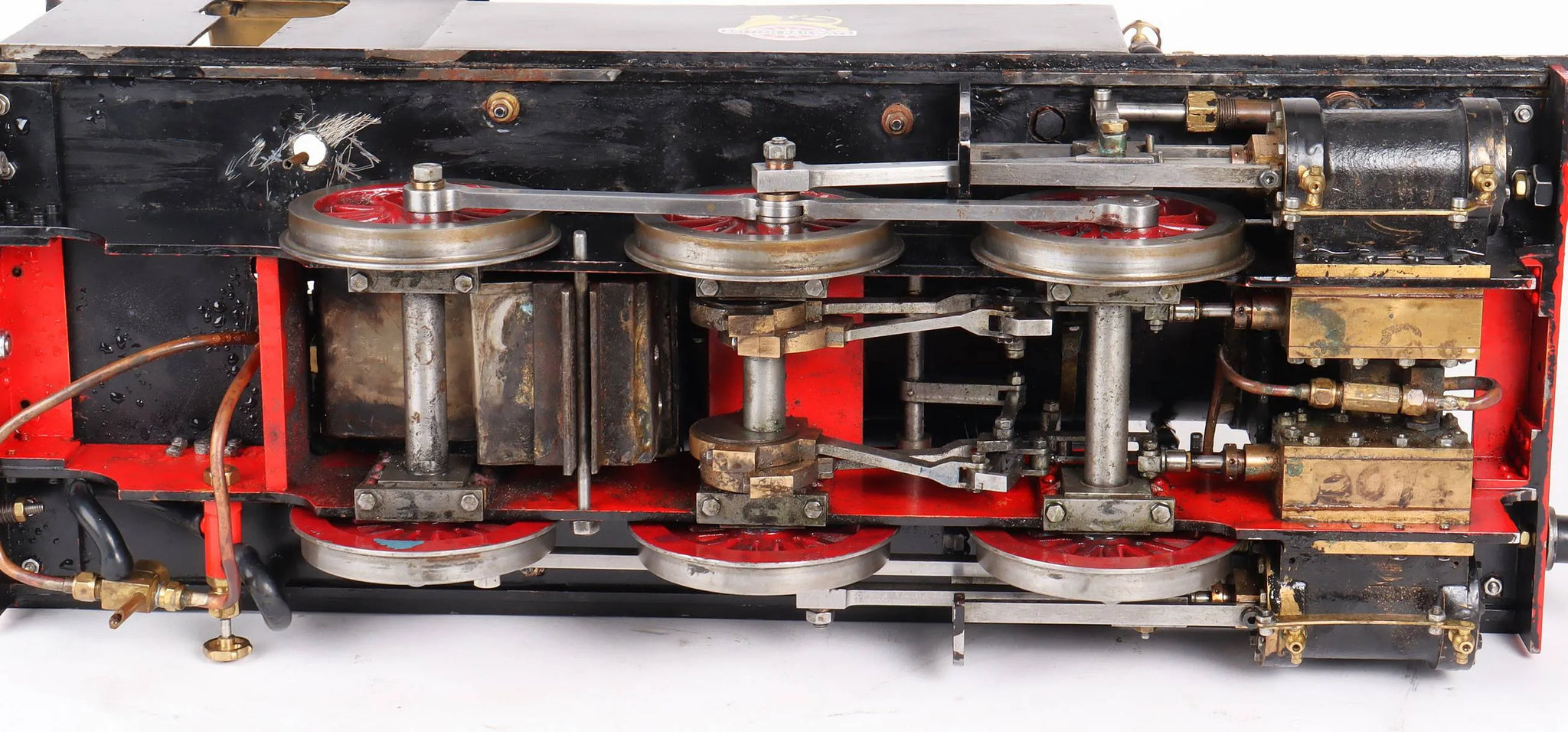

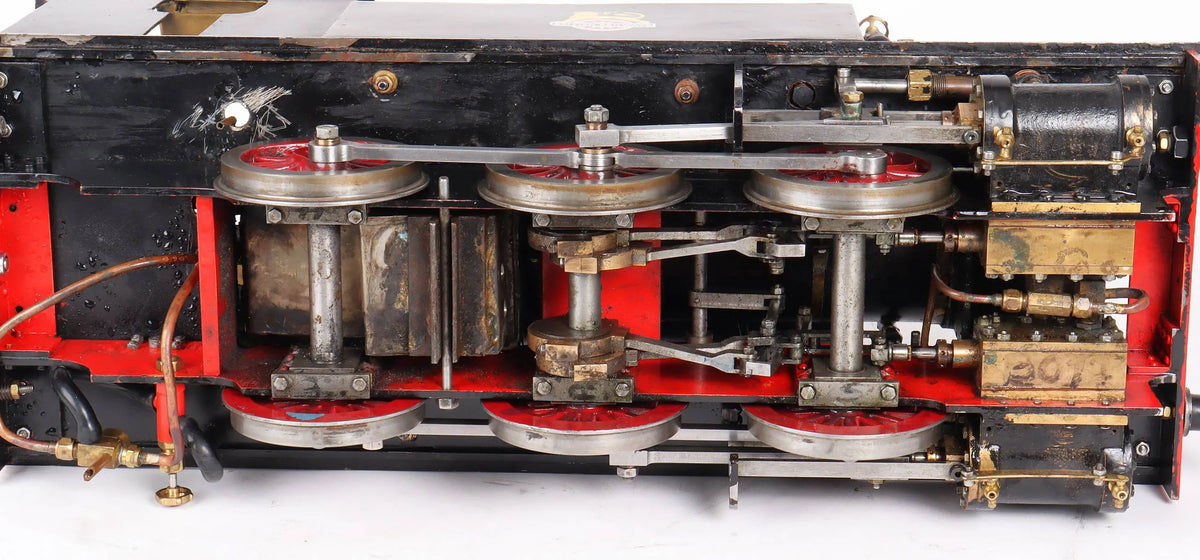

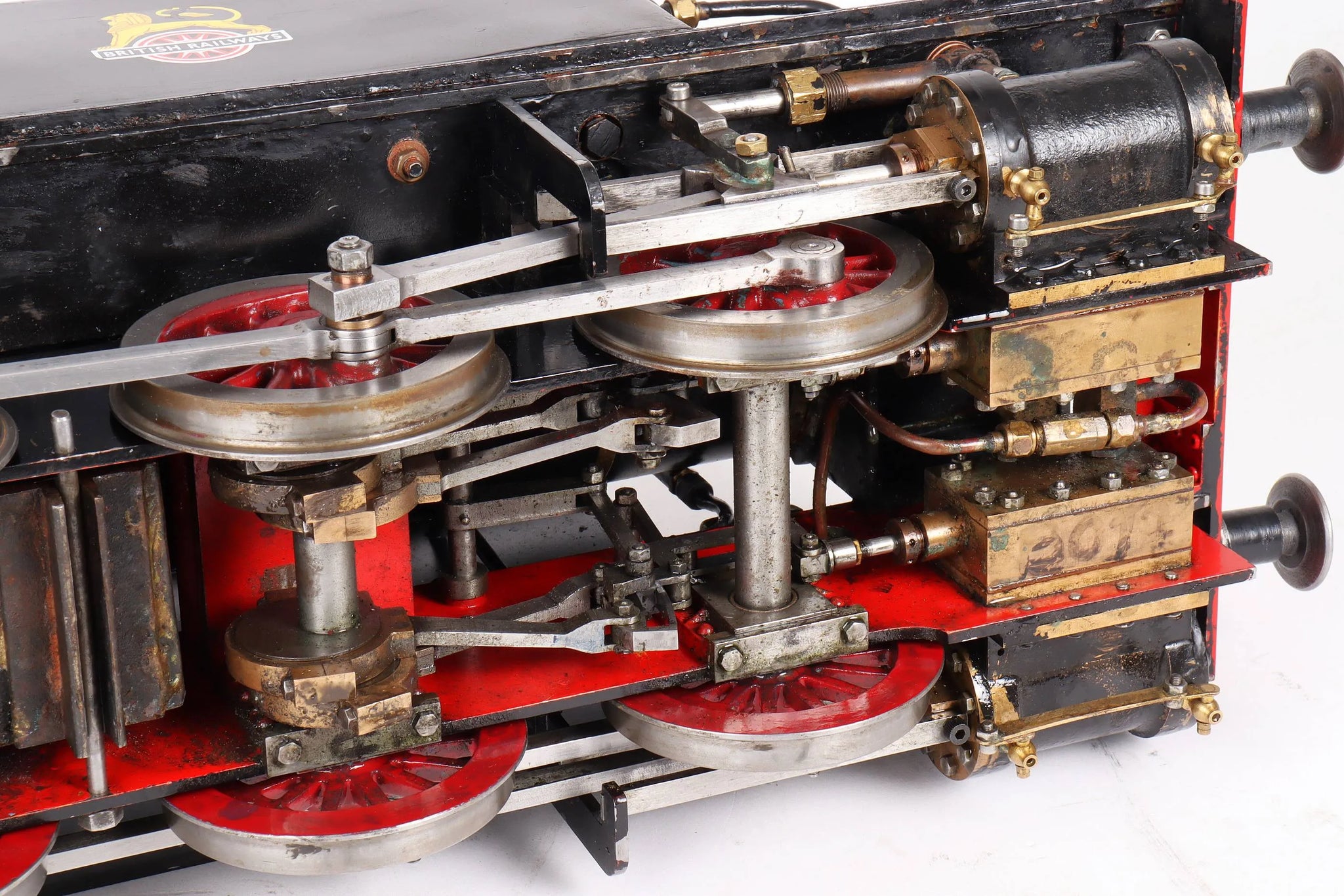

The engine runs very nicely on air in forwards gear, not in reverse - it will need the eccentrics resetting.

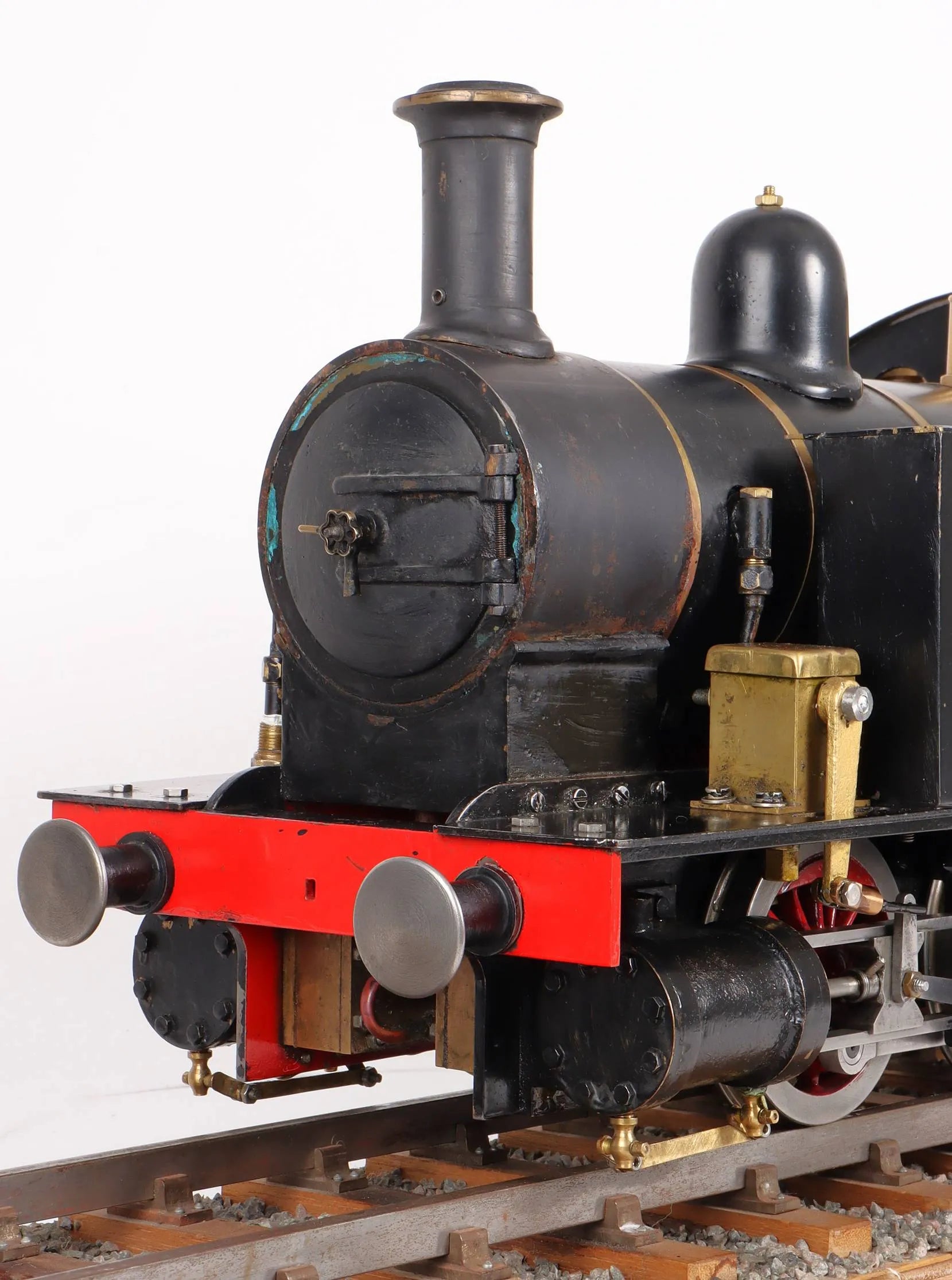

Complete with grate and ashpan, although it will need a retaining pin making to replace the original which is missing. The buffers are only loosely fixed to the buffer beams.
Stock code |
11622 |
Gauge |
3 1/2 inch |
Length/inches |
21 |
Width/inches |
7.5 |
Height/inches |
10.5 |
Weight/Kg |
18 |
Wheel material |
cast iron |
Axlebox type |
plain bearing |
Cylinder material |
gunmetal |
Valve type |
slide |

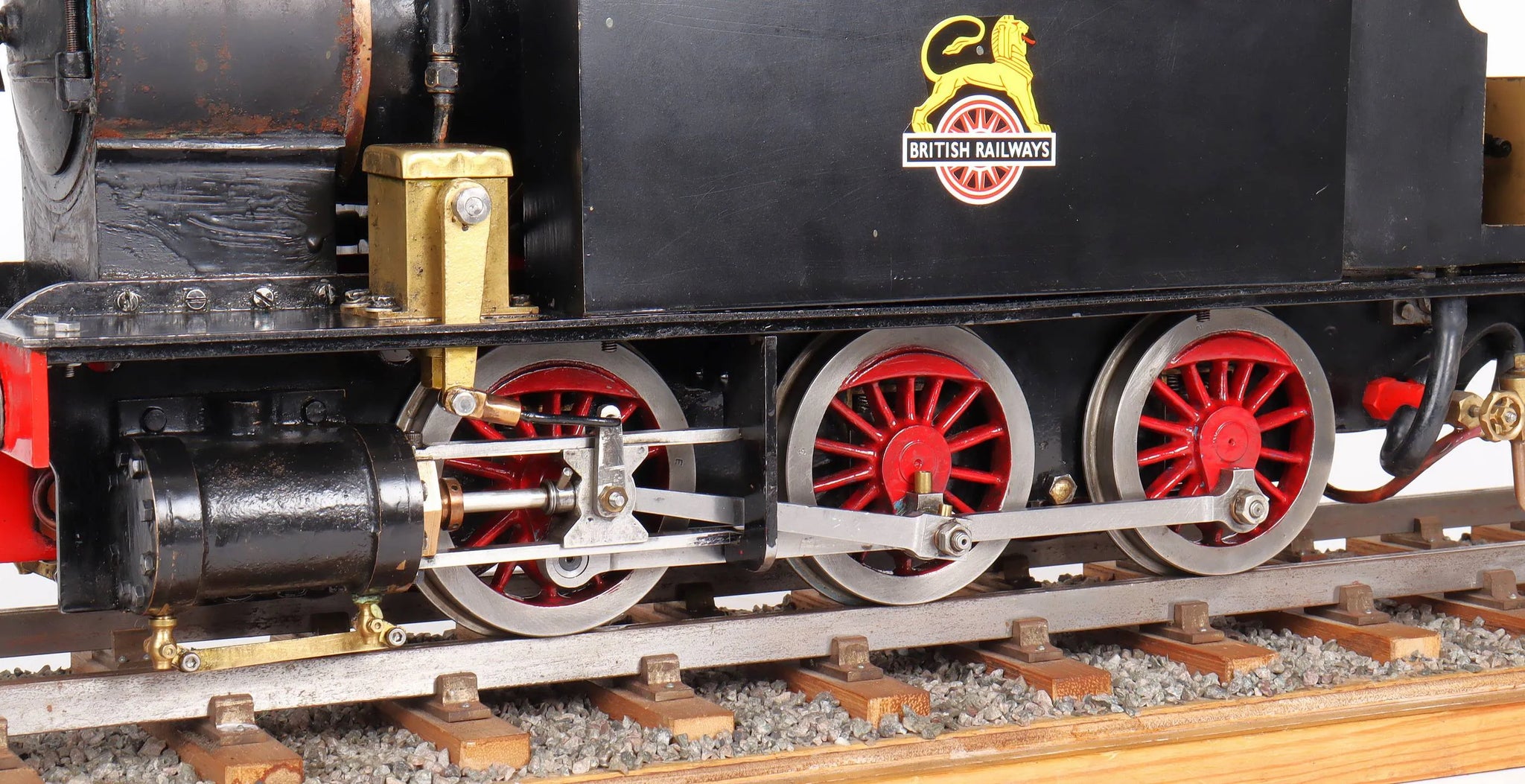

Valve gear |
Stephensons |
Reverser type |
pole |
Boiler type |
locomotive |
Boiler construction |
silver soldered |
Boiler material |
copper |
Working pressure |
80 |
CE/UKCA mark |
n/a non-commercial |
Boiler number |
N11.80.8.15 |
Safety valve type |
spring |
Safety valve |
2 |
Whistle |
yes |
Hand pump |
1 |
Mechanical pump |
1 |
Injector |
1 |
Superheater type |
flue tube |
Superheater |
2 |
Date out |
Feb-24 |
Hydraulic test valid to |
31-Oct-27 |
