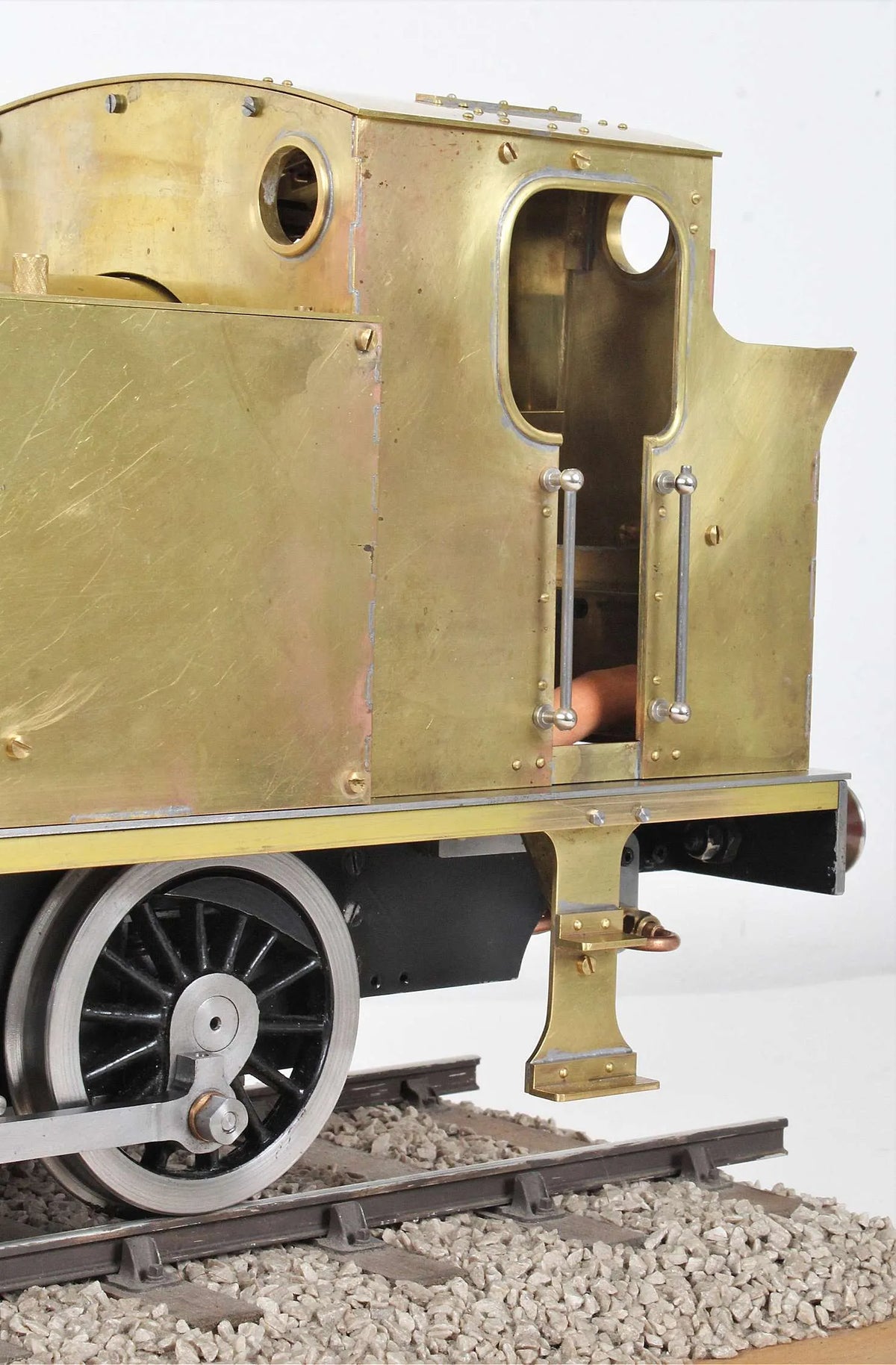

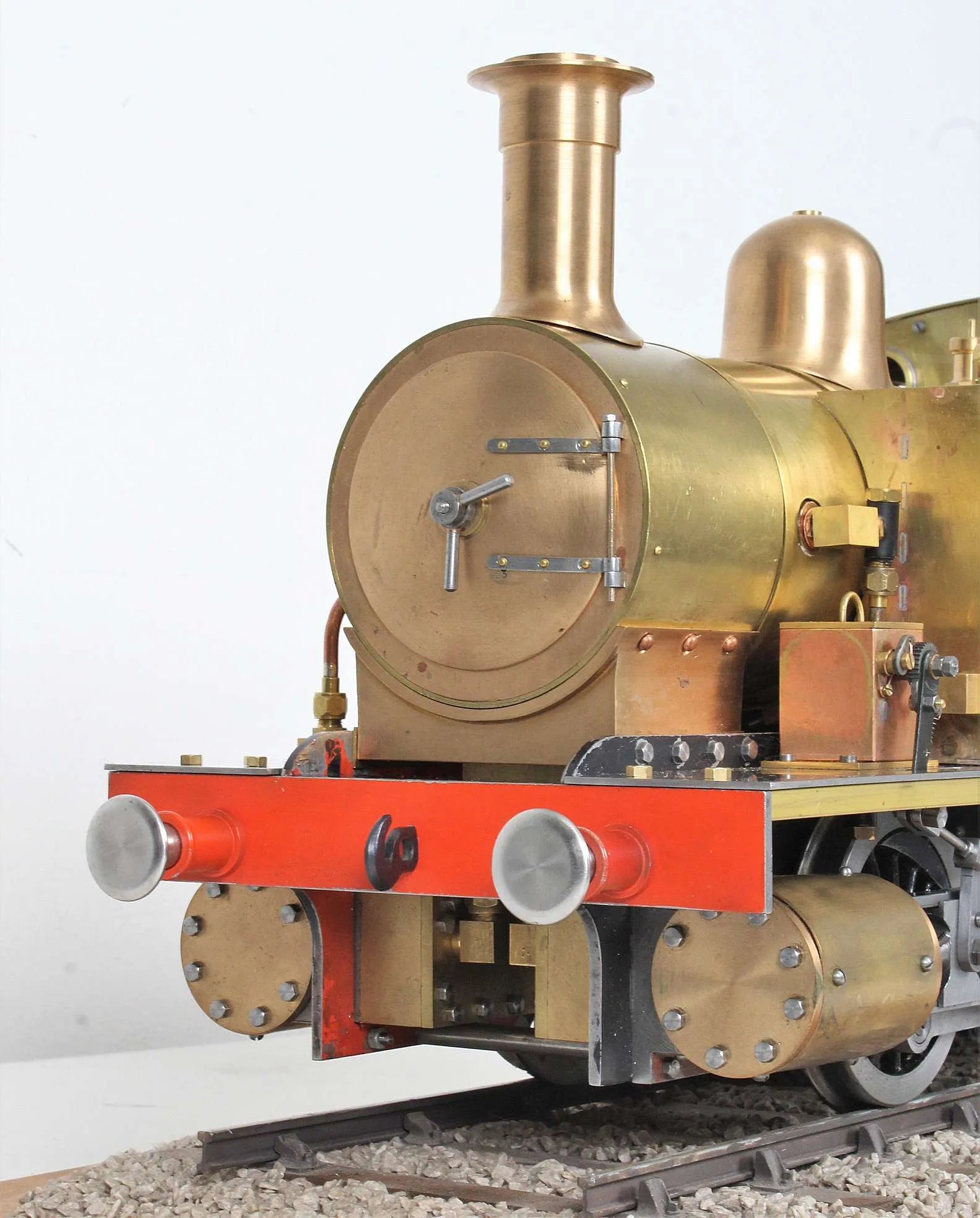

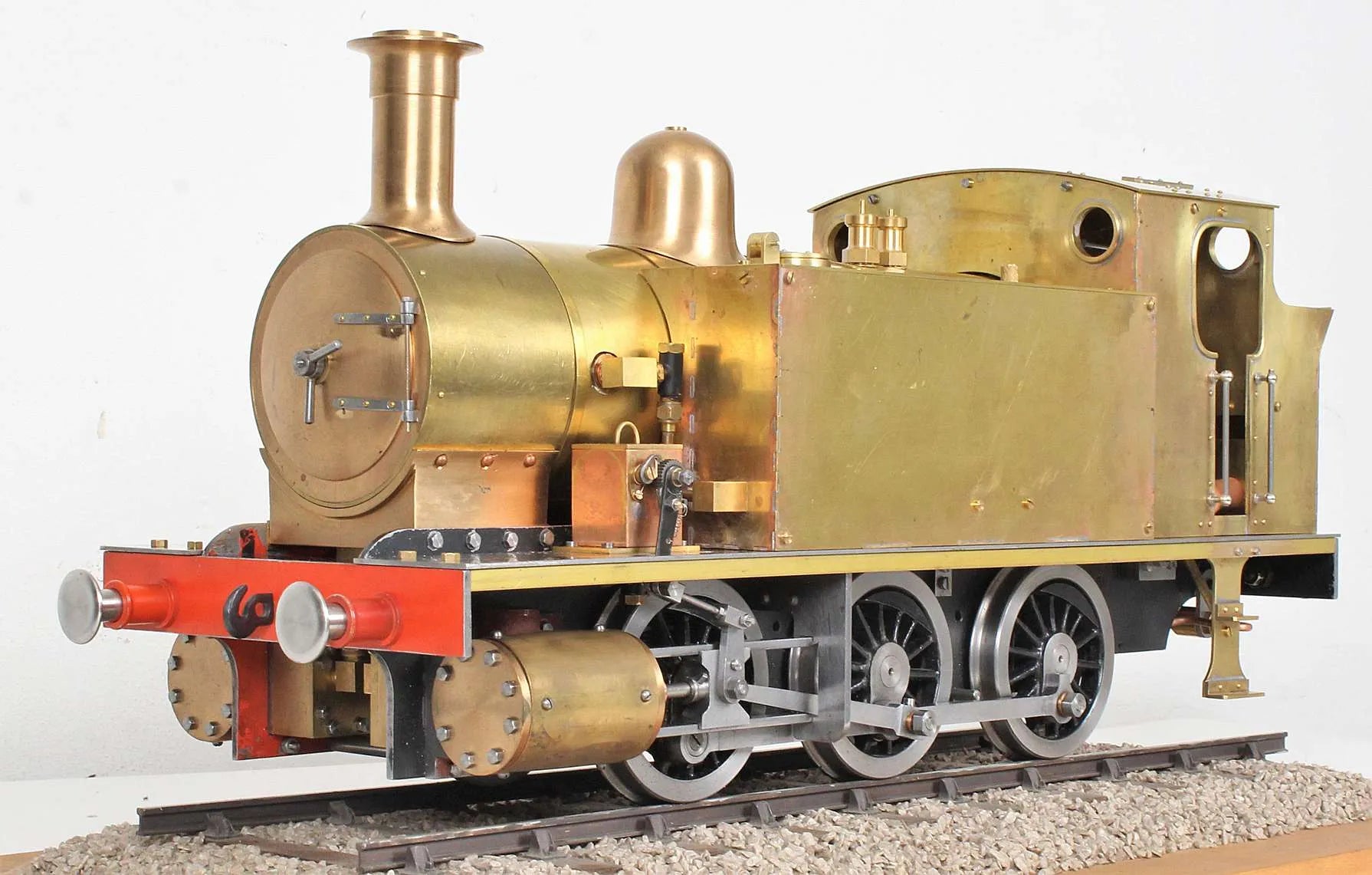

3 1/2 inch gauge "Rob Roy" 0-6-0T with commercial boiler

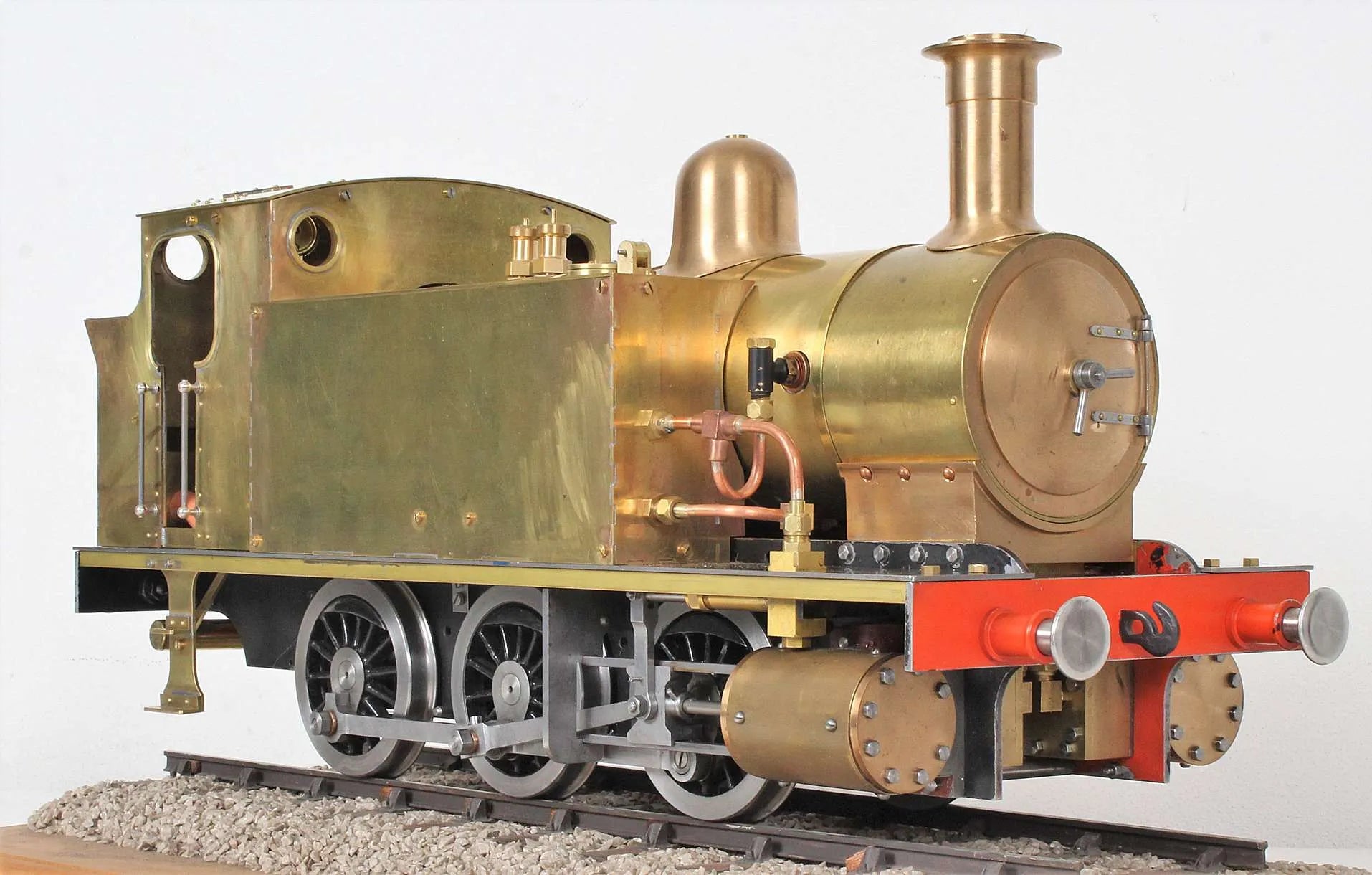

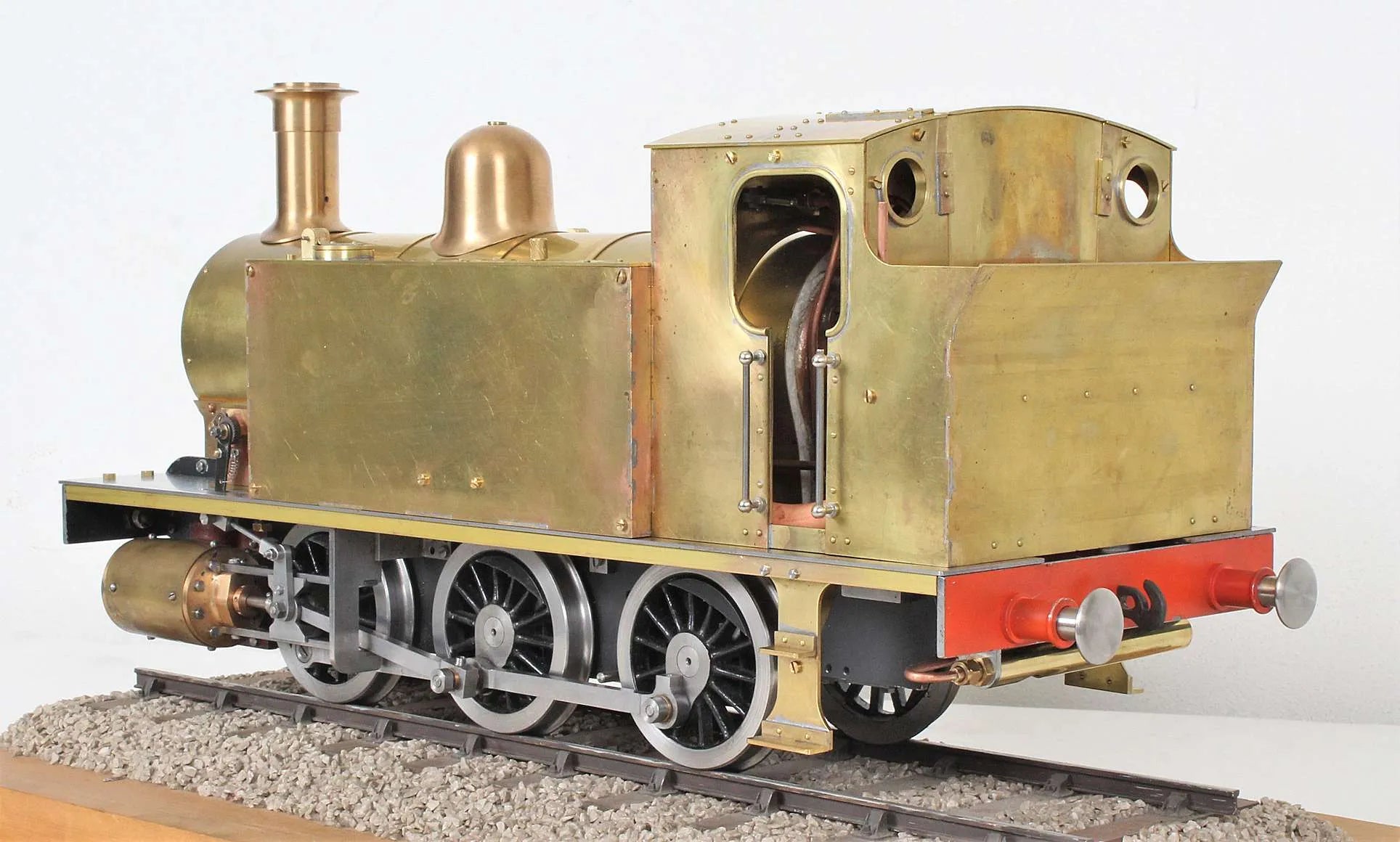

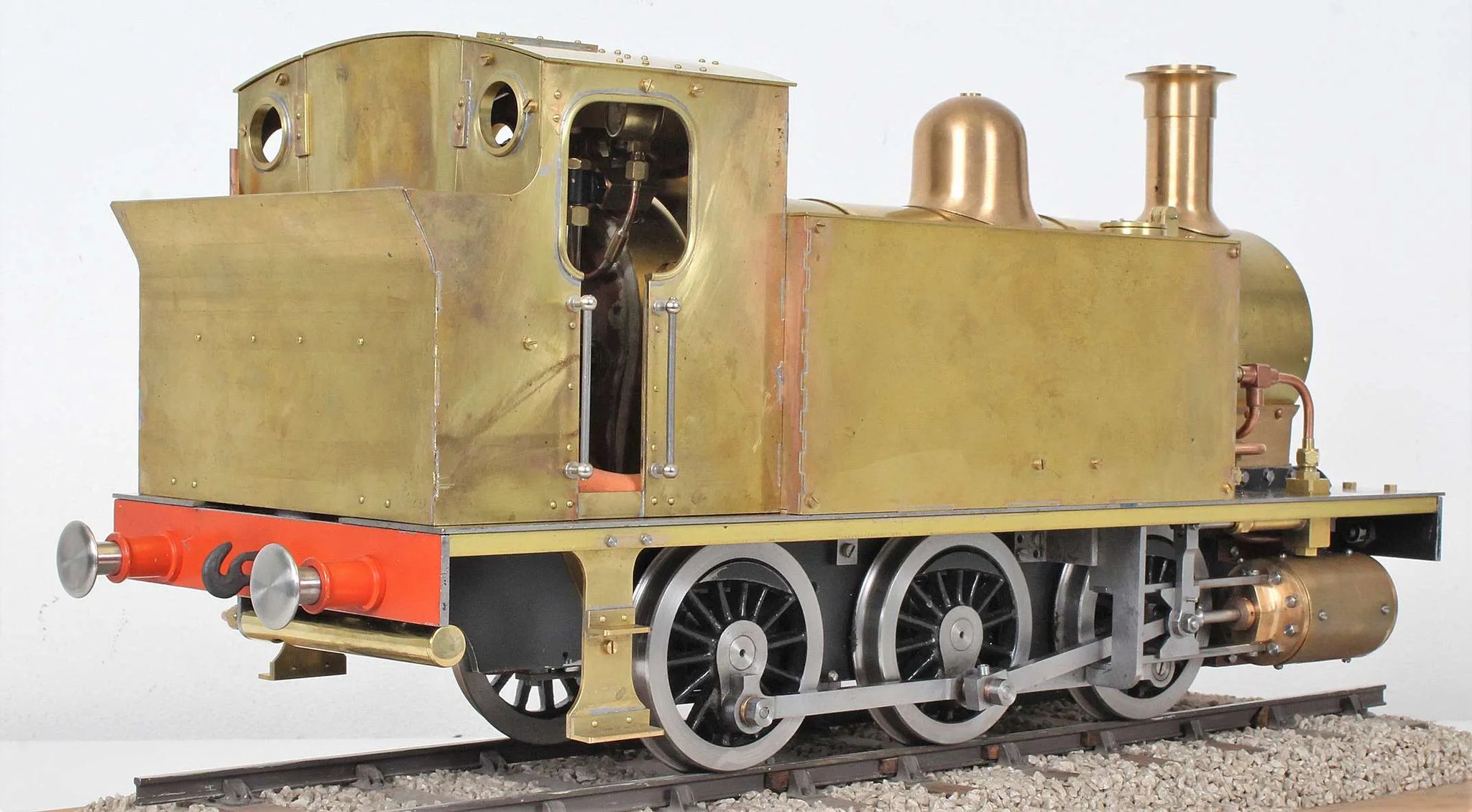

A 3 1/2 inch gauge "Rob Roy" 0-6-0T, a well made locomotive, the work of an accomplished model engineer now in his tenth decade. An impending house move means downsizing the workshop and locomotive collection, otherwise I'm sure he'd still be building long after we're all retired!

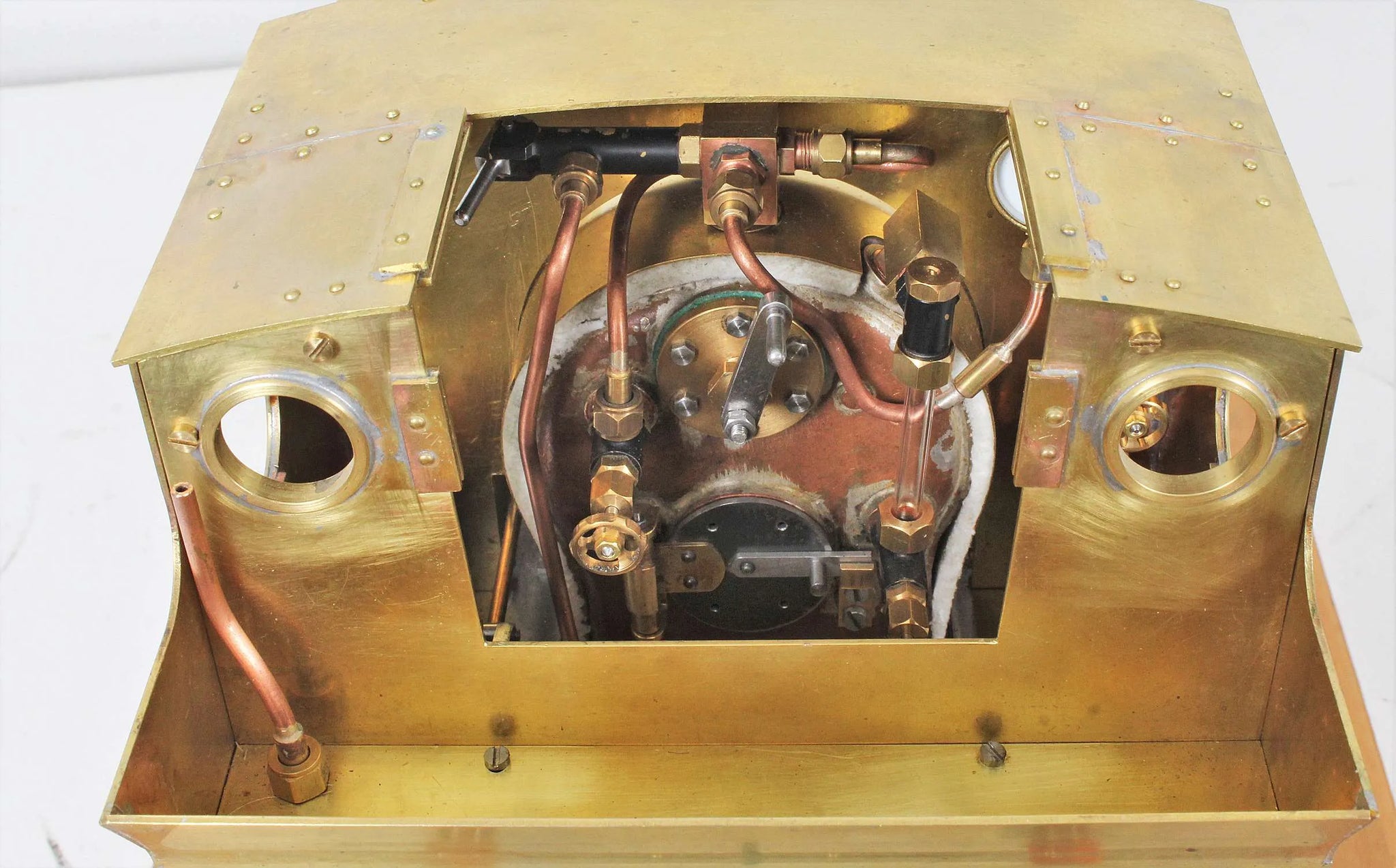

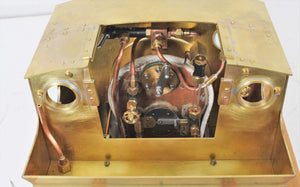

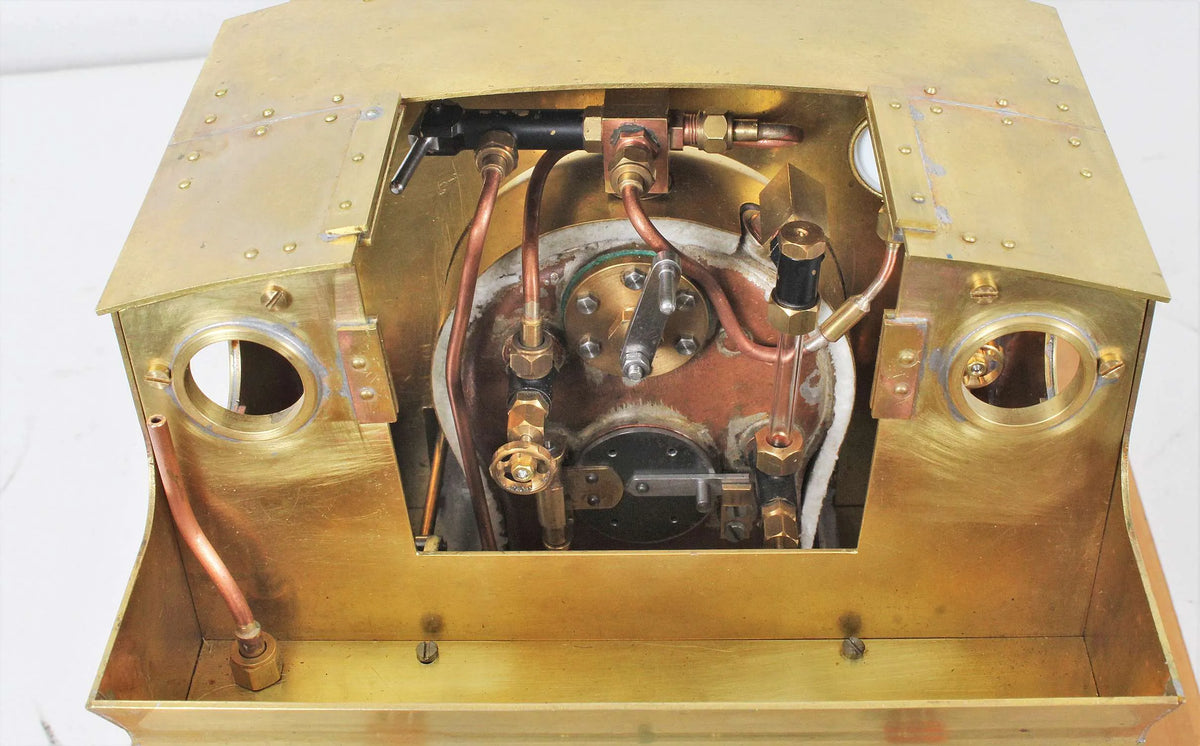

Unsteamed from new, the engine has a commercially built, CE-marked copper boiler by G.B.Boiler Services complete with manufacturer's documentation.

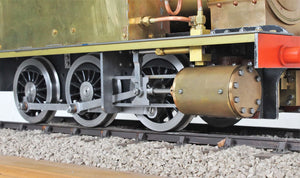

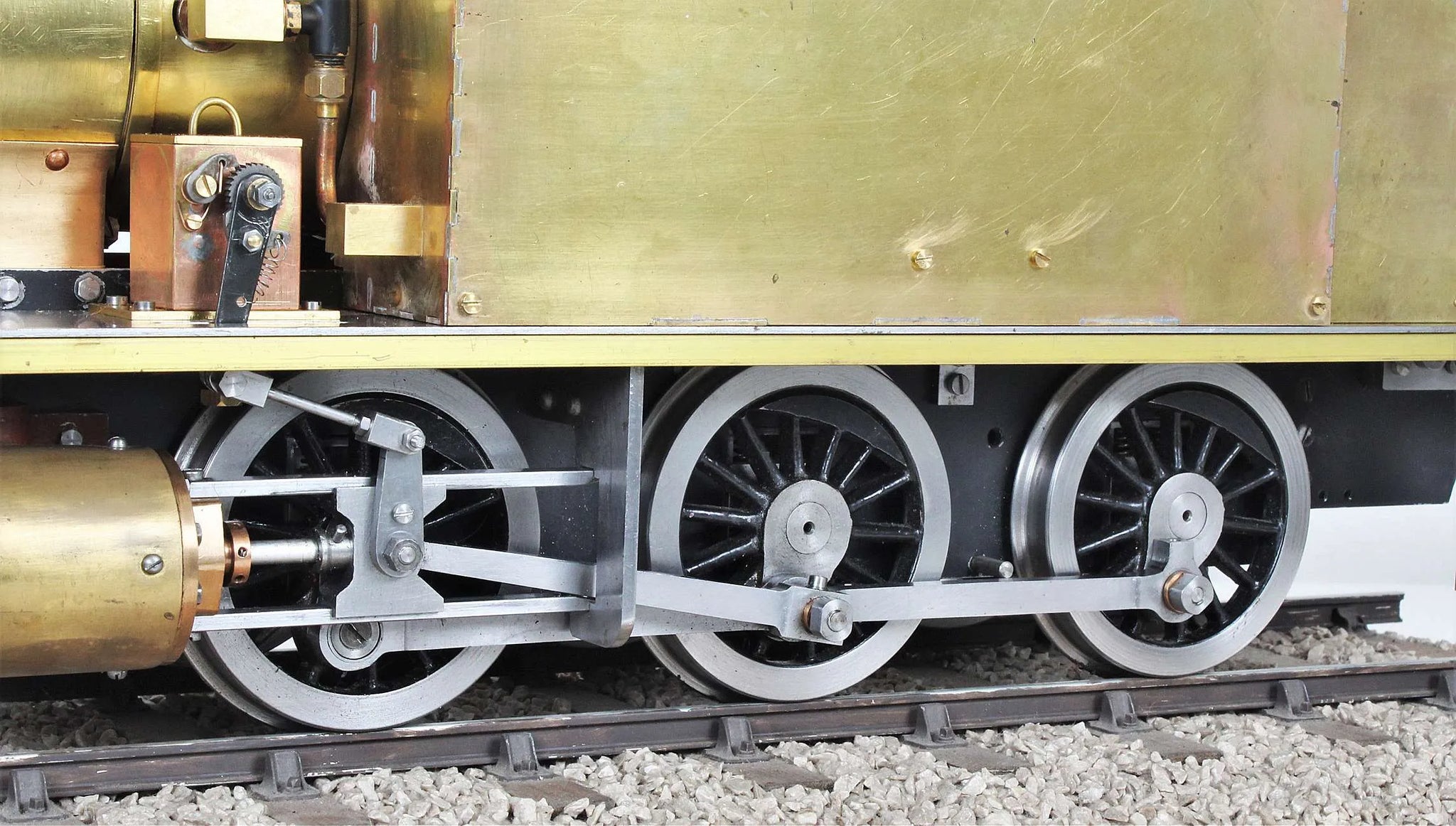

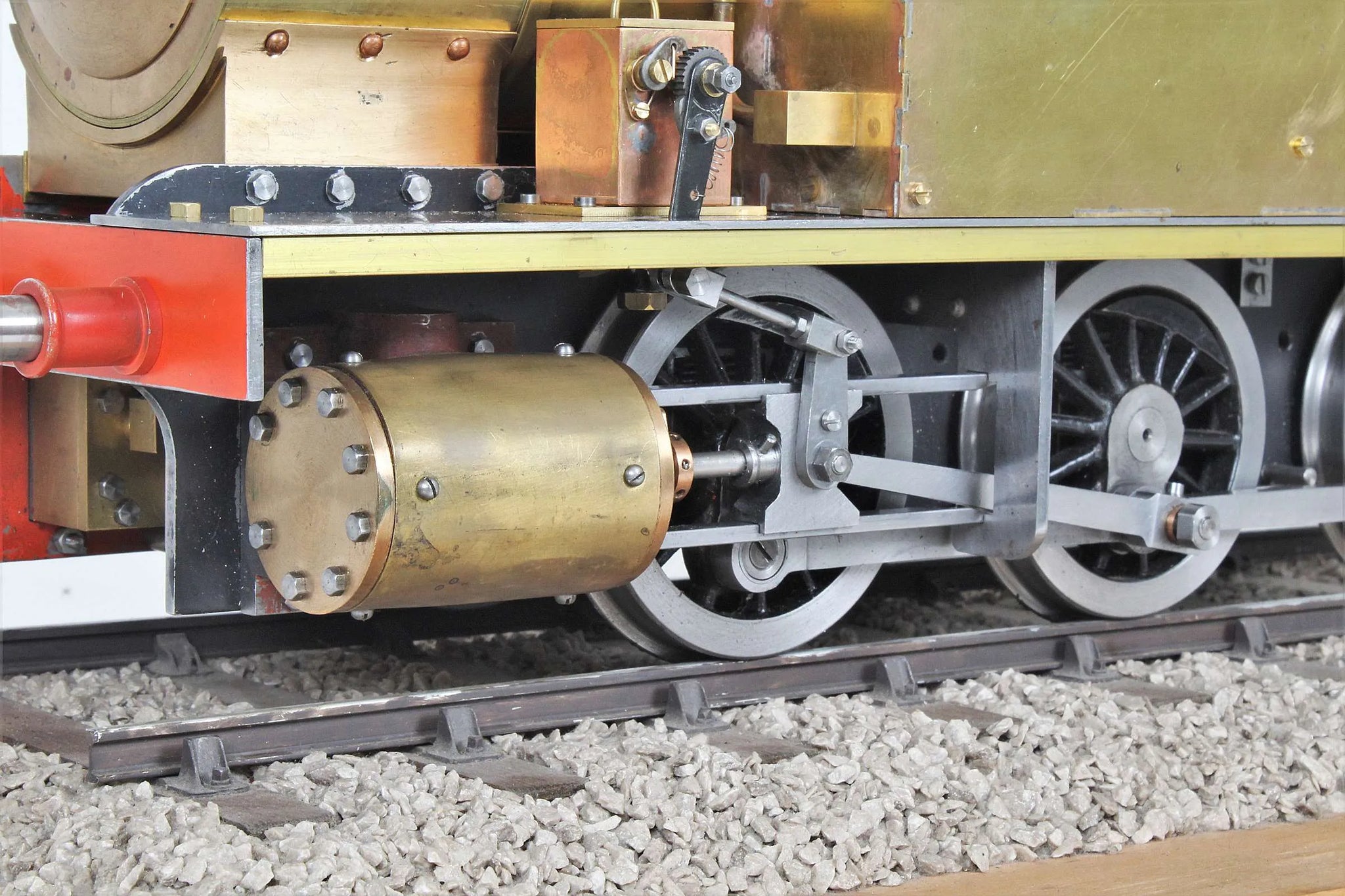

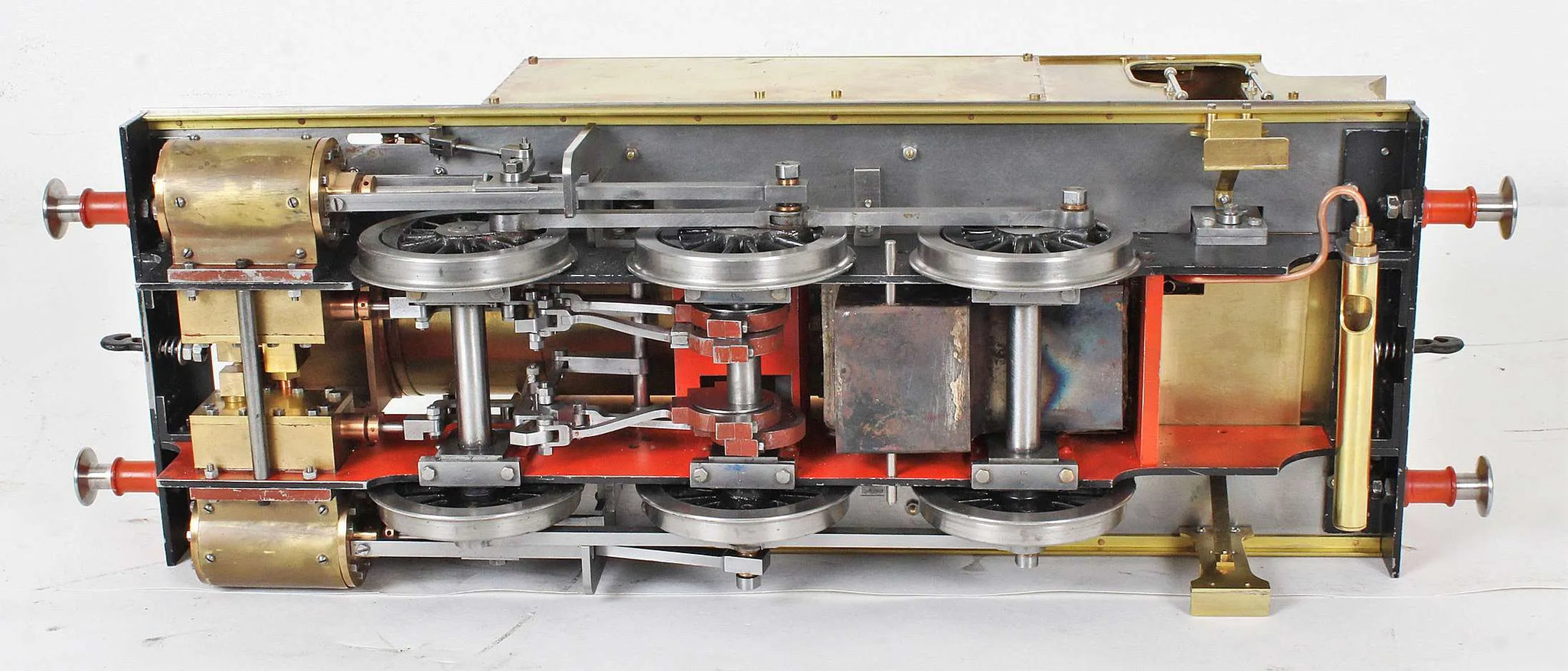

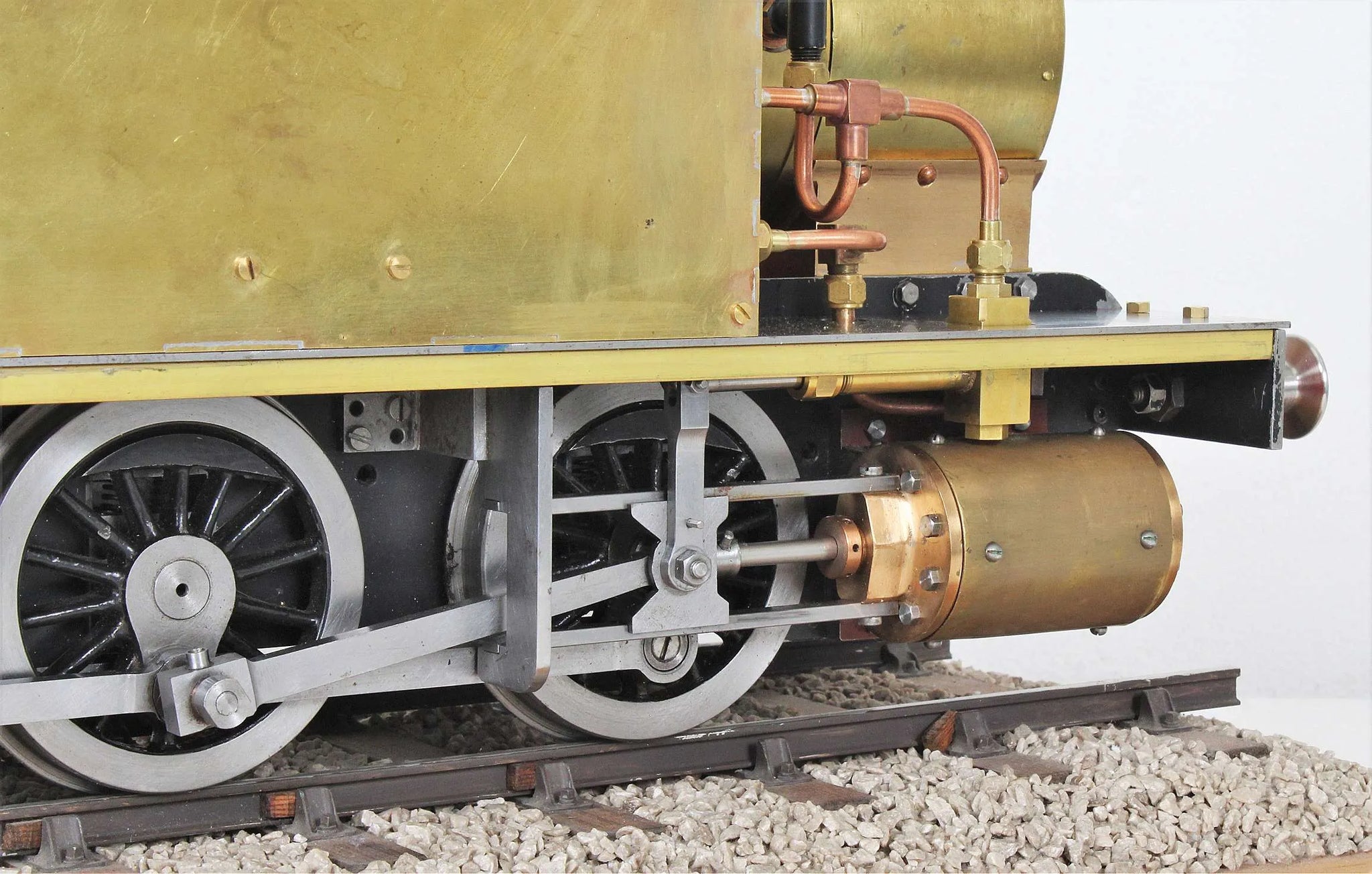

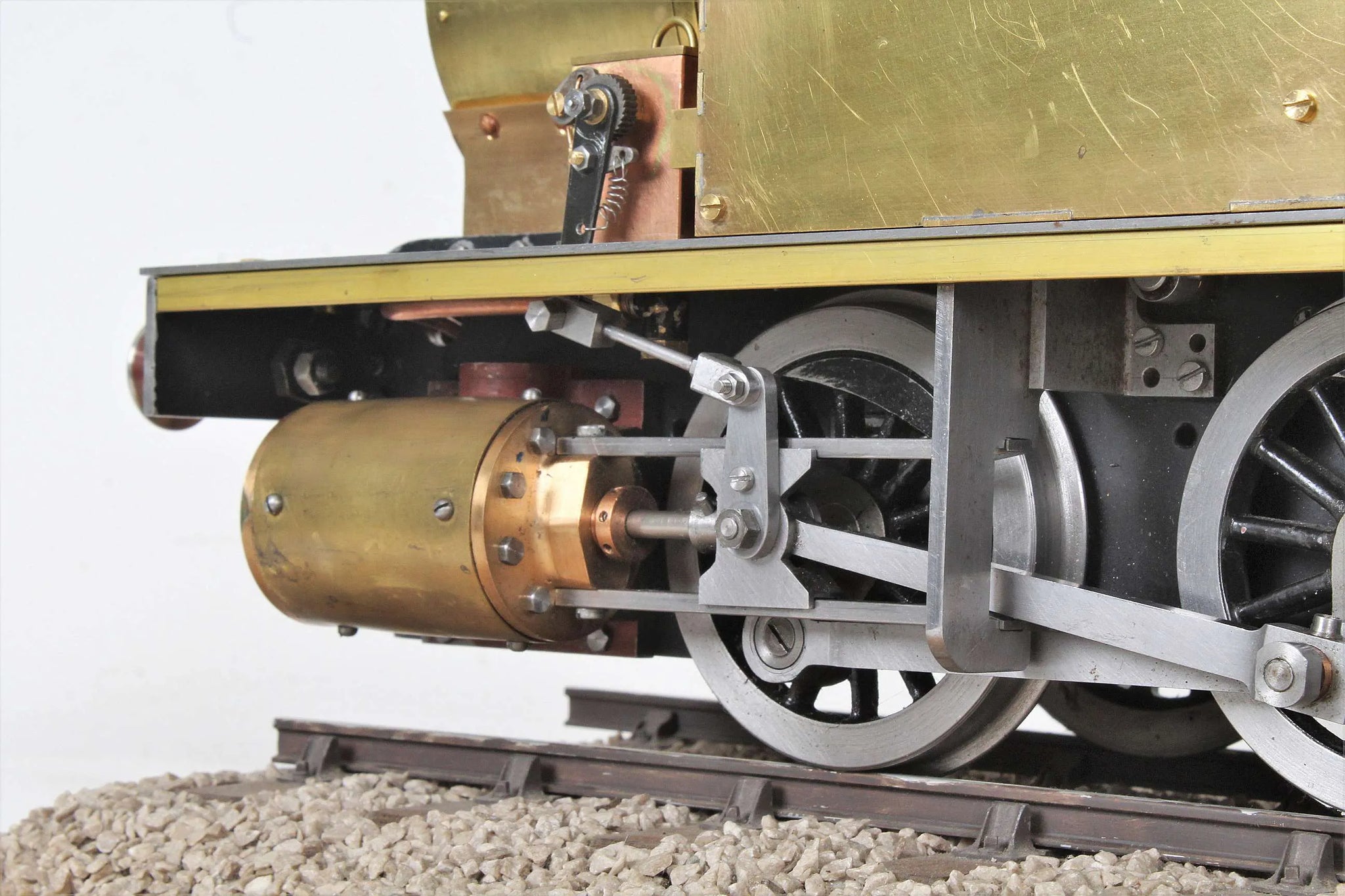

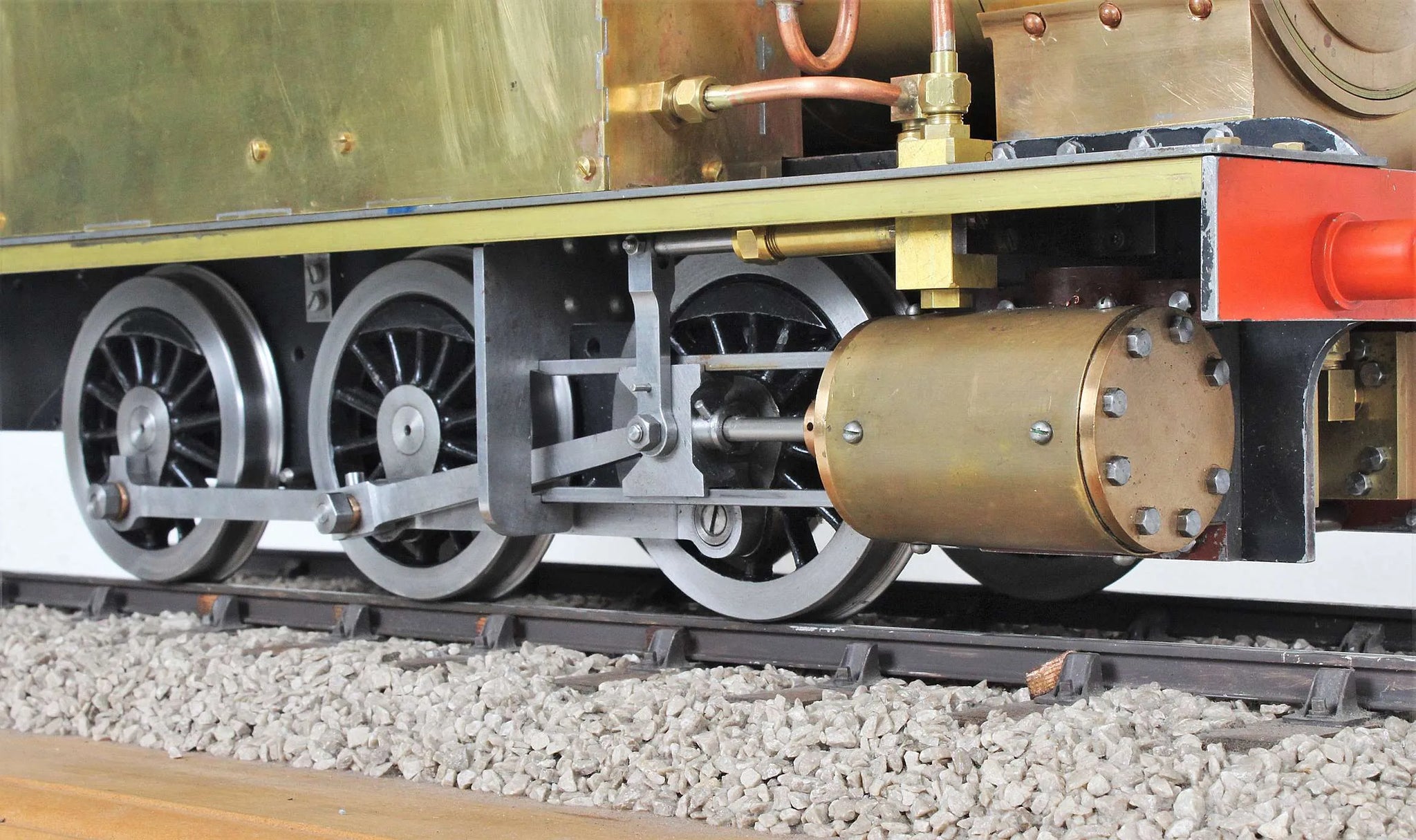

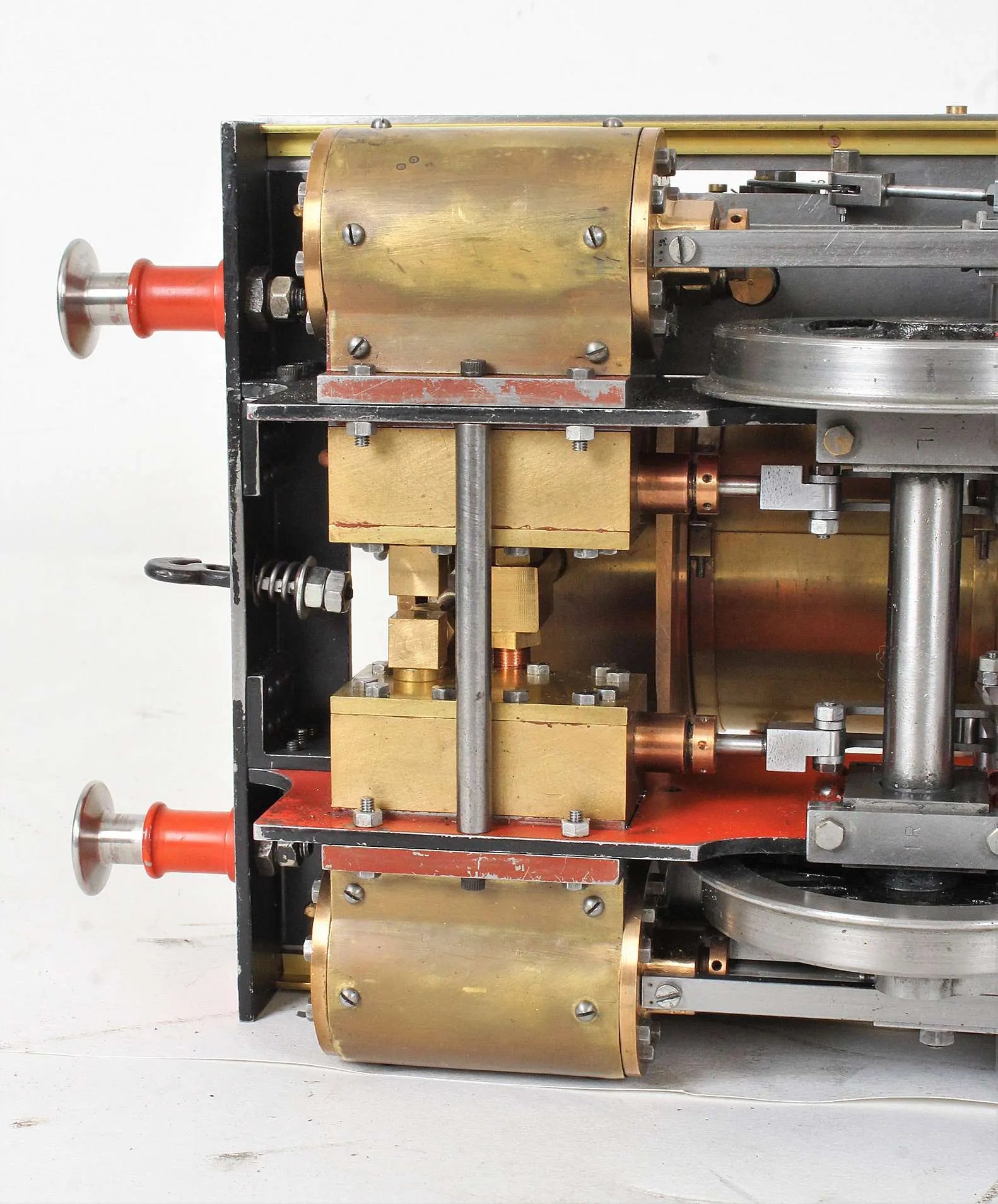

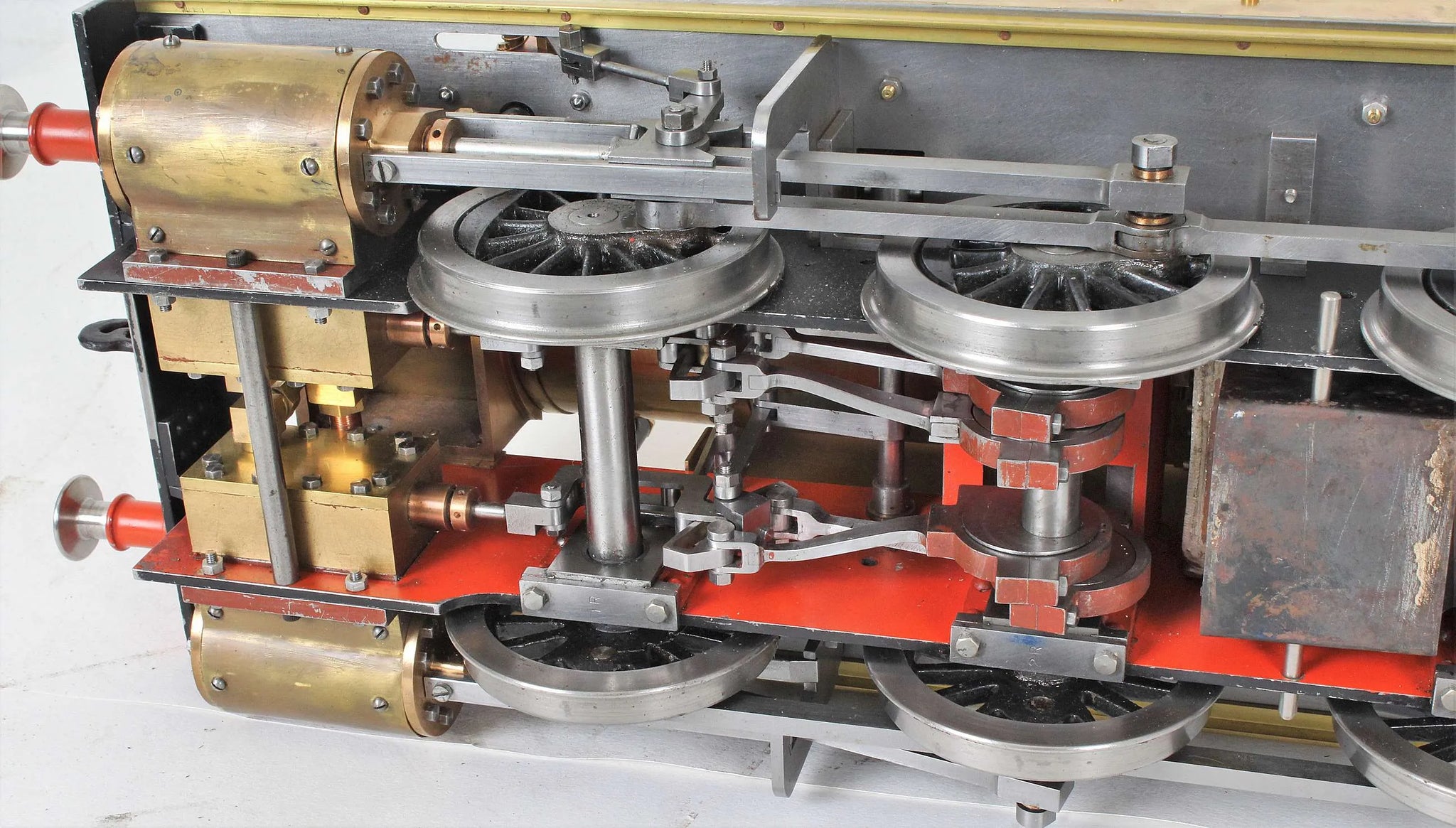

The chassis is well made, with a good standard of machining, fit and finish. Whilst the engine runs on air - better forwards than in reverse - it needs final setting of valves and eccentrics.

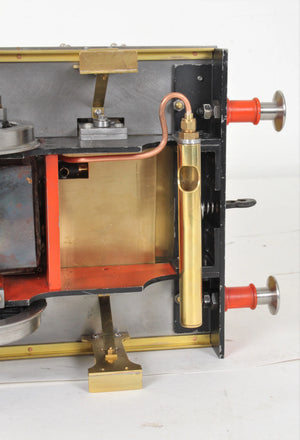

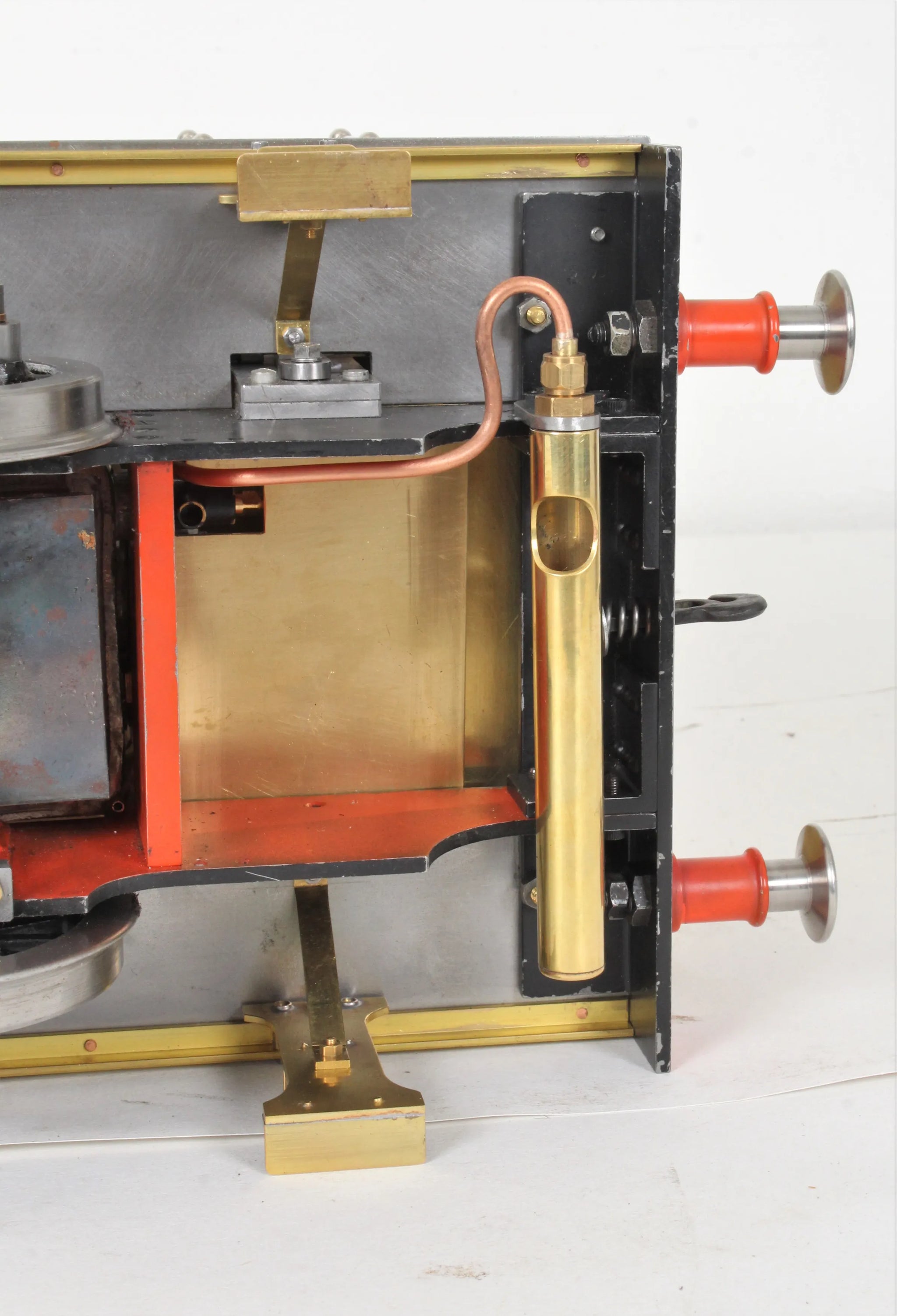

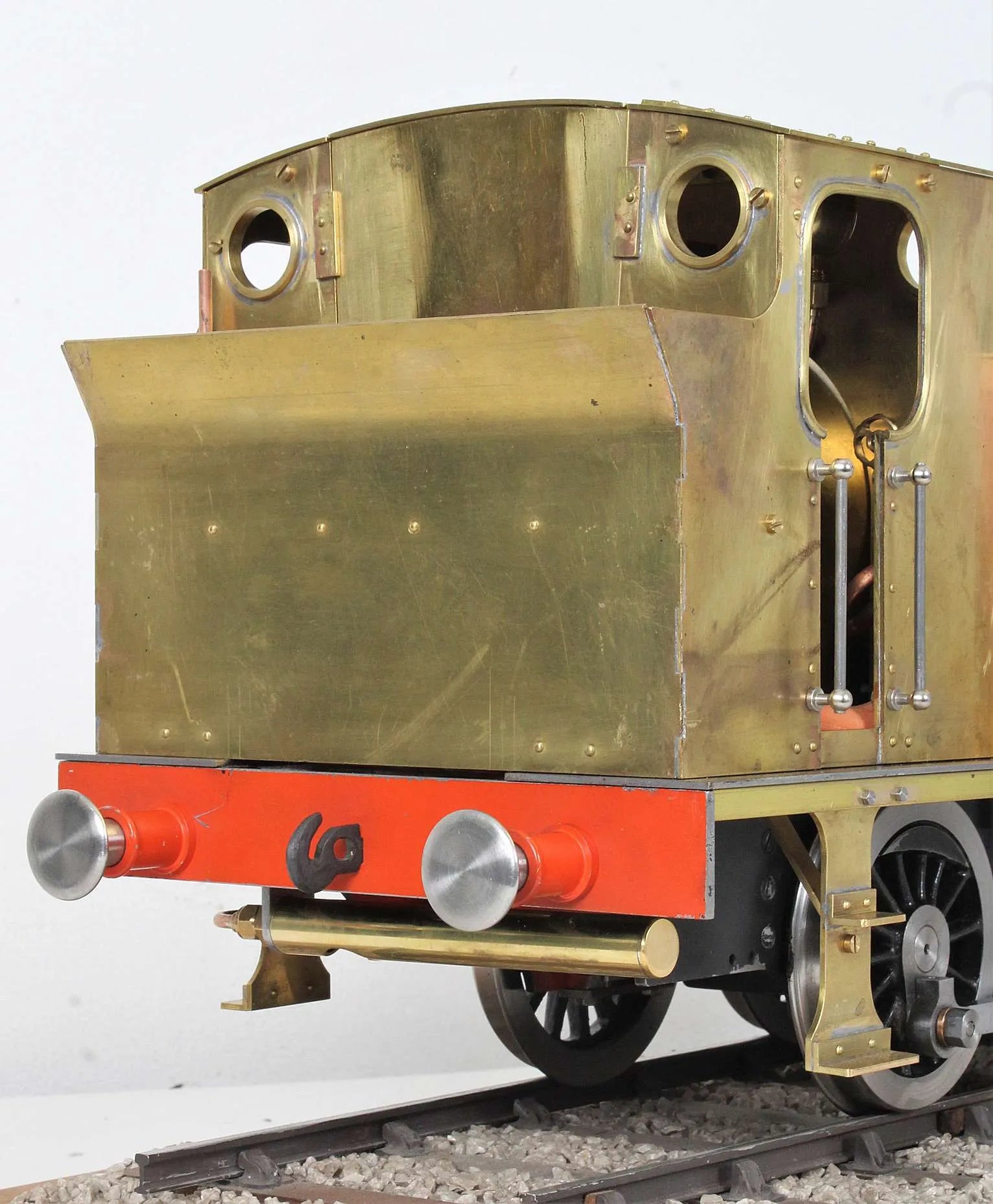

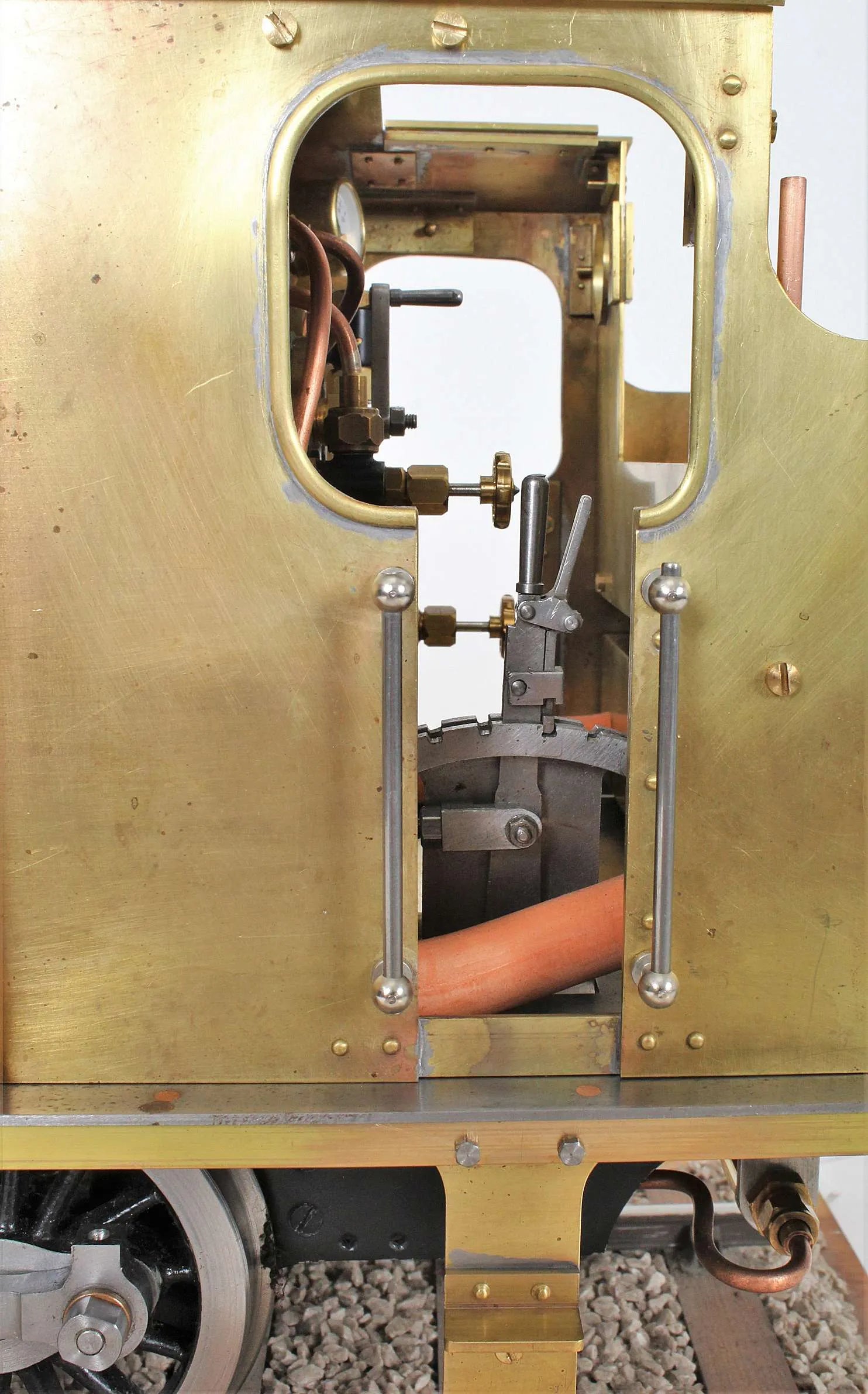

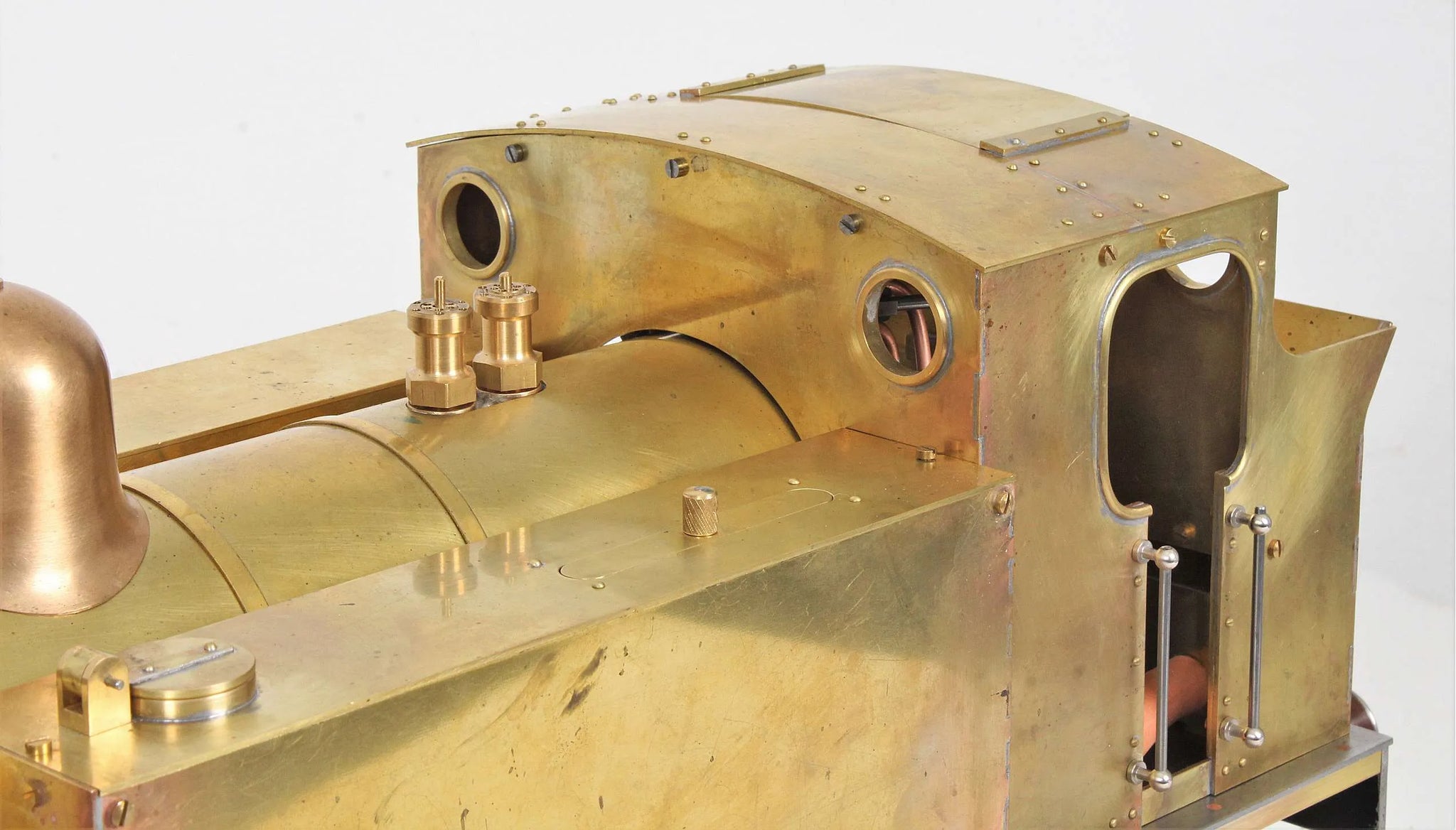

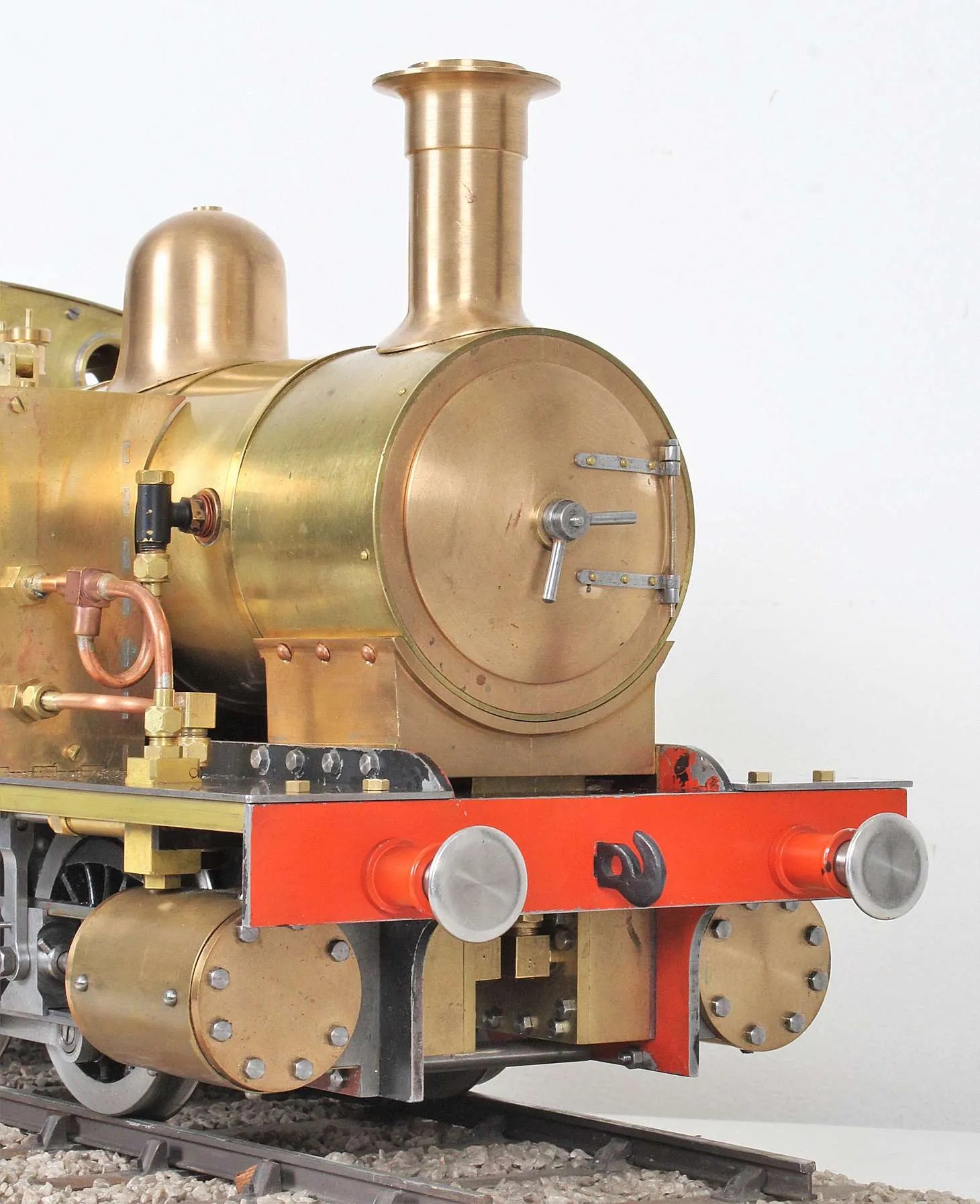

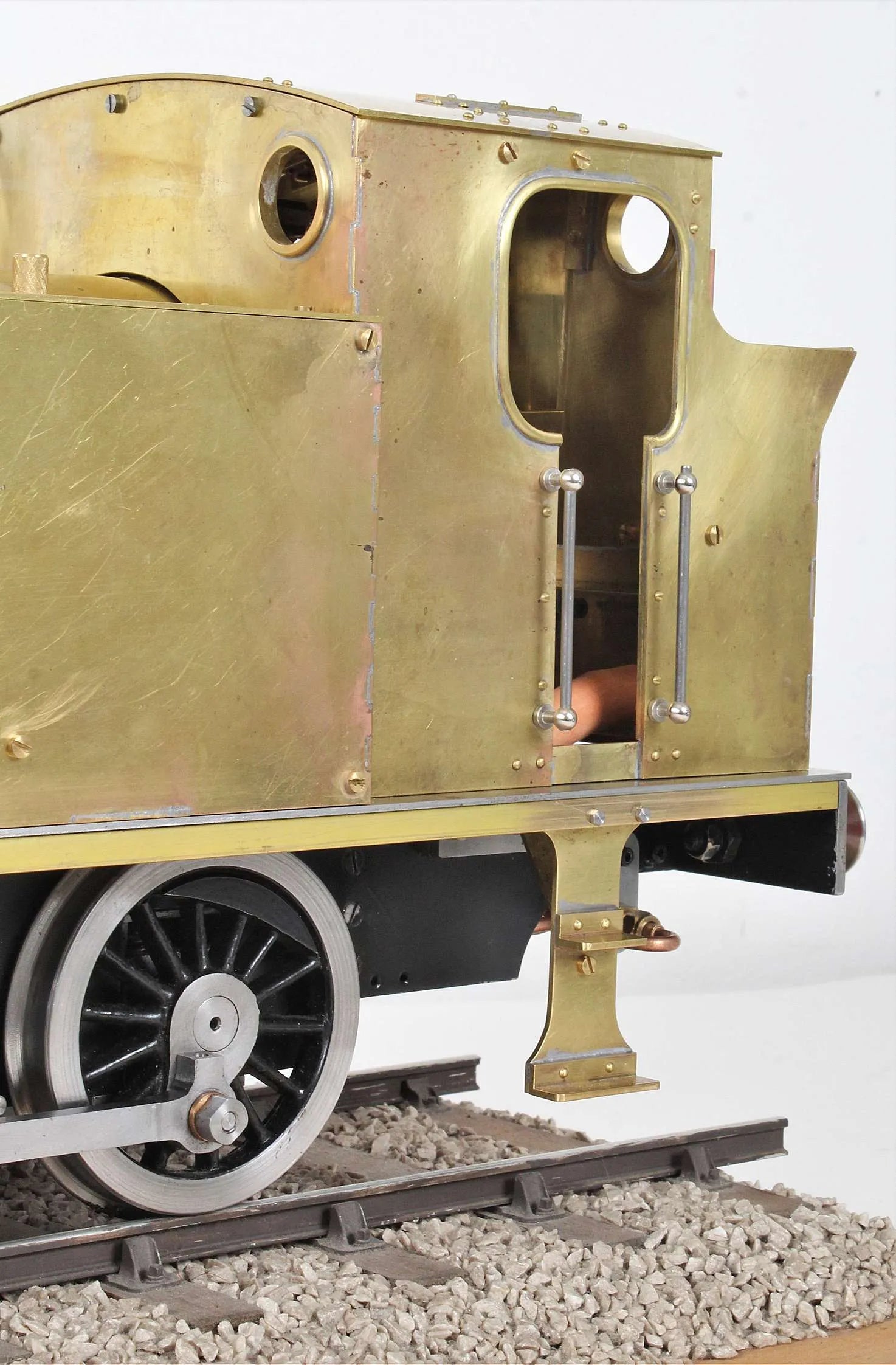

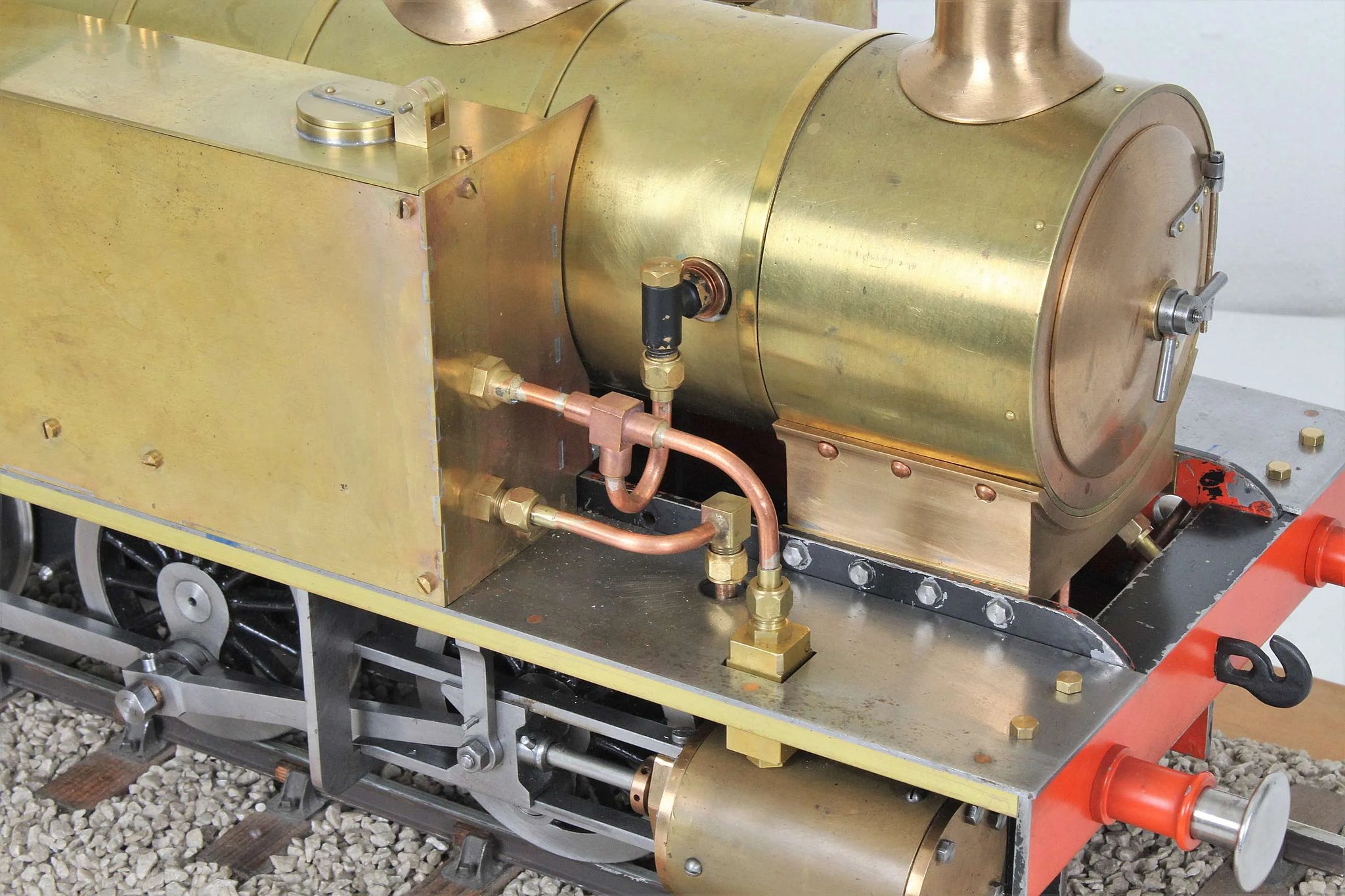

Platework is particularly nicely done, neatly formed and soldered together.

Technical information

Stock code

9913

Length/inches

22

Width/inches

7.5

Height/inches

10

Weight/Kg

17

Wheel material

cast iron

Axlebox type

plain bearing

Cylinder material

gunmetal

Valve type

slide

Valve gear

Stephensons

Reverser type

pole

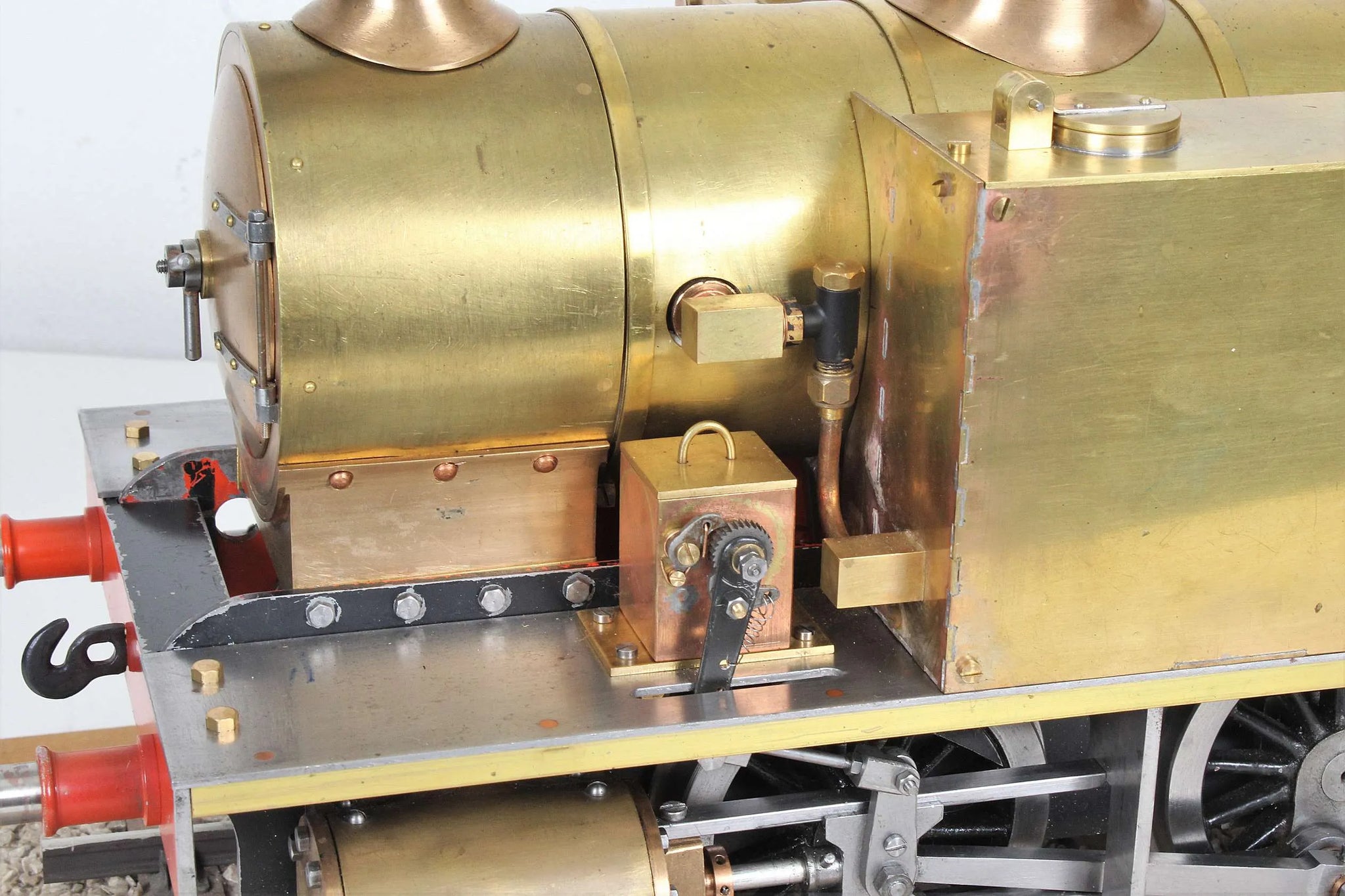

Lubricator type

mechanical

Boiler maker

GB Boiler Services

Boiler type

locomotive

Boiler construction

silver soldered

Boiler material

copper

Working pressure

80

CE/UKCA mark

yes

Year built

2015

Boiler number

GB676

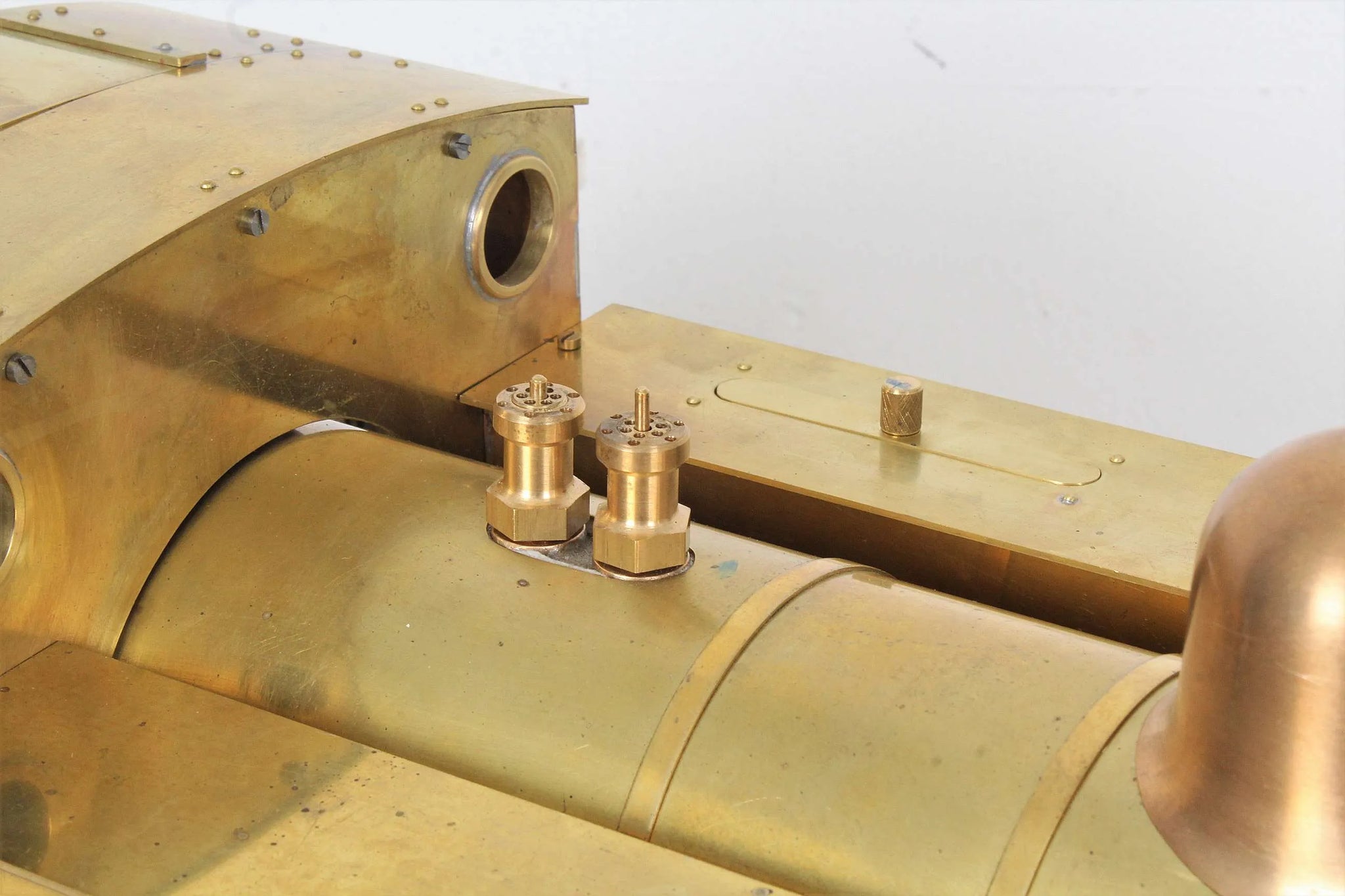

Safety valve type

spring

Safety valve

2

Whistle

yes

Hand pump

1

Mechanical pump

1

Superheater type

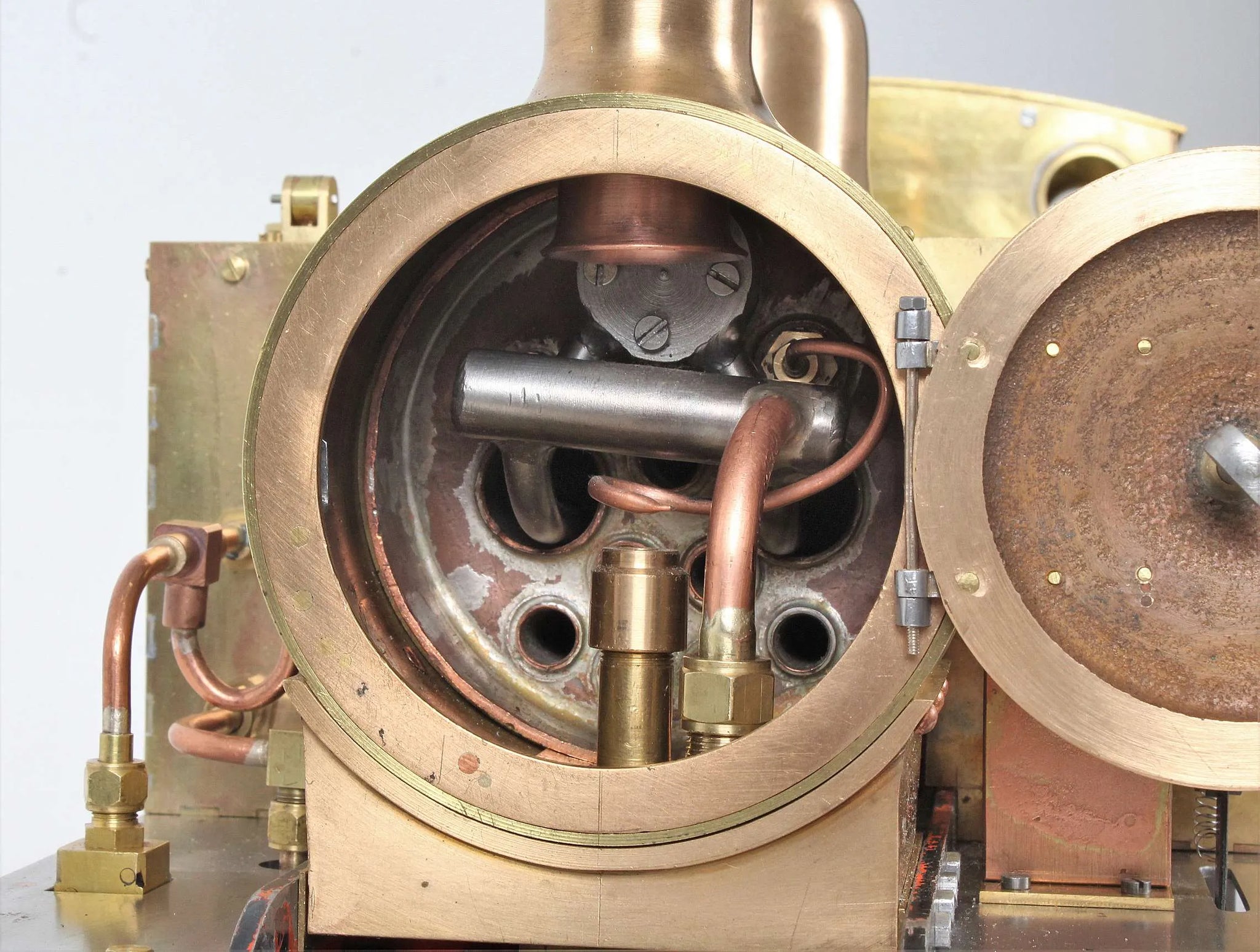

radiant

Superheater

2

Date out

Oct-21
