10946
The chassis runs well on air in both directions. The silver soldered boiler has had a twice working pressure hydraulic test with no evidence of leaks or distortion - we would warranty as sound.

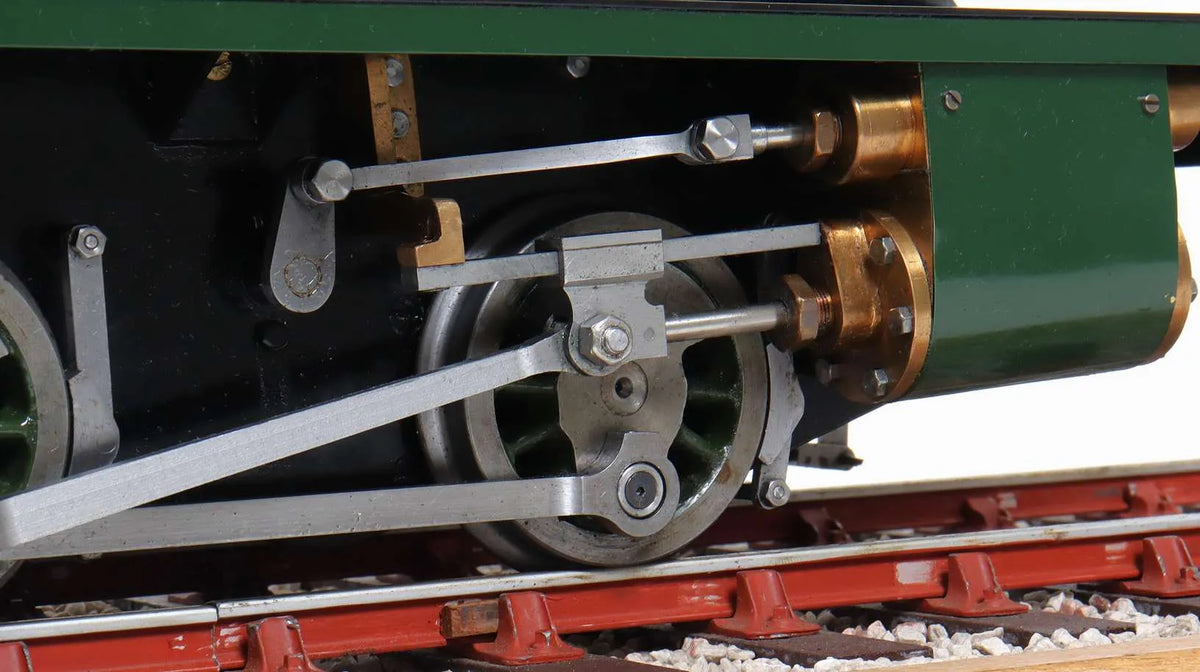

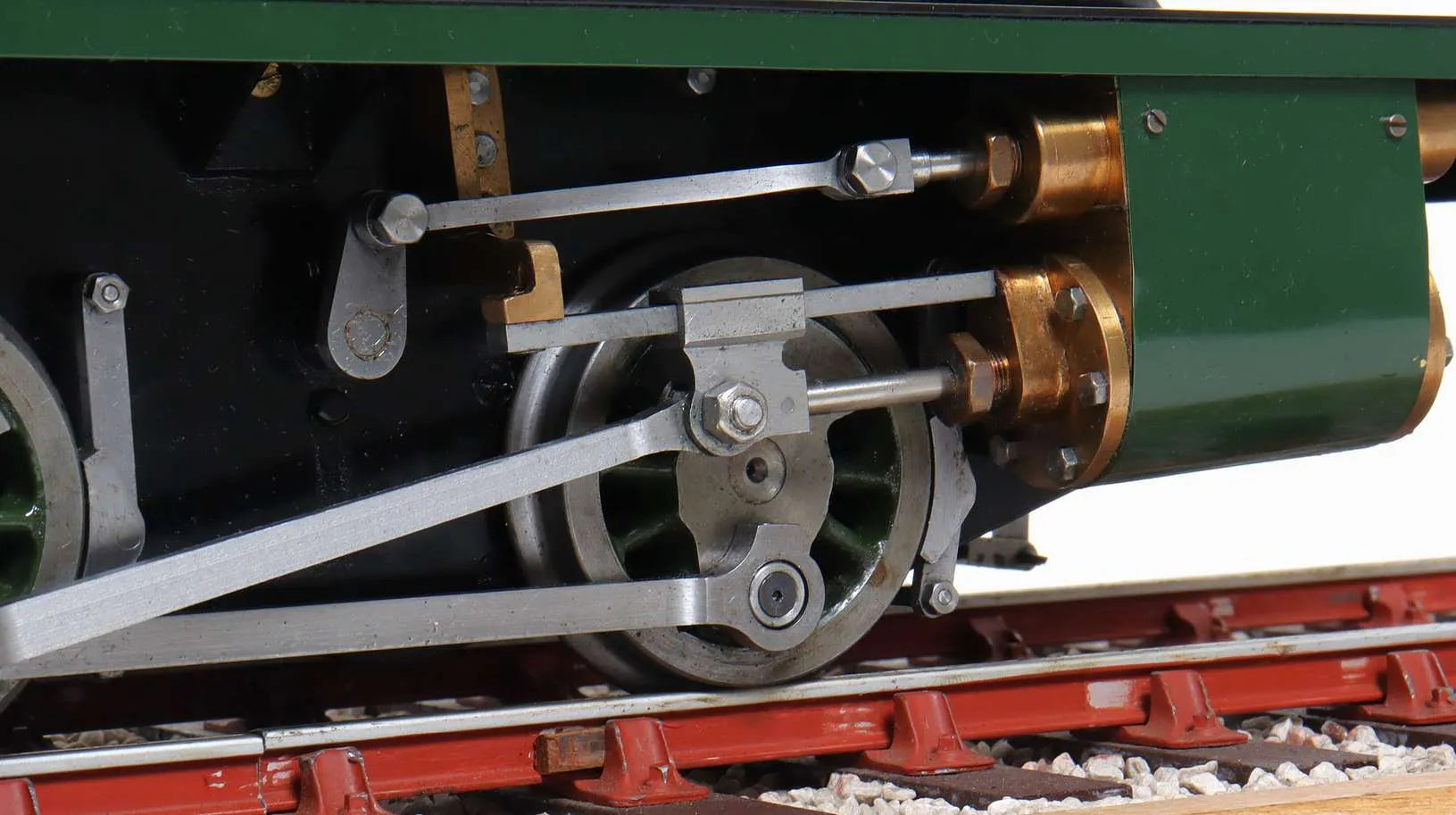

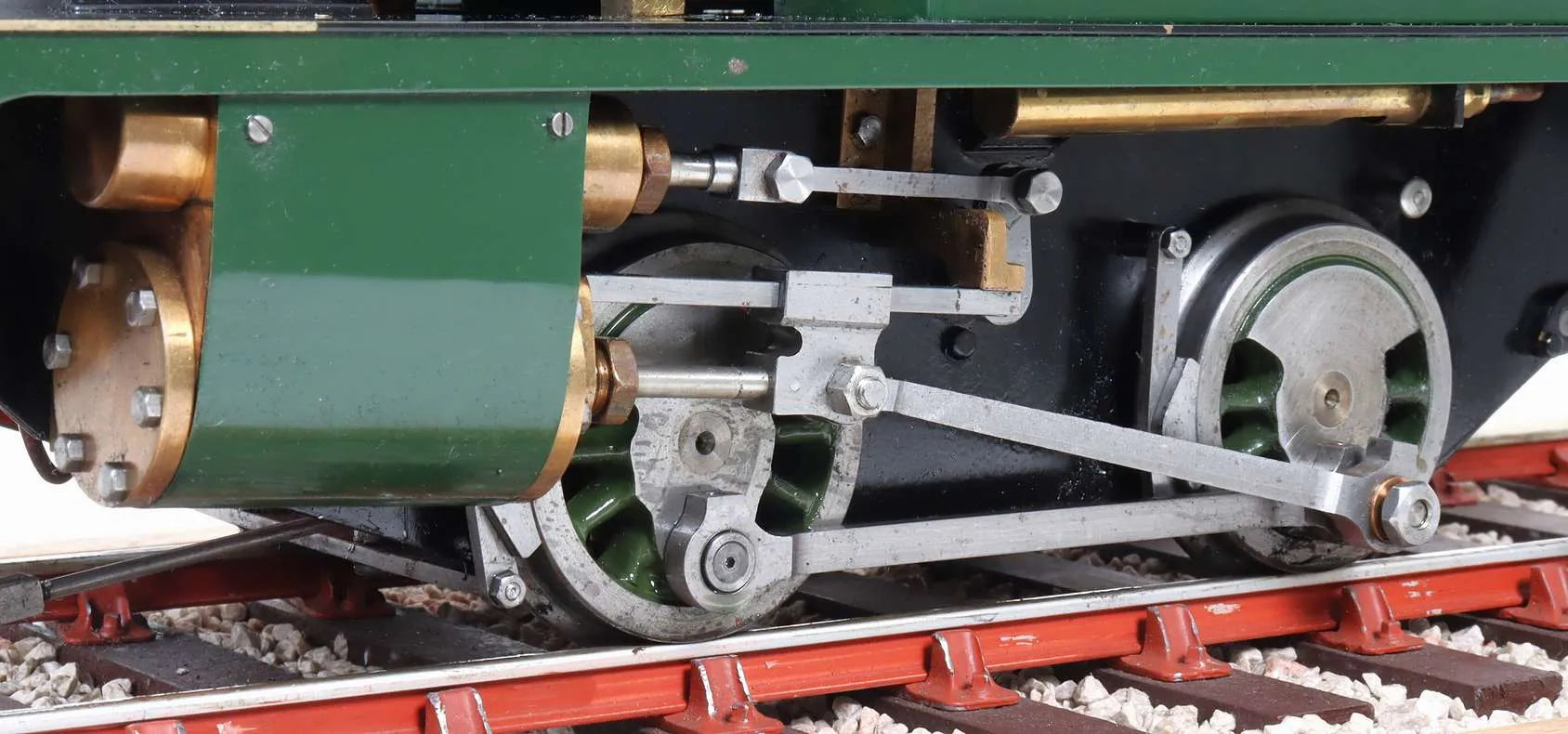

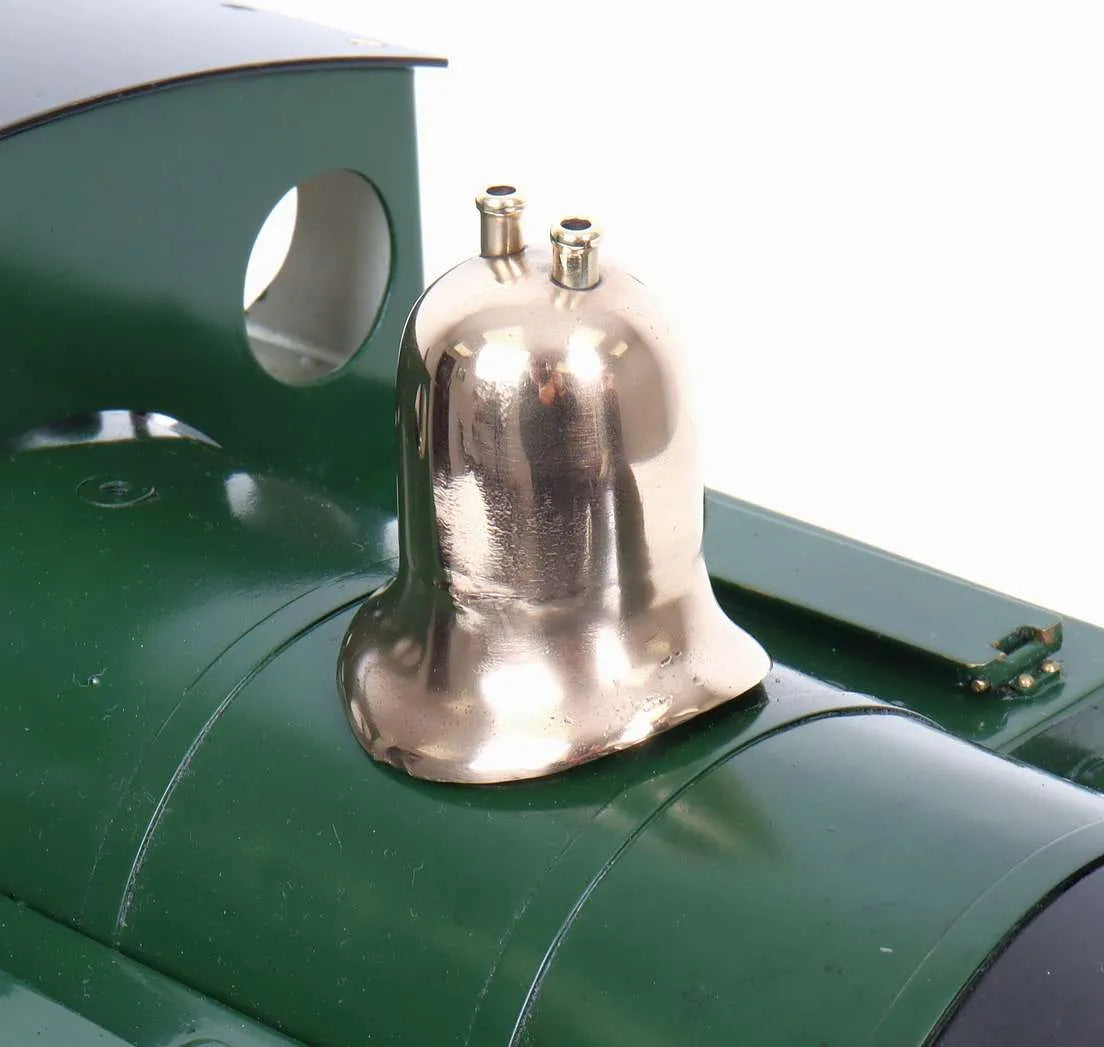

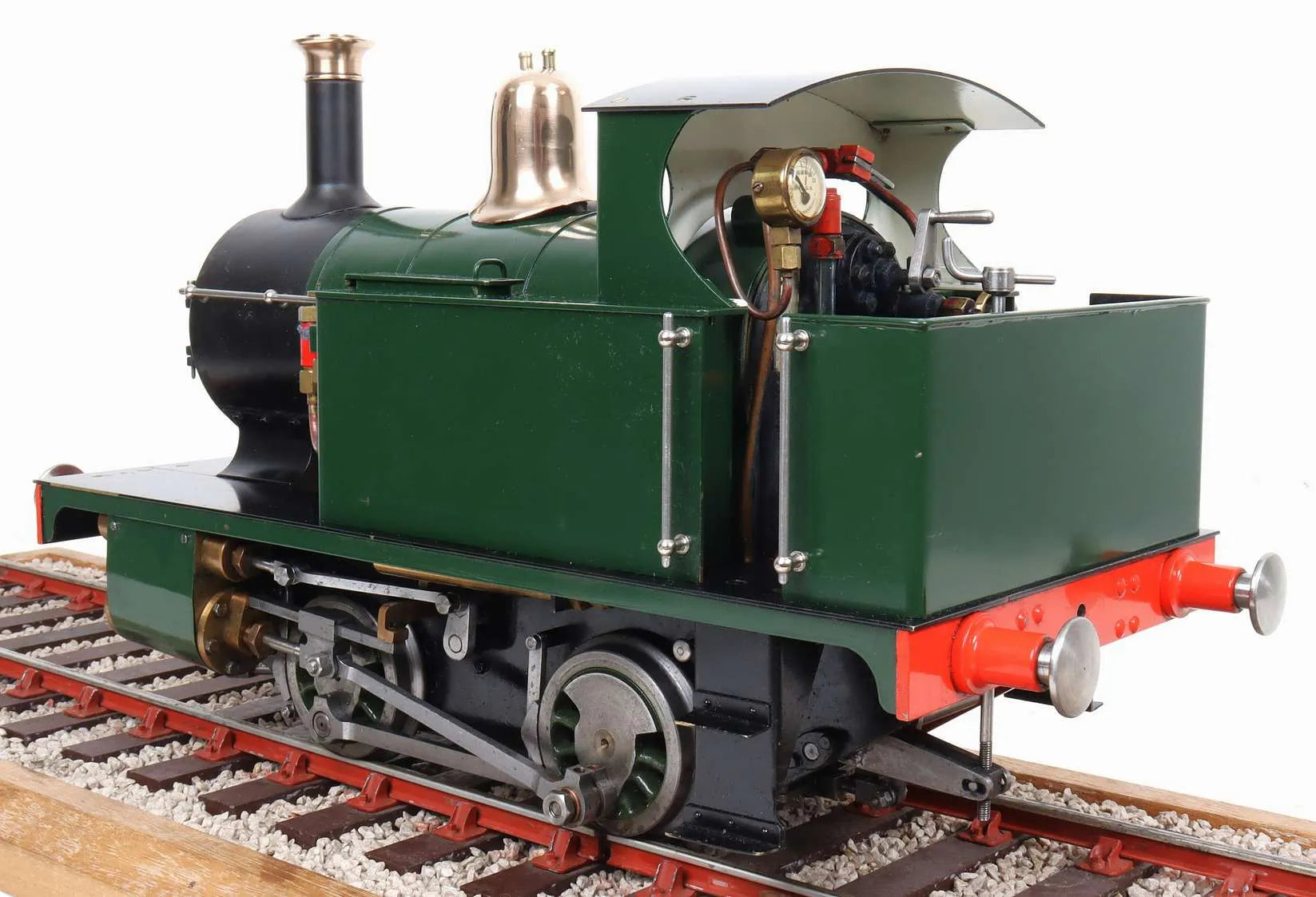

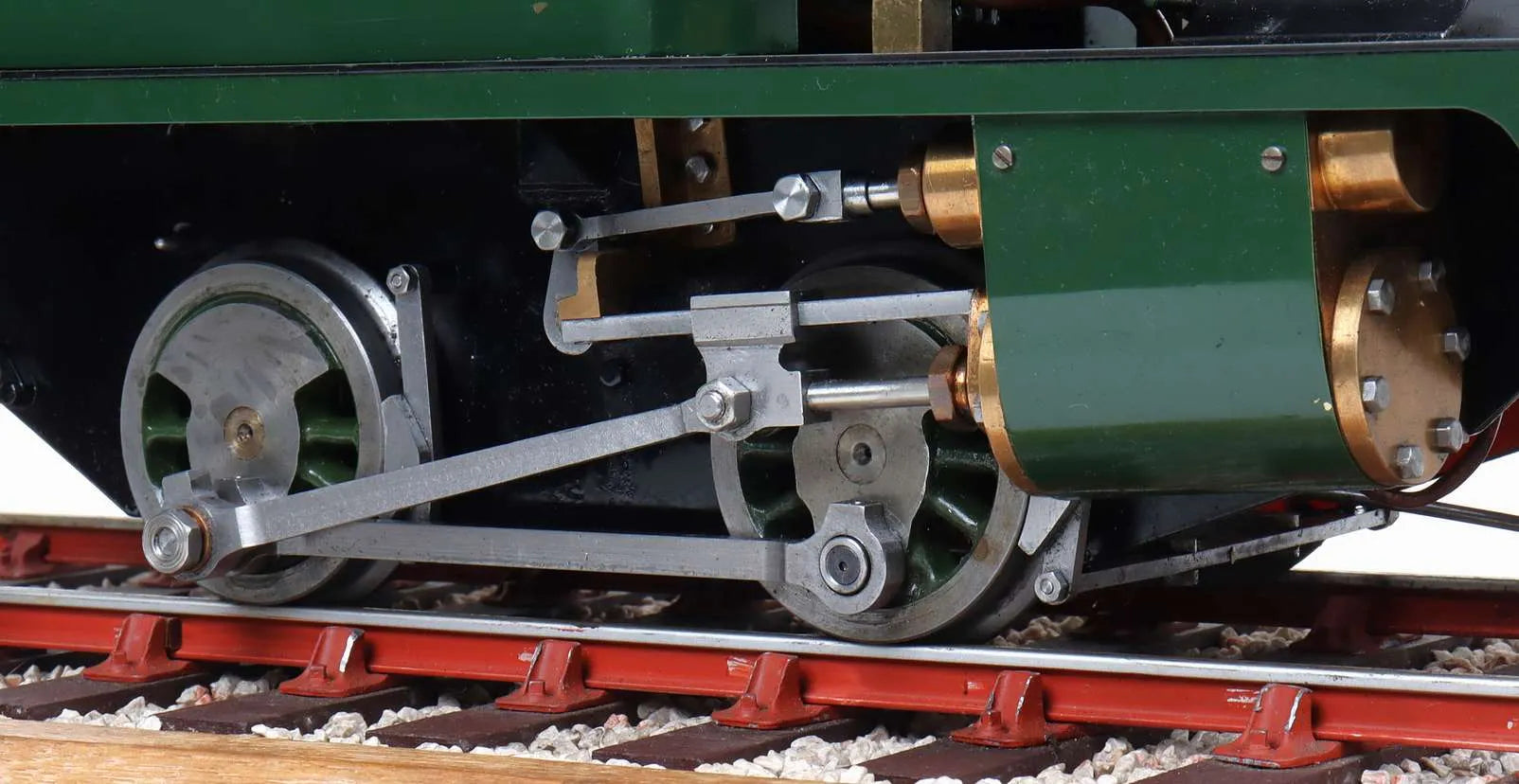

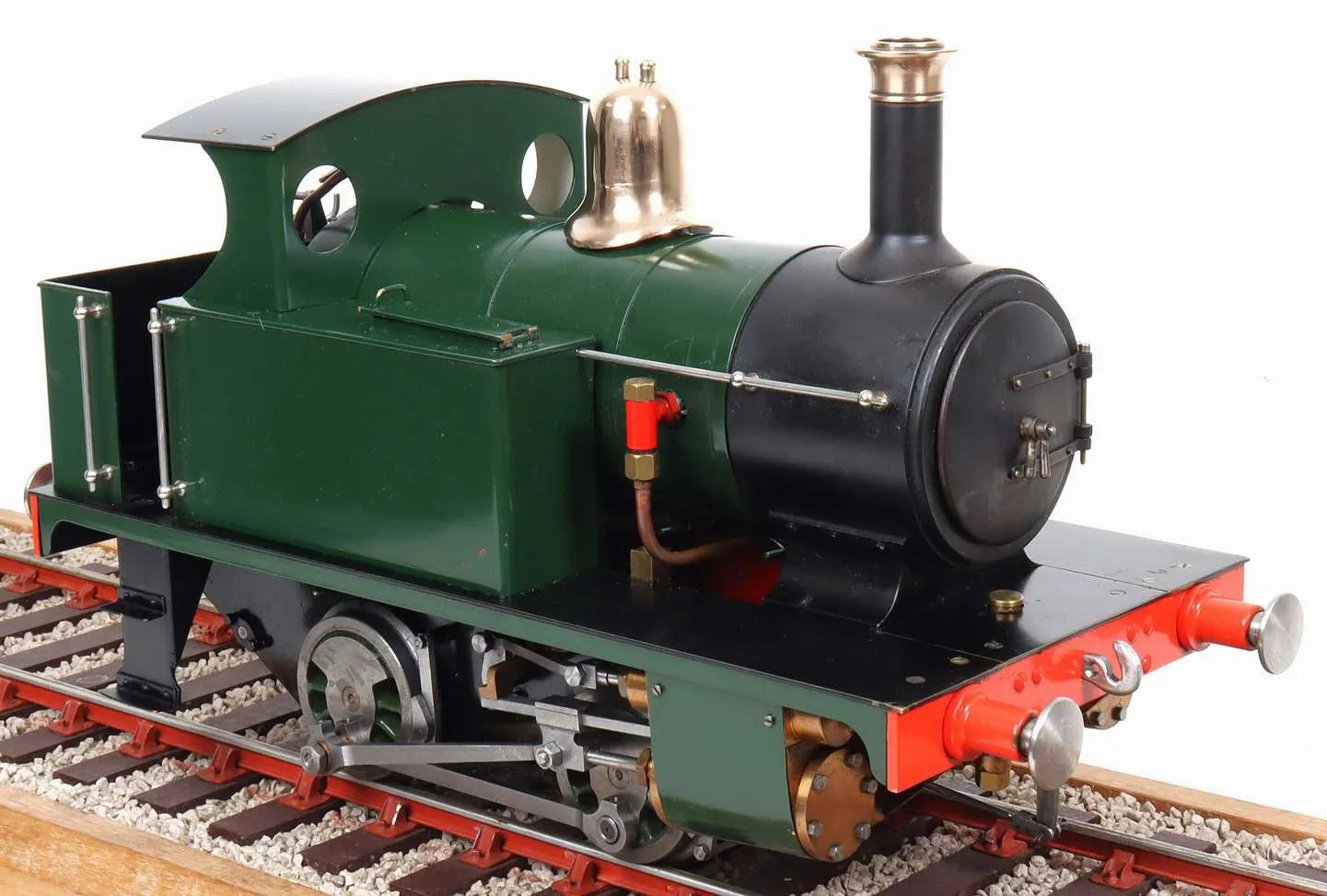

Fit and finish of motion and platework is good throughout, though something's gone awry when it came to the dome; in good cosmetic order, the paintwork a plain but attractive dark green.
Stock code |
10946 |
Gauge |
3 1/2 inch |
Length/inches |
16 |
Width/inches |
7 |
Height/inches |
10 |
Weight/Kg |
10 |
Wheel material |
cast iron |
Axlebox type |
plain bearing |
Cylinder material |
gunmetal |
Valve type |
slide |
Valve gear |
slip eccentric |
Lubricator type |
mechanical |
Boiler maker |
unknown |
Boiler type |
locomotive |
Boiler construction |
silver soldered |
Boiler material |
copper |
Working pressure |
80 |
Year built |
unknown |
Boiler number |
4098614N4-80-279 |
Safety valve type |
spring |
Safety valve |
1 |
Fusible plug |
no |
Hand pump |
1 |
Mechanical pump |
1 |
Superheater |
0 |
Date out |
May-24 |
