9709
The work of an extraordinarily gifted engineer, the man responsible for, amongst other things the Standard Class 5, Hawthorne Leslie and Southern King Arthur that have featured on the website recently.

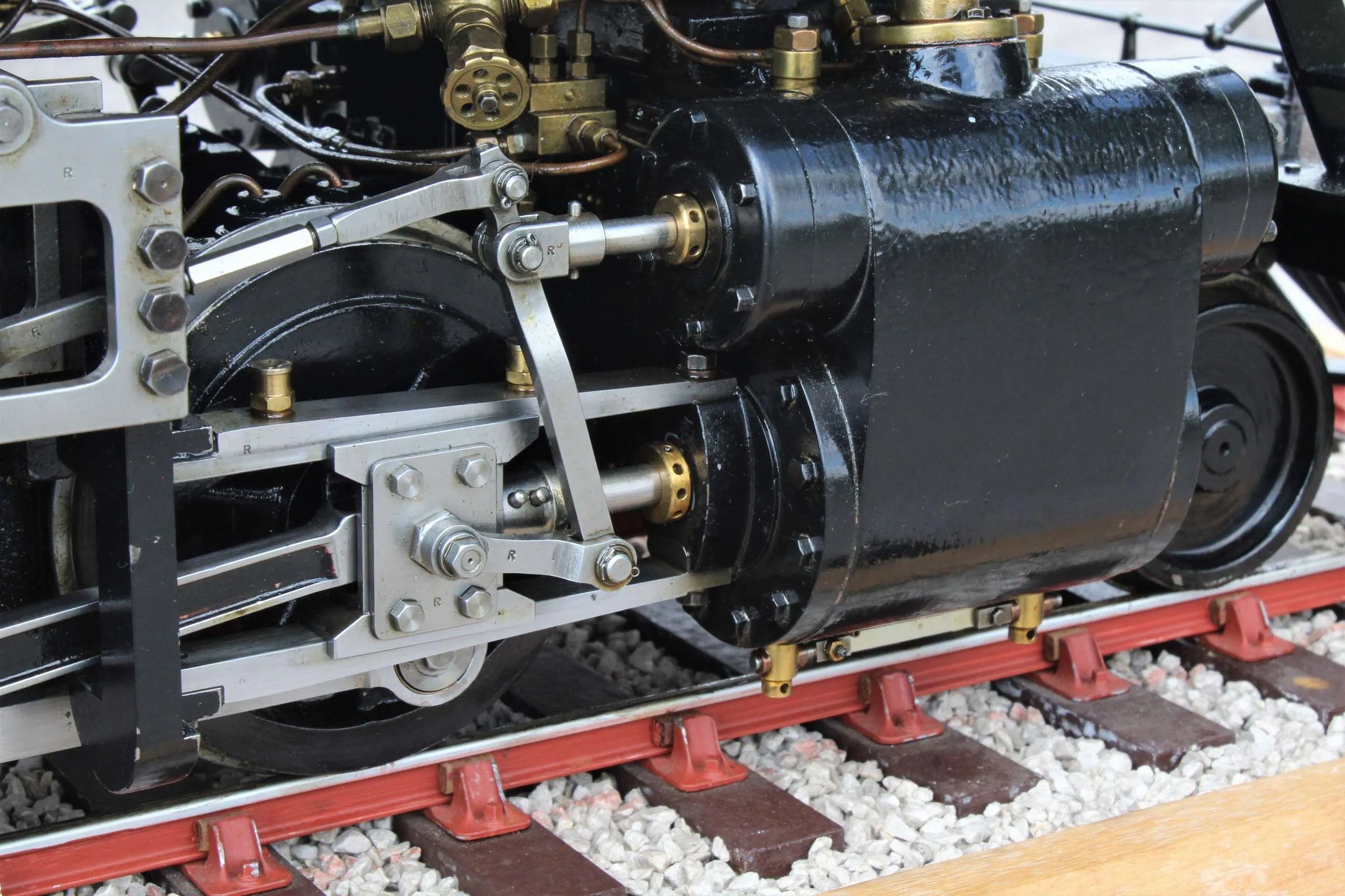

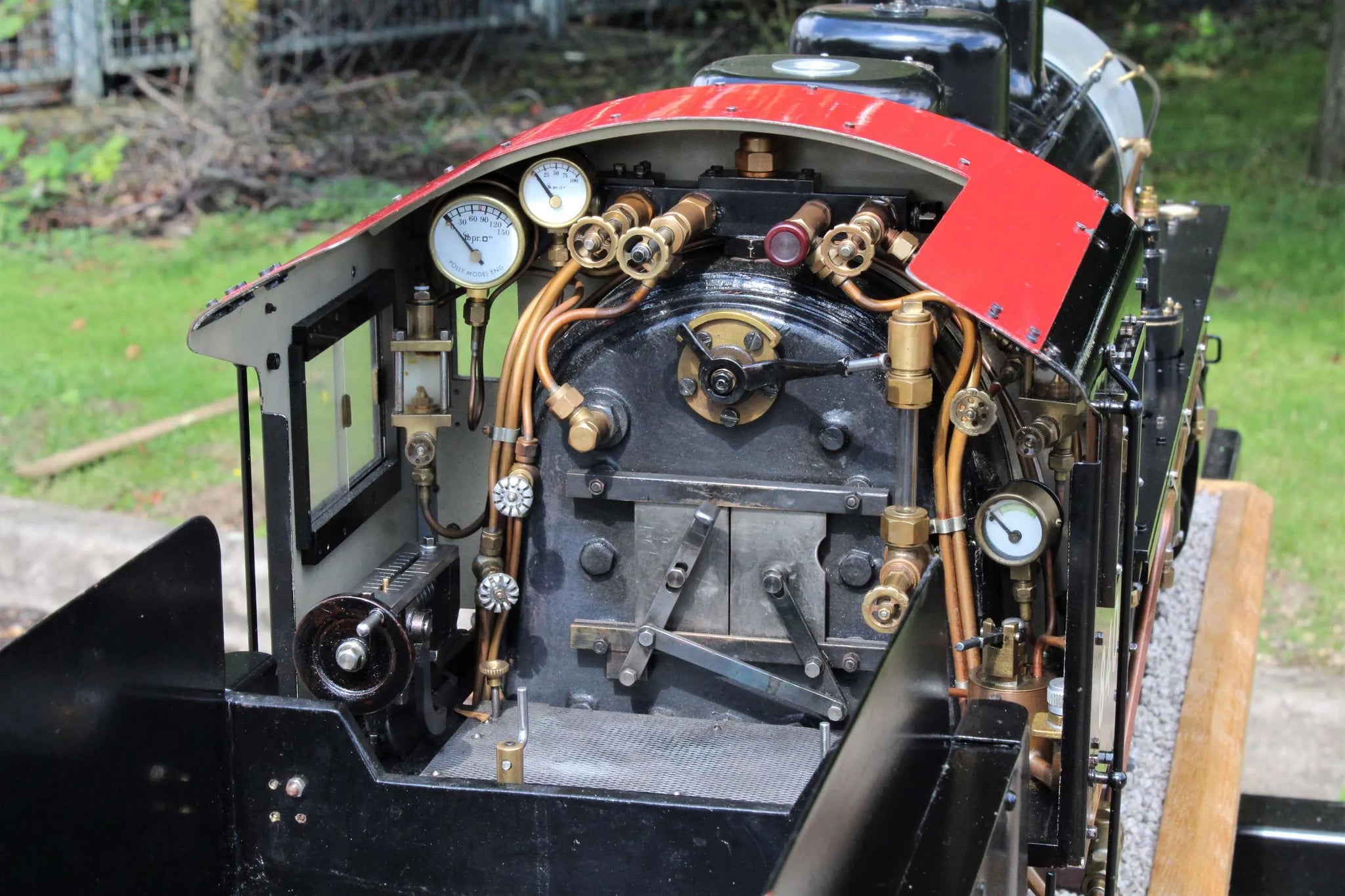

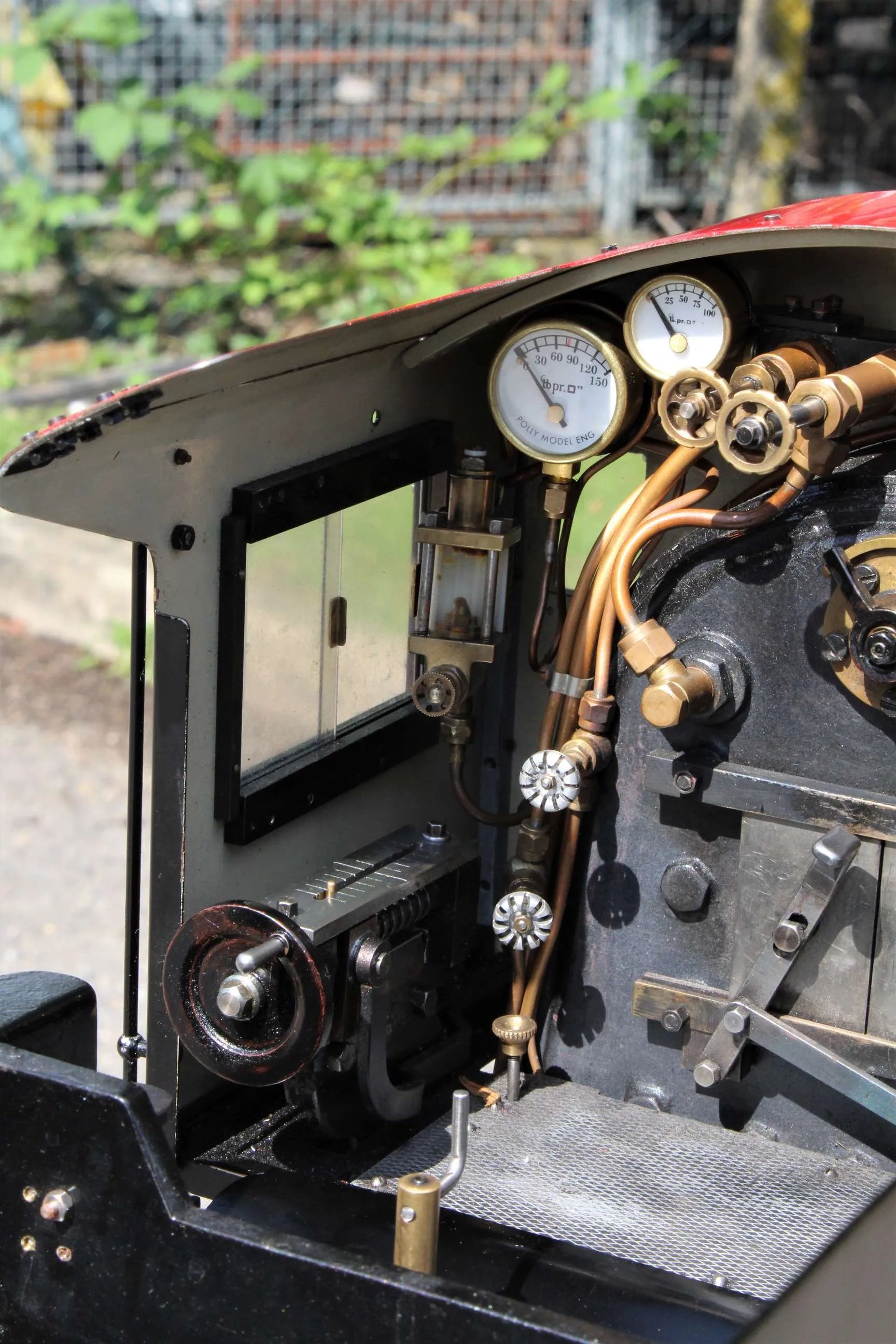

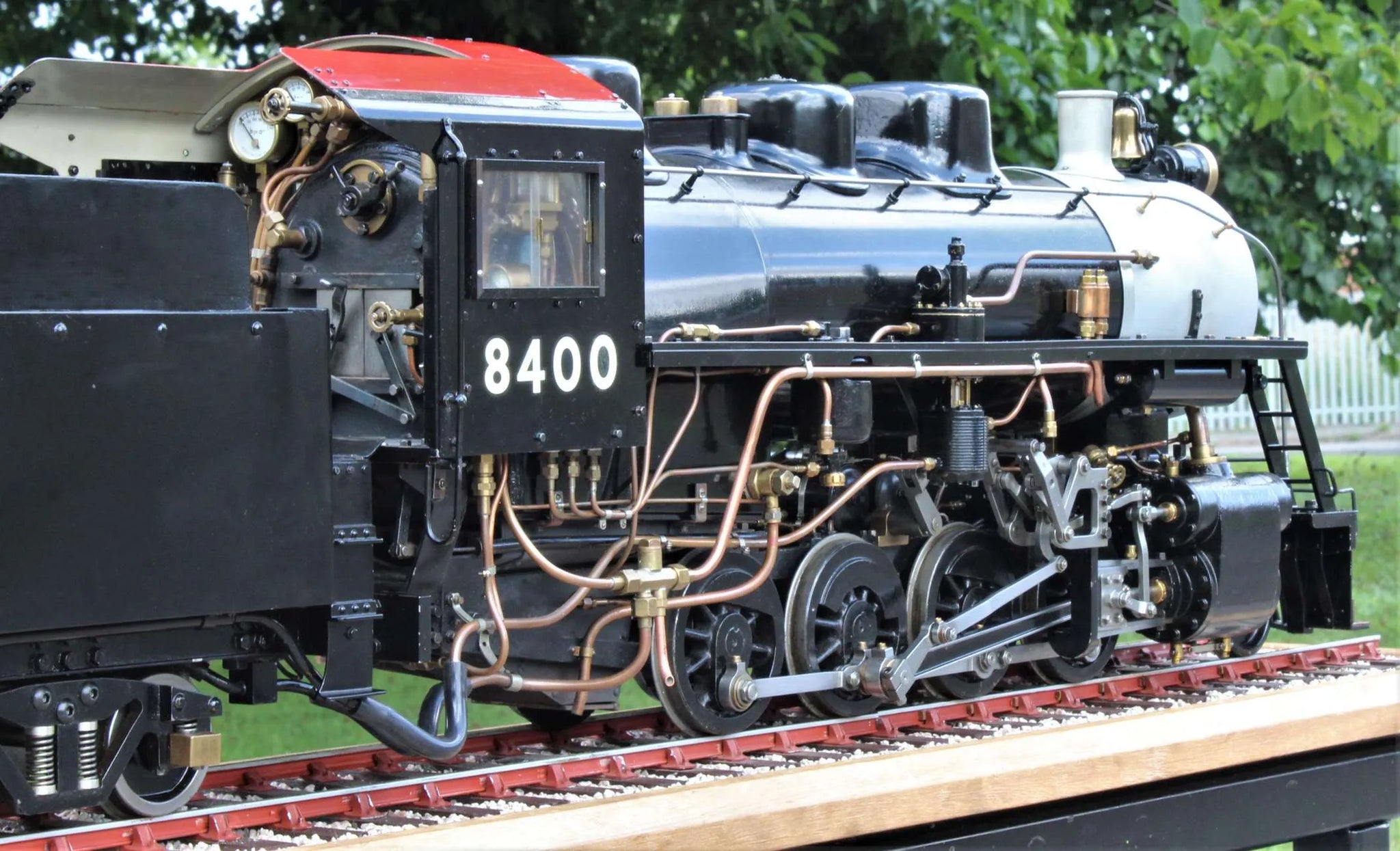

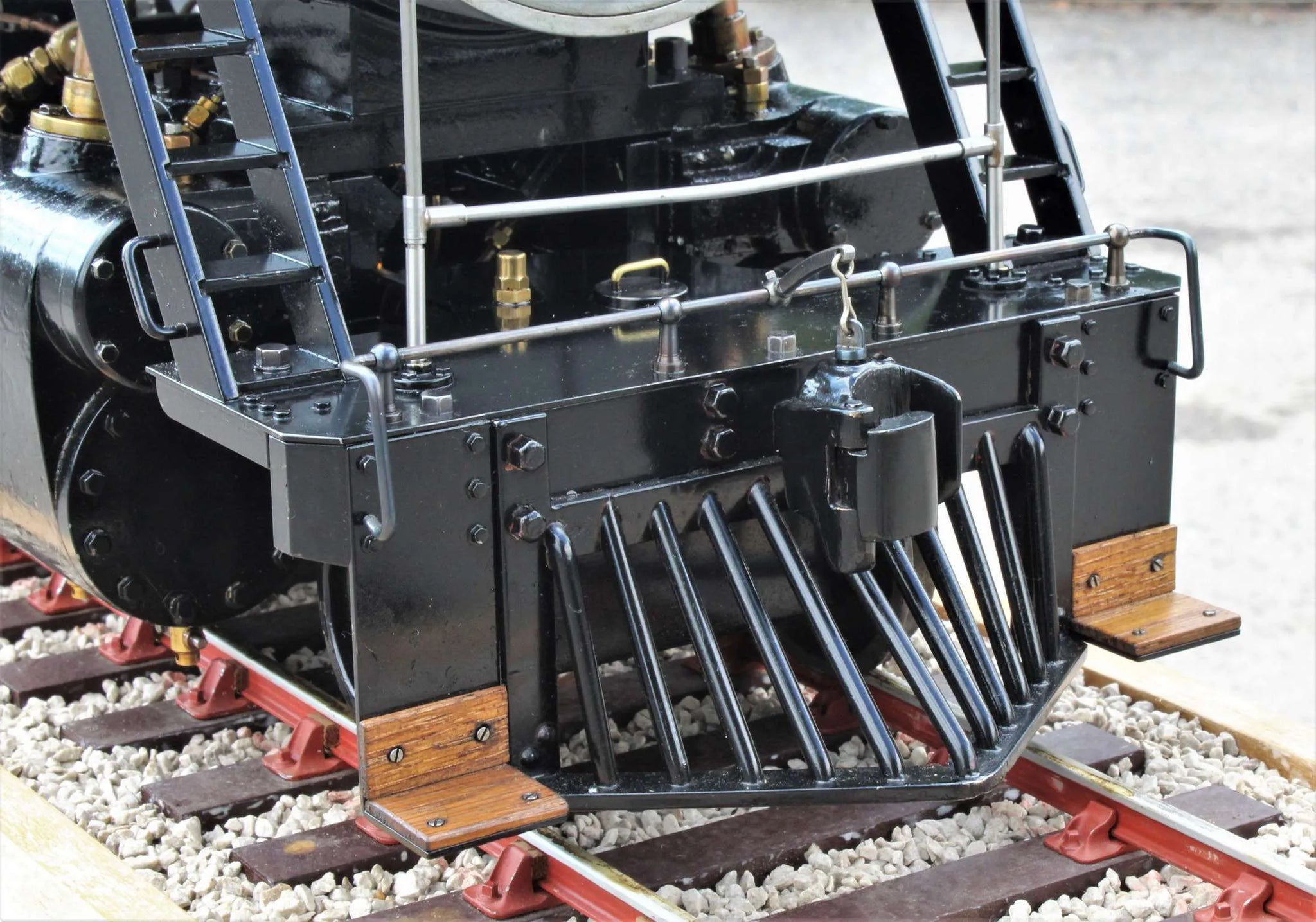

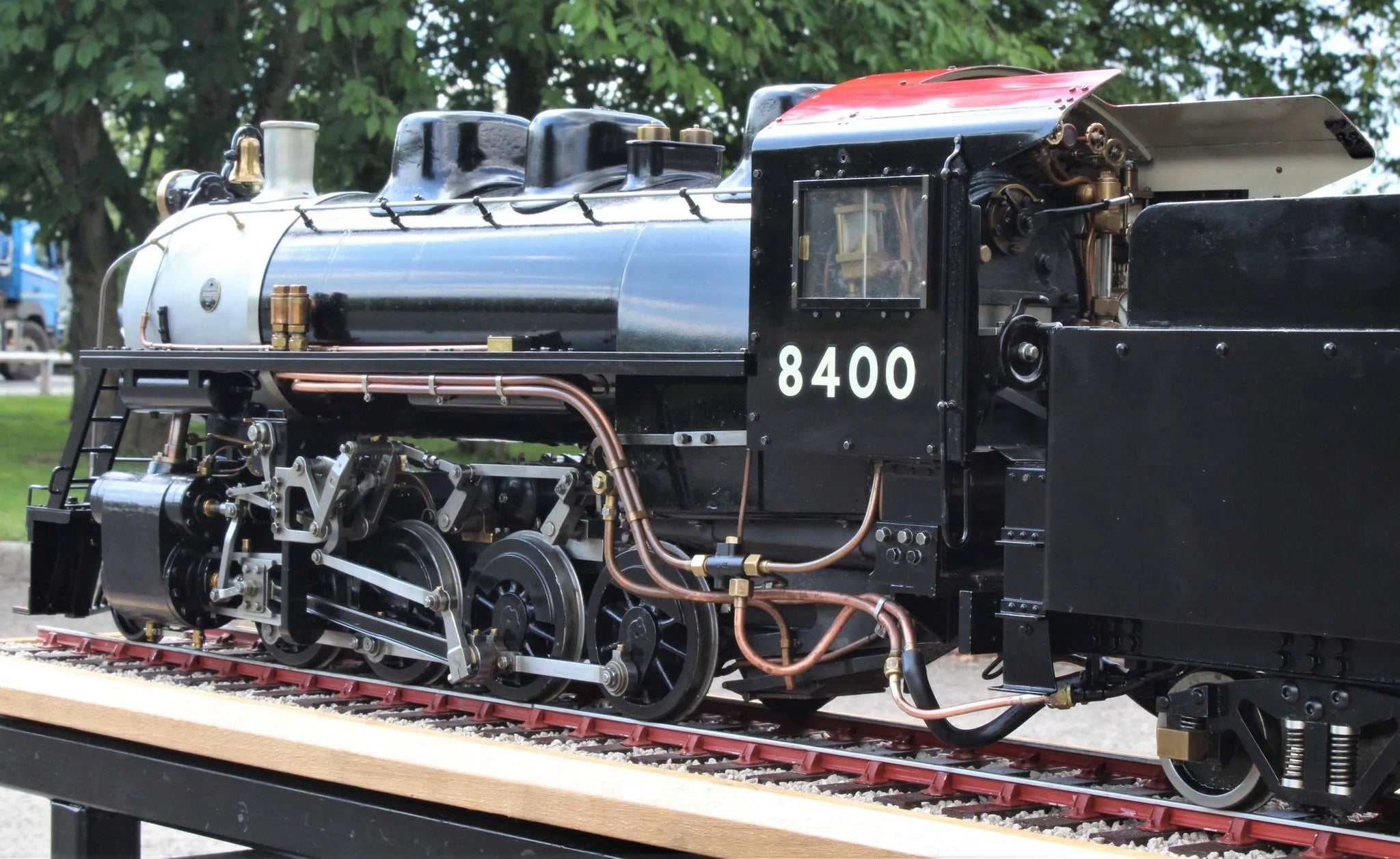

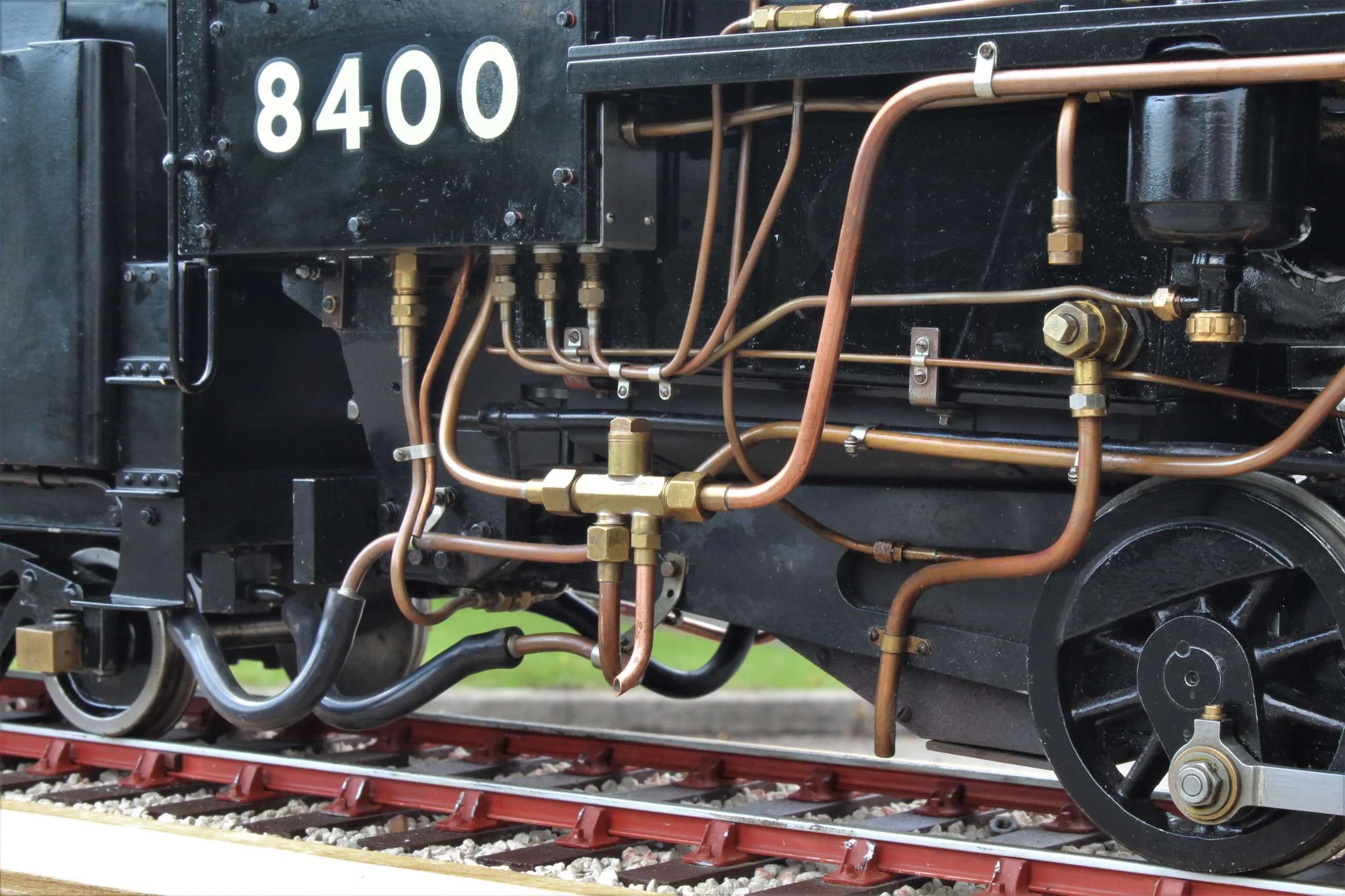

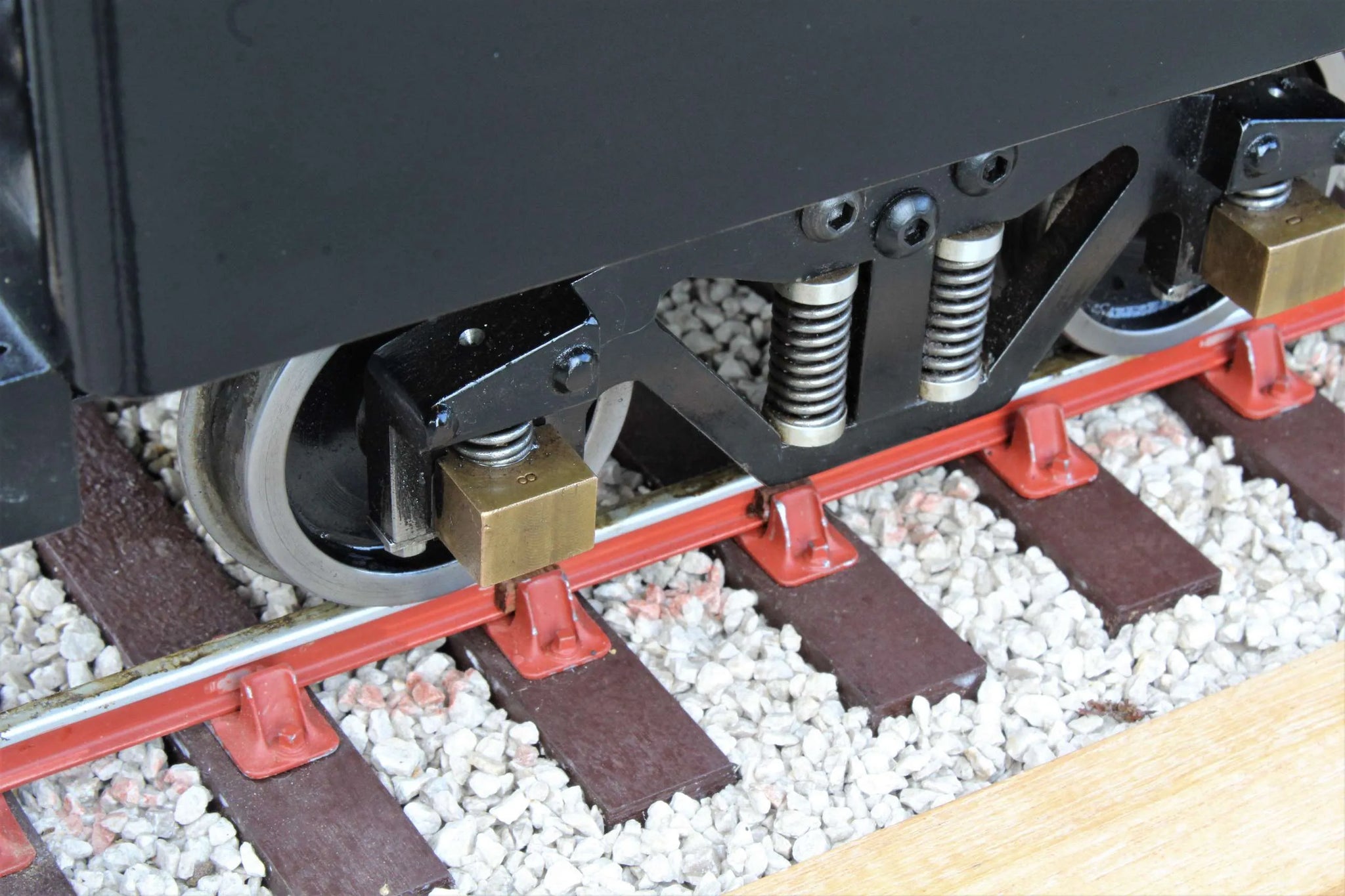

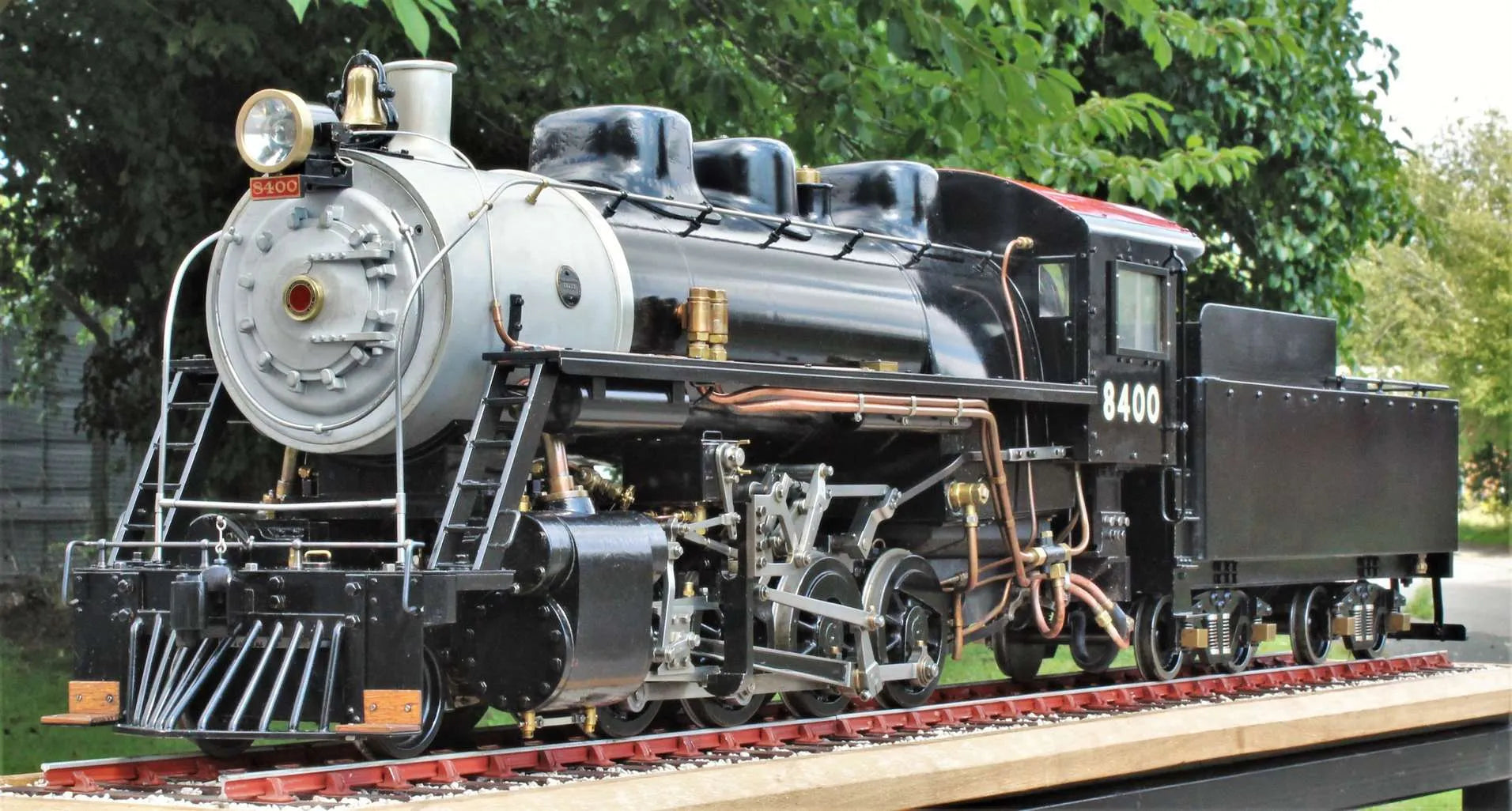

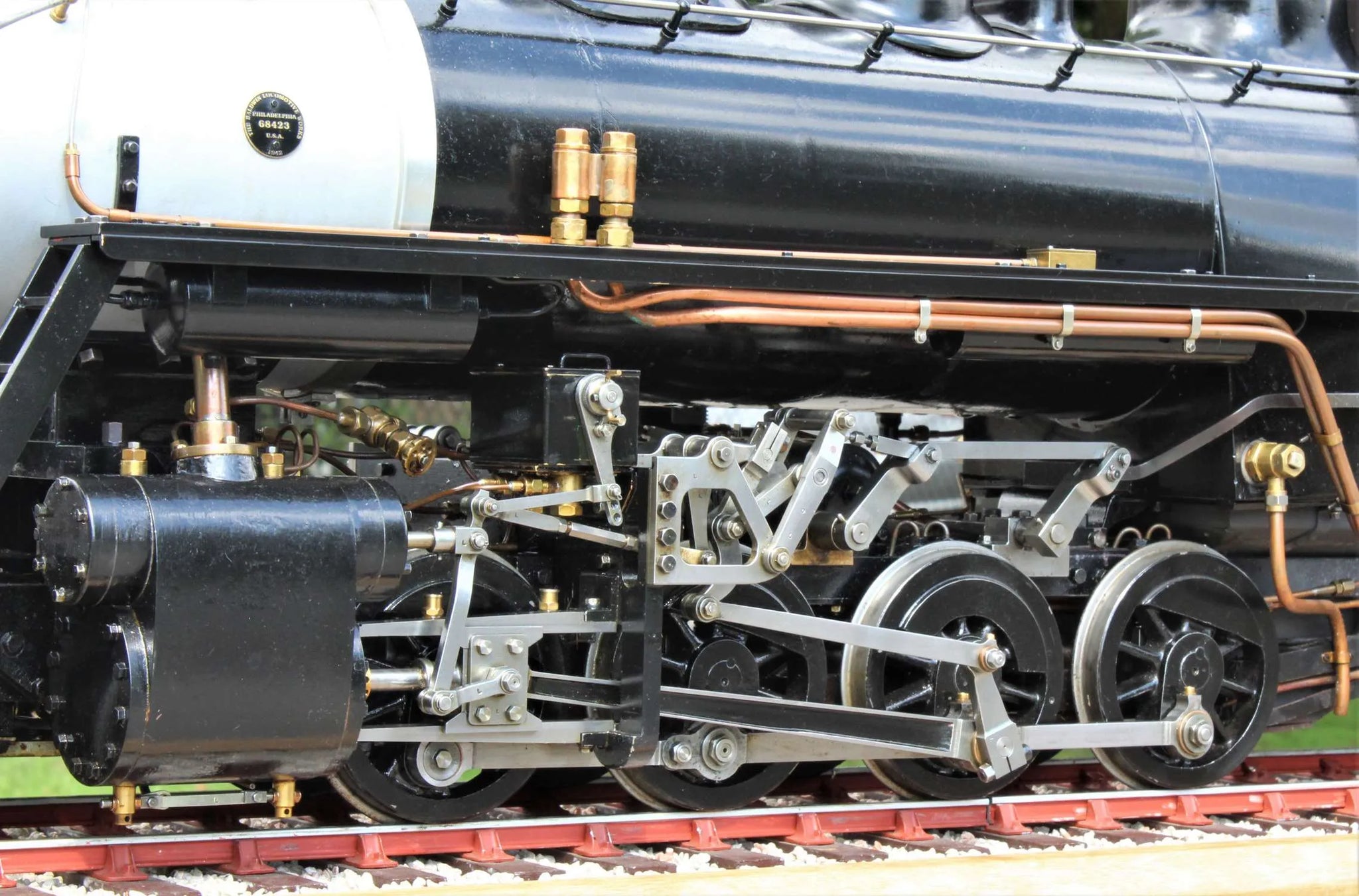

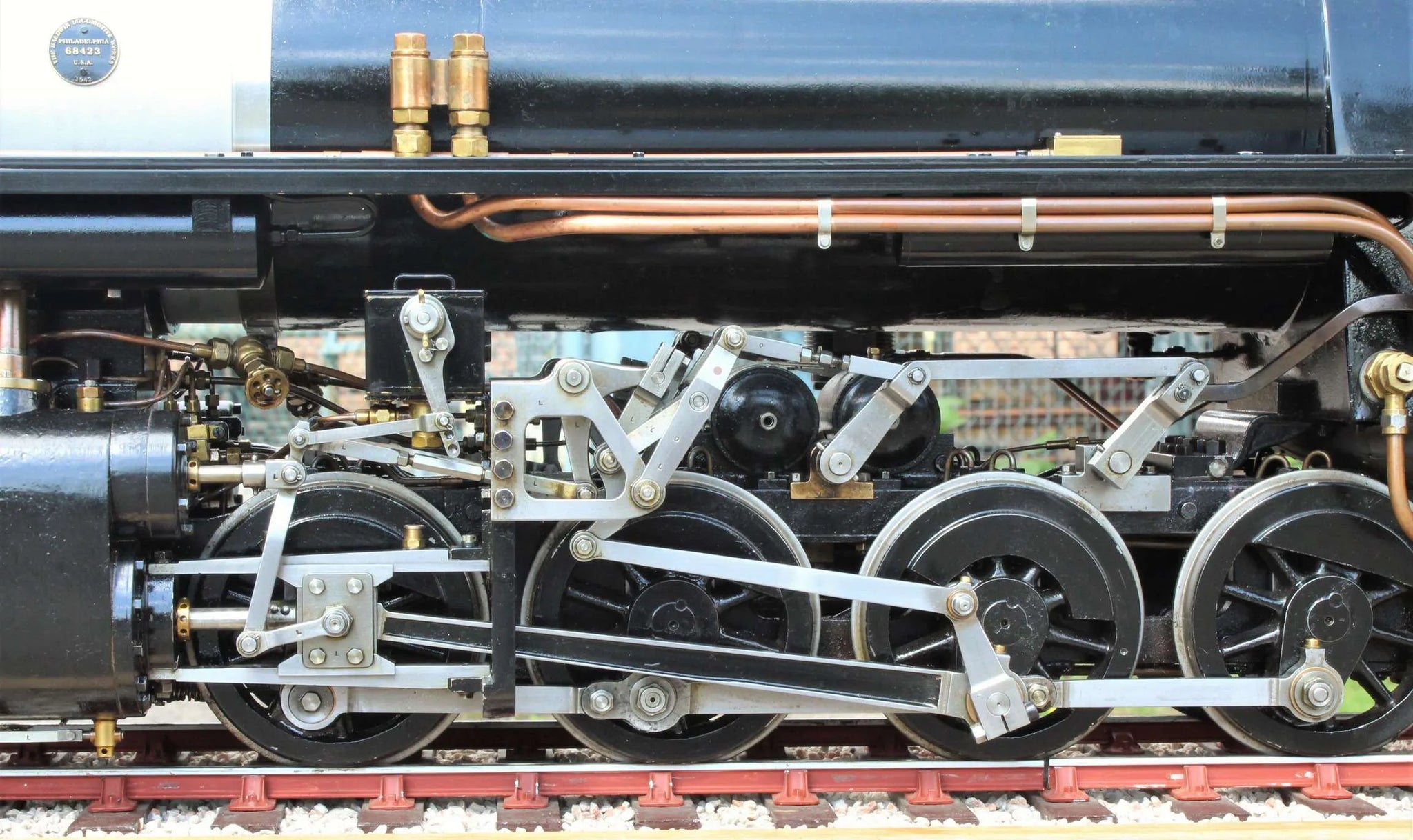

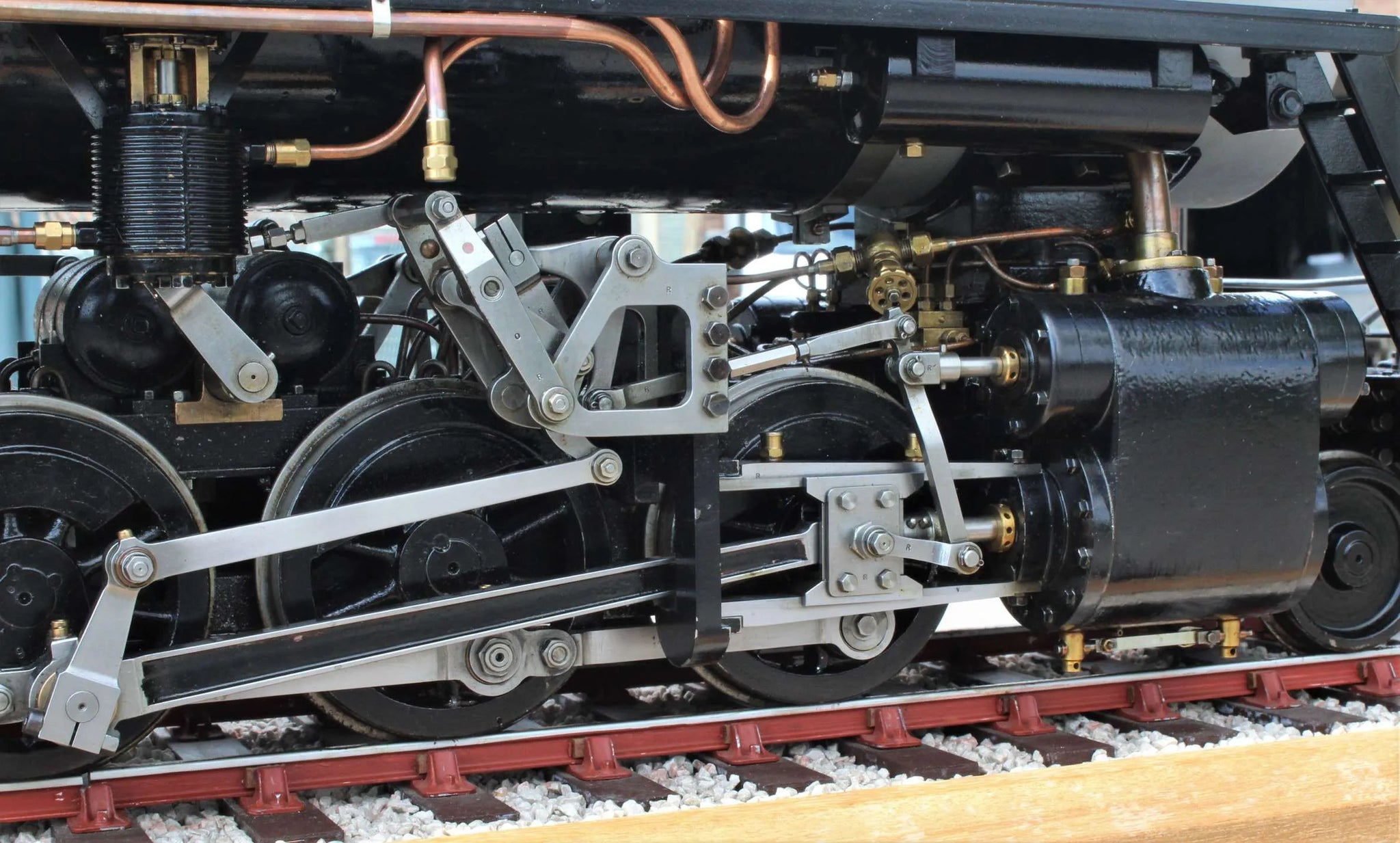

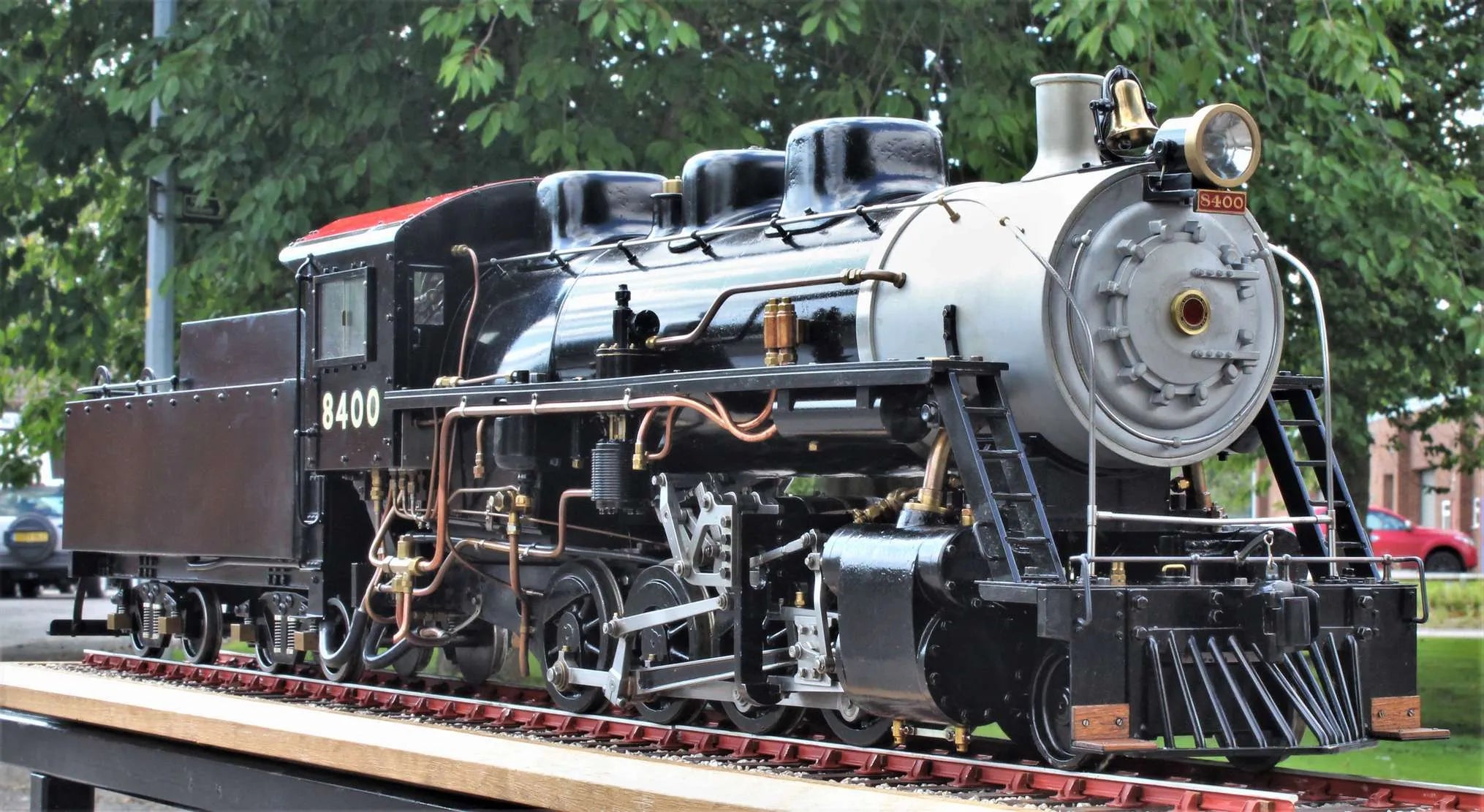

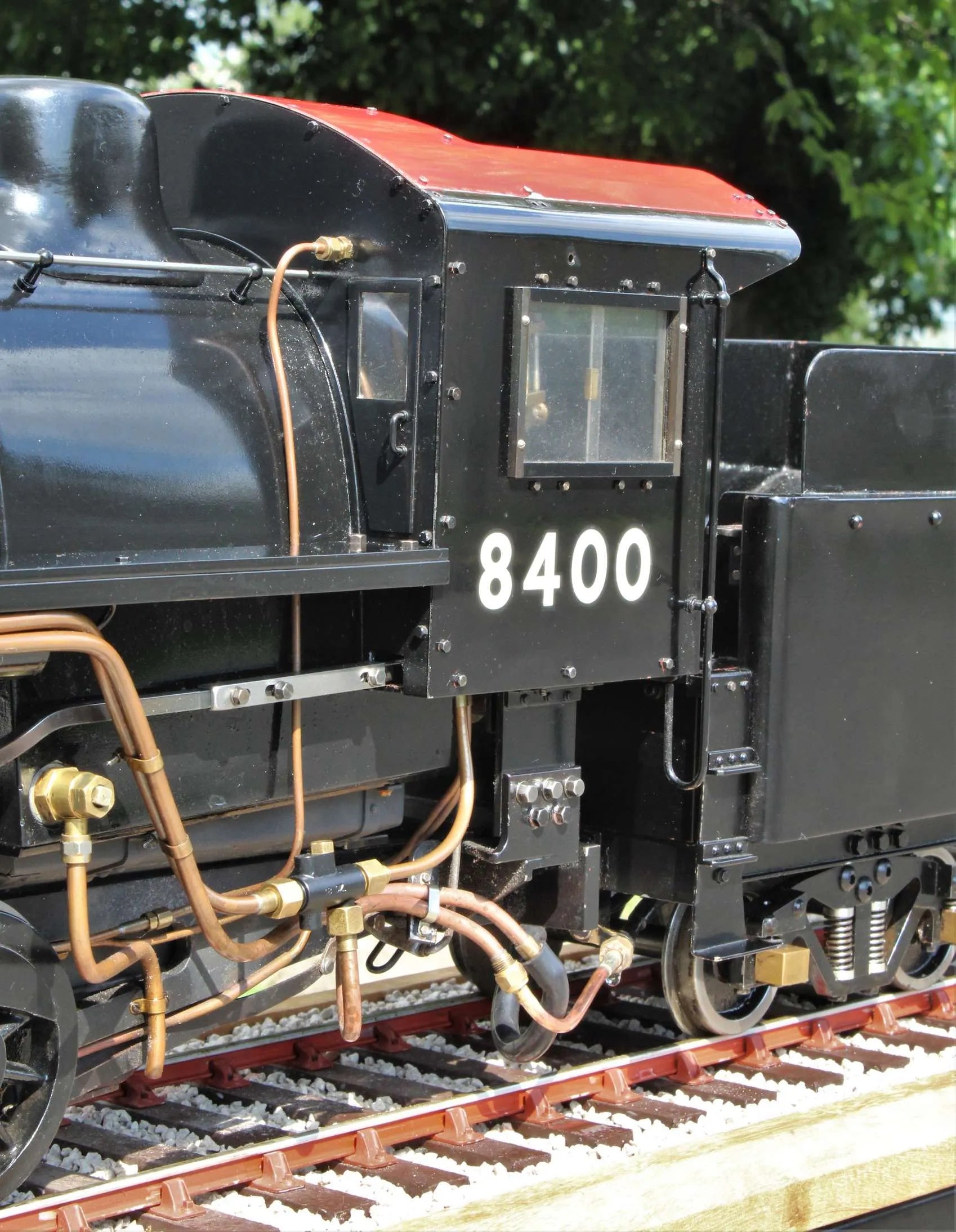

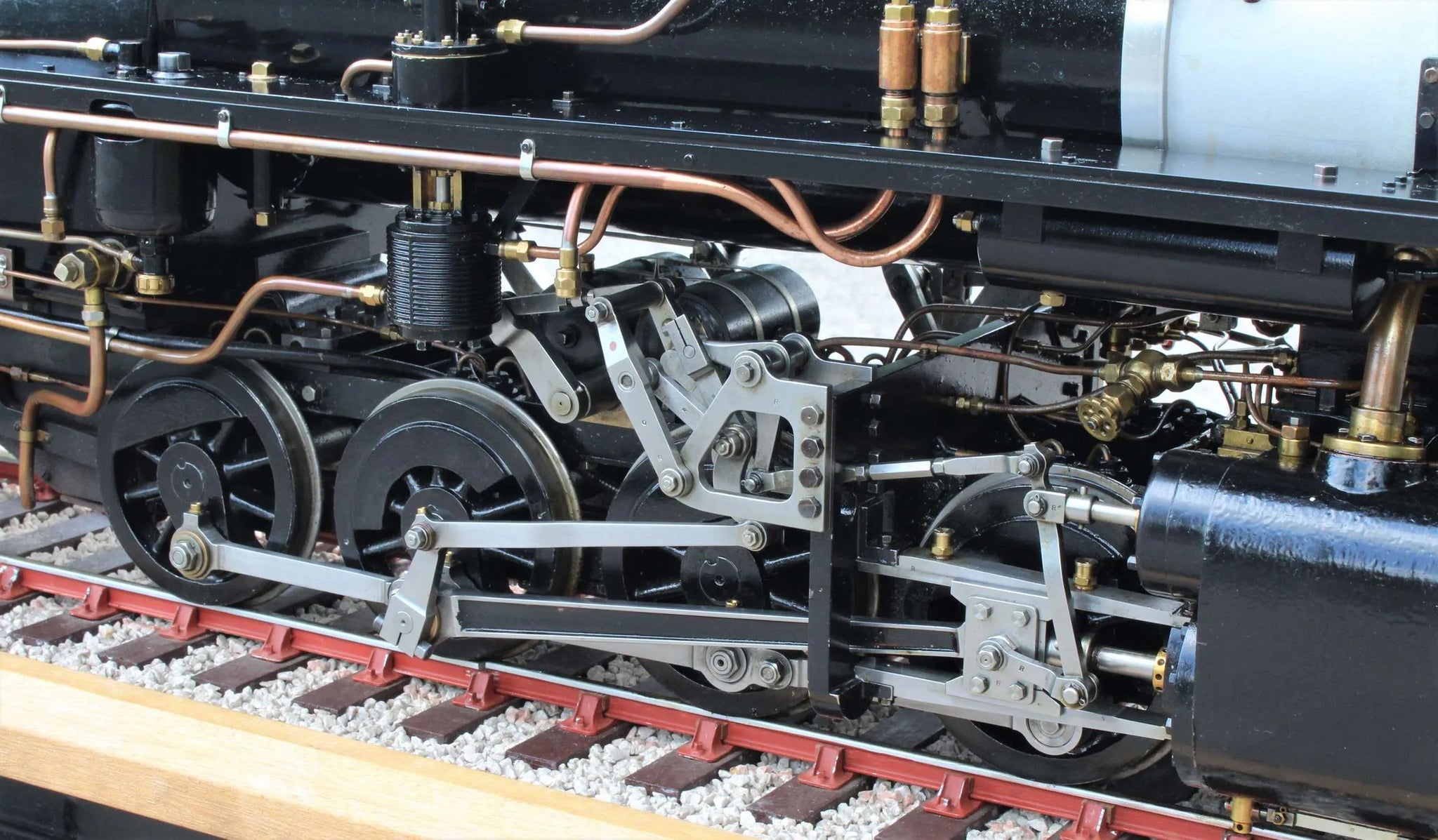

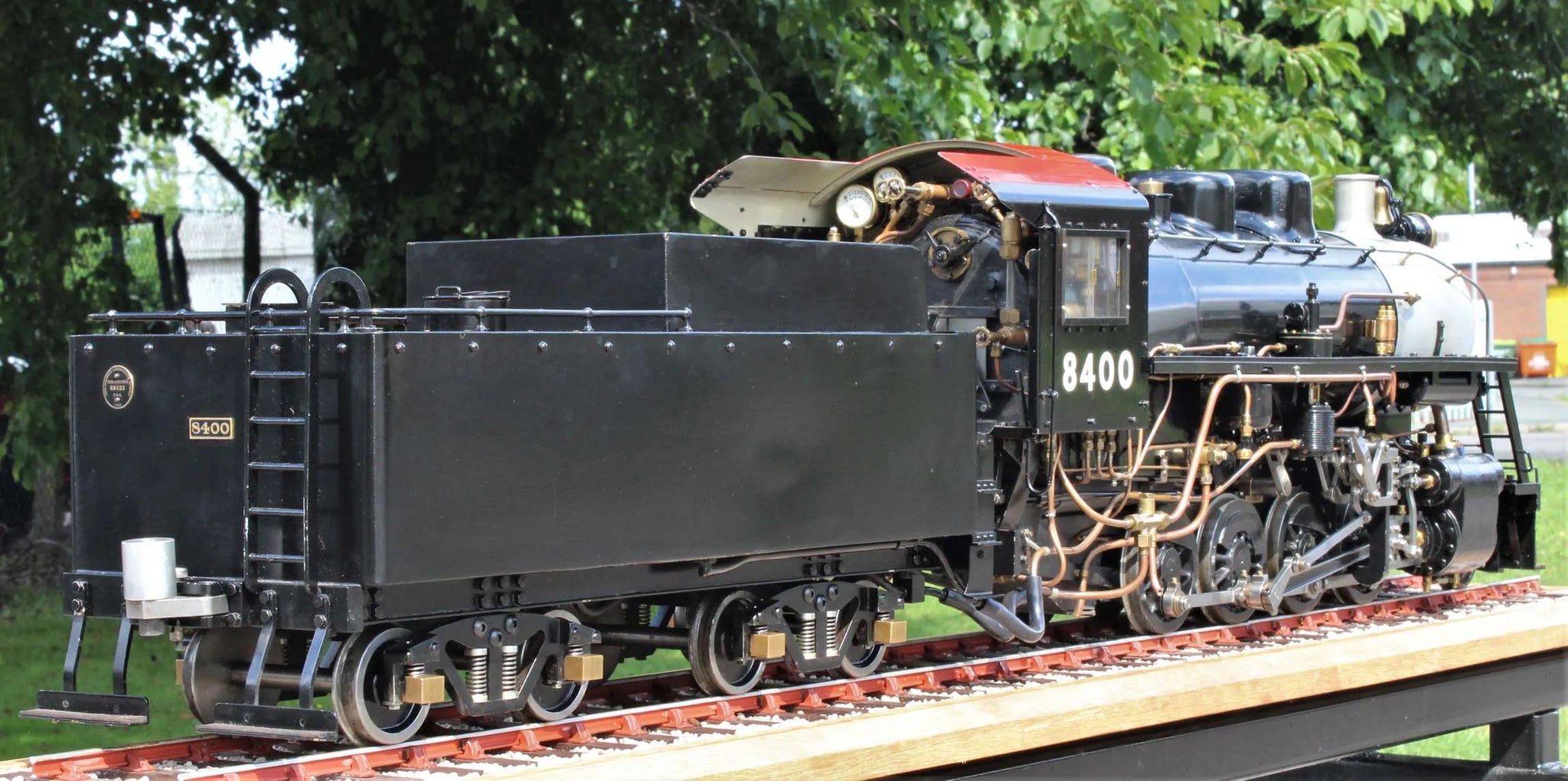

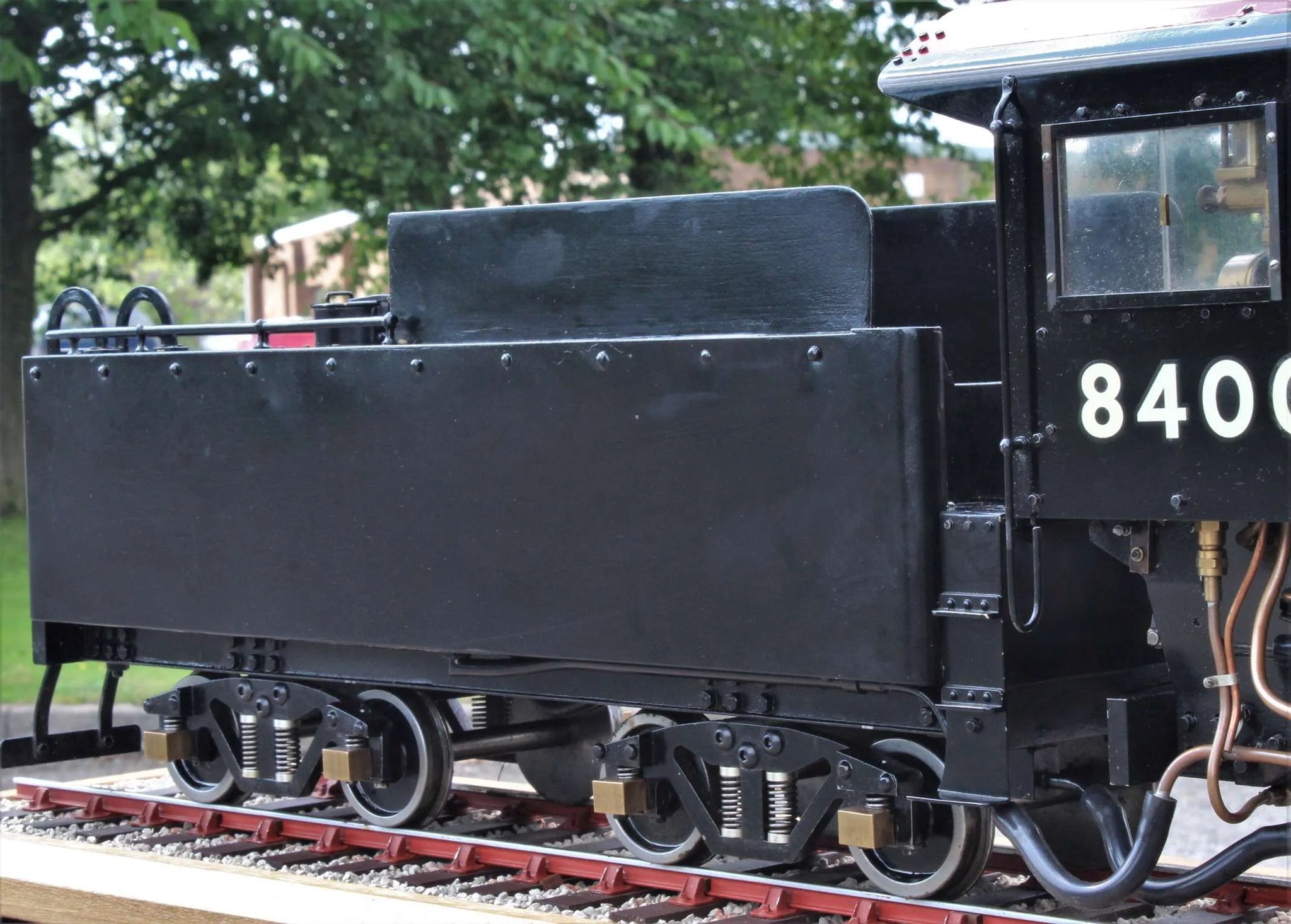

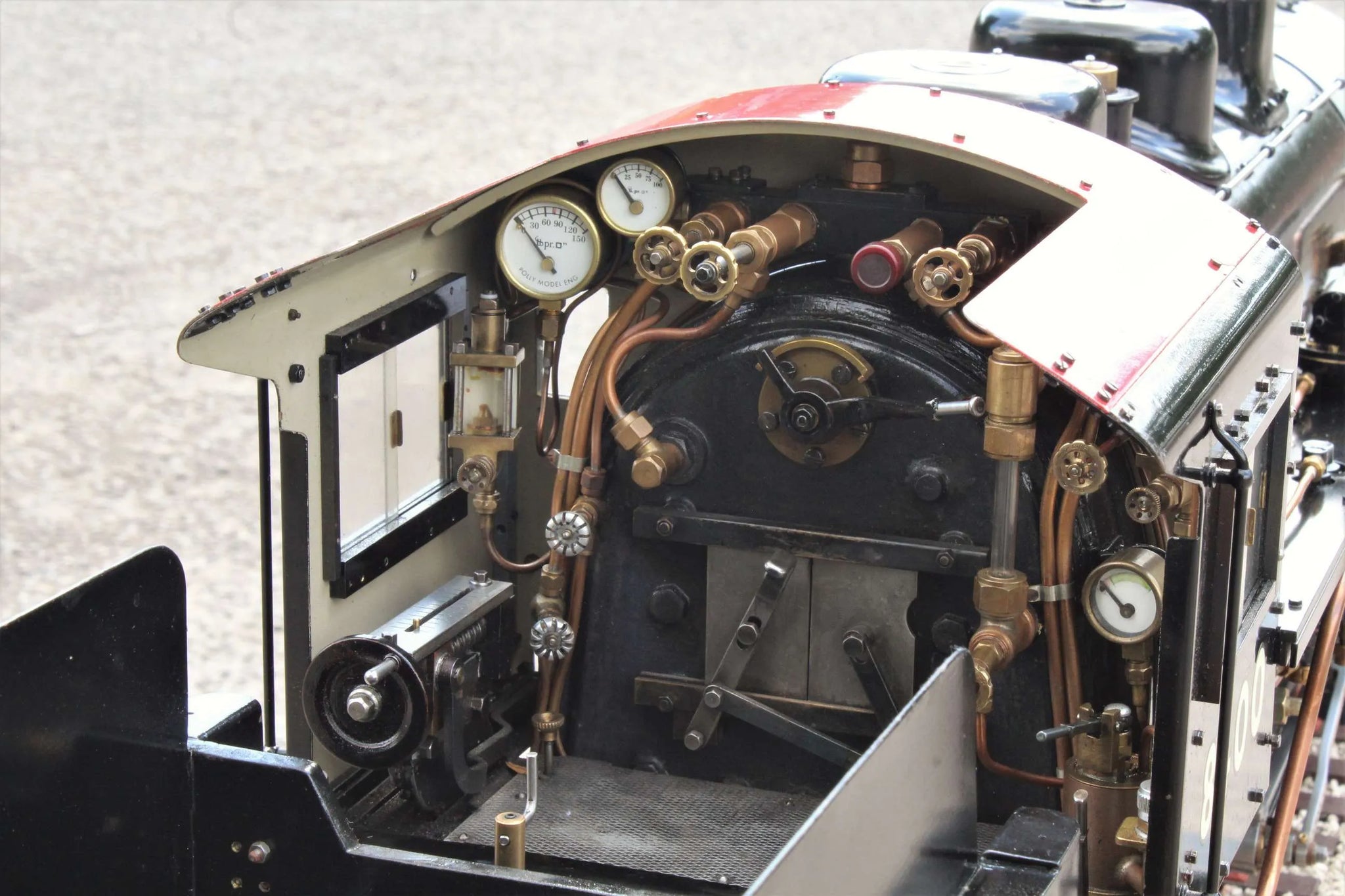

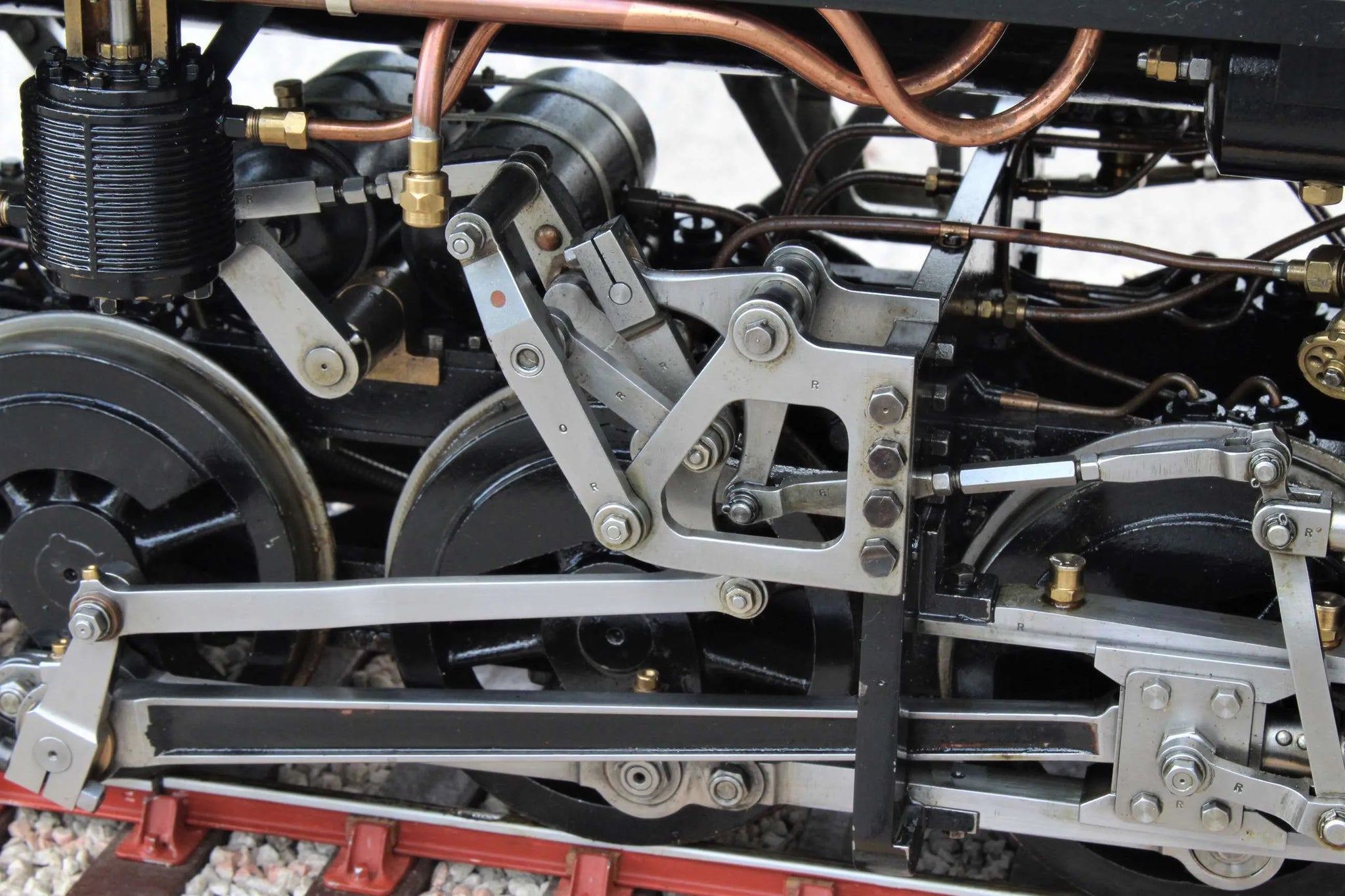

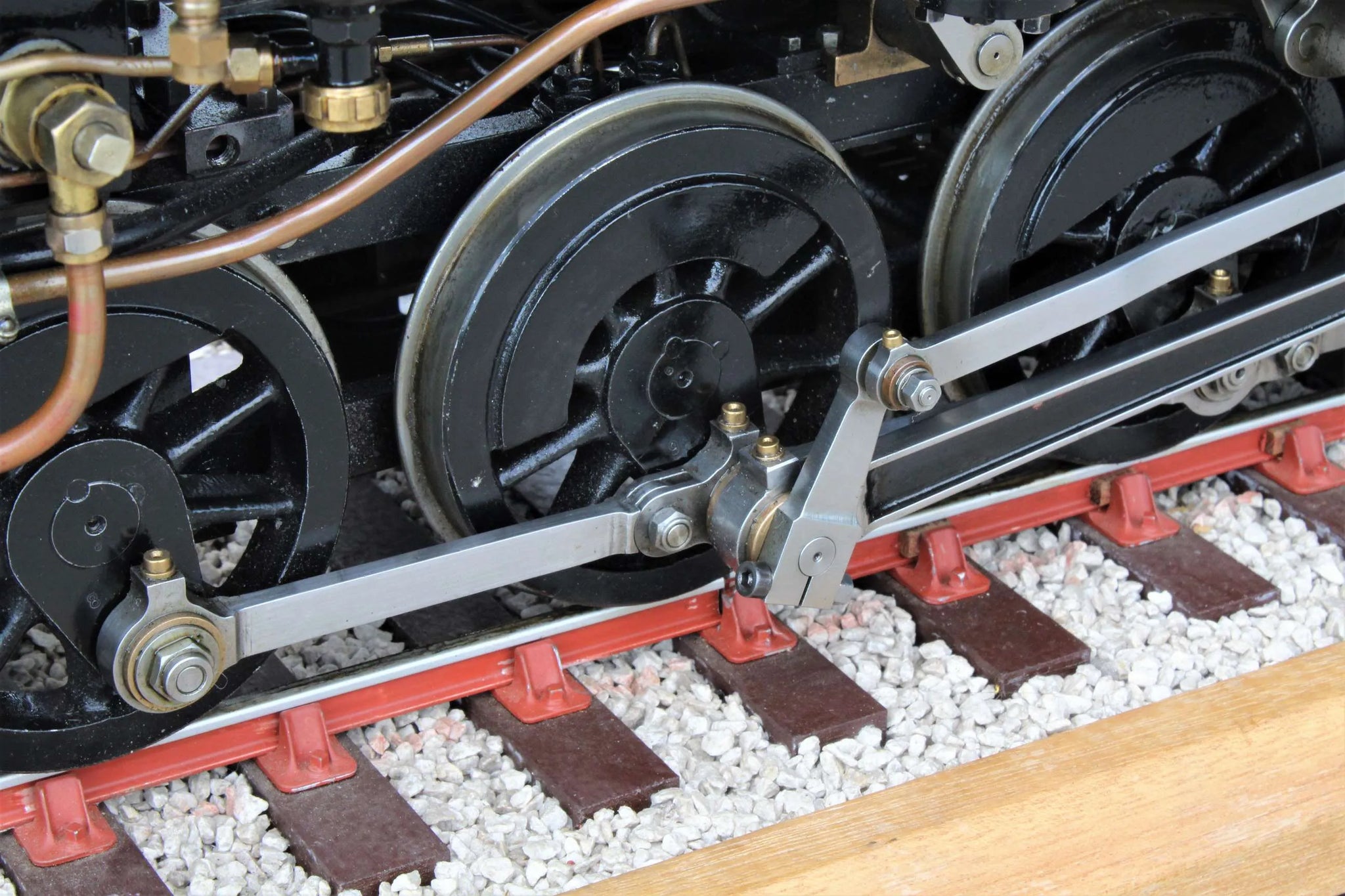

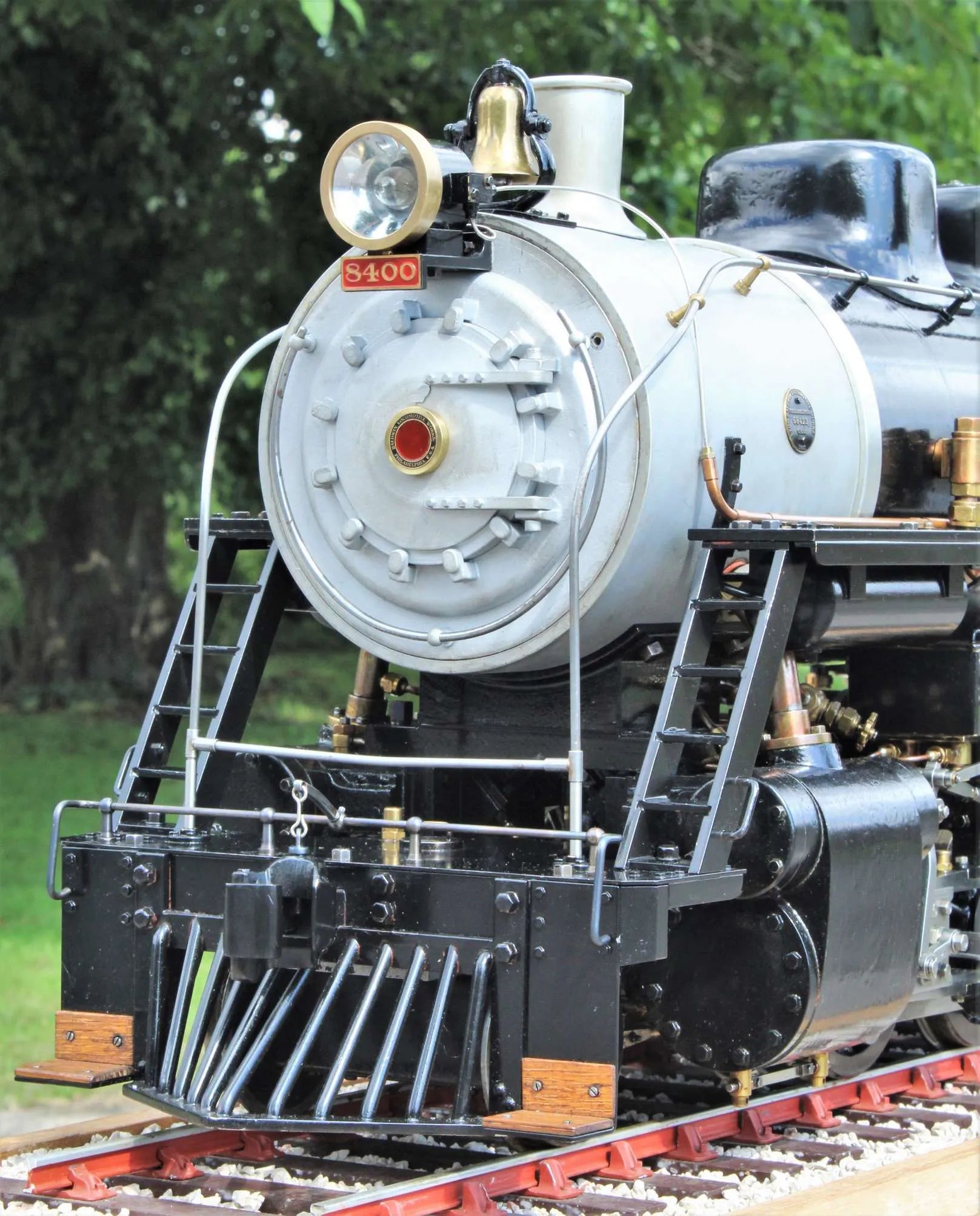

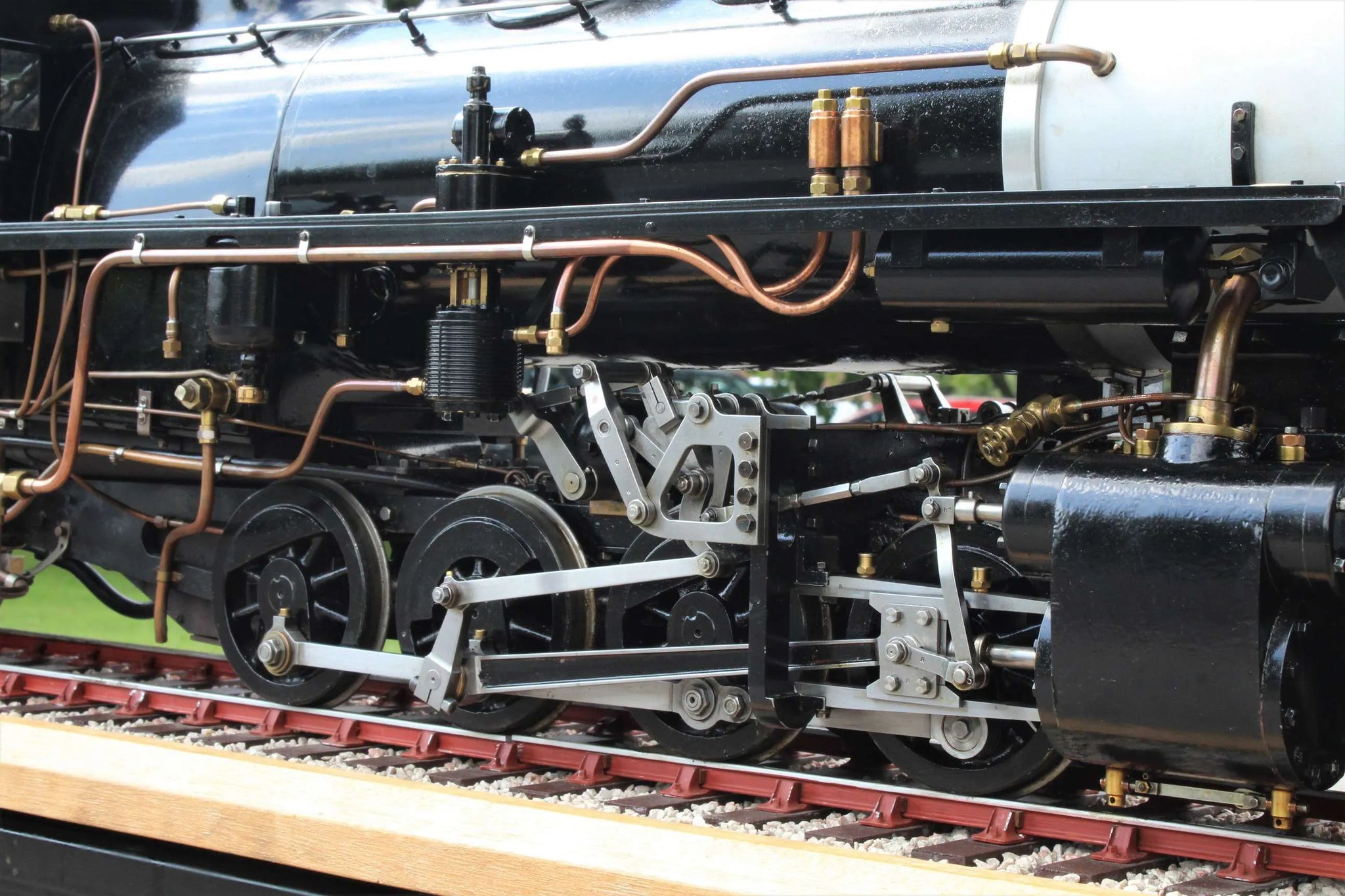

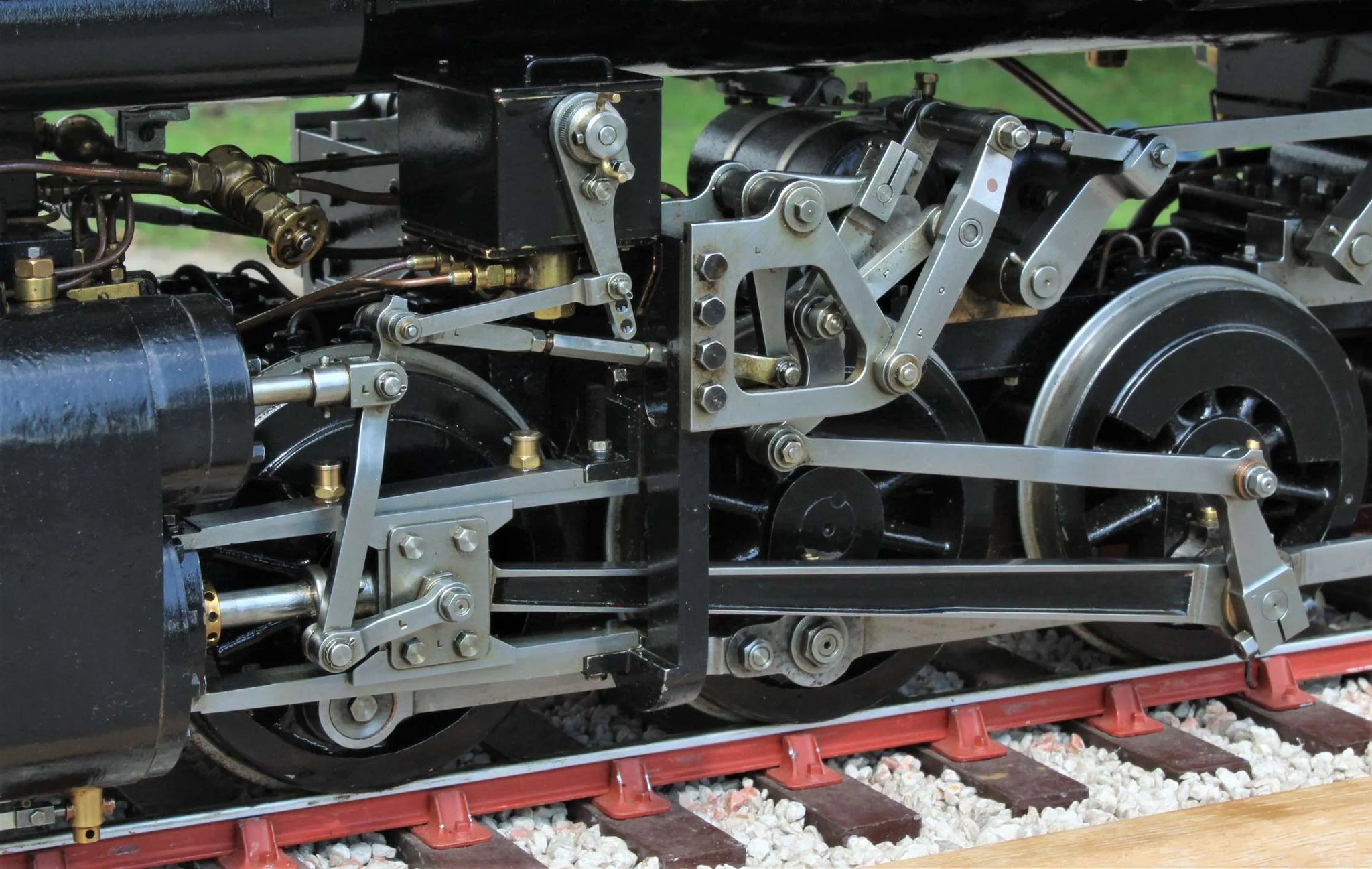

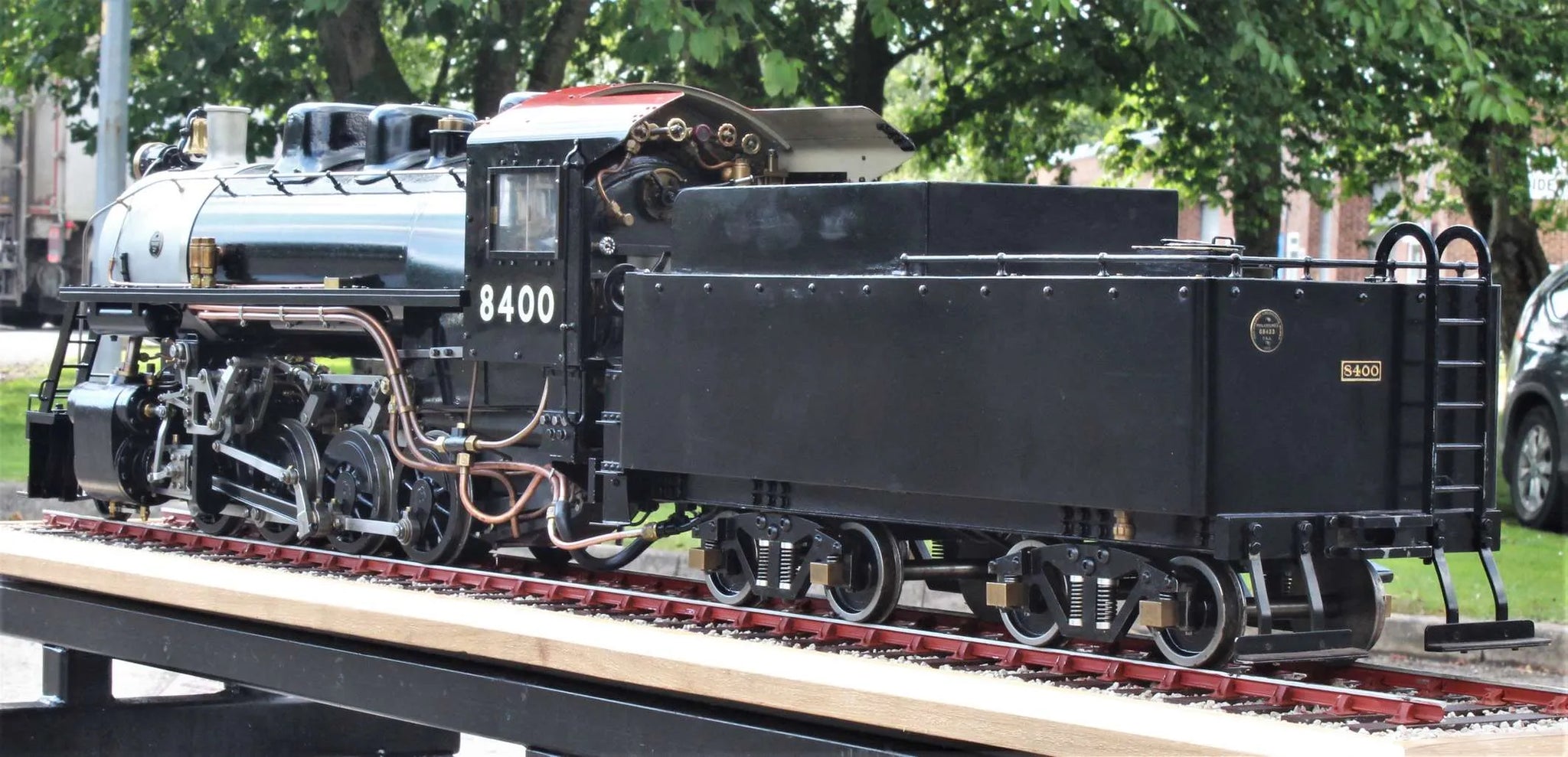

Pictures opposite tell the story on this one. Workmanship is of a high order, fit and finish of the motionwork and valve gear is excellent. The engine is free-steaming and runs expectionally well - there's some video of it on the rolling road here.
Complete with a pair of storage crates.
Stock code |
9709 |
Gauge |
3 1/2 inch |
Length/inches |
31.5 + 20.5 |
Width/inches |
8 |
Height/inches |
12 |
Wheel material |
cast iron |
Axlebox type |
needle roller |
Cylinder material |
cast iron |
Valve type |
piston |

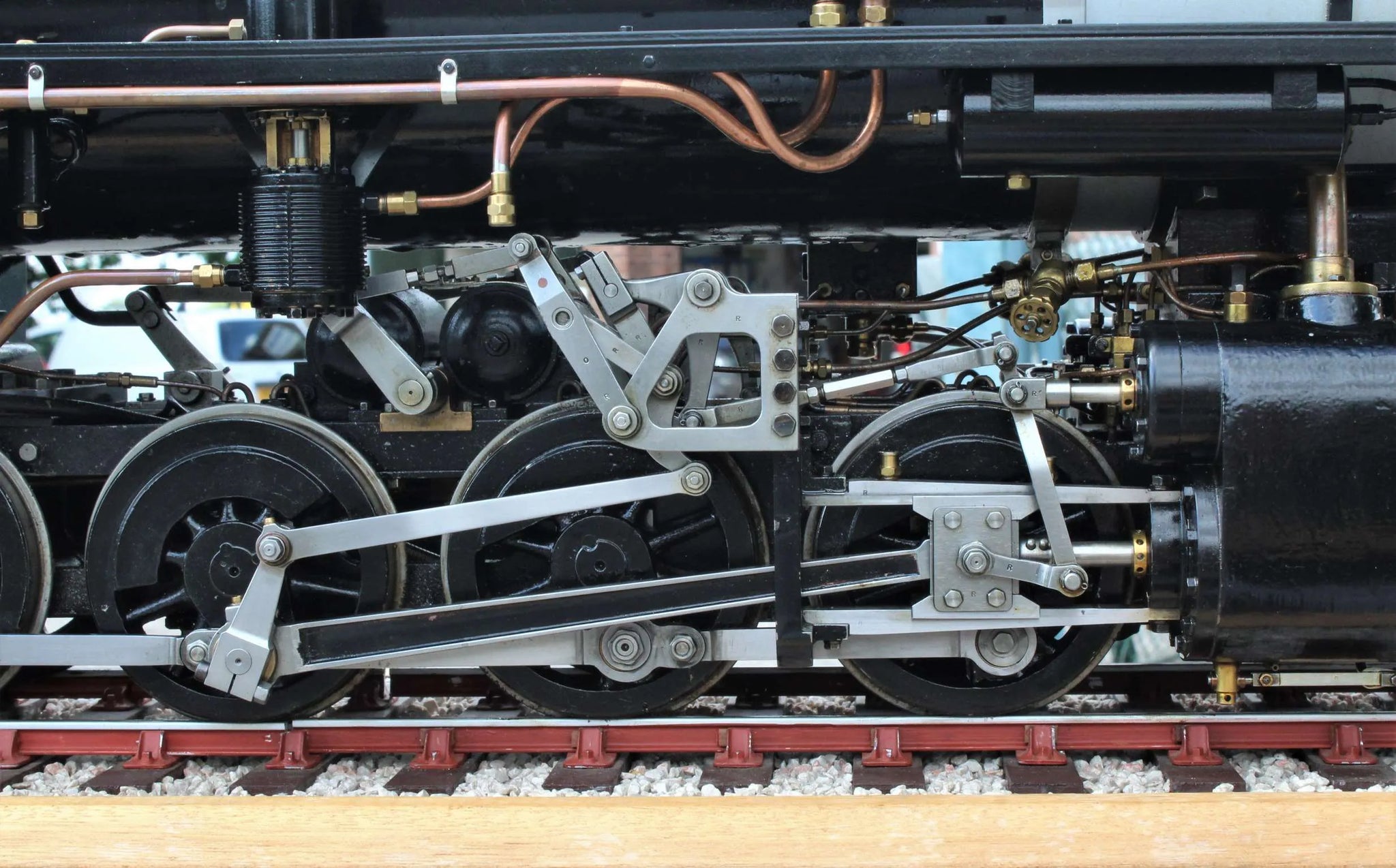

Valve gear |
Baker |

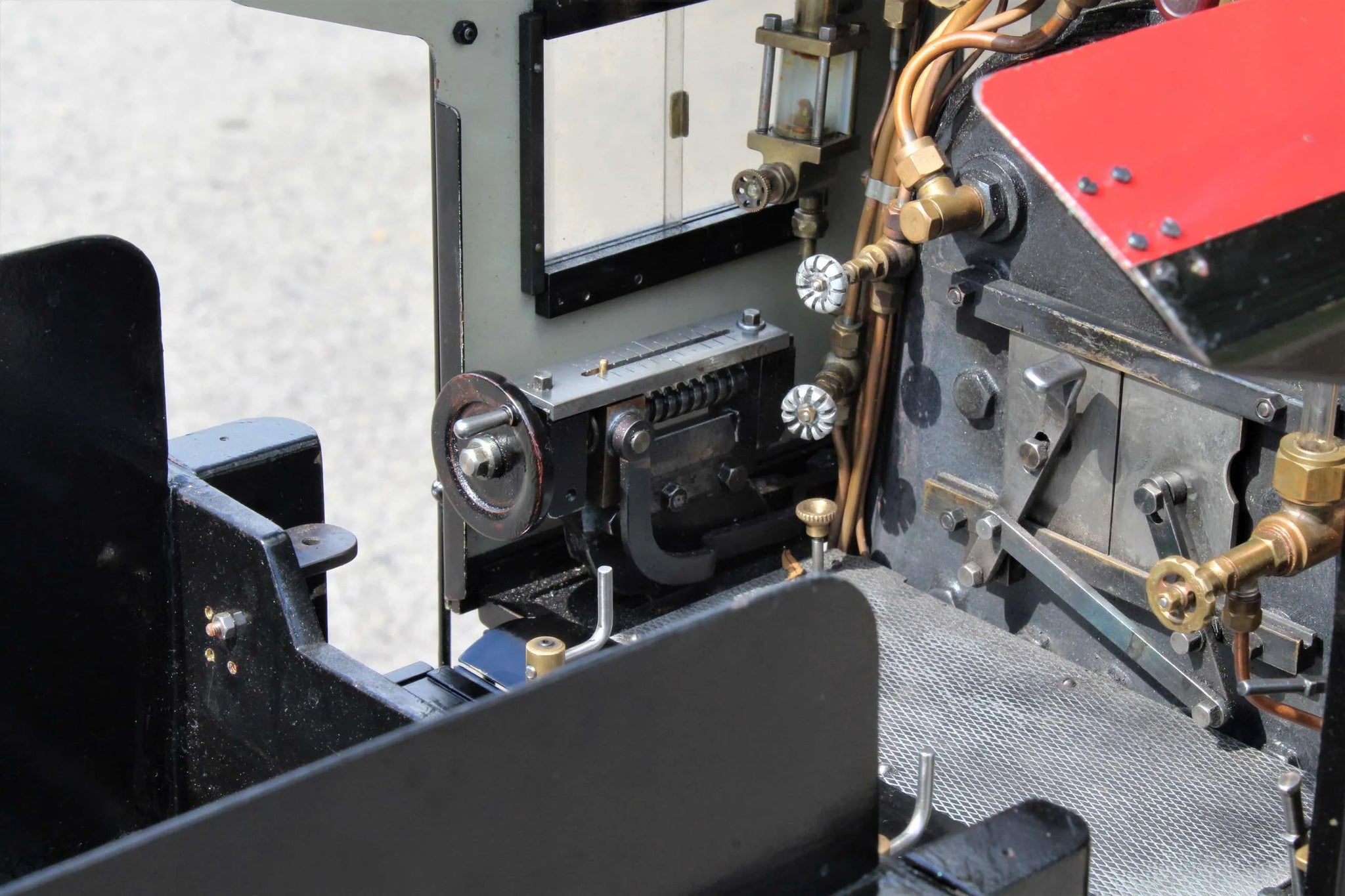

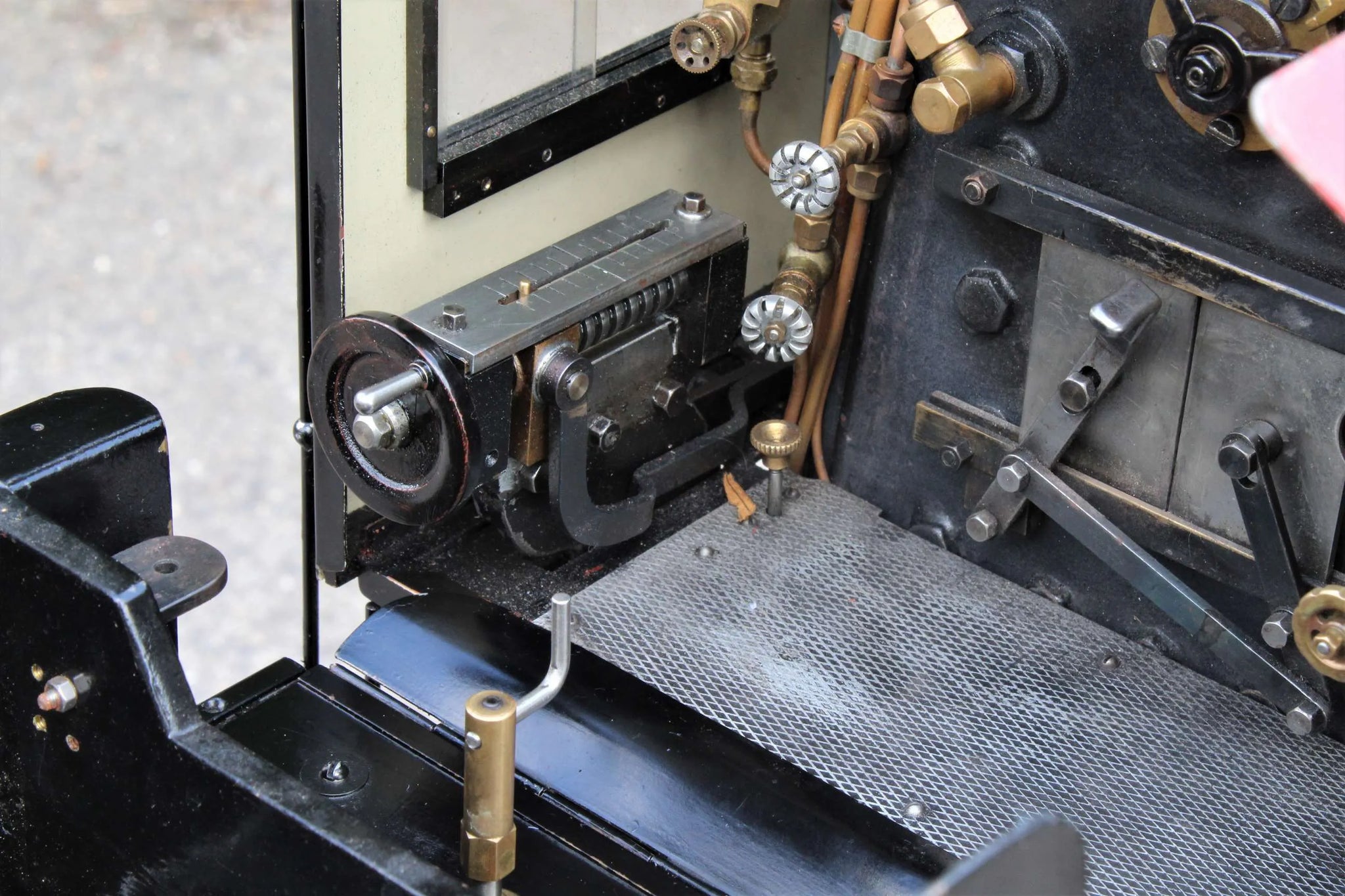

Reverser type |
screw |
Lubricator type |
mechanical |
Boiler maker |
I Jaycocks |
Boiler type |
locomotive |
Boiler construction |
silver soldered |
Boiler material |
copper |
Working pressure |
80 |
Boiler number |
N39 100 52 |
Safety valve type |
spring |
Safety valve |
2 |
Whistle |
yes |
Steam pump |
1 |
Hand pump |
1 |
Injector |
2 |
Superheater type |
flue tube |
Superheater |
2 |
Date out |
Aug-21 |
Hydraulic test valid to |
27-Jun-25 |
Steam test valid to |
05-Sep-22 |
