12702

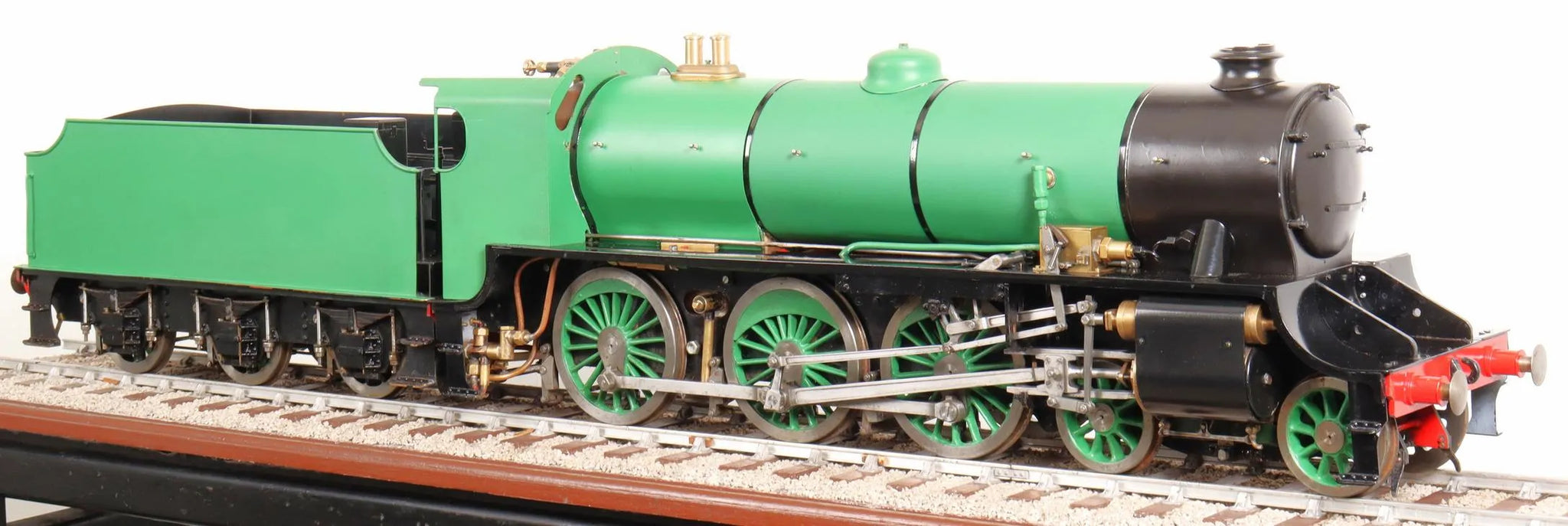

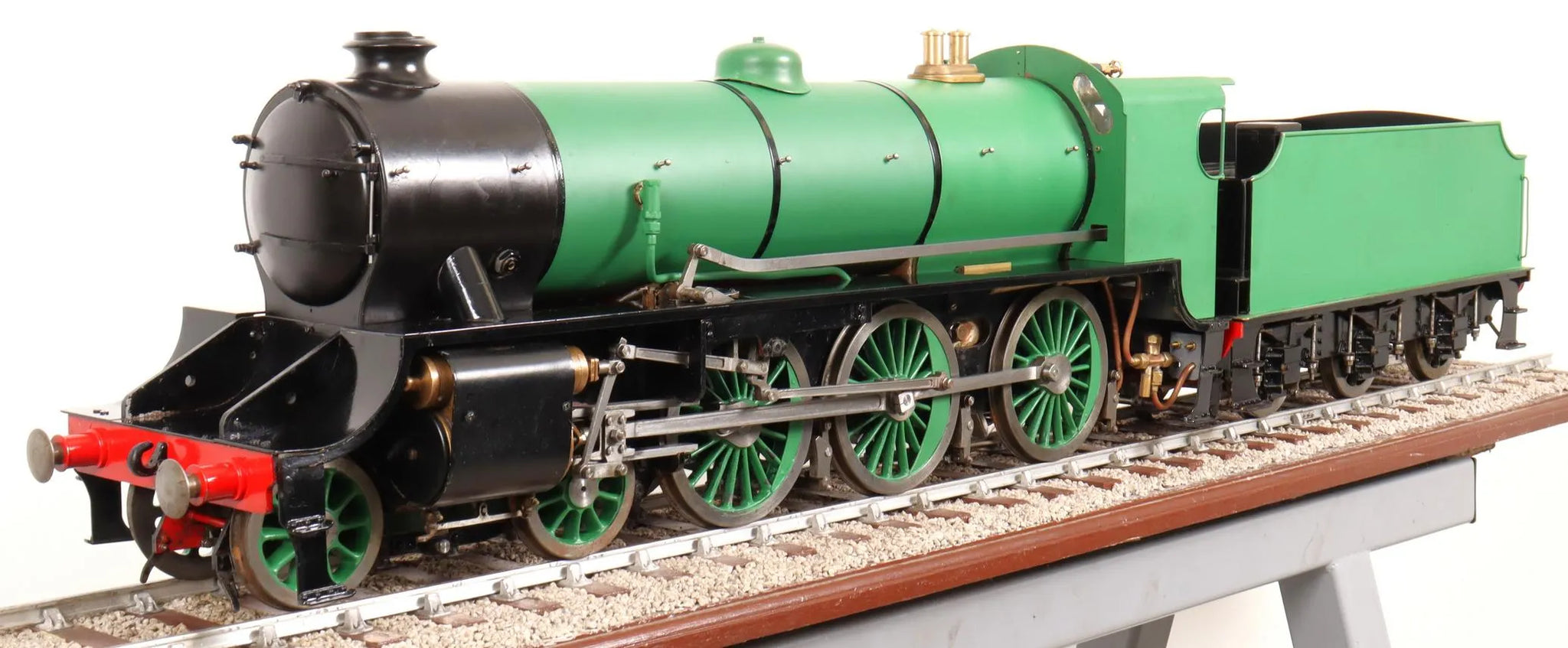

Showings signs of only one or two test steamings from new, it appears complete bar the cab roof.

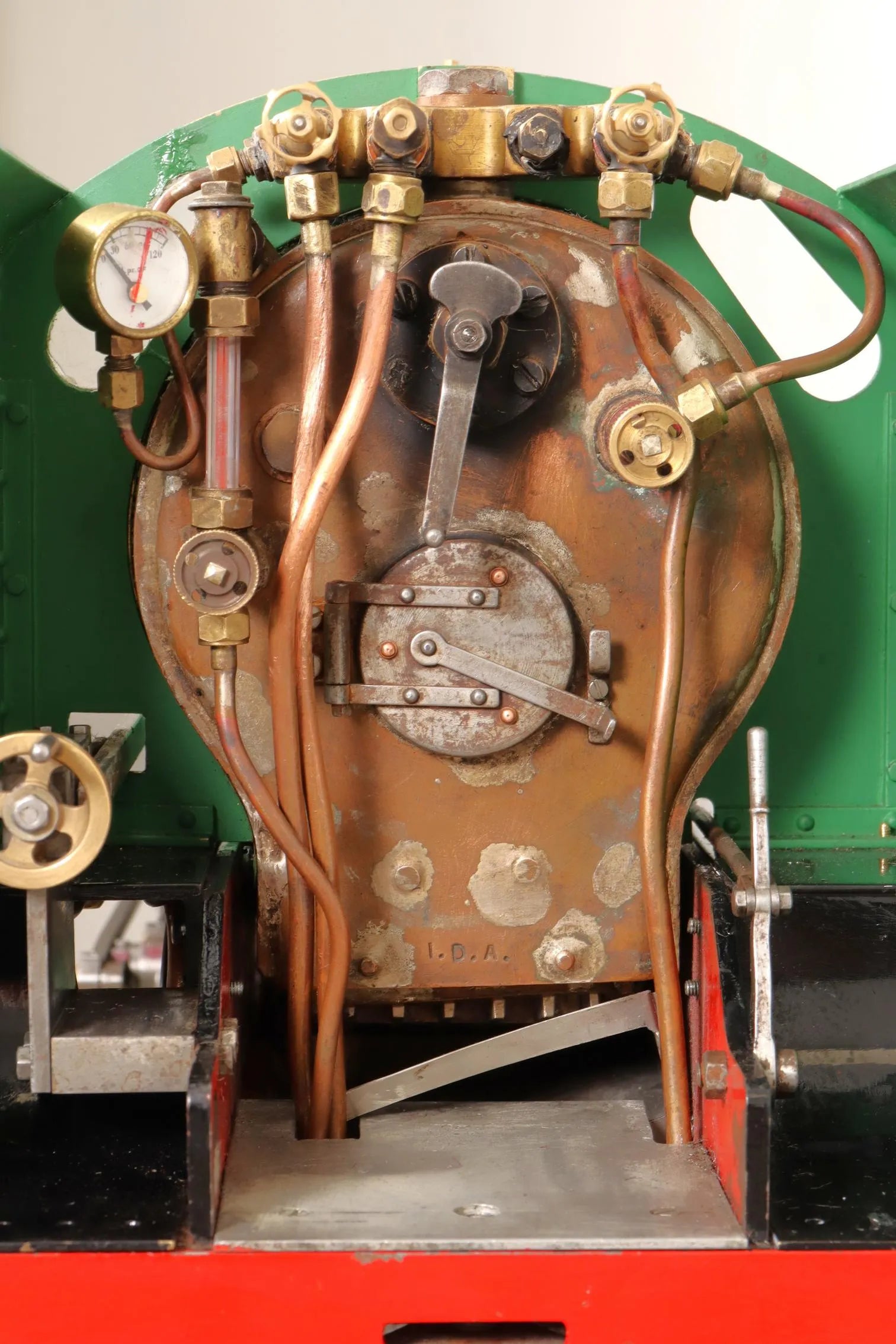

The silver soldered copper boiler carries a Northern Association number - well made, with neatly flanged plates and good solder penetration, we're told it was tested when built.
A leaking regulator prevented any meaningful hydraulic test but we would warranty it to pass a twice working pressure test once the regulator has been repaired.
Stock code |
12702 |
Gauge |
3 1/2 inch |
Length/inches |
29+22 |
Width/inches |
7.5 |
Height/inches |
11 |
Weight/Kg |
25+9 |
Wheel material |
cast iron |
Axlebox type |
plain bearing |

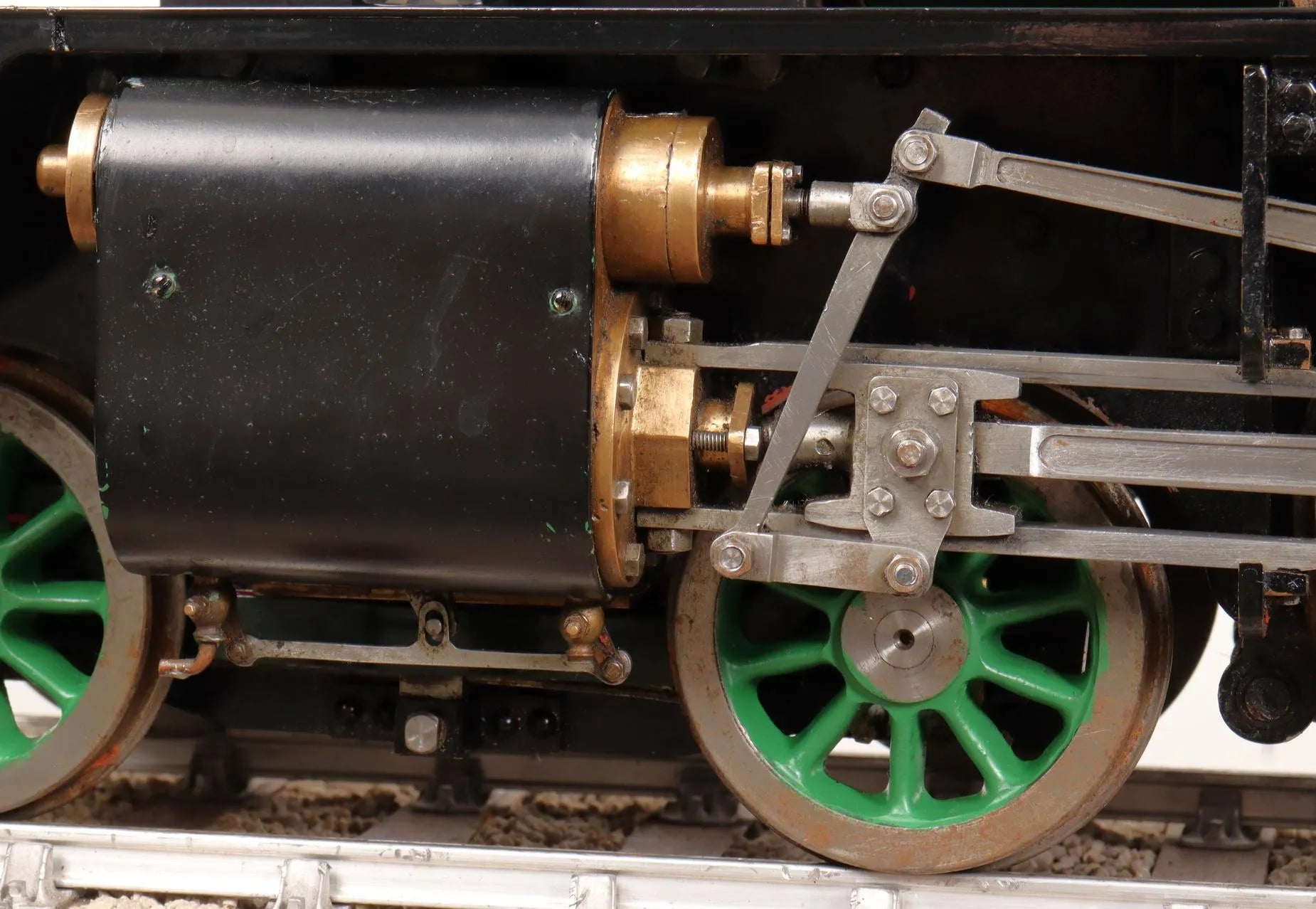

Cylinder material |
gunmetal |
Valve type |
piston |
Valve gear |

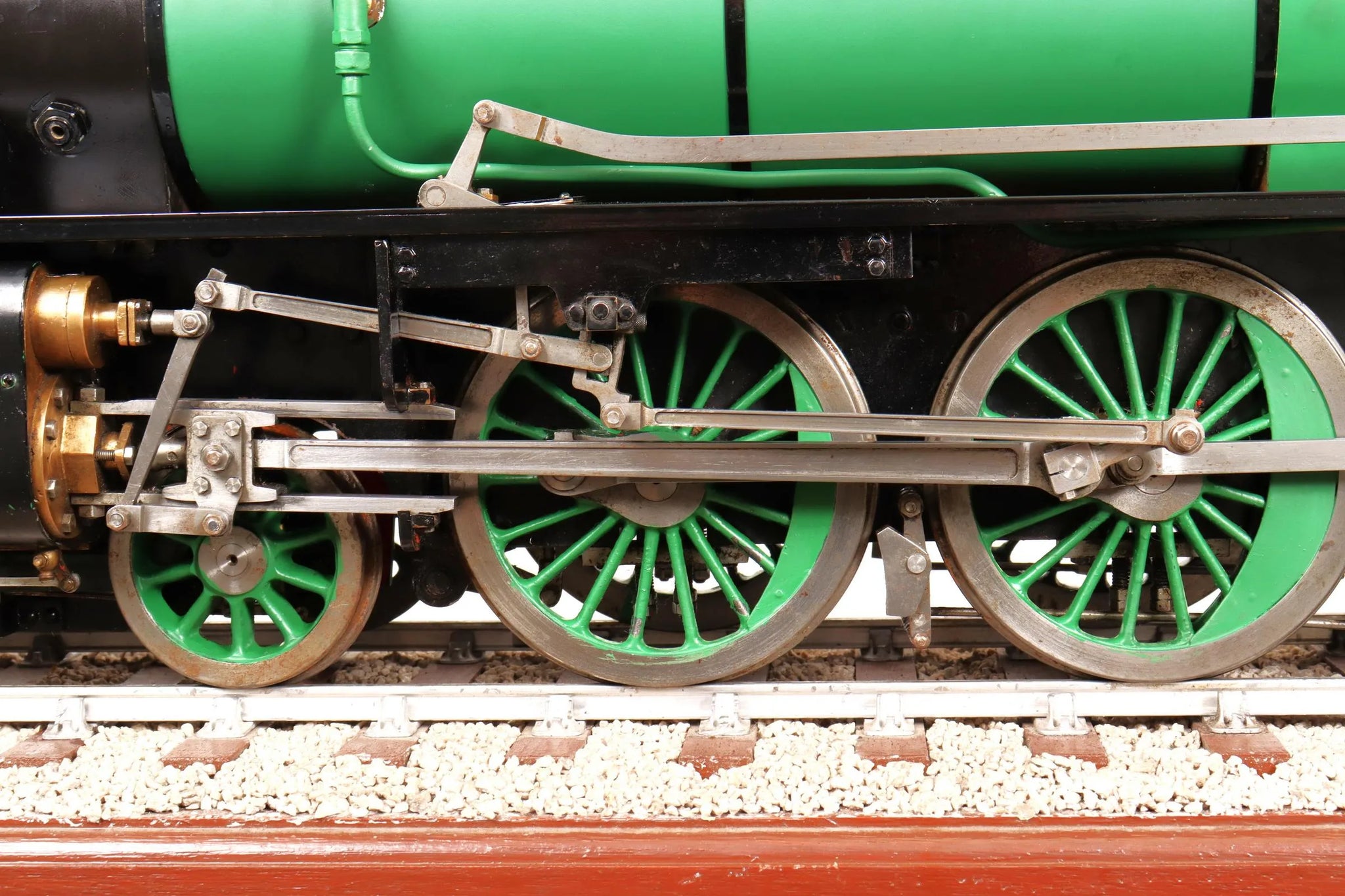

Walschaerts |
Reverser type |
screw |
Boiler maker |
non-commercial |
Boiler type |
locomotive |
Boiler construction |
silver soldered |
Boiler material |
copper |
Working pressure |
90 |
CE/UKCA mark |
n/a - non-commercial |
Year built |
unknown |
Boiler number |
N30-90-1213 |
Safety valve type |
pop |
Safety valve |
2 |
Whistle |
1 |
Hand pump |
1 |
Mechanical pump |
1 |
Injector |
1 |
Superheater type |
flue tube |
Superheater |
2 |
Date out |
Jun-25 |
