3 1/2 inch gauge Southern Railway "Schools" 4-4-0

A well-advanced 3 1/2 inch gauge Southern Railway "Schools" class 4-4-0 - particularly well made, it's been built to high standard throughout.

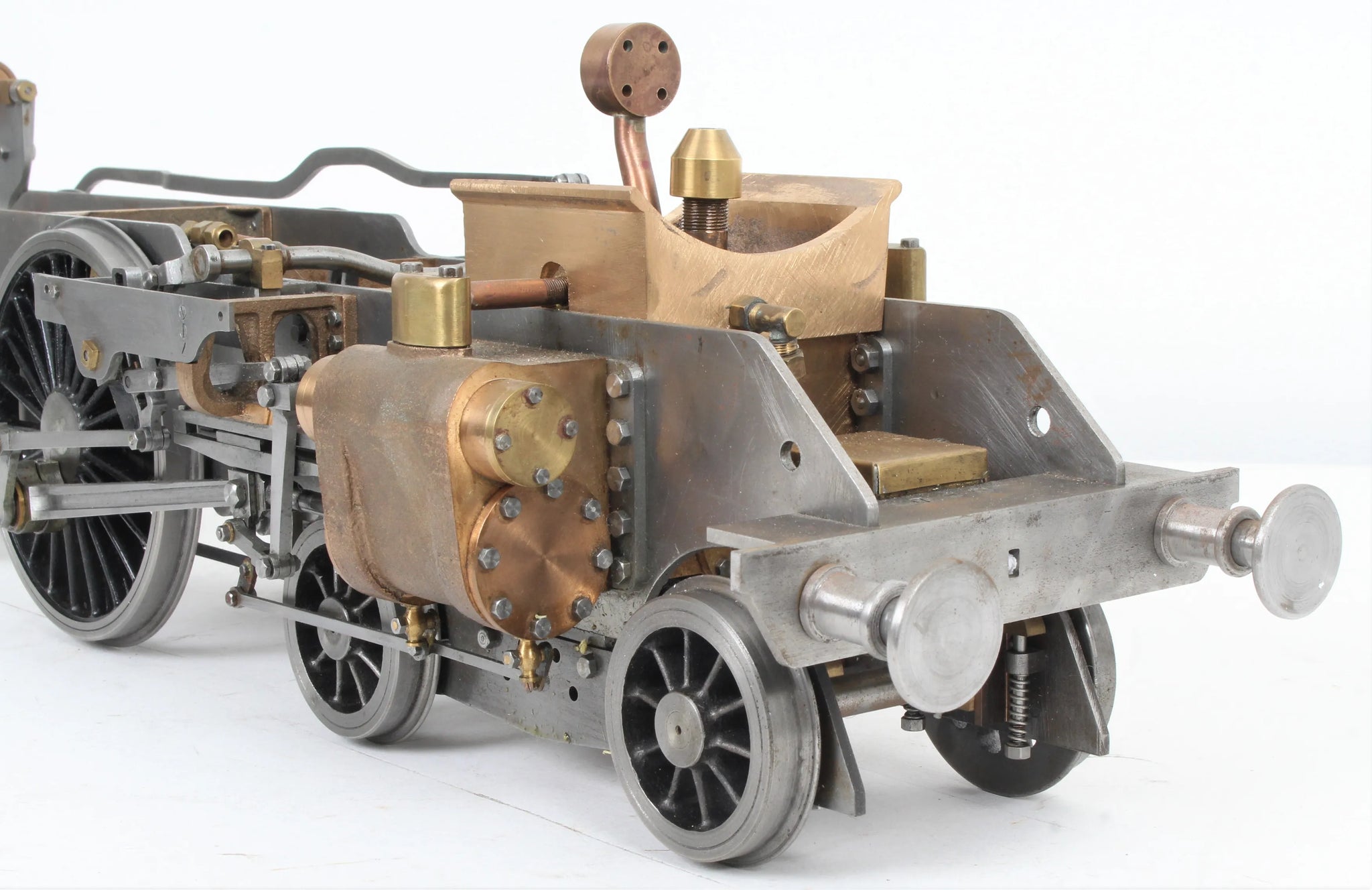

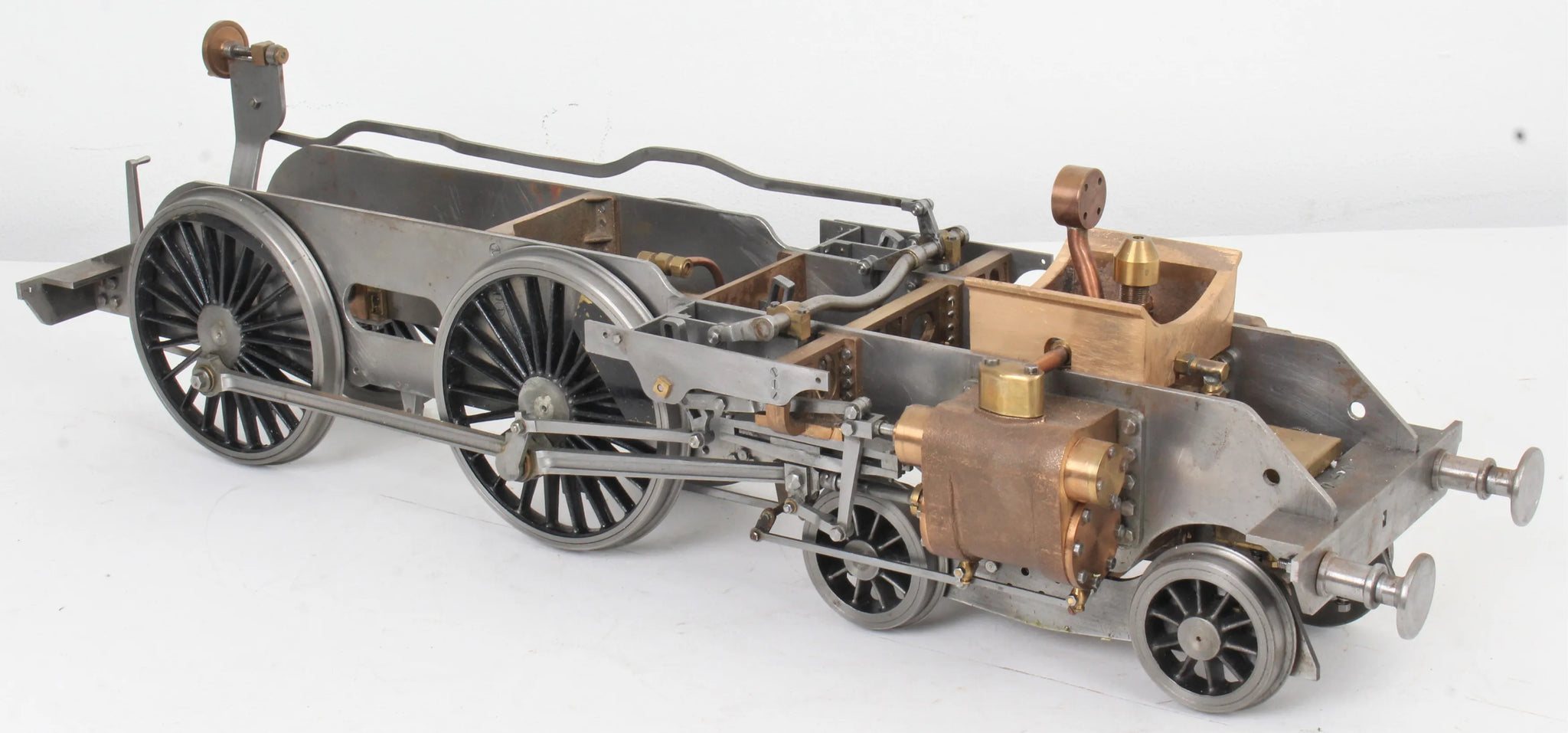

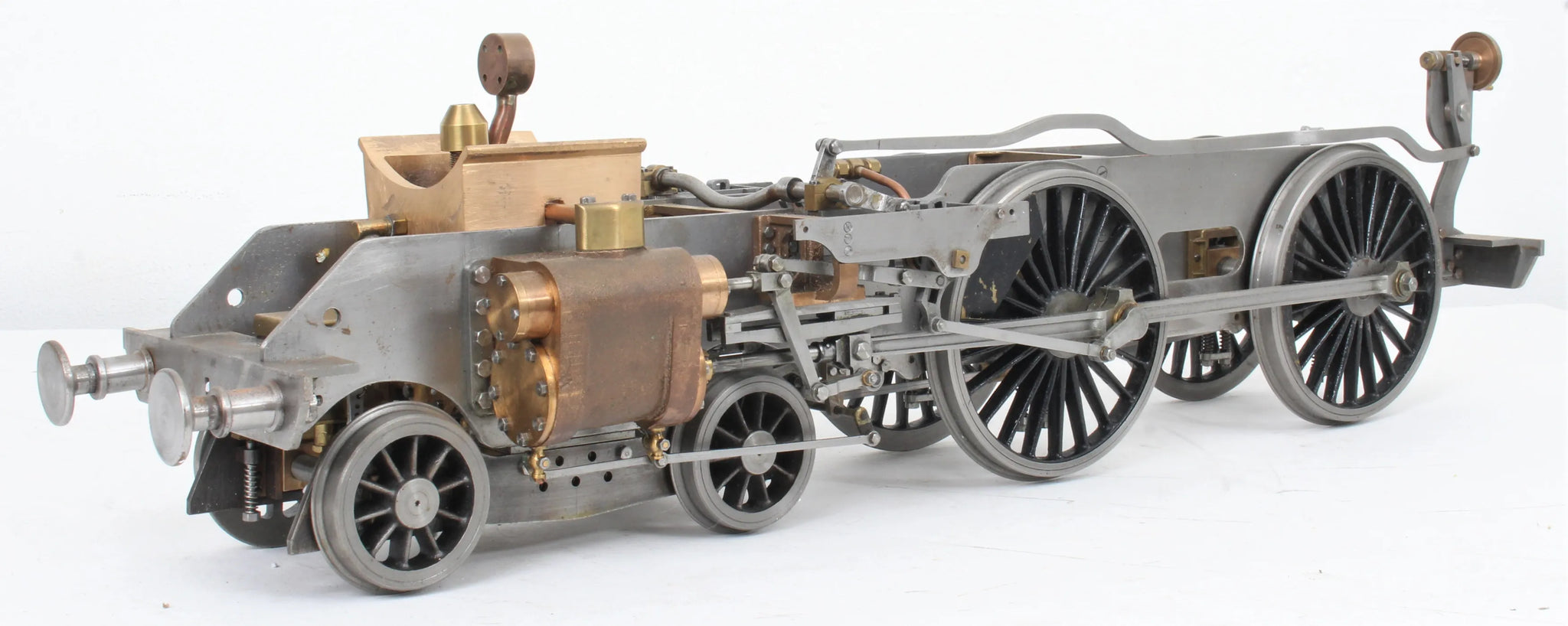

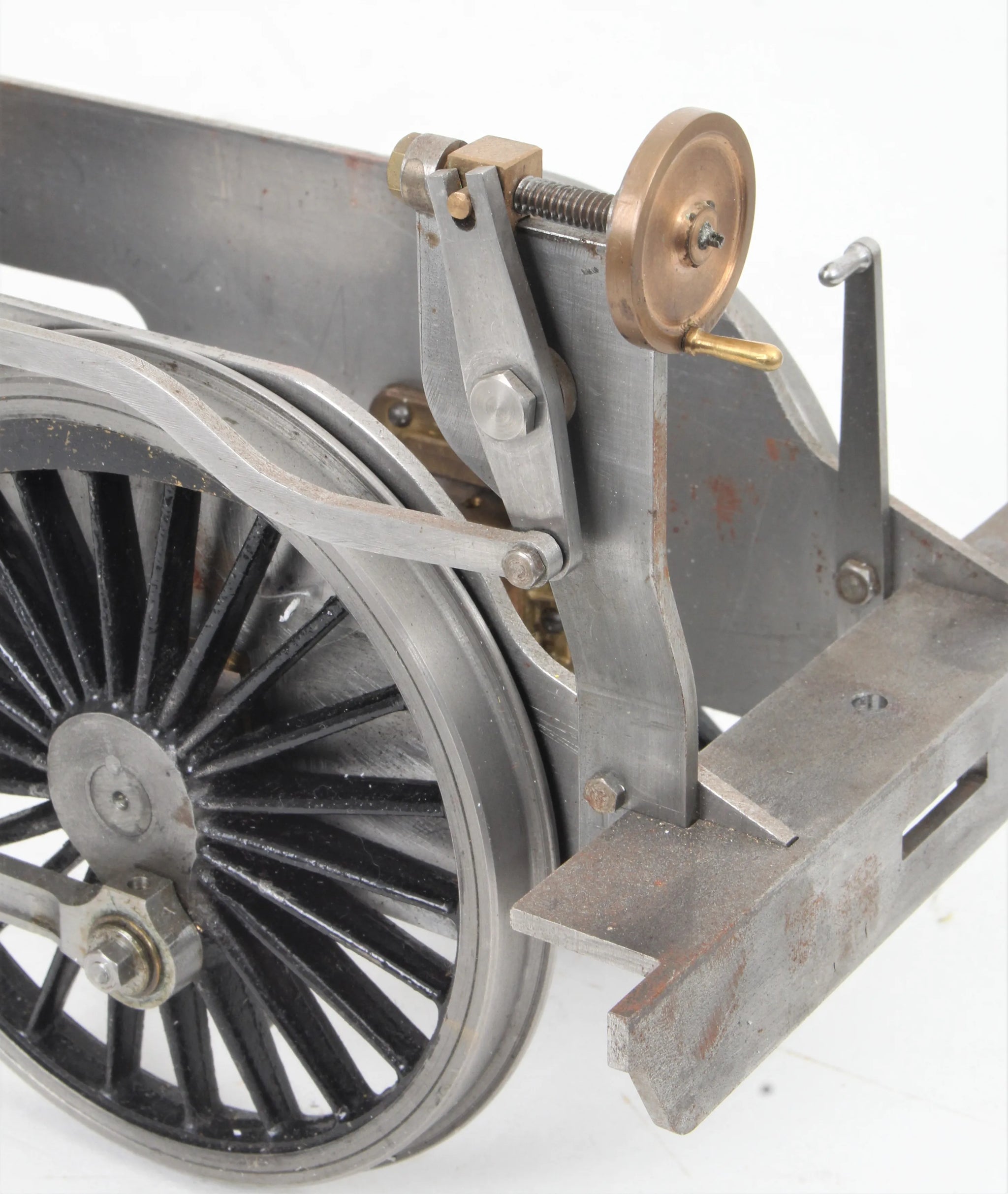

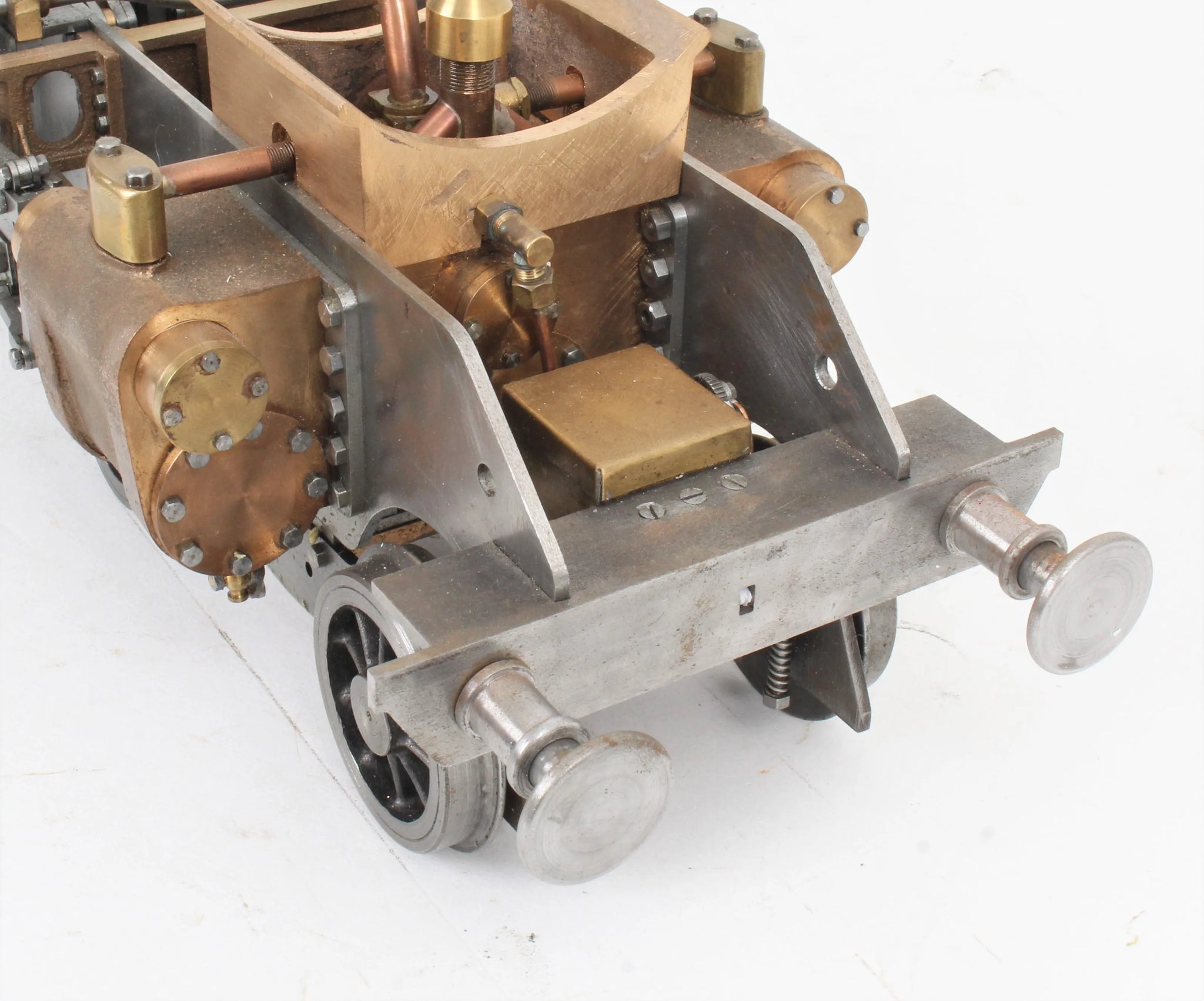

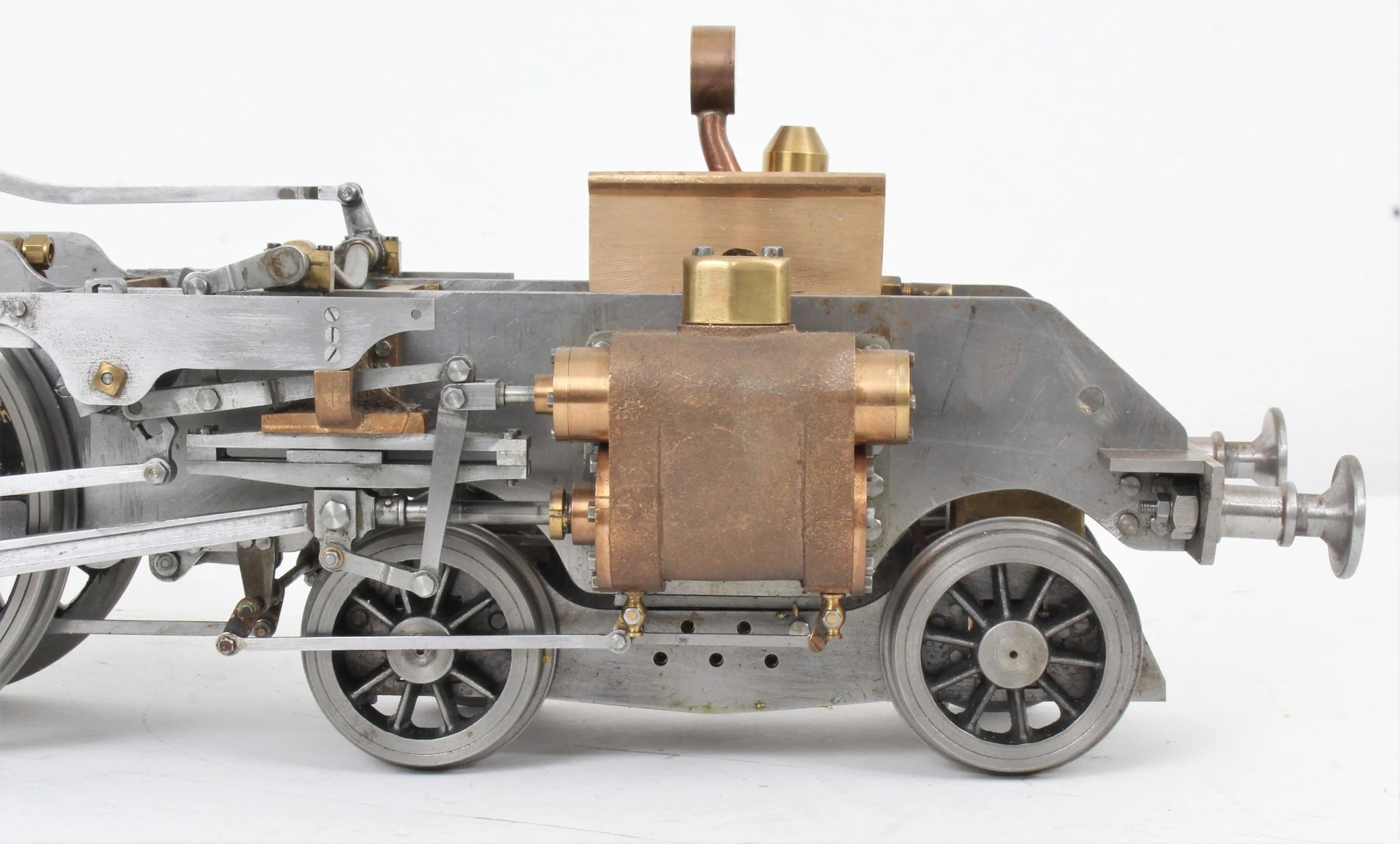

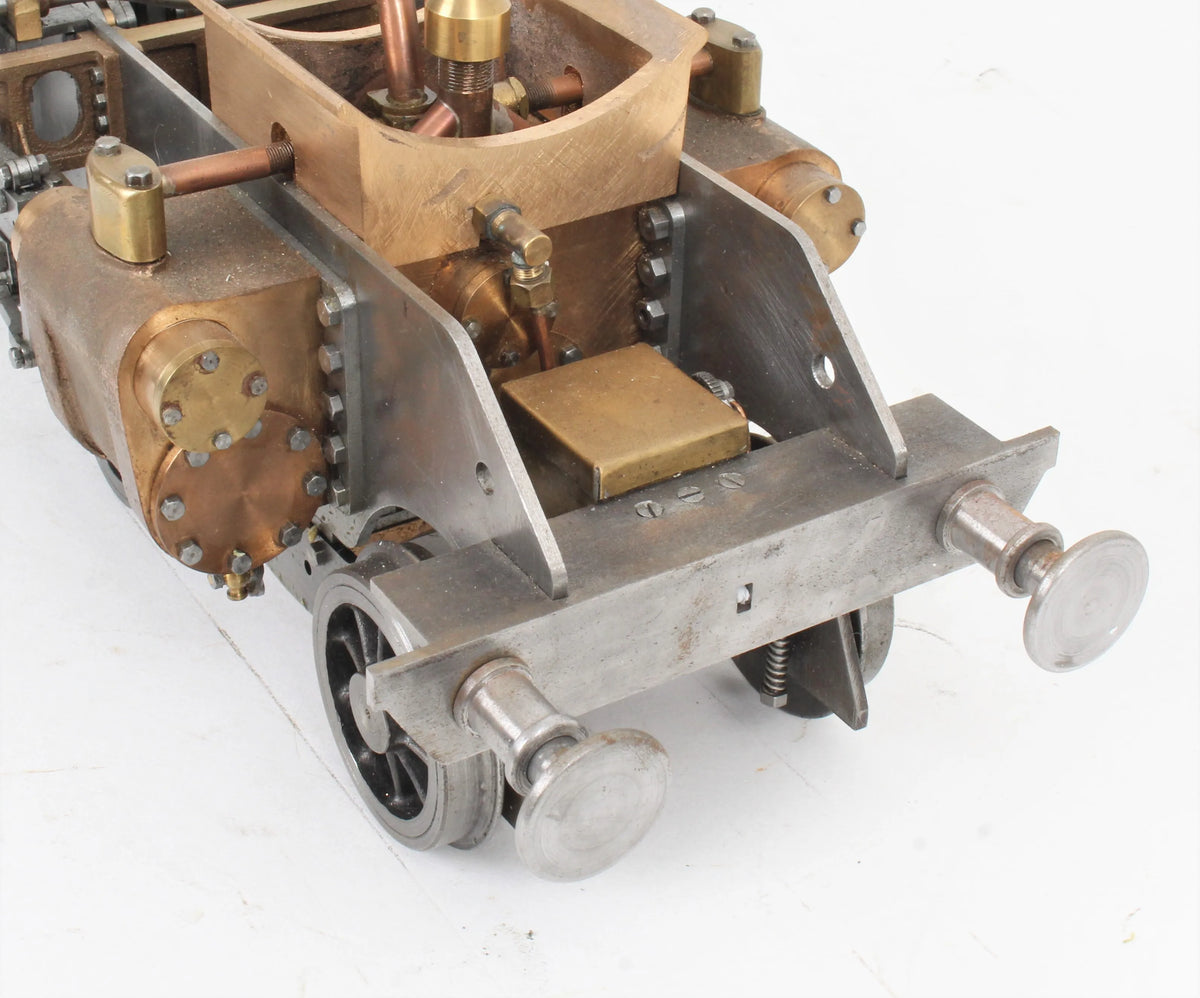

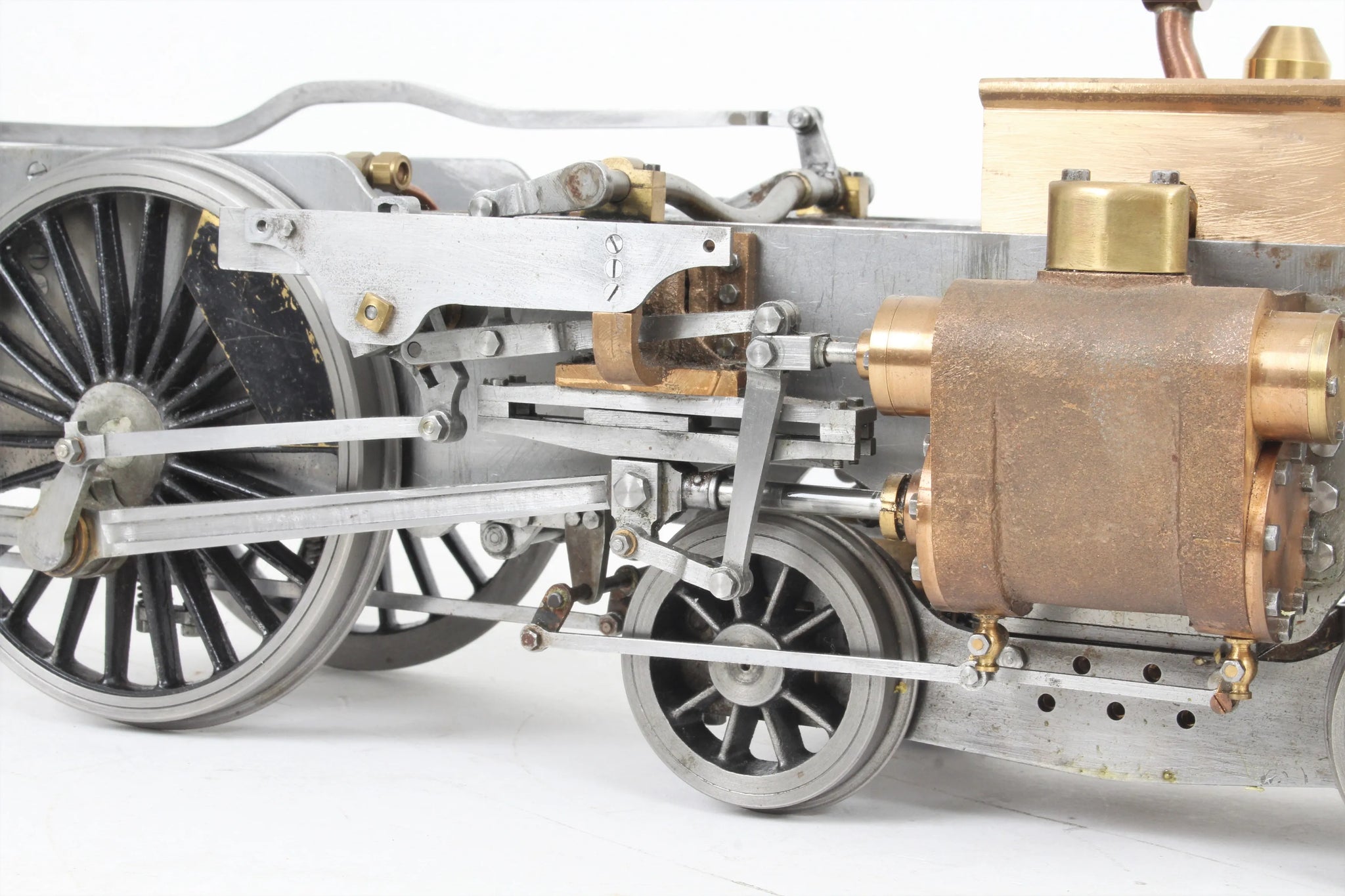

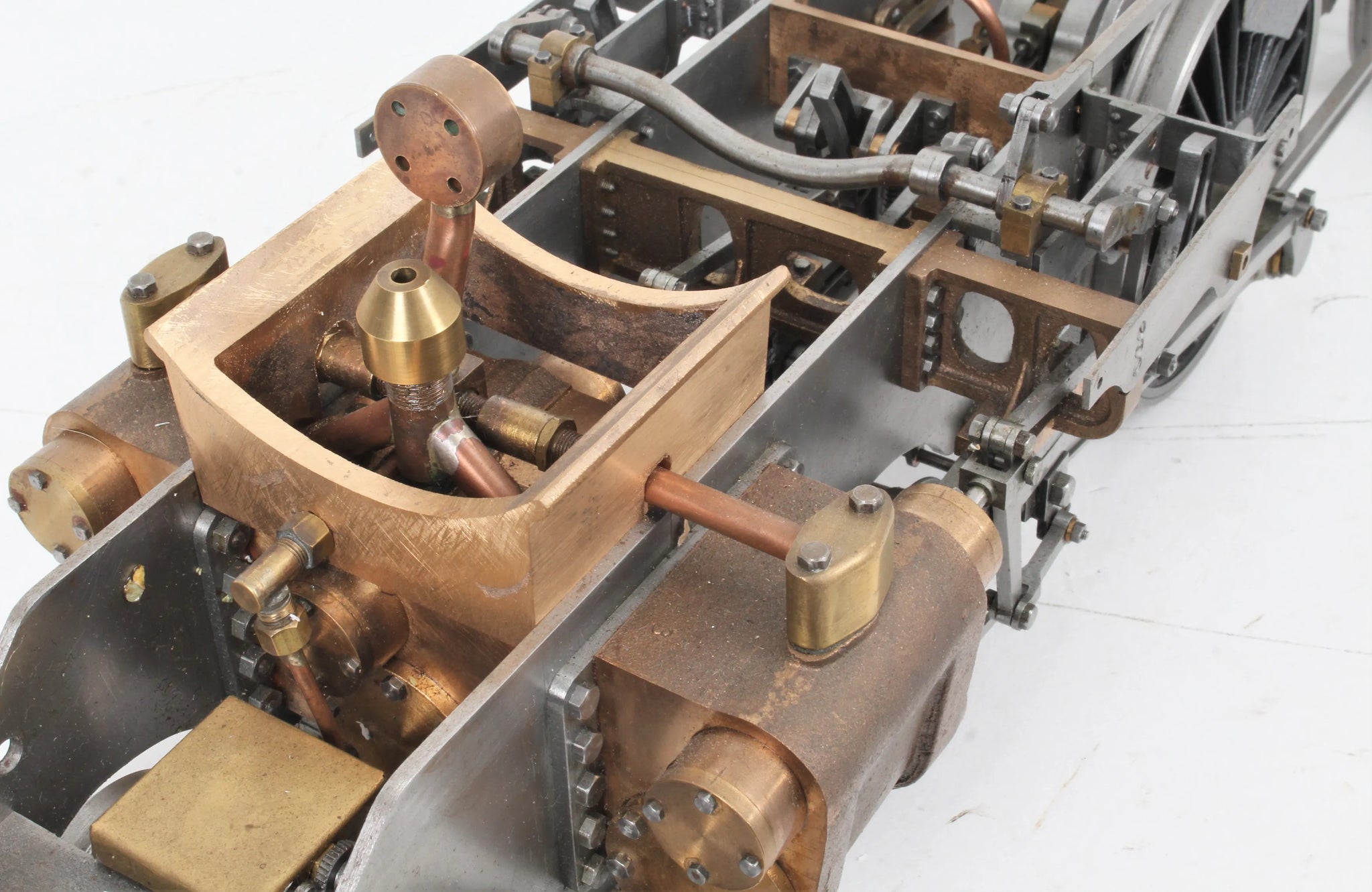

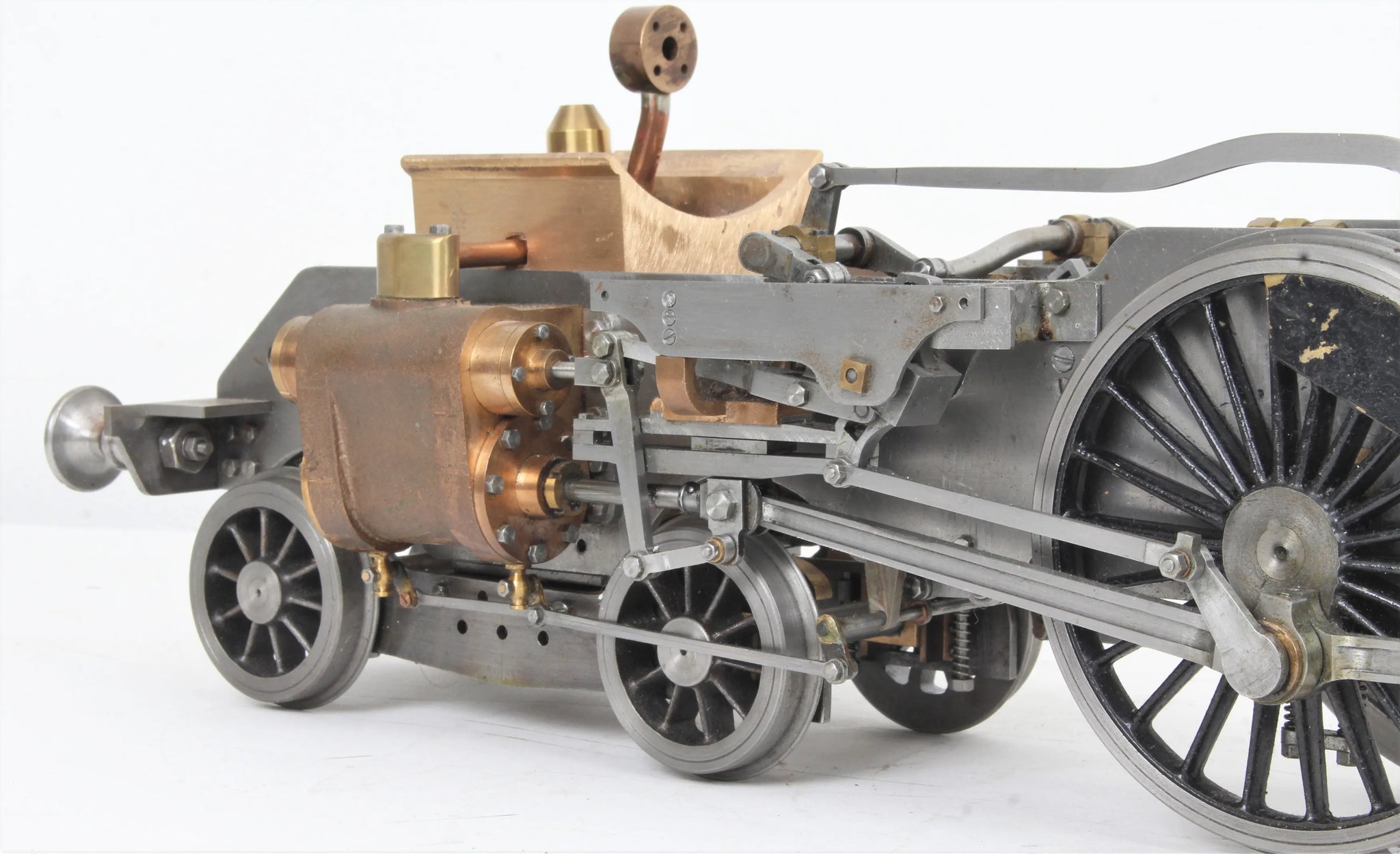

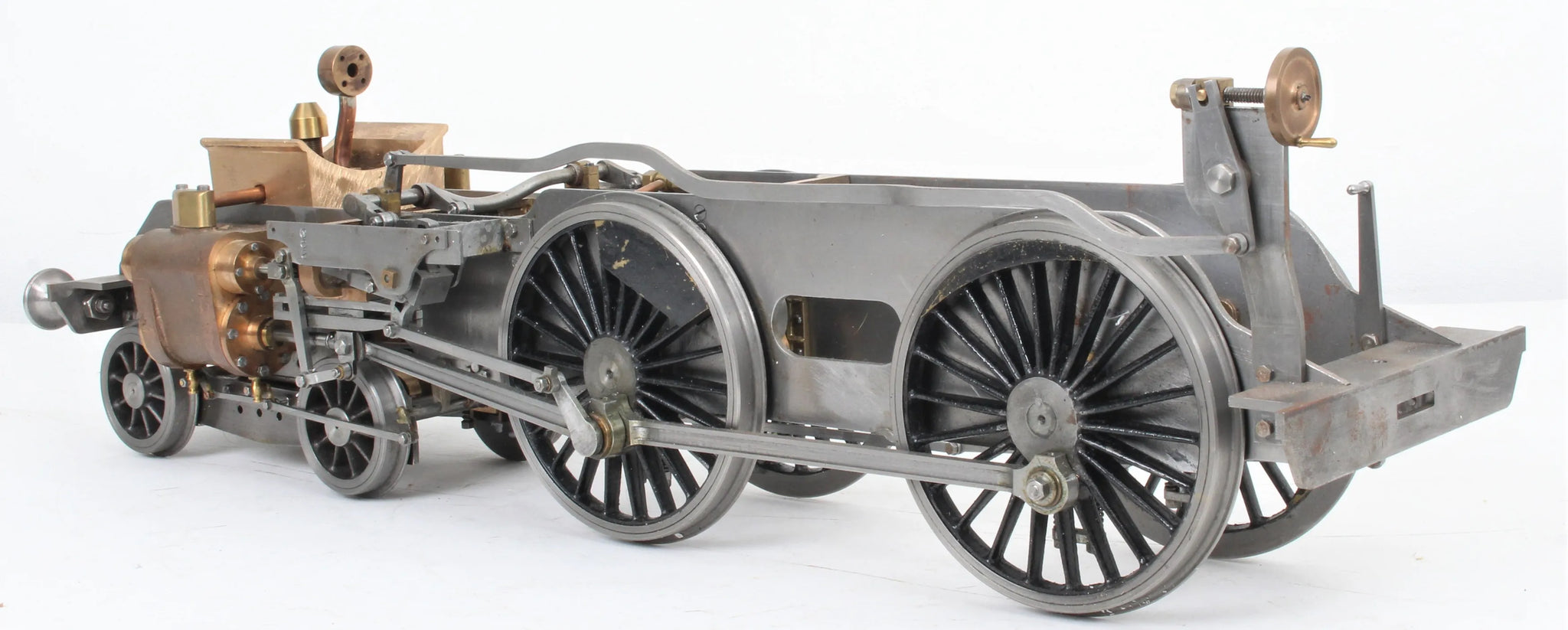

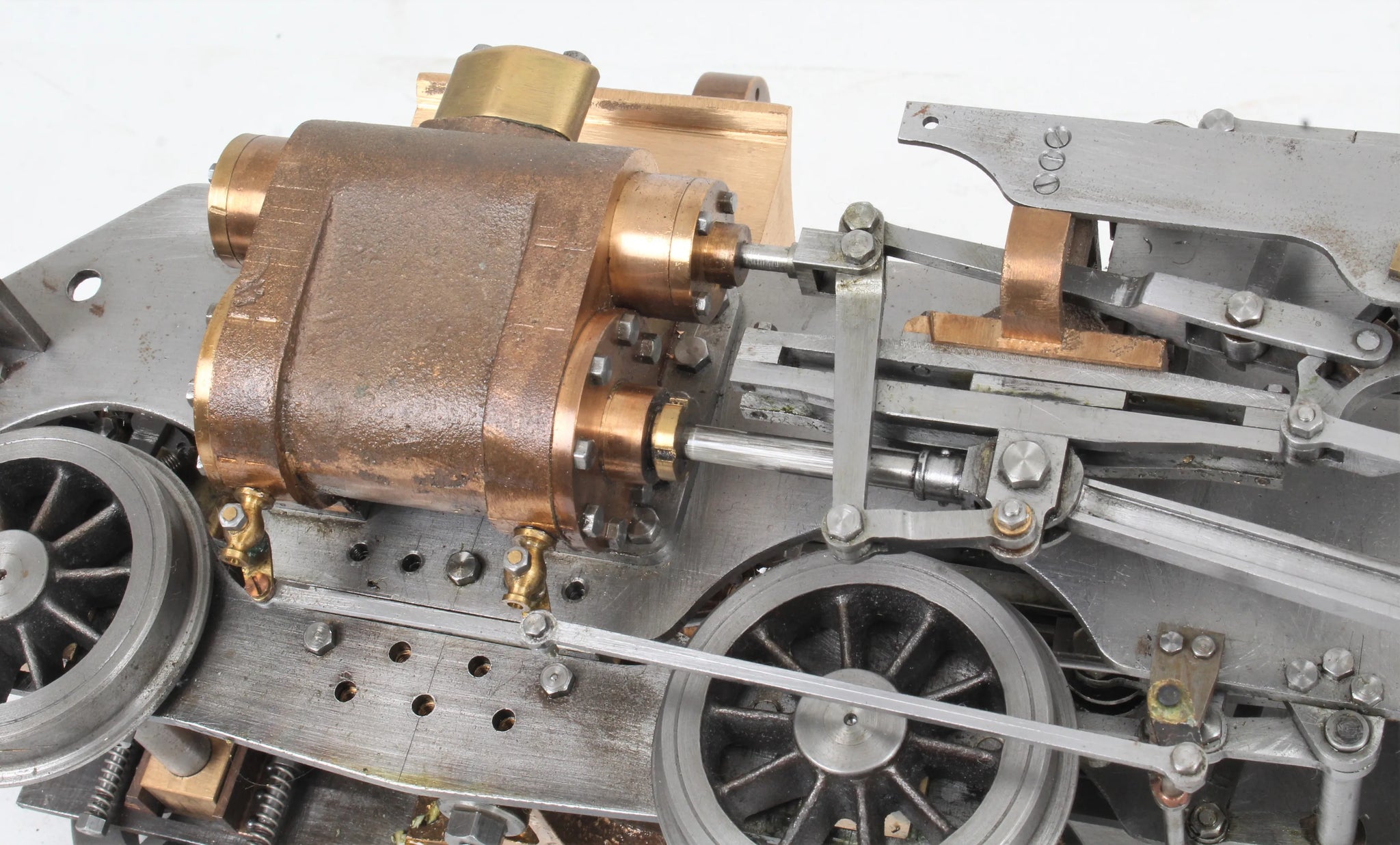

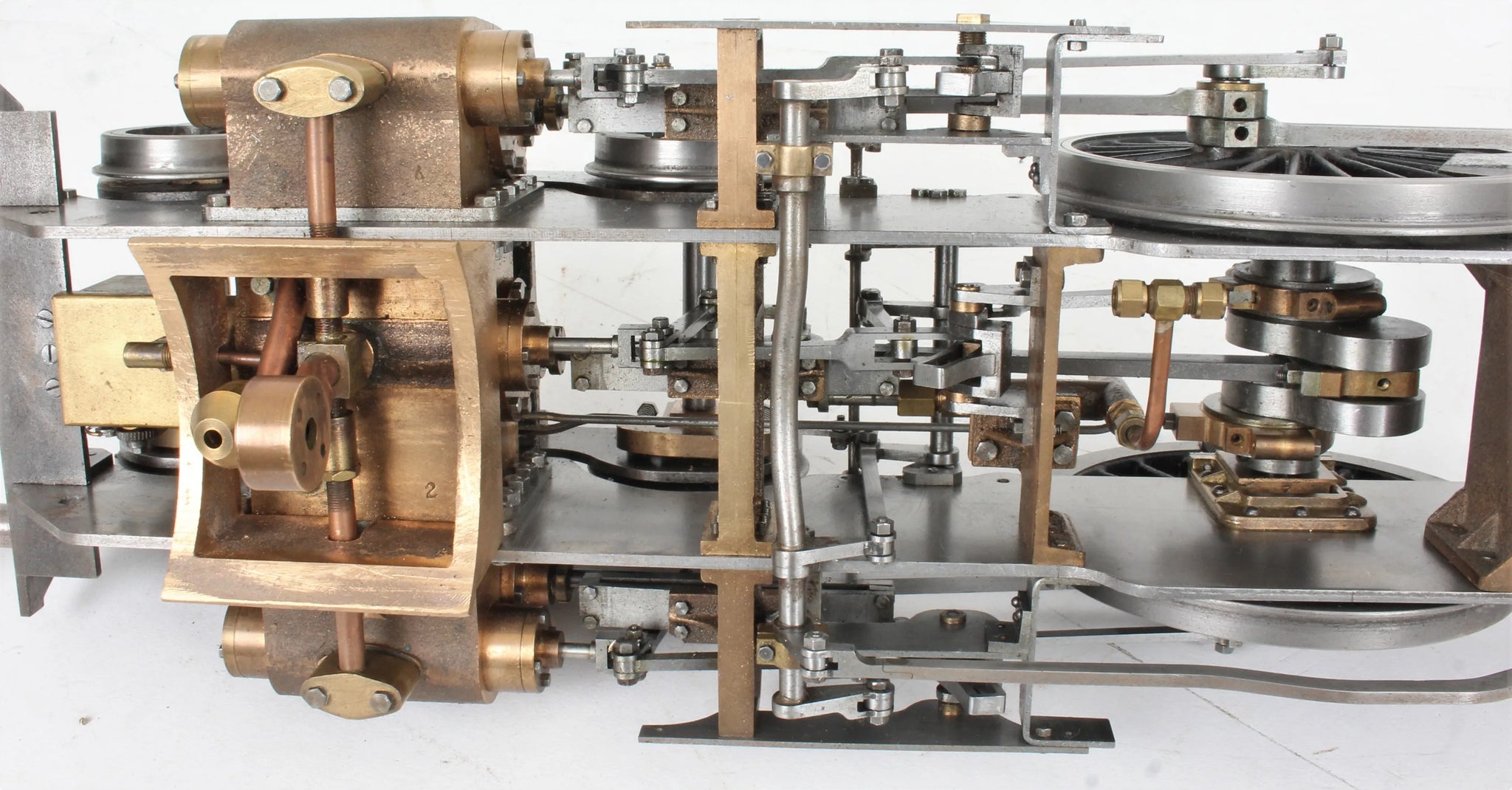

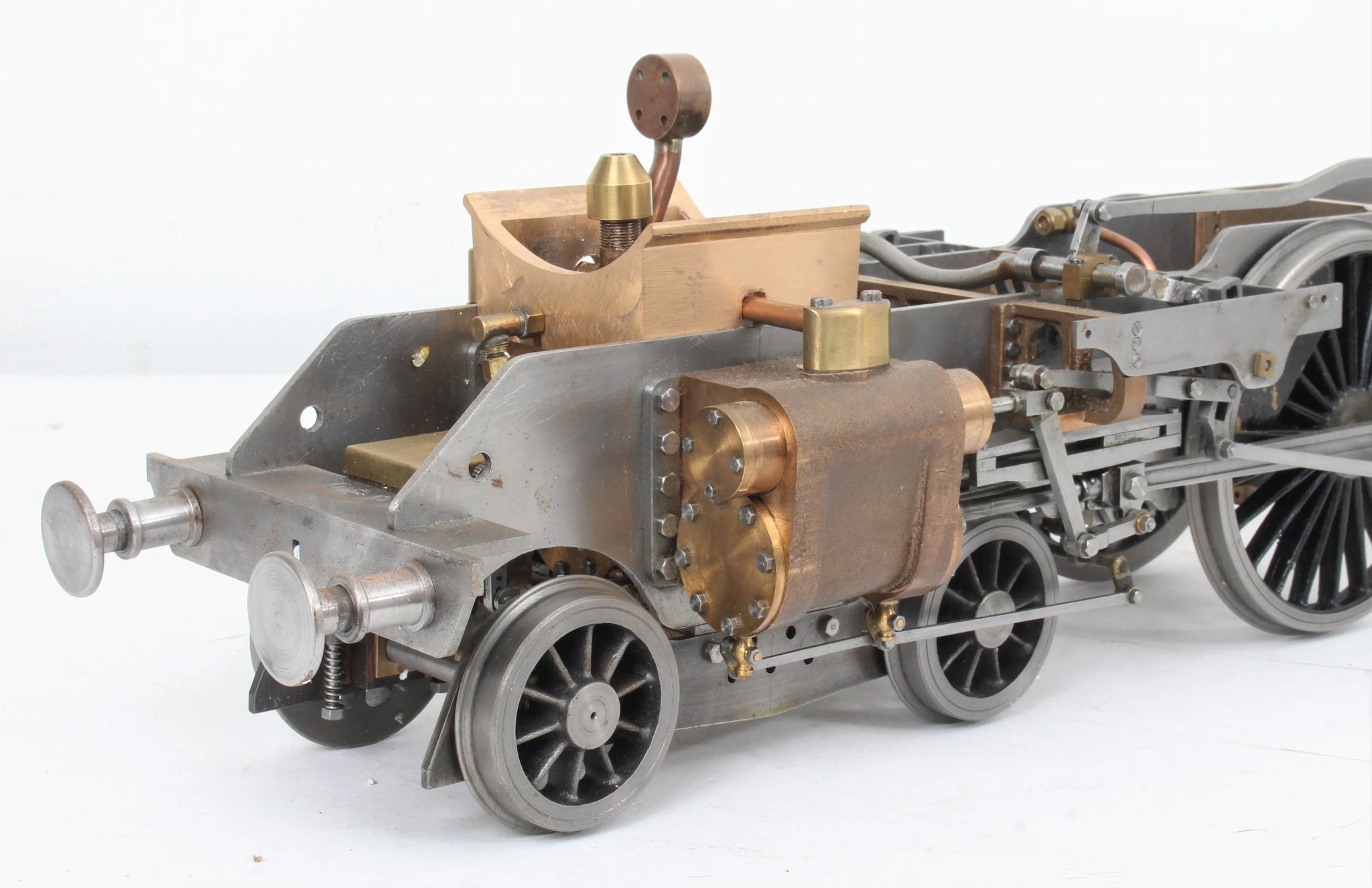

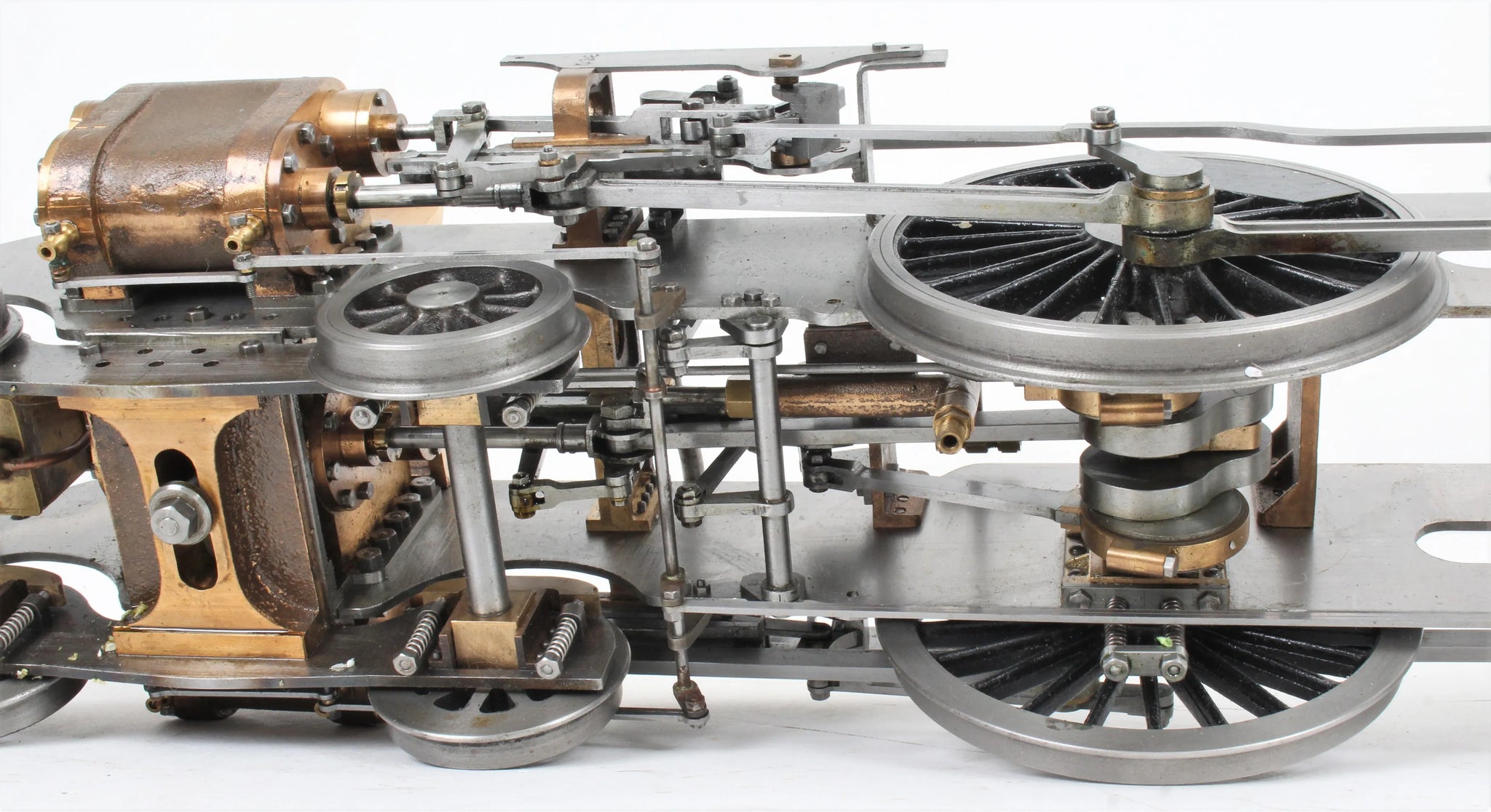

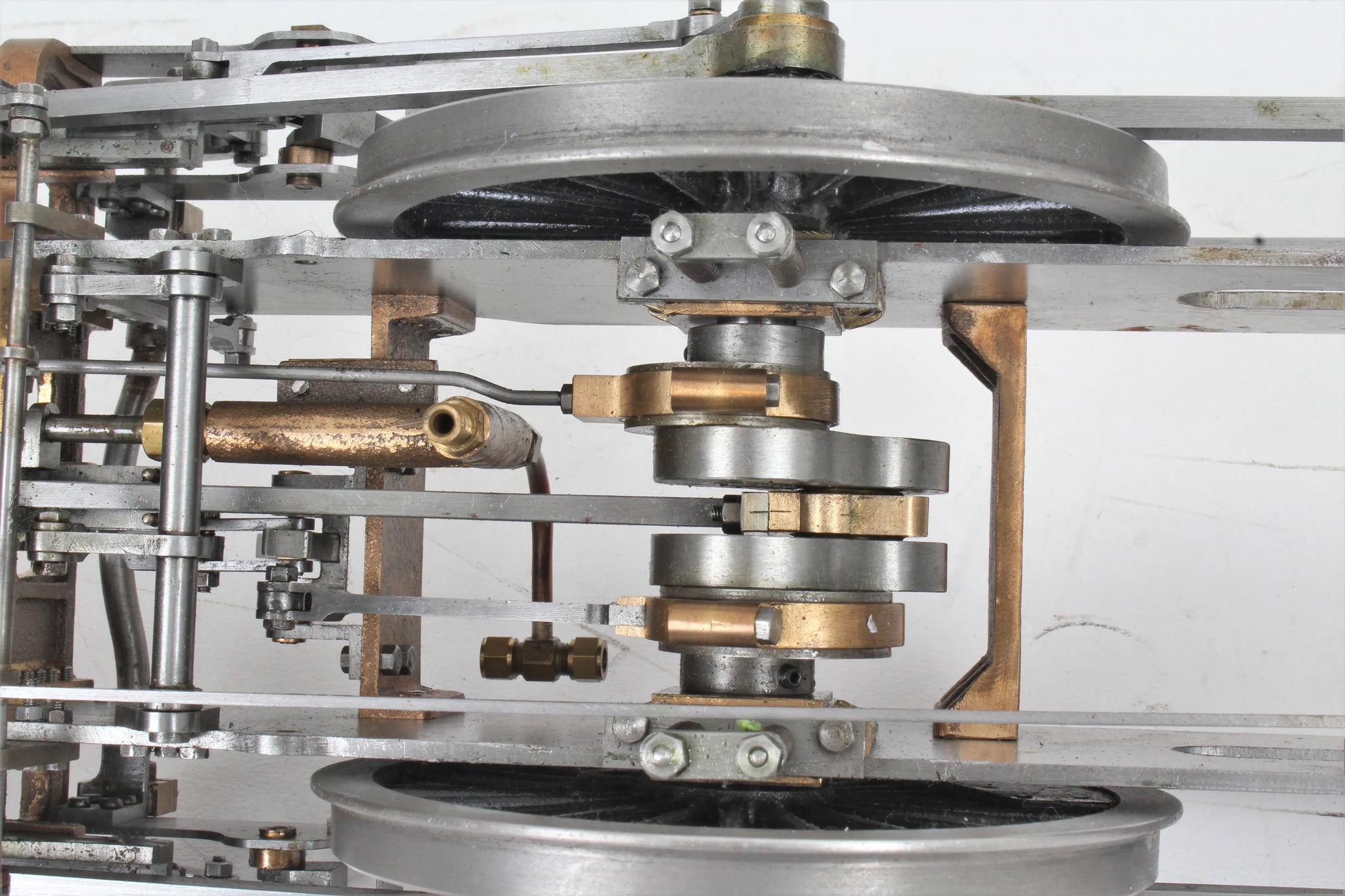

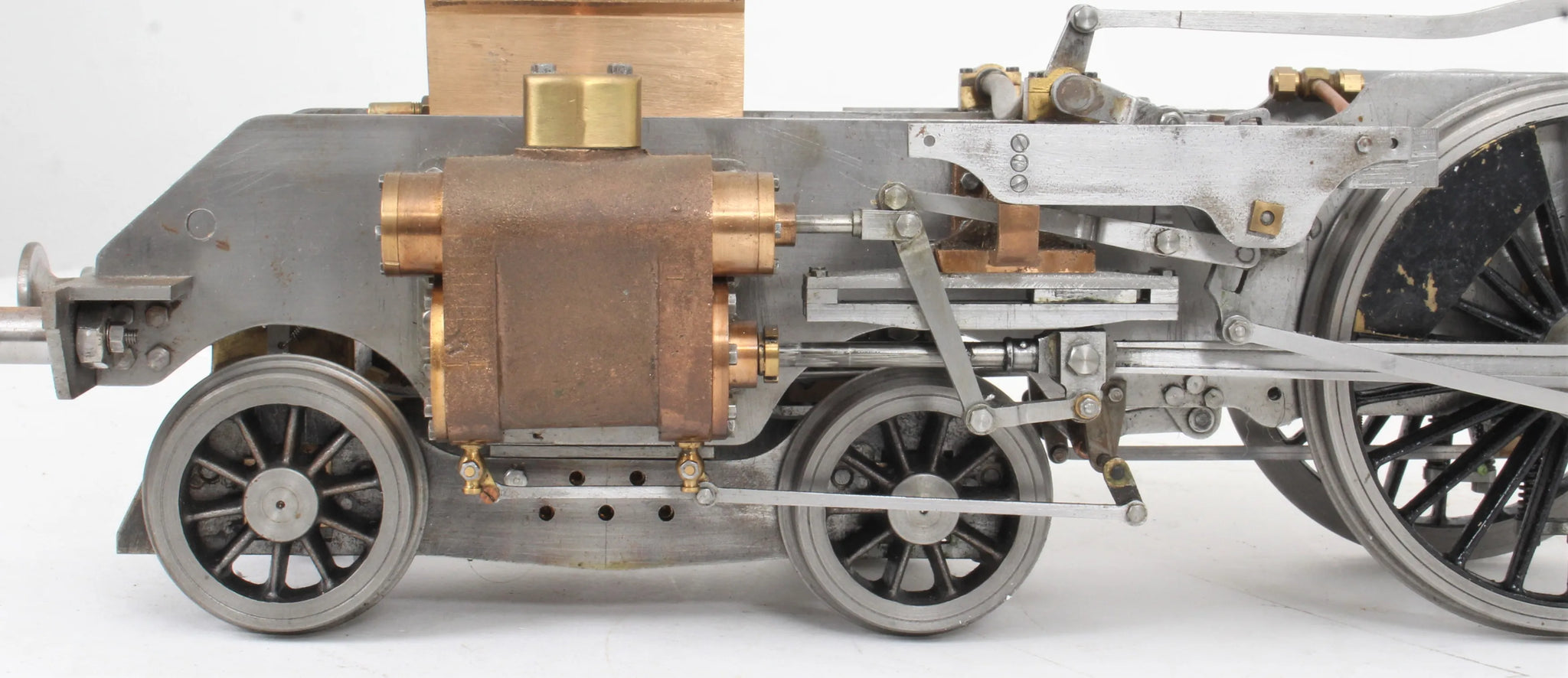

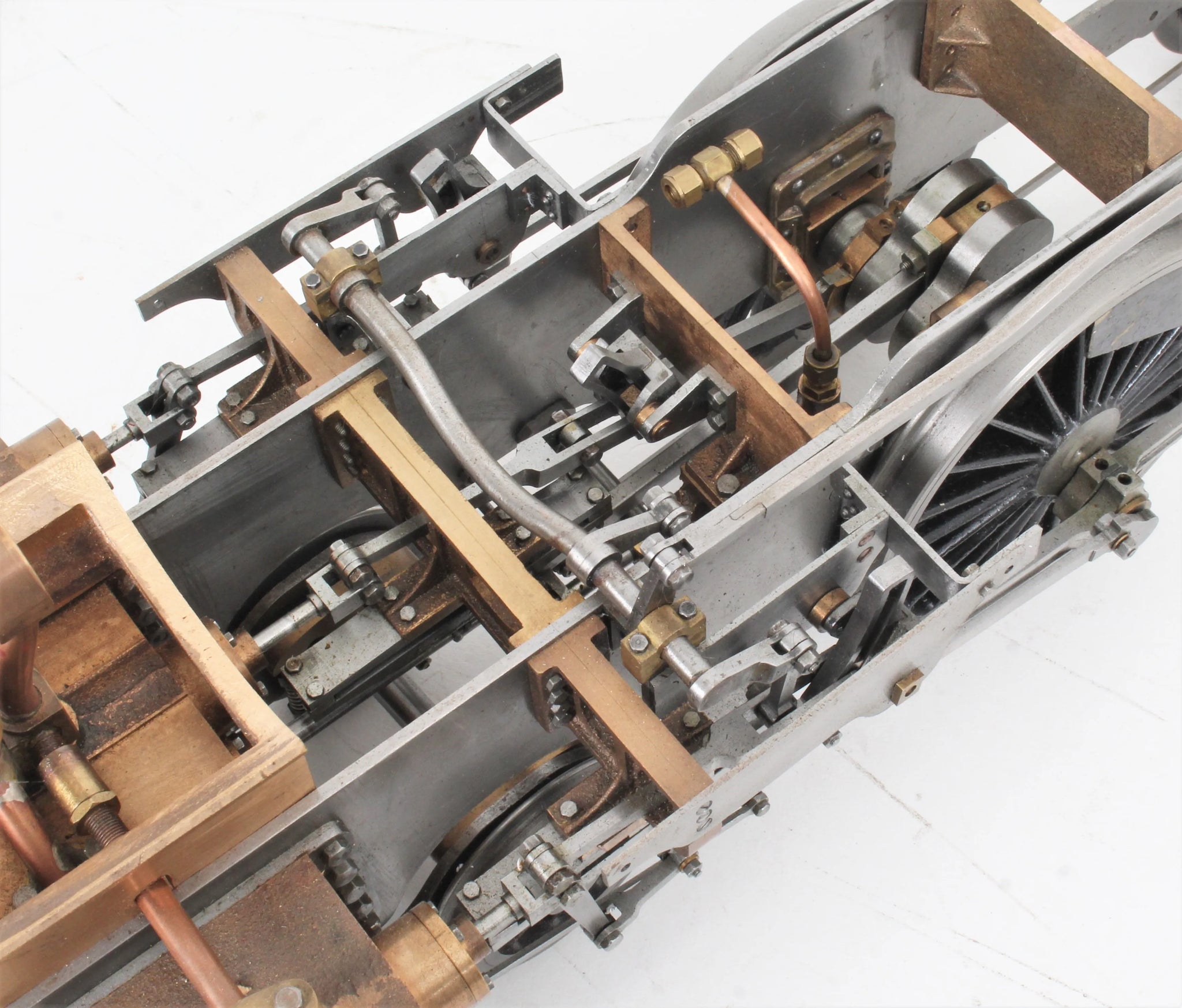

The three-cylinder chassis is complete and air running, with piston valves actuated by Walschaerts gear.

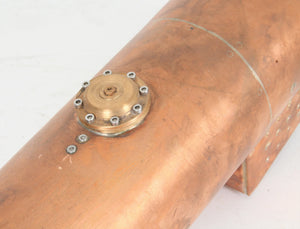

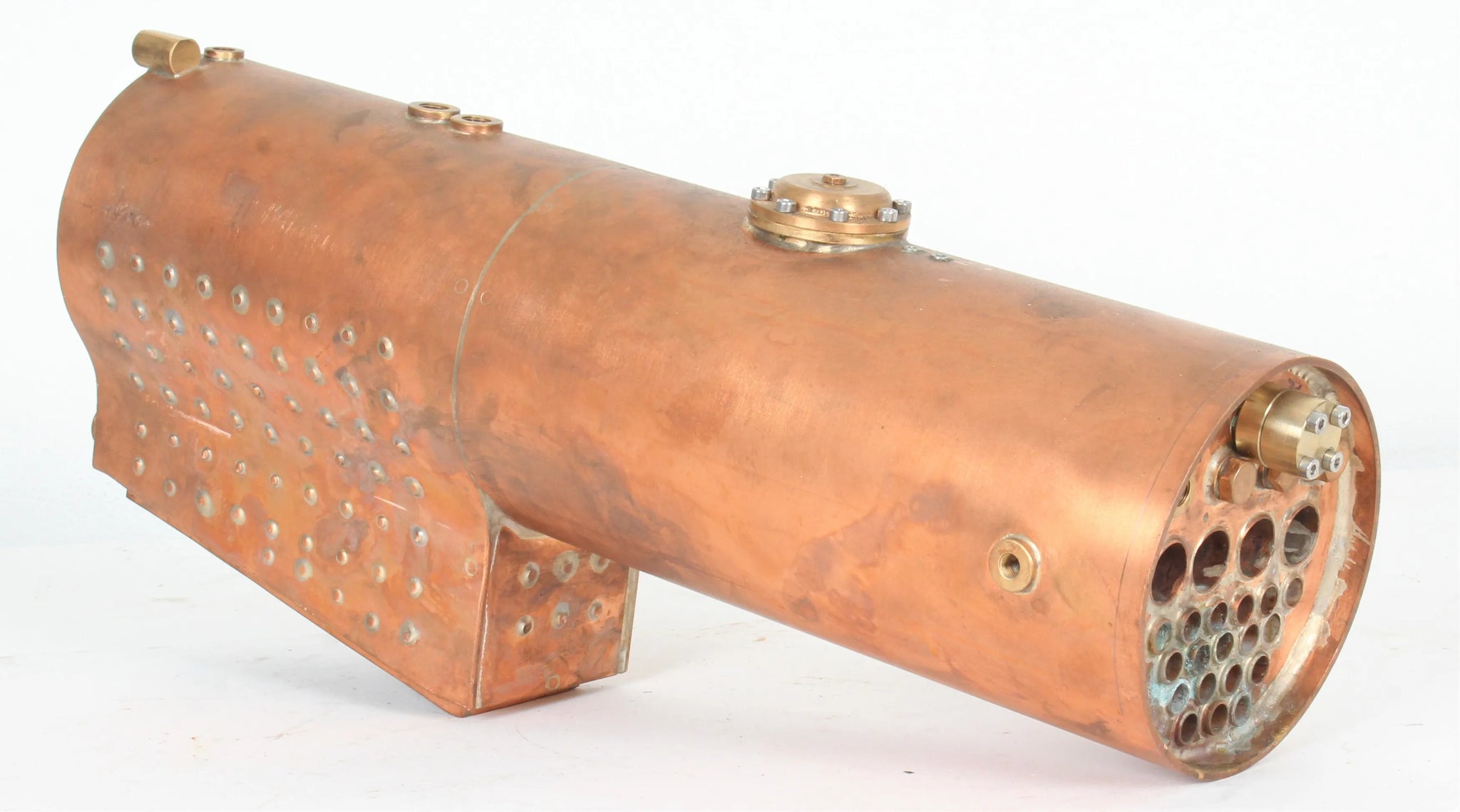

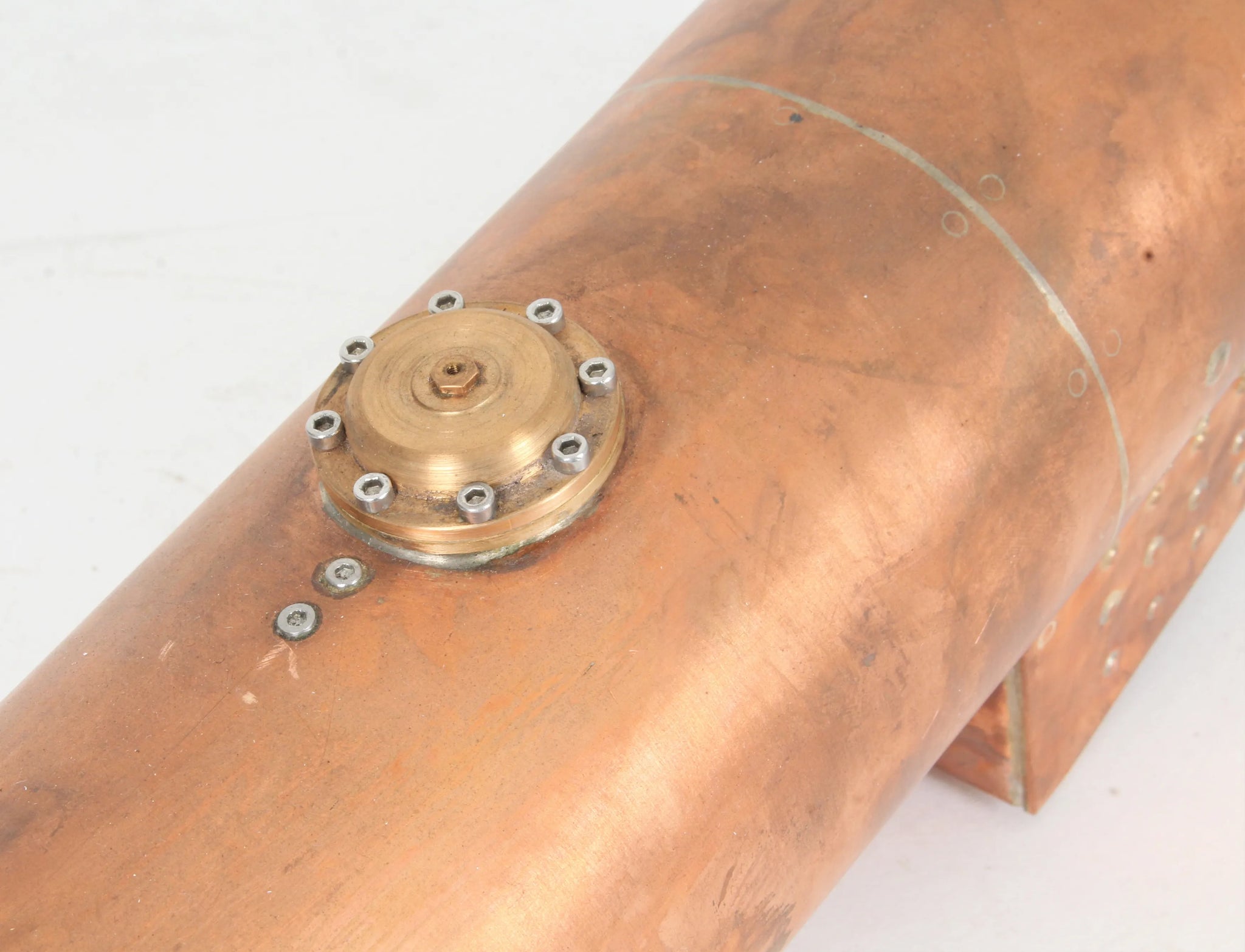

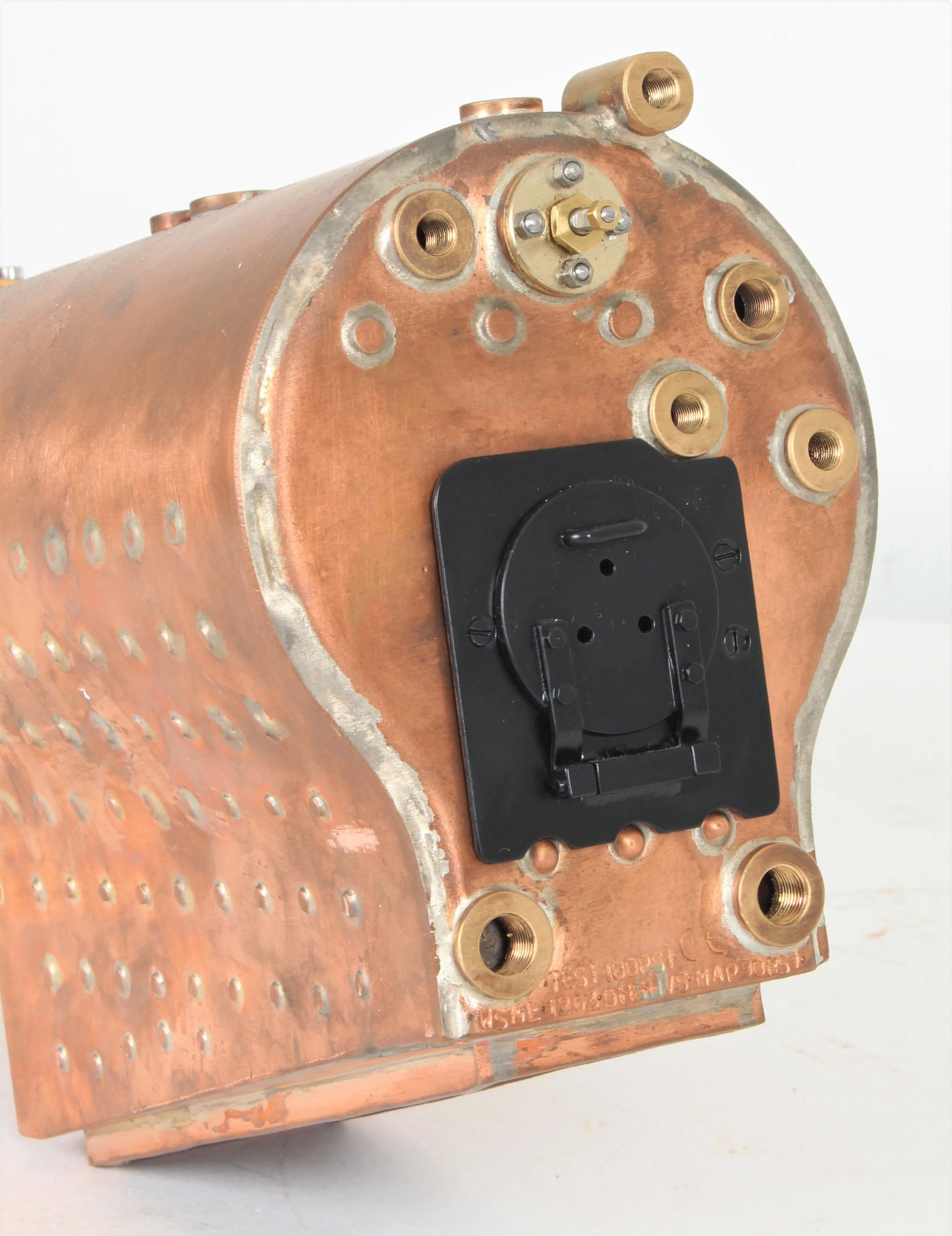

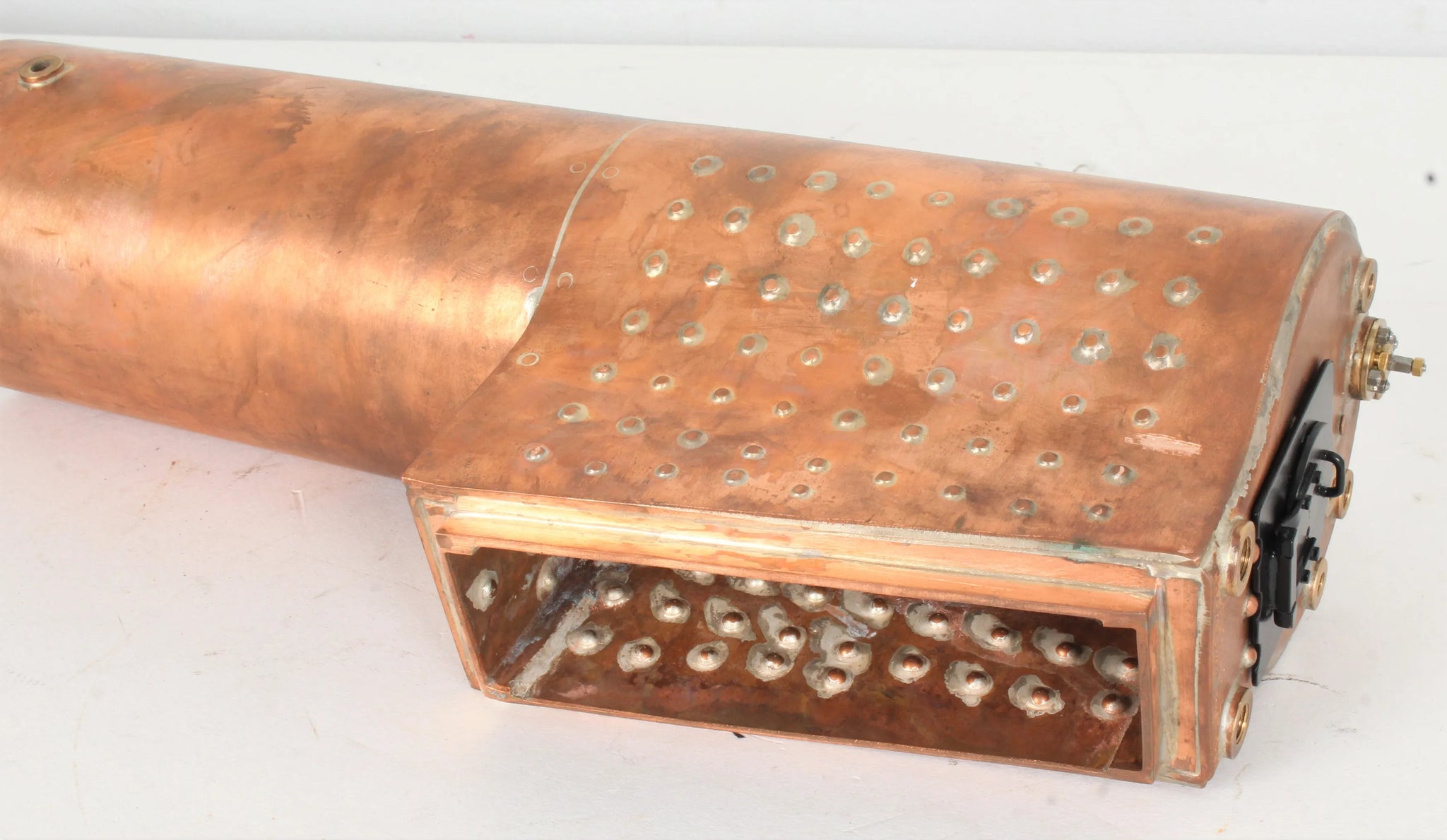

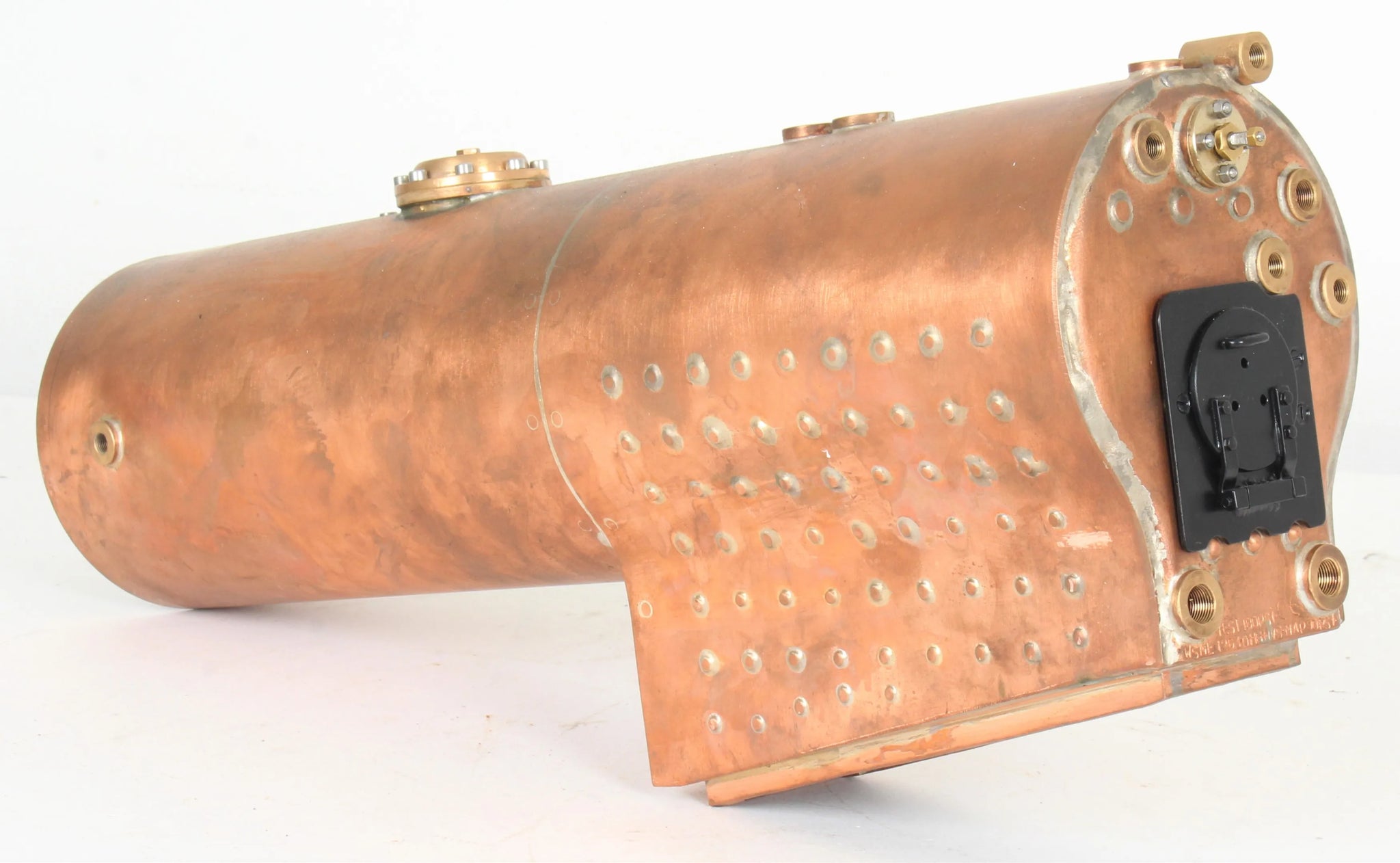

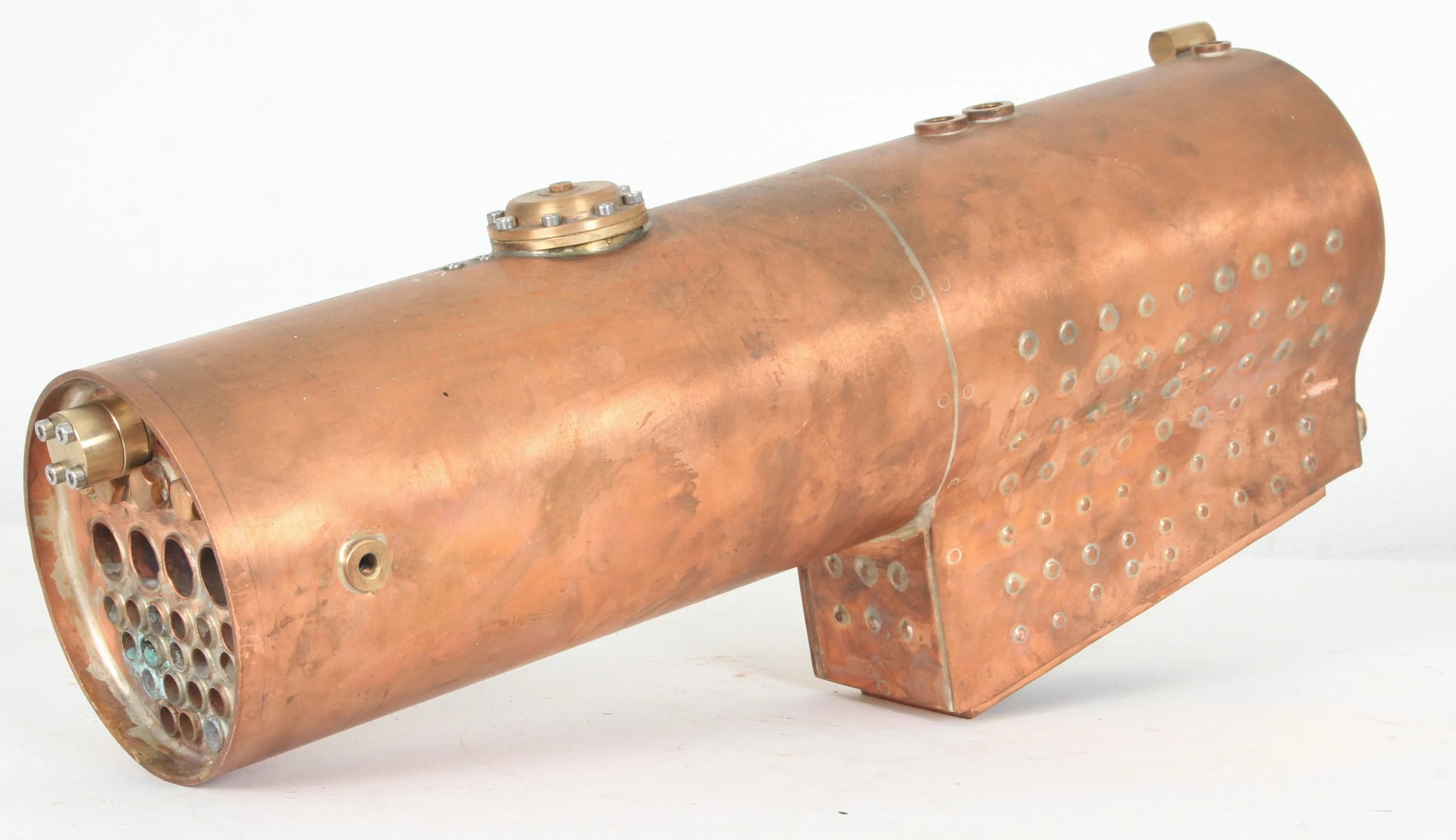

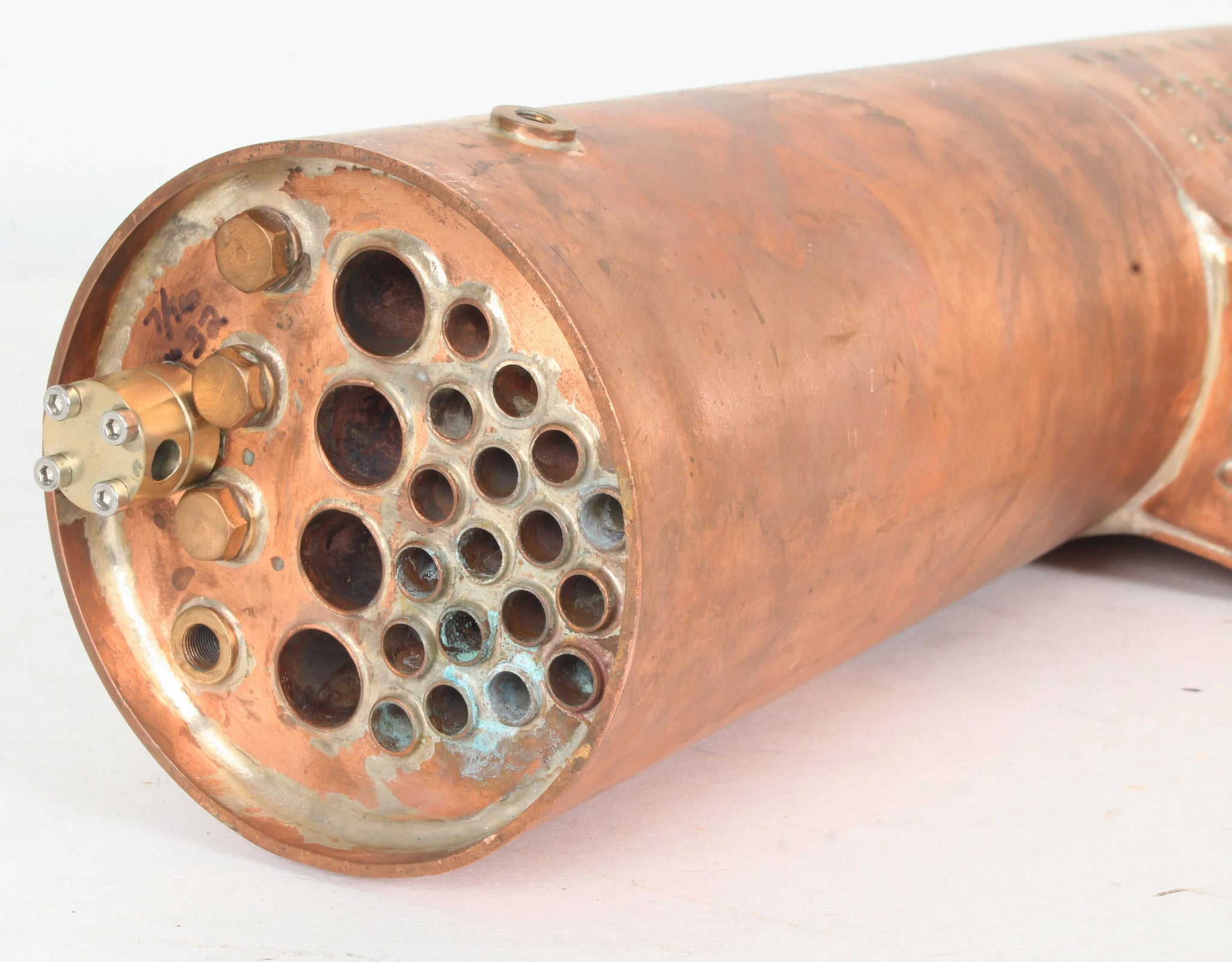

CE-marked copper boiler is by Western Steam, silver soldered throughout and complete with manufacturer's documentation.

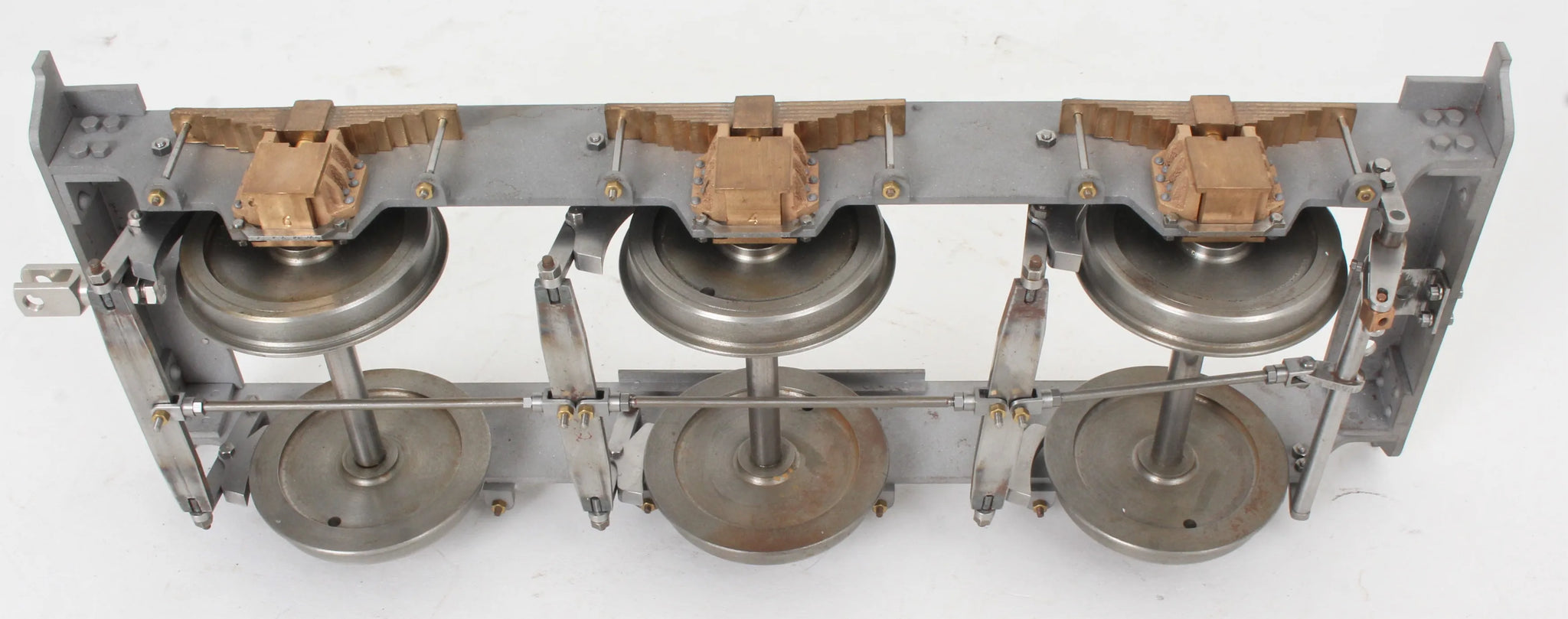

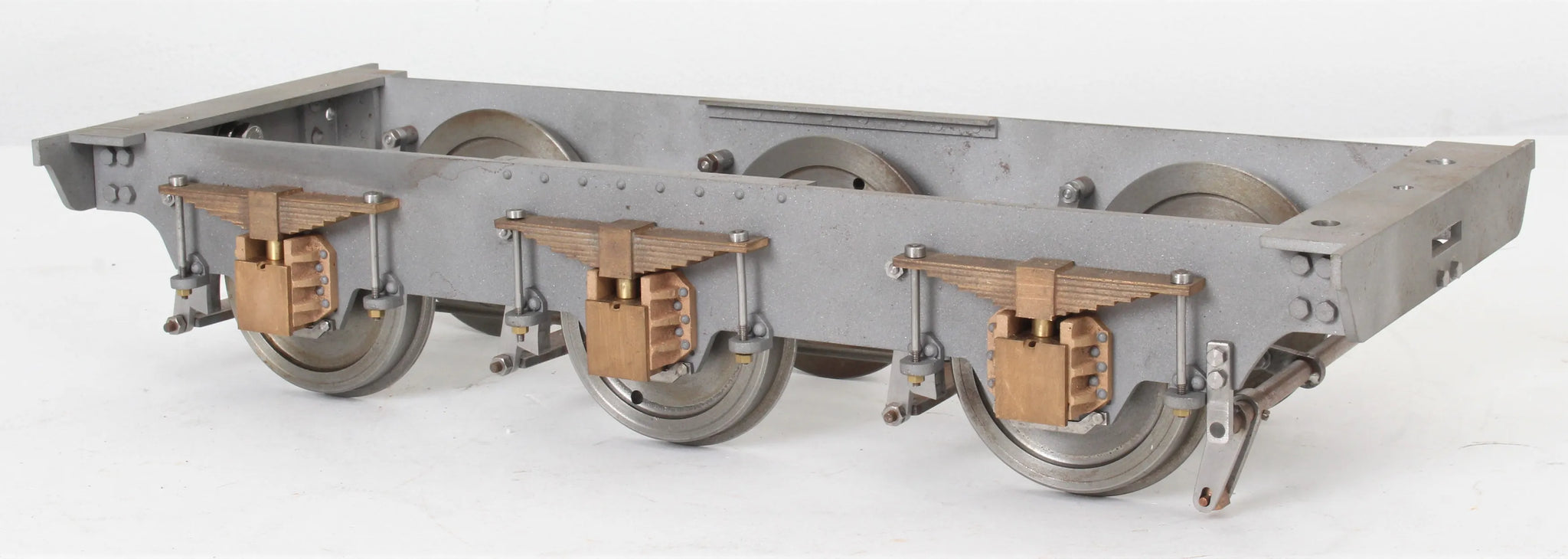

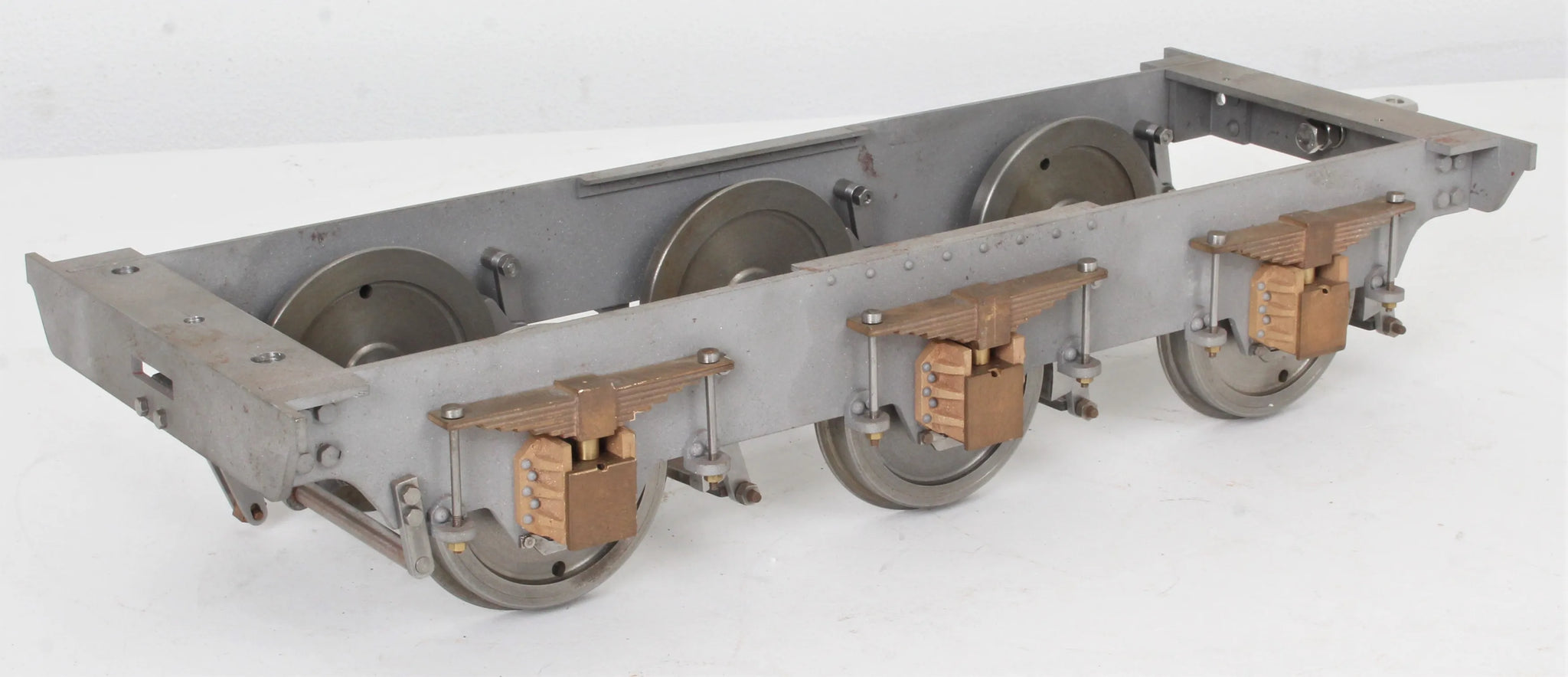

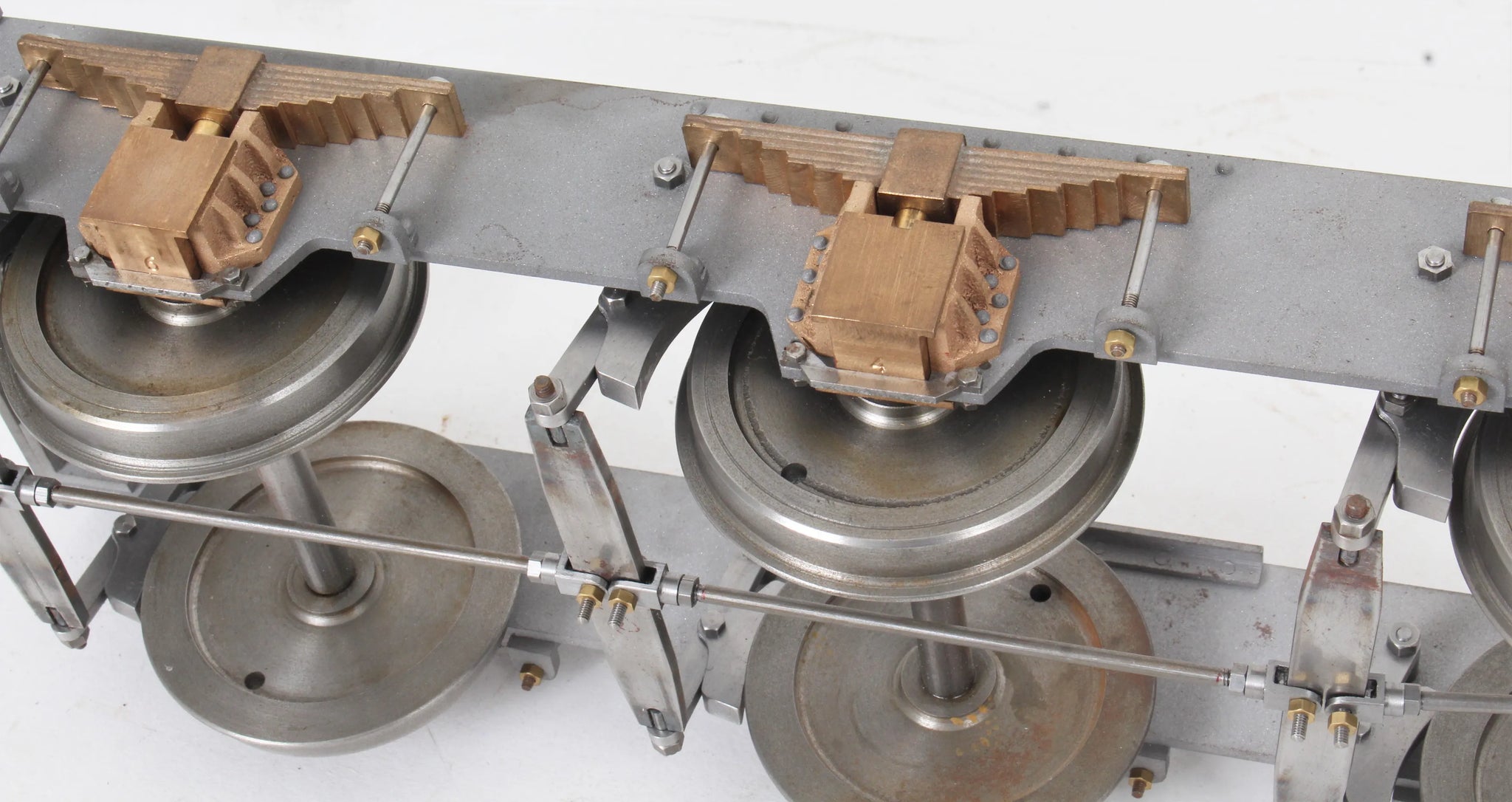

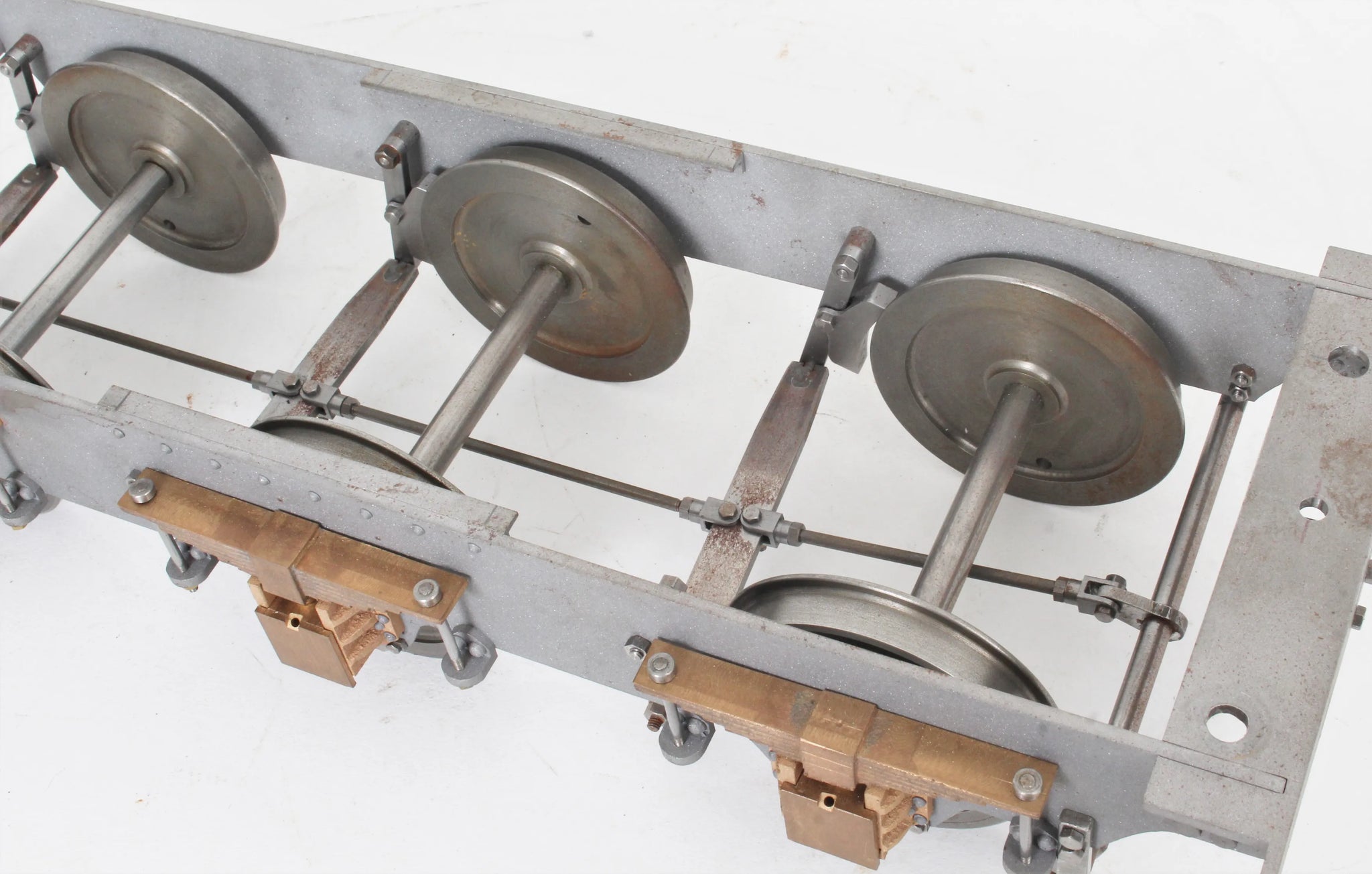

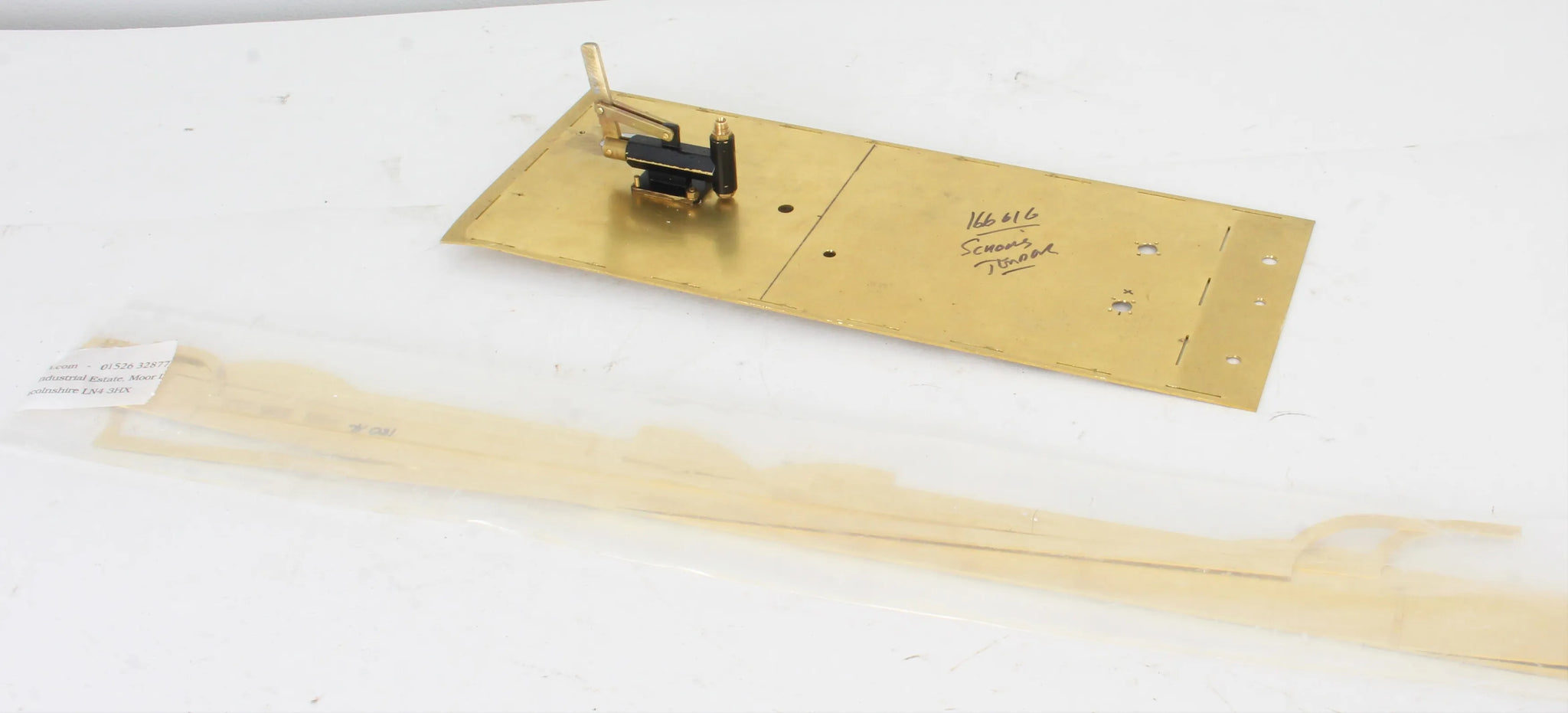

Tender chassis is well-advanced with brake gear fitted - there is a hand pump and profiled brass bodywork for the tank.

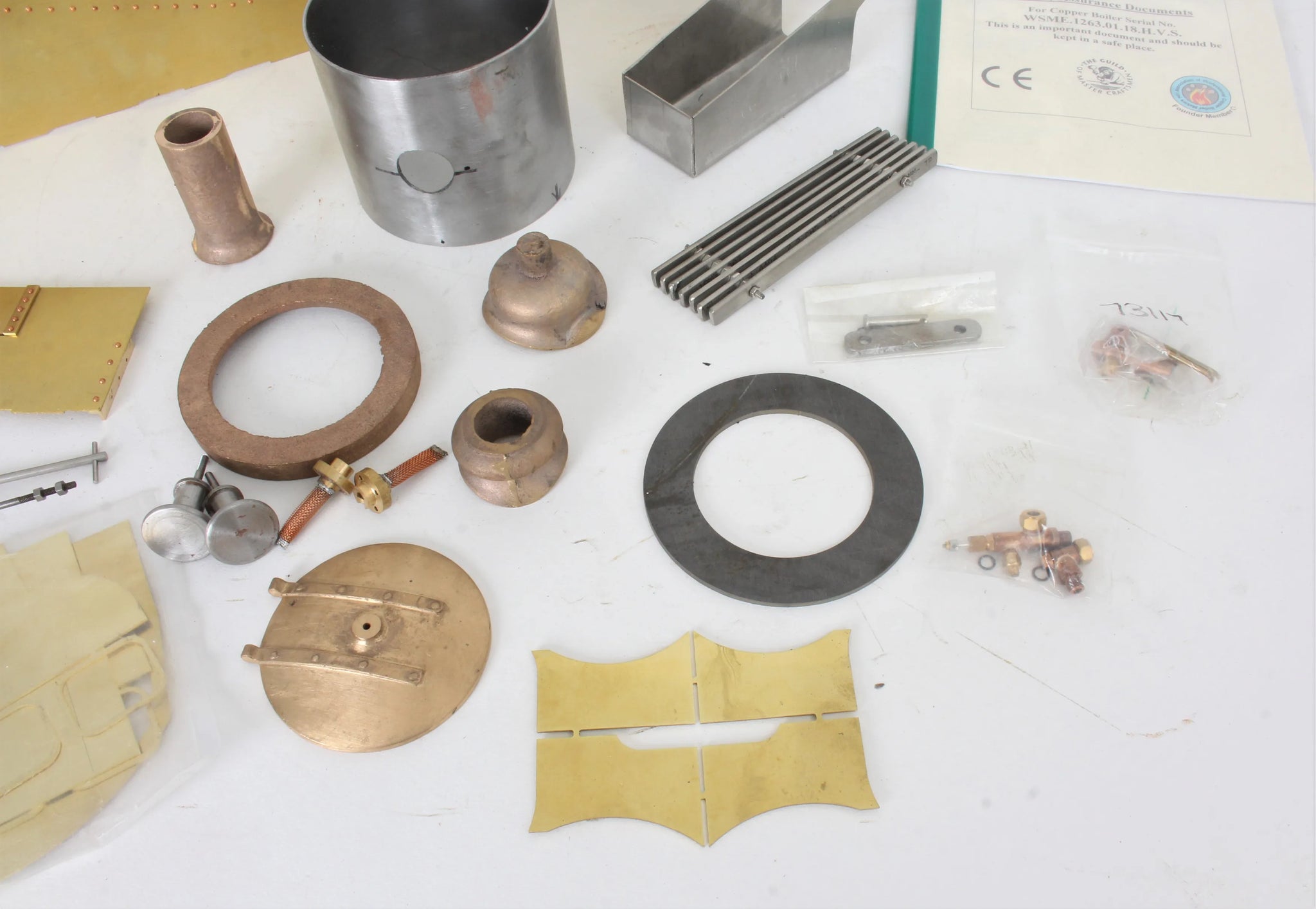

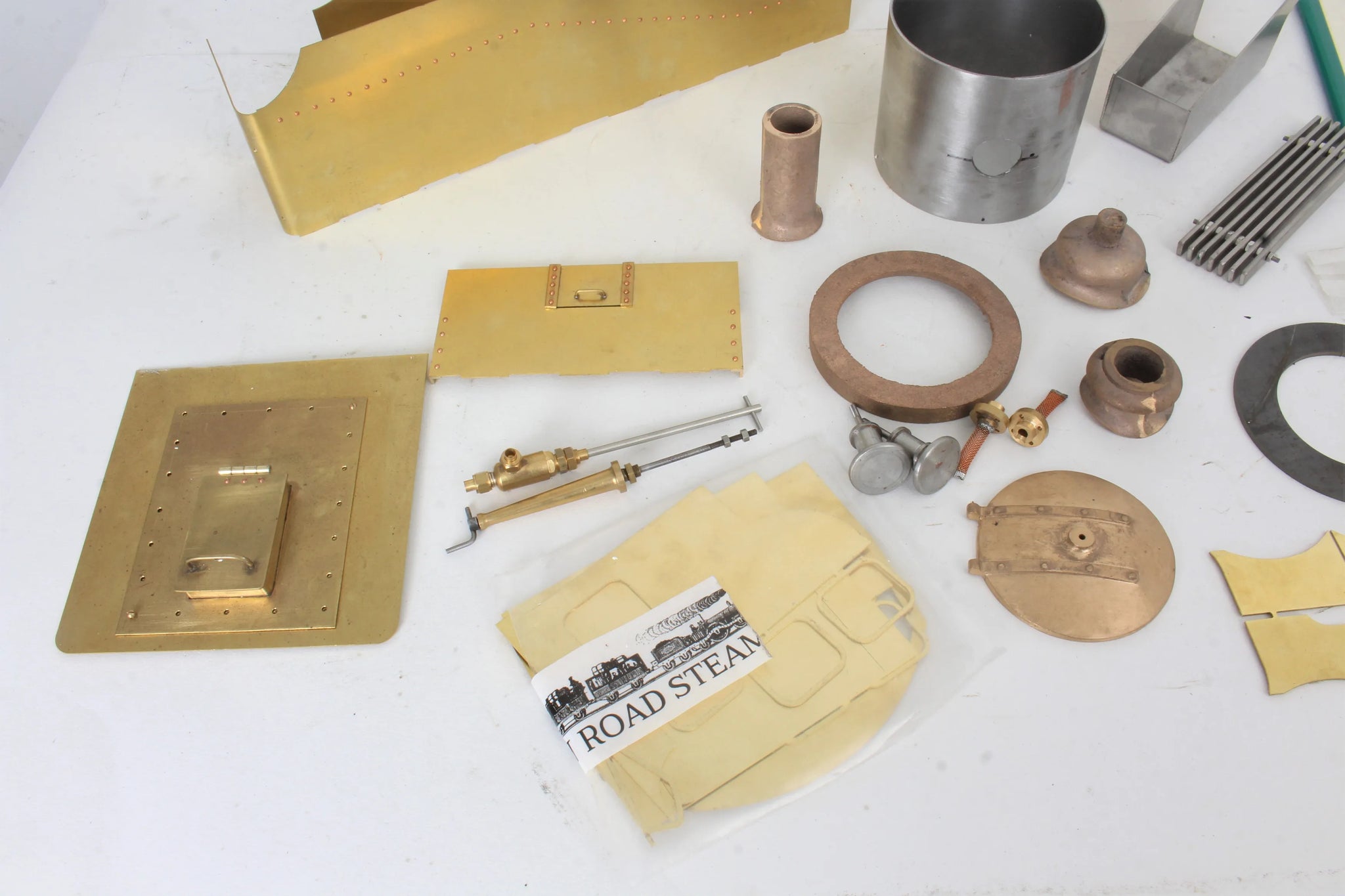

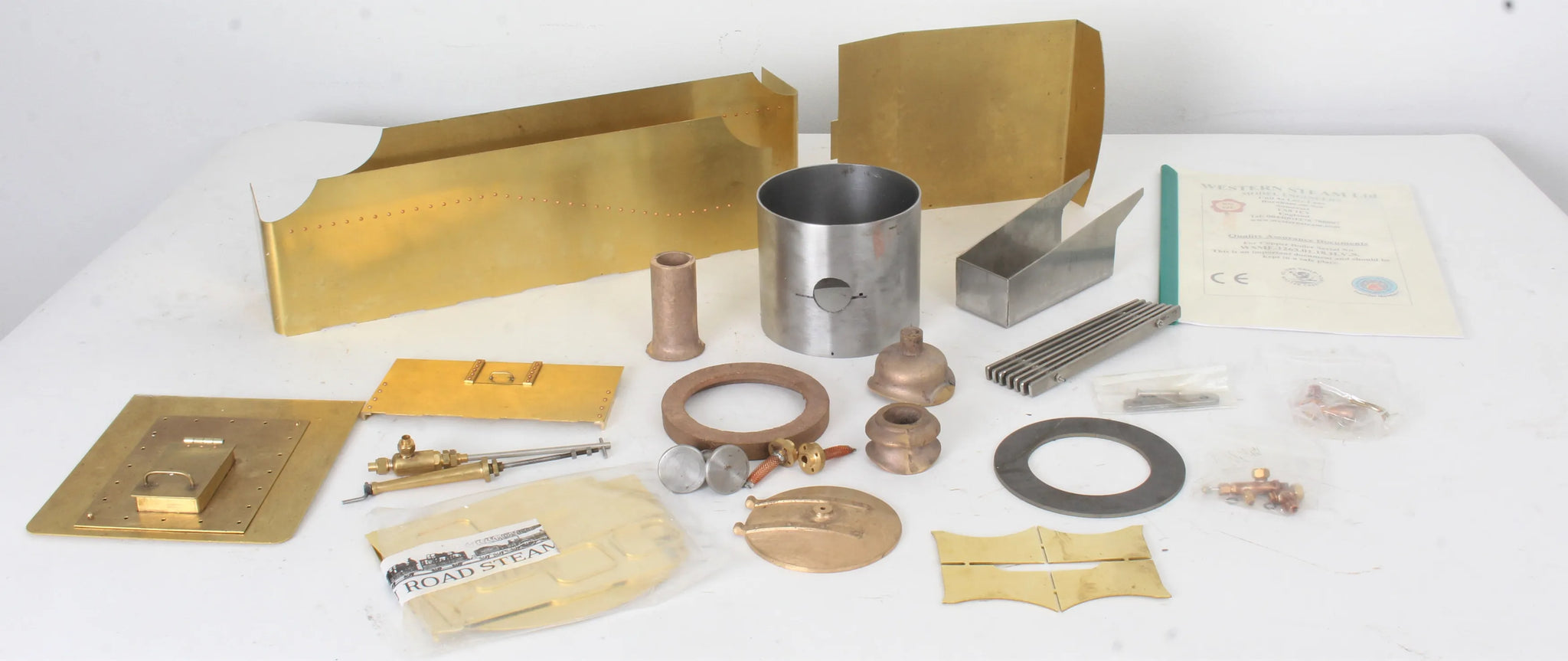

Complete with a quantity of loose parts including smokebox tube; castings for smokebox door, ring, chimney, petticoat pipe and dome; stainless steel ashpan and grate along with various fittings.

Technical information

Stock code

9173

Gauge

3 1/2 inch

Length/inches

26+17

Width/inches

7.5

Height/inches

8

Wheel material

cast iron

Axlebox type

plain

Cylinder material

3 x gunmetal

Valve type

piston

Valve gear

Walschaerts

Reverser type

screw

Lubricator type

mechanical

Boiler maker

Western Steam

Boiler type

locomotive

Boiler construction

silver soldered

Boiler material

copper

Working pressure

90

CE/UKCA mark

yes

Boiler number

WSME.1263.01.18.H.V.S

Fusible plug

no

Hand pump

1

Mechanical pump

1

Date out

Aug-20
