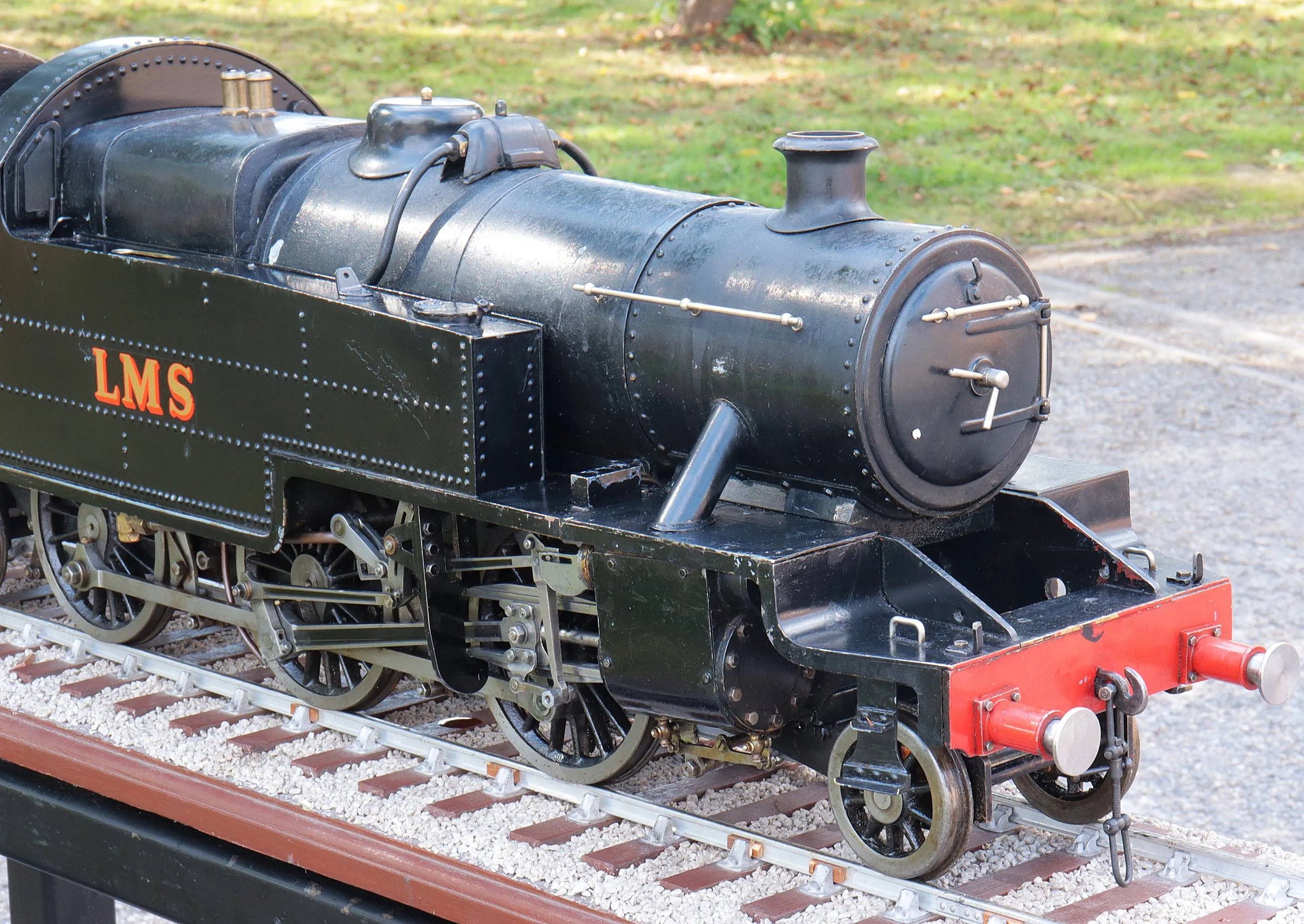

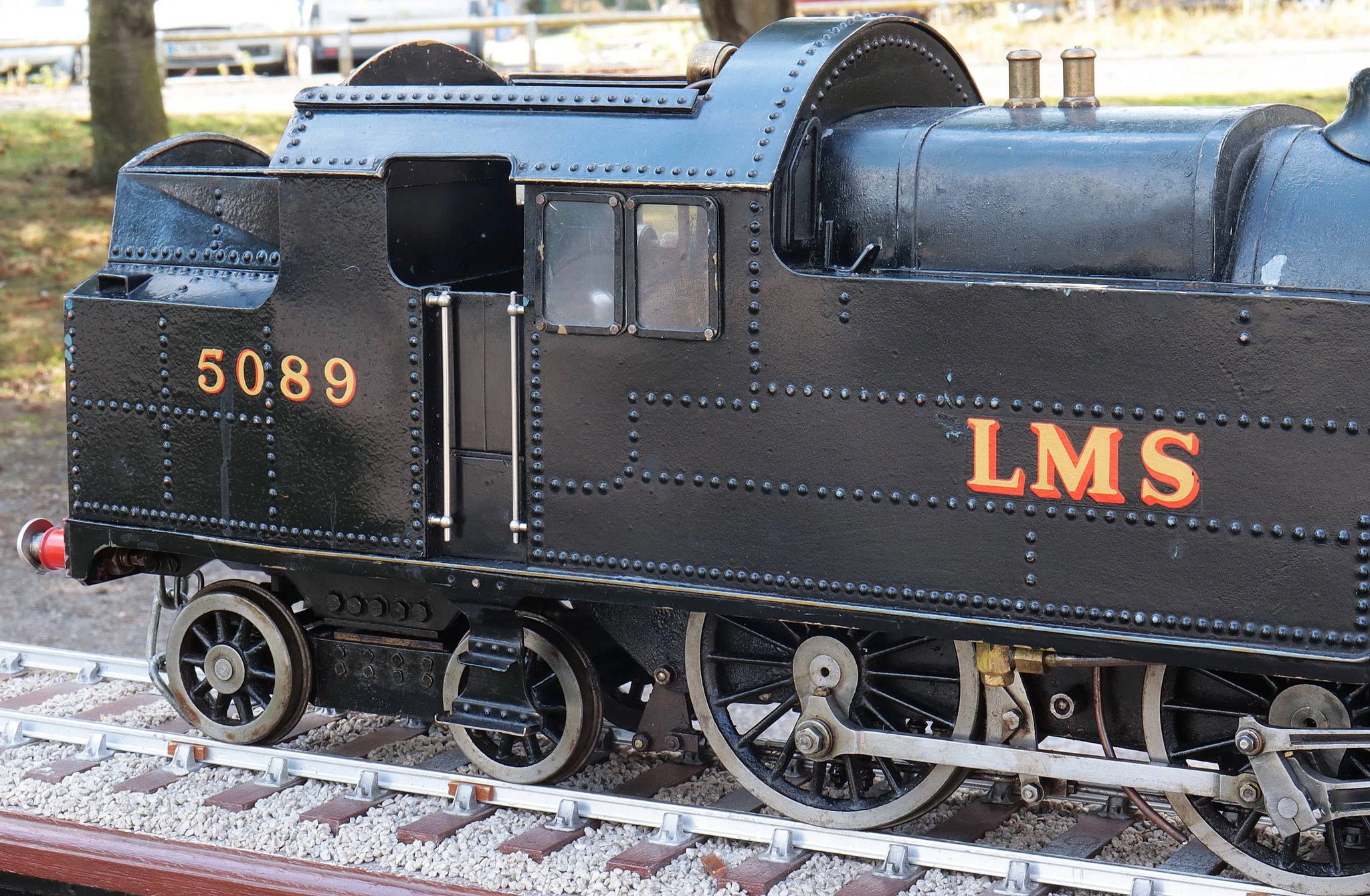

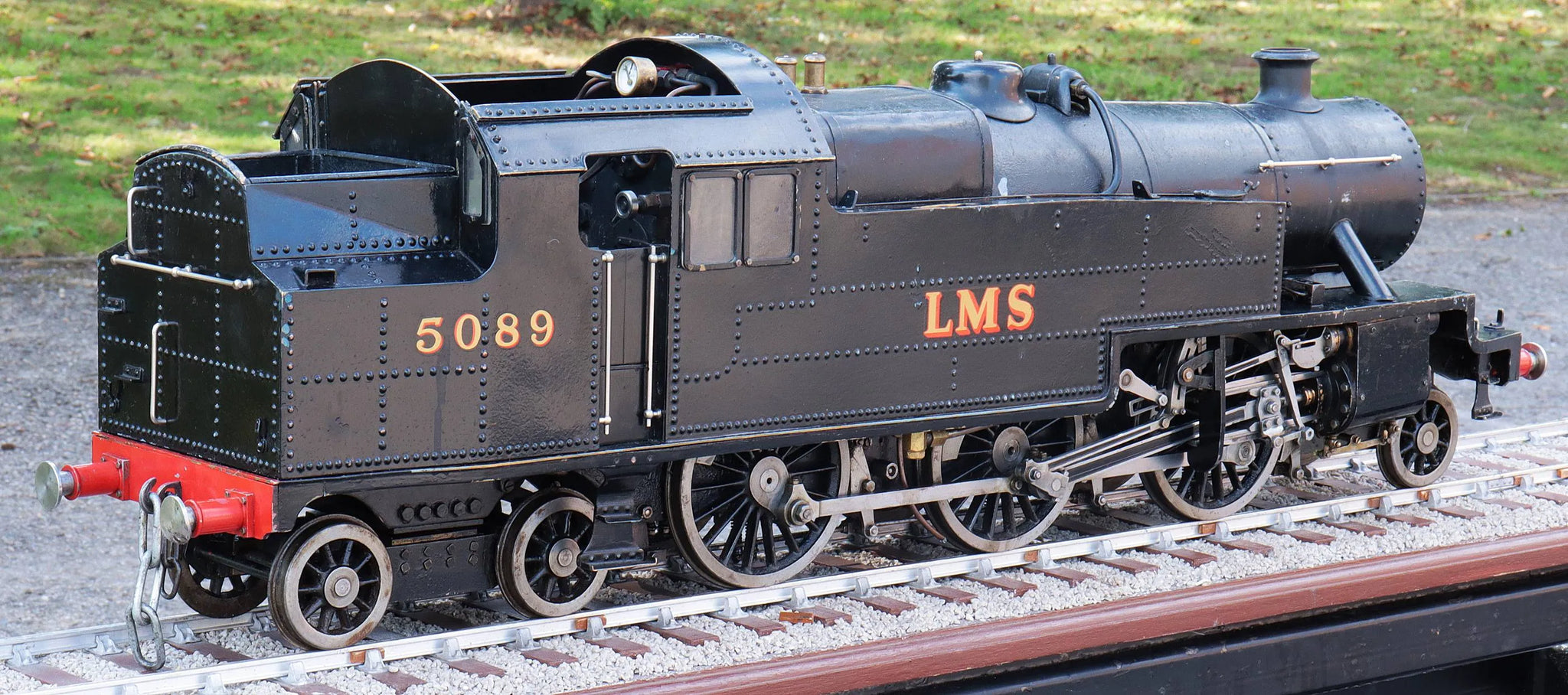

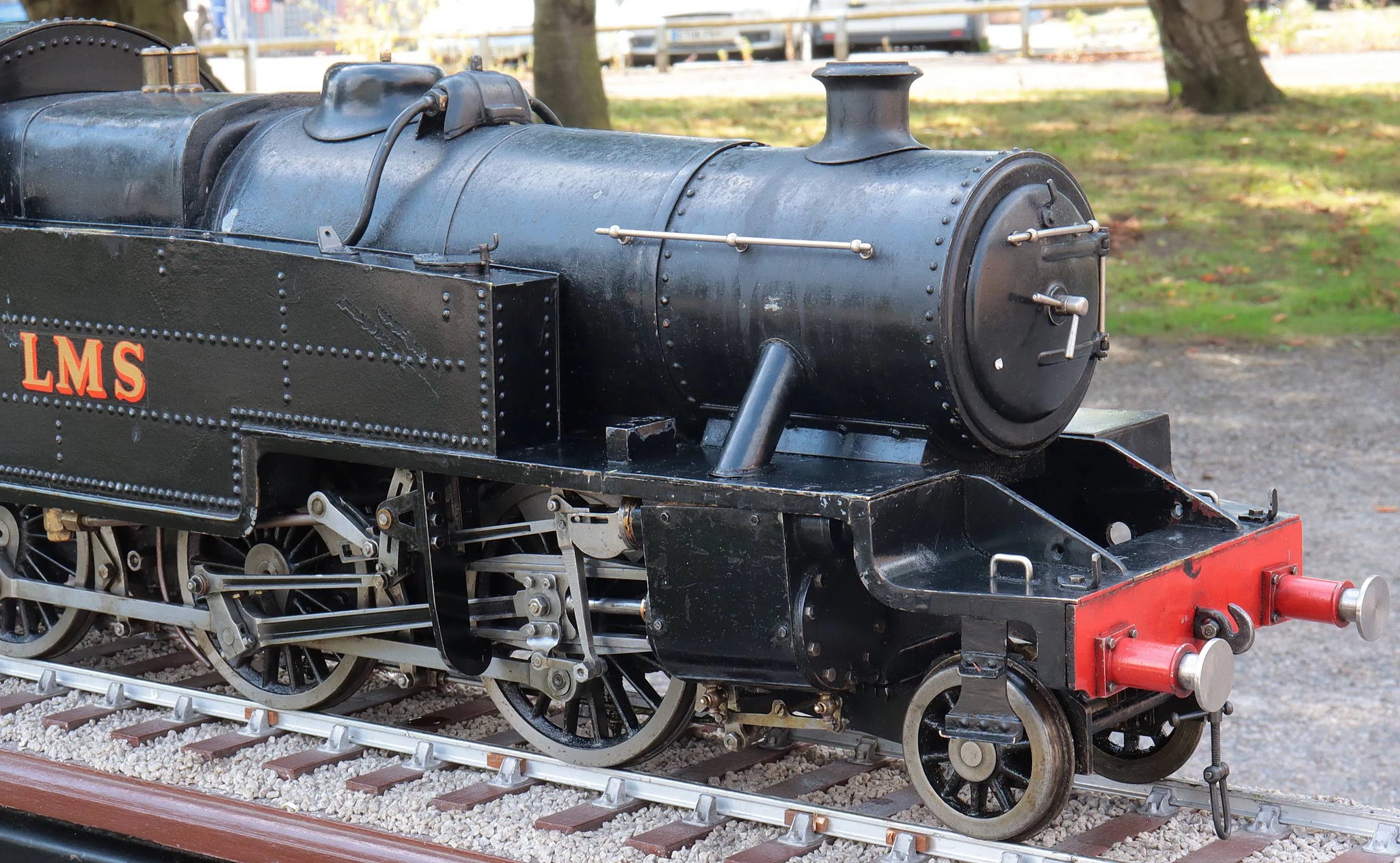

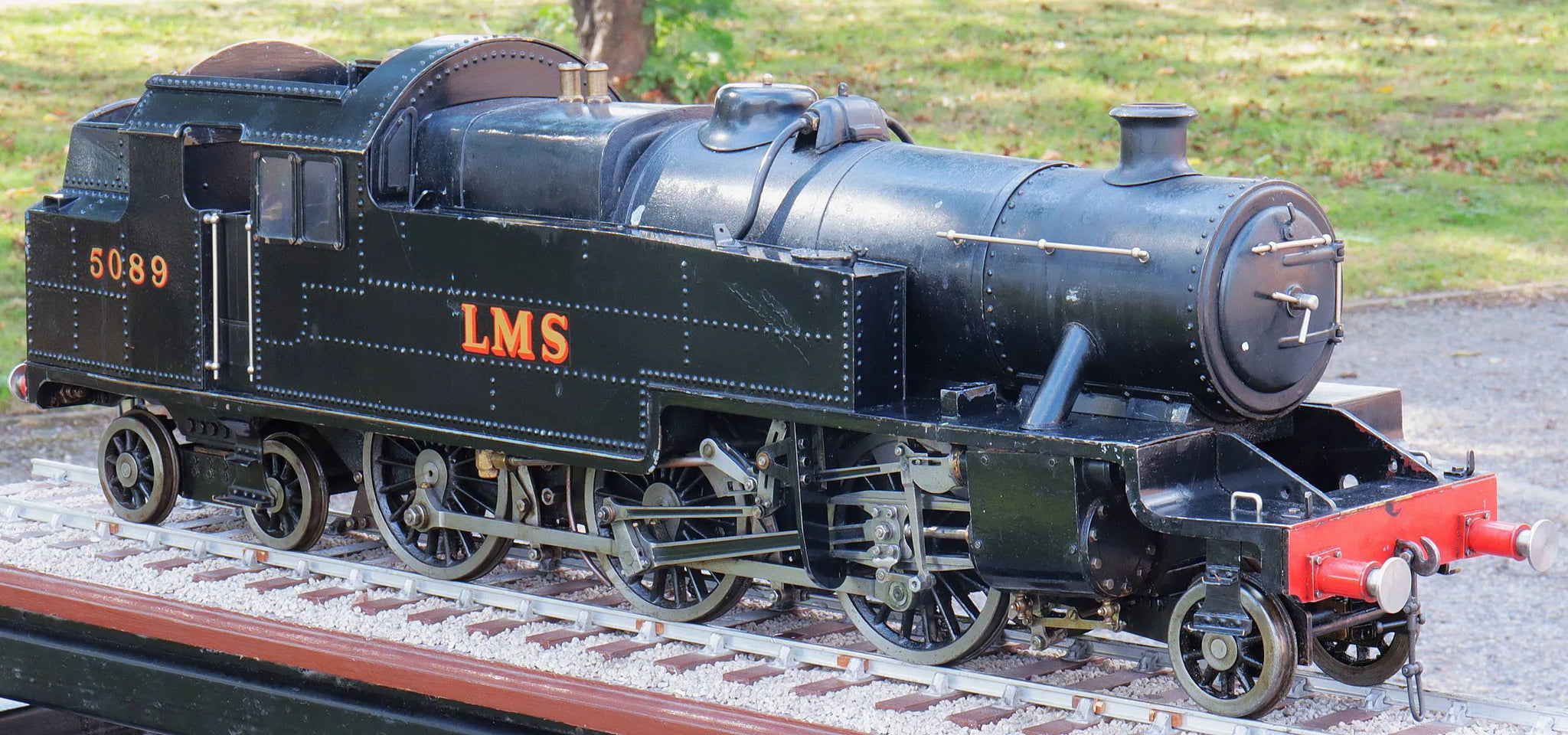

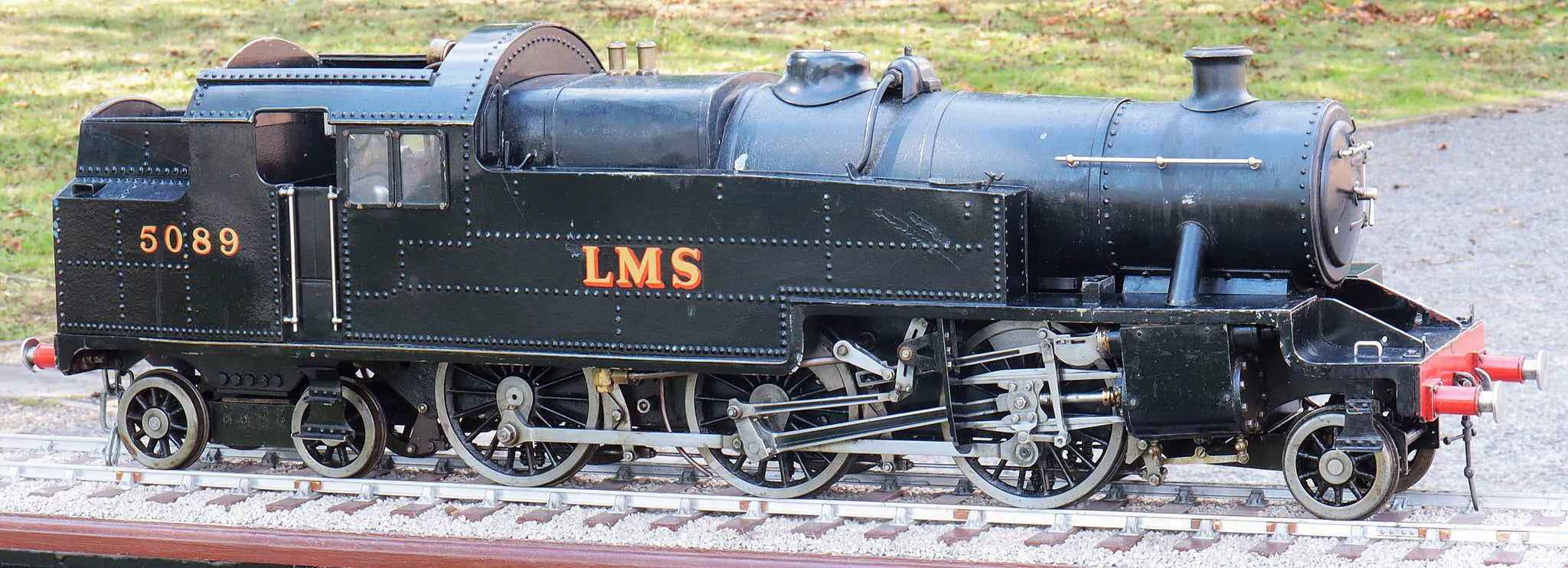

3 1/2 inch gauge Stanier 2-6-4T

A 3 1/2 inch gauge Stanier 2-6-4T to Martin Evans' popular "Jubilee" design.

Offered as a running restoration, the boiler has had a twice working pressure hydraulic test with new certification issued and is warrantied as sound. The chassis runs on air in either direction.

Work required includes:

  • Motion brackets loose on both sides
  • Play in motionwork bushes and centre axleboxes/horns
  • One axlebox spring missing on right hand side
  • Injector clack leaks back - this will need reseating, the leak would prevent the injector working

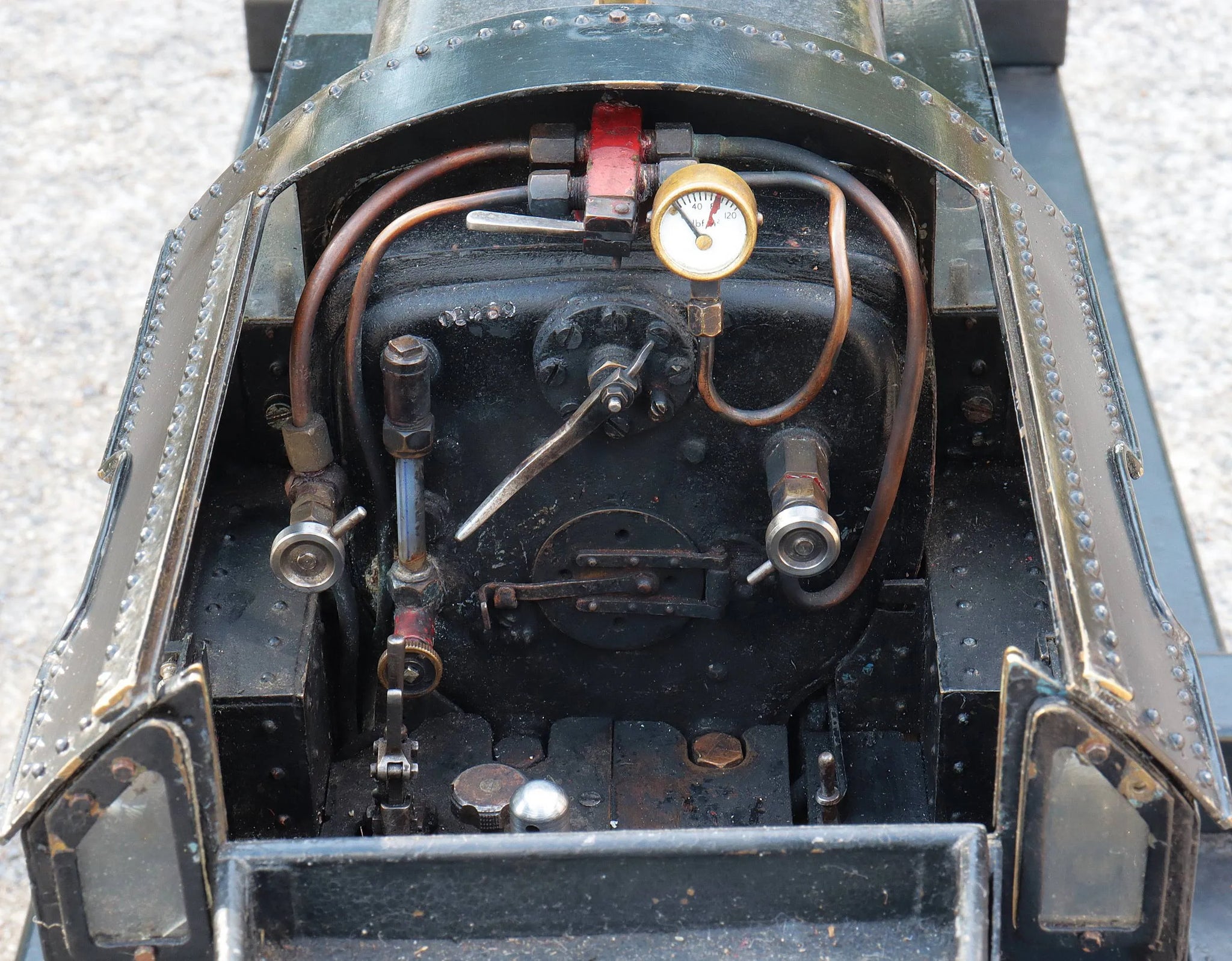

  • Bottom gauge glass seals leaking, require replacement
  • Blocked blowdown valve needs stripping and cleaning
  • Replace missing brake handle
  • Replace missing lubricator
  • Minor leak from bottom gauge fitting threads - remove, seal and refit

Technical information

Stock code

12259

Gauge

3 1/2 inch

Length/inches

36

Width/inches

7.5

Height/inches

10.5

Weight/Kg

35

Wheel material

cast iron

Axlebox type

plain bearing

Cylinder material

gunmetal

Valve type

slide

Valve gear

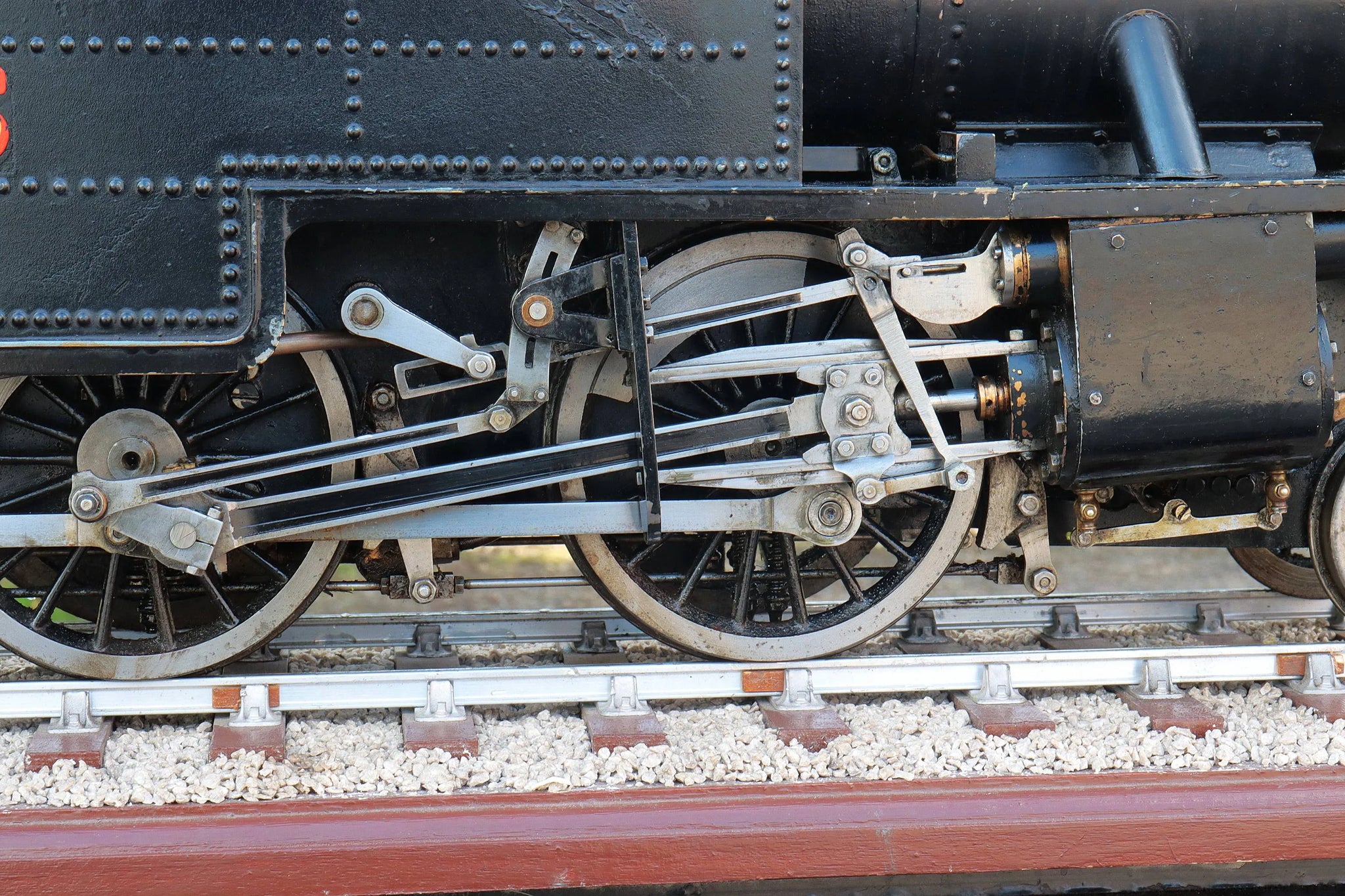

Walschaerts

Reverser type

pole

Boiler type

locomotive

Boiler construction

silver soldered

Boiler material

copper

Working pressure

80

CE/UKCA mark

n/a non-commercial

Boiler number

12259

Safety valve type

spring

Safety valve

2

Fusible plug

no

Whistle

yes

Hand pump

1

Mechanical pump

2

Injector

1

Superheater type

flue tube

Superheater

3

Date out

Sep-24

Hydraulic test valid to

12-Sep-28
