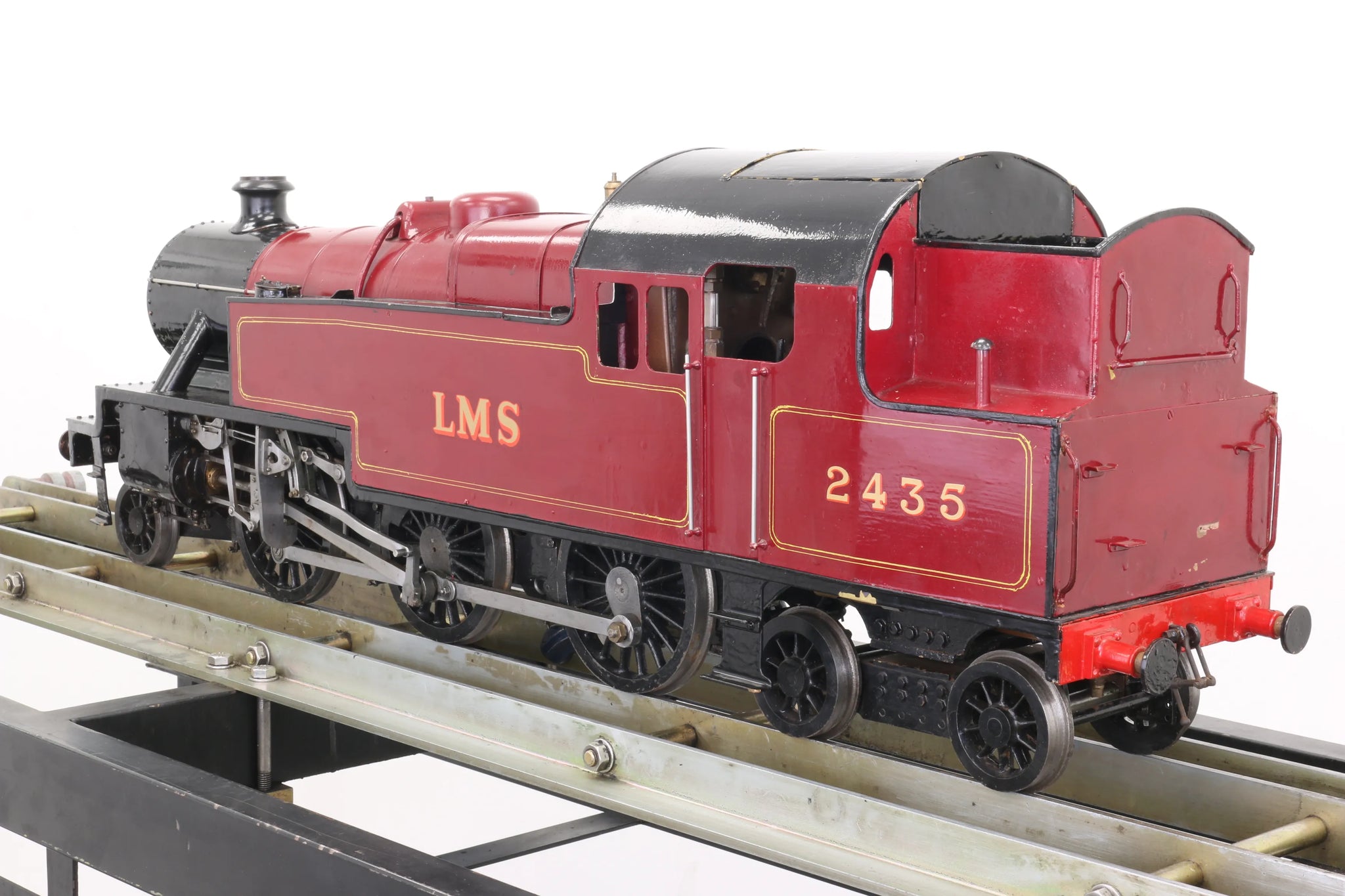

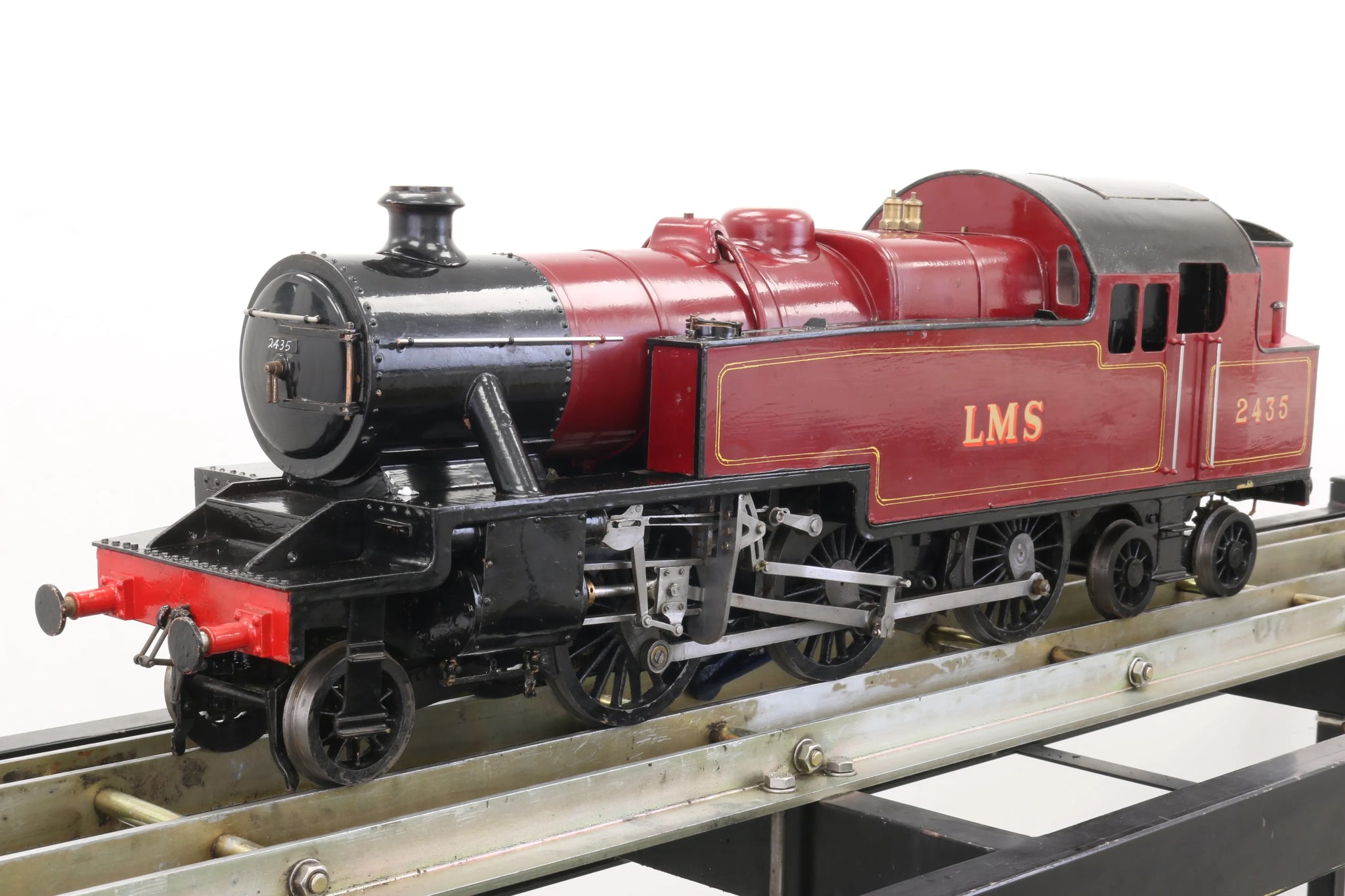

3 1/2 inch gauge Stanier 2-6-4T

Name: 3 1/2 inch gauge Stanier 2-6-4T
Brand: Station Road Steam
SKU: 6979
Price: 1850.0 GBP
Availability: OutOfStock

Sold

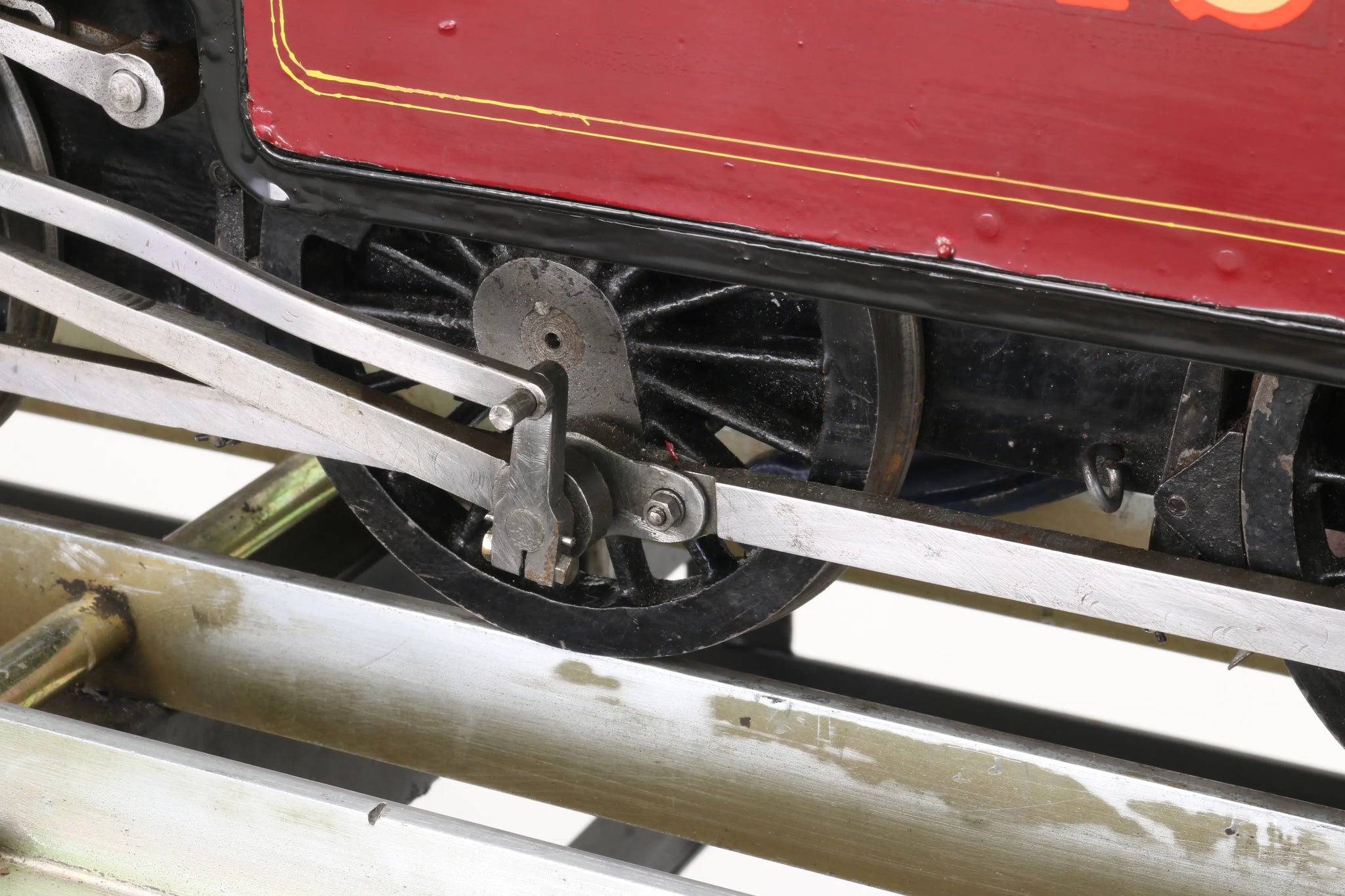

A 3 1/2 inch gauge Stanier 2-6-4T to Martin Evans' "Jubilee" design. Built to a fairly pedestrian standard and apparently painted with a tar brush, it requires work including repair to a leaking superheater element, attention to a tight spot in the motion and seized regulator.

Fitted with a commercially made boiler by Cheddar, which looks like it's only been steamed a handful of times.

Type: Second hand

Tags: Projects

Technical information

Stock code	6979
Gauge	3 1/2 inch
Length/inches	36
Width/inches	8
Height/inches	12
Wheel material	cast iron
Axlebox type	plain bearing
Cylinder material	gunmetal
Valve type	slide

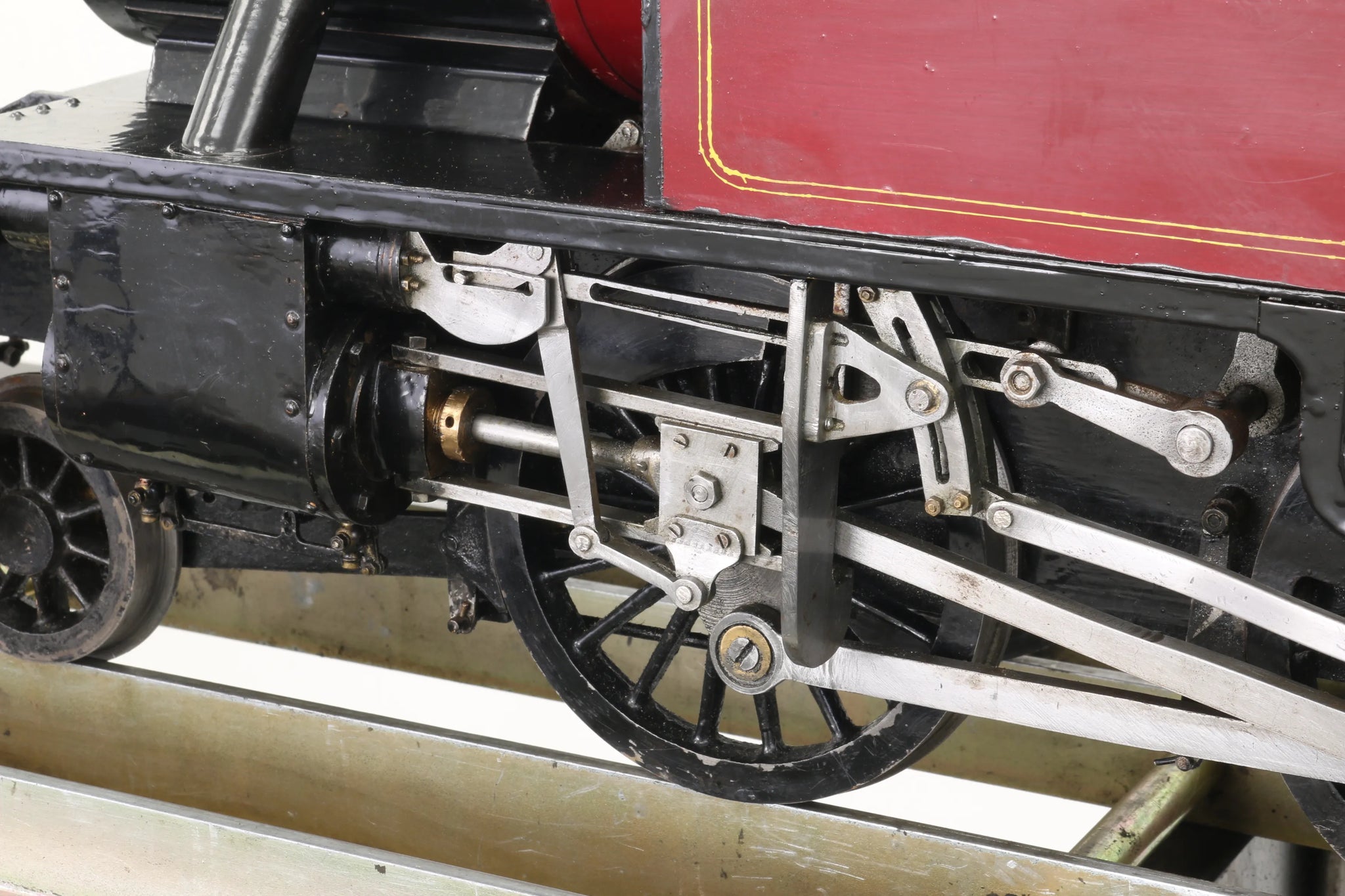

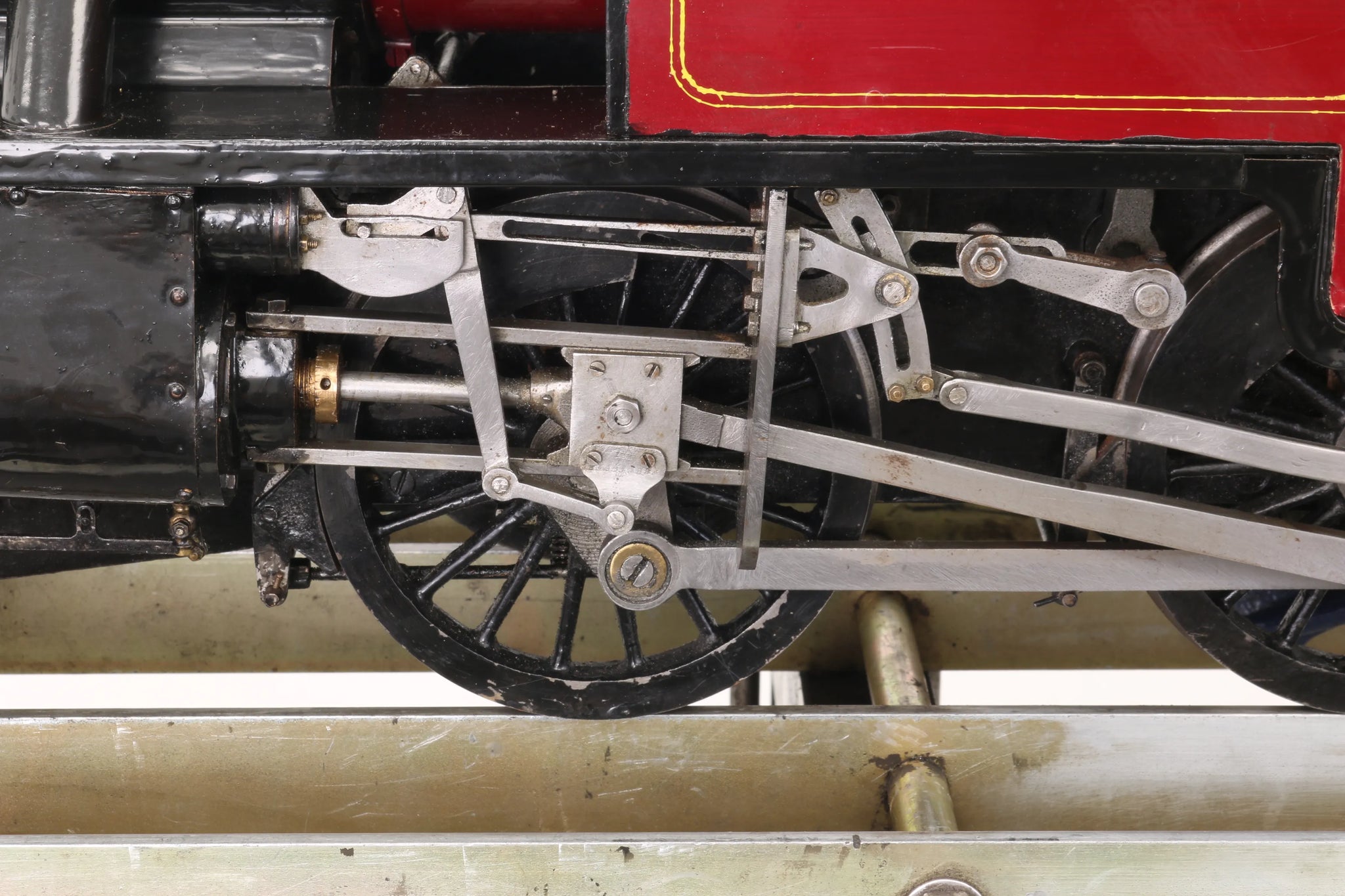

Valve gear	Walschaerts
Reverser type	pole
Lubricator type	mechanical
Boiler maker	Cheddar Boilers
Boiler type	locomotive
Boiler construction	silver soldered
Boiler material	copper
Working pressure	90
CE/UKCA mark	n/a - pre-2002
Year built	1996
Boiler number	CM0558

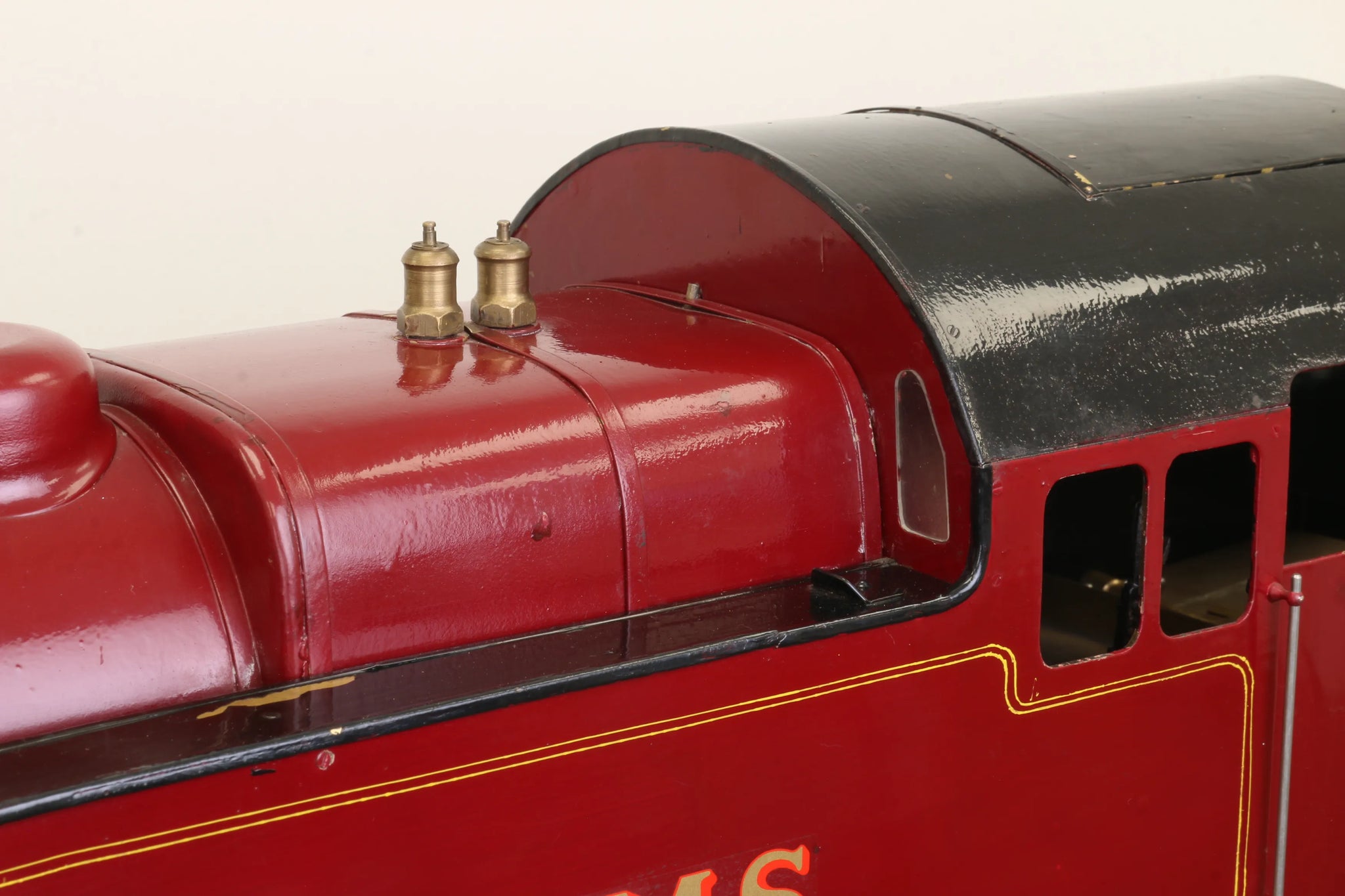

Safety valve type	spring
Safety valve	2
Whistle	yes
Hand pump	1
Mechanical pump	1
Injector	1
Superheater type	flue tube
Superheater	3
Pack	Single half pallet
Date out	Feb-21
