10286

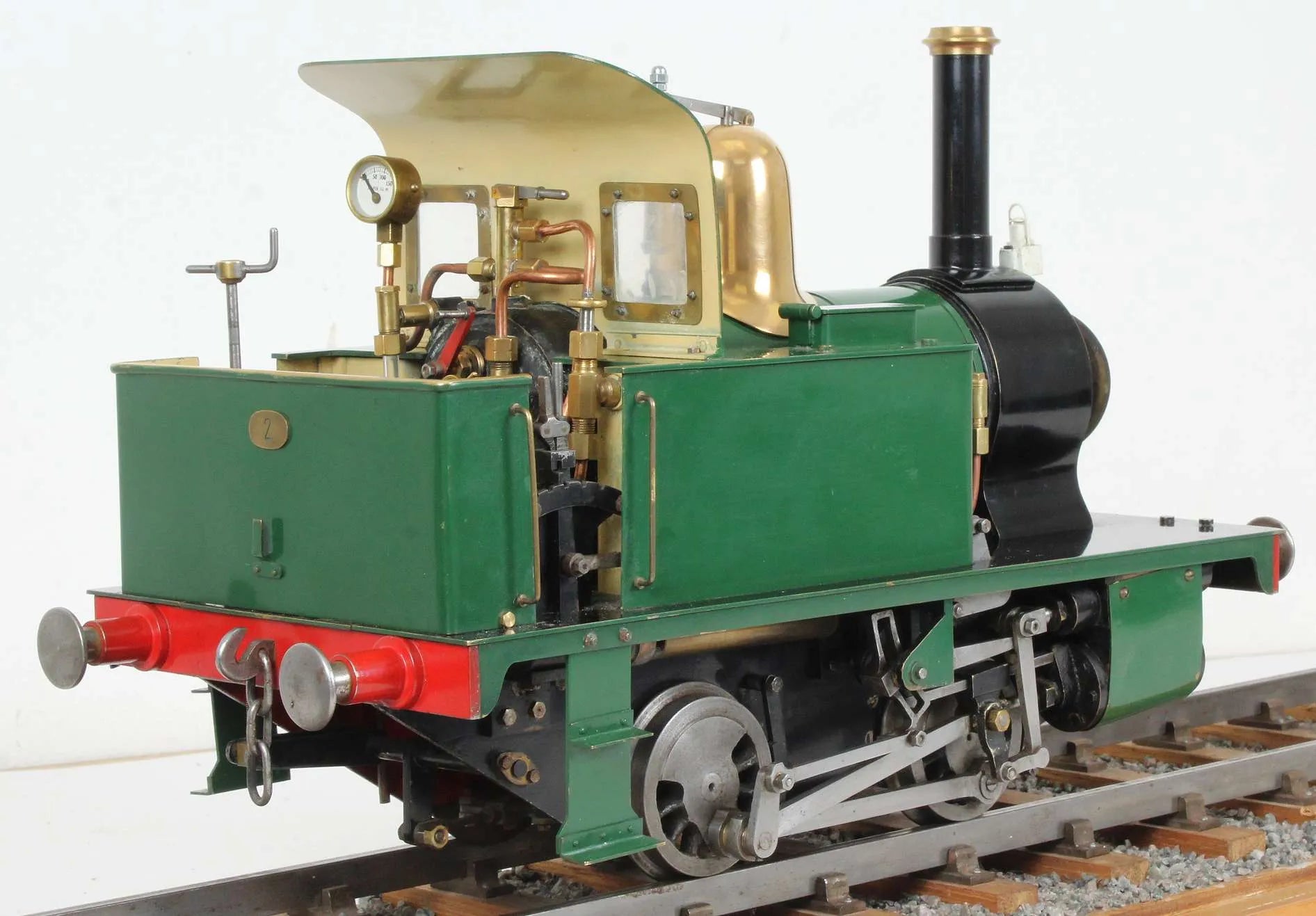

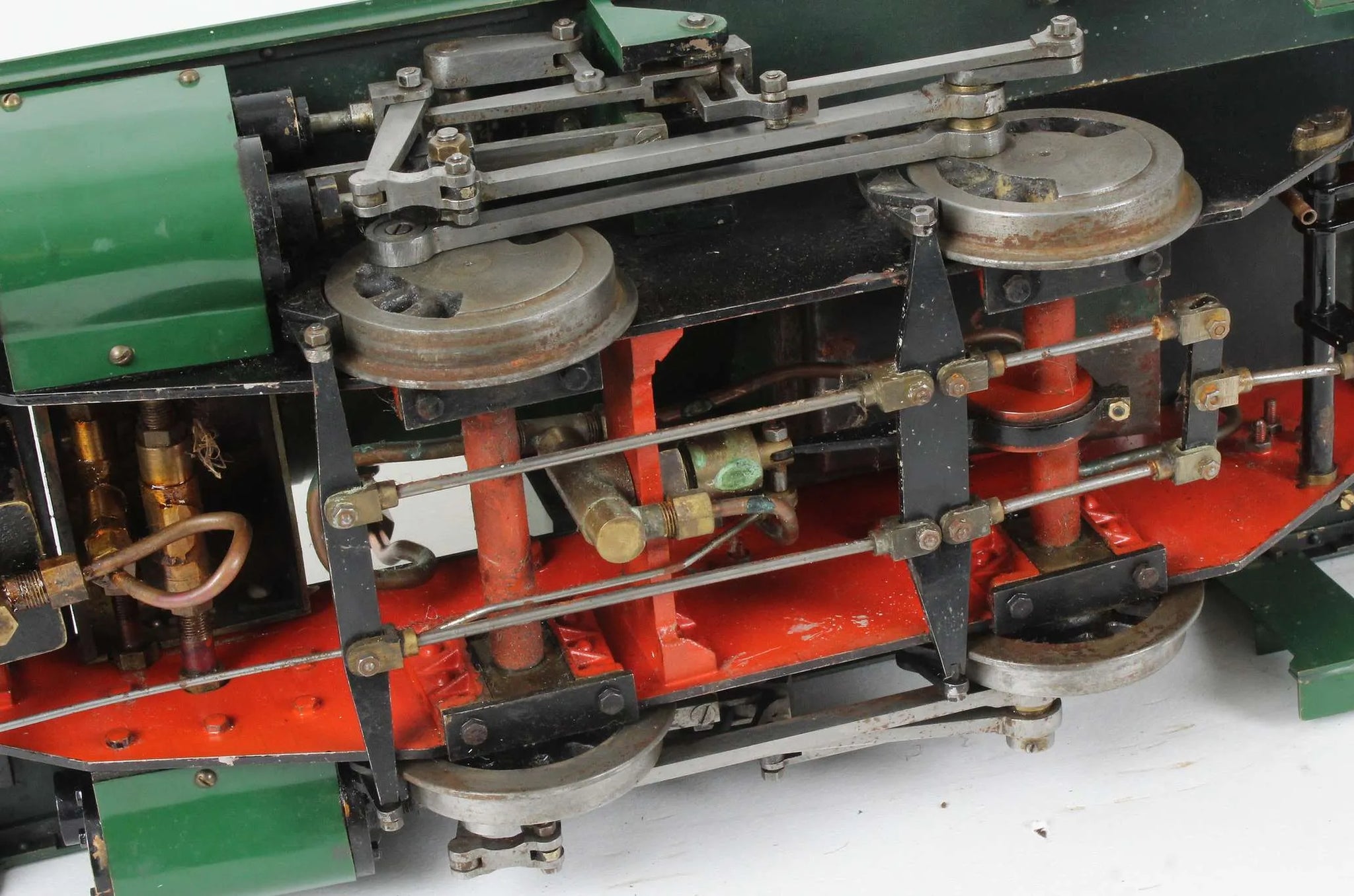

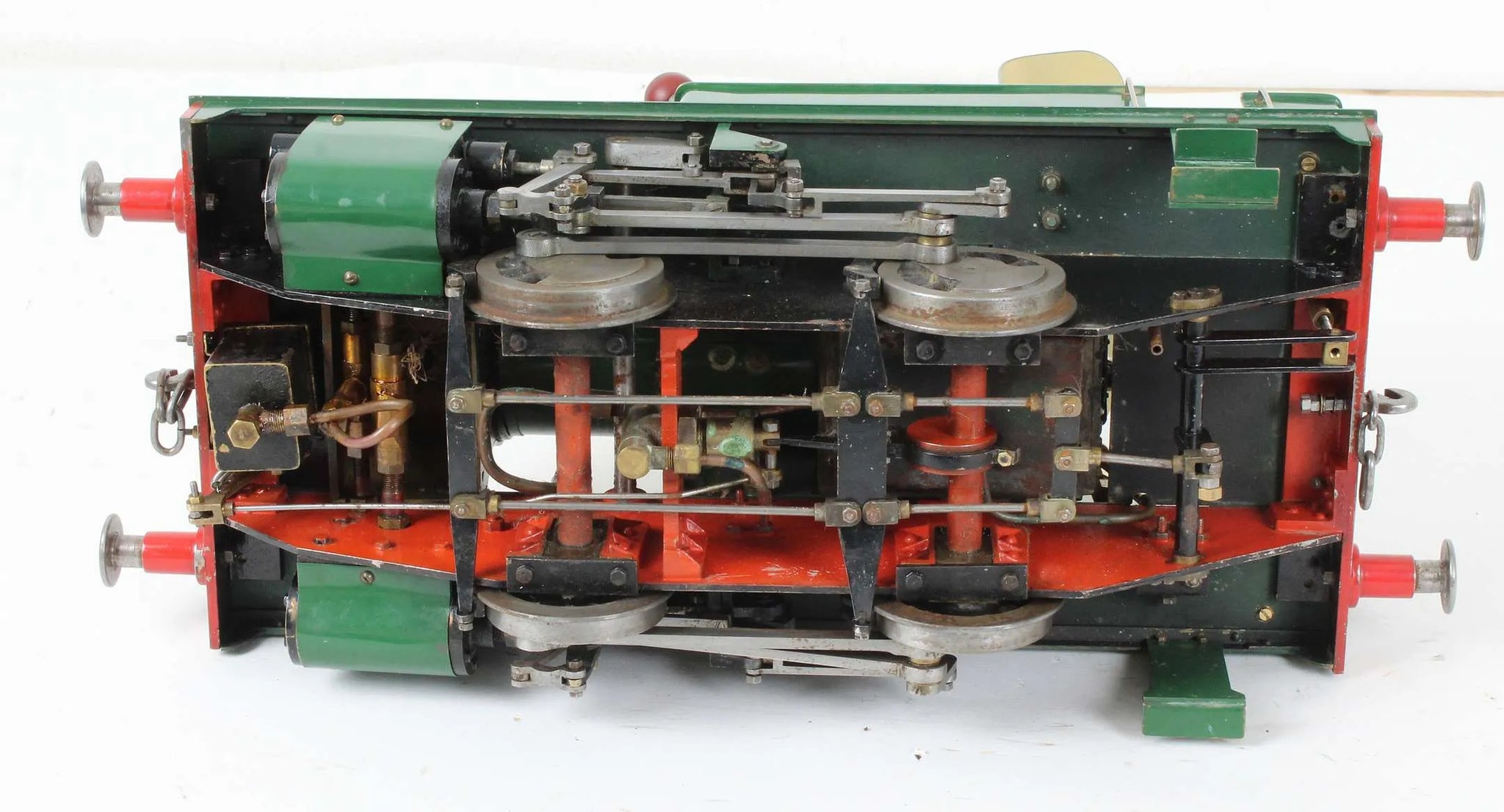

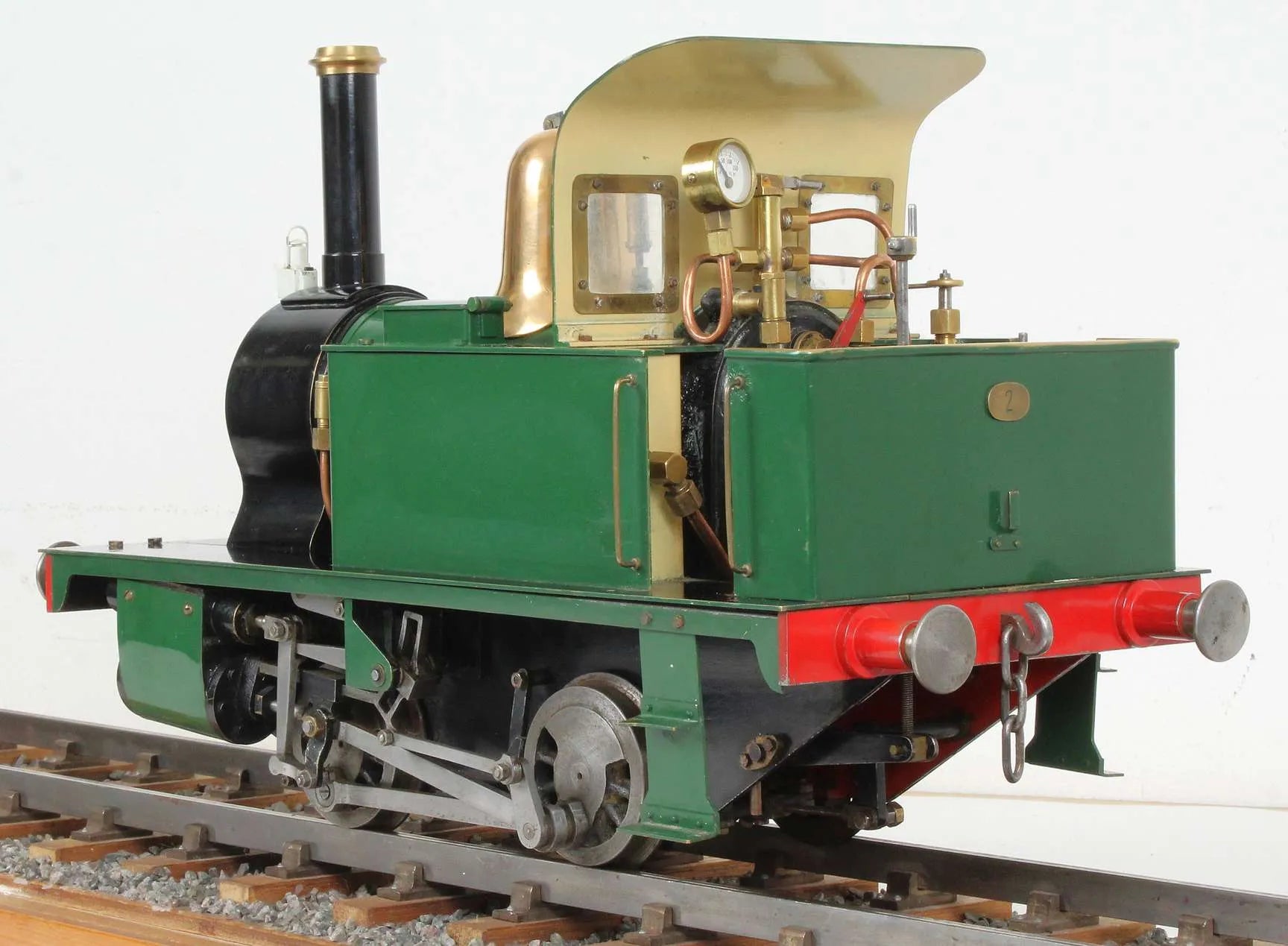

An older engine, decently made in the first place although apparently not run in a long time. The chassis was stiff to turn over on arrival; with an oil round and some coaxing it could be persuaded to run in forward gear in fairly desultory fashion, not at all in reverse.

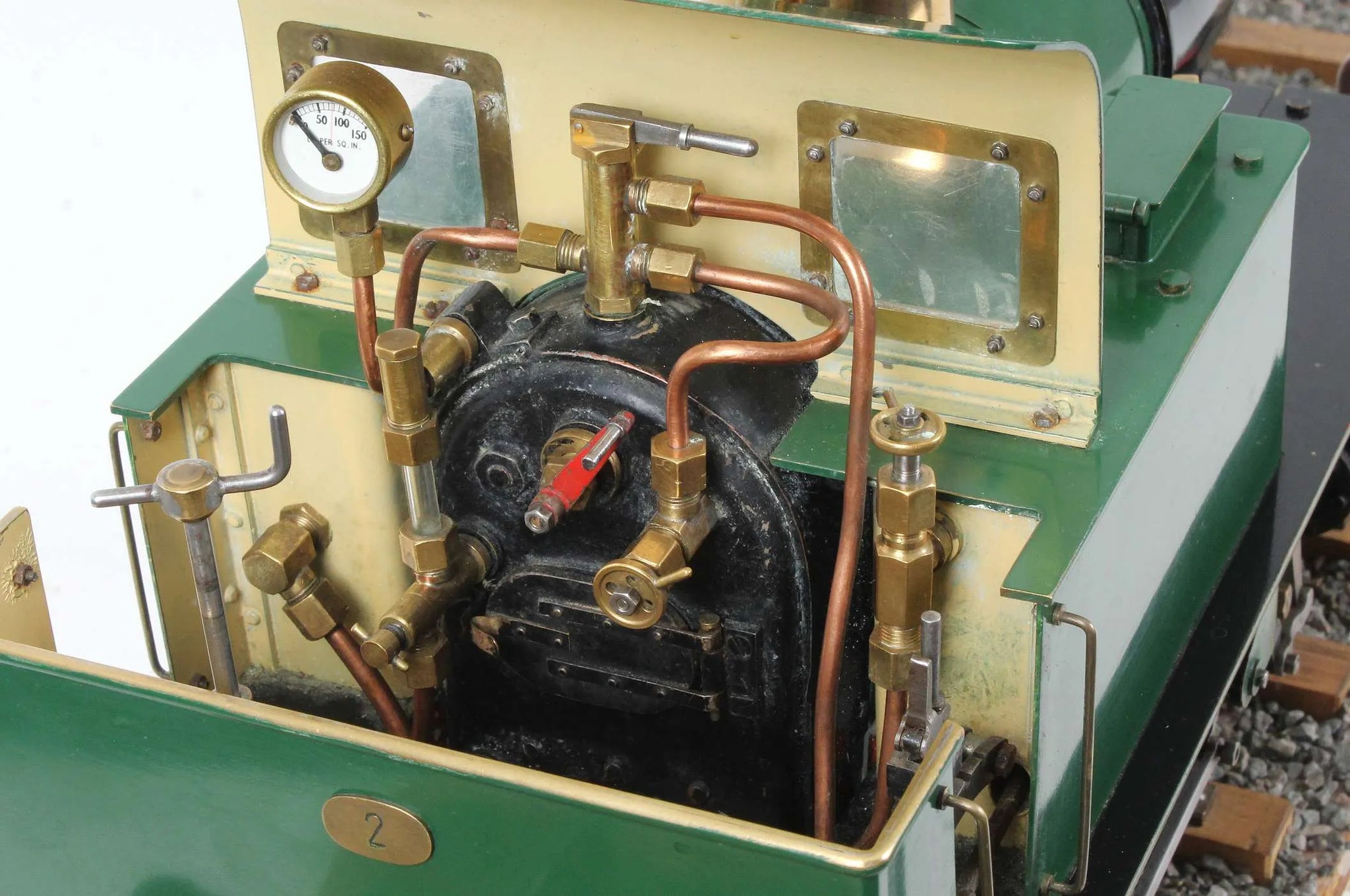

Boiler has leaks from a couple of firebox stays and the wet header bolts, but appears dry otherwise.
Stock code |
10286 |
Gauge |
3 1/2 inch |
Length/inches |
16 |
Width/inches |
7 |
Height/inches |
10 |
Weight/Kg |
8.5 |
Wheel material |
cast iron |
Axlebox type |
plain bearing |
Cylinder material |
gunmetal |
Valve type |
slide |
Valve gear |

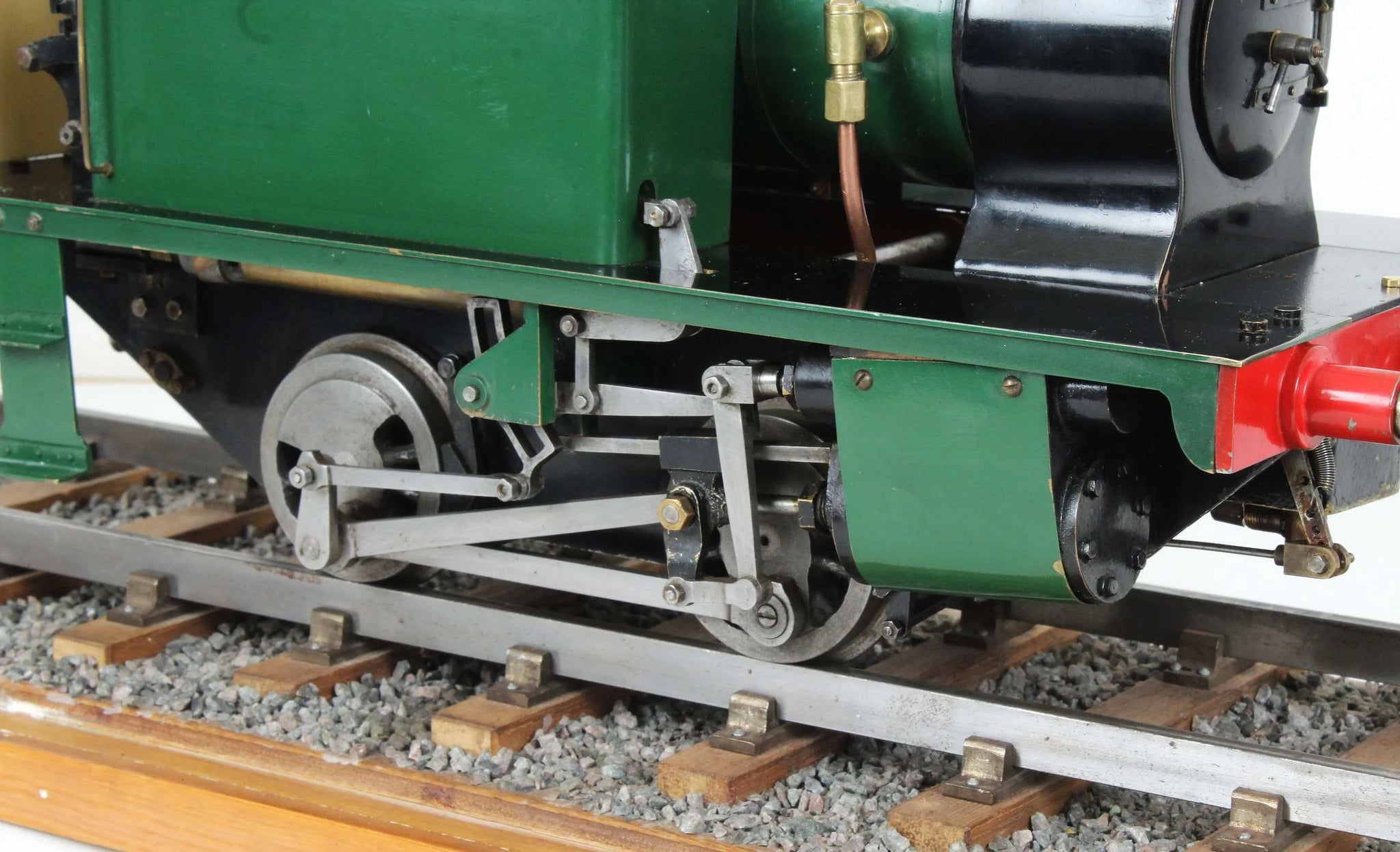

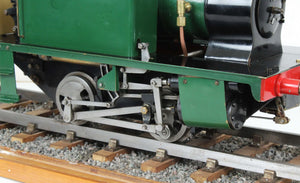

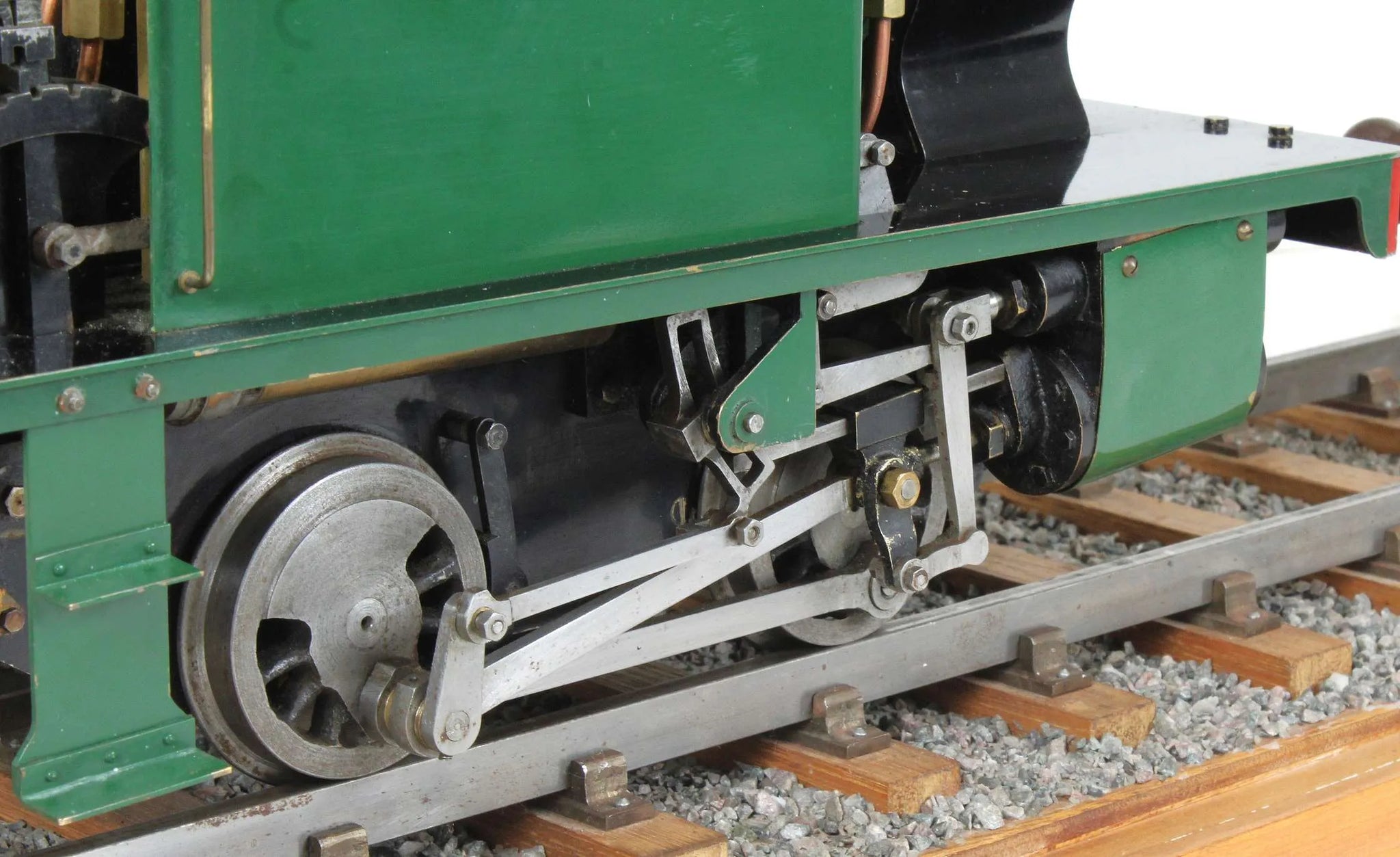

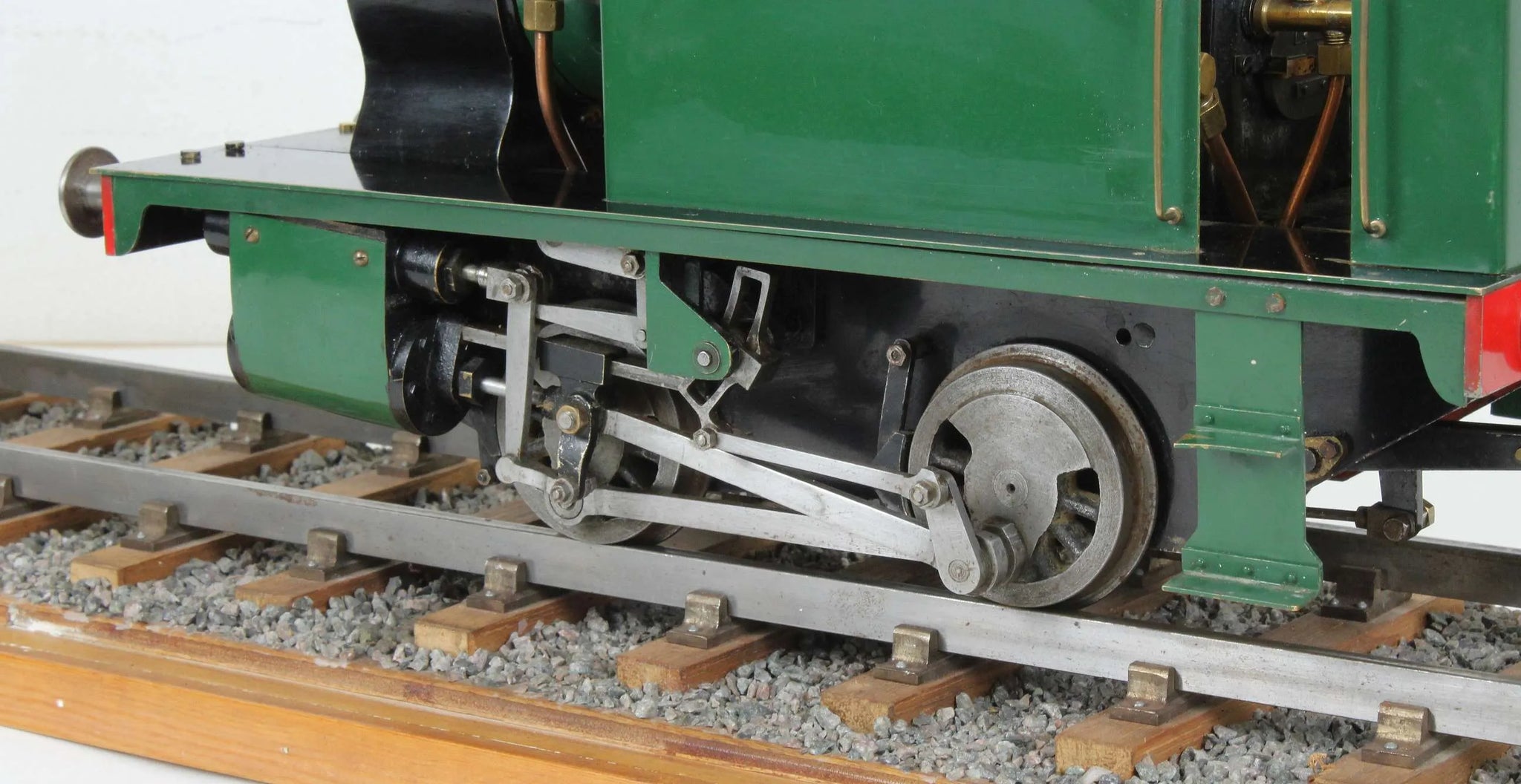

Walschaerts |
Reverser type |
pole |
Lubricator type |

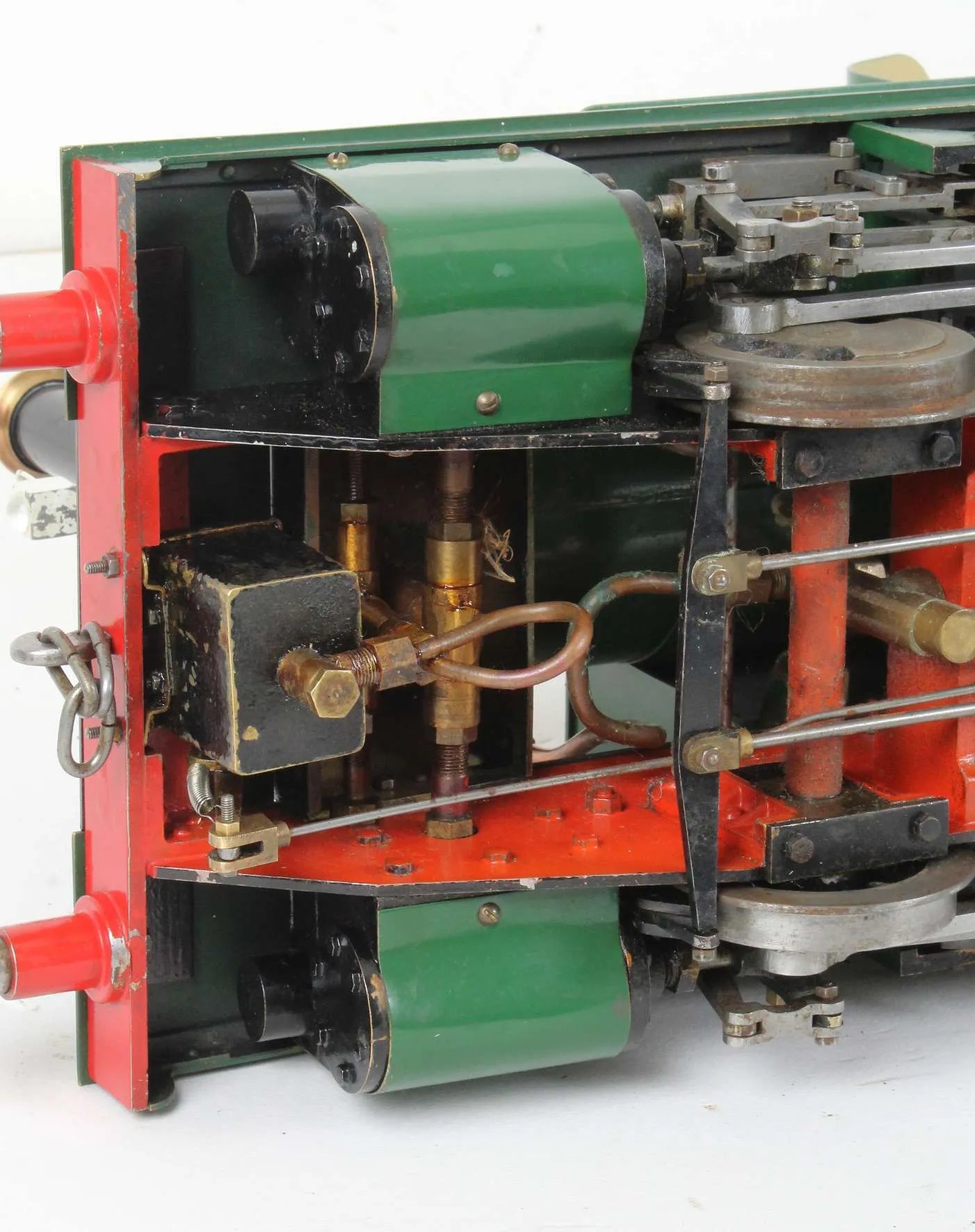

mechanical |
Boiler type |
locomotive |
Boiler material |
copper |
Safety valve |
1 |
Whistle |
yes |
Hand pump |
1 |
Mechanical pump |
1 |
Injector |
0 |
Superheater |
1 |
Date out |
Mar-22 |
