10584

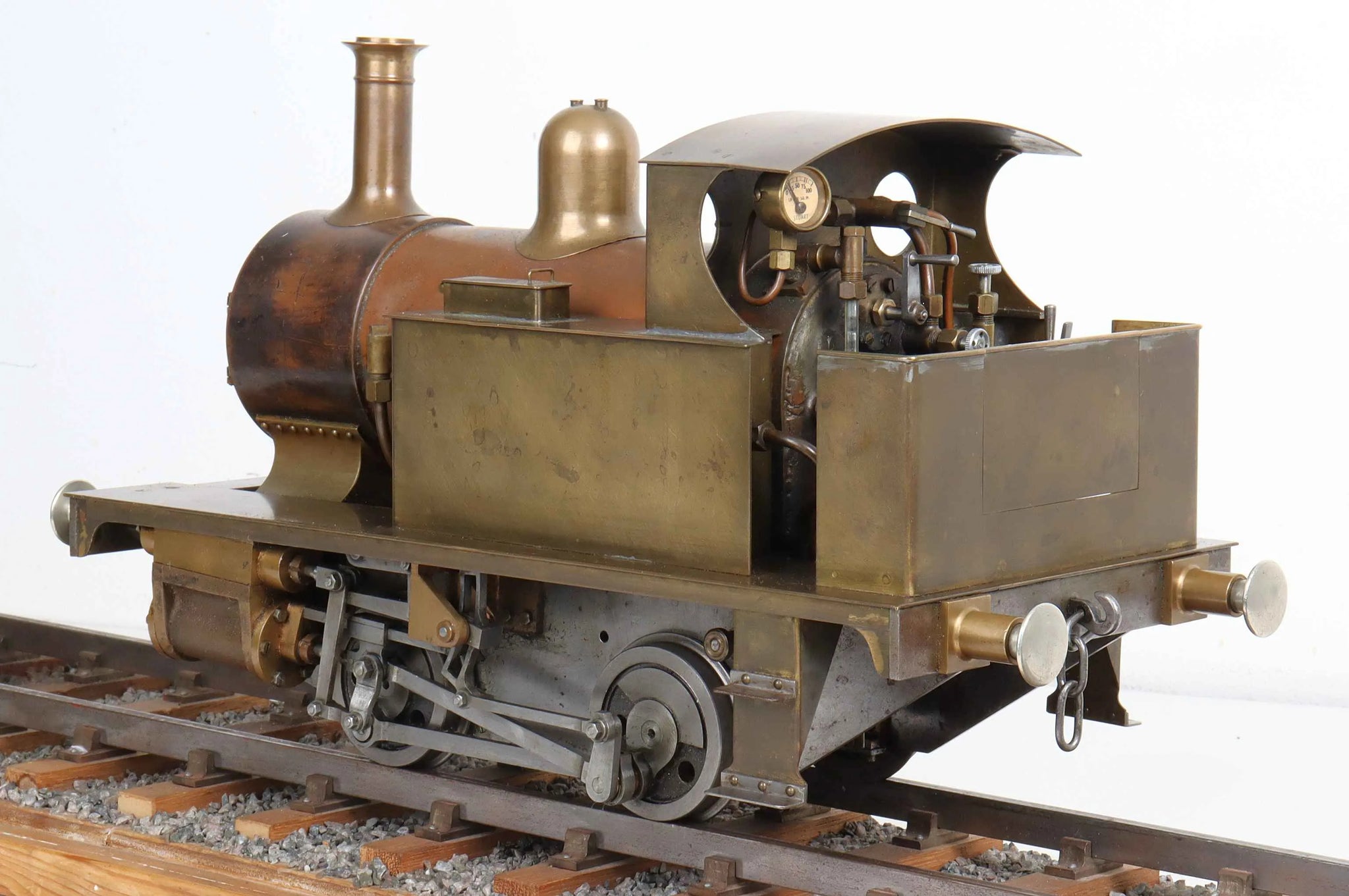

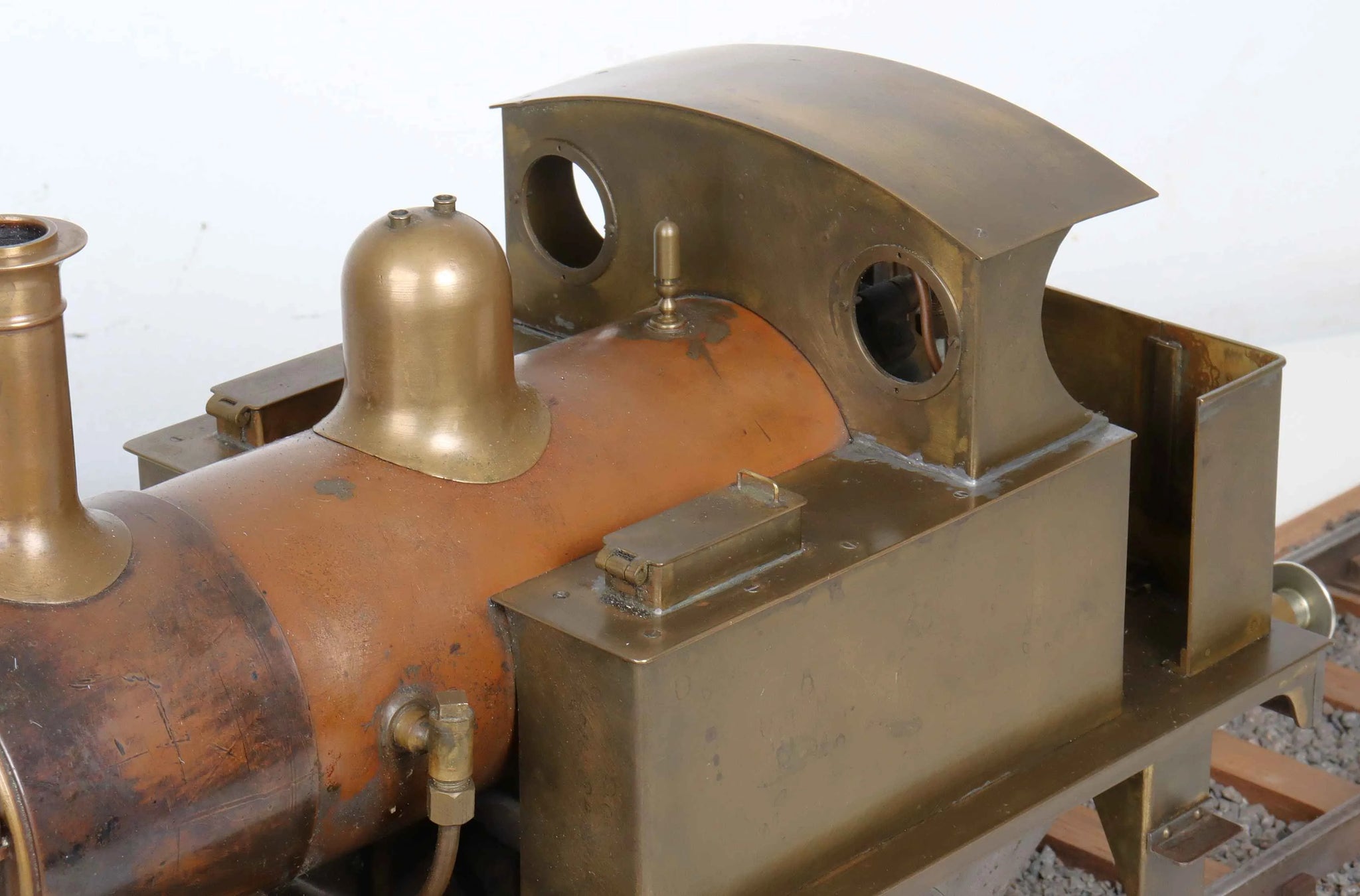

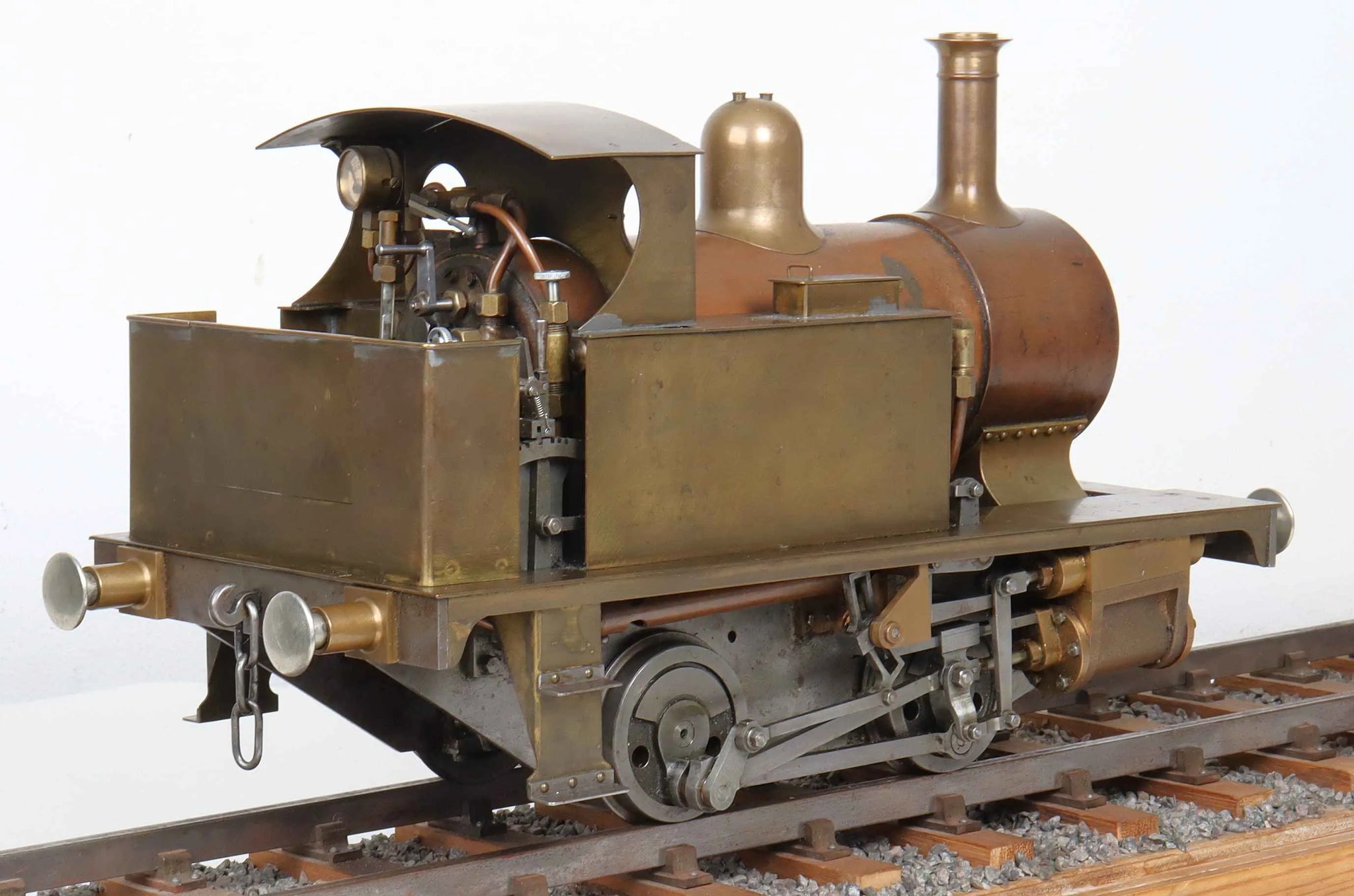

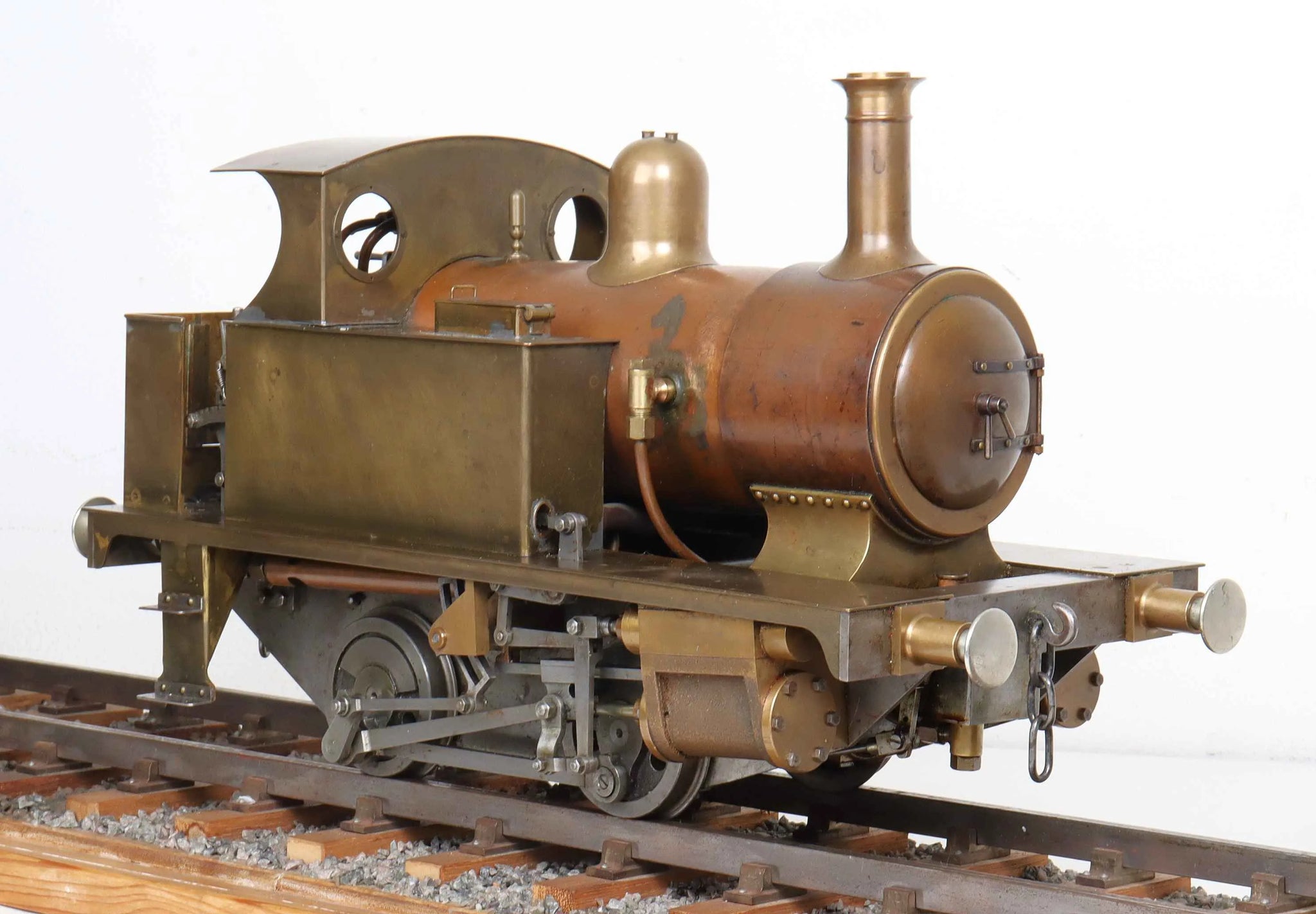

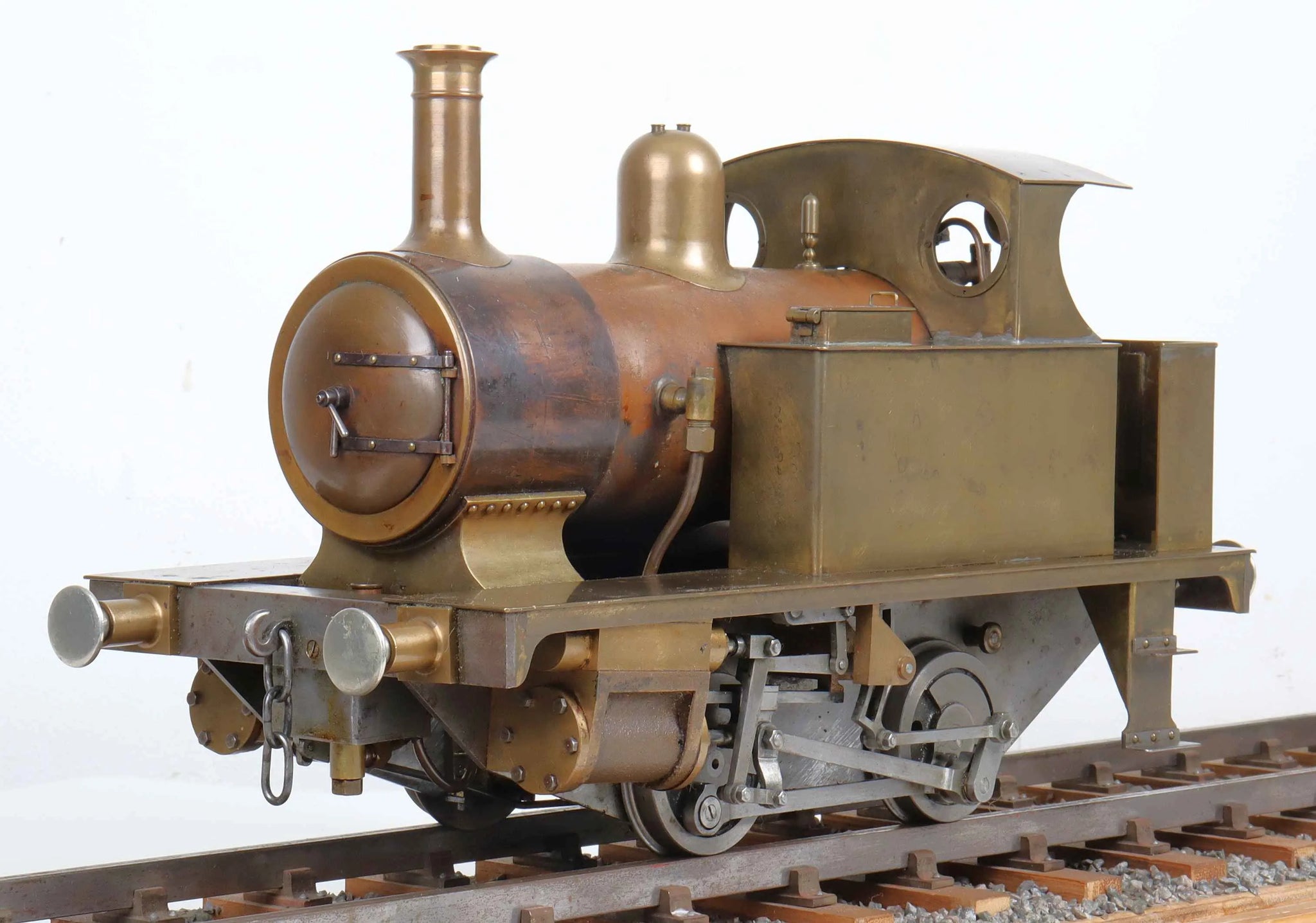

Unpainted from new, the engine rolls freely and runs well on air in either direction. Fit and finish of machined parts is good, platework is neatly formed.
The definitive beginner's locomotive for a whole generation of model enginers - every bookshelf should have one!
Stock code |
10584 |
Gauge |
3 1/2 inch |
Length/inches |
15.5 |
Width/inches |
7 |
Height/inches |
9 |
Weight/Kg |
8.5 |
Wheel material |
cast iron |
Axlebox type |
plain bearing |
Cylinder material |
gunmetal |
Valve type |
slide |

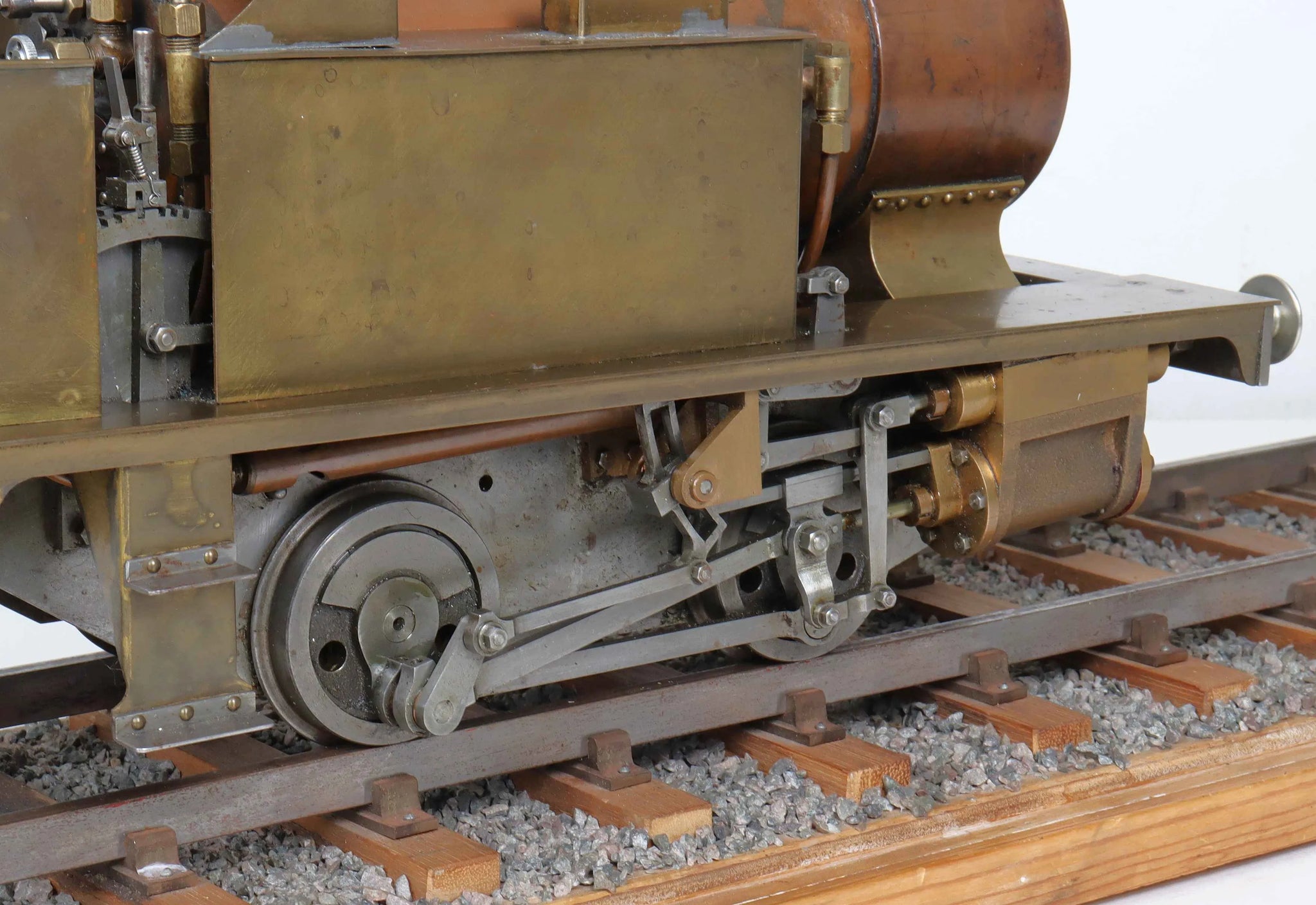

Valve gear |
Walschaerts |
Reverser type |
pole |
Lubricator type |
mechanical |
Boiler type |
locomotive |
Boiler construction |
silver soldered |
Boiler material |
copper |
Working pressure |
80 |
Safety valve type |
spring |
Safety valve |
1 |
Whistle |
yes |
Hand pump |
1 |
Mechanical pump |
1 |
Superheater |
1 |
Date out |
Feb-23 |
