10920

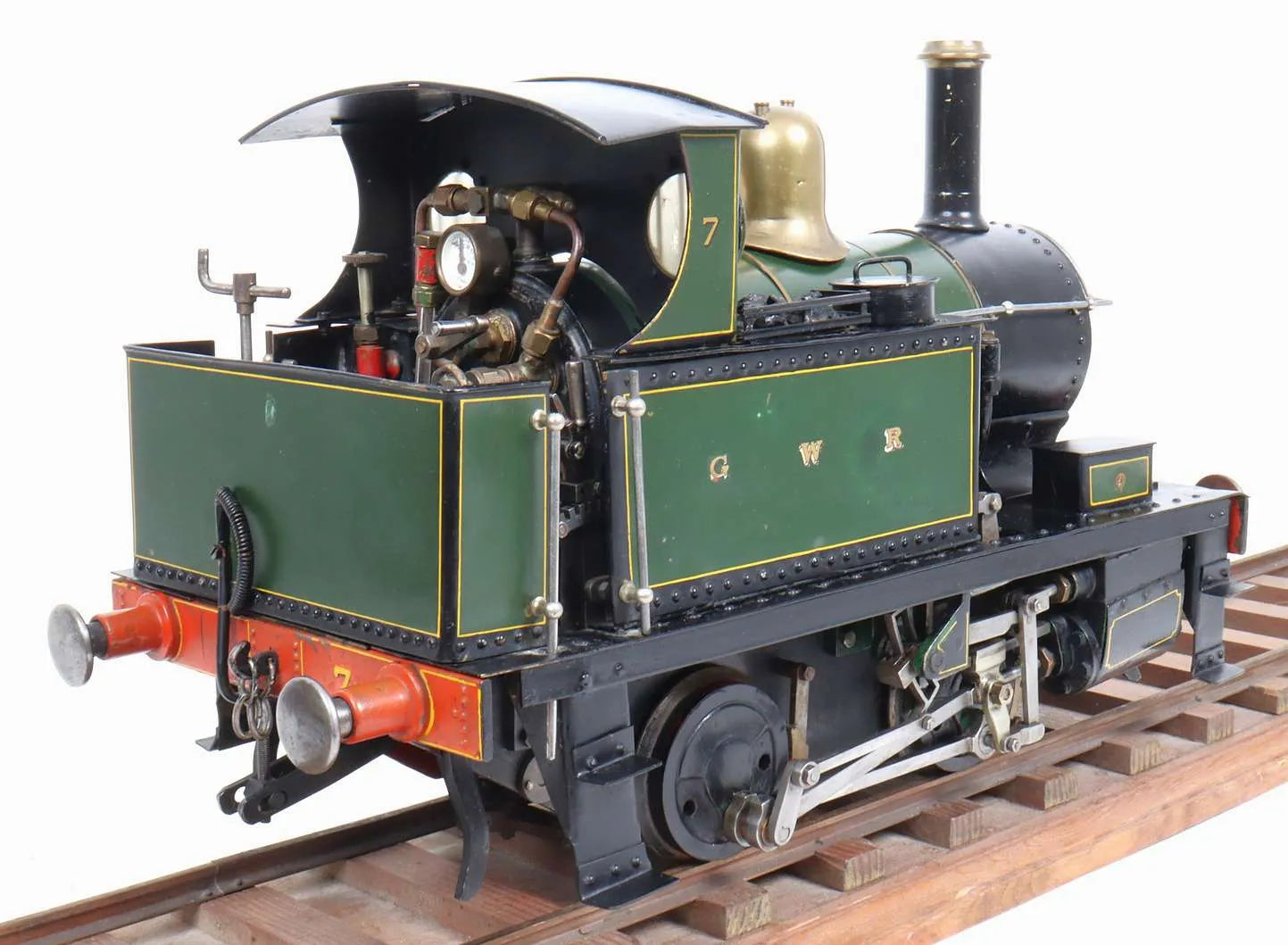

New and unsteamed, the boiler has had a twice working pressure hydraulic test with no sign of deflection or structural defect - it looks to be well made with neat flanging and good solder penetration, we would warranty it as sound.

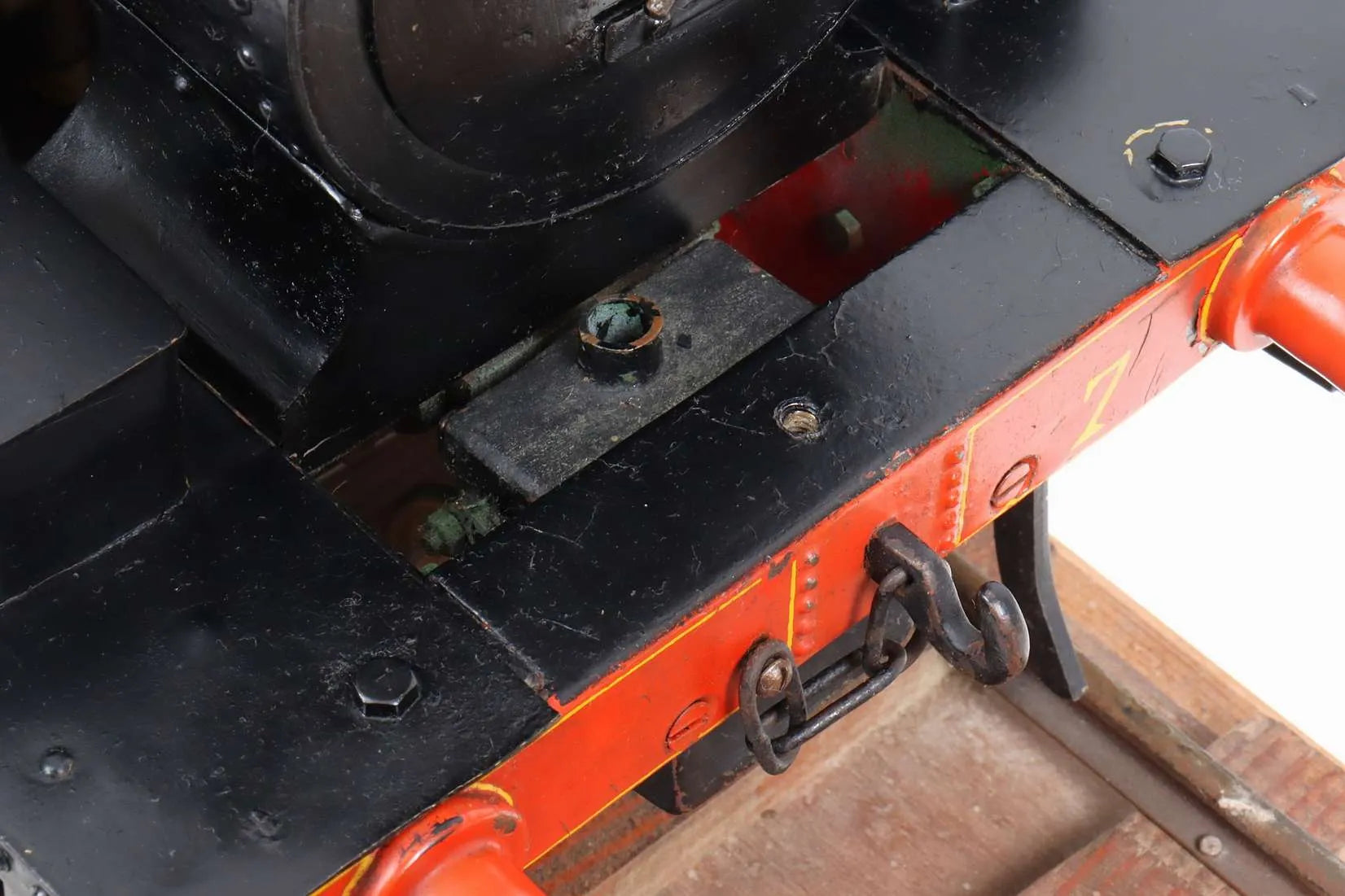

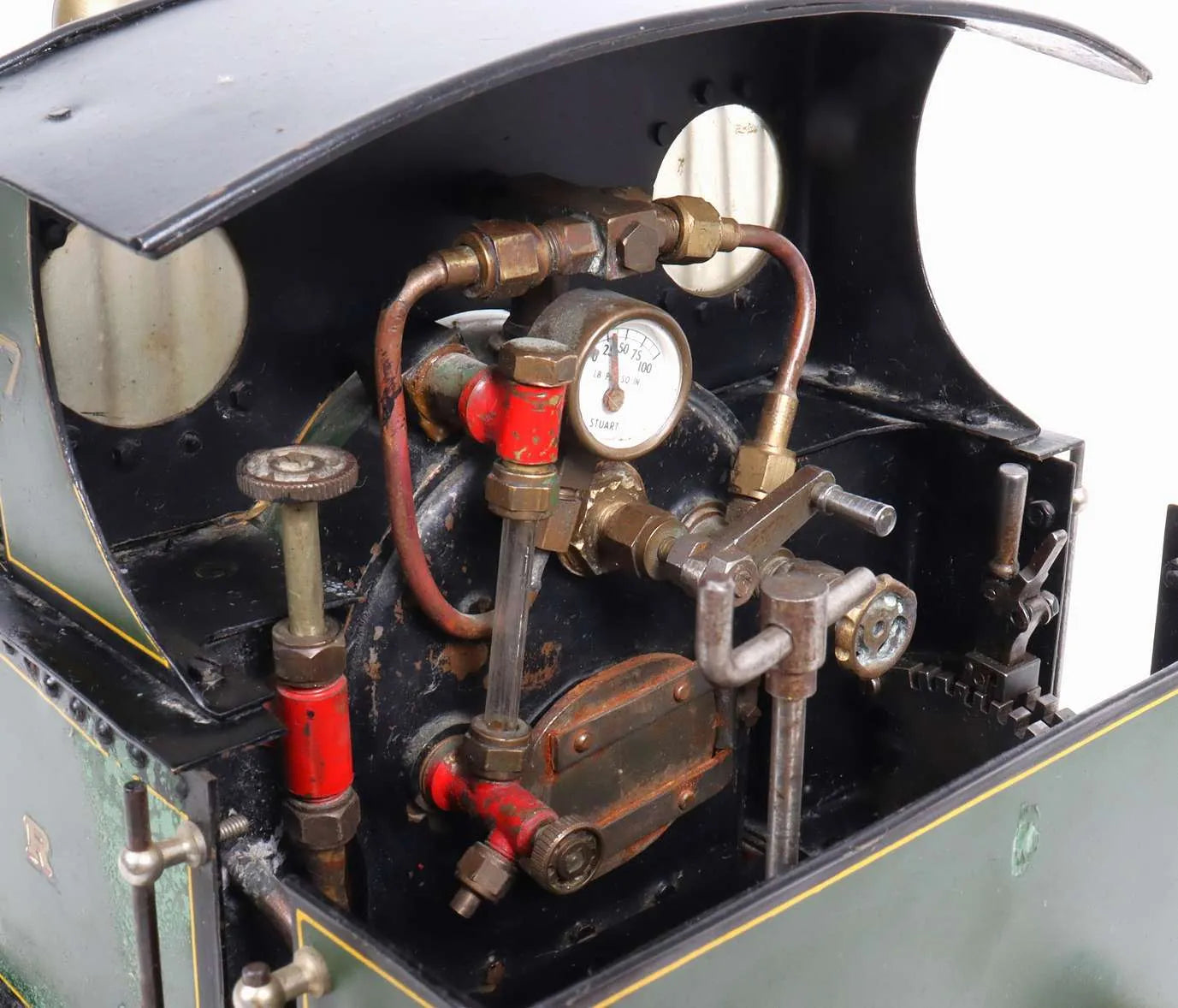

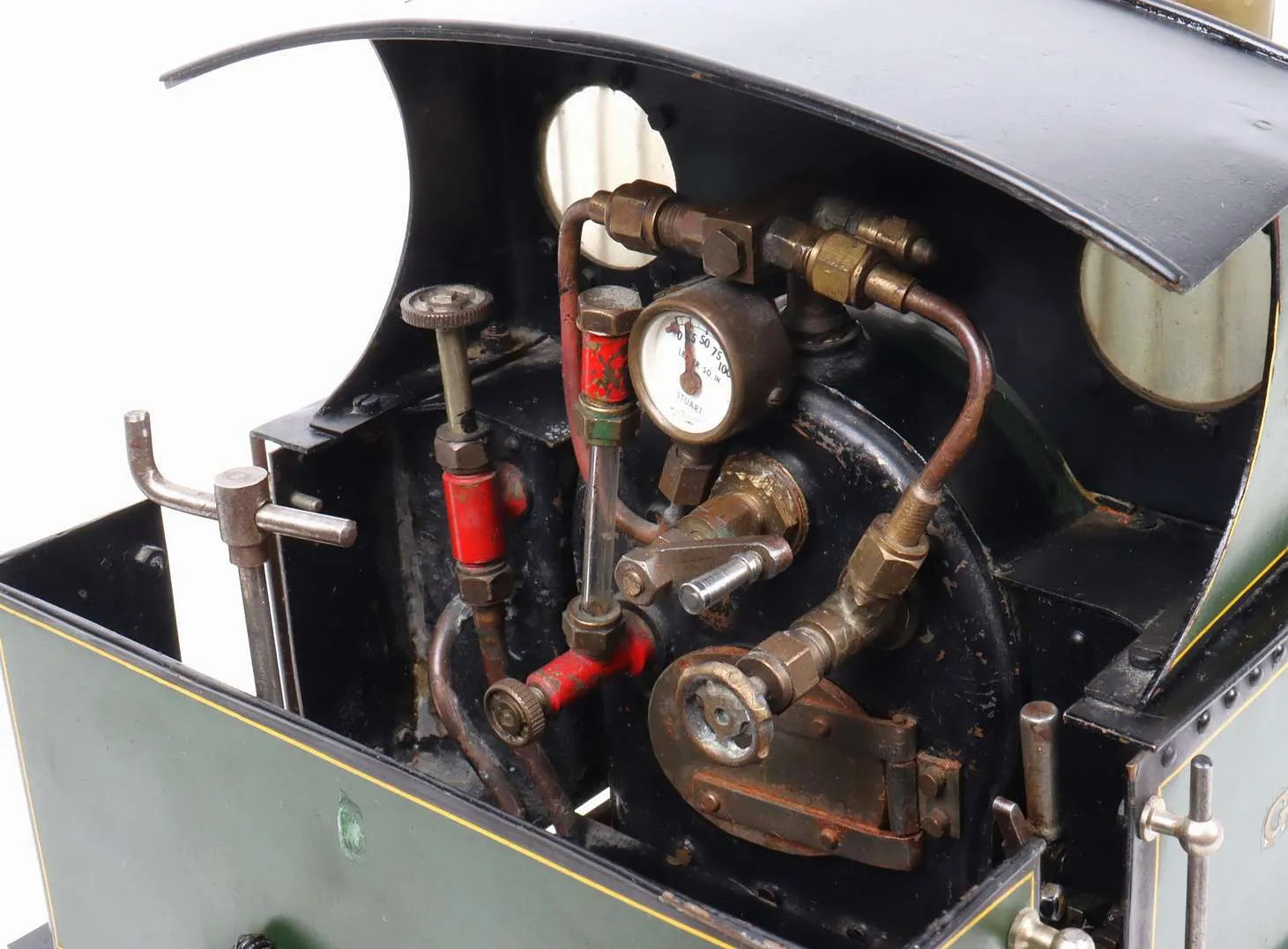

There's a leak from screws securing the right hand side boiler mounting bracket which could be sealed with Loctite or PTFE paste, and a few fittings leak on the backhead which need removal and replacement - again PTFE paste works well here.

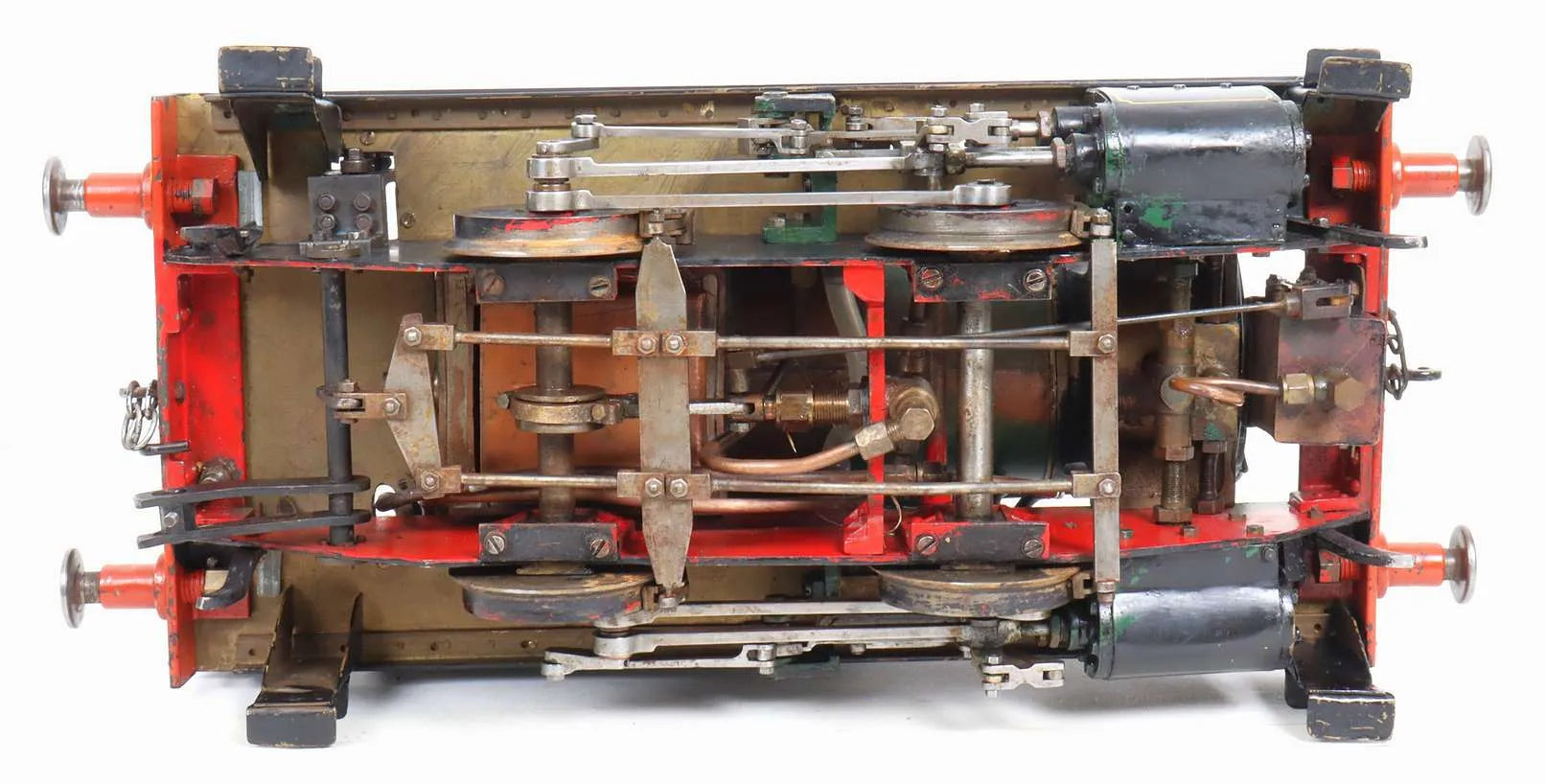

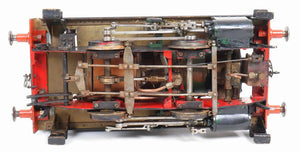

The chassis turns over freely although doesn't currently run, with air passing the valves.
Stock code |
10920 |
Length/inches |
16 |
Width/inches |
7 |
Height/inches |
10 |
Weight/Kg |
9 |
Wheel material |
cast iron |
Axlebox type |
plain |

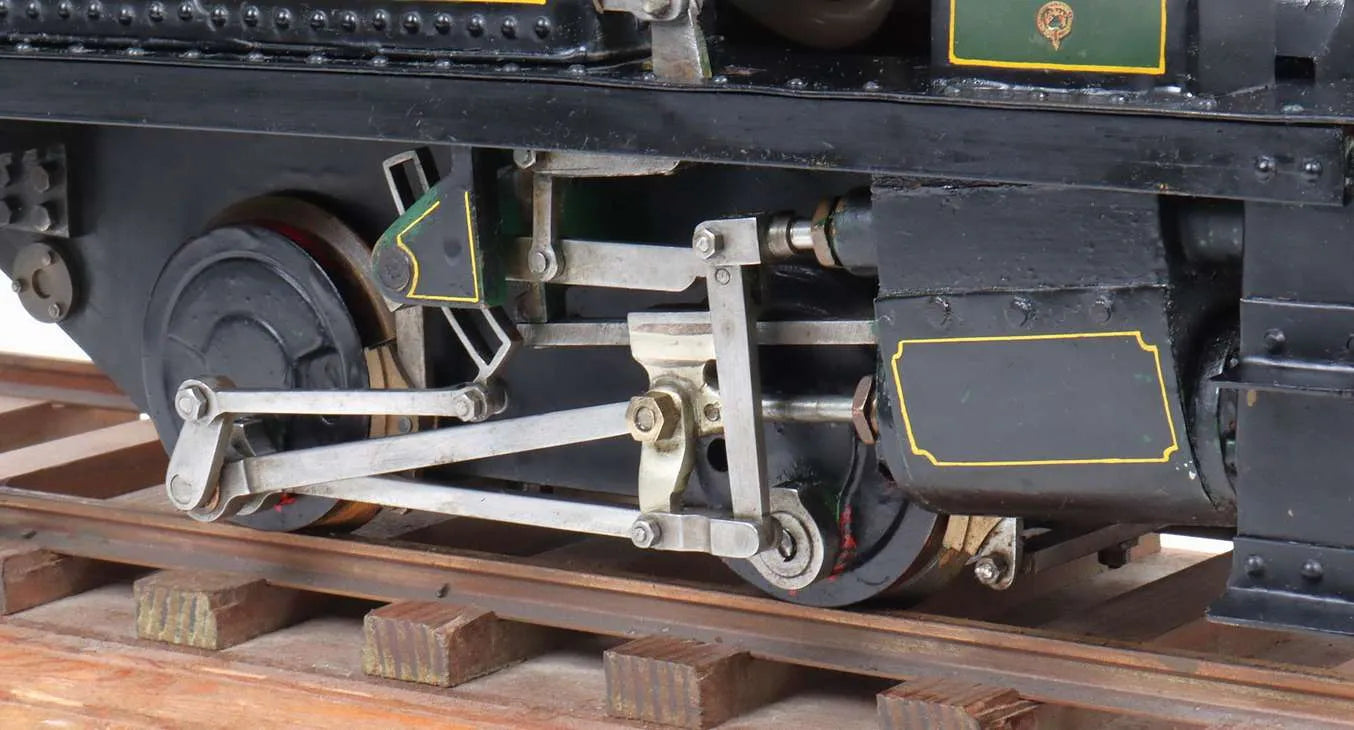

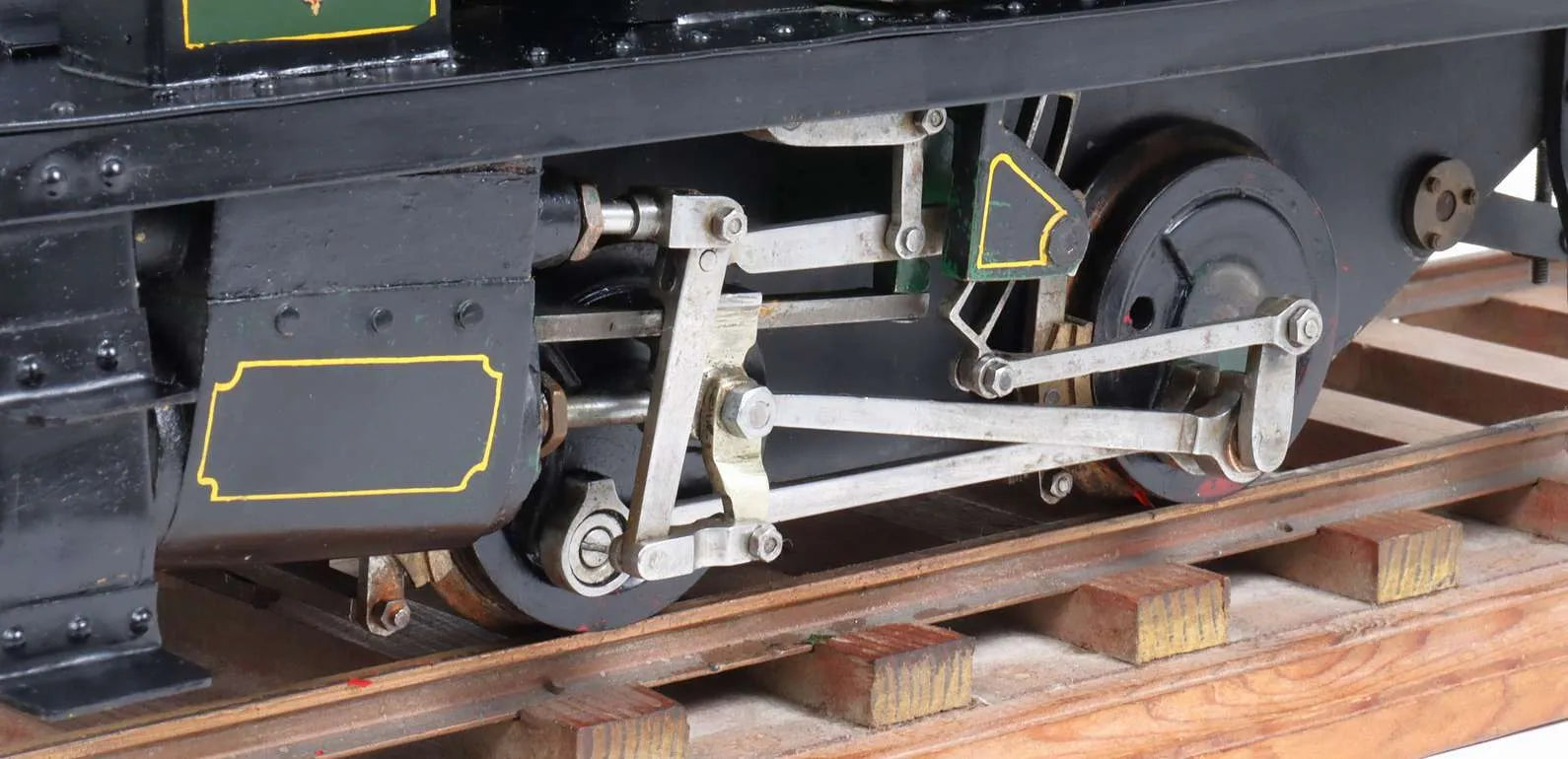

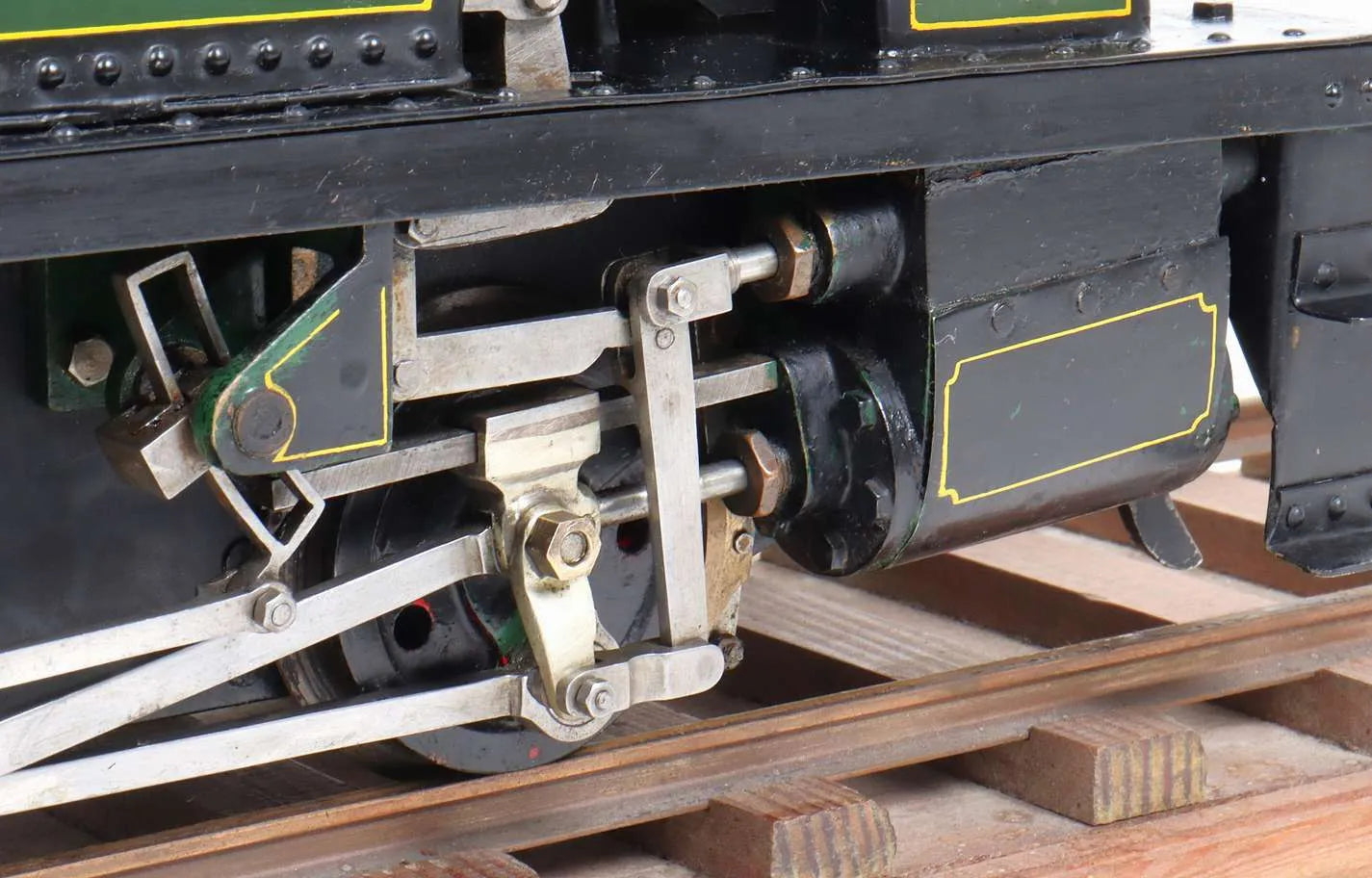

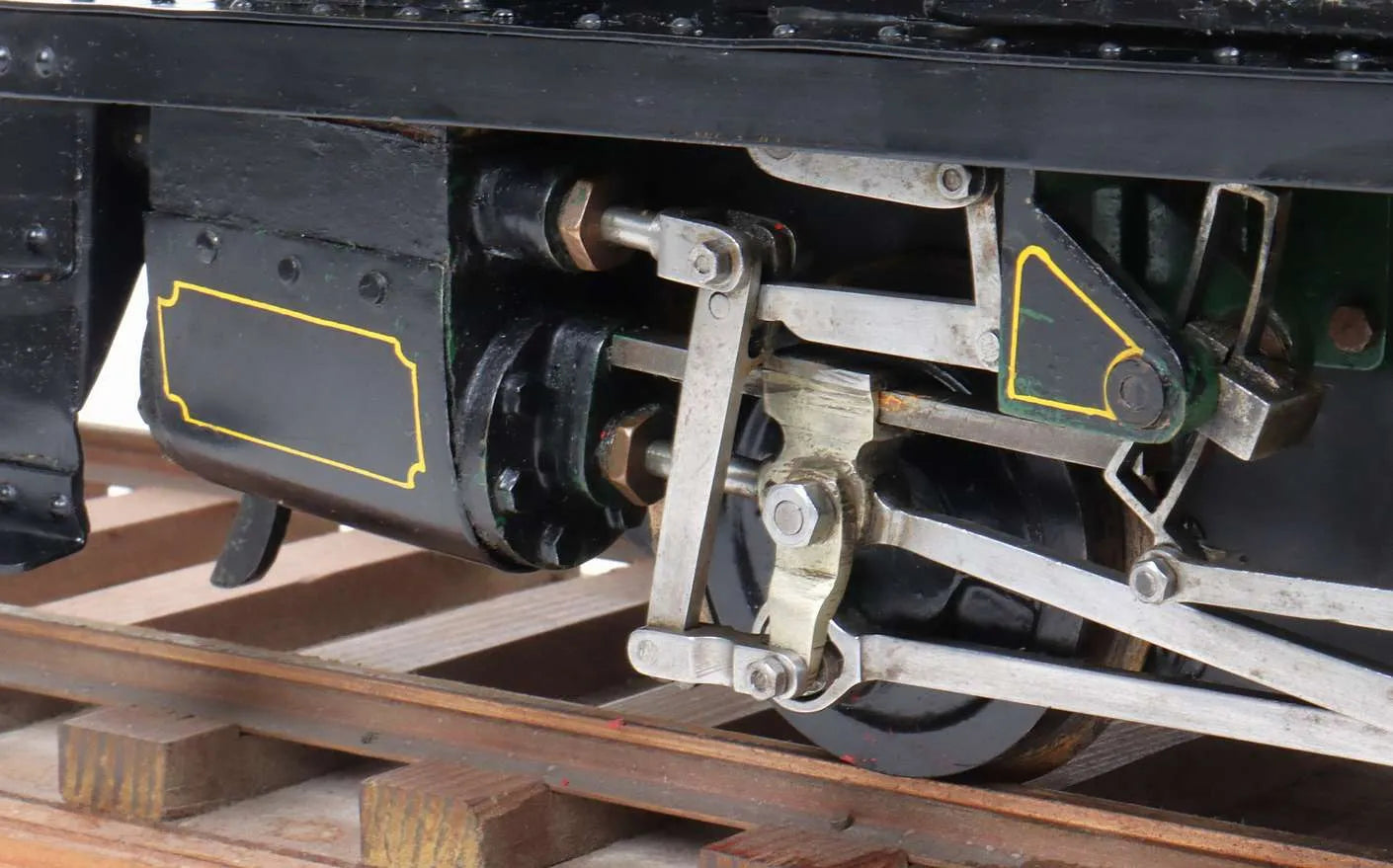

Valve gear |
Walschaerts |
Boiler type |
locomotive |
Boiler construction |
silver soldered |
Boiler material |
copper |
Working pressure |
80 |
Safety valve type |
spring |
Safety valve |
1 |
Hand pump |
yes |
Mechanical pump |
axle |
Date out |
Dec-22 |
Hydraulic test valid to |
20-Oct-26 |
