3 1/2 inch gauge "Tich" 0-4-0T

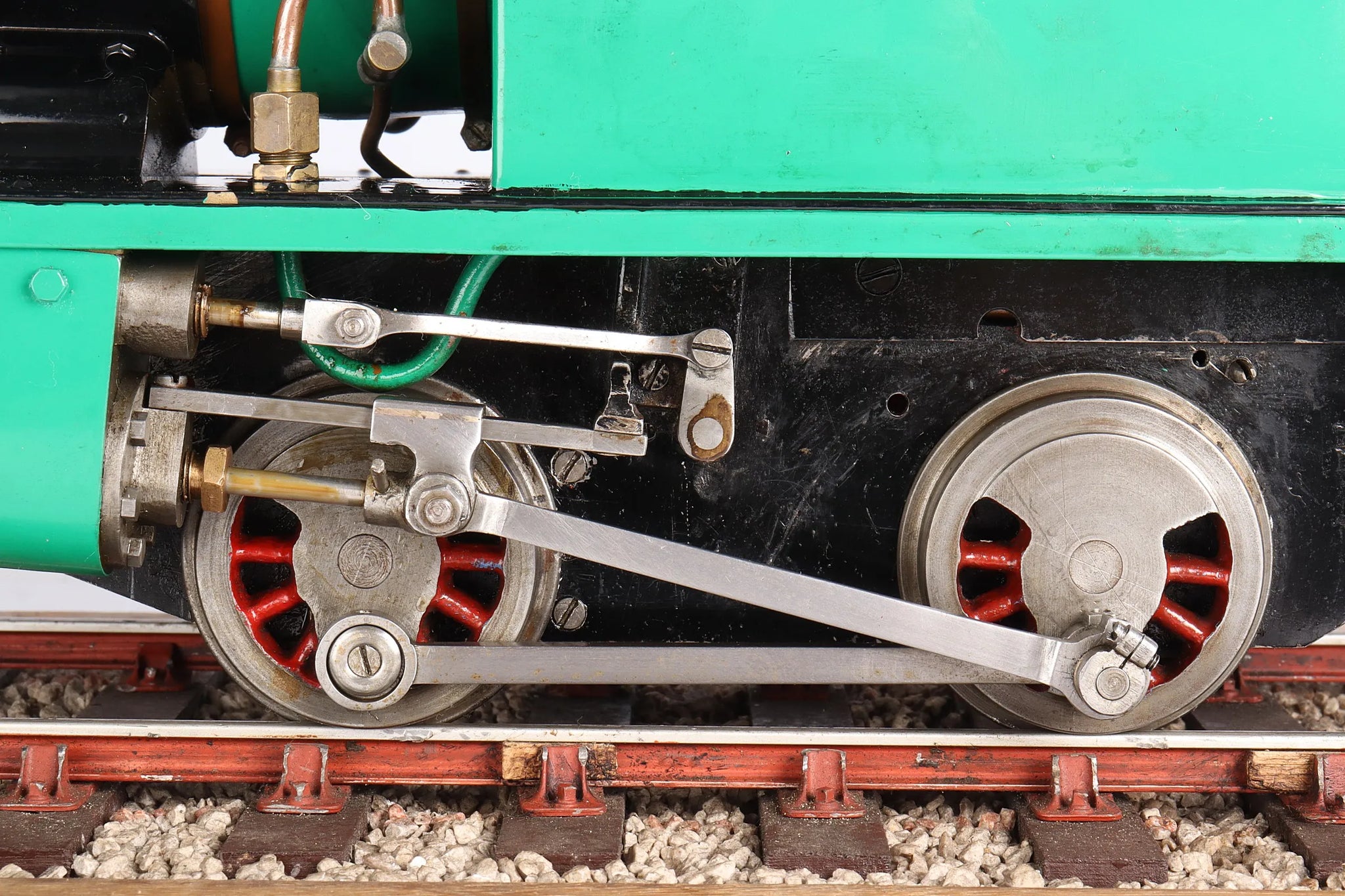

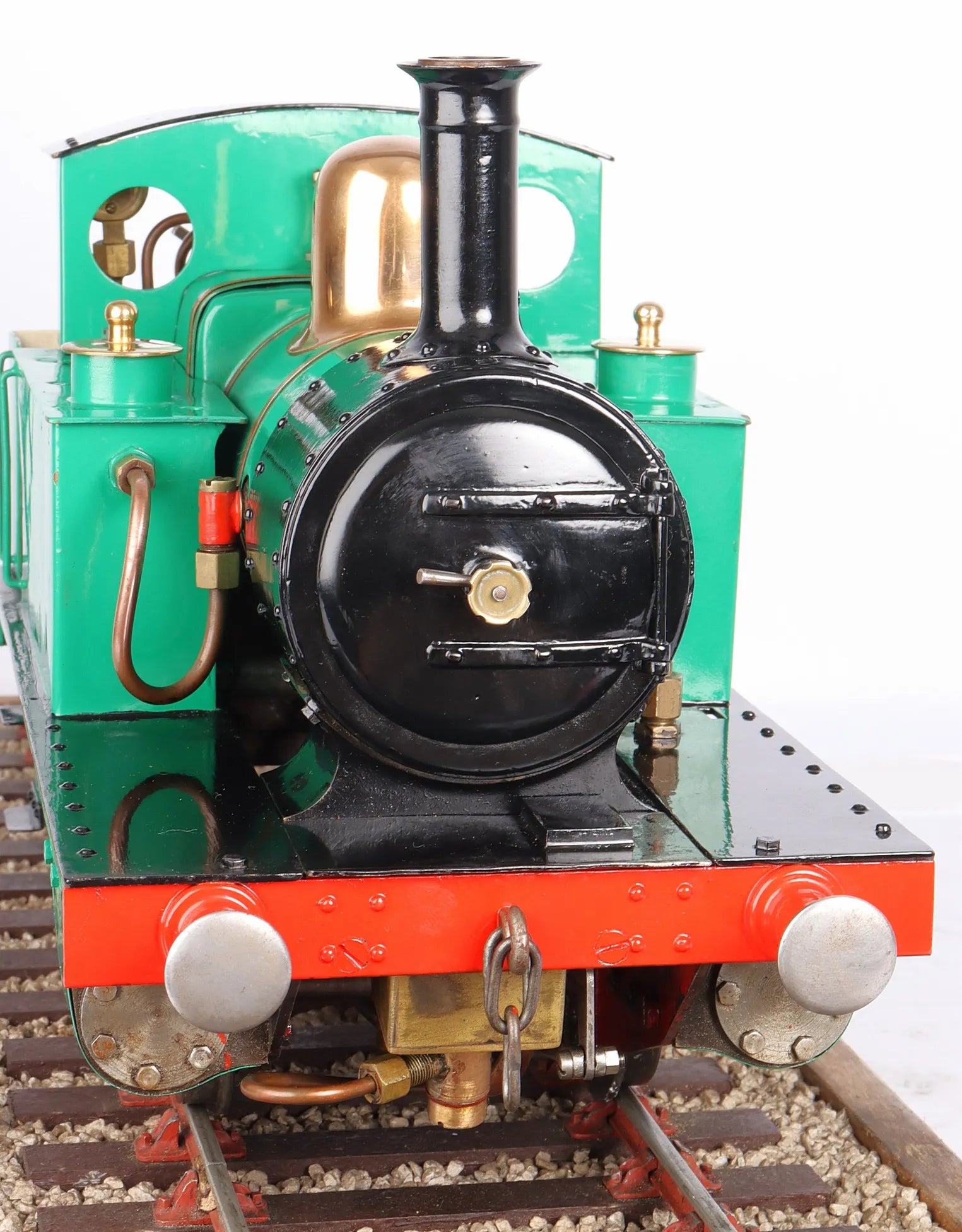

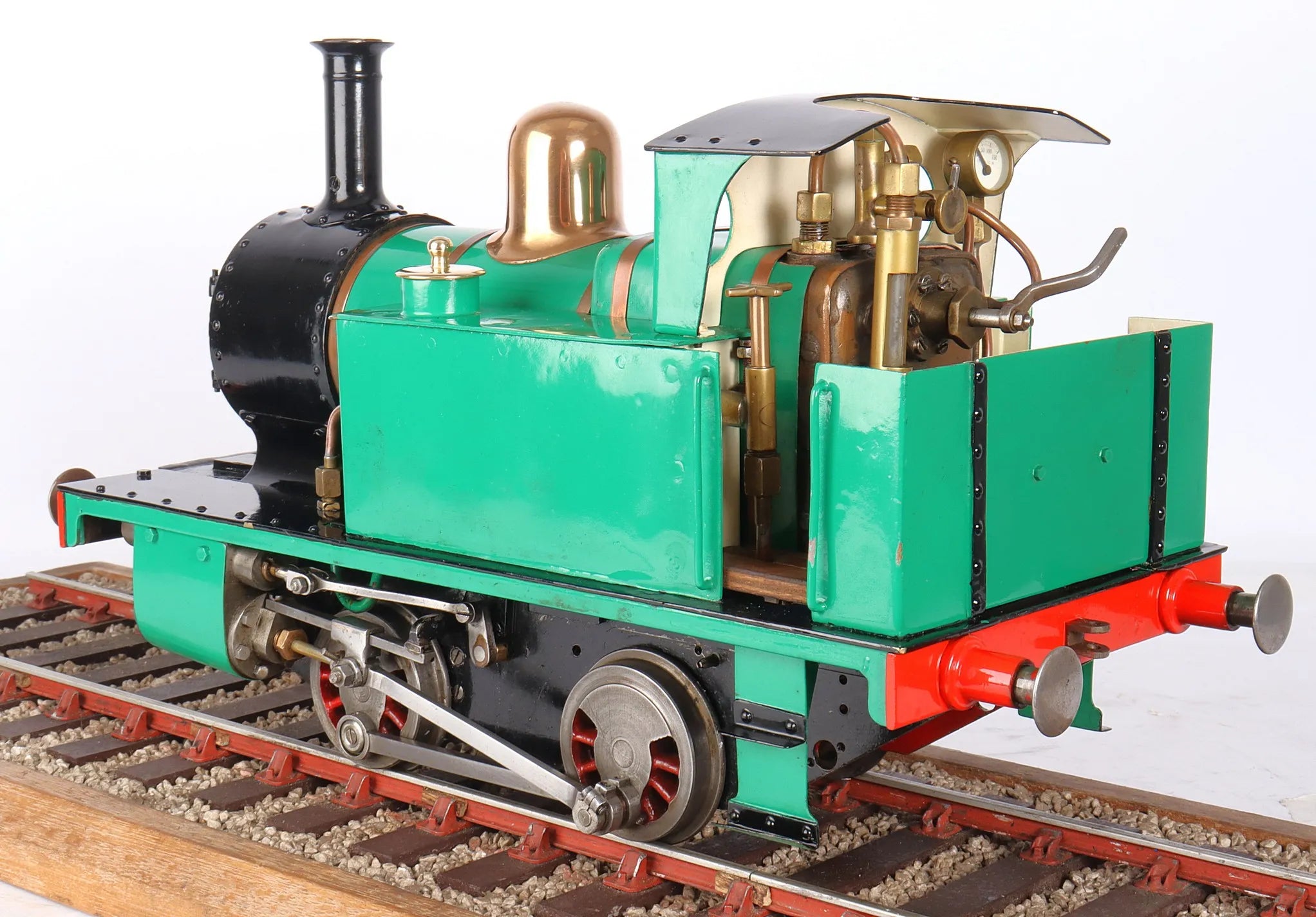

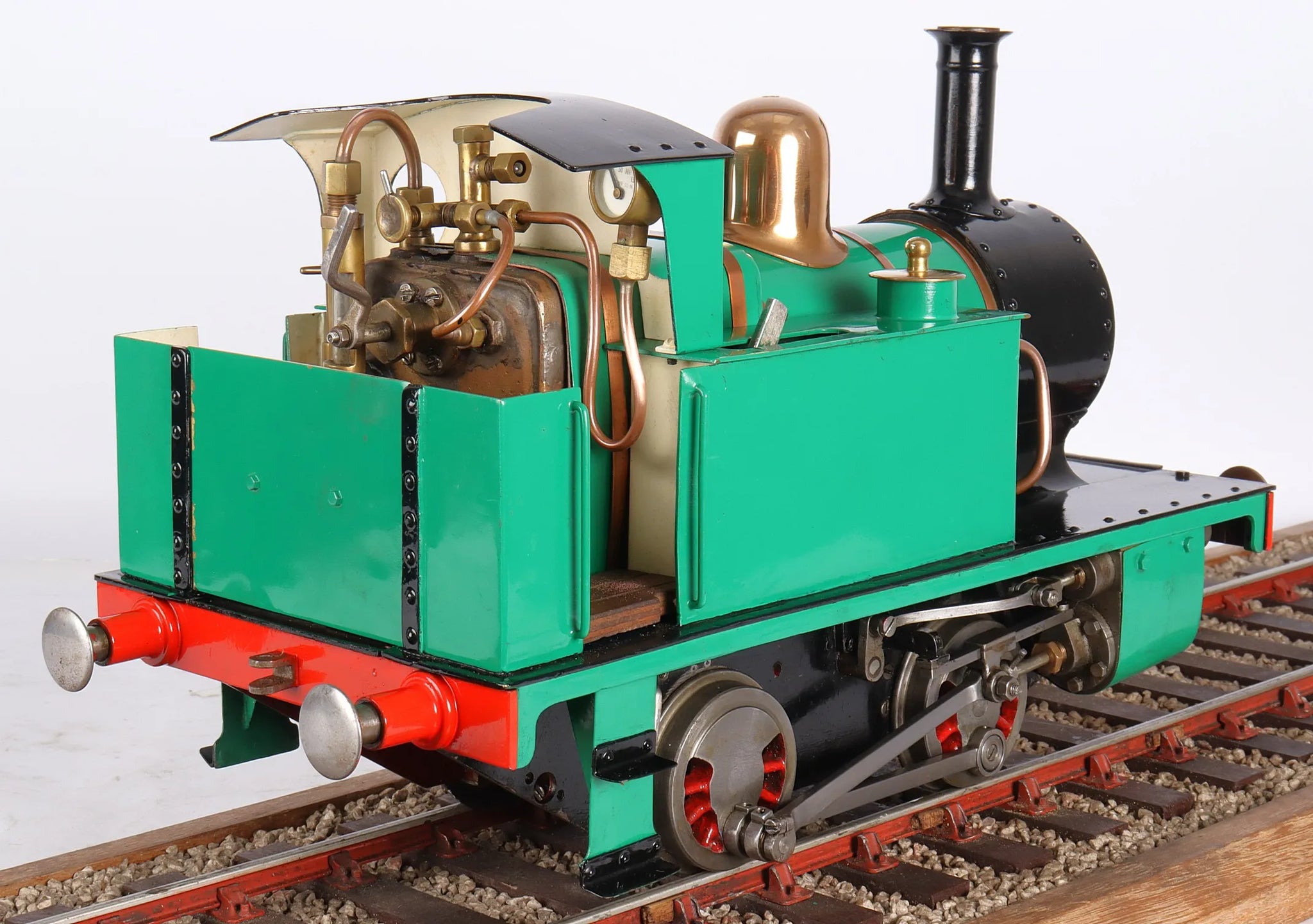

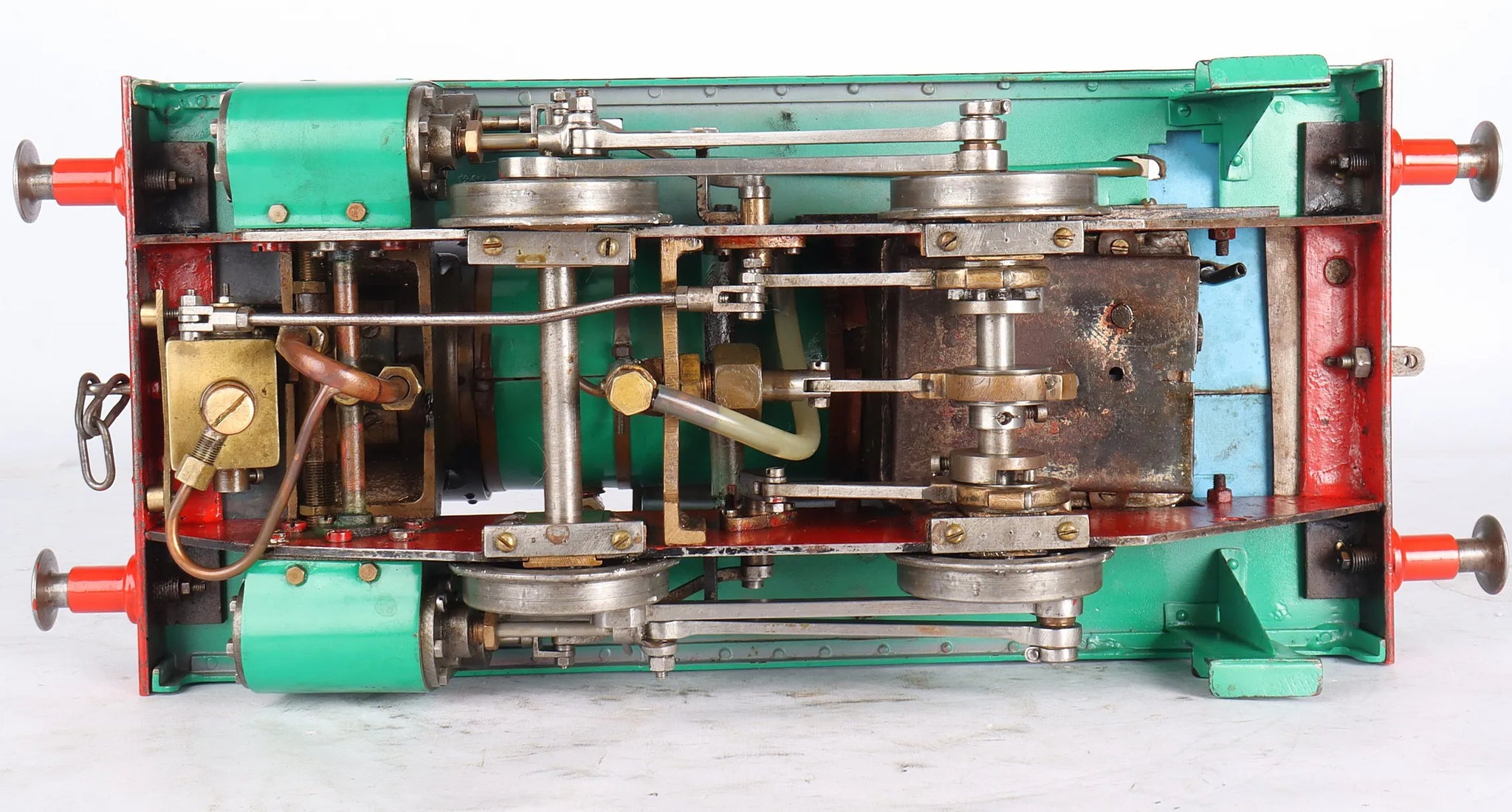

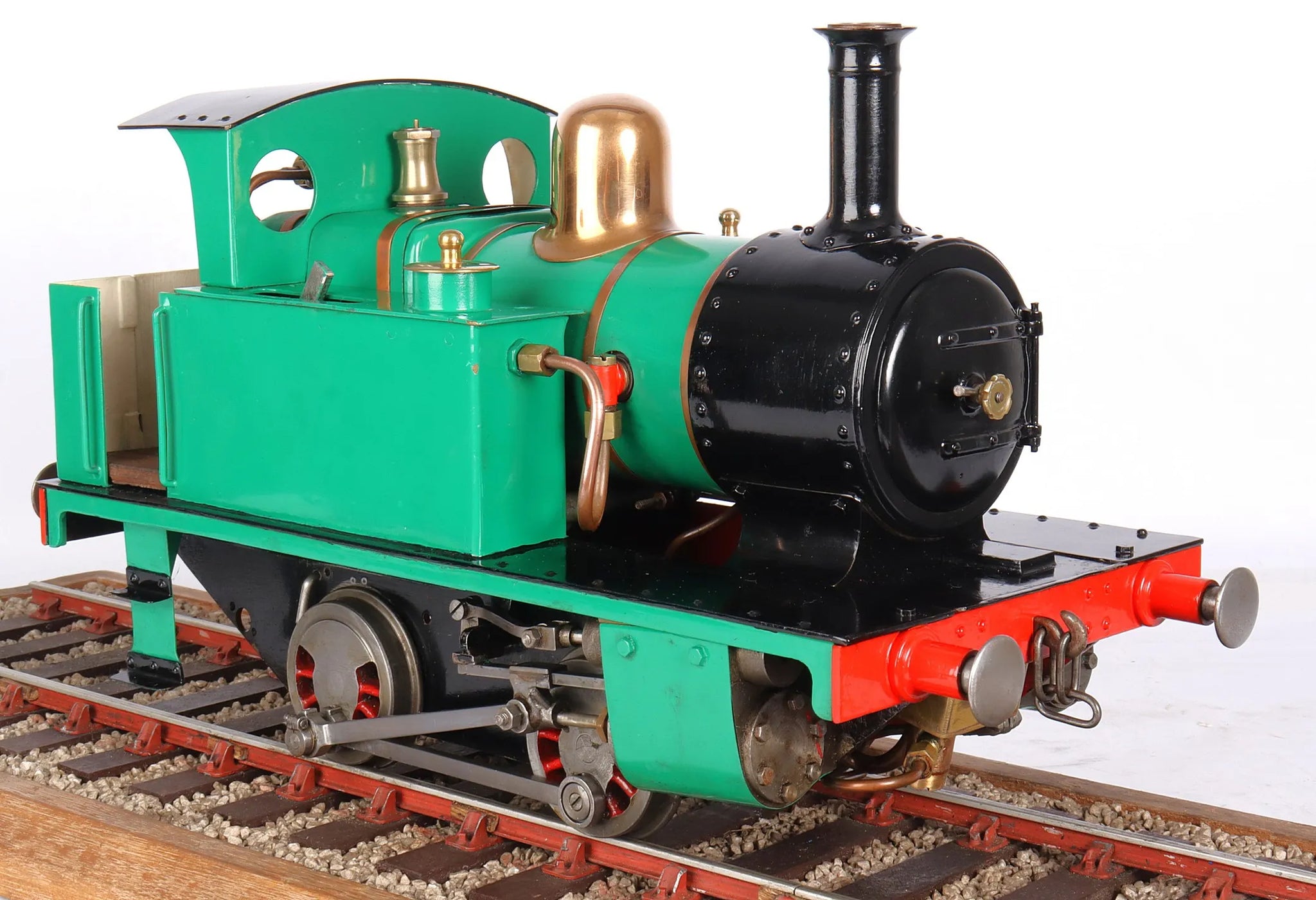

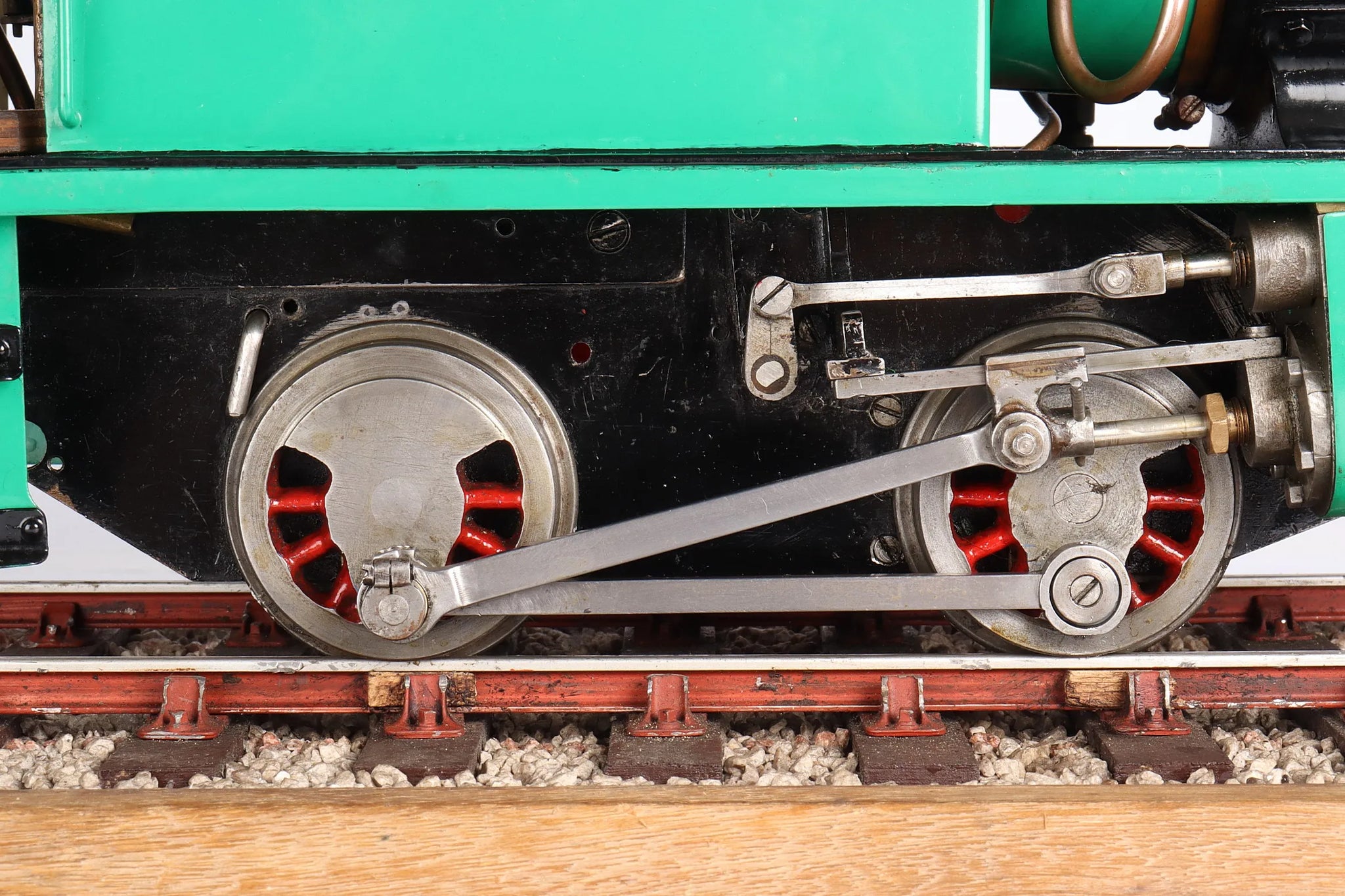

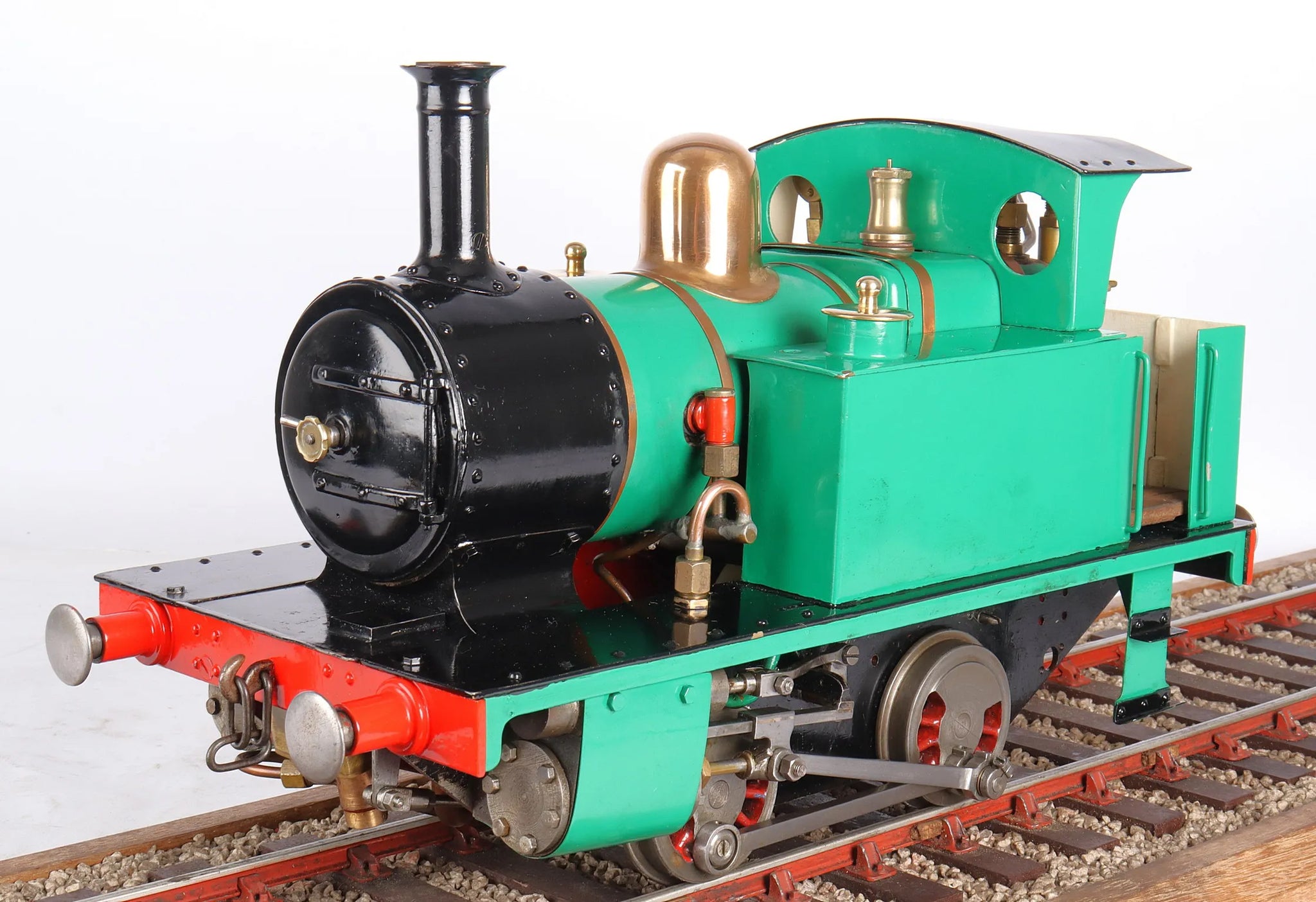

A 3 1/2 inch gauge "Tich" with slip eccentric valve gear and Belpaire firebox boiler.

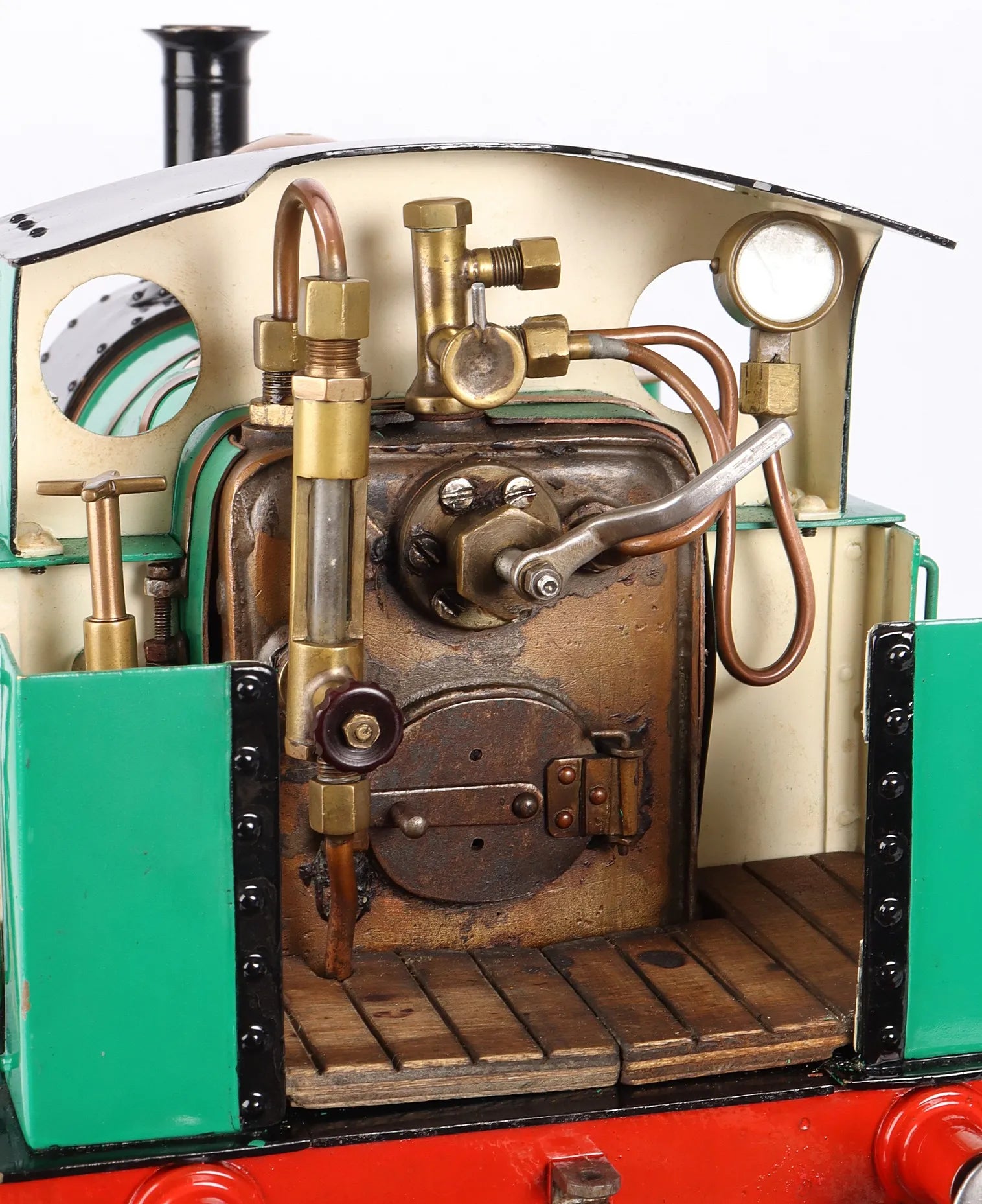

An older engine, it runs on air with some leakage pass pistons and valves. The boiler has had a twice working pressure hydraulic test which showed up a pinhole leak on the foundation ring which produces a steady drip, and one firebox stay which forms a drop of water every 30 seconds or so. The firebox crown is deformed, we suspect from initial test as the copper settled into shape - its supported by girder stays.

I can't remember having had another Belpaire boiler Tich - unusual although not unknown, LBSC himself building a Tich thus fitted.

Technical information

Stock code

13086

Length/inches

15.5

Width/inches

6.5

Height/inches

9

Weight/Kg

9.5

Wheel material

cast iron

Axlebox type

plain bearing

Cylinder material

cast iron

Valve type

slide

Valve gear

slip eccentric

Reverser type

screw

Boiler maker

non-commercial

Boiler type

locomotive

Boiler construction

silver soldered

Boiler material

copper

CE/UKCA mark

n/a - non-commercial

Year built

unknown

Boiler number

N15-80-115

Safety valve type

spring

Safety valve

1

Hand pump

1

Mechanical pump

1

Superheater type

flue tube

Superheater

1
