Sold

9228

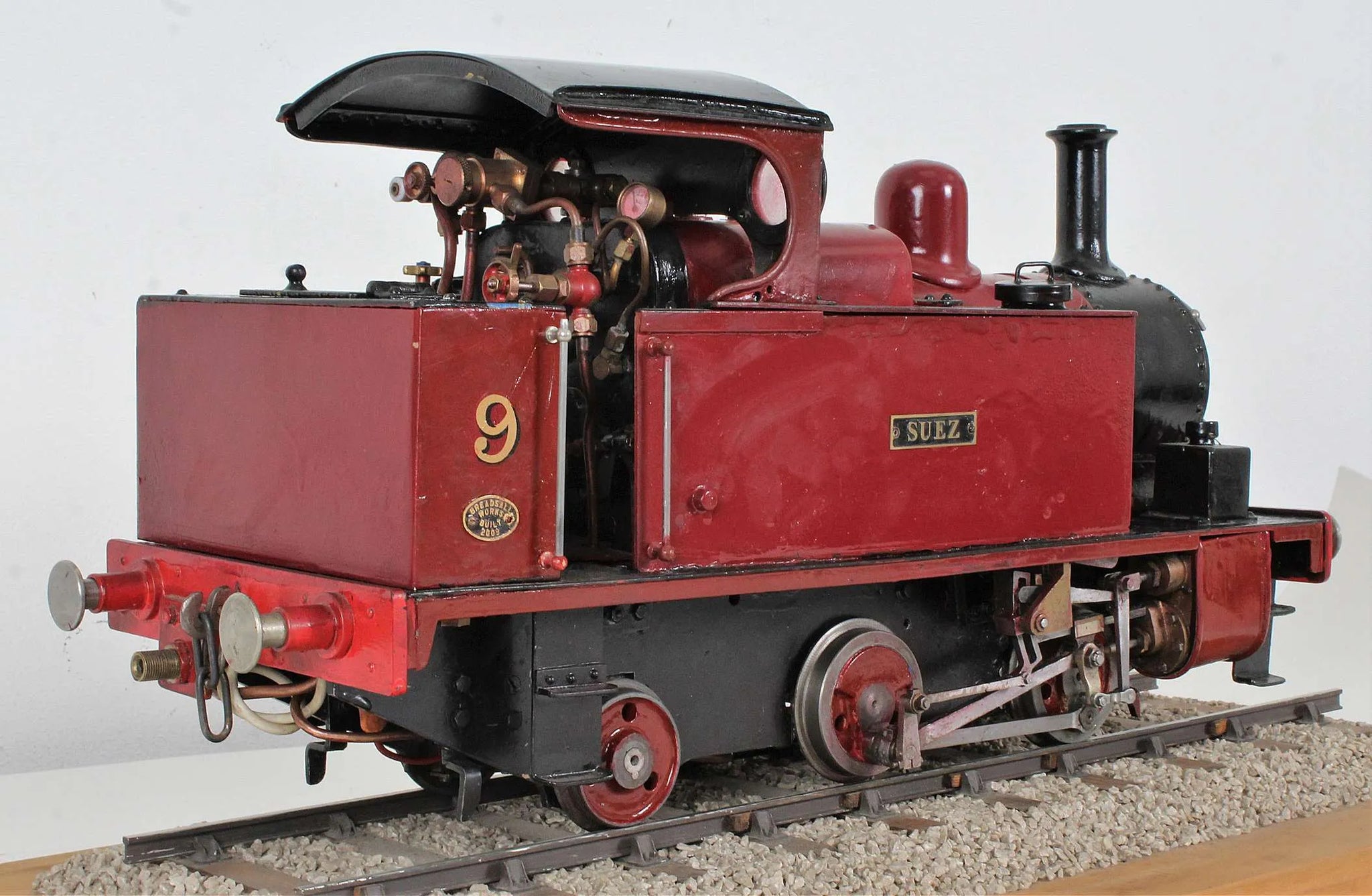

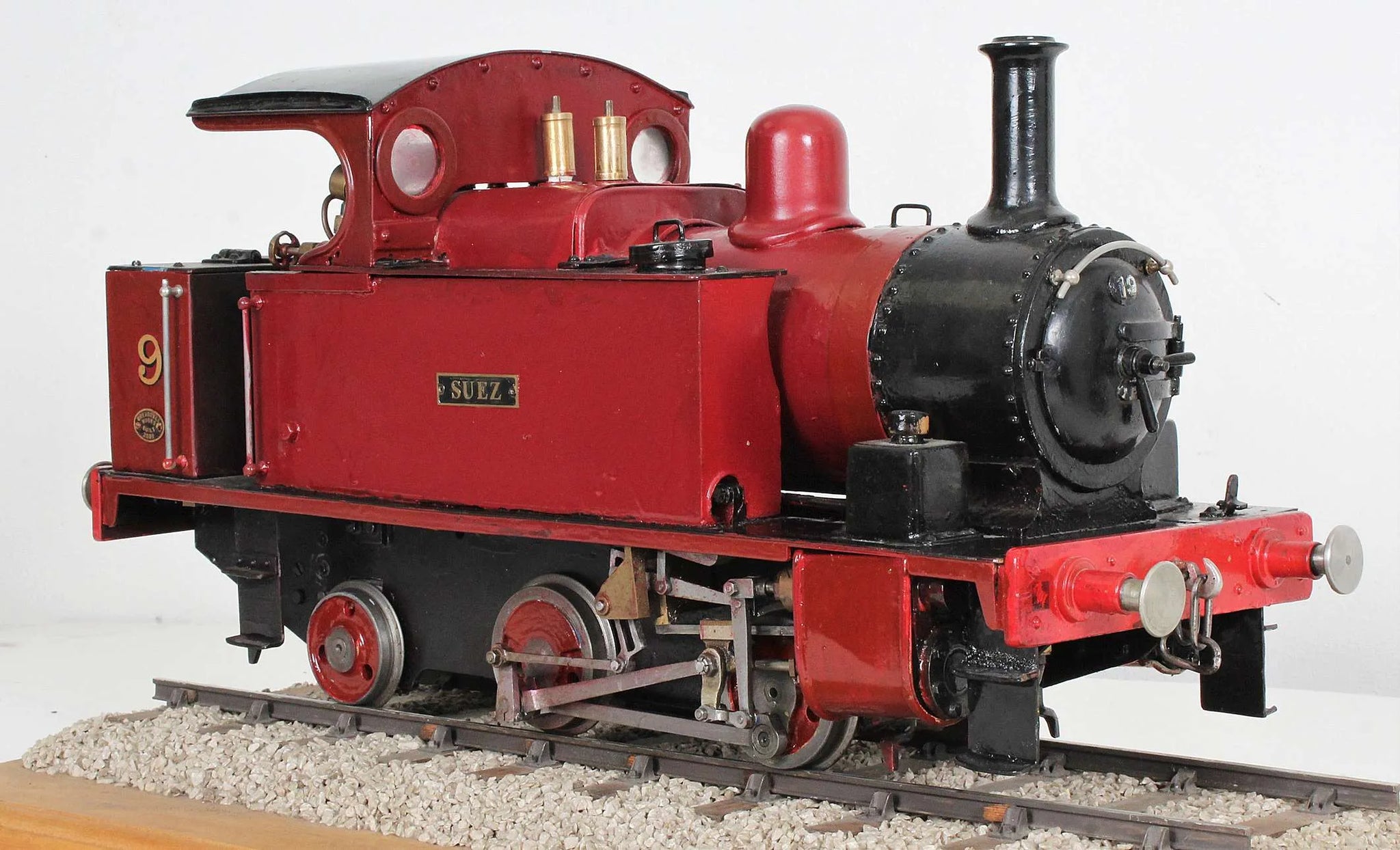

3 1/2 inch gauge "Tich" 0-4-2T

A 3 1/2 inch gauge 0-4-2T, an extended version of LBSC's "Tich" design. The work of a prolific model engineer who built or rebuilt several locomotives, including the 5 inch gauge "Royal George" and prewar Stirling single we've sold in recent months.

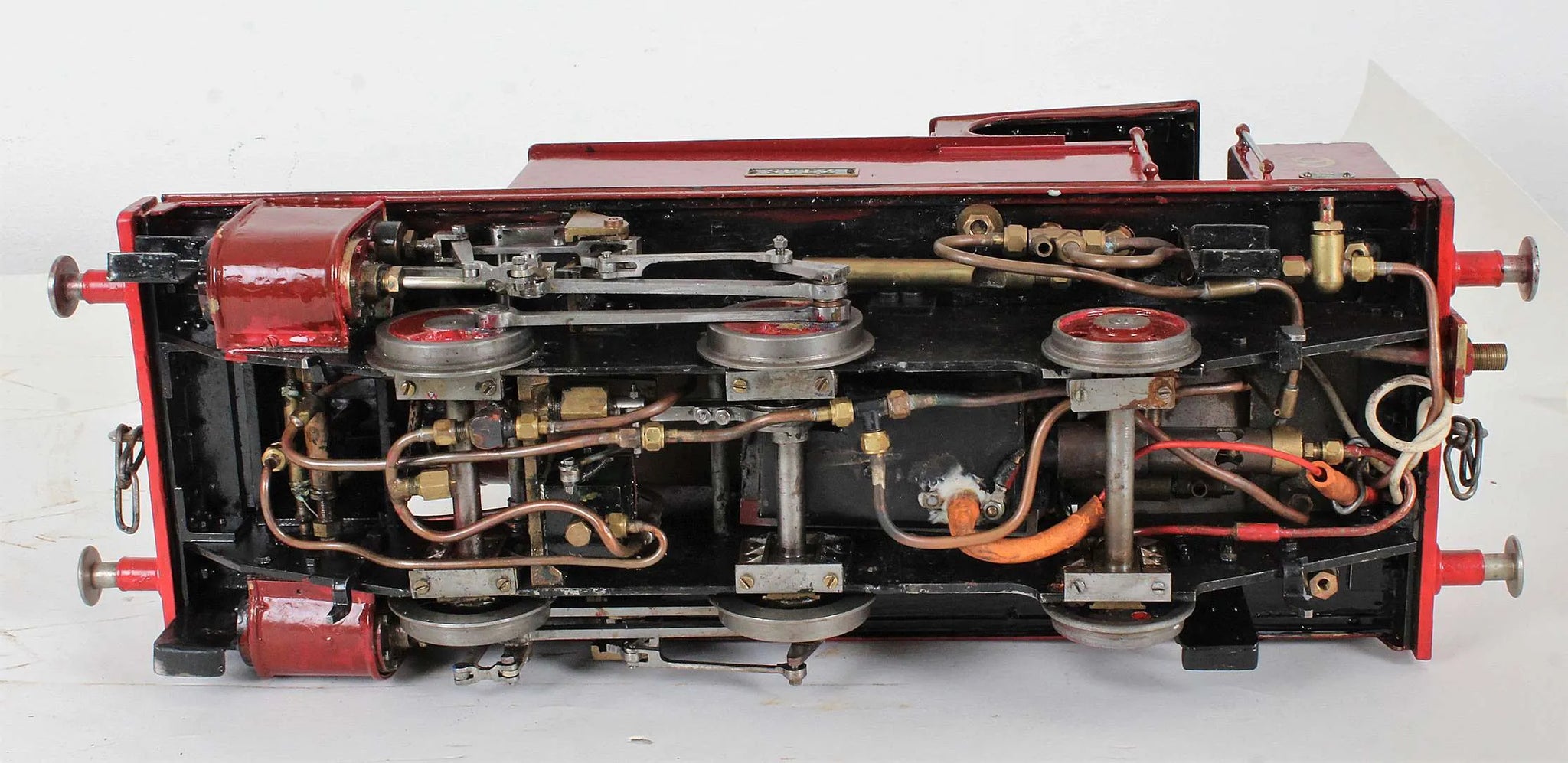

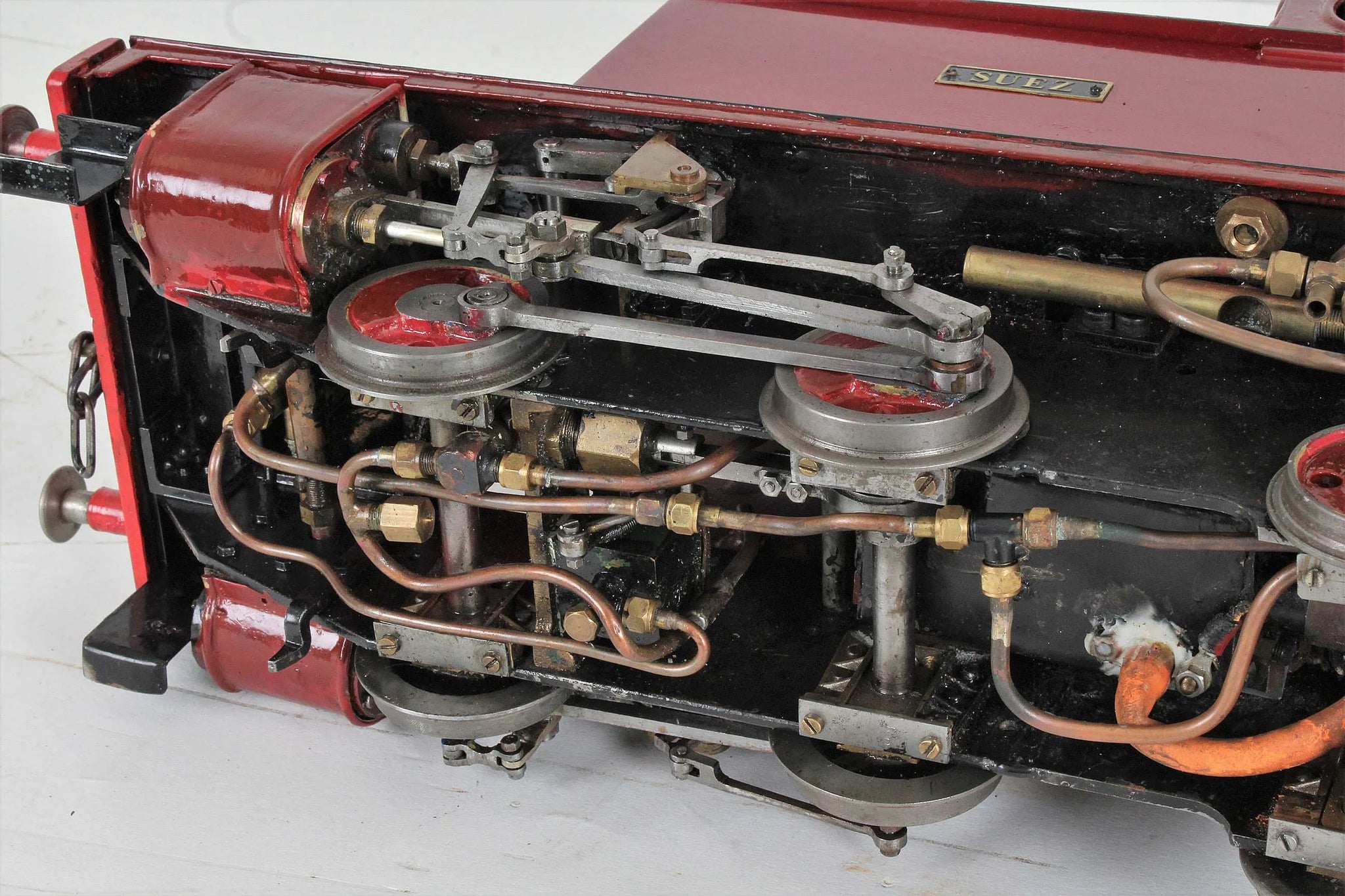

Boiler is gas-fired, with burner installed under the footplate as shown in the photographs. There's a mysterious looking lead attached to the ashpan which we expect is an igniter, but would require some futher investigation.

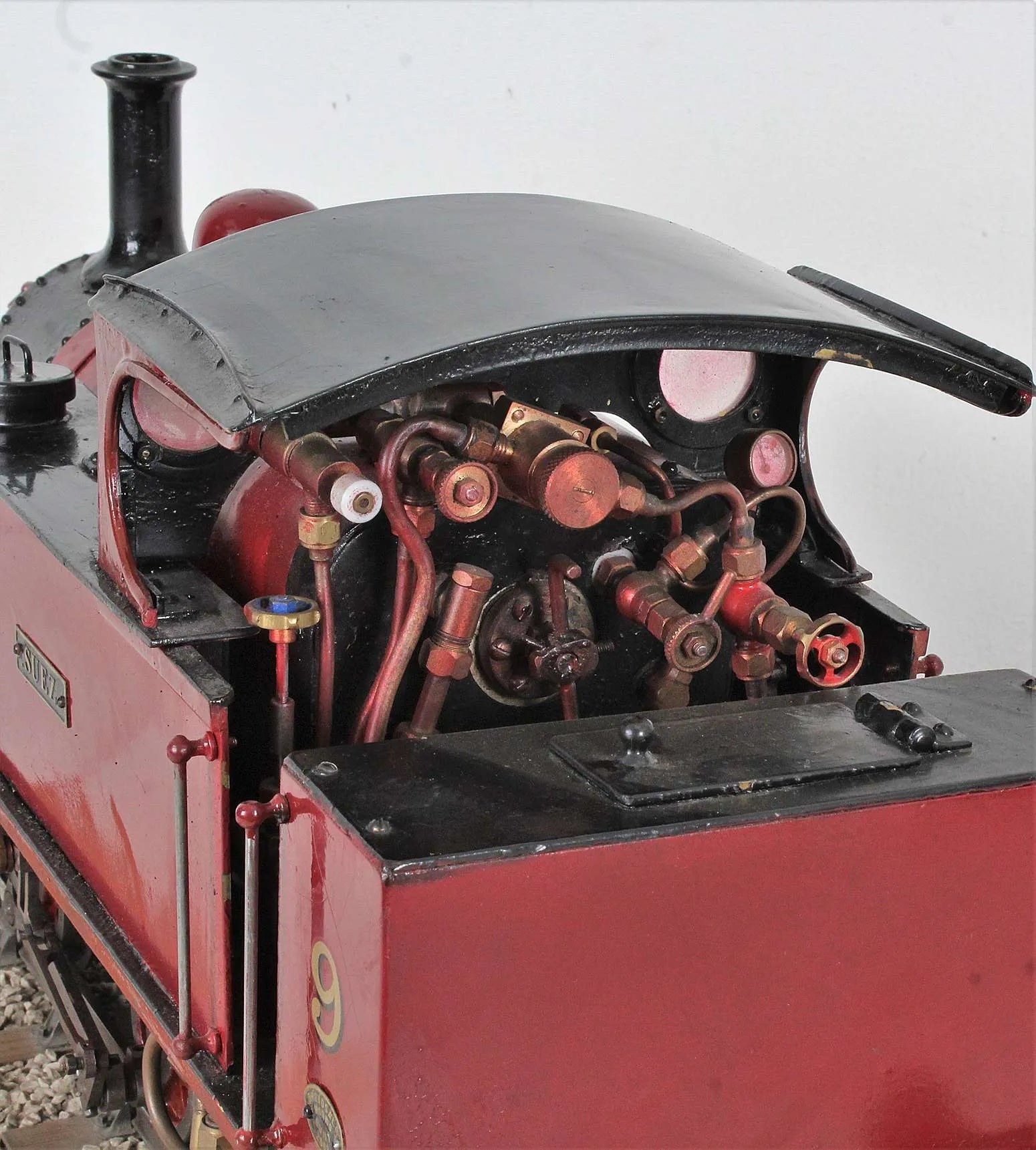

Unused in many years, the engine is complete and rolls along freely. Most of the boiler fittings leak copiously, but the boiler itself appeared dry on test - it would need a twice working pressure test once the fittings have been made good.

Technical information

Stock code

9228

Gauge

3 1/2 inch

Length/inches

20

Width/inches

6.5

Height/inches

10.5

Weight/Kg

14.5

Wheel material

cast iron

Axlebox type

plain bearing

Cylinder material

gunmetal

Valve type

slide

Valve gear

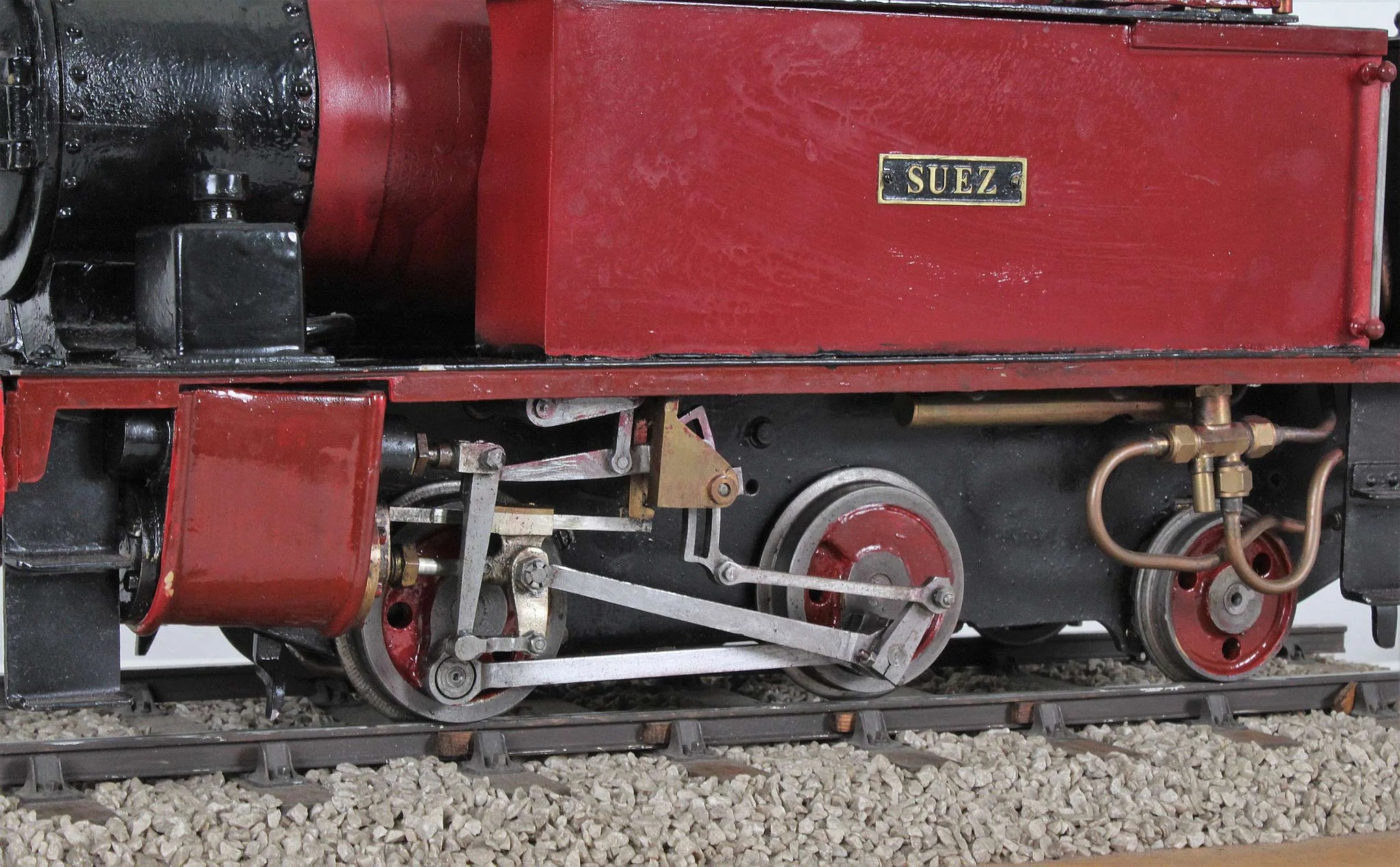

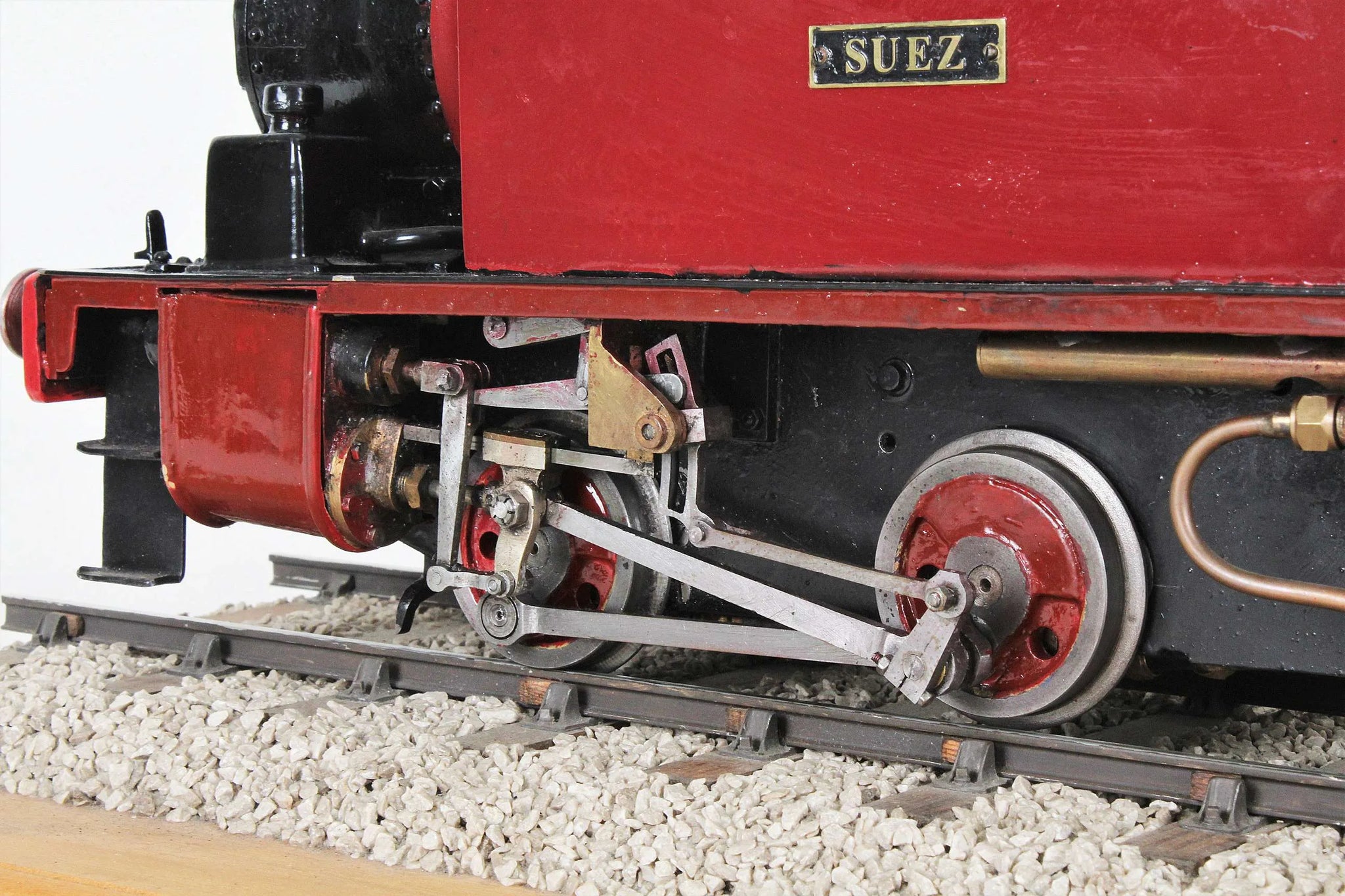

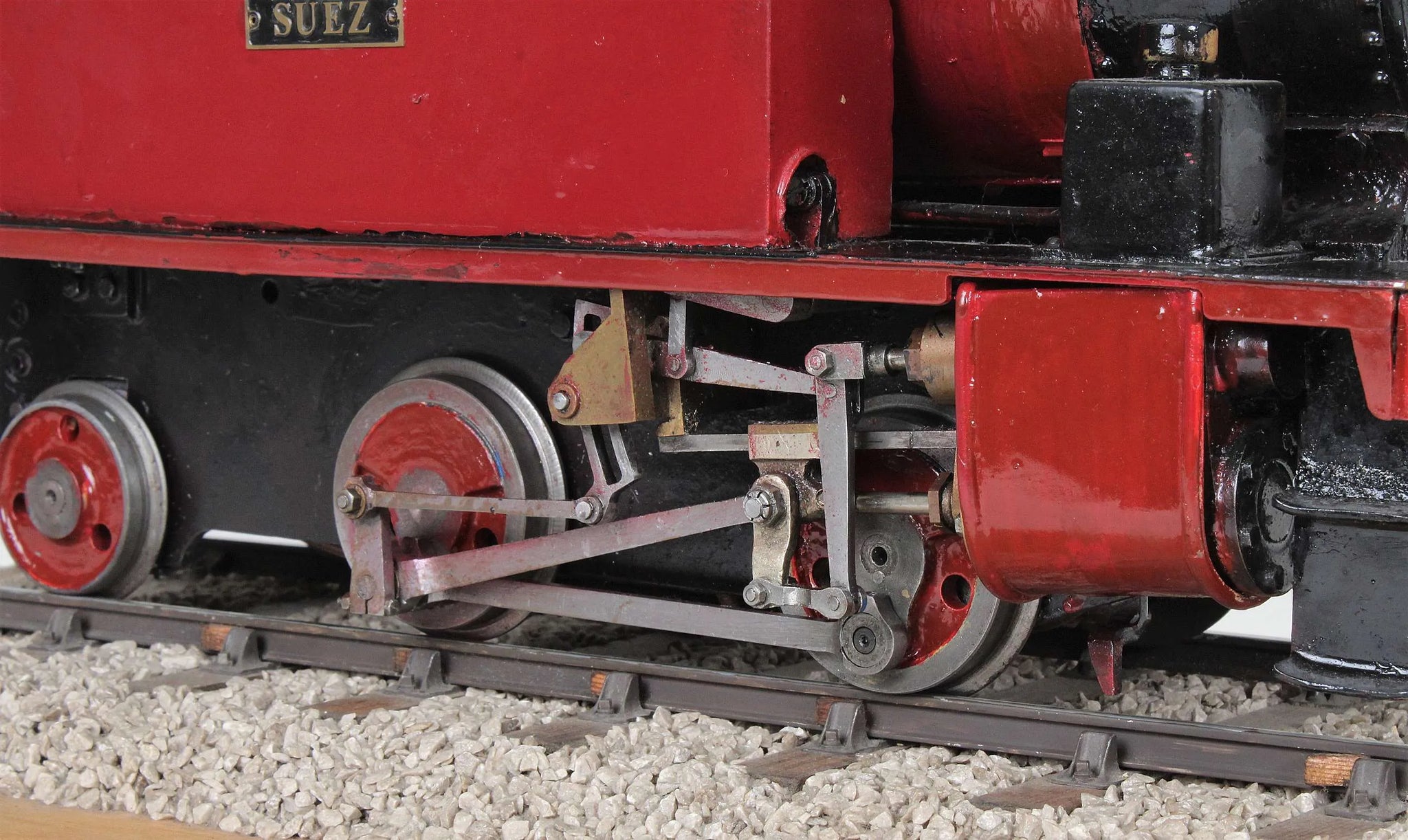

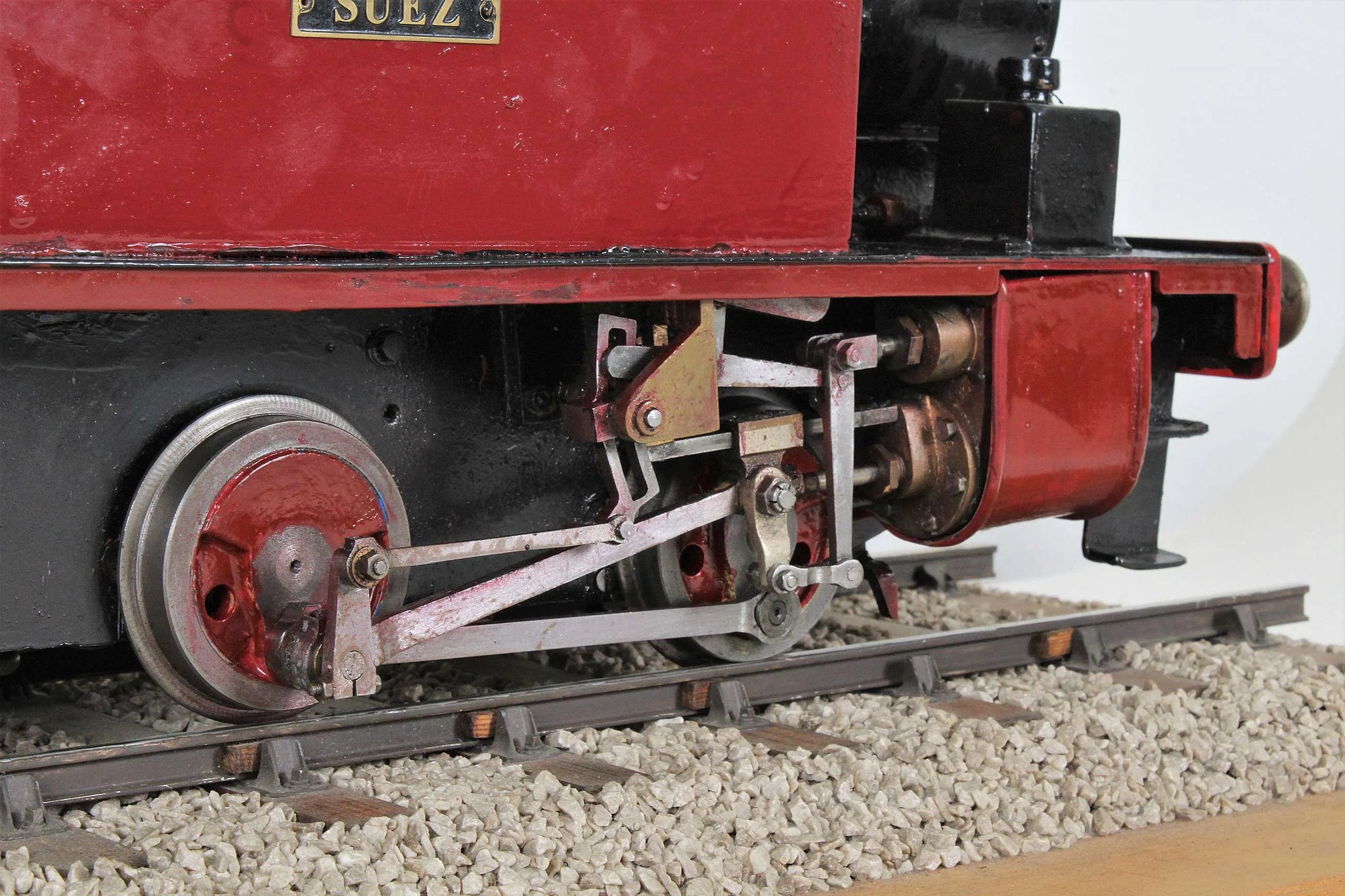

Walschaerts

Reverser type

pole

Lubricator type

mechanical

Boiler maker

non-commercial

Boiler type

locomotive

Boiler construction

silver soldered

Boiler material

copper

Working pressure

80

Safety valve type

spring

Safety valve

2

Whistle

yes

Hand pump

1

Mechanical pump

1

Injector

1

Date out

Jul-22
