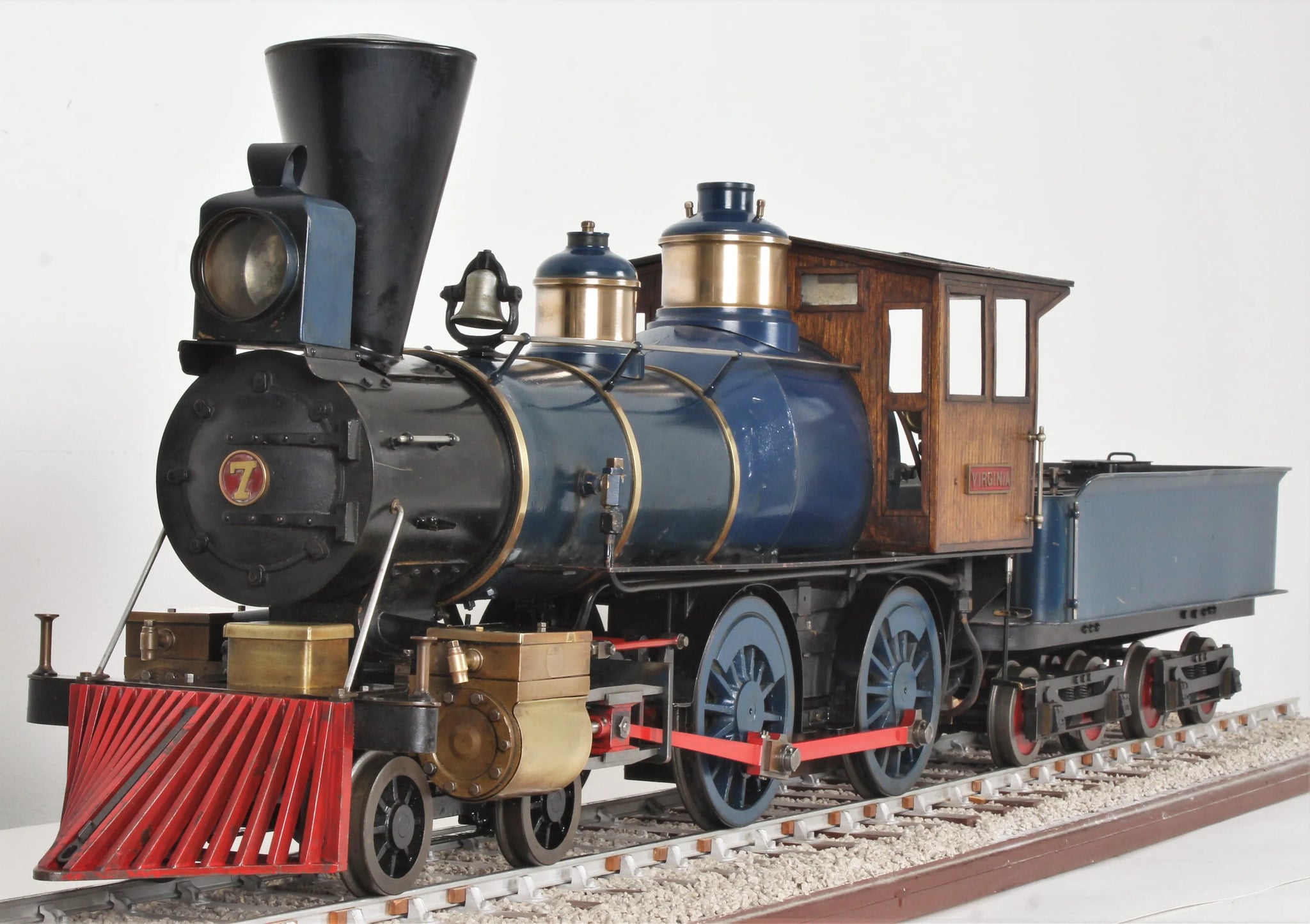

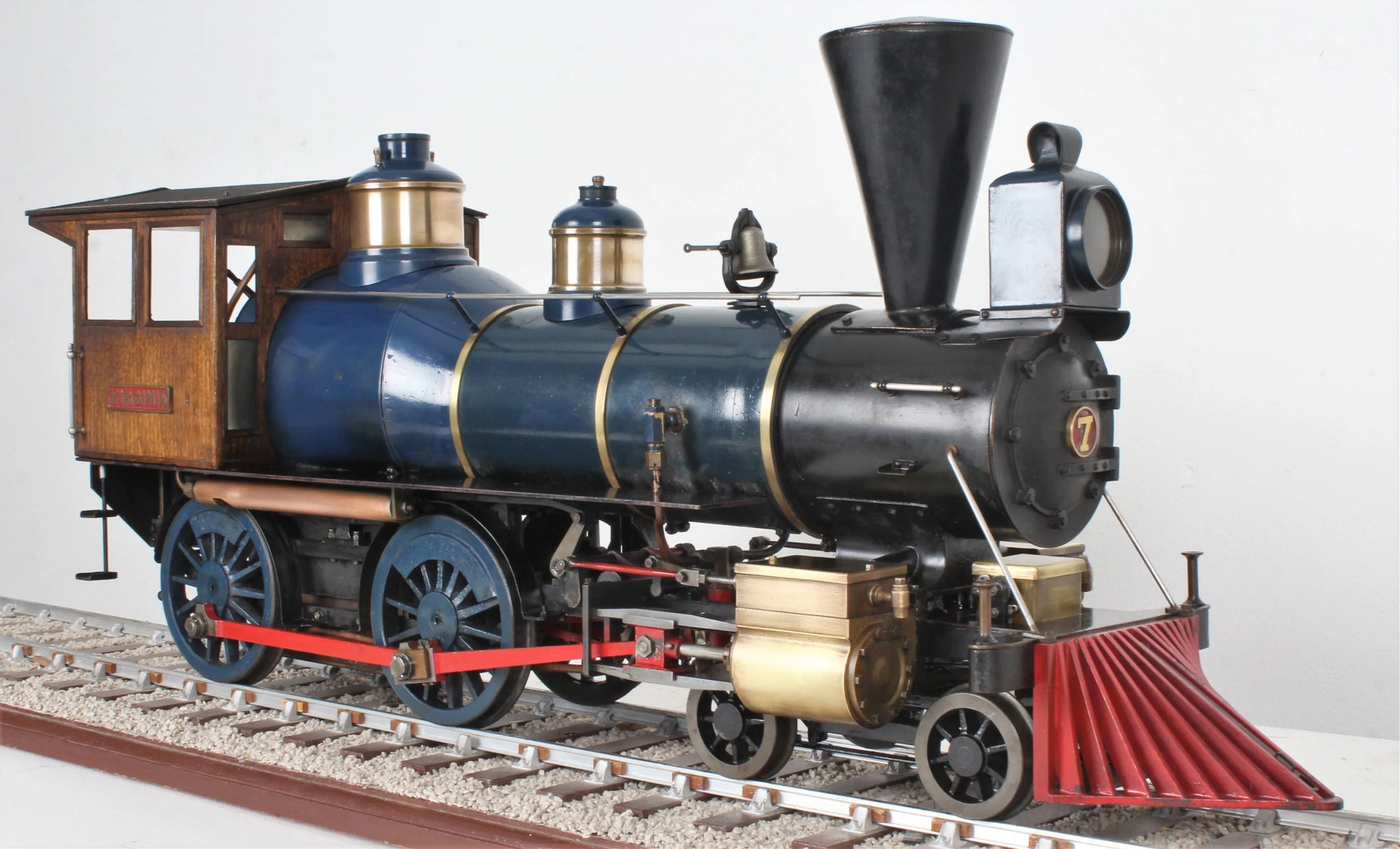

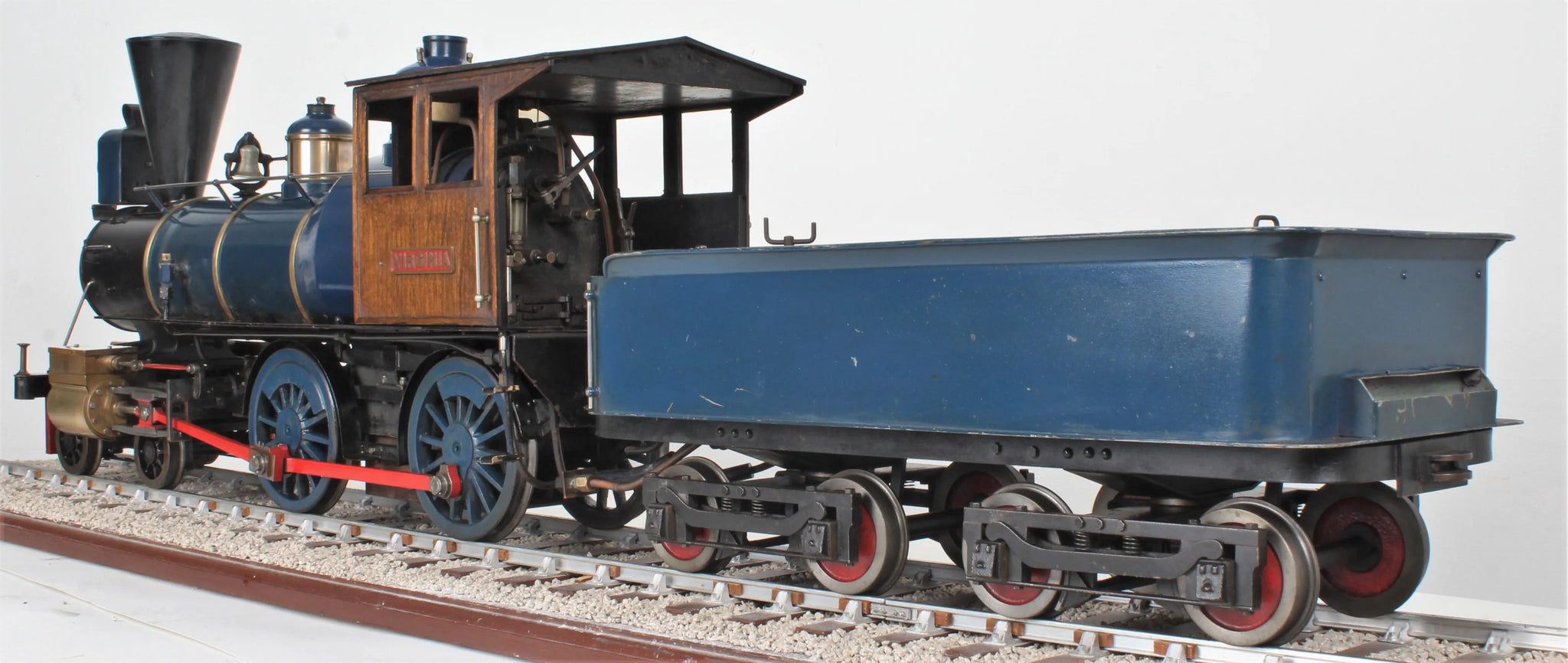

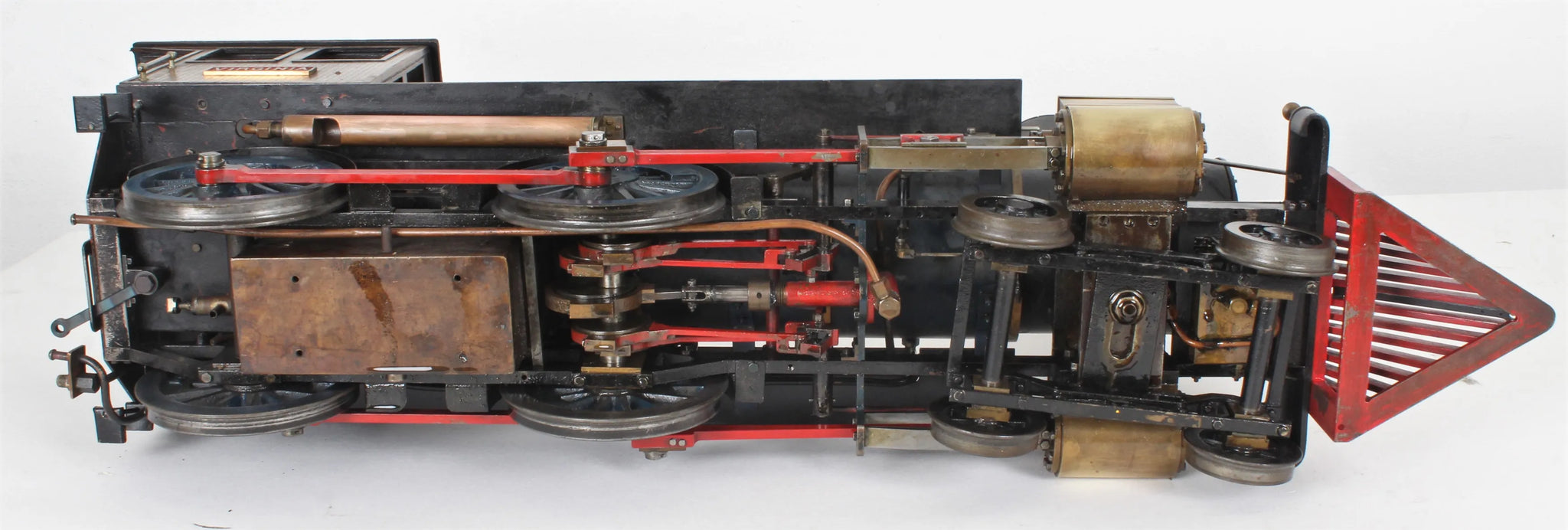

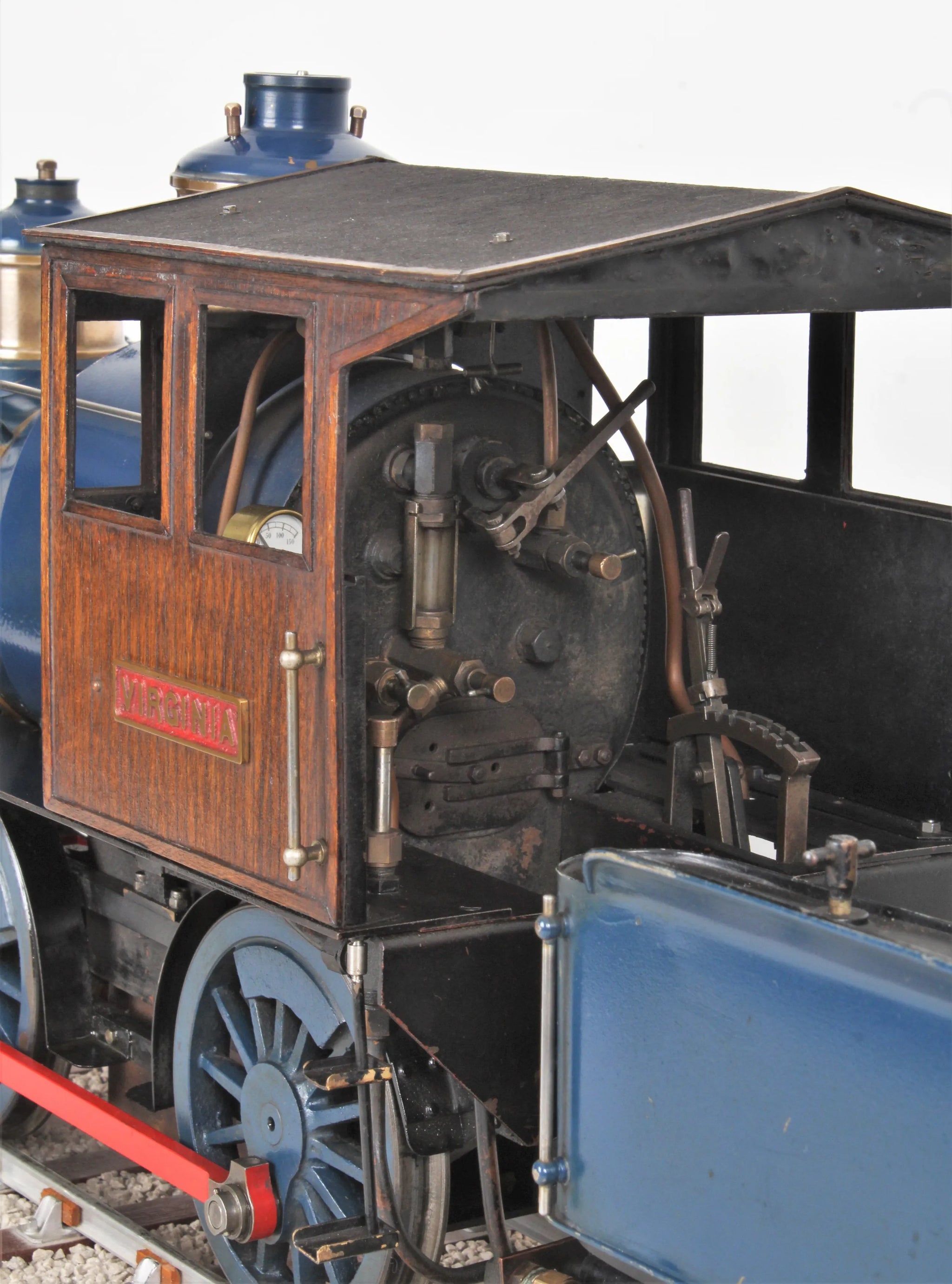

3 1/2 inch gauge "Virginia" 4-4-0

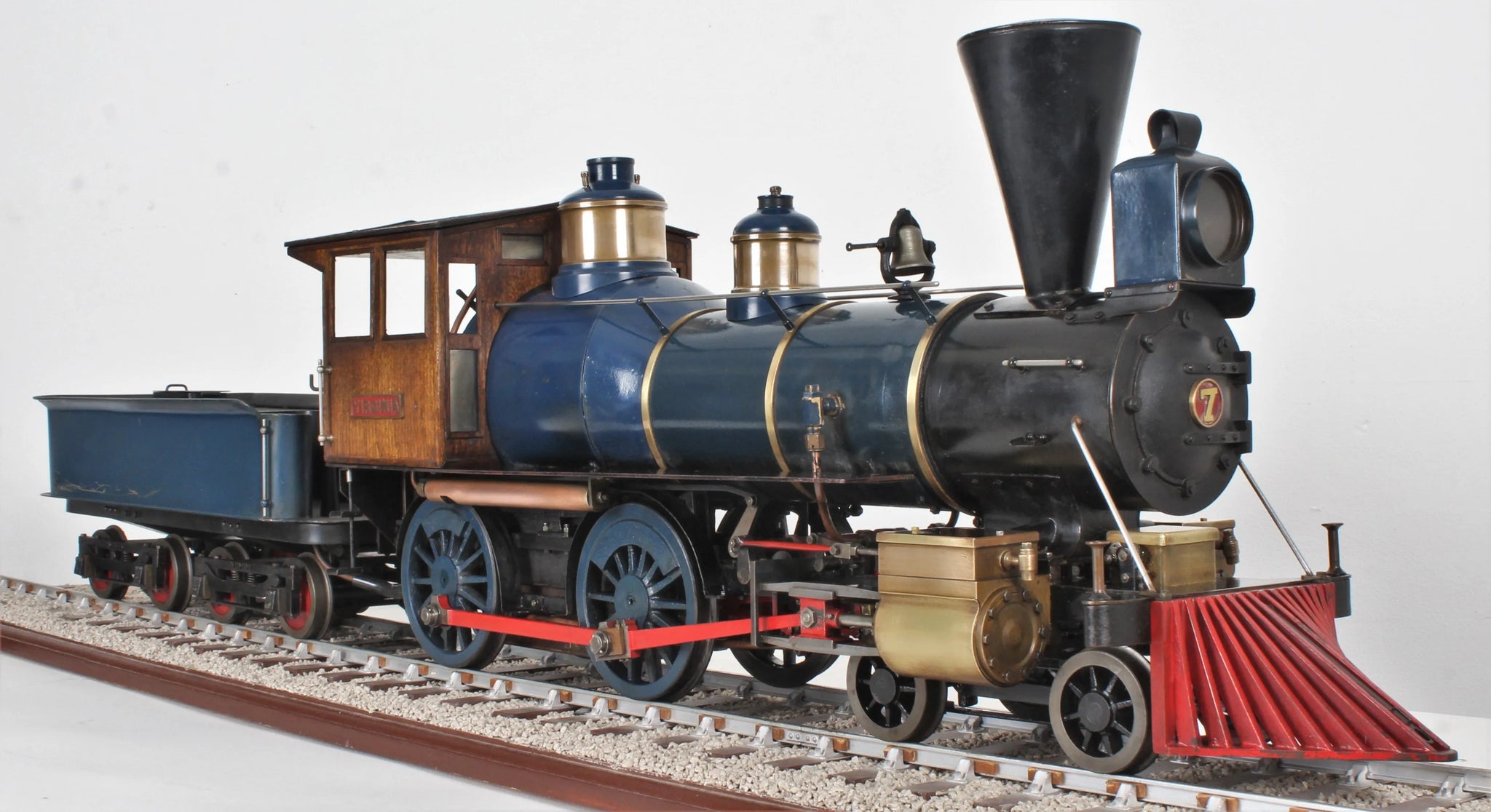

A well-built 3 1/2 inch gauge American 4-4-0 to LBSC's popular "Virginia" design, the work of a highly experienced model engineer who, over forty years built just about everything from a 2 1/2 inch gauge "Dyak" to 7 1/4 inch gauge LNER A4.

An older engine, paintwork is "lived in" although the engine itself still steam freely and runs well - there's a clip of it running outside the workshop here., notching up fully in forwards and a useful couple of notches in reverse.

Safety valves open at 90psi and drop 10psi before closing cleanly with a "pop", water feeds all work well. The regulator leaks past slightly.

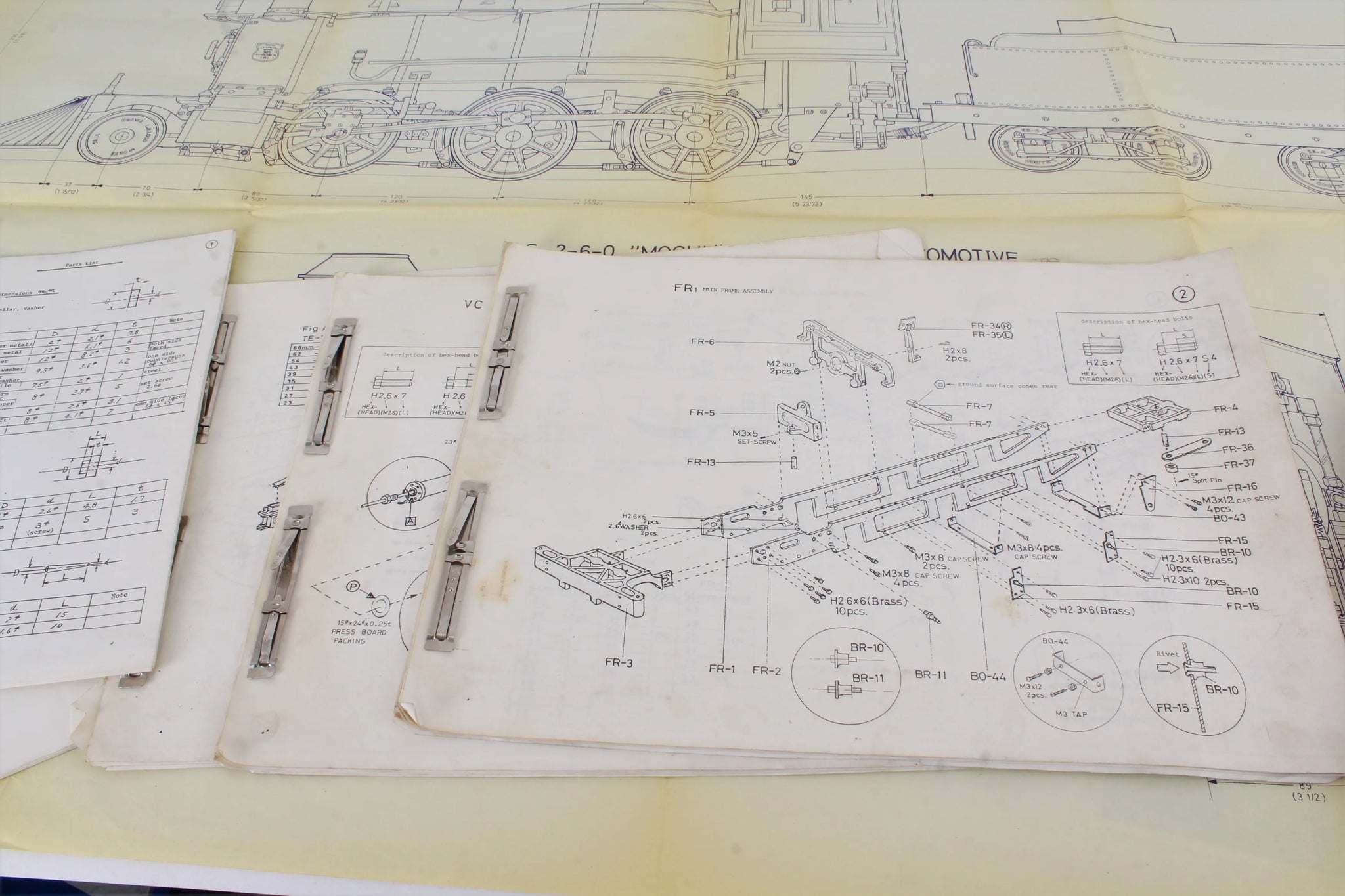

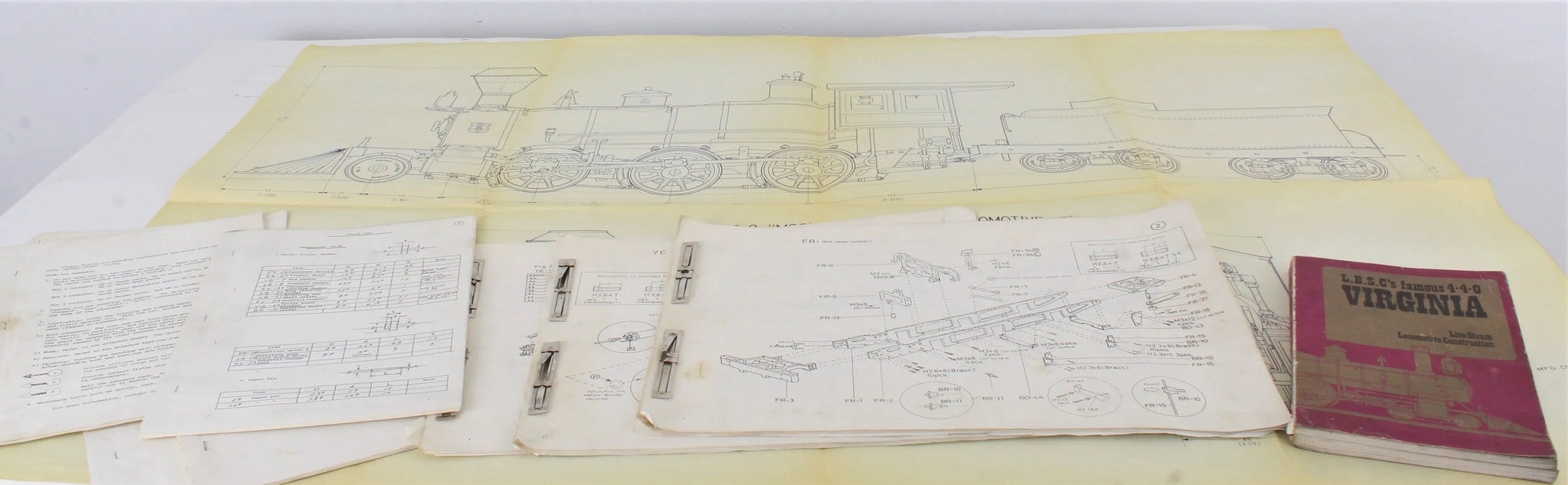

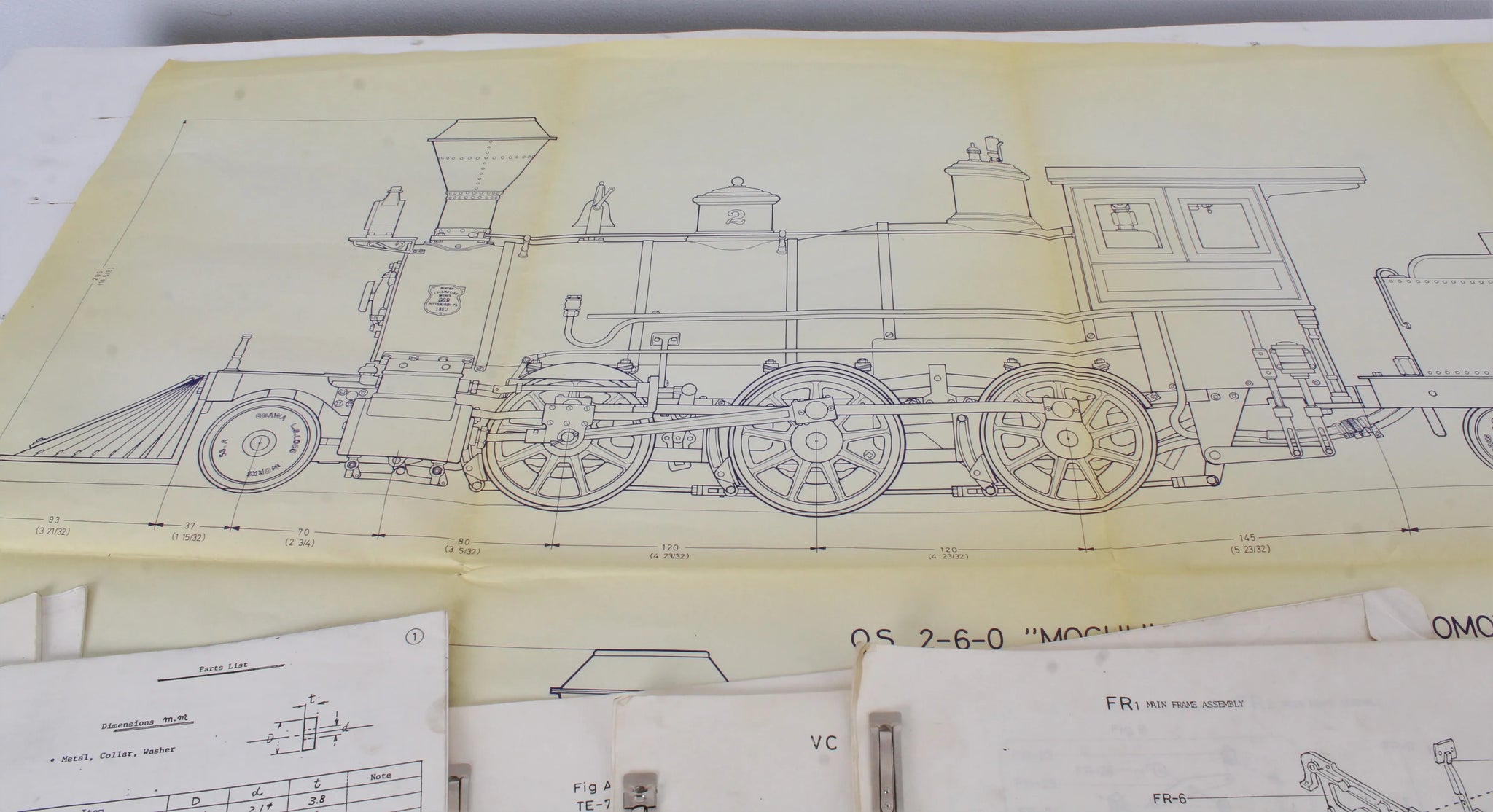

Complete with drawings and construction manual with LBSC's "words & music".

Technical information

Stock code

9285

Gauge

3 1/2 inch

Length/inches

27 + 17

Width/inches

7

Height/inches

13

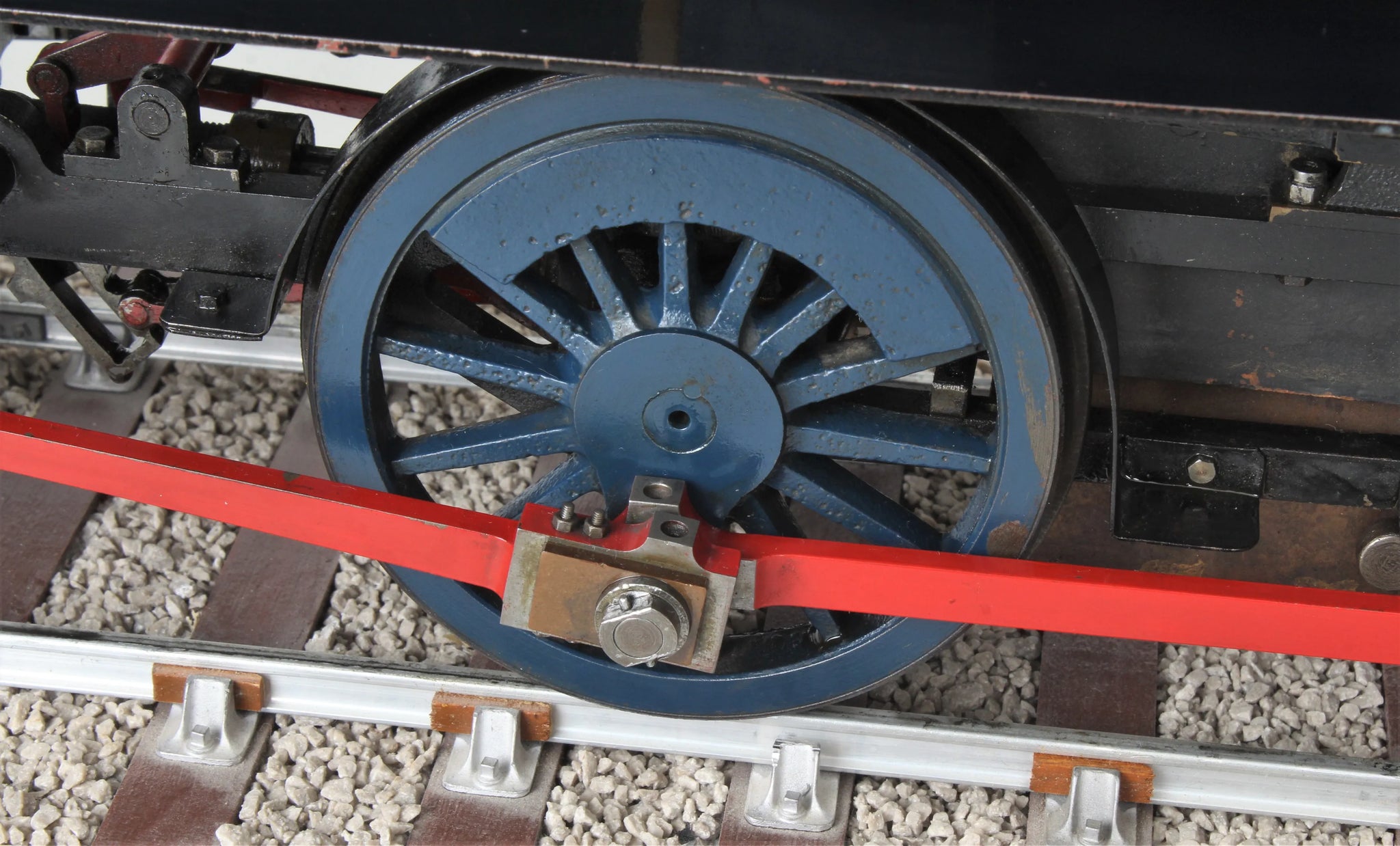

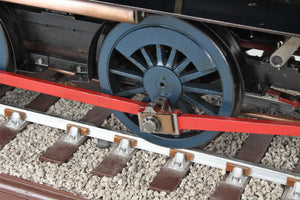

Wheel material

cast iron

Axlebox type

plain bearing

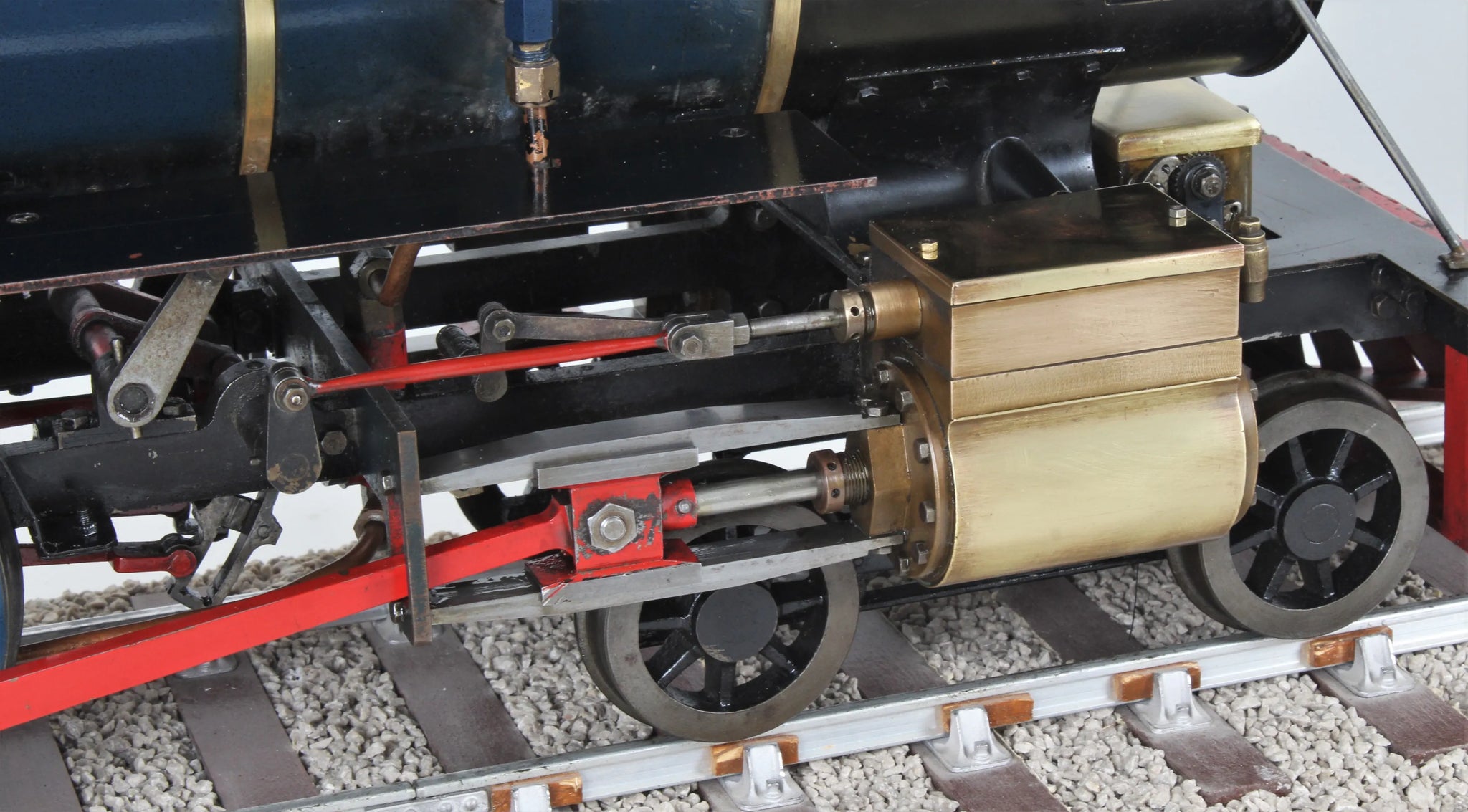

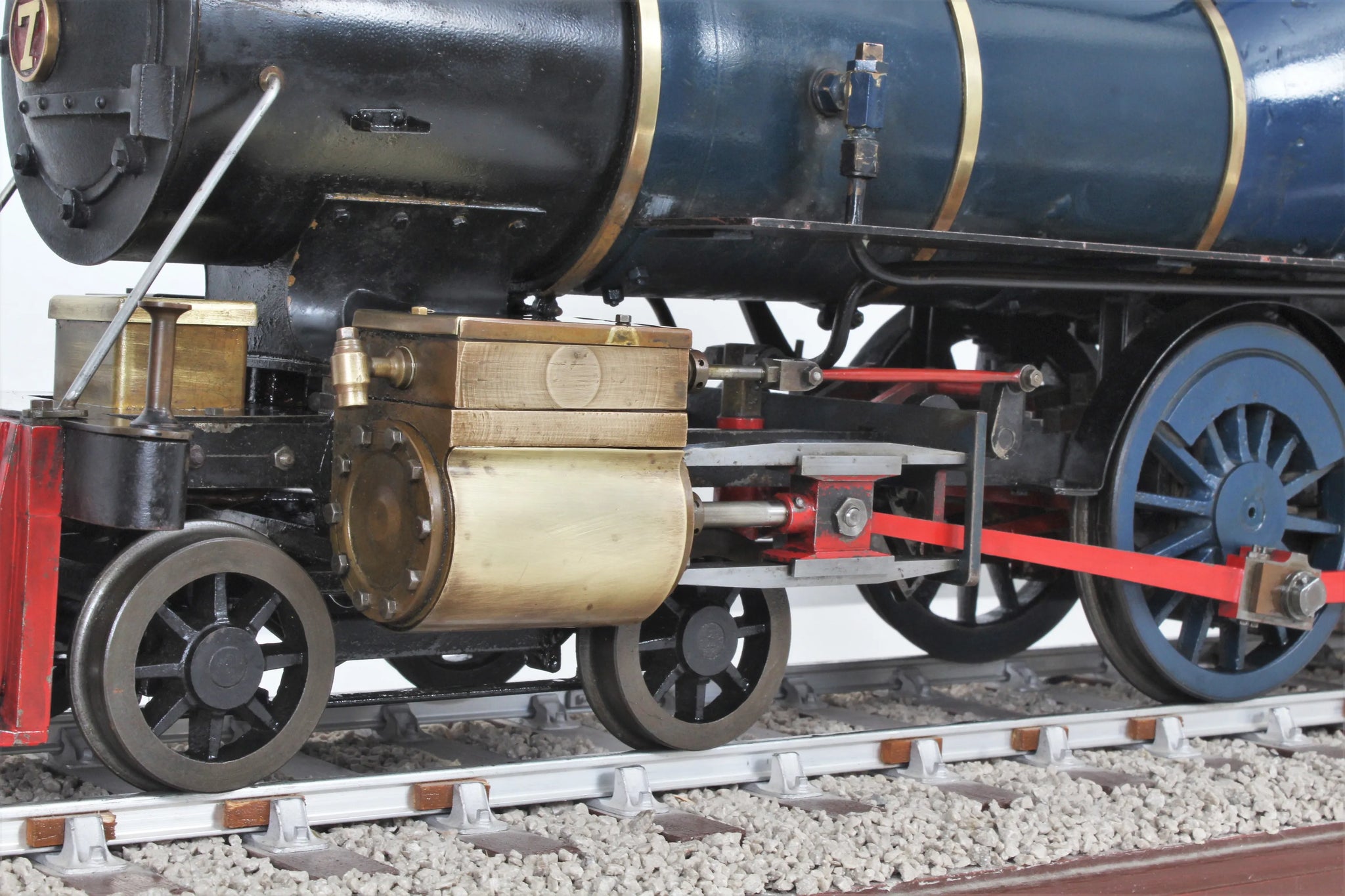

Cylinder material

gunmetal

Valve type

slide

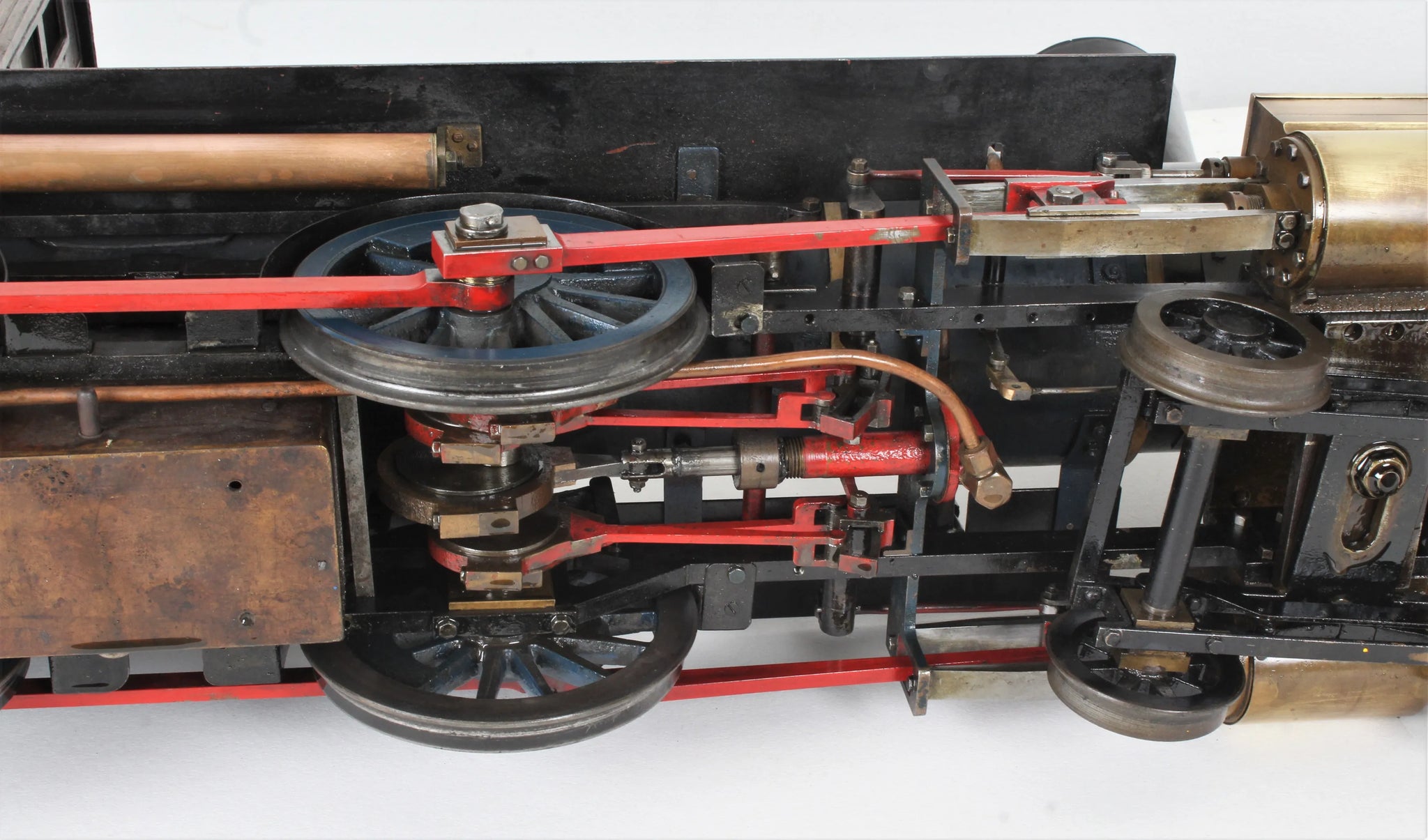

Valve gear

Stephensons

Reverser type

pole

Lubricator type

mechanical

Boiler maker

P Beeby

Boiler type

locomotive

Boiler construction

silver soldered

Boiler material

copper

Working pressure

90

Year built

1981

Boiler number

192

Safety valve type

spring

Safety valve

1

Whistle

yes

Hand pump

1

Mechanical pump

1

Superheater type

flue tube

Superheater

2

Date out

Dec-20

Hydraulic test valid to

27-Oct-24

Steam test valid to

01-Jan-22
