Sold

10077

3 1/2 inch narrow gauge Alco 2-6-2T "Mountaineer"

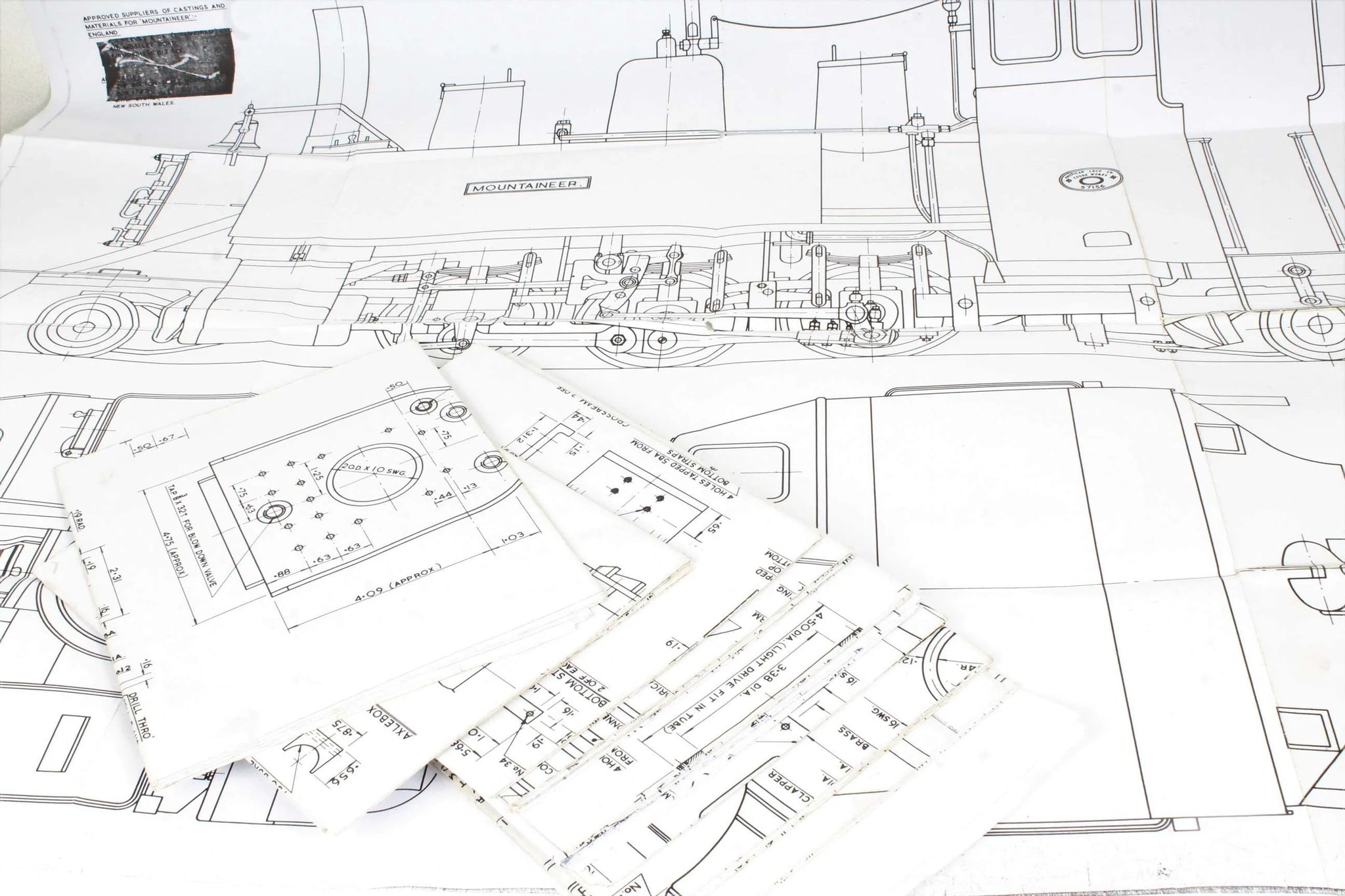

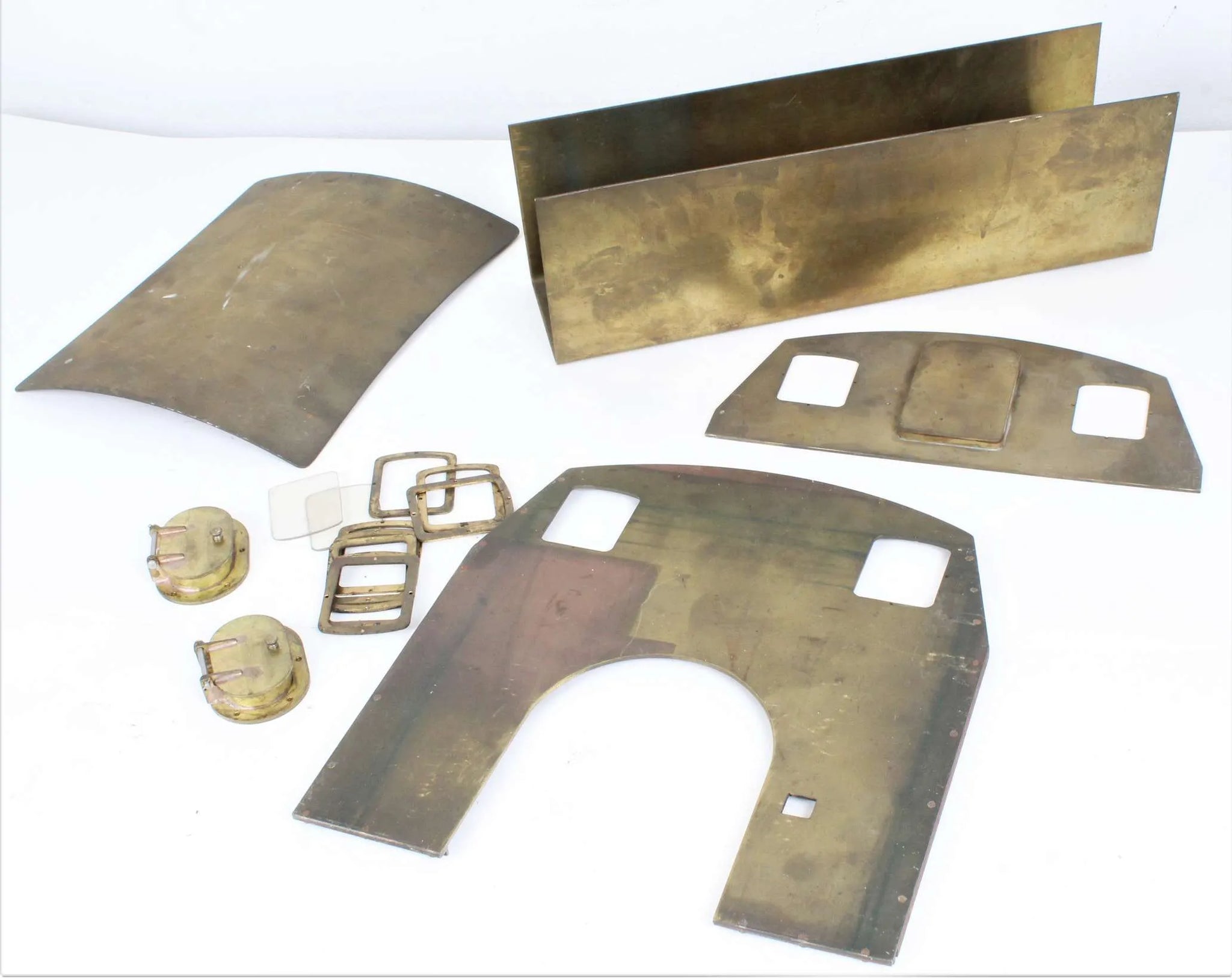

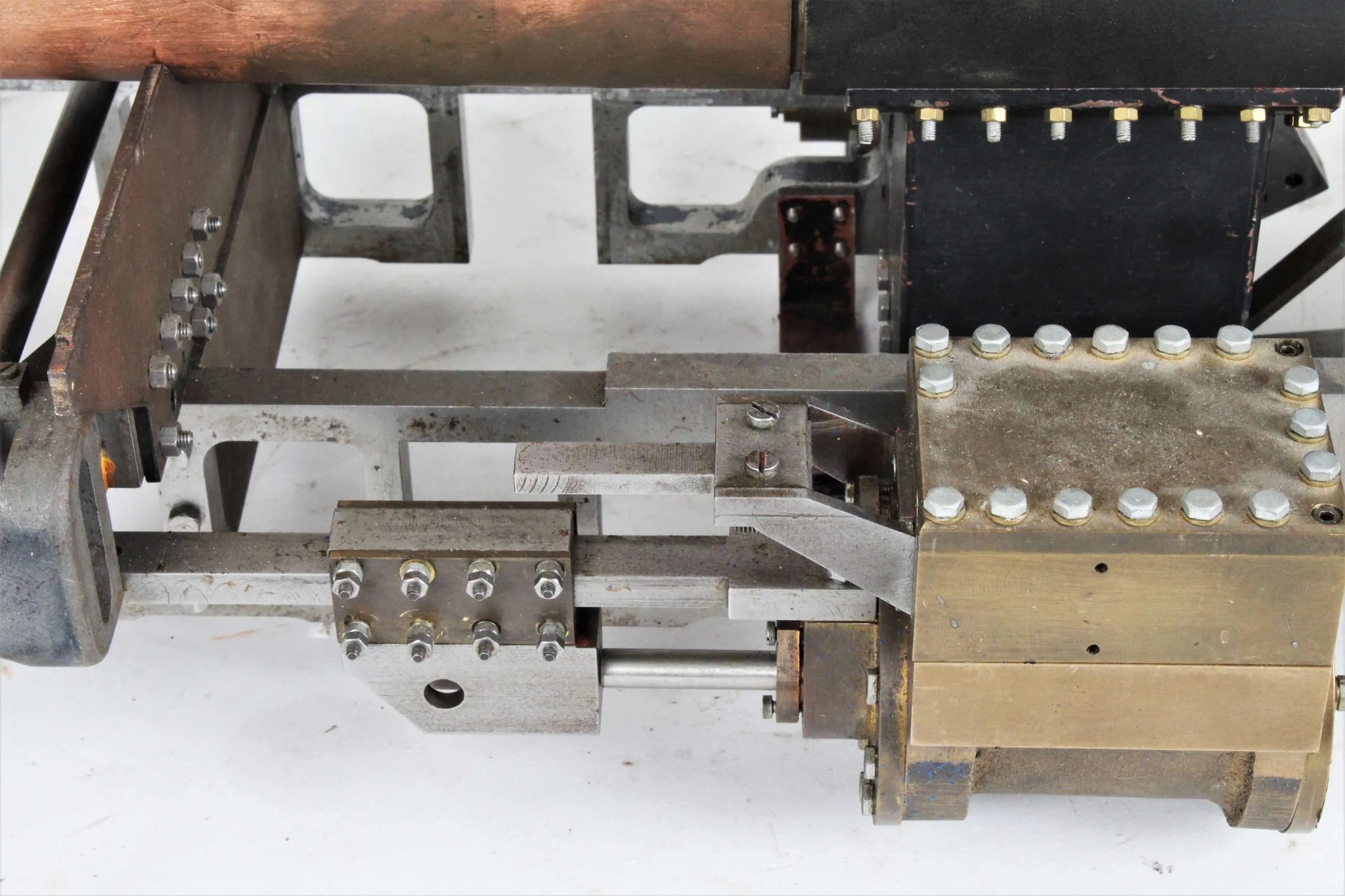

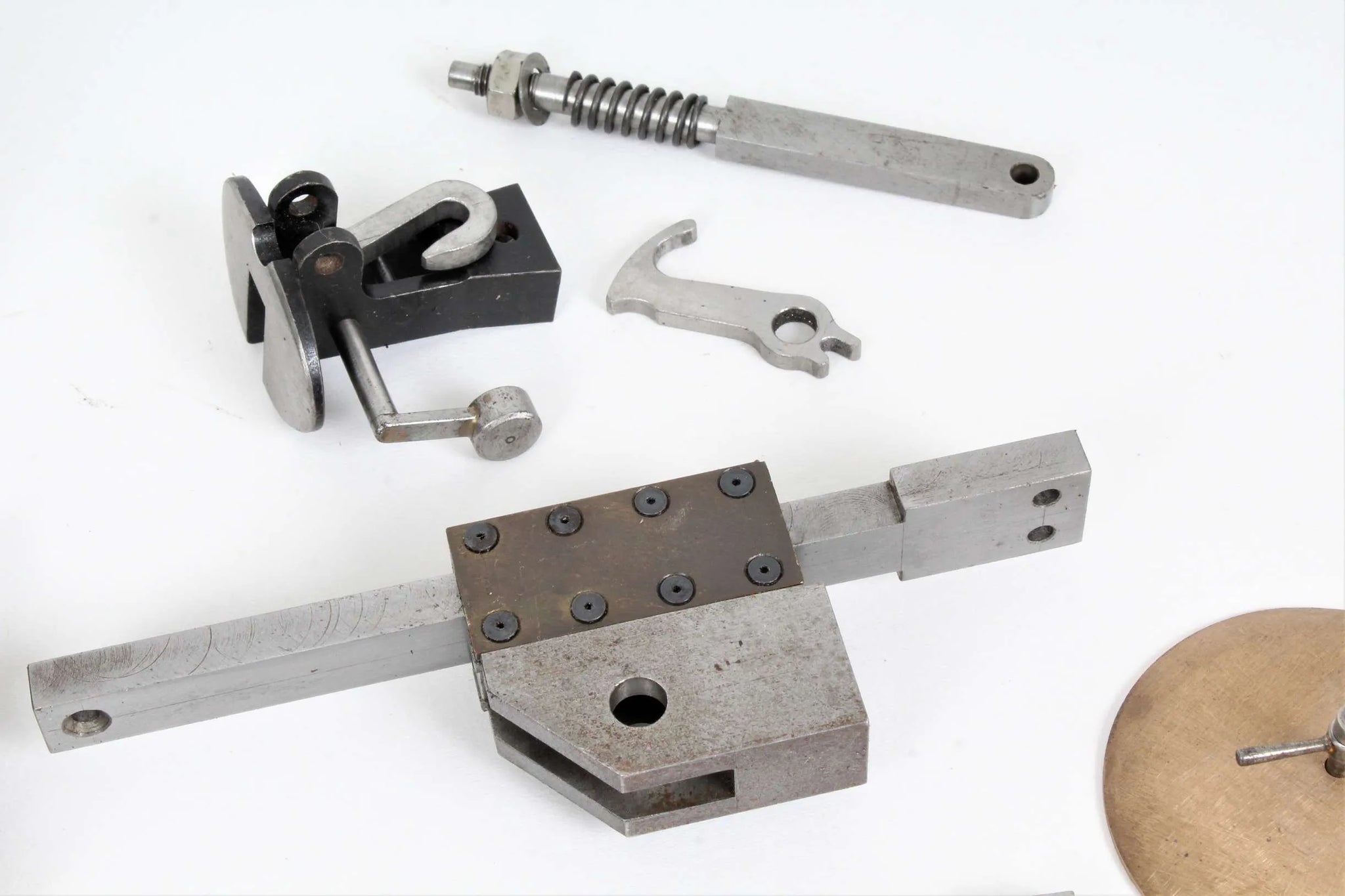

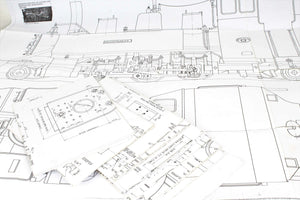

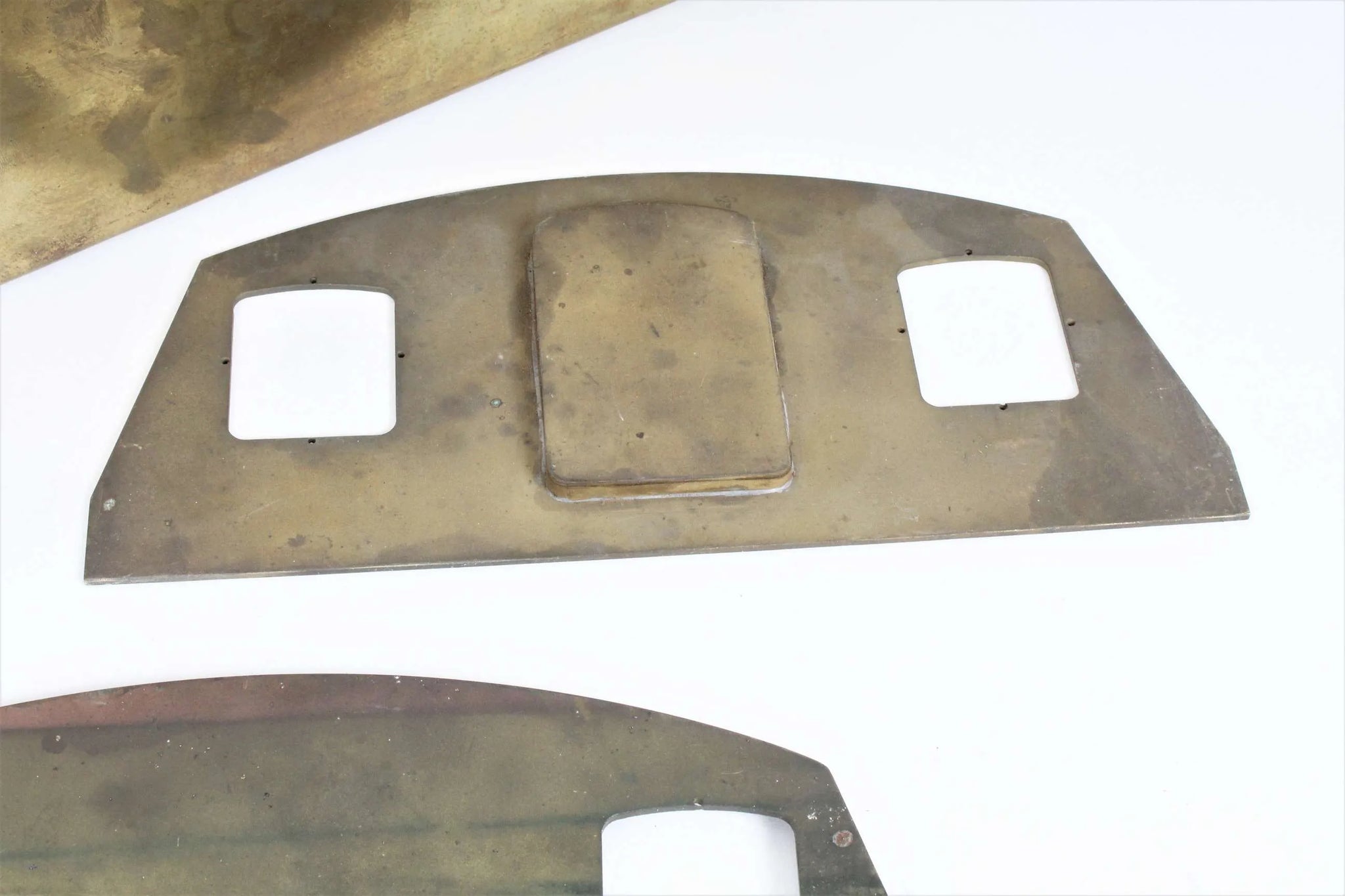

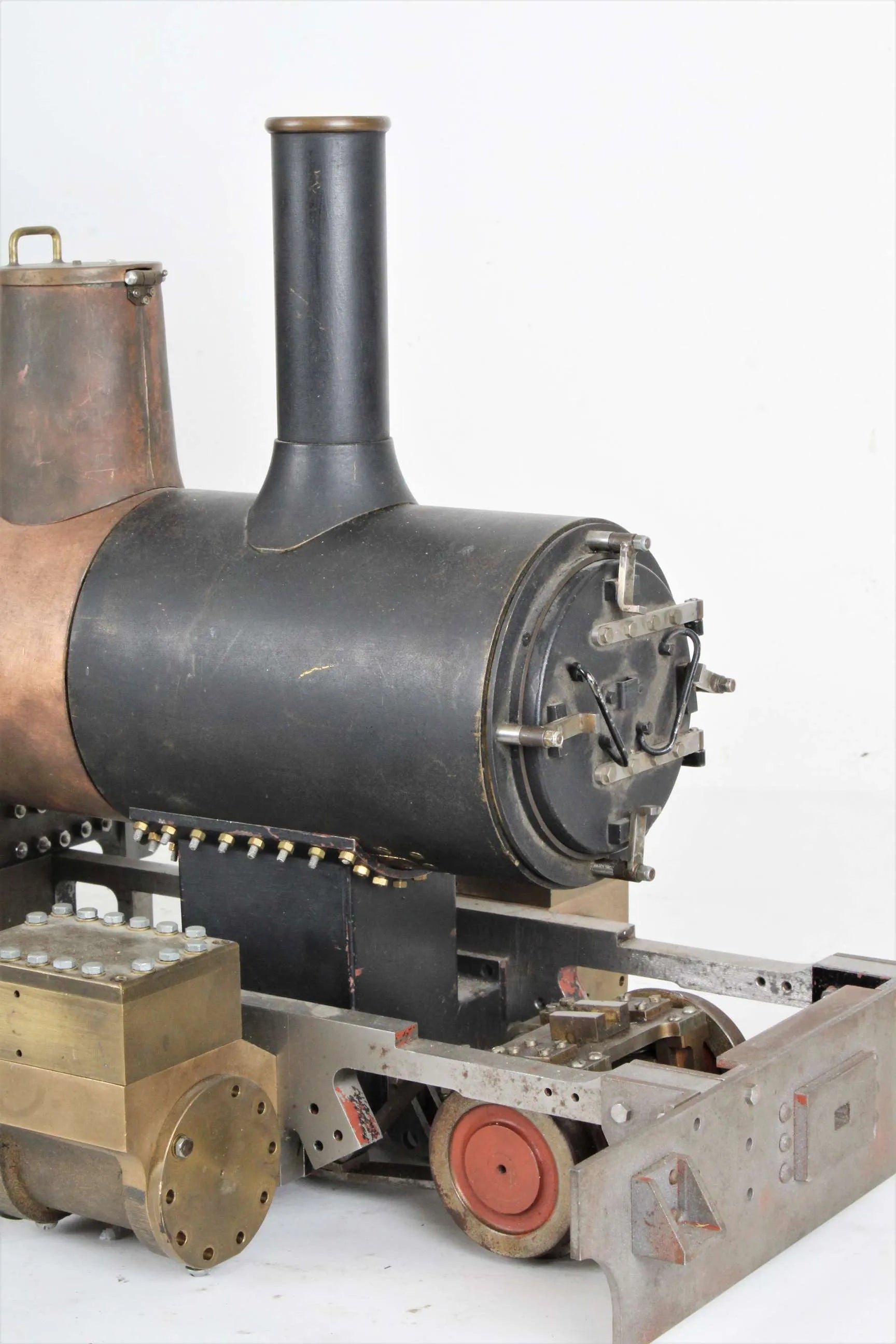

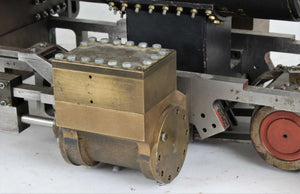

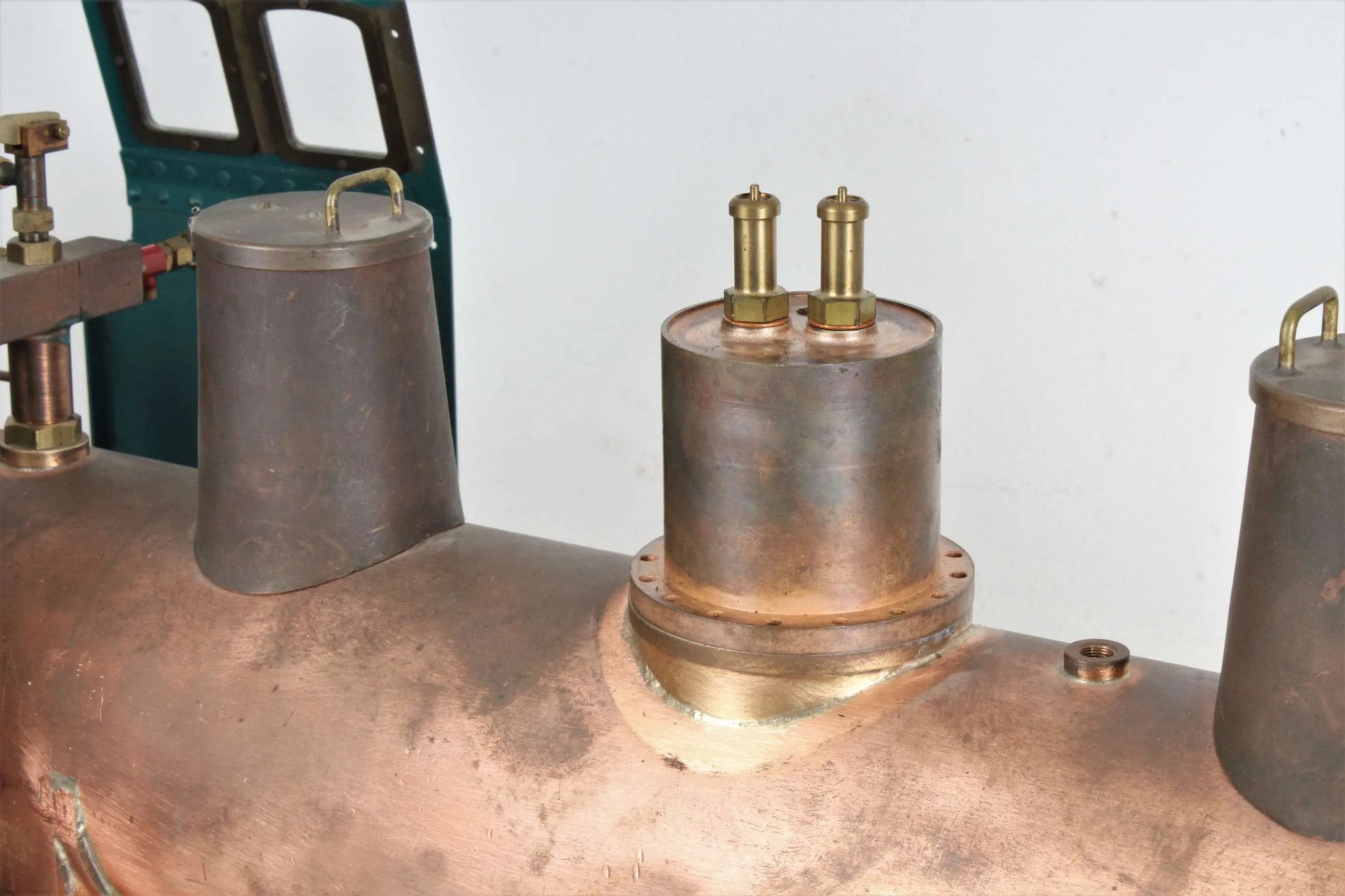

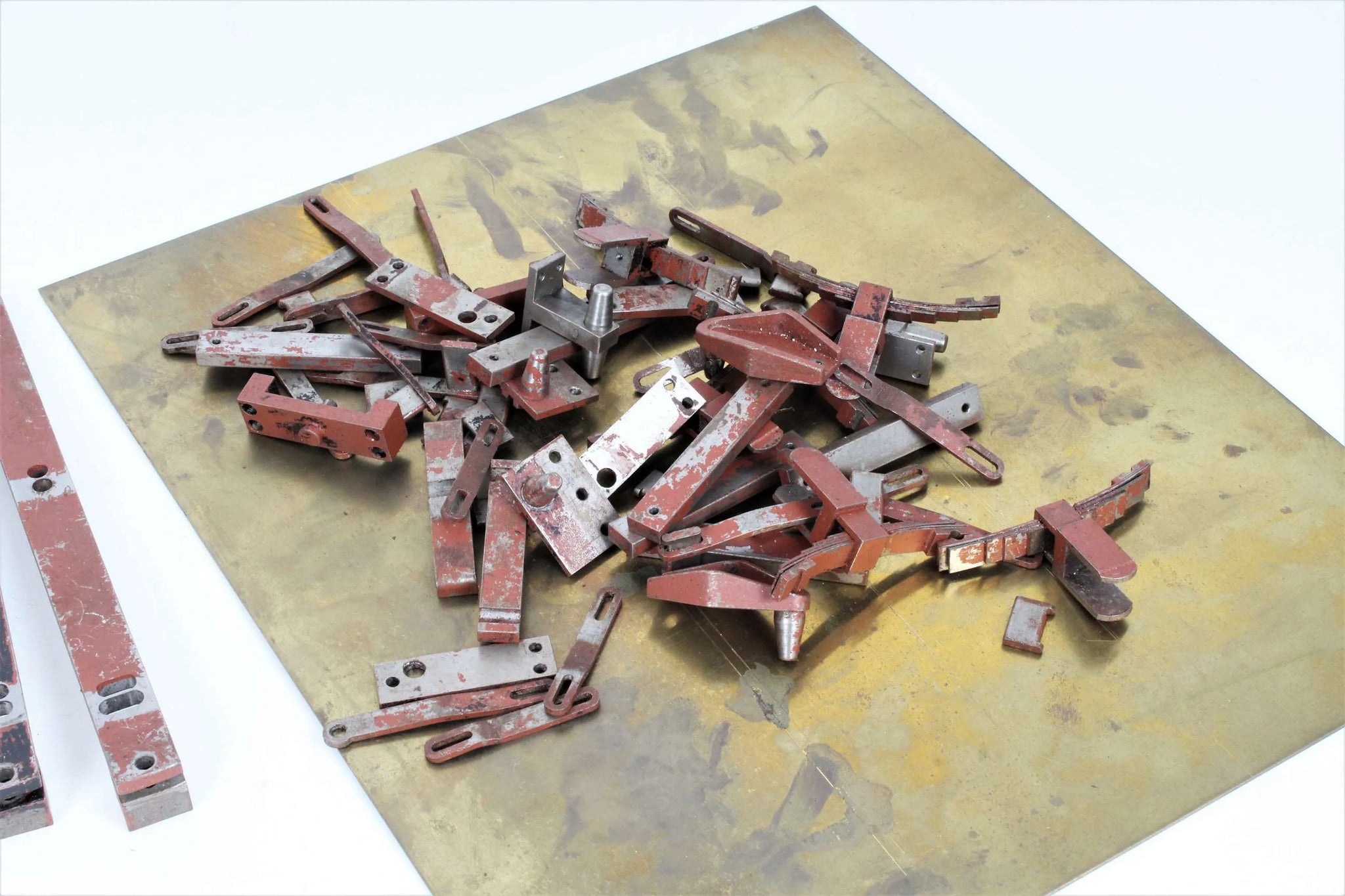

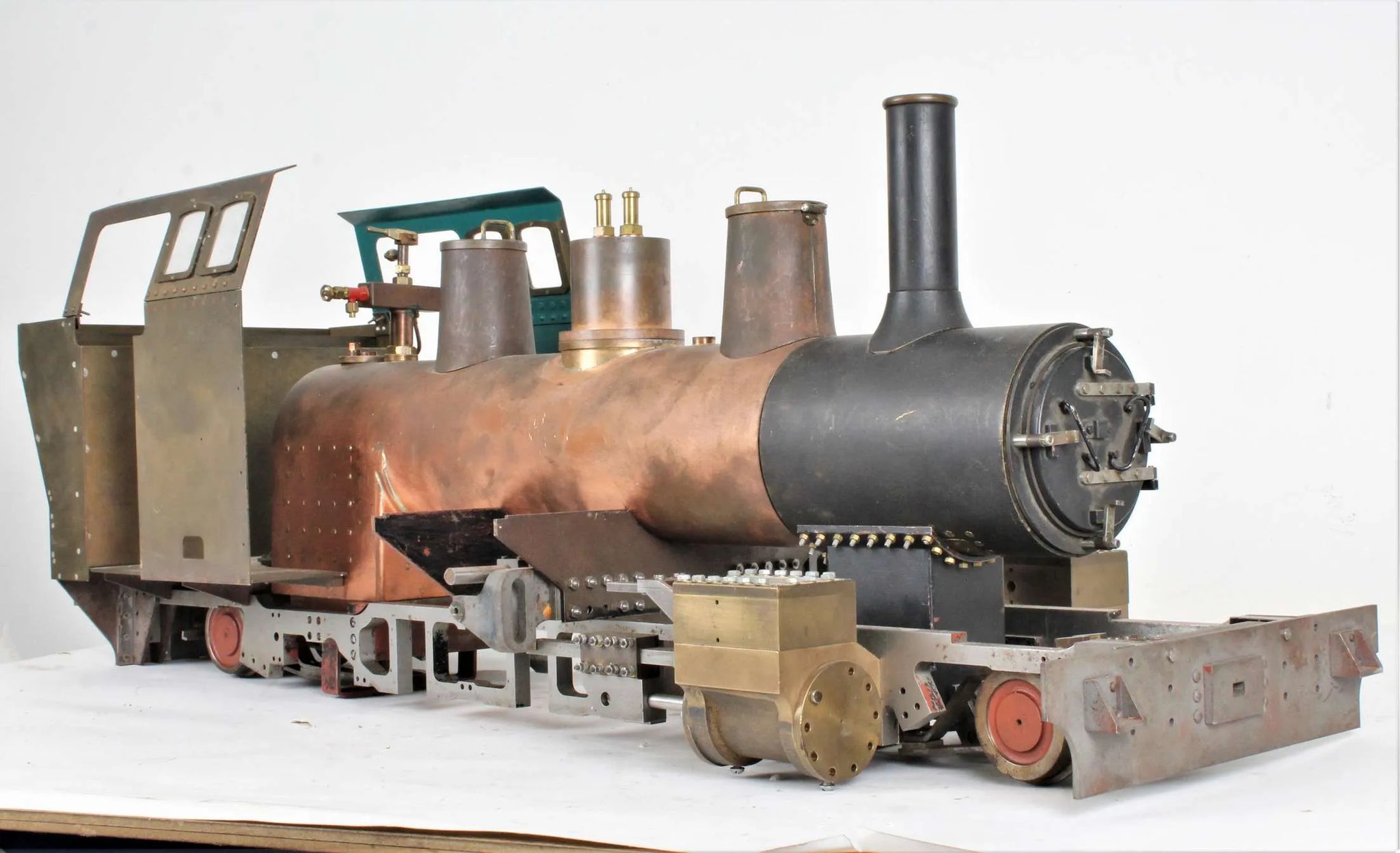

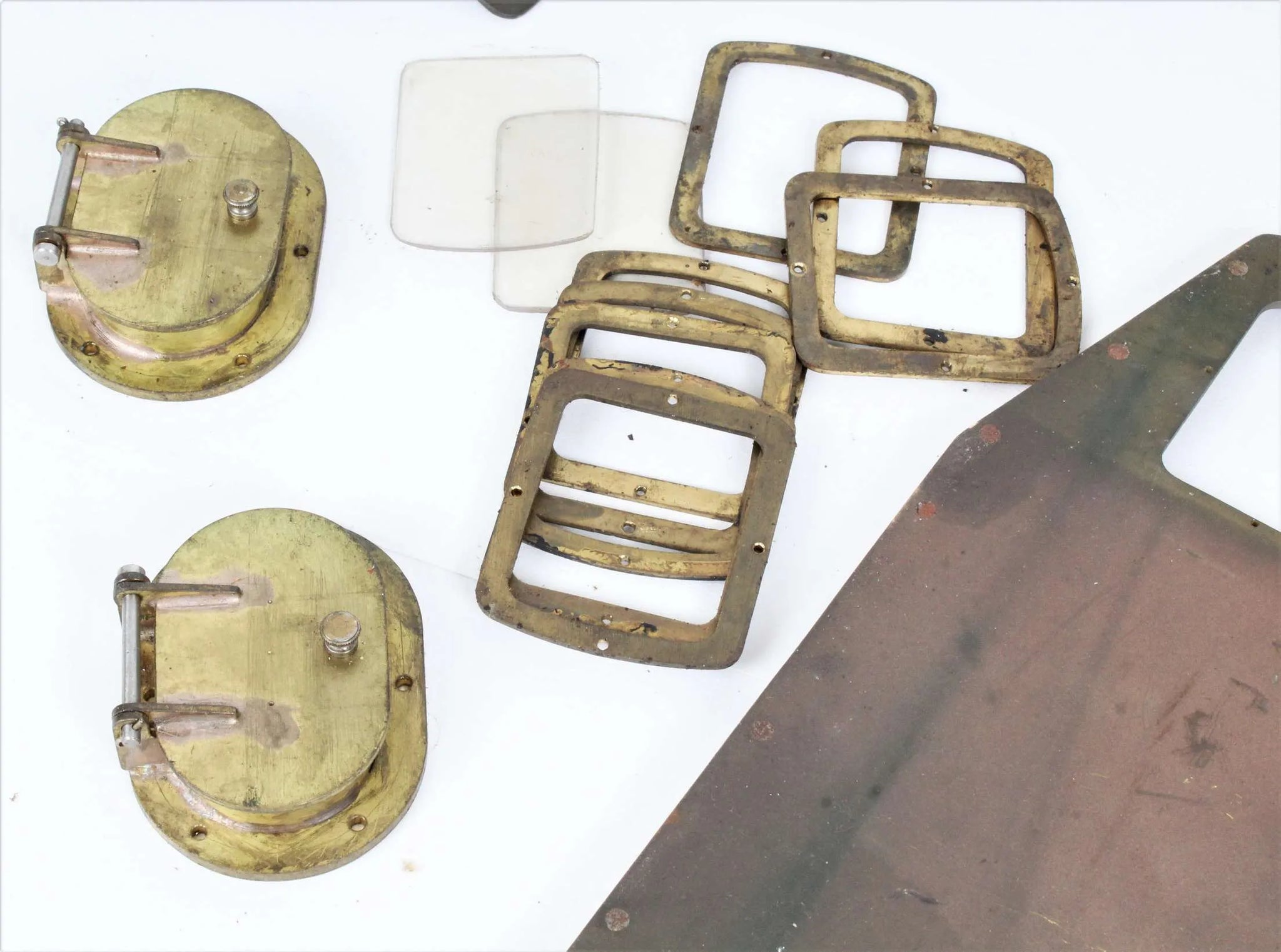

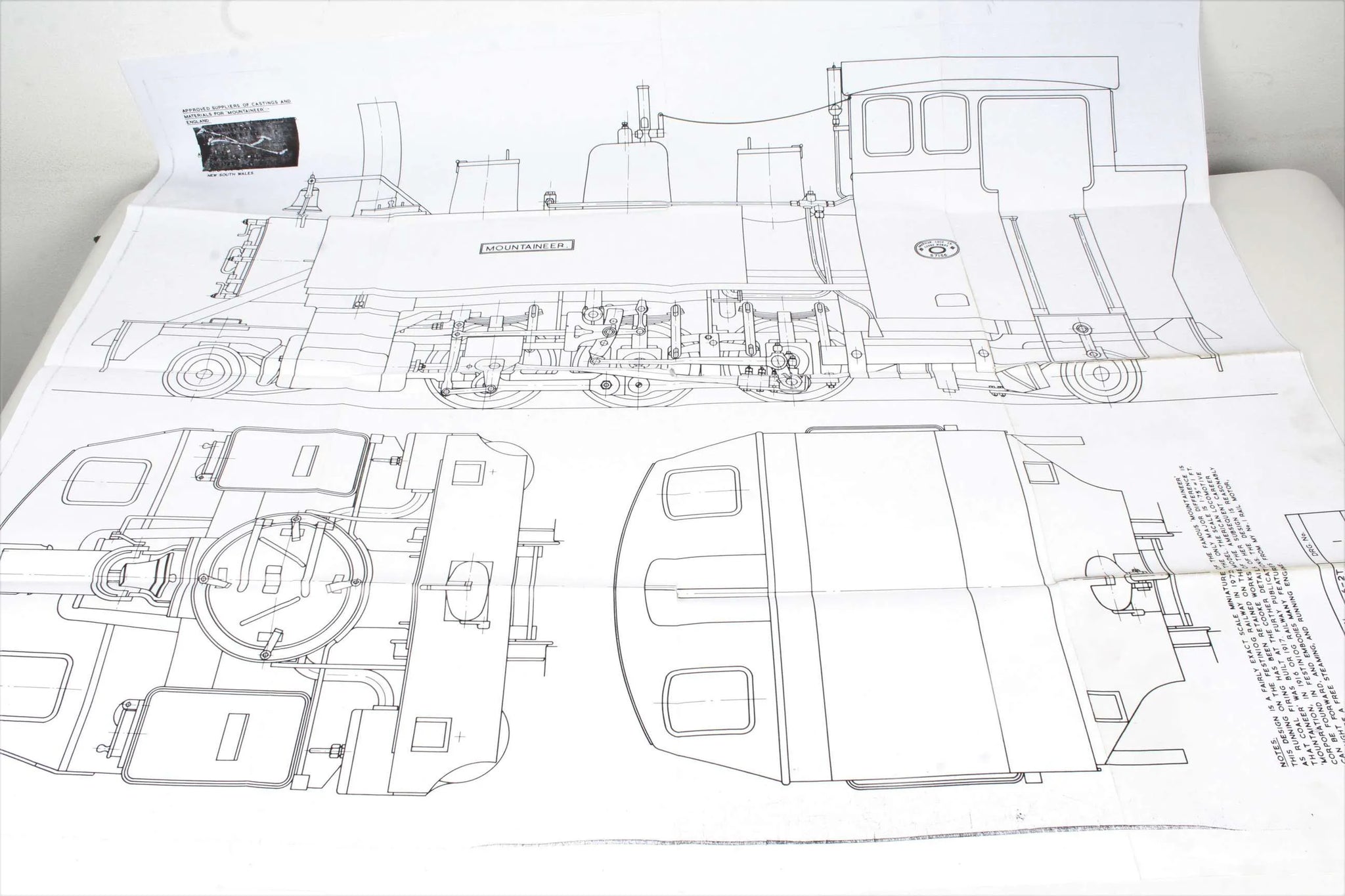

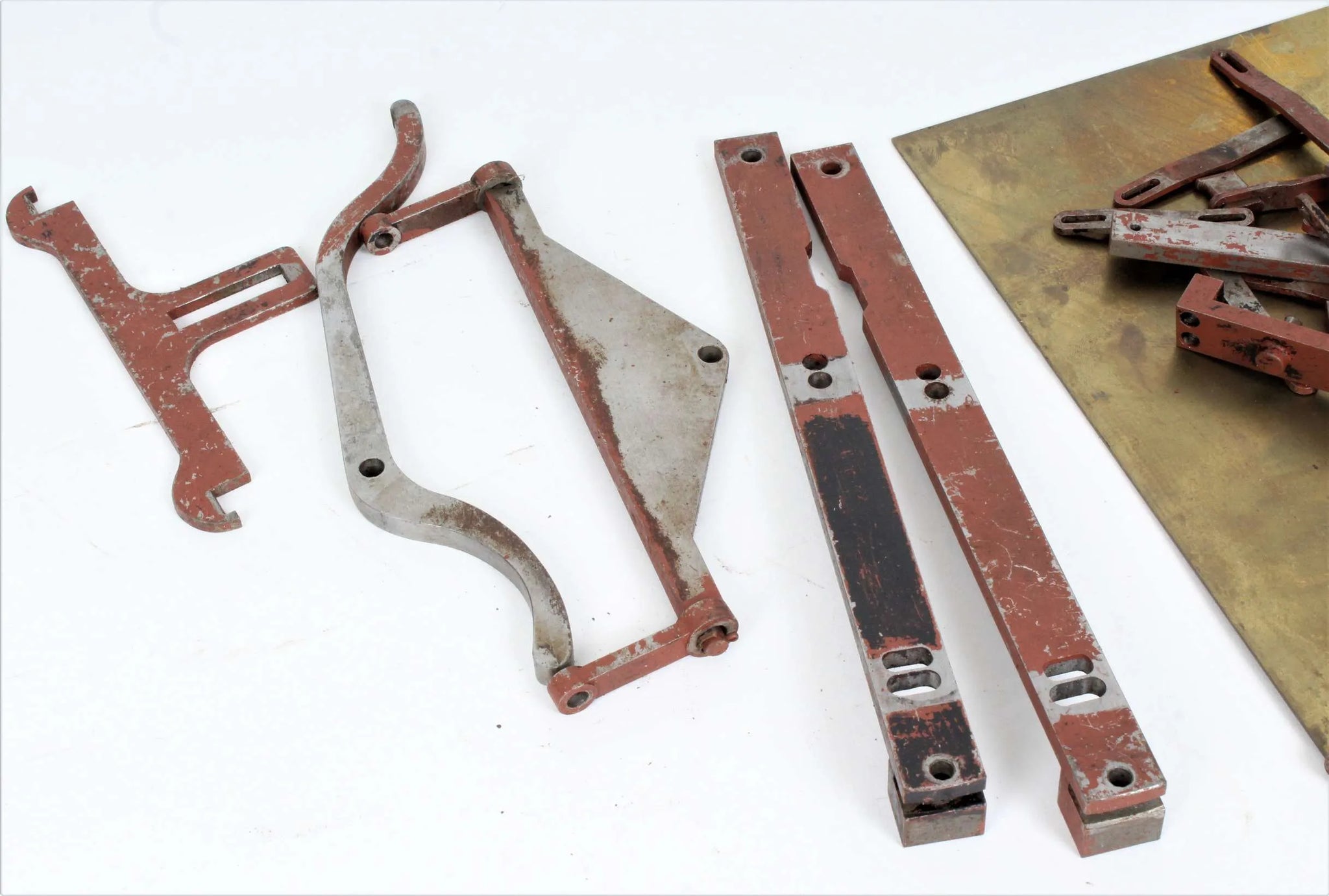

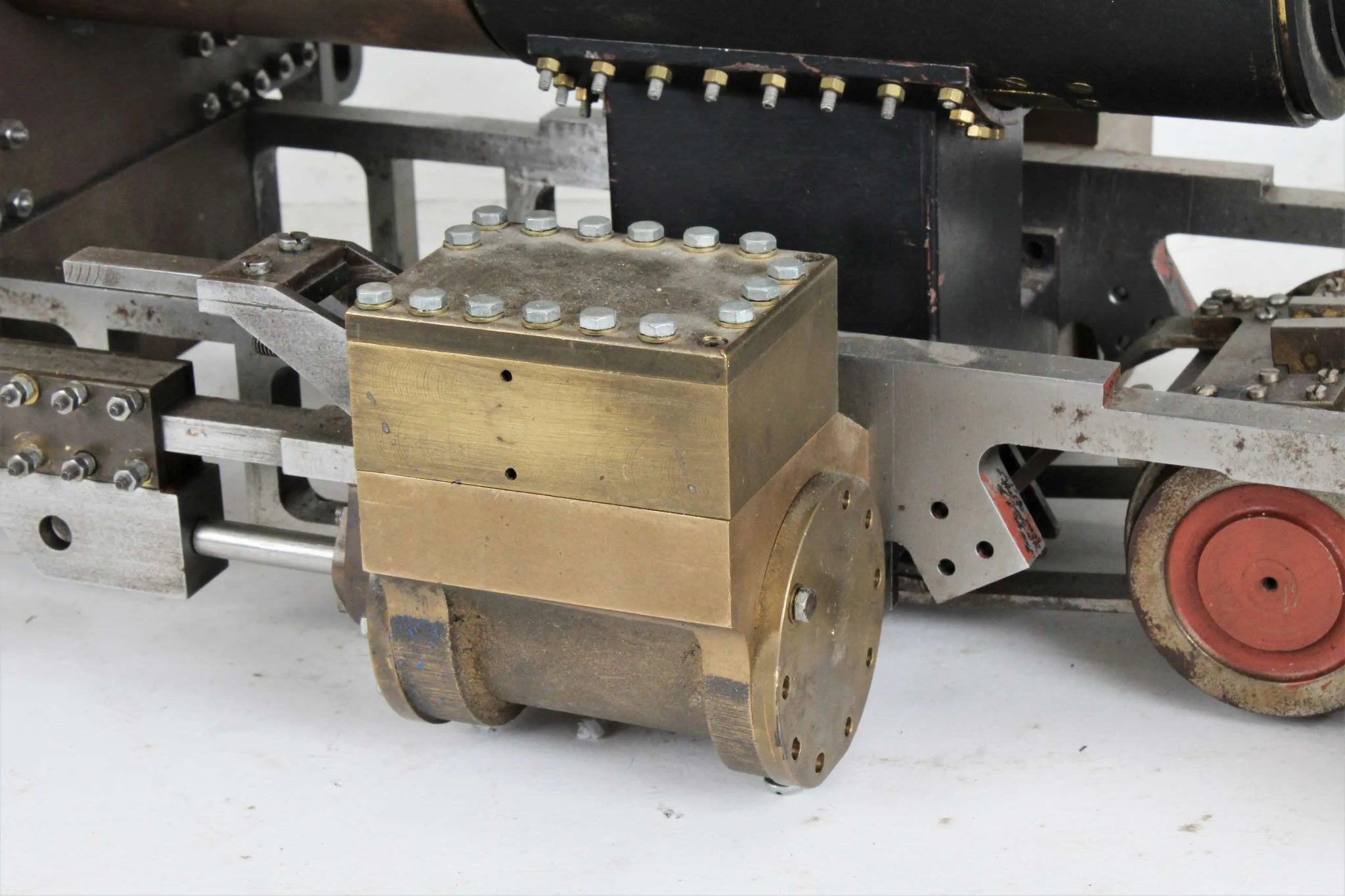

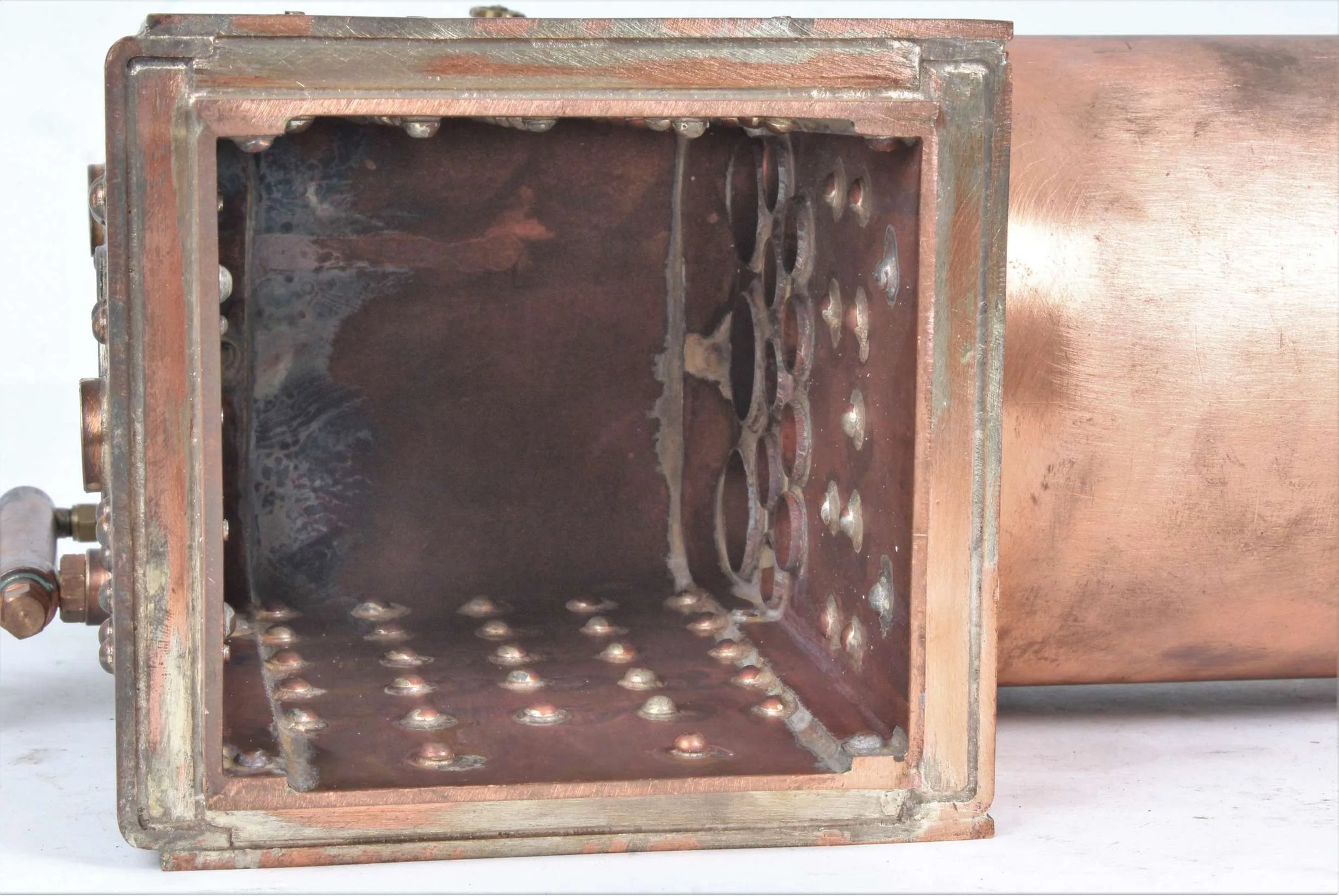

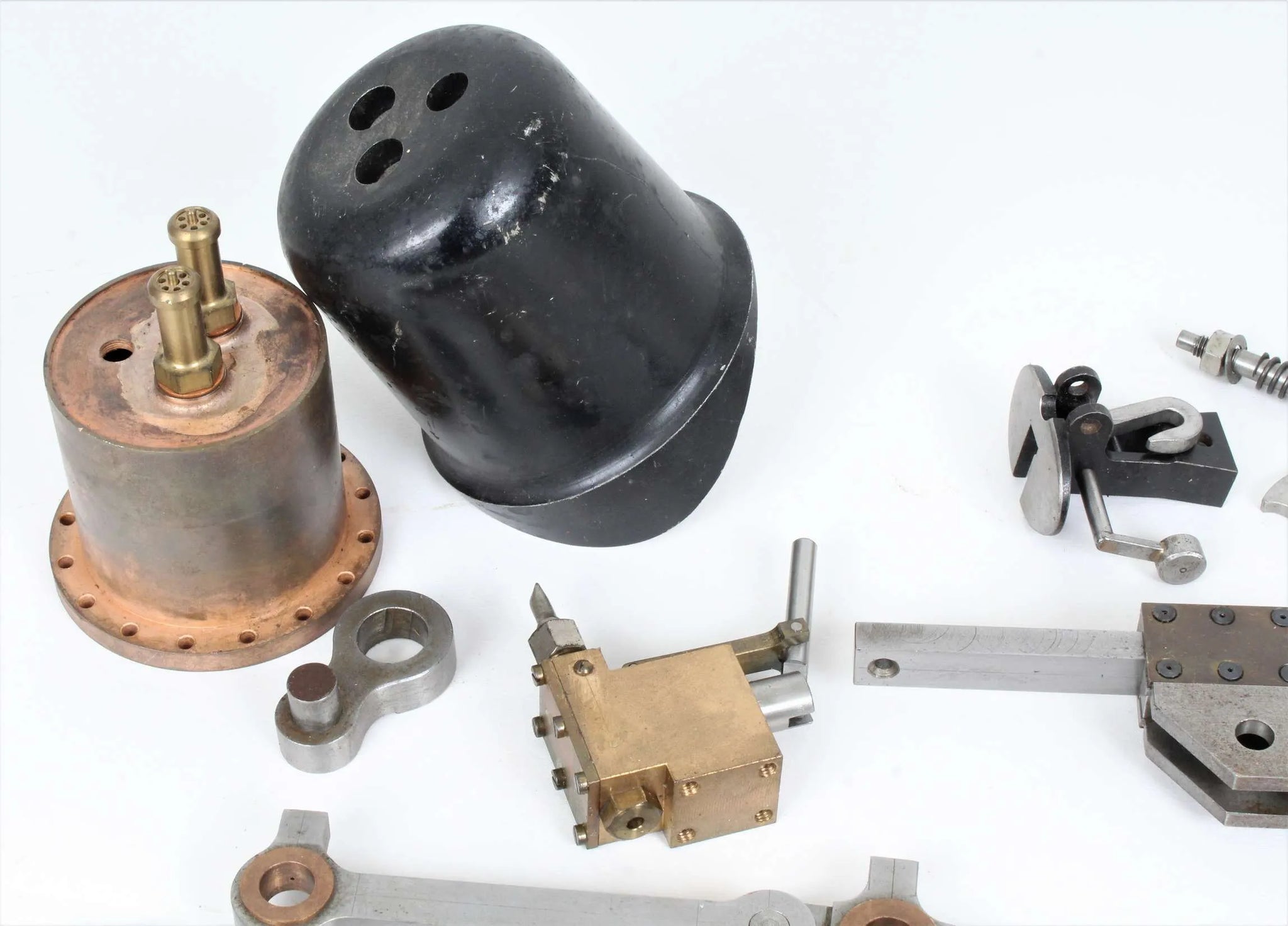

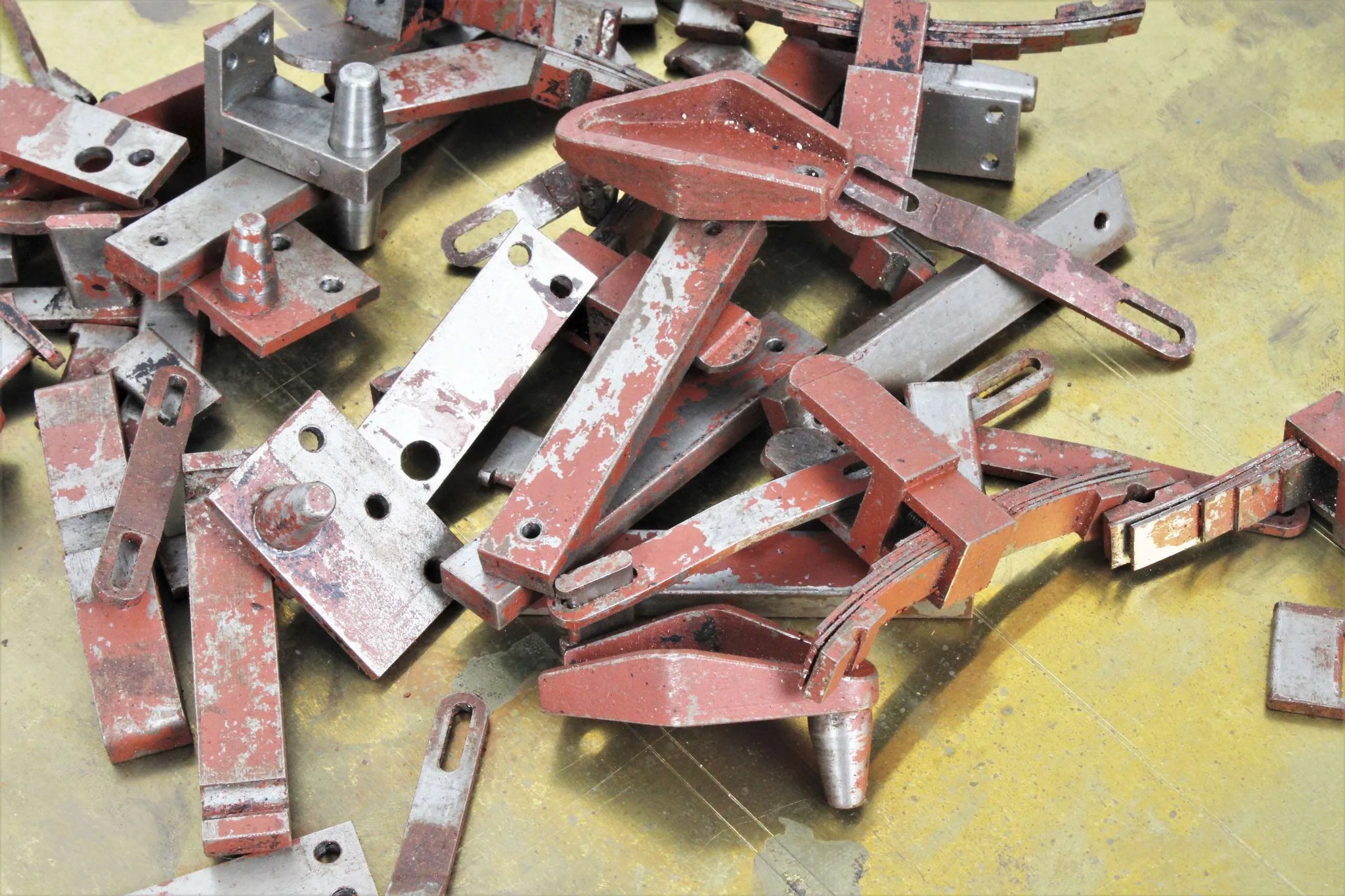

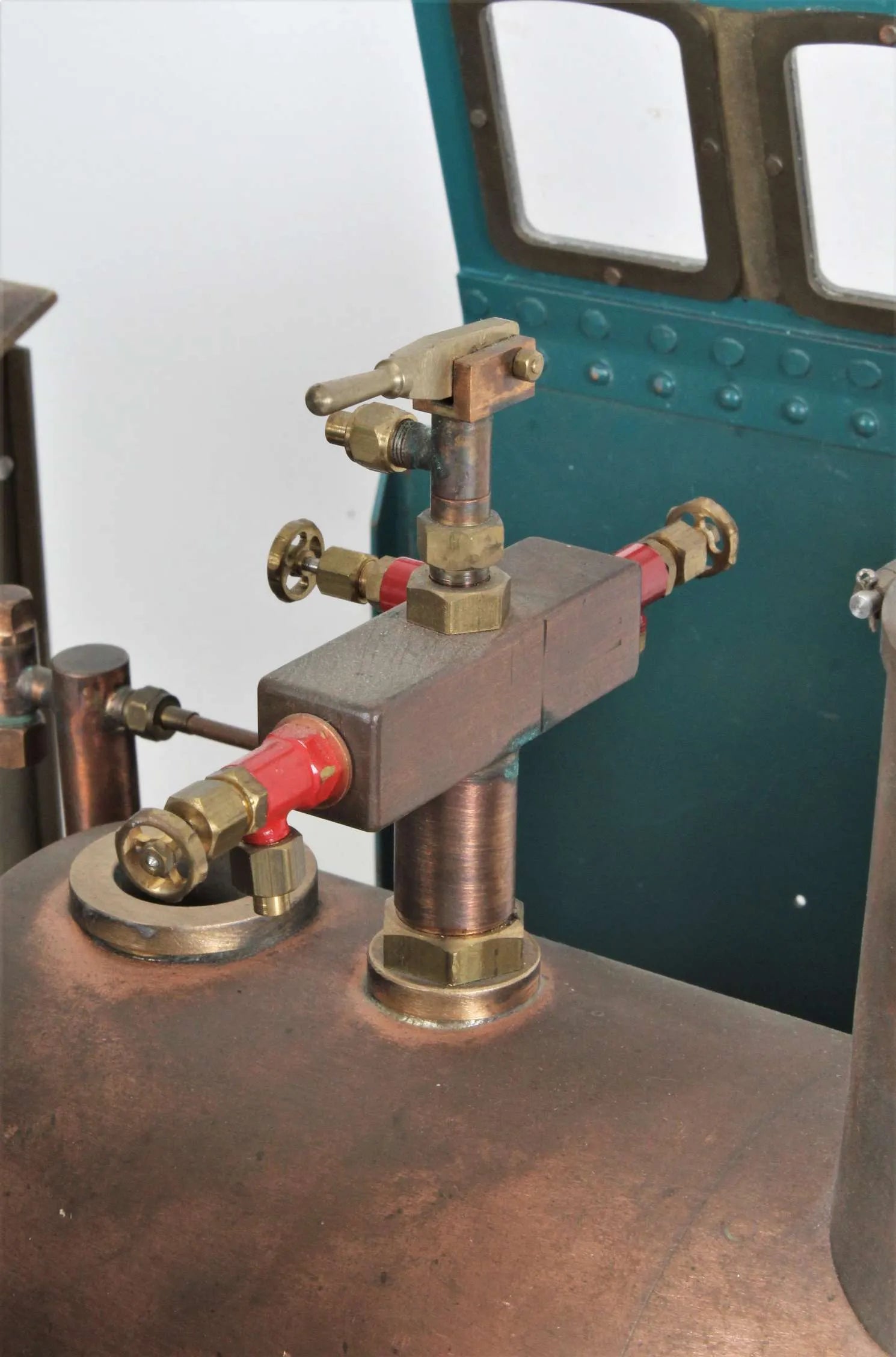

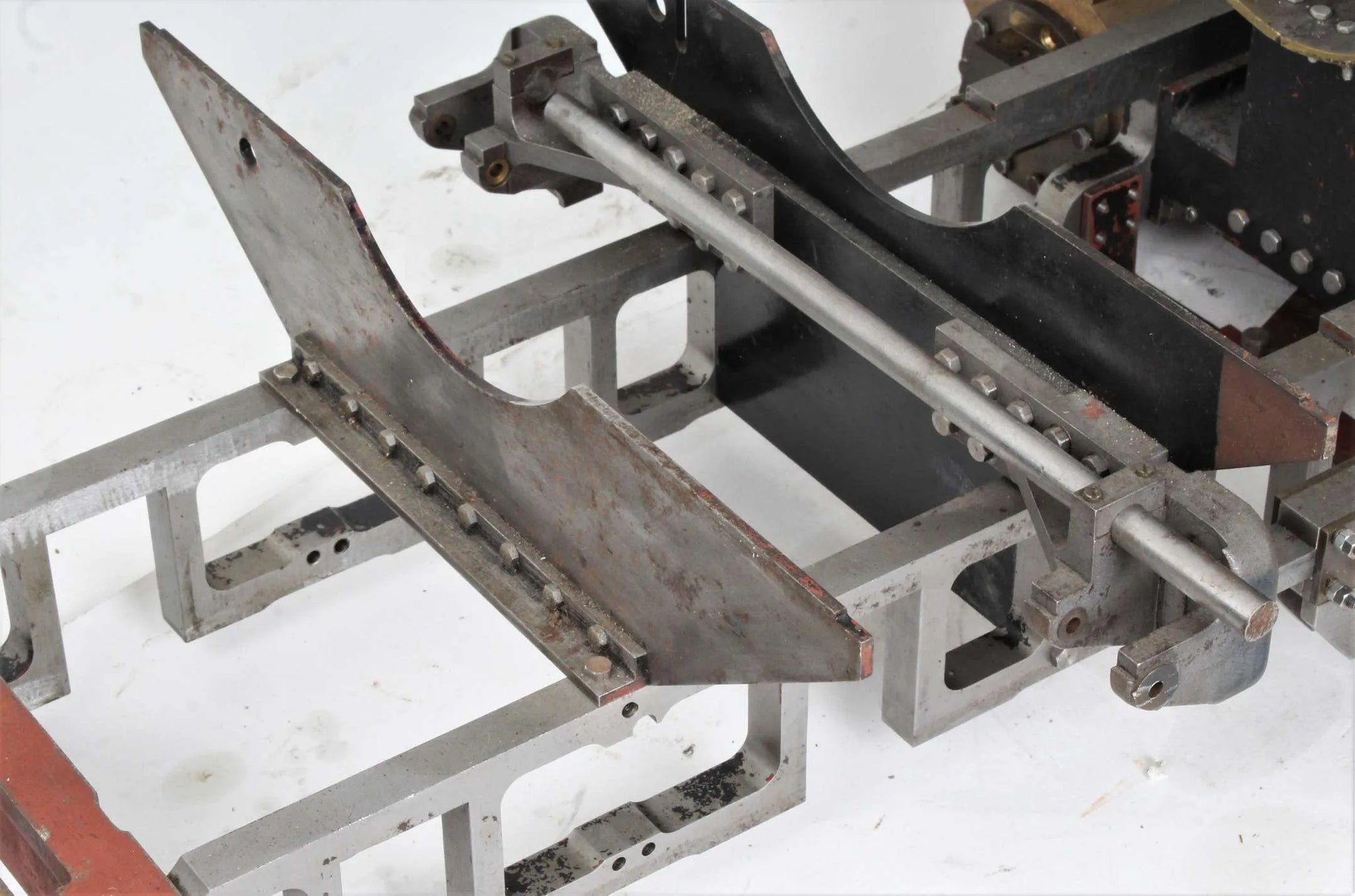

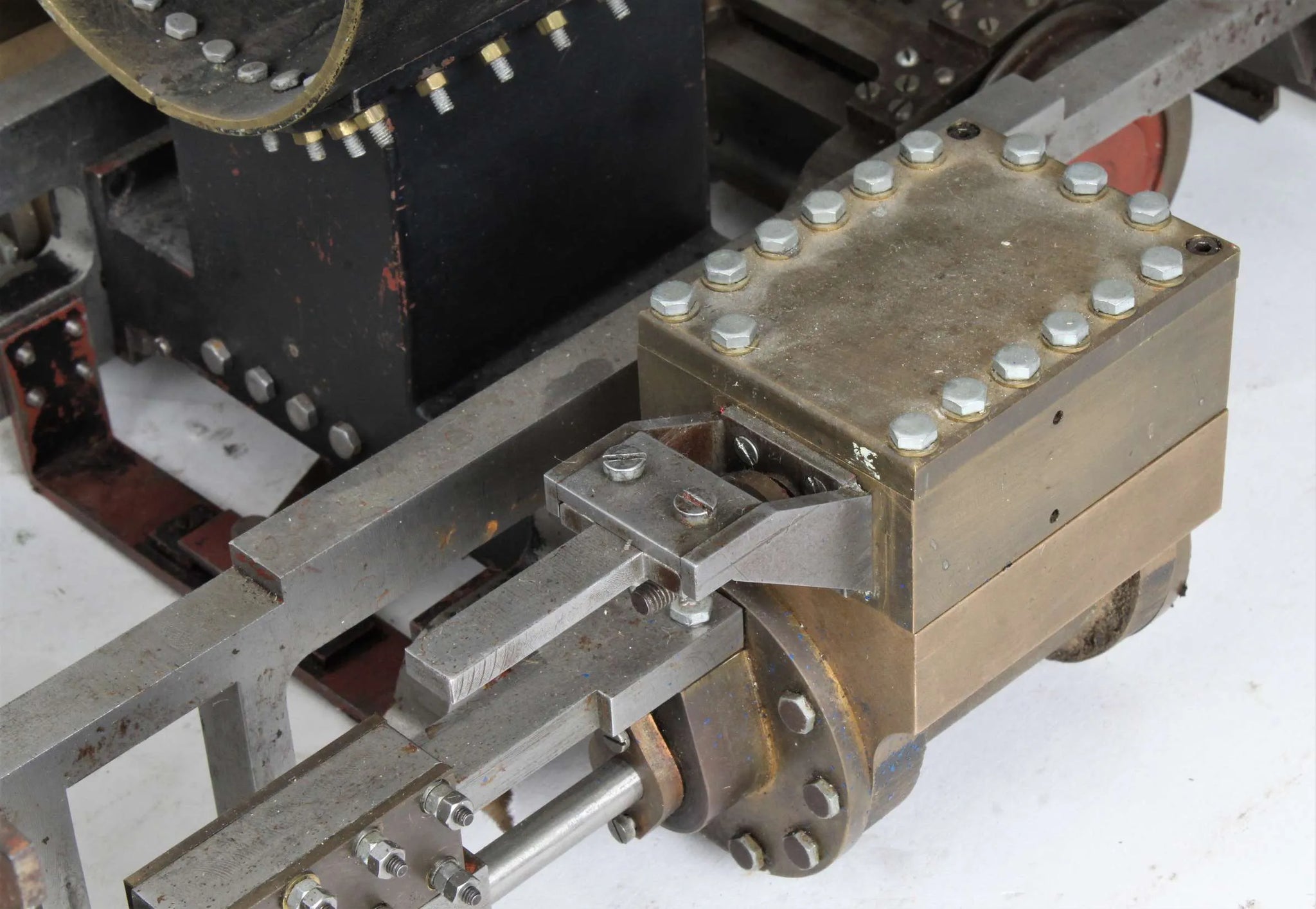

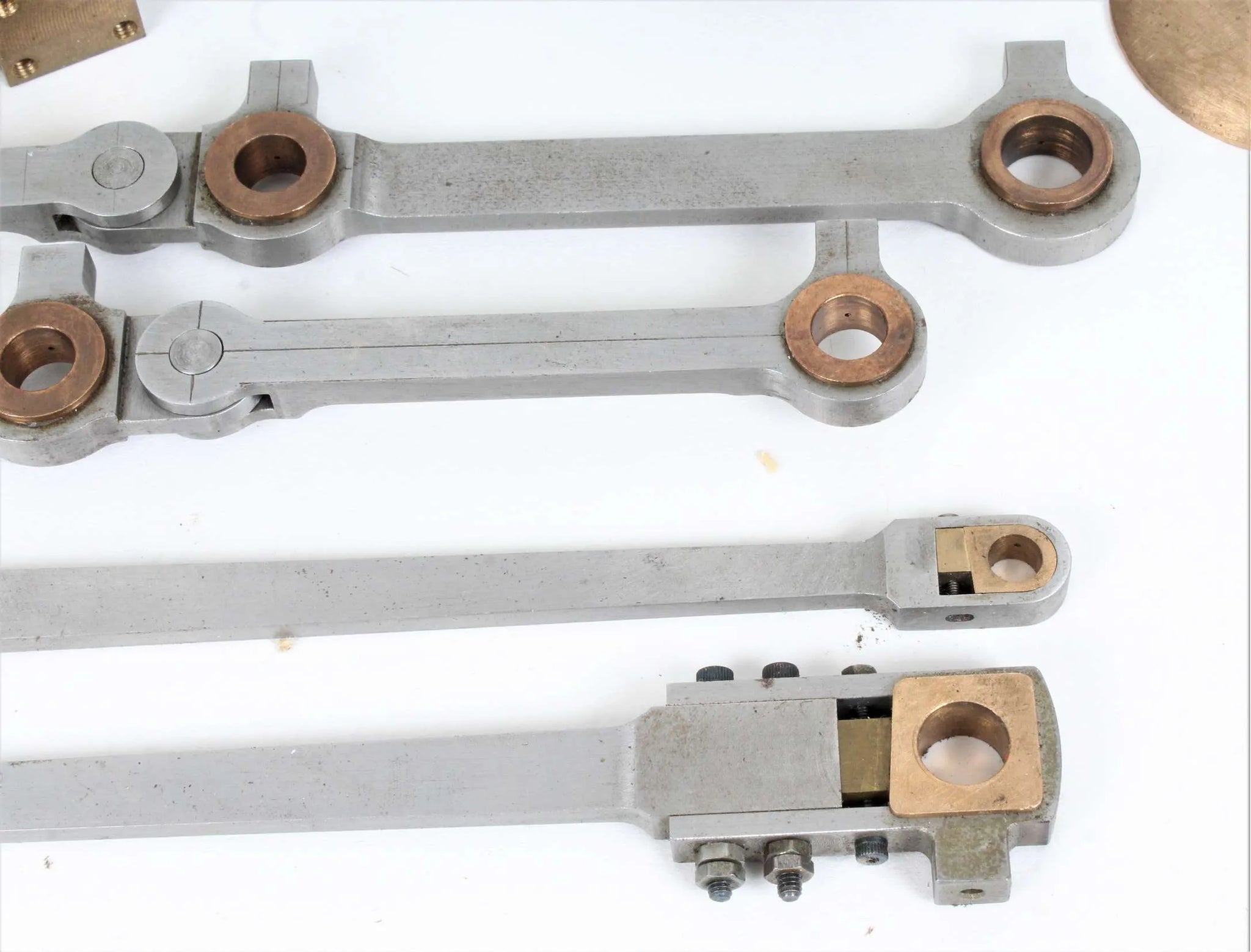

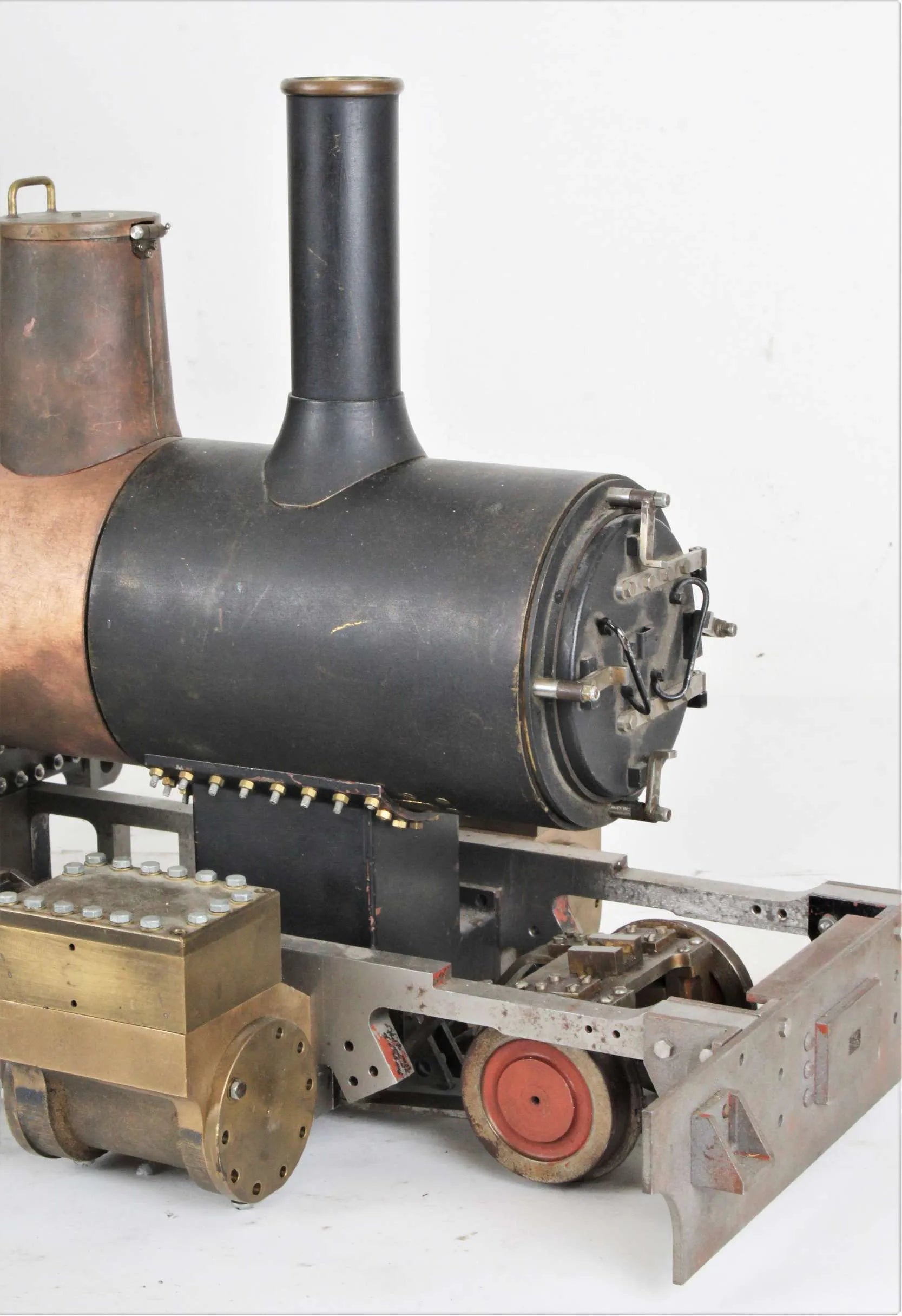

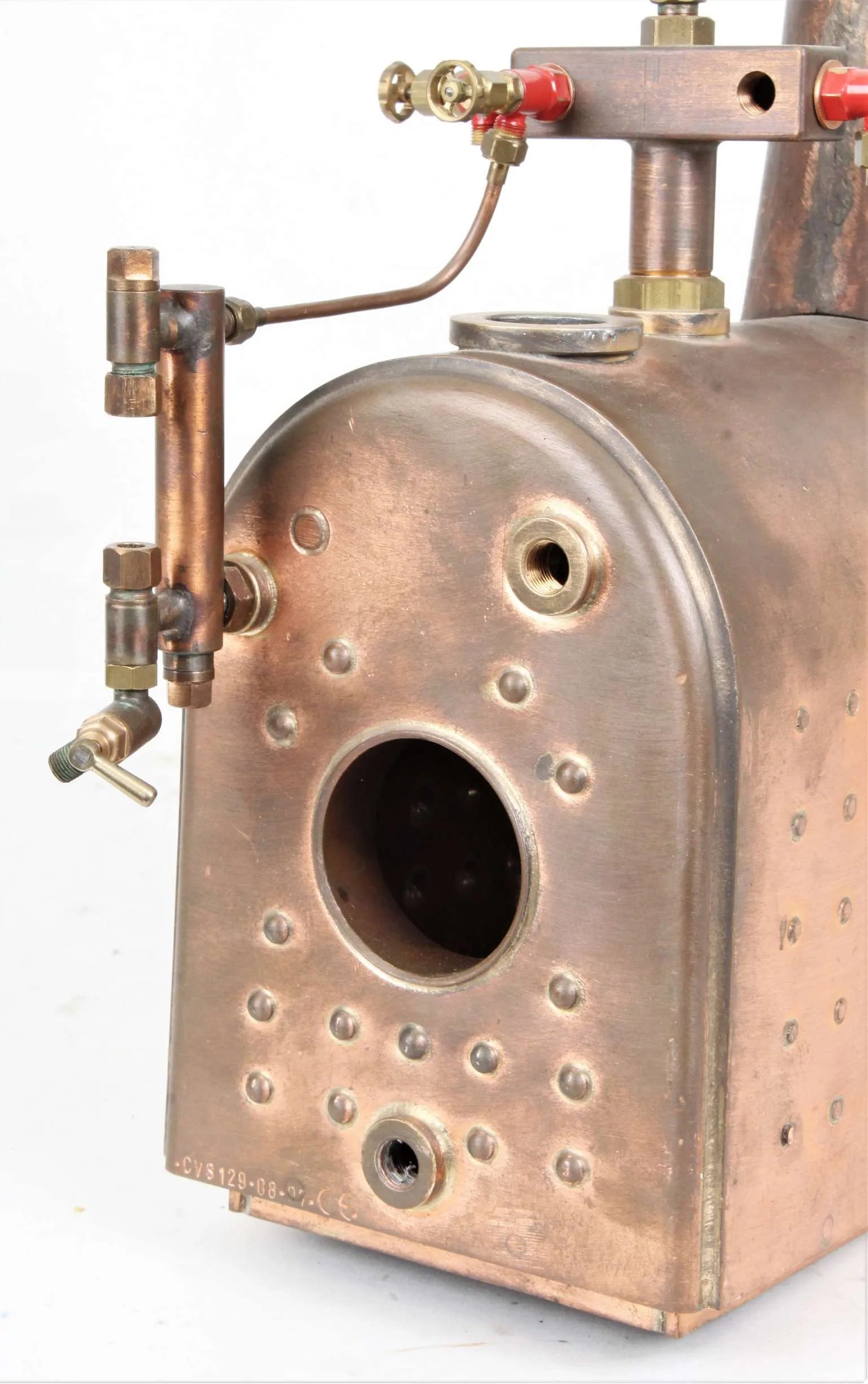

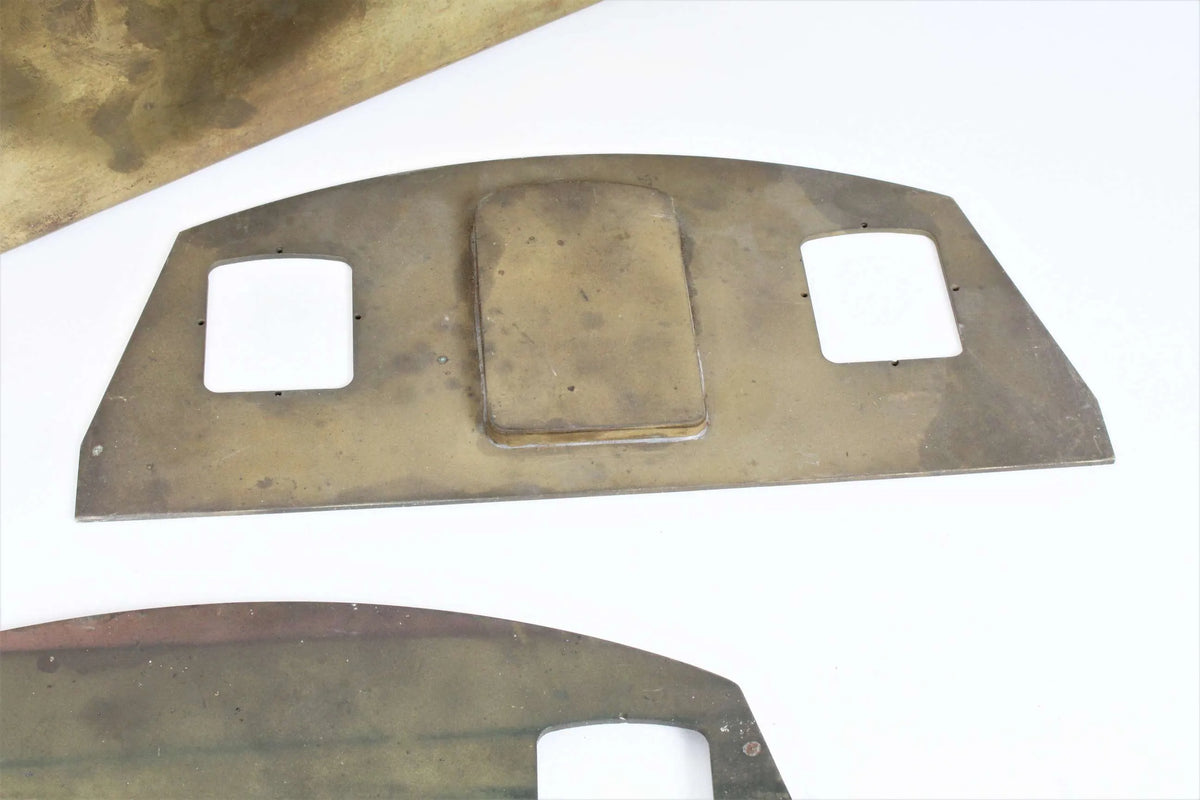

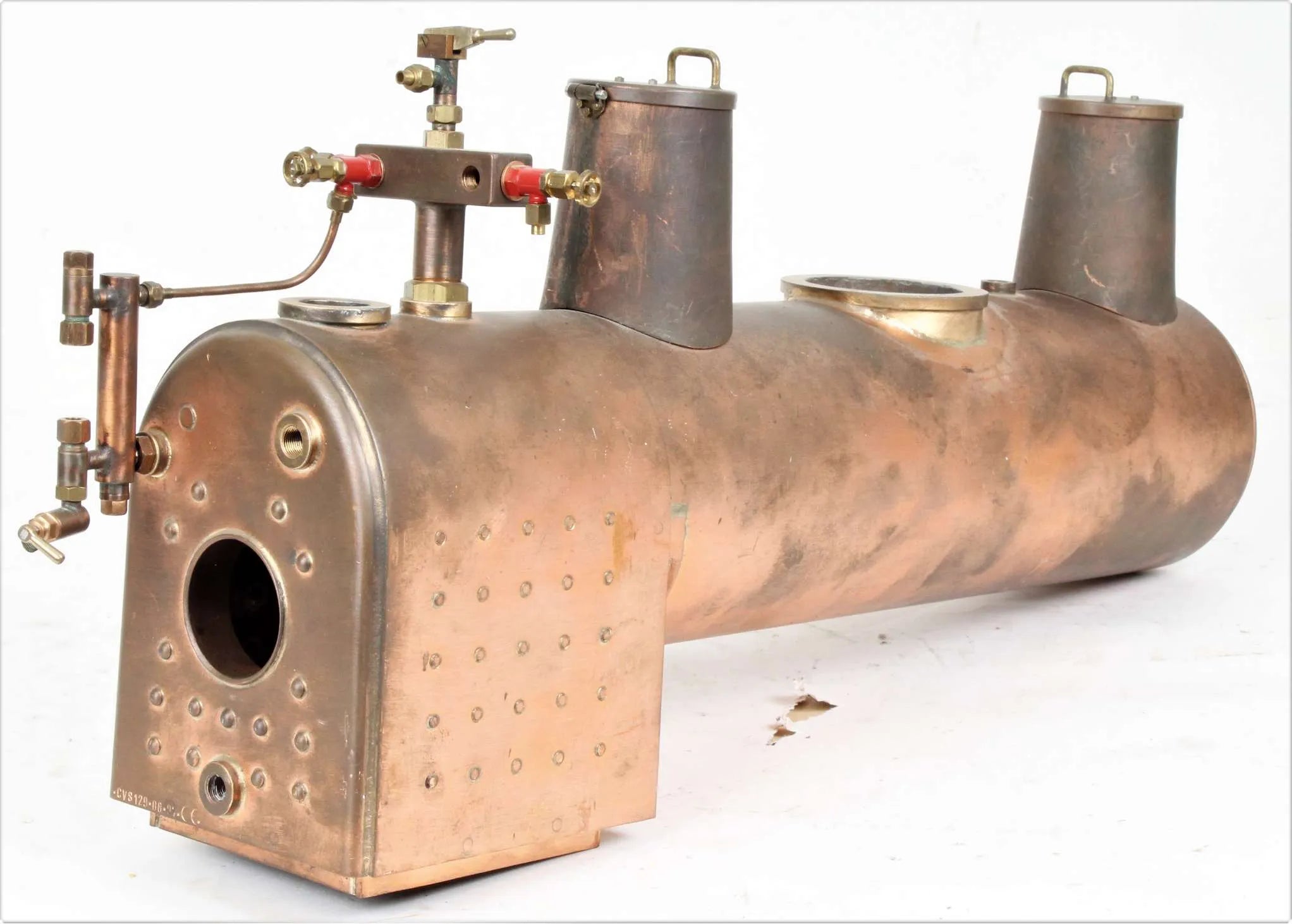

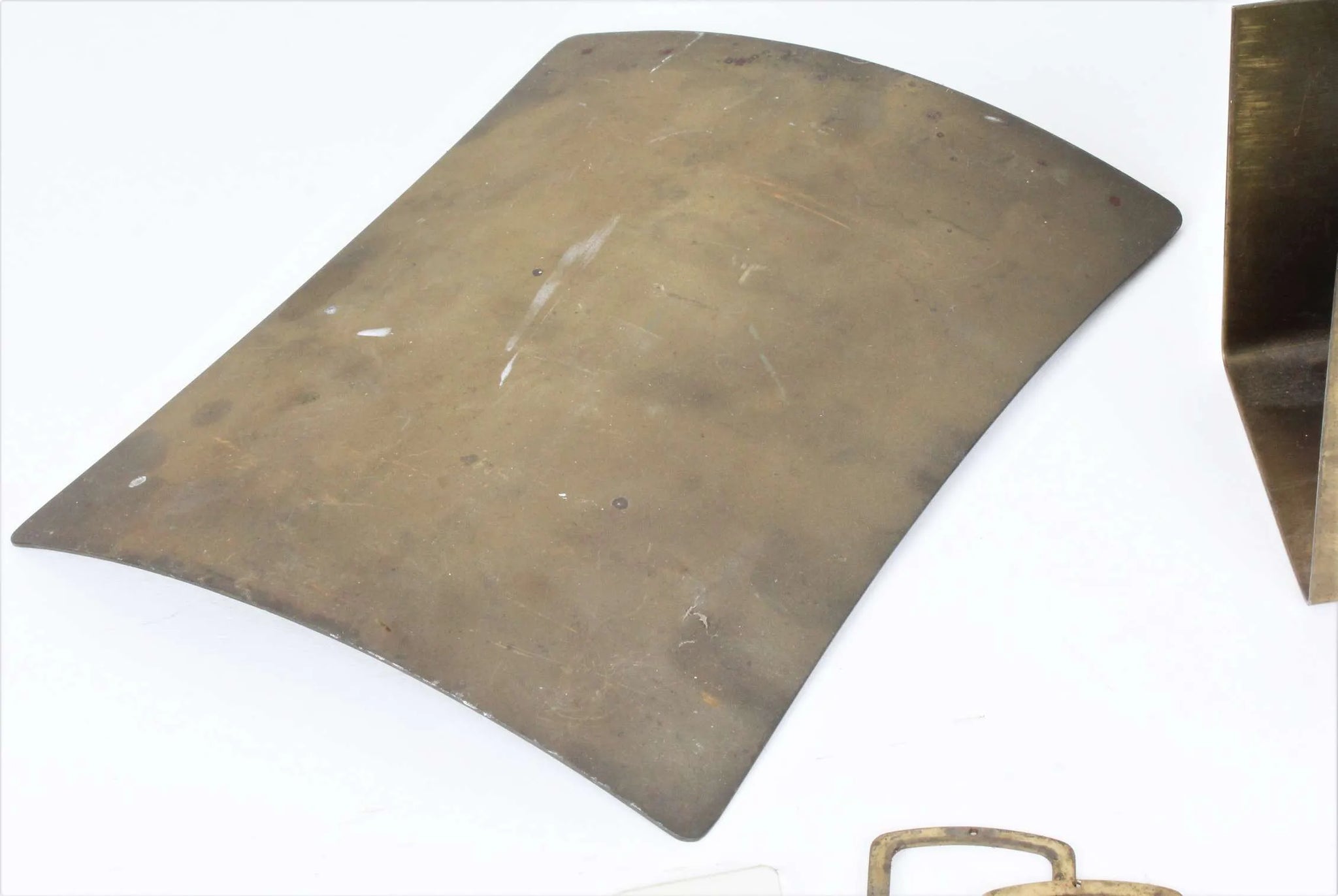

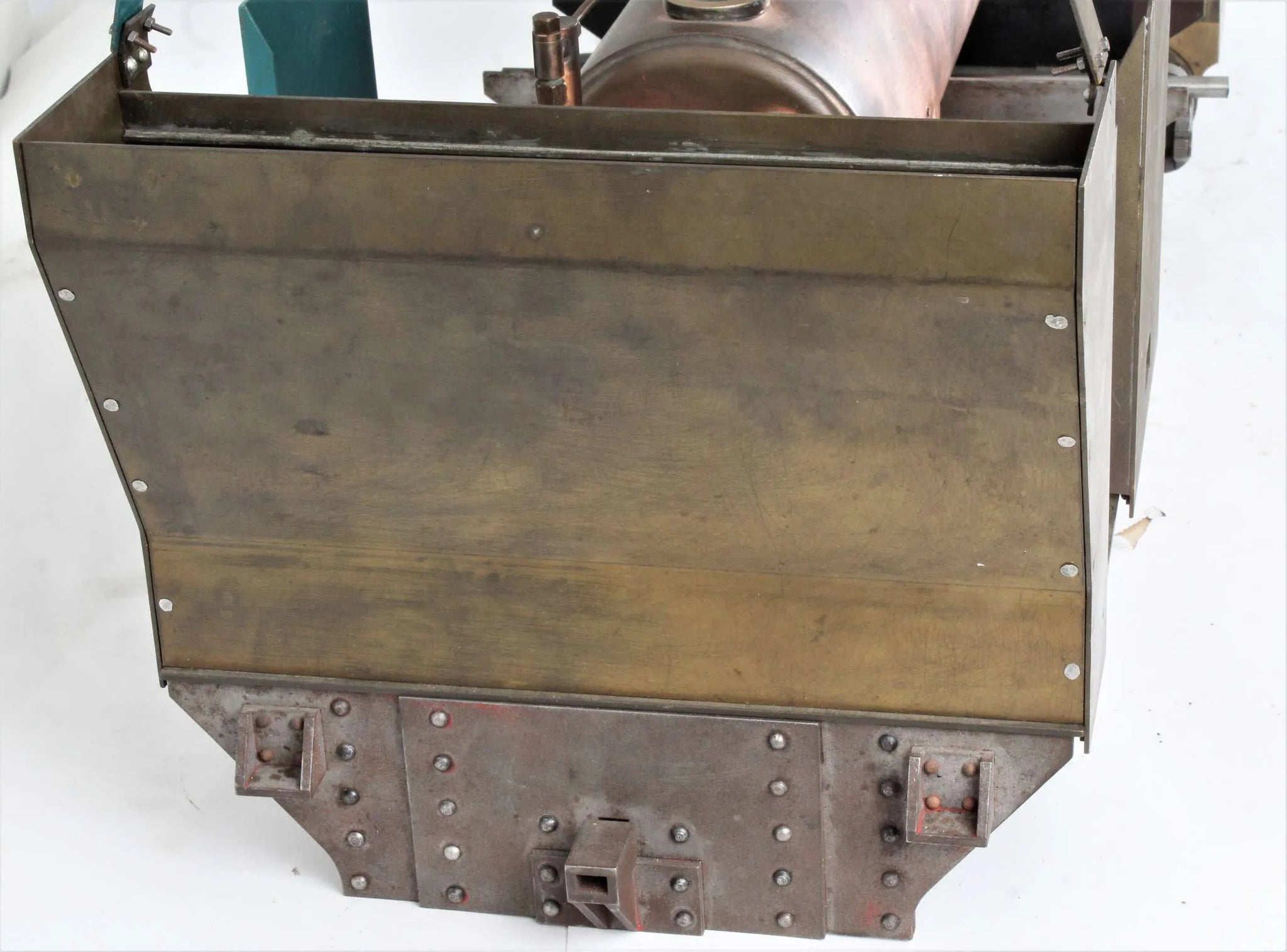

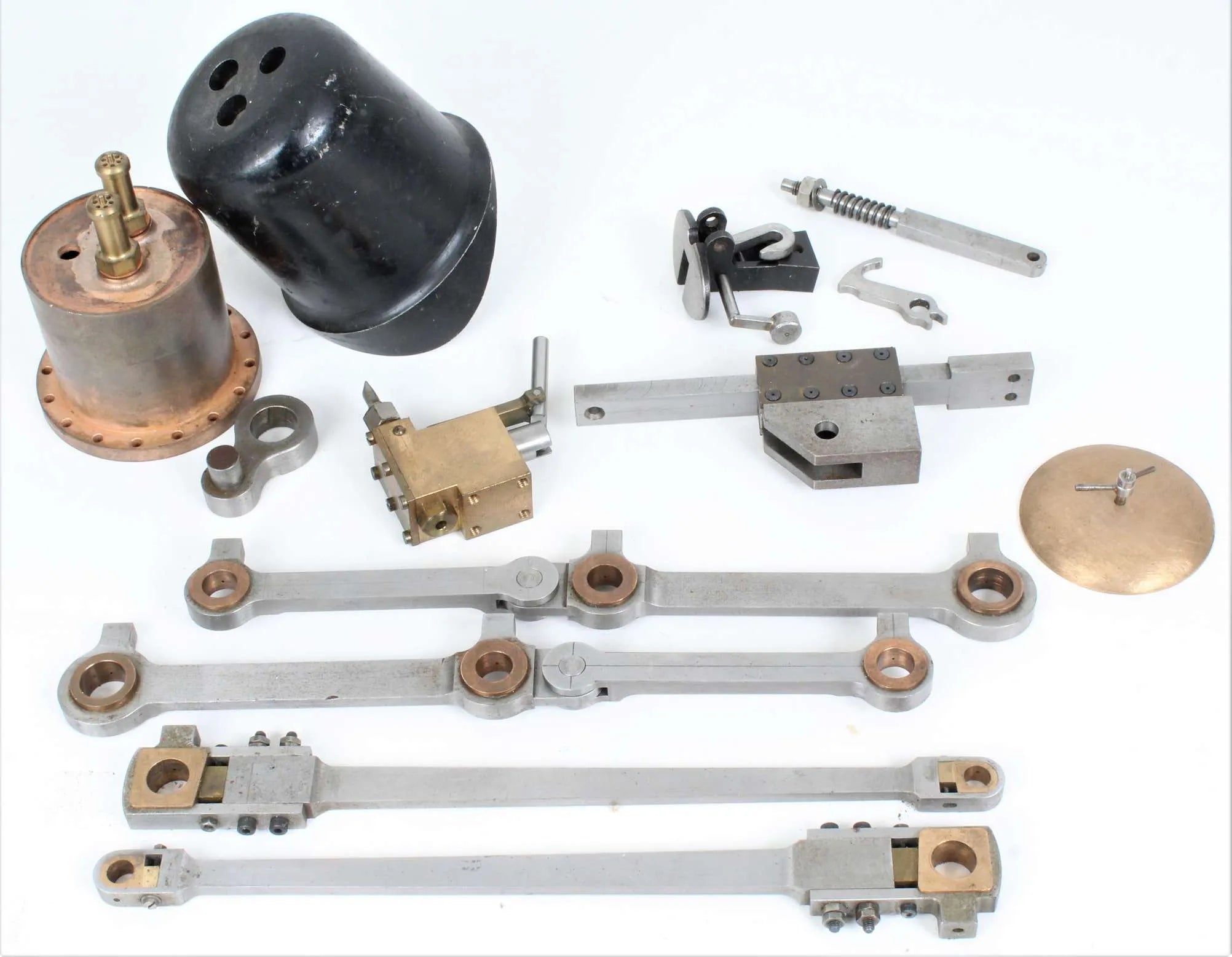

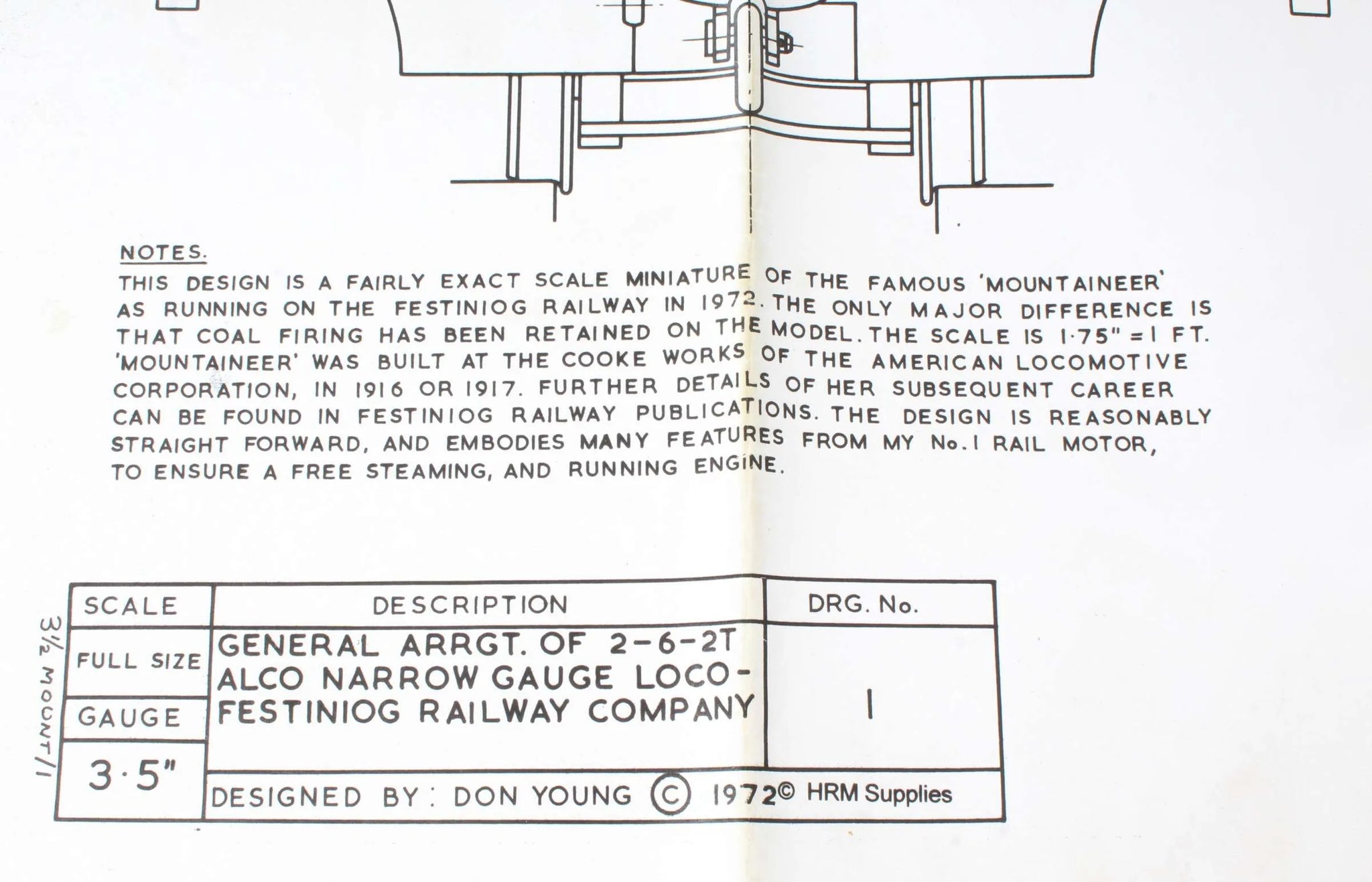

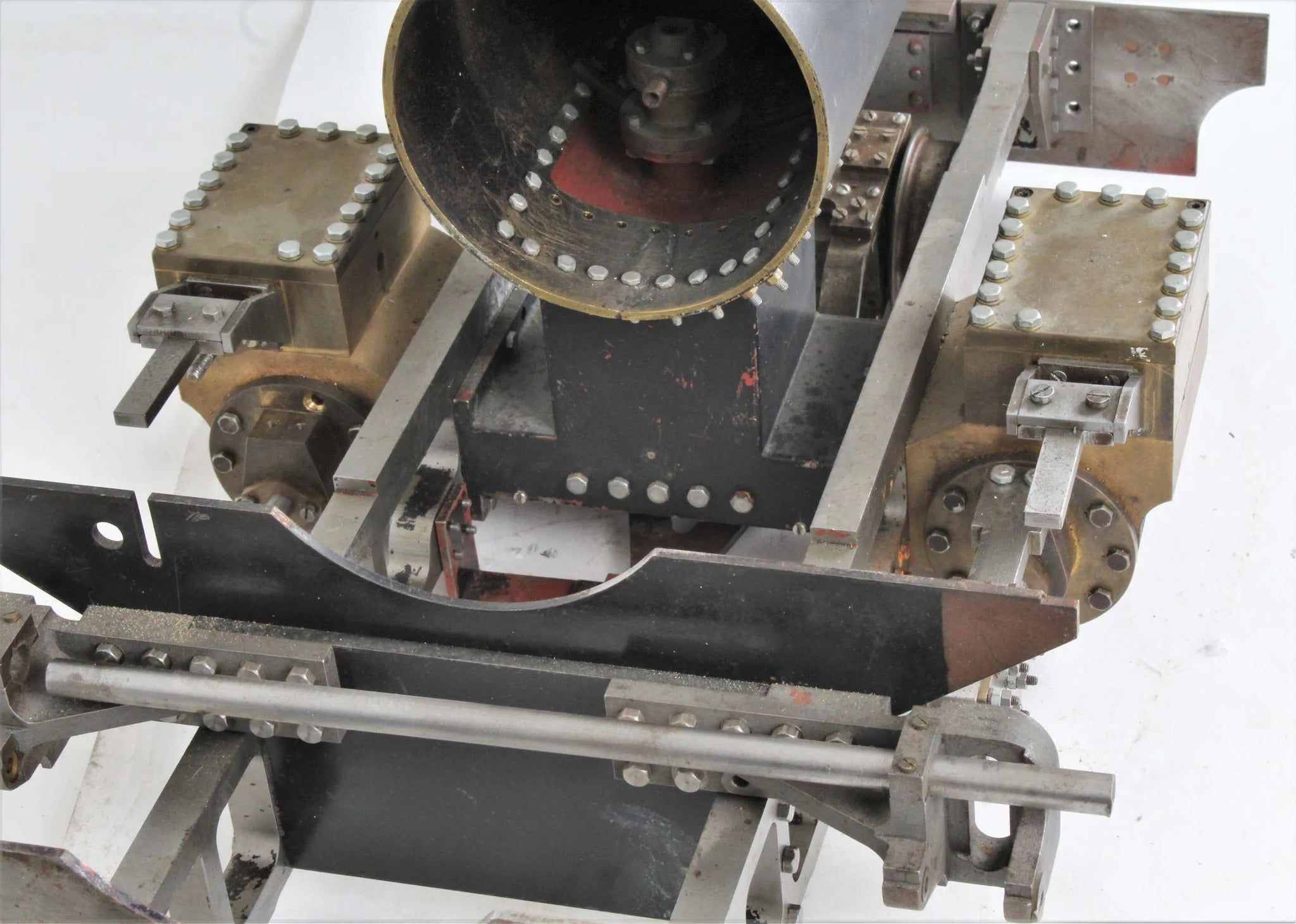

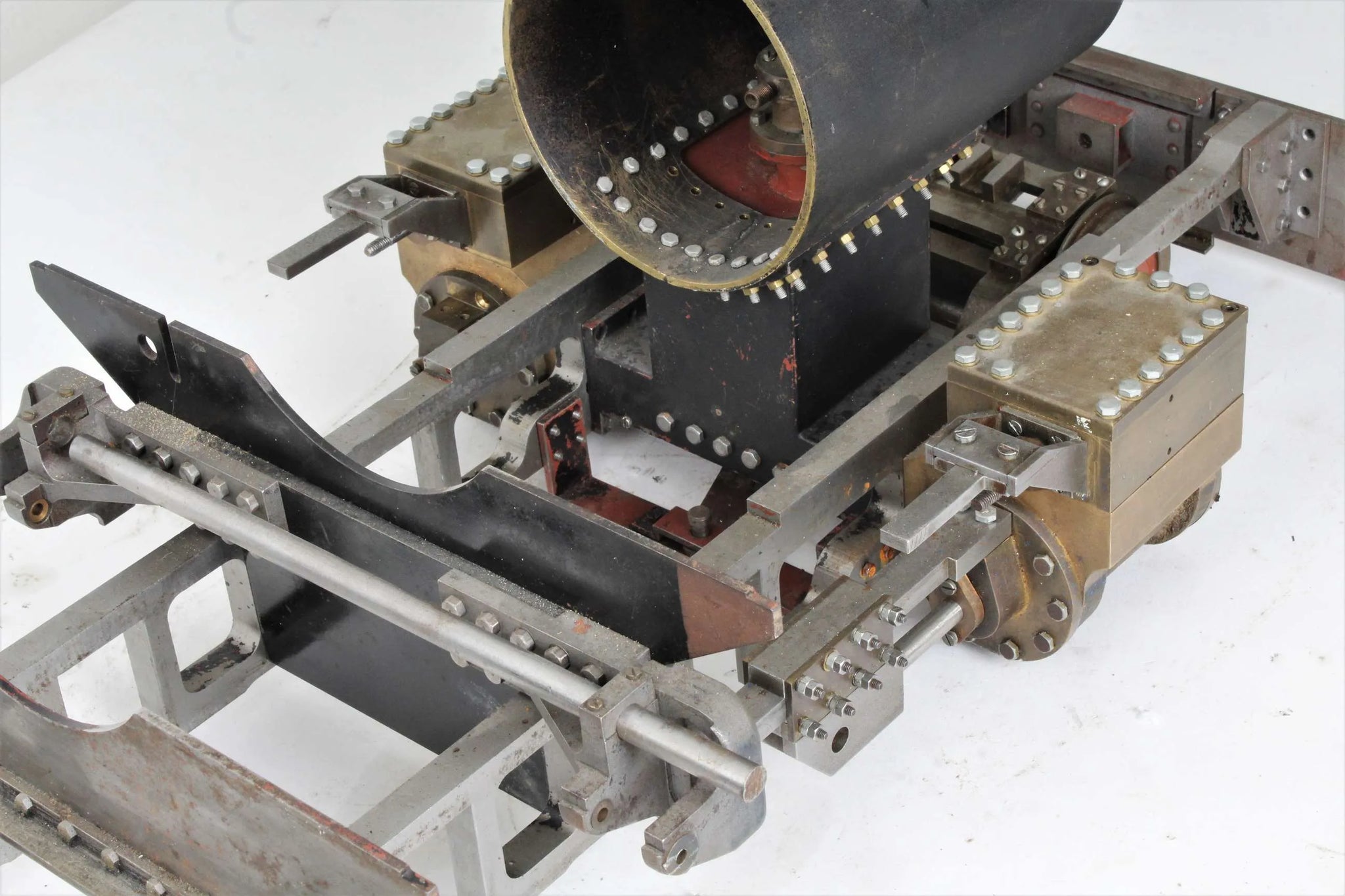

A large quantity of parts, machined castings, commercially built CE-marked copper boiler and set of drawings for a 3 1/2 inch narrow gauge Alco 2-6-2T, to Don Young's "Mountaineer" design.

Based on the two foot gauge prototype preserved on the Ffestiniog Railway, this comes out to be a large locomotive in 3 1/2 inch gauge - over a yard long and a two man lift when complete.

If you need reminding what the engine will look like when finished there are pictures of several in the archive, including this one finished in black livery.

Technical information

Stock code

10077

Gauge

3 1/2 inch

Length/inches

39

Width/inches

11

Height/inches

16

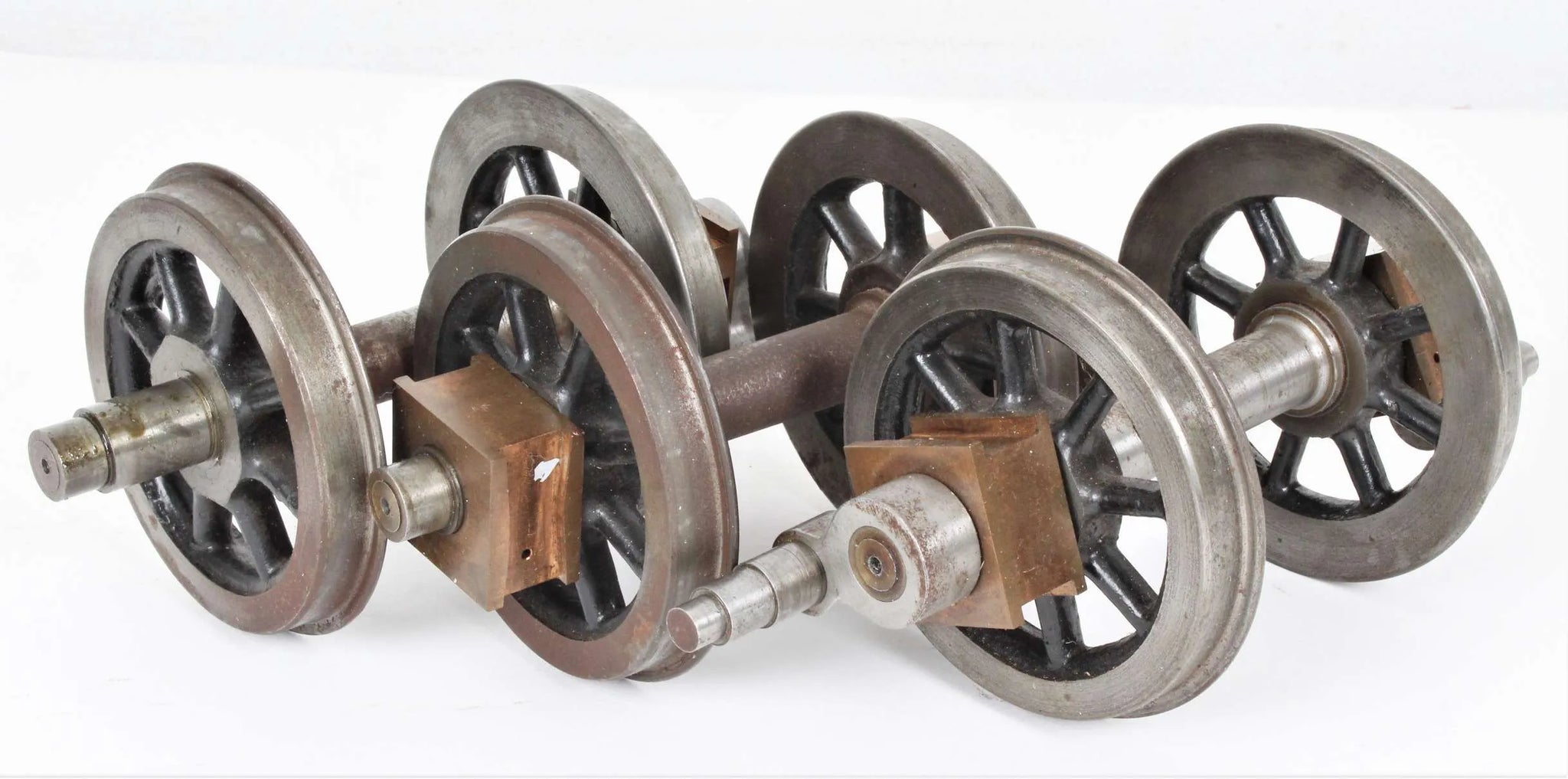

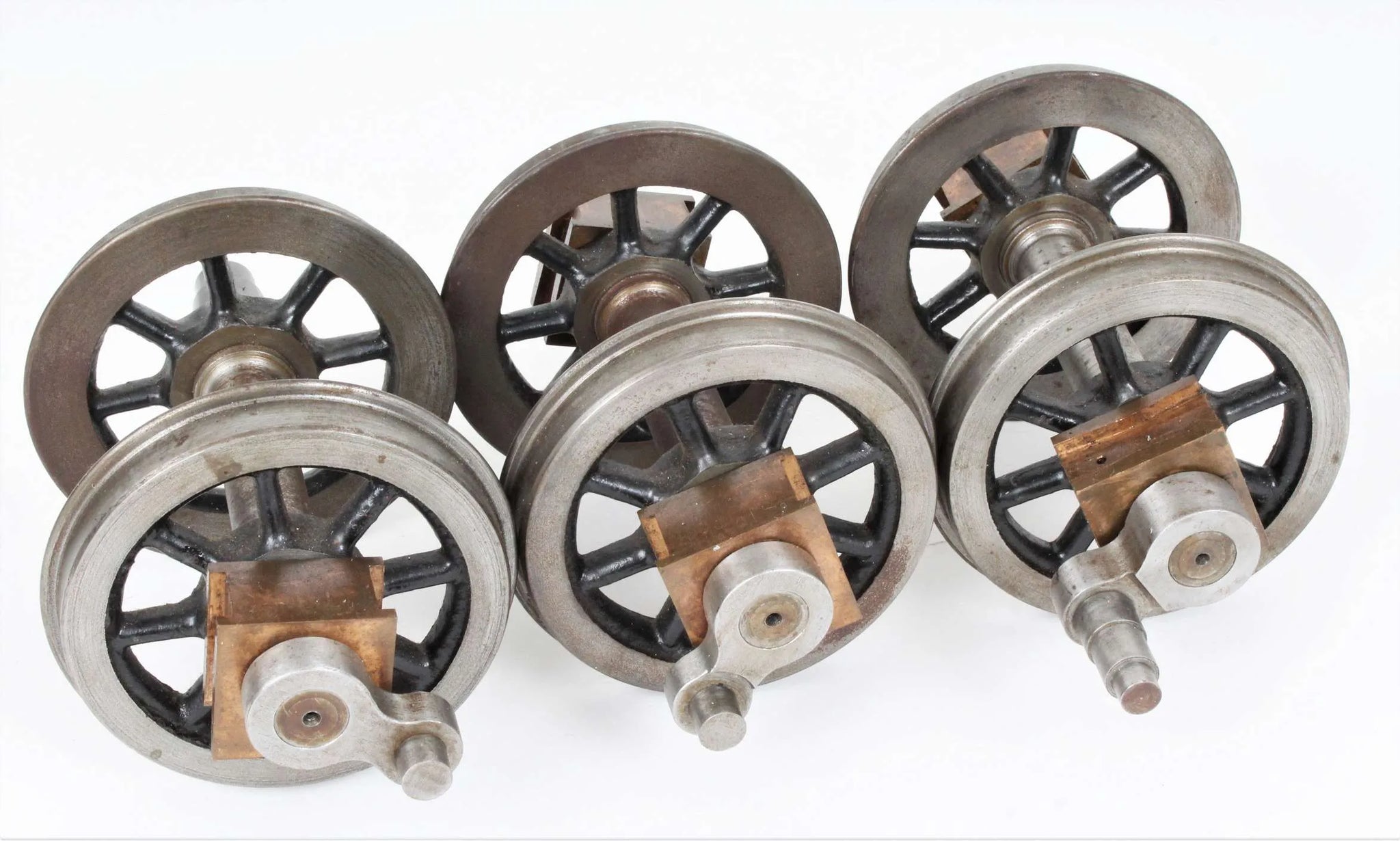

Wheel material

cast iron

Axlebox type

plain bearing

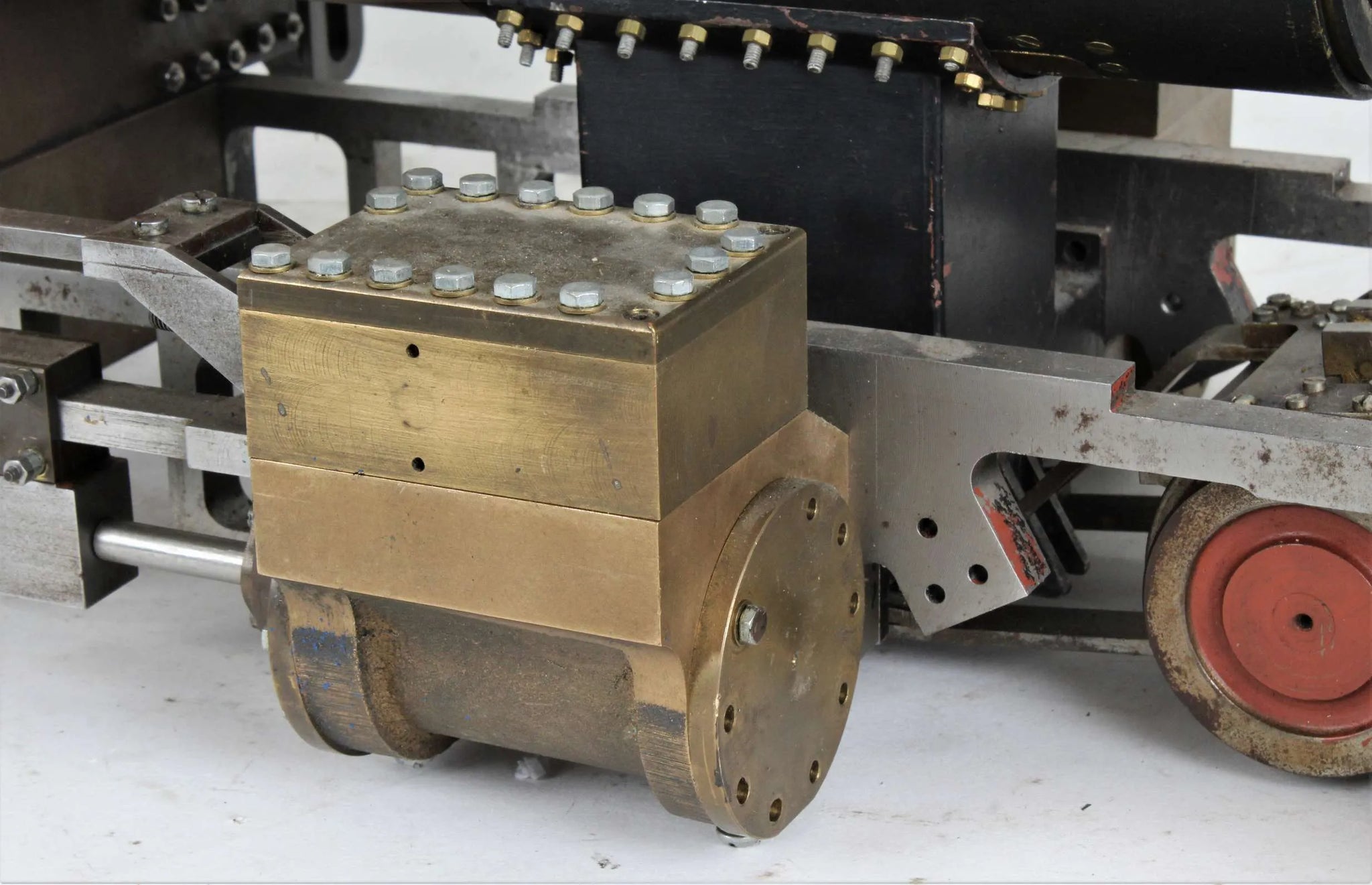

Cylinder material

gunmetal

Valve type

slide

Valve gear

Stephensons

Boiler maker

Cheddar Valley Steam

Boiler type

locomotive

Boiler construction

silver soldered

Boiler material

copper

Working pressure

85

CE/UKCA mark

yes

Year built

2007

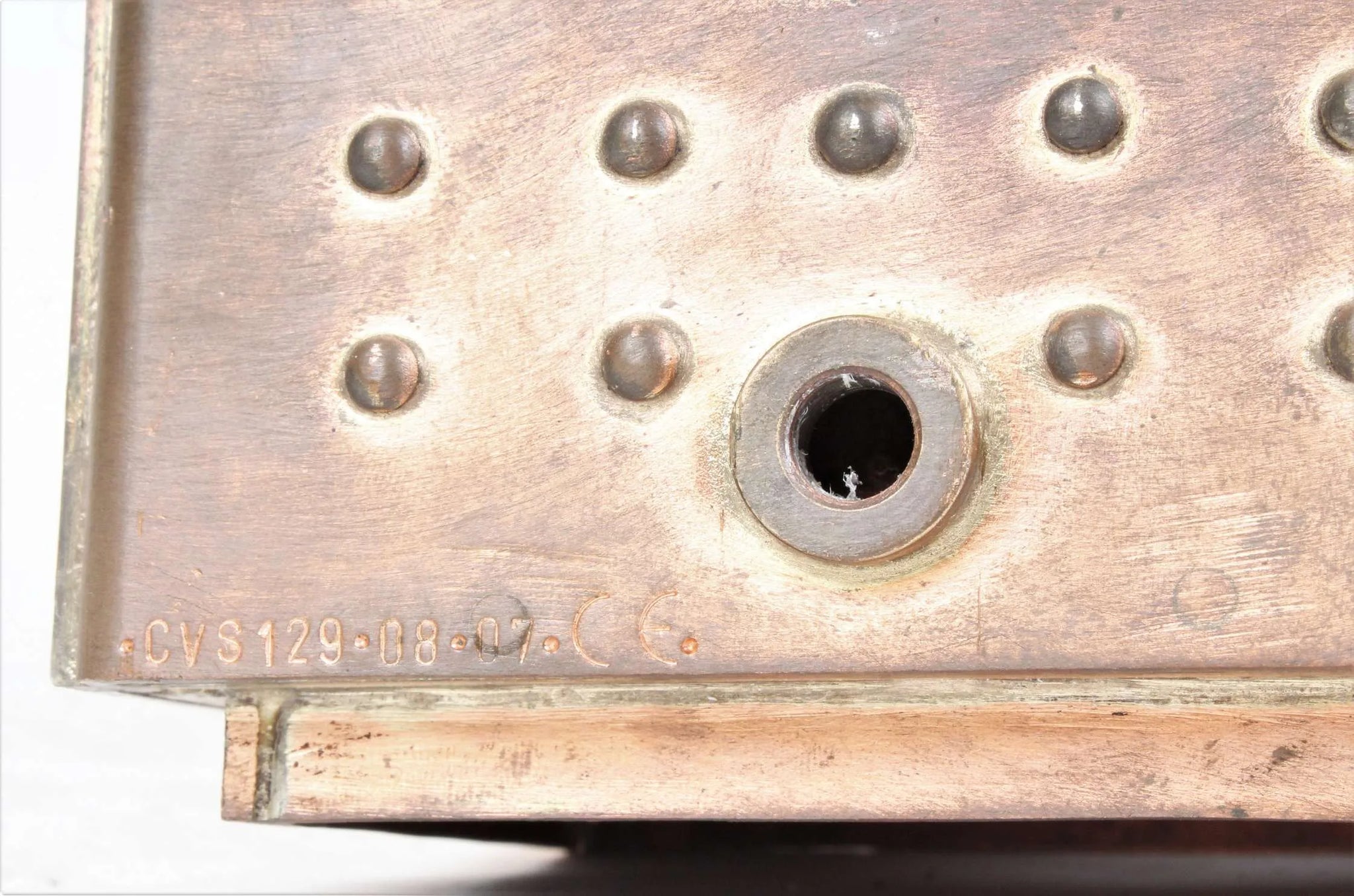

Boiler number

CVS.129.08.07

Date out

Jan-22
