Sold

8945

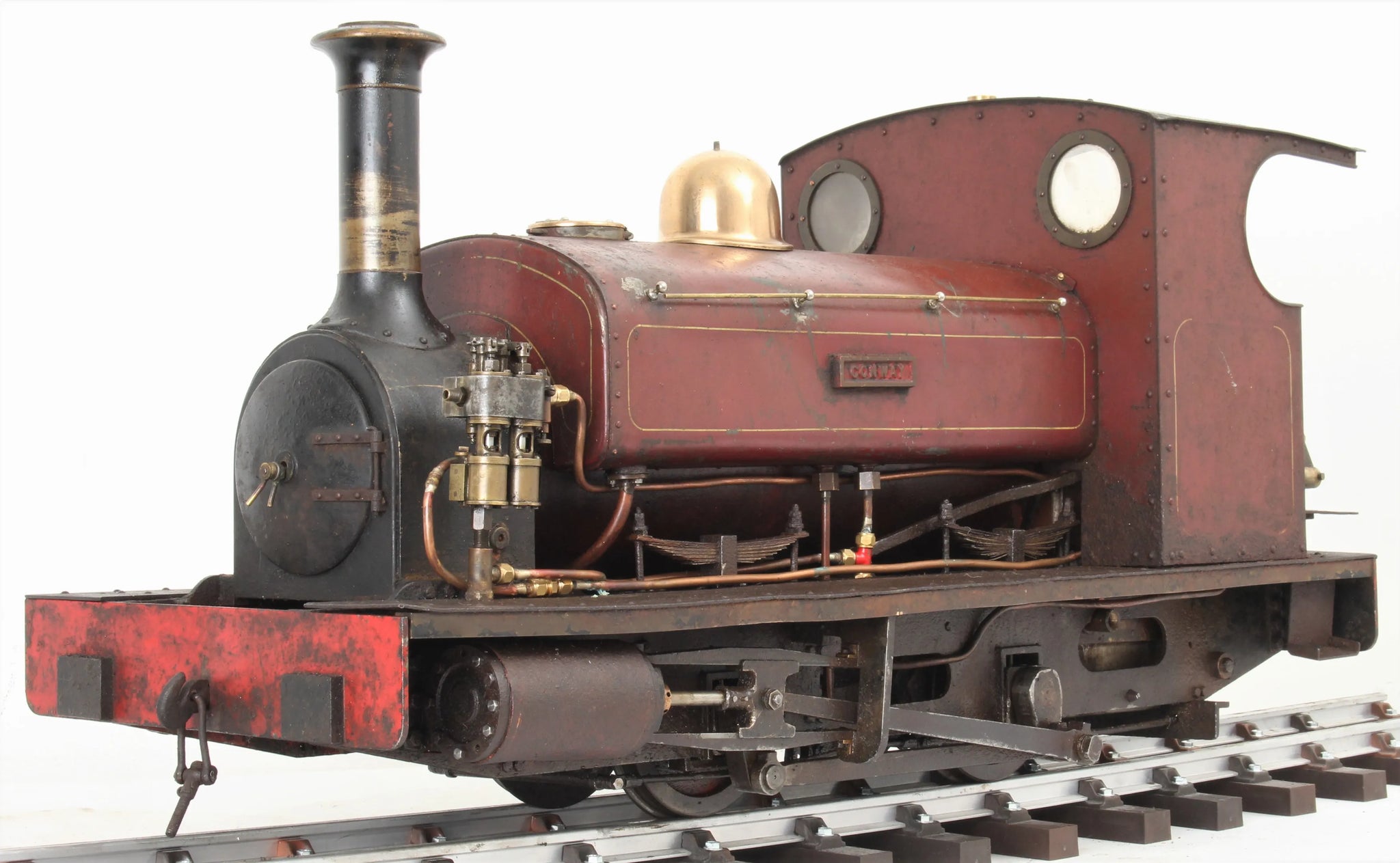

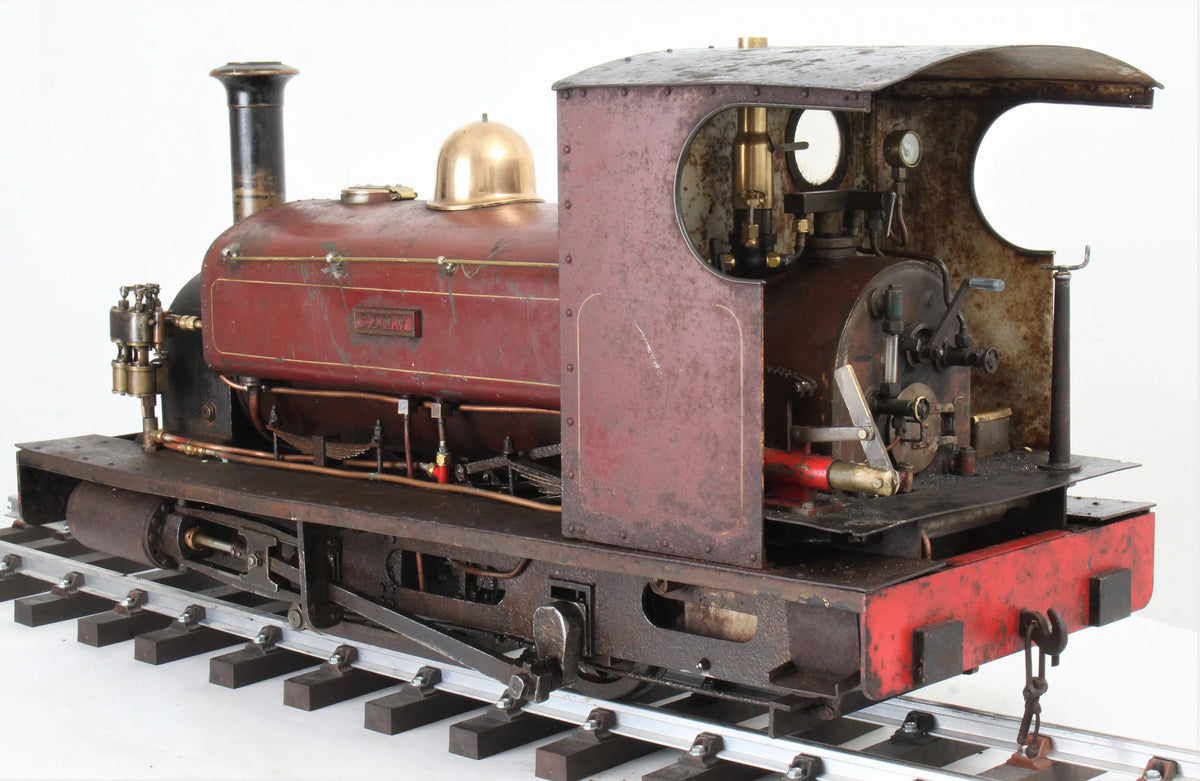

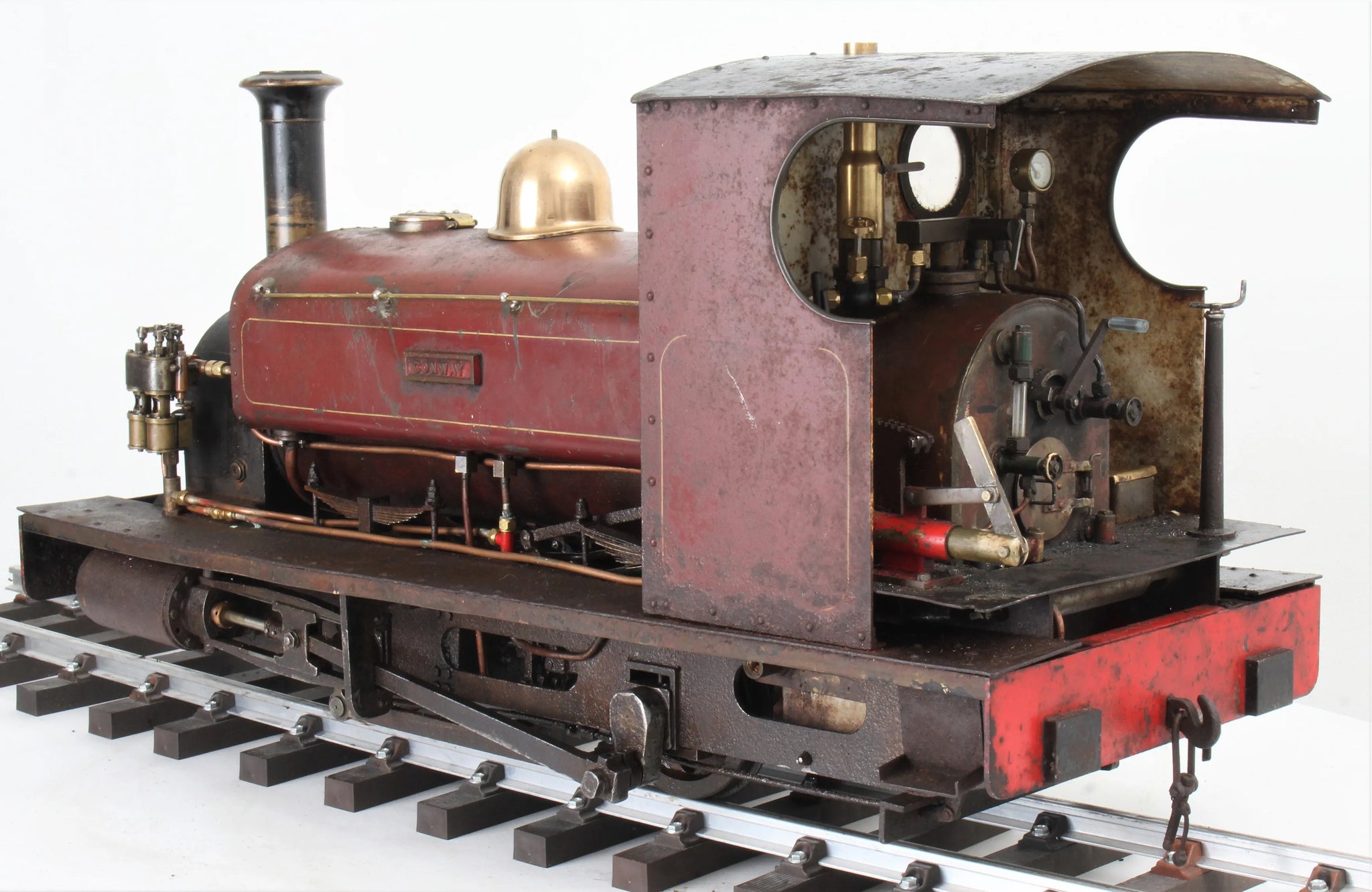

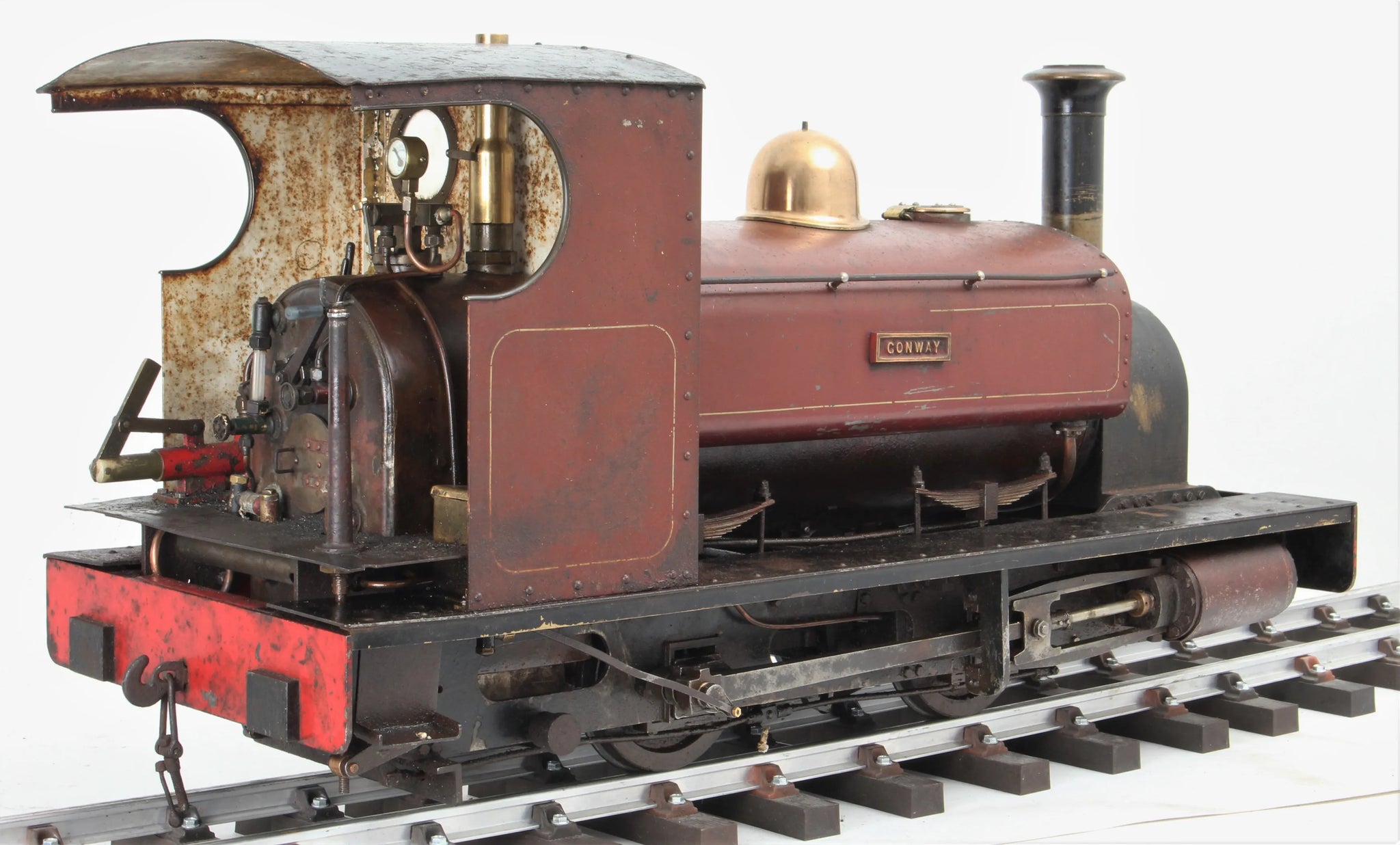

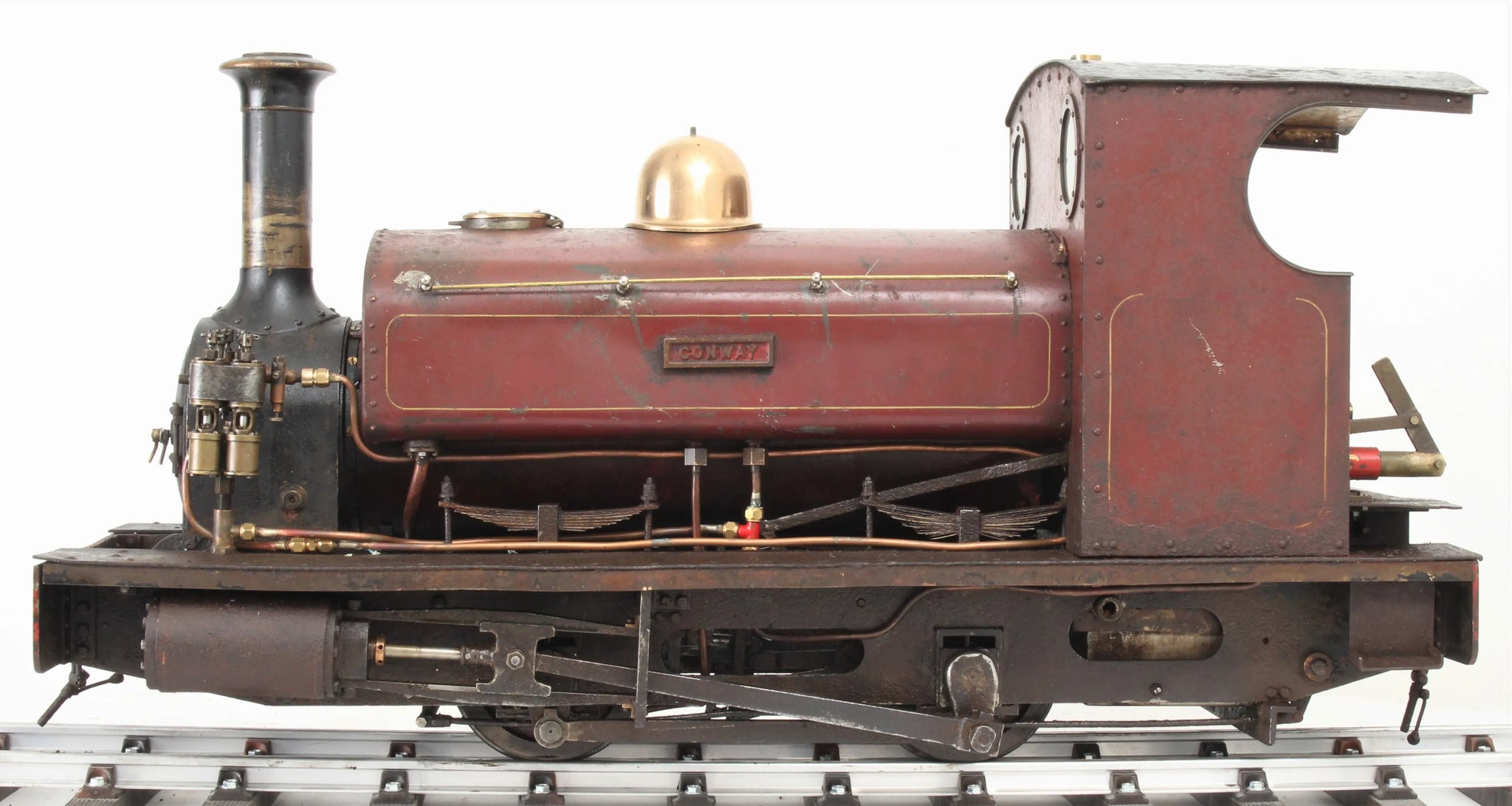

3 1/2 inch narrow gauge "Conway" 0-4-0ST

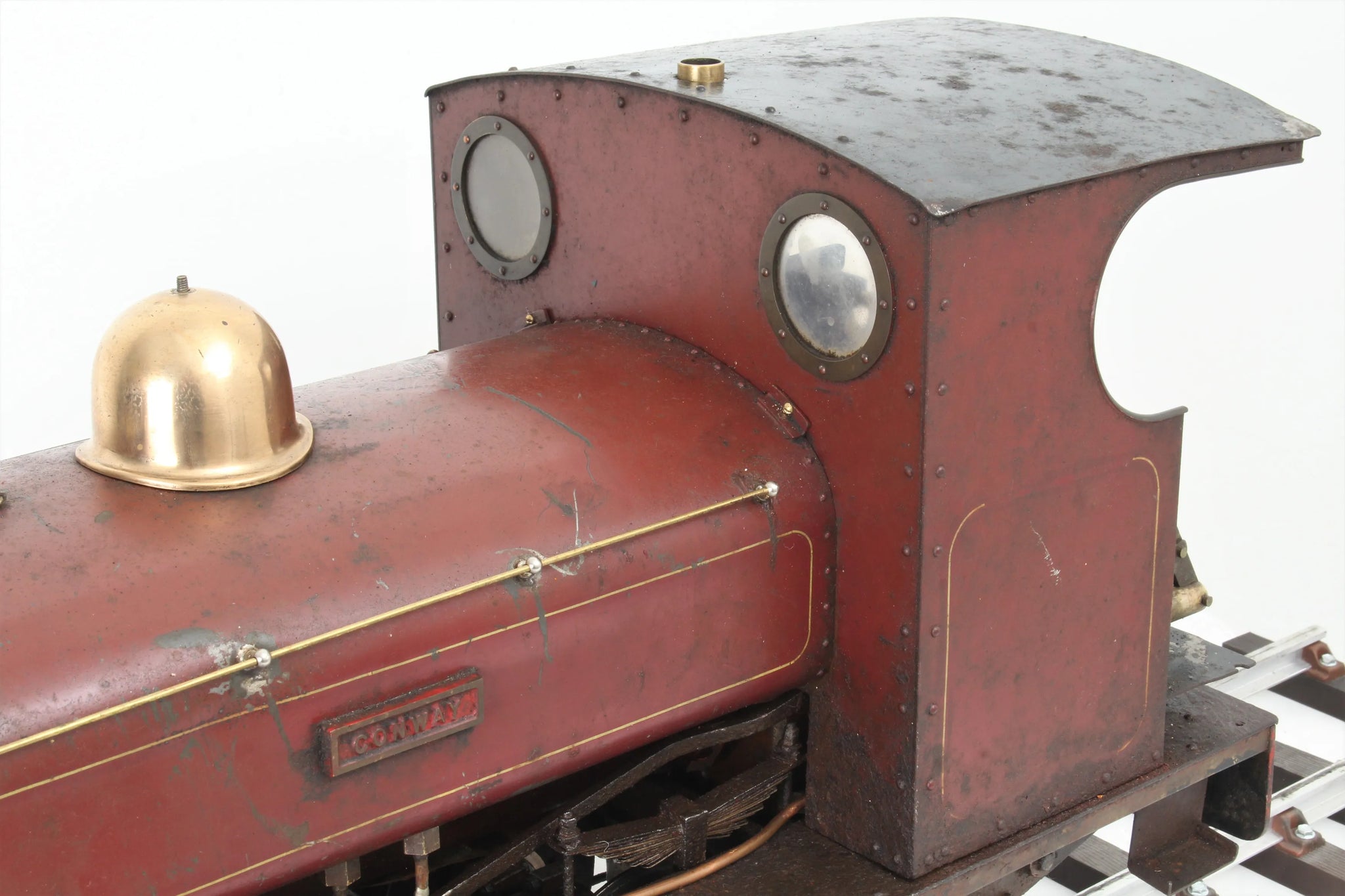

A 3 1/2 inch gauge "Conway", Martin Evans freelance take on a typical narrow gauge engine, with a large helping of Hunslet in the overall design.

The engine has come to us along with a small collection of engines - in truly horrible condition, it's allegedly pulled four adults (although not, we suspect, in recent times...).

On the positive side:

  • boiler was dry at twice working pressure on hydraulic test, with no sign of leaks or distortion

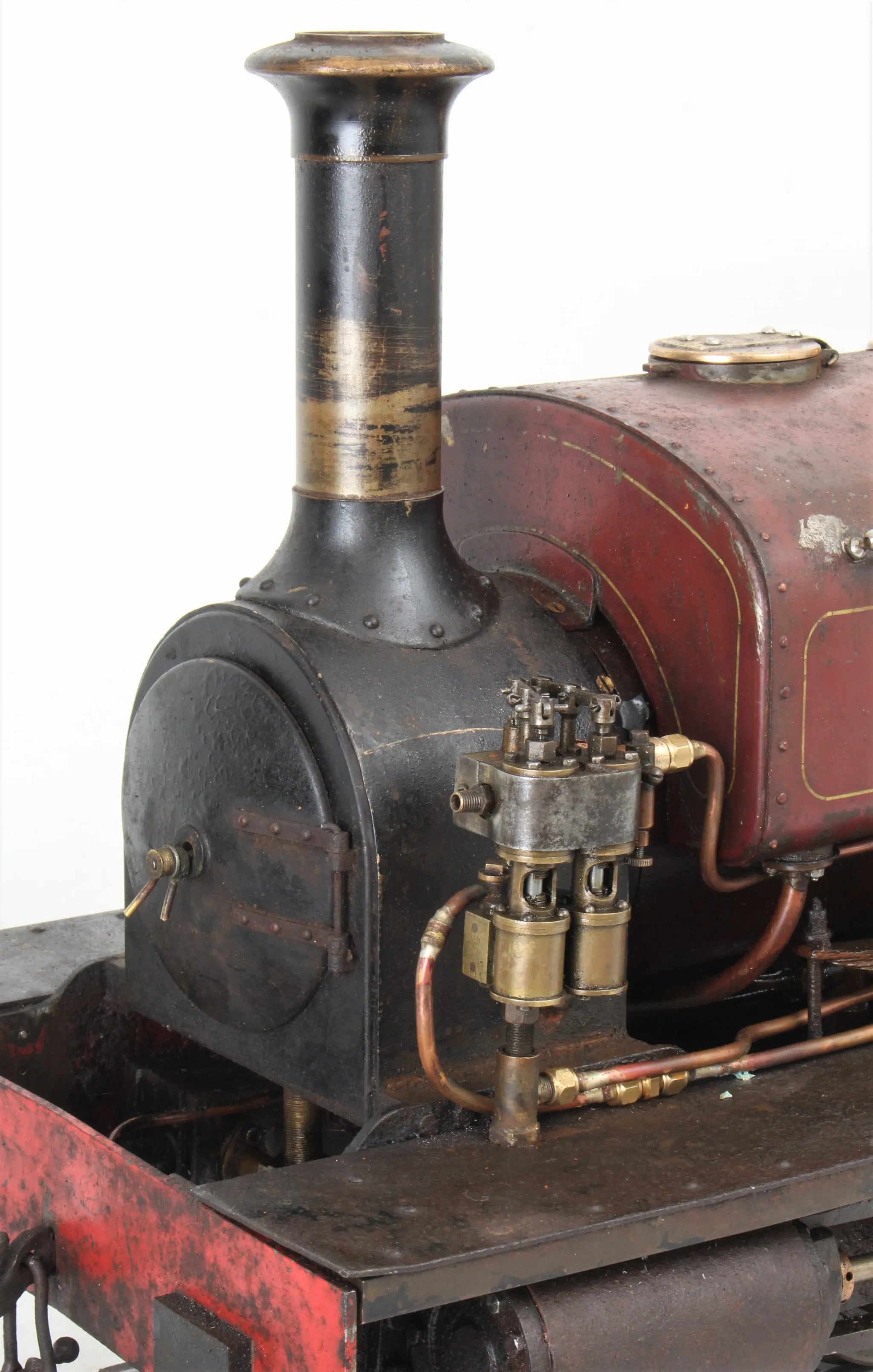

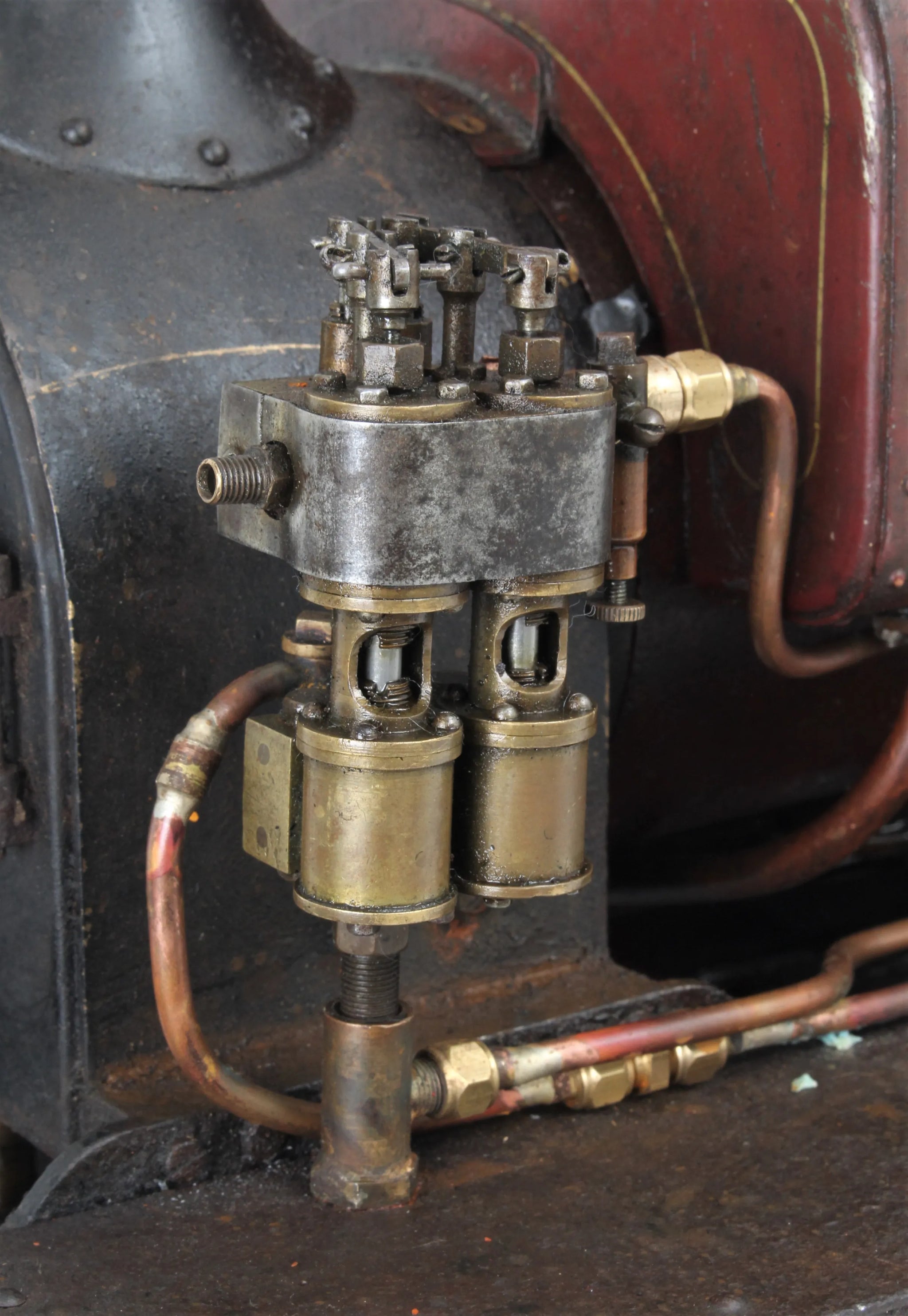

  • it has a duplex feed pump mounted on the smokebox
On the less positive side:

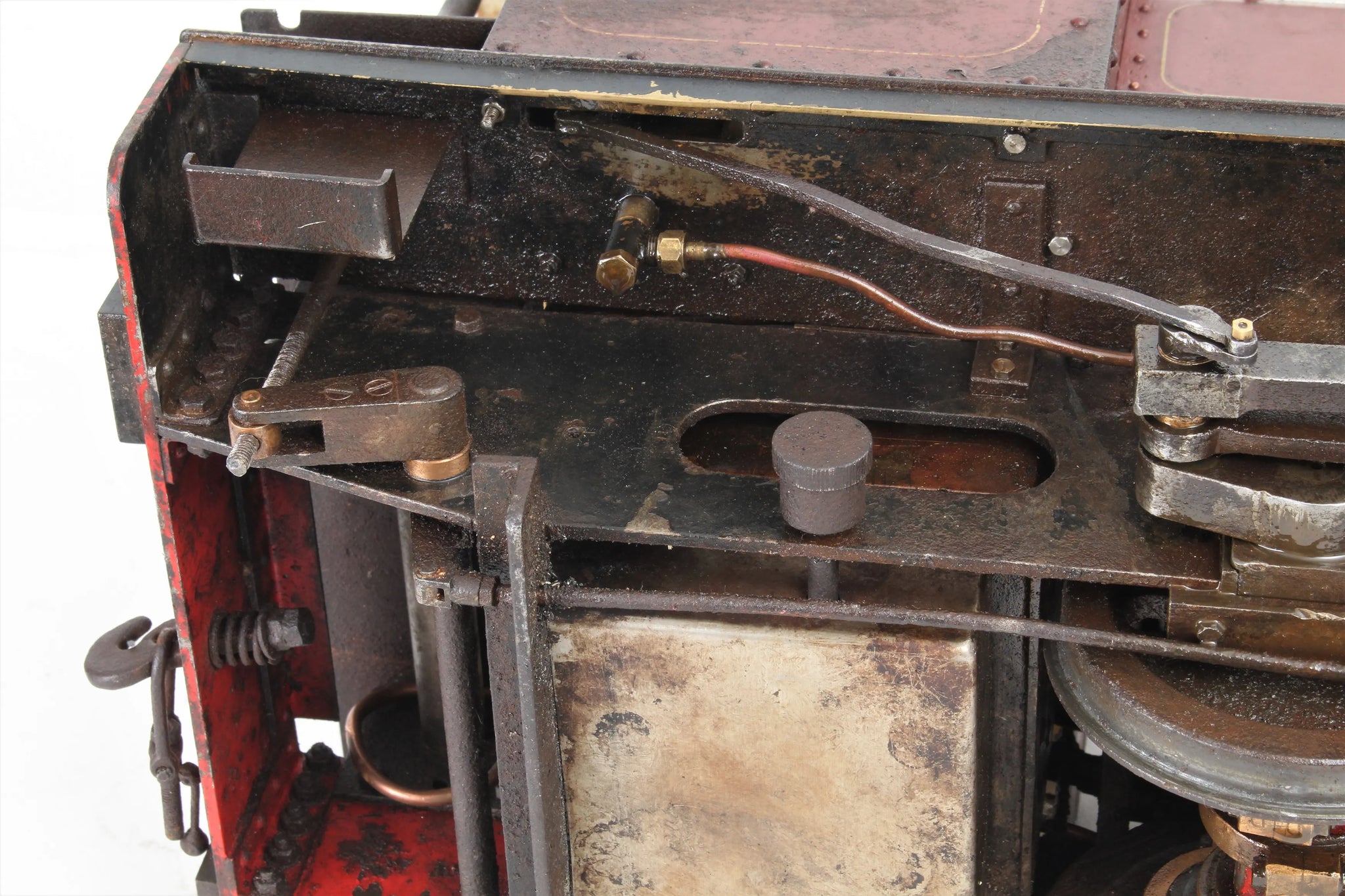

  • it's horrendously grubby, with underlying rust to the running boards
  • paintwork is dreadful (unless you're looking for authentic 1960s North Wales quarry condition)

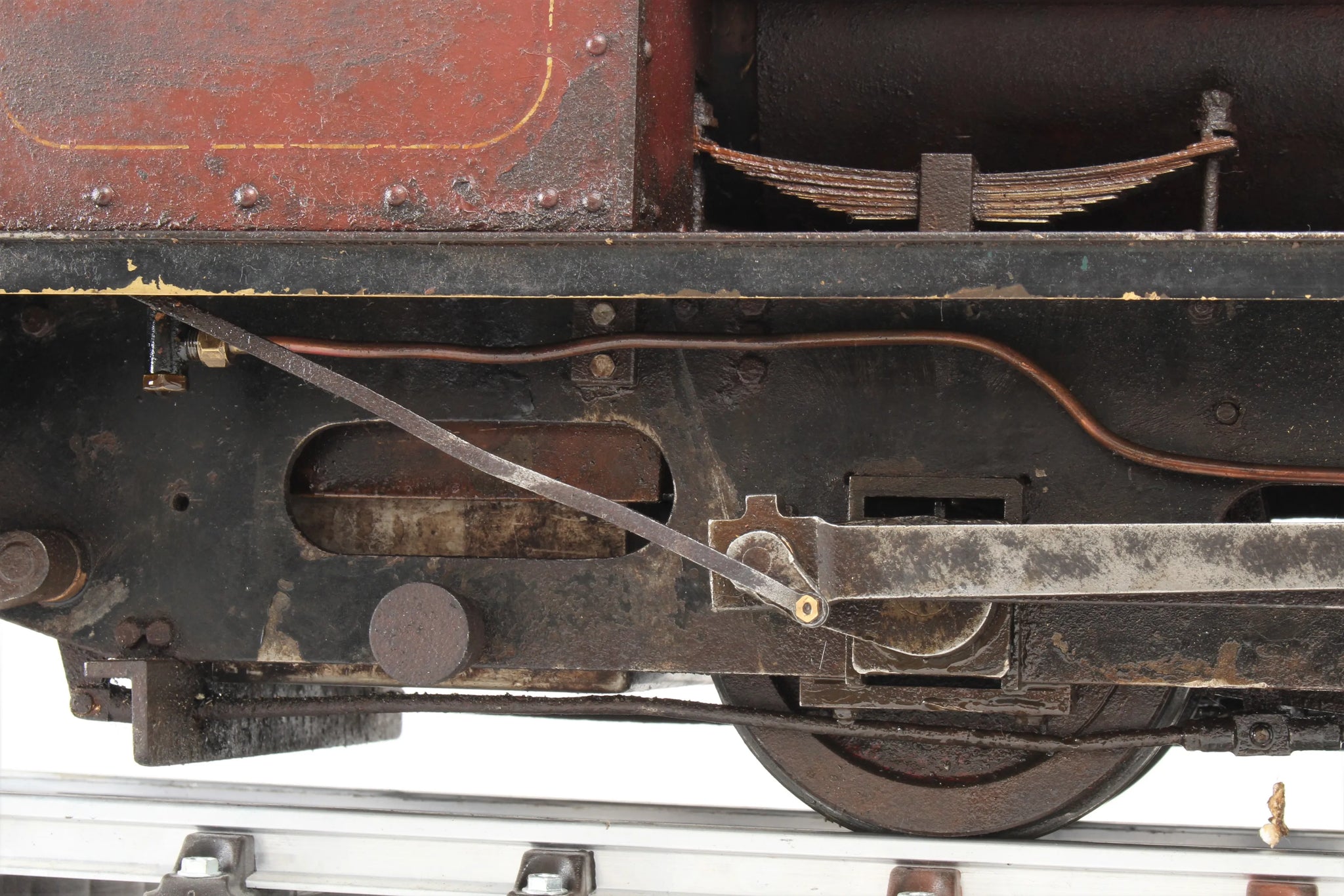

  • the wheels don't go round.
An engine in need of complete restoration, however not a complete lost cause - it needs time in the workshop rather than money spent on it.

We've had many of these in over the years, there are some pictures in the archive of one we sold last year to give you an idea of what a nicely turned-out, well-sorted "Conway" looks like.

Technical information

Stock code

8945

Gauge

3 1/2 inch

Length/inches

27

Width/inches

10.5

Height/inches

13.5

Wheel material

cast iron

Axlebox type

plain bearing

Cylinder material

cast iron

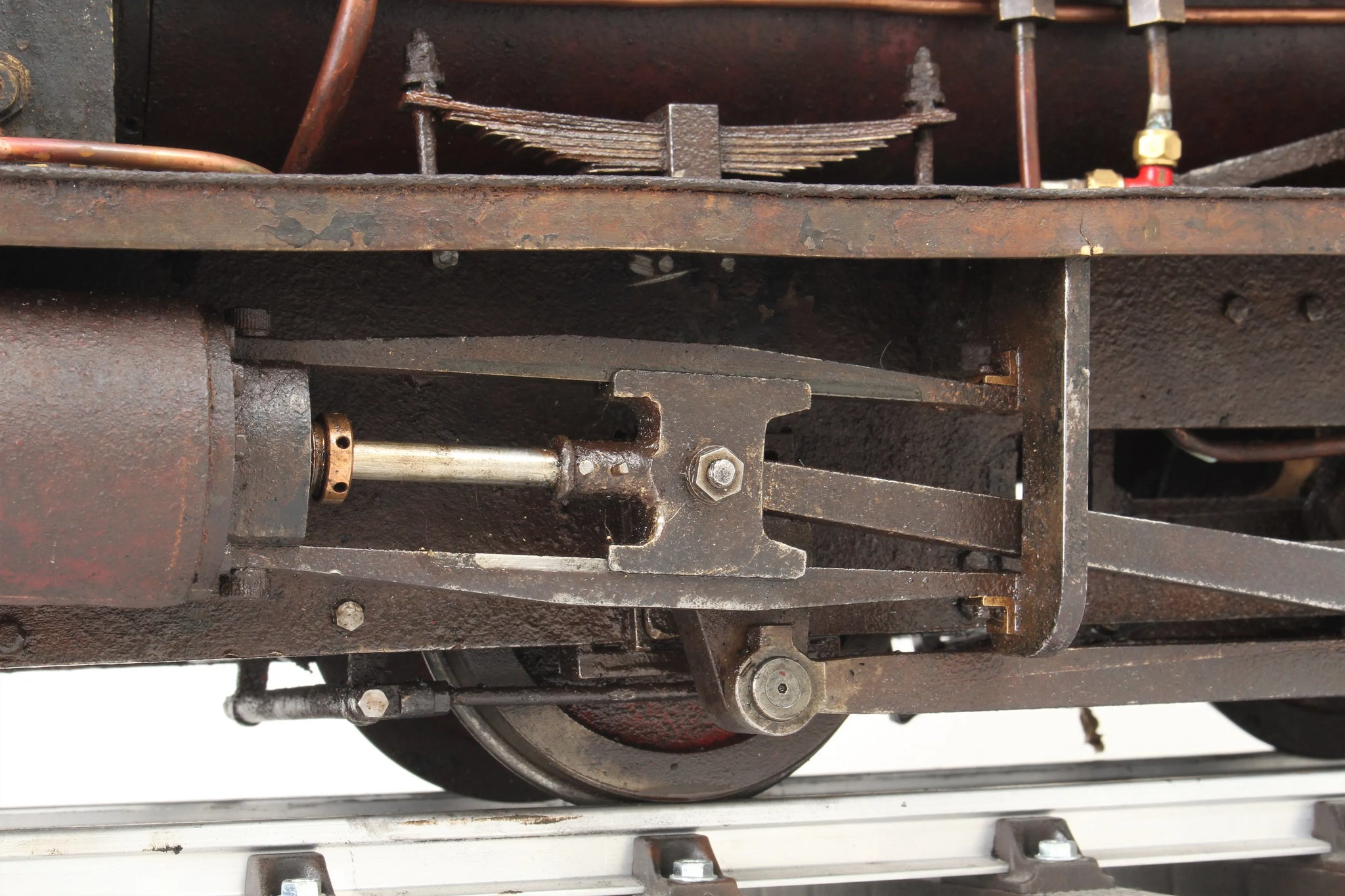

Valve type

slide

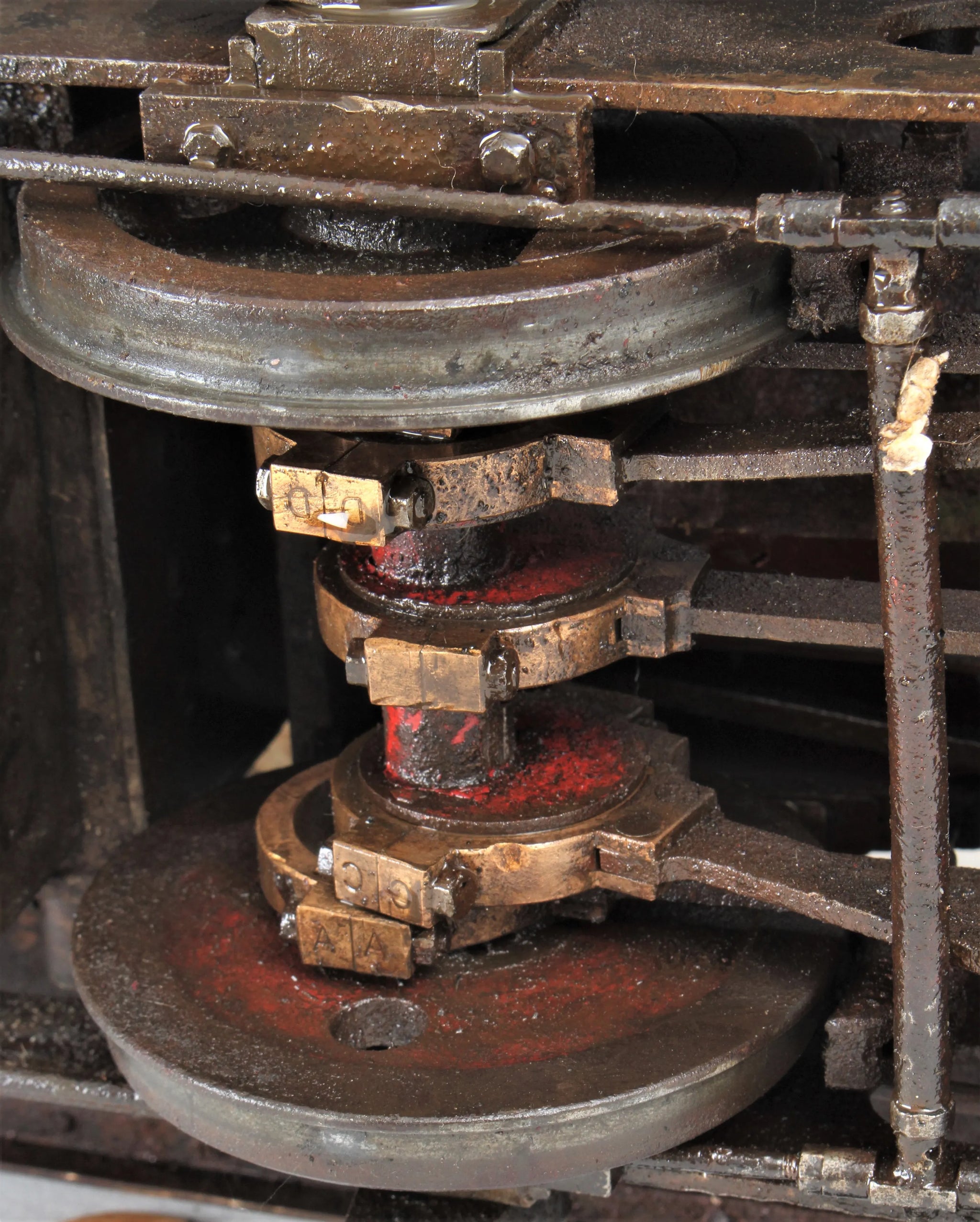

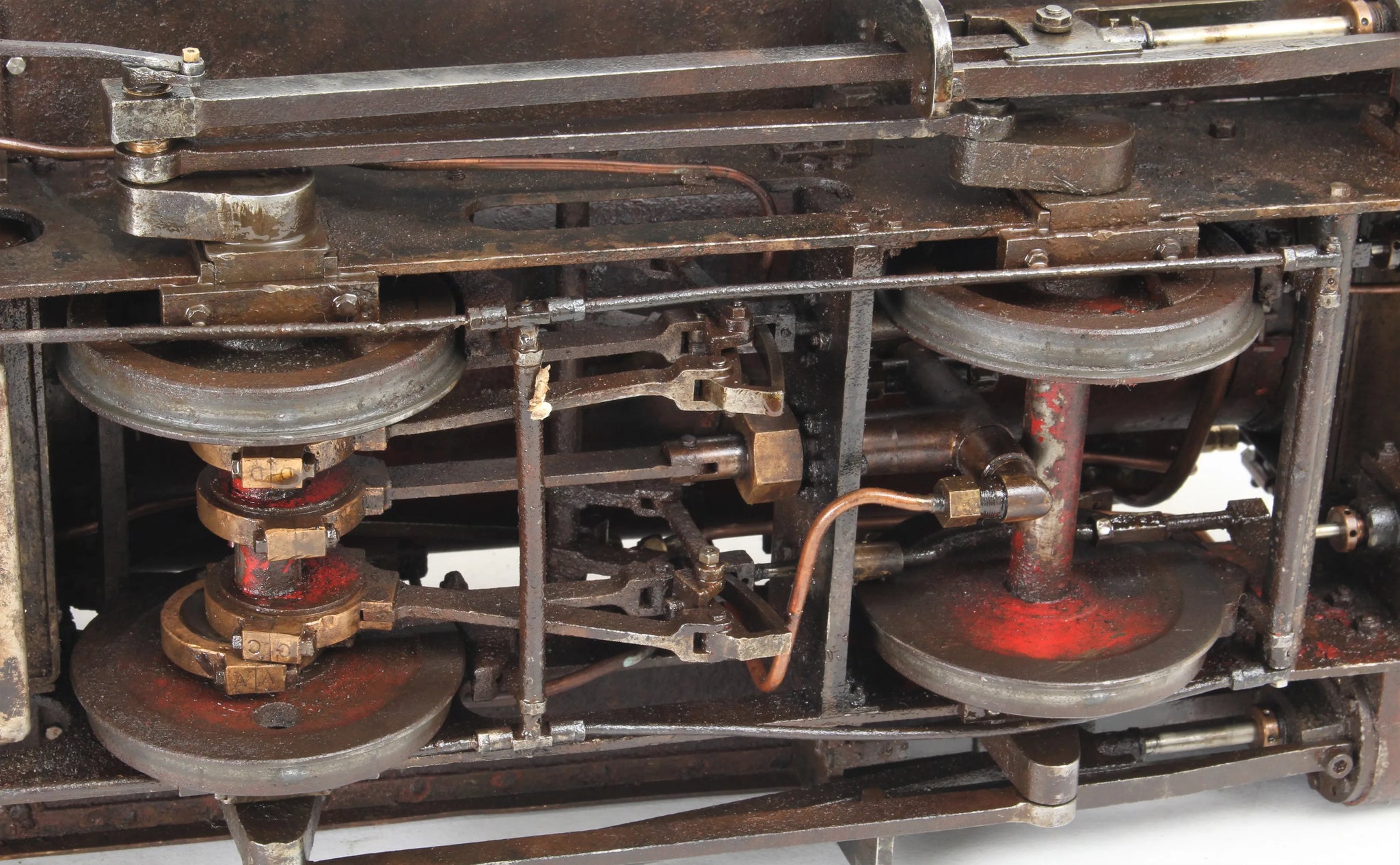

Valve gear

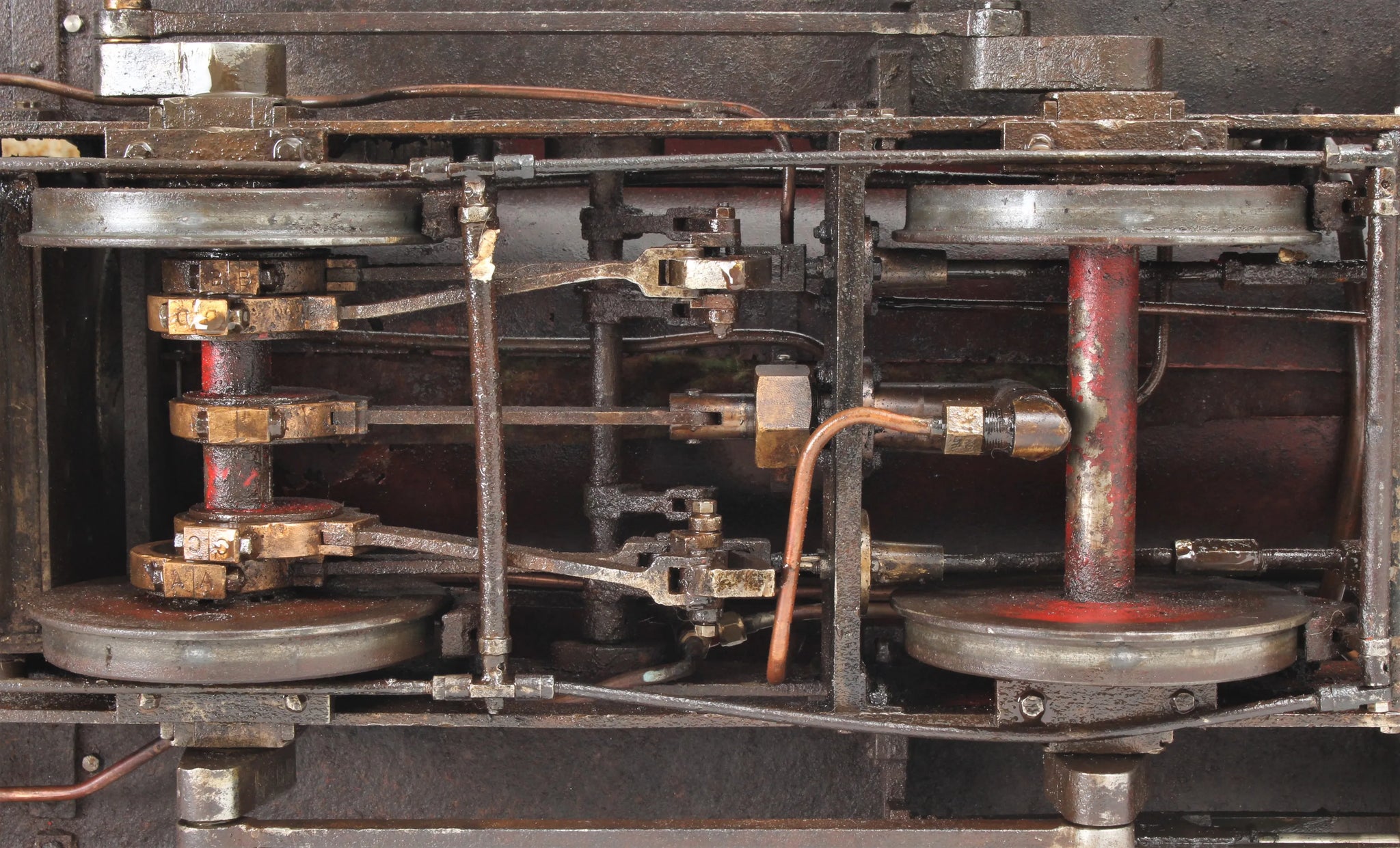

Stephensons

Reverser type

pole

Lubricator type

mechanical

Boiler maker

unknown

Boiler type

locomotive

Boiler construction

silver soldered

Boiler material

copper

Working pressure

80

Year built

unknown

Boiler number

83750

Safety valve type

spring

Safety valve

1

Whistle

yes

Steam pump

1

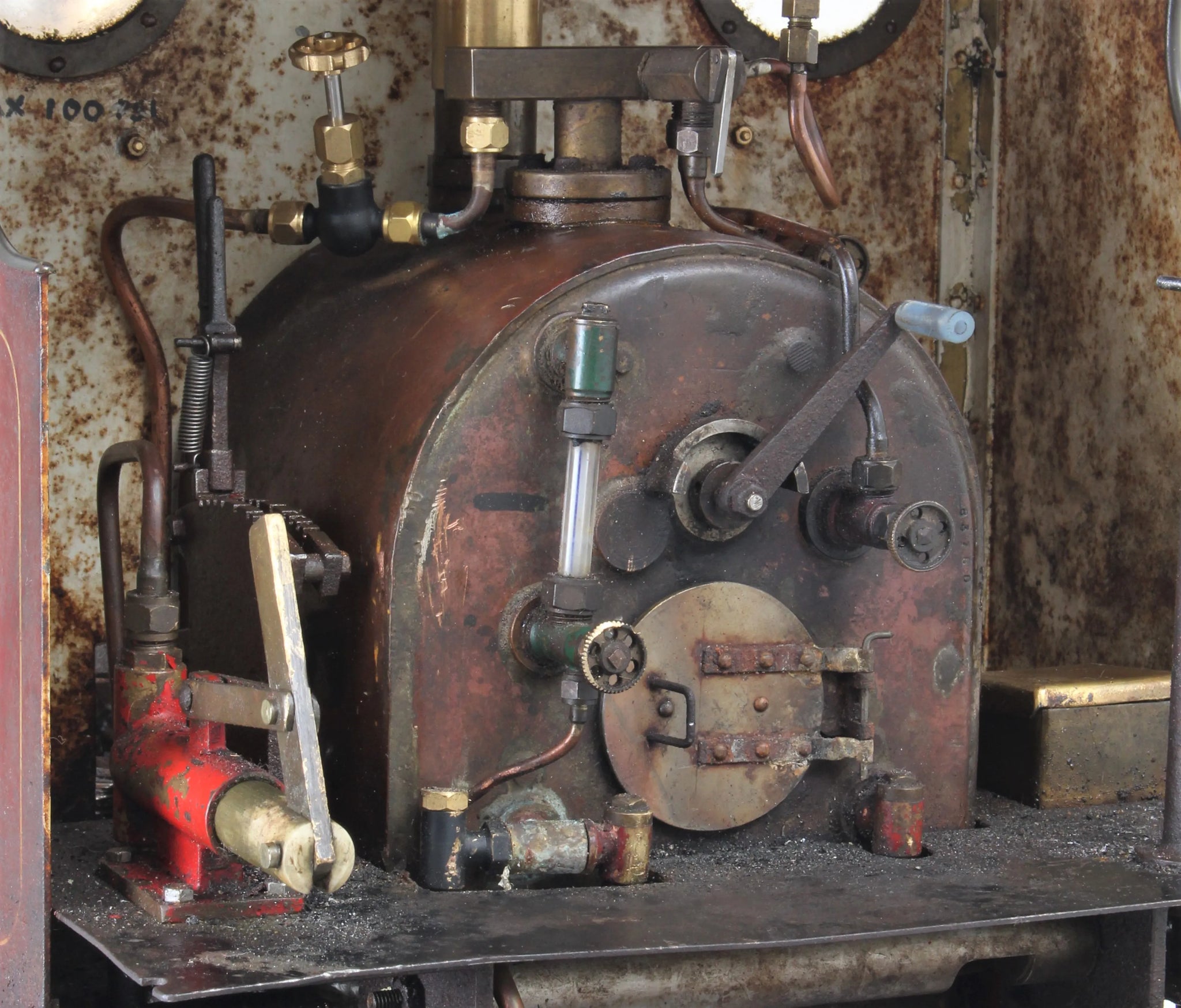

Hand pump

1

Mechanical pump

1

Date out

Feb-20

Hydraulic test valid to

19-Oct-23
