8709

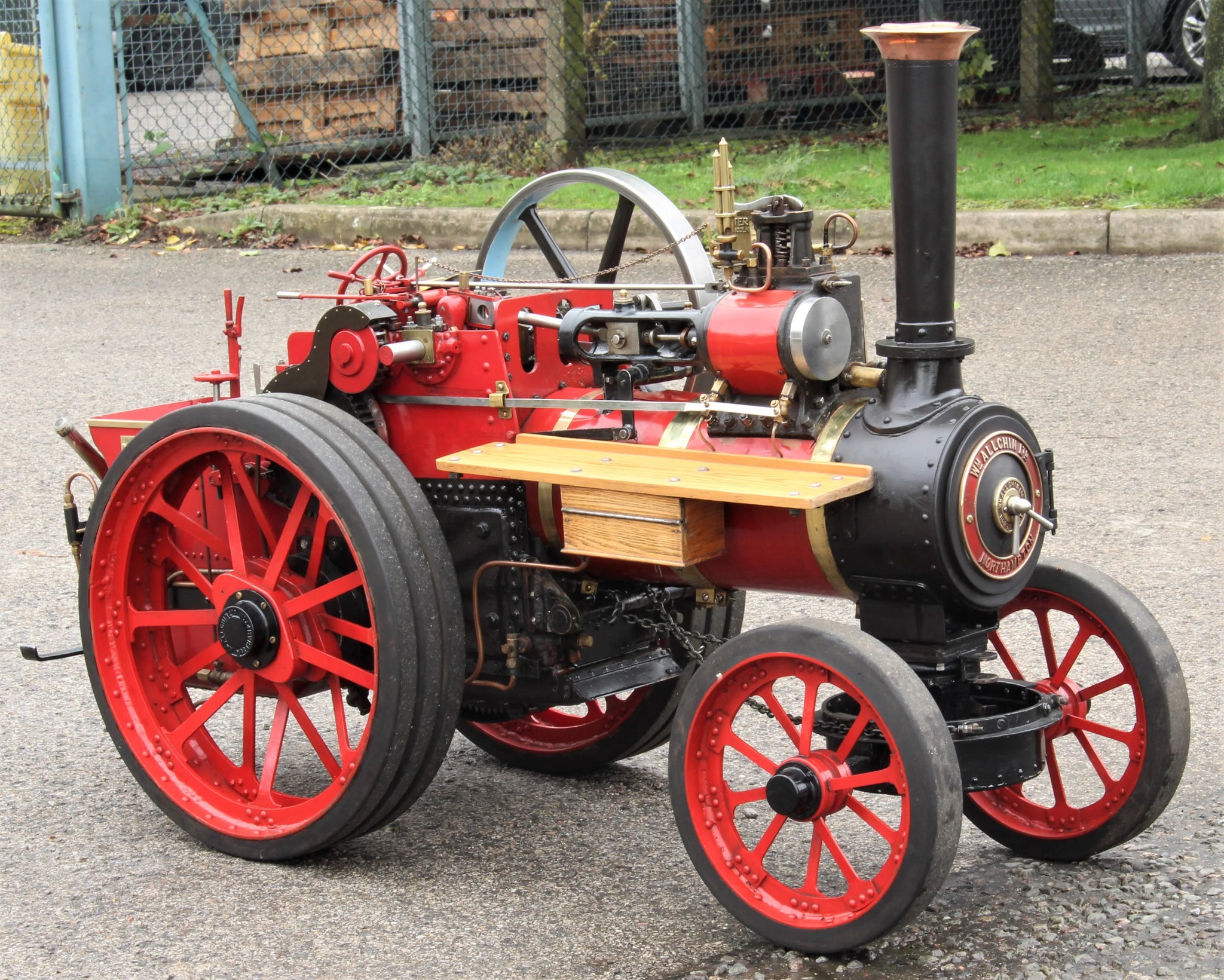

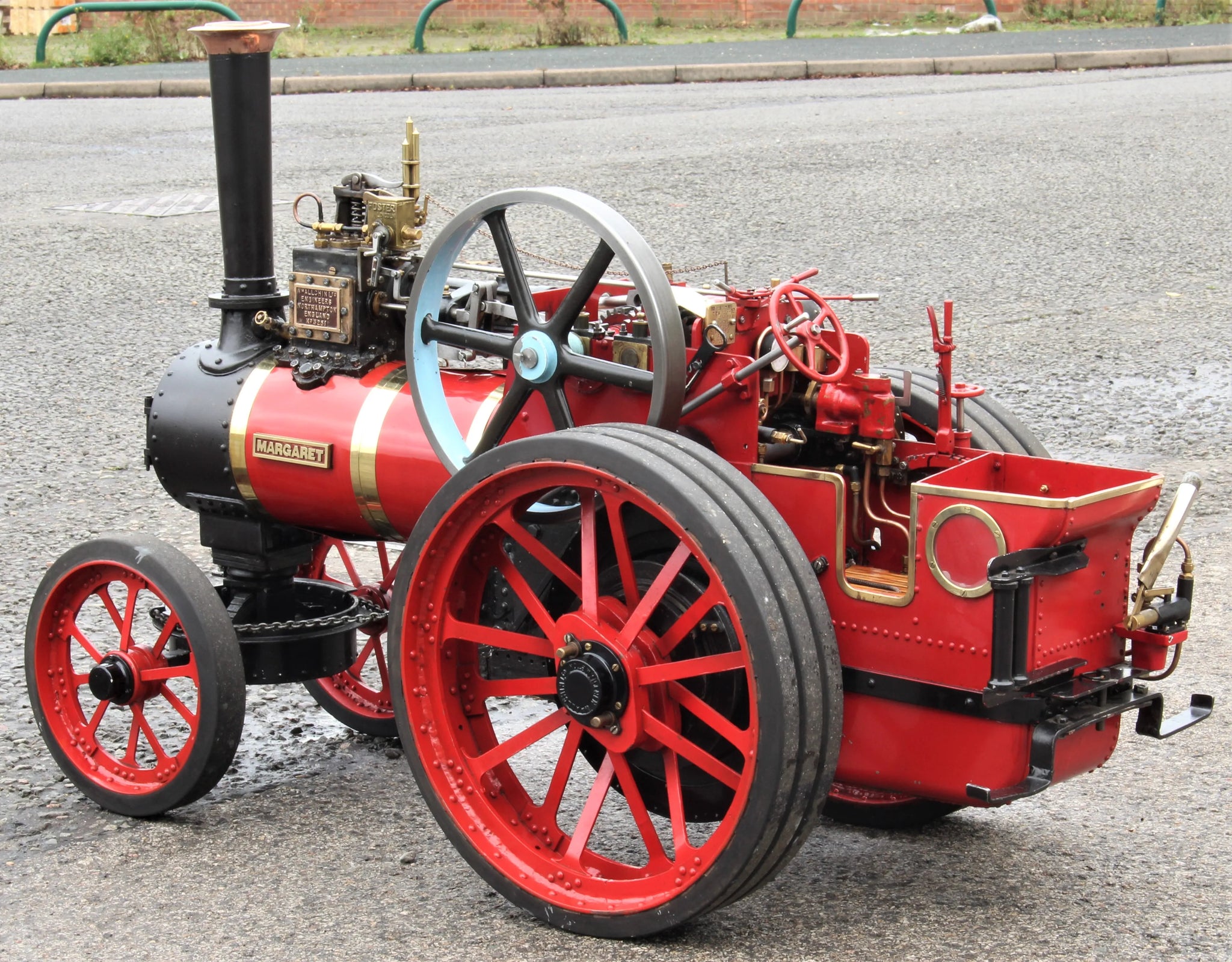

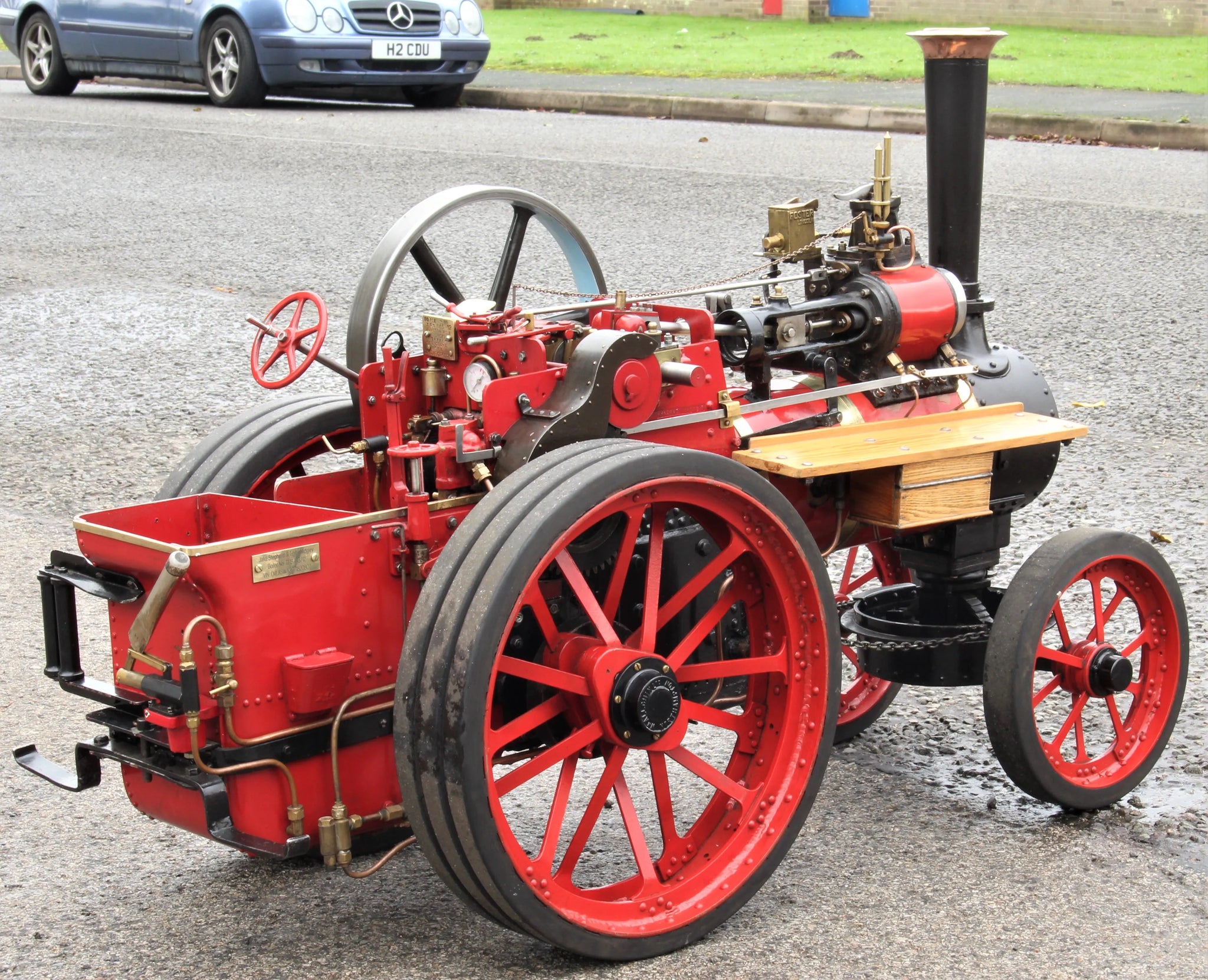

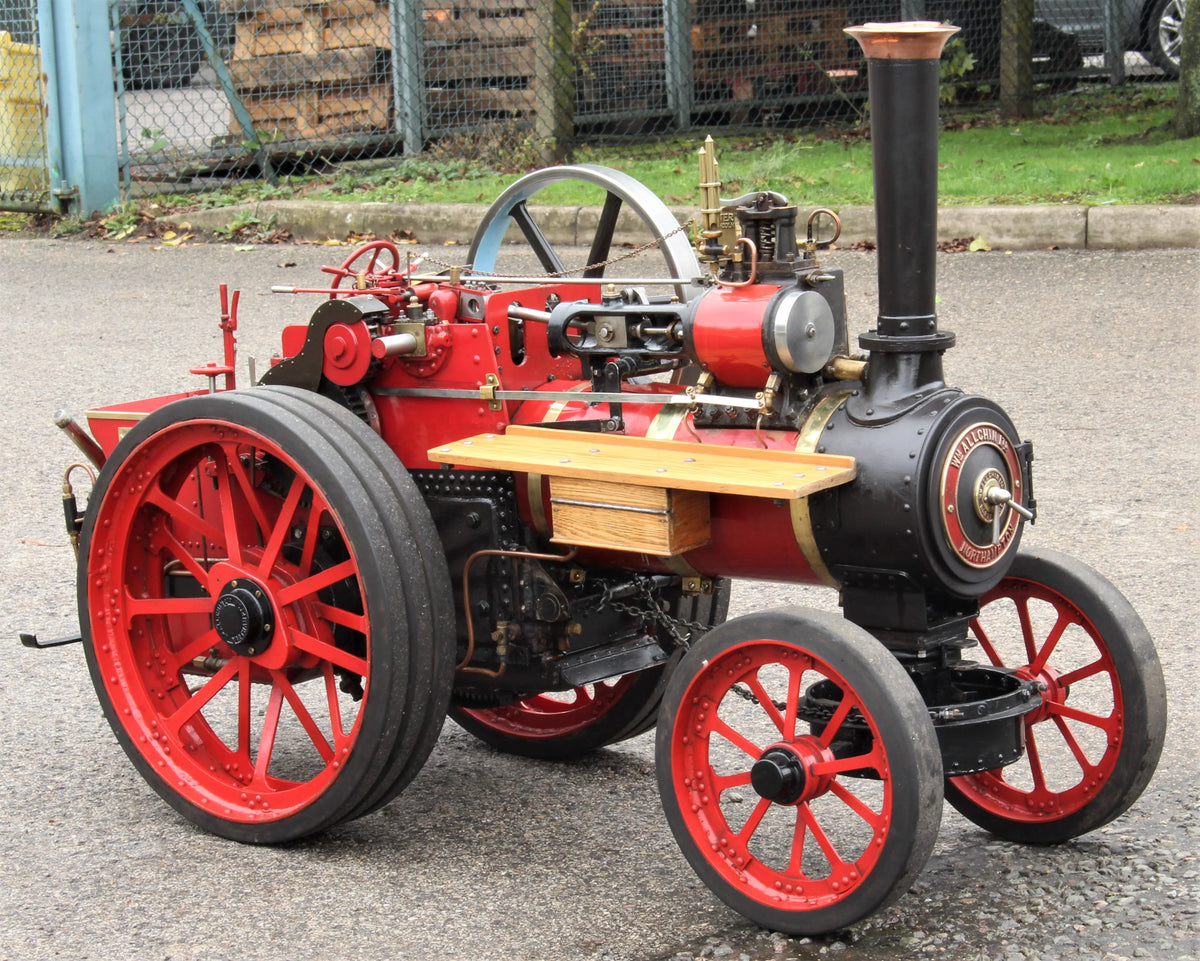

Re-boilered in 2013 with a new CE-marked boiler from TRS Boiler Makers, it's come in as part exchange against a 4 inch scale engine.
In recent use, the boiler has club history, as well as recent hydraulic and steam test with certification for same.
Stock code |
8709 |
Scale |
3 inch |
Length/inches |
54 |
Width/inches |
24 |
Height/inches |
35 |
Weight/Kg |
est 230 |
Wheel material |
cast iron flywheel 14 inch diameter |

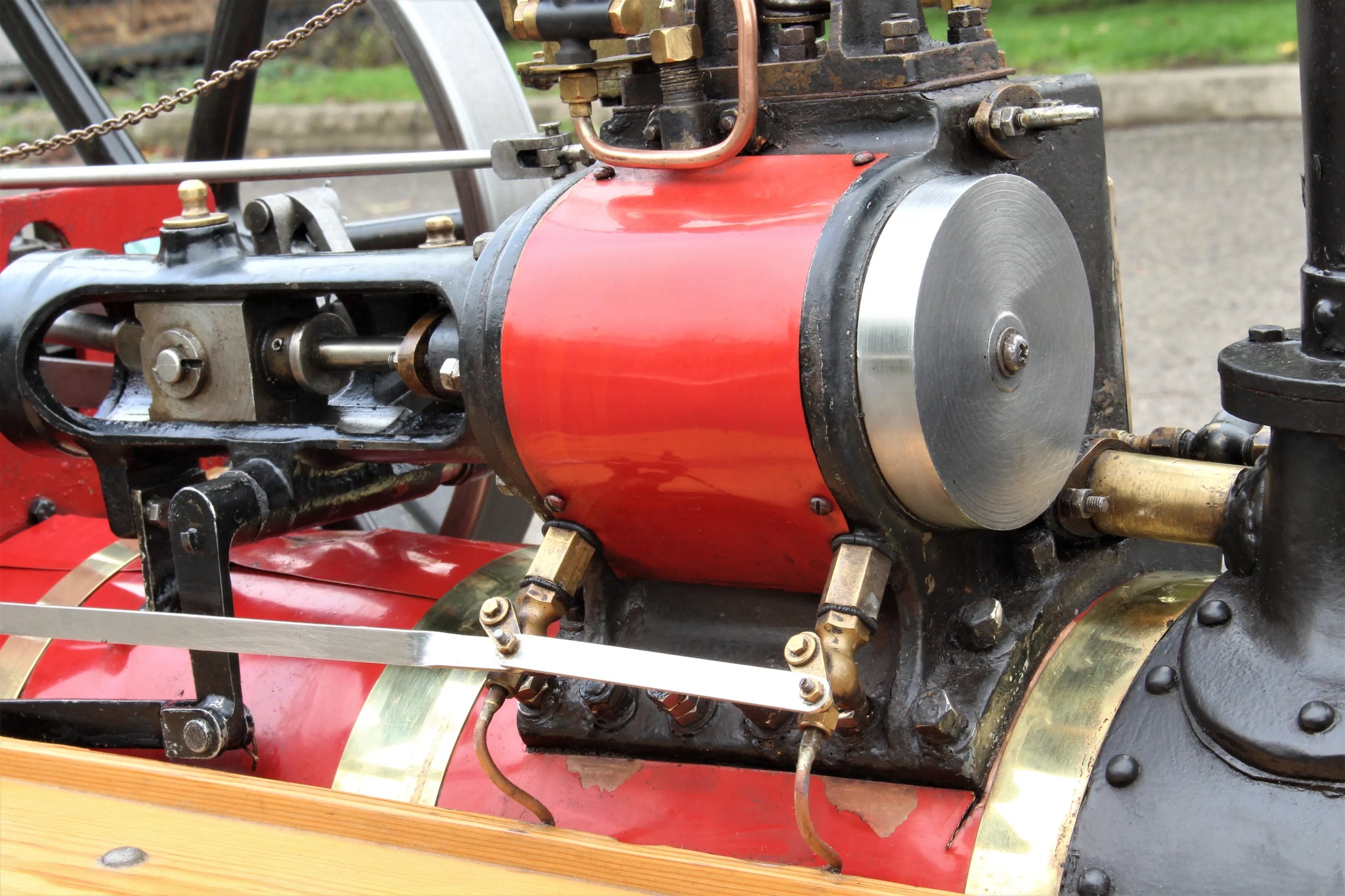

Cylinder material |
cast iron |
Valve type |
slide |

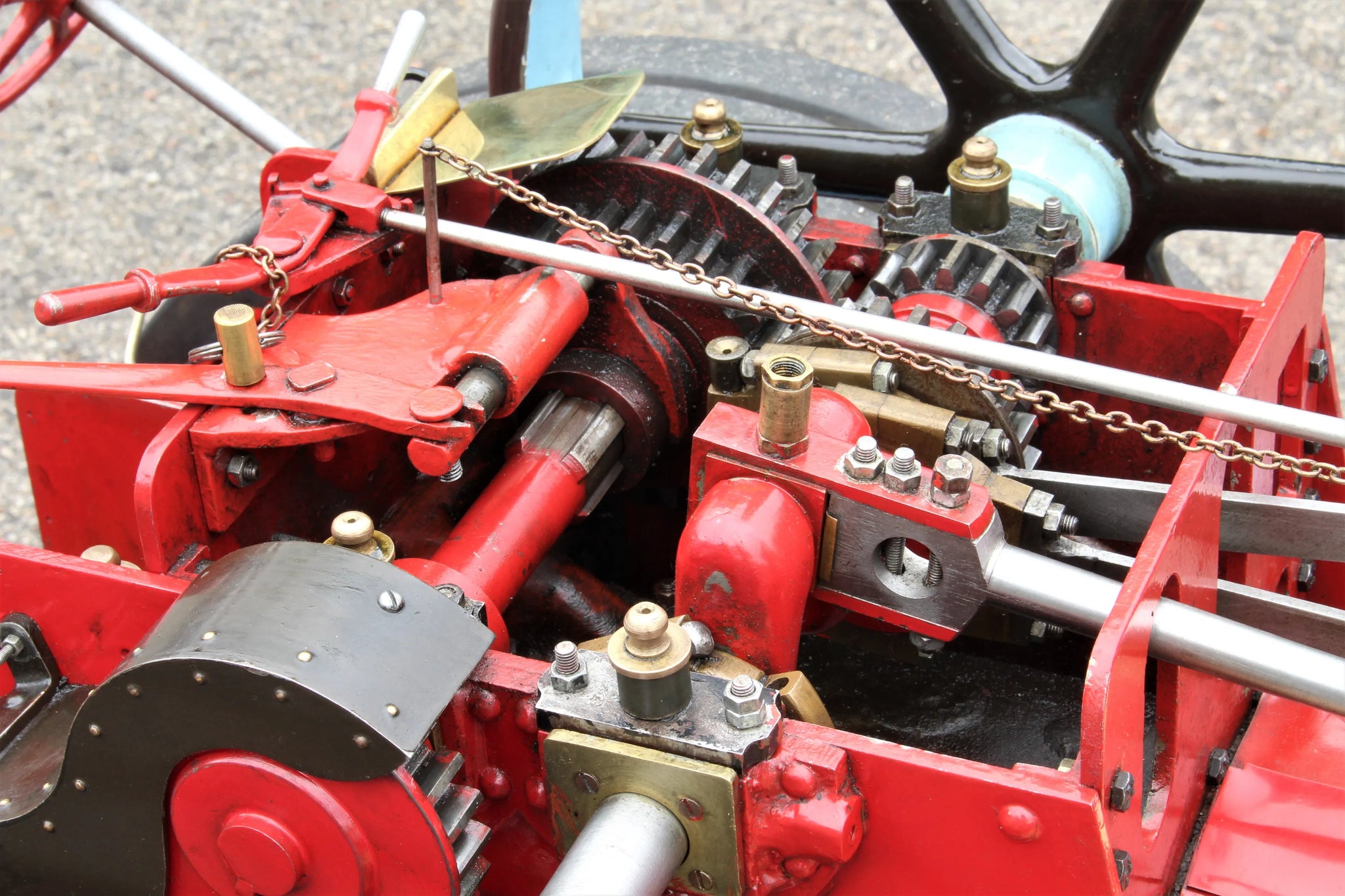

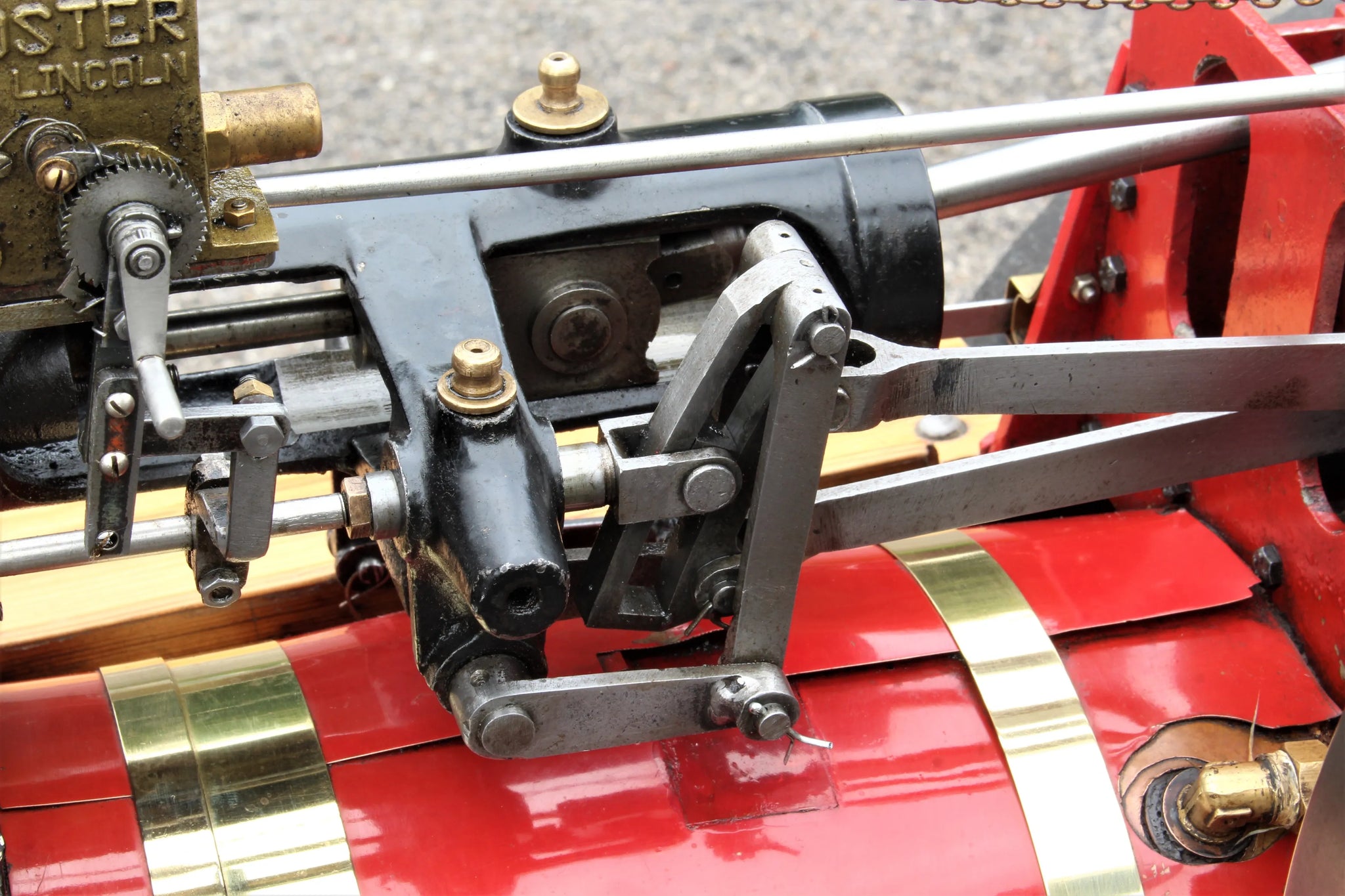

Valve gear |
Stephensons |
Reverser type |
pole |
Lubricator type |
mechanical |
Boiler maker |
TRS Boiler Makers |
Boiler type |
locomotive |
Boiler construction |
welded, expanded tubes |
Boiler material |
steel |
Working pressure |
100 |
CE/UKCA mark |
yes |
Year built |
2013 |
Boiler number |
TRS 143/12 |

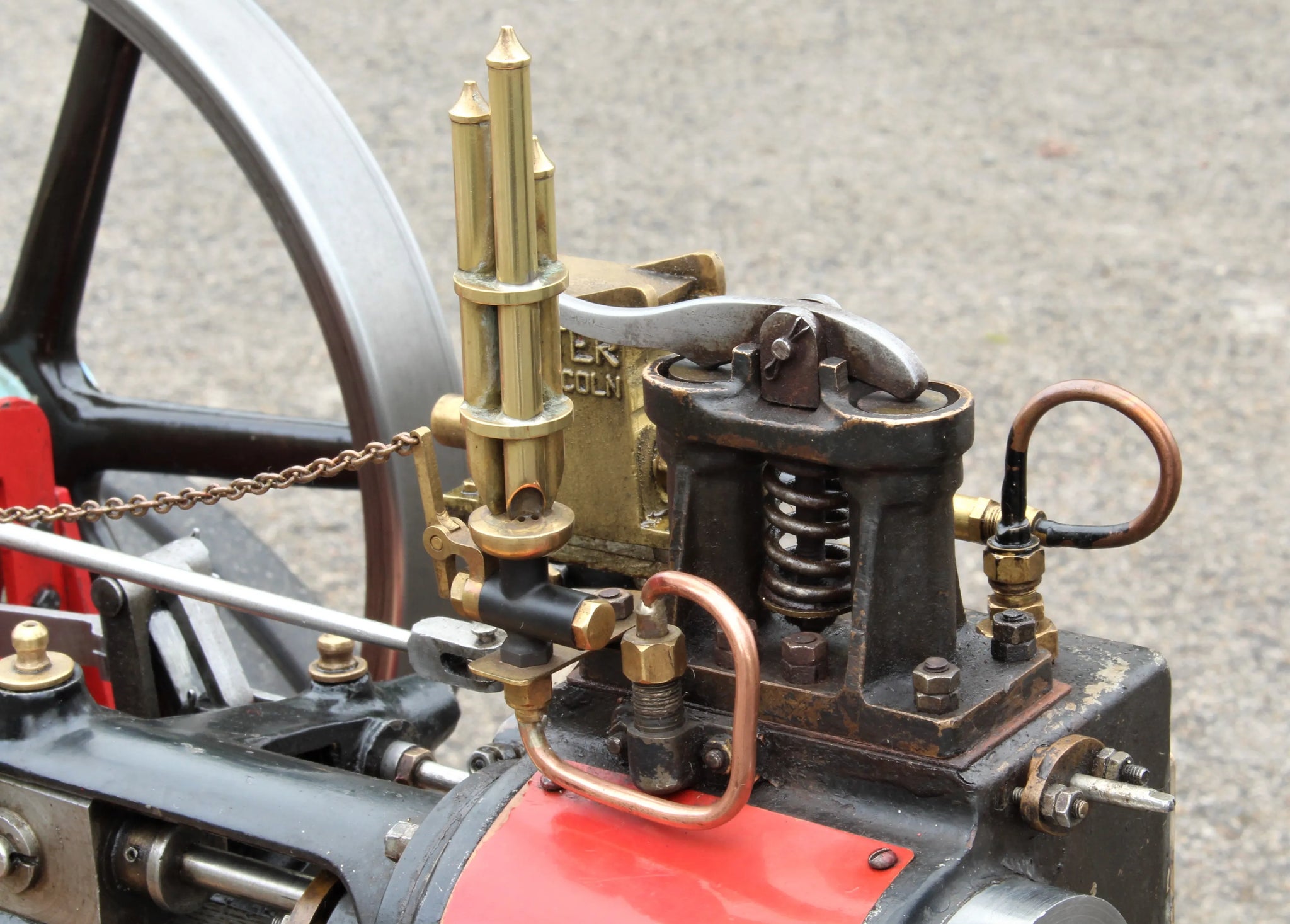

Safety valve type |
Ramsbottom |
Safety valve |
2 |

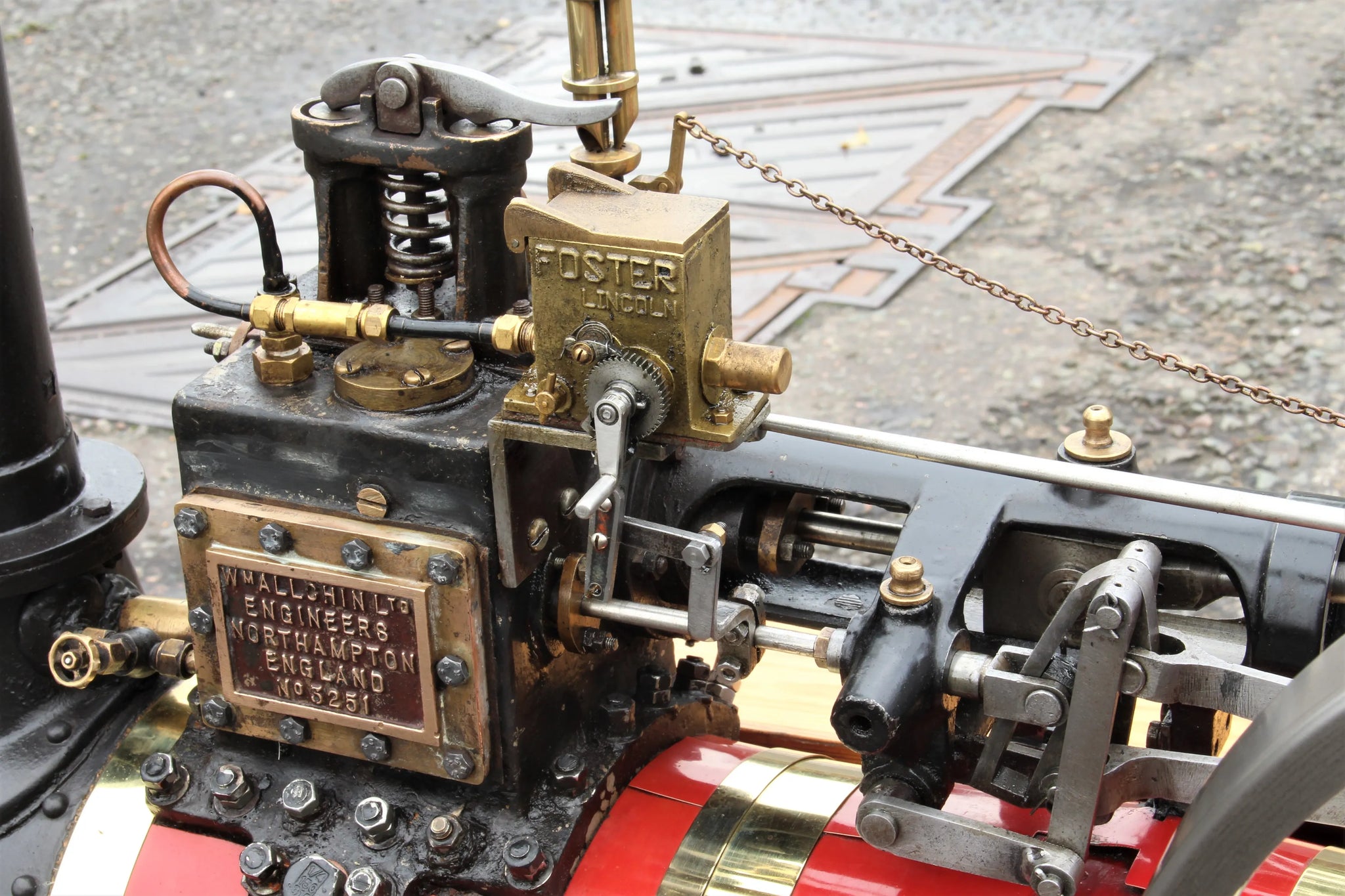

Governor type |
Pickering |
Road speed |
2 |
Whistle |
chime type |
Hand pump |
1 |
Mechanical pump |
1 |
Injector |
1 |
Date out |
Dec-19 |
Hydraulic test valid to |
10-Nov-21 |
Steam test valid to |
14-Jan-21 |
