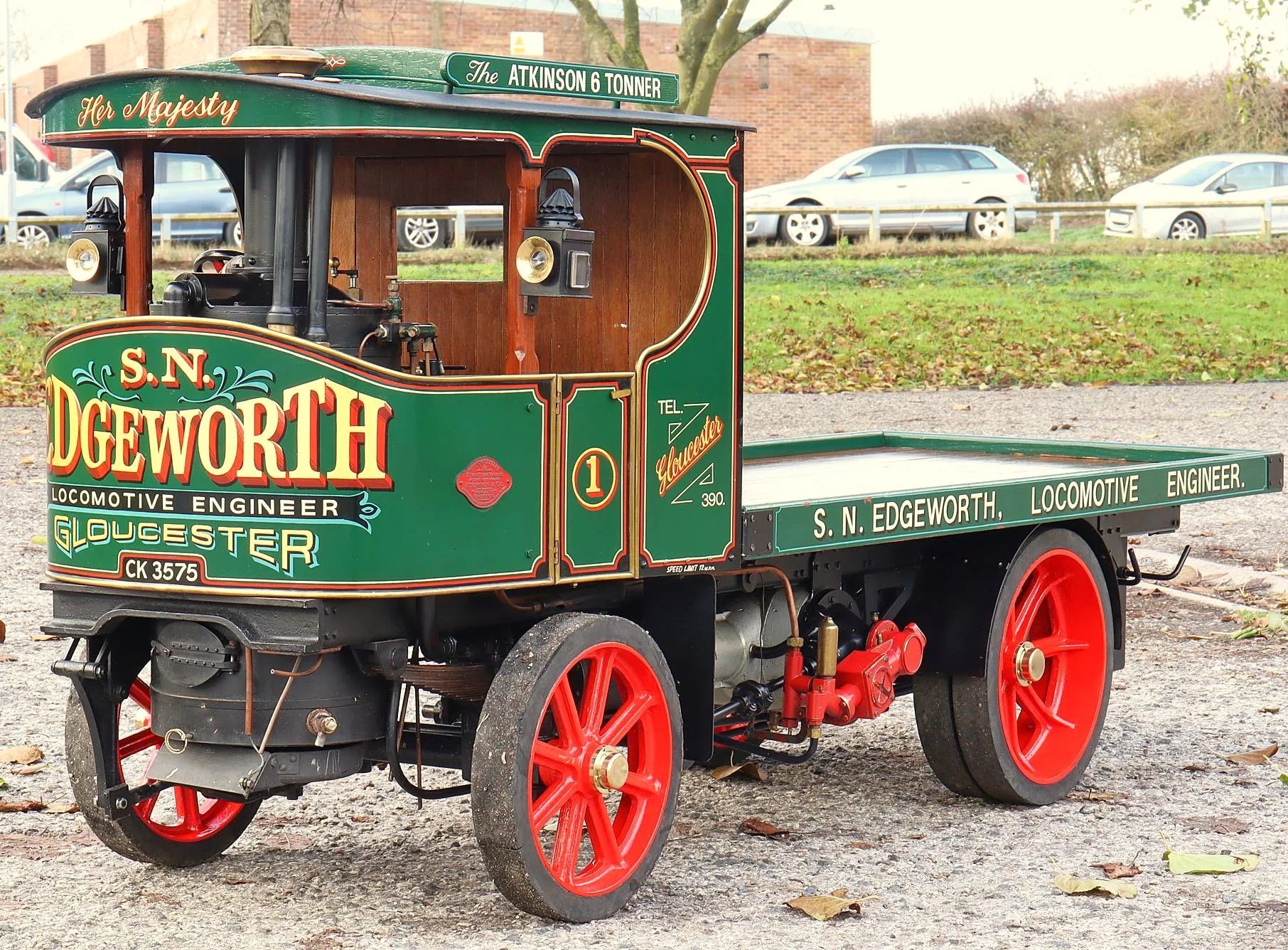

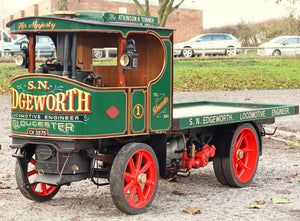

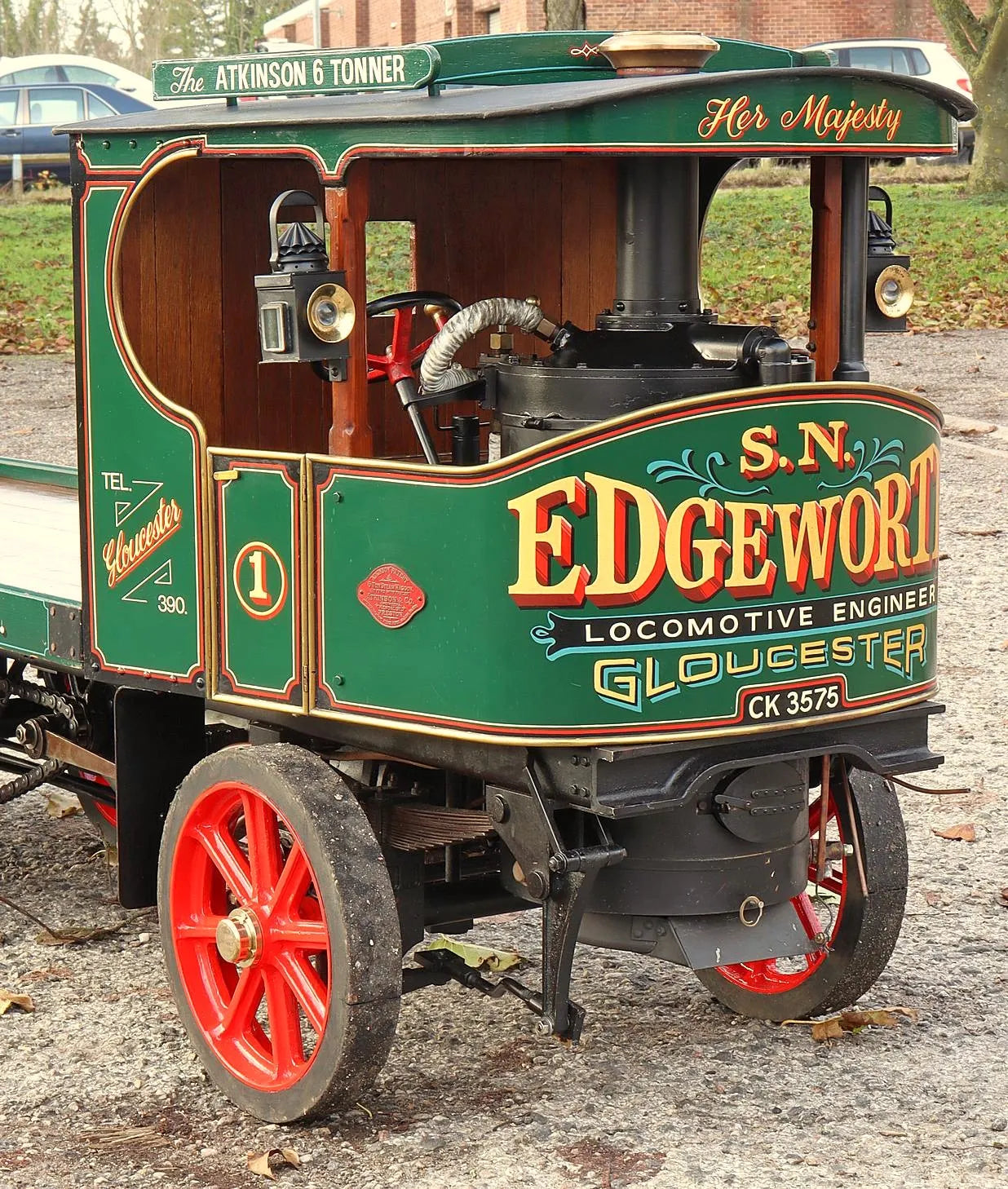

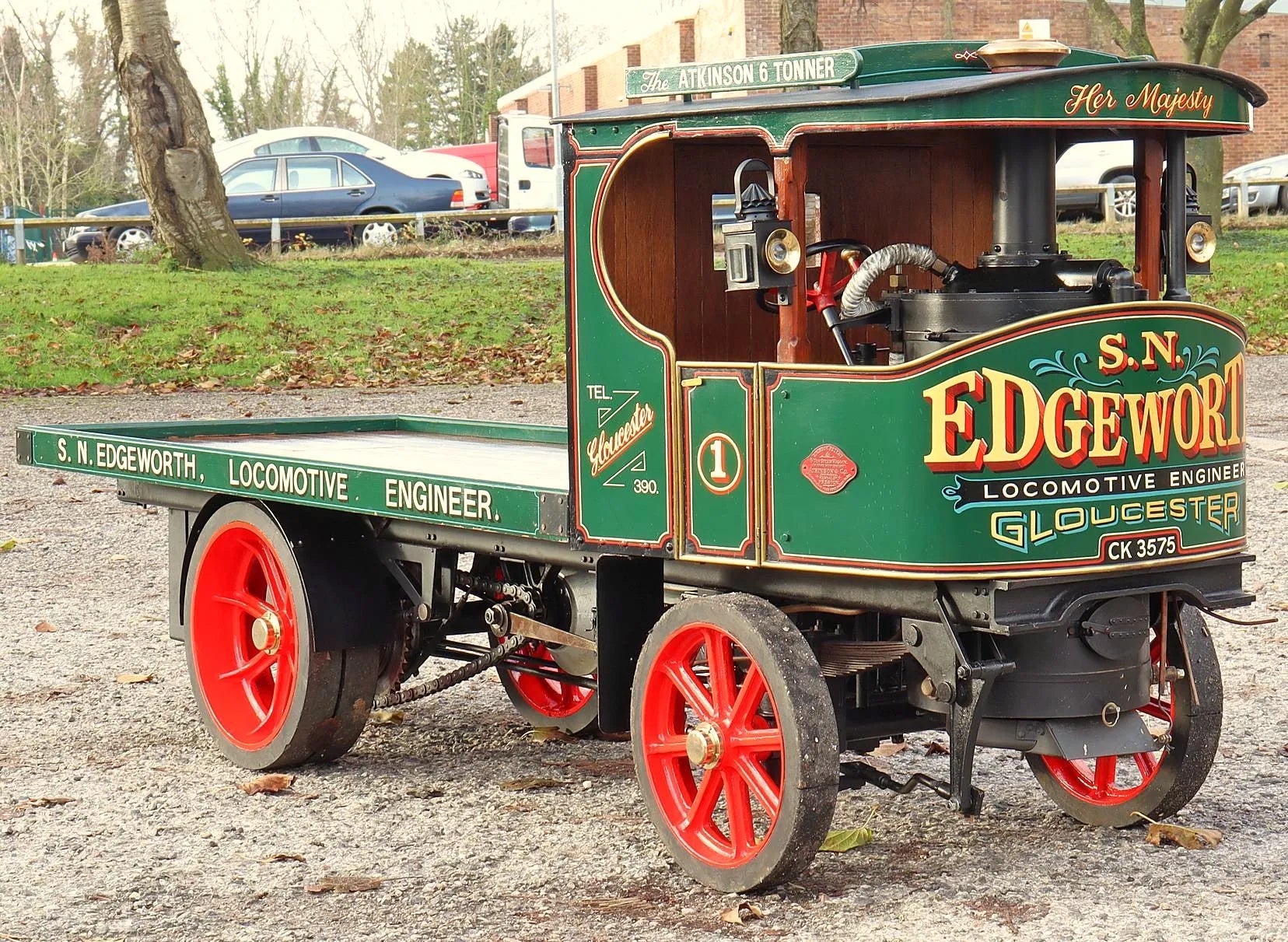

3 inch scale Atkinson undertype steam wagon

A 3 inch scale Atkinson steam wagon to the Ray Prime design, serialised in "Engineering in Miniature" magazine from 1984.

A one-owner engine, this one has come to us from the builder. An experienced engineer, he was also responsible for a fine 5 inch gauge "Royal Scot" and 7 1/4 inch gauge 57XX Pannier tank.

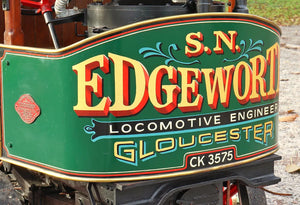

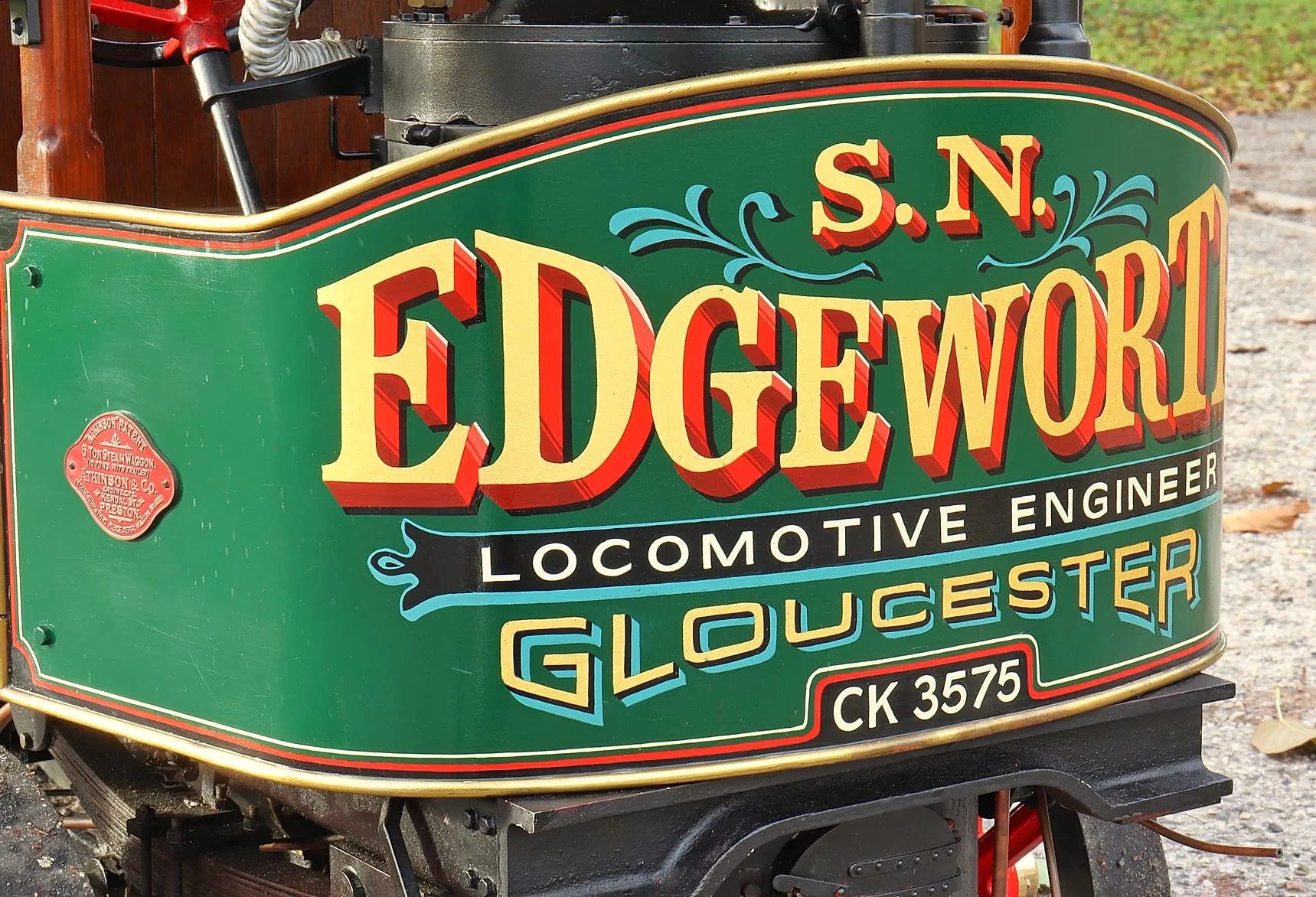

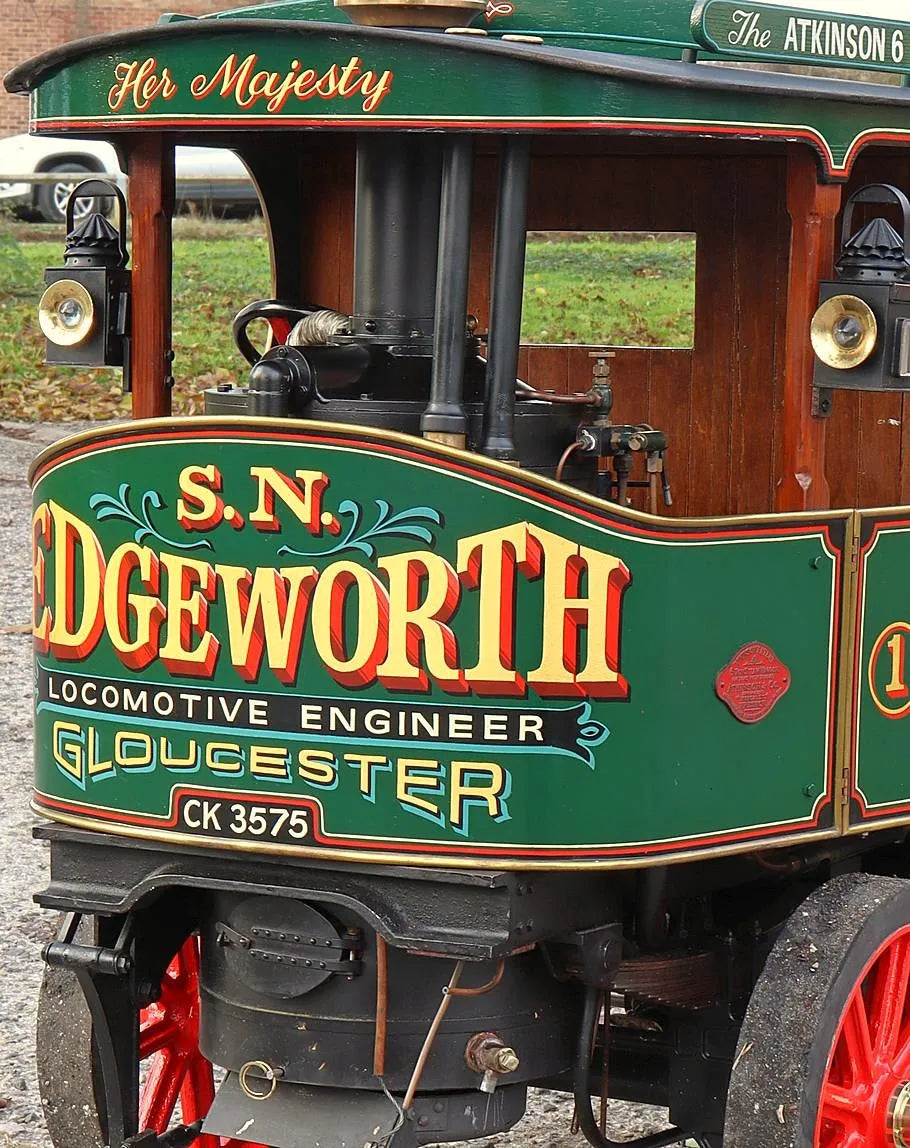

Beautifully made, the Atkinson steams freely and runs like a sewing machine. The paintwork, with hand-lined finish is a work of art in its own right, signwritten in gold leaf. In good condition, it presents very well.

The engine includes a sight feed for the sump oil level, a useful addition.

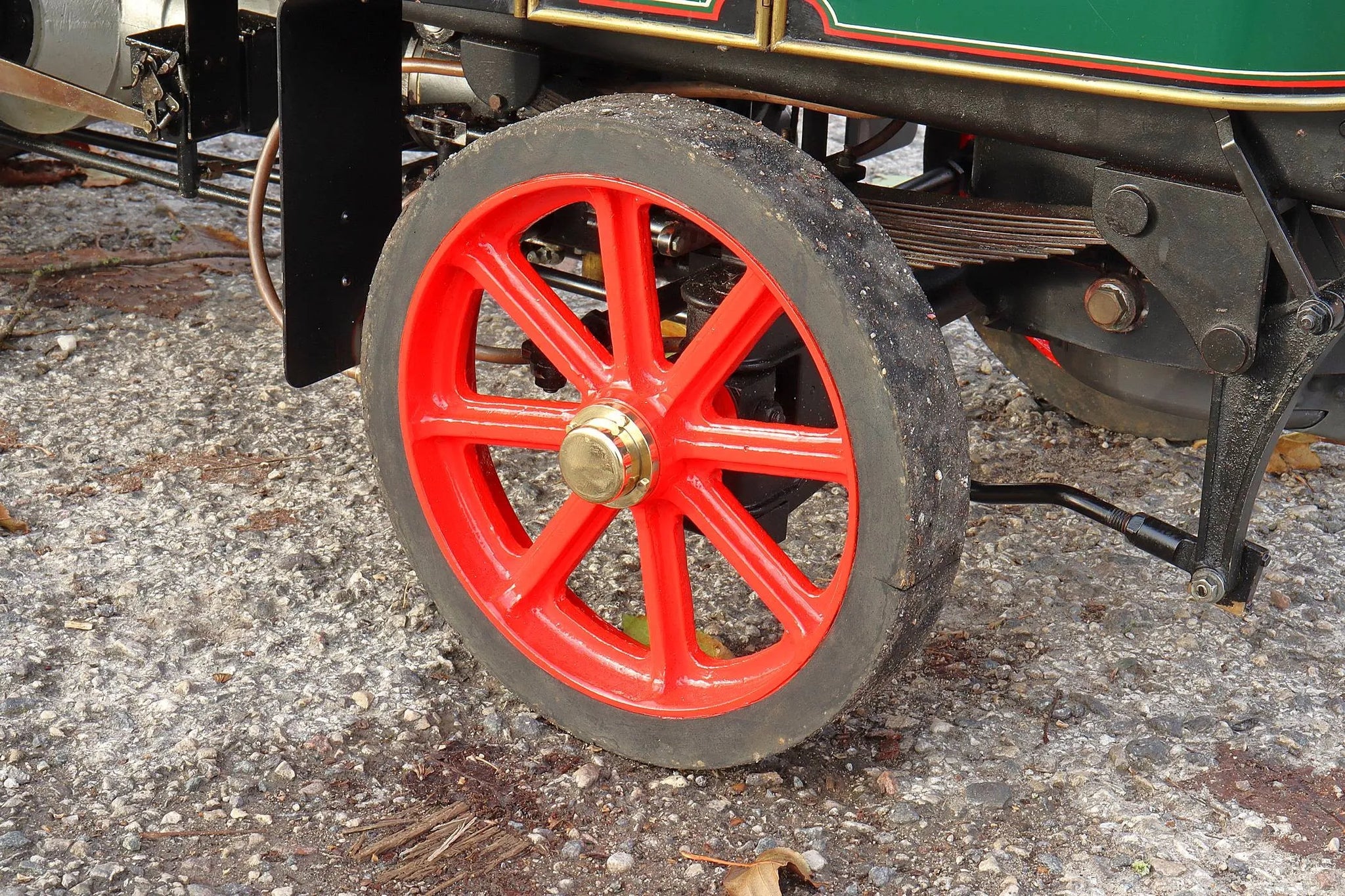

Complete with a spare set of pneumatic-tyres wheels and a driver's seat with footpegs.


Technical information

Stock code

13224

Scale

3 inch

Length/inches

62

Width/inches

20

Height/inches

27

Weight/Kg

130

Wheel material

cast iron

Axlebox type

plain bearing

Cylinder material

cast iron

Valve type

poppet

Valve gear

poppet valve

Reverser type

pole

Lubricator type

mechanical

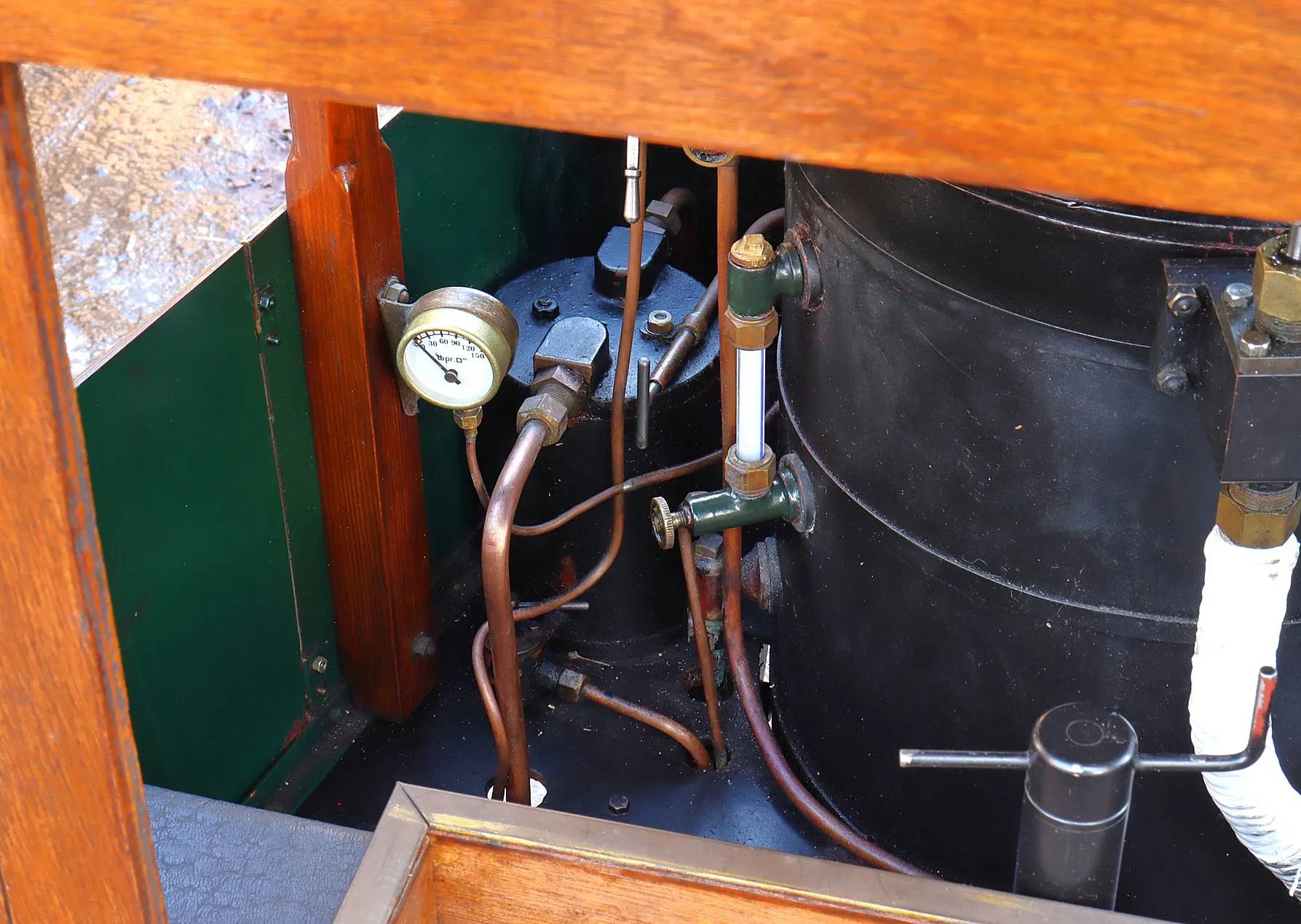

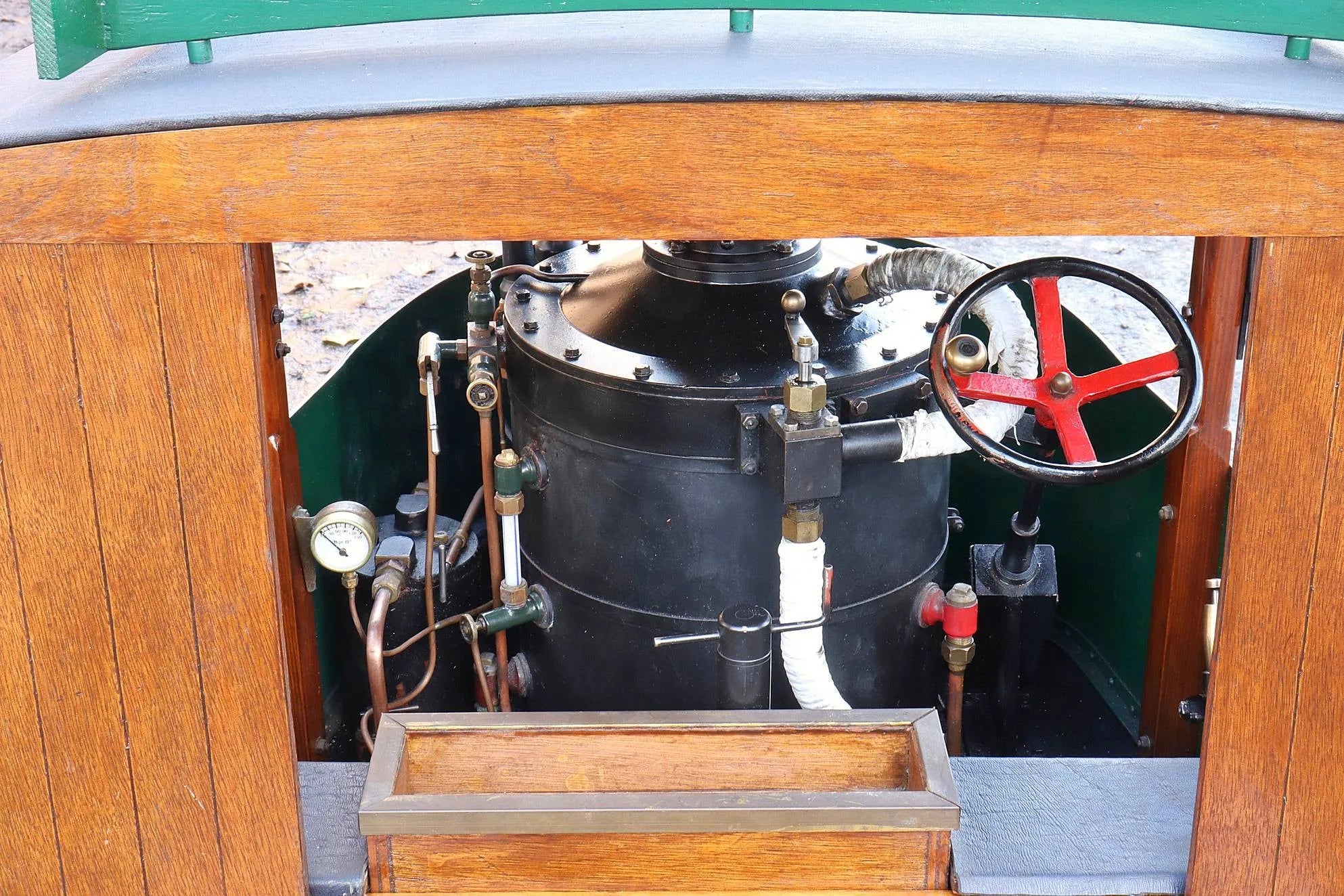

Boiler type

vertical

Boiler construction

silver soldered

Boiler material

copper

Working pressure

90

CE/UKCA mark

n/a - non-commercial

Year built

1989

Boiler number

800

Safety valve type

spring

Safety valve

2

Road speed

1

Whistle

yes

Hand pump

1

Mechanical pump

1

Injector

1

Superheater type

flue tube

Superheater

1

Date out

Apr-26

Hydraulic test valid to

01-Dec-29

Steam test valid to

18-Feb-27
