Sold

6709

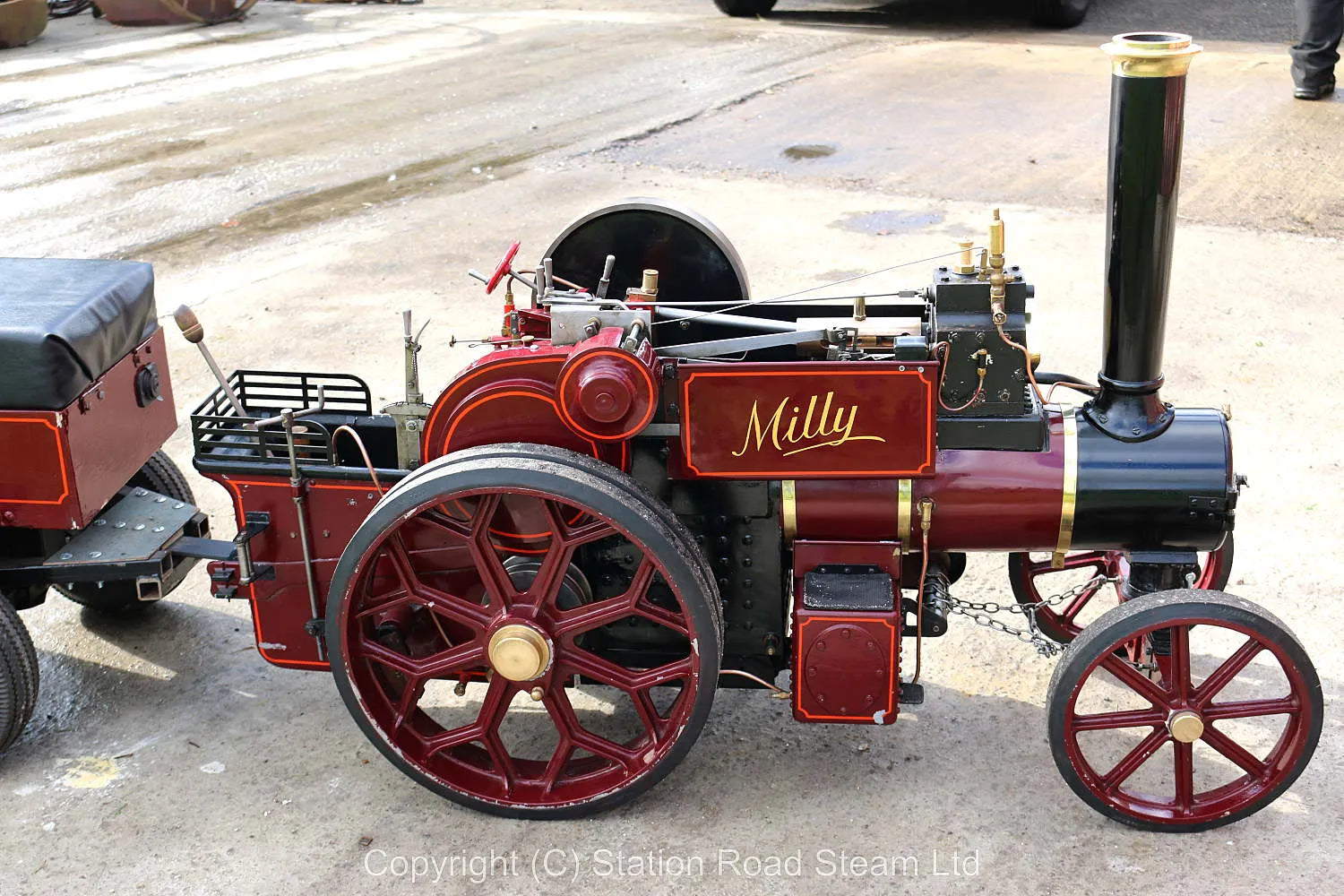

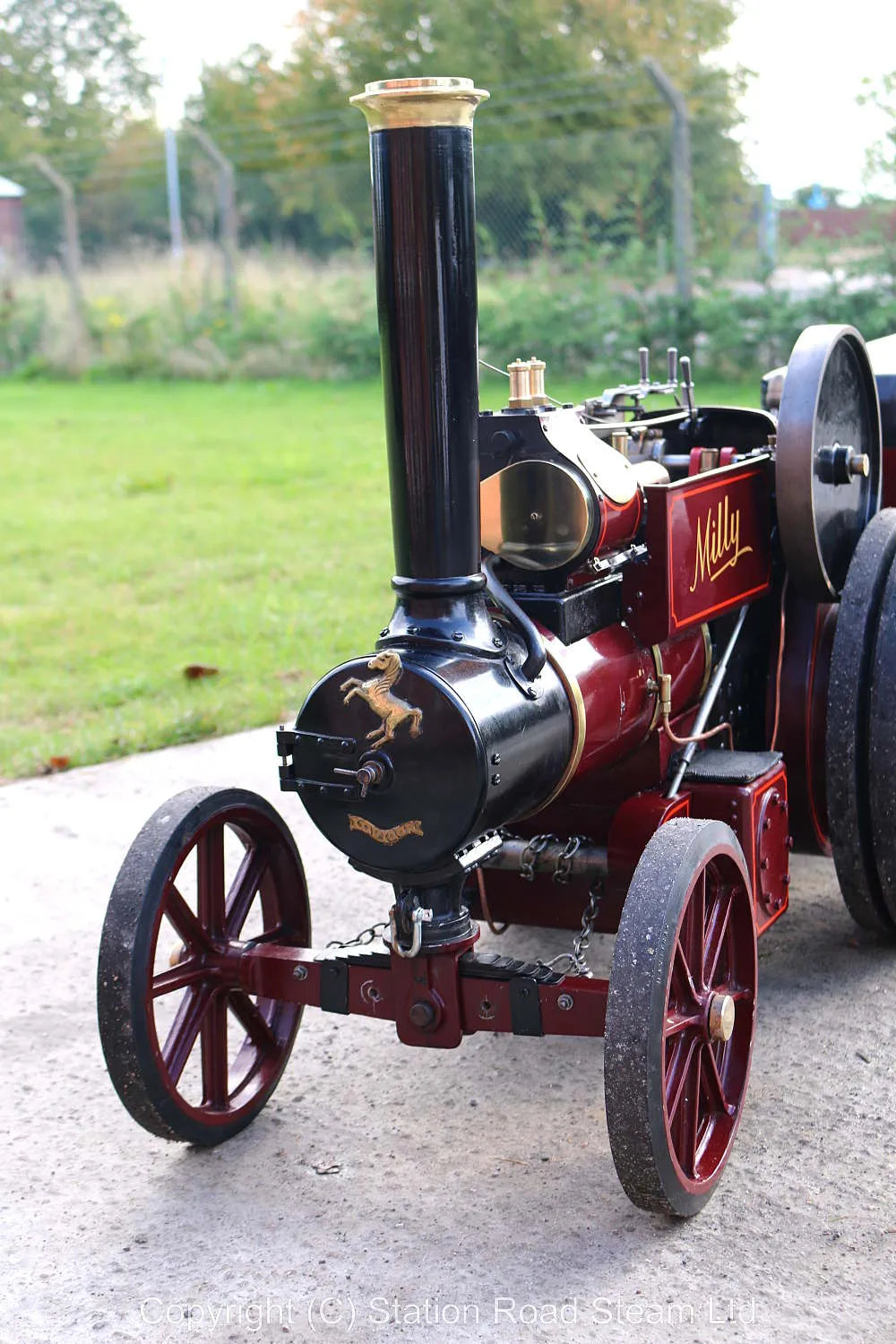

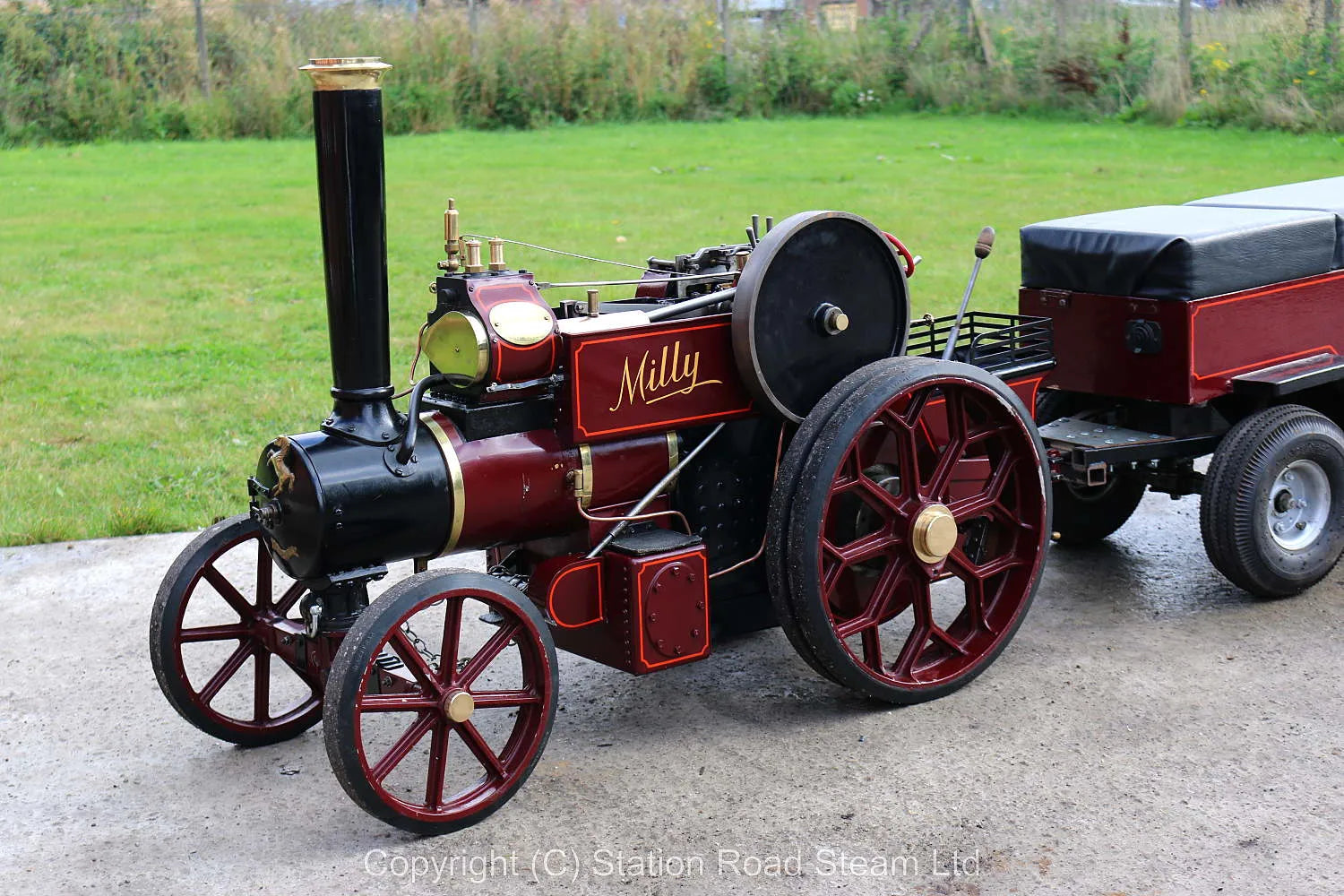

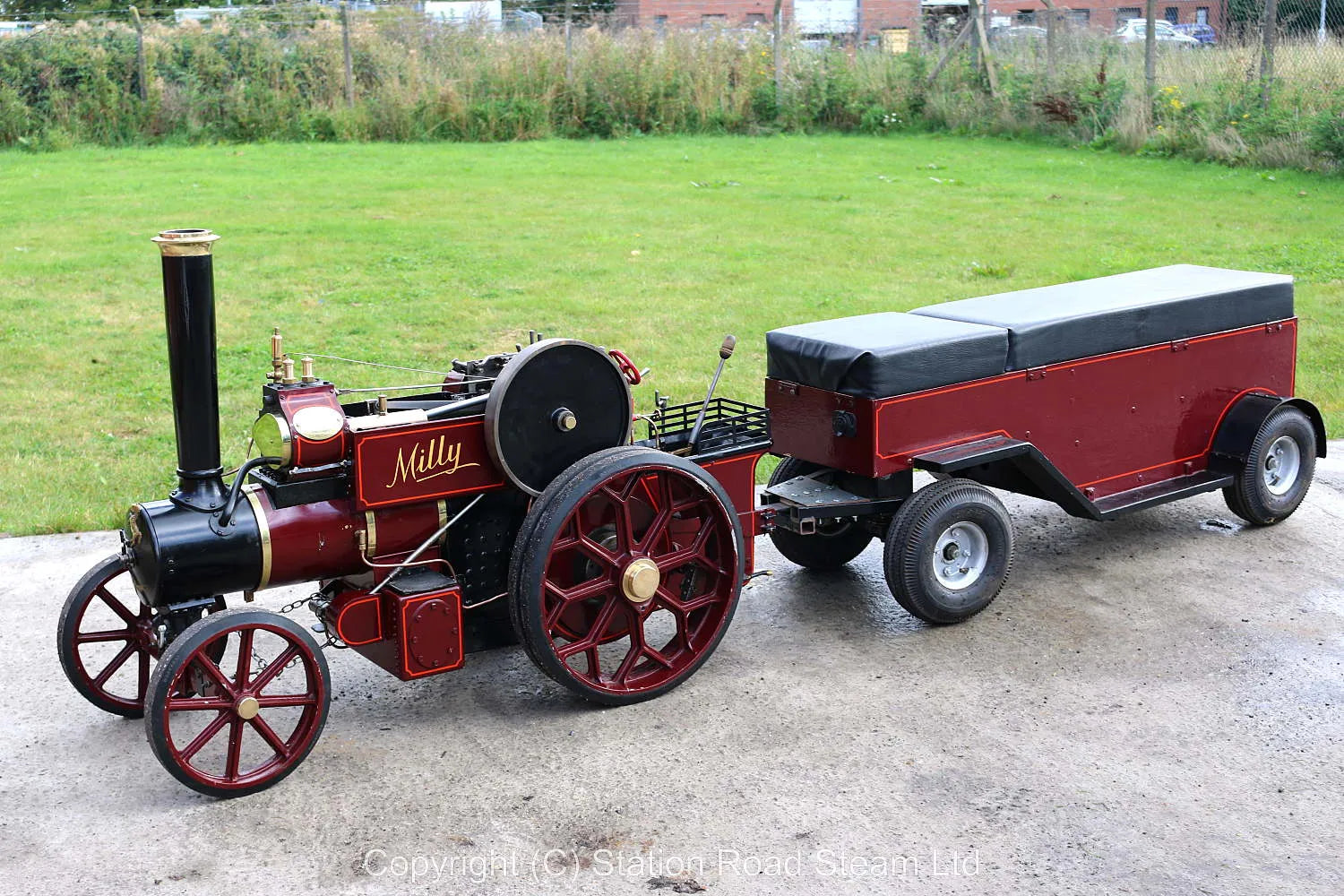

3 inch scale Aveling & Porter steam tractor with driving trolley

We've had this one in before, a 1996 engine recently fitted with a brand new CE-marked boiler supplied by Maxitrak - the boiler is in as-new condition.

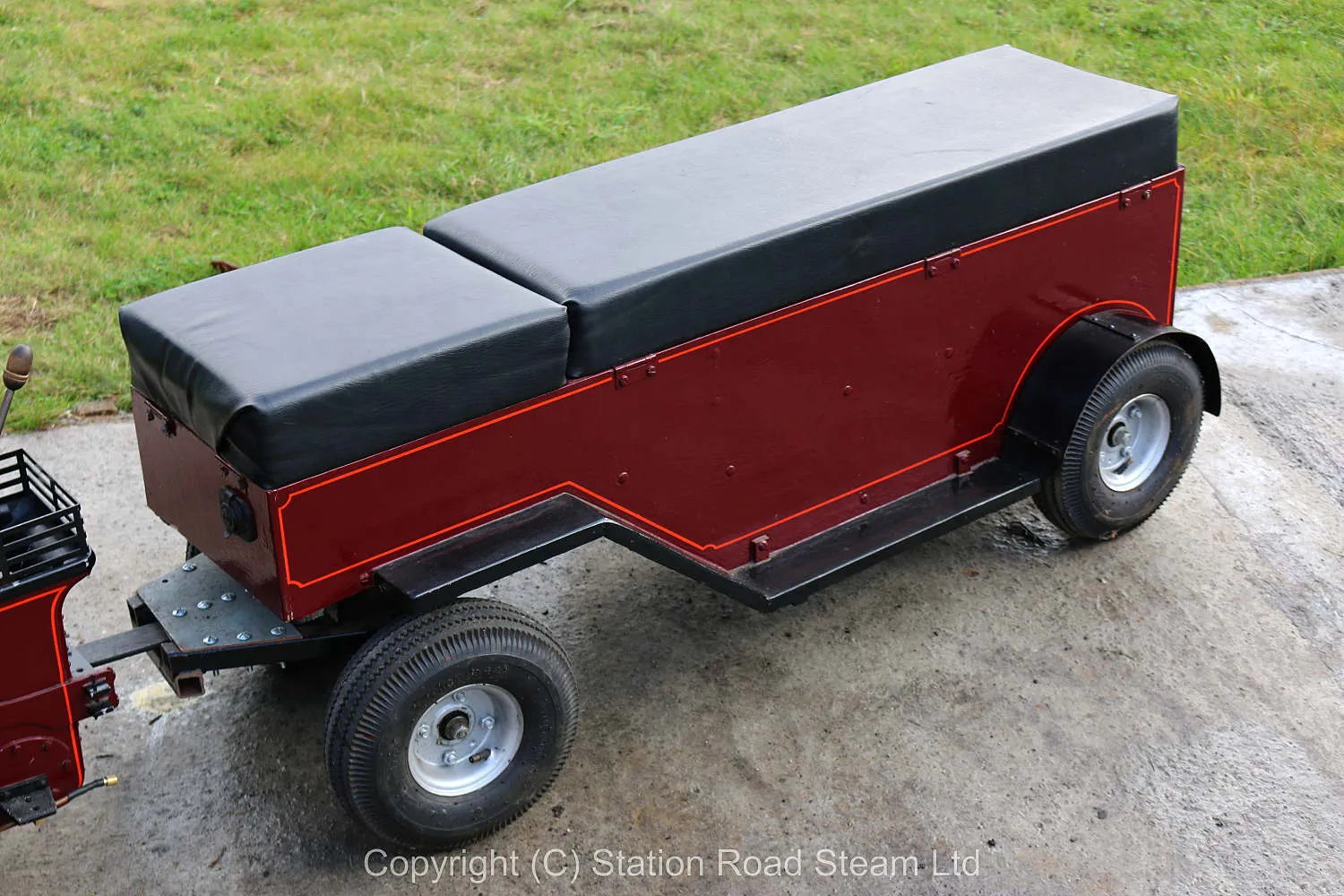

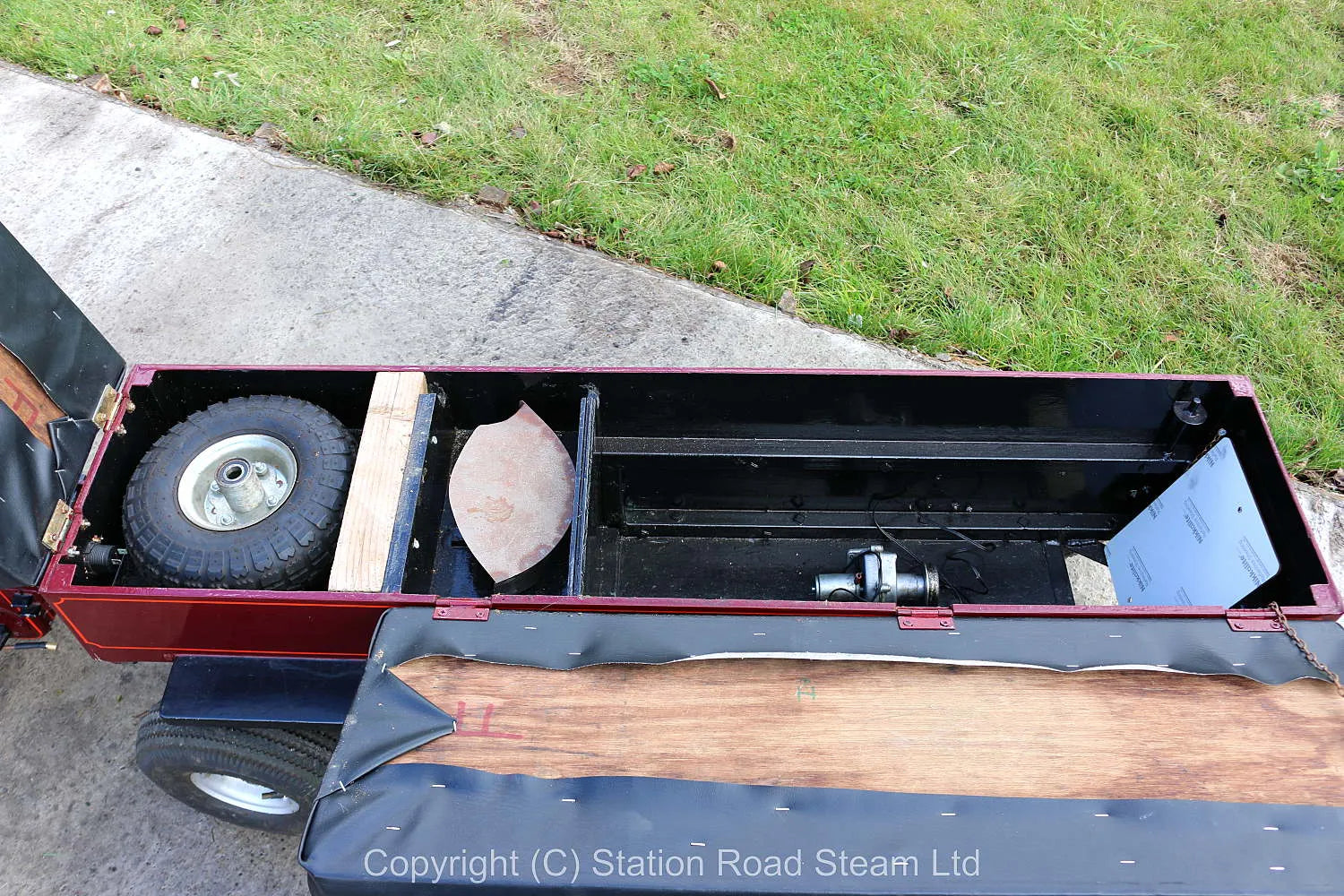

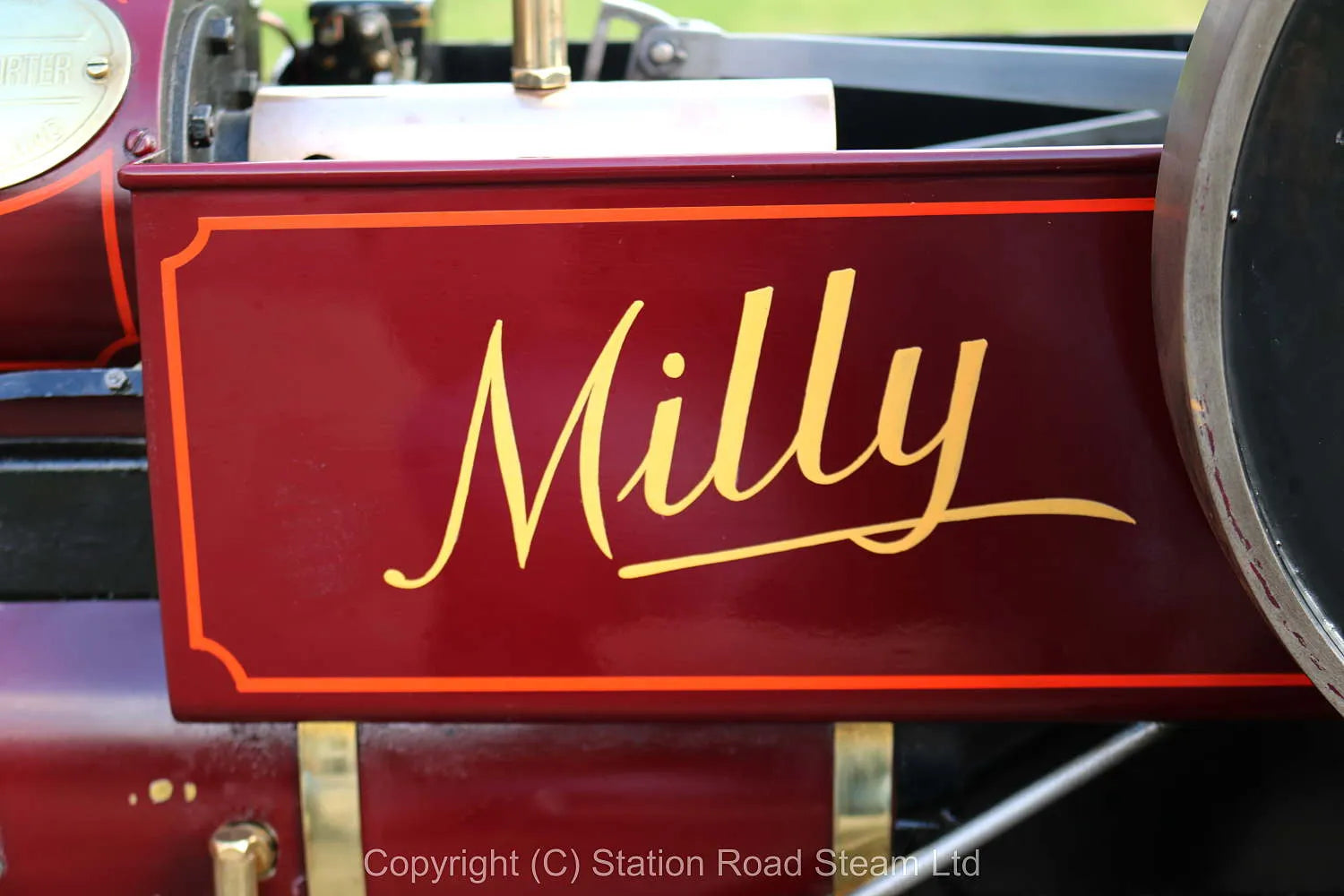

The engine goes well, free-steaming and easy to drive (although with a little care needed to steer in high gear, they go like rockets!). The engine was painted and professionally lined and sign written to a high standard and comes complete with a matching driving/passenger trolley on pneumatic wheels.

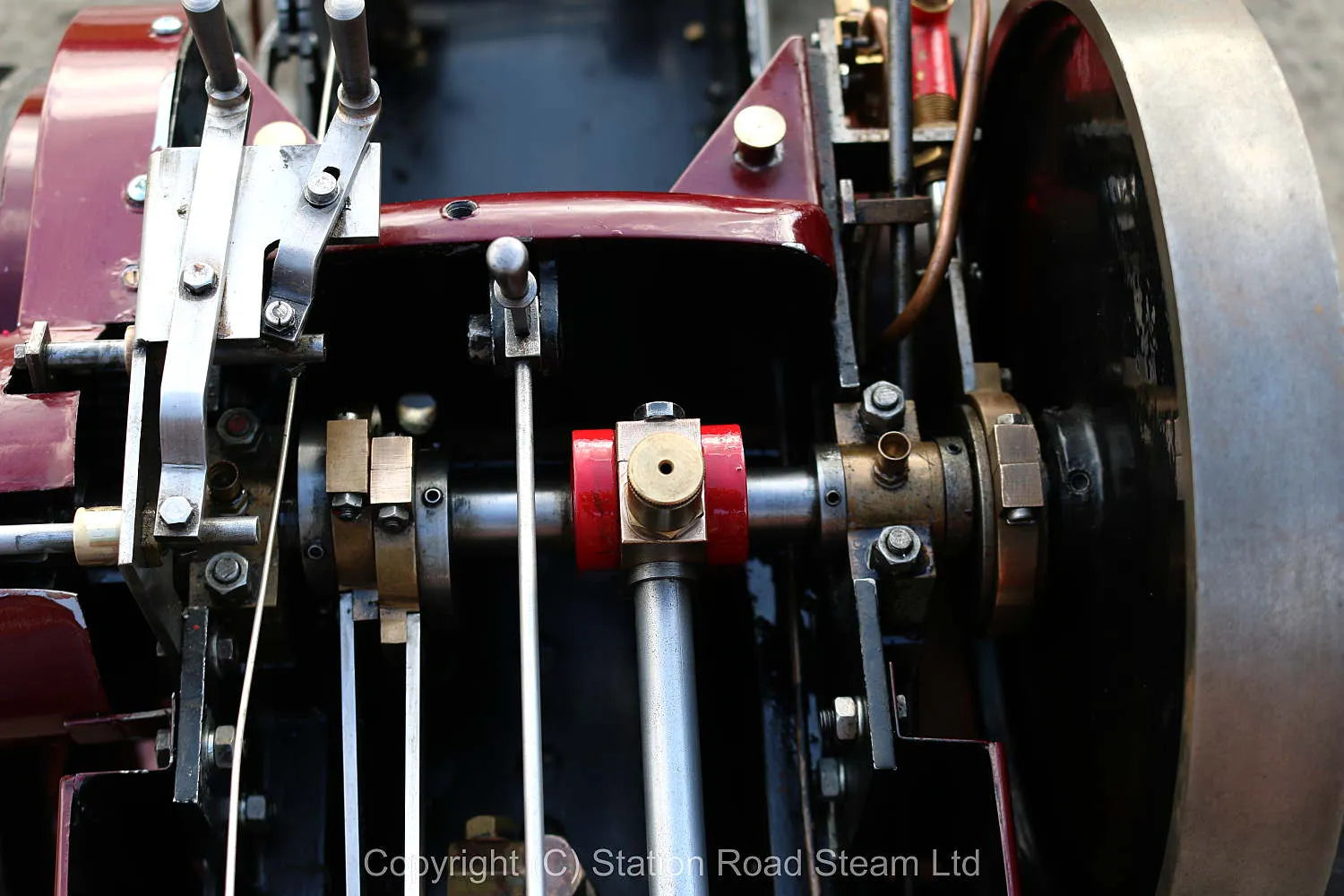

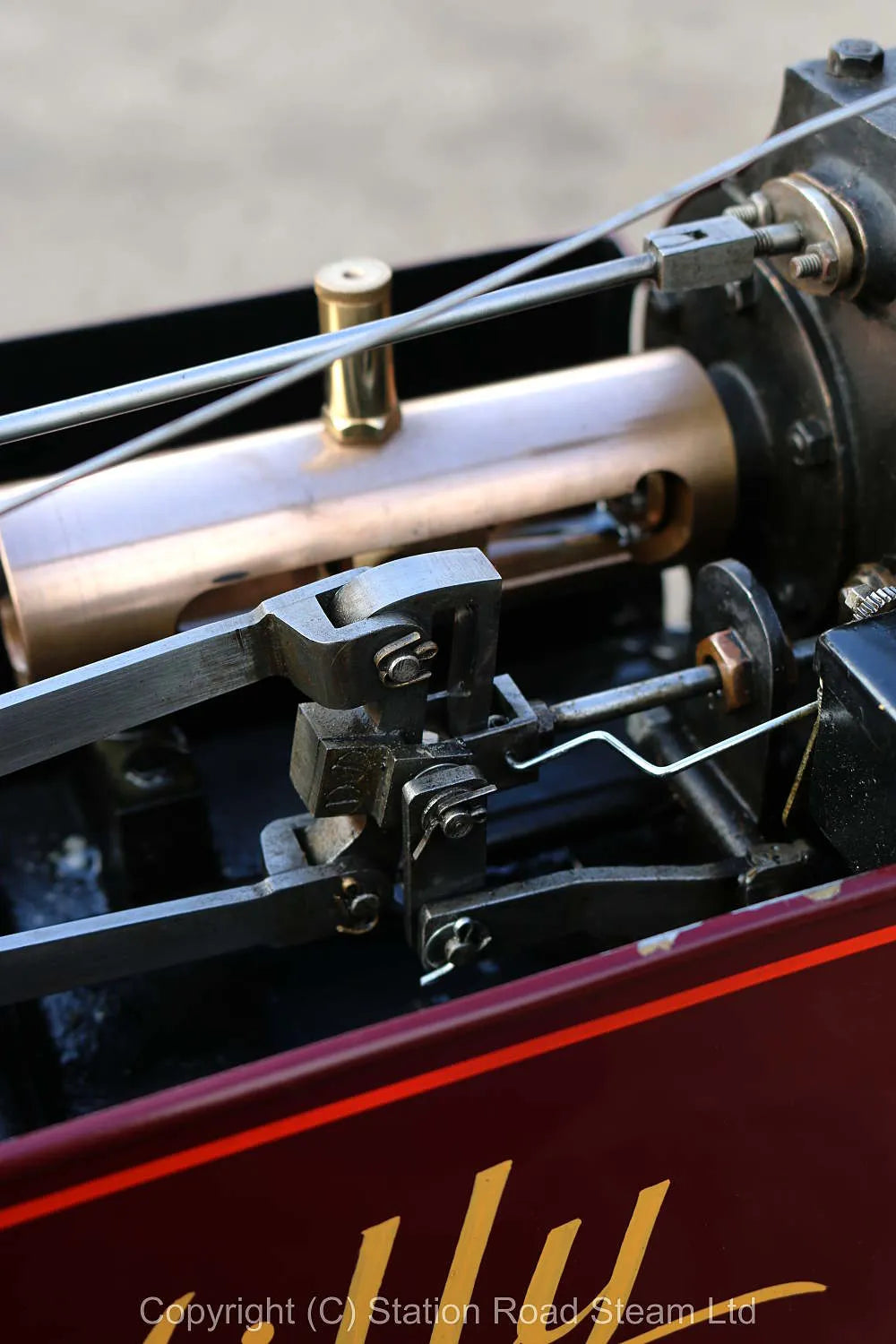

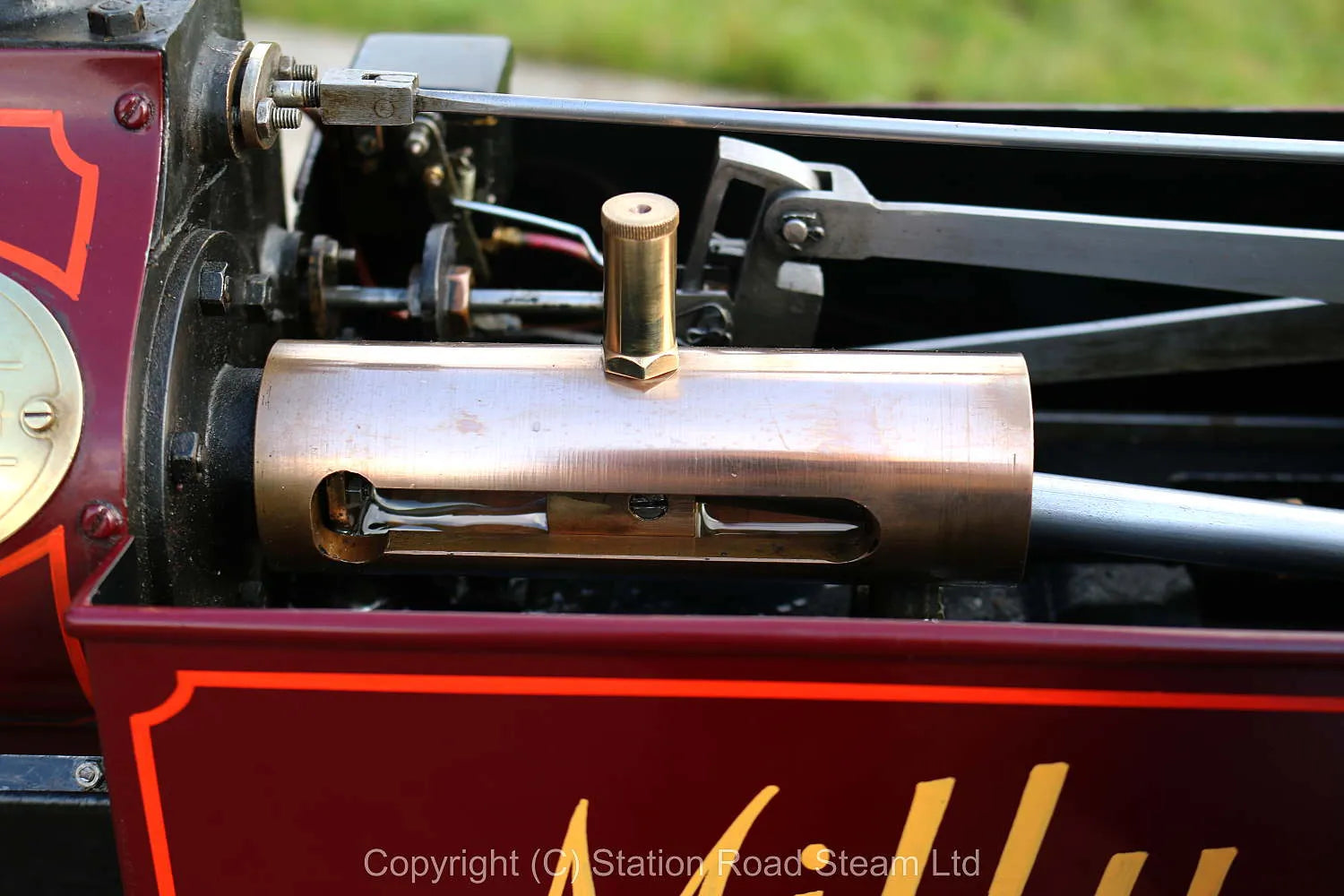

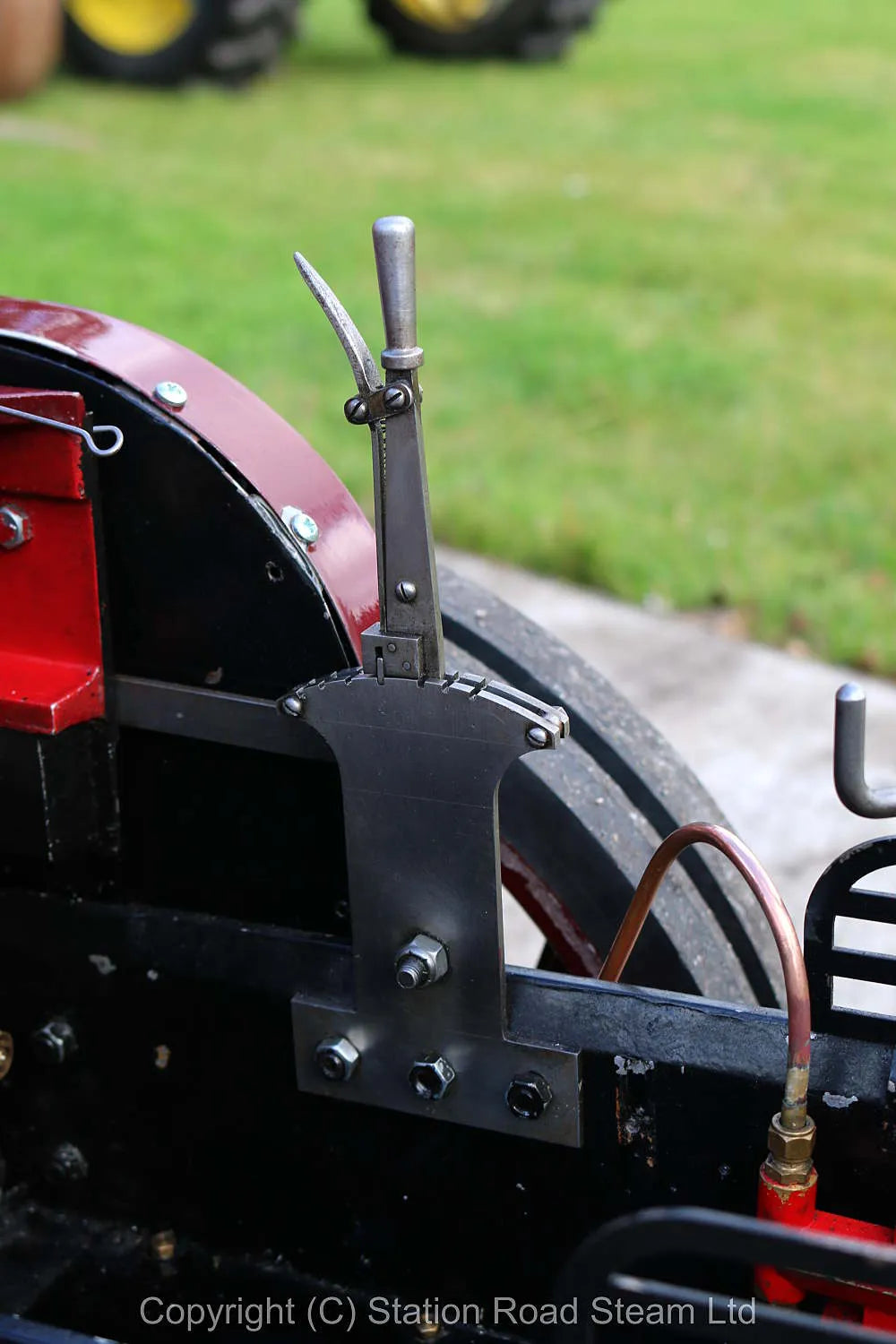

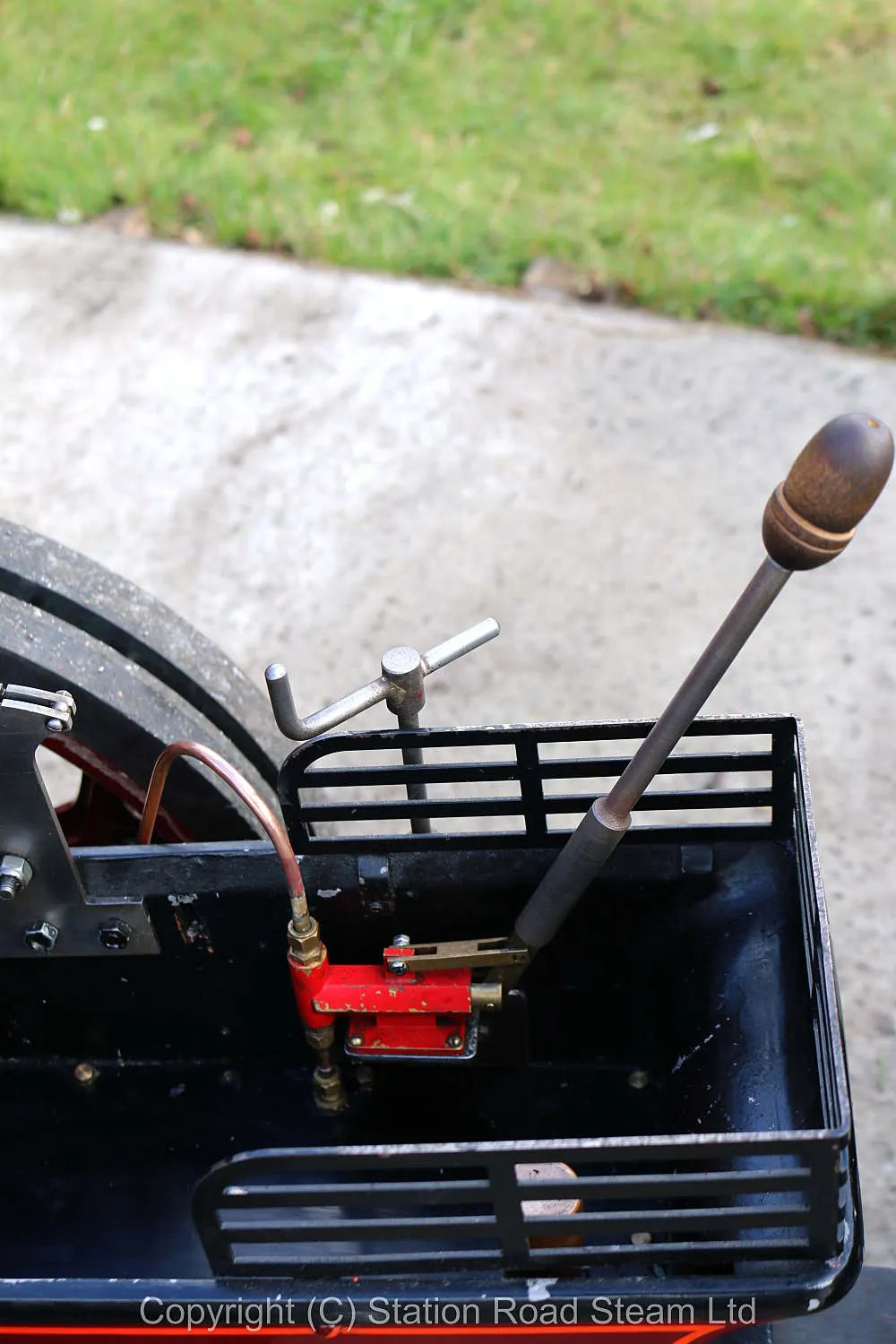

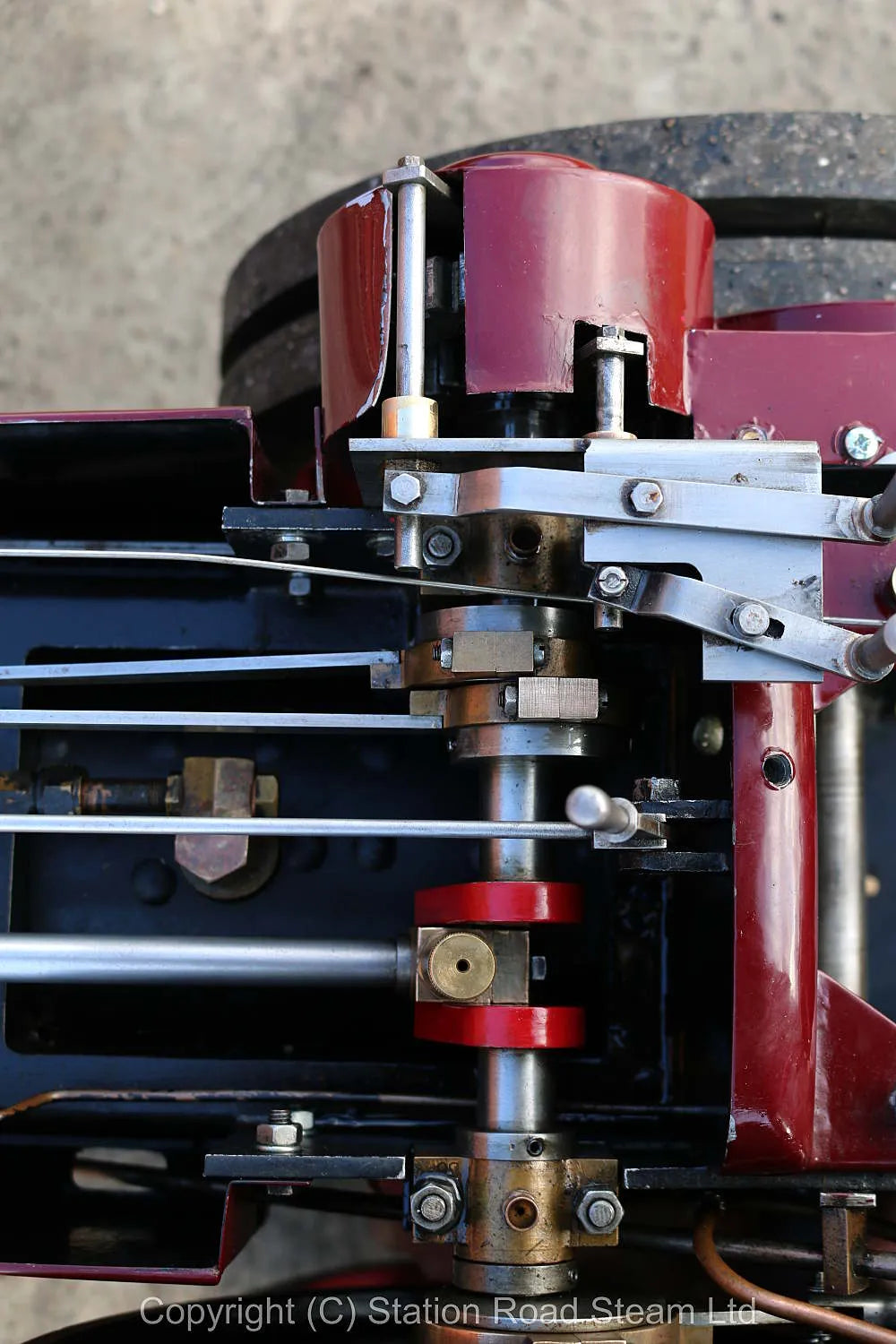

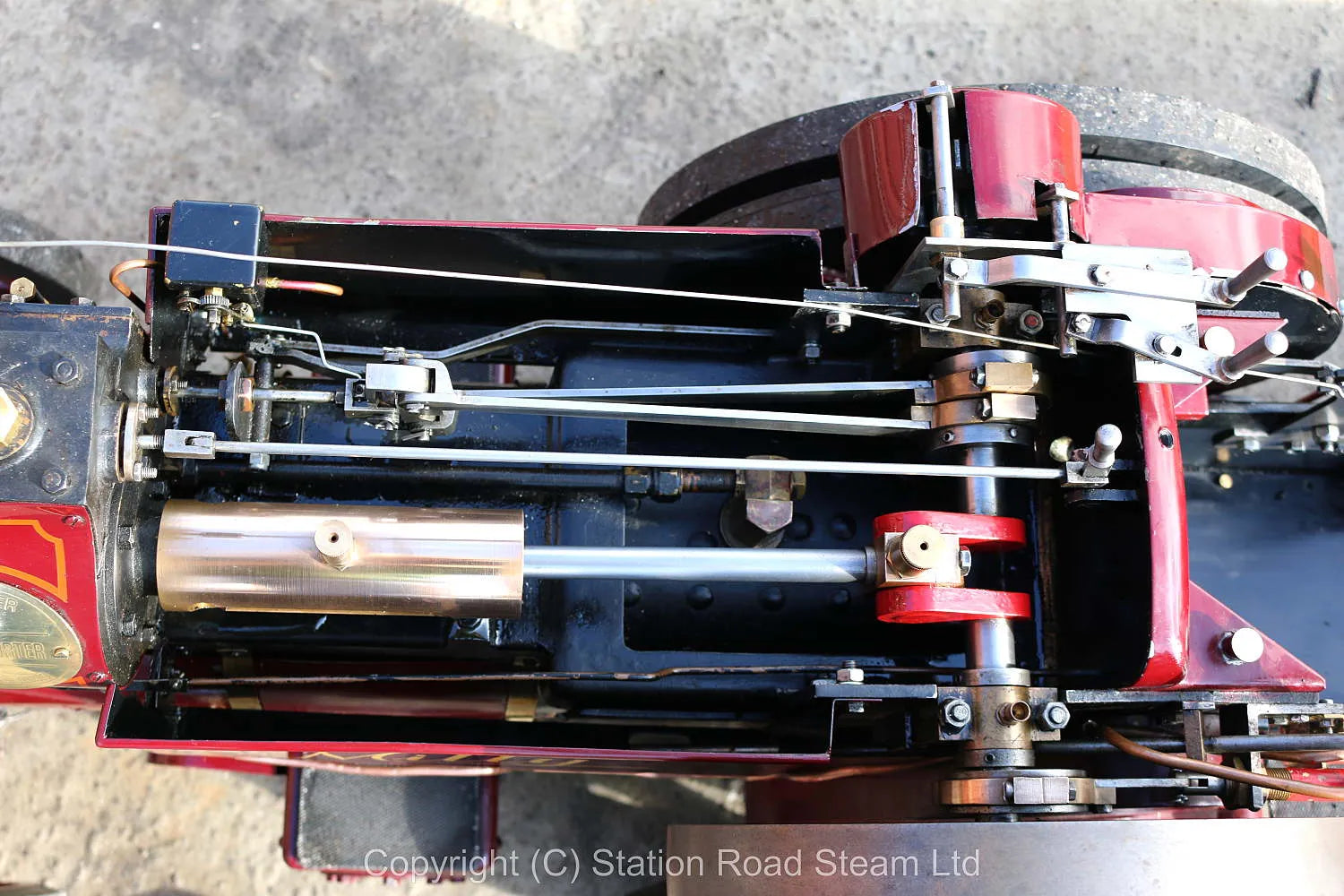

Copper TIG-welded / silver soldered boiler, feed by mechanical pump with bypass, auxiliary hand pump on the footplate. 80psi working pressure. Cast iron cylinder with slide valve, Stephensons gear with pole reverser, mechanical lubricator.

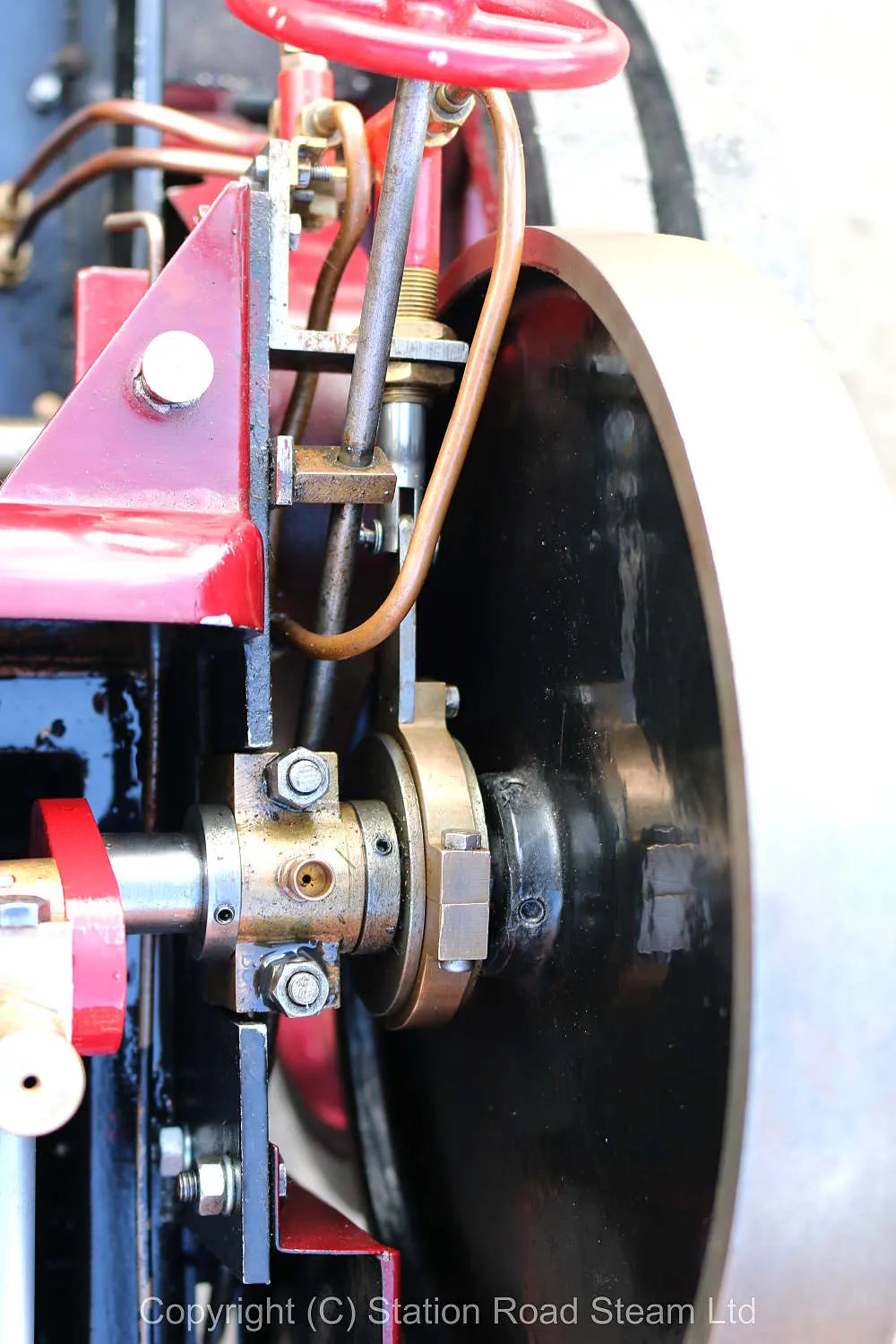

Two speed, three shaft transmission, rubber tyres on road wheels. Since last here the engine has been road registered and comes with V5 document.

Hydraulic tested @120psi for 80psi working pressure, 5-Oct-2015
Steam tested 6-Oct-2015







Technical information

Stock code

6709

Scale

3 inch

Length/inches

48

Width/inches

19

Height/inches

31

Boiler type

locomotive

Boiler construction

TIG-welded/silver soldered

Boiler material

copper

Working pressure

80

Boiler number

ST1096 08.12

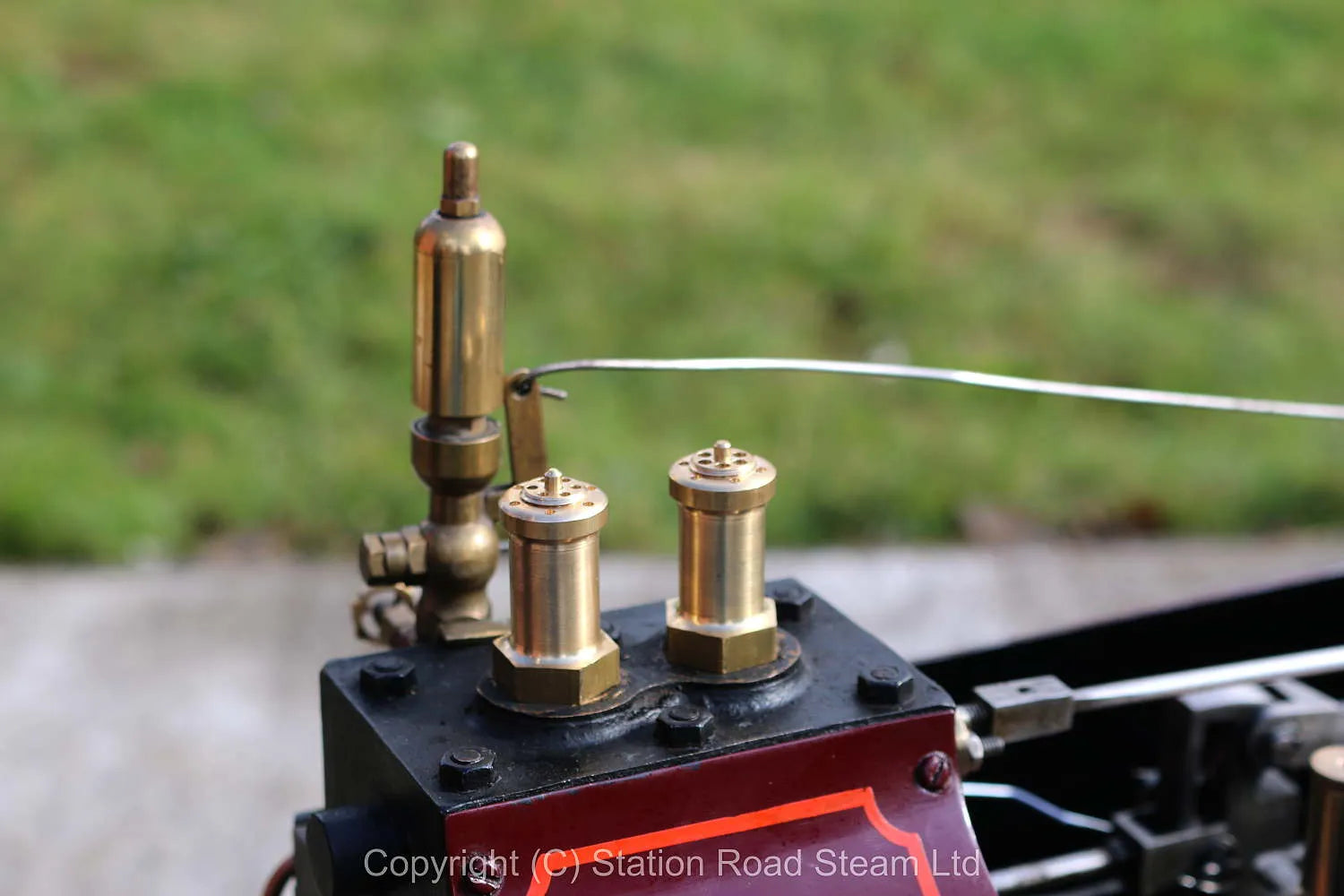

Safety valve type

spring

Safety valve

2

Fusible plug

no

Hand pump

1

Mechanical pump

1

Date out

Nov-15
