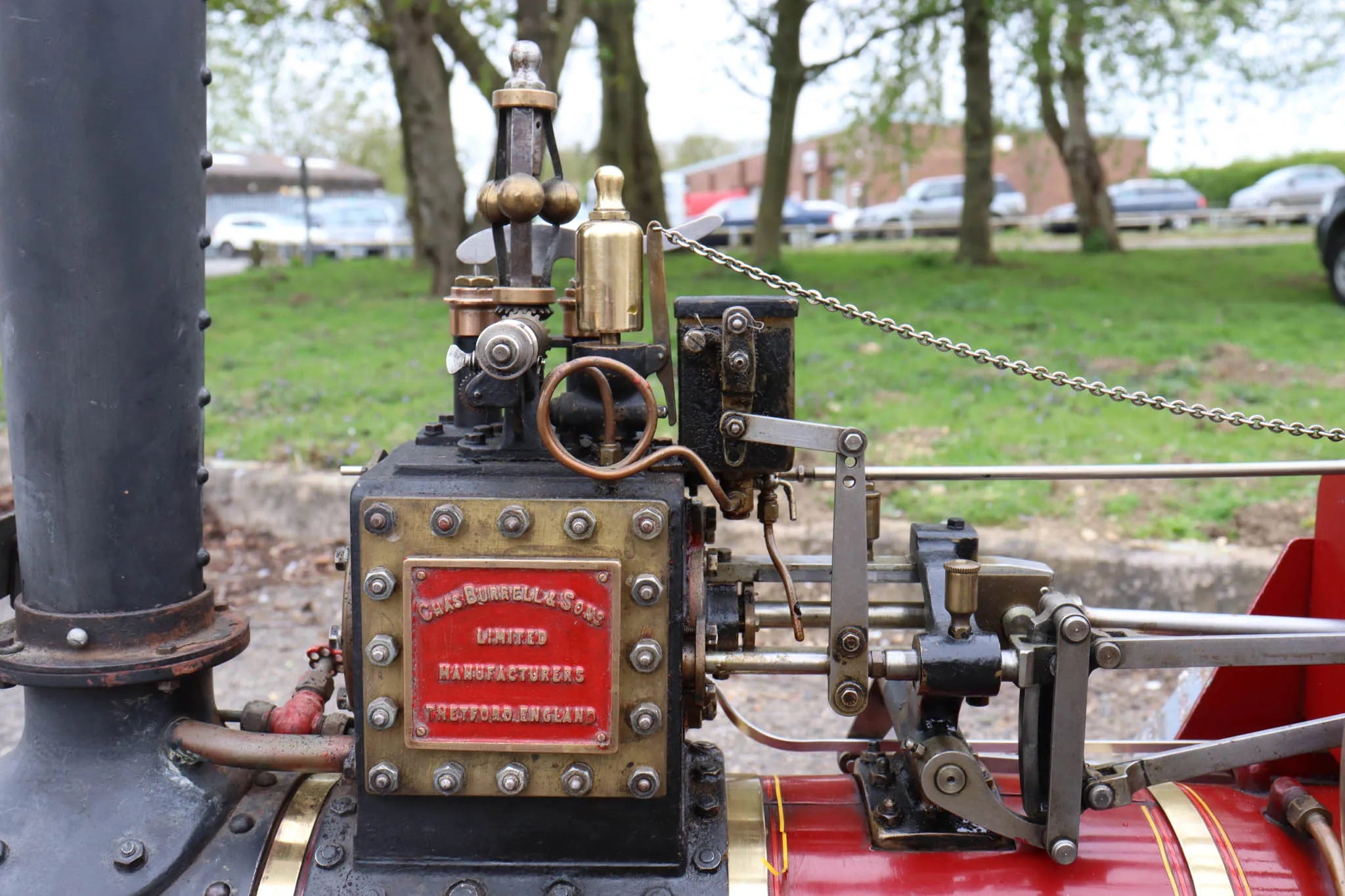

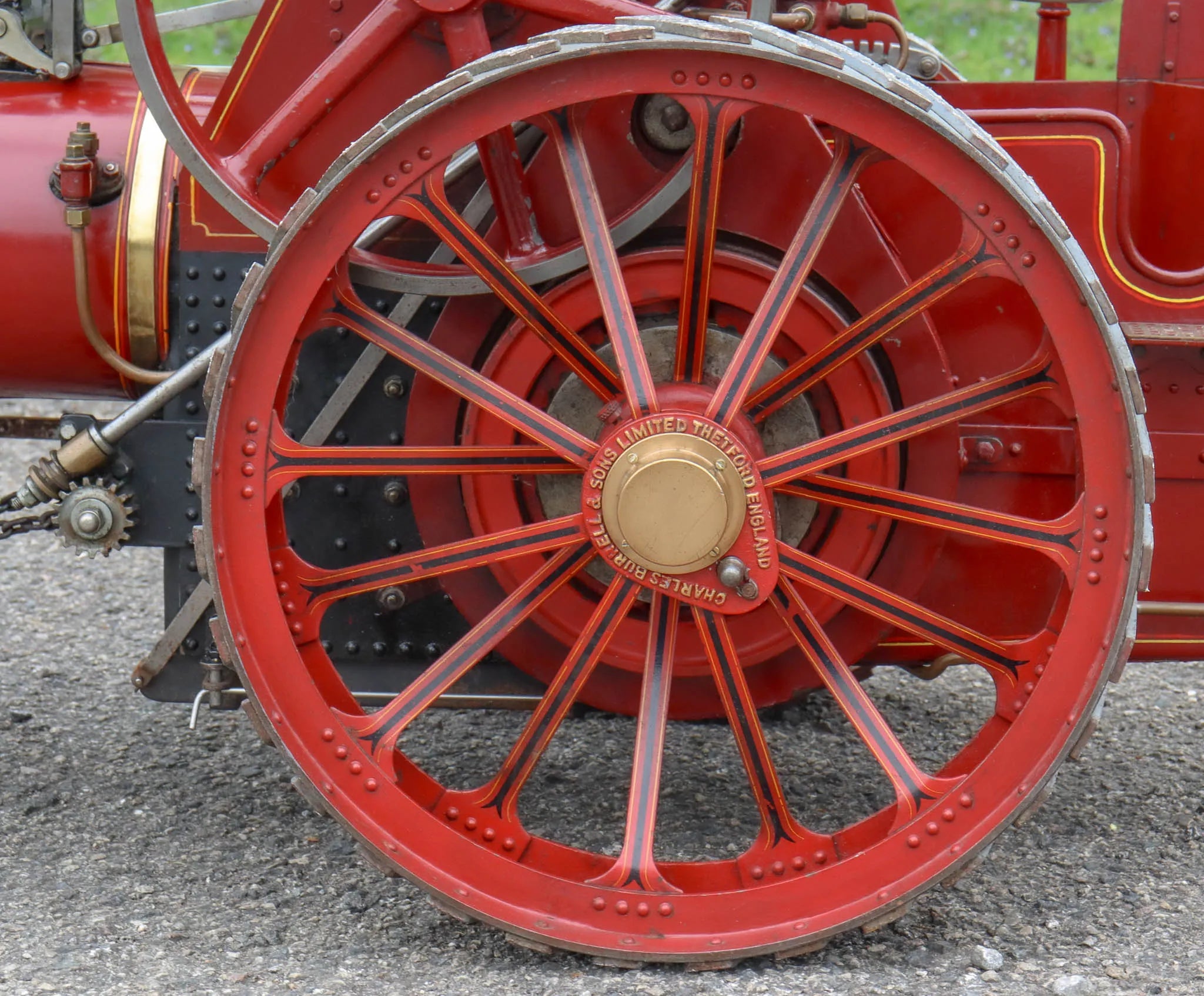

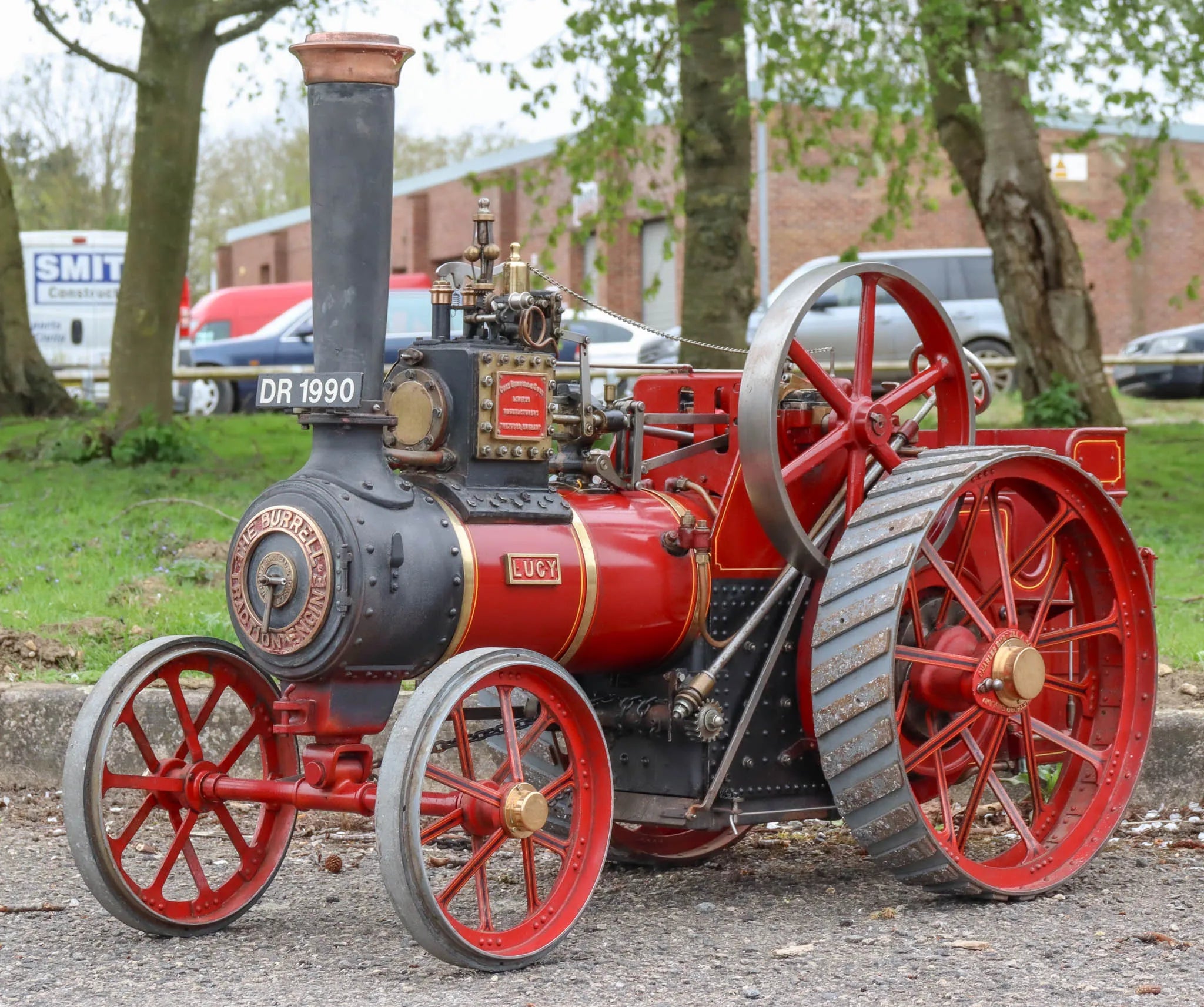

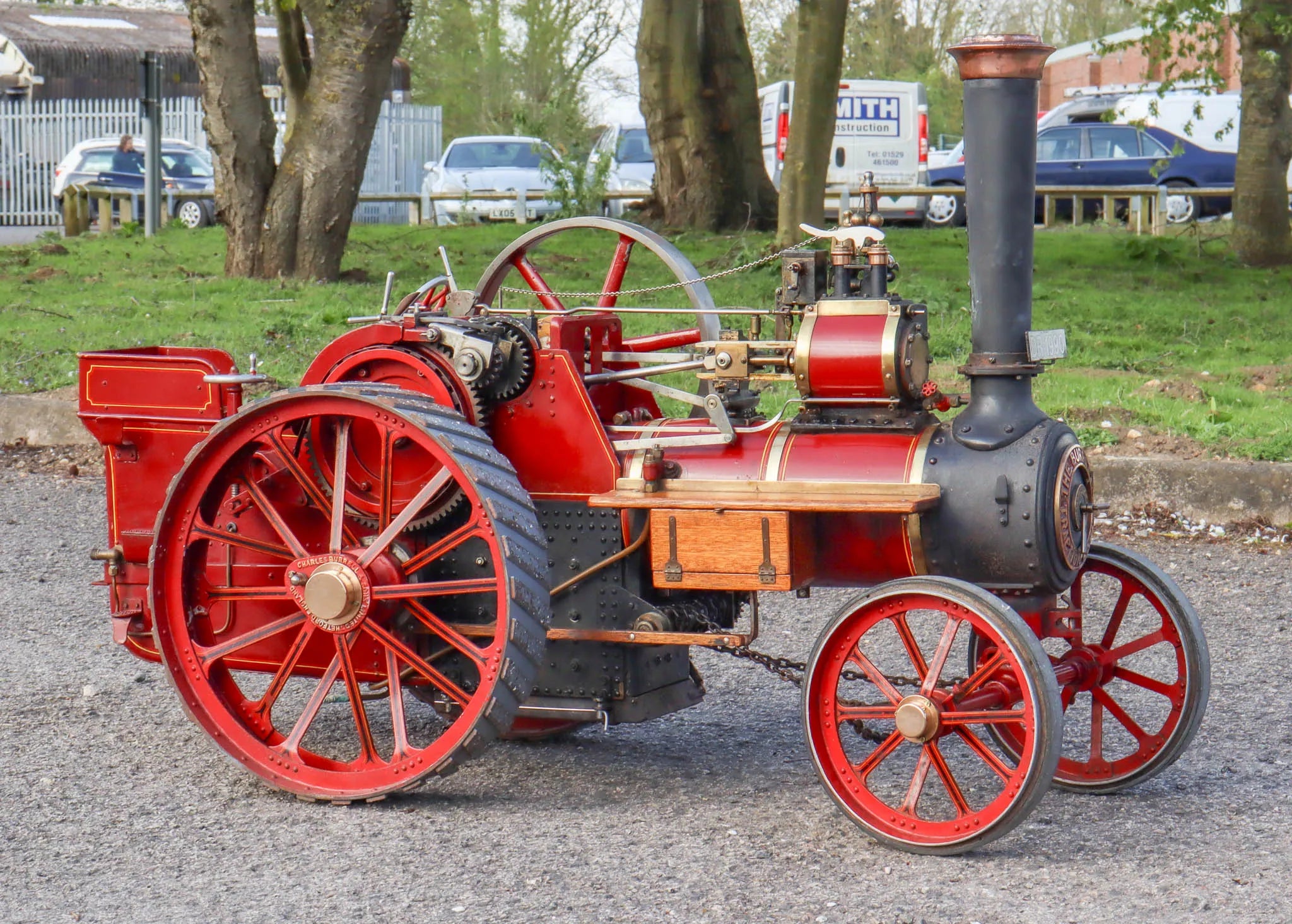

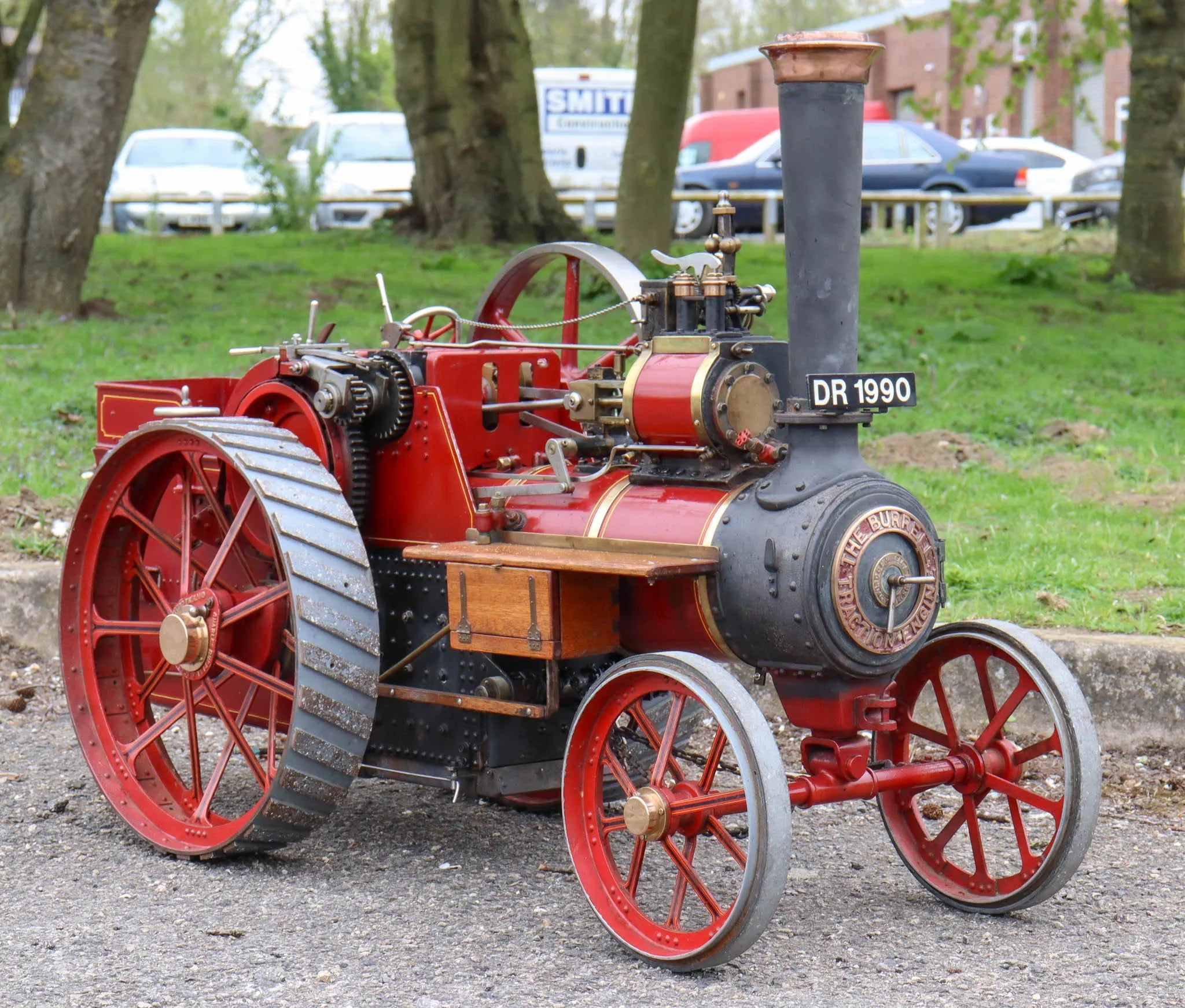

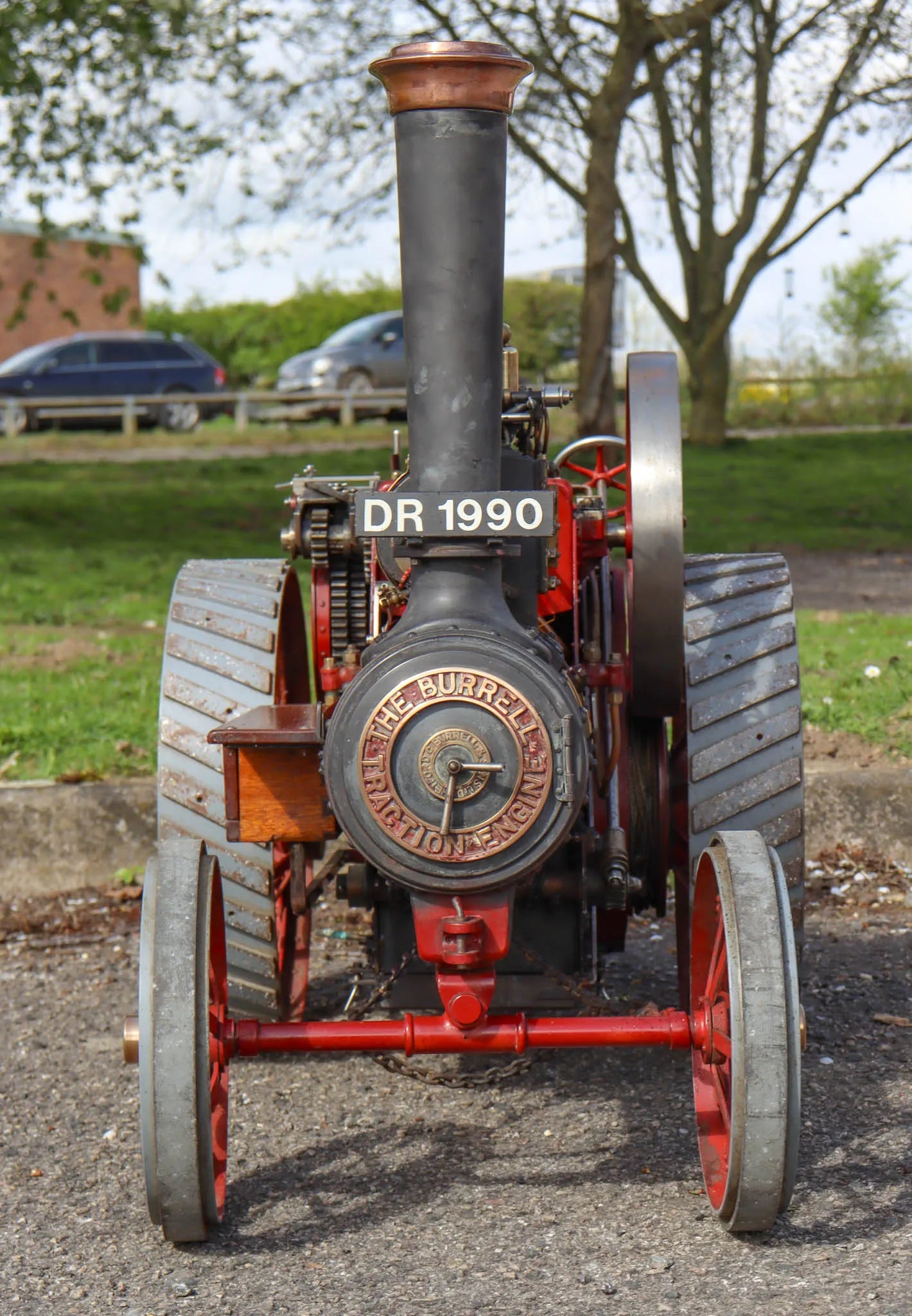

3 inch scale Burrell agricultural engine

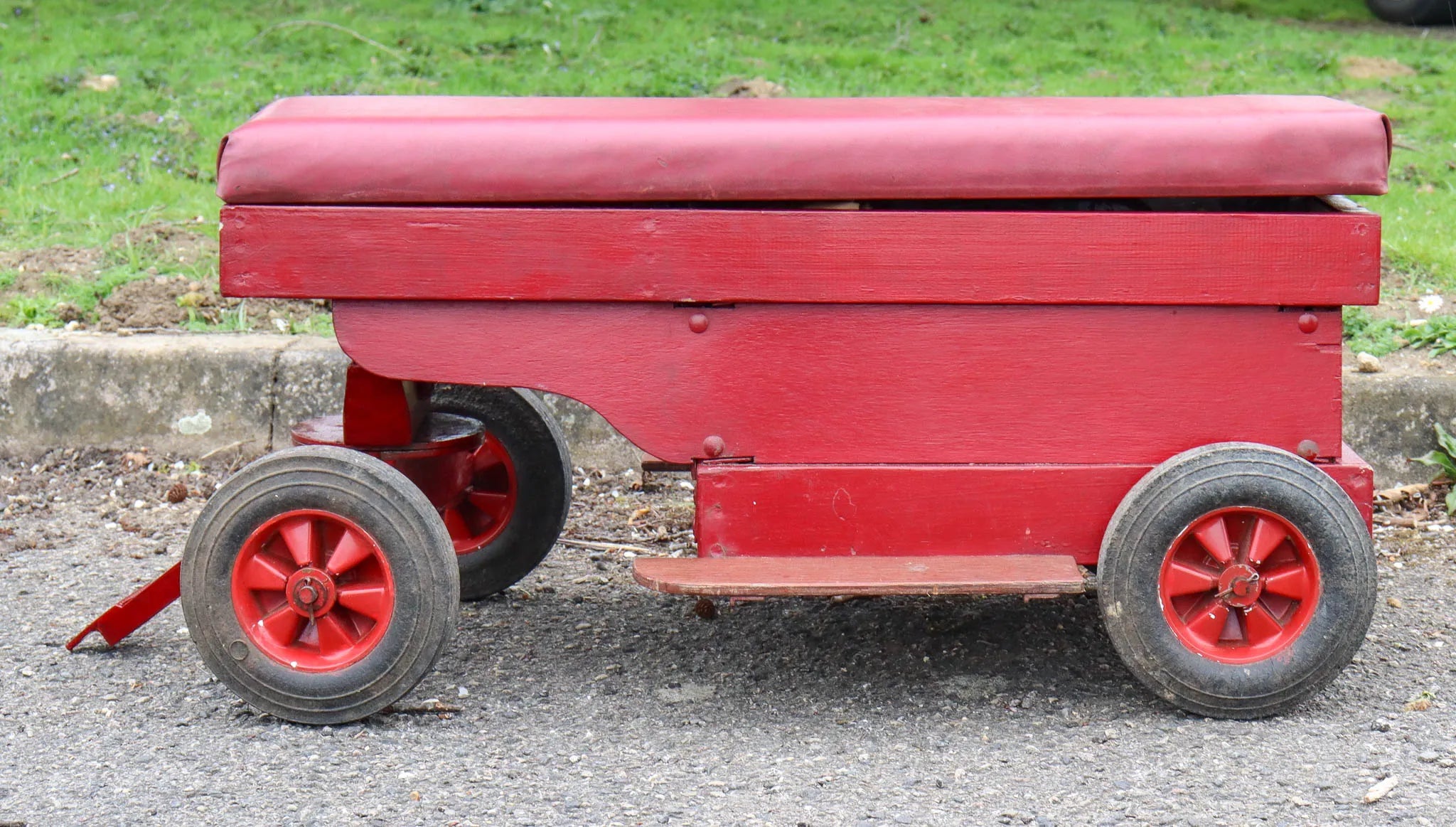

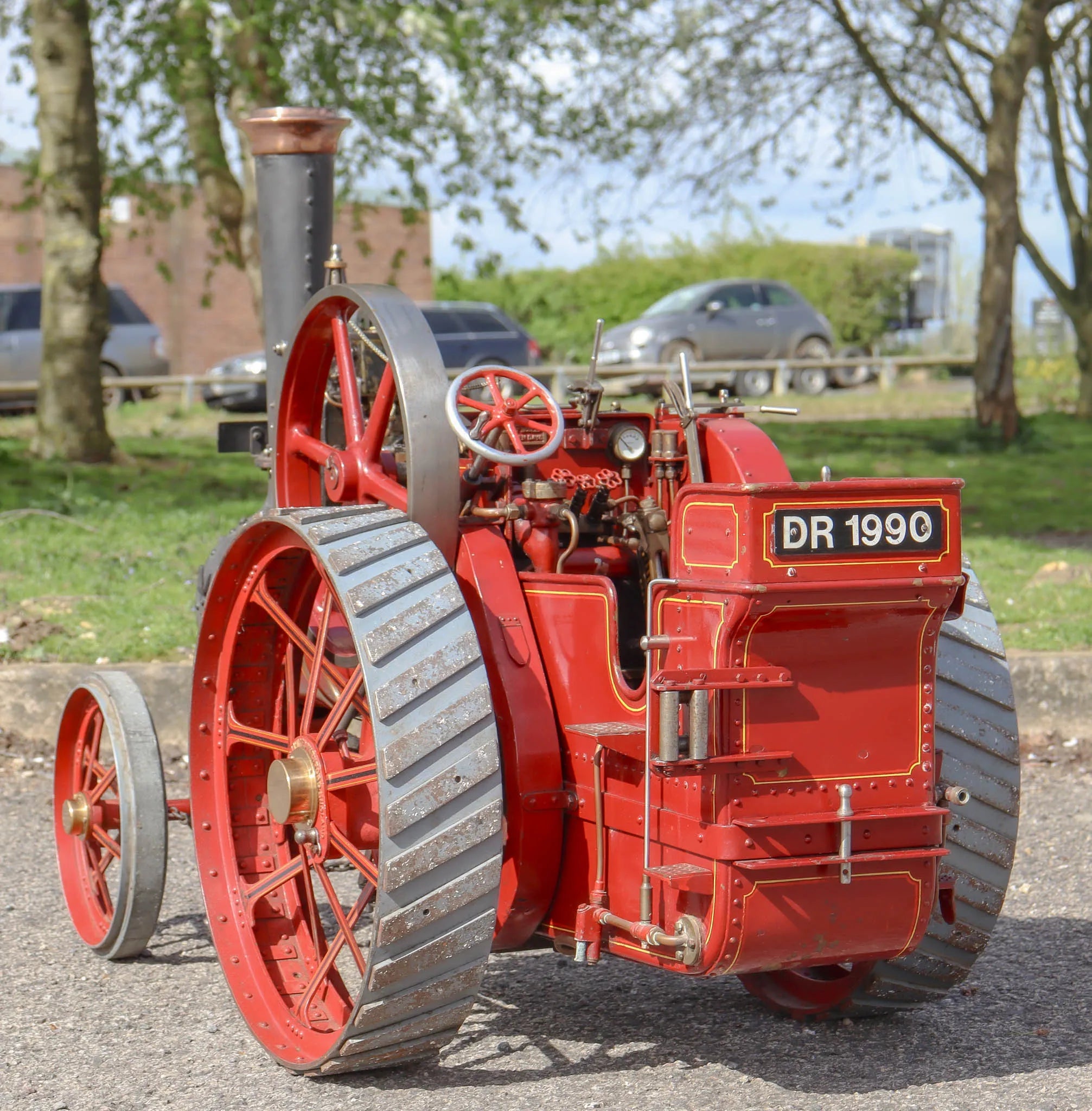

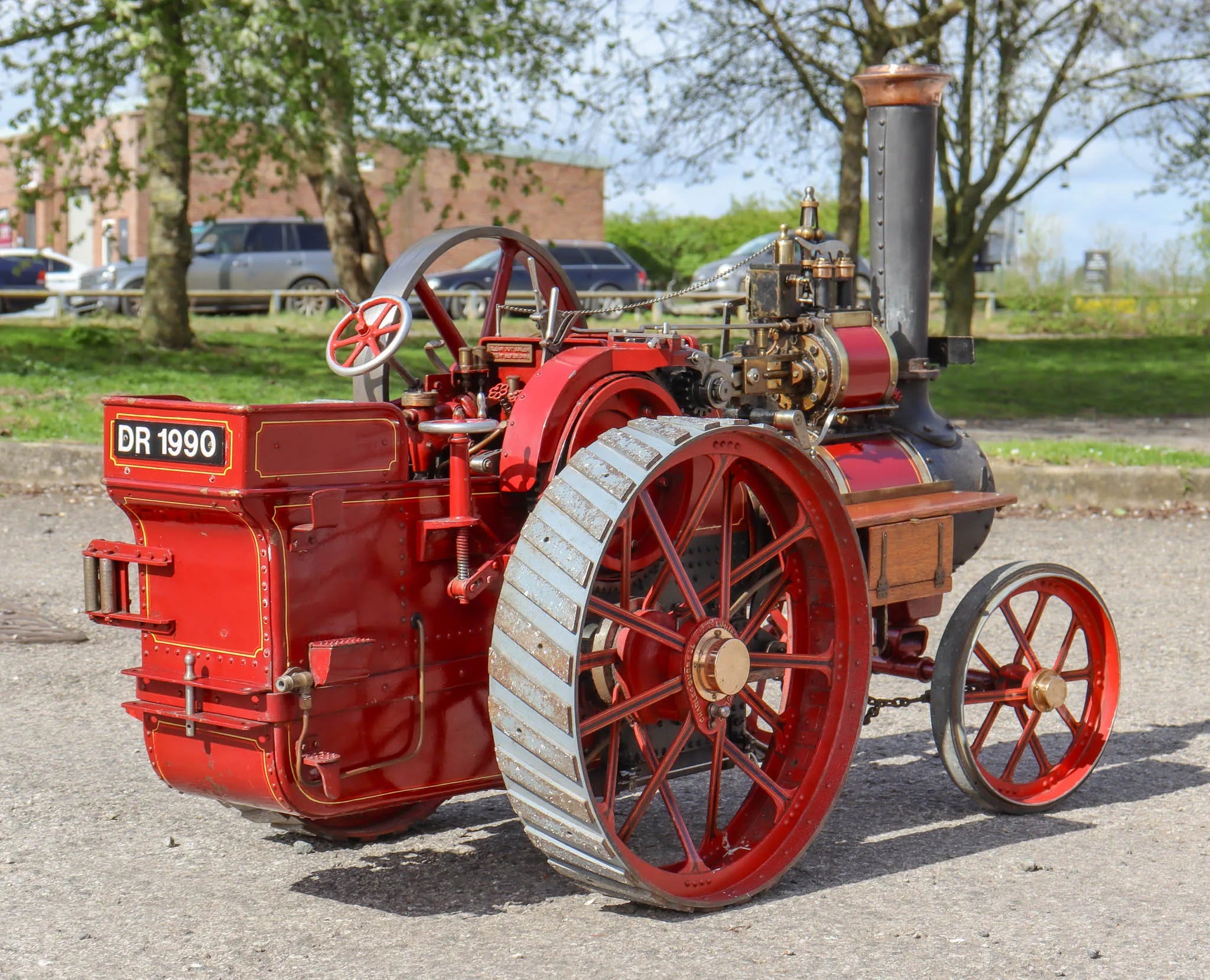

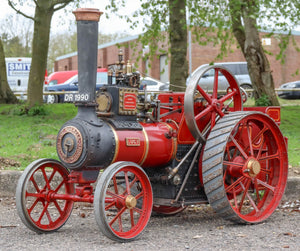

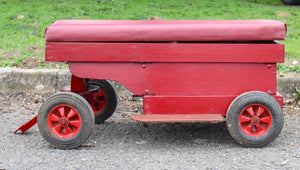

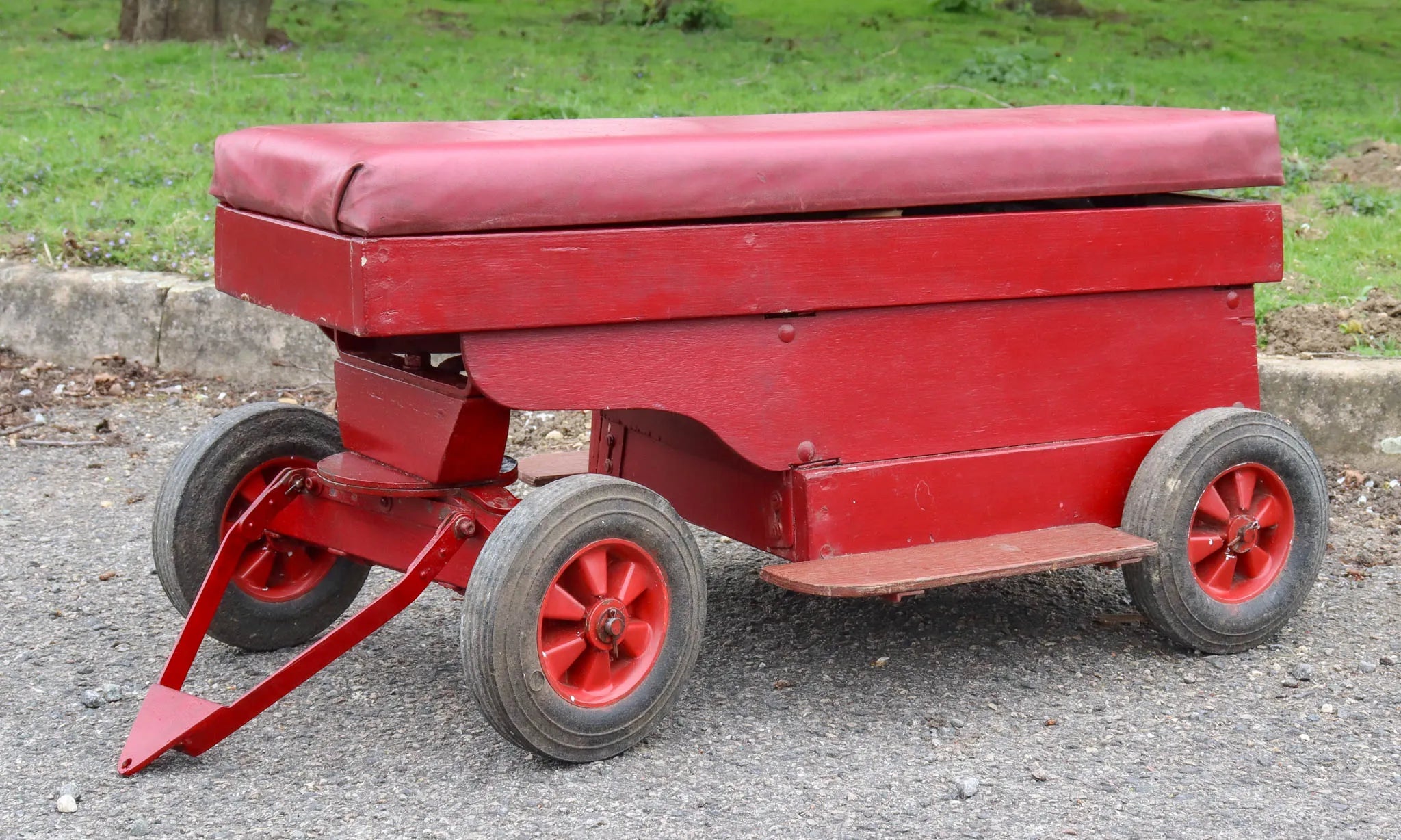

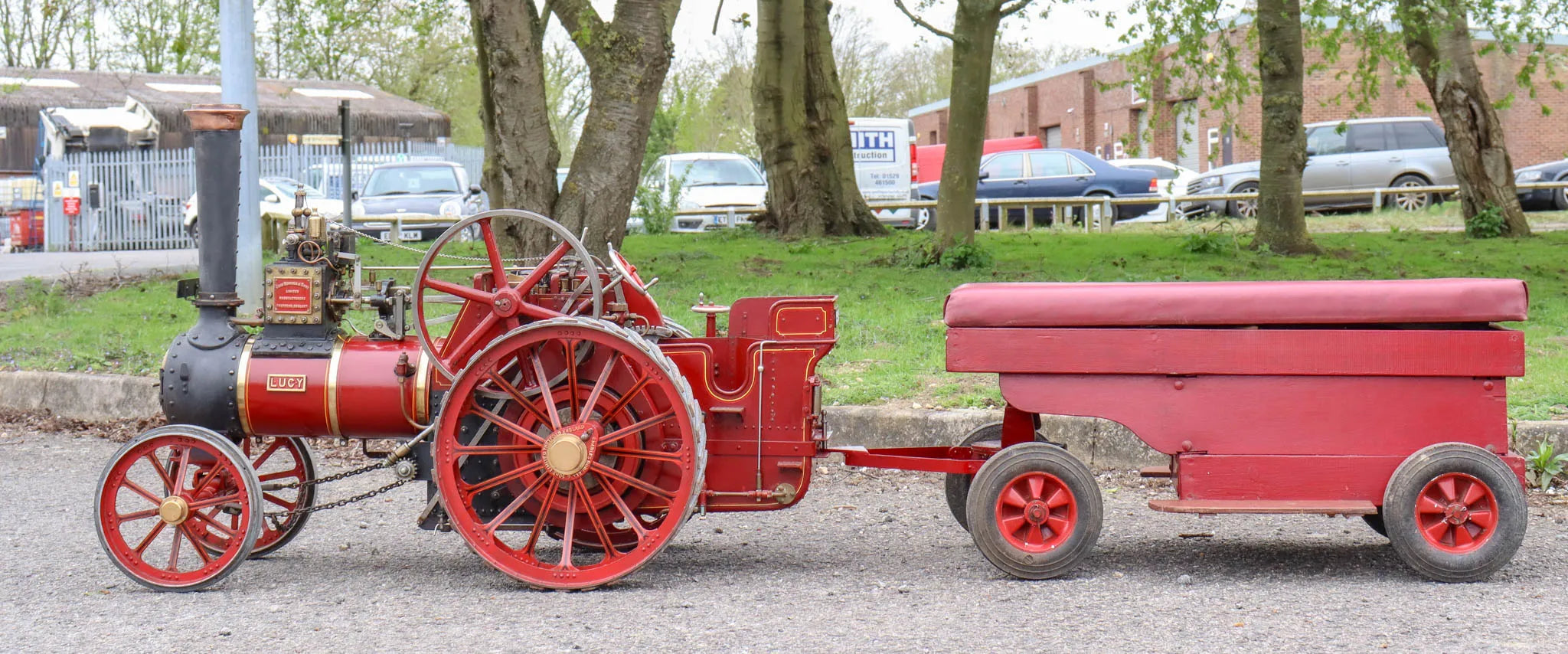

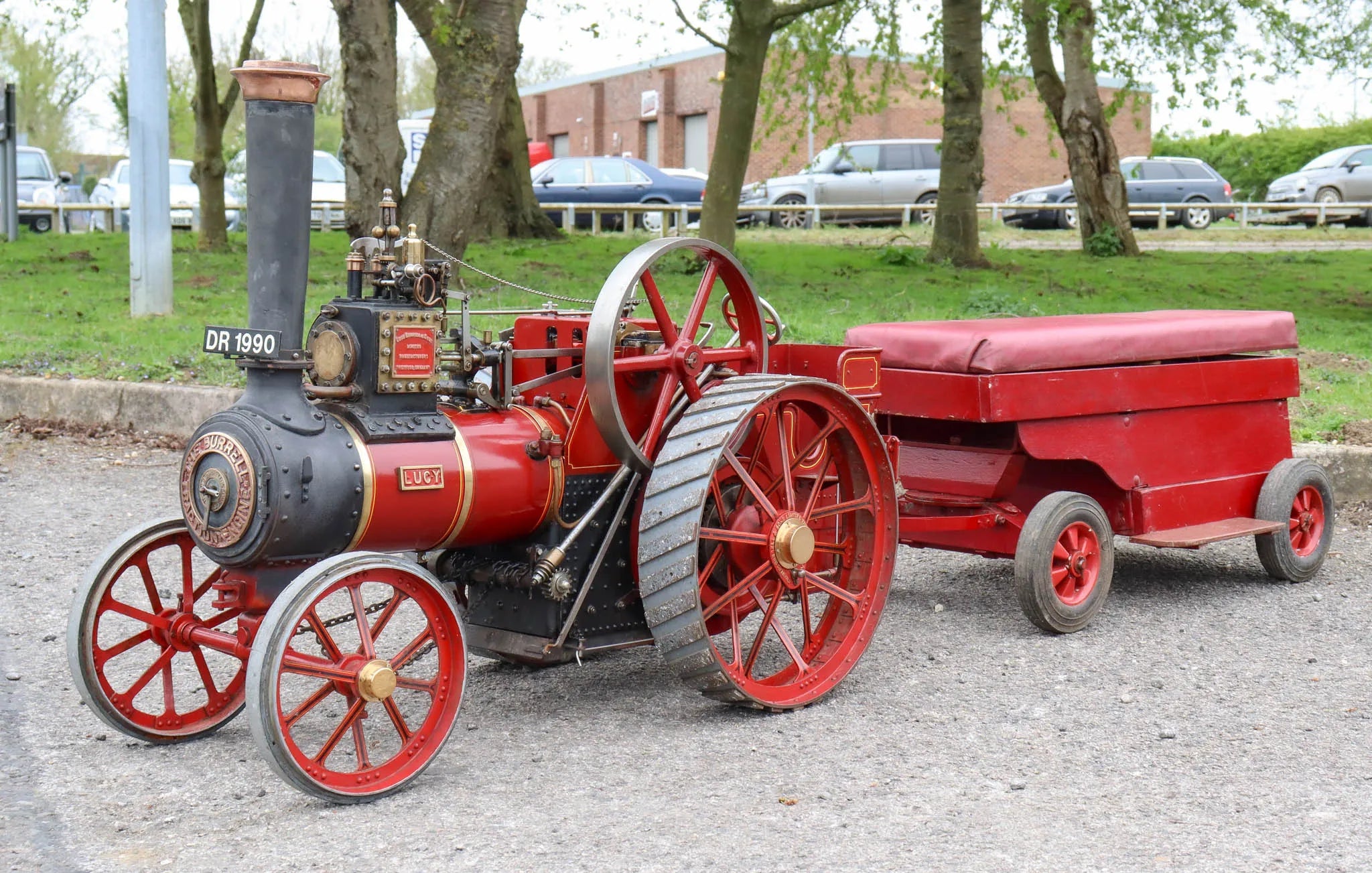

A 3 inch scale Burrell 6nhp agricultural engine to the Plastow design, complete with a four wheel driving truck.

This one came to us recently in part exchange for an AEC Matador in the same scale (and which we still miss - a fabulous machine offering fun at the touch of a button!).

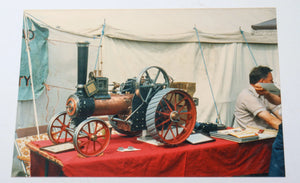

The Burrell is a particularly well made example, runs beautifully on air and comes with a large album full of photographs detailing its build and subsequent display at various rallies and exhibitions.

Boiler has had a hydraulic test which showed up a couple of small leaks on the foundation ring and one on the front tubeplate - these will require the engine to be stripped and the boiler pickled prior to repair.


Technical information

Stock code

11923

Scale

3 inch

Length/inches

45+35

Width/inches

20

Height/inches

31

Weight/Kg

108+29

Reverser type

pole

Lubricator type

mechanical

Boiler type

locomotive

Boiler construction

silver soldered

Boiler material

copper

CE/UKCA mark

n/a non-commercial

Safety valve type

Ramsbottom

Safety valve

2

Governor type

Pickering

Differential

yes

Road speed

2

Mechanical pump

1

Injector

1

Date out

Apr-24
