3 inch scale Burrell agricultural engine

A 3 inch scale Burrell agricultural engine. We originally sold this one in 2021 (there's a listing in the archive here), noting at the time it ran well and was, in the main, rather nicely made. Other, that is, than the boiler which was a veritable smorgasbord of disparate materials held together by a variety of methods, none of which instilled confidence.

Sold to a man experienced in full-size road steam, he ordered a new CE-marked boiler from John Rex and set to stripping the engine down to fit it.

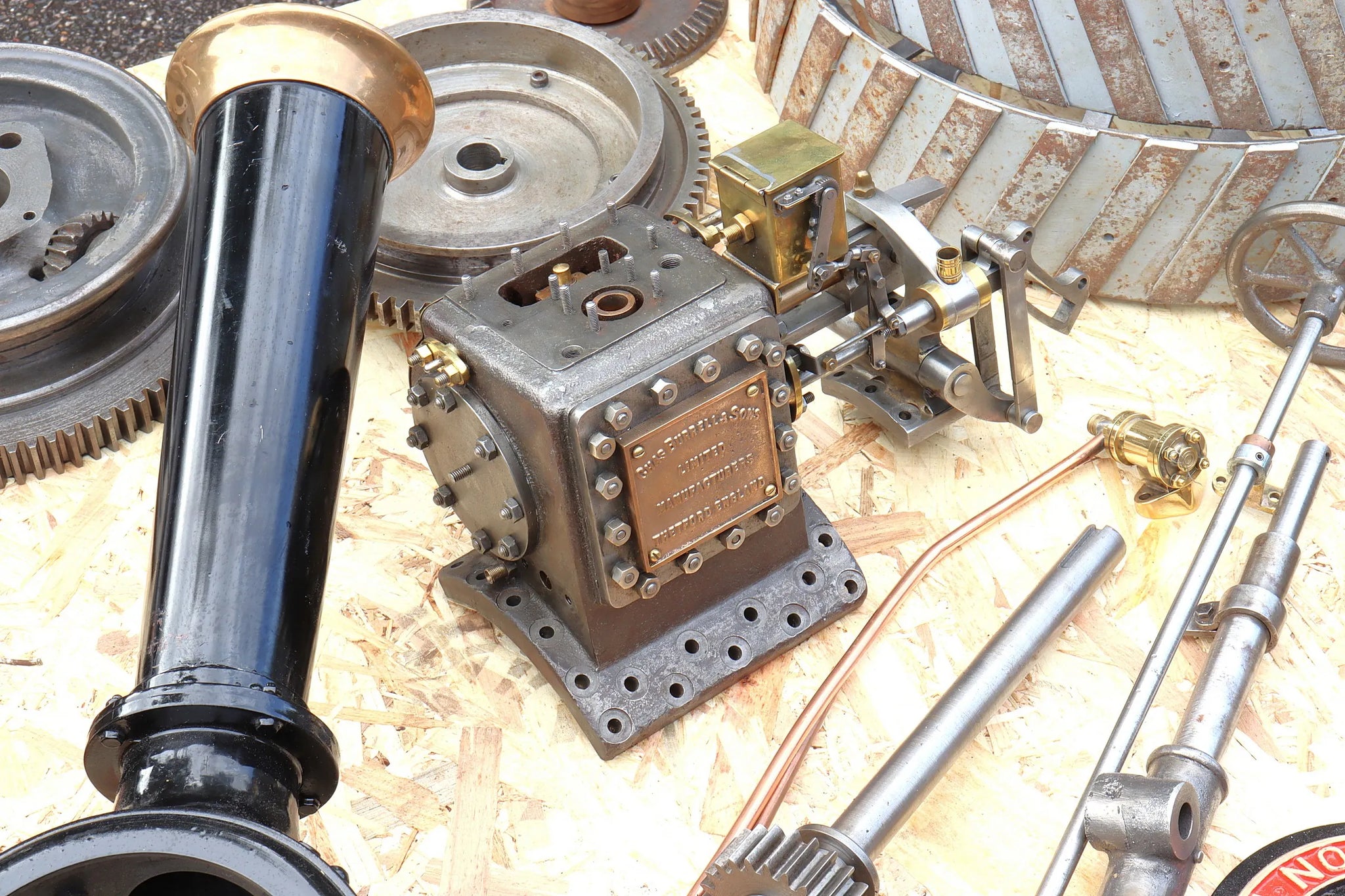

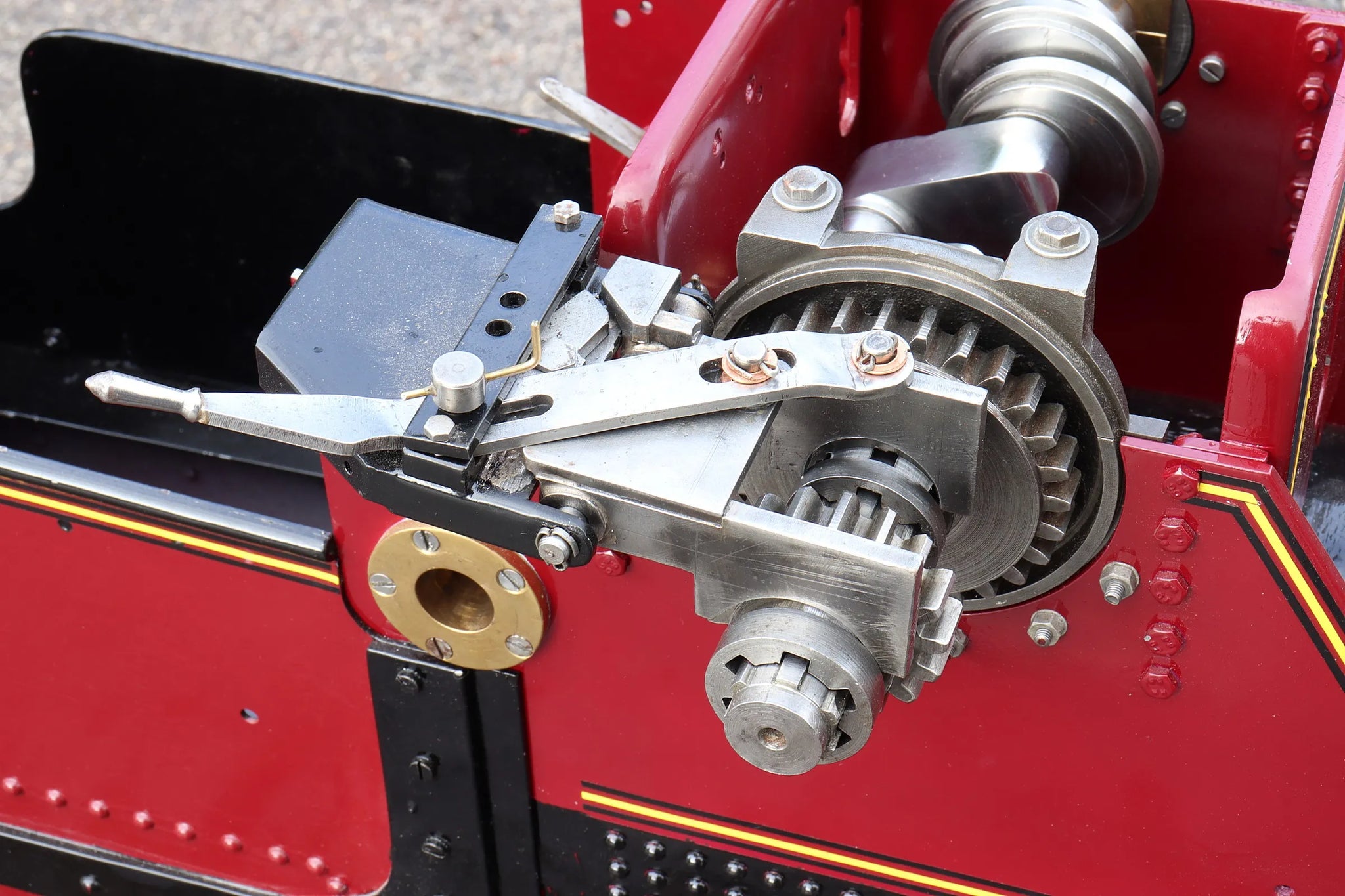

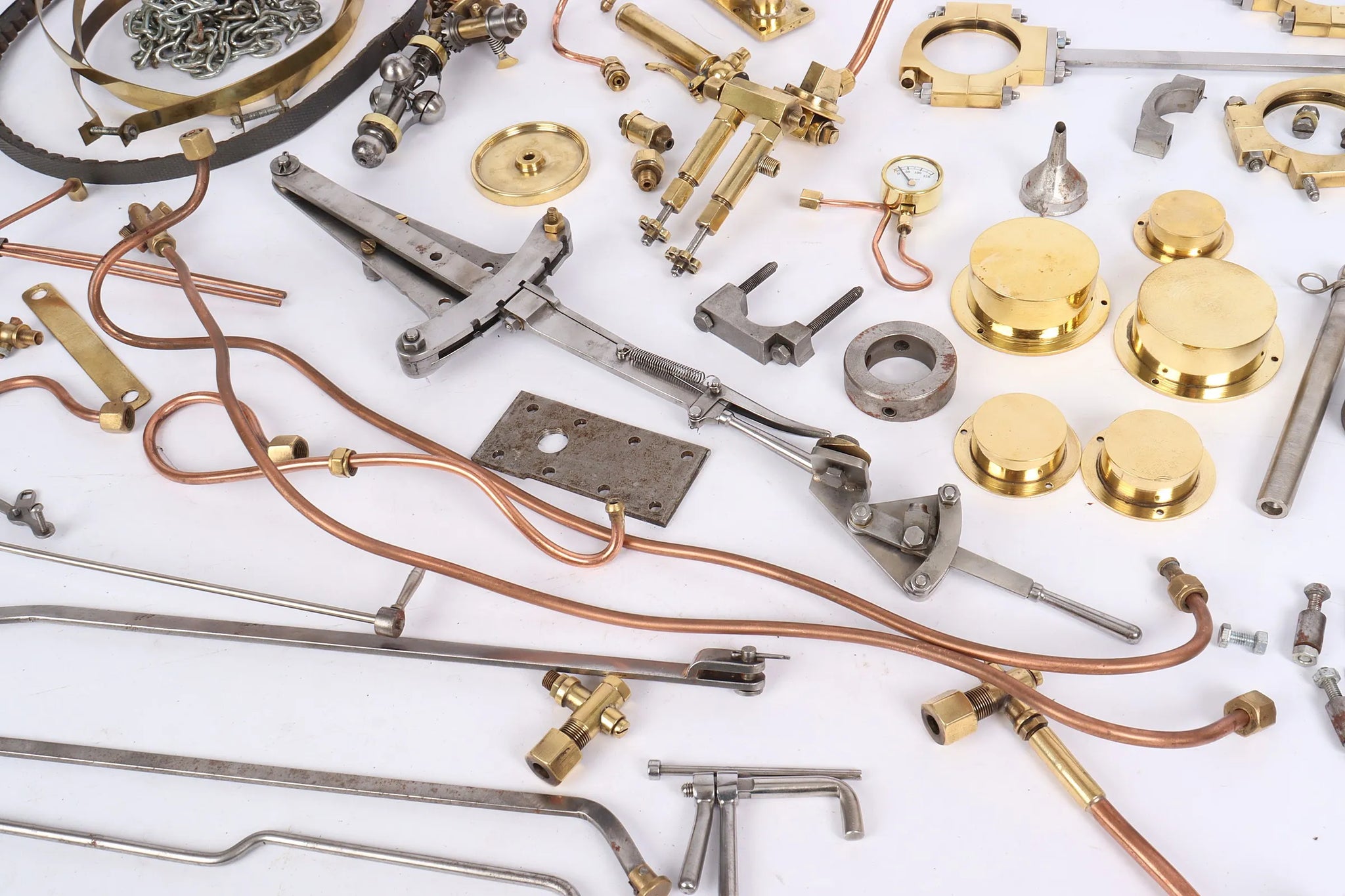

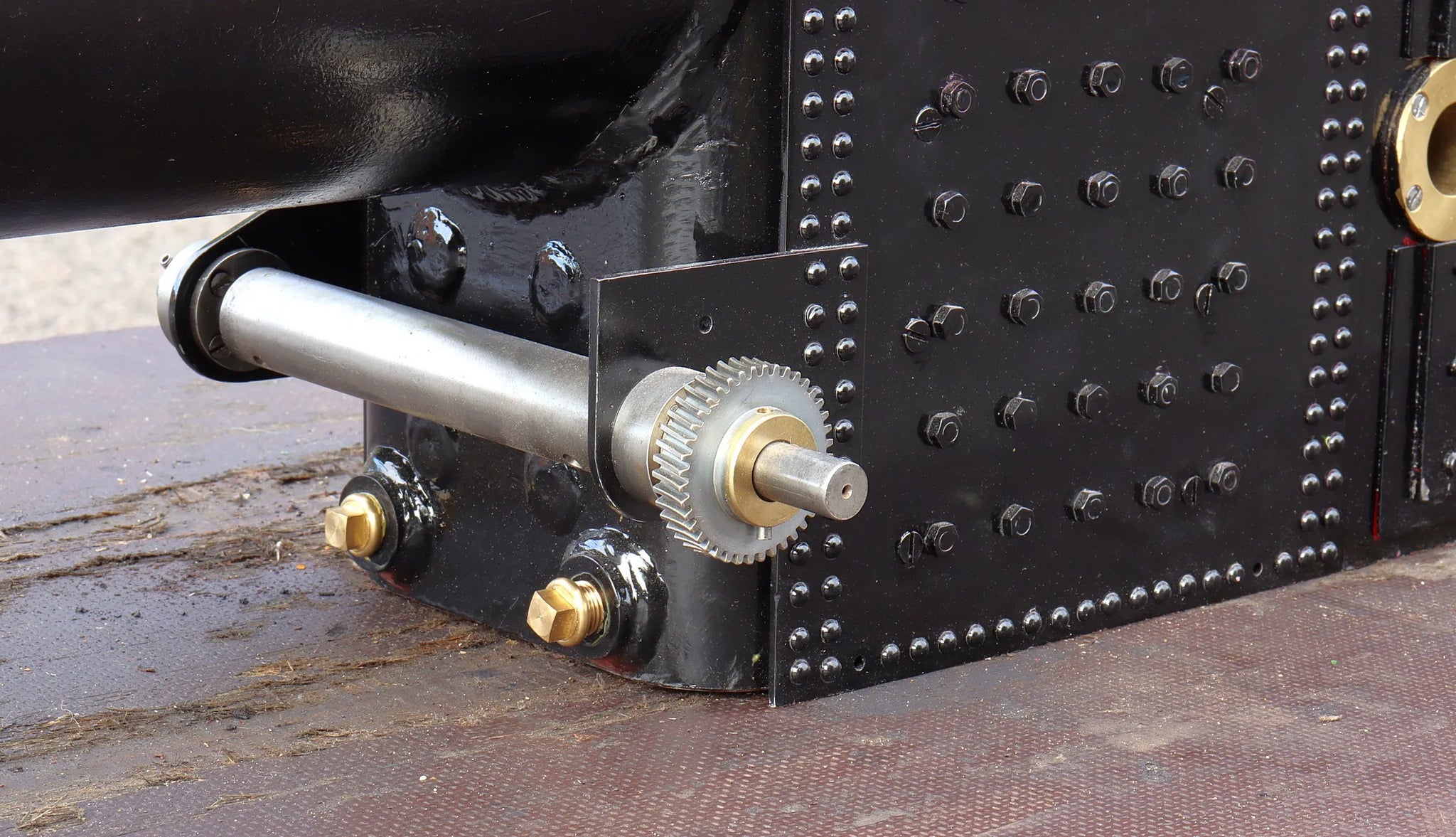

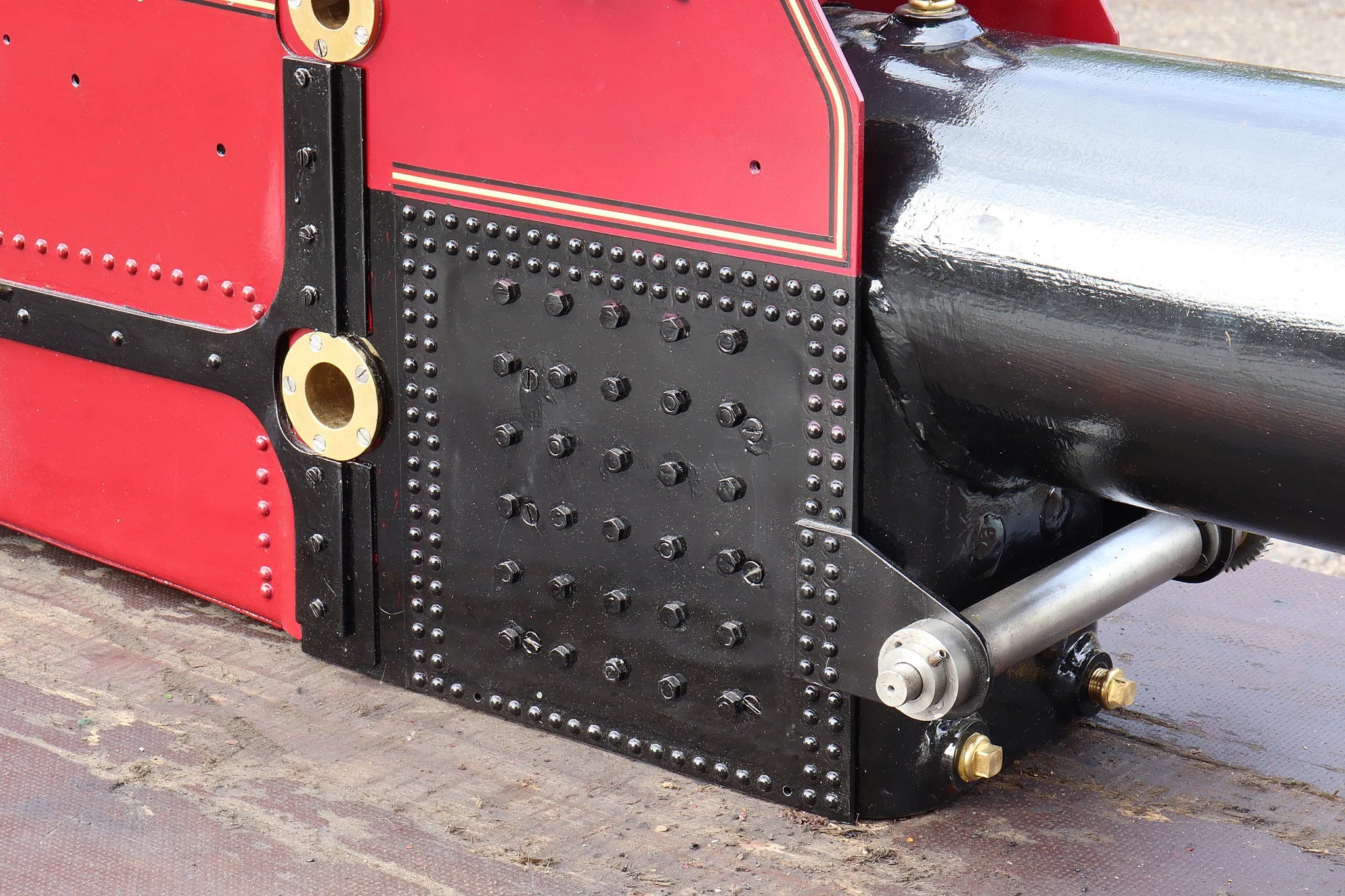

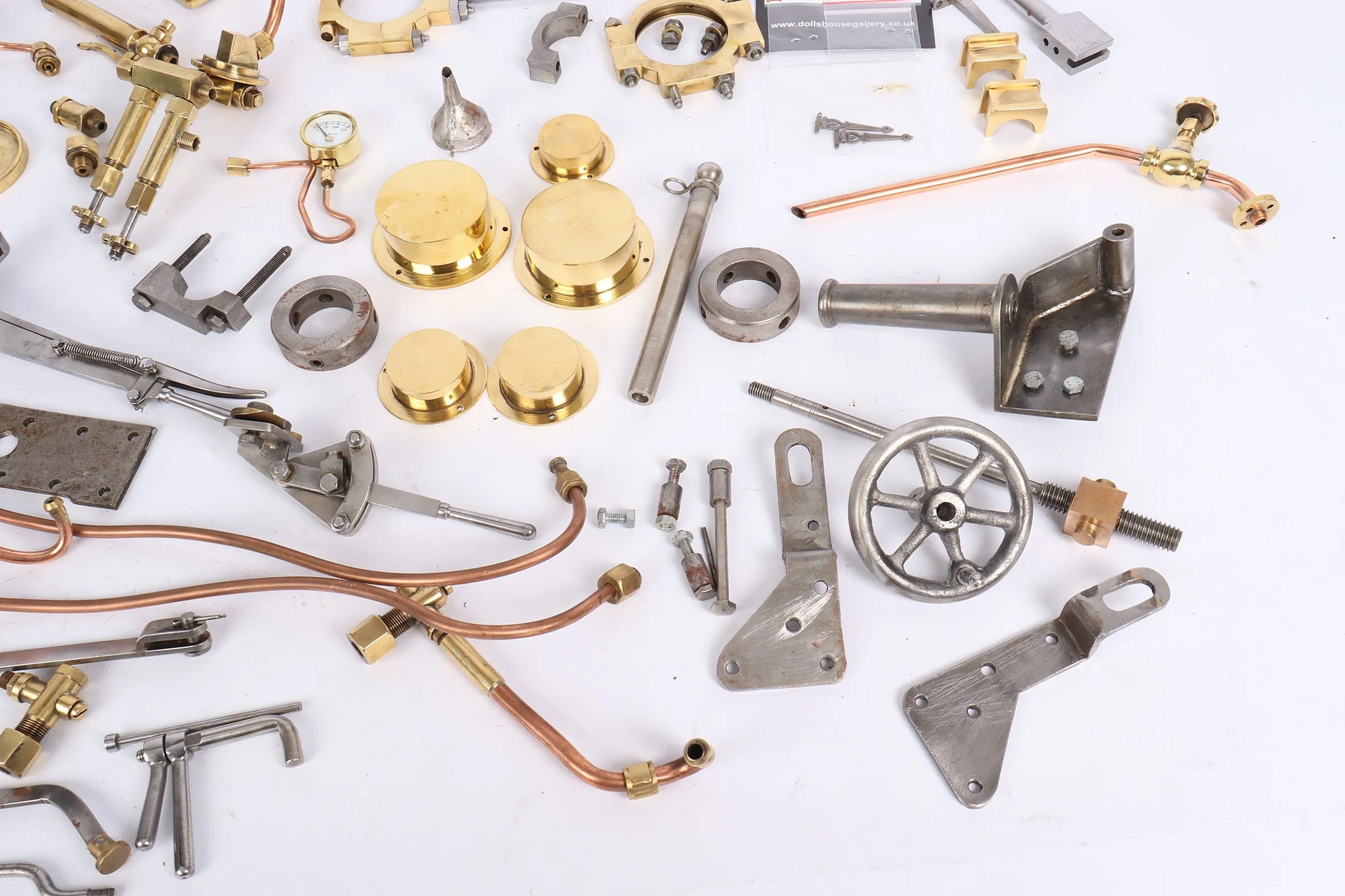

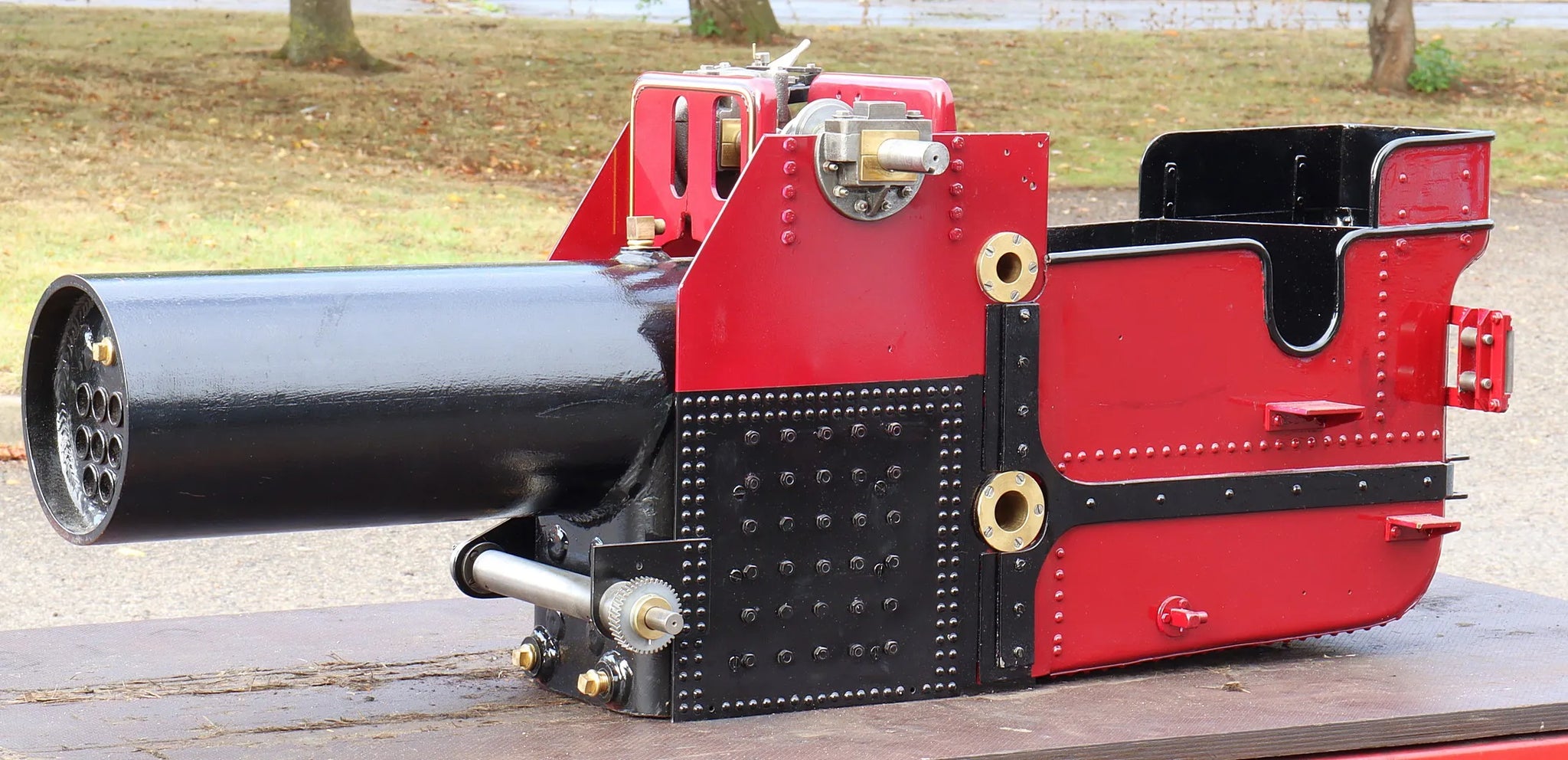

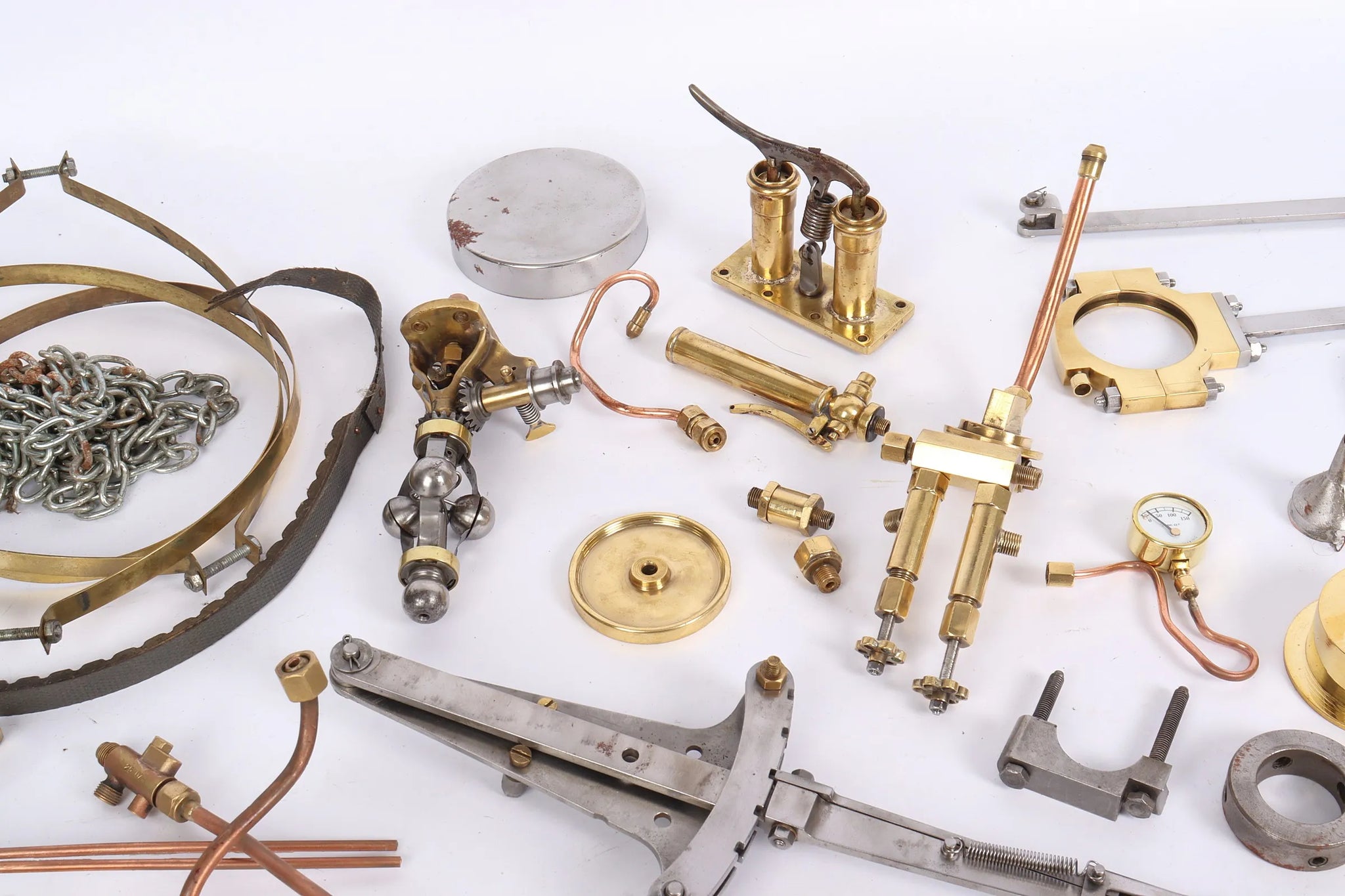

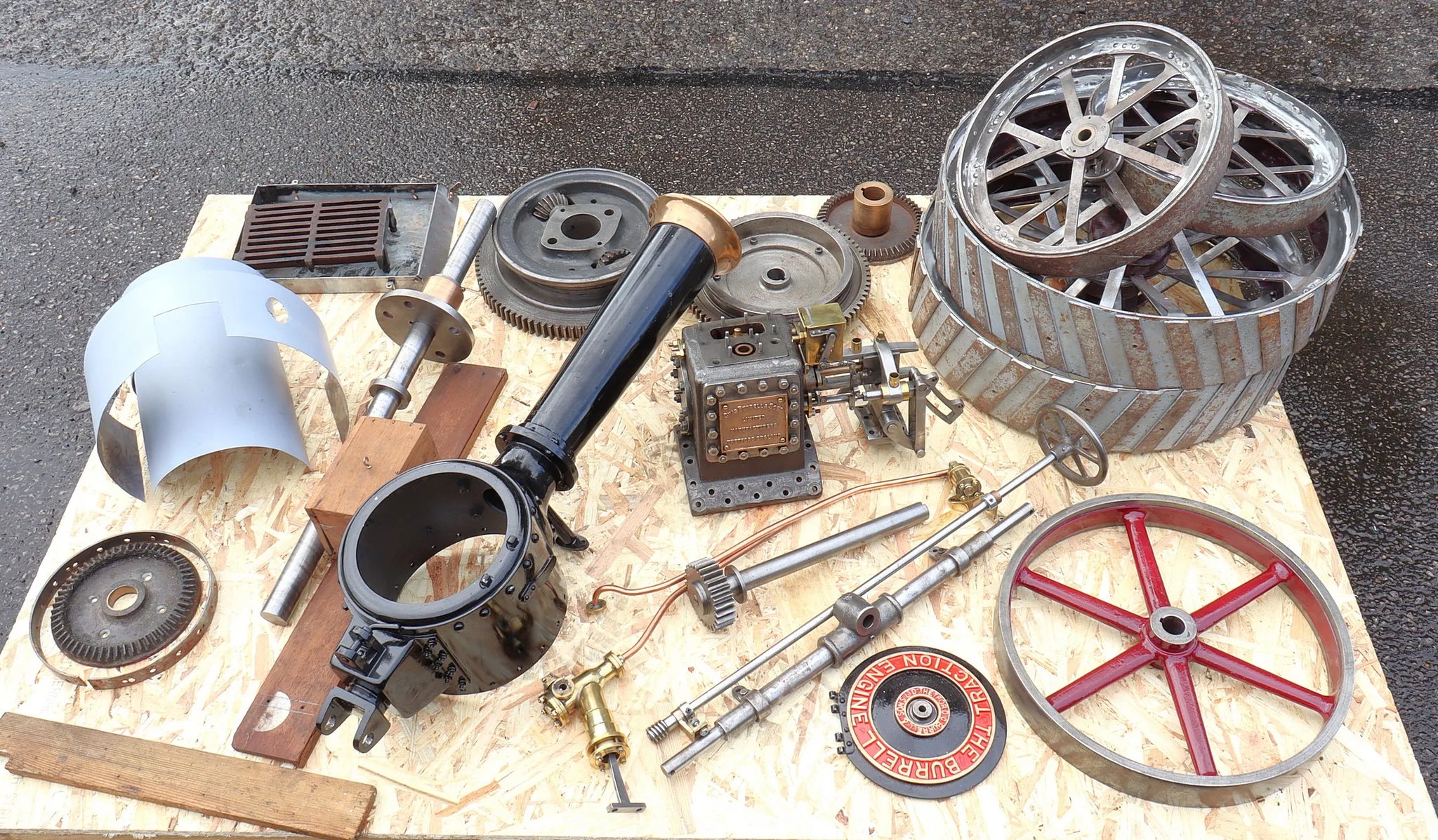

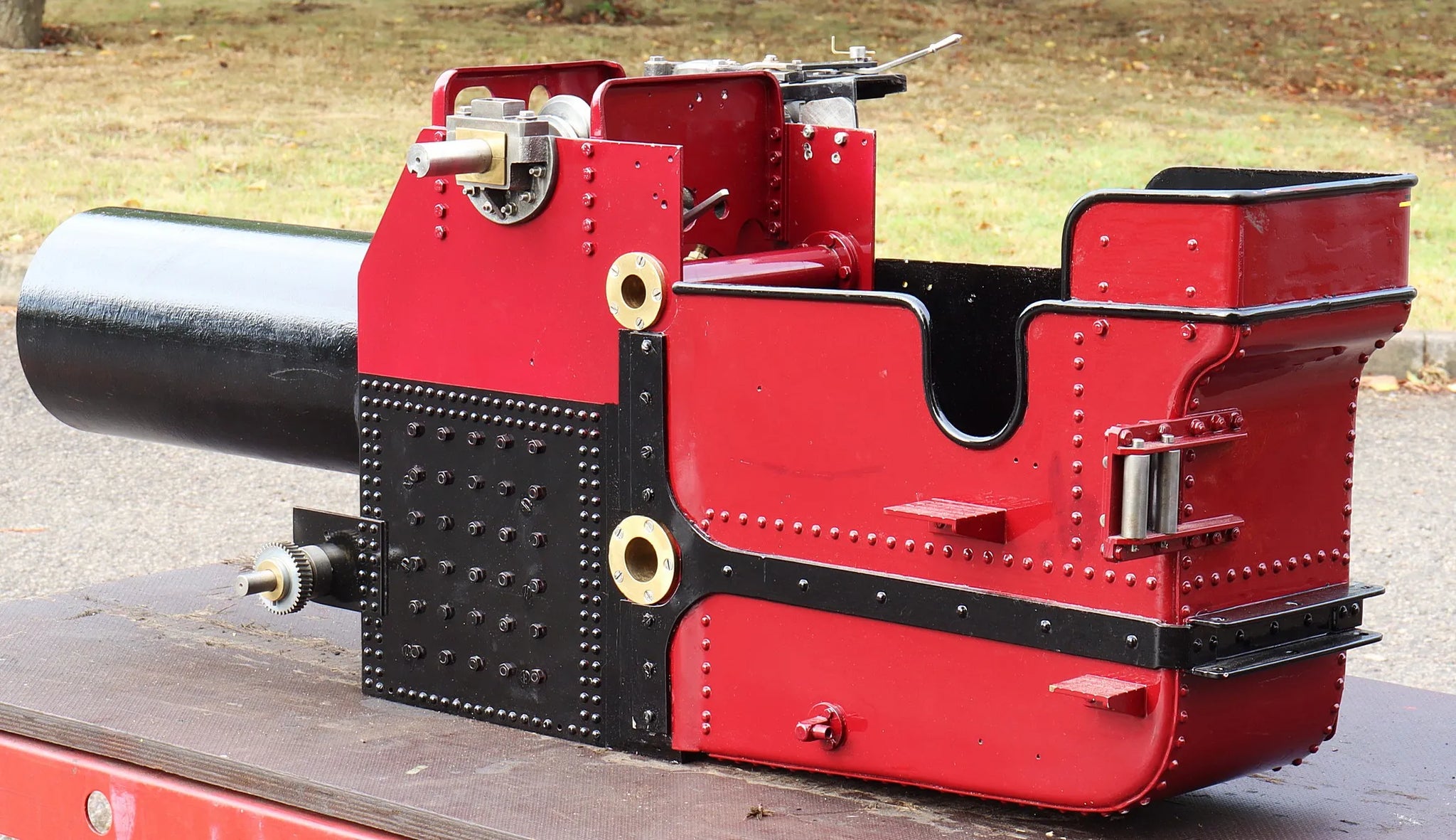

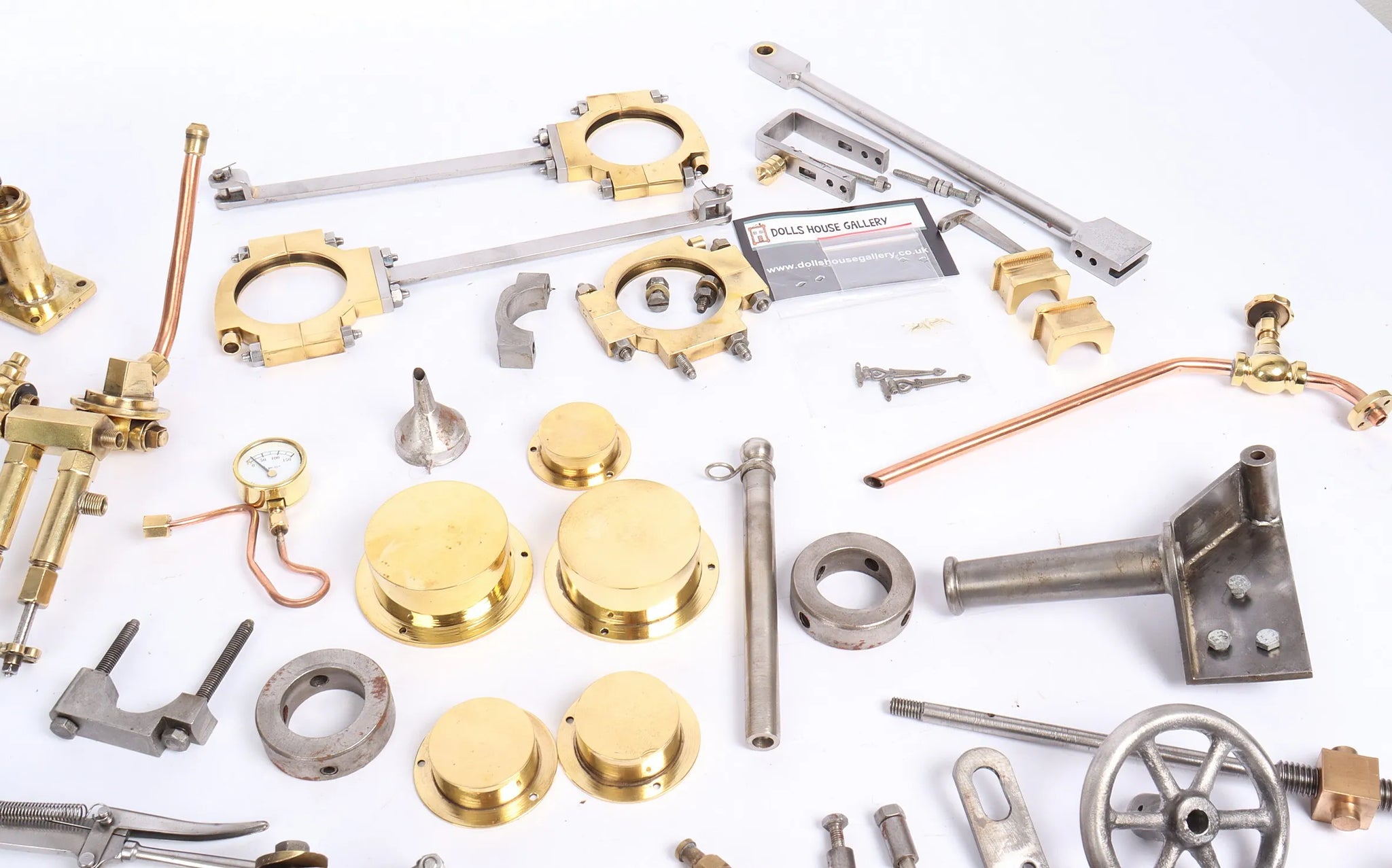

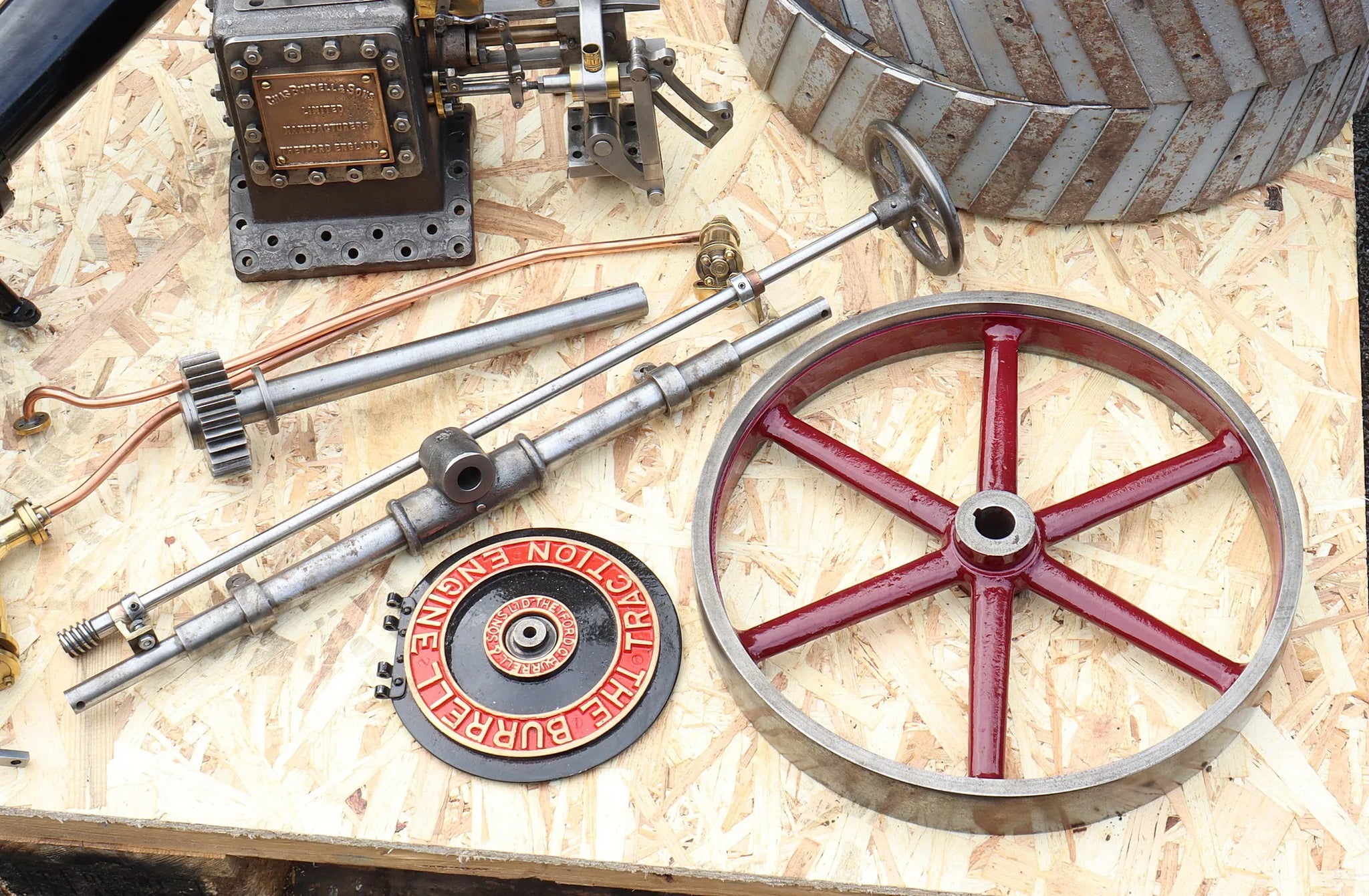

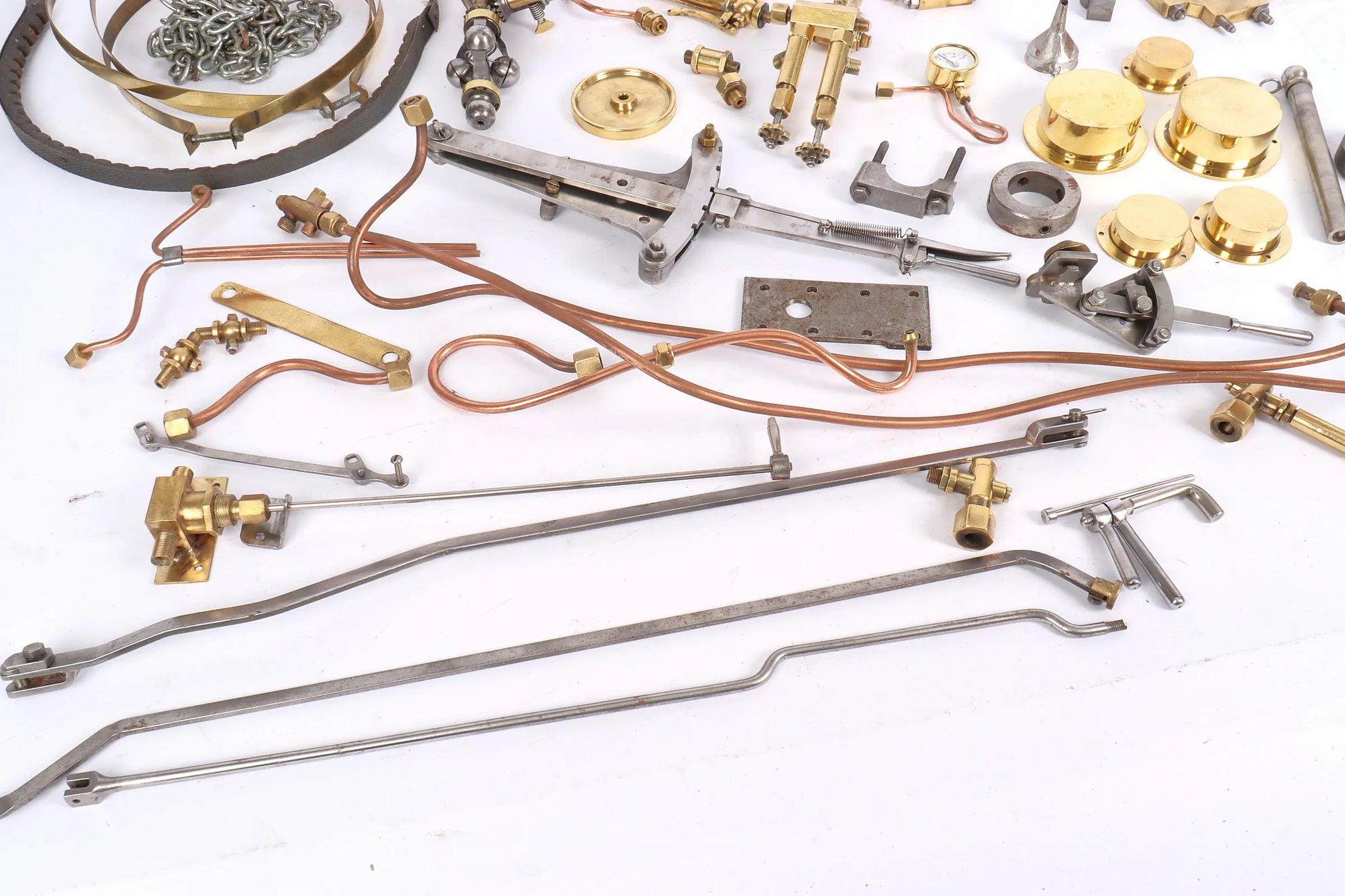

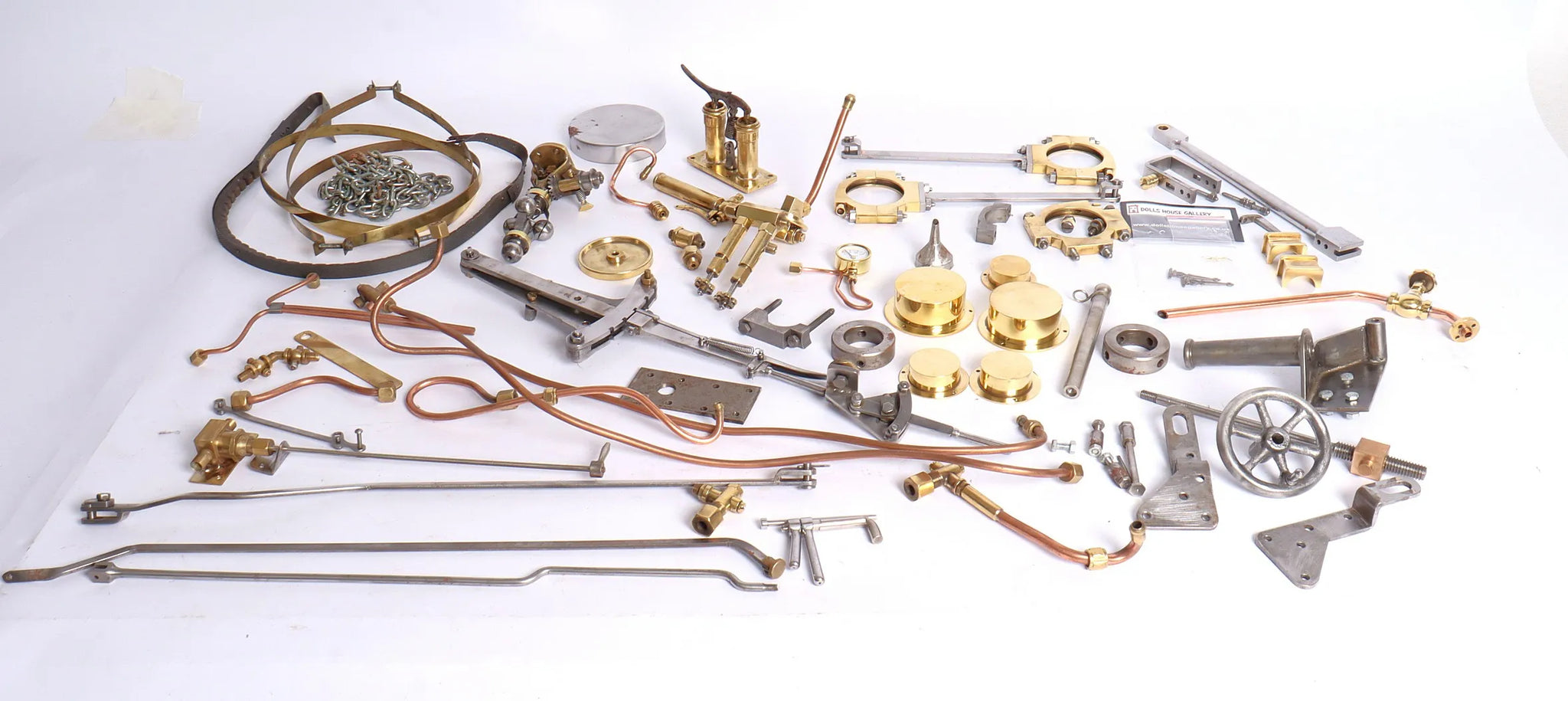

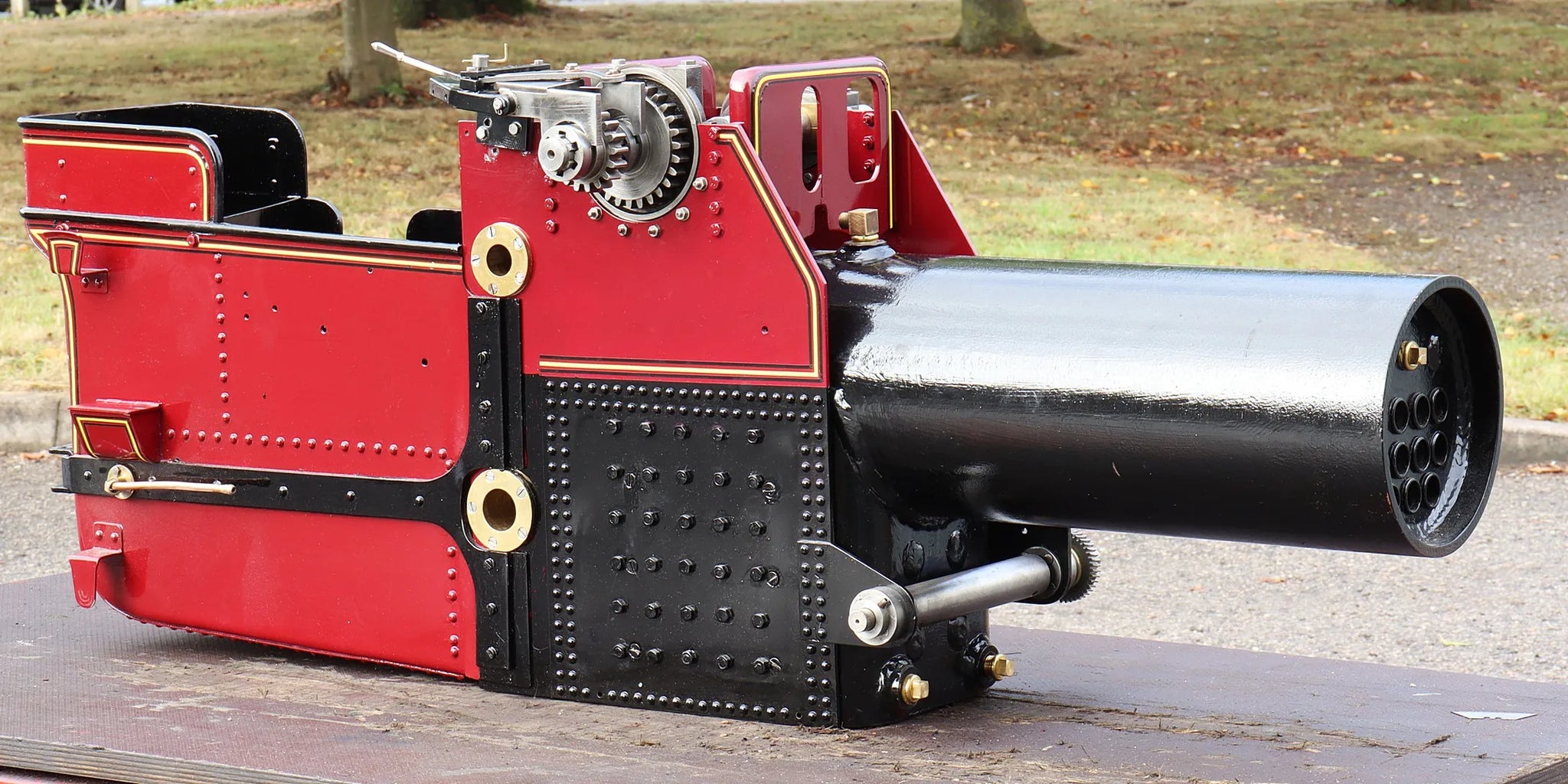

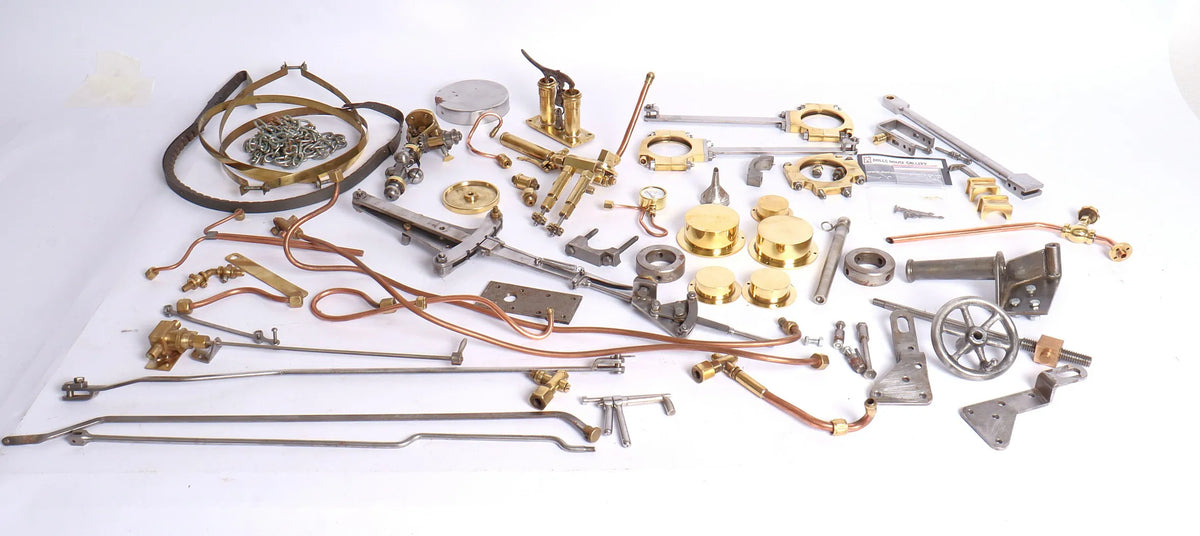

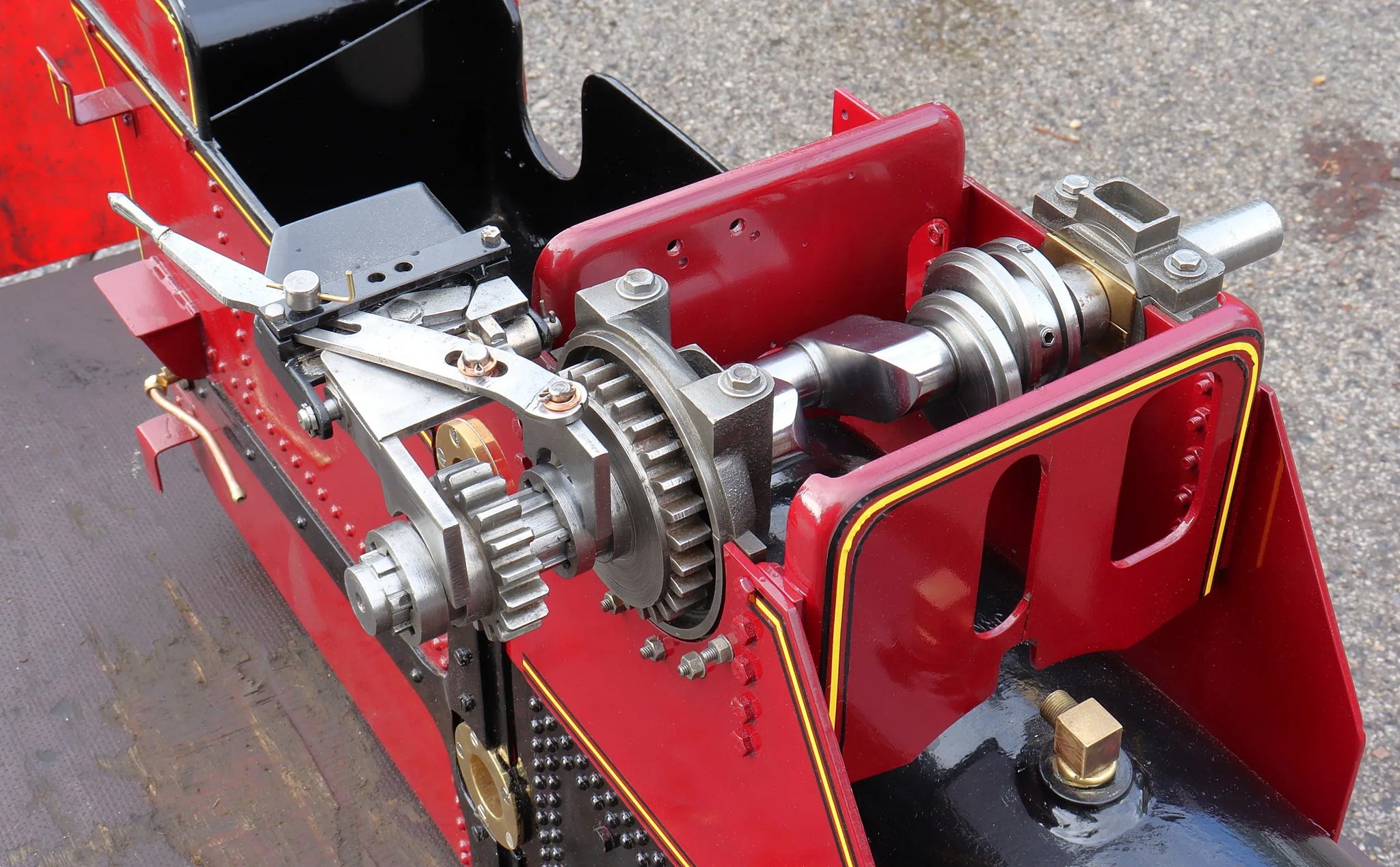

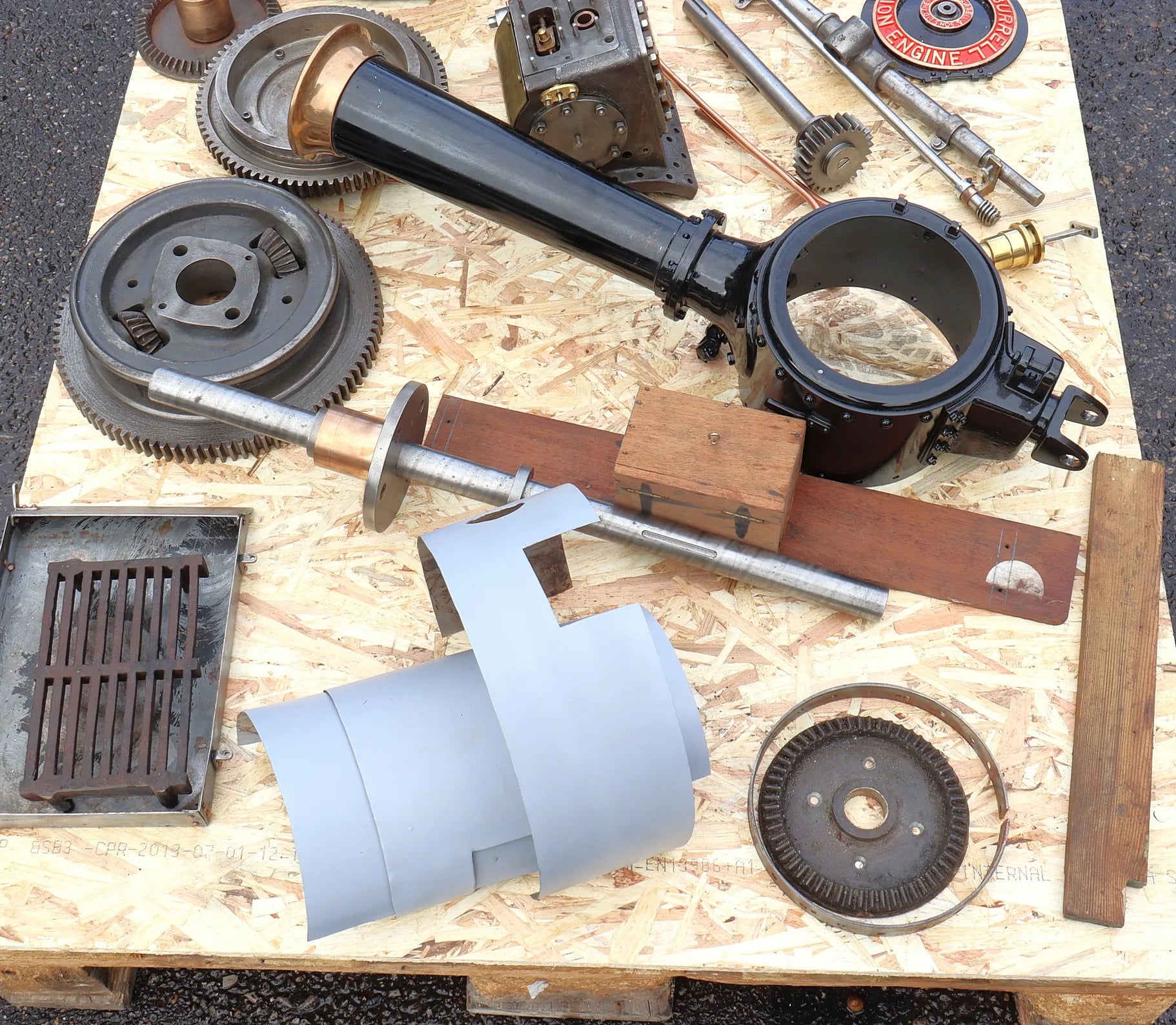

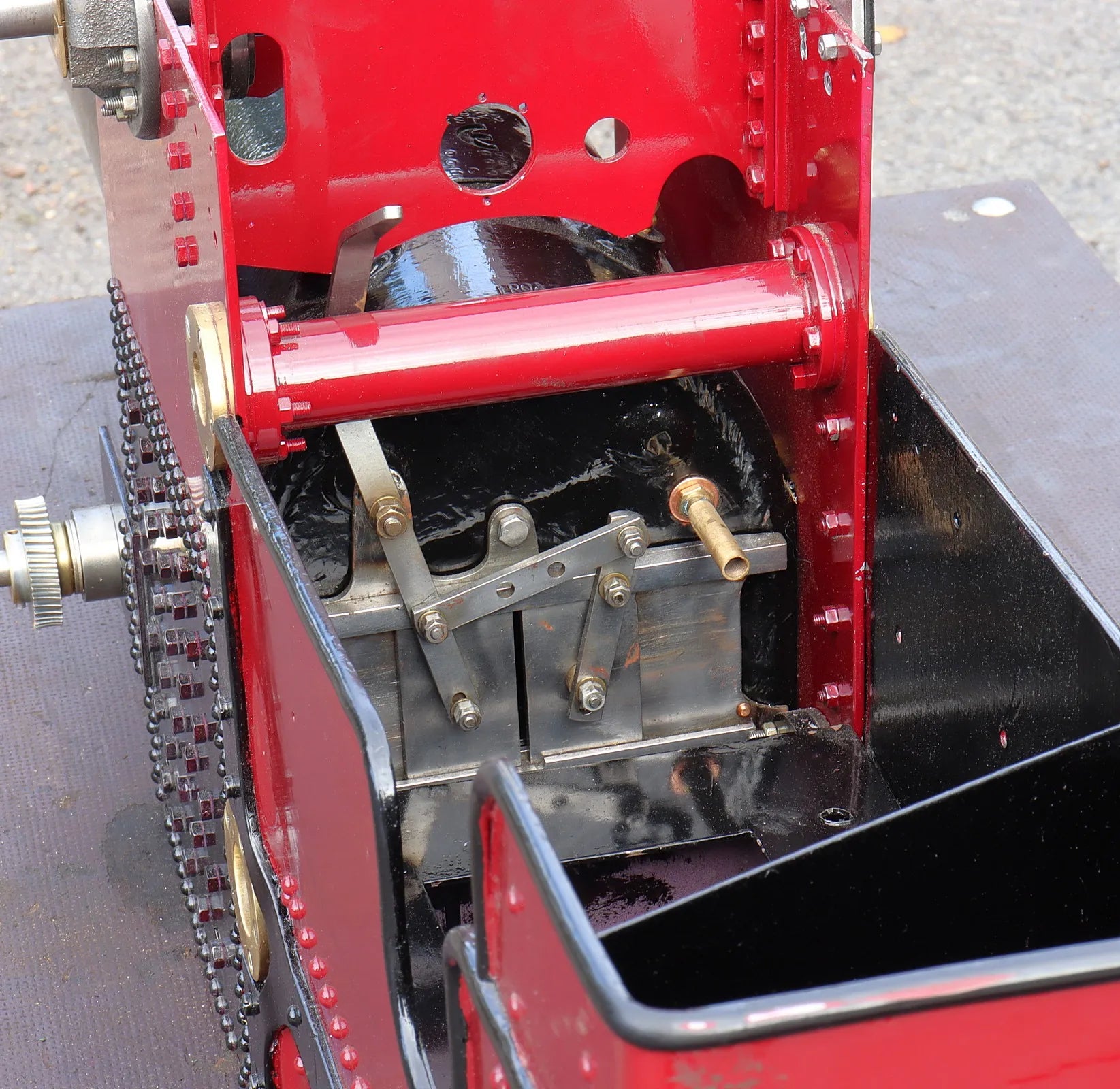

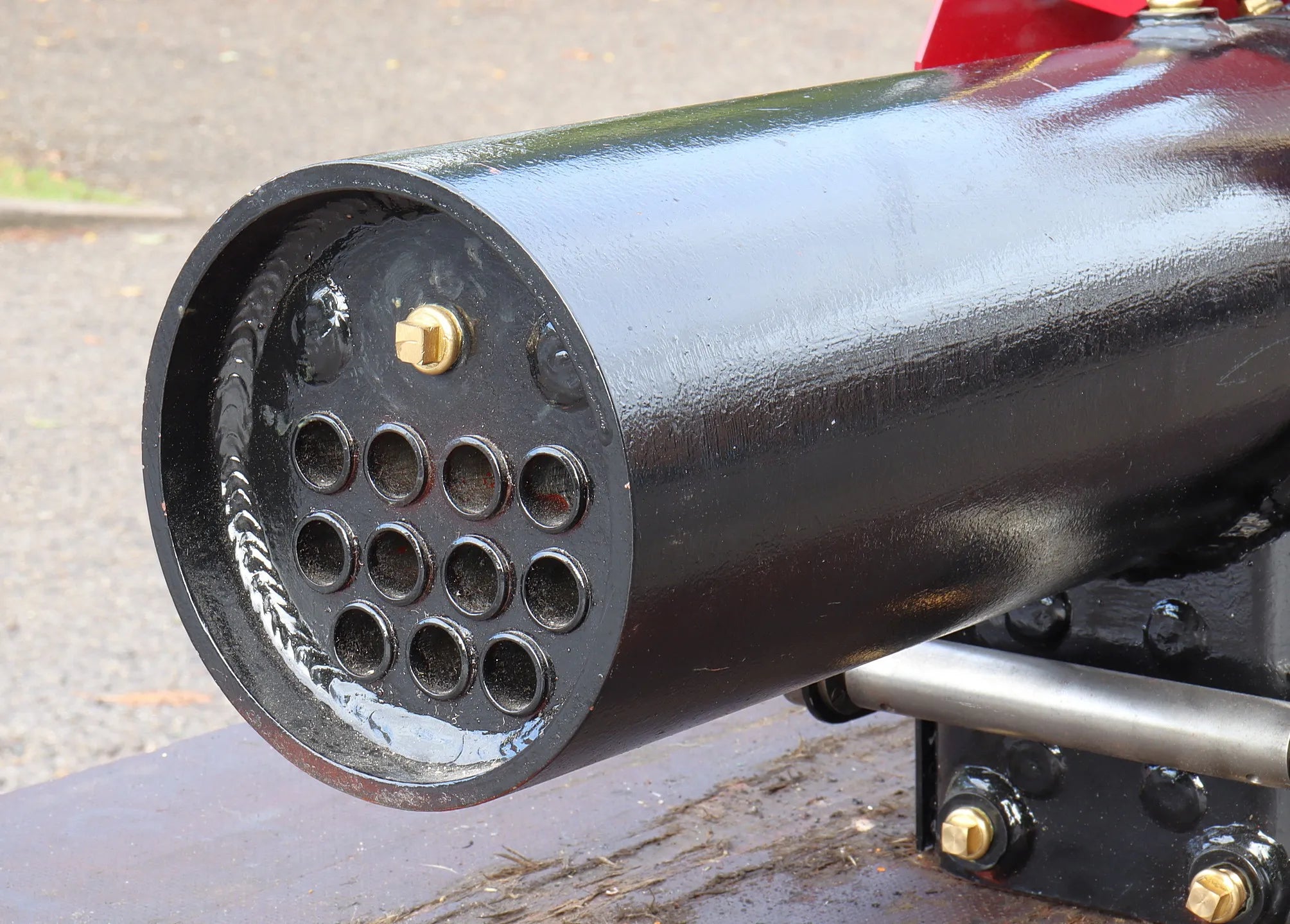

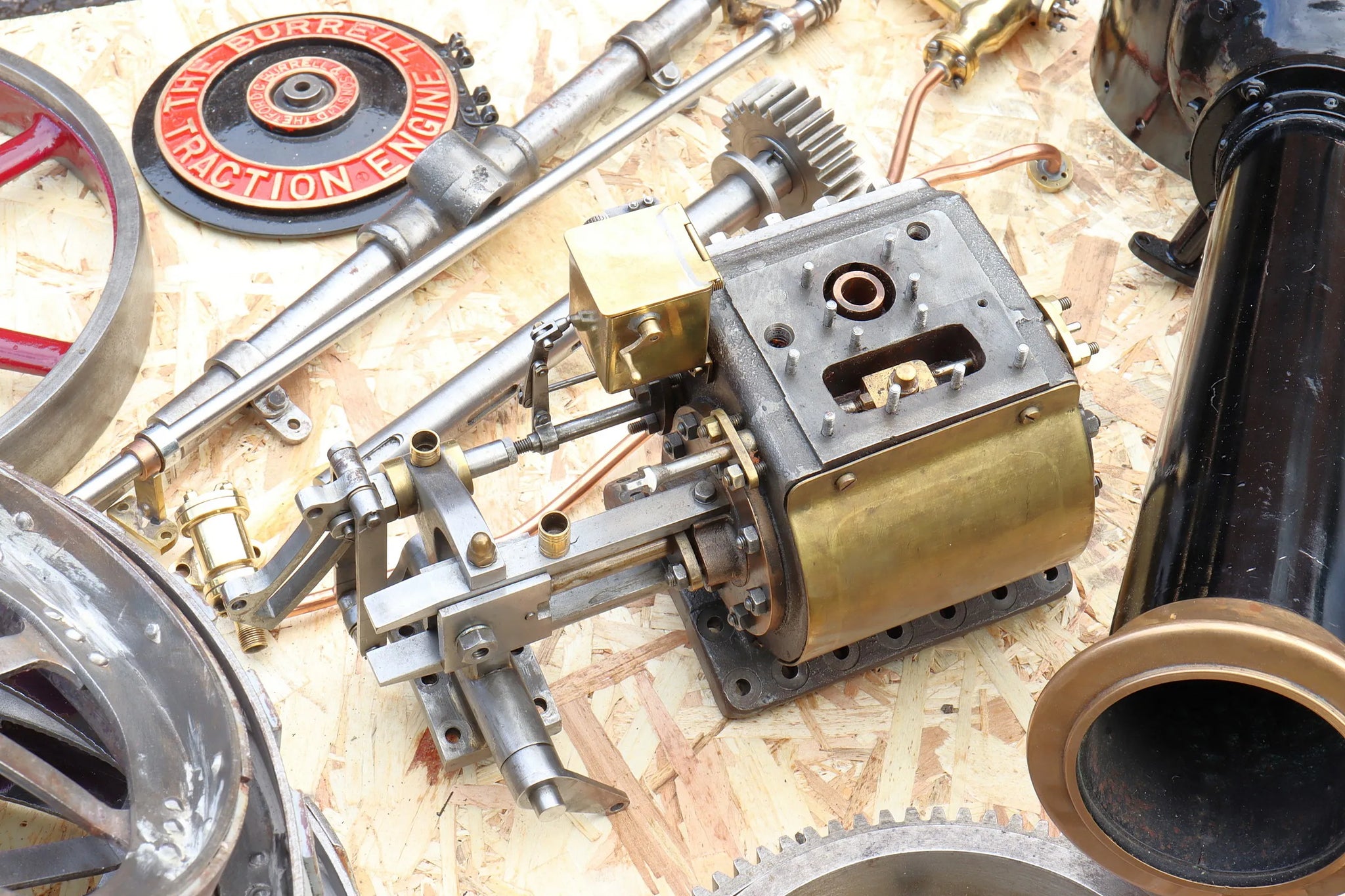

The boiler has been fitted to the horns, the tender has been painted and fitted, most other parts have been cleaned, polished and refurbished ready for reassembly.

Work to date is to a high standard, it will make a fine example of this popular miniature when finished. It's only come to us now, part-finished, in order that he could buy a larger Showmans engine which we've recently had come in.

Technical information

Stock code

13058

Scale

3 inch

Length/inches

39

Width/inches

14

Height/inches

17

Weight/Kg

122

Wheel material

steel

Cylinder material

cast iron

Valve type

slide

Valve gear

Stephensons

Reverser type

pole

Boiler maker

John Rex Model Engineers

Boiler type

locomotive

Boiler construction

welded, expanded tubes

Boiler material

steel

CE/UKCA mark

yes

Year built

2023

Boiler number

JRME 0309/23

Safety valve type

Ramsbottom

Safety valve

2

Governor type

Pickering

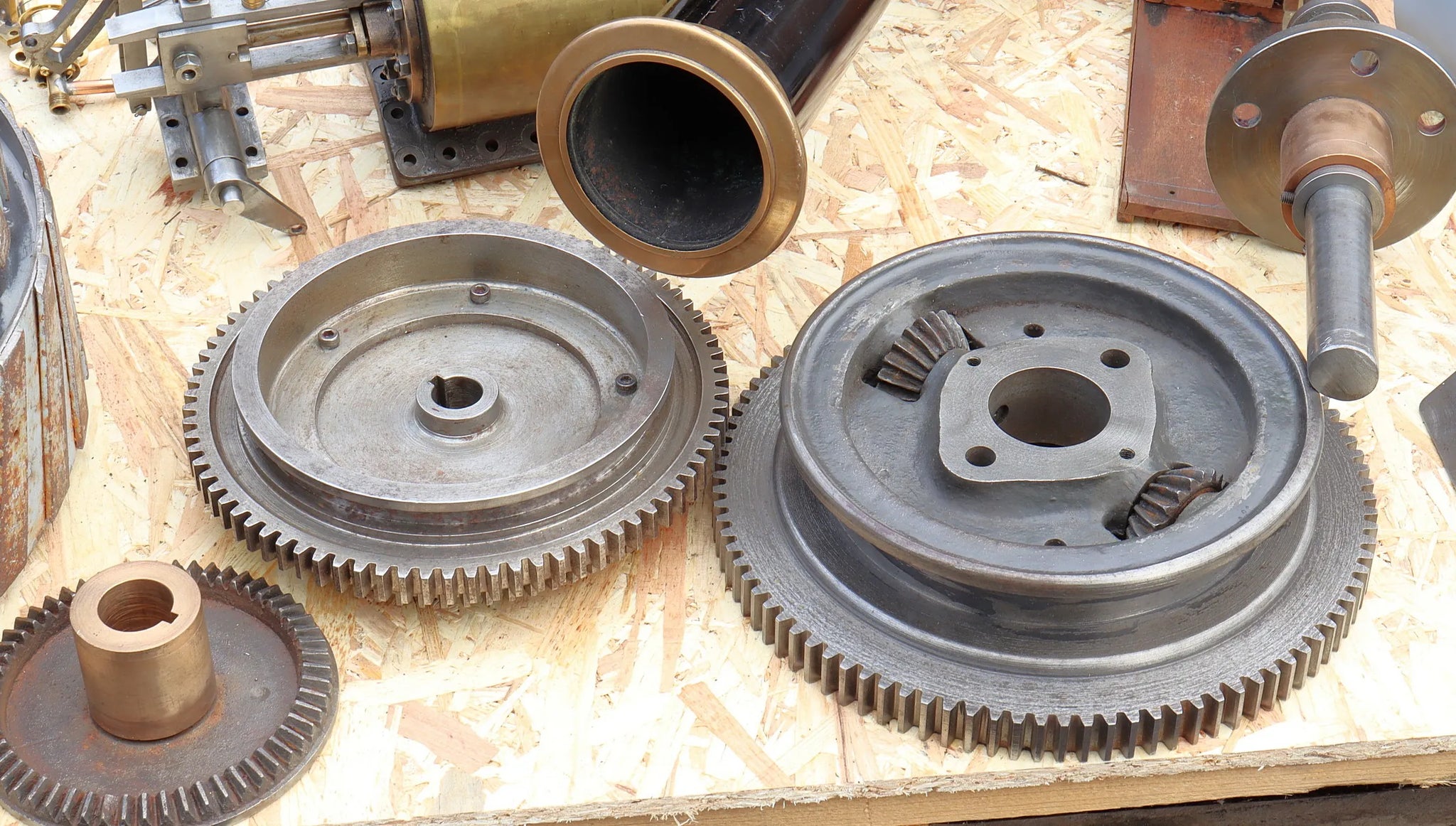

Differential

yes

Road speed

2

Mechanical pump

1

Date out

Sep-25
