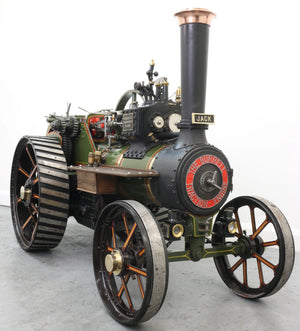

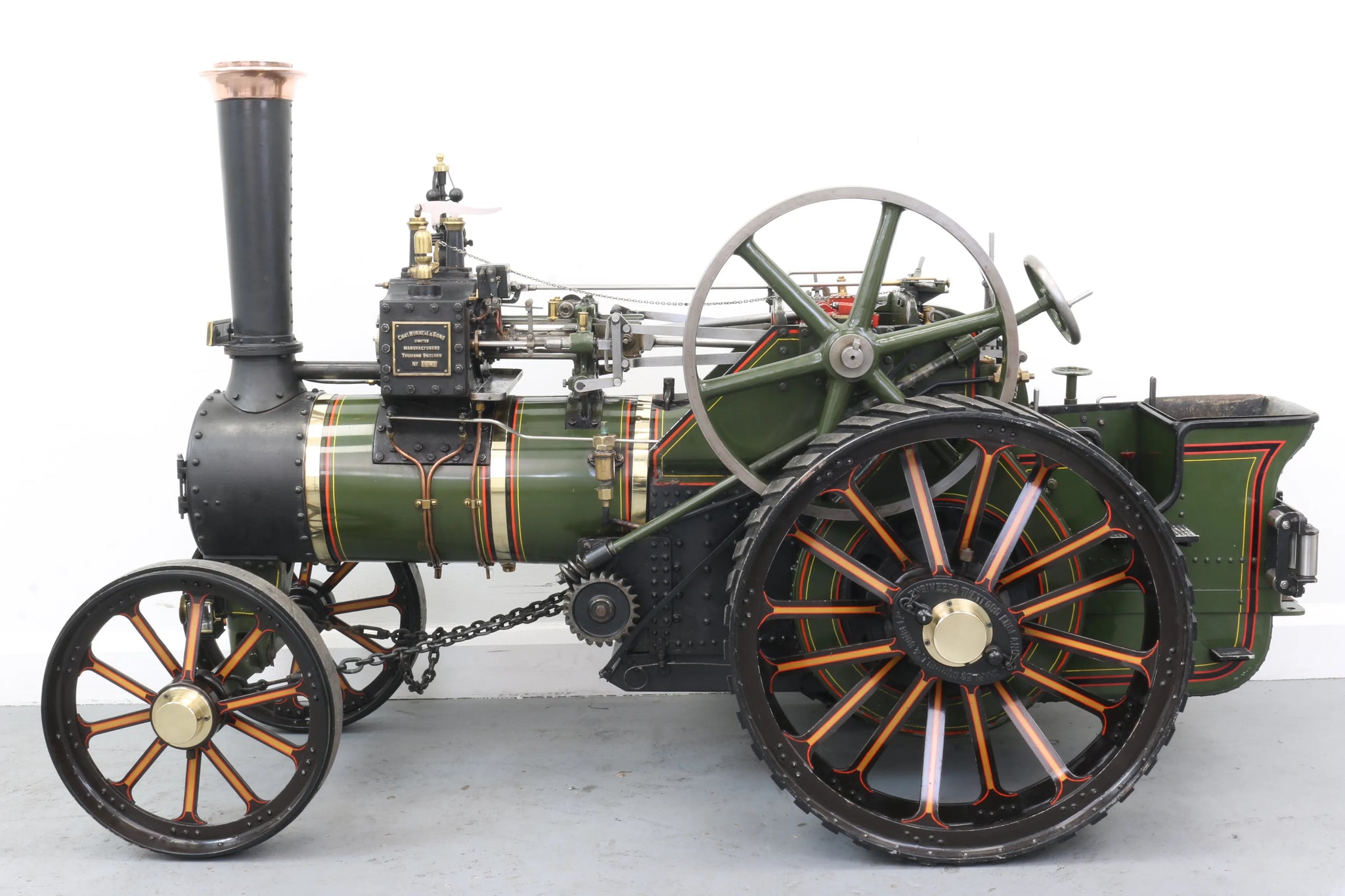

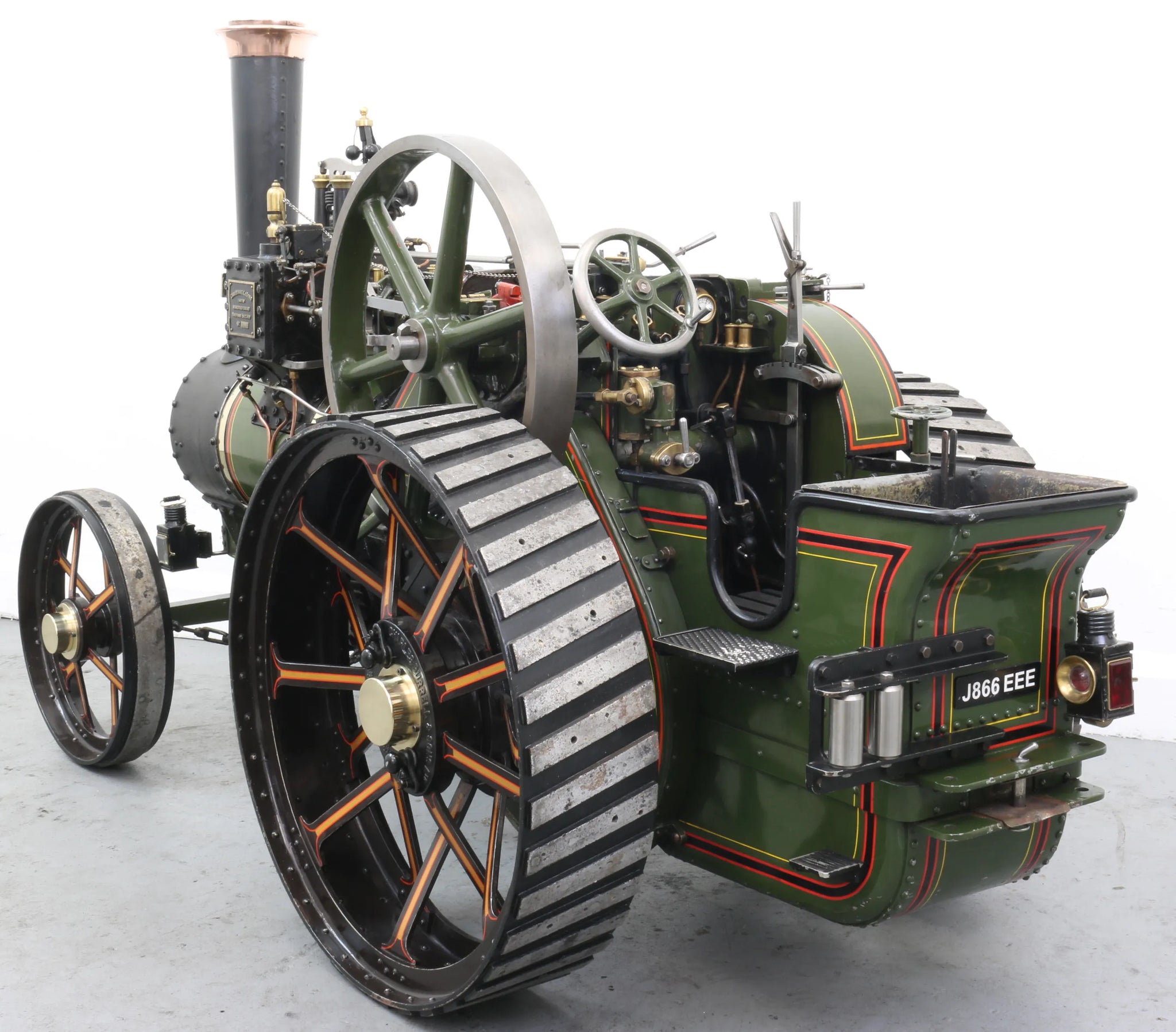

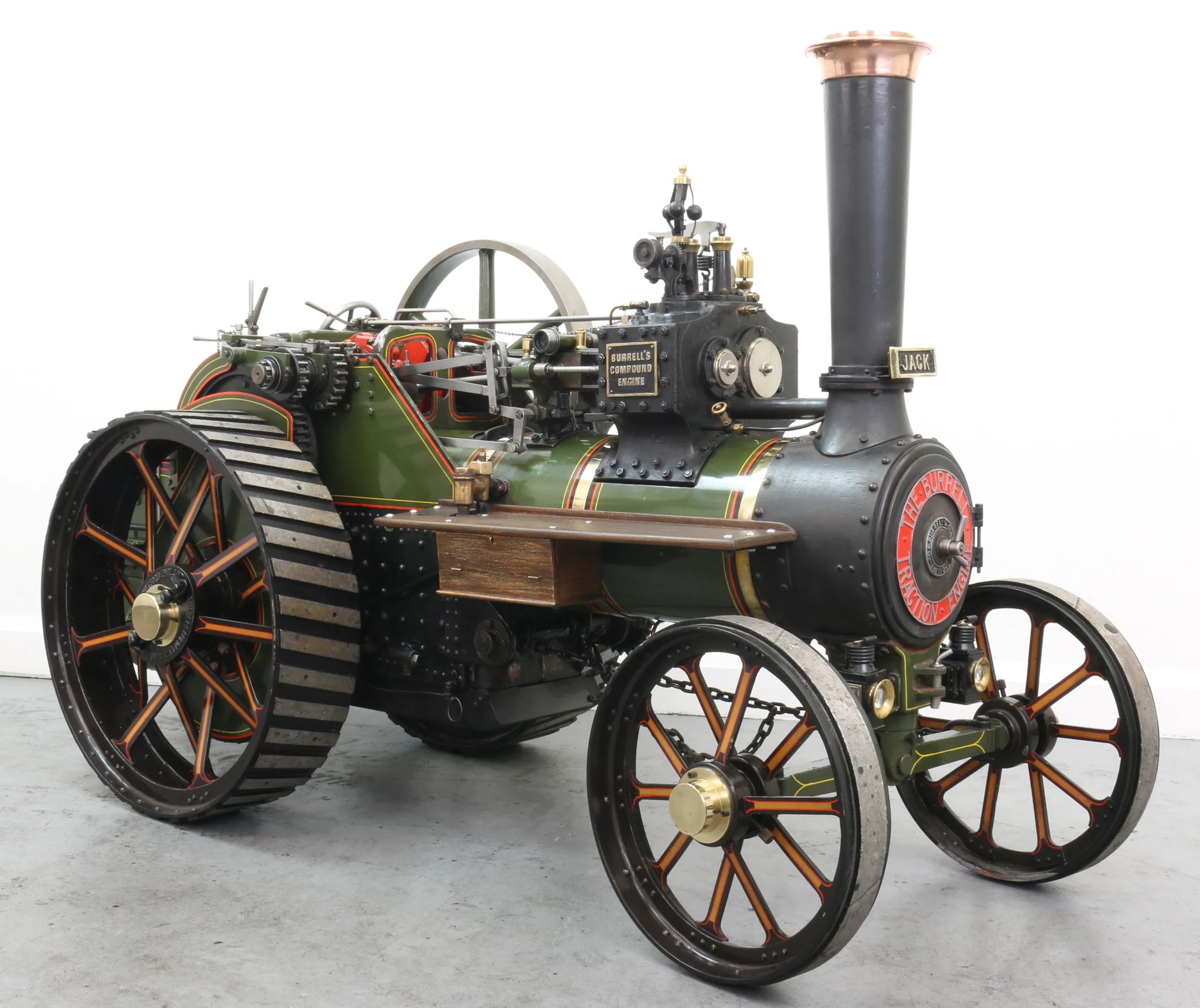

3 inch scale Burrell DCC agricultural engine

We sold this engine back in October 2015, it's recently come back from a long-time customer of ours who is downsizing his collection.

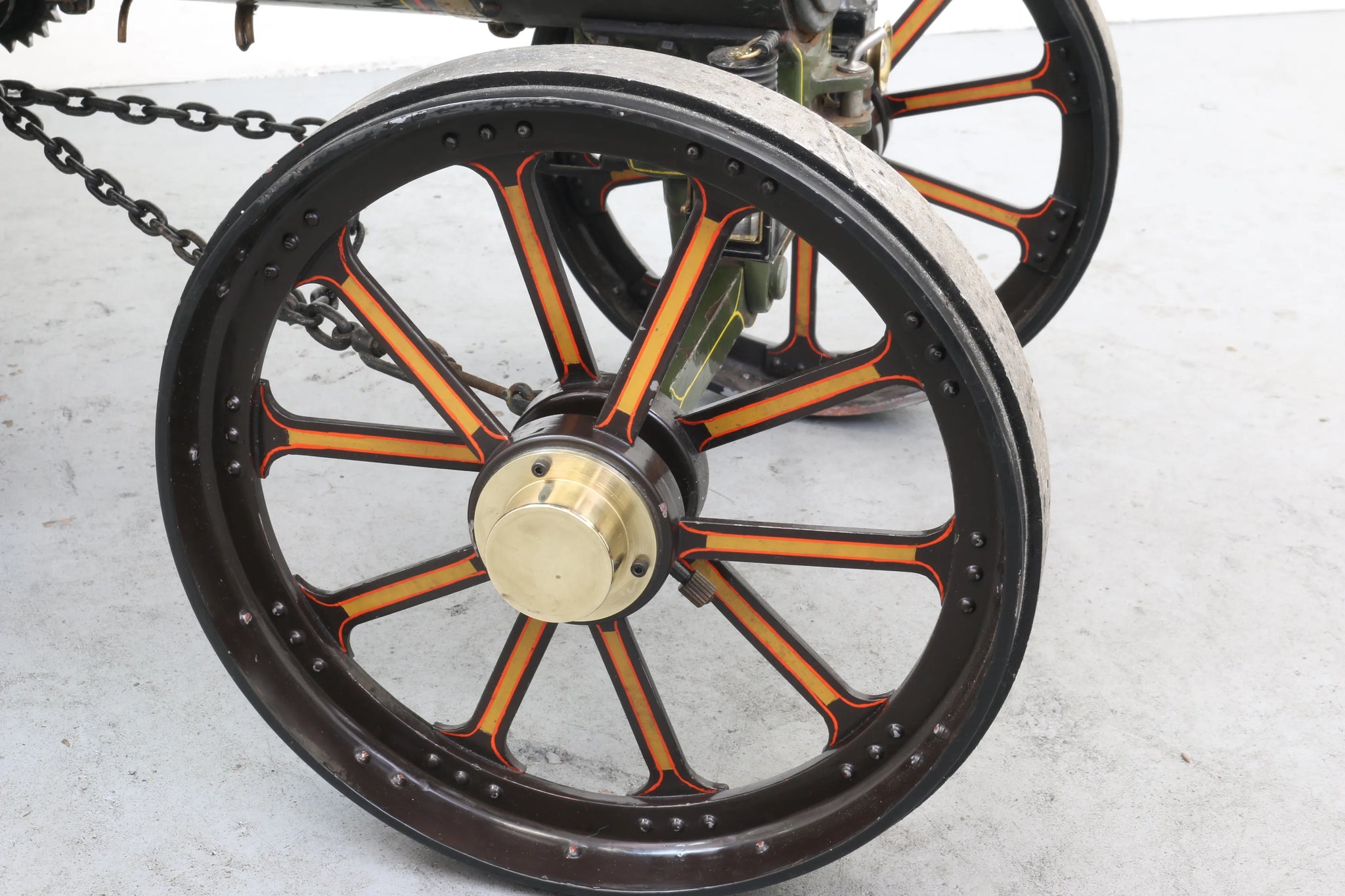

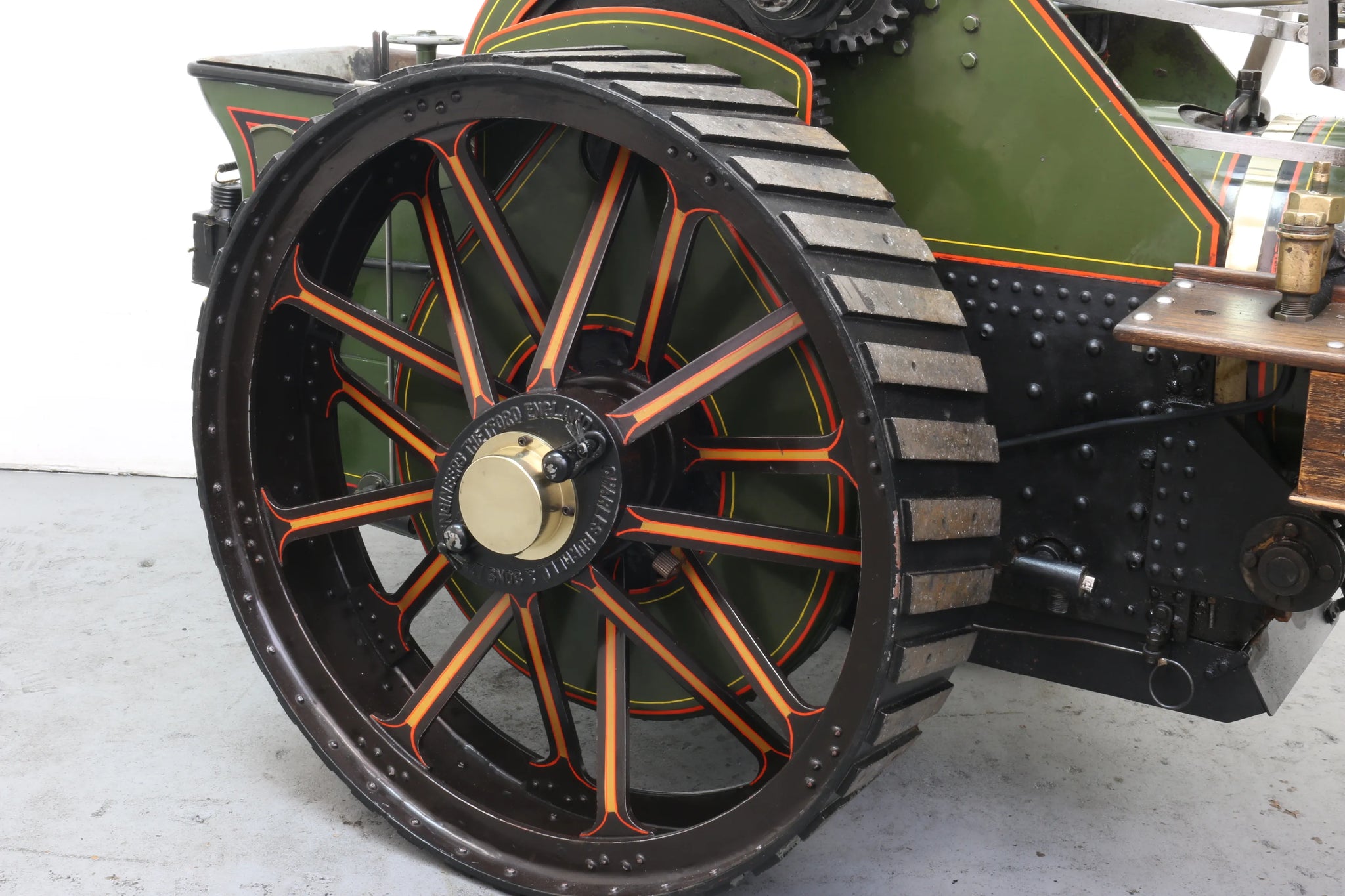

Pictures opposite were taken this week, words below are from 2015. The engine is in substantially the same condition as when we last sold it, although now fitted with four smart brass hub caps which the last owner turned up and fitted. There are more pictures of this engine, taken in 2015, in the archive here.

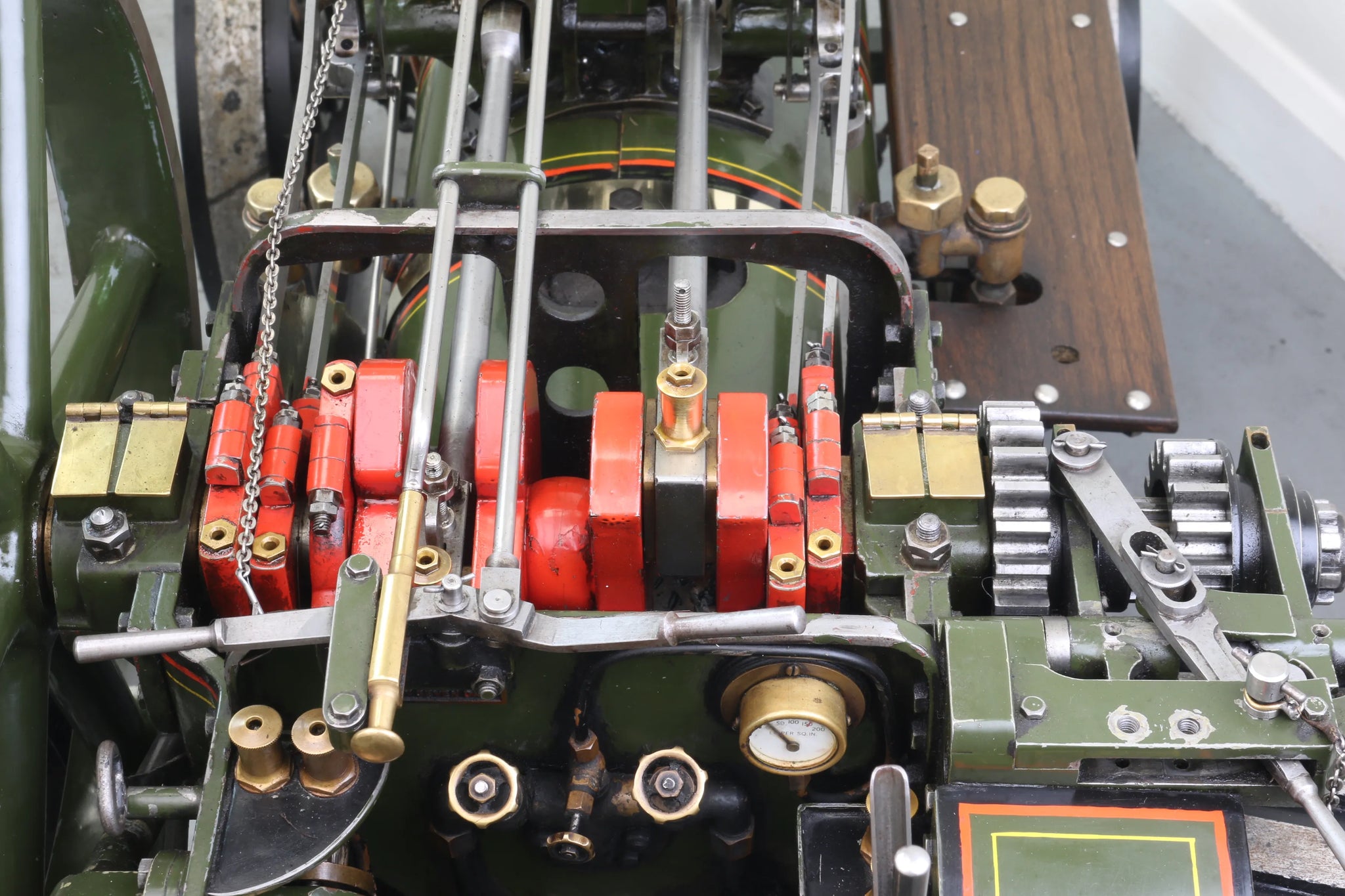

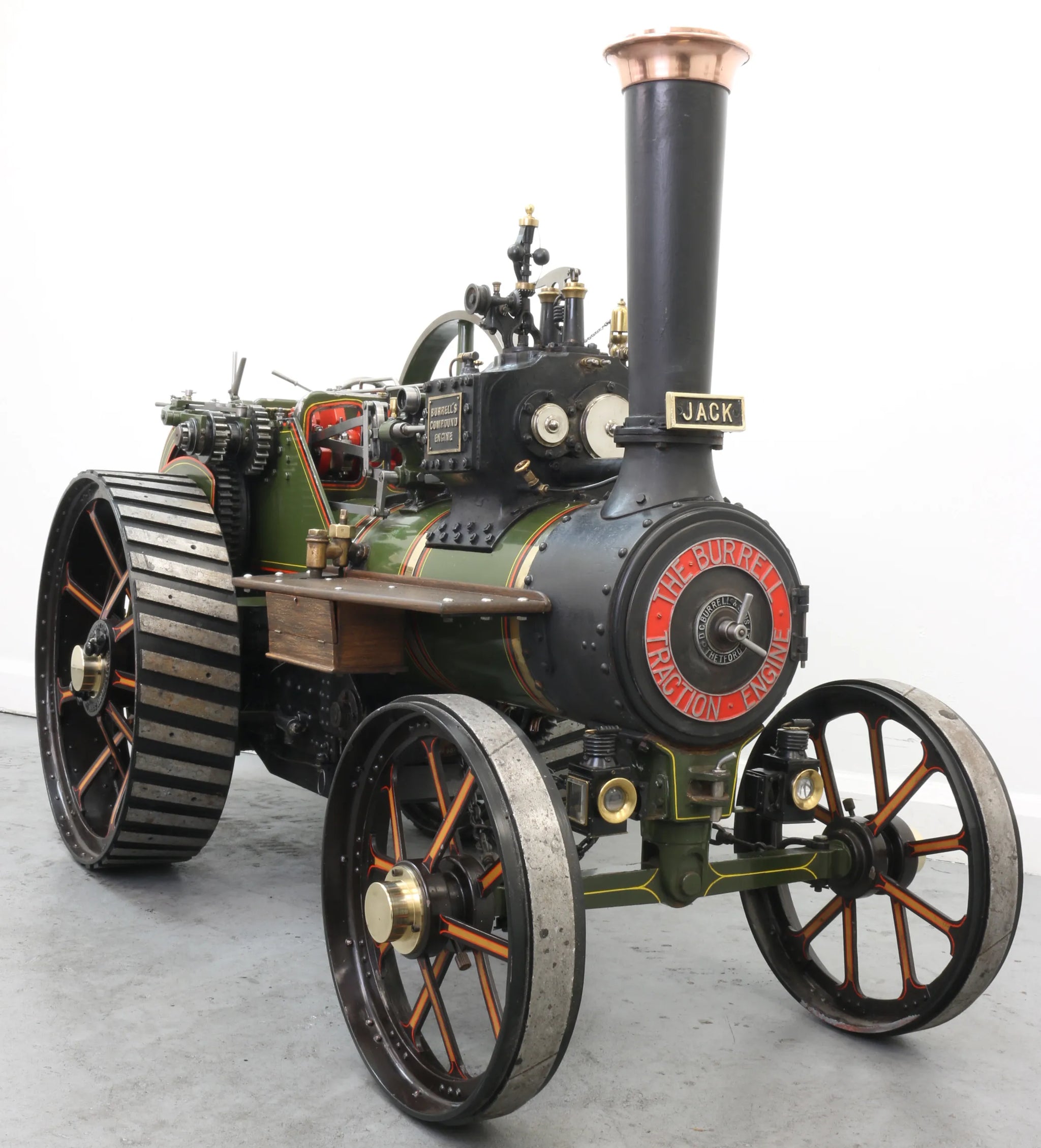

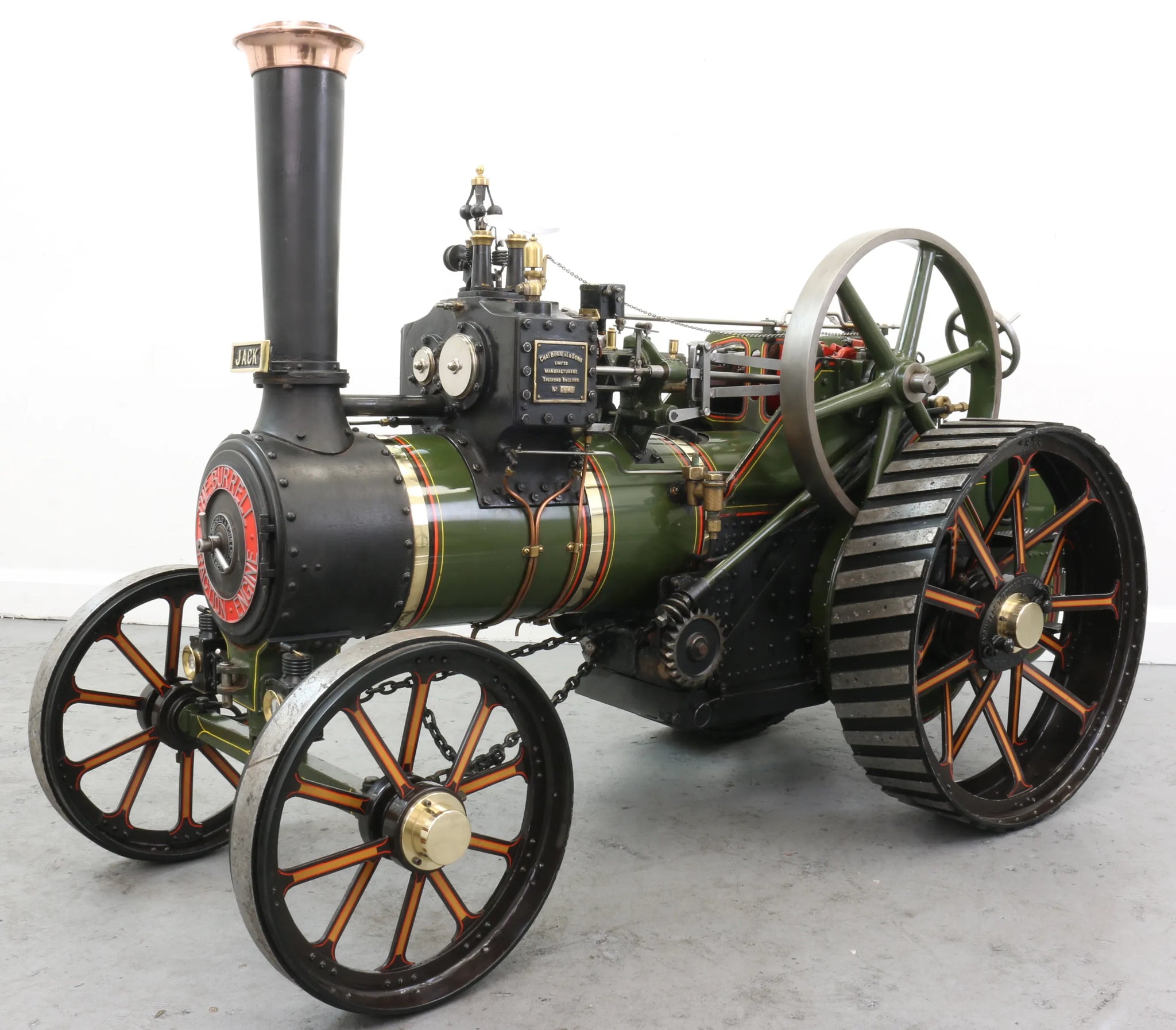

Rarely seen in 3 inch scale, a Burrell double crank compound agricultural engine, well engineered and in good running order.

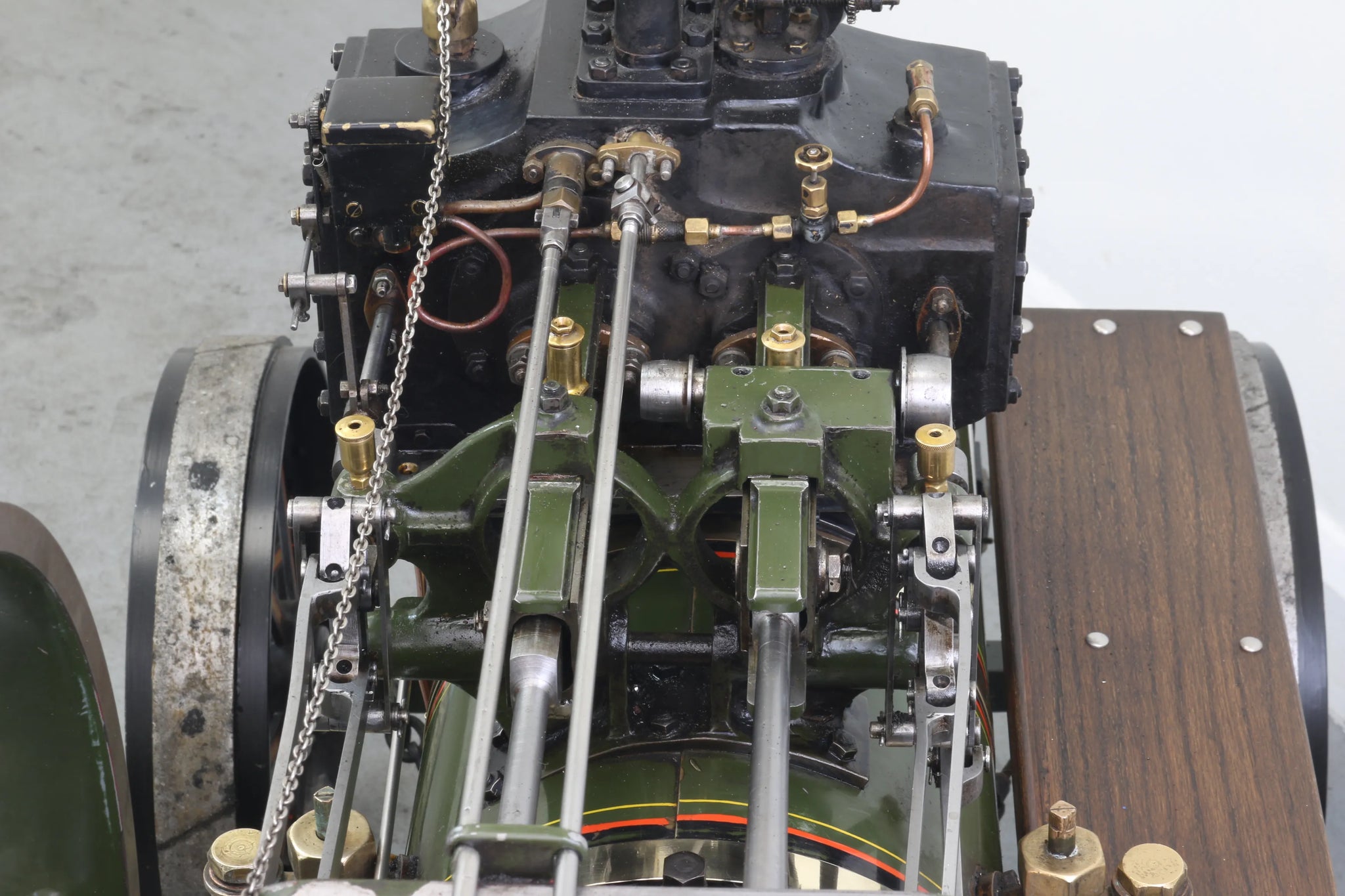

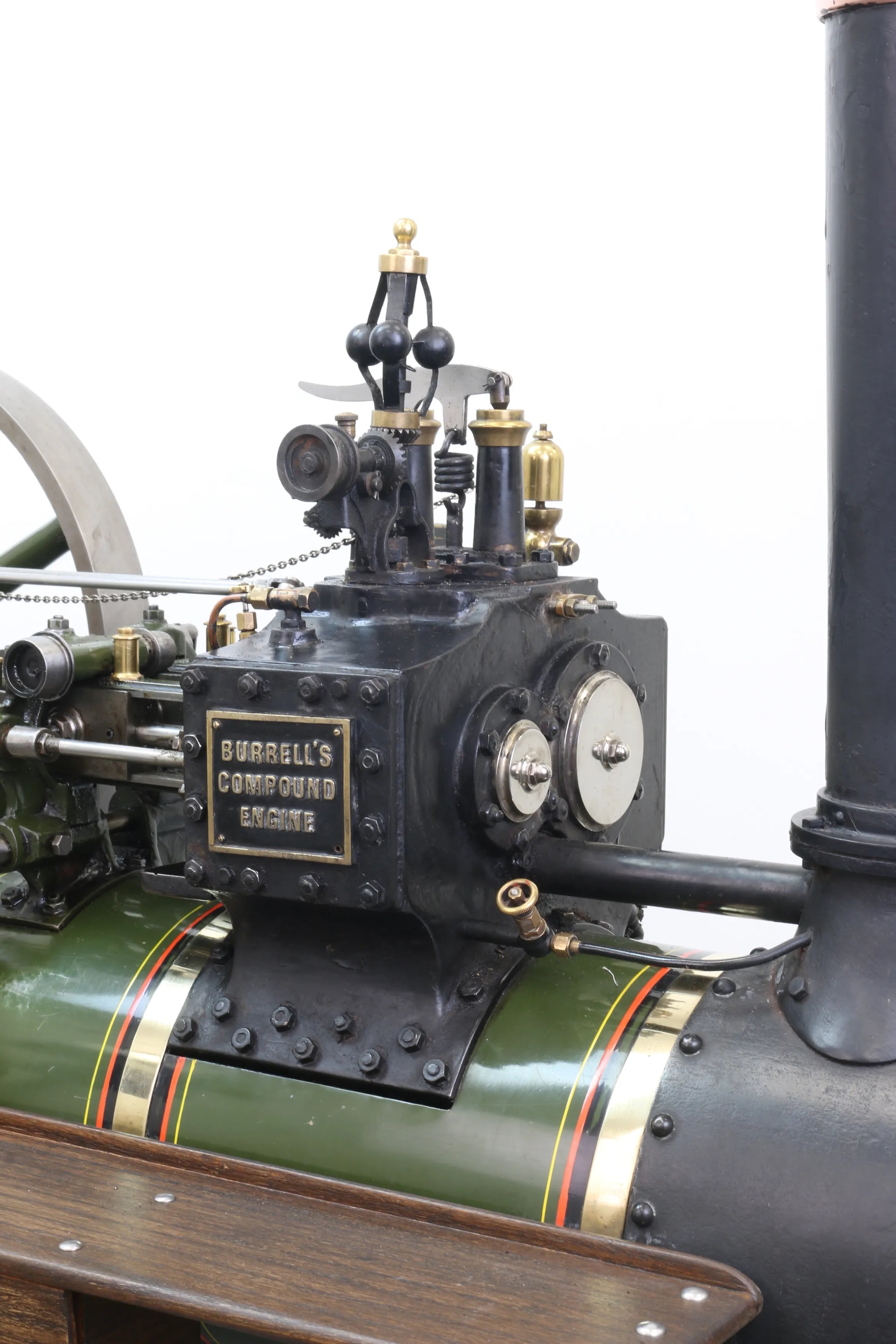

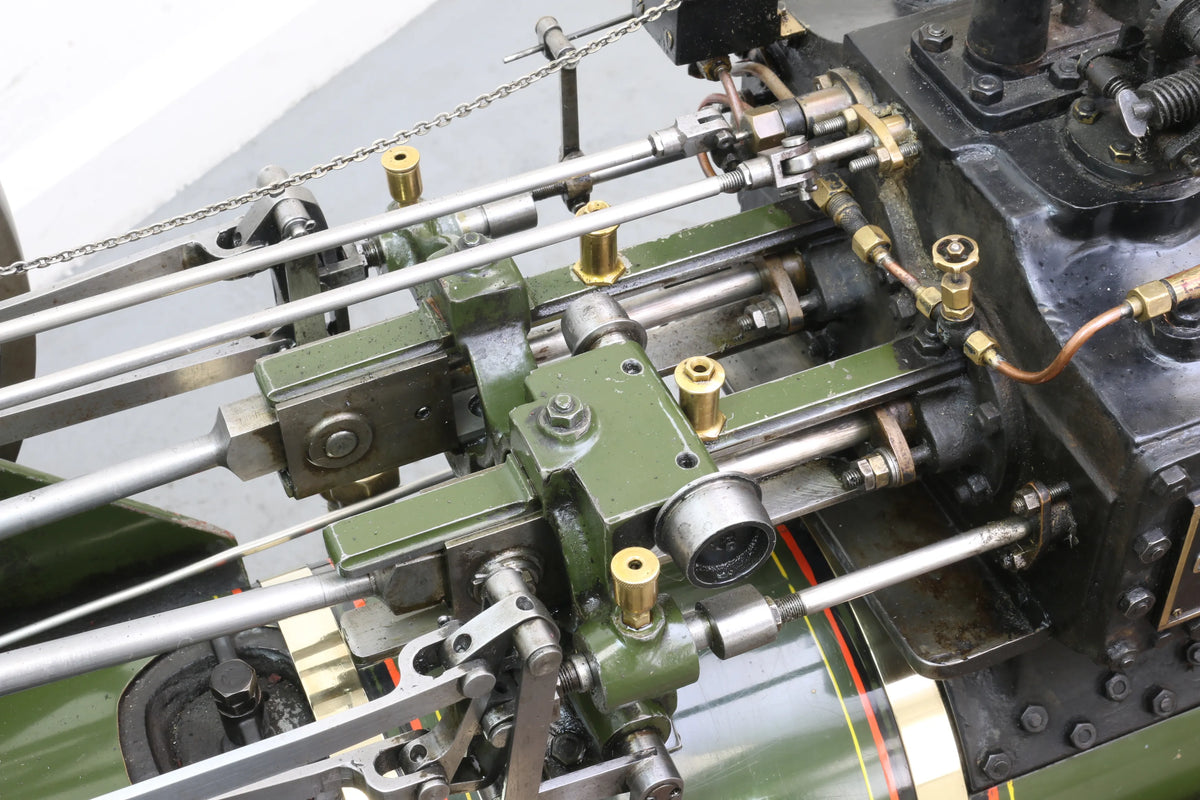

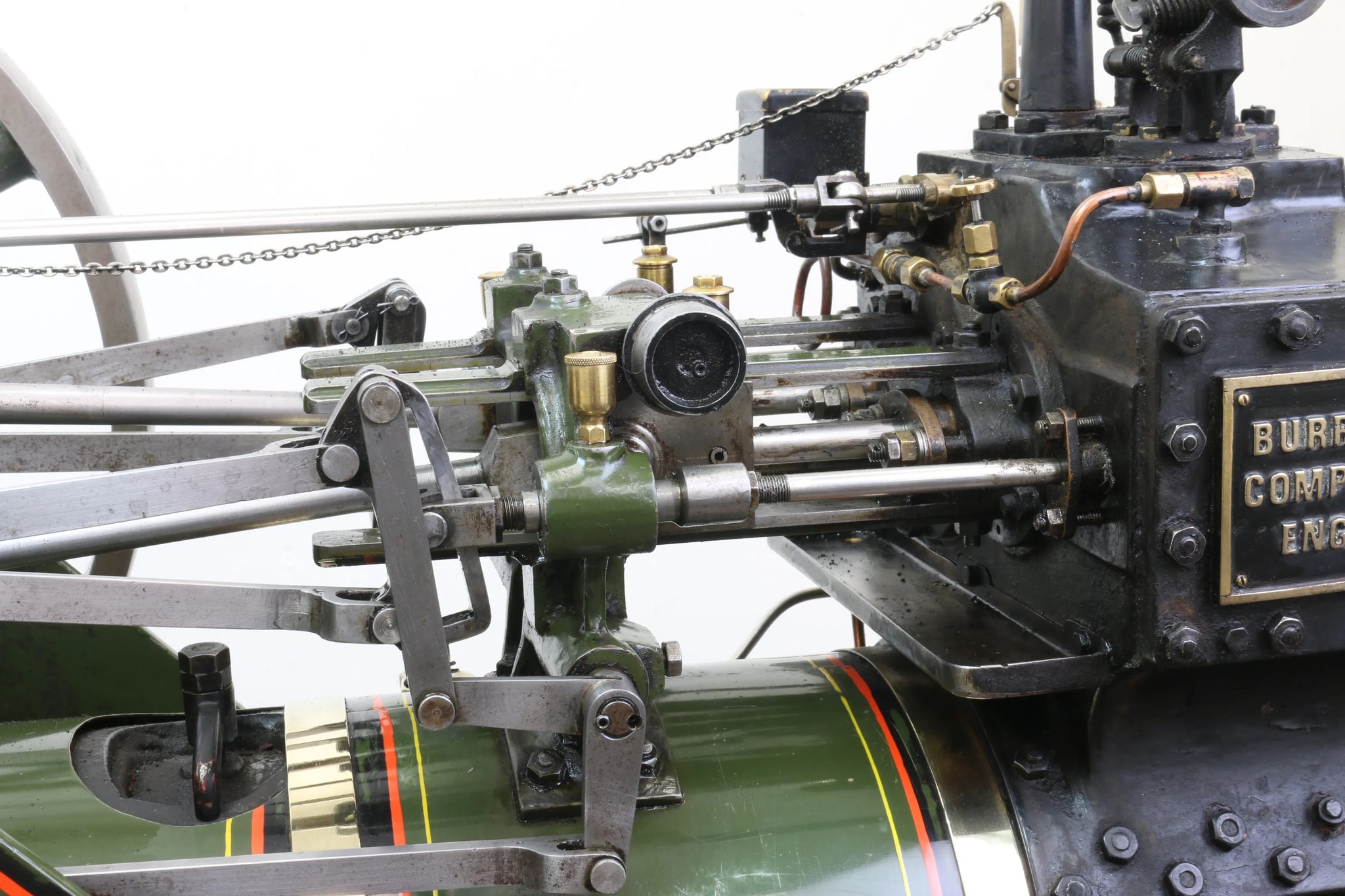

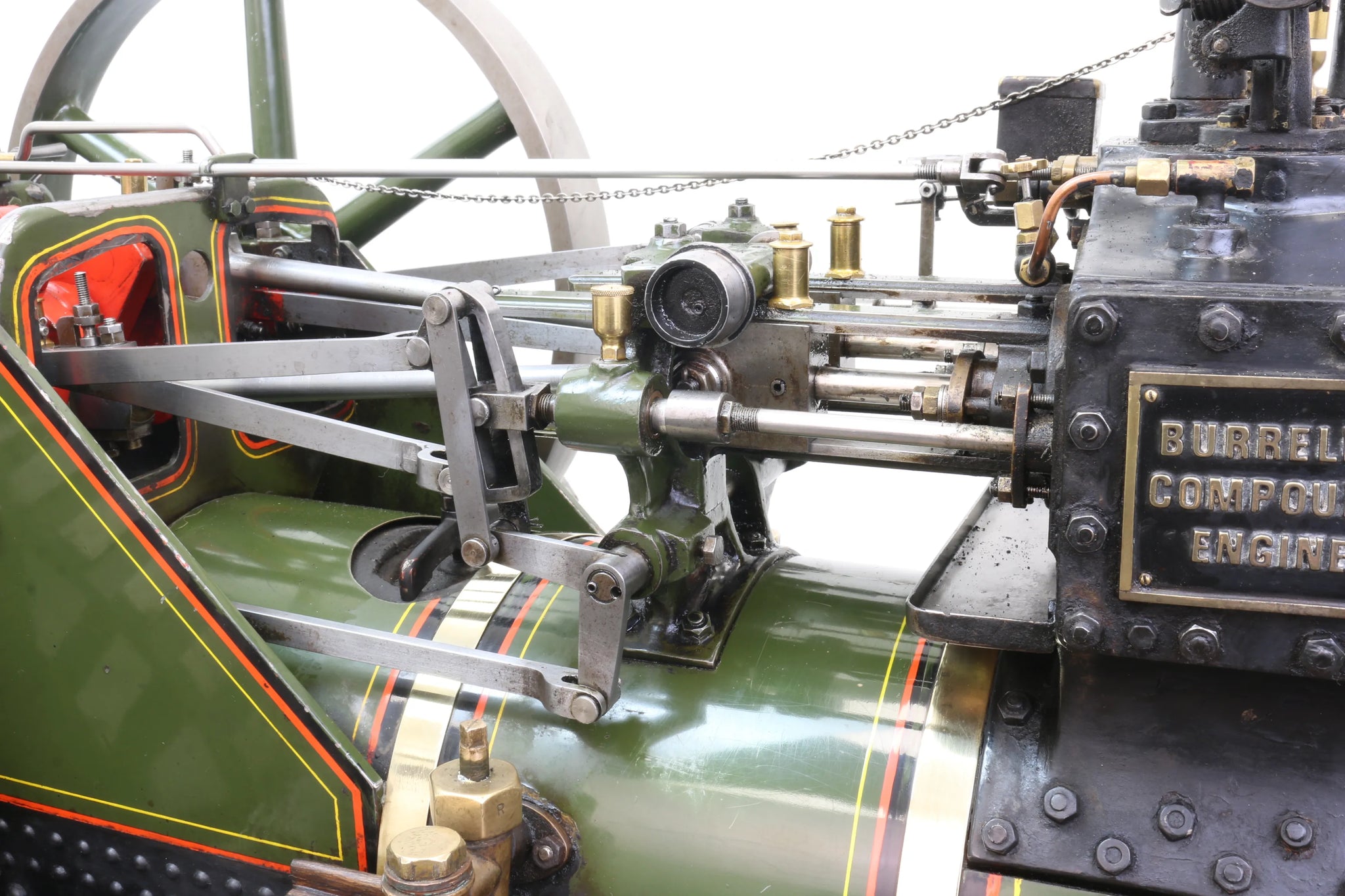

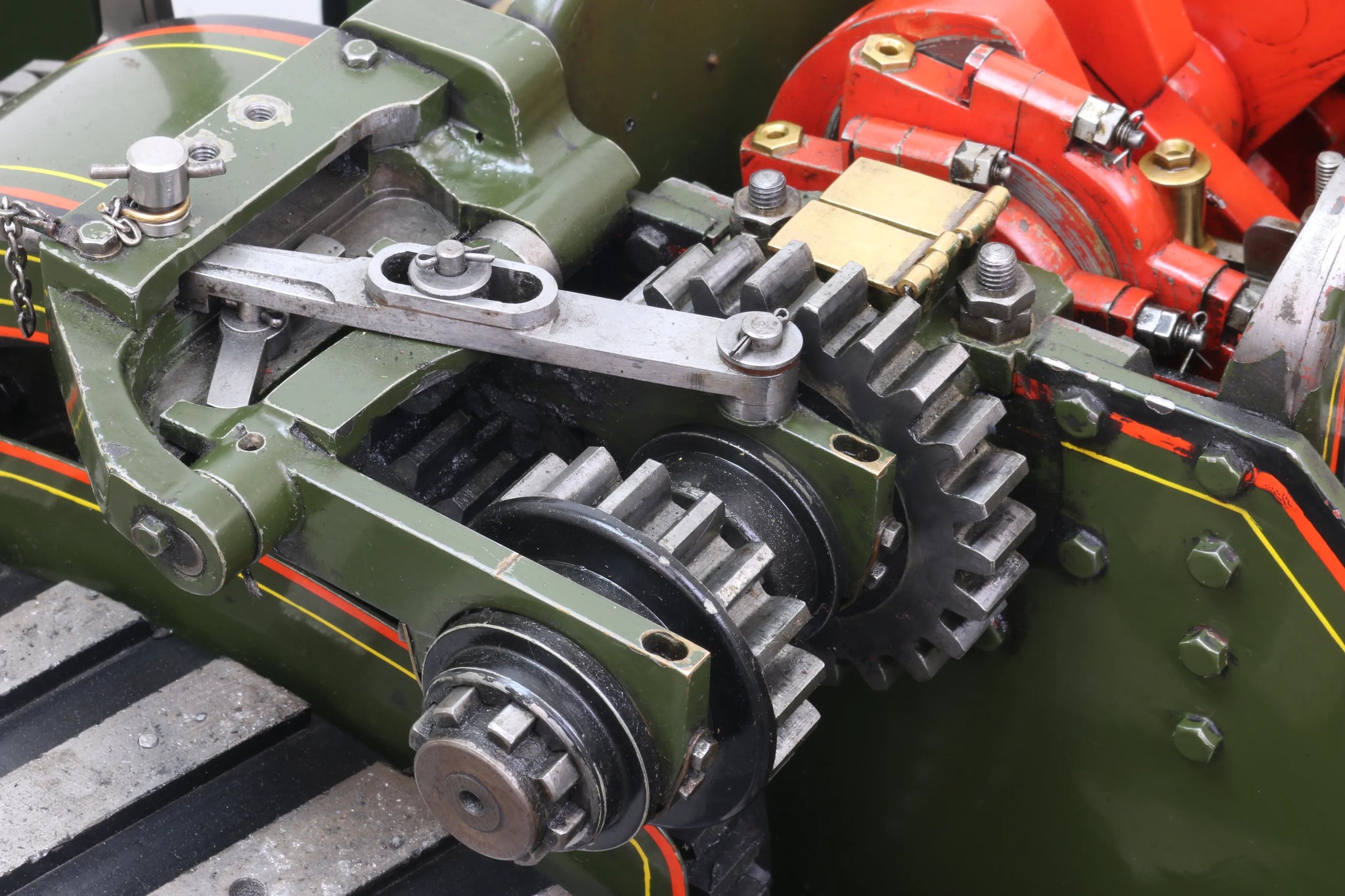

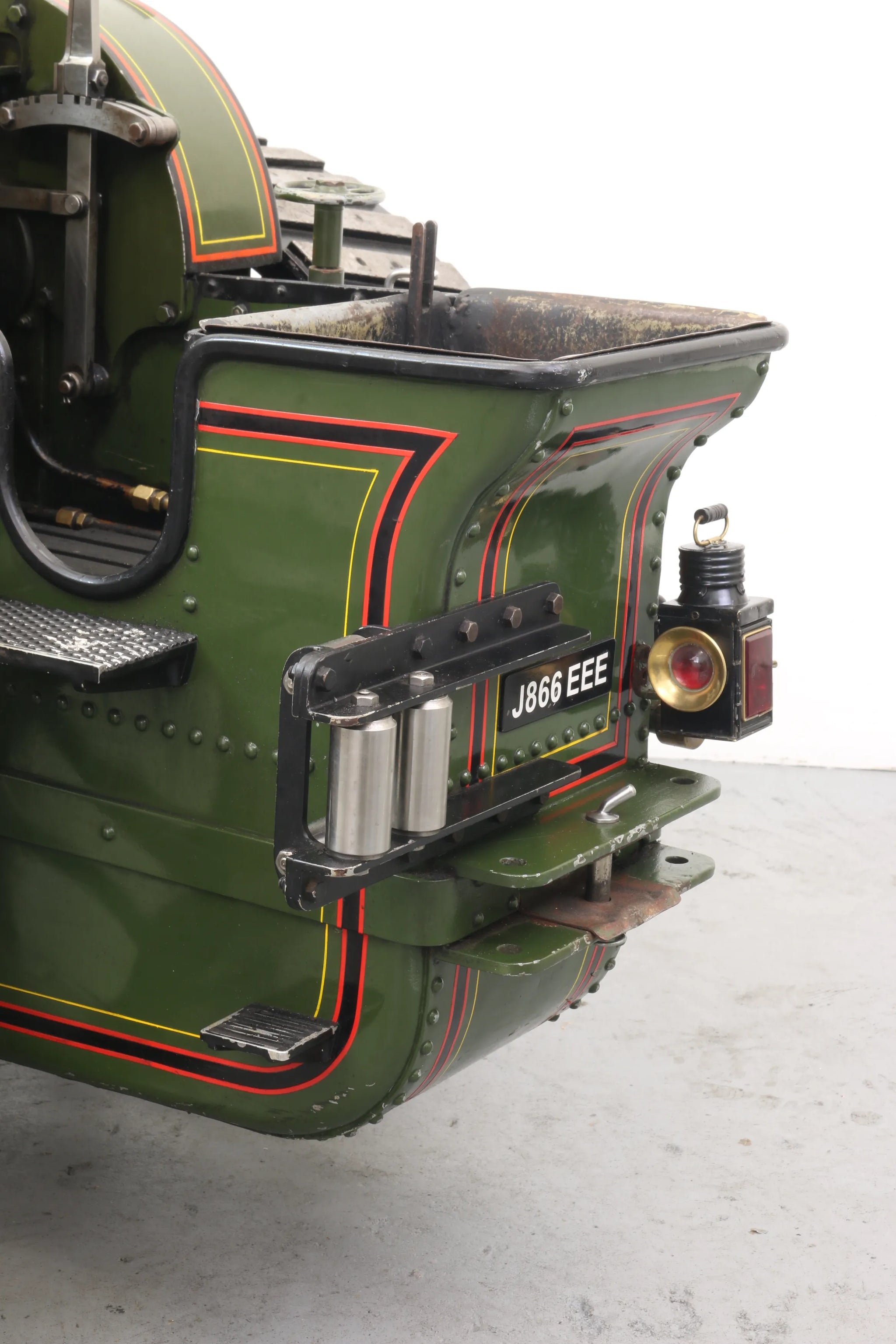

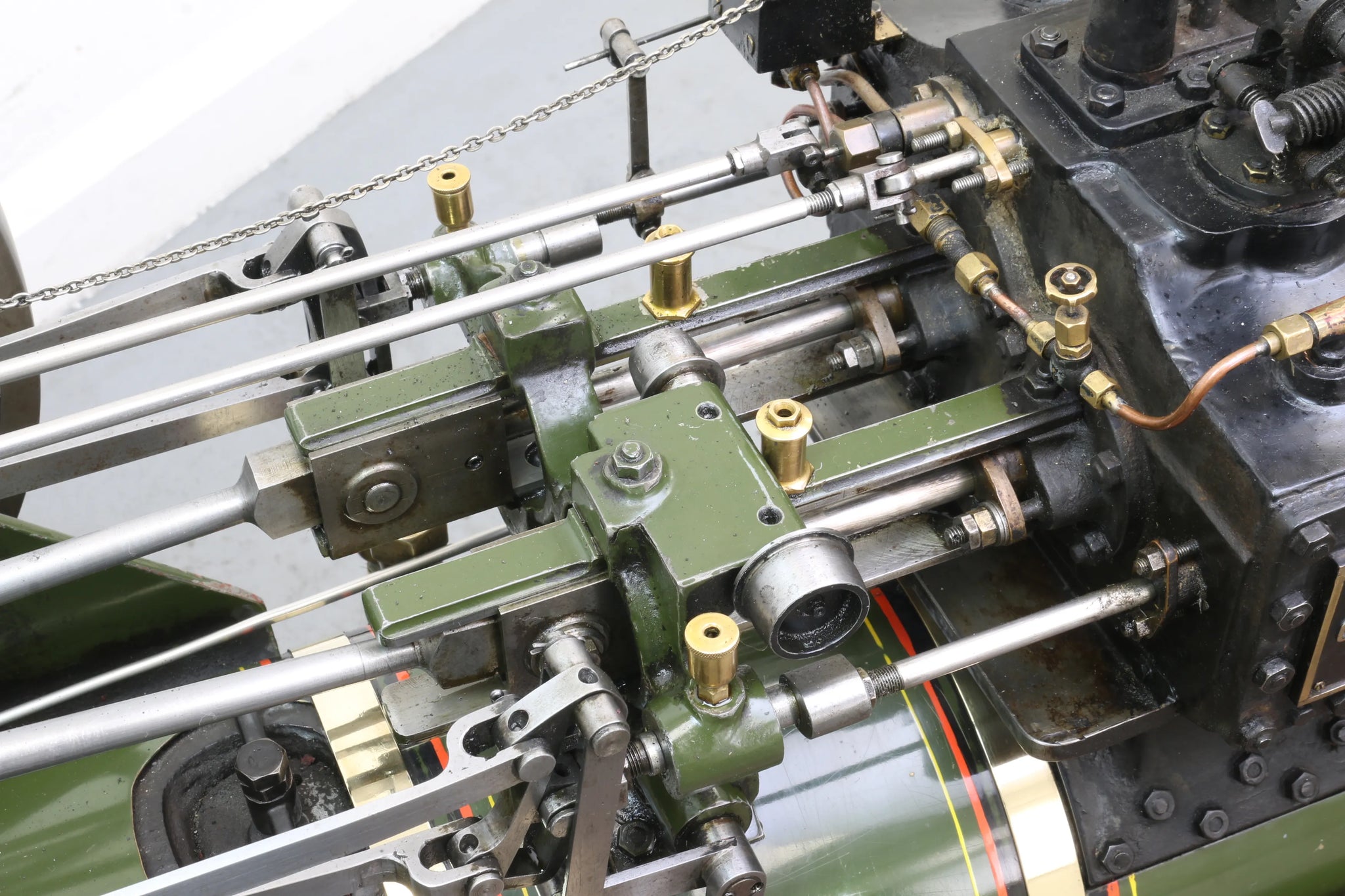

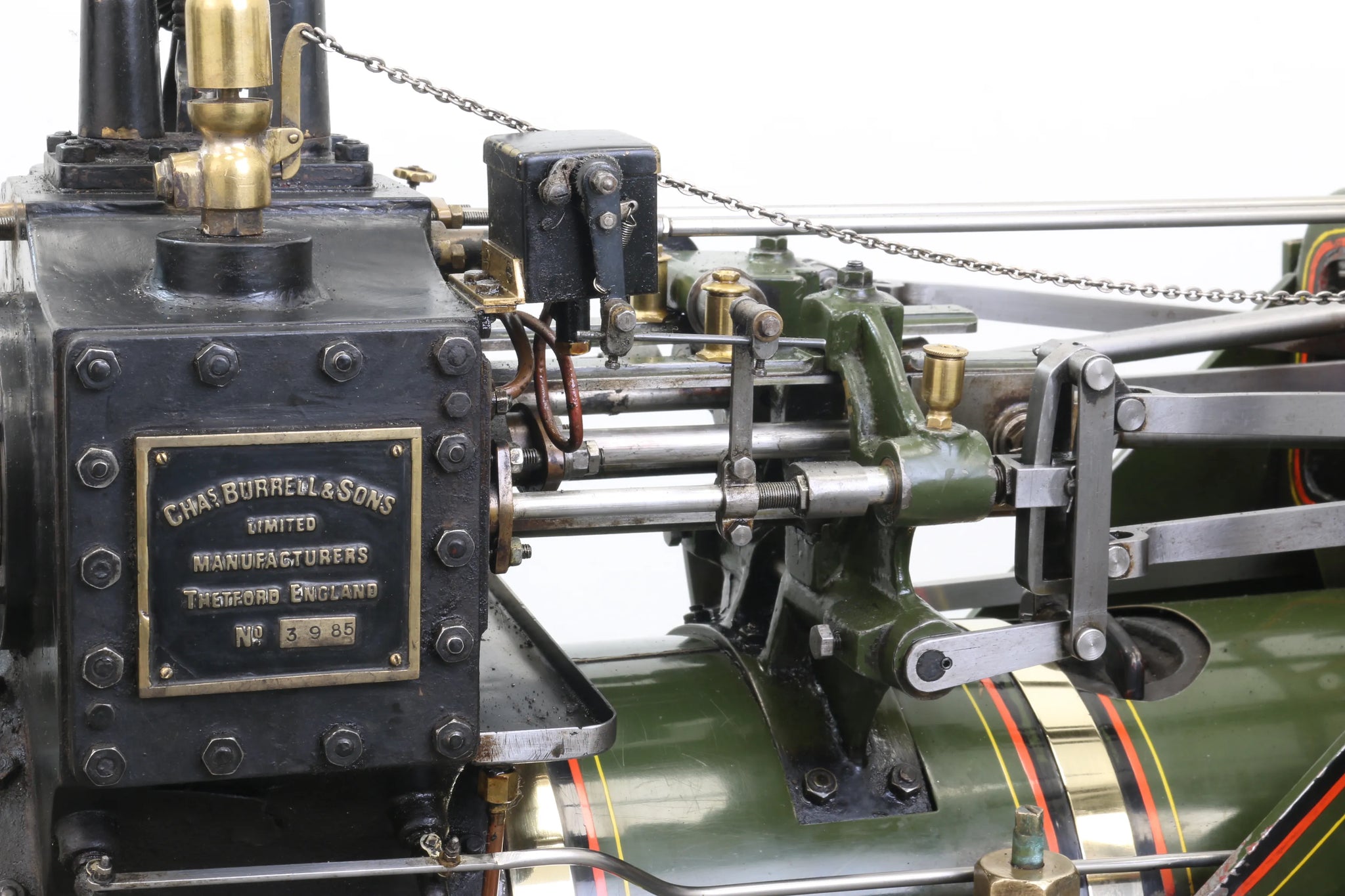

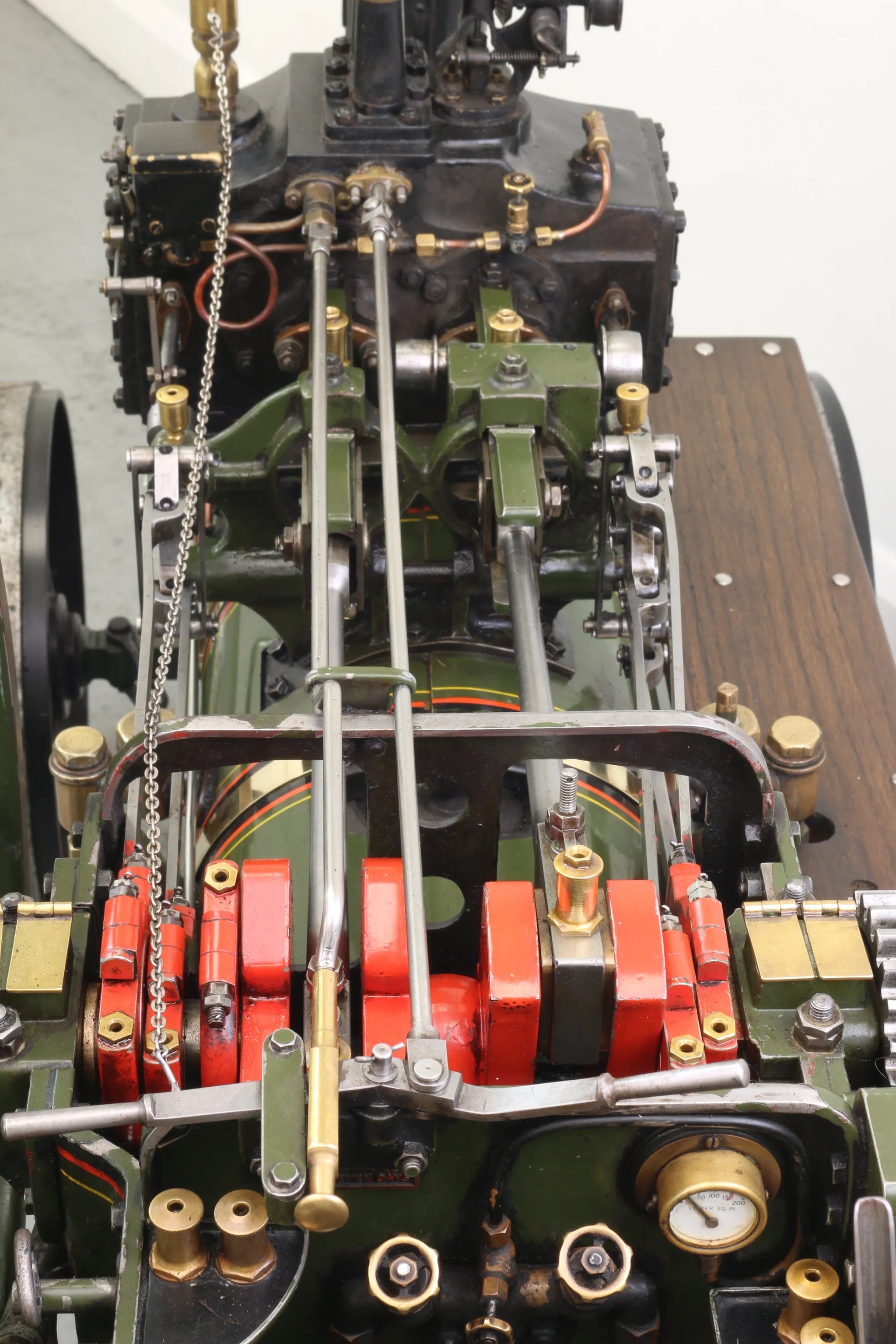

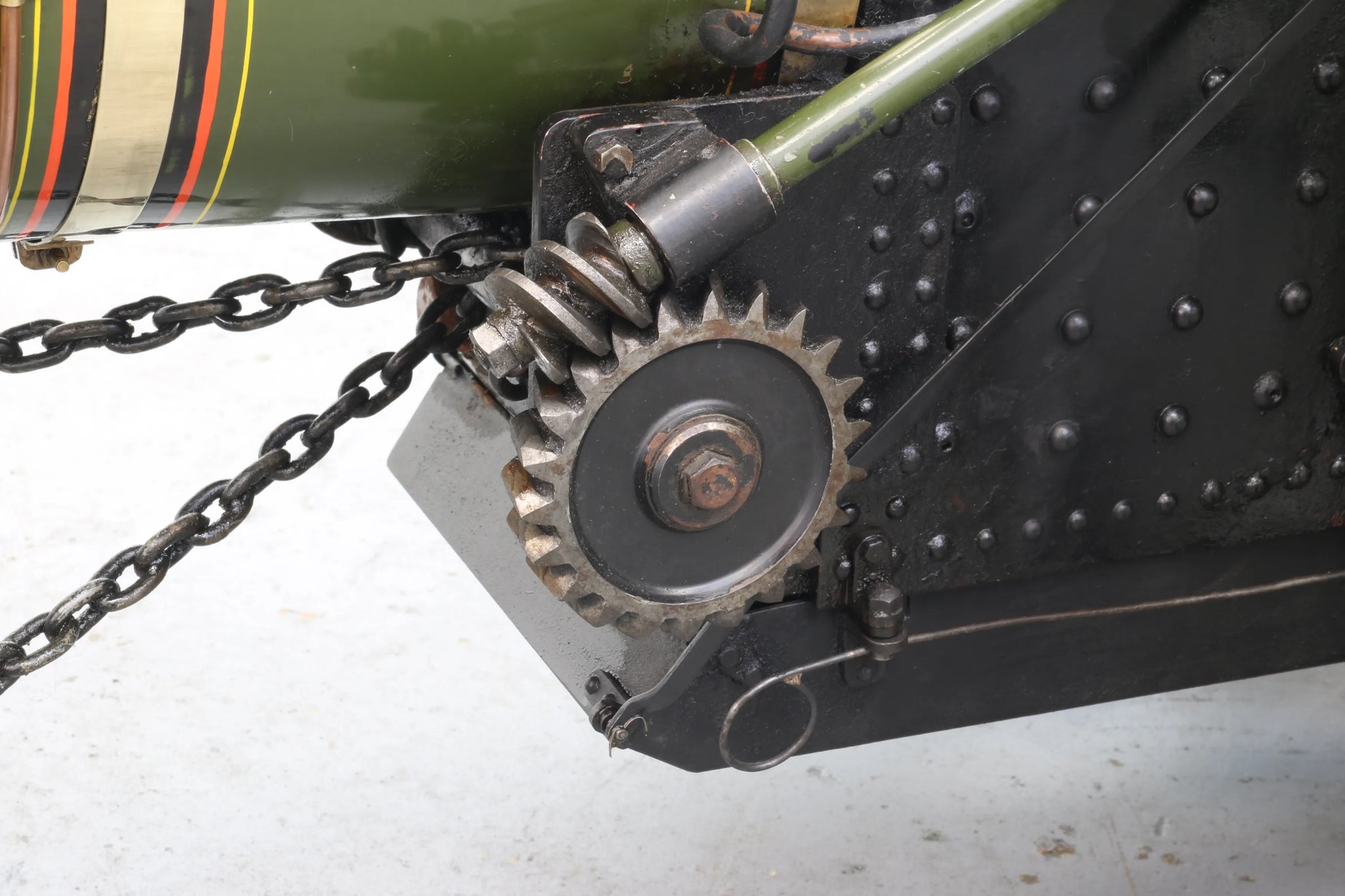

Welded steel boiler, re-tubed in 2012. Working pressure 160psi, feed by injector and mechanical pump. Cast iron cylinders with slide valves actuated by Stephenson's gear, pole reverser. Mechanical lubricator. Three shaft, two speed transmission with differential, rubber tyres, winch behind nearside rear wheel with fairleads on tender.

The engine has been in regular use on the rally field this season, it's just come in as part exchange against a 4 inch scale engine as the owner moves up a size.

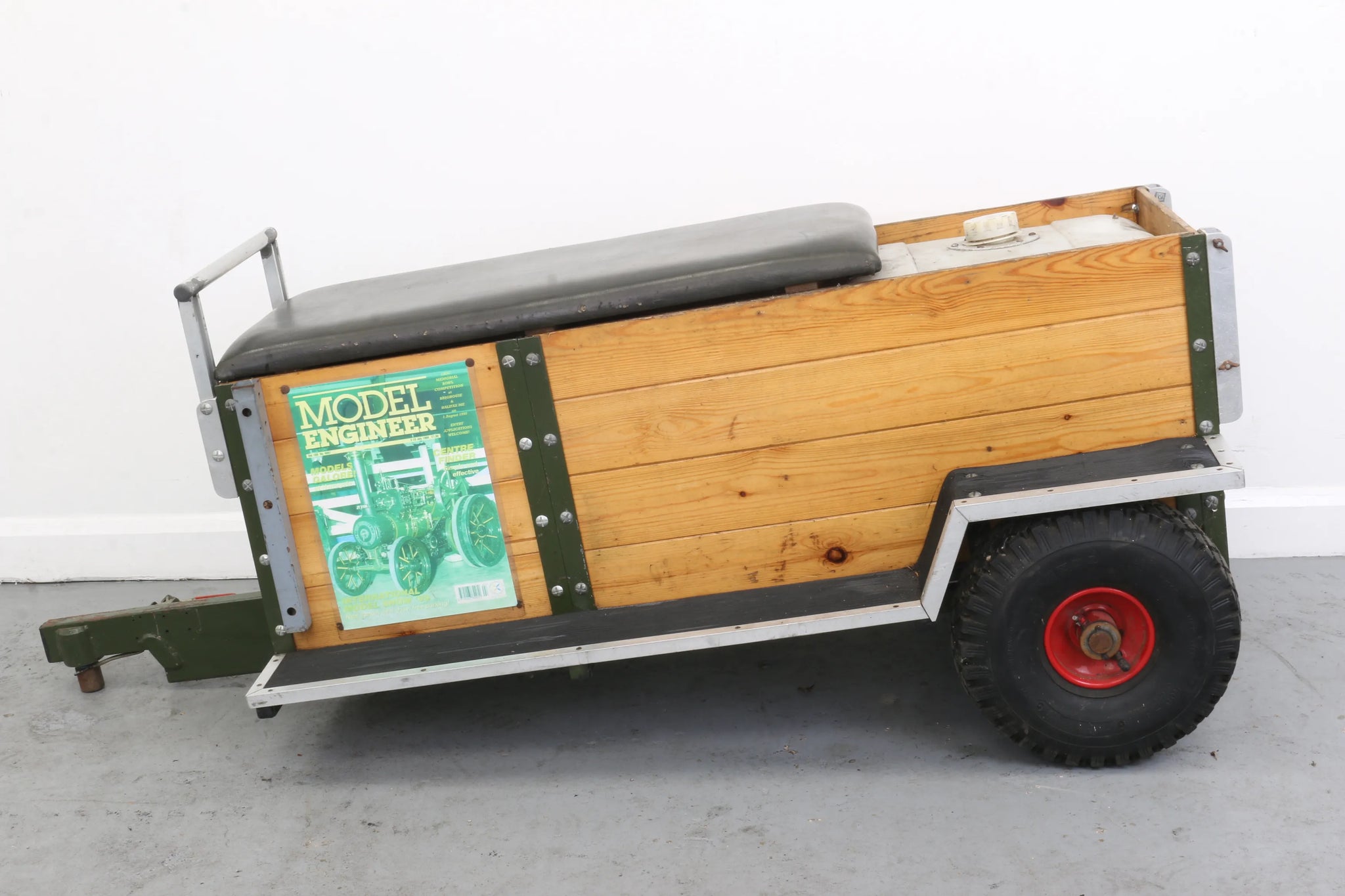

Complete with driving/passenger trolley.



Technical information

Stock code

7880

Scale

3 inch

Length/inches

54 + 58

Width/inches

23

Height/inches

33

Cylinder material

cast iron

Valve type

slide

Valve gear

Stephensons

Reverser type

pole

Lubricator type

mechanical

Boiler maker

H.Holt

Boiler type

locomotive

Boiler construction

welded, expanded tubes

Boiler material

steel

Working pressure

160

CE/UKCA mark

n/a - pre-2002

Year built

1992

Boiler number

DN18 5AD

Safety valve type

Ramsbottom

Safety valve

2

Fusible plug

yes

Governor type

Pickering

Road speed

2

V5 / Registration number

J866 EEE

Date out

Dec-18

Hydraulic test valid to

04-Mar-20

Steam test valid to

05-May-19
