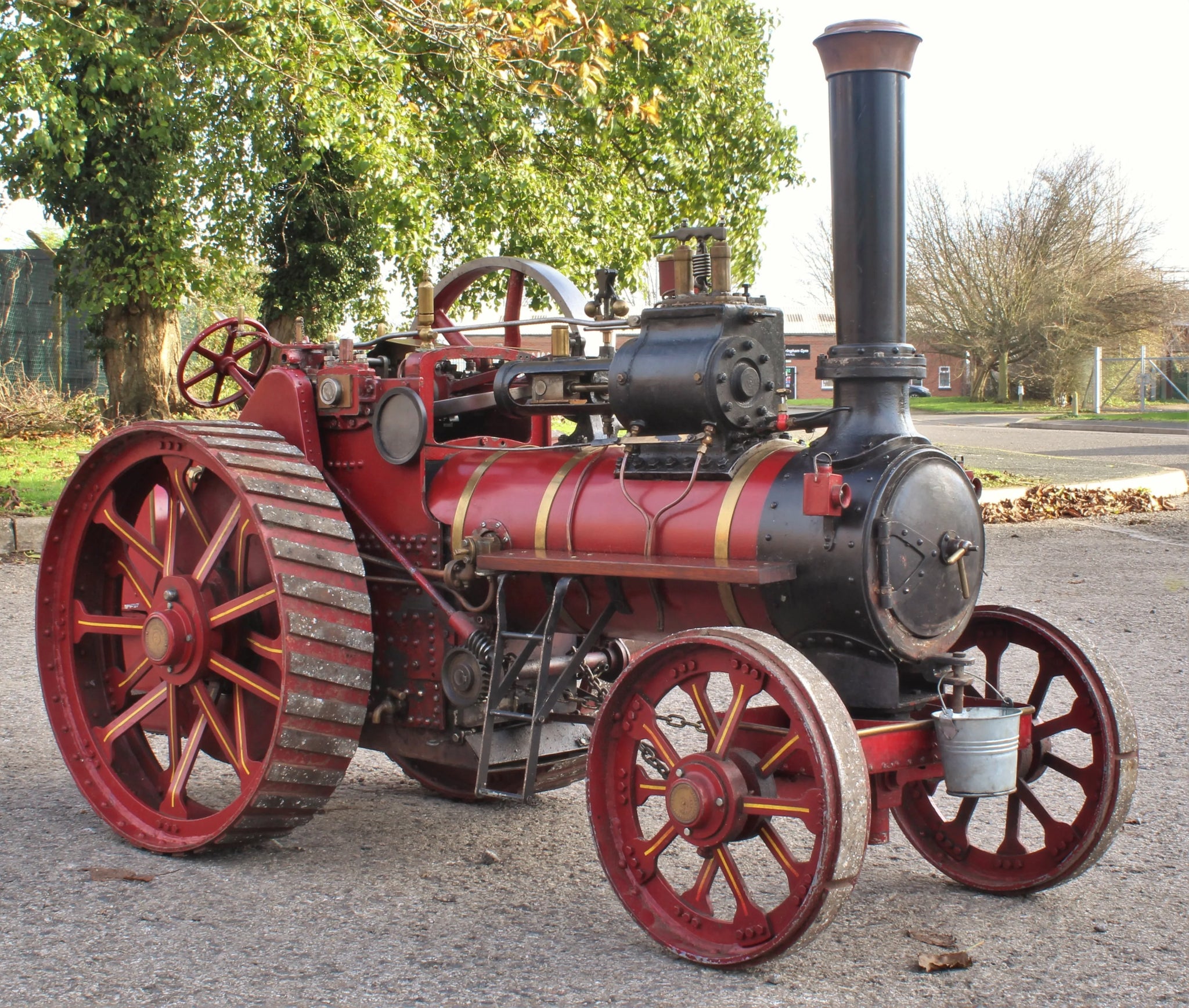

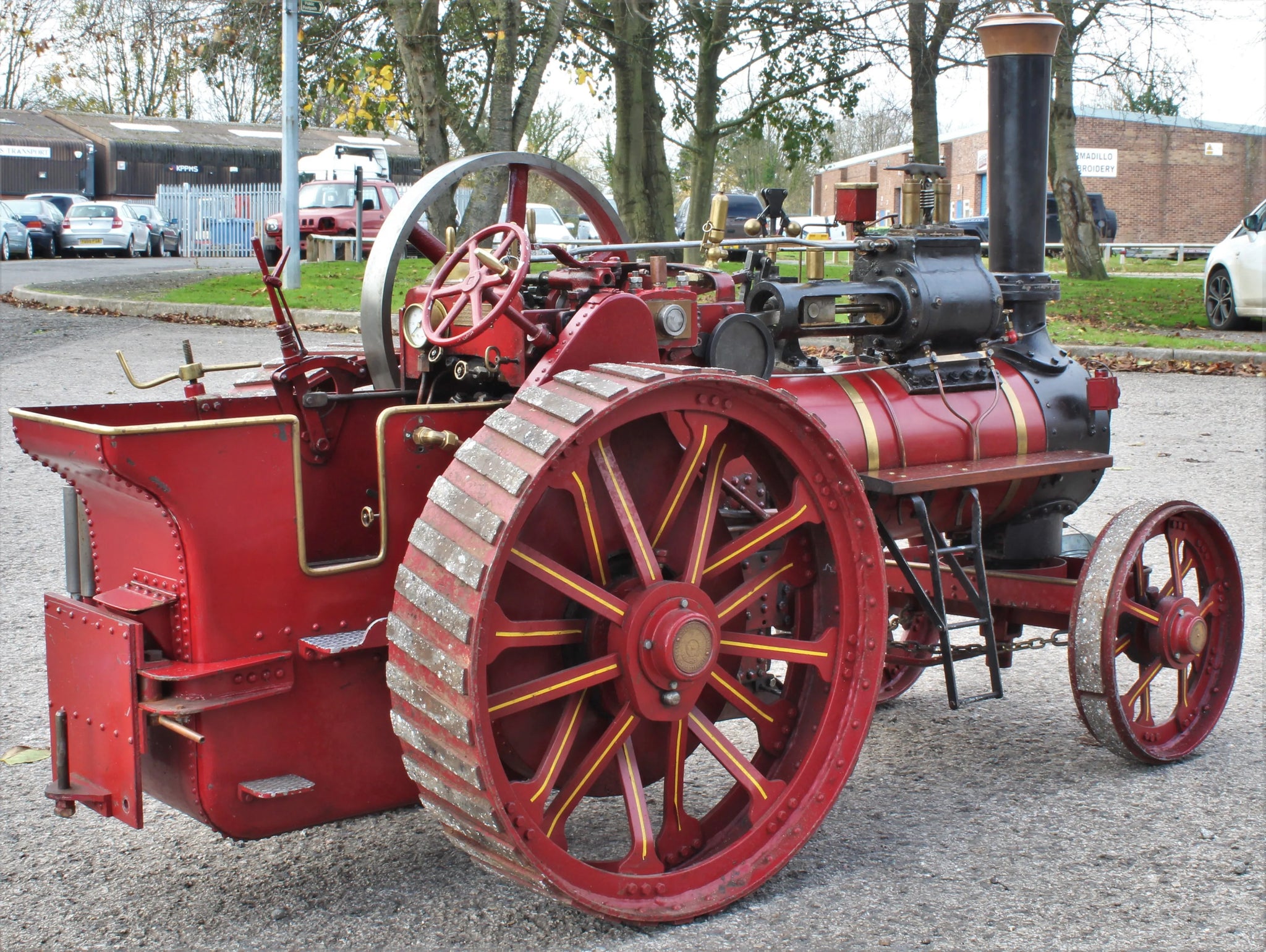

3 inch scale Marshall traction engine

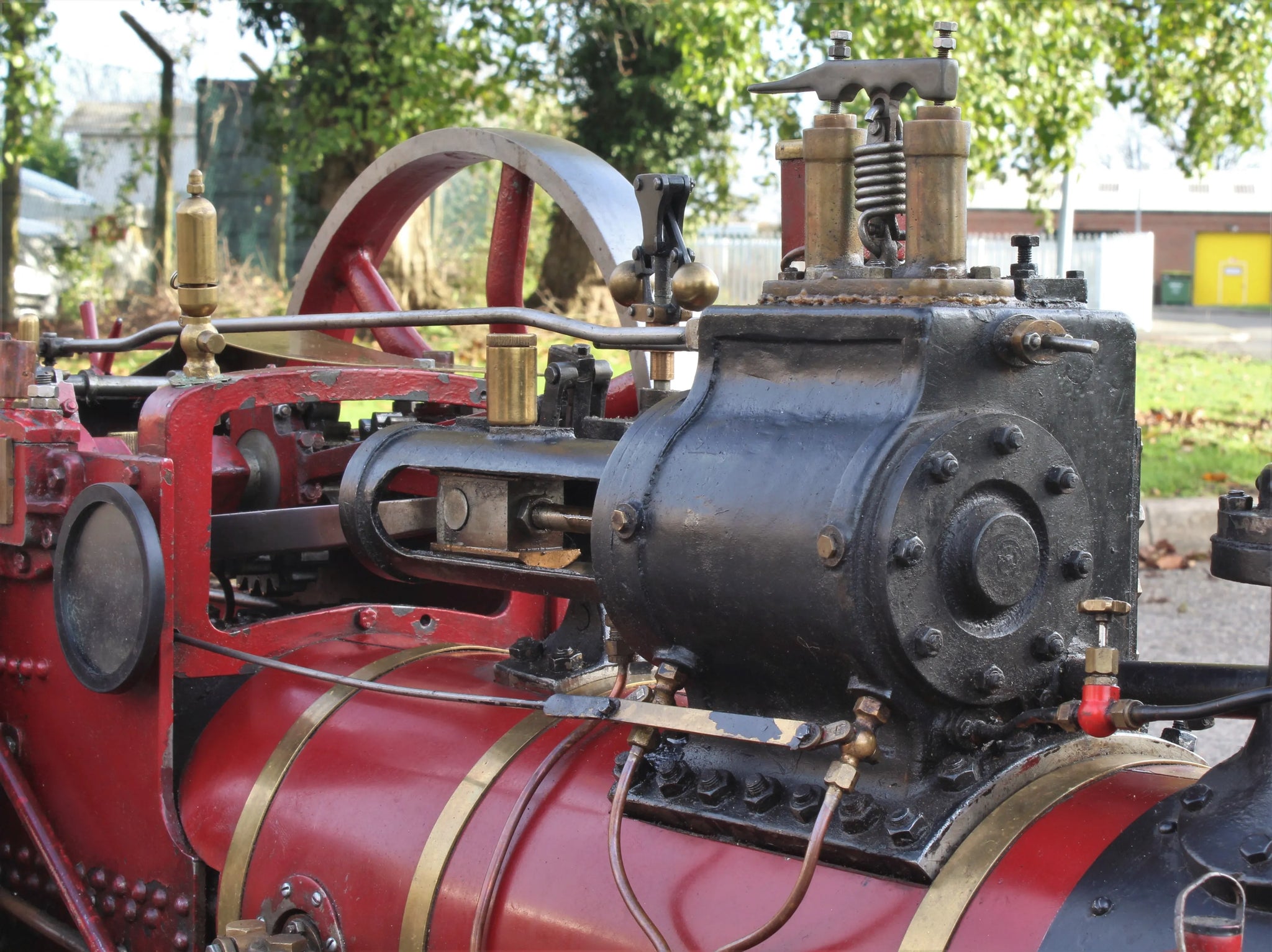

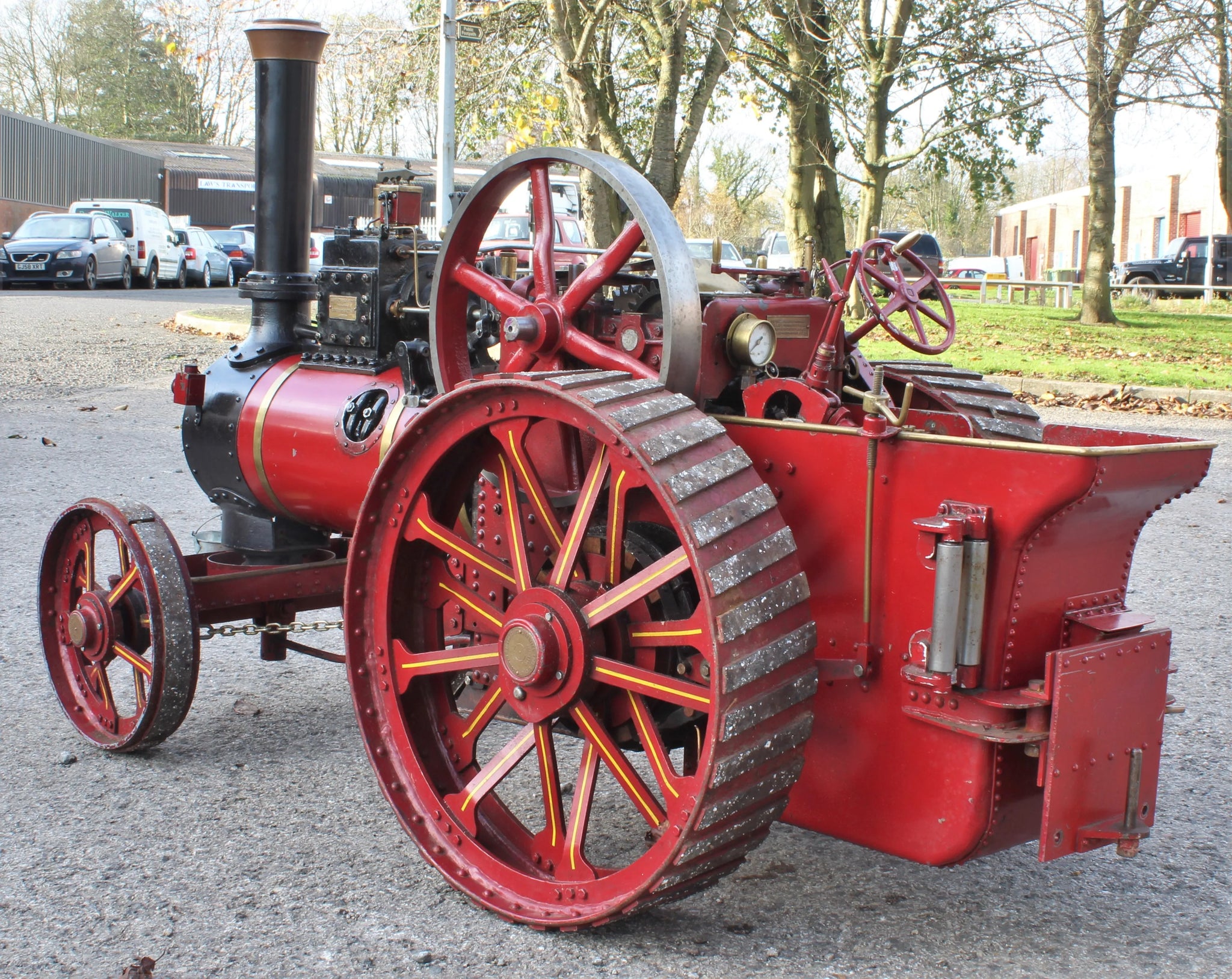

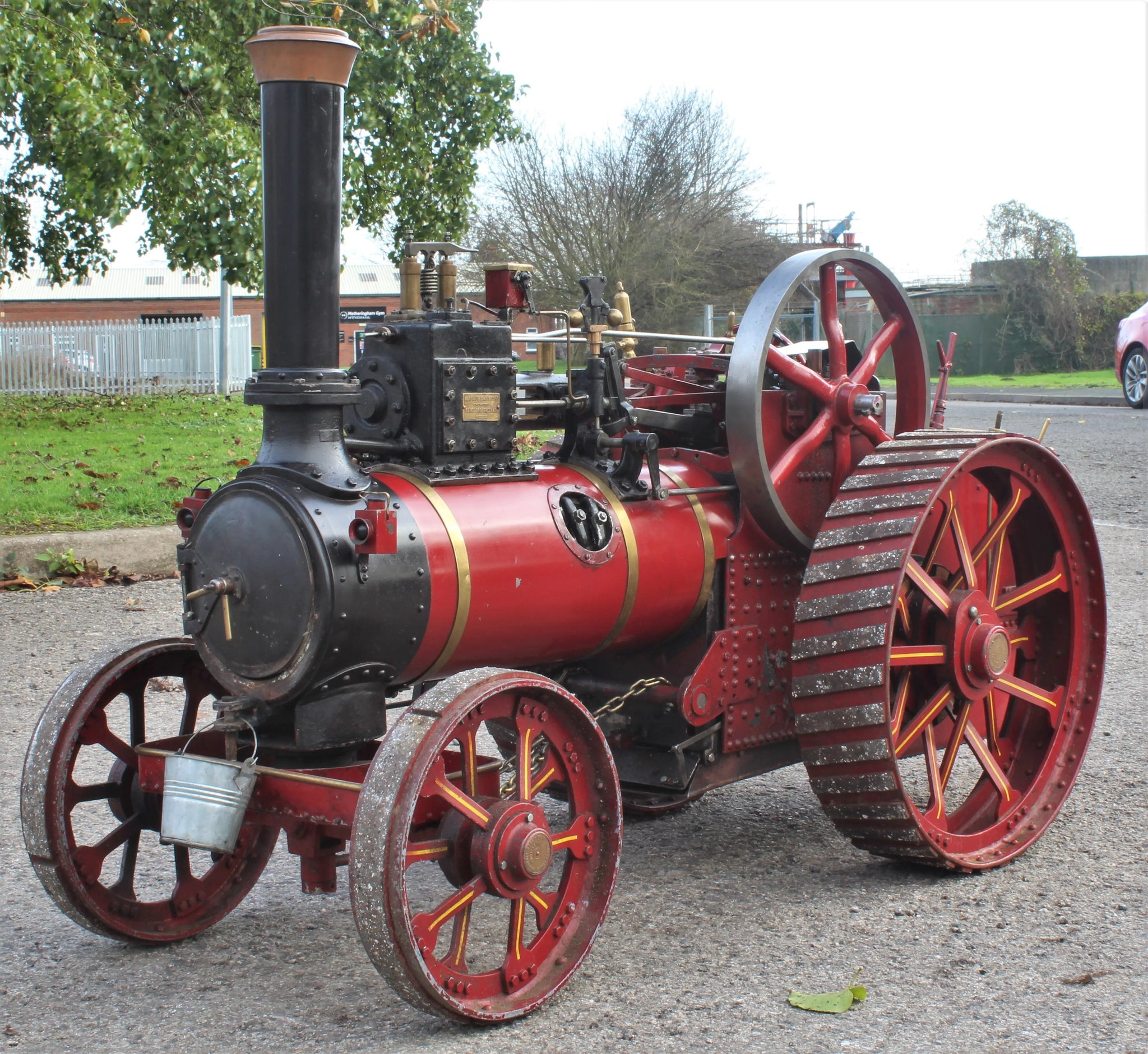

A 3 inch scale Marshall 7nhp agricultural engine, built to the "Pride of the Road" design.

An older engine, it's had a recent boiler inspection and hydraulic test. Last steam test dates from 1994 - internally the boiler is in excellent condition, we suspect it's had little use and has been dry stored for much of the intervening time.

The engine runs on air; it's now in need of light restoration with a variety of jobs to do, including:

  • Overhaul/replacement of safety valves
  • Reface slide valve

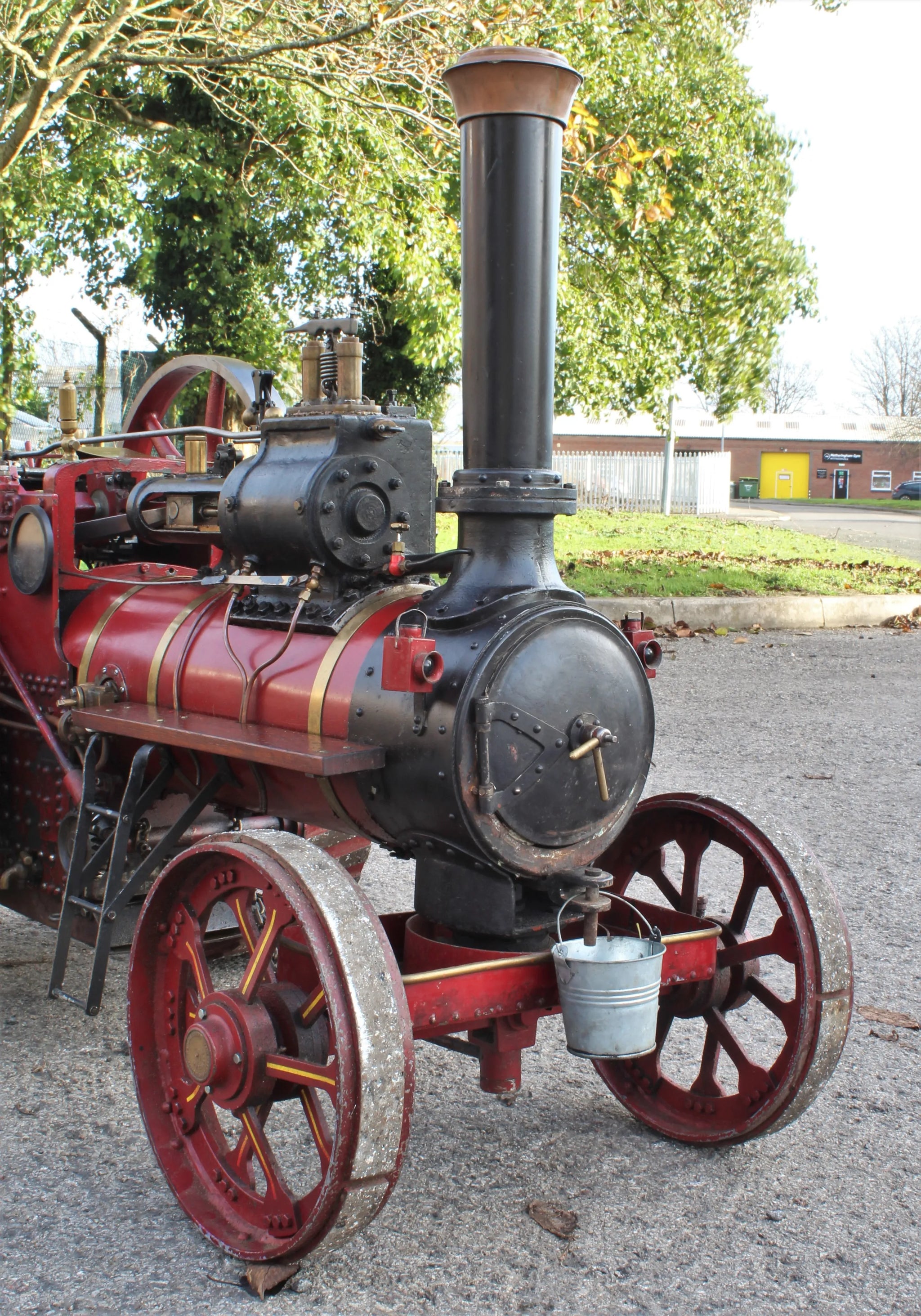

  • Refit smokebox door
  • Replacement pressure gauge
  • Replacement mudhole door gasket

Technical information

Stock code

9384

Scale

3 inch

Length/inches

51

Width/inches

22

Height/inches

33

Axlebox type

plain bearing

Cylinder material

cast iron

Valve type

slide

Valve gear

Stephensons

Reverser type

pole

Lubricator type

mechanical

Boiler maker

Brunel

Boiler type

locomotive

Boiler construction

all welded

Boiler material

steel

Working pressure

100

CE/UKCA mark

n/a - pre-2002

Year built

1991

Boiler number

311

Safety valve type

Ramsbottom

Safety valve

2

Fusible plug

yes

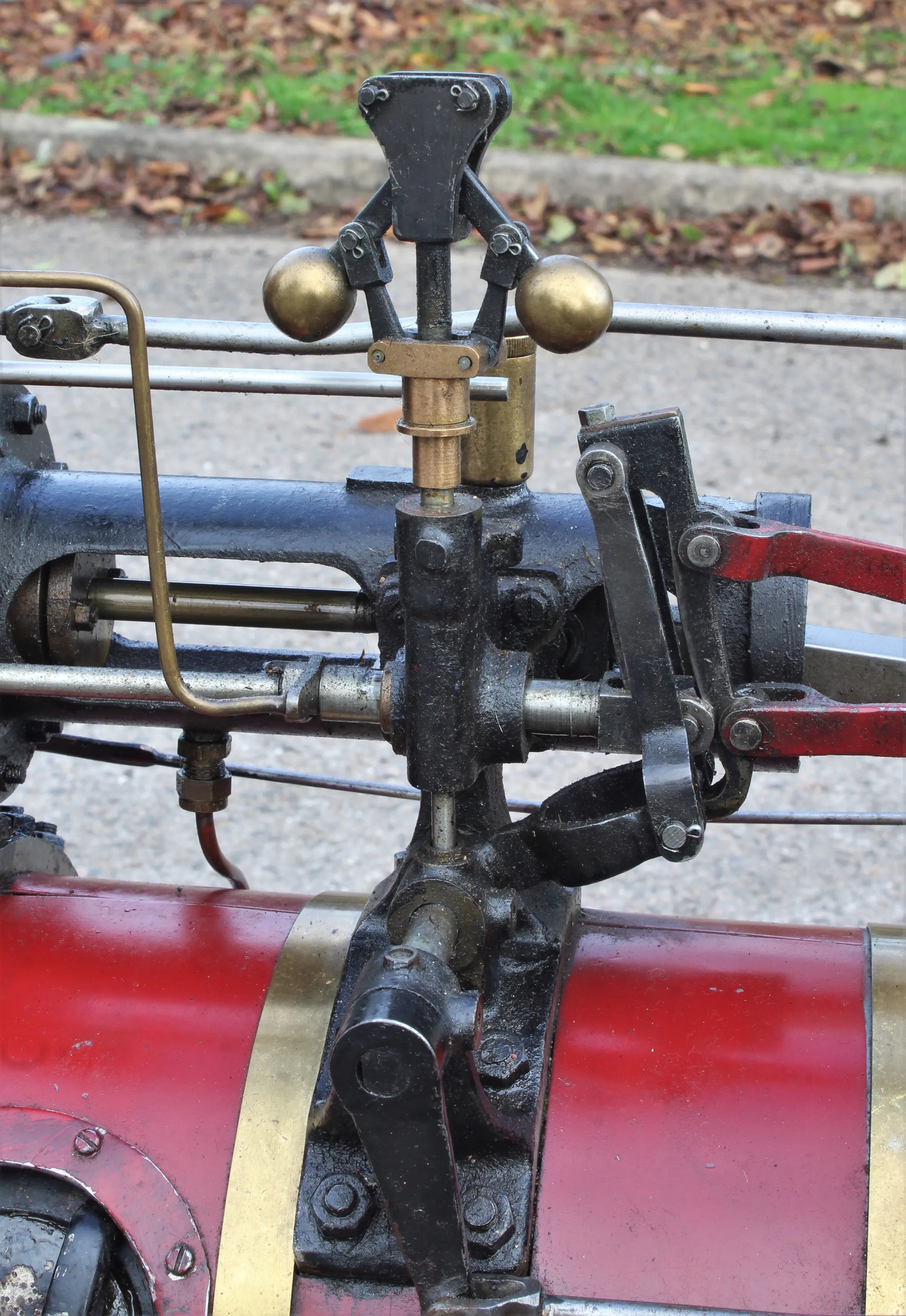

Governor type

Watt

Differential

yes

Road speed

2

Whistle

yes

Hand pump

1

Mechanical pump

1

V5 / Registration number

mechanical

Date out

May-21

Hydraulic test valid to

16-Nov-22
