Sold

8107

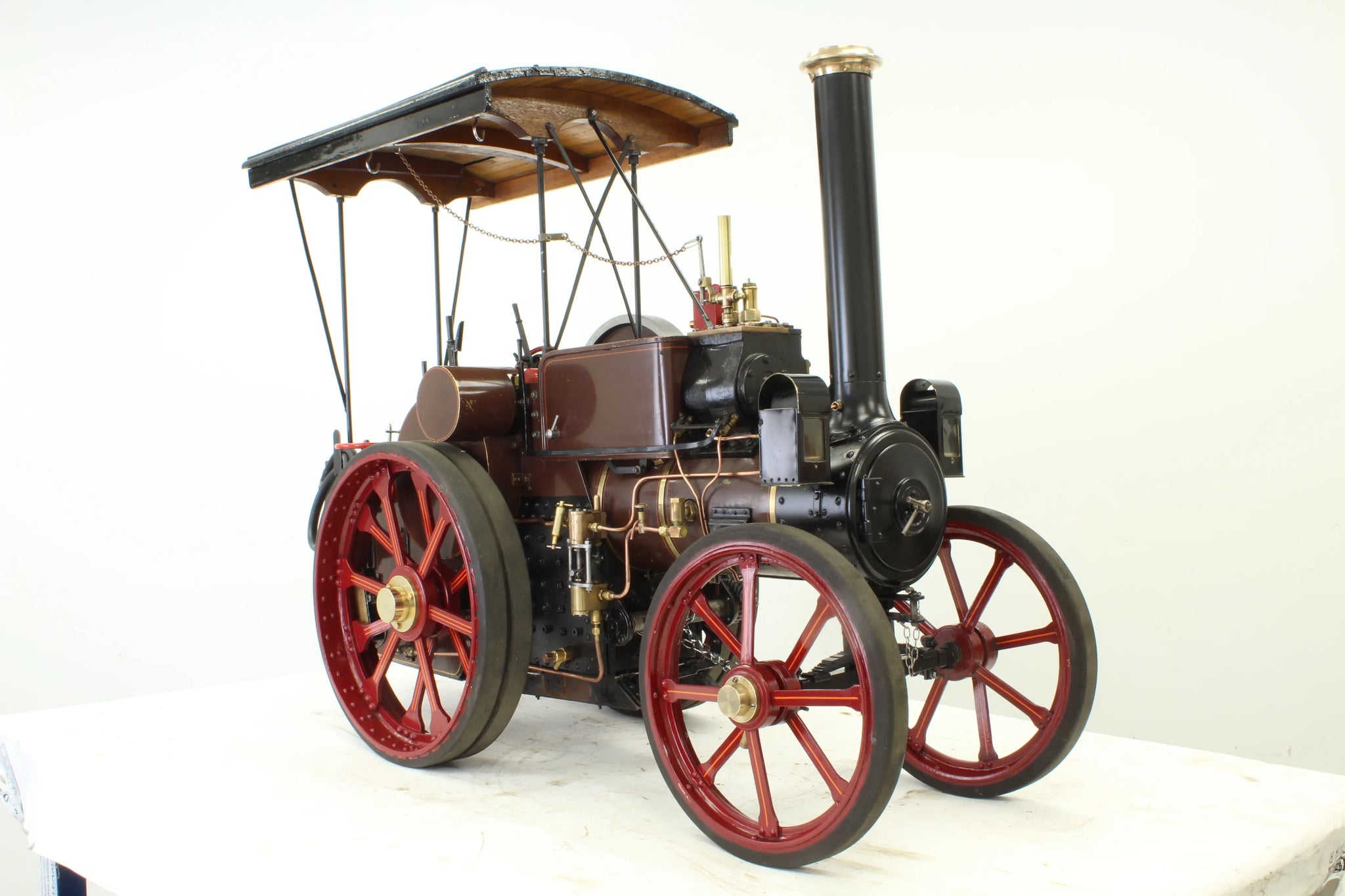

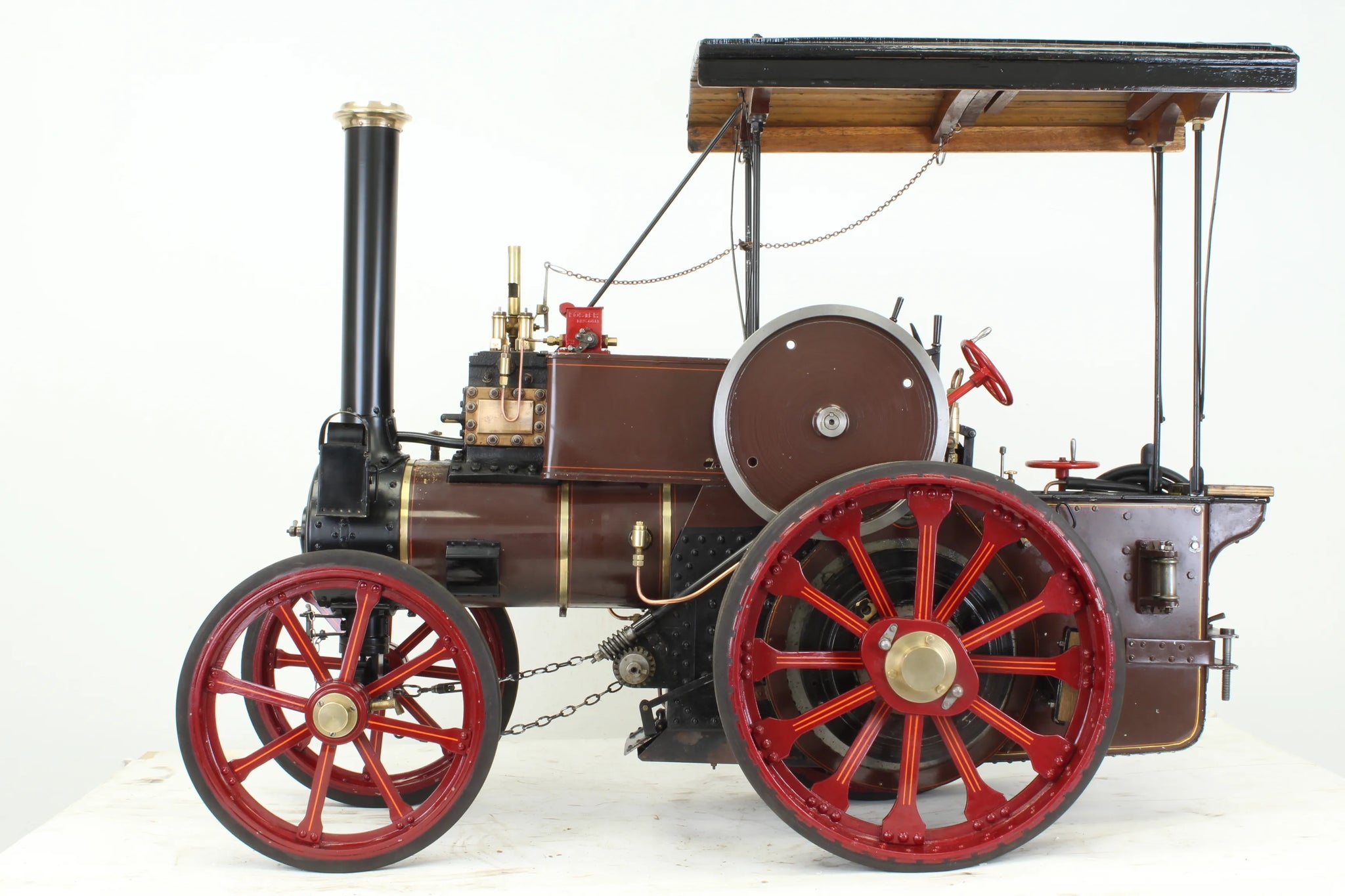

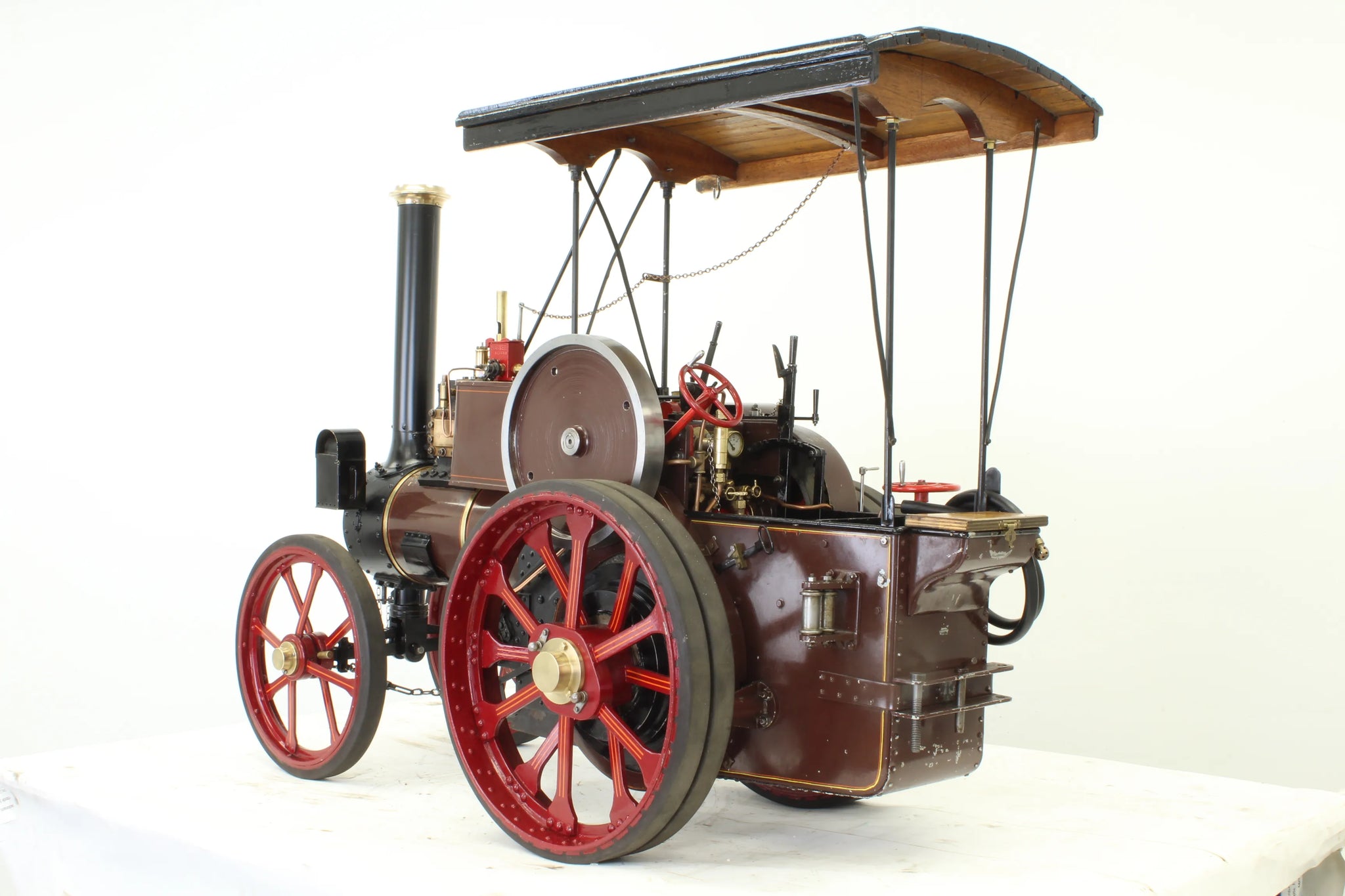

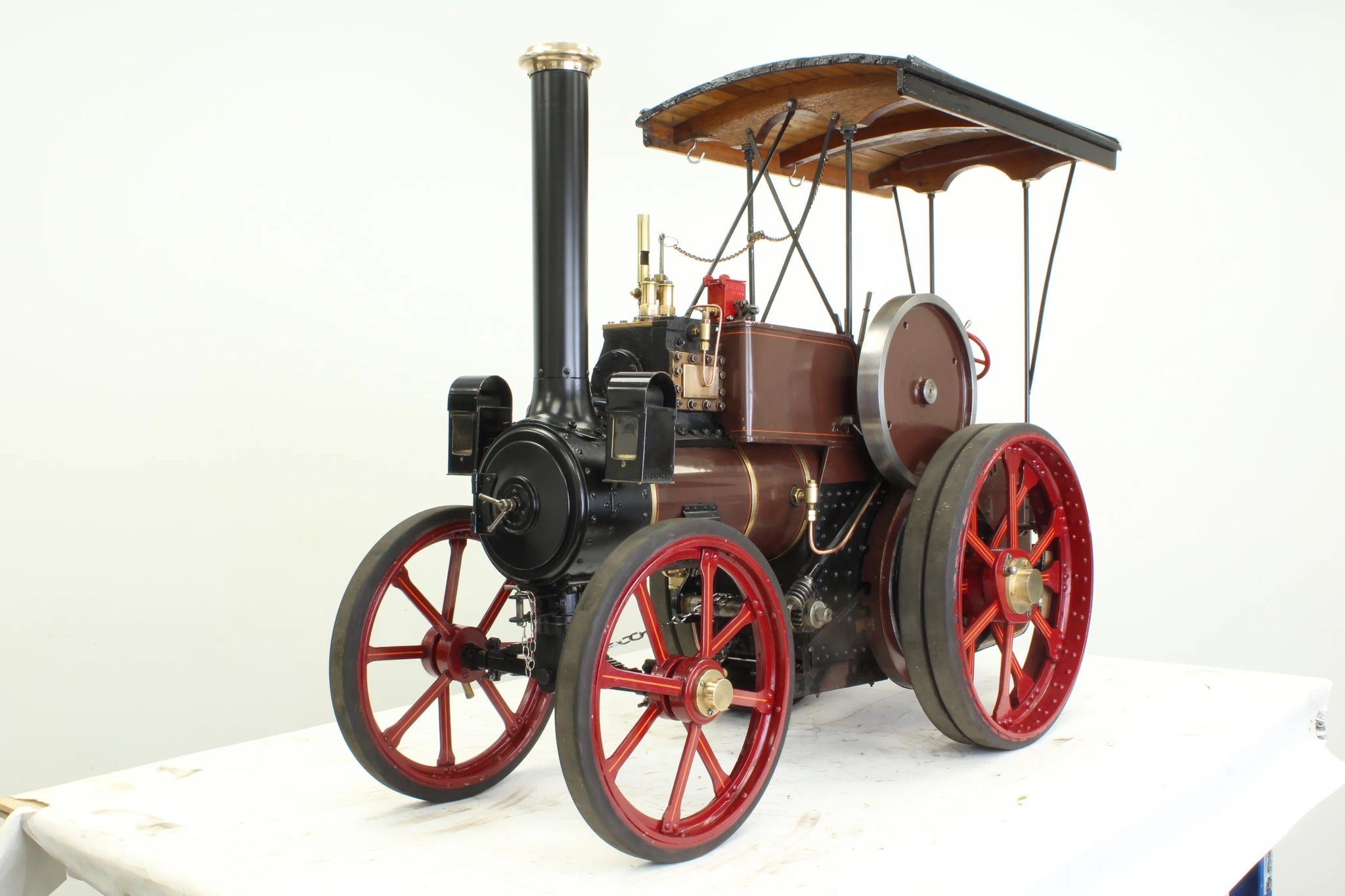

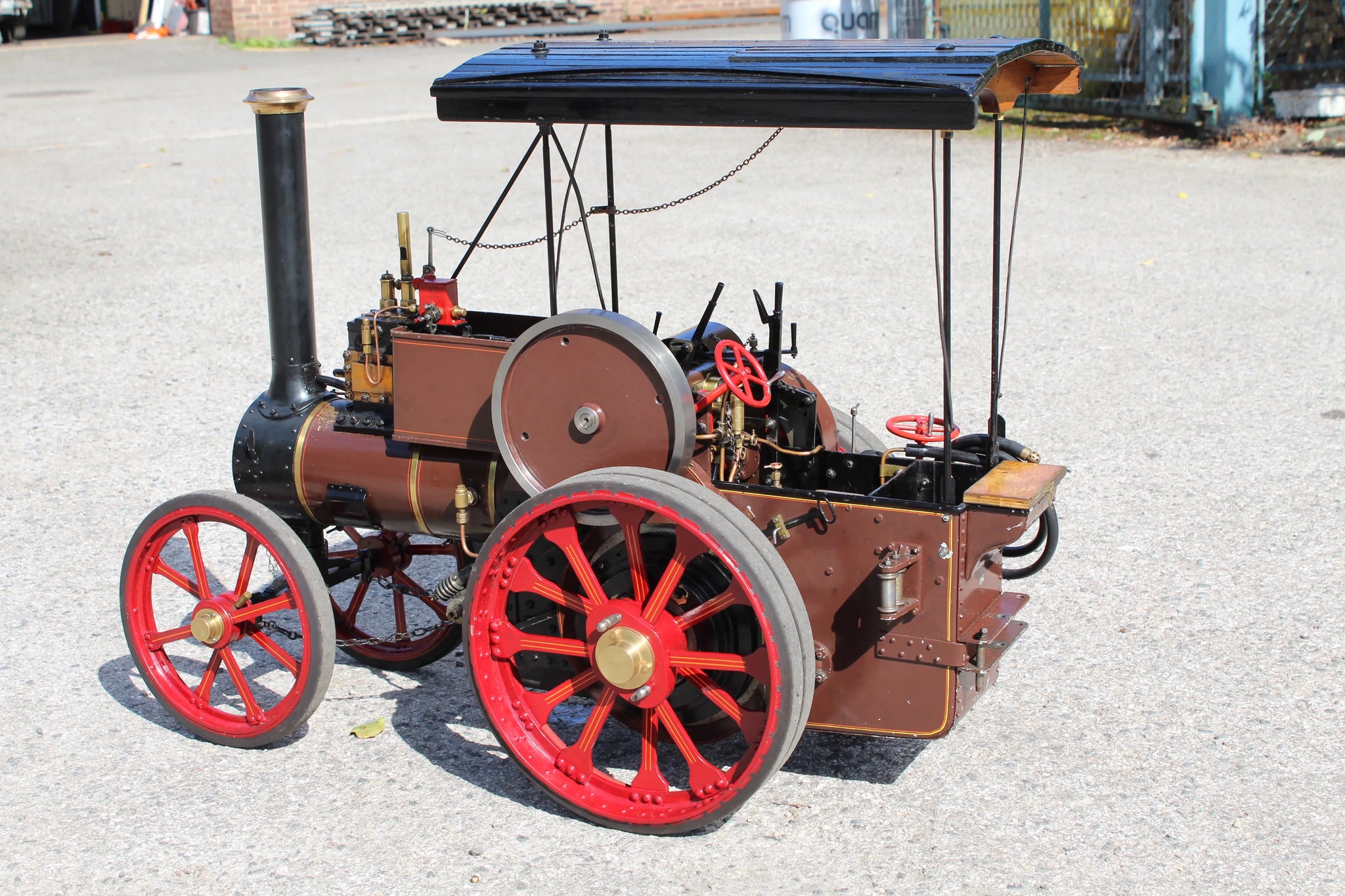

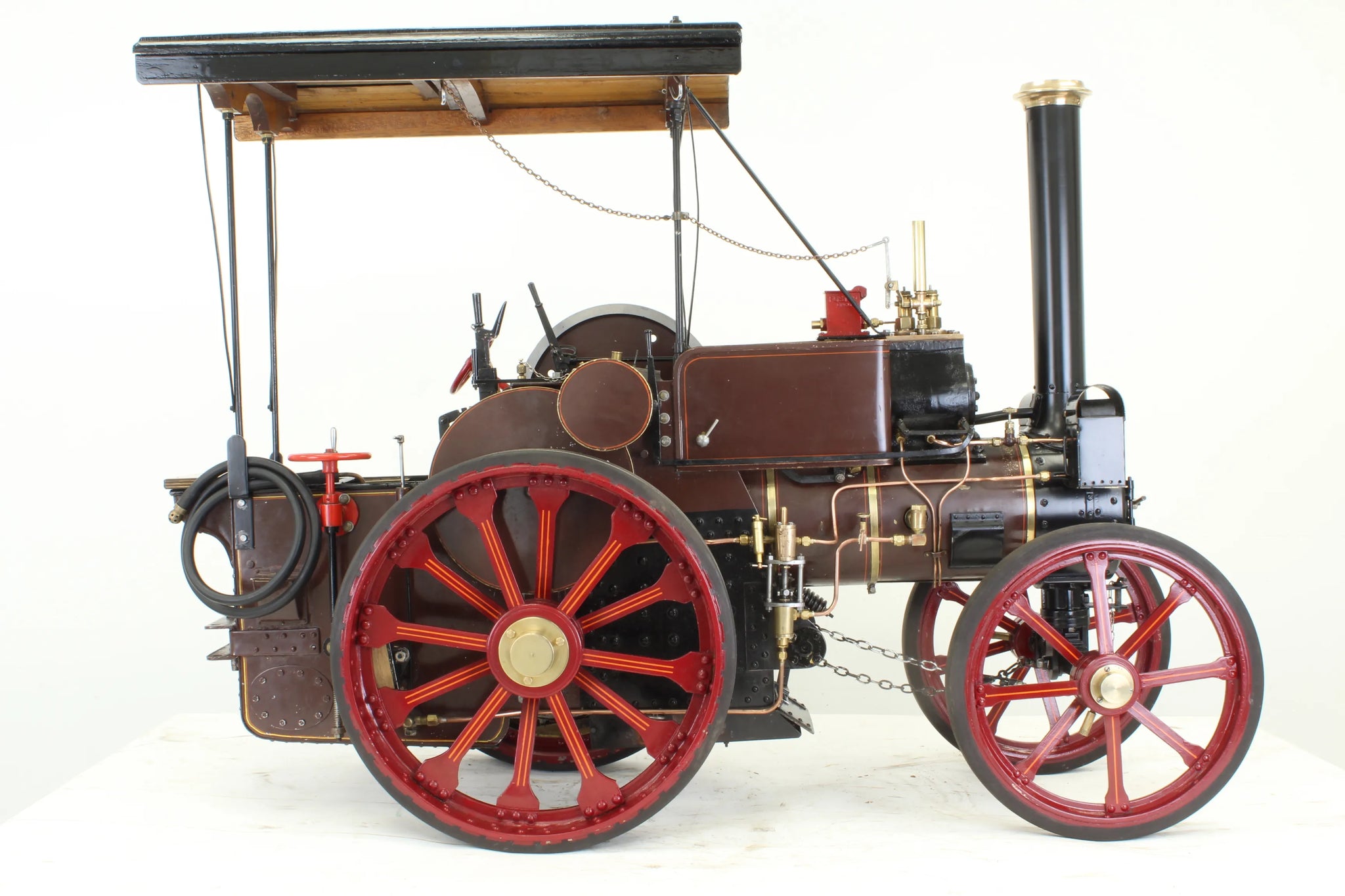

3 inch scale Ruston & Proctor steam tractor with driving trolley

A finely-built Ruston Proctor SD tractor in 3 inch scale - had them in 2 inch, 4 inch, 6 inch and full-size before, but never seen a 3 inch one, this one makes the complete set!

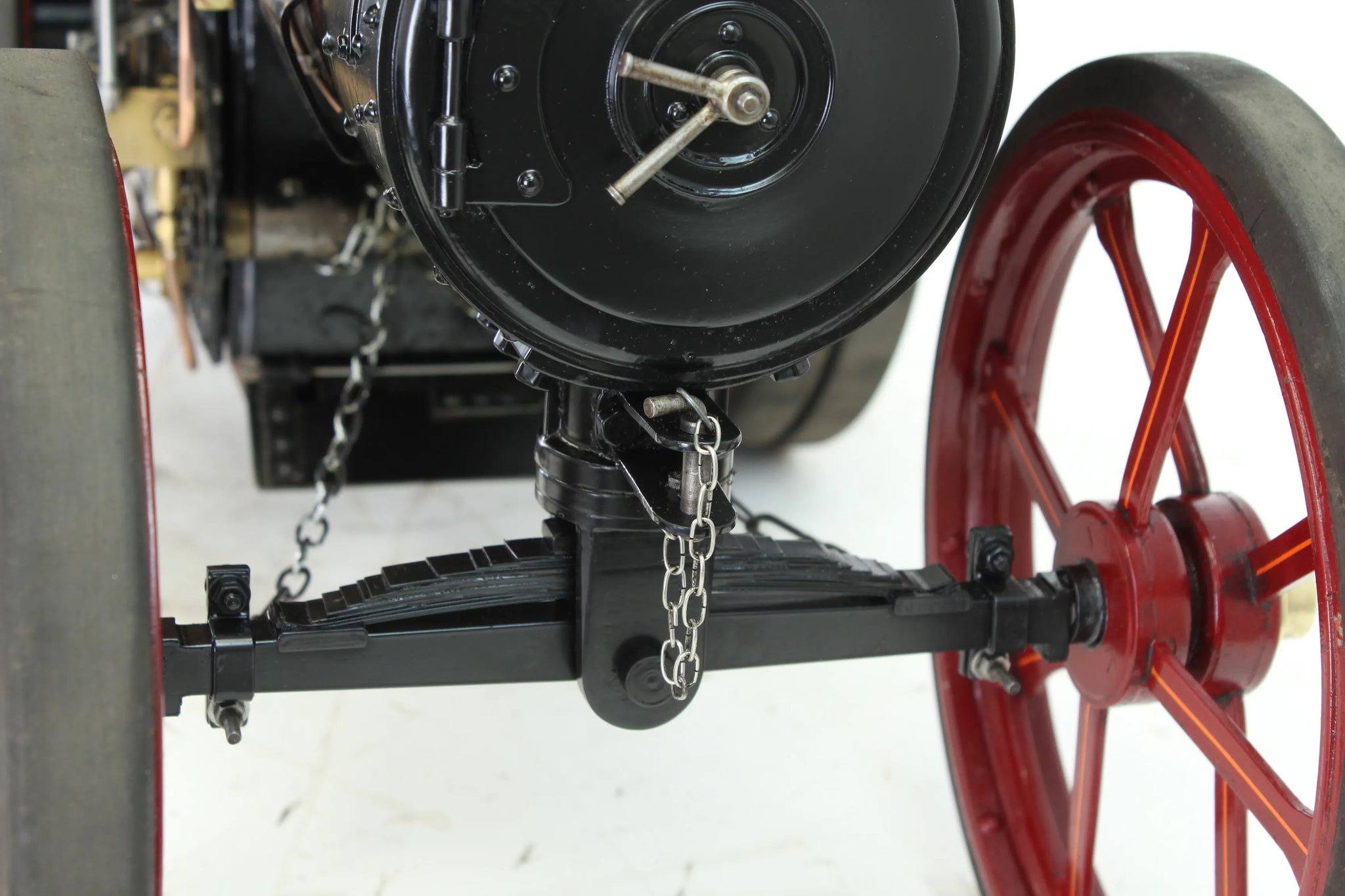

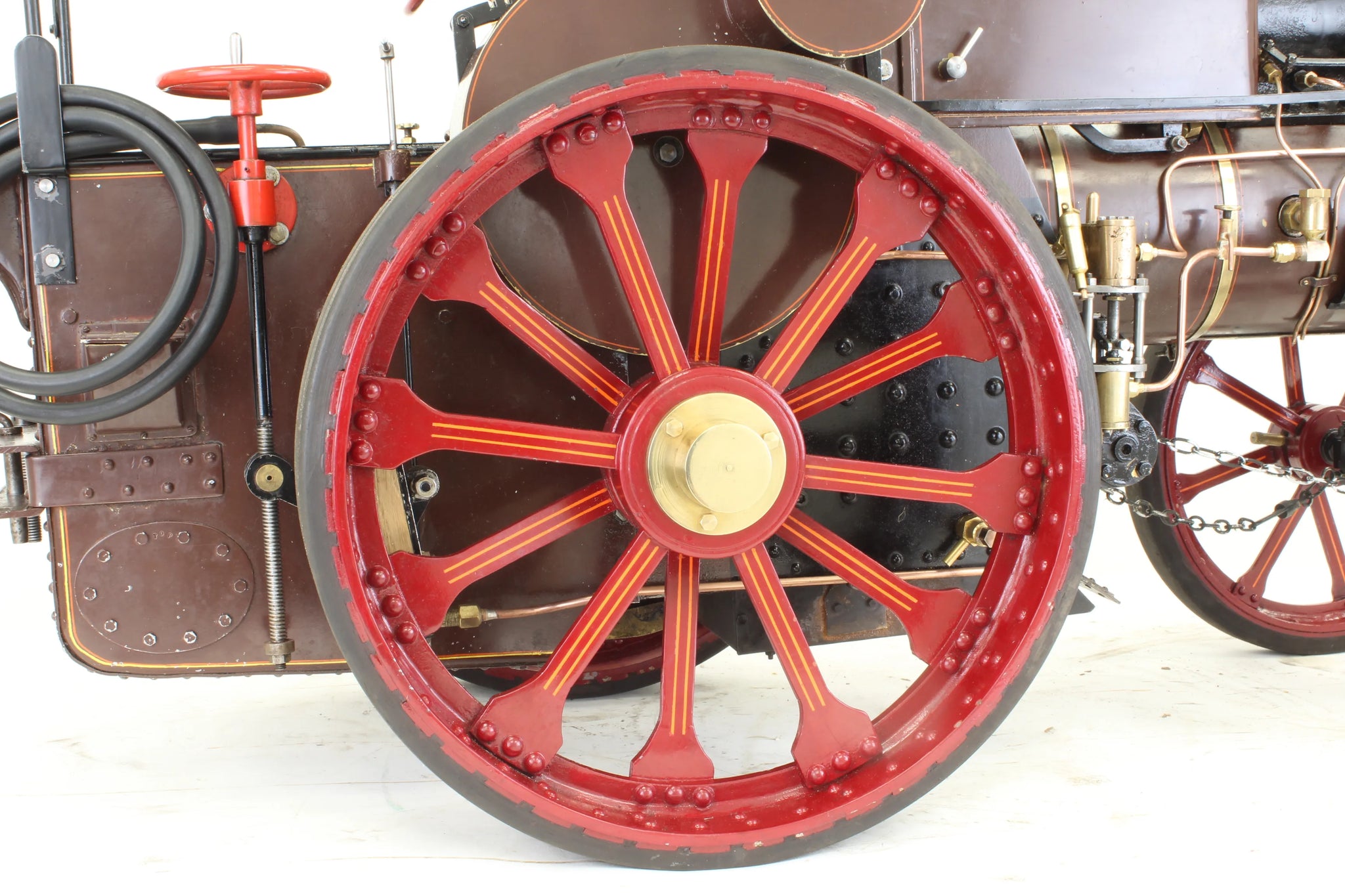

Sprung both ends, as per the prototype, the engine runs particularly nicely - it's a lovely thing to drive, steam freely and runs along very well with clear, square exhaust beats. There's a short video of it running here in the yard.

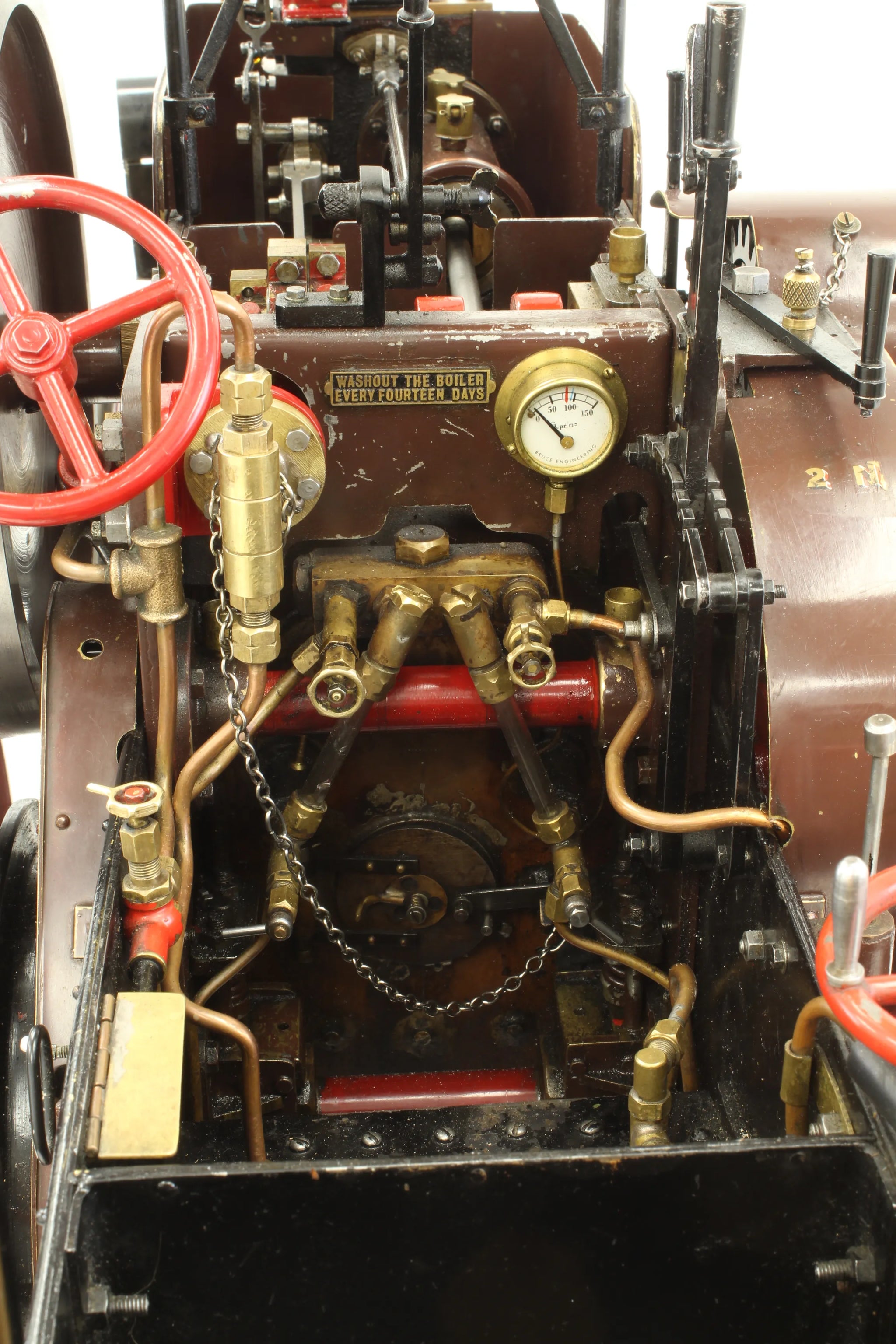

We've fitted the regulator with a PTFE-faced valve - this is a routine job we do for engines that come in with leaking regulators; the replacement valve providing both an effective seal and also a much lighter, smoother action which makes driving a nicer experience (Connor is our regulator expert - he'd just finished machining one up and fitting it to the 7 1/4 inch gauge Duchess that went out last week when the Ruston landed on his bench).

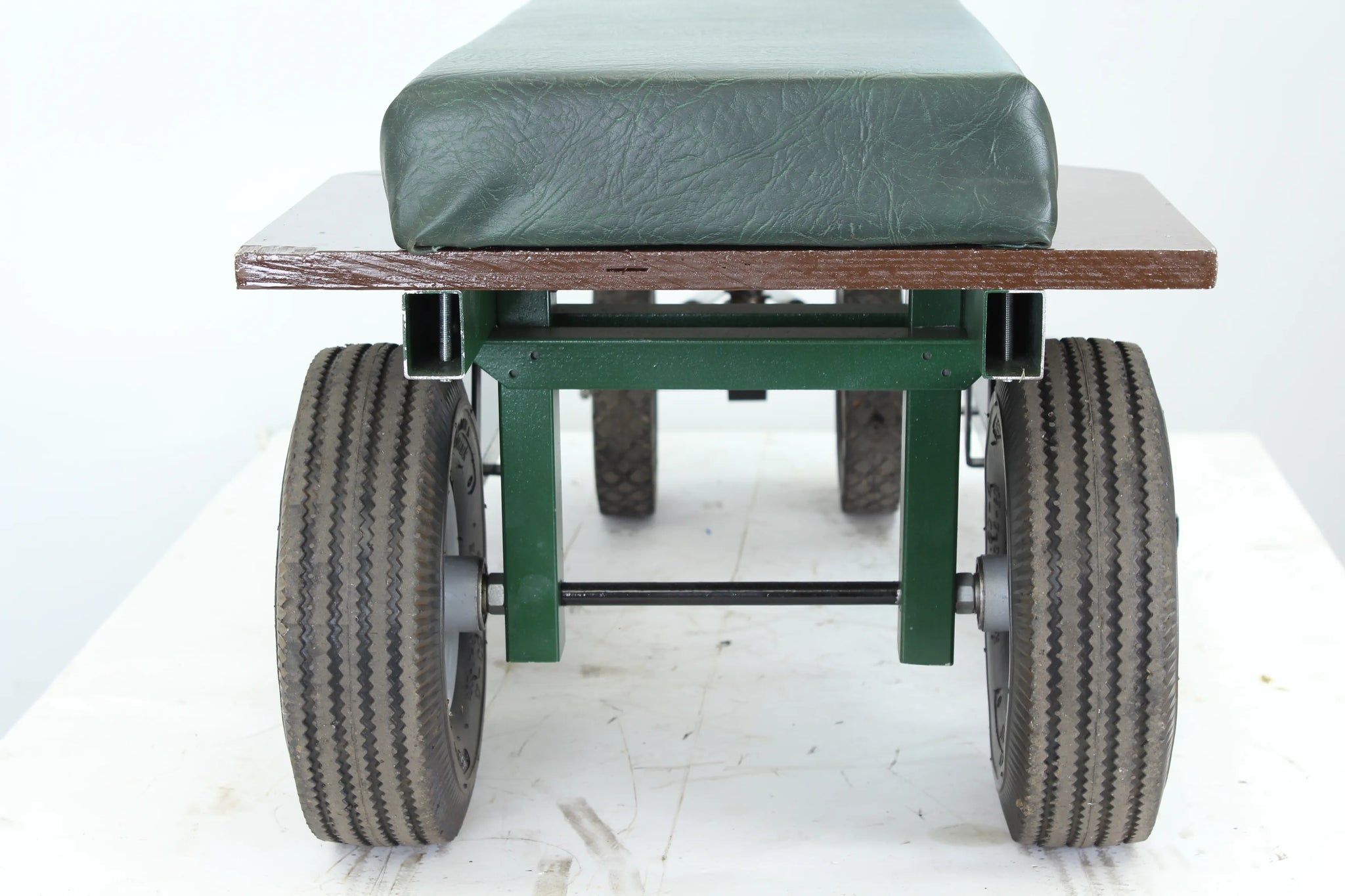

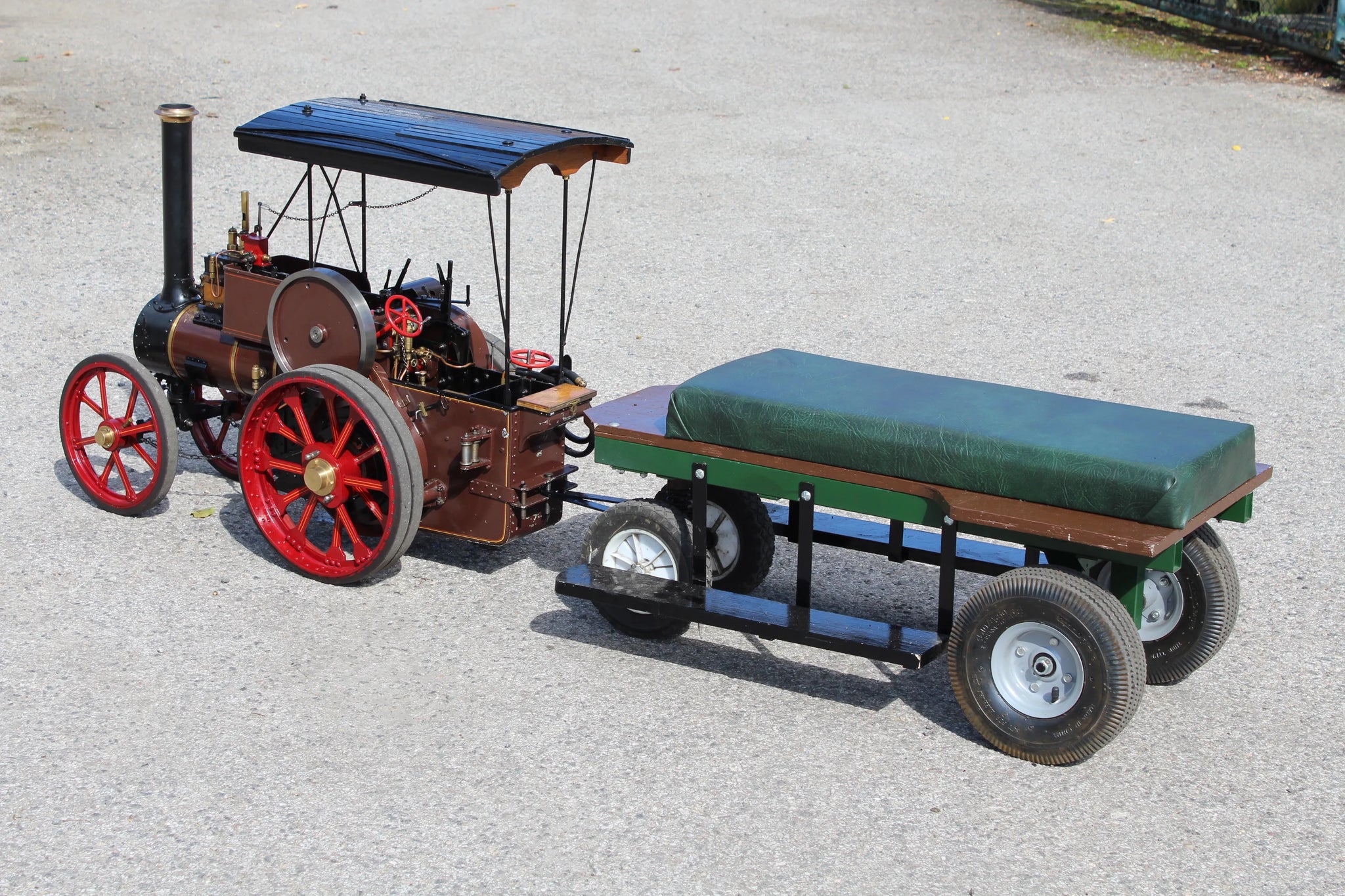

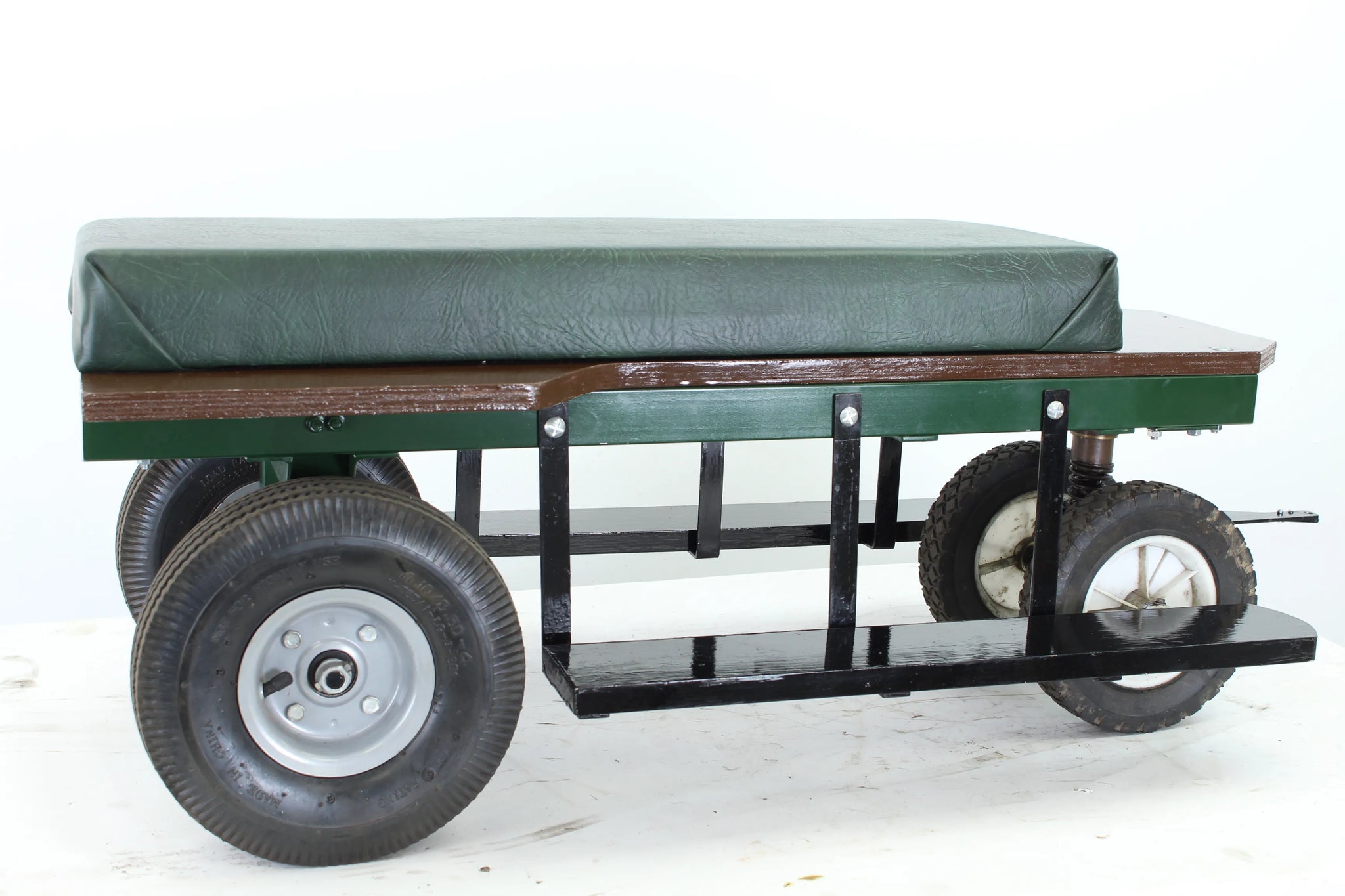

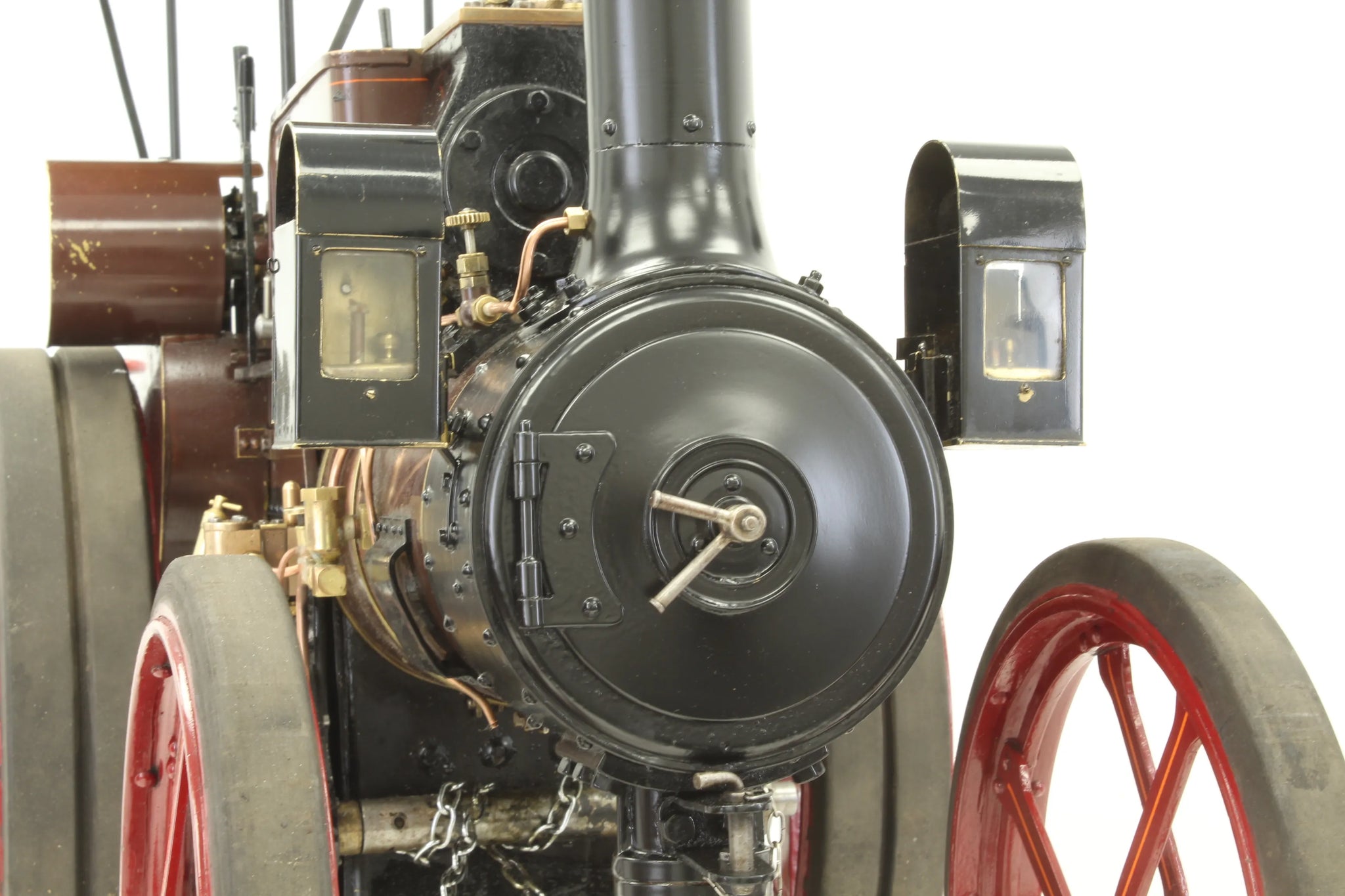

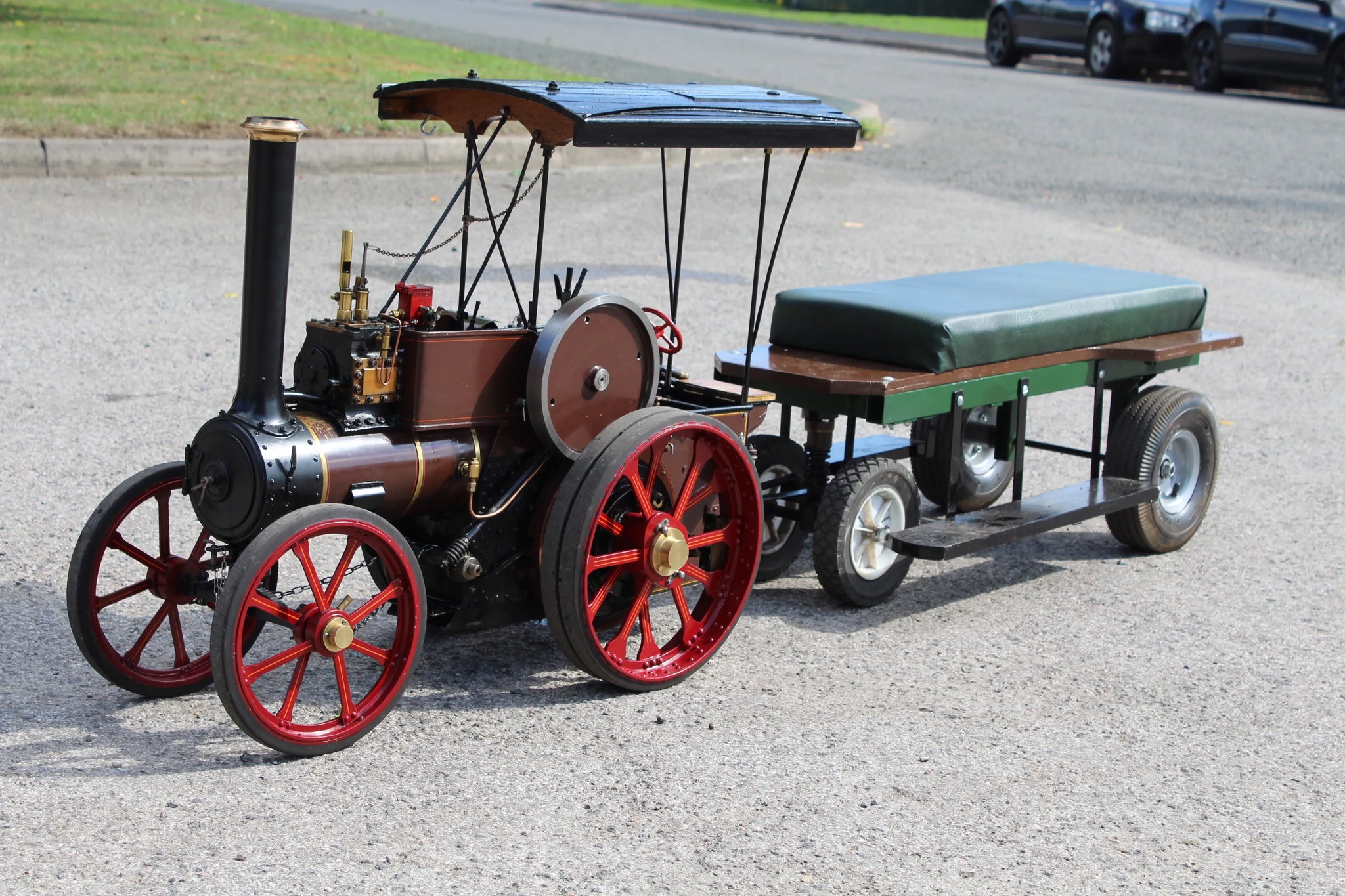

Complete with a driving truck and a pair of curious looking traction engine lamps (mercifully quickly detachable).



Technical information

Stock code

8107

Scale

3 inch

Length/inches

38

Width/inches

13

Height/inches

27

Cylinder material

cast iron

Valve type

slide

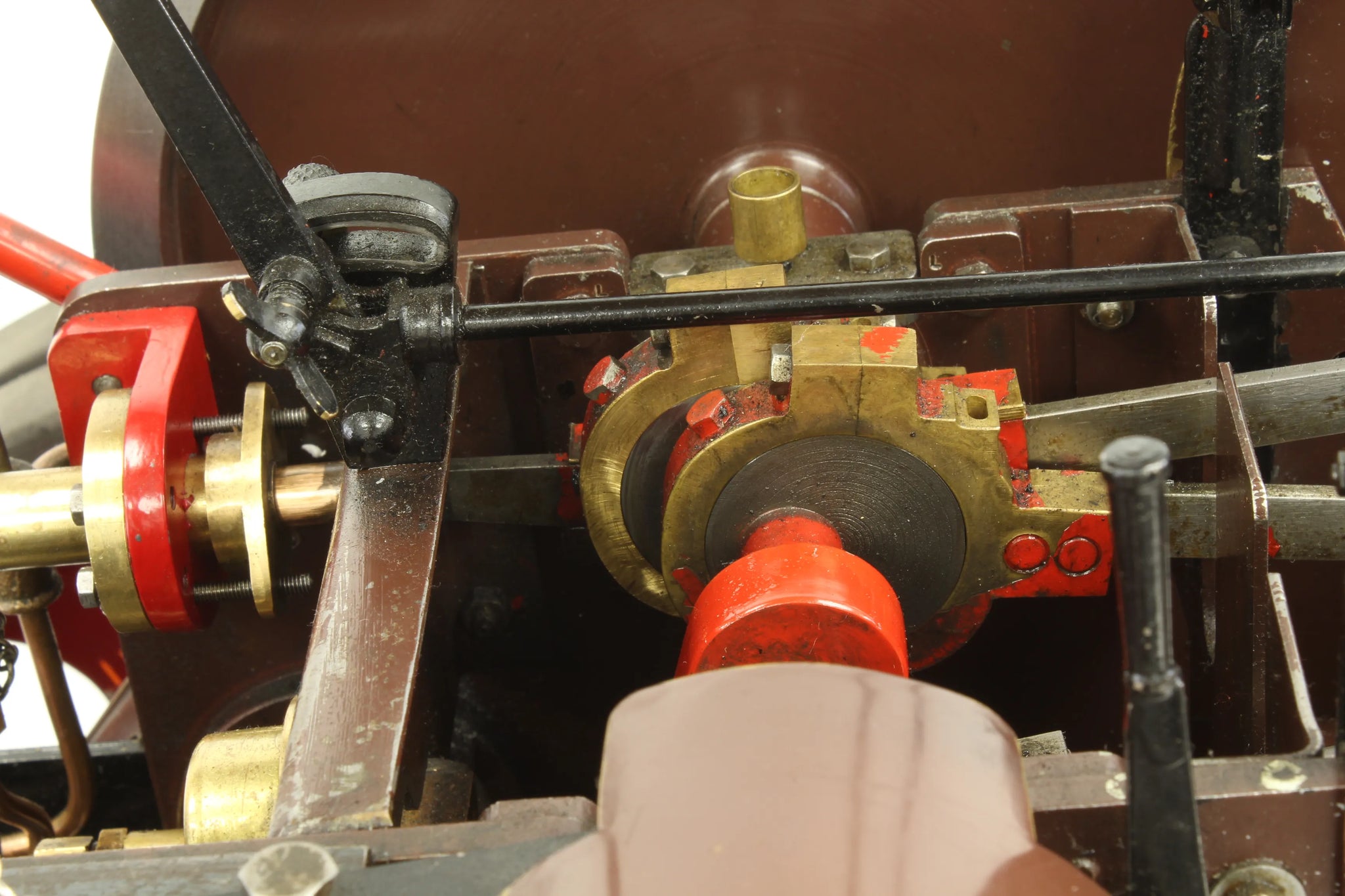

Valve gear

Stephensons

Reverser type

pole

Lubricator type

mechanical

Boiler maker

non-commercial

Boiler type

locomotive

Boiler construction

silver soldered

Boiler material

copper

Working pressure

80

CE/UKCA mark

n/a - non-commercial

Year built

1998

Boiler number

01/04/1998 00:00

Safety valve type

pop

Safety valve

2

Fusible plug

no

Whistle

yes

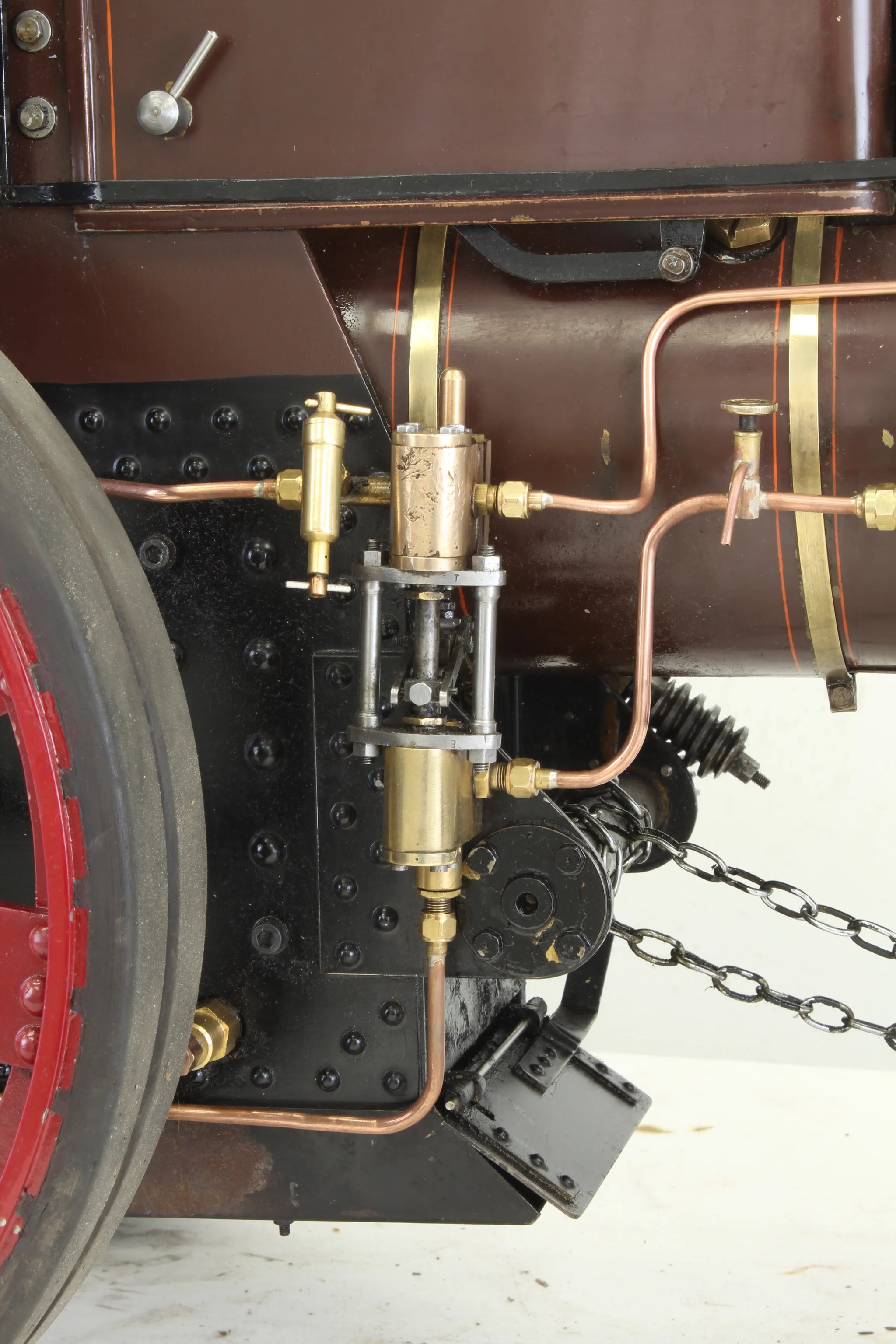

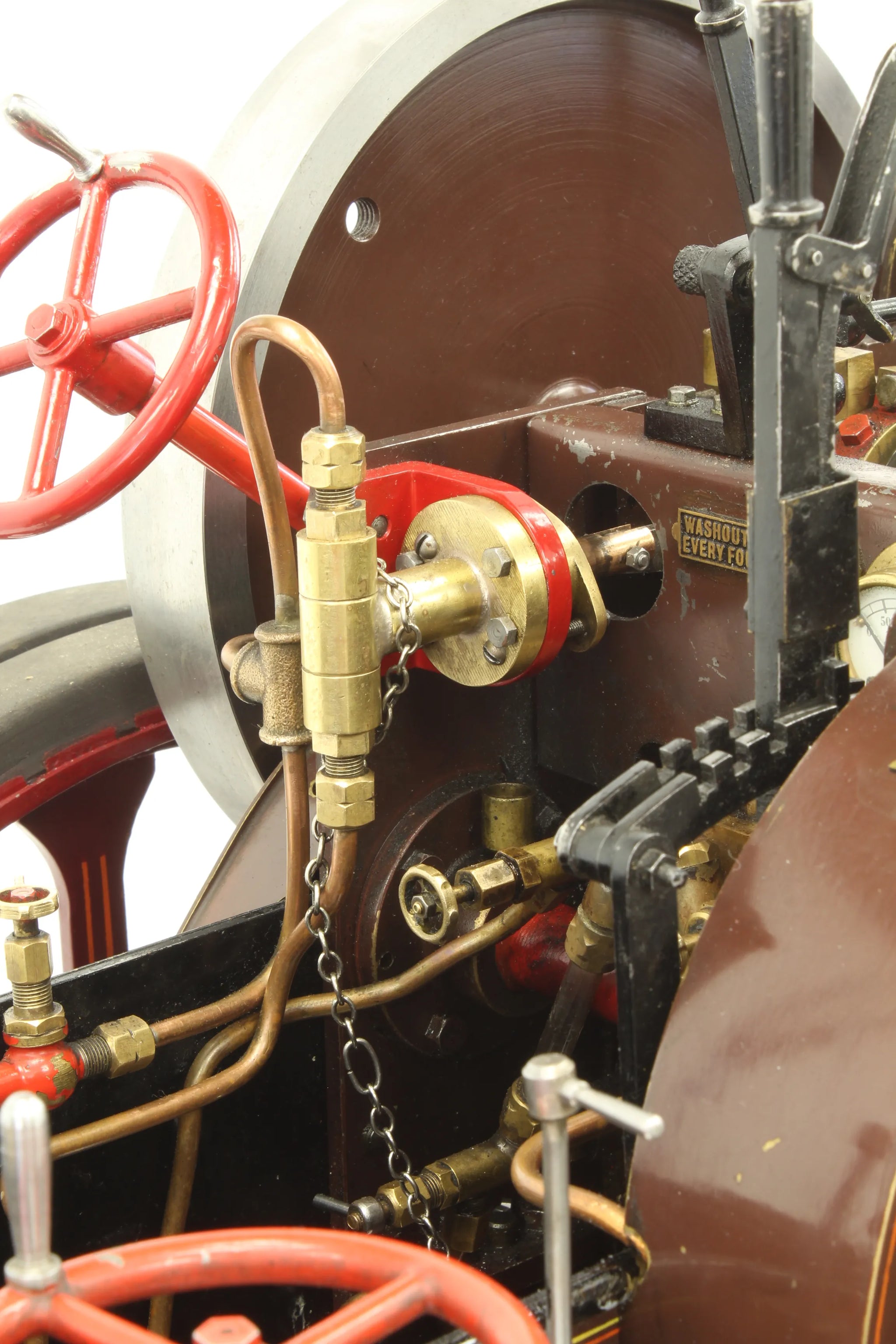

Steam pump

1

Mechanical pump

1

Pack

Single half pallet

Date out

Nov-18

Hydraulic test valid to

05-Jul-22

Steam test valid to

12-Nov-19
