3 inch scale Savage "Little Samson" agricultural engine

Name: 3 inch scale Savage "Little Samson" agricultural engine
Brand: Station Road Steam
SKU: 9090
Price: 5750.0 GBP
Availability: OutOfStock

Sold

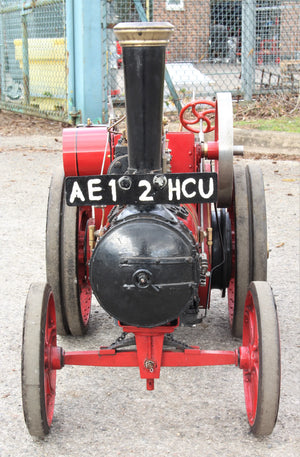

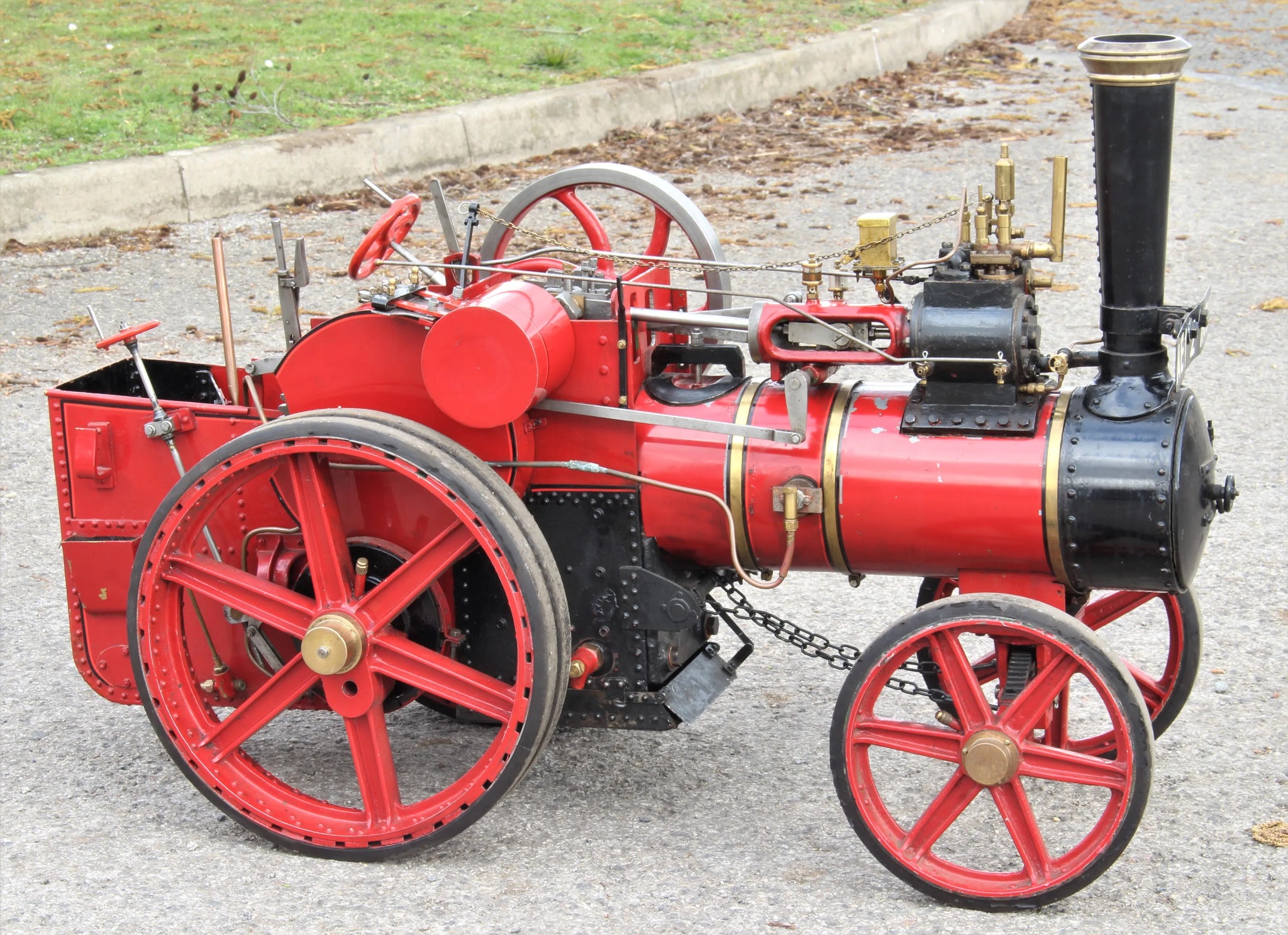

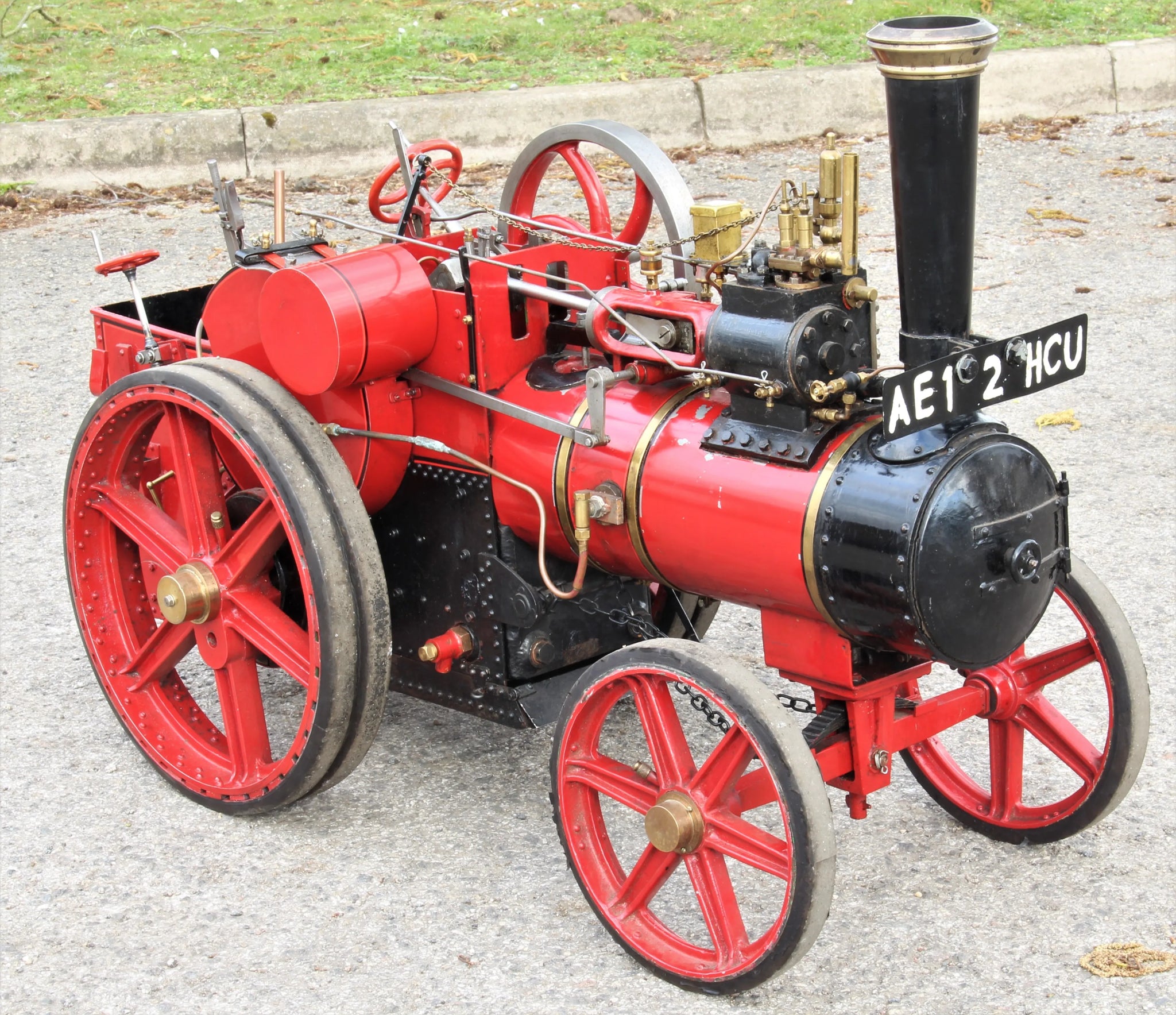

A 3 inch scale Savage "Little Samson" traction engine, complete although in need of overhaul.

In addition to general tidying up, work required includes:

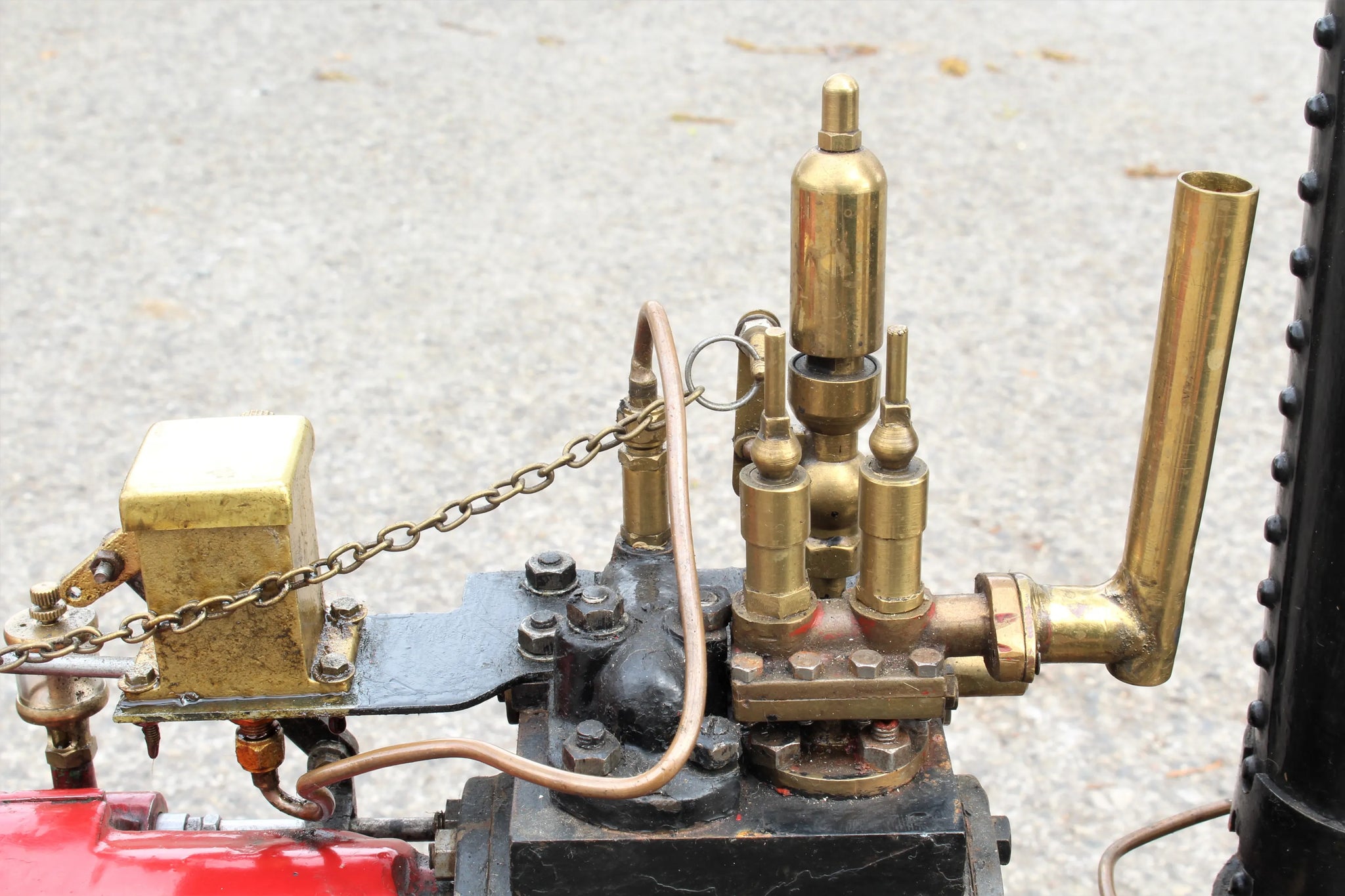

Regulator leaks
Glands leak, require repacking
Blowdown valve doesn't open

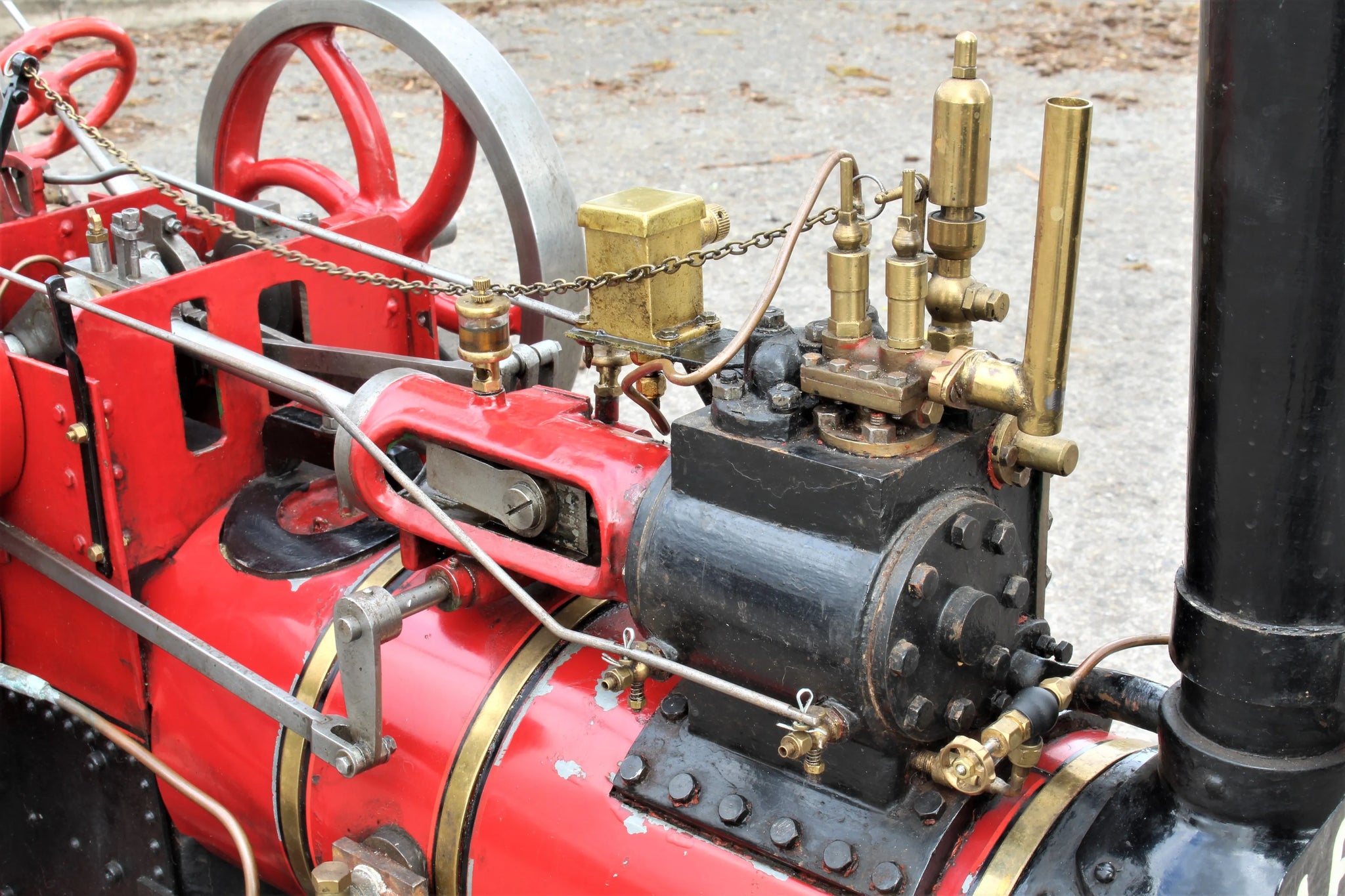

Leaks past slide valve

The commercially-built steel boiler by Franklin & Bell shows no sign of leaks or deflection on hydraulic test, we would warranty it as sound.

The engine is on rubber tyres and road-registered, with V5 document.

Type: Second hand

Tags: Projects

Technical information

Stock code	9090
Scale	3 inch
Length/inches	41
Width/inches	19
Height/inches	26
Cylinder material	cast iron
Valve type	slide

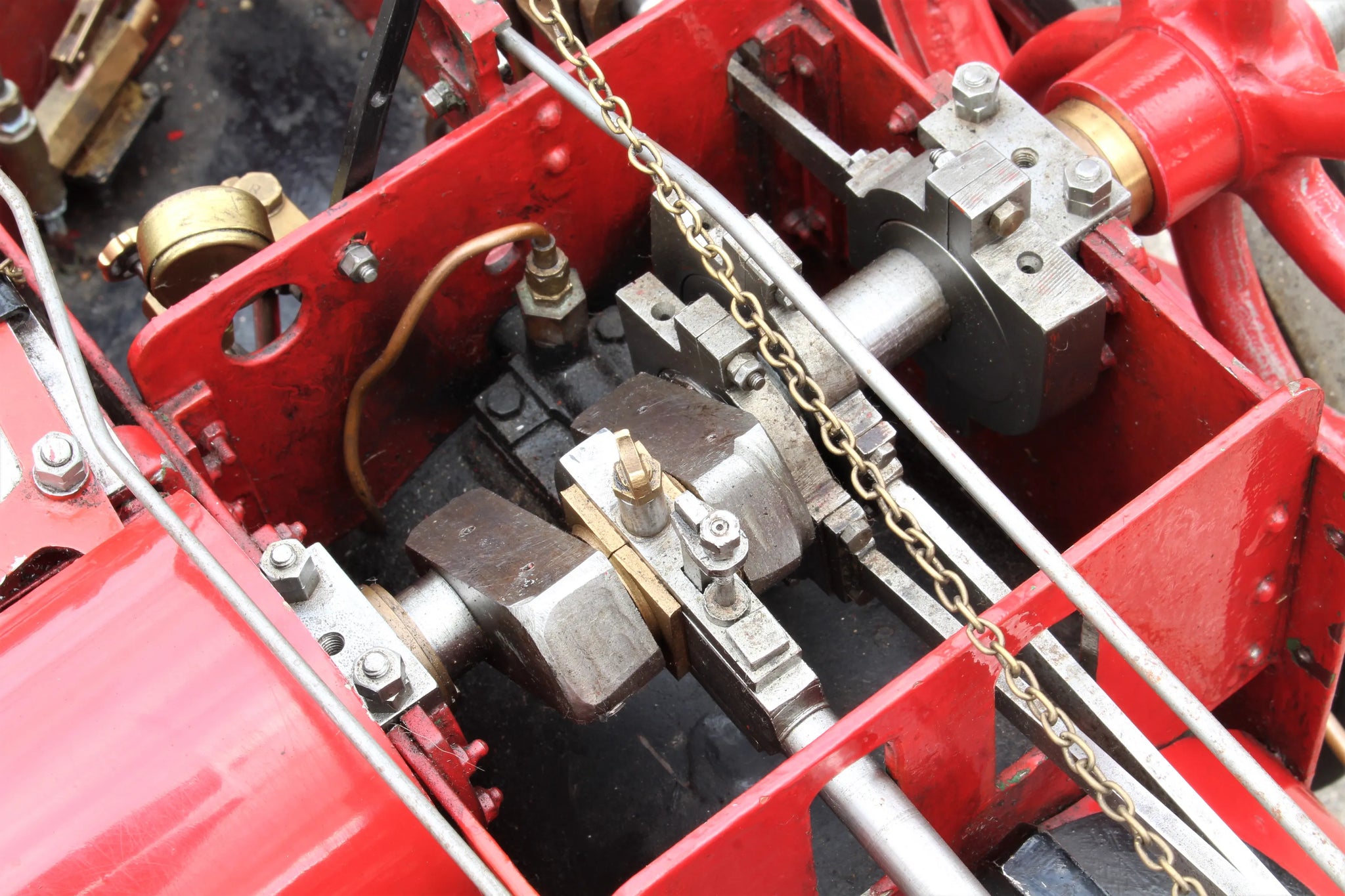

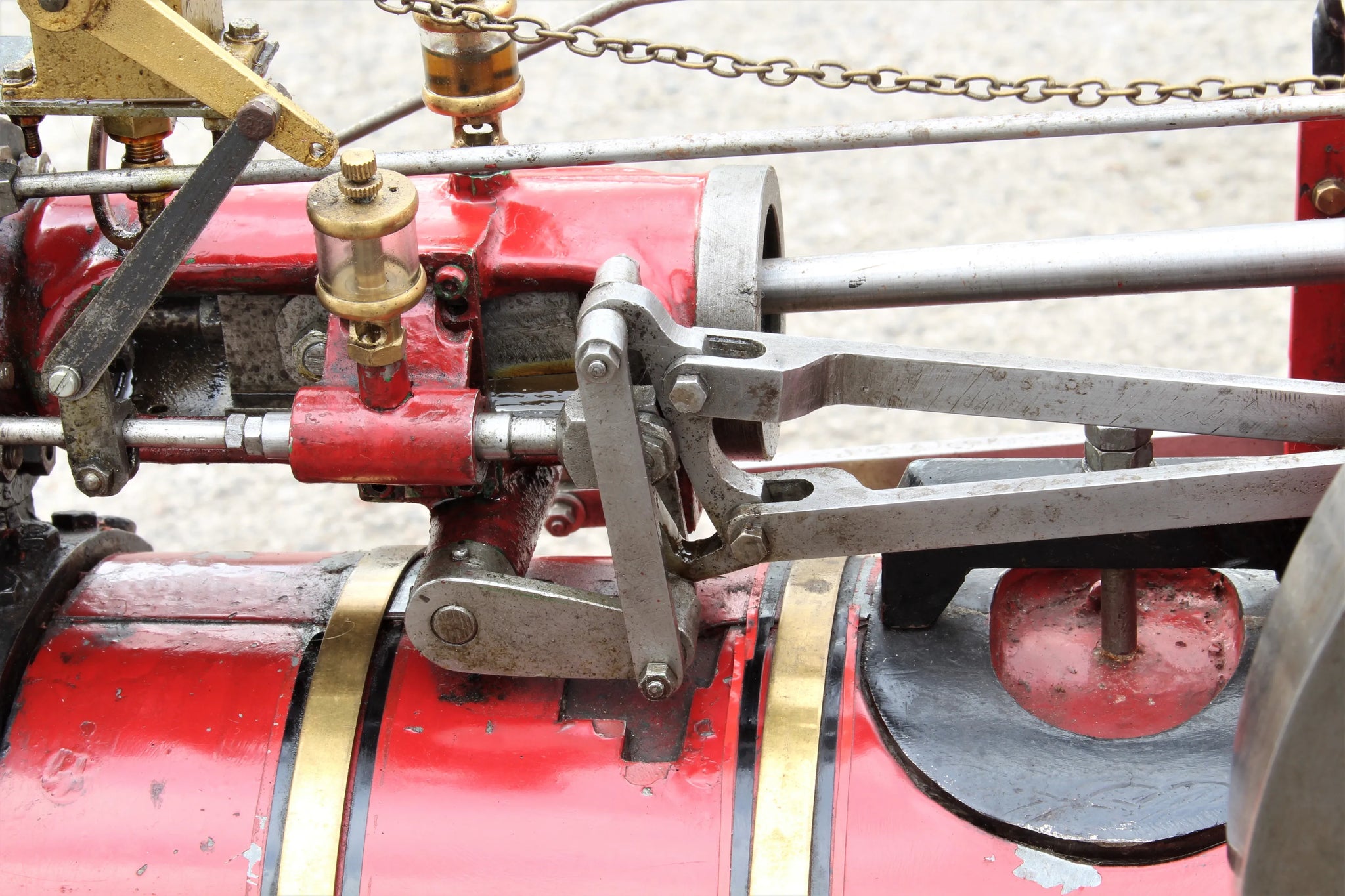

Valve gear	Stephensons
Reverser type	pole
Lubricator type	mechanical
Boiler maker	Franklin & Bell
Boiler type	locomotive
Boiler construction	welded, expanded tubes
Boiler material	steel
Working pressure	100
CE/UKCA mark	n/a - pre-2002
Year built	2001
Boiler number	FB473
Fusible plug	yes
Road speed	2
Date out	May-20
