12733

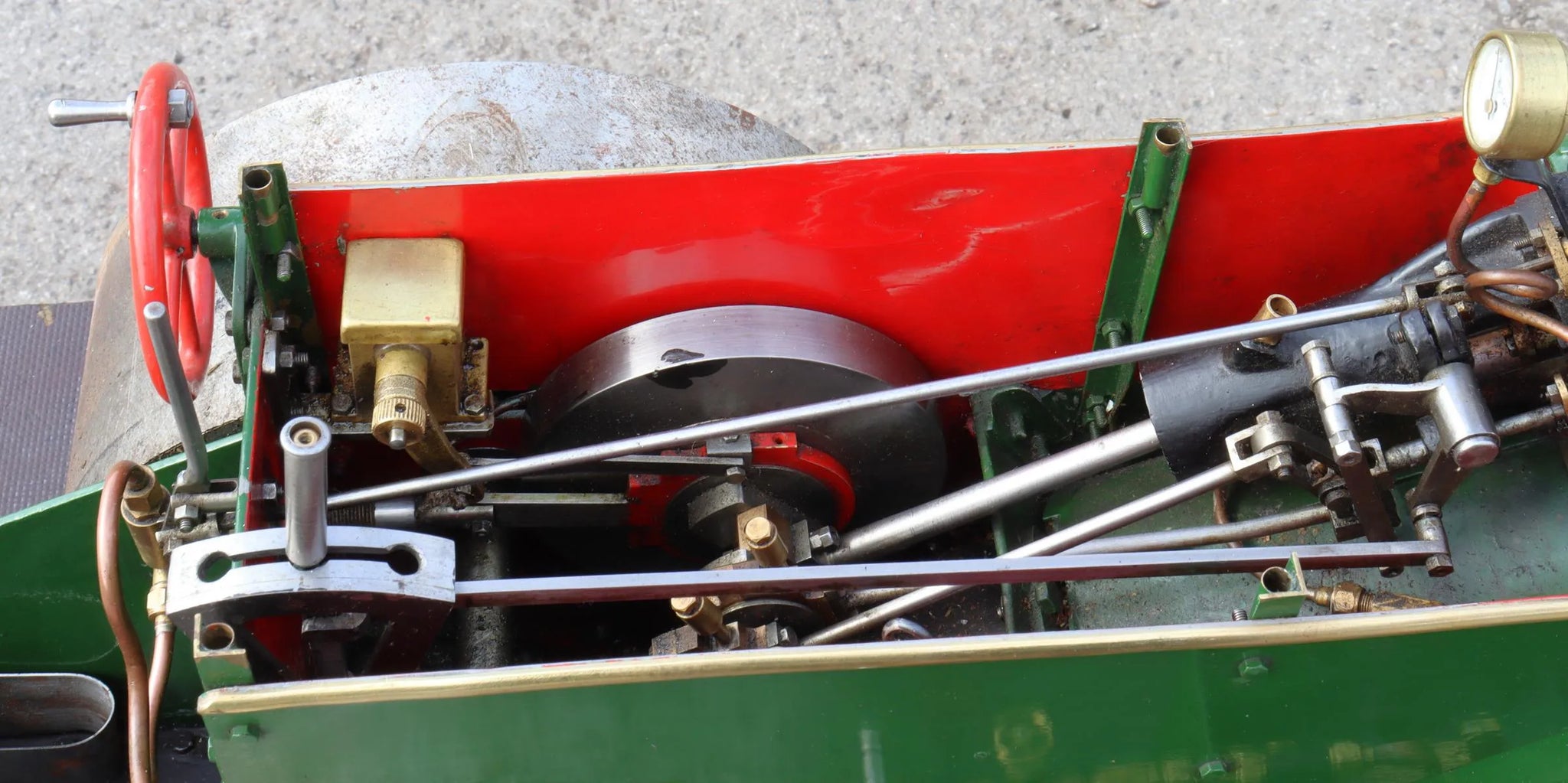

The copper boiler has had a hydraulic test with new certification issued. The engine turns over freely and runs on air at wide regulator settings, but simply oscillates to and fro at what should be a tickover - attention to the eccentric and/or valve setting is required.

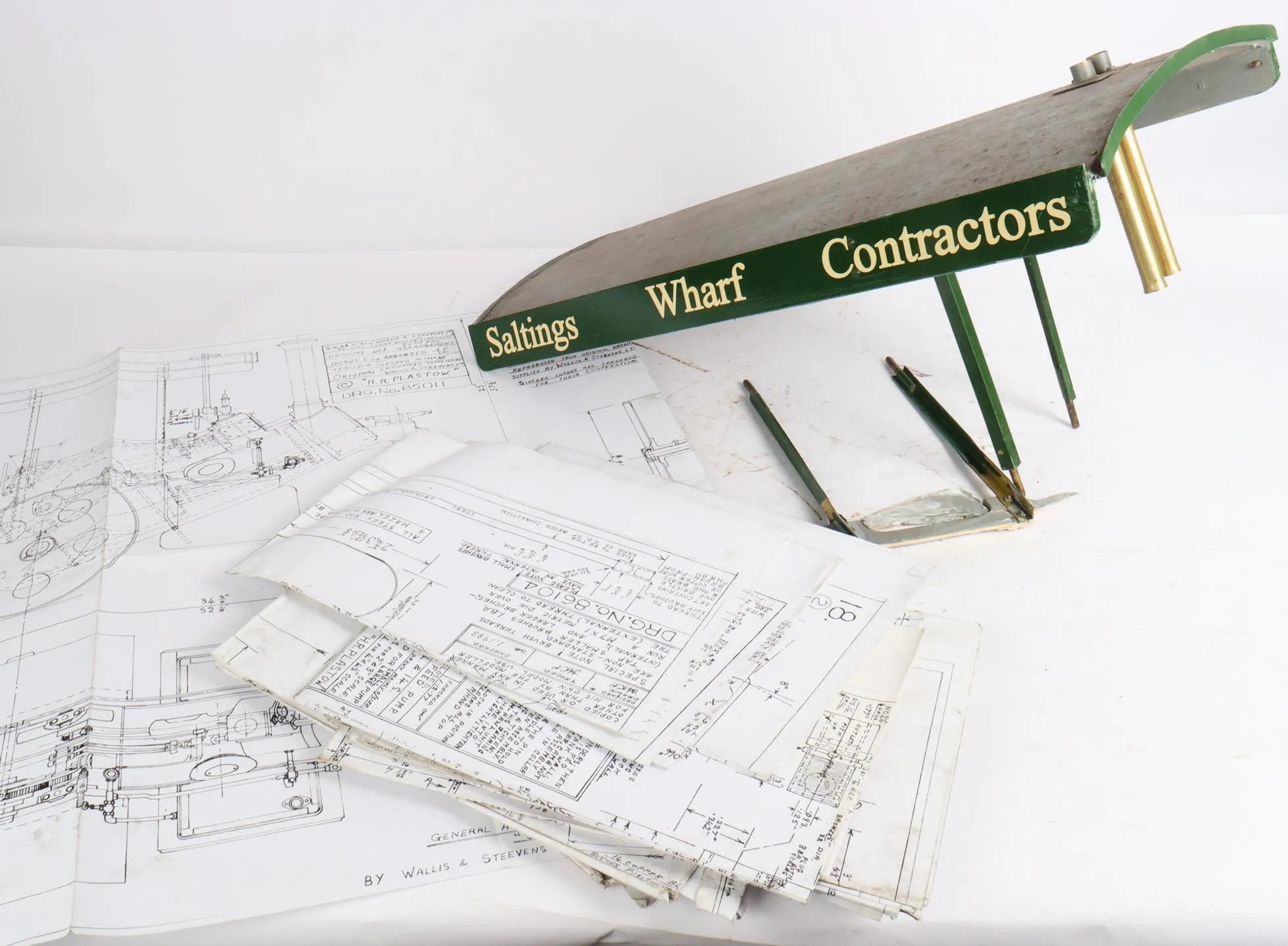

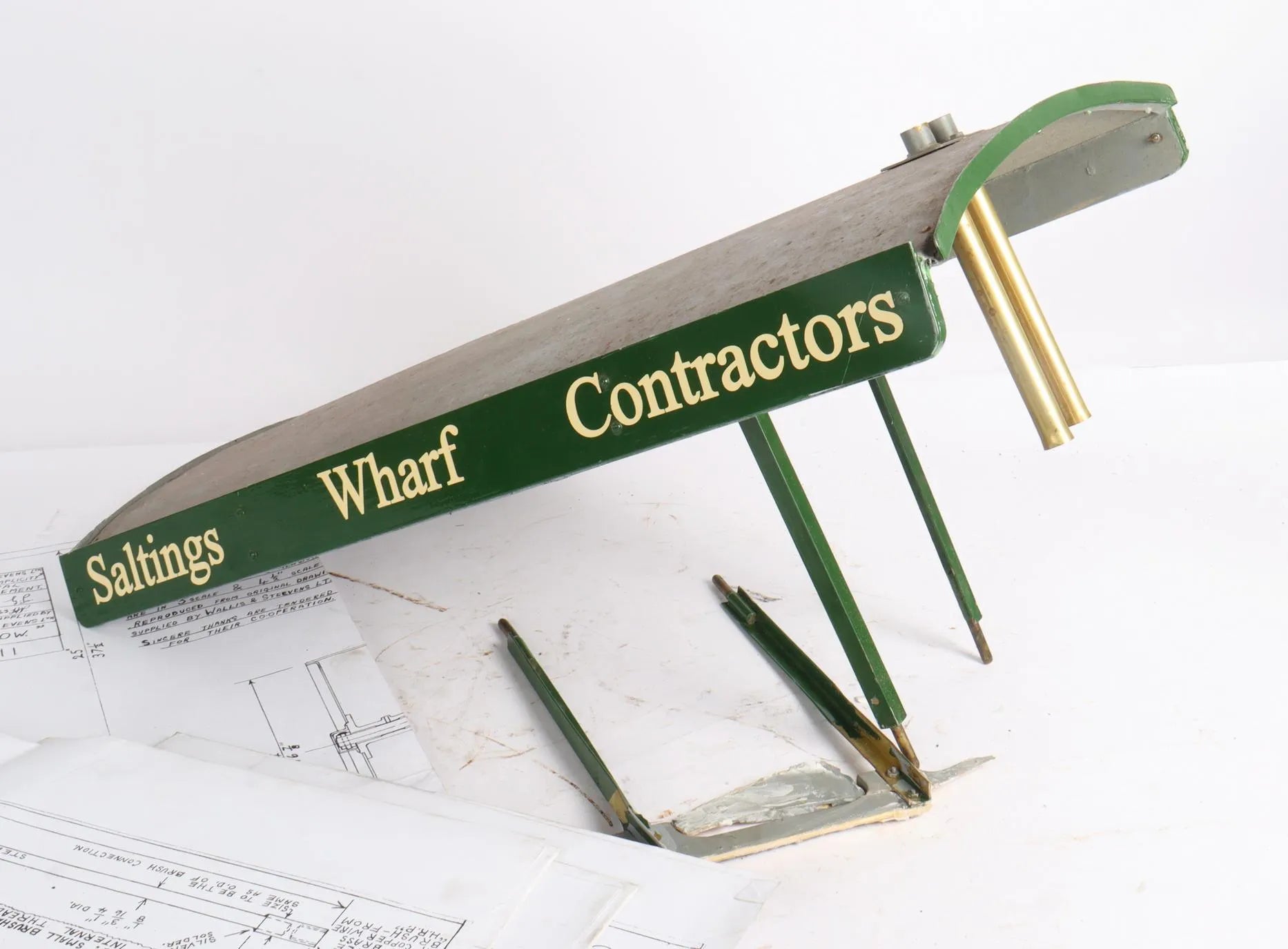

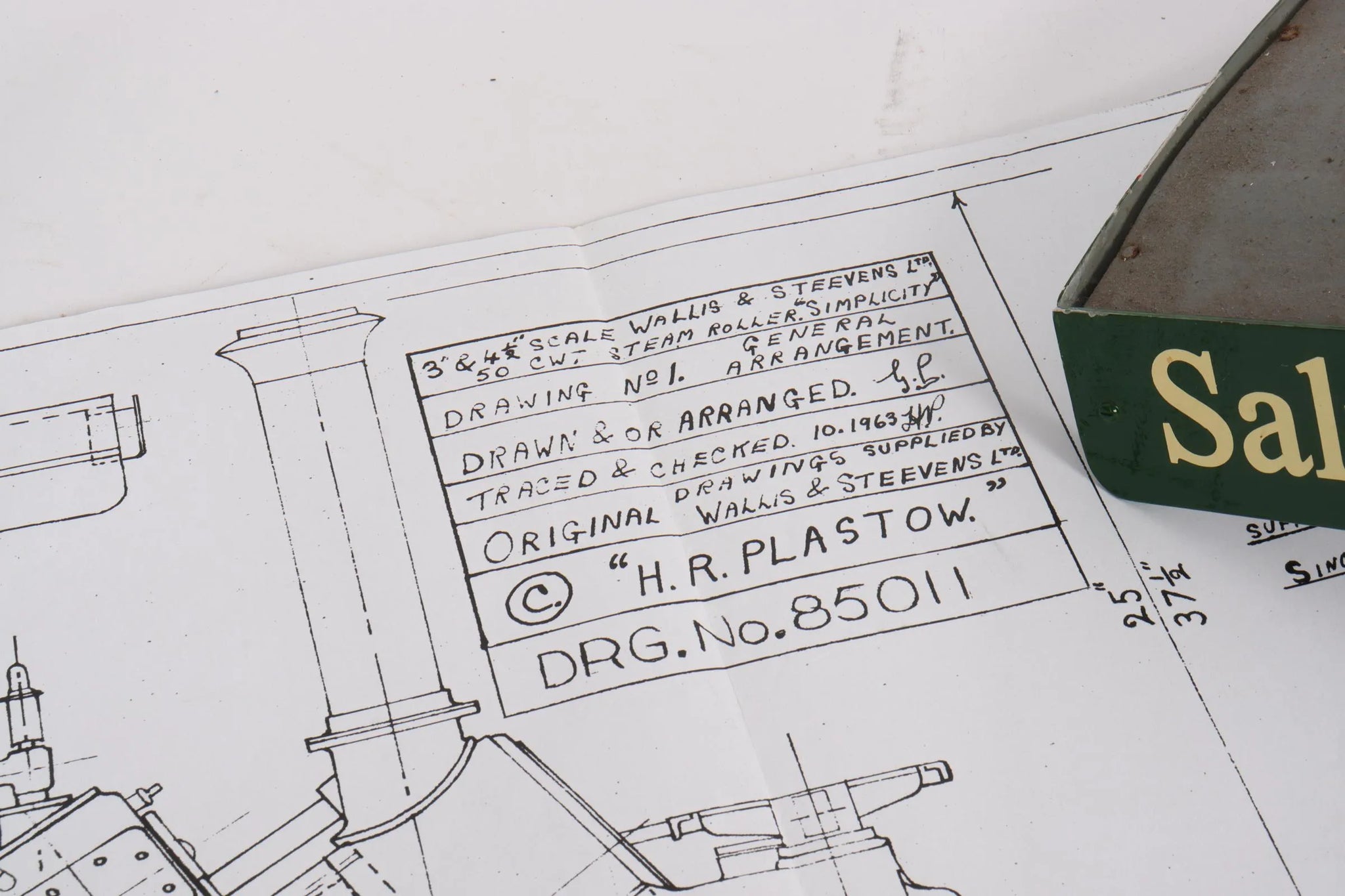

Complete with detachable canopy and drawings.
Stock code |
12733 |
Scale |
3 inch |
Length/inches |
36 |
Width/inches |
16 |
Height/inches |
25 |
Weight/Kg |
77 |
Wheel material |
steel |
Axlebox type |
plain bearing |
Cylinder material |
cast iron |
Valve type |
slide |
Valve gear |
Stephensons |
Reverser type |
pole |
Boiler maker |
non-commercial |
Boiler type |
marine |
Boiler construction |
silver soldered |
Boiler material |
copper |
CE/UKCA mark |
n/a - non-commercial |
Year built |
2018 |
Boiler number |
W003879 |
Safety valve type |
spring |
Safety valve |
2 |
Fusible plug |
no |
Whistle |
no |
Hand pump |
1 |
Mechanical pump |
1 |
Date out |
May-25 |
Hydraulic test valid to |
17-Mar-29 |
