Sold

7442

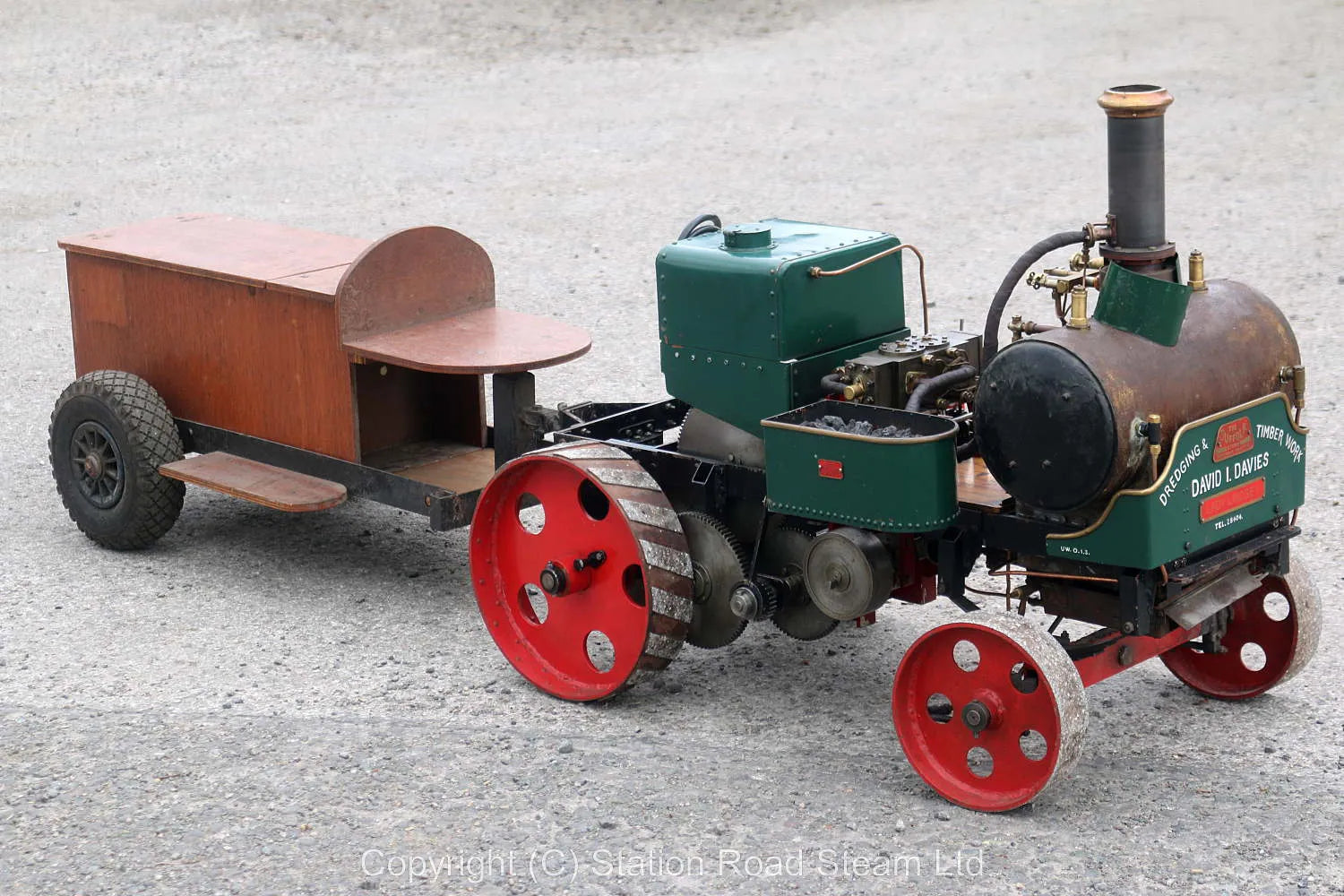

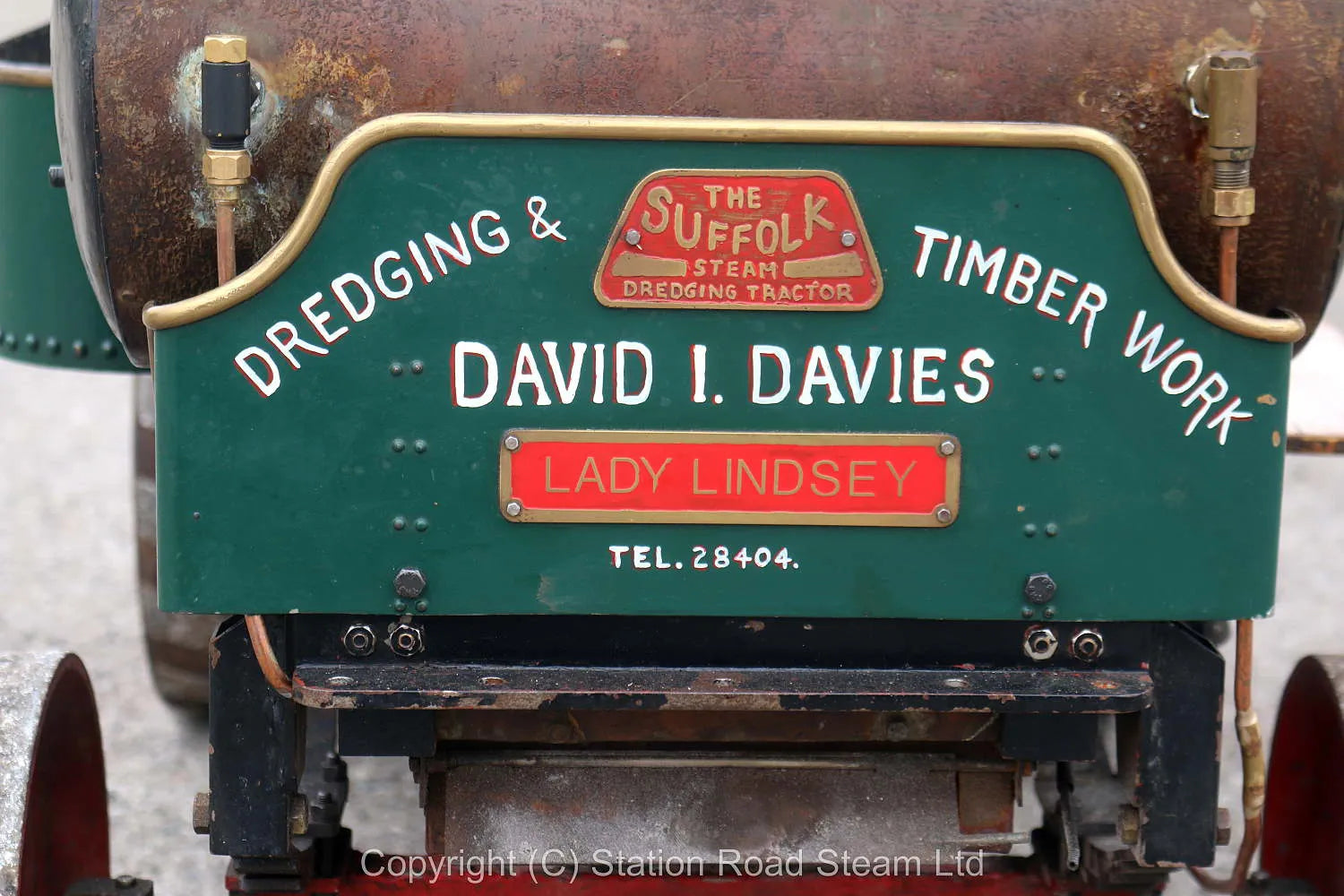

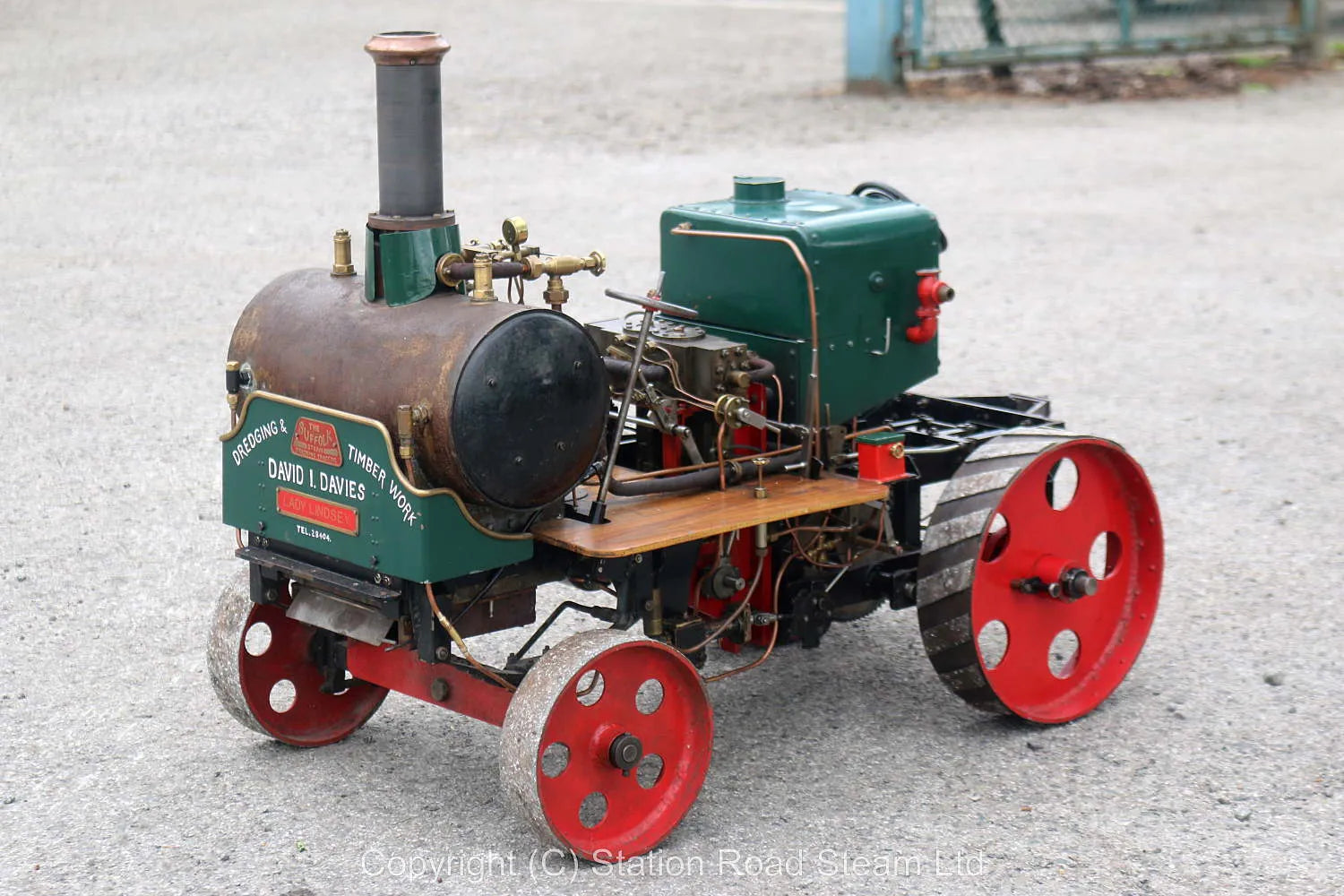

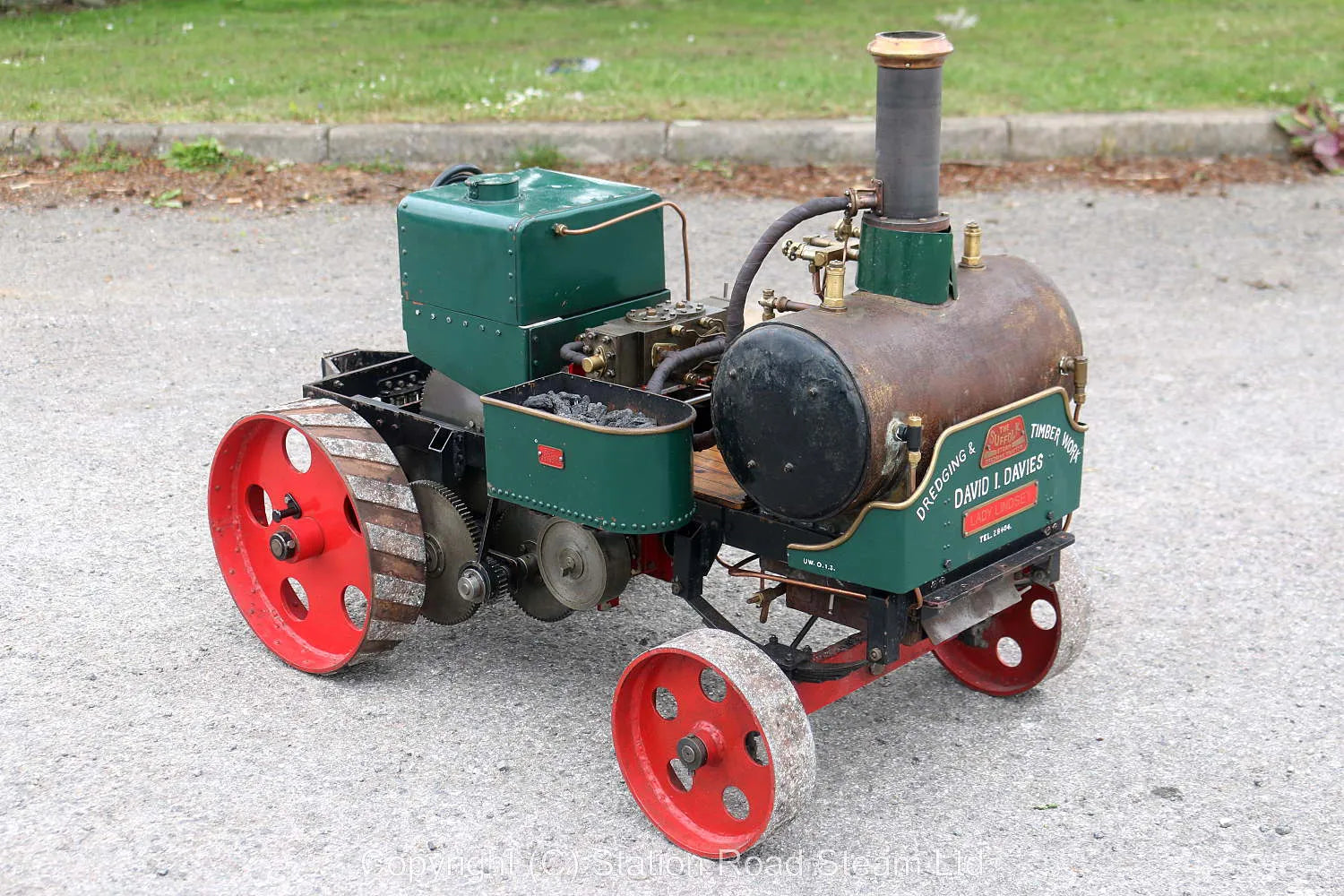

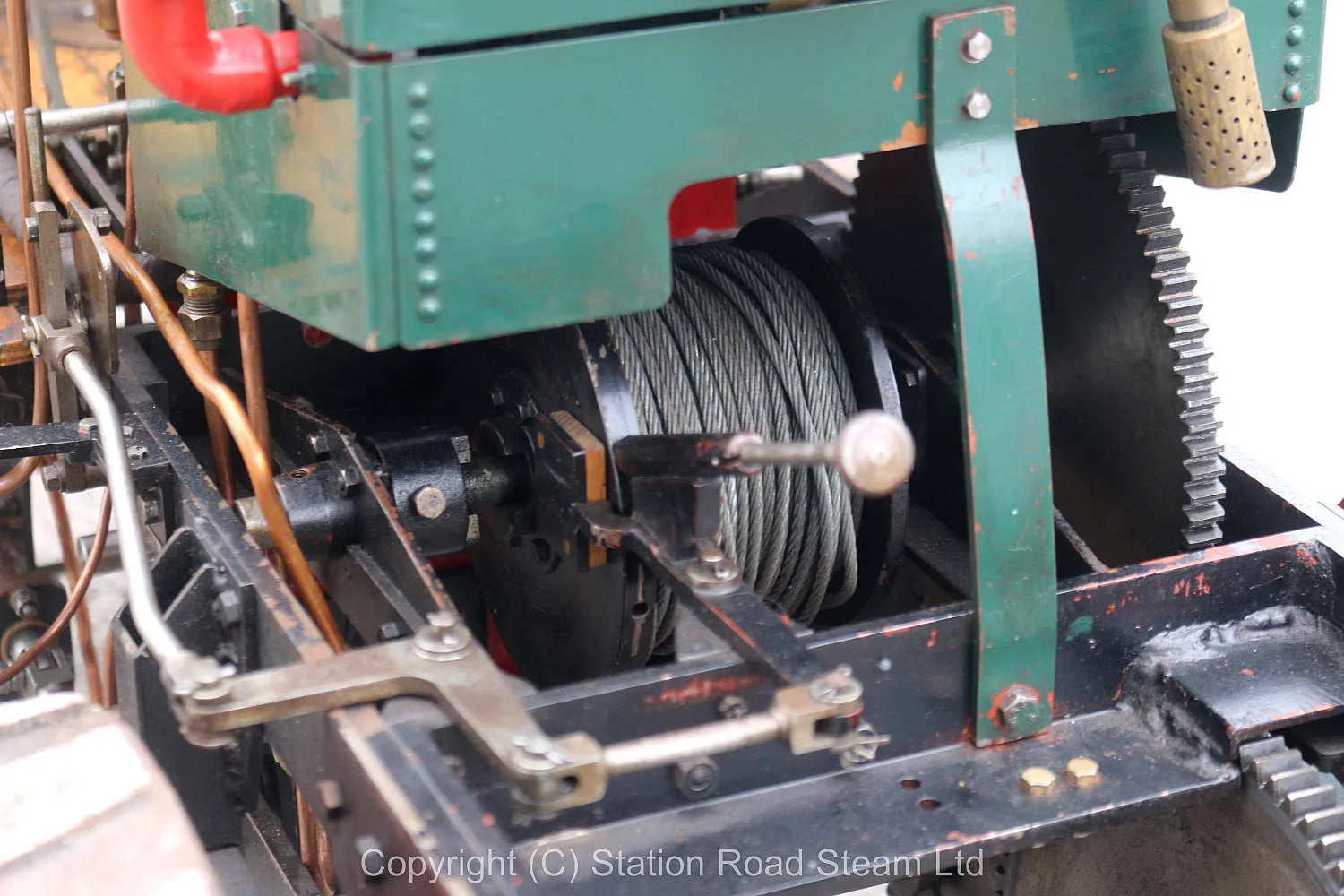

3 inch scale Suffolk Dredging tractor

John Haining's ingenious rendition of Savage's "Suffolk" dredging tractor in 3 inch scale, one of the designs lost to preservation.

A thoroughly reliable designer, responsible for the 2 inch scale Fowler ploughing engines - both single cylinder and compounds - as well as the Durham & North Yorkshire engine and several others, he hadn't lost his touch when it came to the Suffolk.

Whilst of unconventional appearance, they do go well, the engine is well matched to the boiler and the thing has enough size and weight to make a decent entry-level rallying engine.

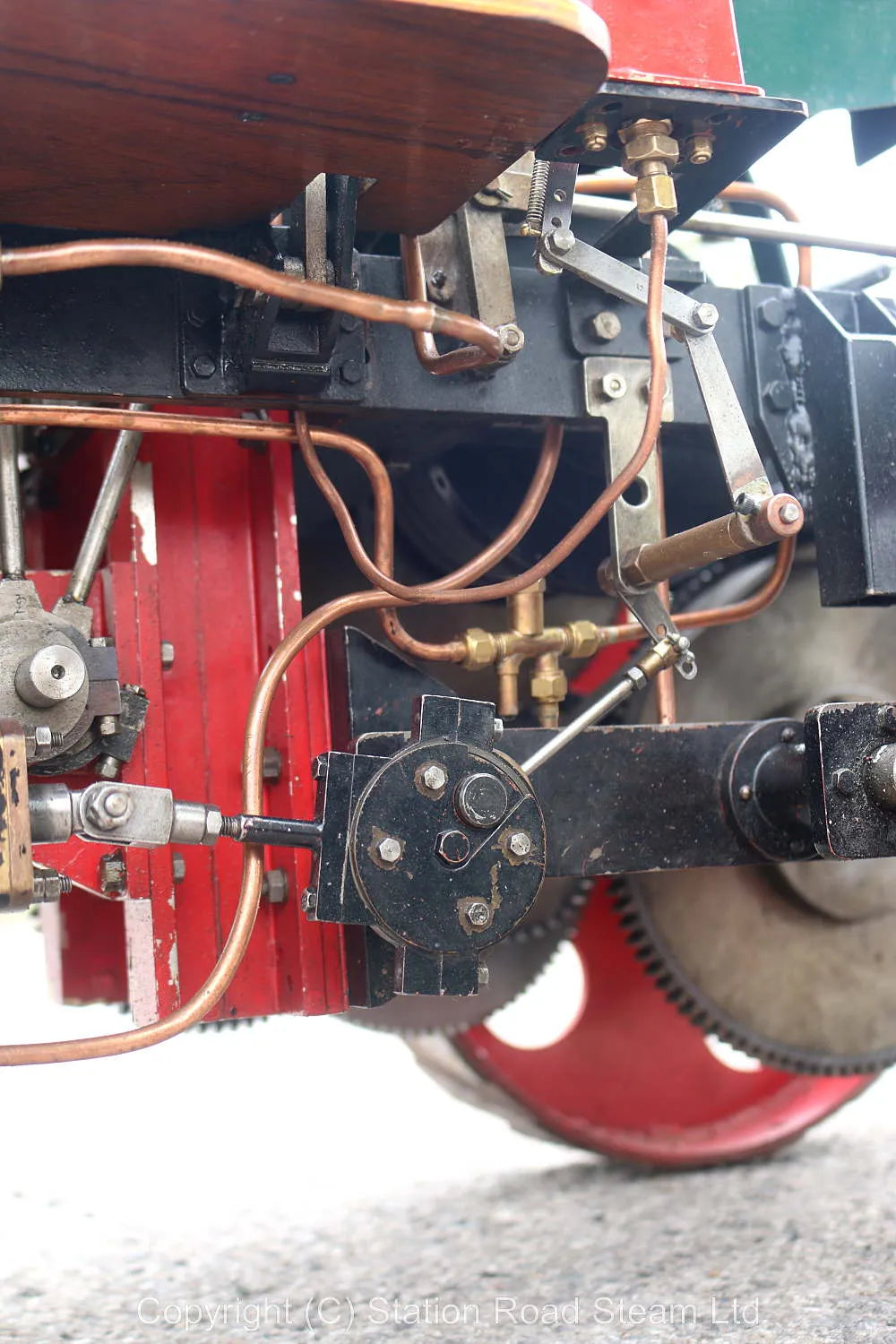

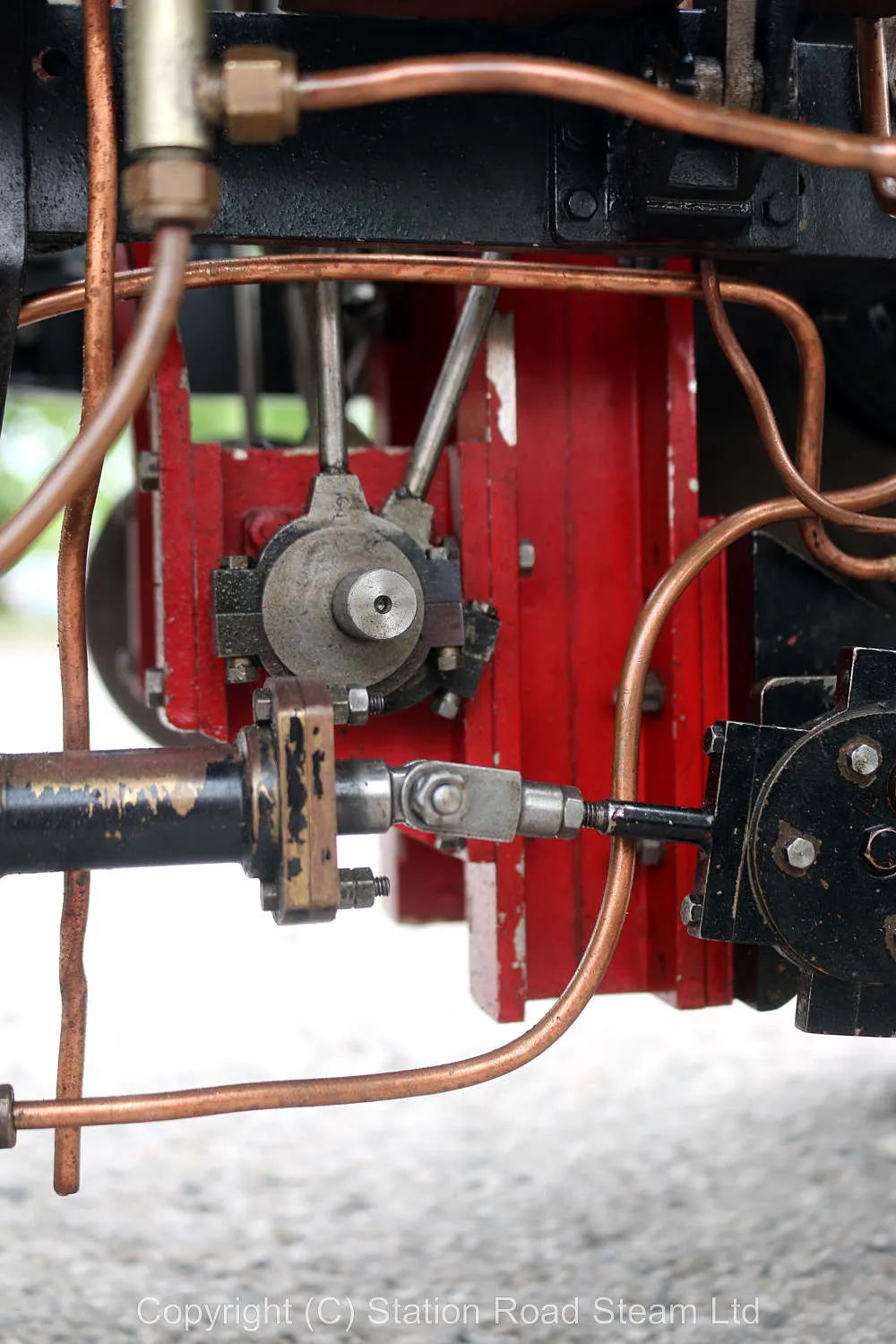

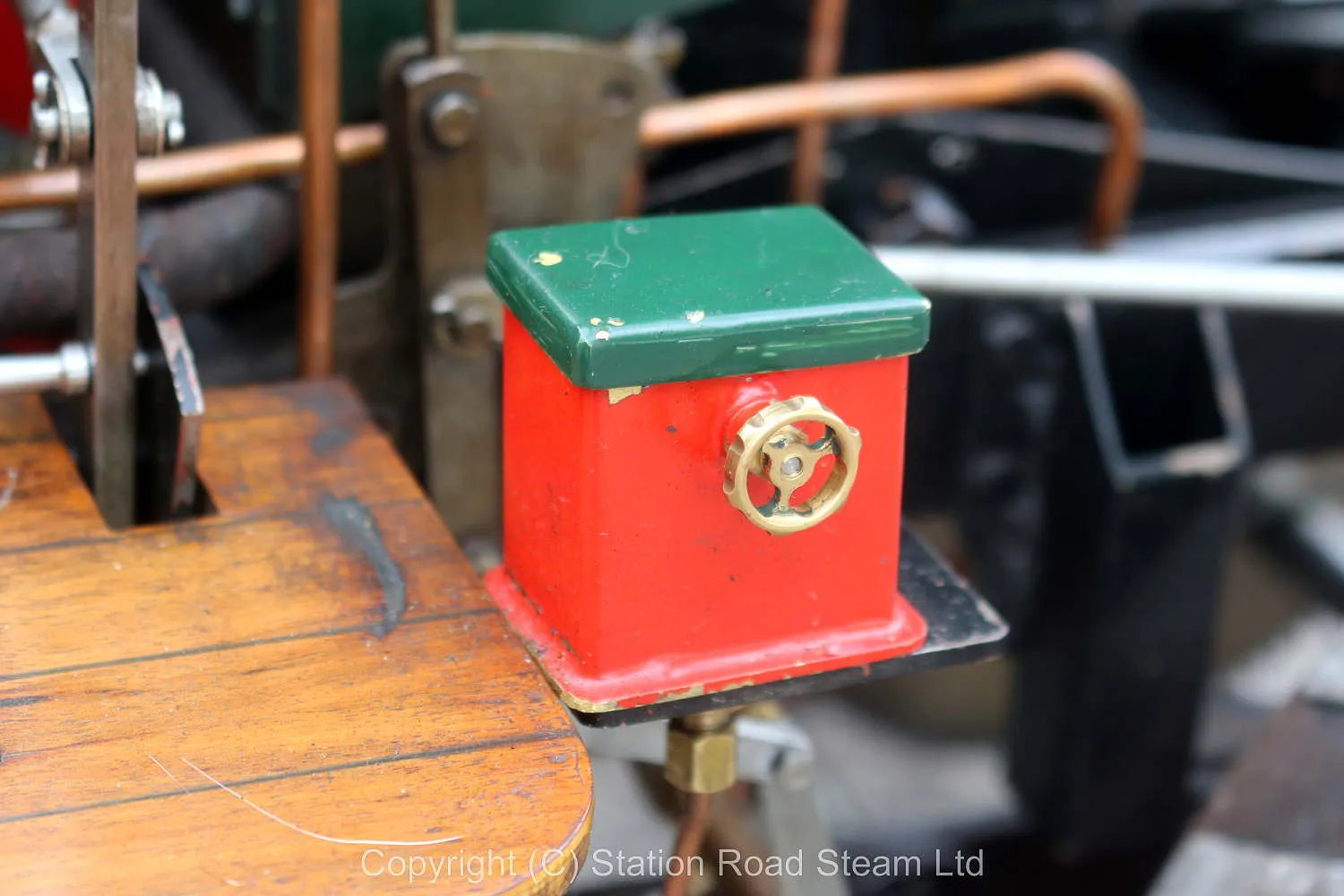

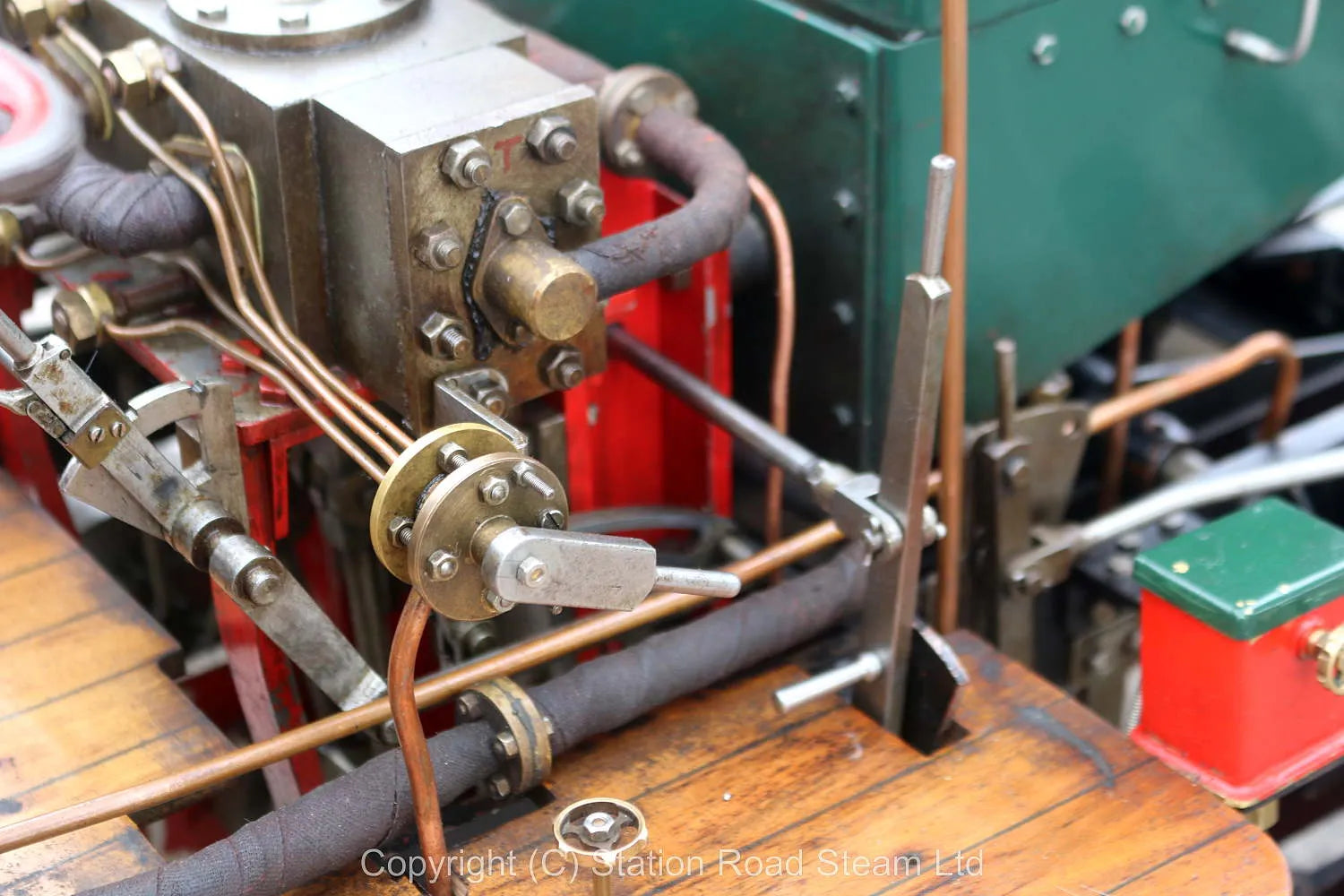

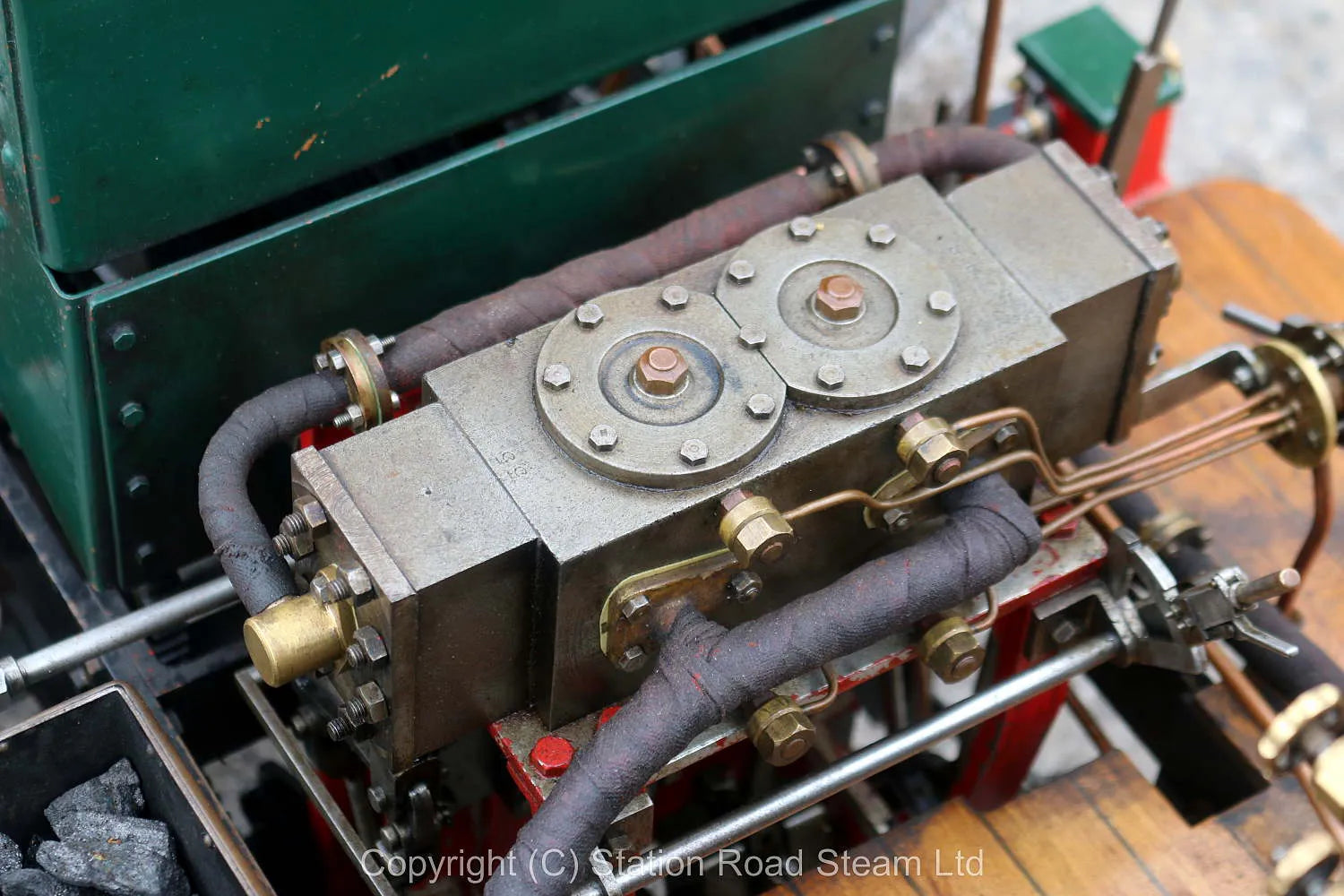

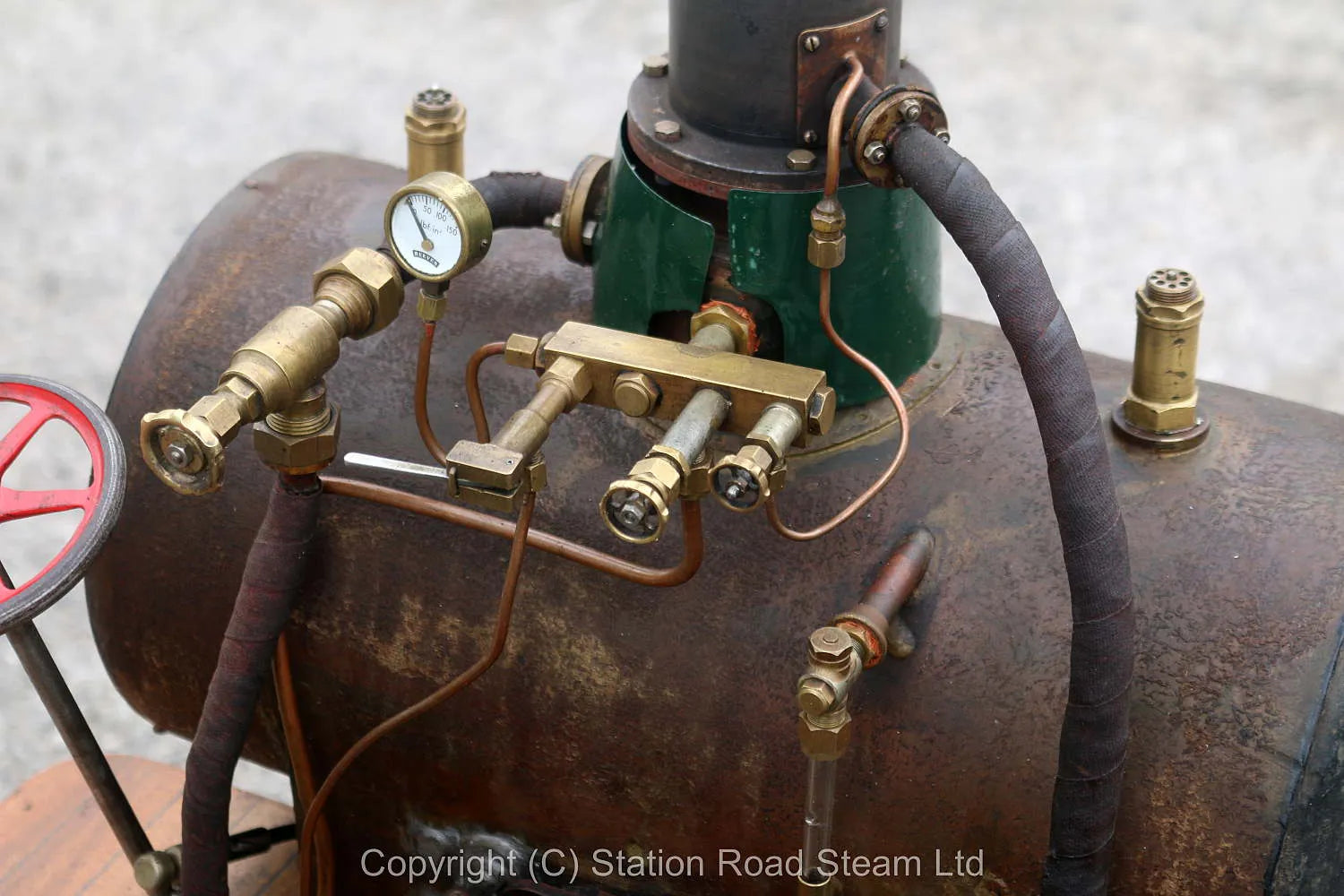

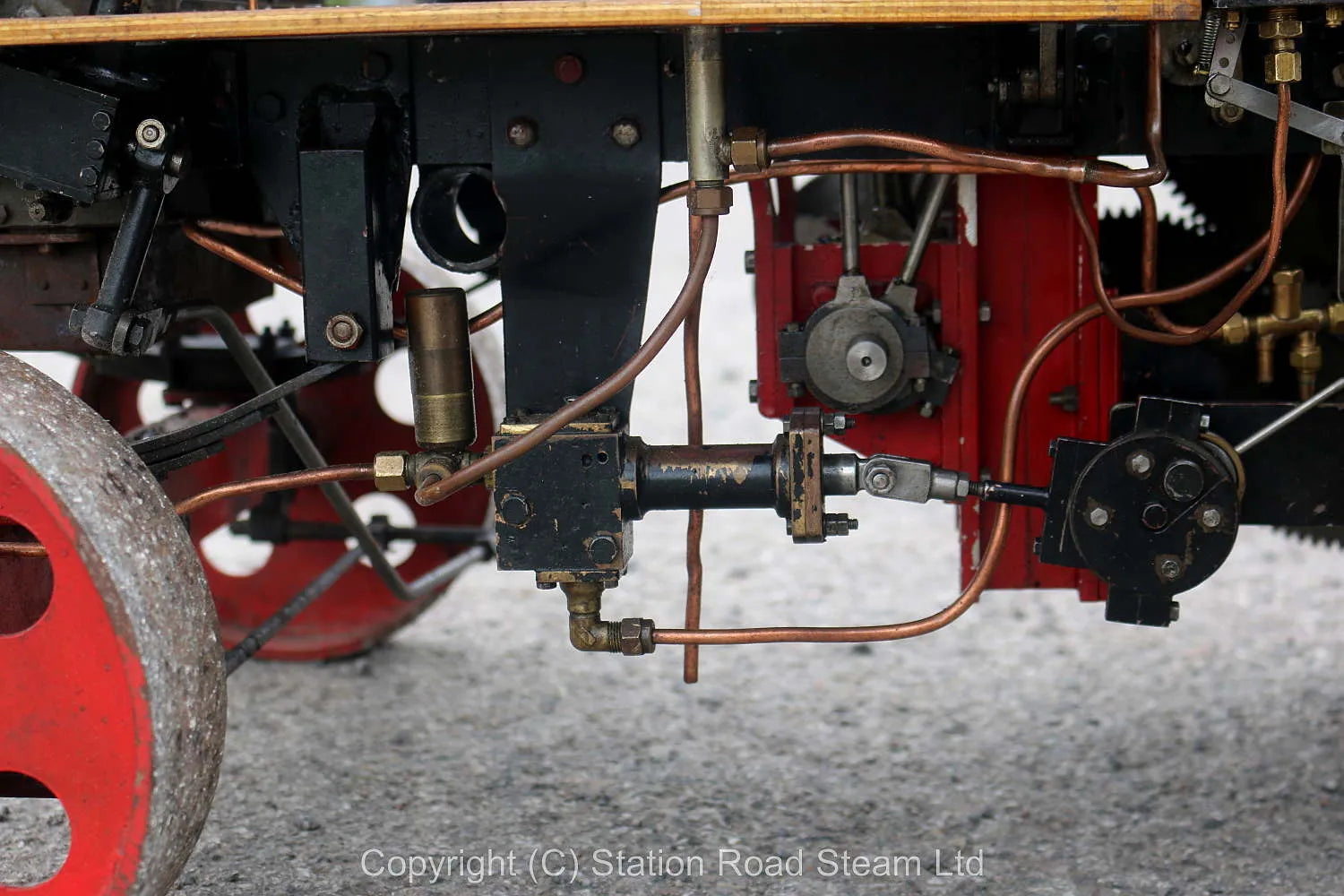

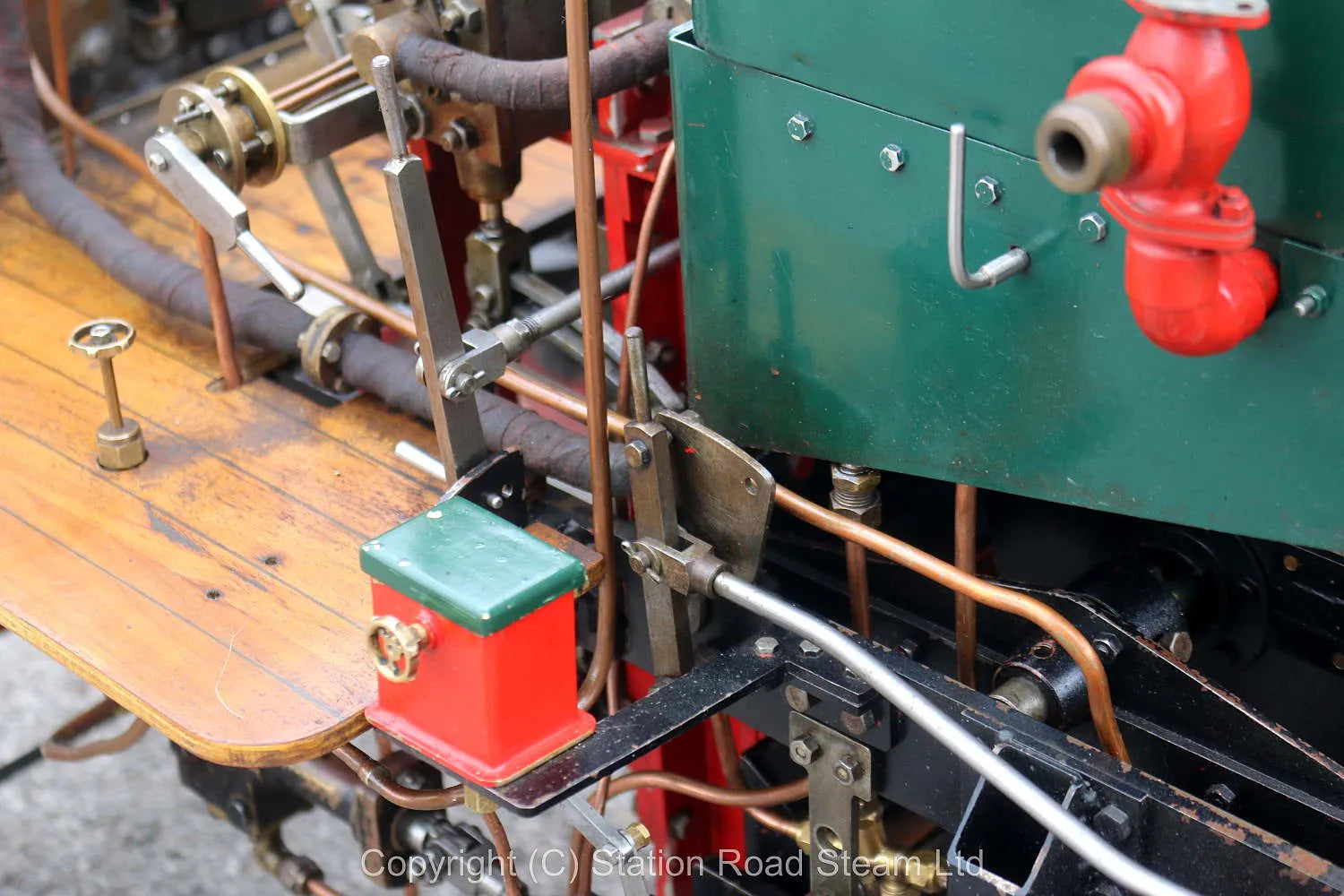

Silver soldered copper water tube boiler, feed by mechanical pump and injector. Twin cylinder double high engine with Stephenson's reversing gear - cast iron cylinders with slide valves, mechanical lubricator.

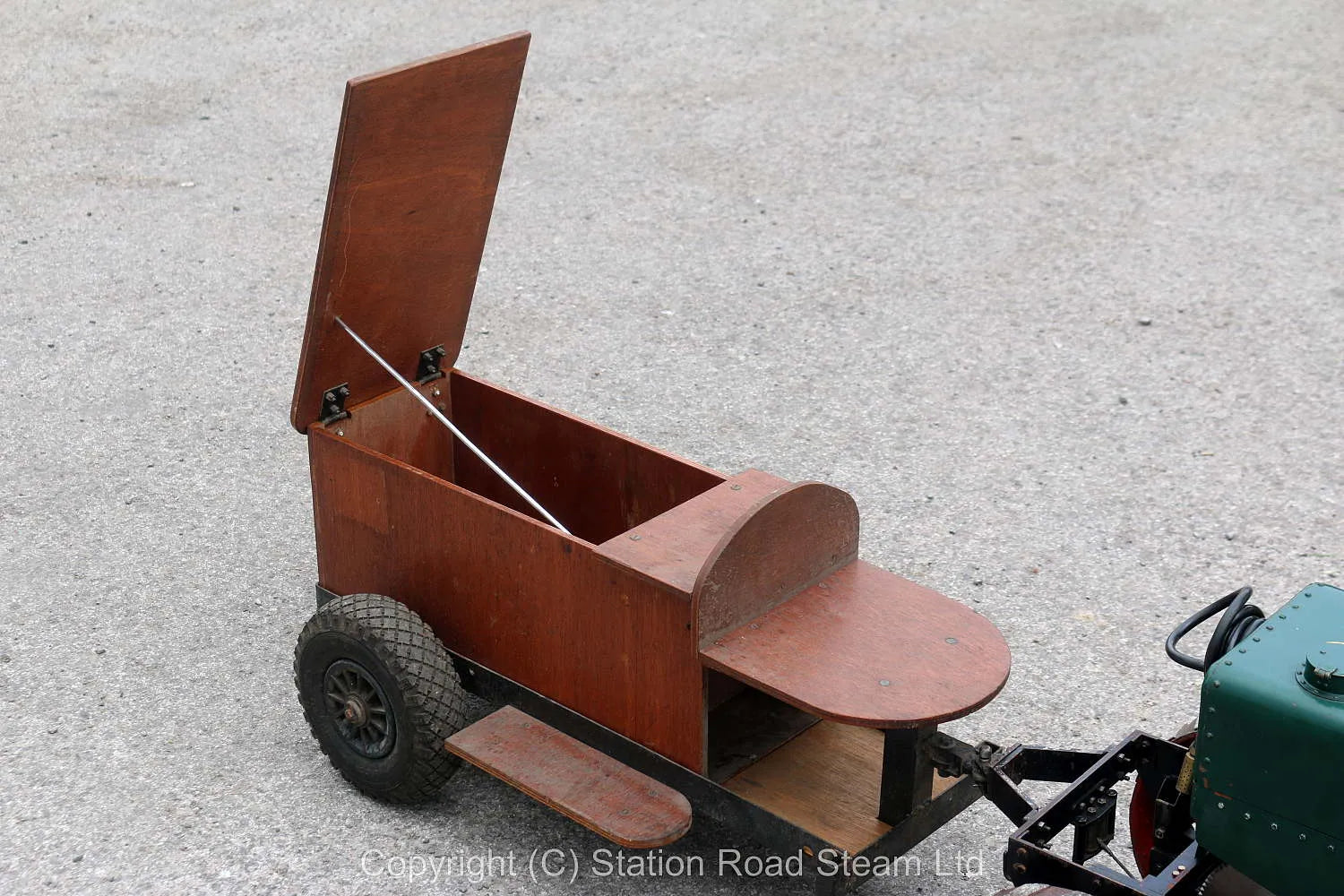

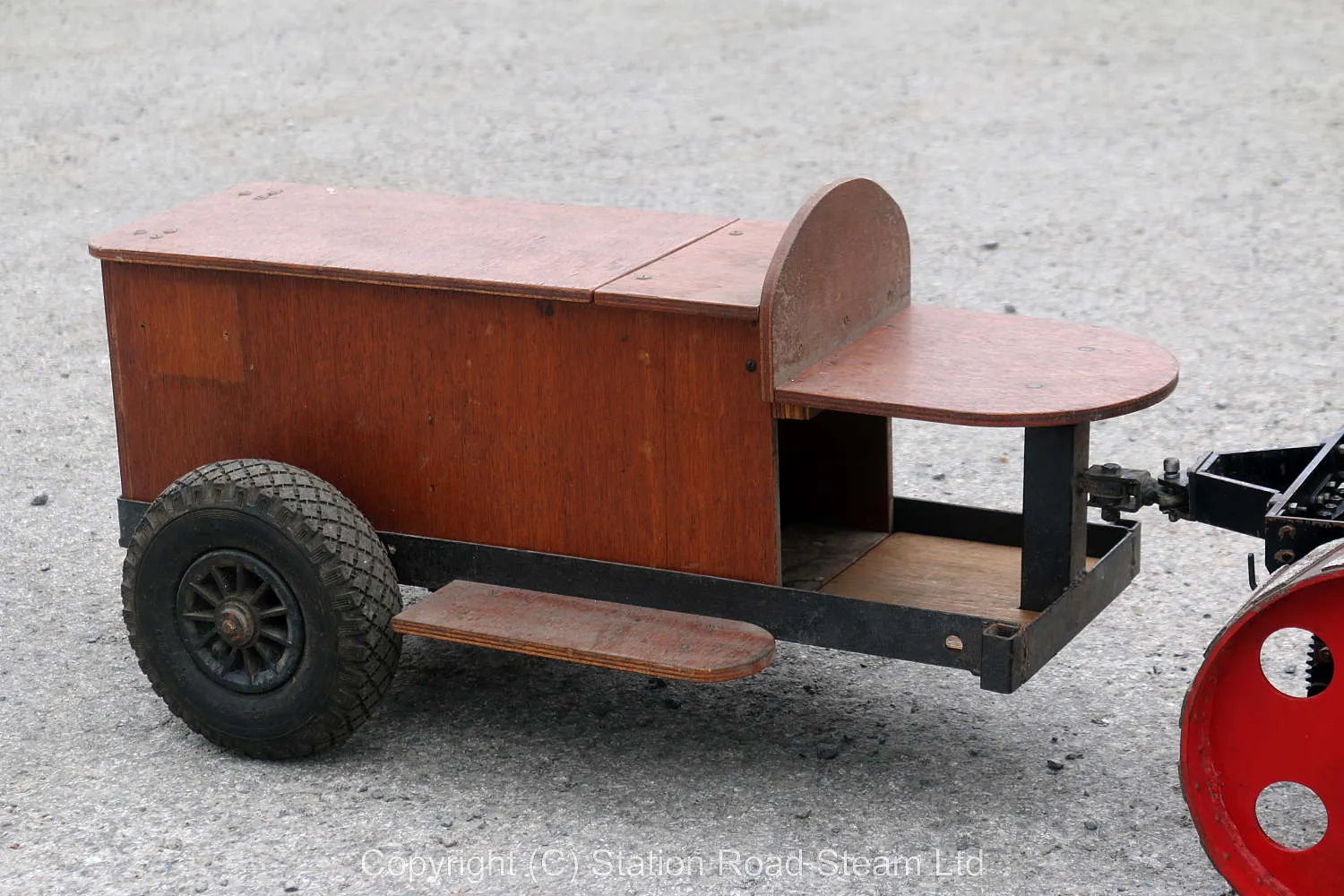

Complete with a driving truck with space for a small passenger.

Technical information

Stock code

7442

Scale

3 inch

Length/inches

40

Weight/Kg

est 140

Boiler type

water tube

Boiler construction

silver soldered

Boiler material

copper

Working pressure

80

CE/UKCA mark

n/a - non-commercial

Boiler number

N36-80-21-98

Safety valve type

spring

Safety valve

2

Fusible plug

no

Whistle

yes

Mechanical pump

1

Injector

1

Date out

Jun-17
