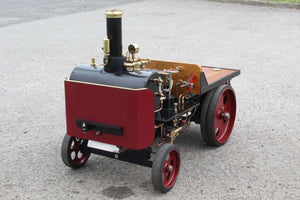

3 inch scale Suffolk dredging tractor

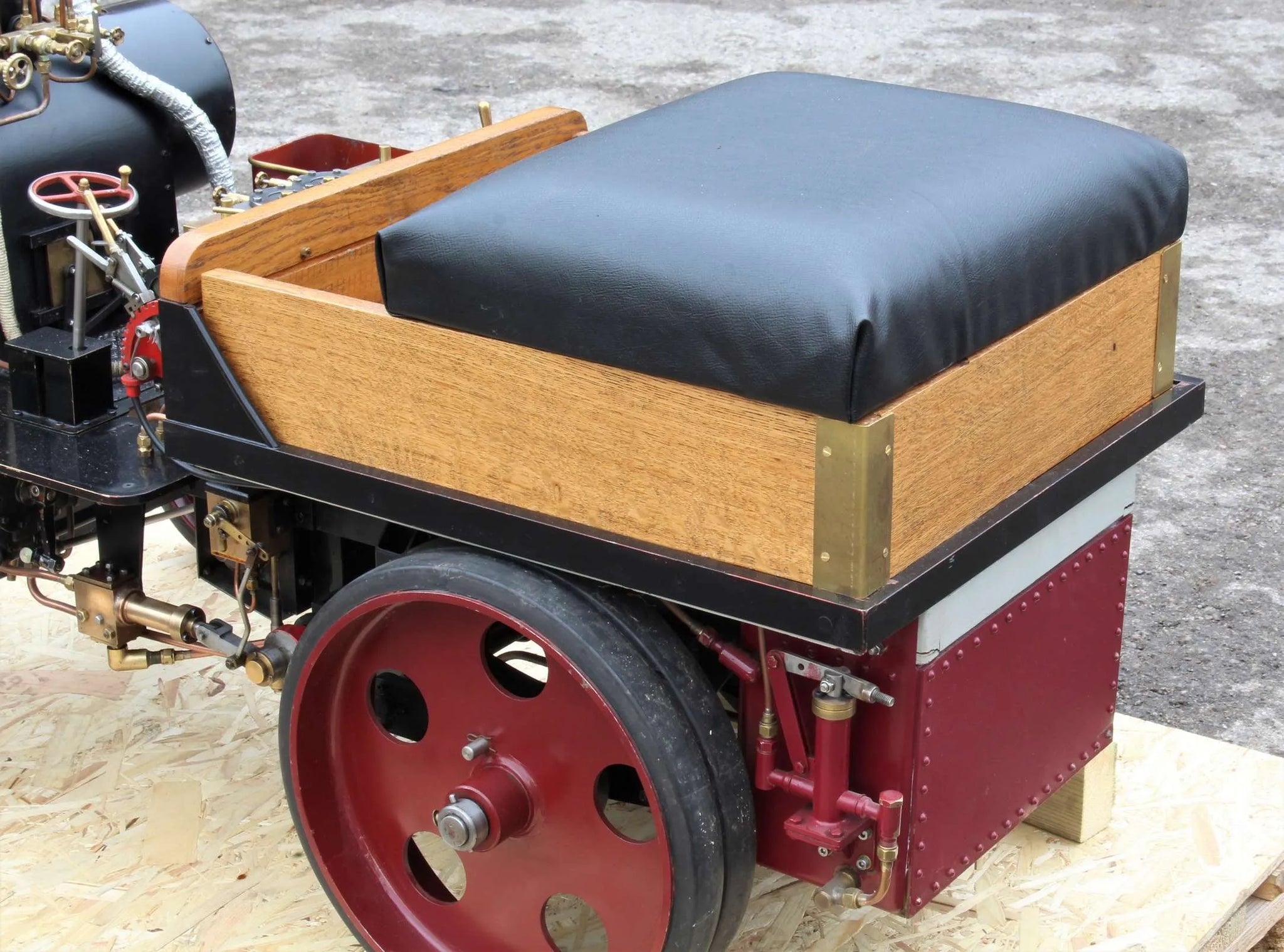

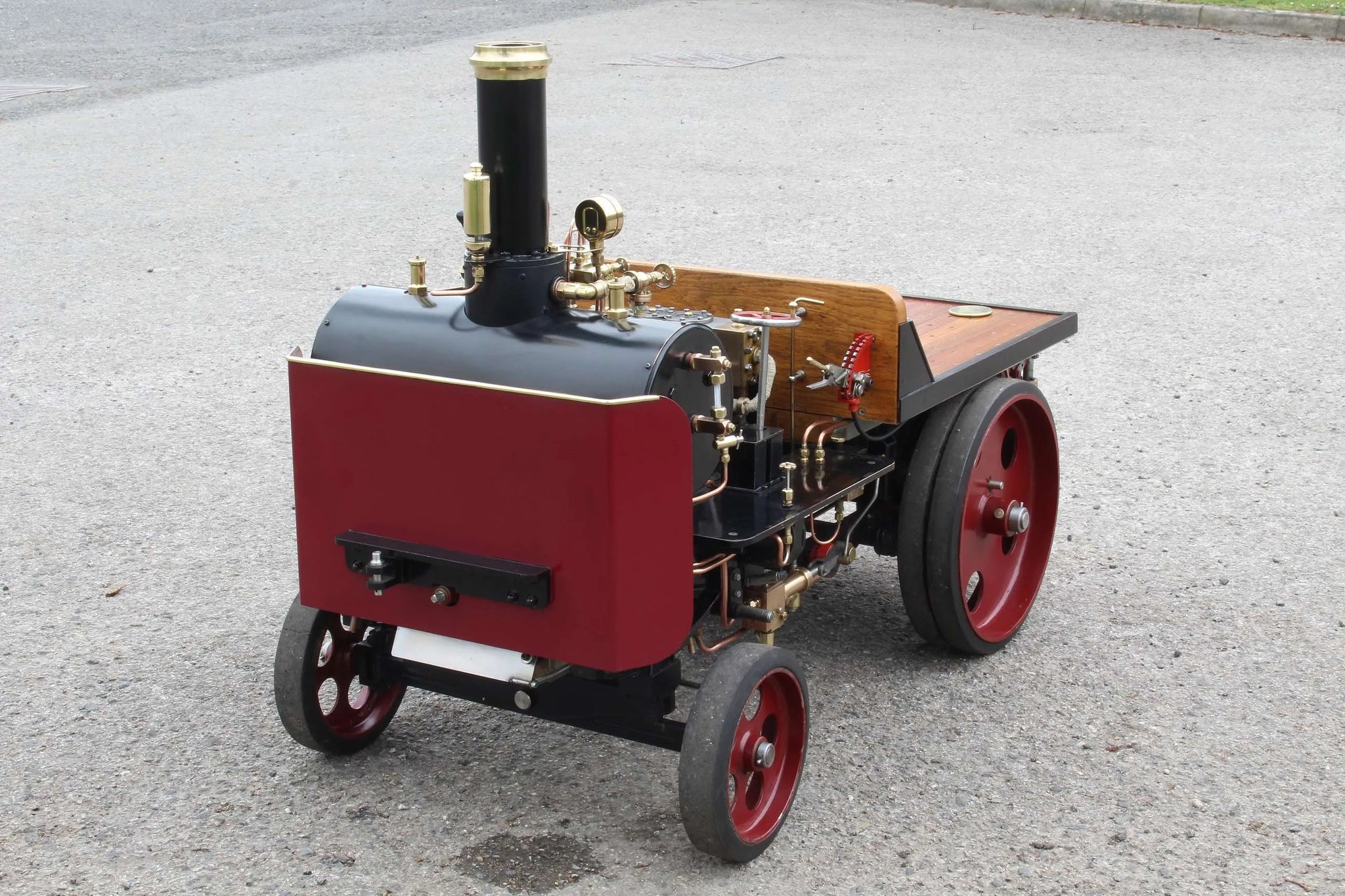

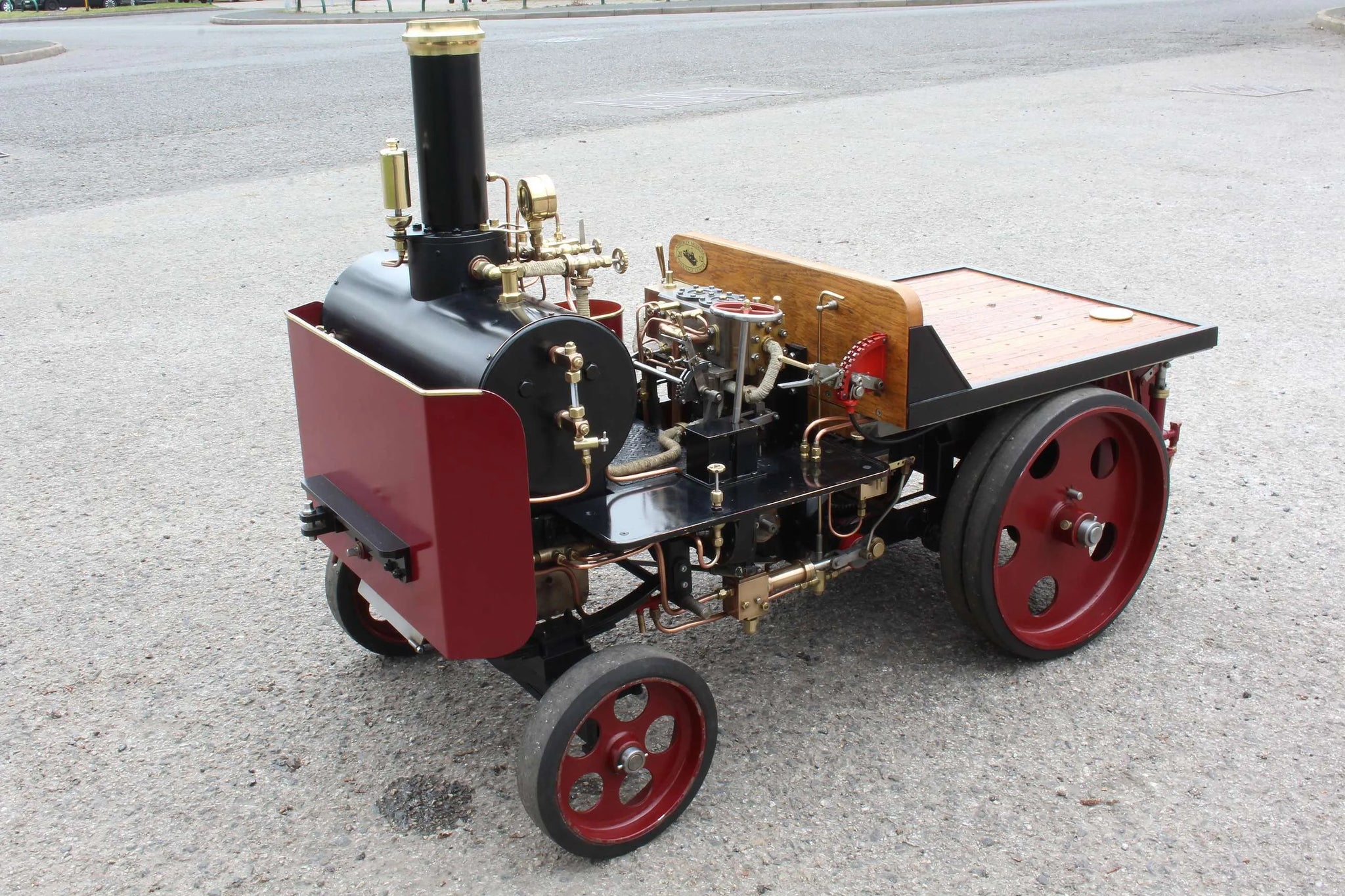

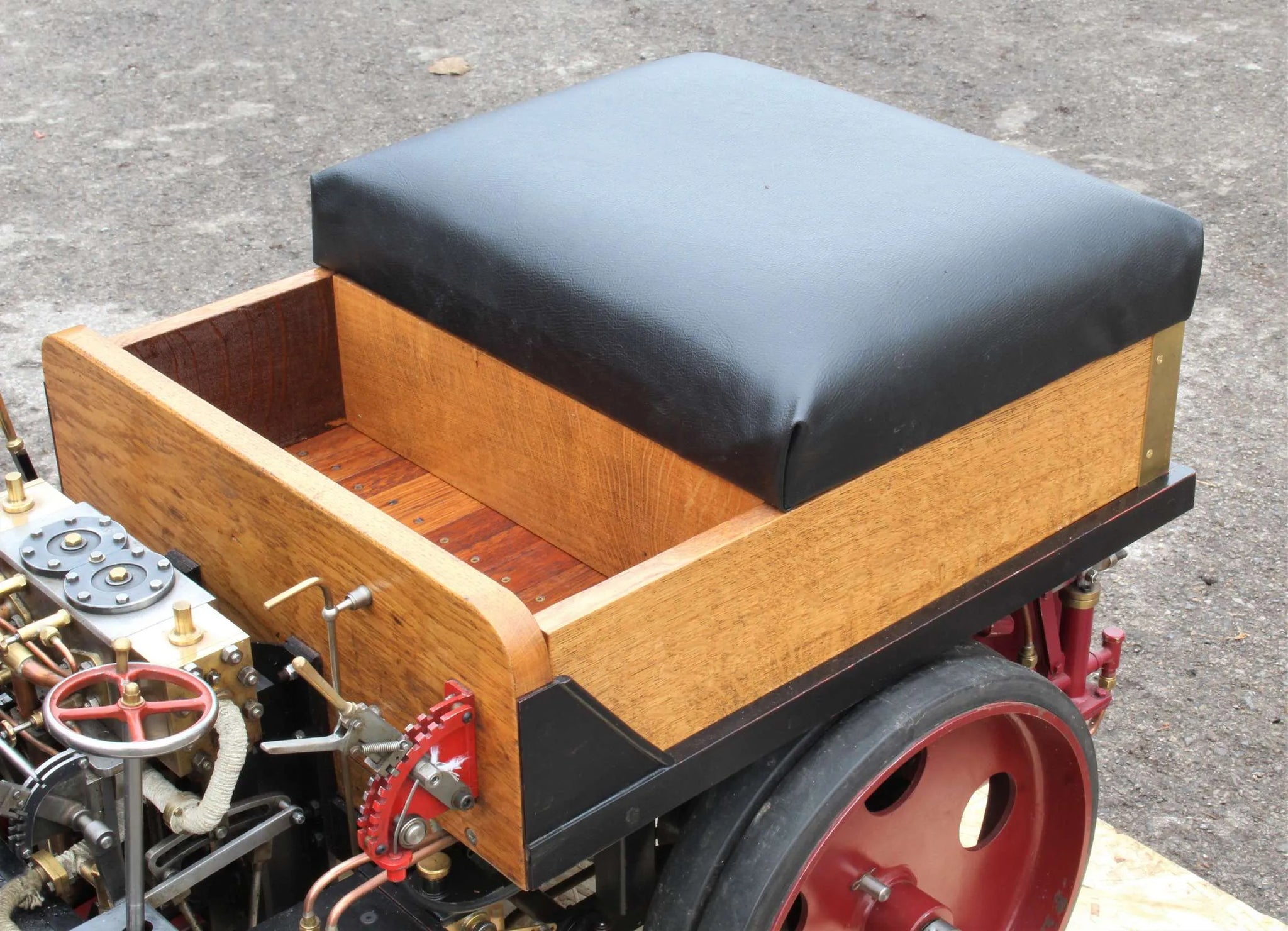

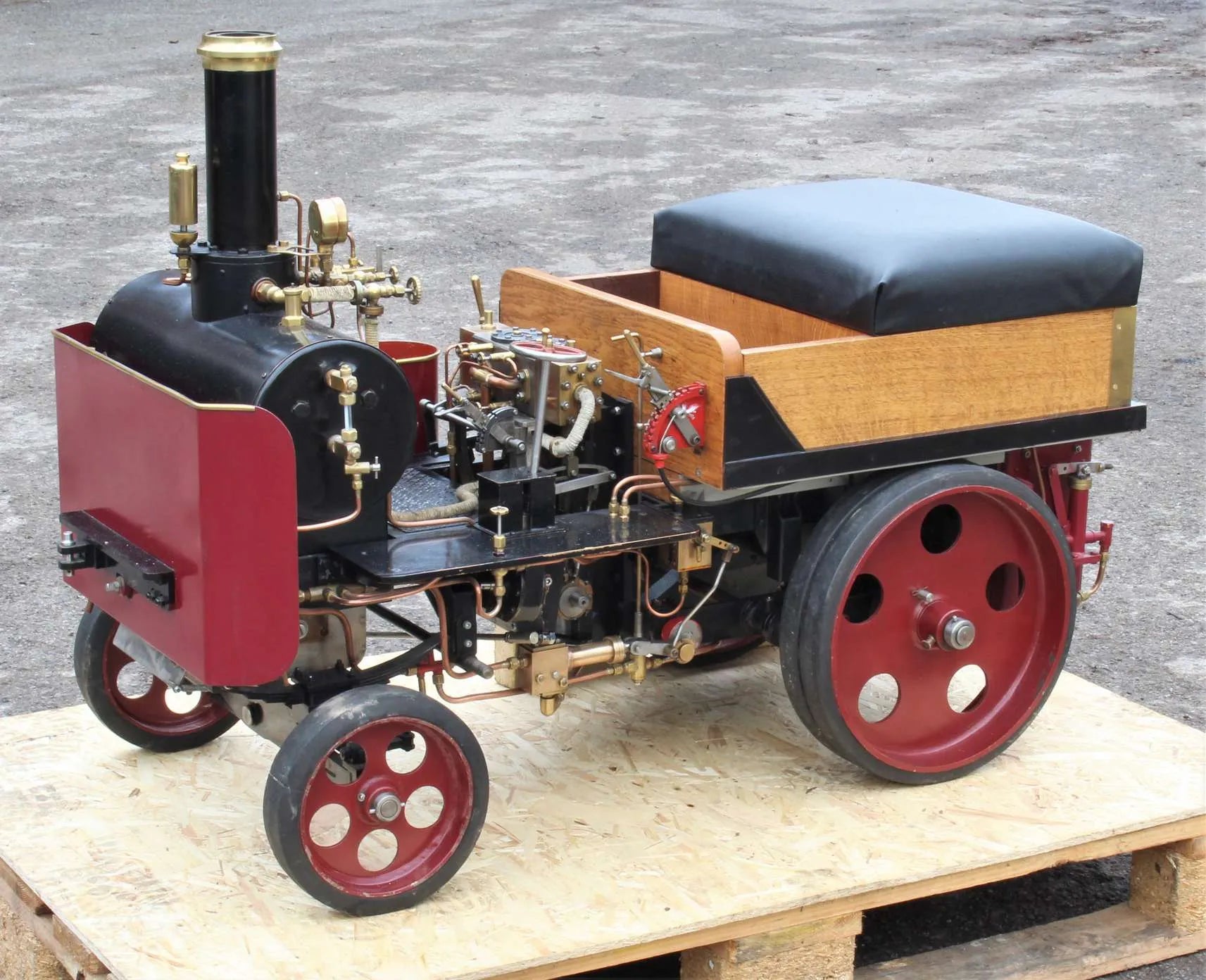

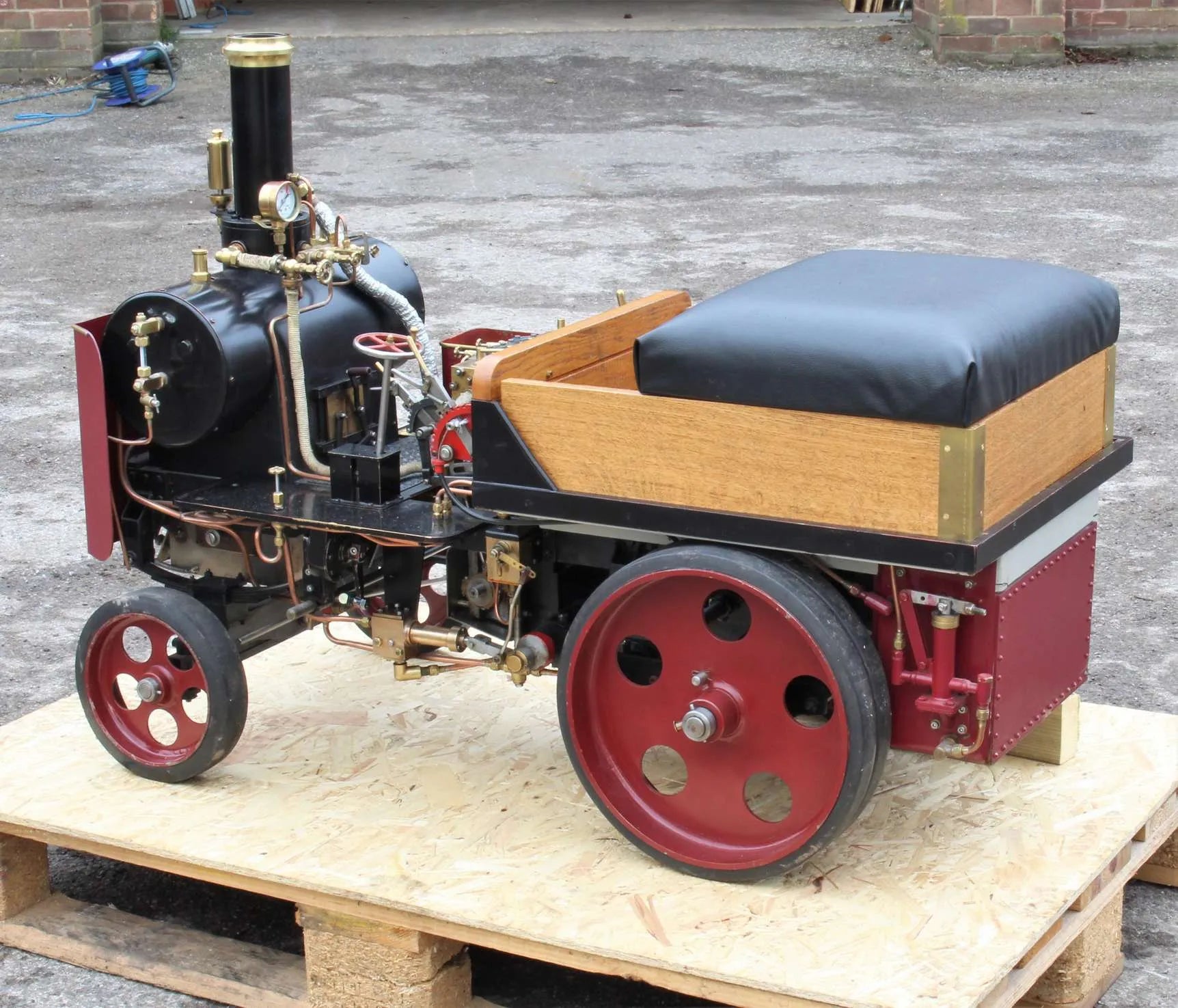

We sold this one at the beginning of last year, it's recently come back to us looking, if anything, even more polished and now sporting a finely made and upholstered seat. Pictures opposite are mainly from last year, save those taken on a pallet this morning showing the seat.

I think this must be the nicest Suffolk dredging tractor we've ever had, a combination of a good quality build, an interesting variation on a thoroughly practical design and a really well-sorted engine make it a delight to drive.

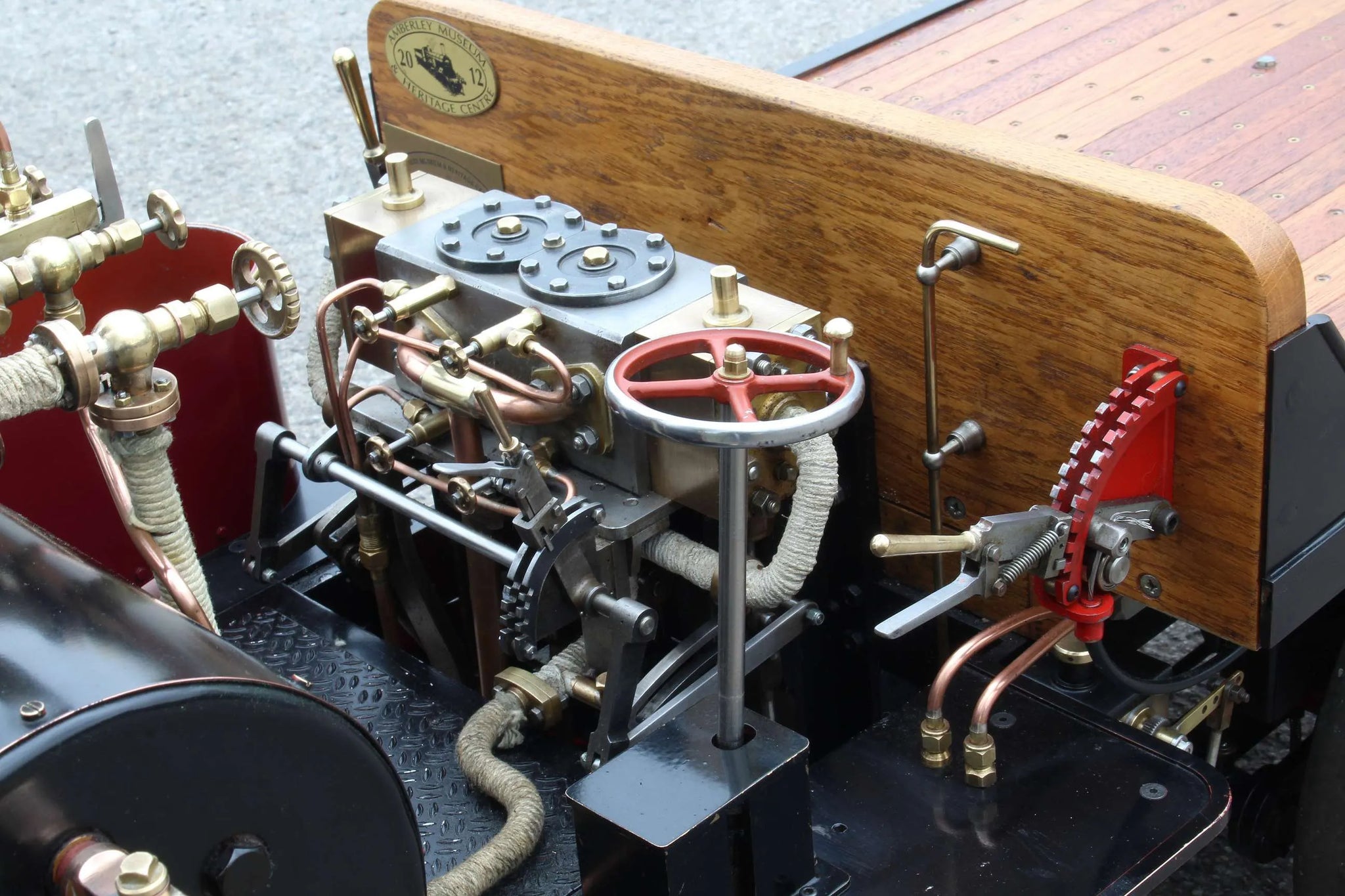

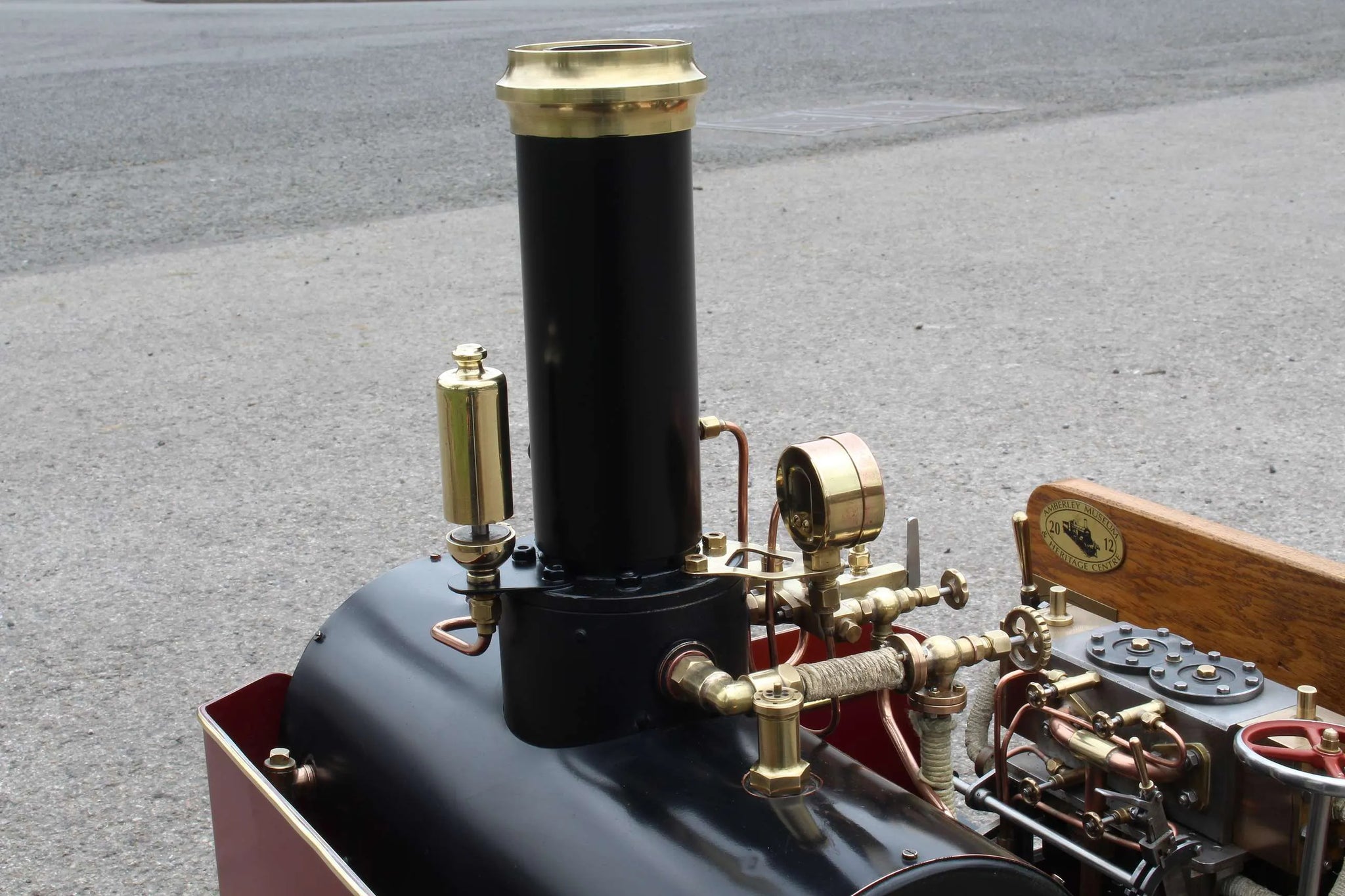

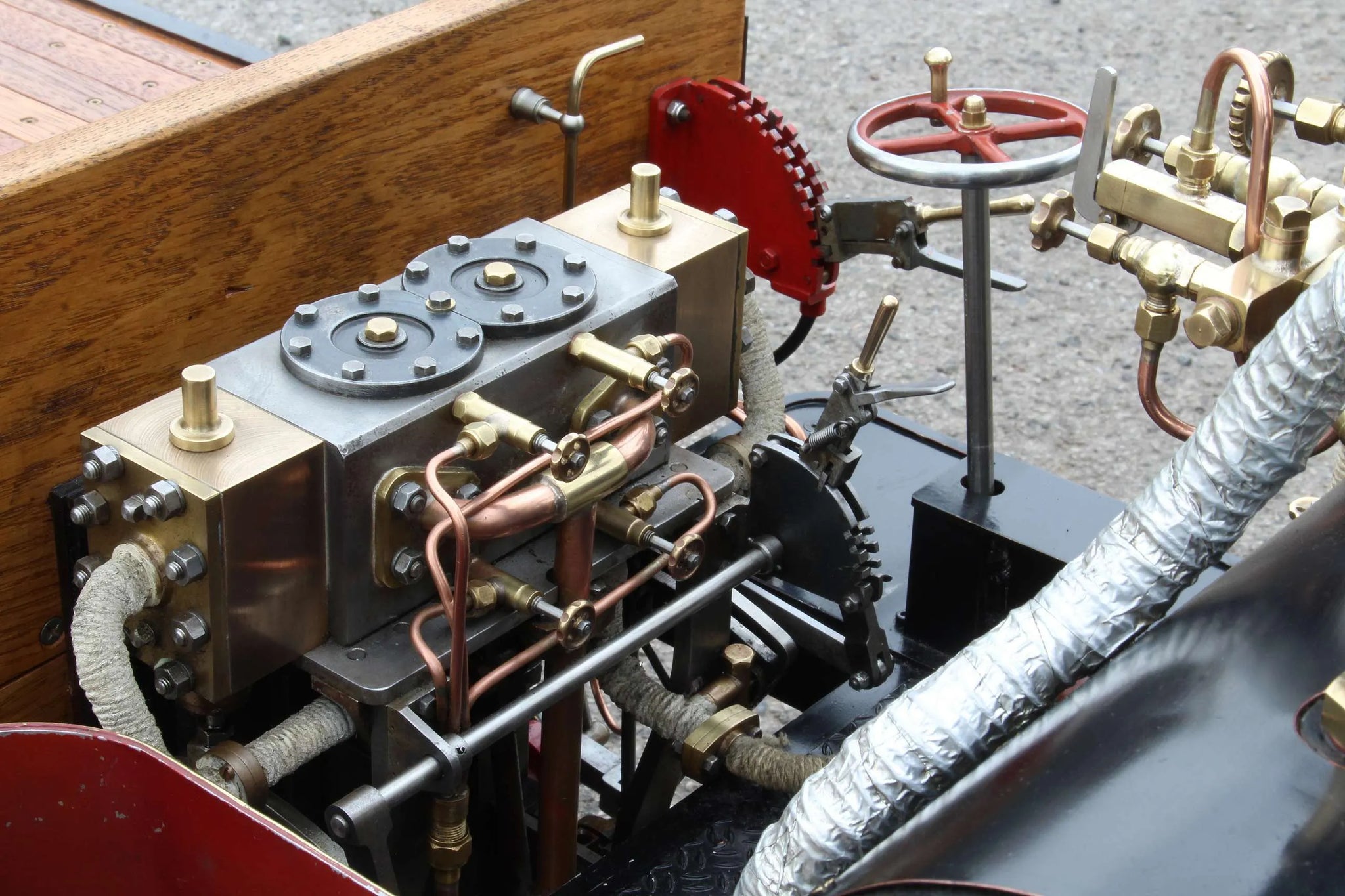

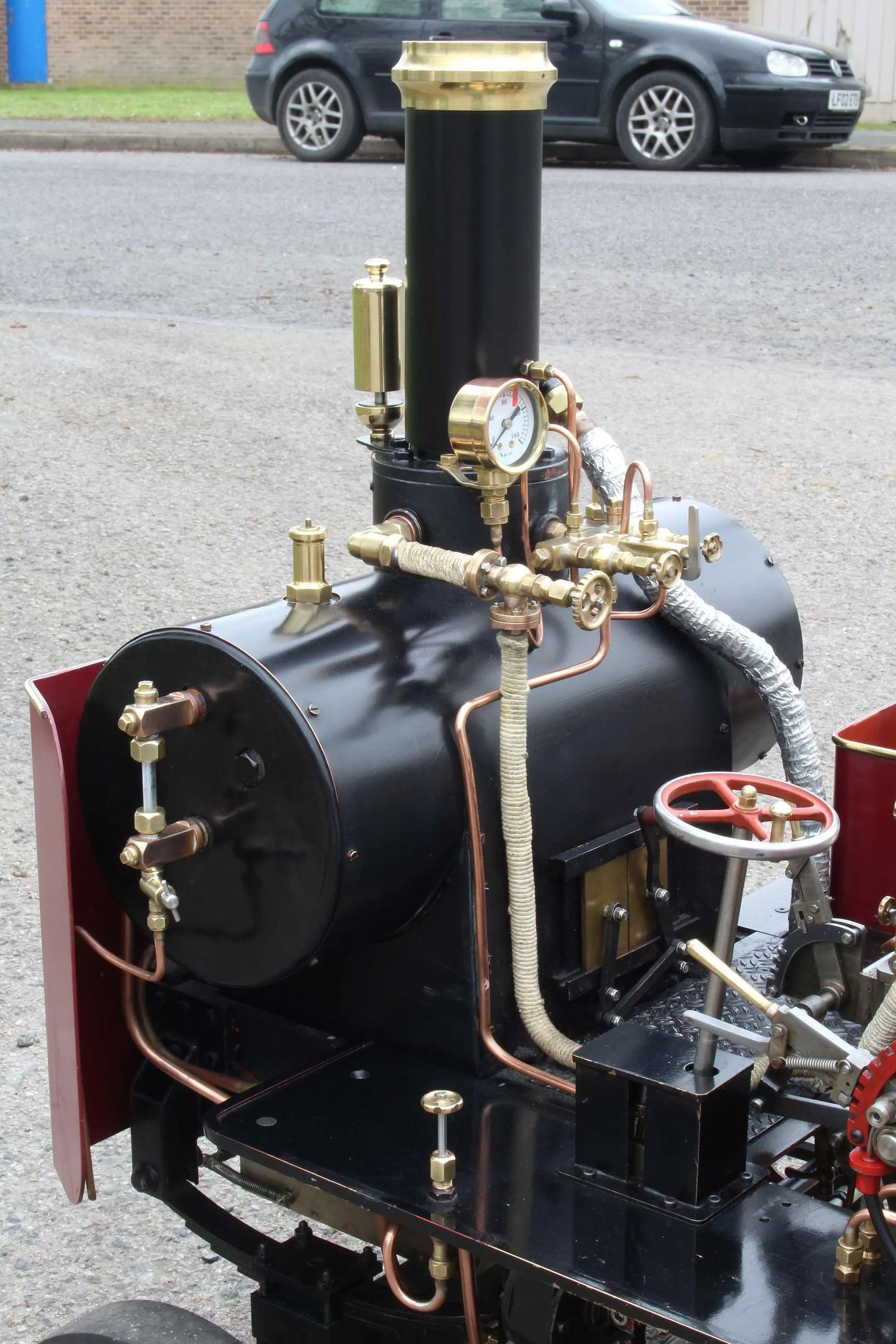

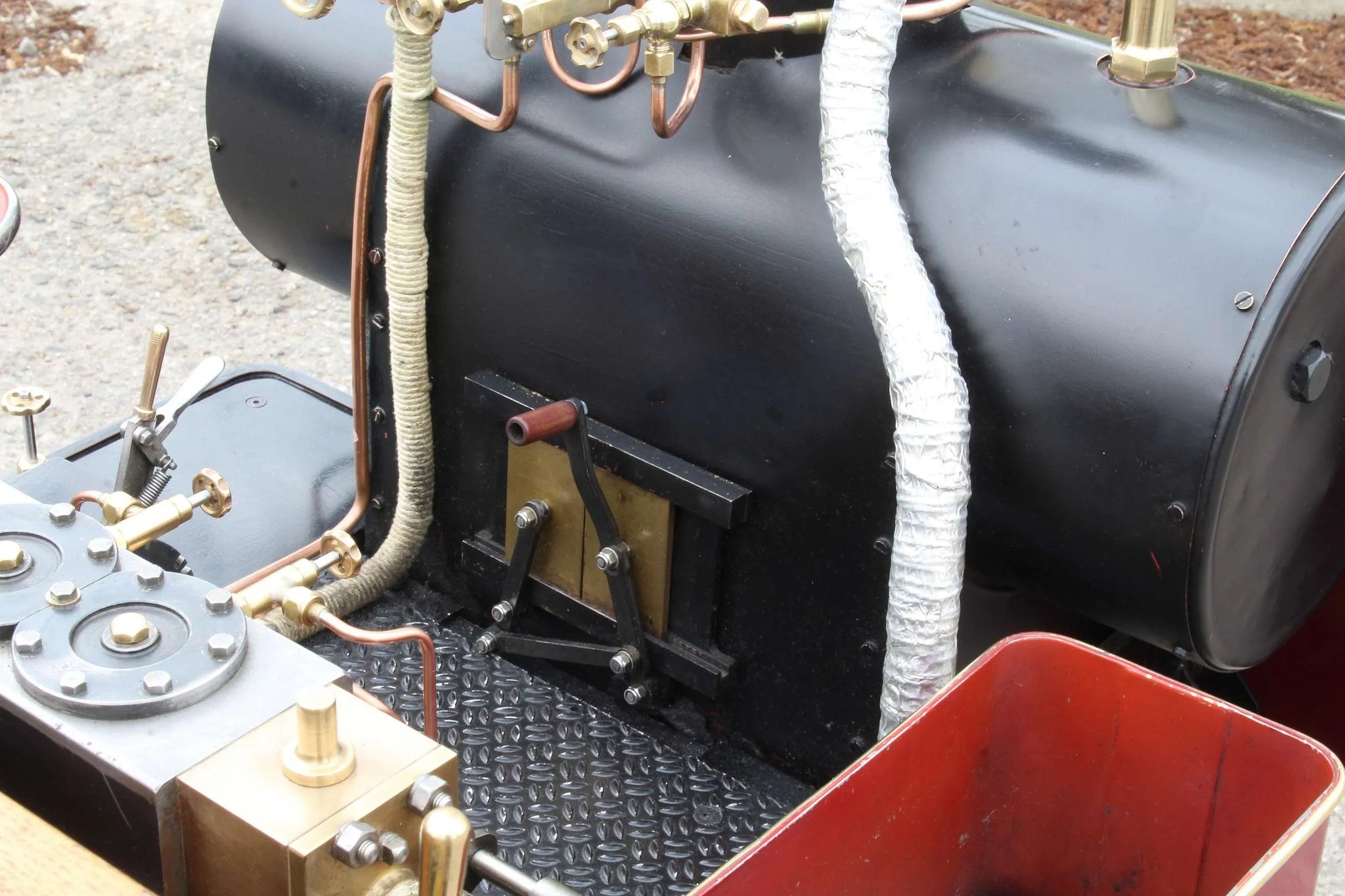

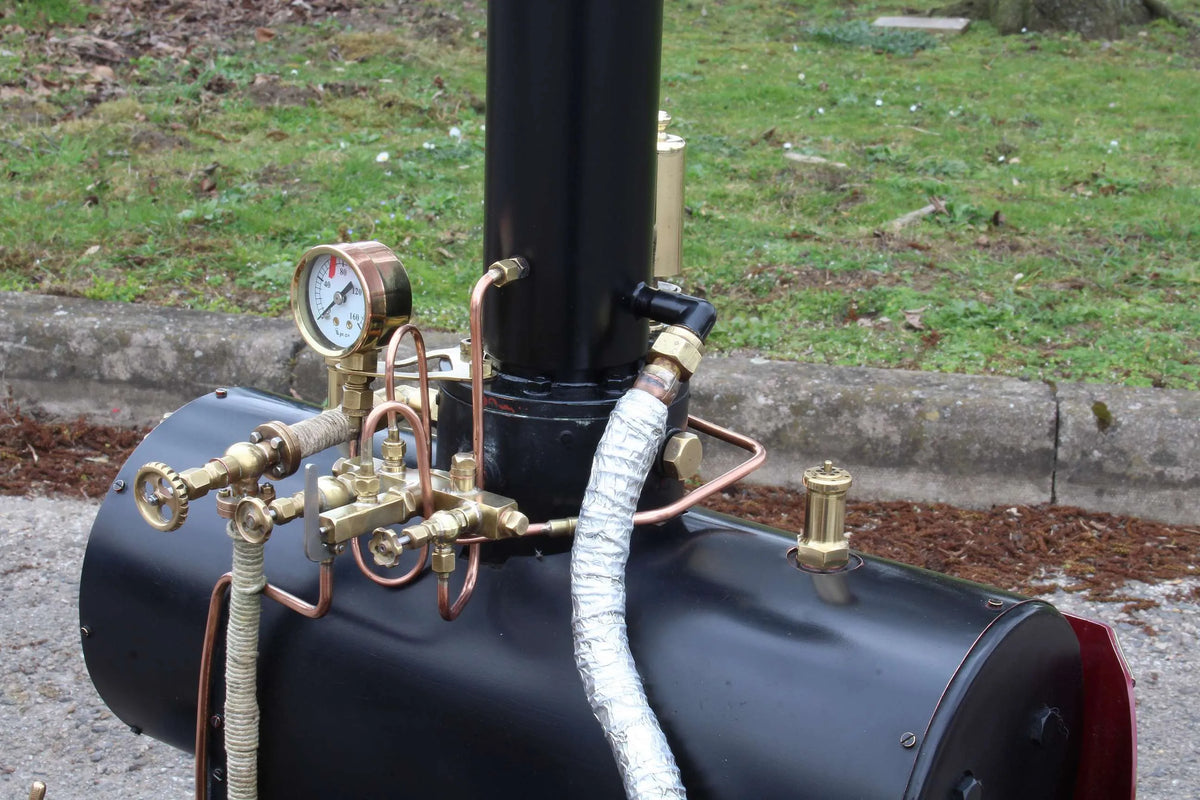

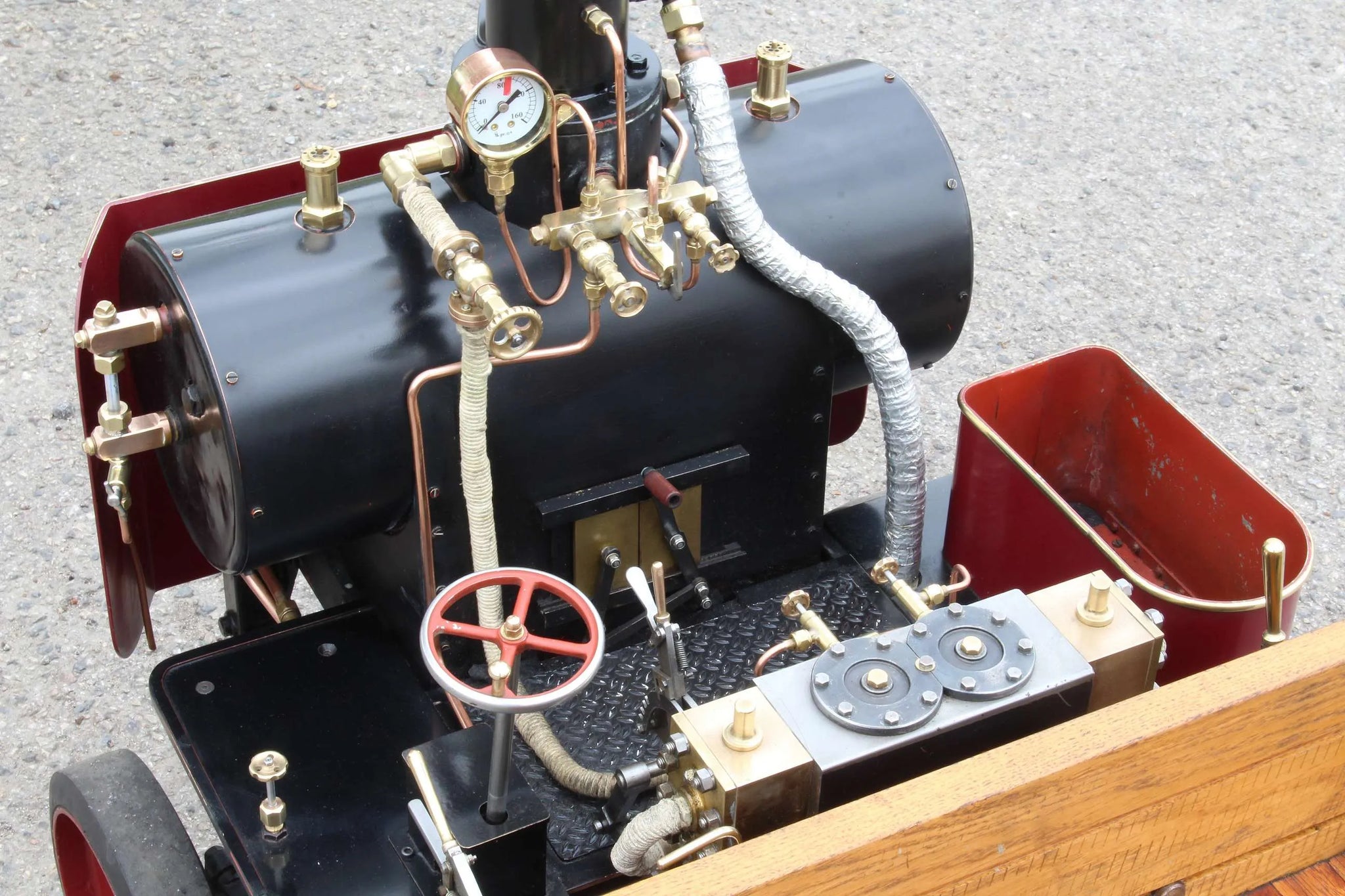

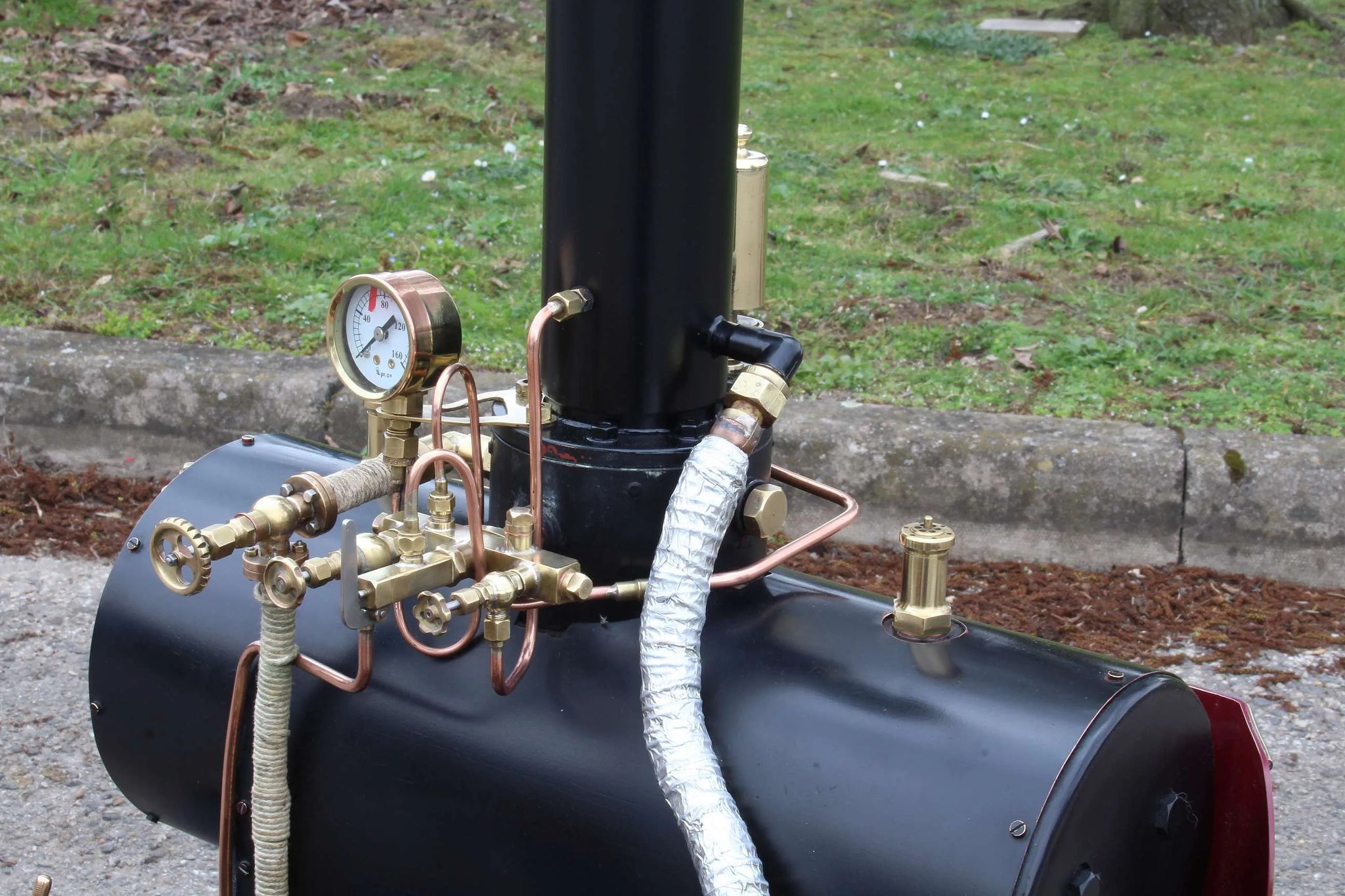

Originally serialised in "Model Engineer" magazine in the early 1980s by John Haining - well known by that time for his ploughing engine and tackle designs, along with the Durham & North Yorkshire agricultural engine - the Suffolk dredging tractor made up to a good-sized engine in 3 inch scale. Went surprisingly well too, with a twin cylinder double high engine giving instant starting with no dead centres to worry about, coupled to a free-steaming coal-fired cross-tube boiler.

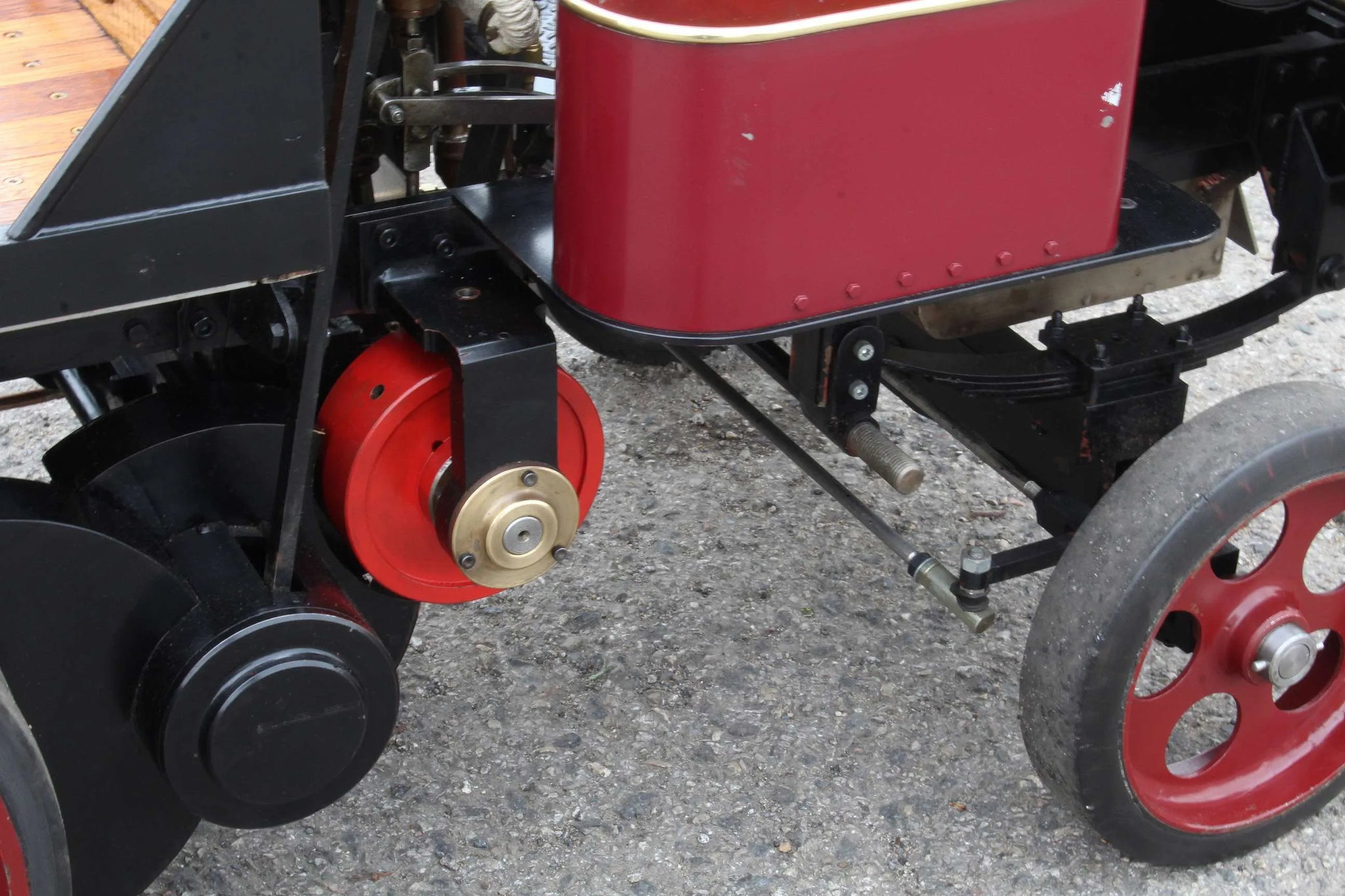

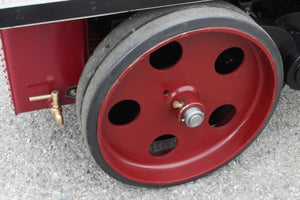

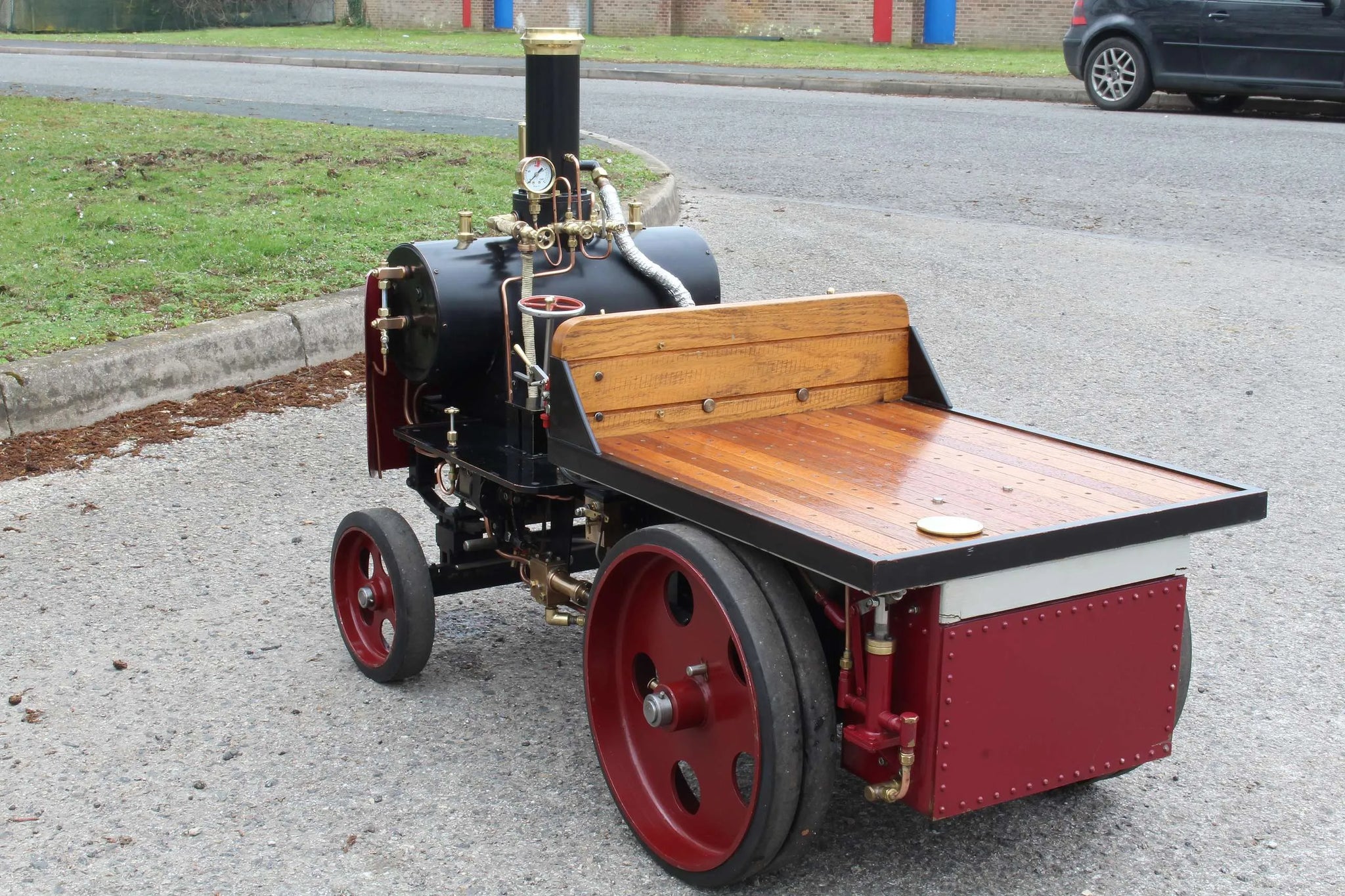

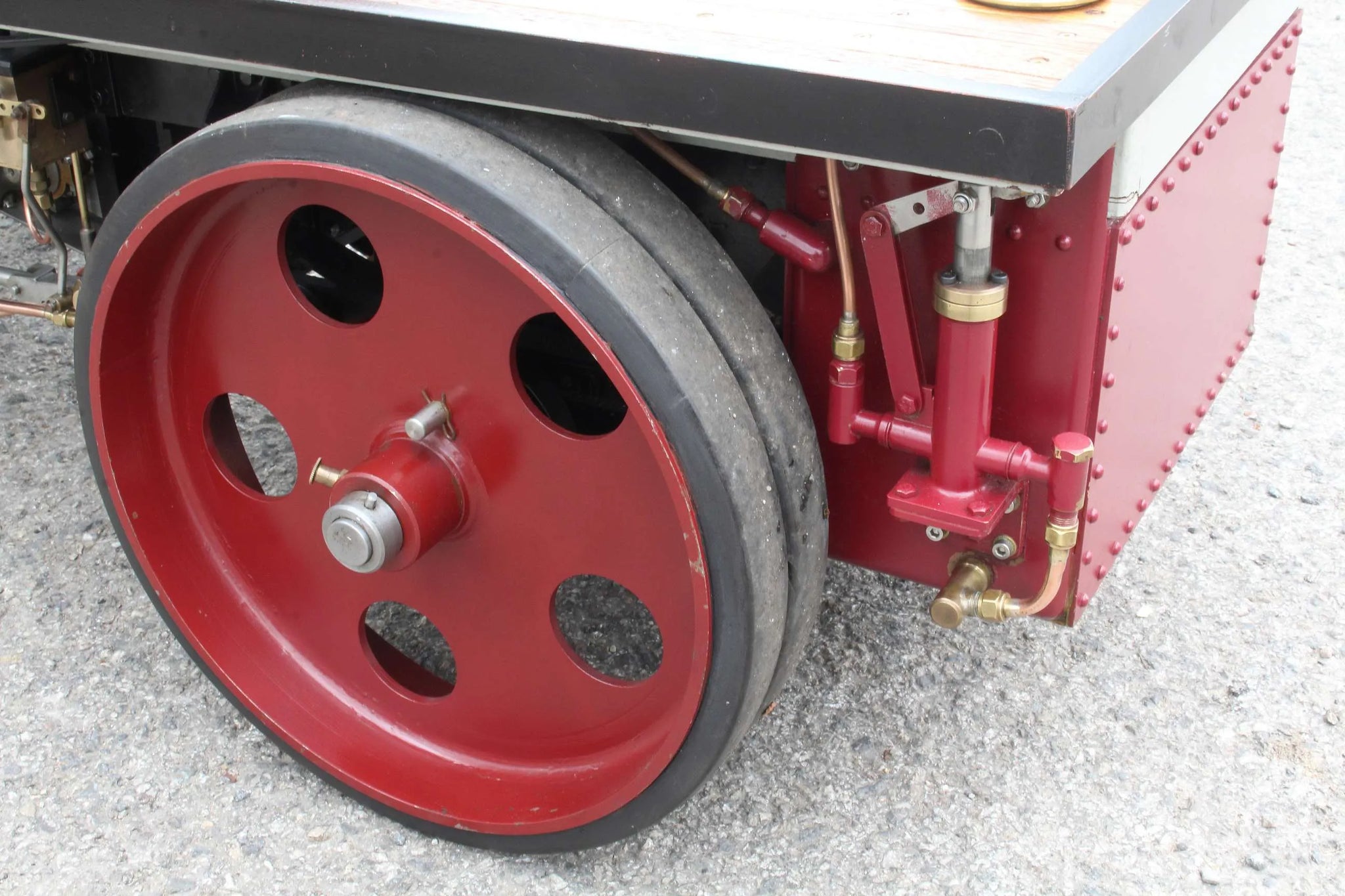

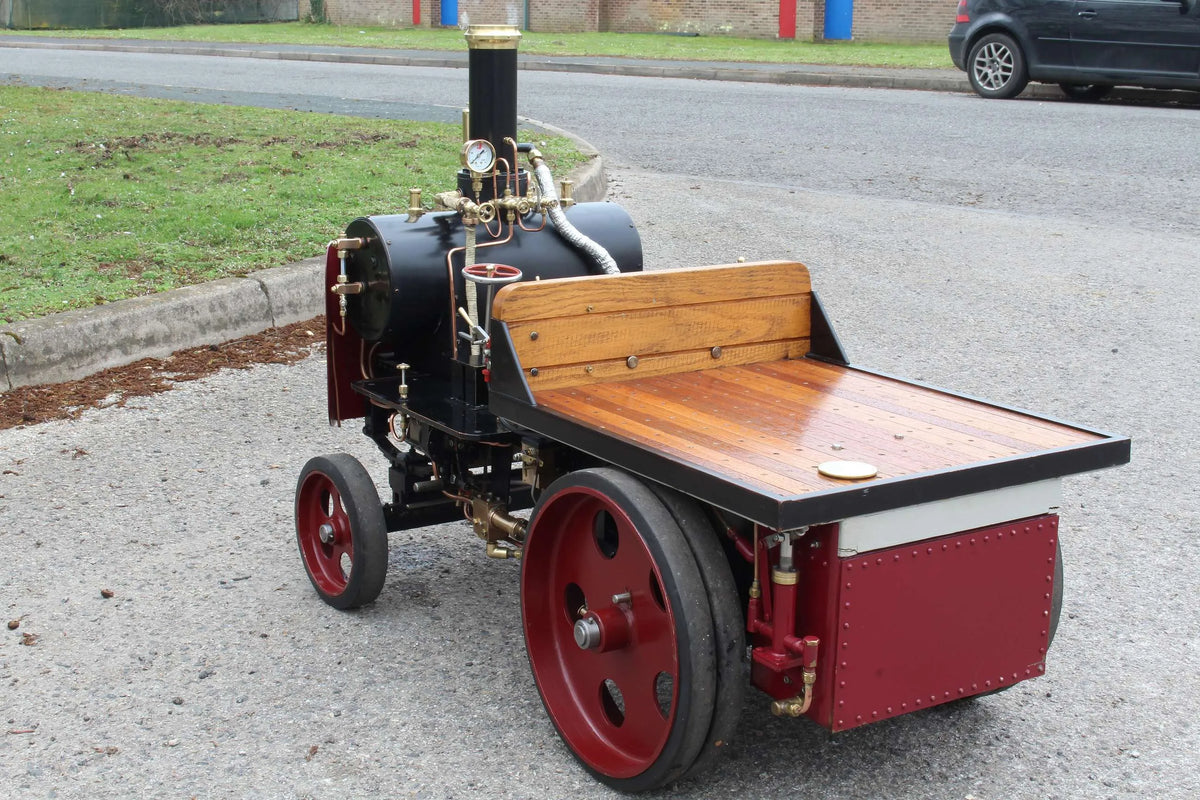

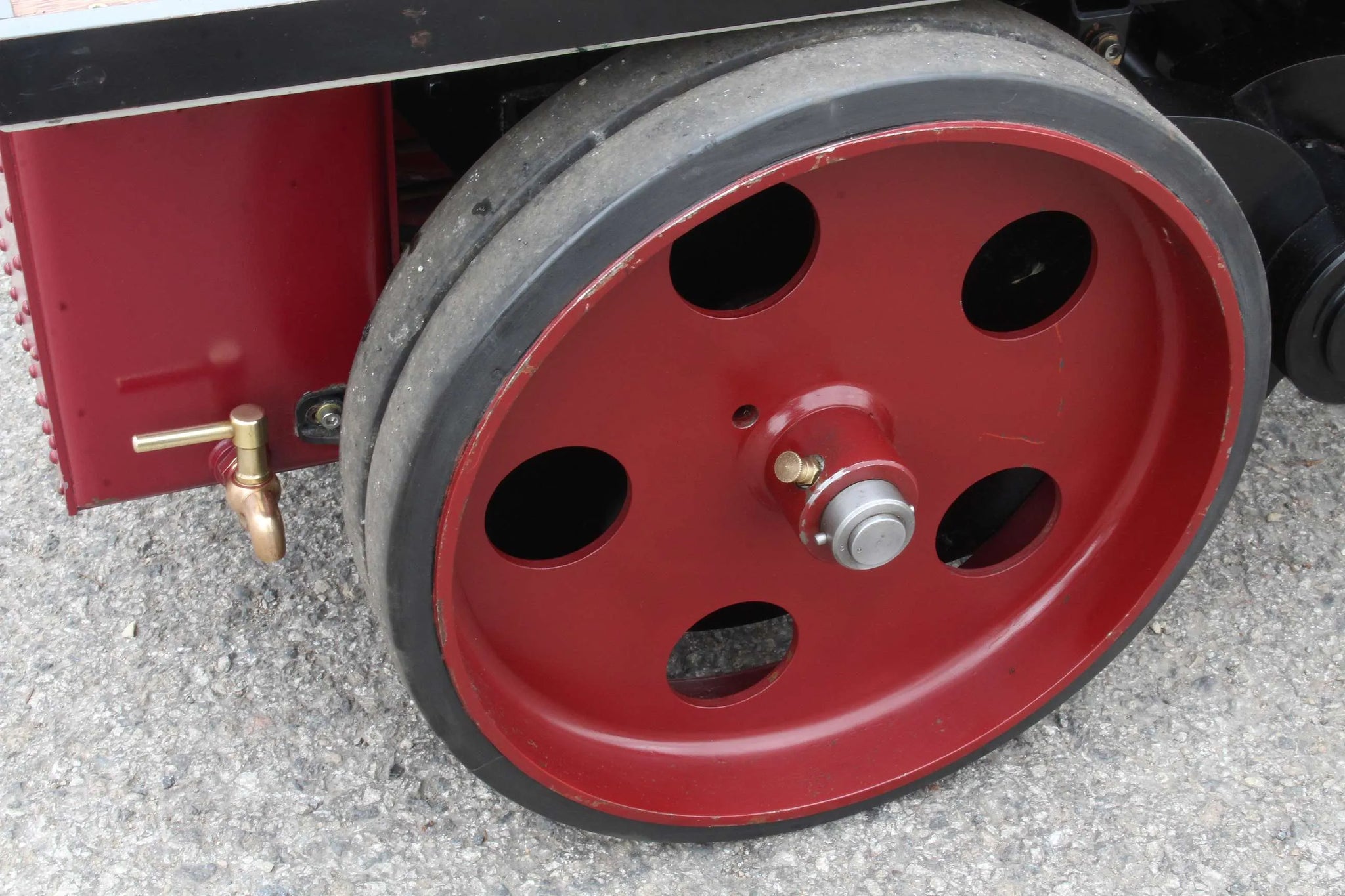

I particularly like this one which has forsaken the "Robot Wars" type back end with ground anchor and heavy duty winch for a short bed wth wood decking, the whole thing running on rubber tyred steel wheels. With well-placed footrests slung forwards and low down, it makes for a comfortable driving position.

We all had a go on this one last week, finding out, to general amusement, that you could make a circuit across the yard, in through the boiler shop, across unit 17, through into the main workshop and then back out. I'm told Connor posted fastest lap of the day - there's some video of his practice lap here.

Technical information

Stock code

8478

Scale

3 inch

Length/inches

42

Width/inches

25

Height/inches

30

Weight/Kg

est 150

Cylinder material

cast iron

Valve type

slide

Valve gear

Stephensons

Boiler maker

non-commercial

Boiler type

water cross tube yorkshire

Boiler construction

silver soldered

Boiler material

copper

Working pressure

80

CE/UKCA mark

n/a - pre-2002

Year built

1999

Boiler number

265JWR

Safety valve type

spring

Safety valve

2

Fusible plug

no

Whistle

yes

Hand pump

1

Mechanical pump

1

Injector

1

Pack

Single half pallet

Date out

Mar-20

Hydraulic test valid to

18-Mar-23

Steam test valid to

18-May-20
