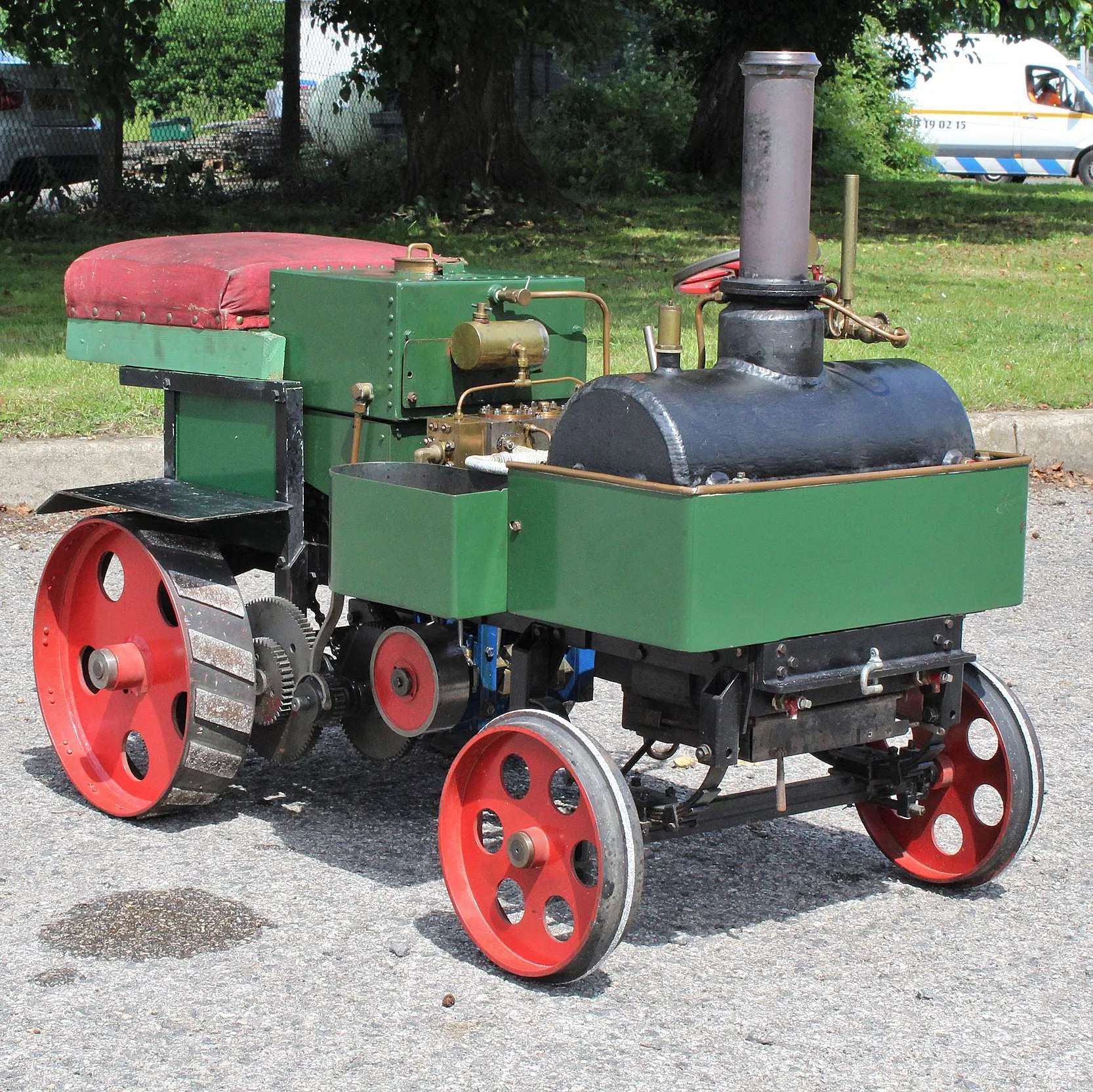

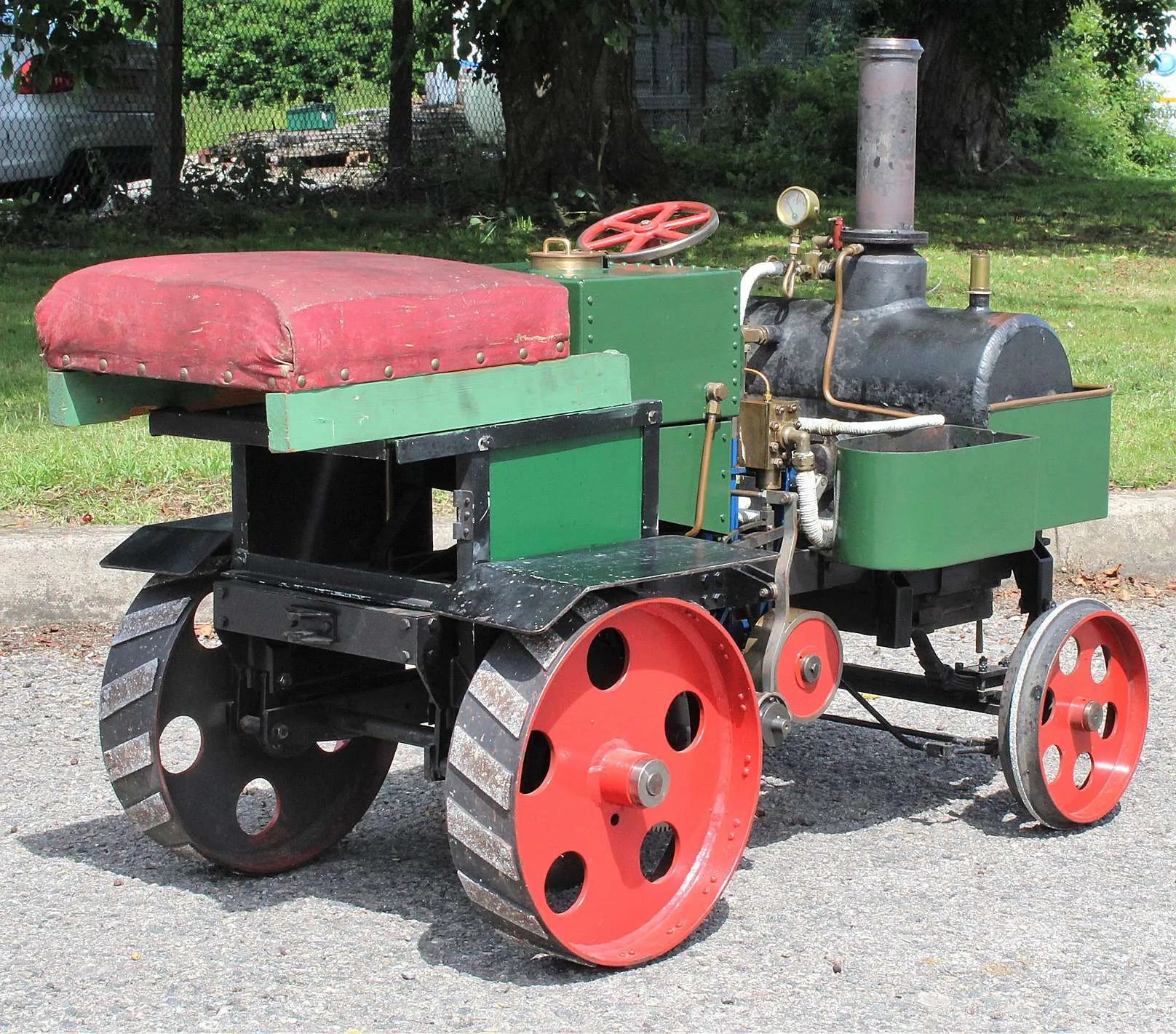

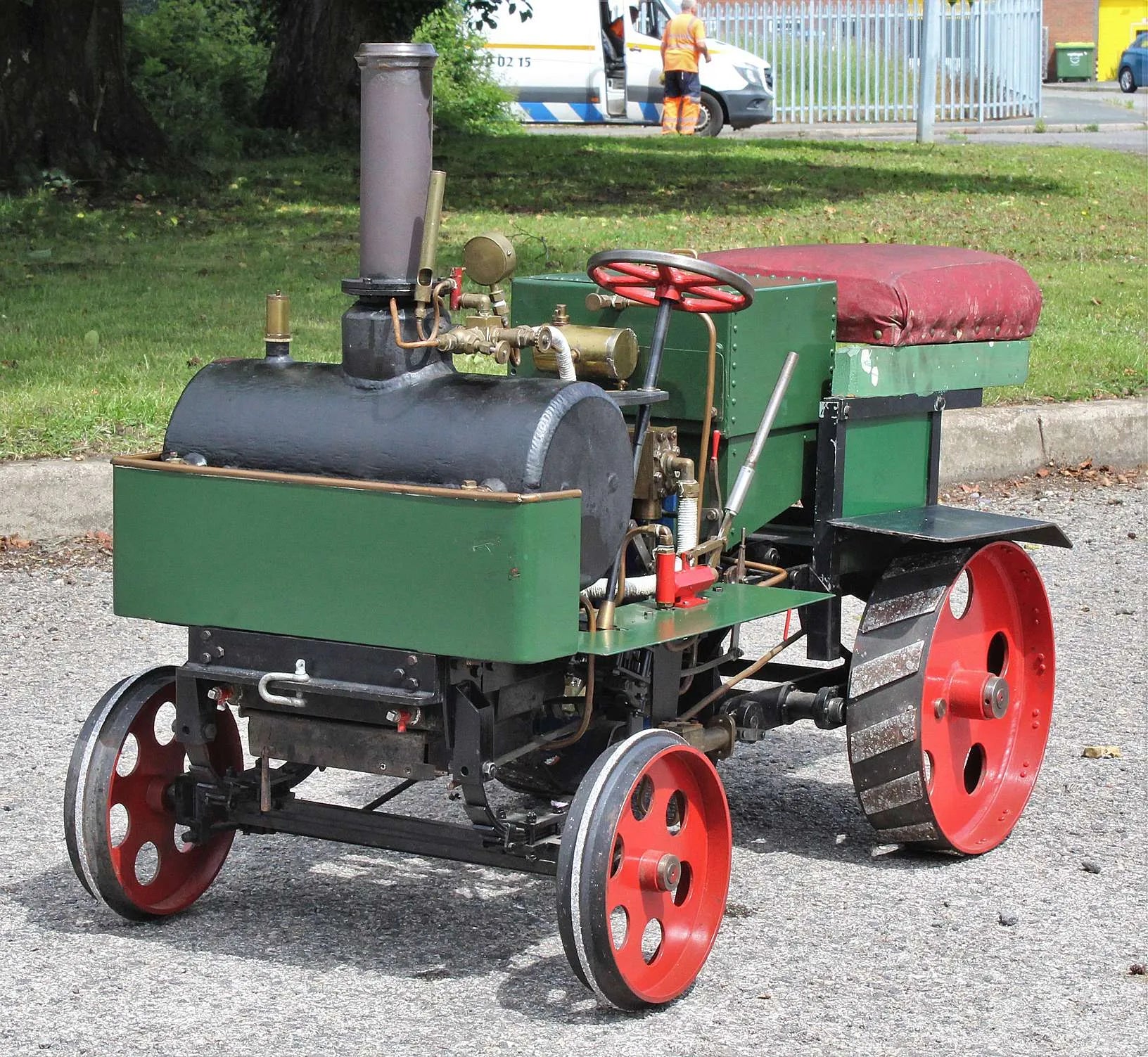

3 inch scale Suffolk dredging tractor

A 3 inch Suffolk dredging tractor to the John Haining design. We last sold this one in 2011, it's recently come back in as part exchange against a 4 inch scale agricultural engine.

The engine has had hydraulic and steam tests in recent days with new certification issued. Overall it's in good order - there's some video of it running around outside the works earlier in the week here.

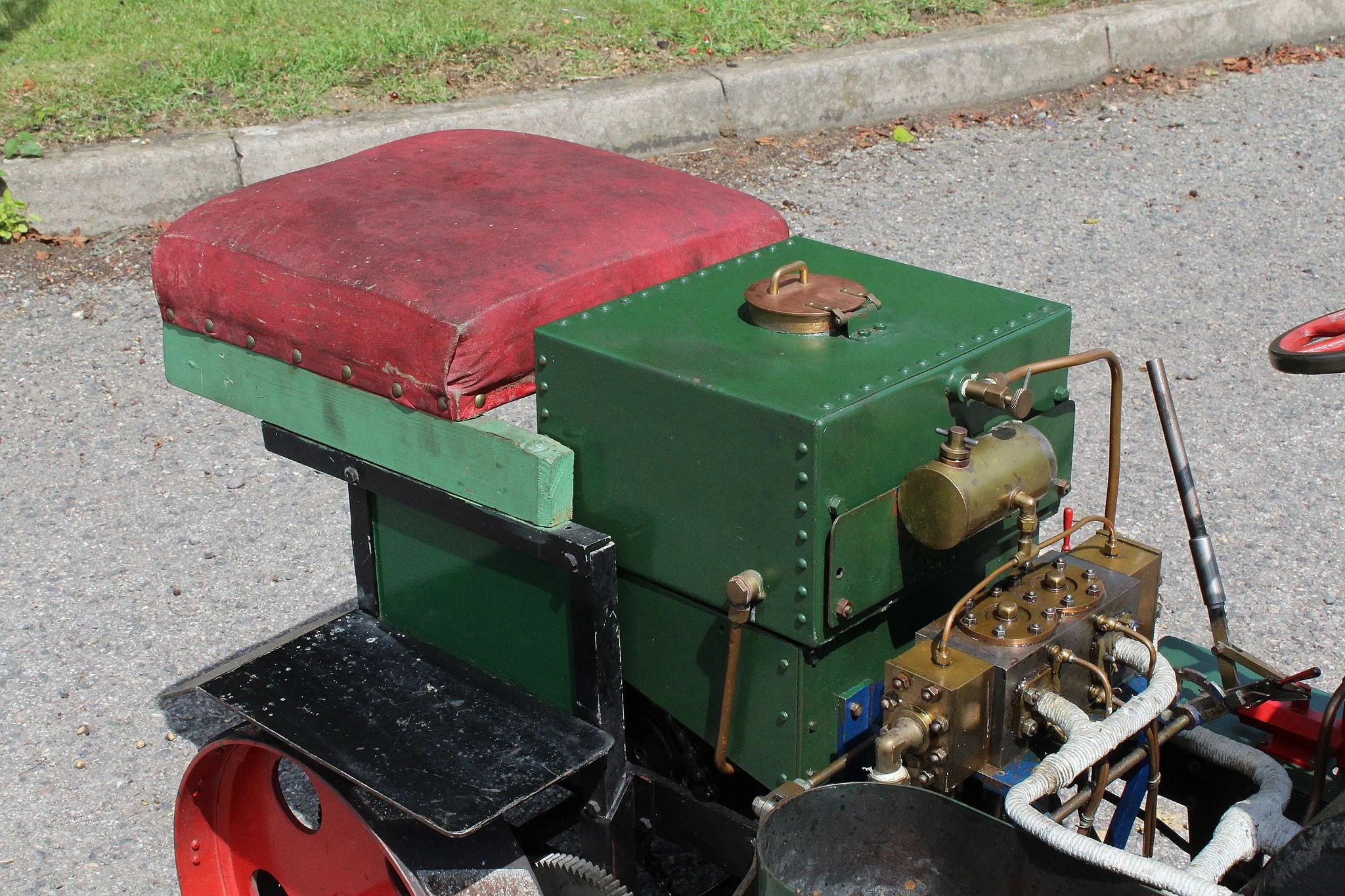

Currently fitted with something between a drip feed and displacement cylinder lubricator, we'd be tempted to swap it for a more positive acting mechanical job - the one fitted is a bit "all or nothing".

The quirky looks of the design belie its free-steaming nature and very capable performance, both on hard surfaces and grass - we've sold several over the years, always been impressed by the way they go.

Technical information

Stock code

9717

Scale

3 inch

Length/inches

38

Width/inches

21

Height/inches

30

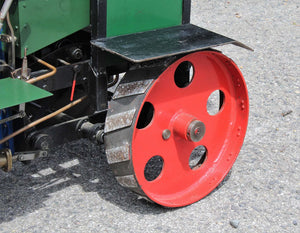

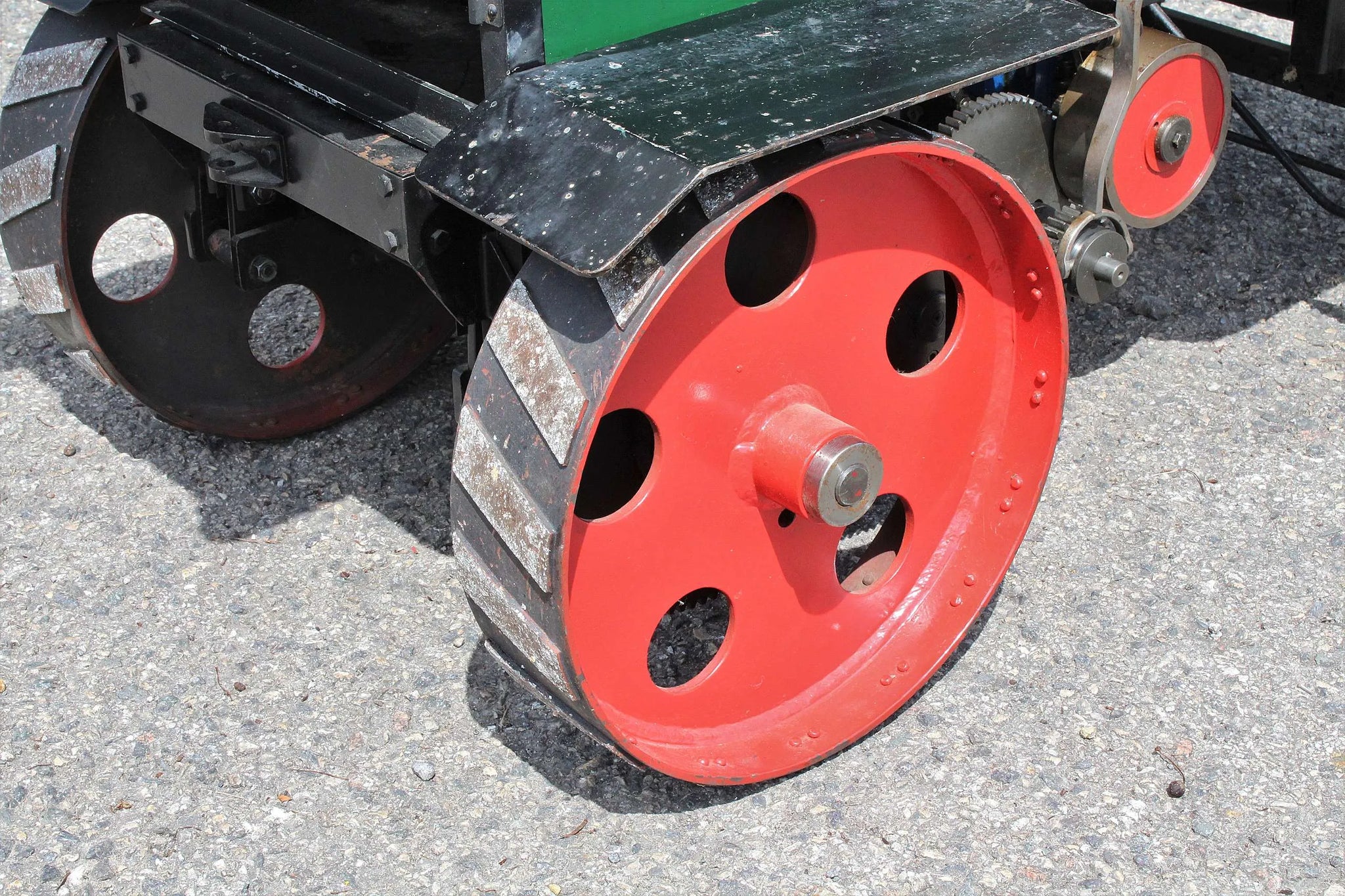

Wheel material

steel

Axlebox type

plain bearing

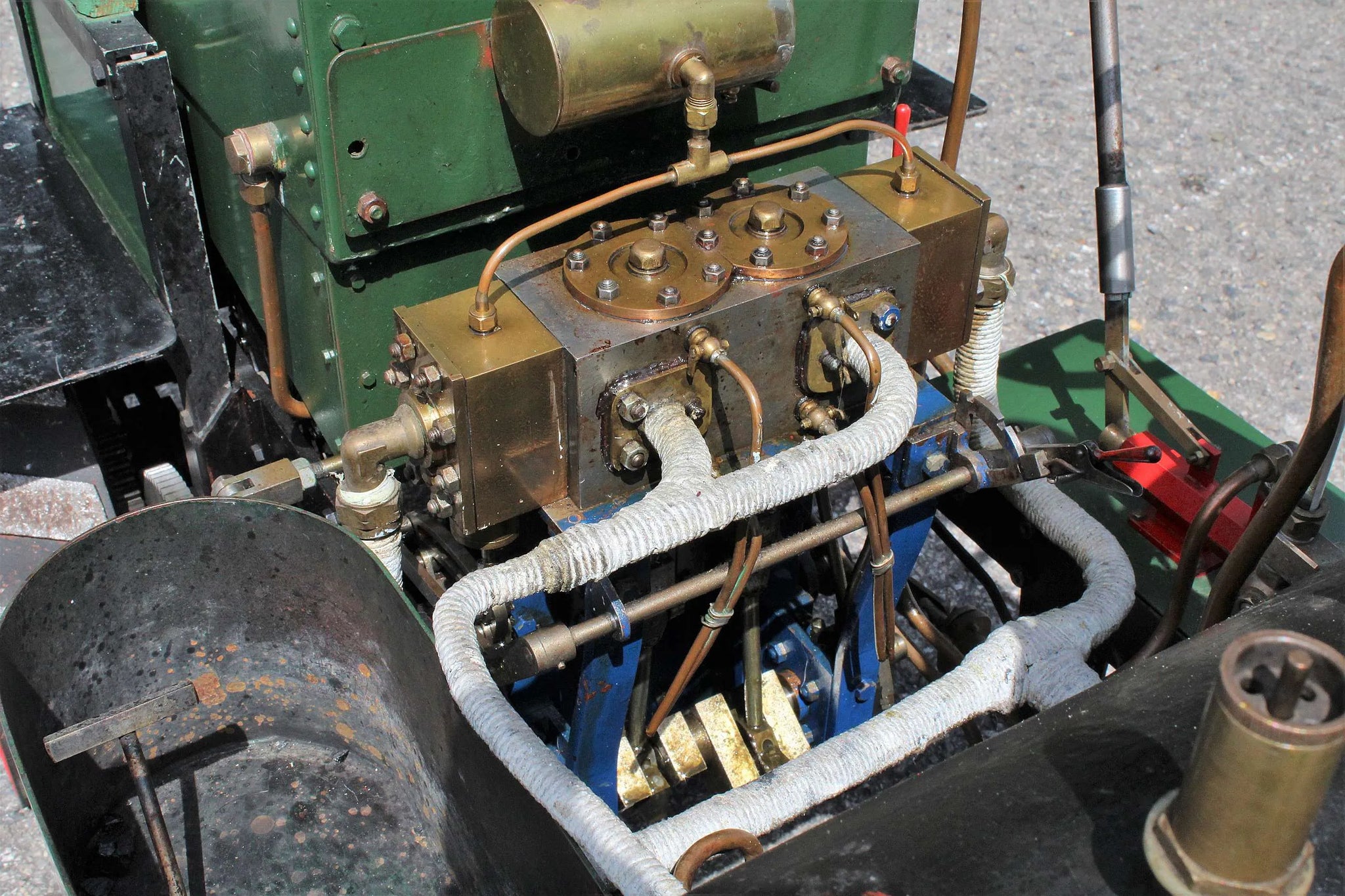

Cylinder material

cast iron

Valve type

slide

Valve gear

Stephensons

Reverser type

pole

Lubricator type

displacement

Boiler maker

Himex Engineering Ltd

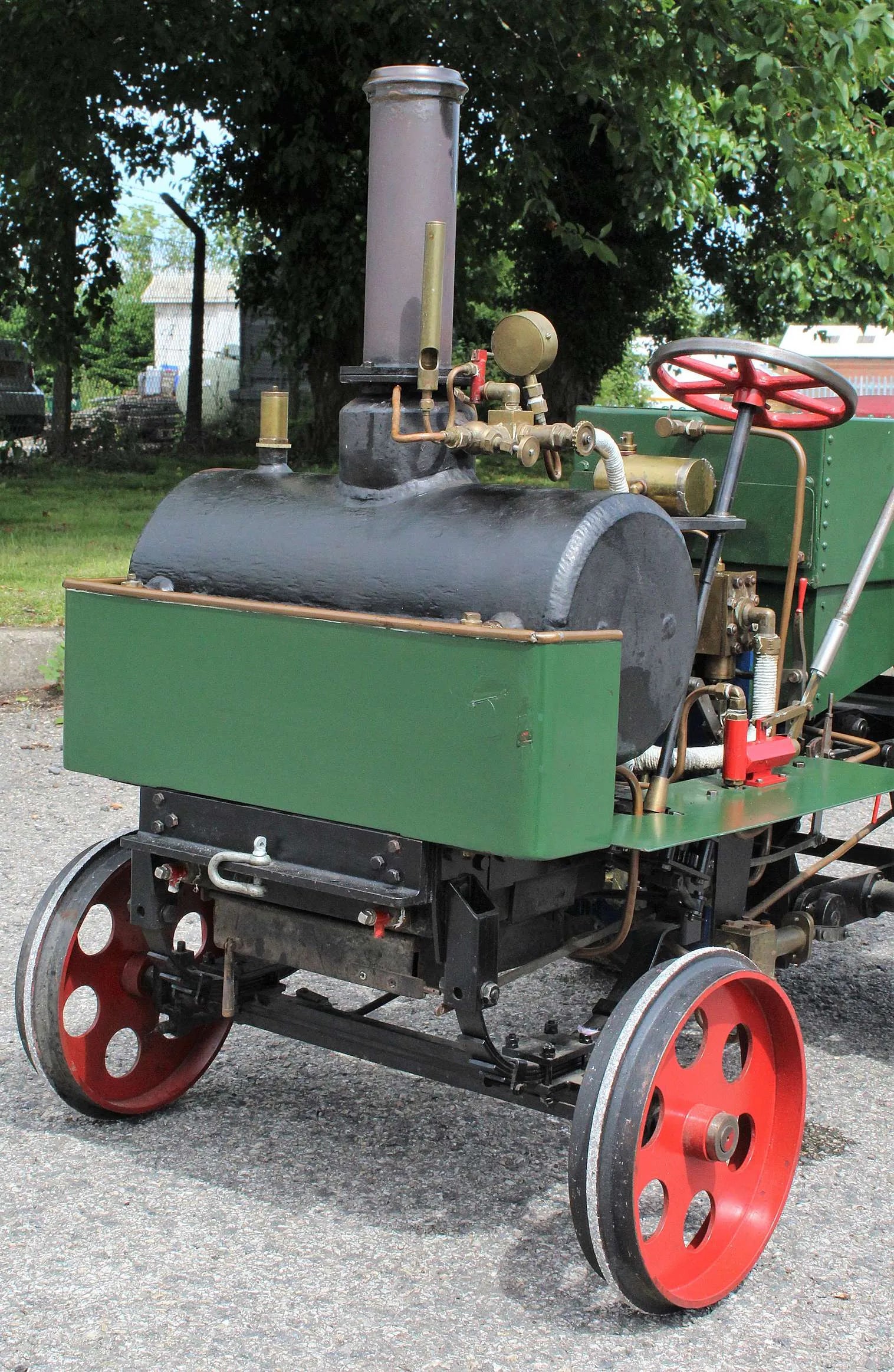

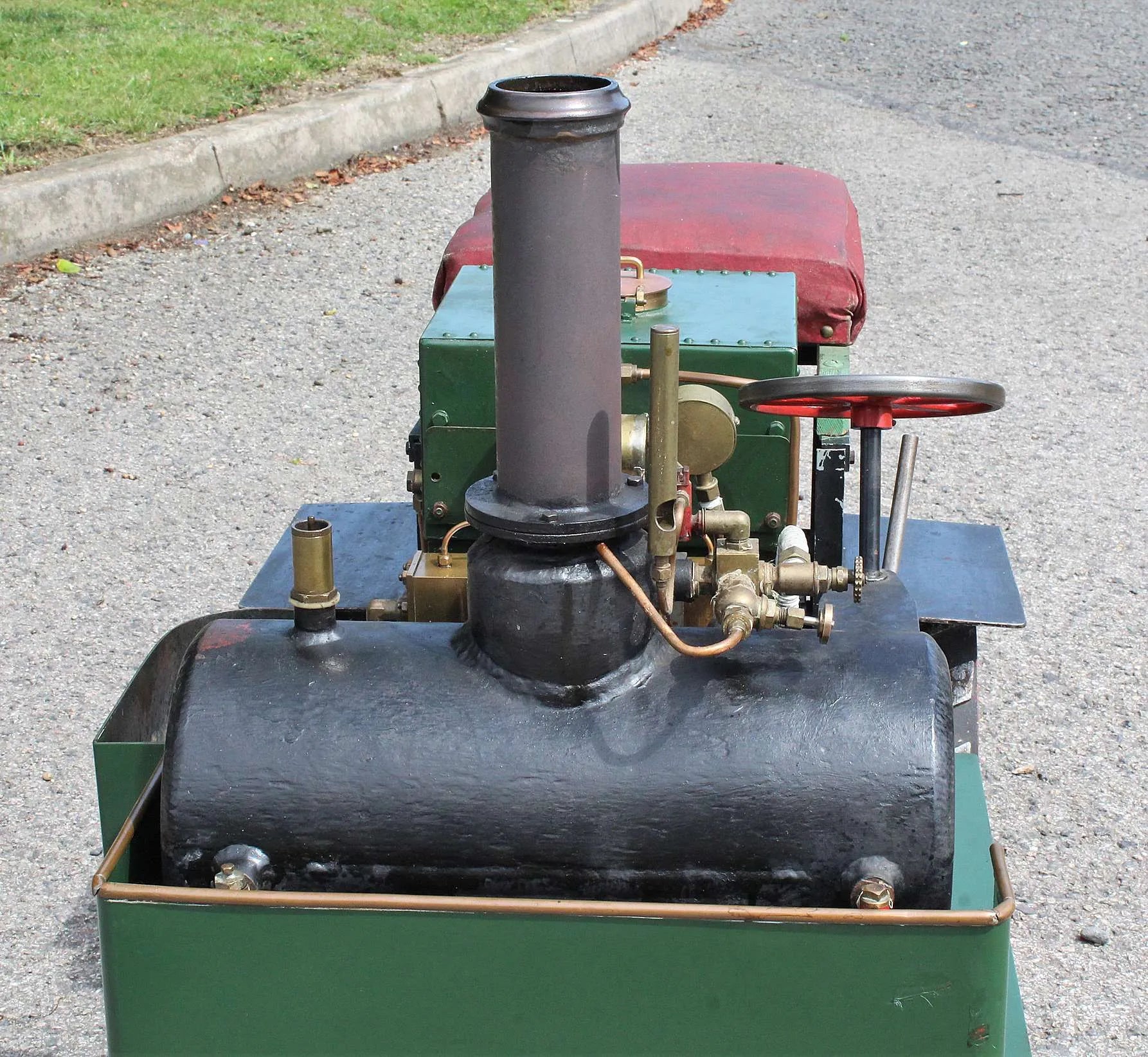

Boiler type

water cross tube yorkshire

Boiler construction

all welded

Boiler material

steel

Working pressure

100

CE/UKCA mark

n/a - pre-2002

Year built

1989

Boiler number

90ST2

Safety valve type

spring

Safety valve

1

Road speed

2

Whistle

yes

Hand pump

1

Mechanical pump

1

Date out

Jul-21

Hydraulic test valid to

28-Jan-23

Steam test valid to

04-Sep-22
