Sold

9785

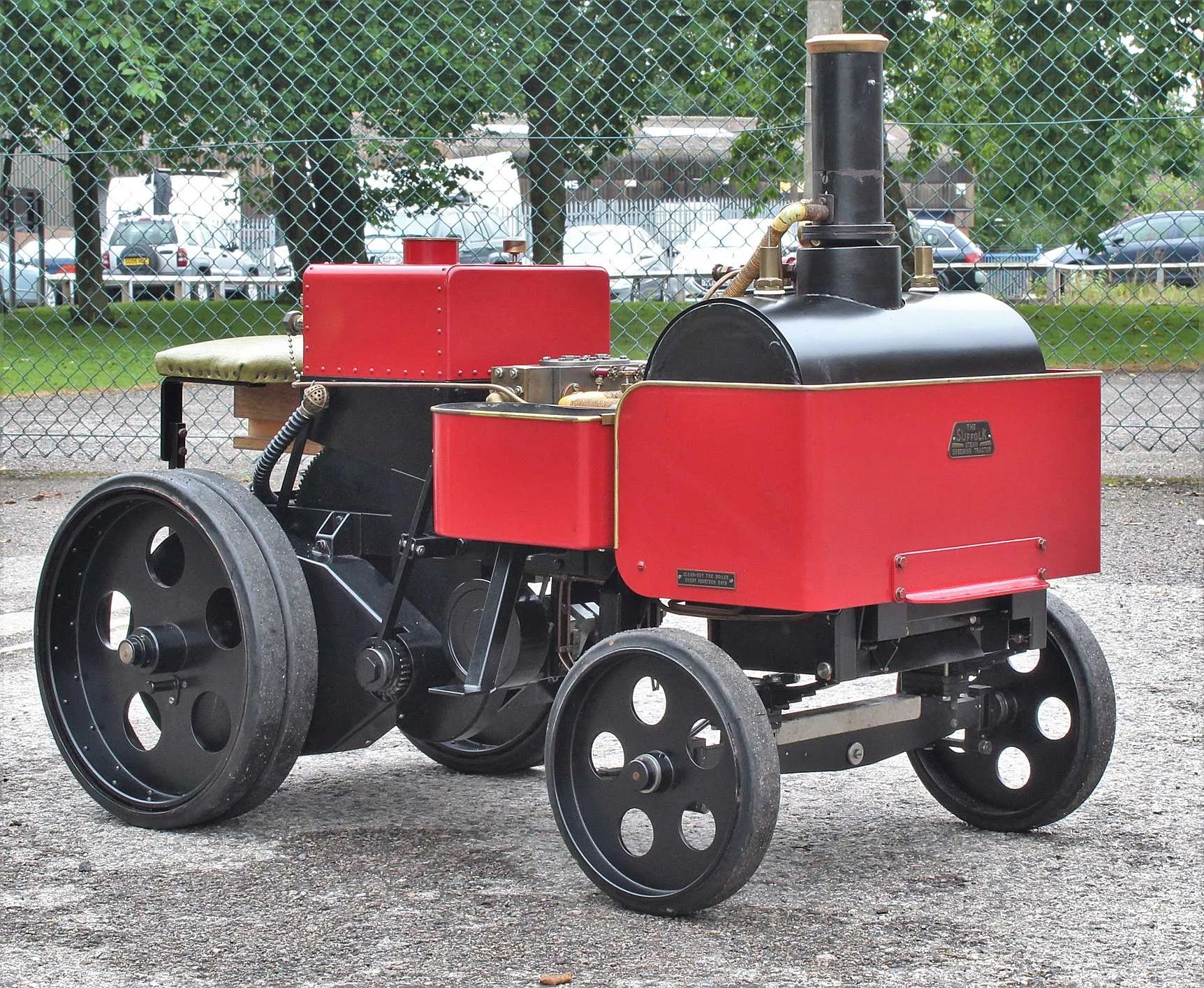

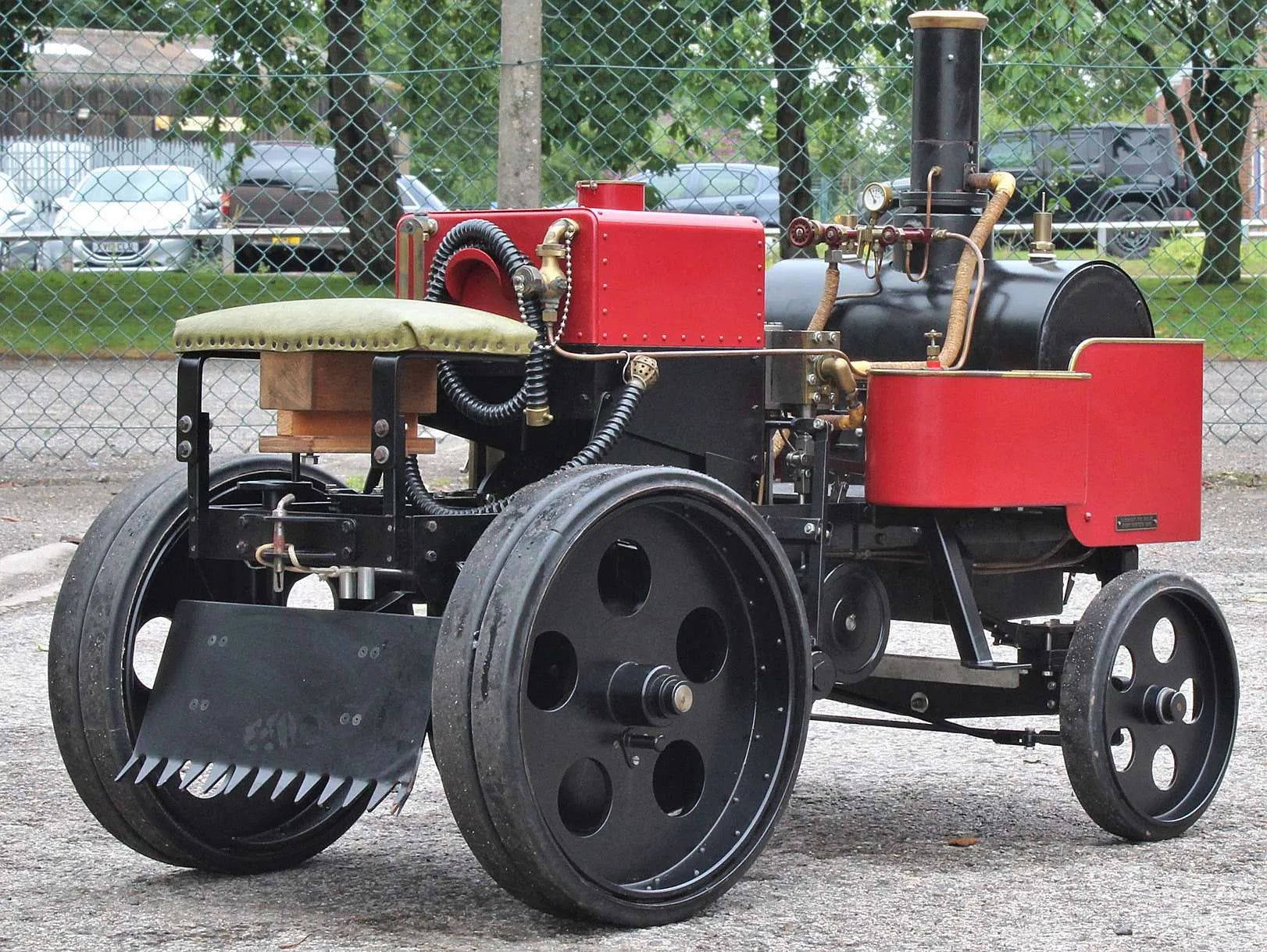

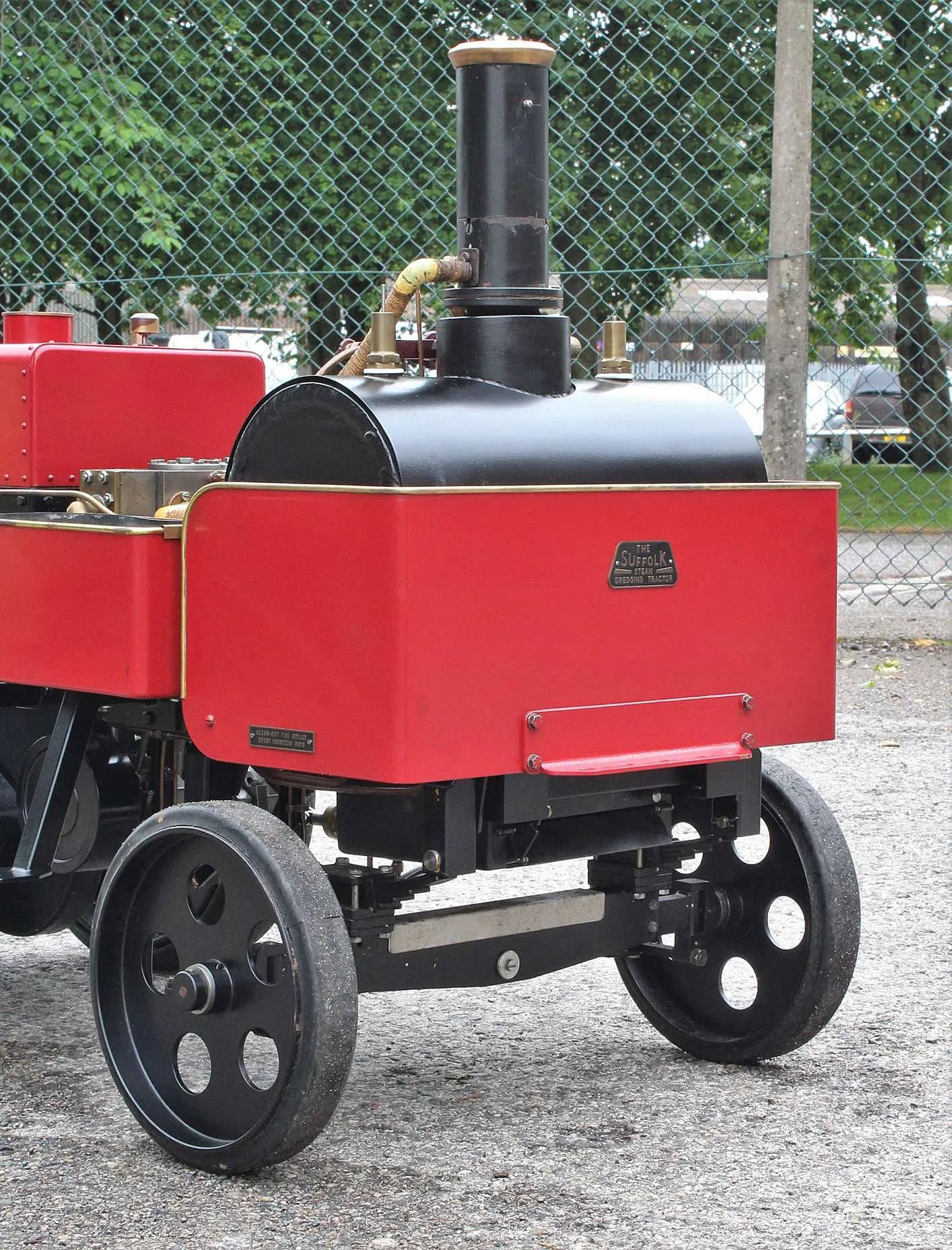

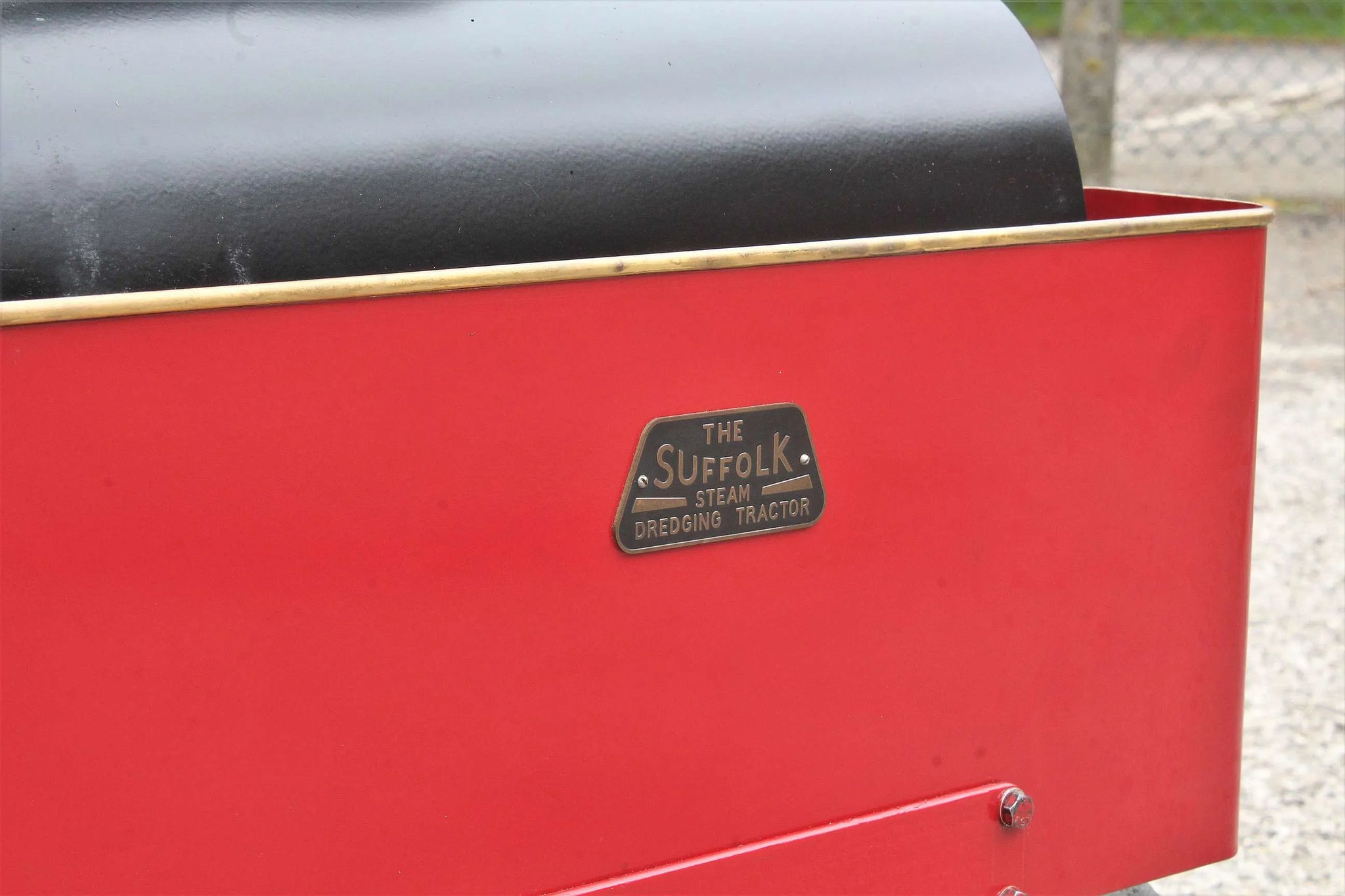

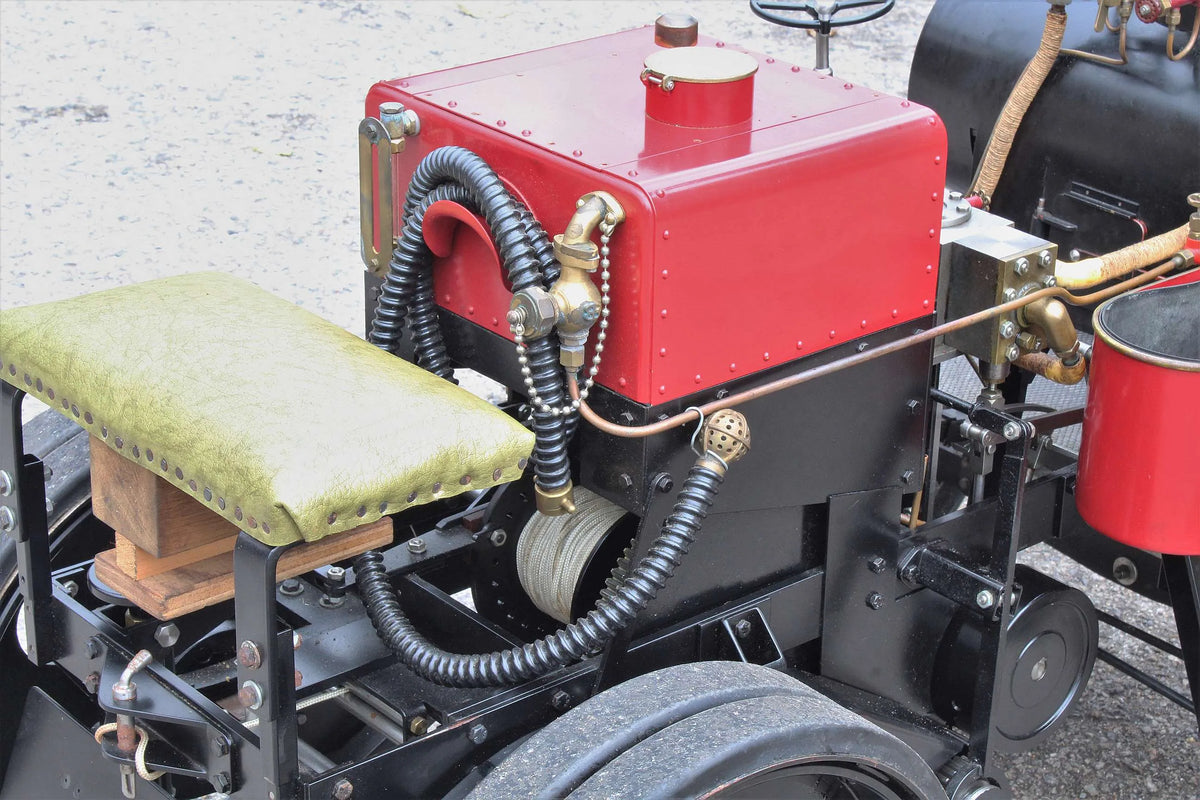

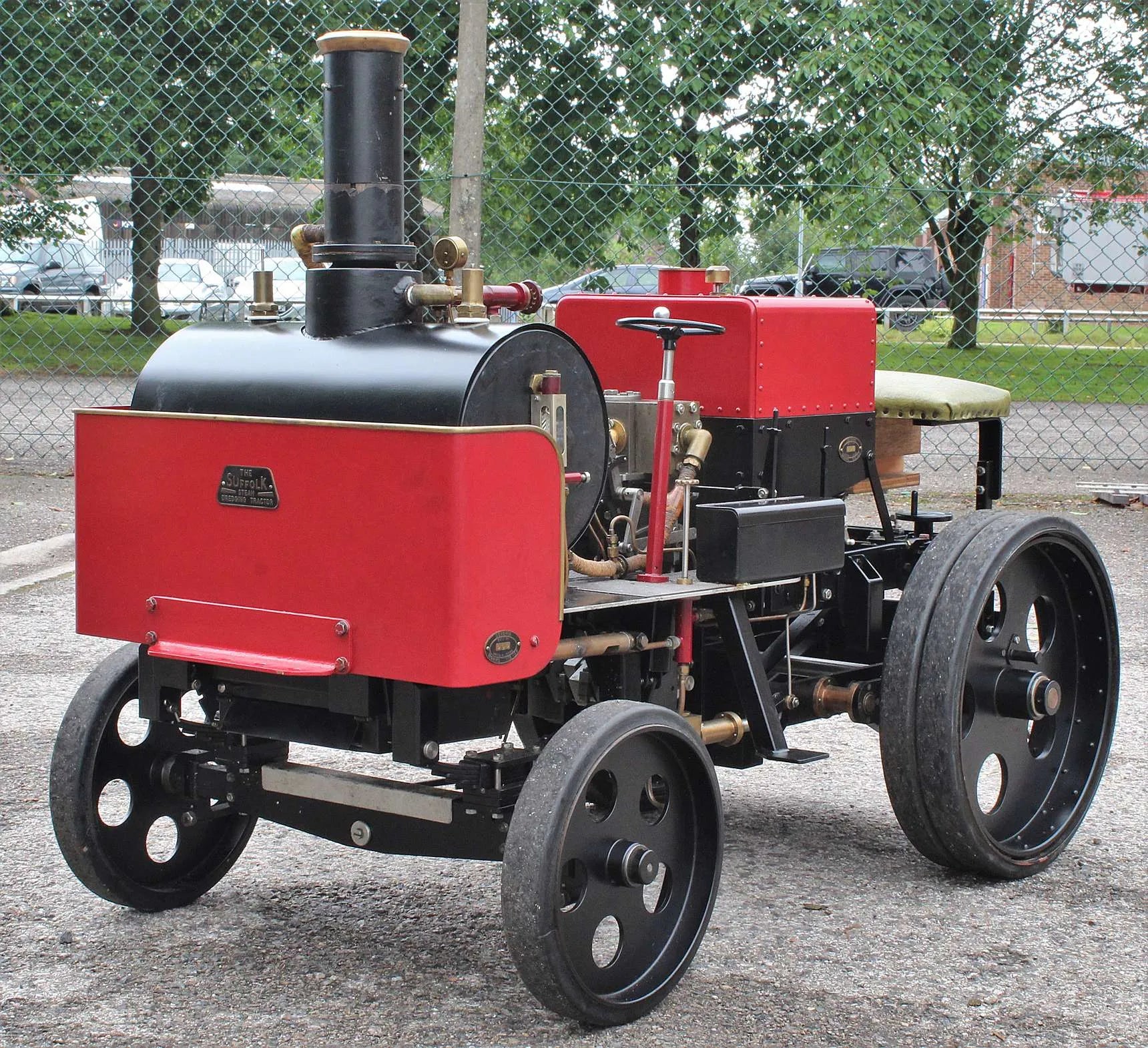

3 inch scale Suffolk dredging tractor

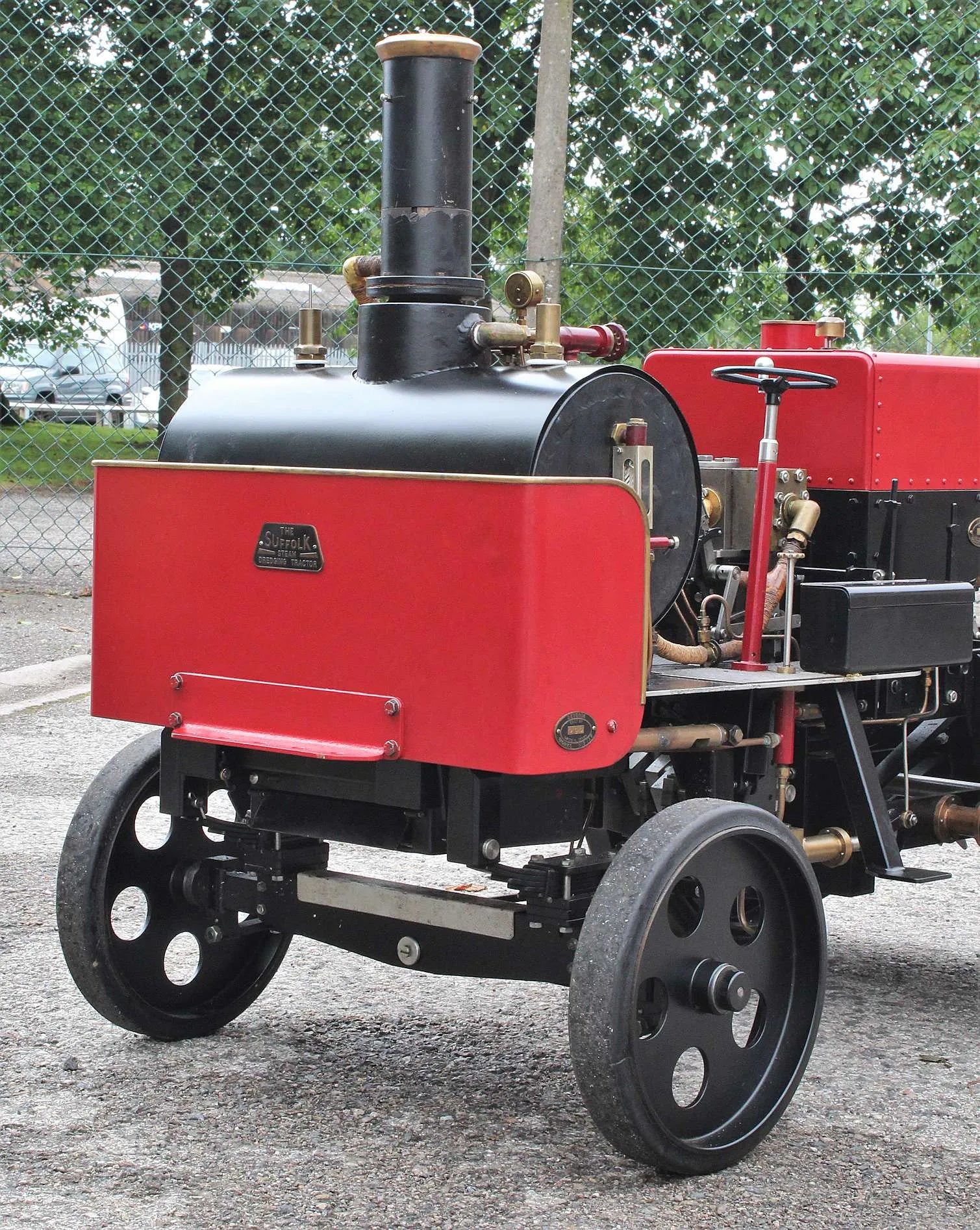

A particularly well built 3 inch scale Suffolk Dredging Tractor, the work of an award-winning model engineer, equally at home building locomotives, boats and cars as well as road steam vehicles.

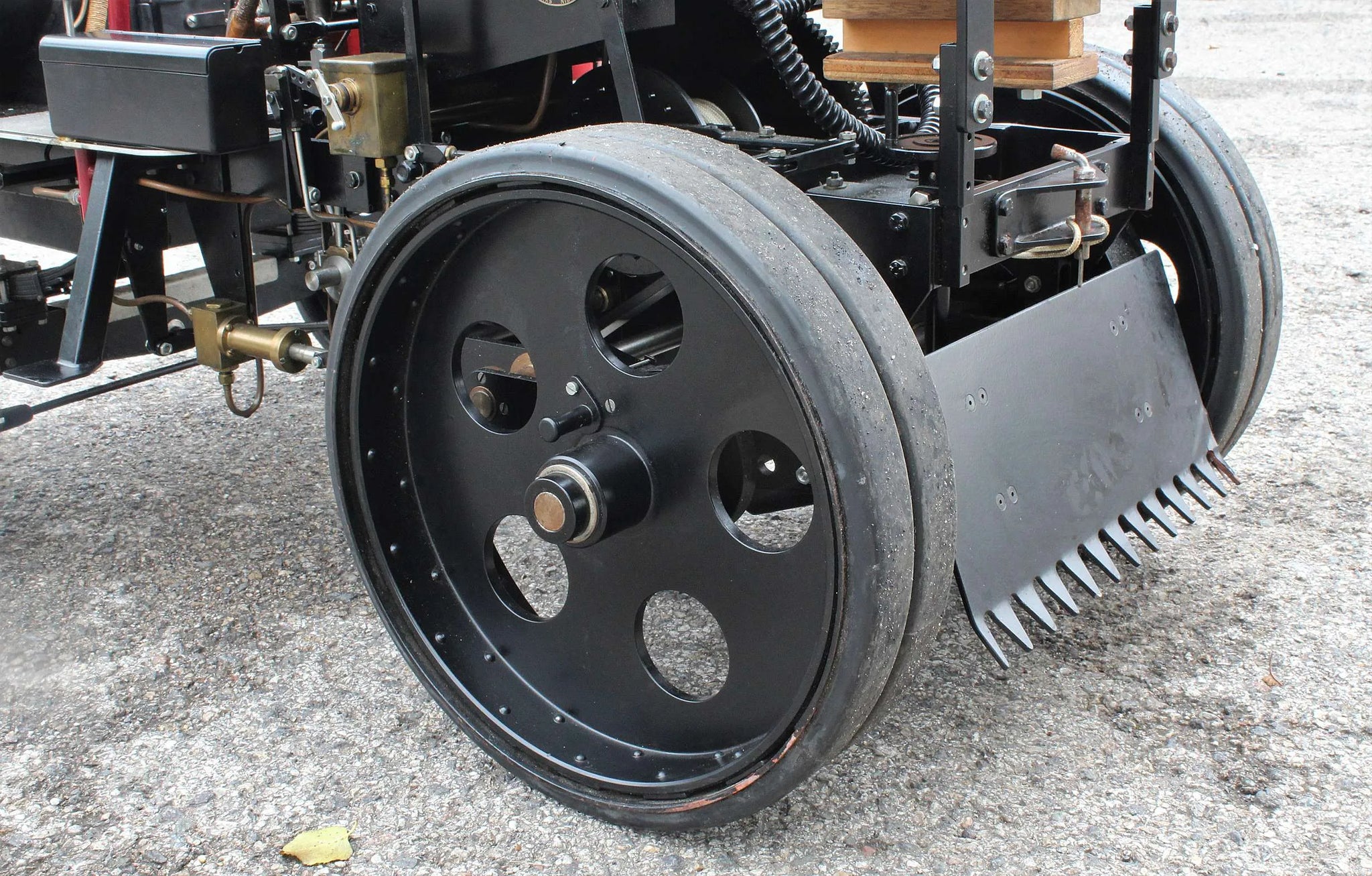

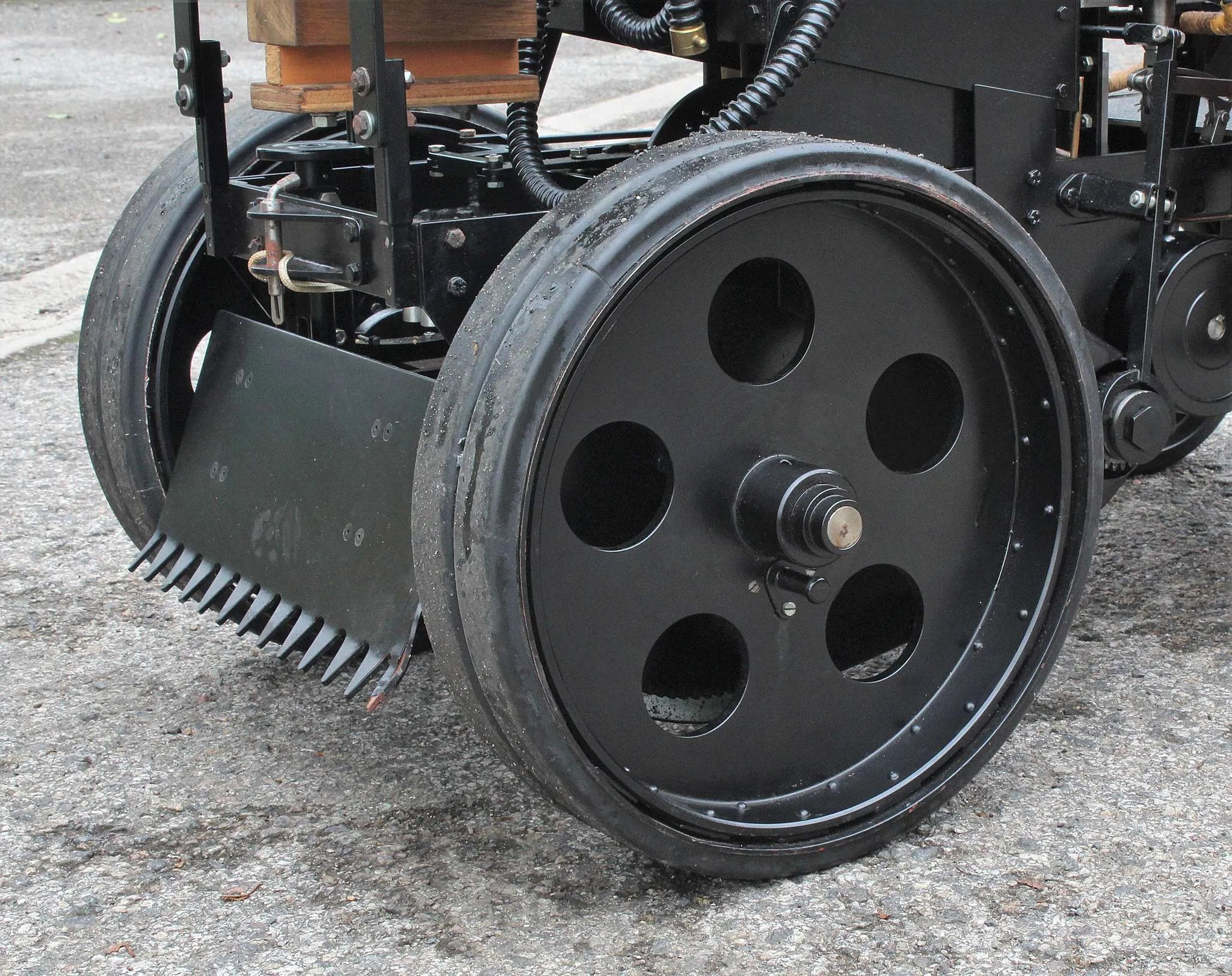

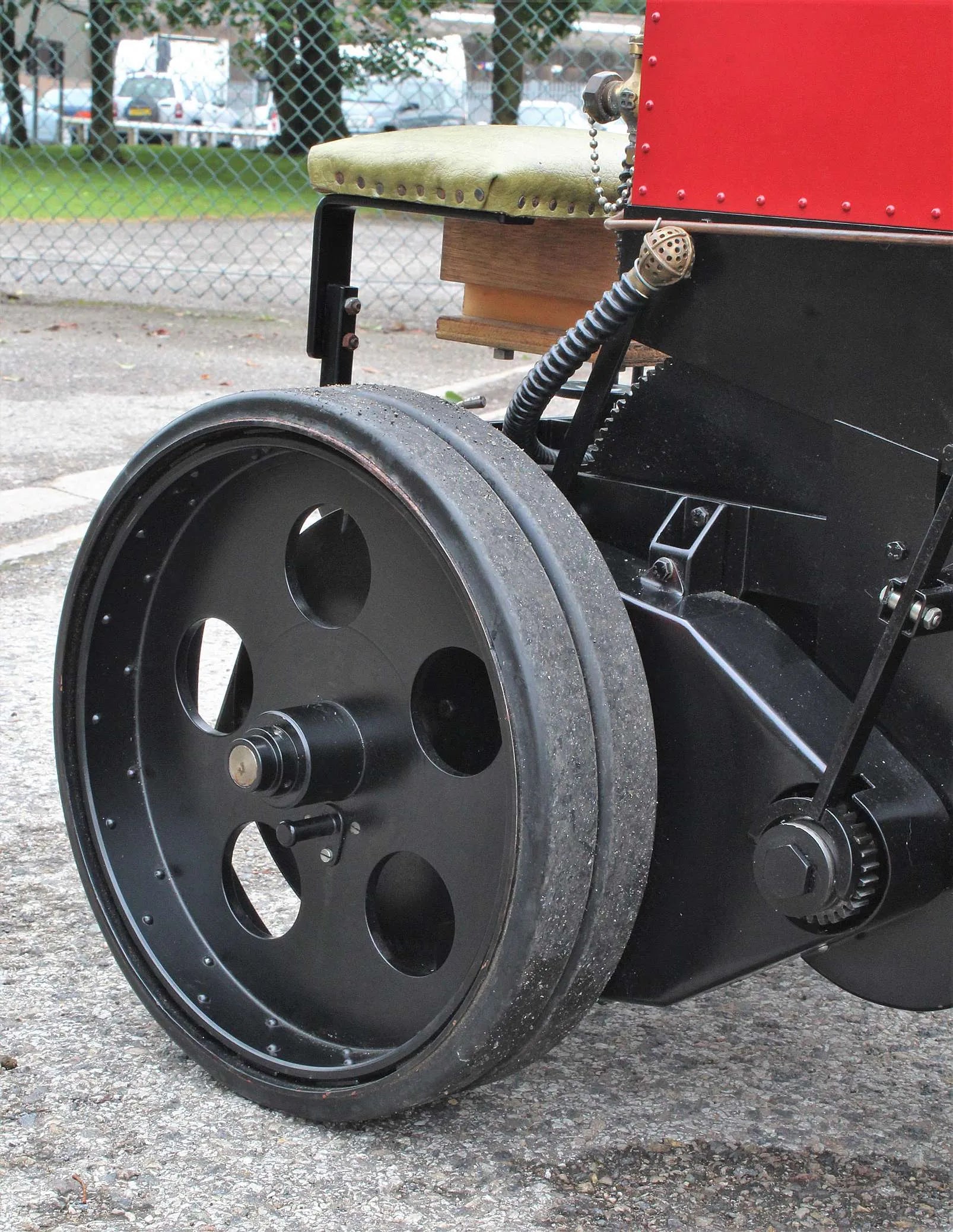

The John Haining design produces a powerful, easy to drive engine - we've had several over the years, all have impressed with how well they steam and run. This one is fitted with rubber tyres which, whilst not prototypical, make for a very much nicer ride!

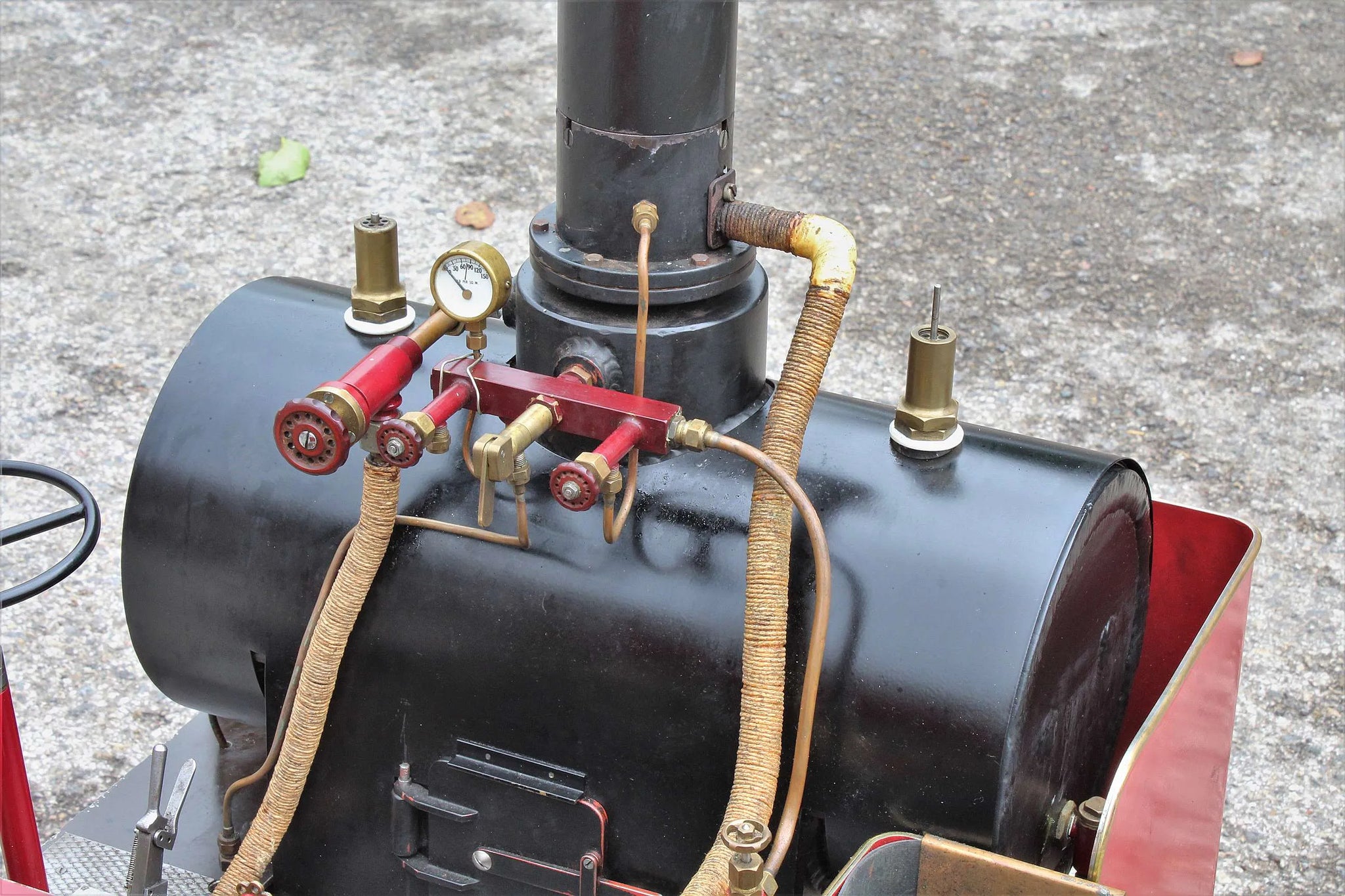

The welded steel boiler has had an off-the-chassis hydraulic test in recent days with all cladding removed - it's in excellent condition.

The engine runs very well in both directions, there's some video of Ashley running around the yard on it here.

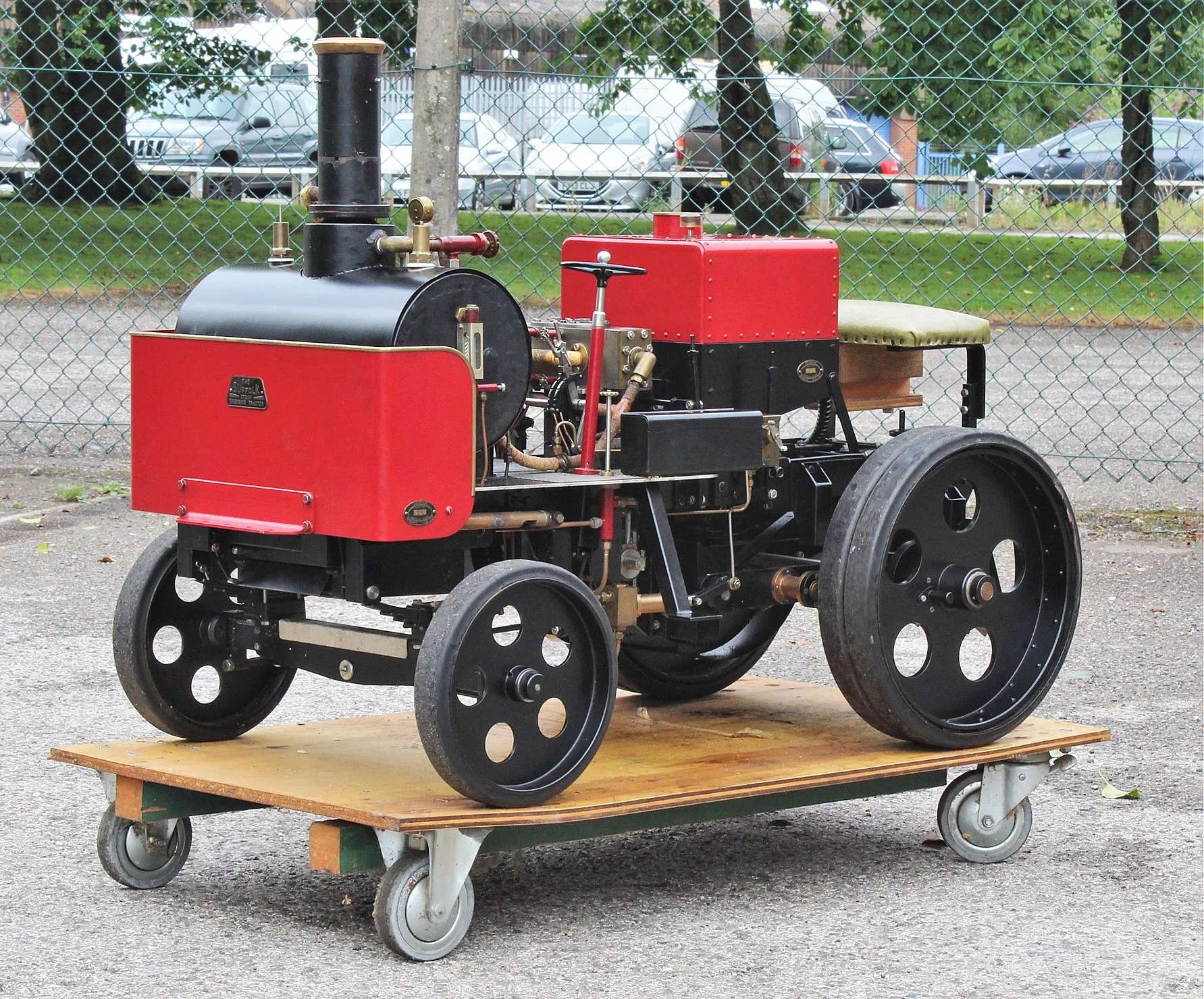

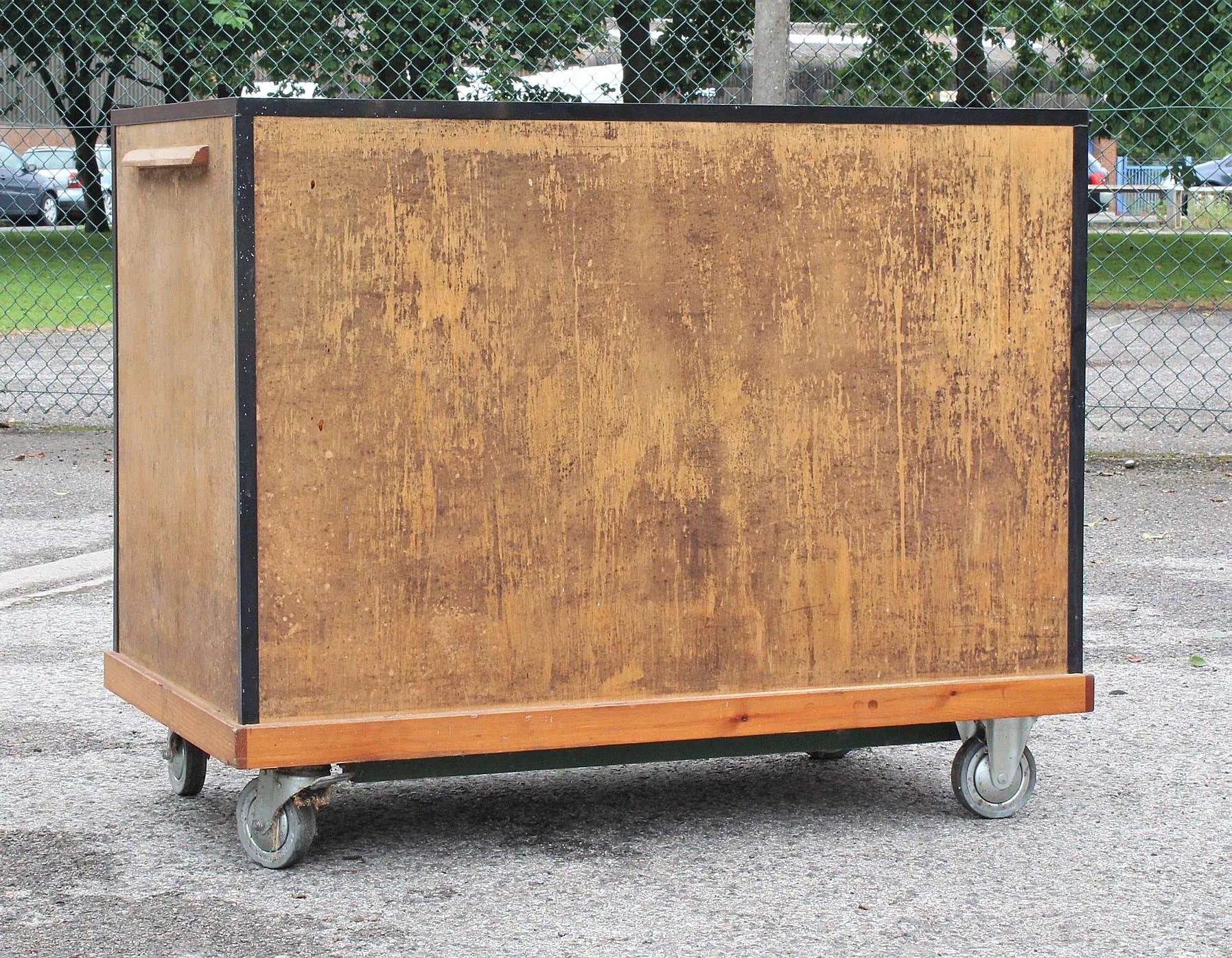

Complete with wooden storage crate on wheels.

Technical information

Stock code

9785

Scale

3 inch

Length/inches

37

Width/inches

20.5

Height/inches

20.5

Wheel material

steel

Axlebox type

plain bearing

Cylinder material

cast iron

Valve type

slide

Valve gear

Stephensons

Reverser type

pole

Lubricator type

mechanical

Boiler maker

D Jones

Boiler type

water cross tube yorkshire

Boiler construction

all welded

Boiler material

steel

Working pressure

90

Year built

1995

Boiler number

NLL 131

Safety valve type

spring

Safety valve

2

Whistle

yes

Hand pump

1

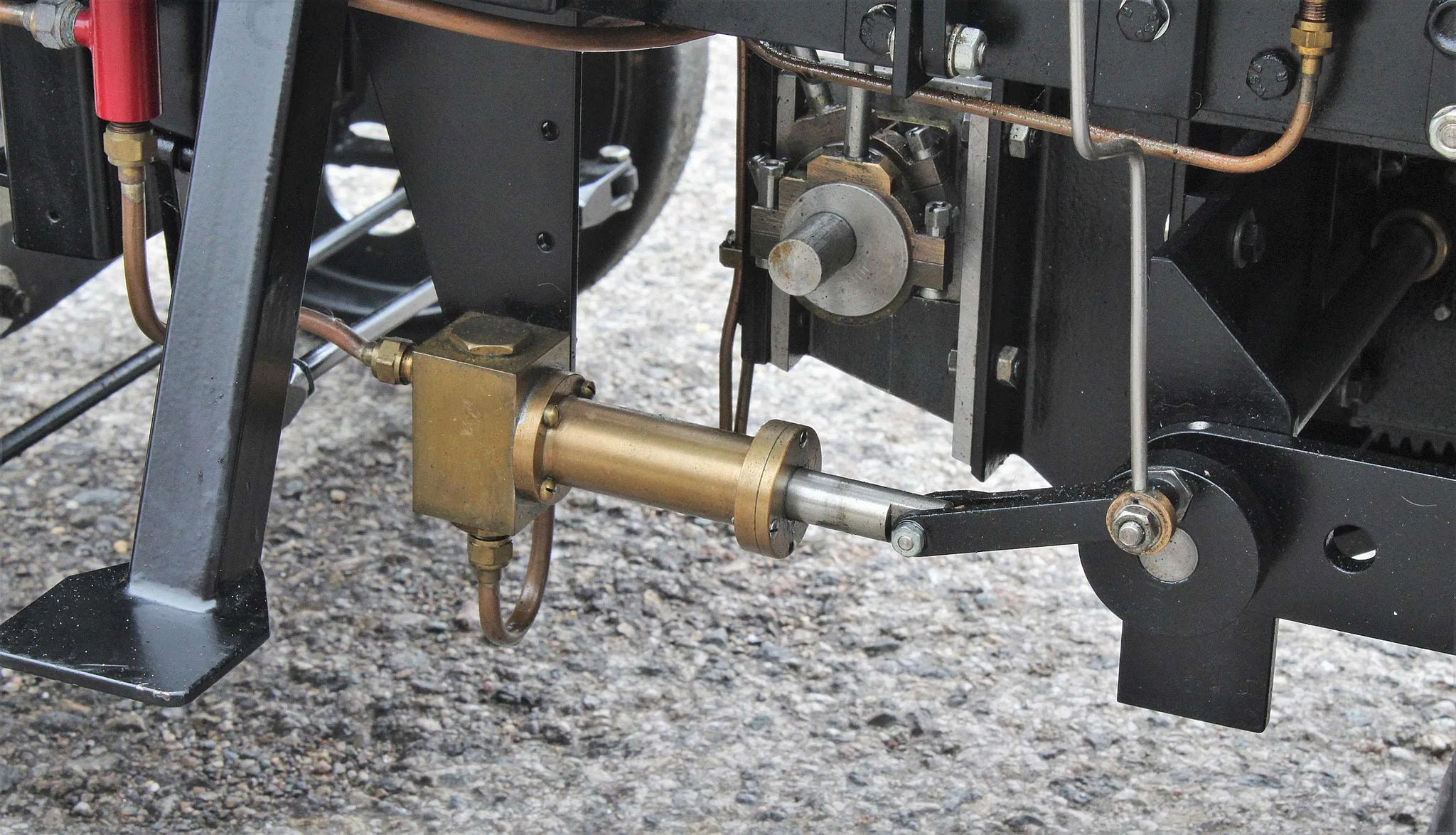

Mechanical pump

1

Date out

Nov-21

Hydraulic test valid to

29-Jul-23

Steam test valid to

04-Oct-22
