13454

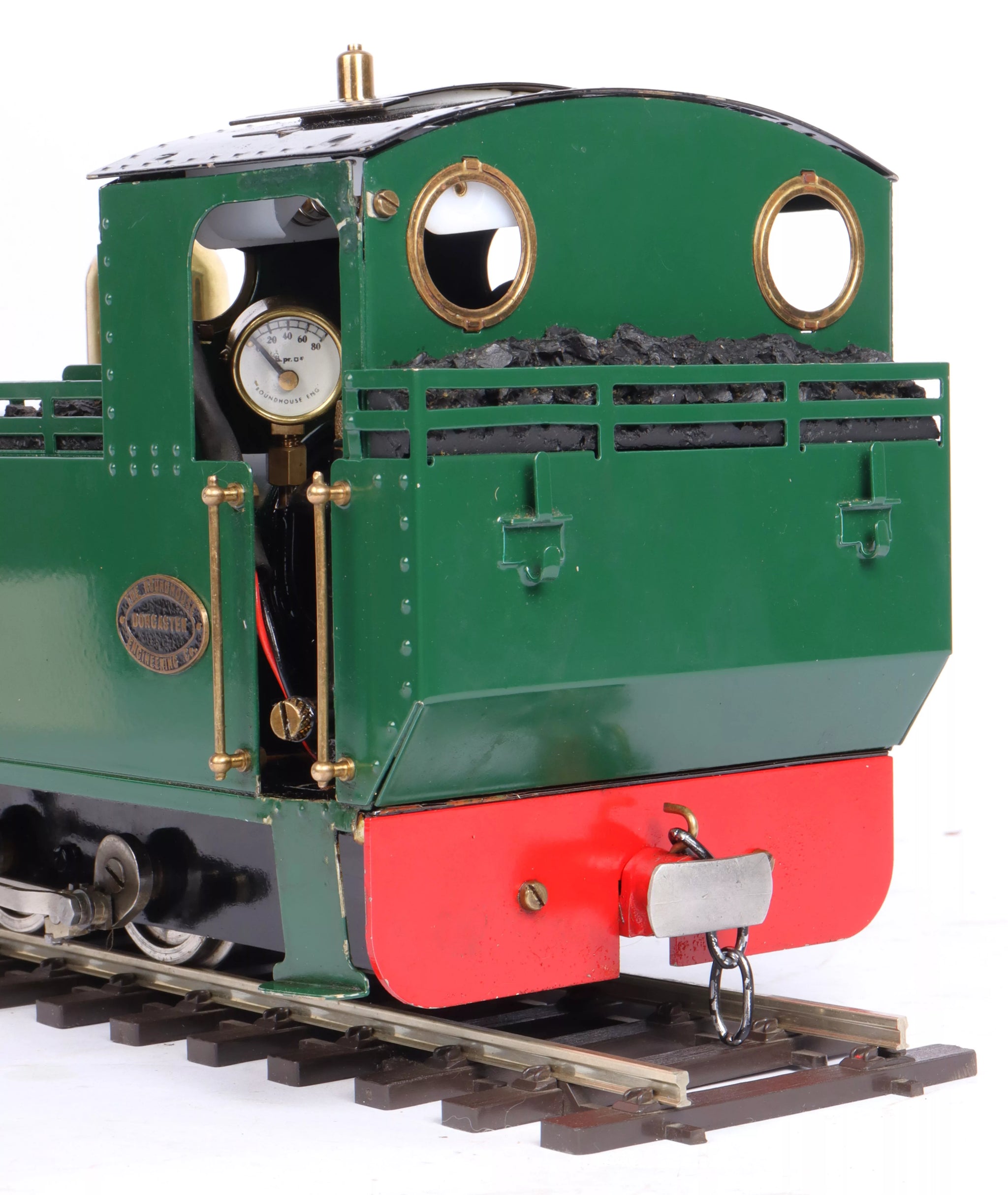

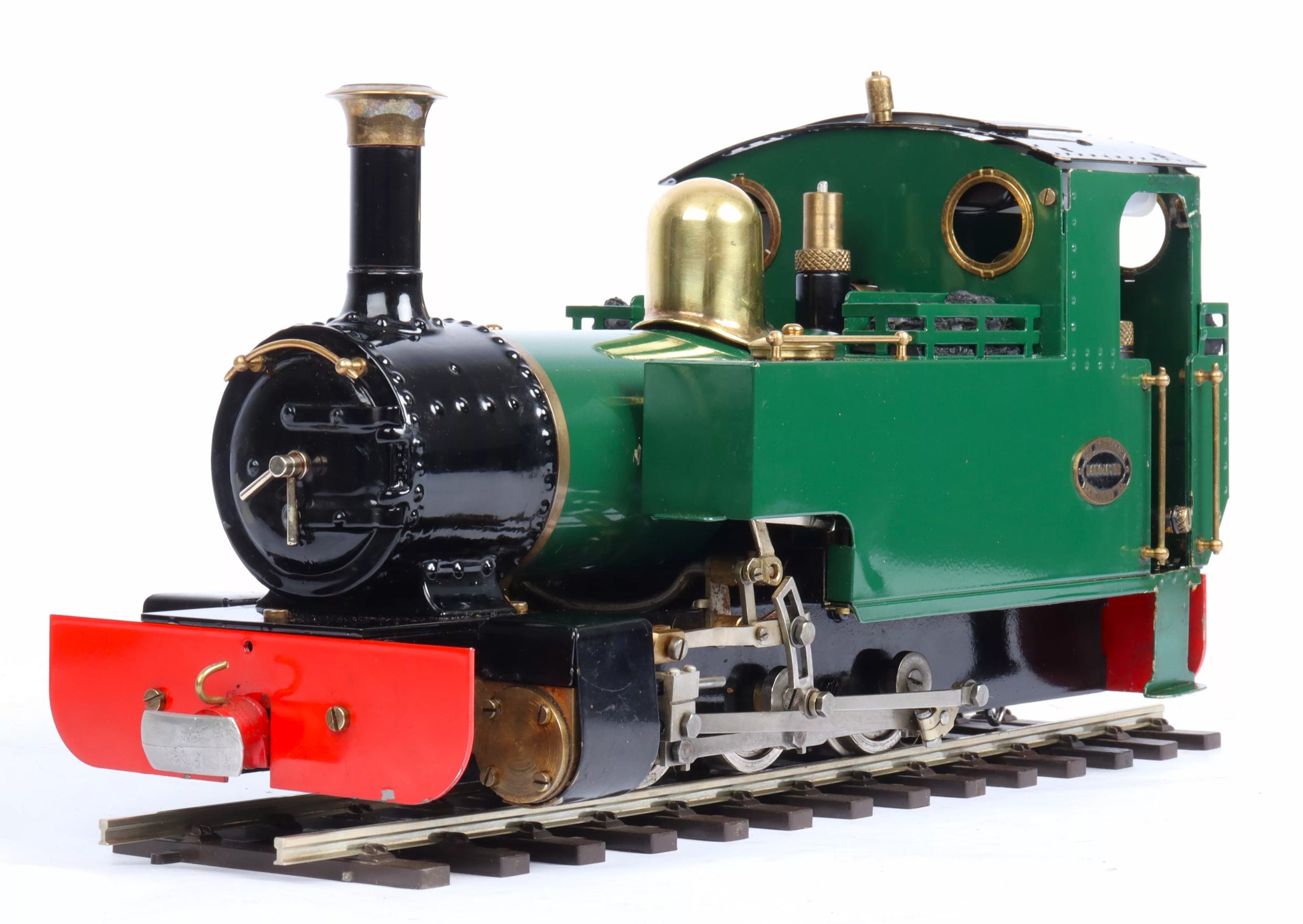

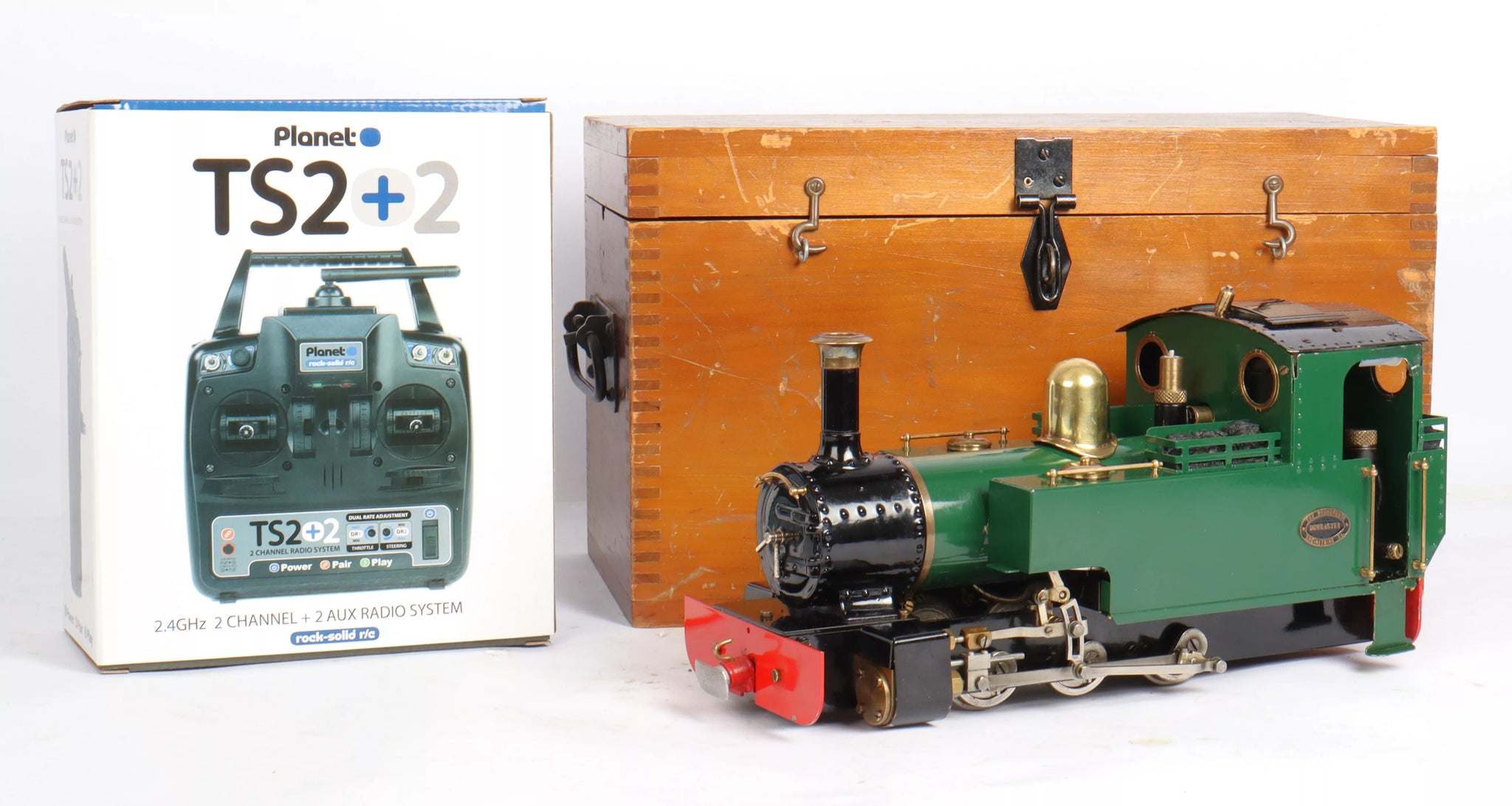

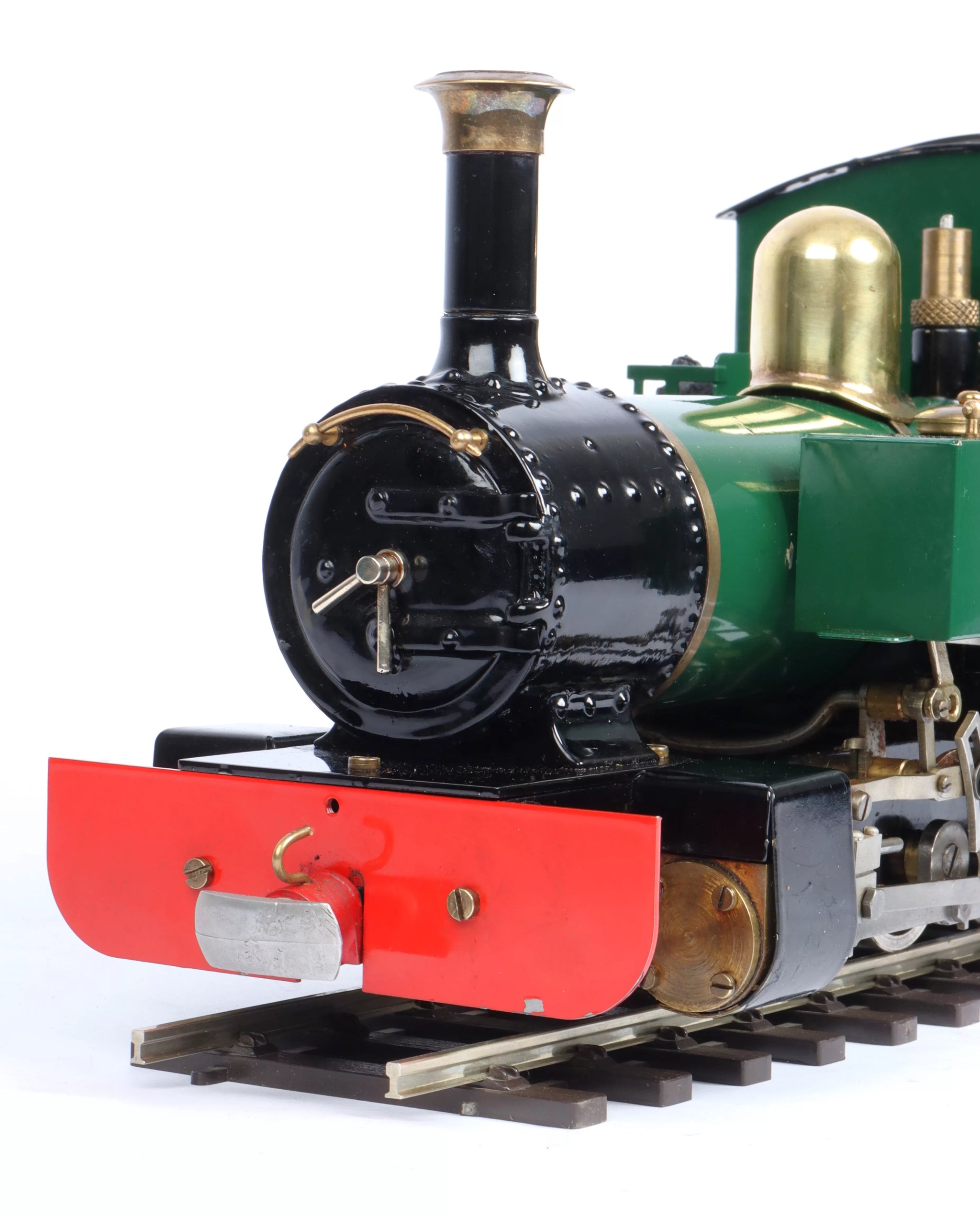

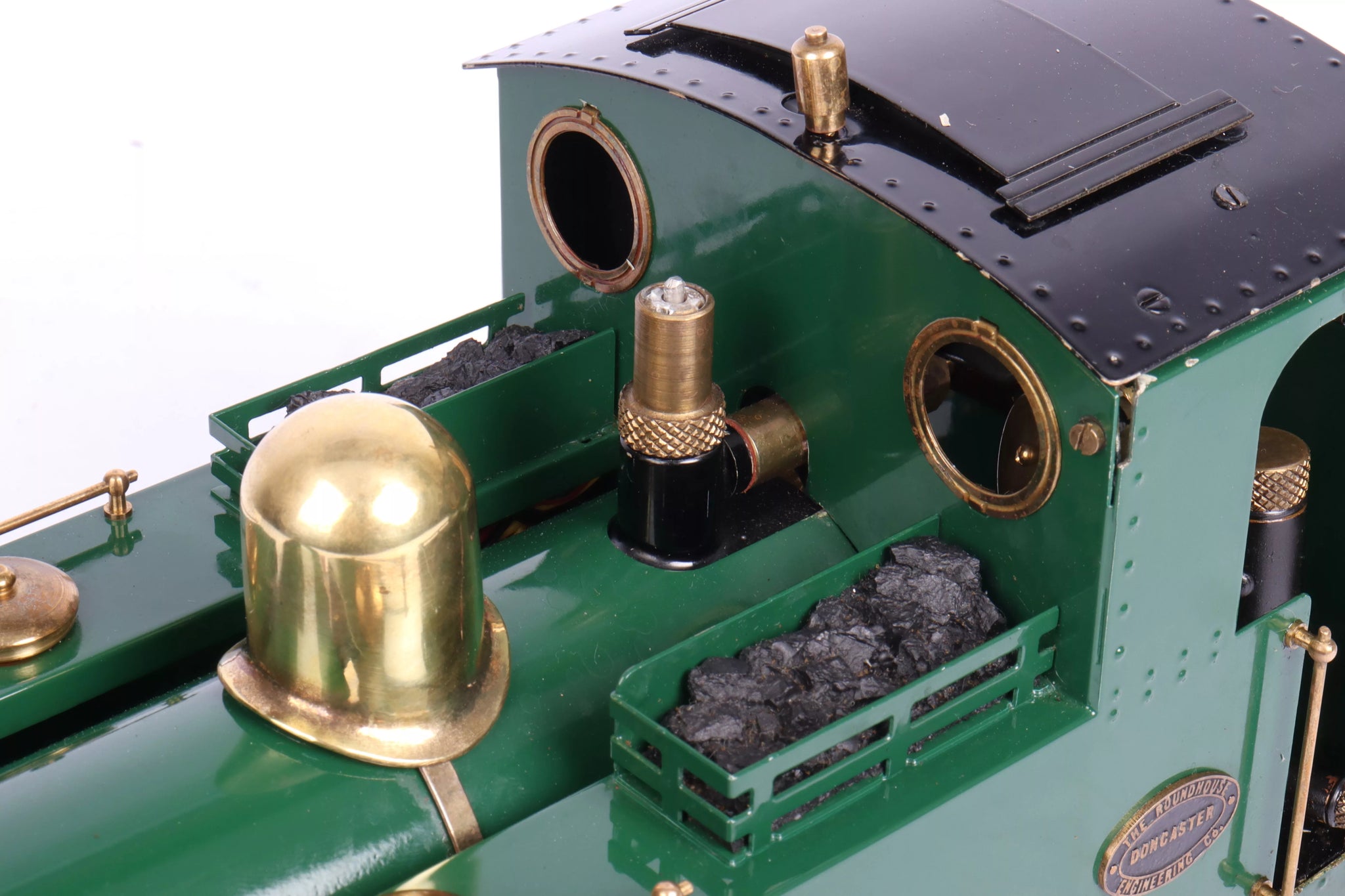

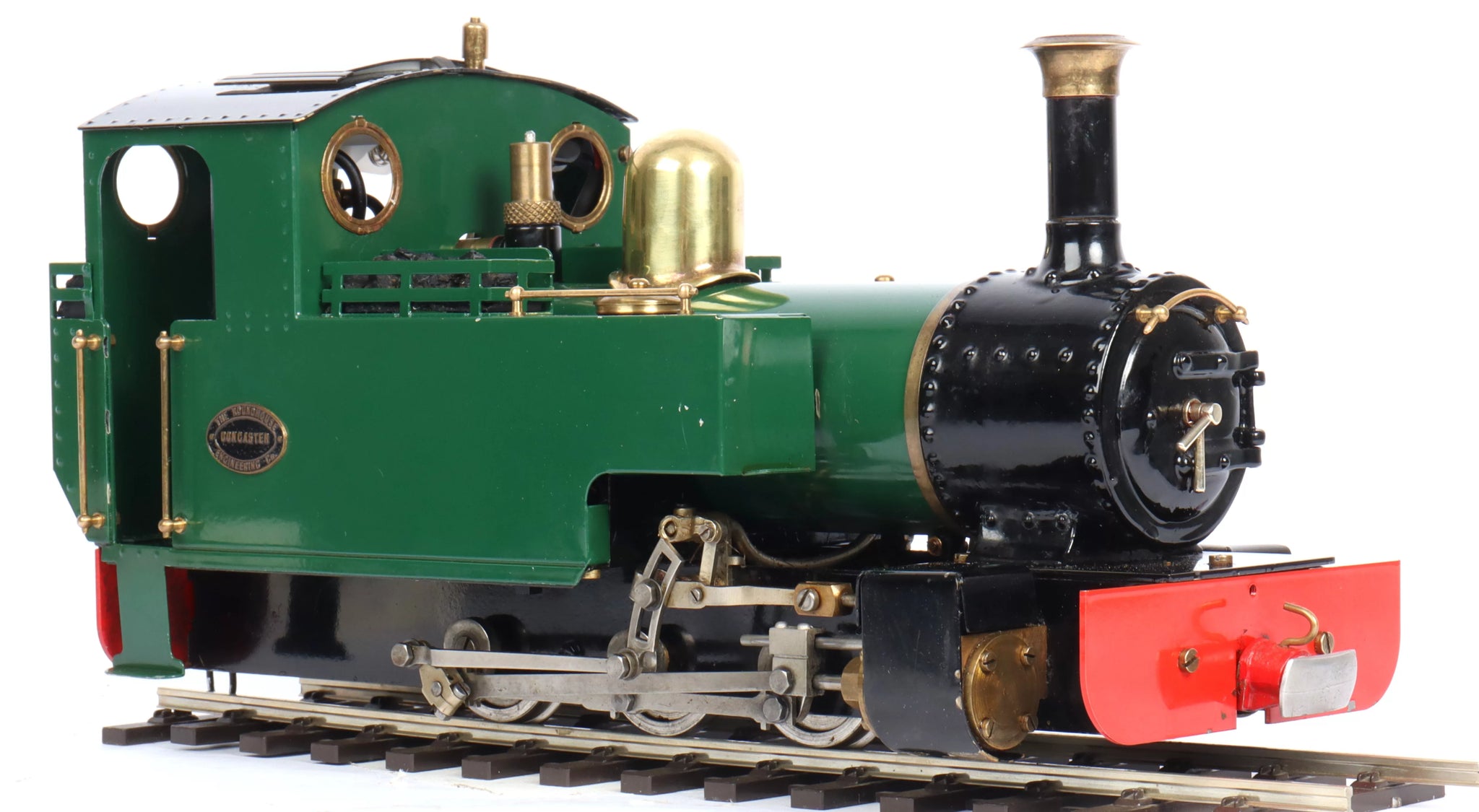

A 32/45mm narrow gauge "Lady Anne" by Roundhouse. An older model, it came to us fitted with a Hitec HS04mi crystal receiver - we've replaced this with a new Planet Proteus 2.4Ghz receiver and matching TS2+2 transmitter.
The engine has had hydraulic and steam tests with new certification issued, there's some video of it in steam below.
Stock code |
13454 |
Gauge |
32/45mm |
Length/inches |
12 |
Width/inches |
4 |
Height/inches |
6 |
Weight/Kg |
4 1/2 |
Wheel material |
steel |
Axlebox type |
plain bearing |
Cylinder material |
brass |
Valve type |
slide |

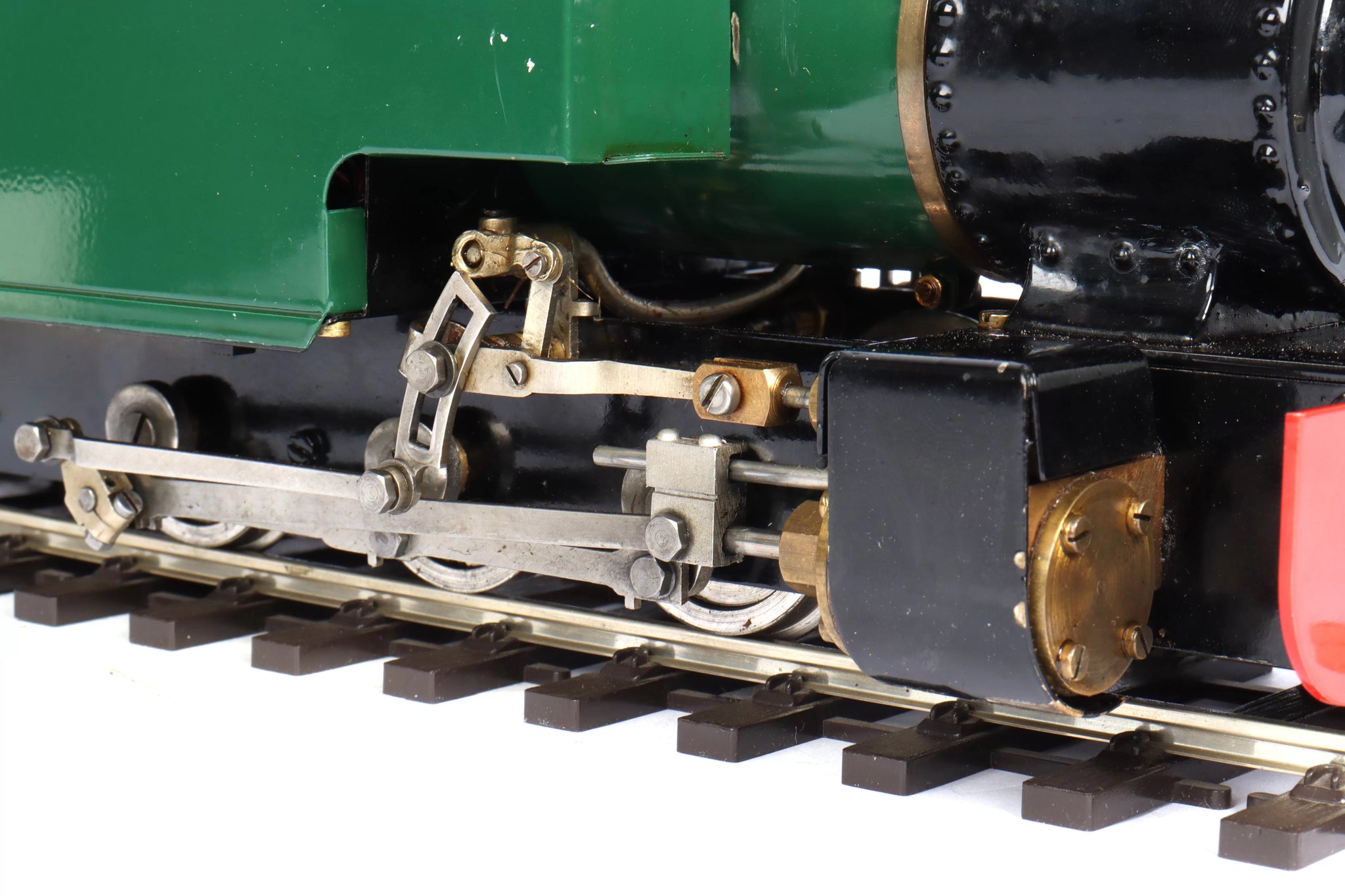

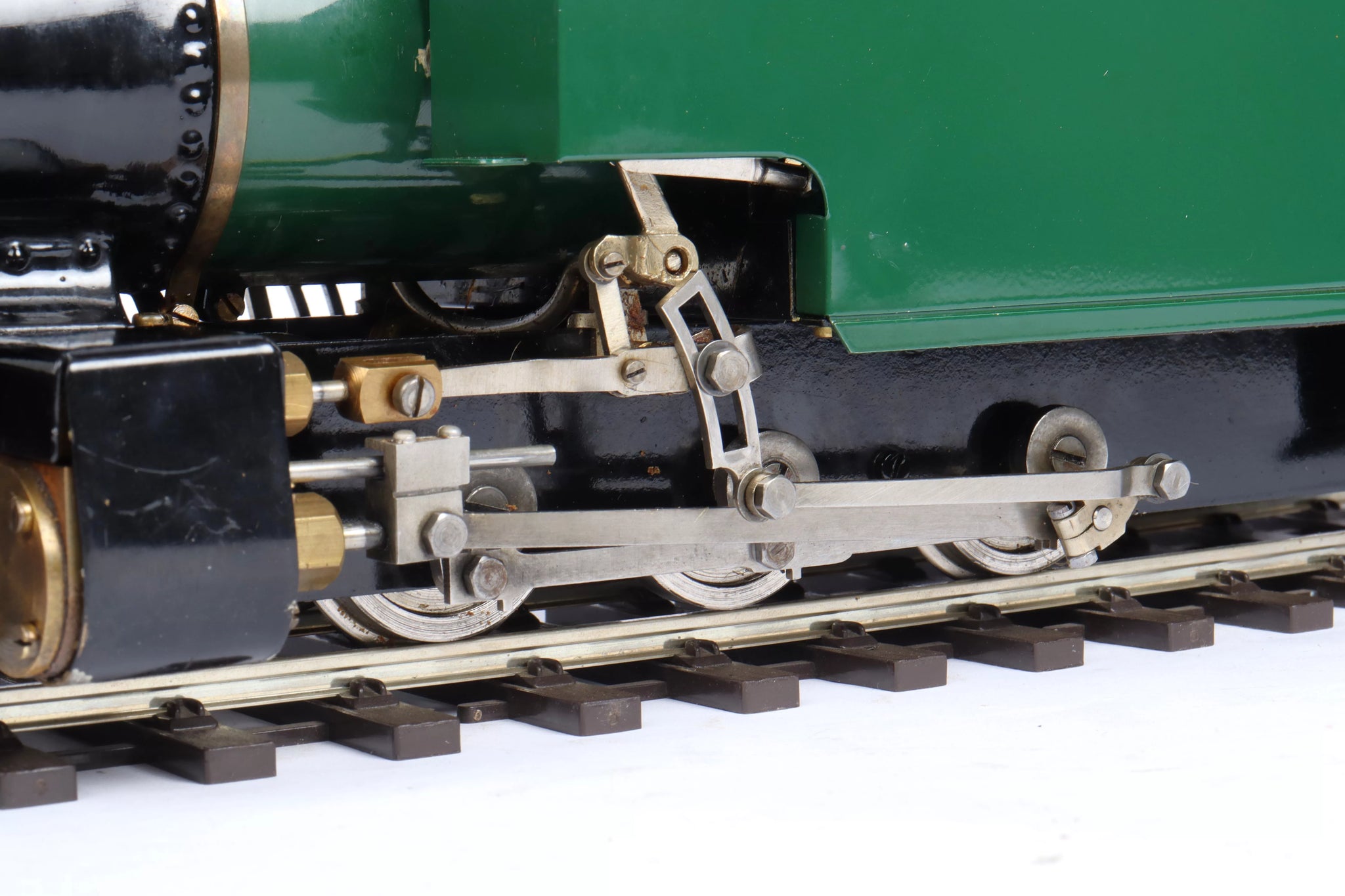

Valve gear |
simplified walschaerts |
Reverser type |
radio control |
Boiler maker |
Roundhouse Engineering |
Boiler type |
centre flue |
Boiler construction |
silver soldered |
Boiler material |
copper |
Working pressure |
40 |
CE/UKCA mark |
n/a - <2 litre capacity |
Year built |
unknown |
Boiler number |
HF29181 |
Safety valve |
1 |
Hydraulic test valid to |
3/Aug/30 |
Steam test valid to |
3/Oct/27 |
