13453

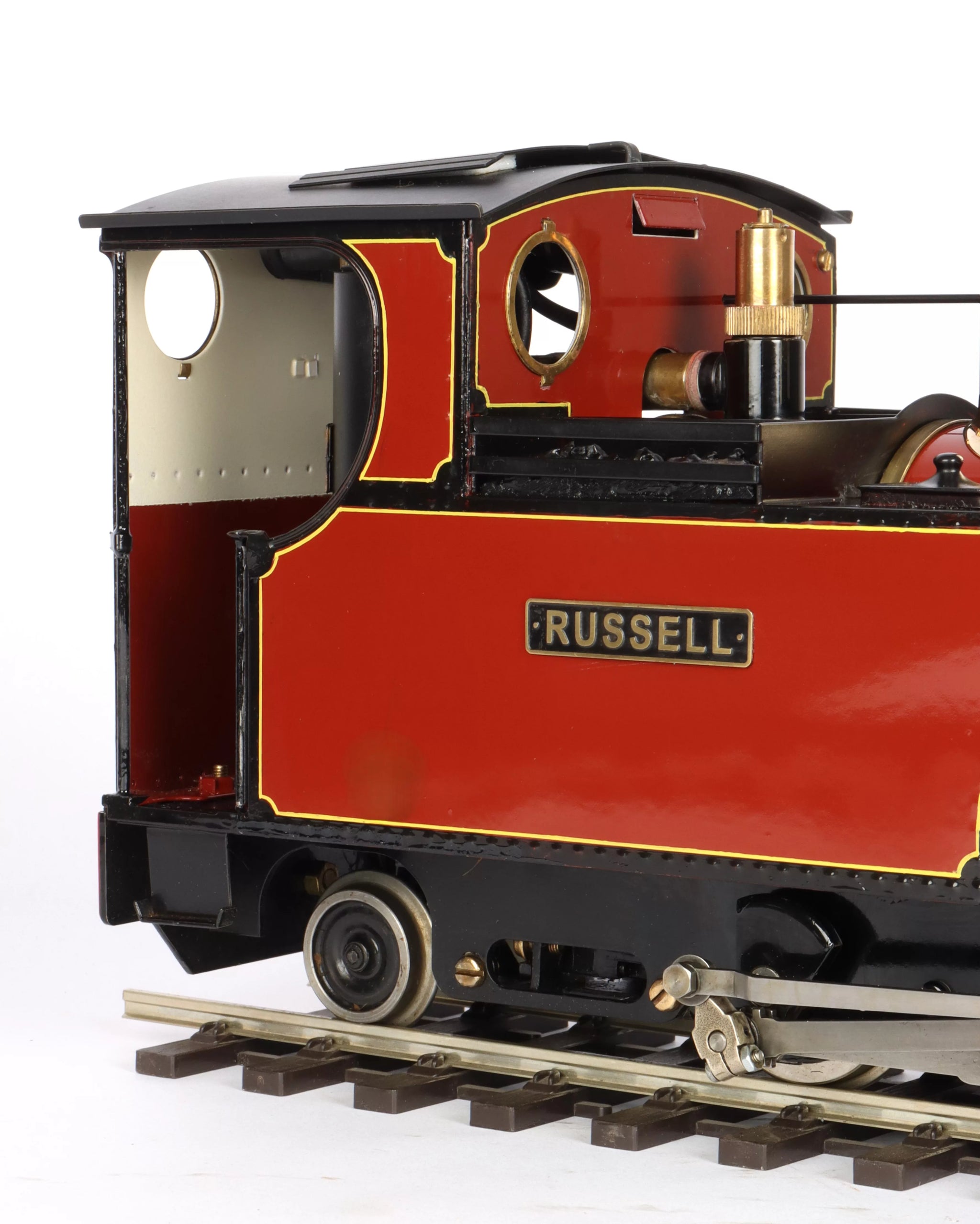

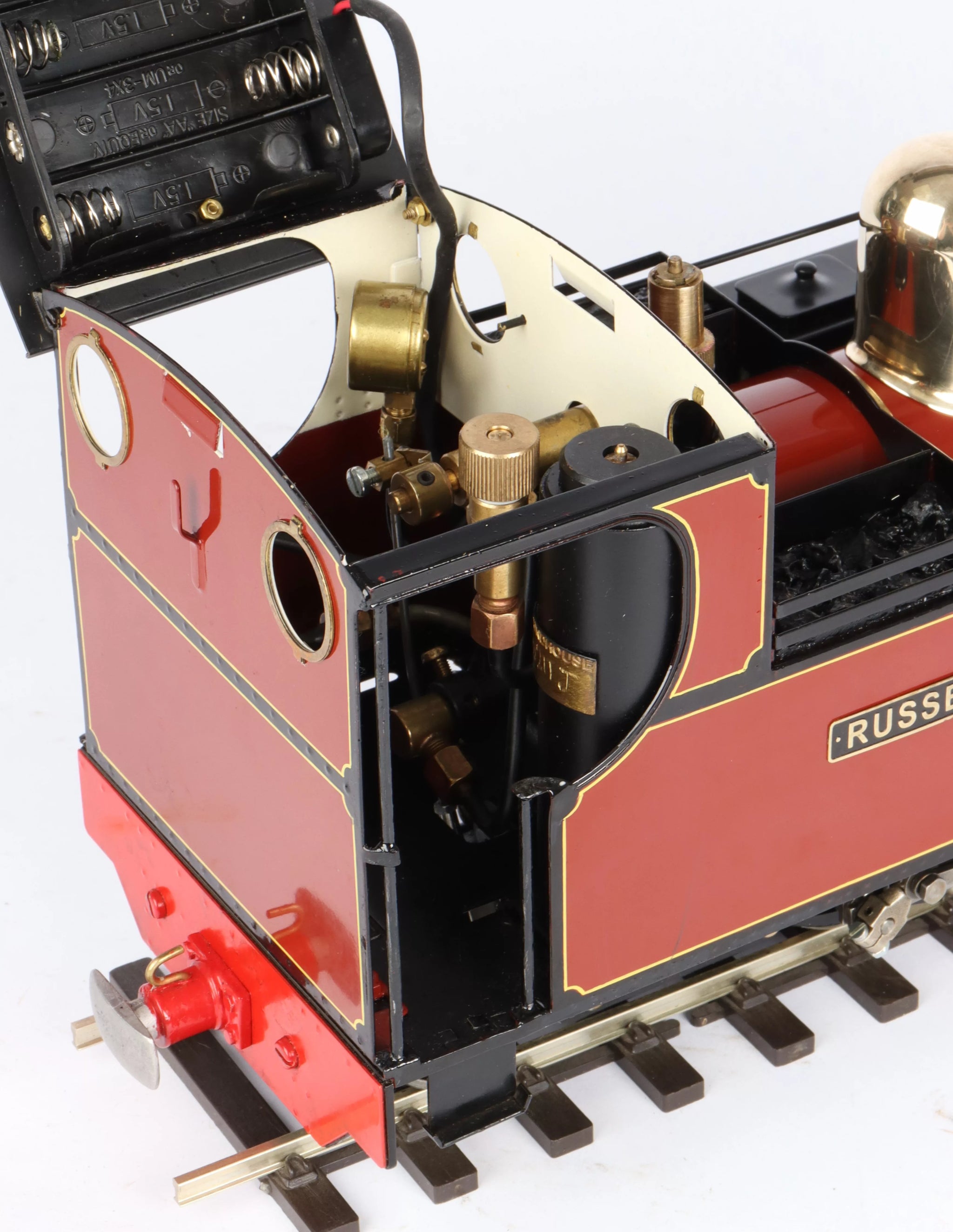

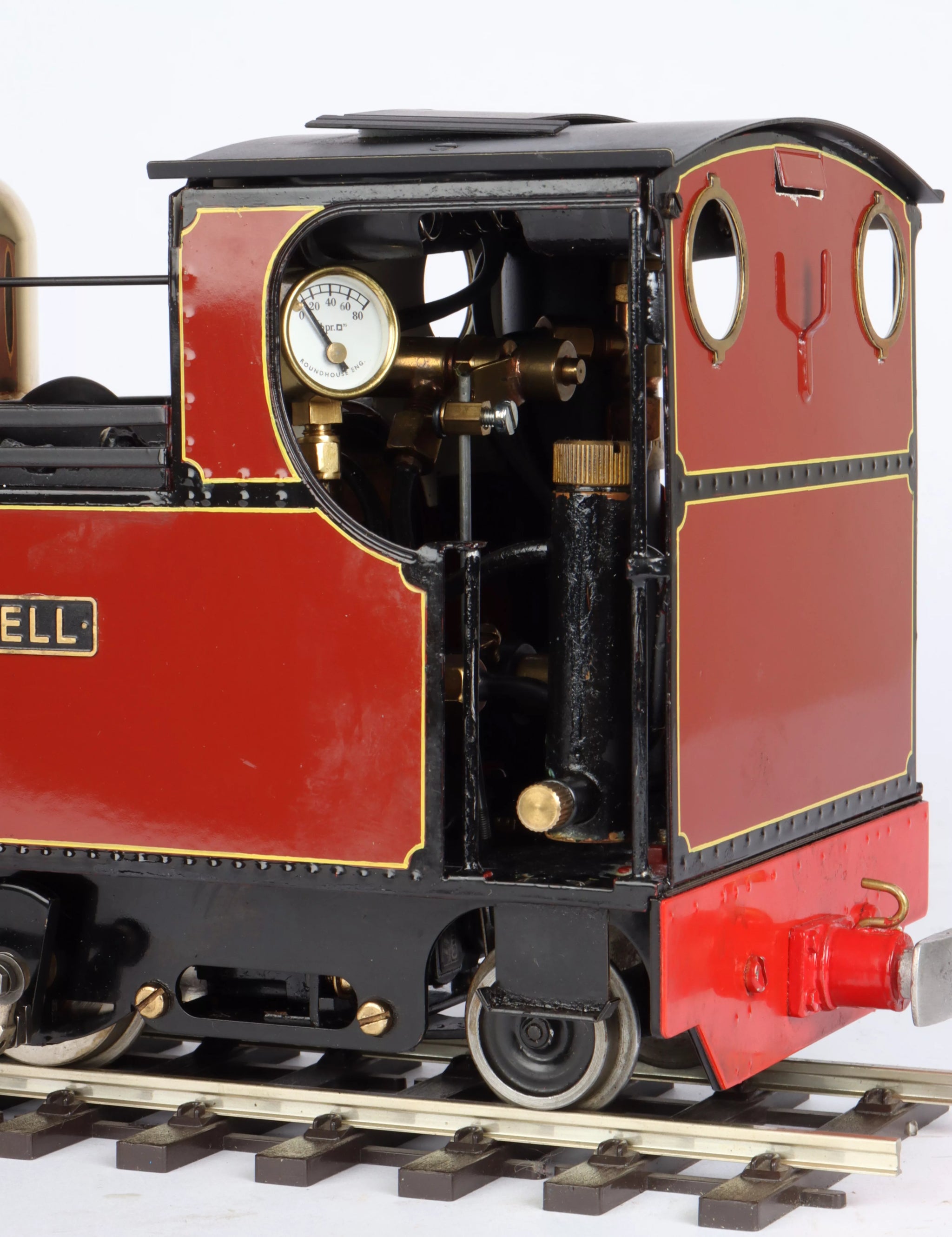

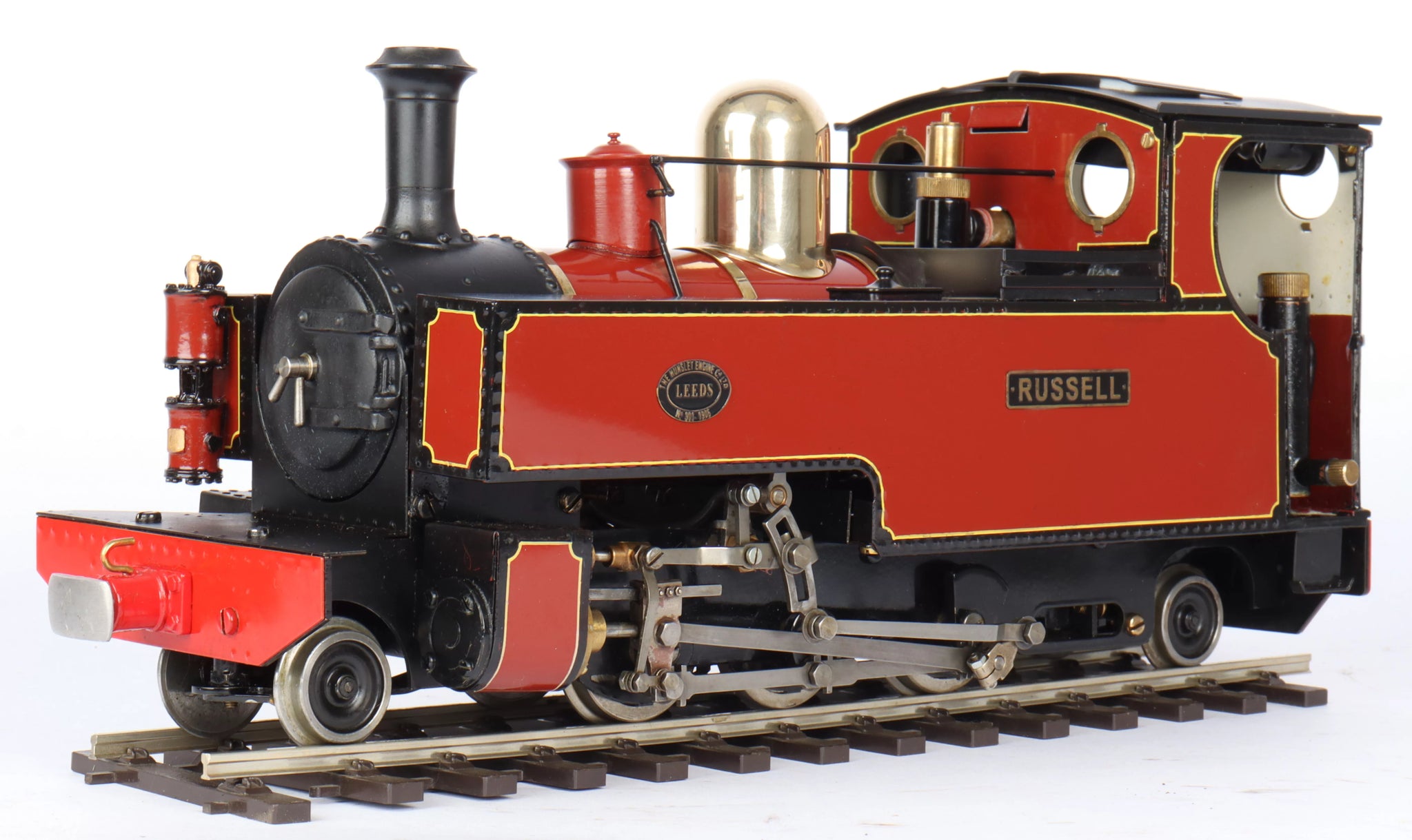

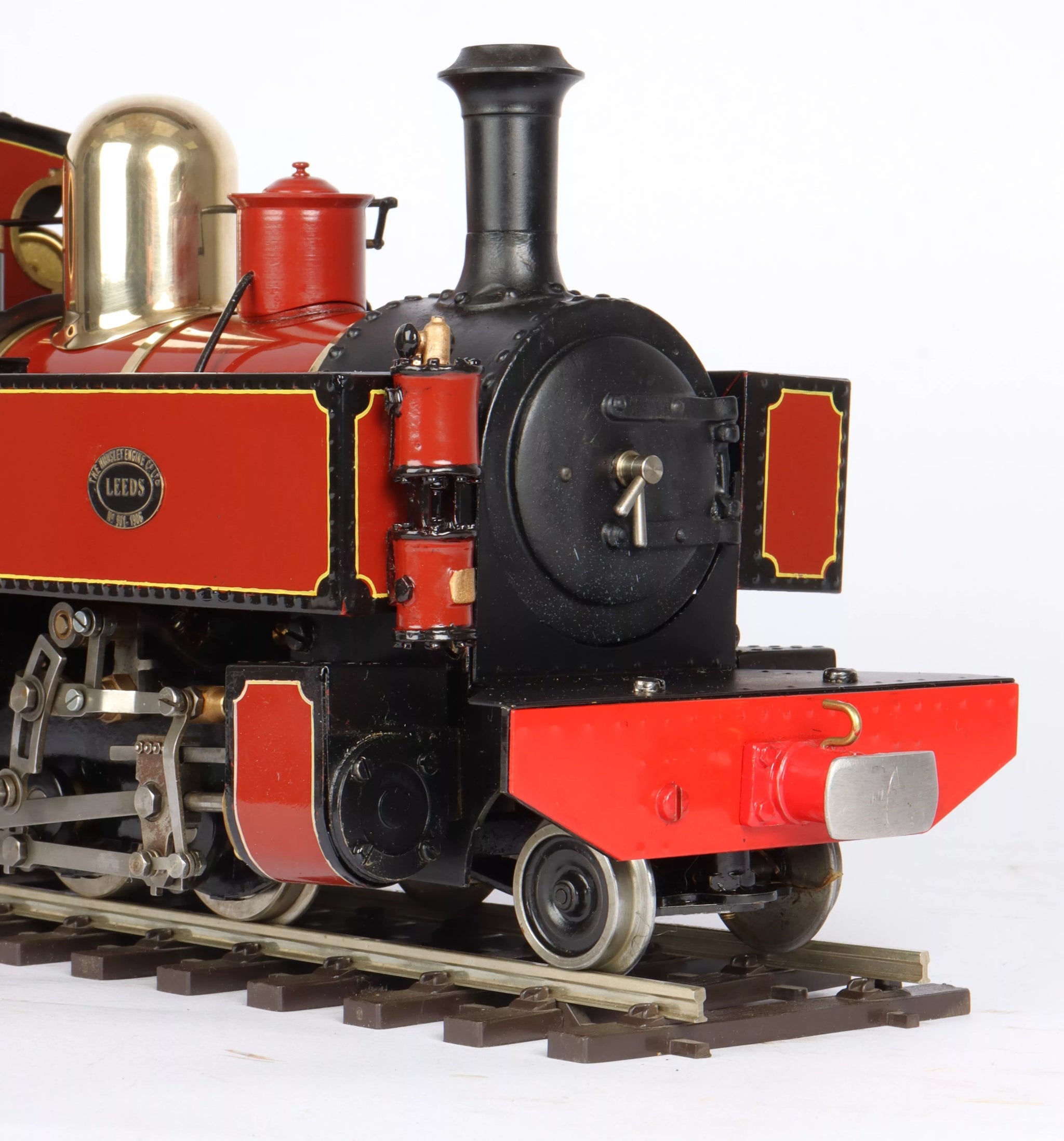

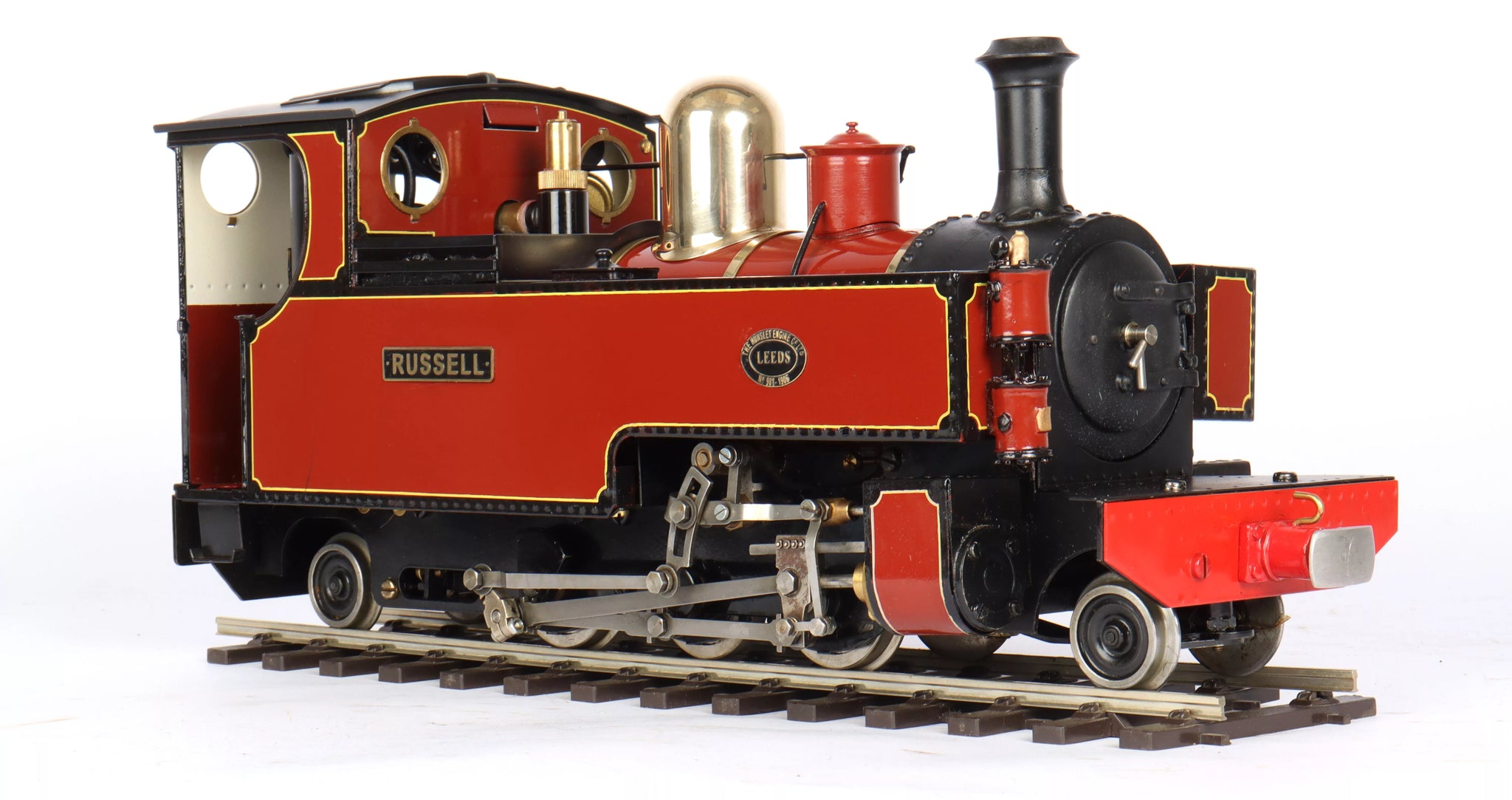

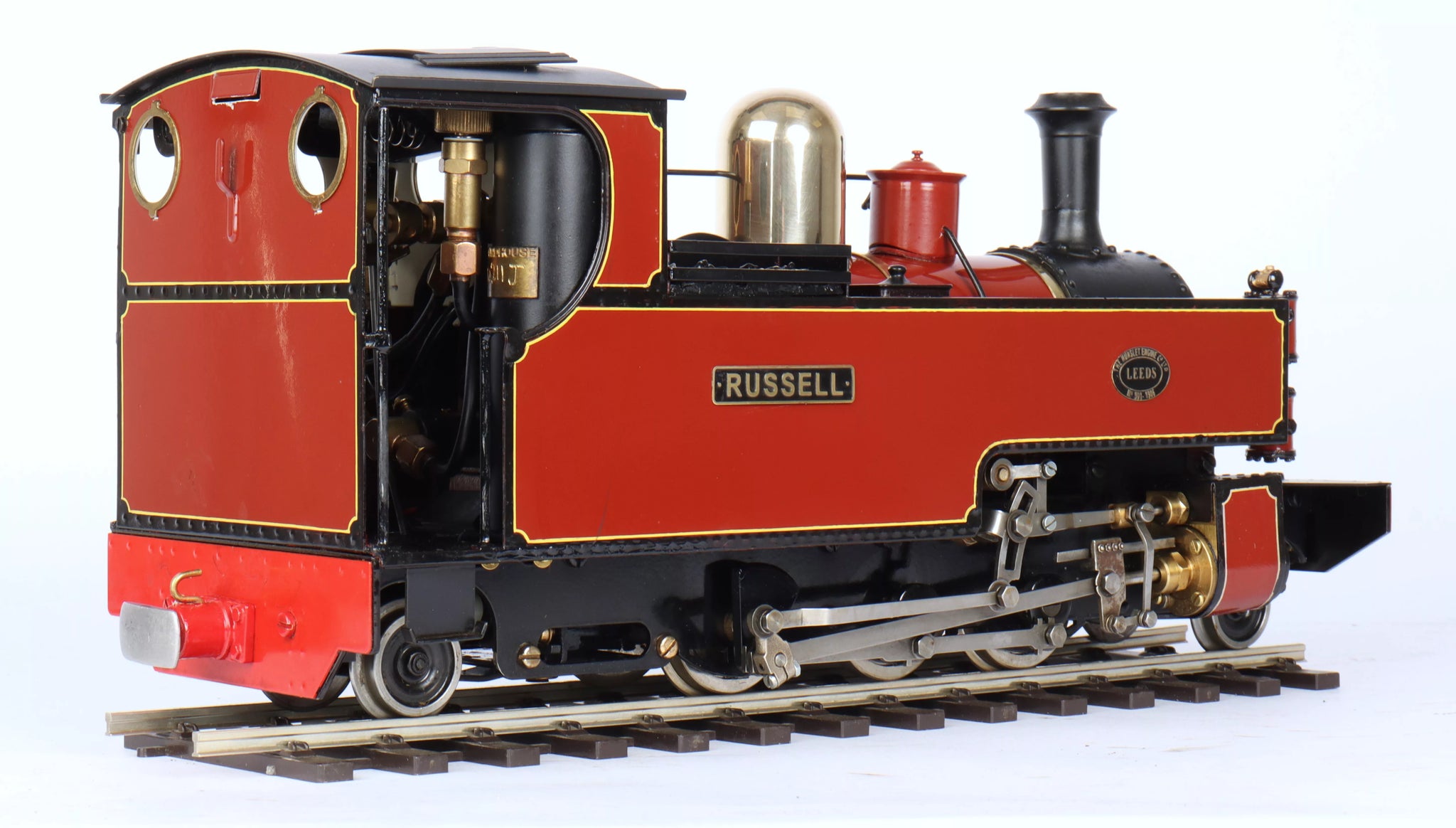

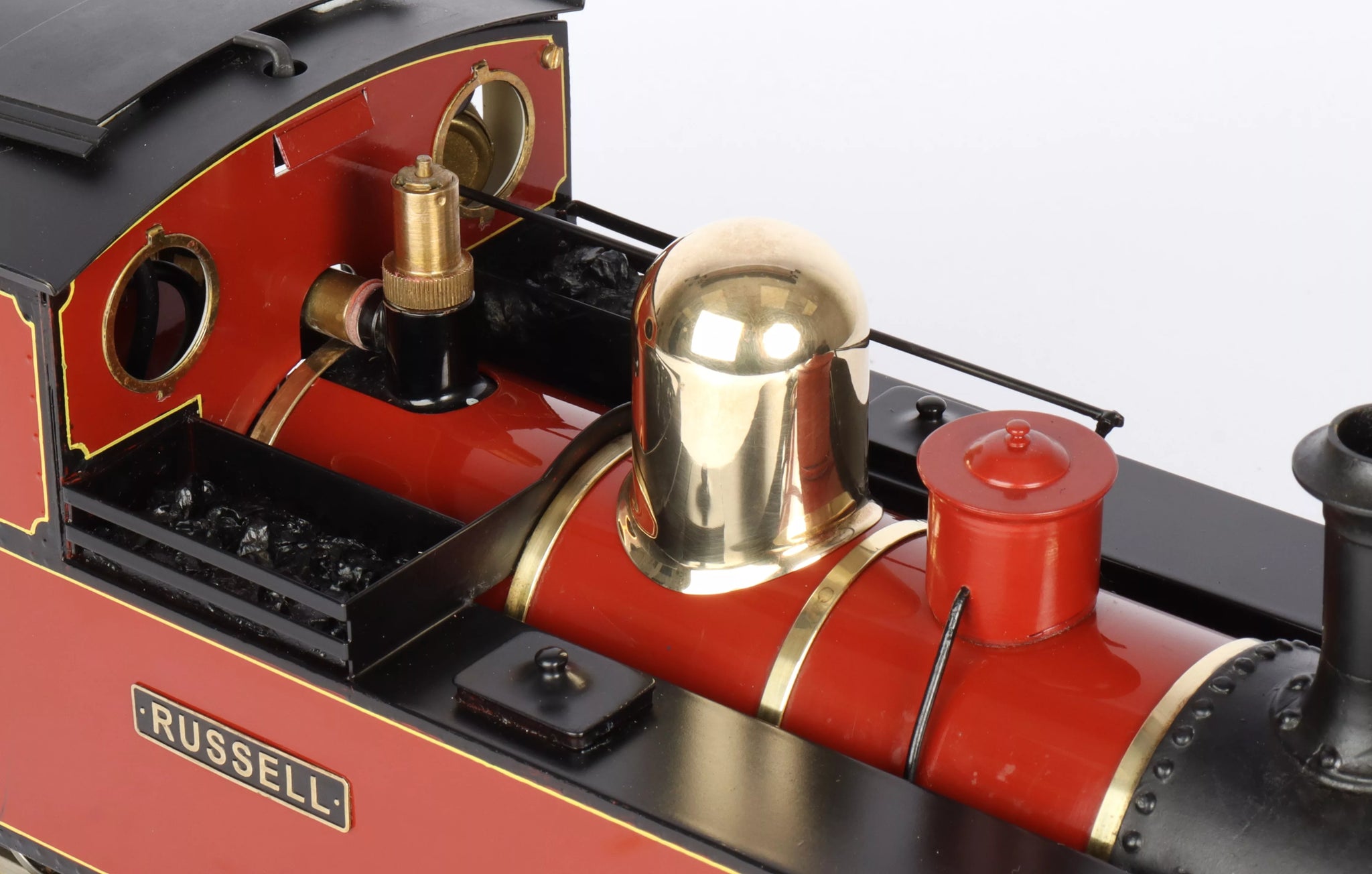

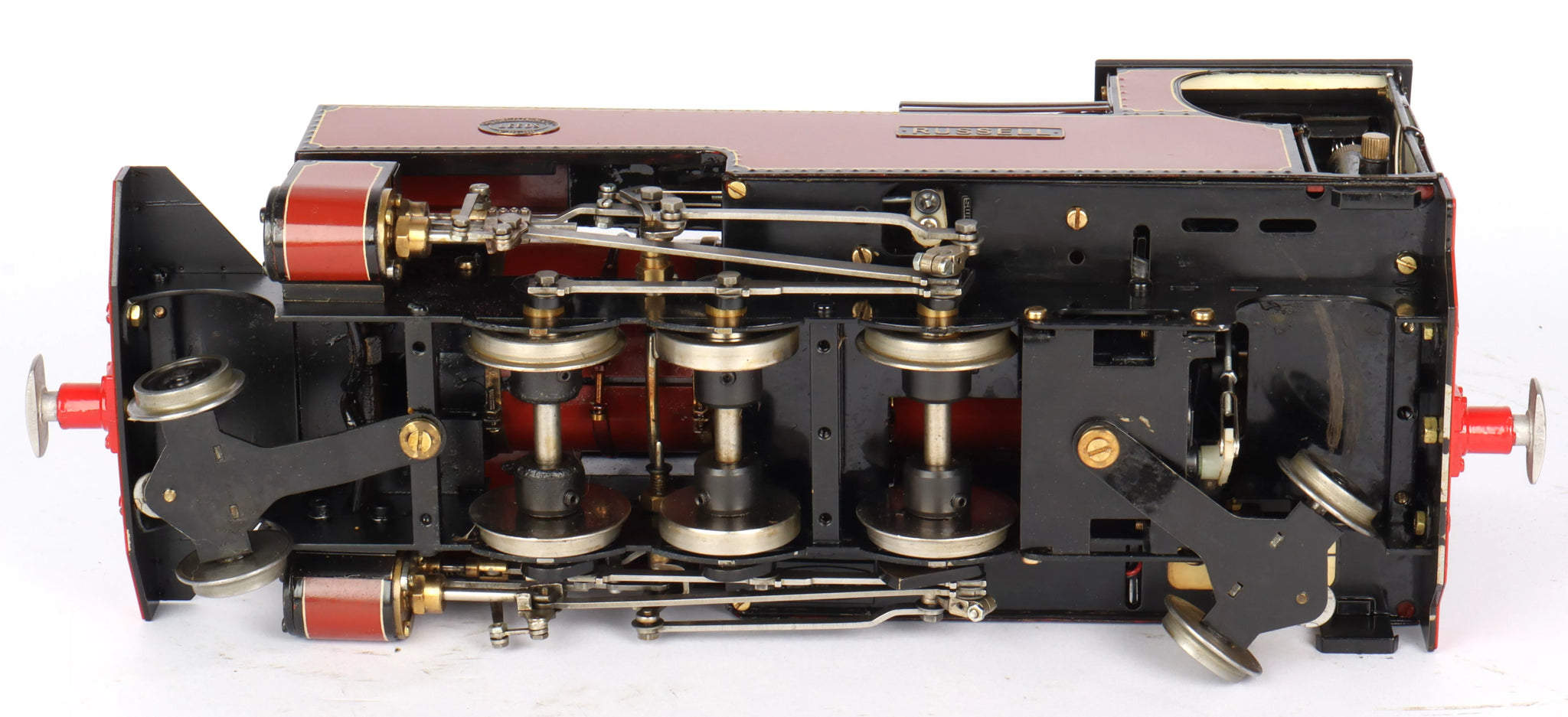

A 32/45mm narrow gauge Roundhouse "Russell".

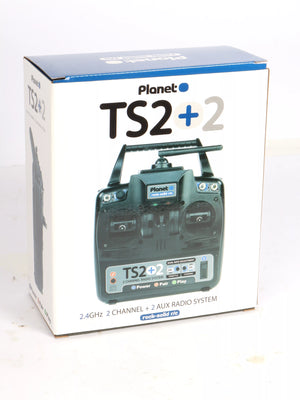

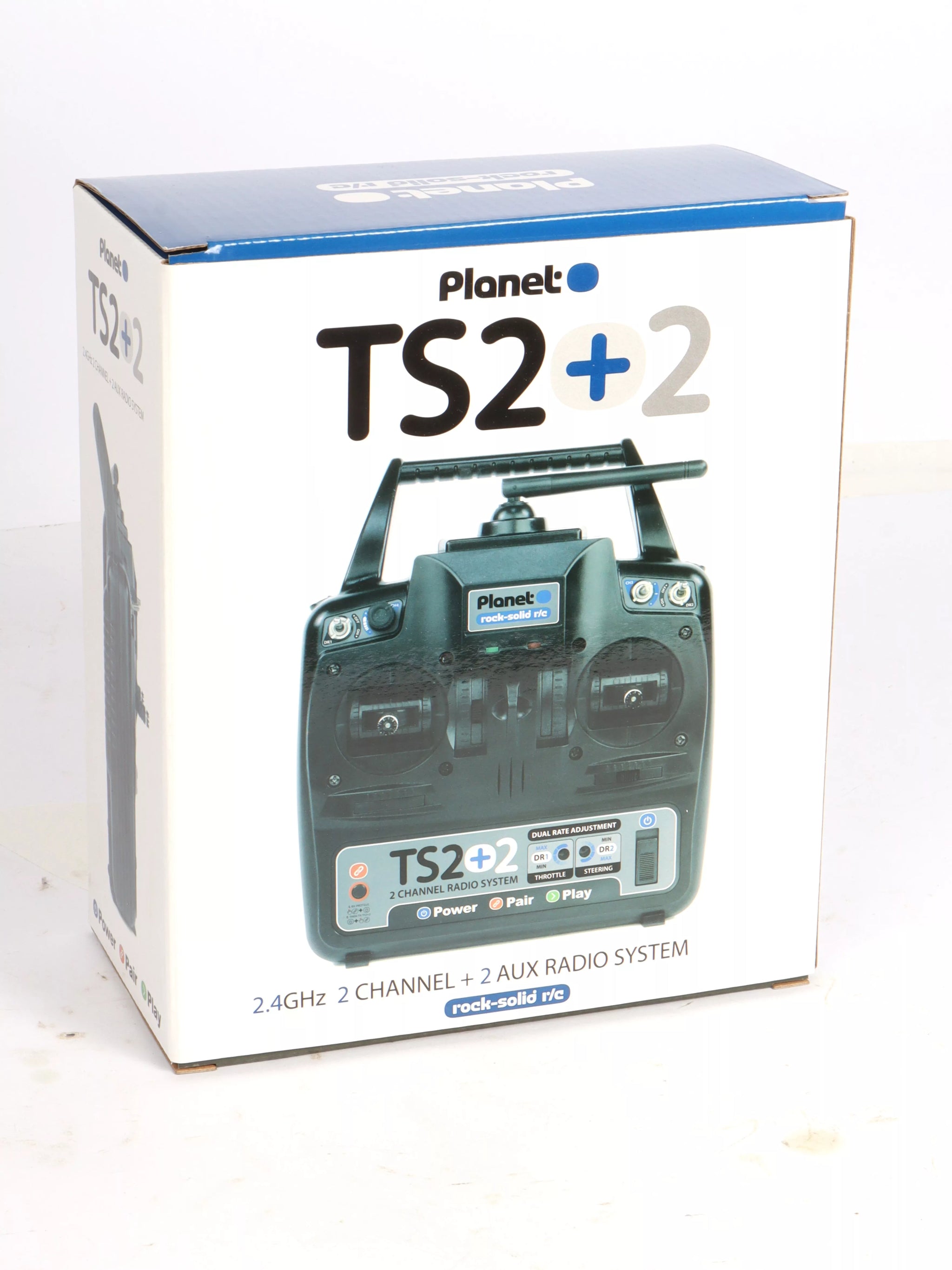

In good condition, the boiler has had hydraulic and steam tests with new certification issued. Originally fitted with an older Planet R6M 2.4Ghz micro receiver, for some reason it was stubbornly refusing to pair with a modern transmitter - we've replaced the receiver for a brand new Planet Proteus with matching TS2+2 transmitter.
In good condition, the engine runs well in either direction.
Stock code |
13453 |
Gauge |
32/45mm |
Length/inches |
13 1/2 |
Width/inches |
5 |
Height/inches |
6 |
Weight/Kg |
4 |
Wheel material |
steel |
Axlebox type |
plain bearing |
Cylinder material |
gunmetal |
Valve type |
slide |

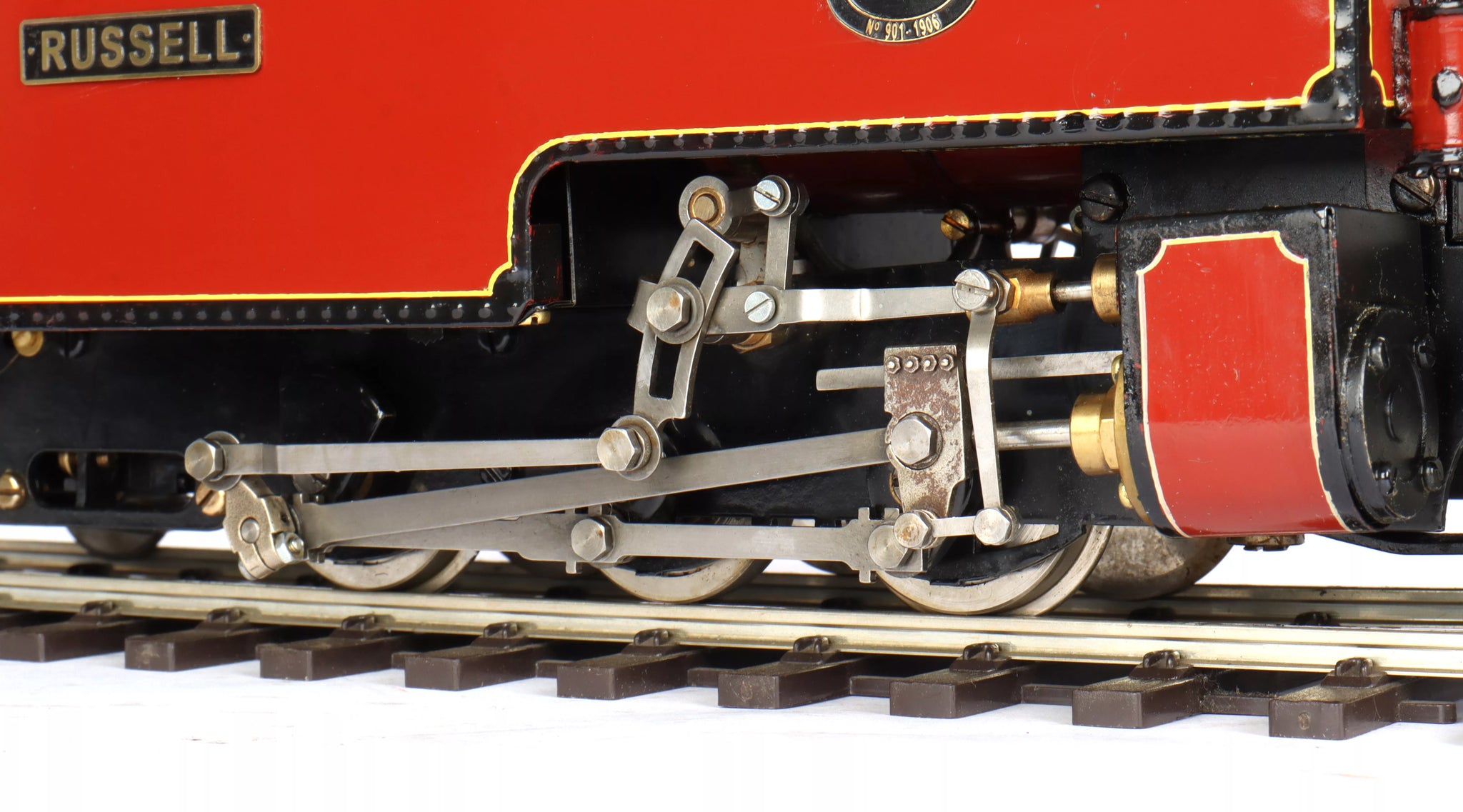

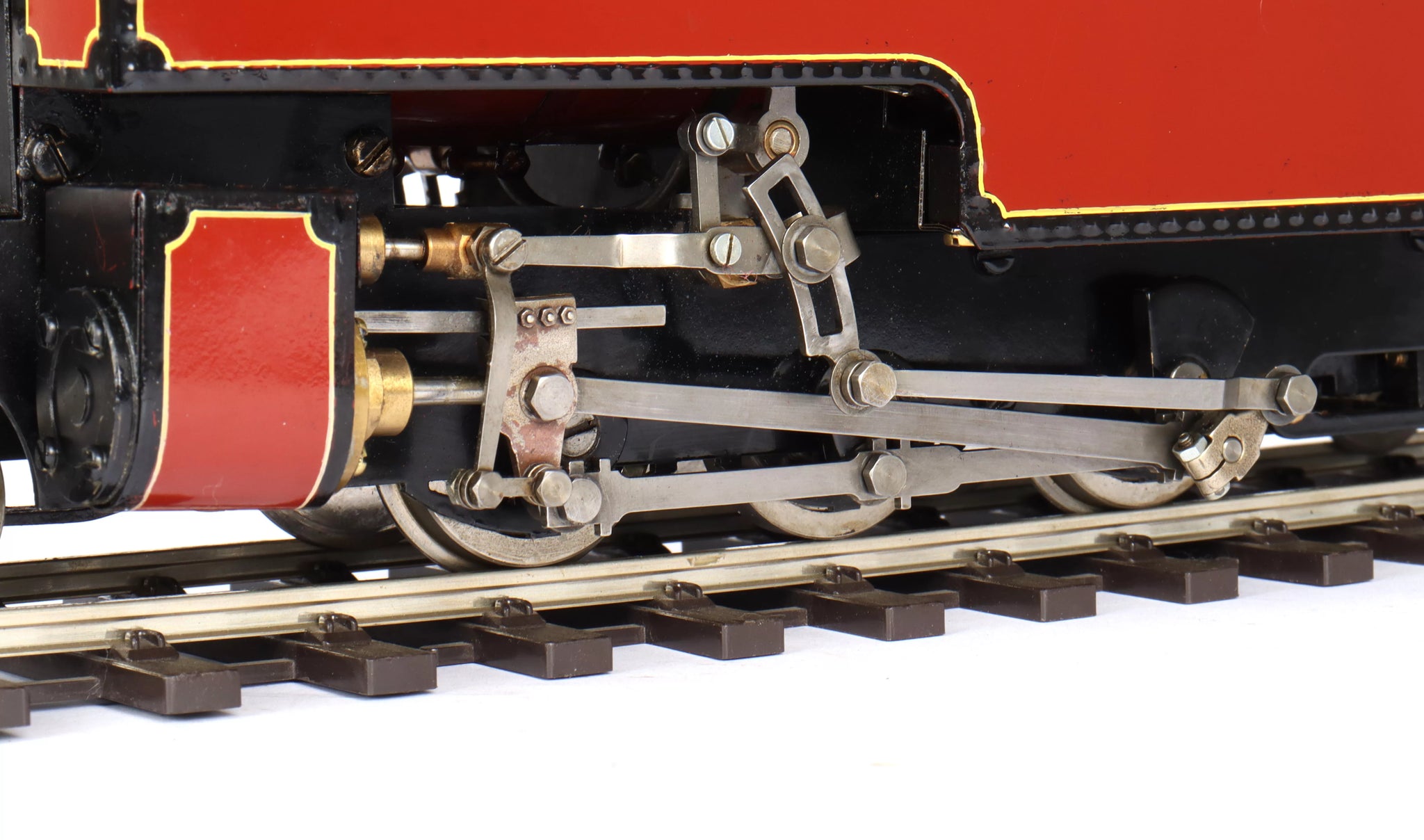

Valve gear |
simplified walschaerts |
Reverser type |
radio control |
Lubricator type |
displacement |
Boiler maker |
Roundhouse Engineering |
Boiler type |
centre flue |
Boiler construction |
silver soldered |
Boiler material |
copper |
Working pressure |
40 |
CE/UKCA mark |
n/a - <2 litre capacity |
Year built |
2011 |
Boiler number |
250311A |
Safety valve type |
spring |
Safety valve |
1 |
Minimum radius |
2.5 |
