Sold

11784

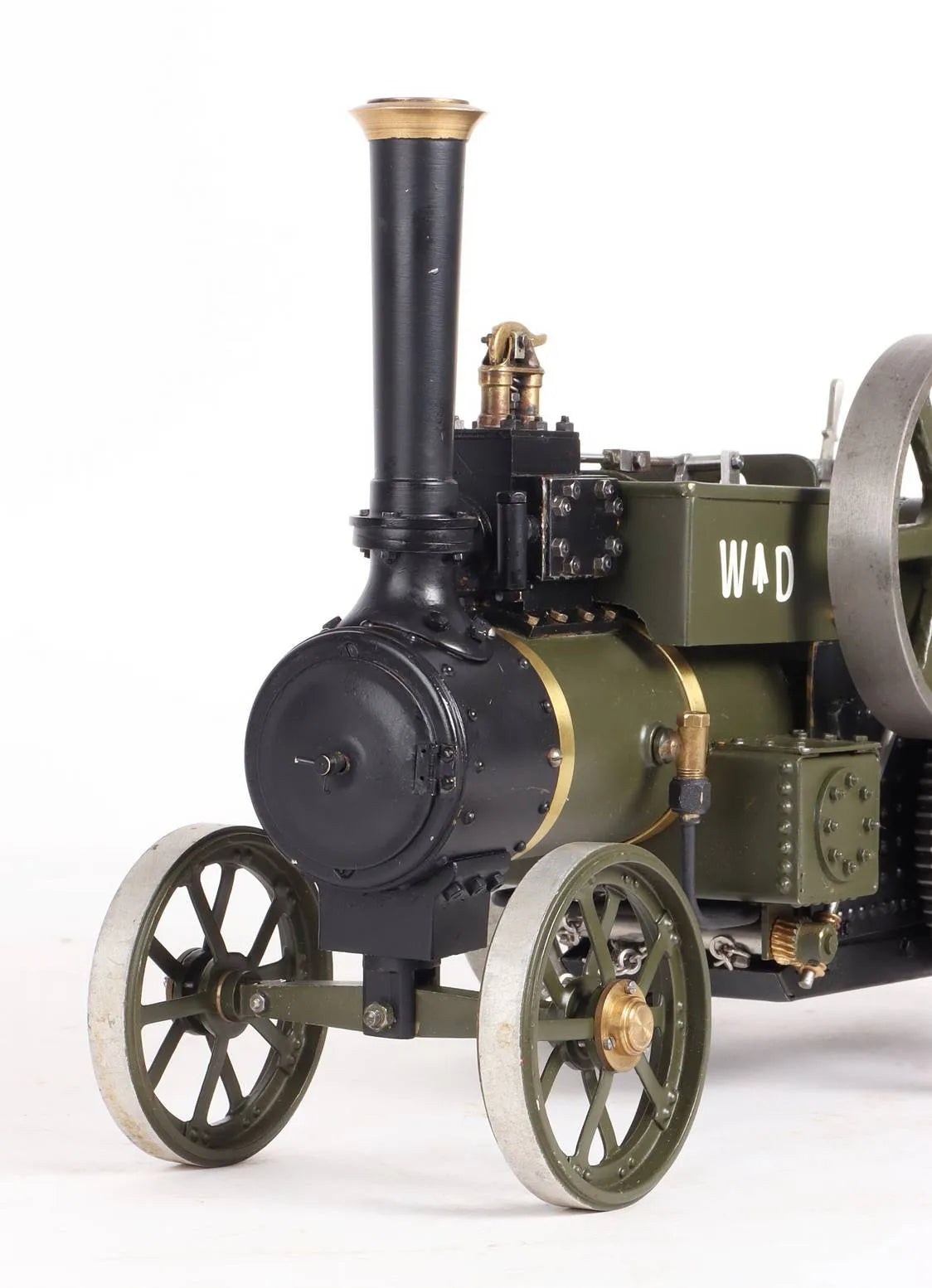

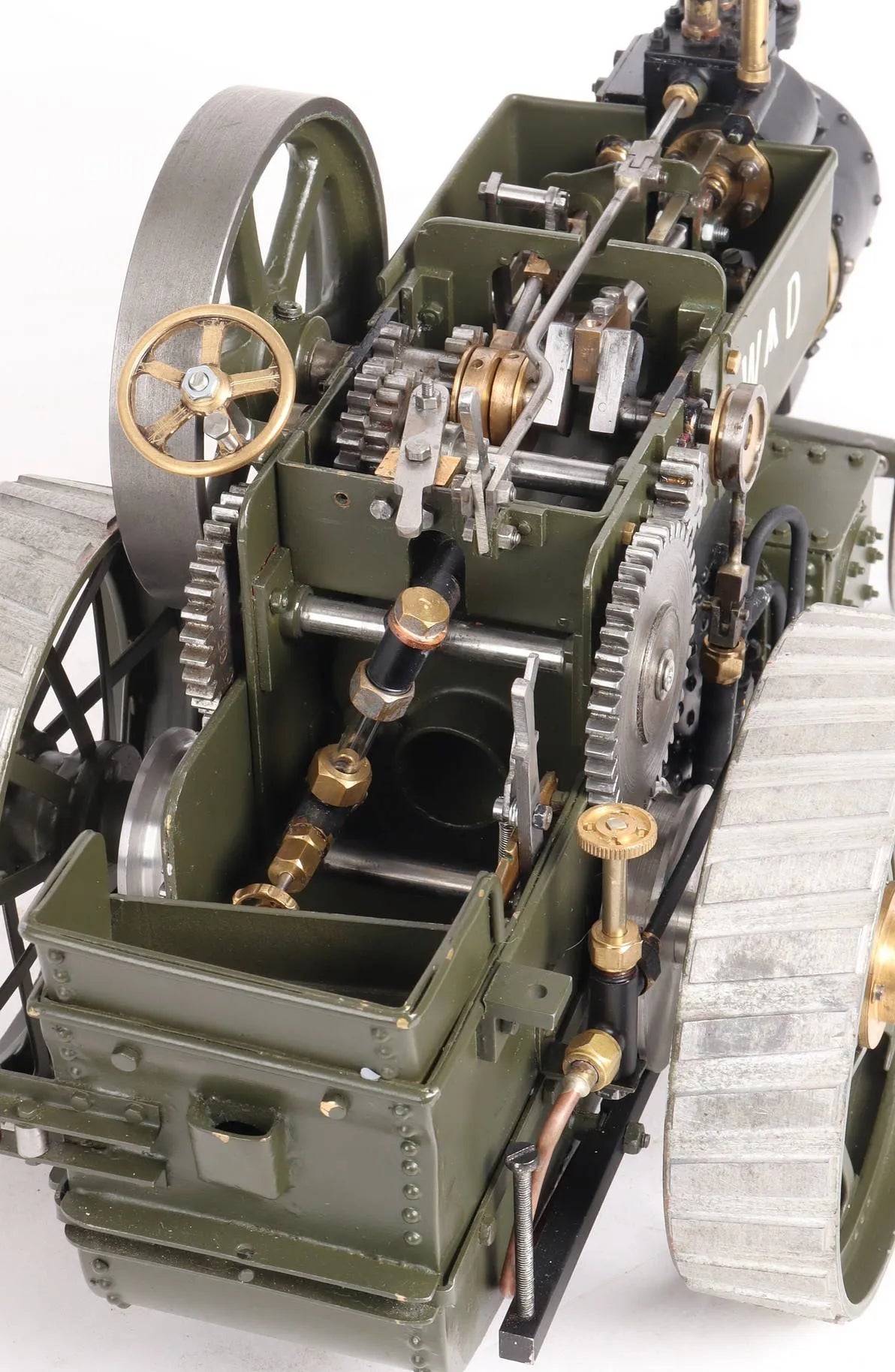

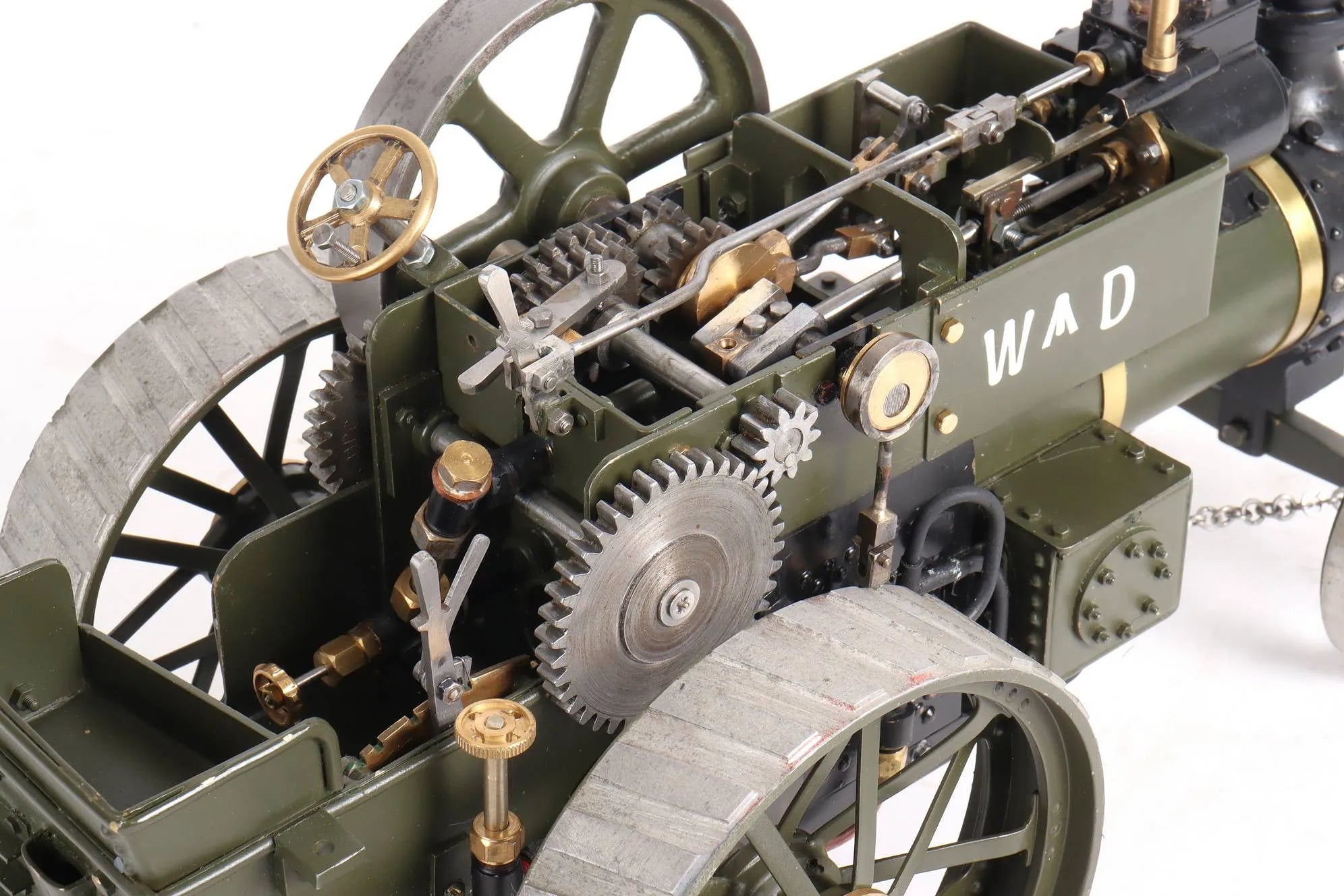

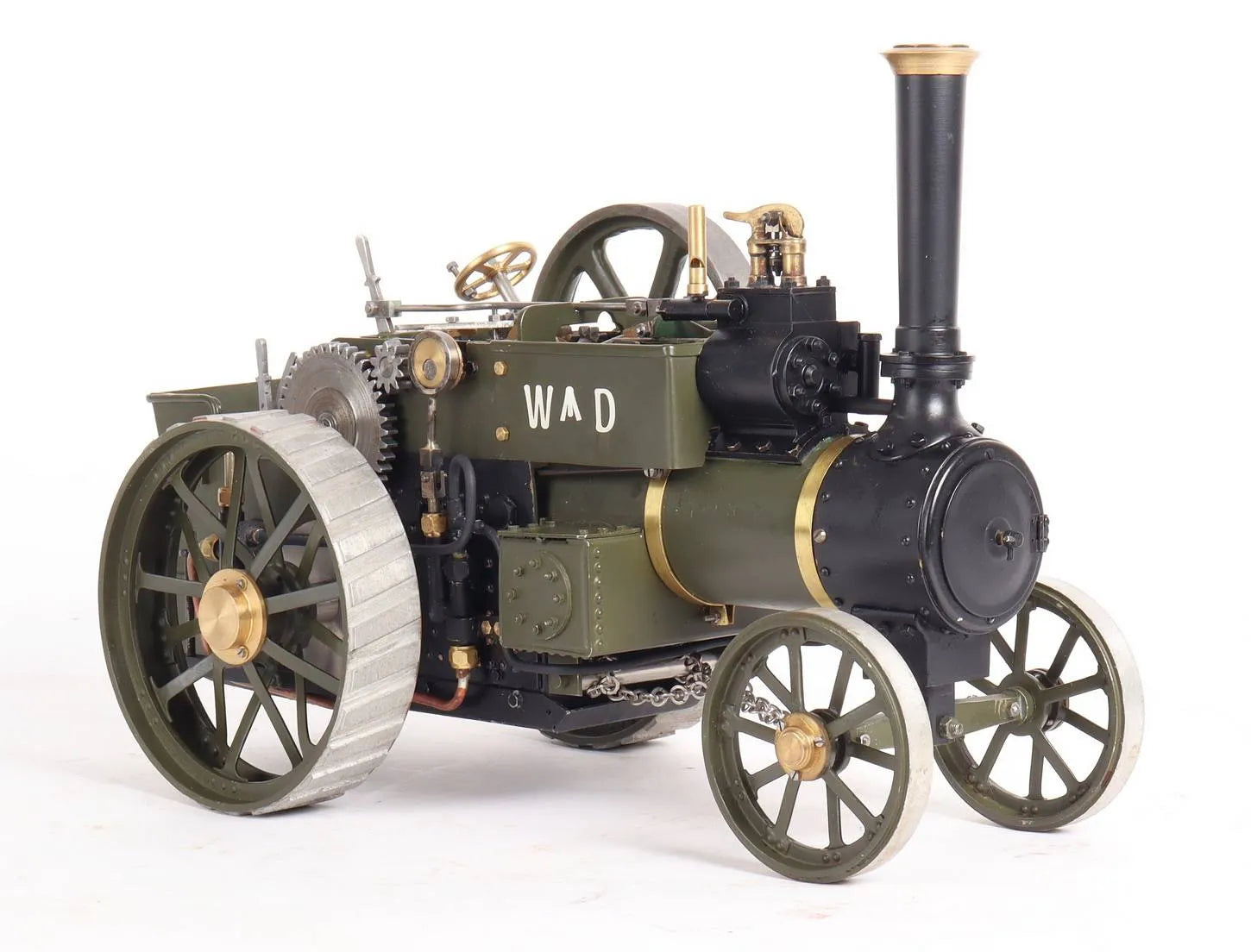

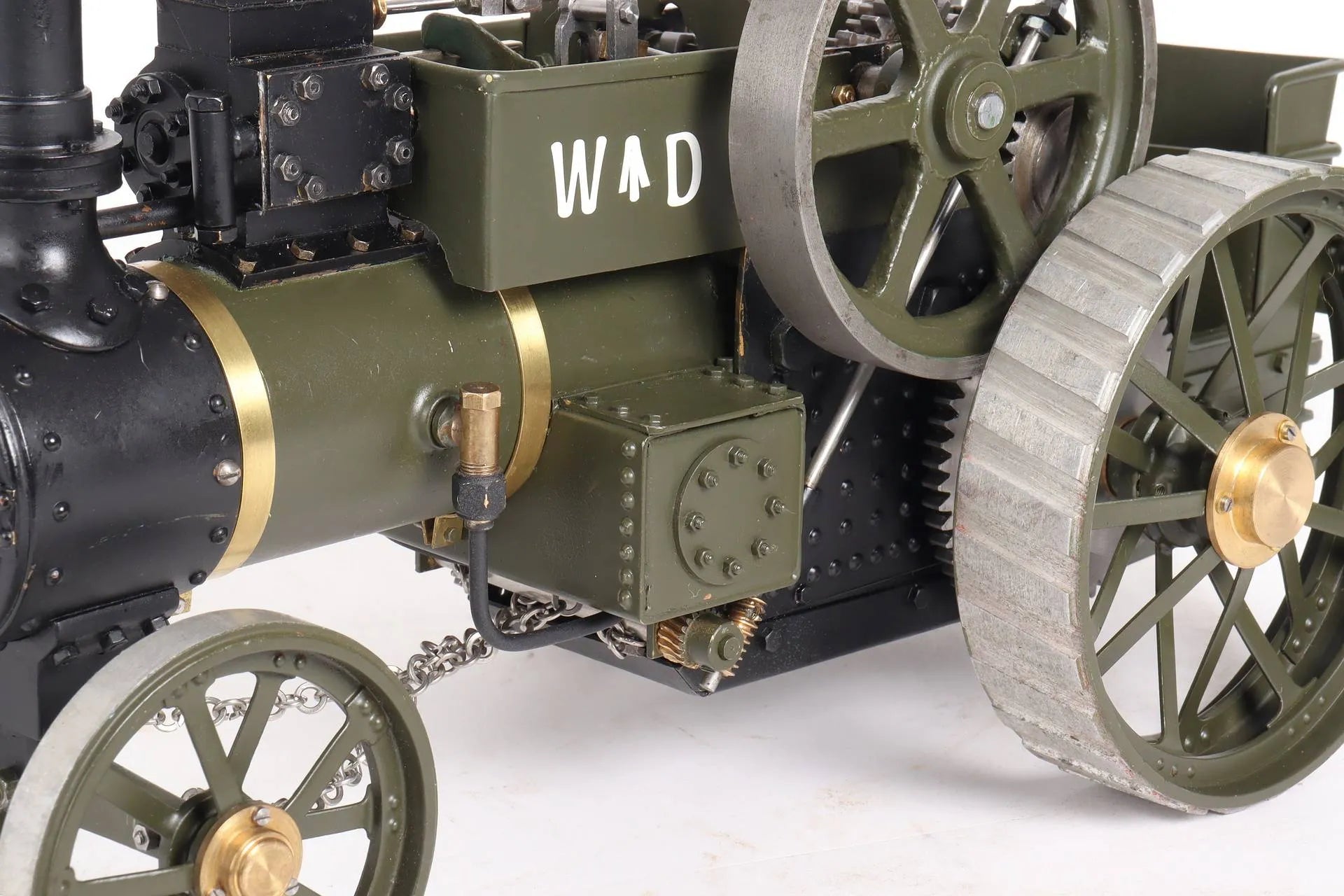

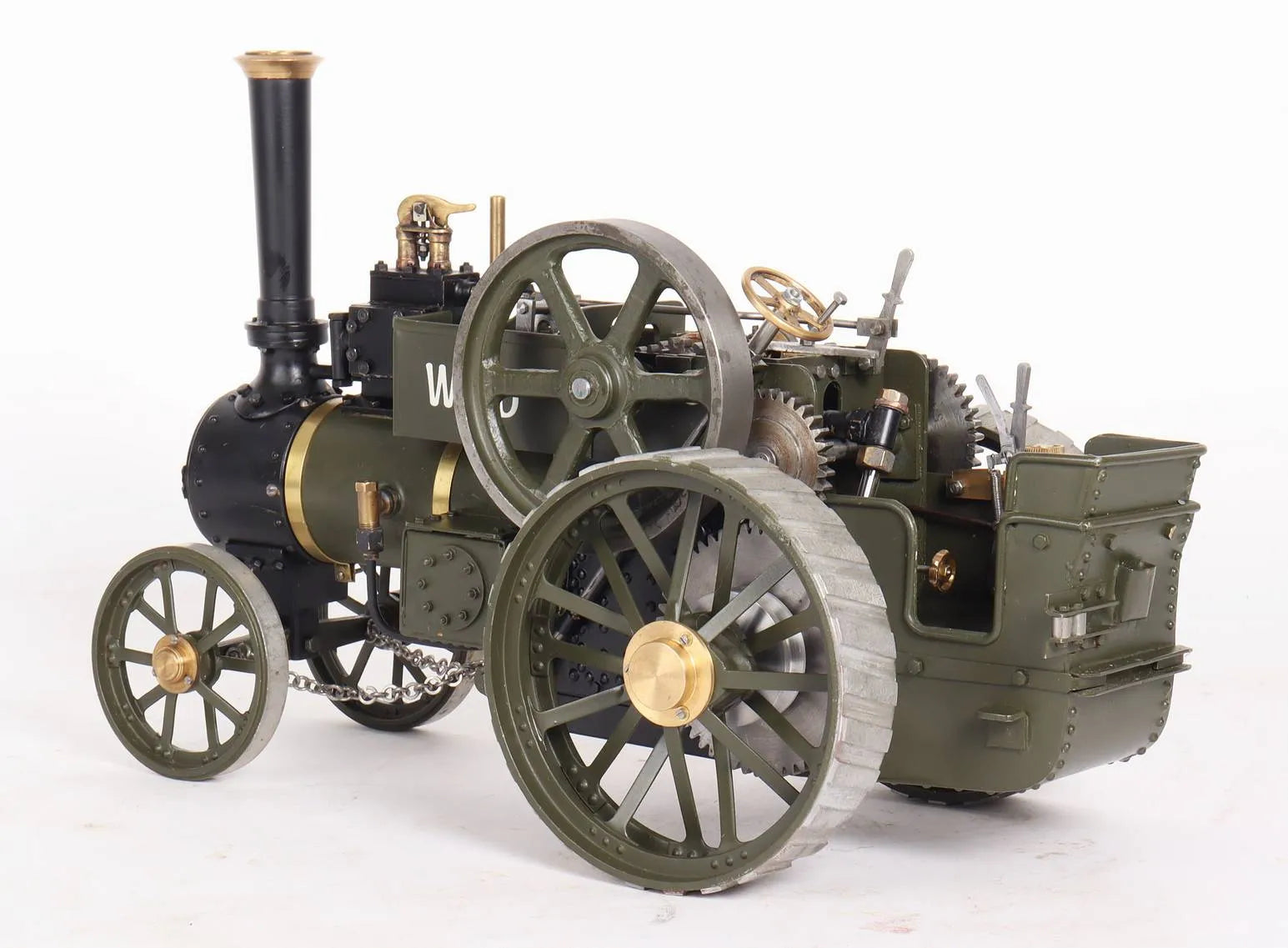

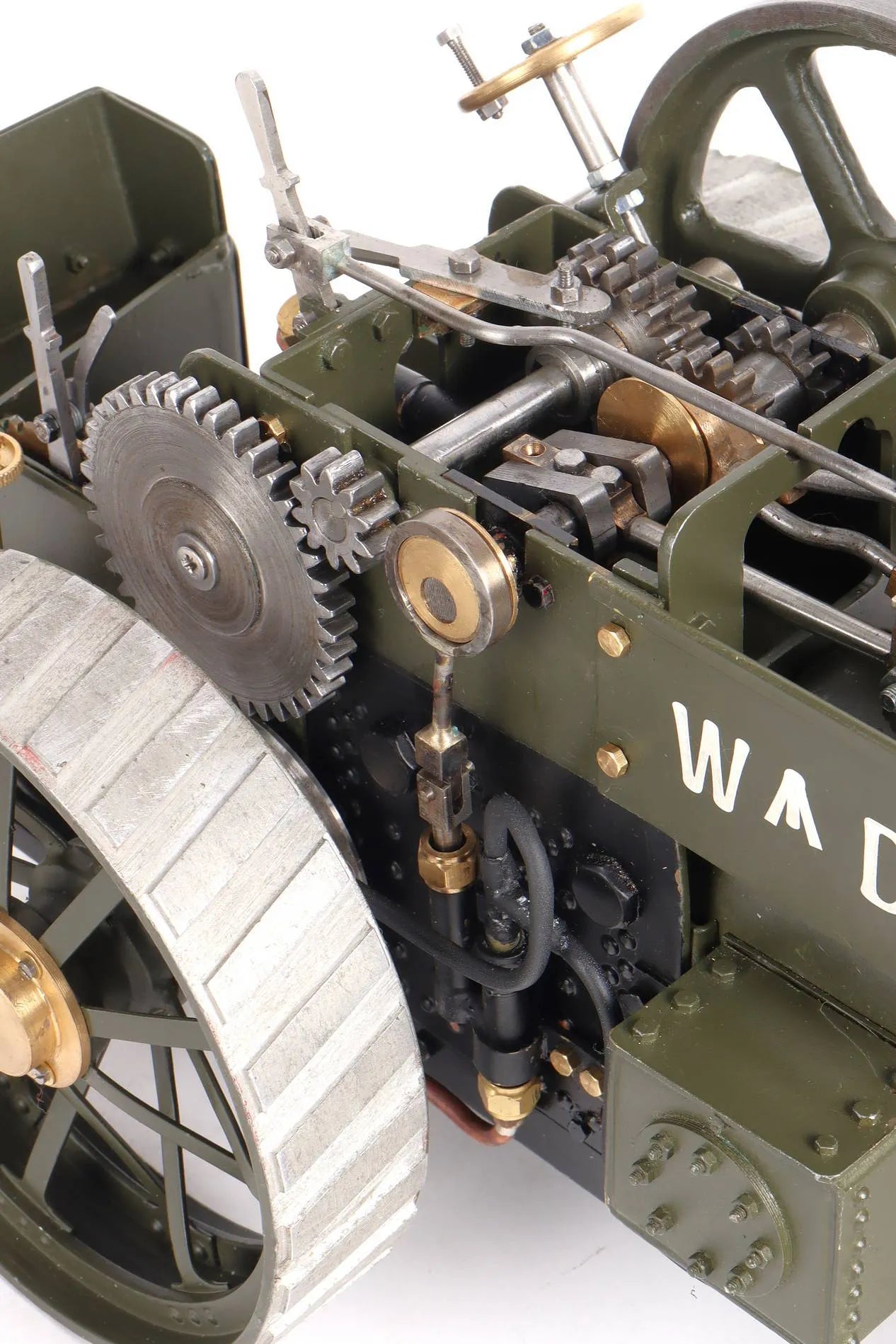

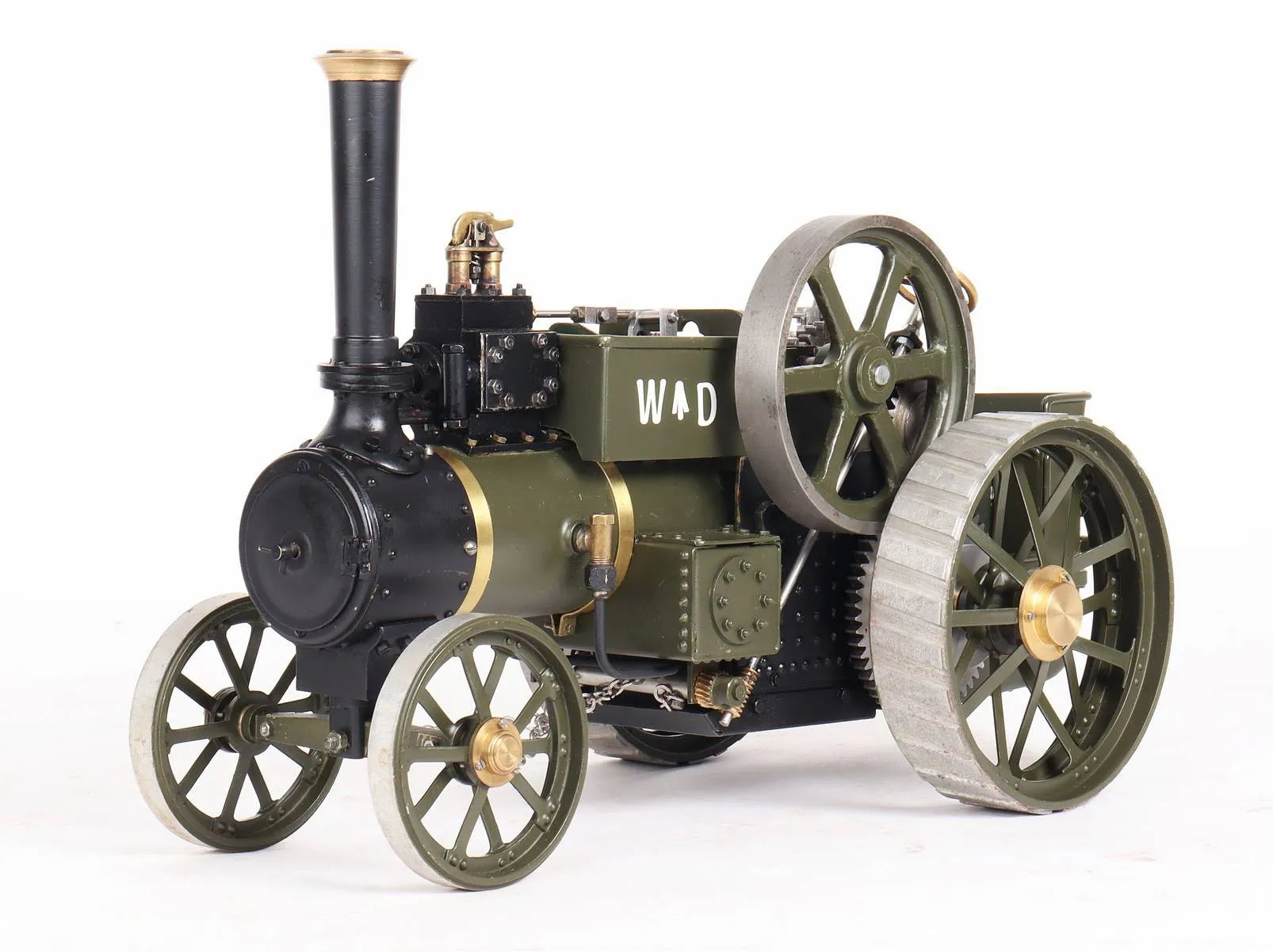

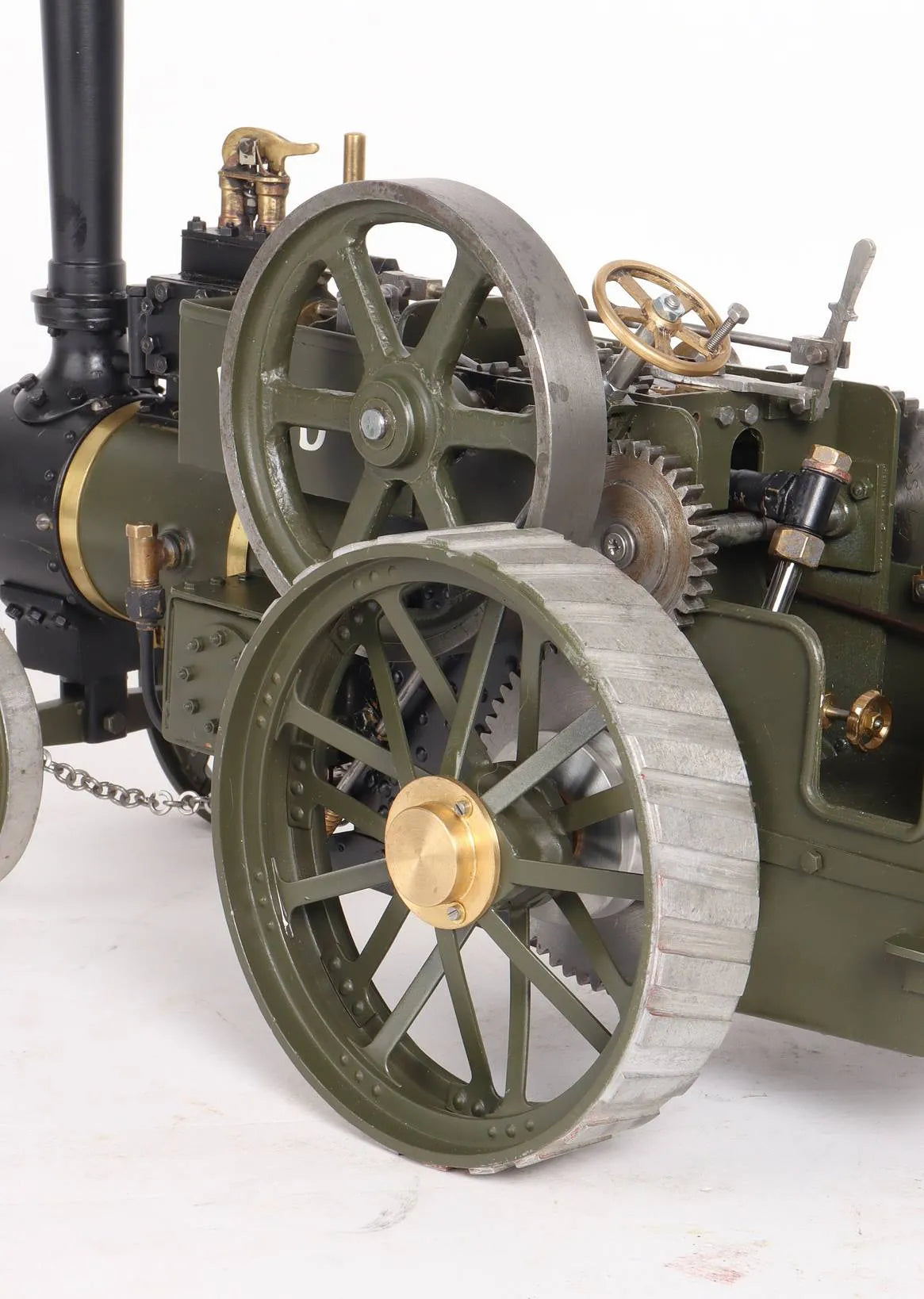

3/4 inch scale traction engine

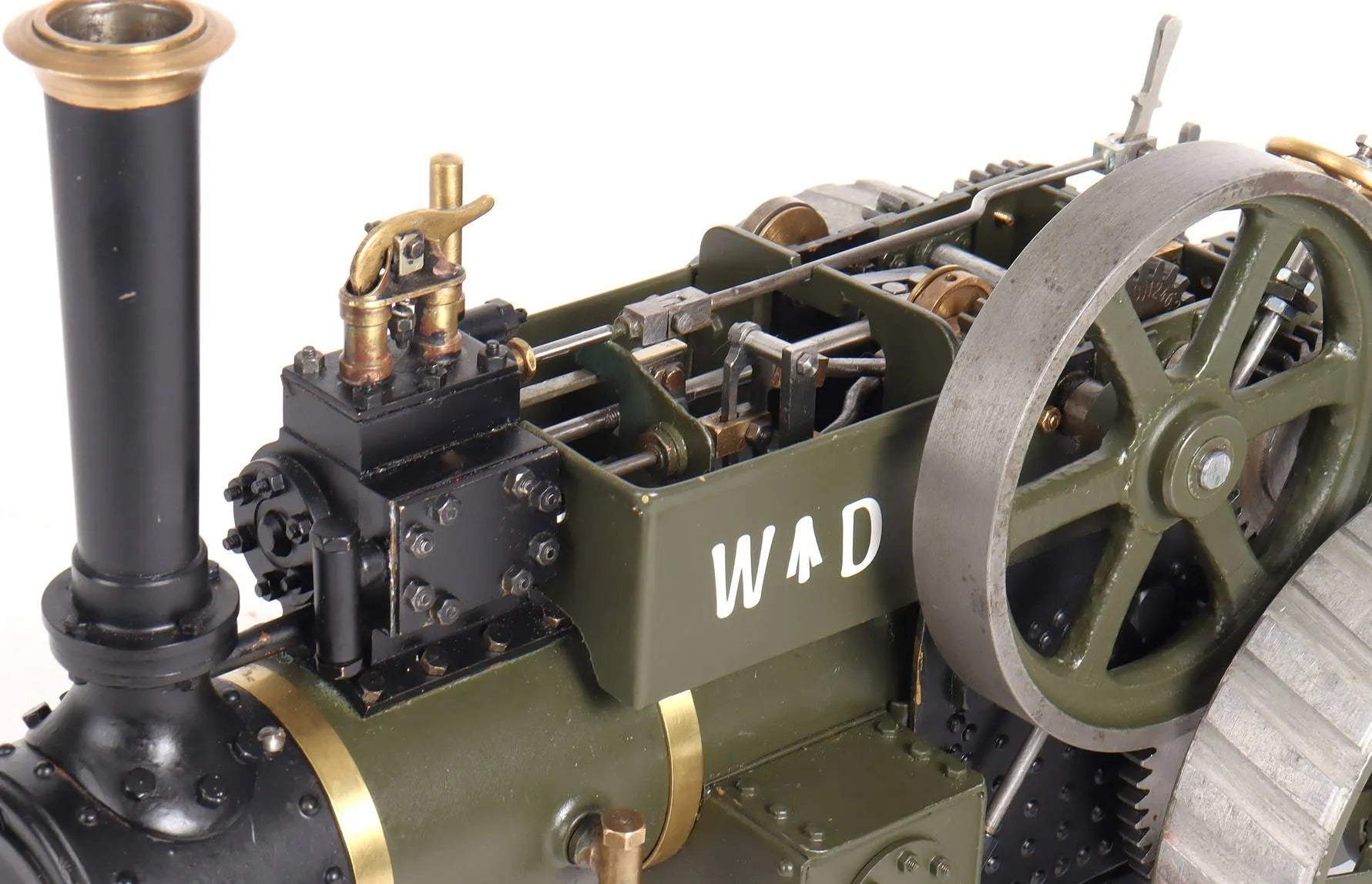

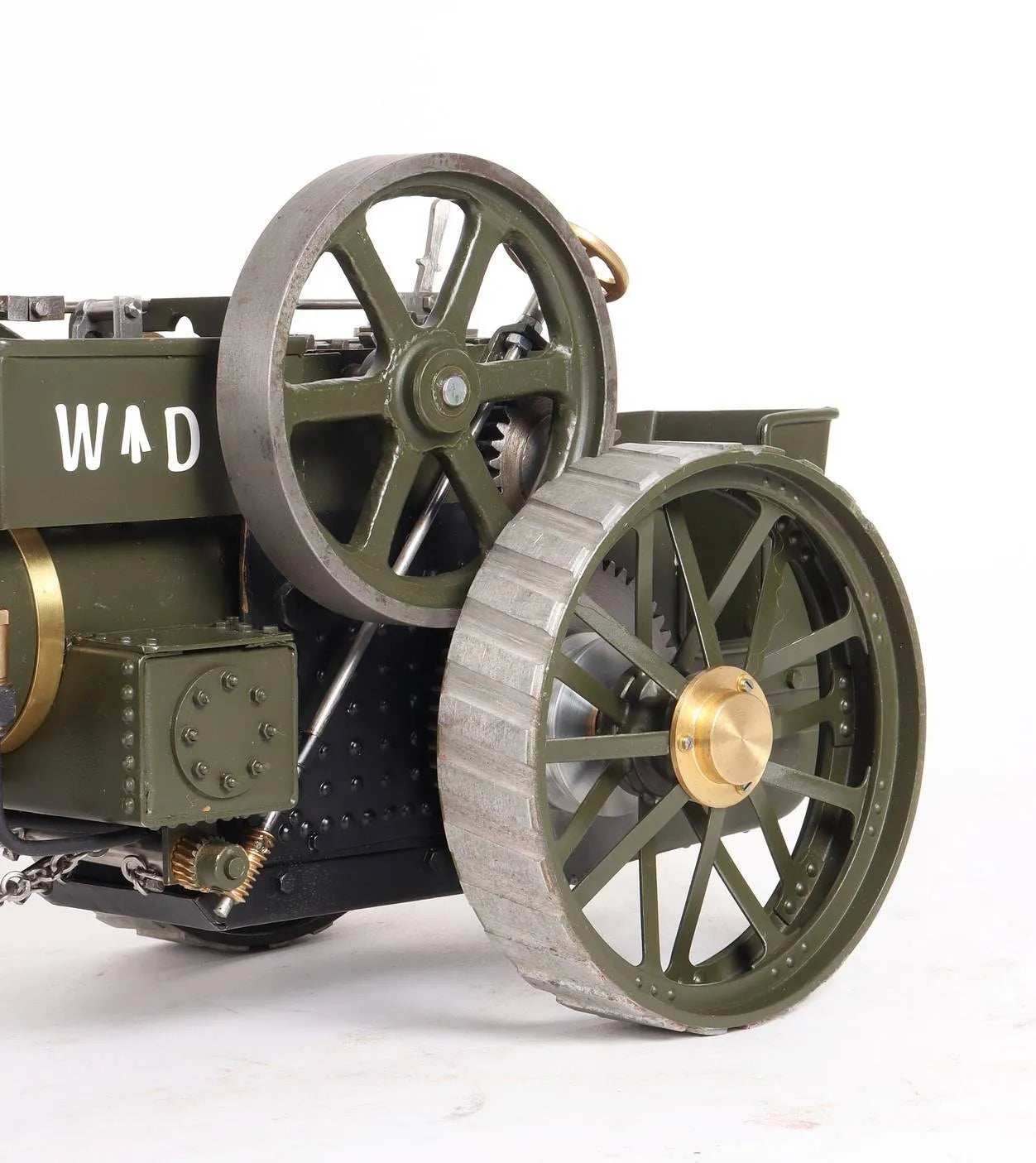

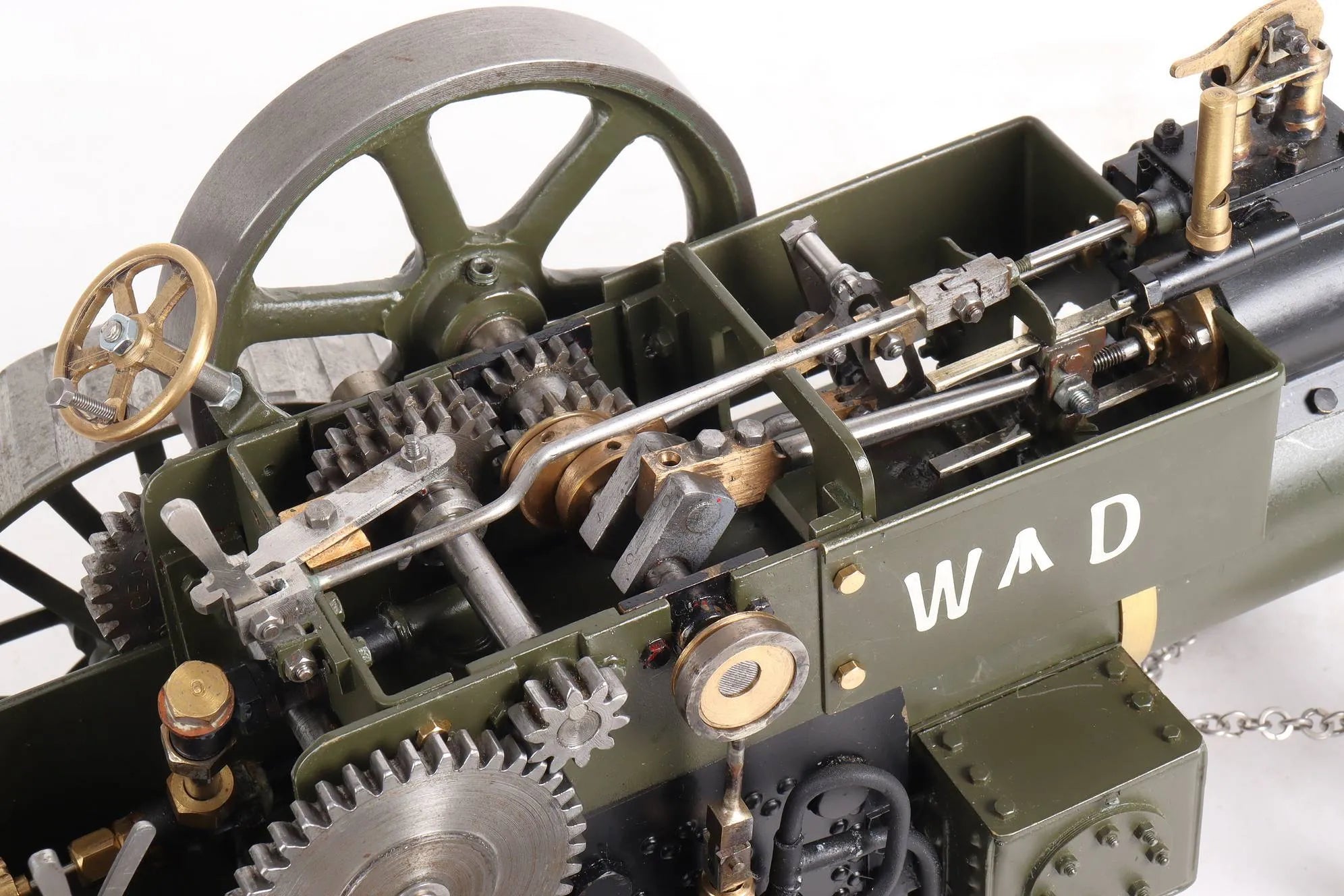

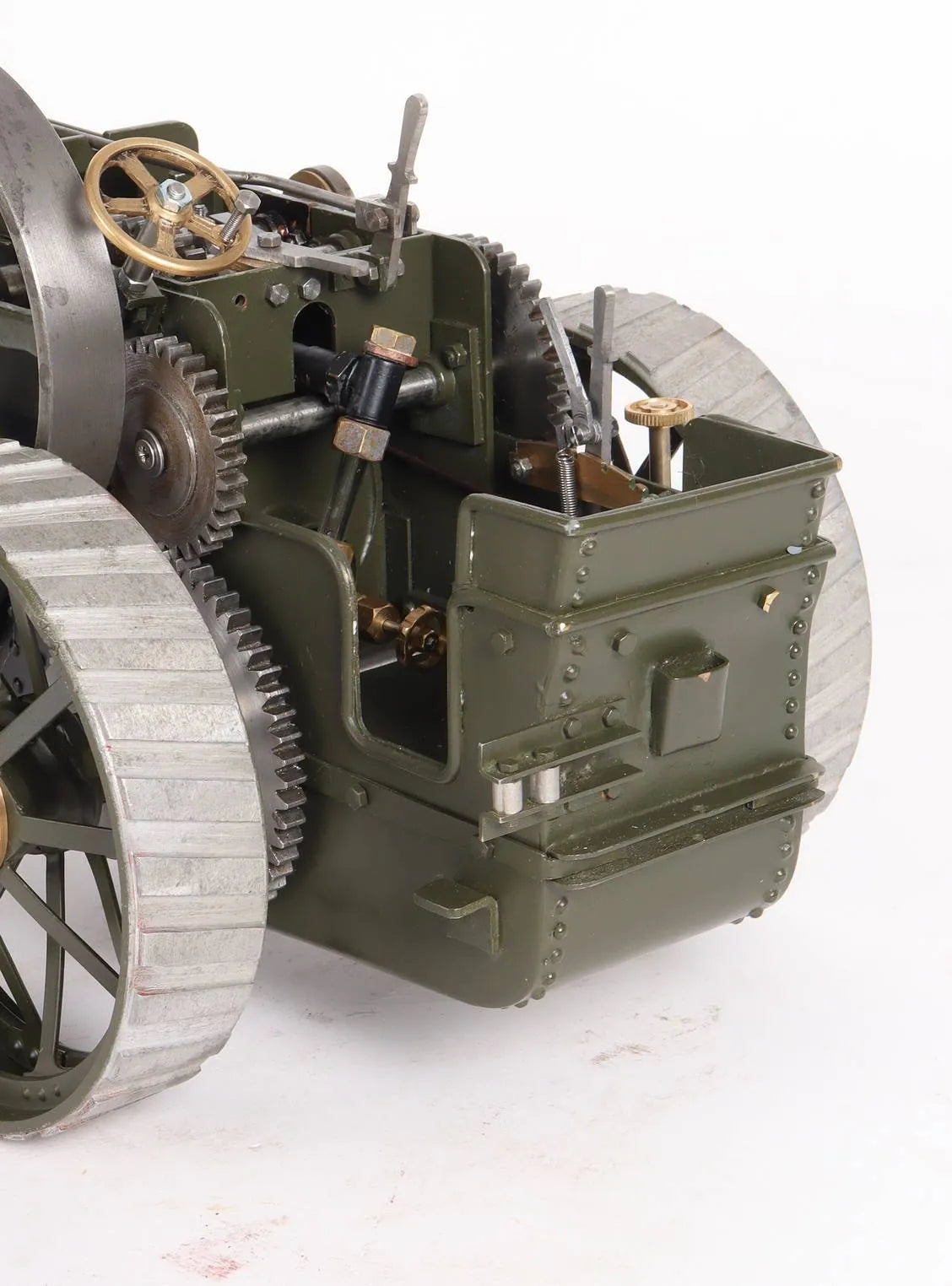

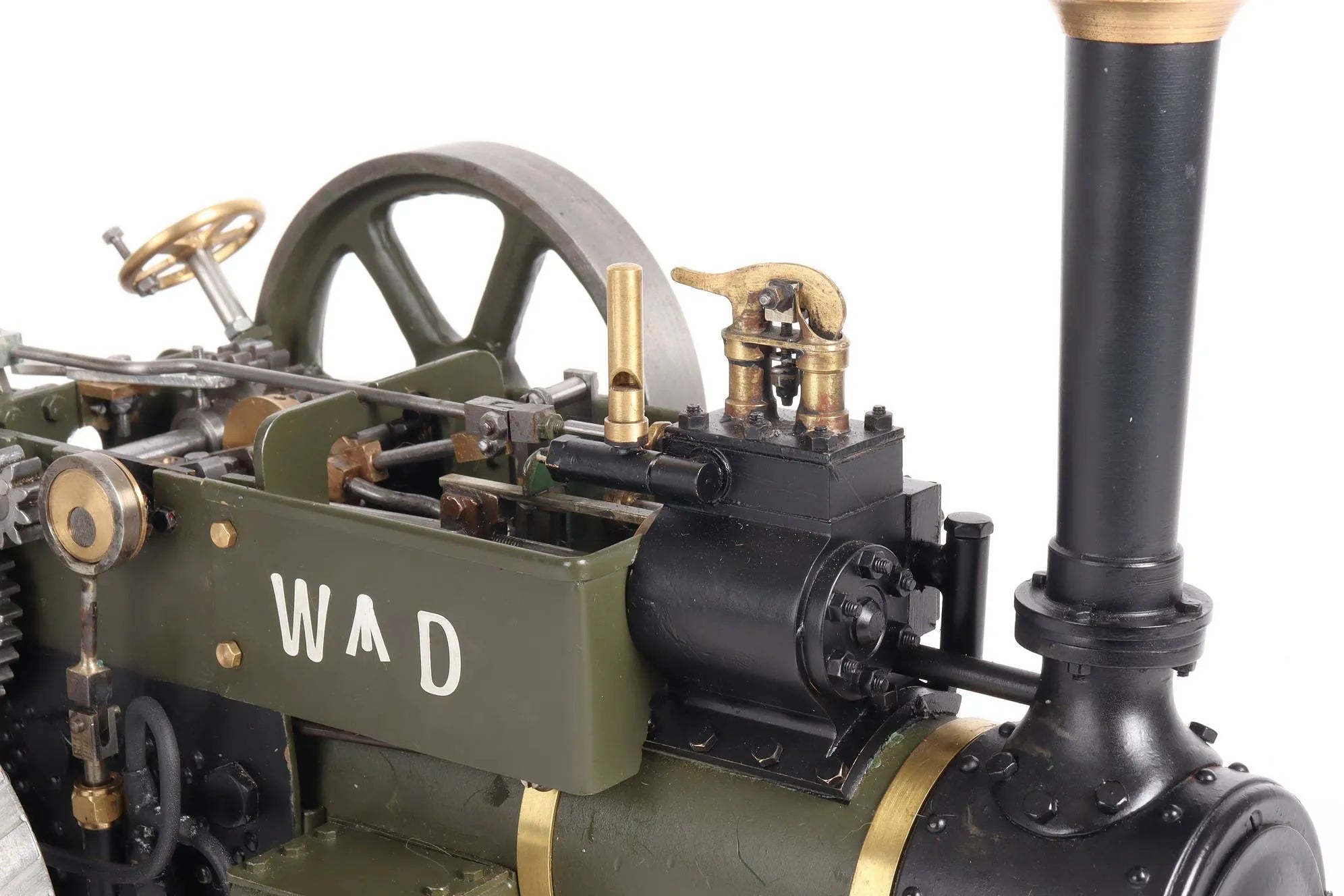

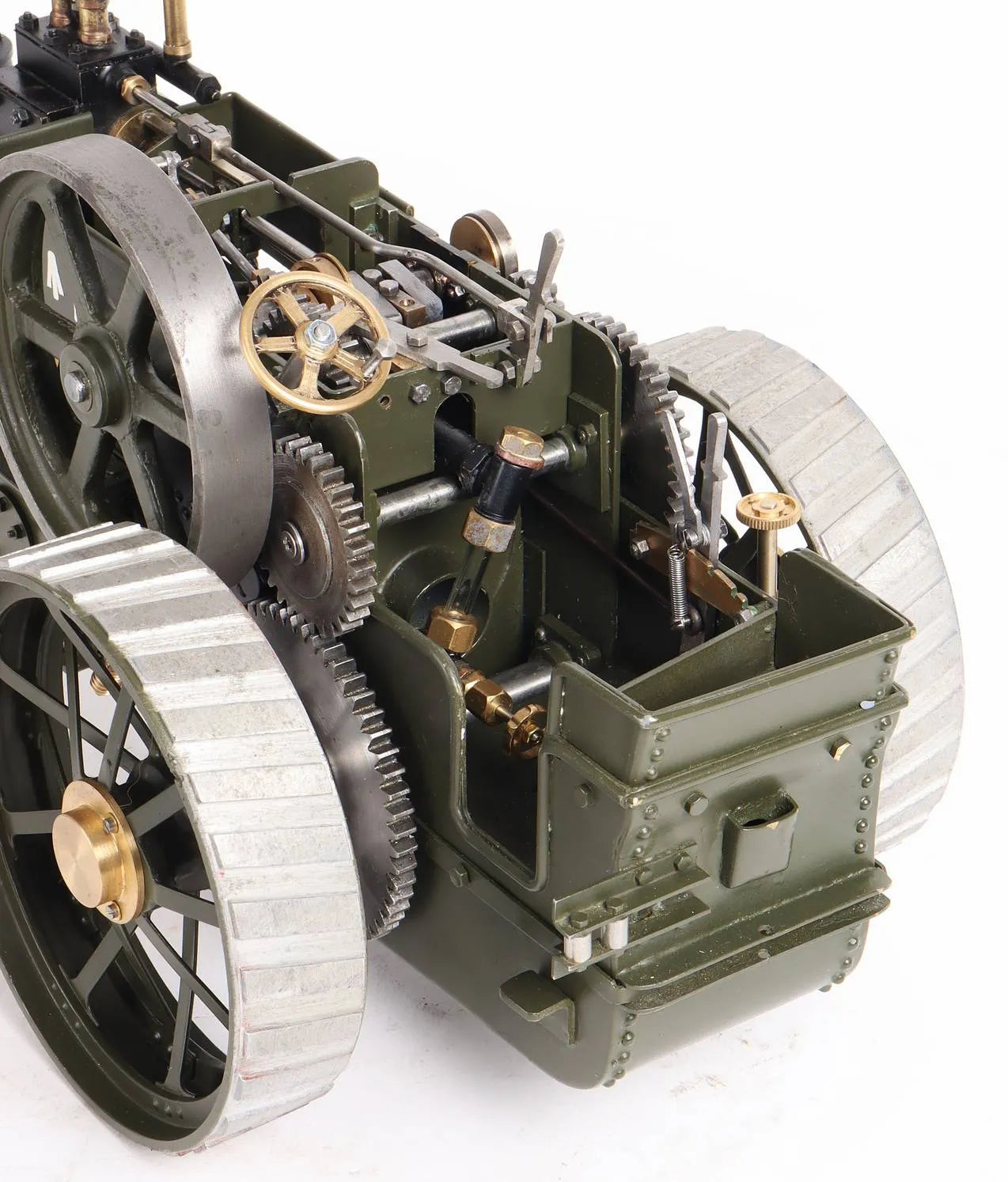

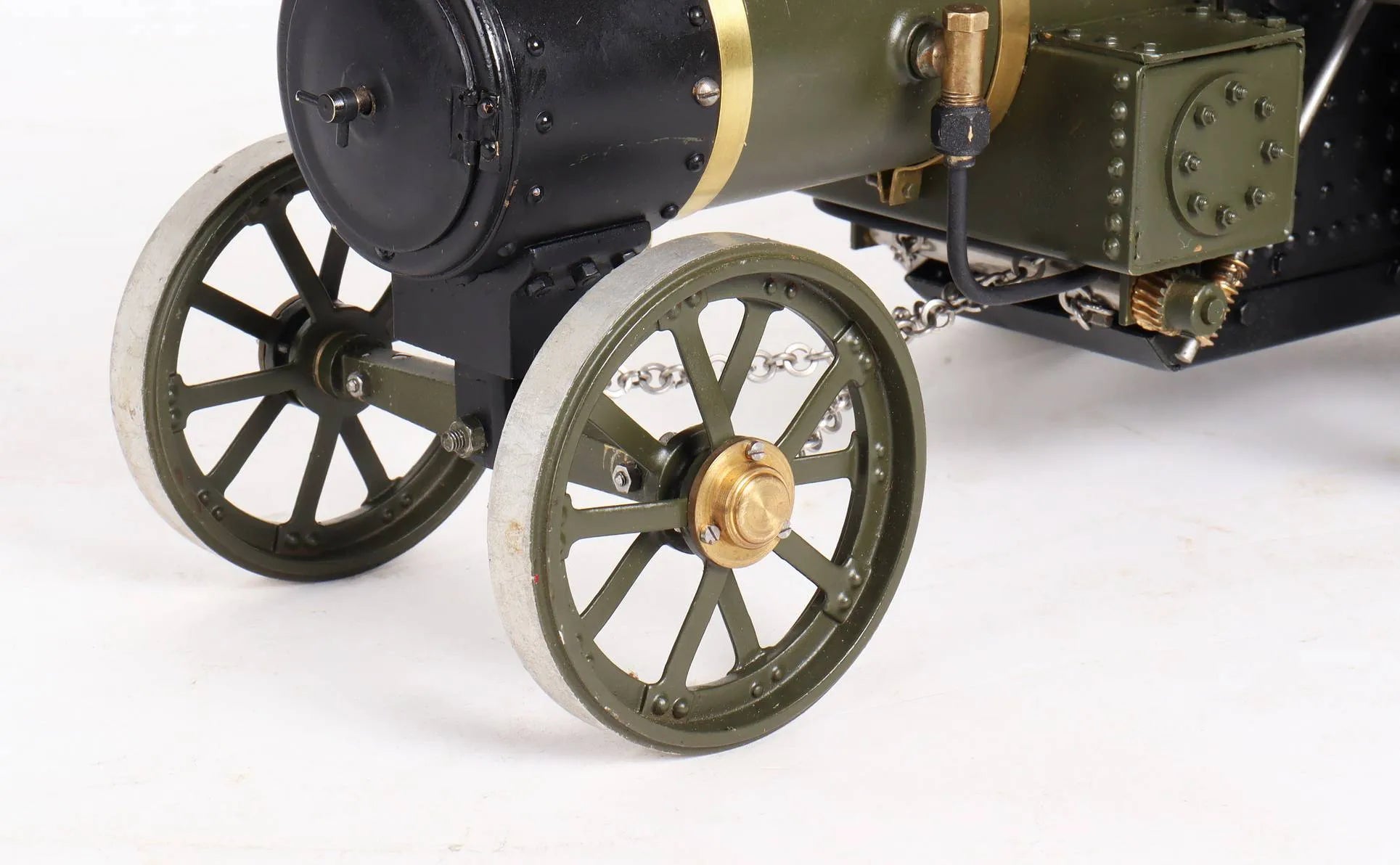

A 3/4 inch scale traction engine, the work of a prolific, highly capable model engineer whose models have featured on these pages in the past. A man of eclectic interests and wide-ranging ability, his work ranges from internal combustion and stationary steam engines, through traction engines, steam wagons and - latterly - a superb WW1 tank that we've all had great fun with trundling around the workshop!

This project started out as a collection of parts for a 3/4 inch scale traction engine by Michael Holden of Banbury; a manufacturer of well-regarded models in the 1970s the company was later acquired by Maxwell Hemmens and marketed under the Taylor-Hemmens name.

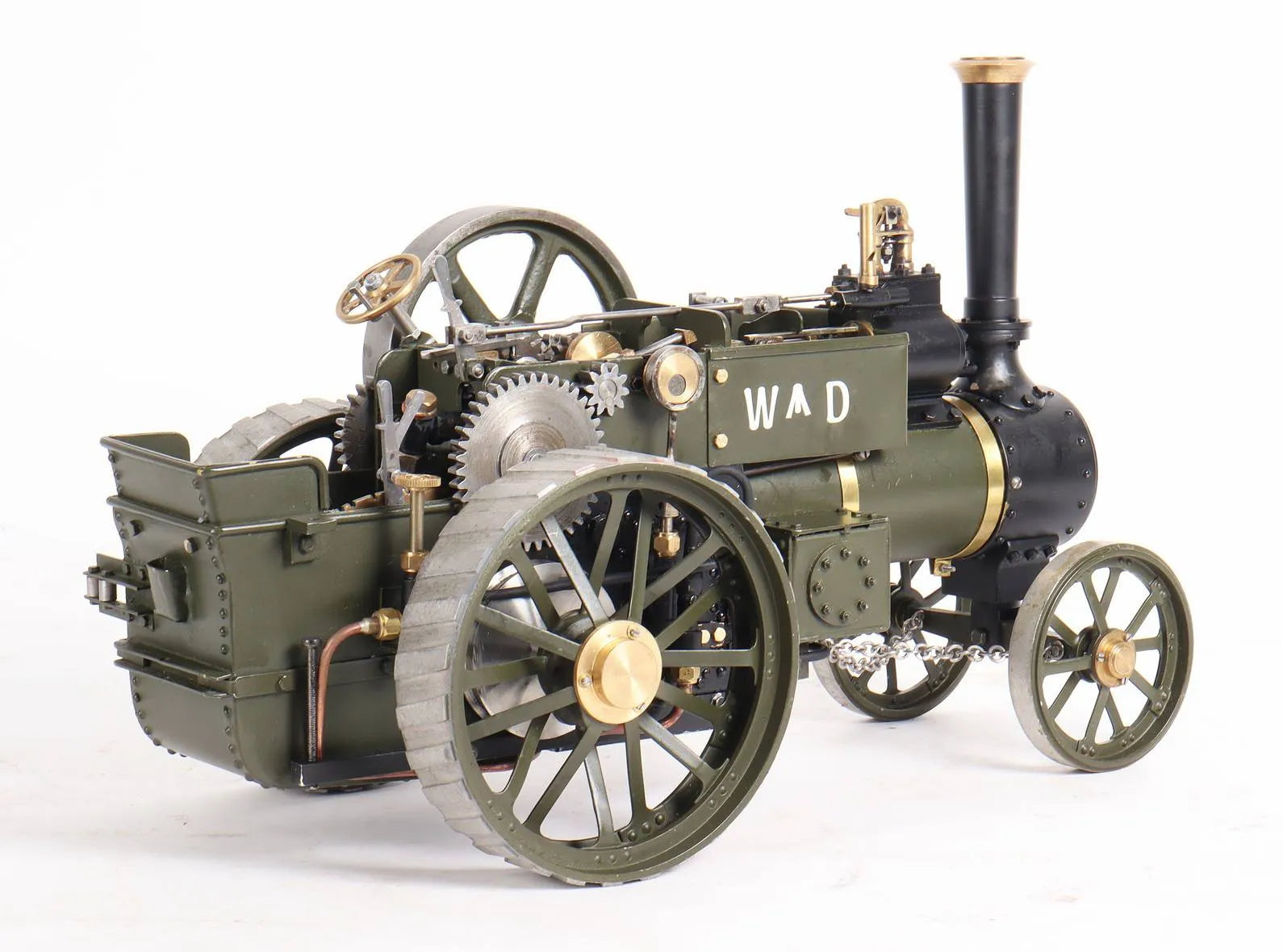

Manufacturing those parts which were missing, the engine was assembled and painted in WW1 War Department livery - we think to great effect, it looks very well.

The engine turns over freely and is largely complete, although missing a pressure gauge and burner.

Technical information

Stock code

11784

Scale

3/4 inch

Length/inches

14.5

Width/inches

7

Height/inches

9

Weight/Kg

4.5

Wheel material

steel

Cylinder material

brass

Valve type

slide

Valve gear

Stephensons

Reverser type

pole

Lubricator type

displacement

Boiler type

centre flue

Boiler construction

silver soldered

Boiler material

copper

CE/UKCA mark

n/a - <2 litre capacity

Safety valve type

Ramsbottom

Safety valve

2

Road speed

2

Whistle

yes

Mechanical pump

1

Date out

Feb-25
