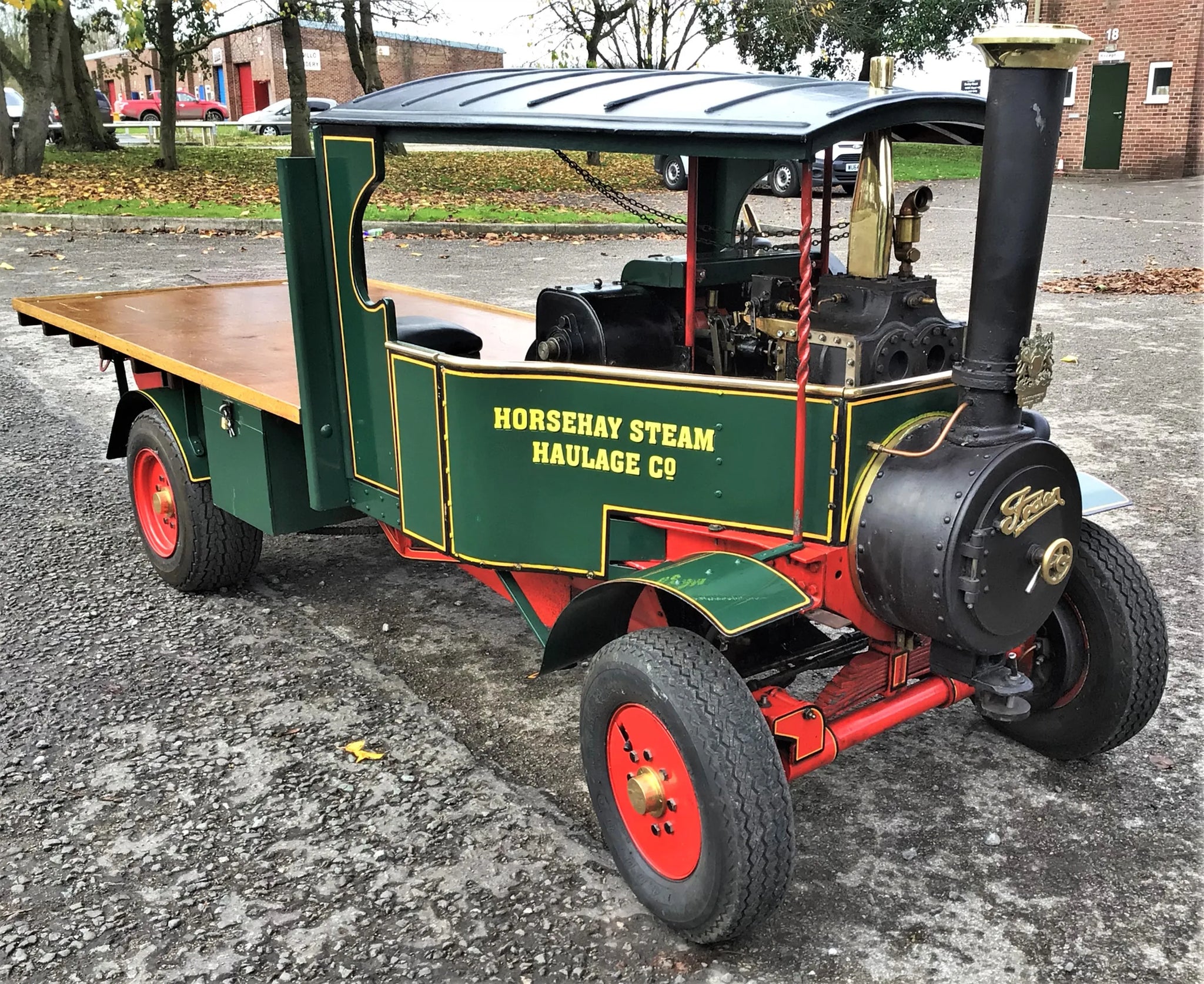

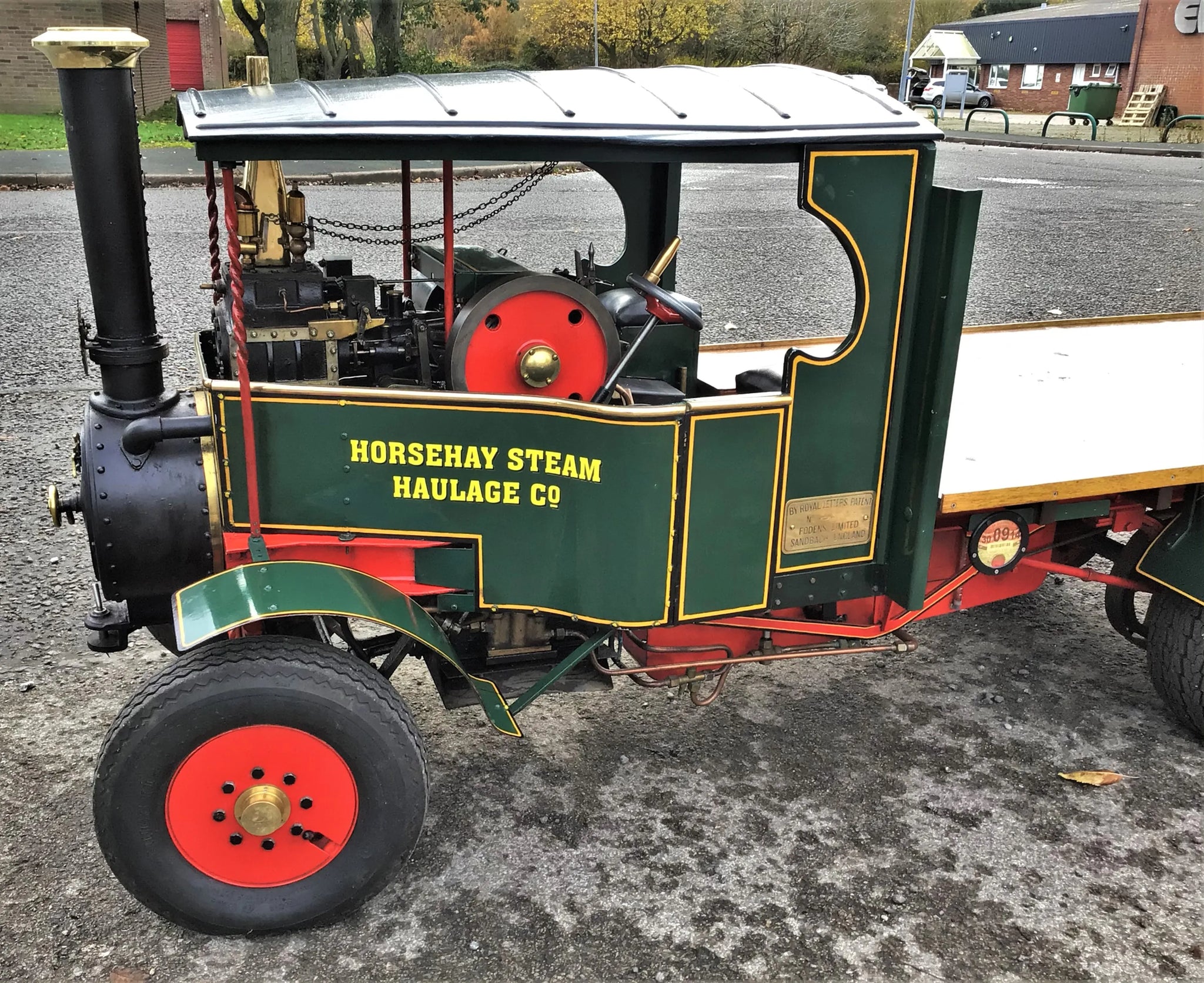

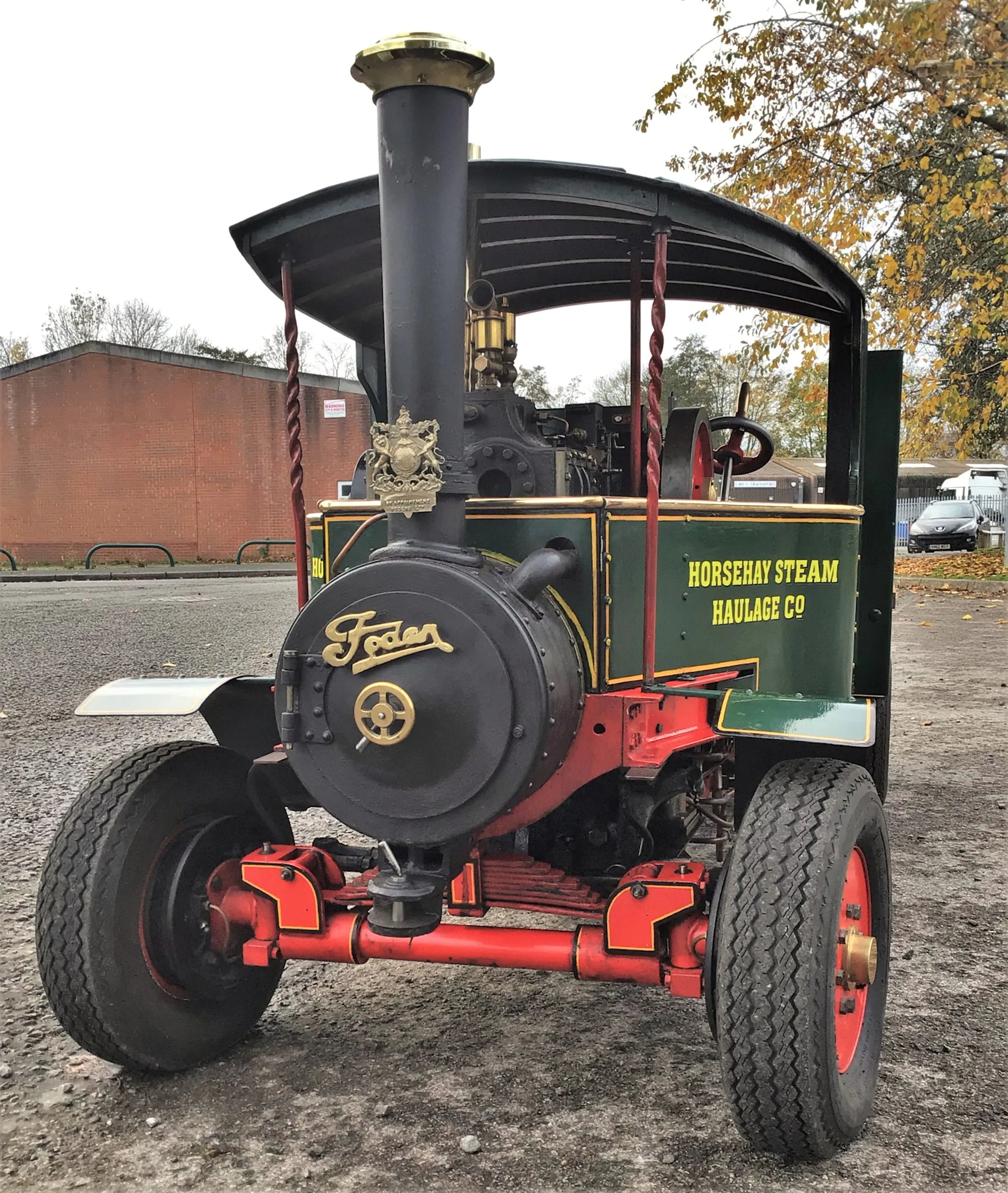

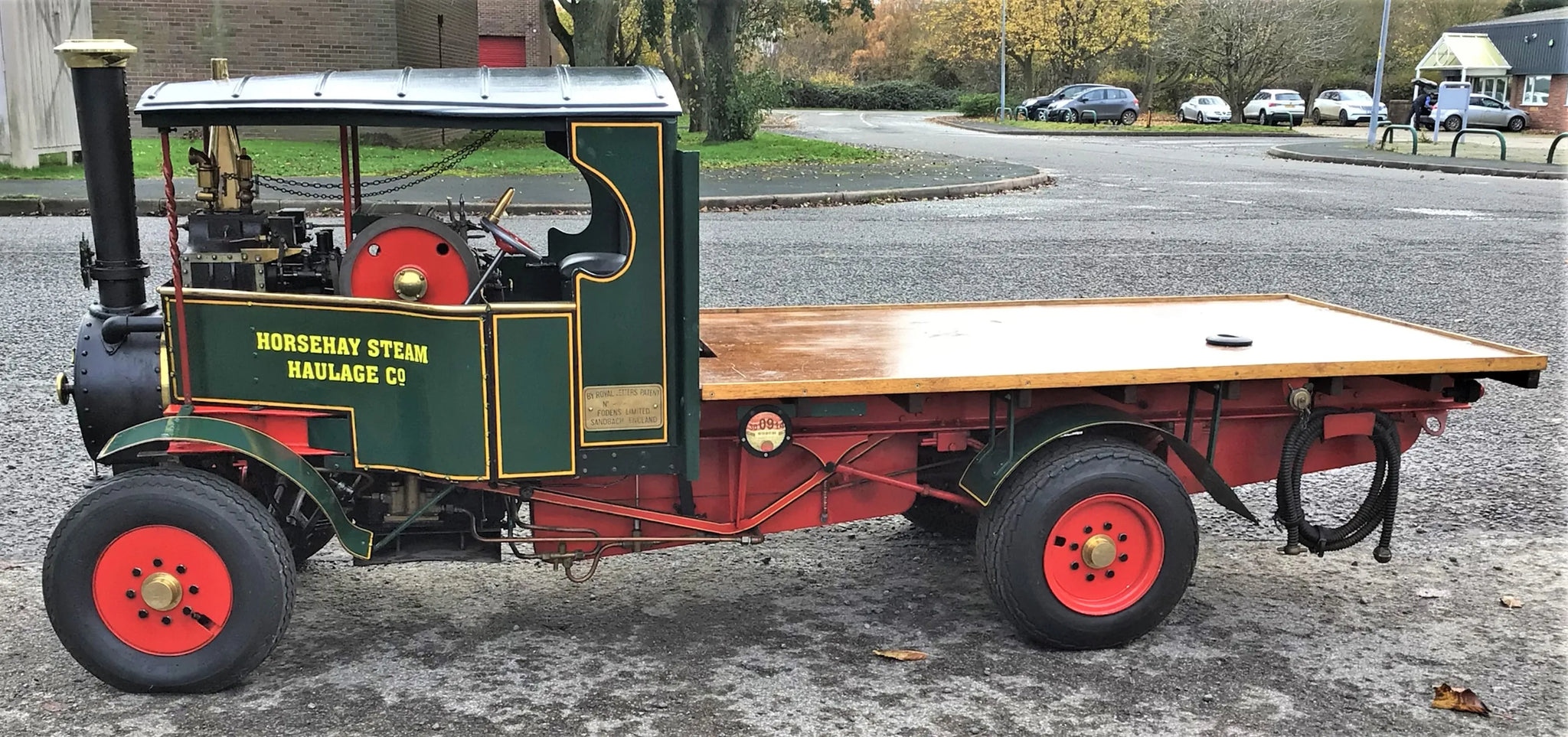

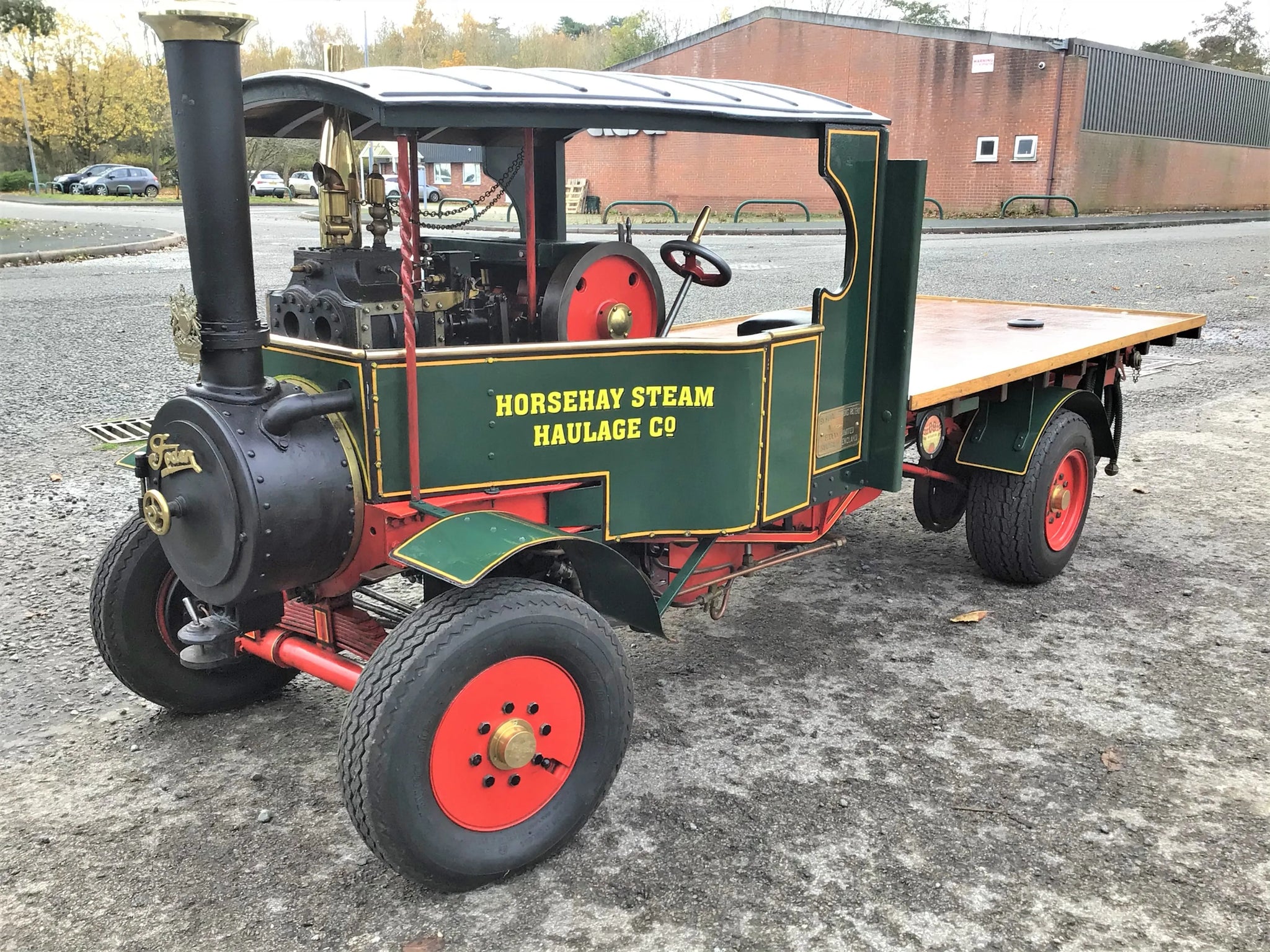

4 1/2 inch scale Foden steam wagon

A well-built 4 1/2 inch scale Foden steam wagon, an engine we last sold in September 2017.

Maintained in good condition, it's had infrequent use since that time - mainly for carrying the owner's 5 inch gauge locomotives from his workshop to the club track about two hundred yards away!

We've known the engine for some years, re-tubing it for its original owner in the summer of 2016 (right in the middle of the rally season - he dropped it with us one Tuesday prior to an event he'd got booked that weekend), before buying it the following year.

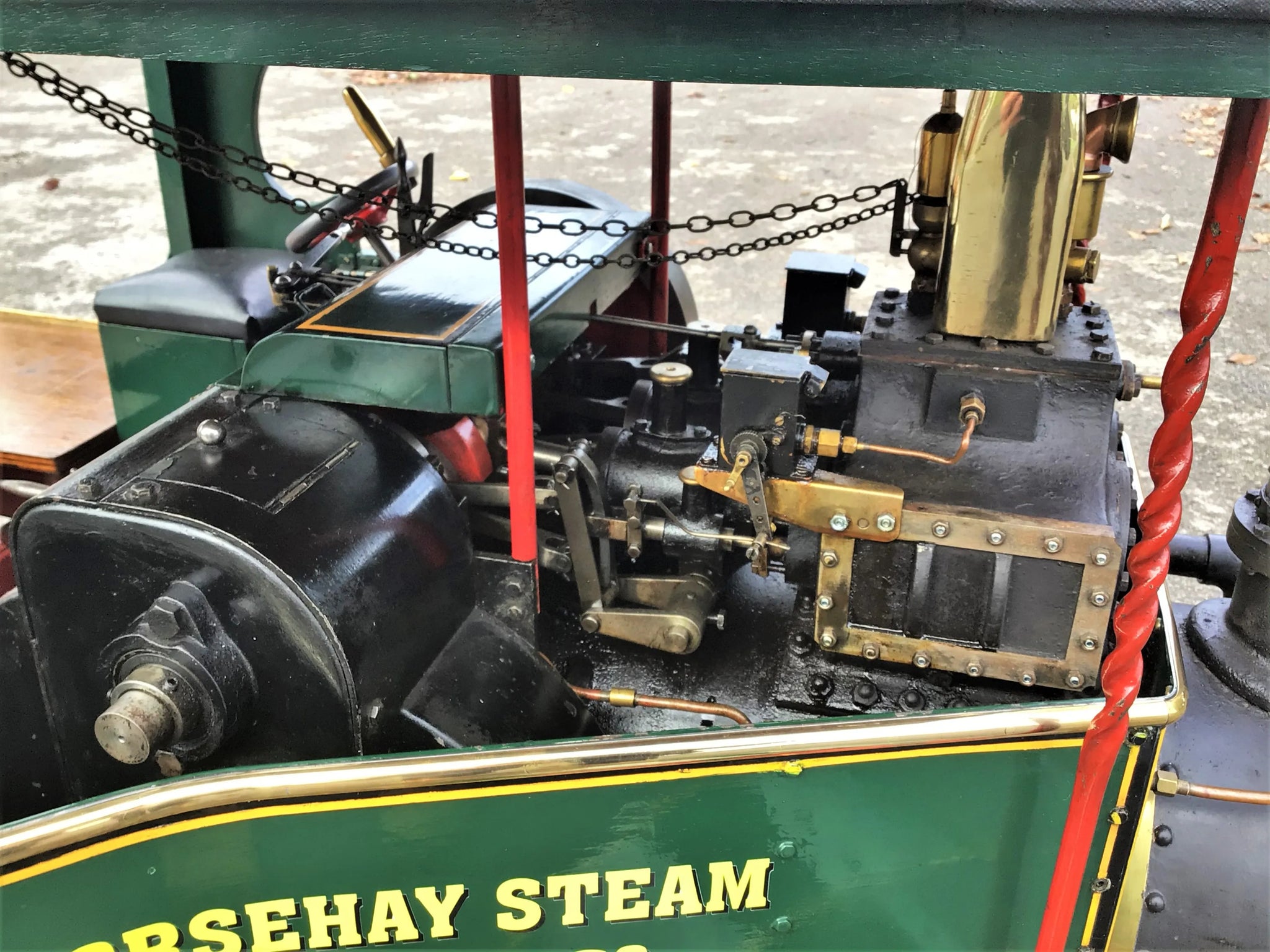

Since last here it's had big and little end bearings replaced, new Clupet rings fitted and the regulator re-faced with a pilot notch added, contributing greatly to ease of handling at low speeds.

The wagon steams freely and runs well - there's a clip of it in steam earlier in the week here.

Road-registered with V5 document and sporting a rather appropriate registration number.

Technical information

Stock code

9372

Scale

4 inch

Length/inches

106

Width/inches

38

Height/inches

42

Cylinder material

cast iron

Valve type

slide

Valve gear

Stephensons

Reverser type

pole

Lubricator type

mechanical

Boiler maker

John Rex Model Engineers

Boiler type

locomotive

Boiler construction

welded, expanded tubes

Boiler material

steel

Working pressure

140

CE/UKCA mark

n/a - pre-2002

Year built

2001, re-tubed August 2016

Boiler number

RO83/01

Safety valve type

spring

Safety valve

2

Bore x stroke

1 1/2 x 3

Differential

yes

Road speed

3

Whistle

steam siren

Mechanical pump

1 chain driven from crankshaft

Injector

1

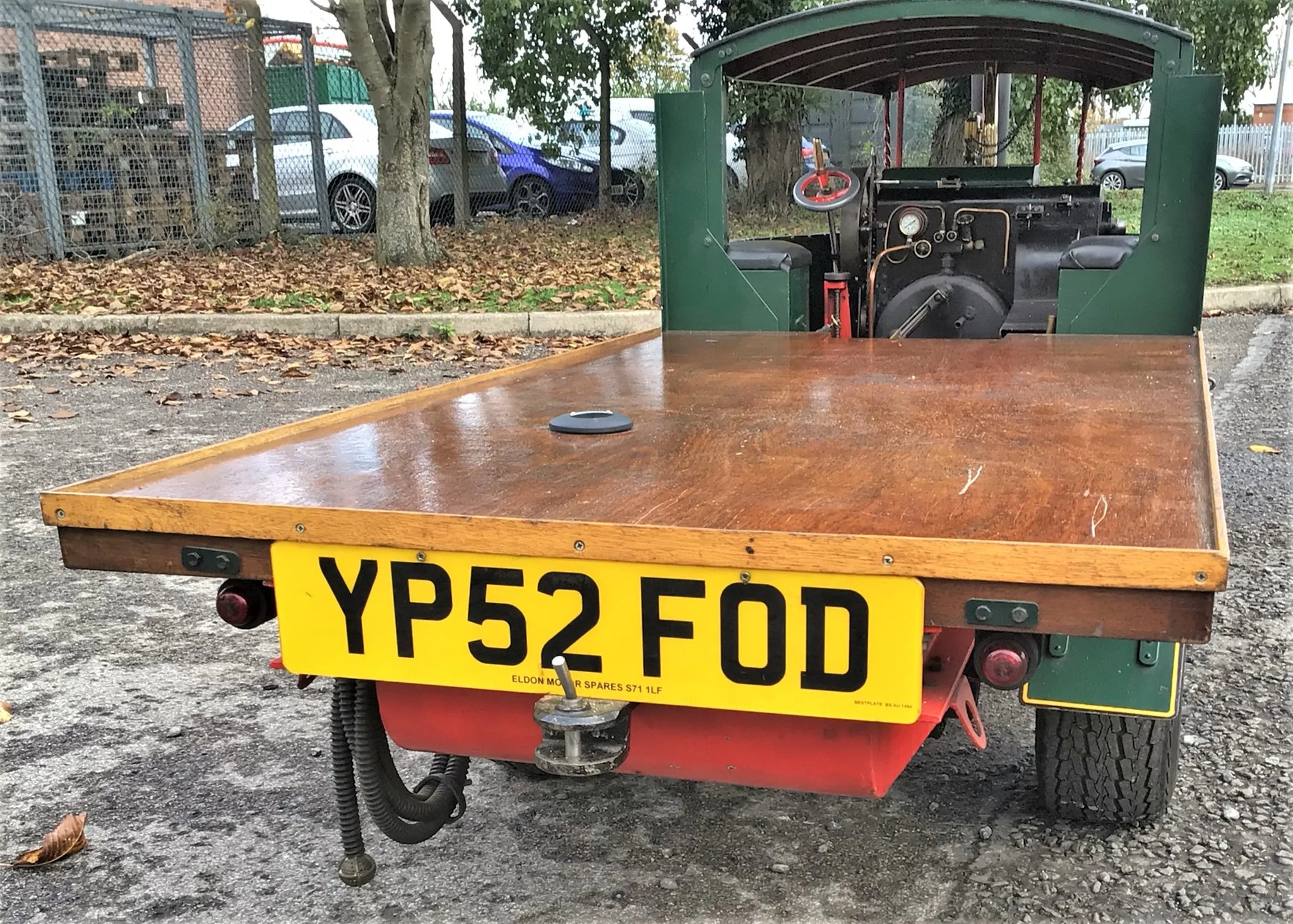

V5 / Registration number

YP52 FOD

Date out

Nov-20

Steam test valid to

12-Jan-22
