4 inch scale Burrell agricultural engine

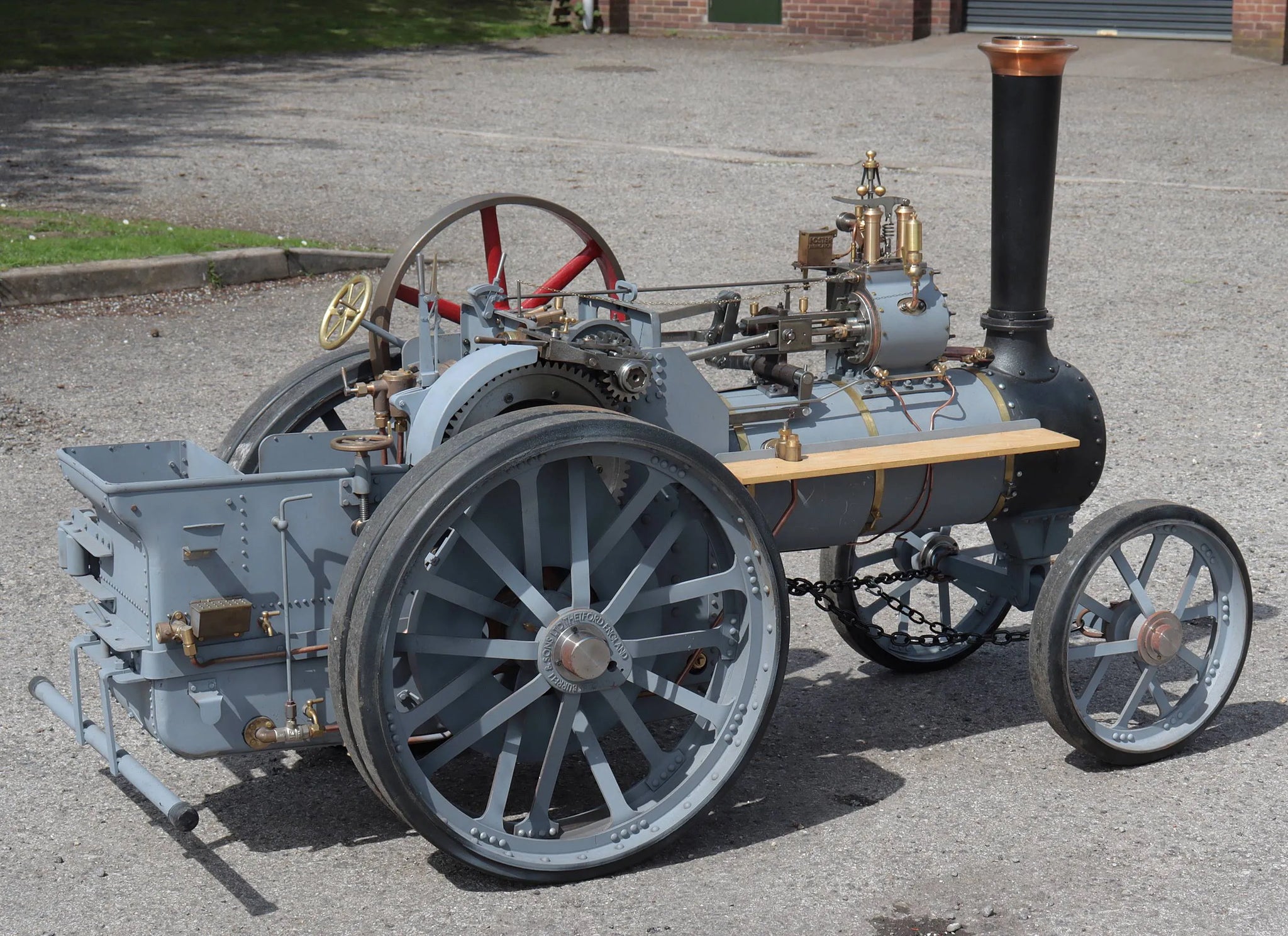

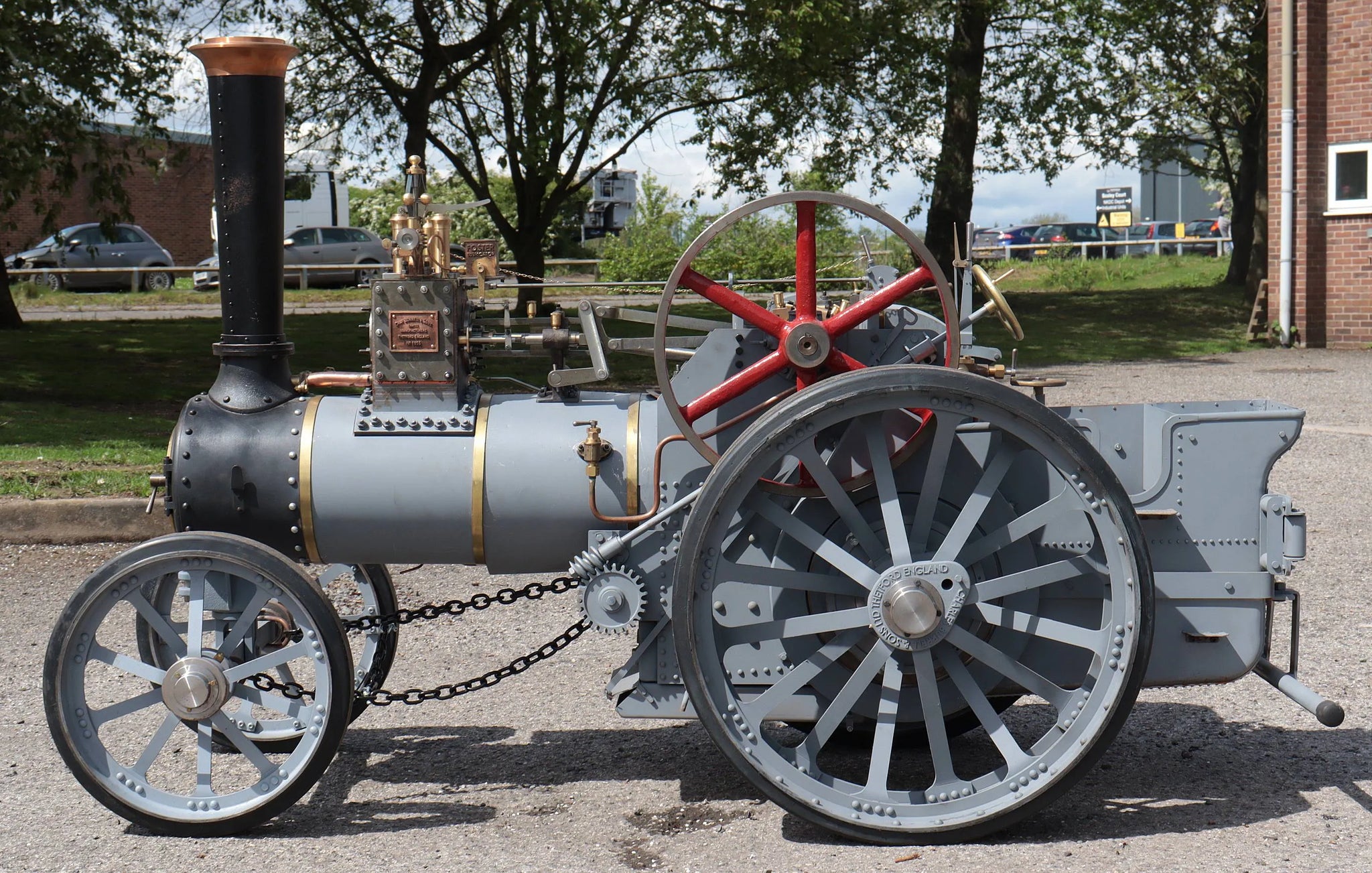

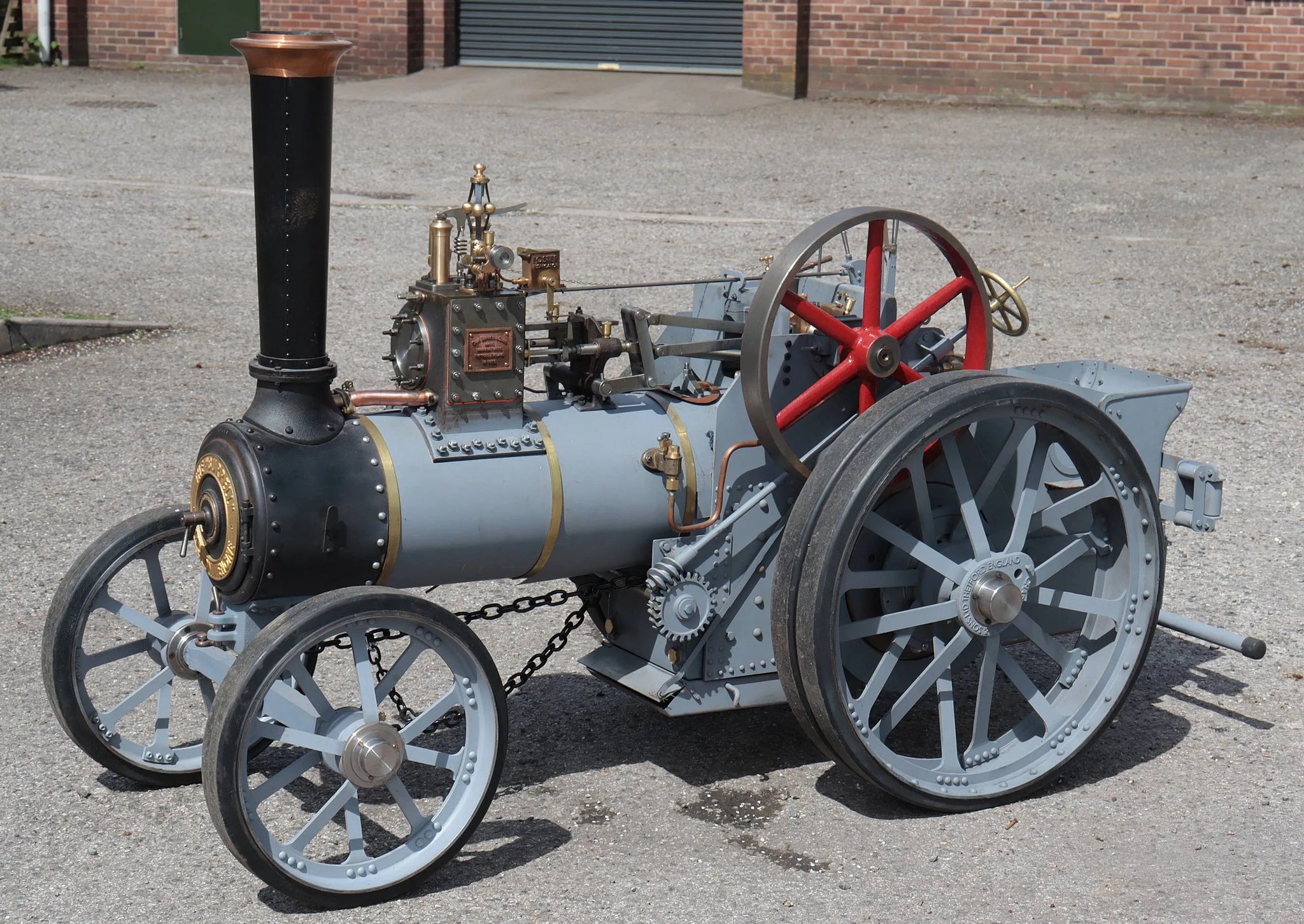

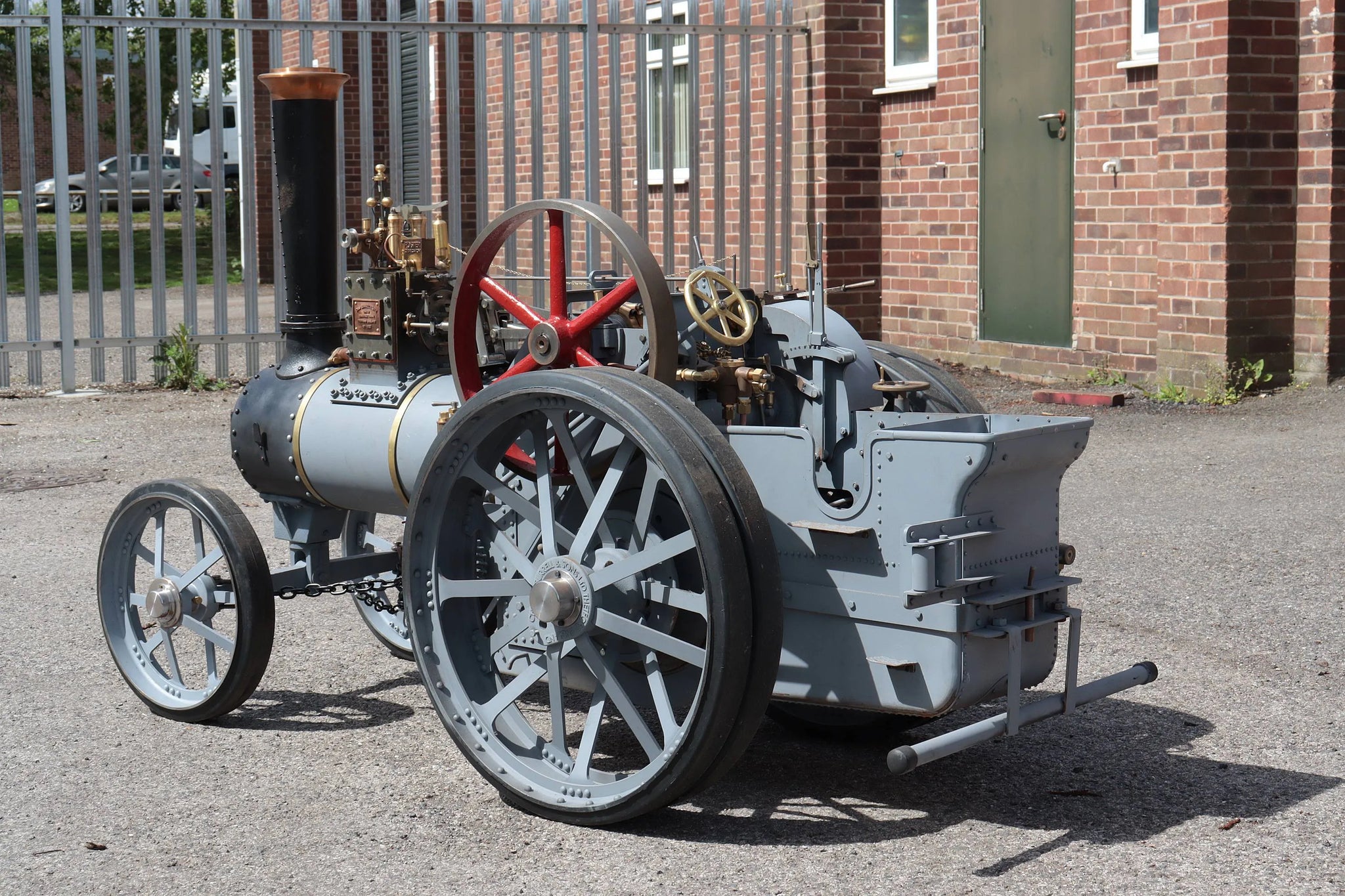

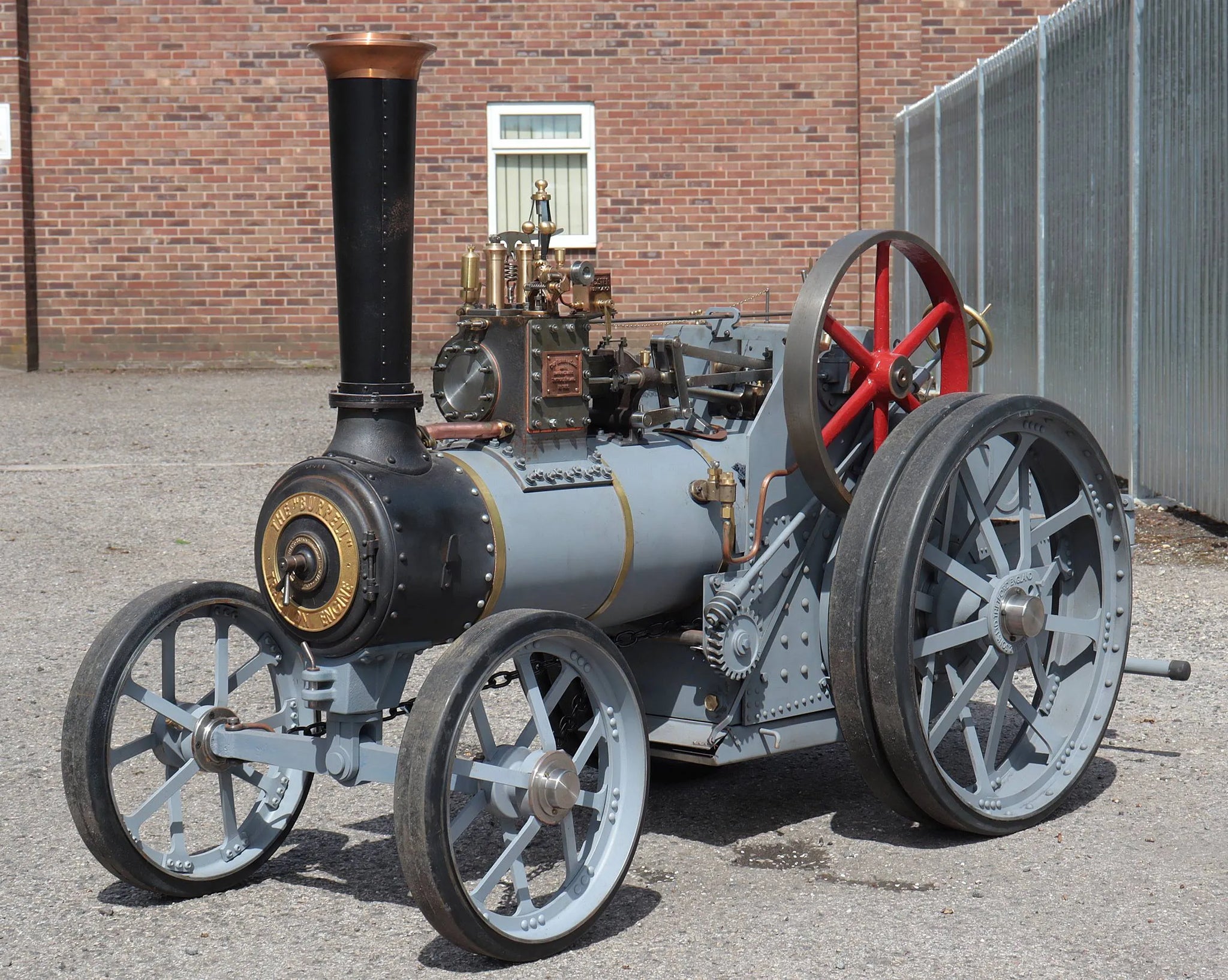

A late model 4 inch scale Burrell 6nhp agricultural engine, recently assembled from a Steam Traction World kit.

This one has come to us from the family of the late builder, along with a fine 4 inch scale Savage "Little Samson" which he bought from us back in 2022.

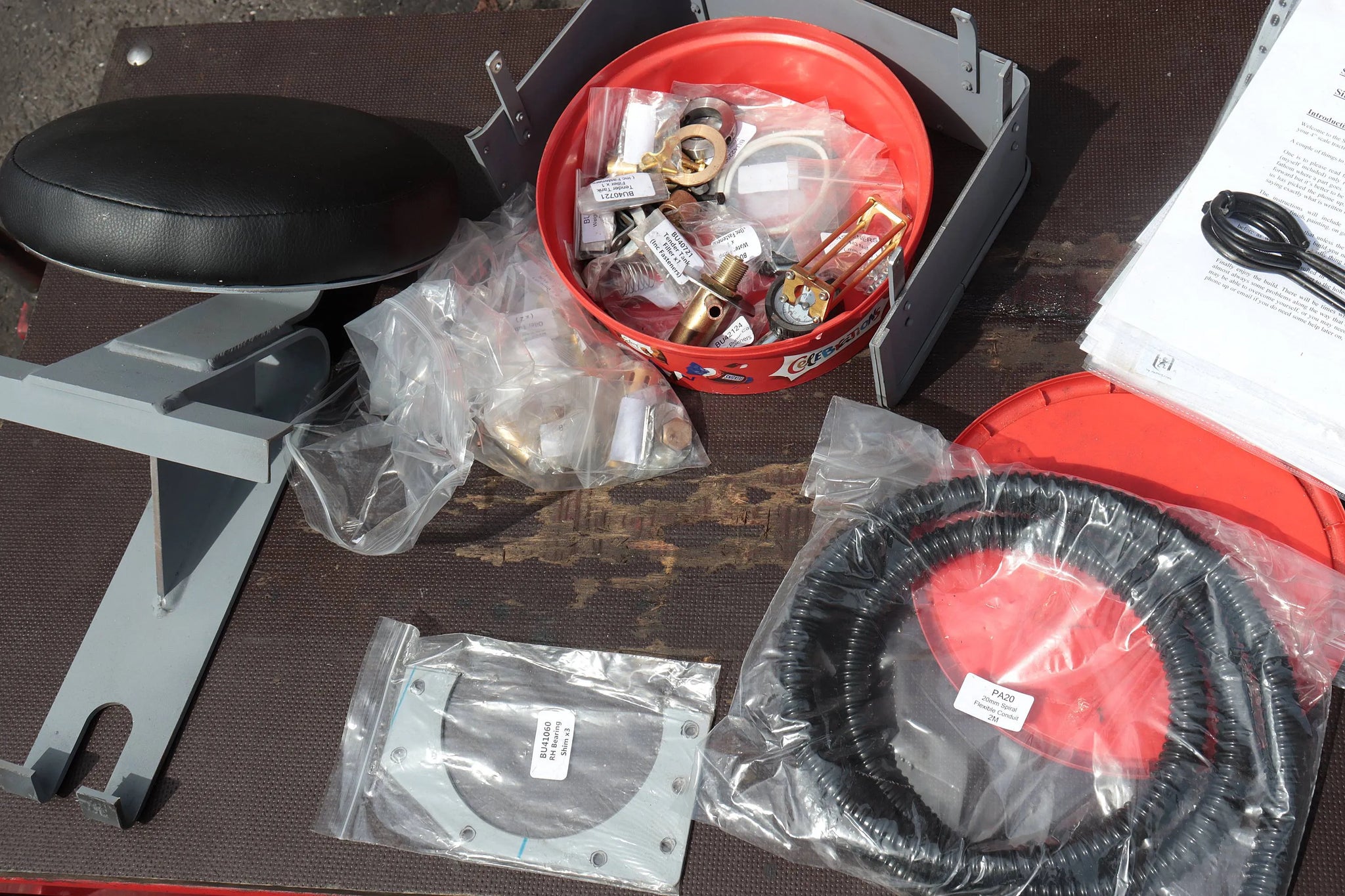

New and unsteamed, the engine is virtually finished, with a handful of parts remaining to be fitted including gauge glass and protector, water lifter fittings and rear bunker extension.

The engine has been painted in grey primer as work has proceeded, ready for top coat when finished.

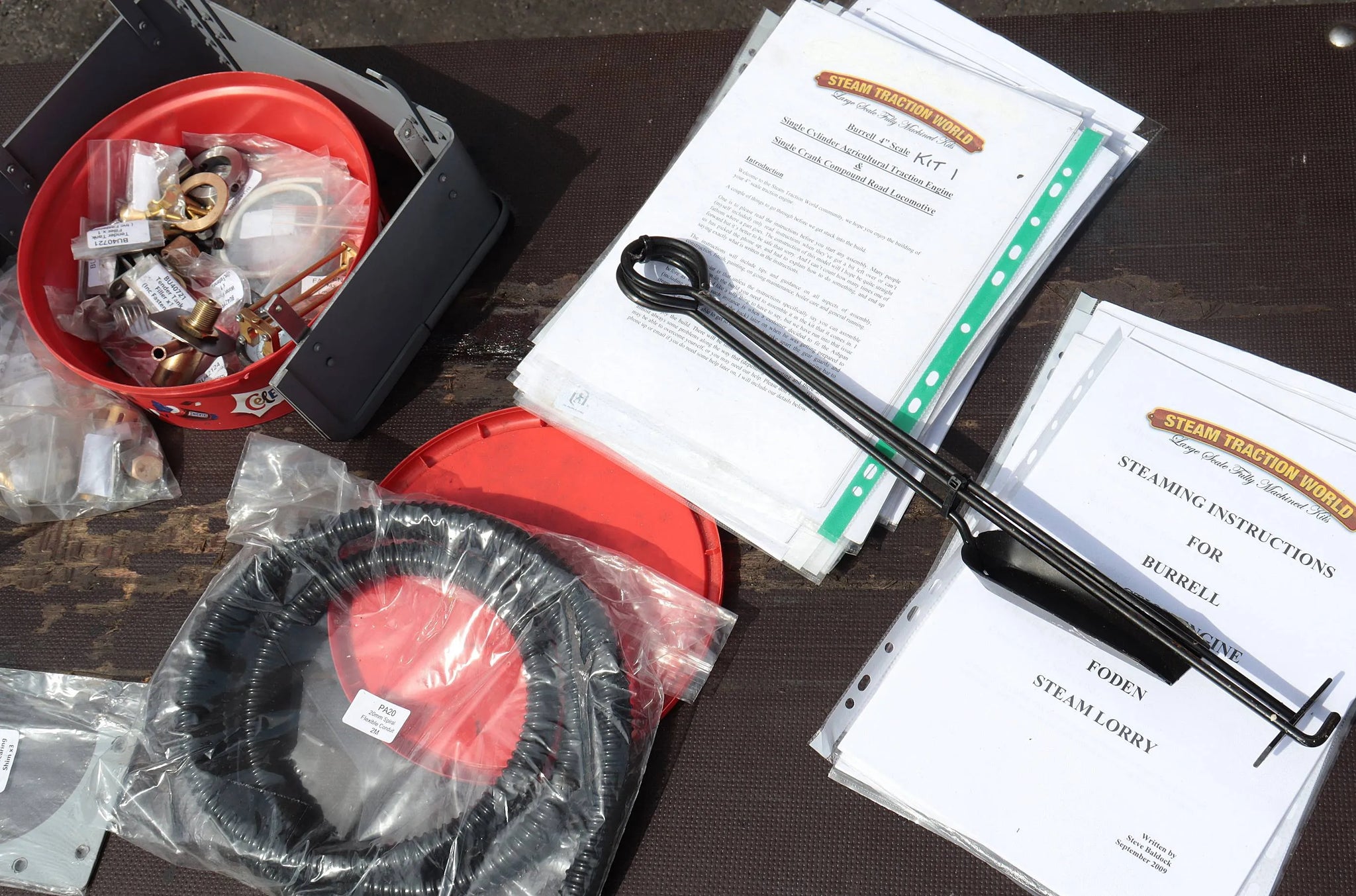

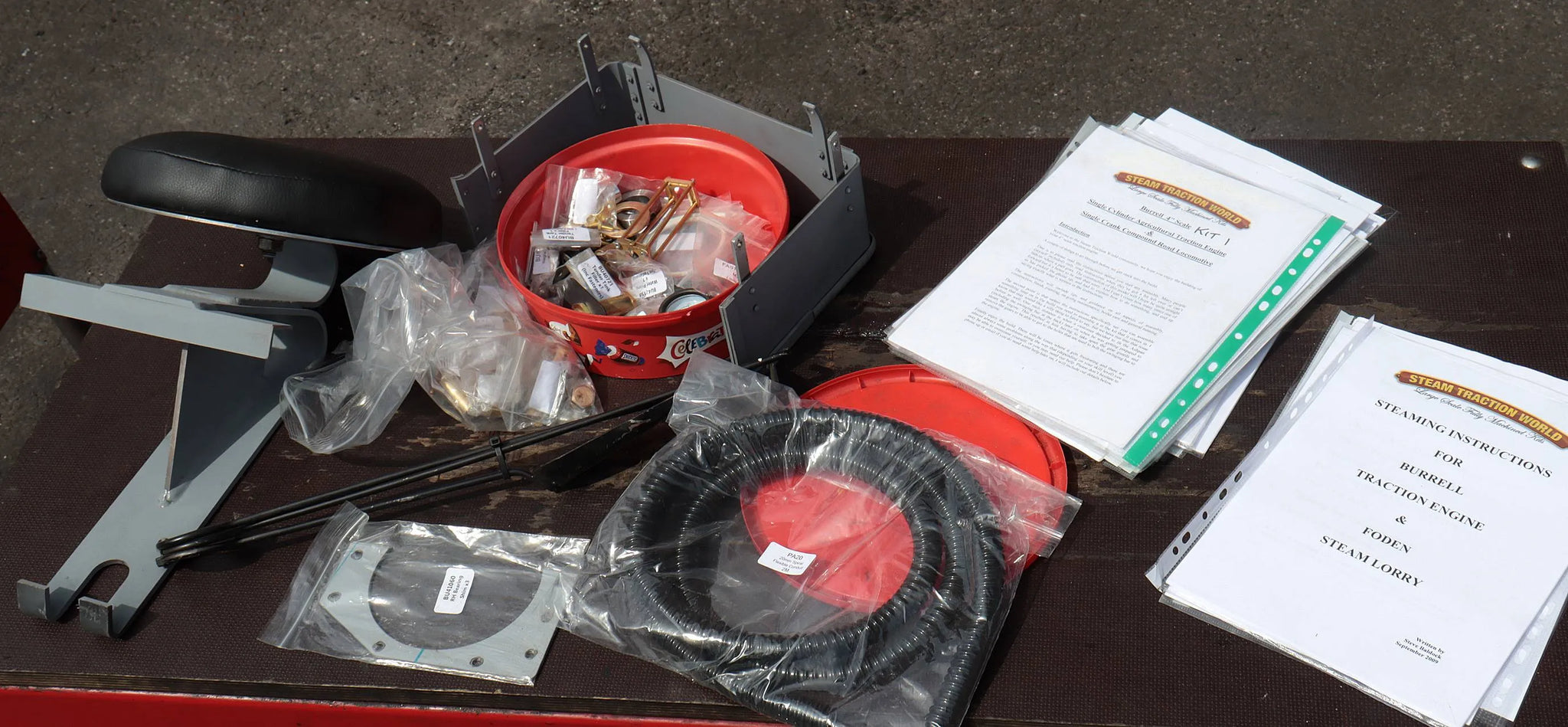

There are receipts totalling £18,867 including options with the engine, which is complete with tender-mounted driving seat, firing irons and what appears to be most of the factory-supplied assembly and steaming instructions.

We've had several Steam Traction World Burrells over the years - including several finished to a high standard - and have been impressed at how well they go.

There is further information and full specification on the manufacturer's website here.

Technical information

Stock code

11976

Scale

4 inch

Length/inches

72

Width/inches

30

Height/inches

45

Weight/Kg

500

Cylinder material

cast iron

Valve type

slide

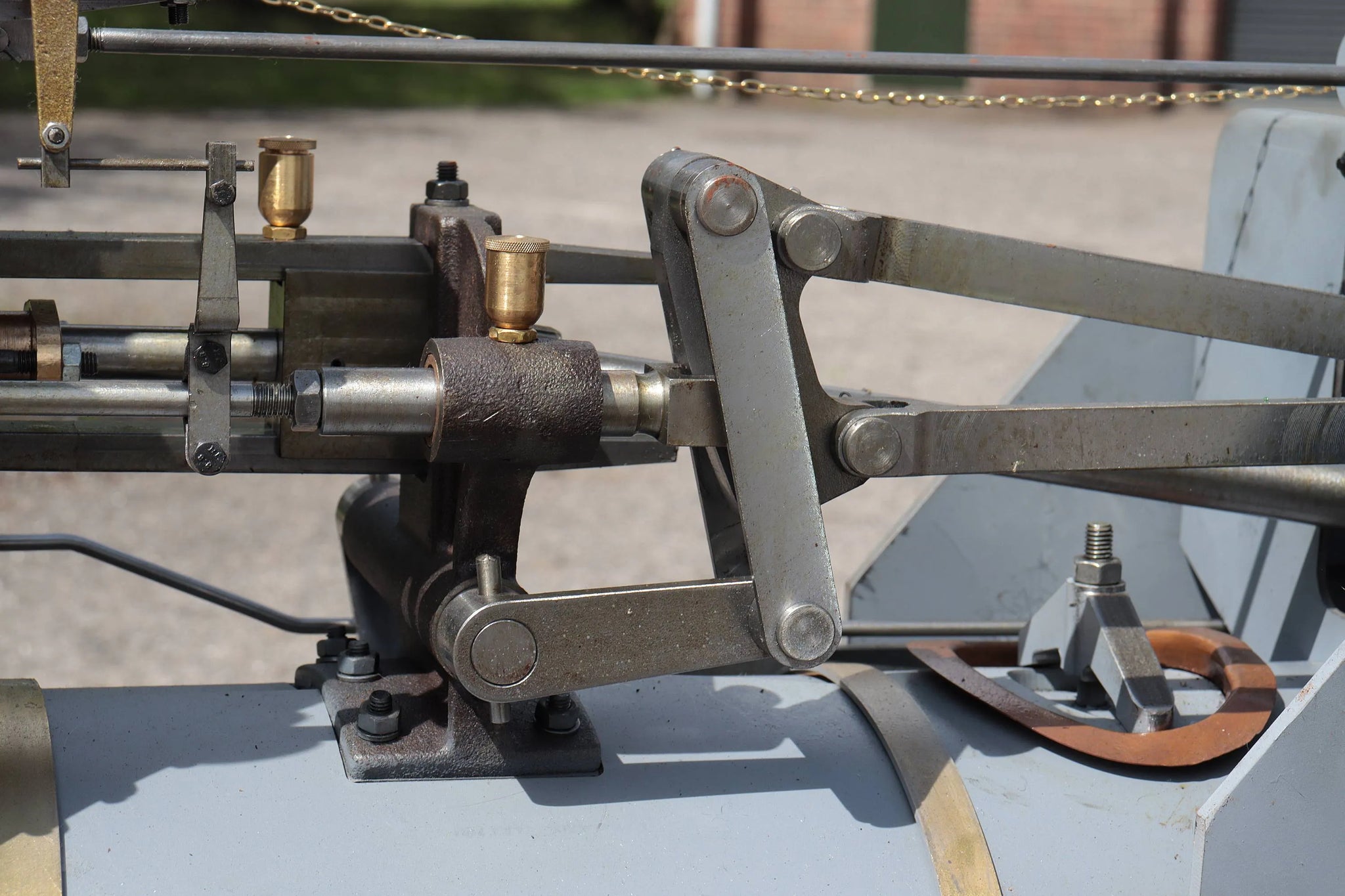

Valve gear

Stephensons

Reverser type

pole

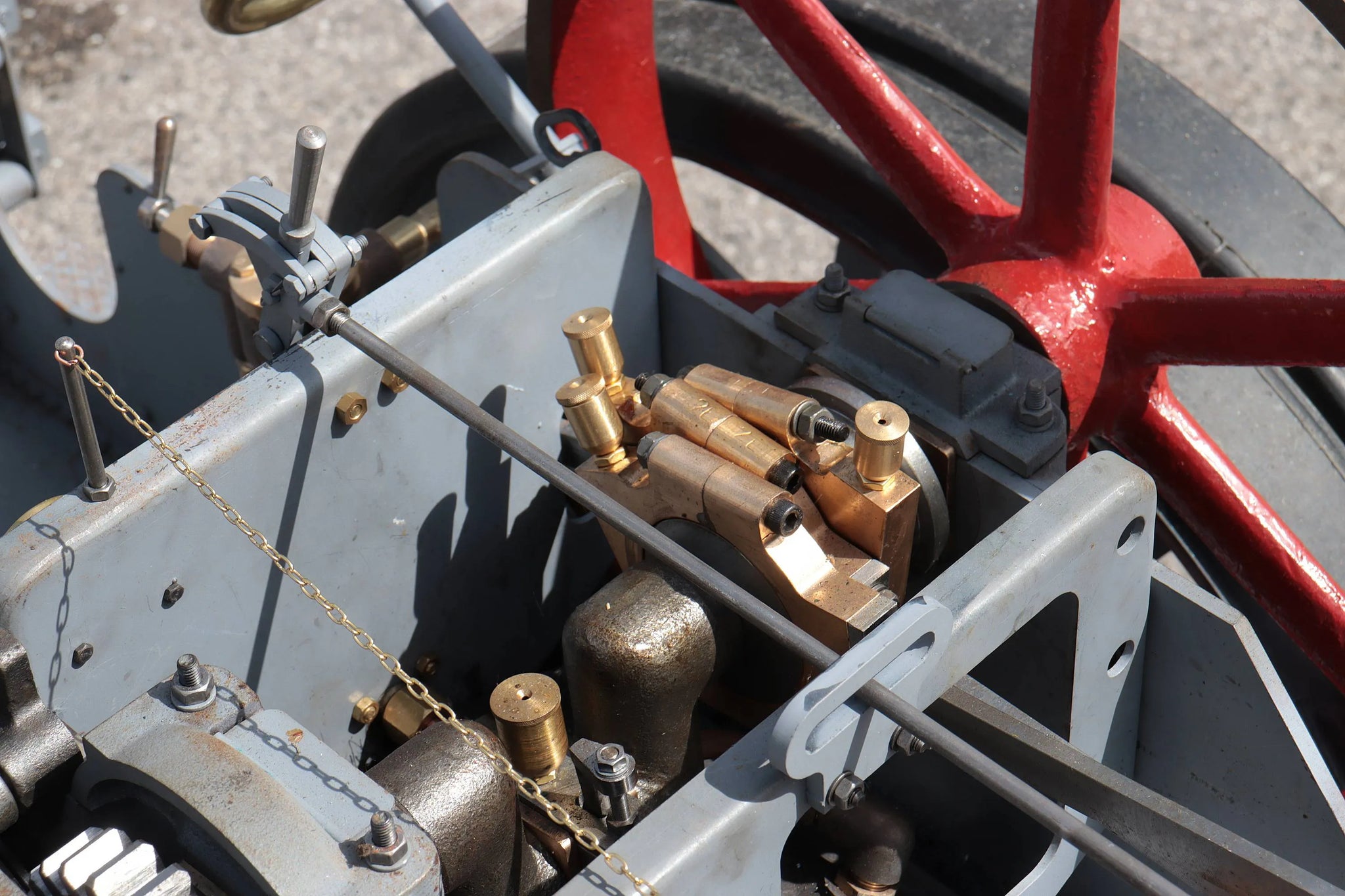

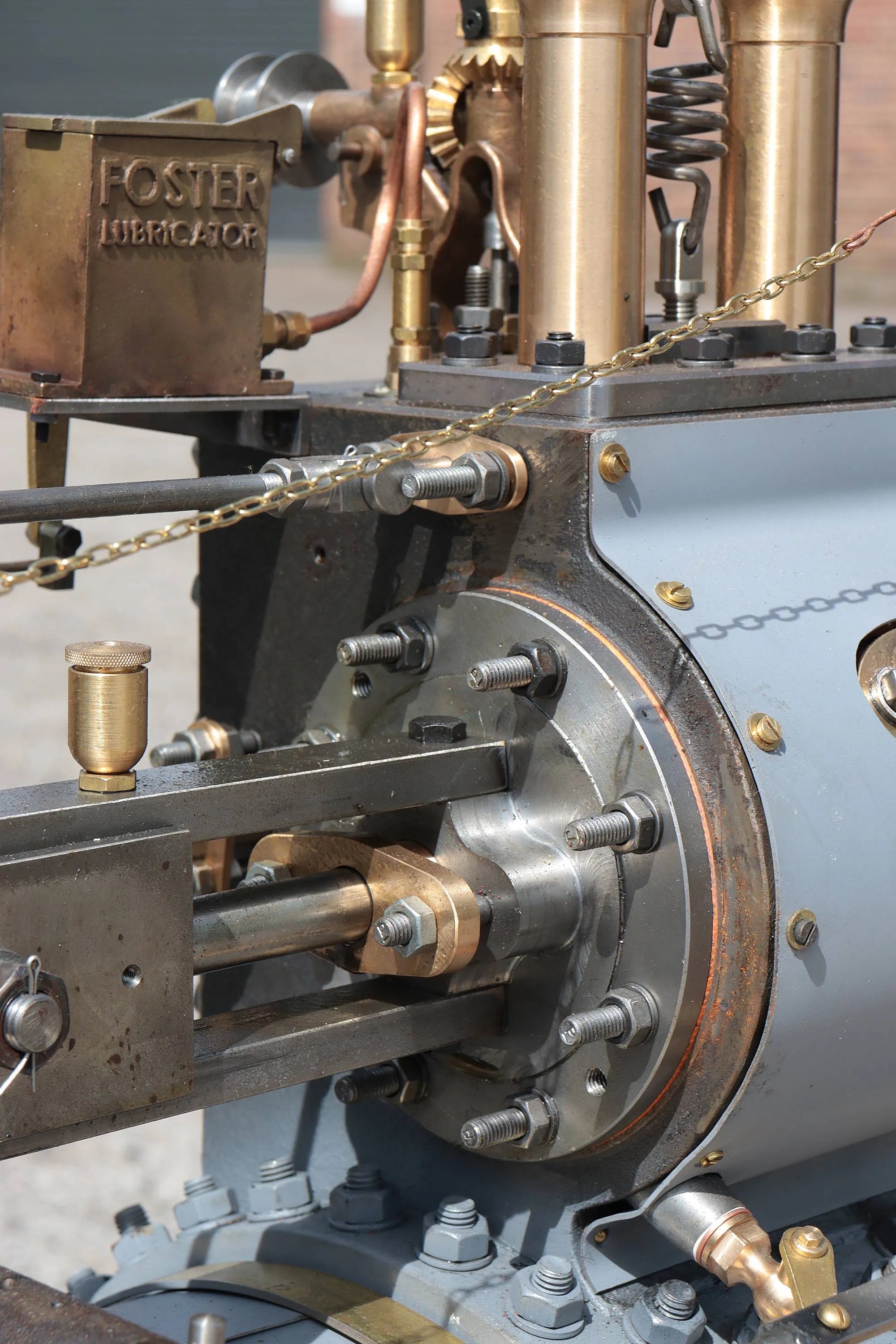

Lubricator type

mechanical

Boiler maker

Steam Traction World

Boiler type

locomotive

Boiler construction

welded, expanded tubes

Boiler material

steel

Working pressure

120

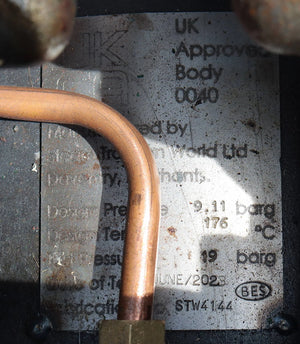

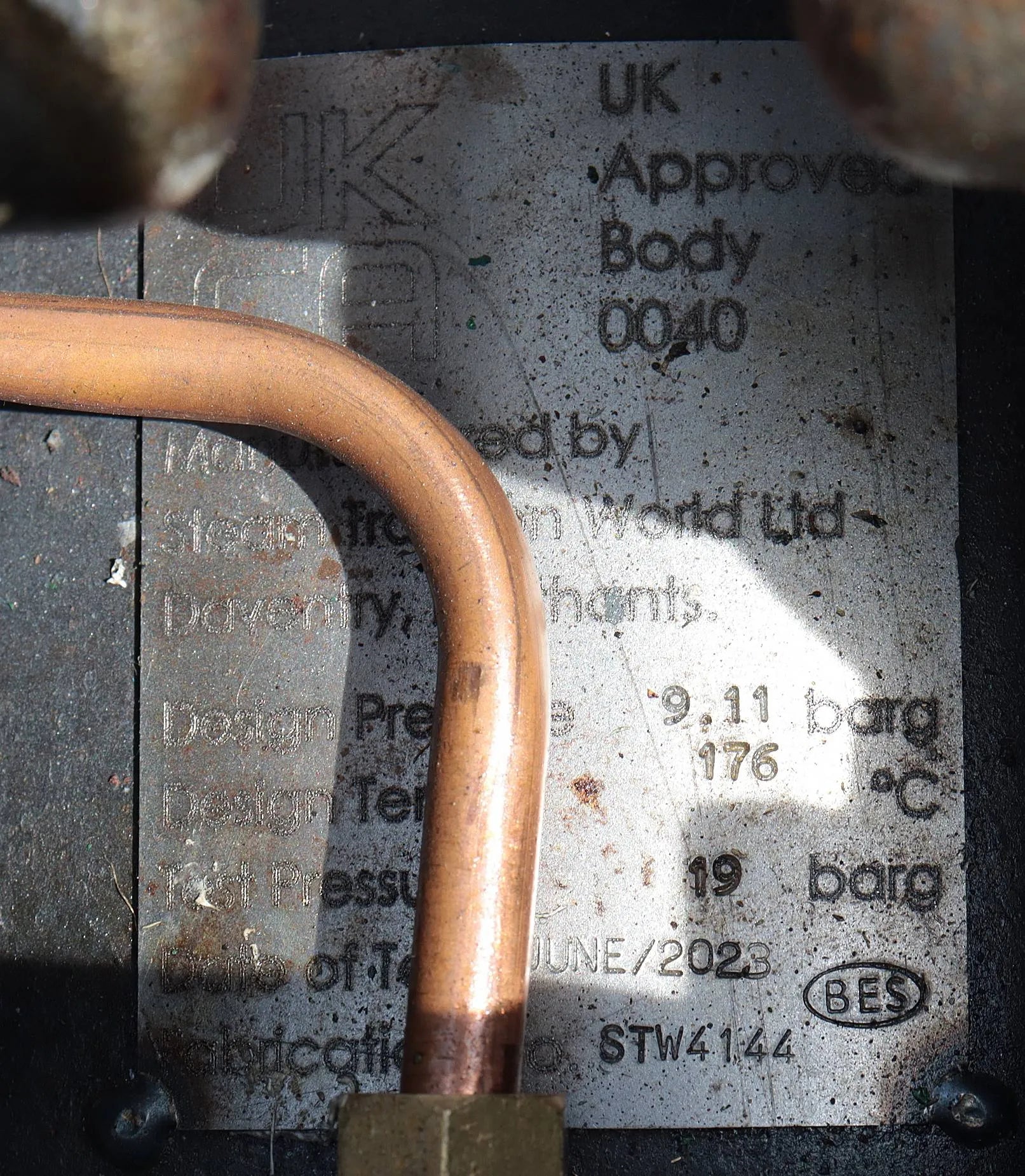

CE/UKCA mark

UKCA marked

Year built

2023

Boiler number

STW4144

Safety valve type

spring

Safety valve

2

Fusible plug

yes

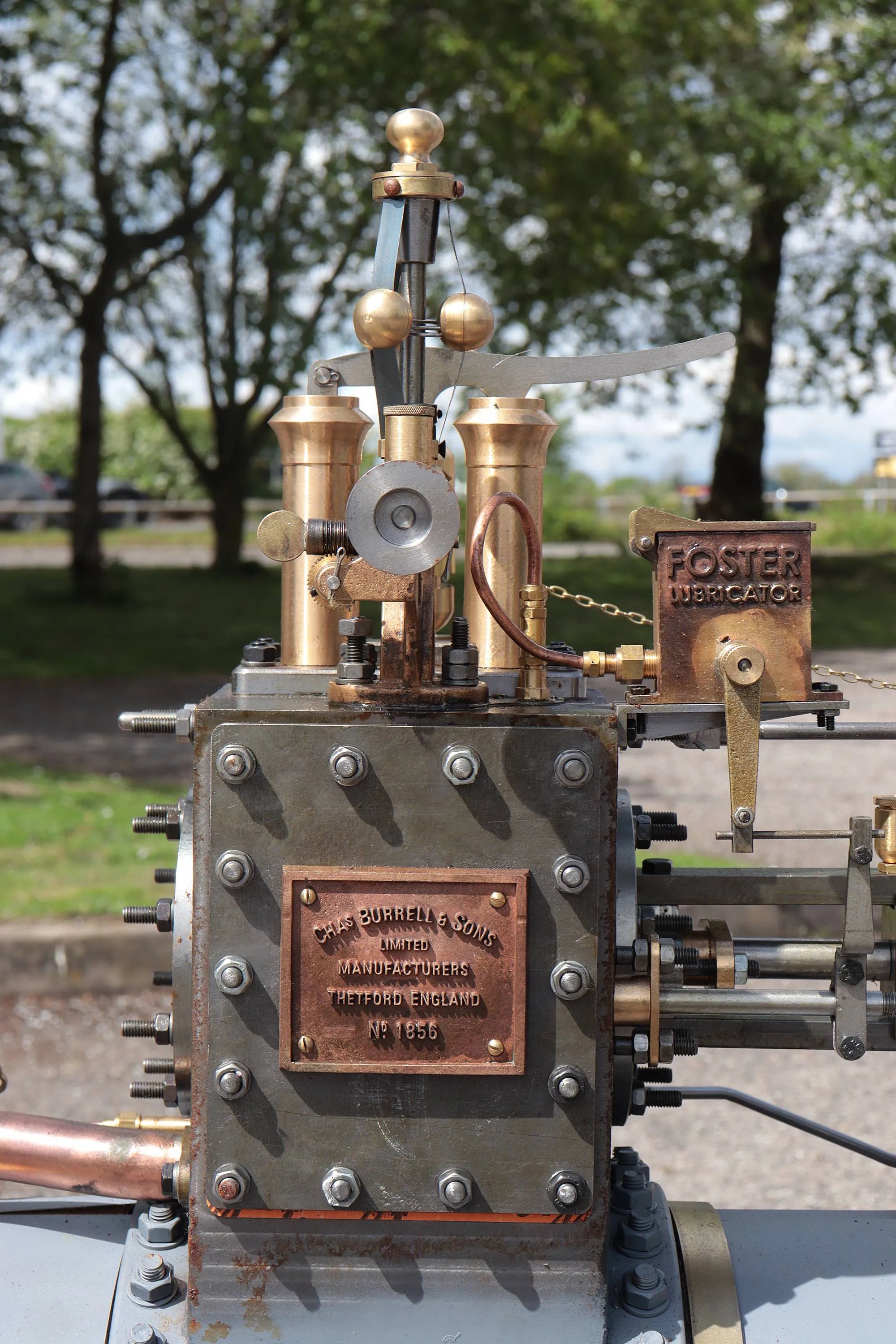

Governor type

Pickering

Bore x stroke

2 3/4 x 3 1/4

Differential

yes

Road speed

2

Whistle

yes

Mechanical pump

1

Injector

1

Date out

May-24
