Sold

12426

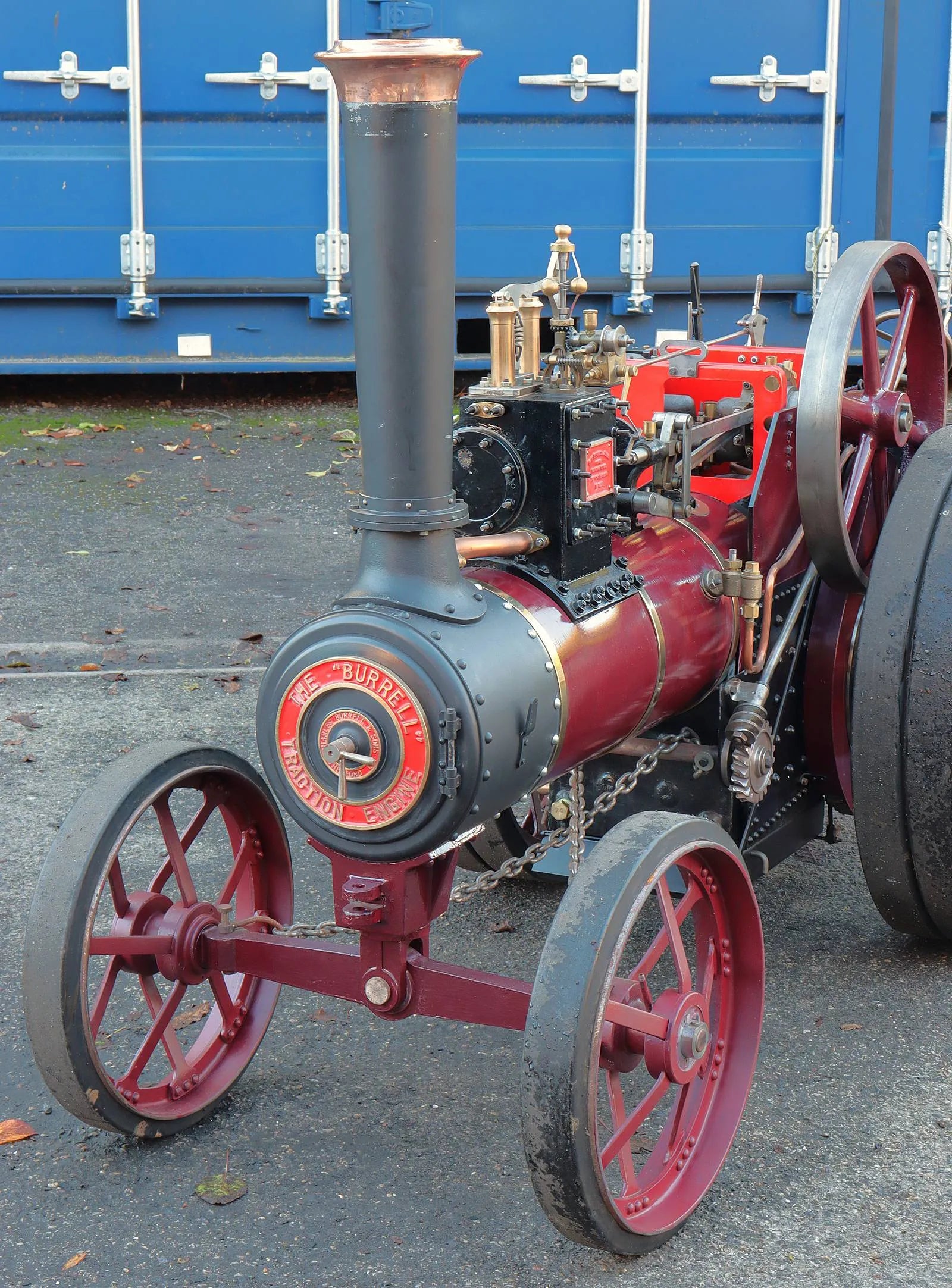

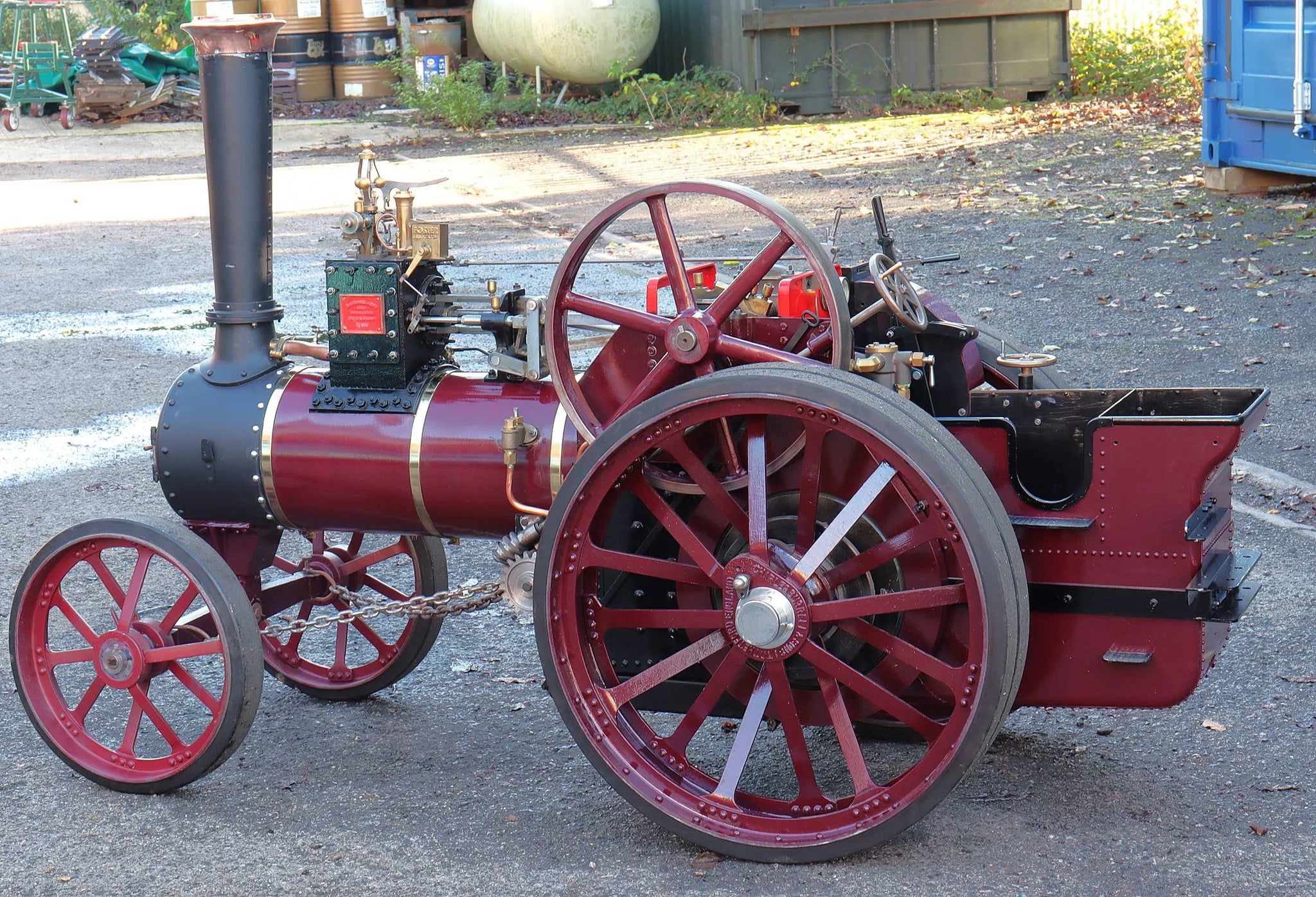

4 inch scale Burrell agricultural engine

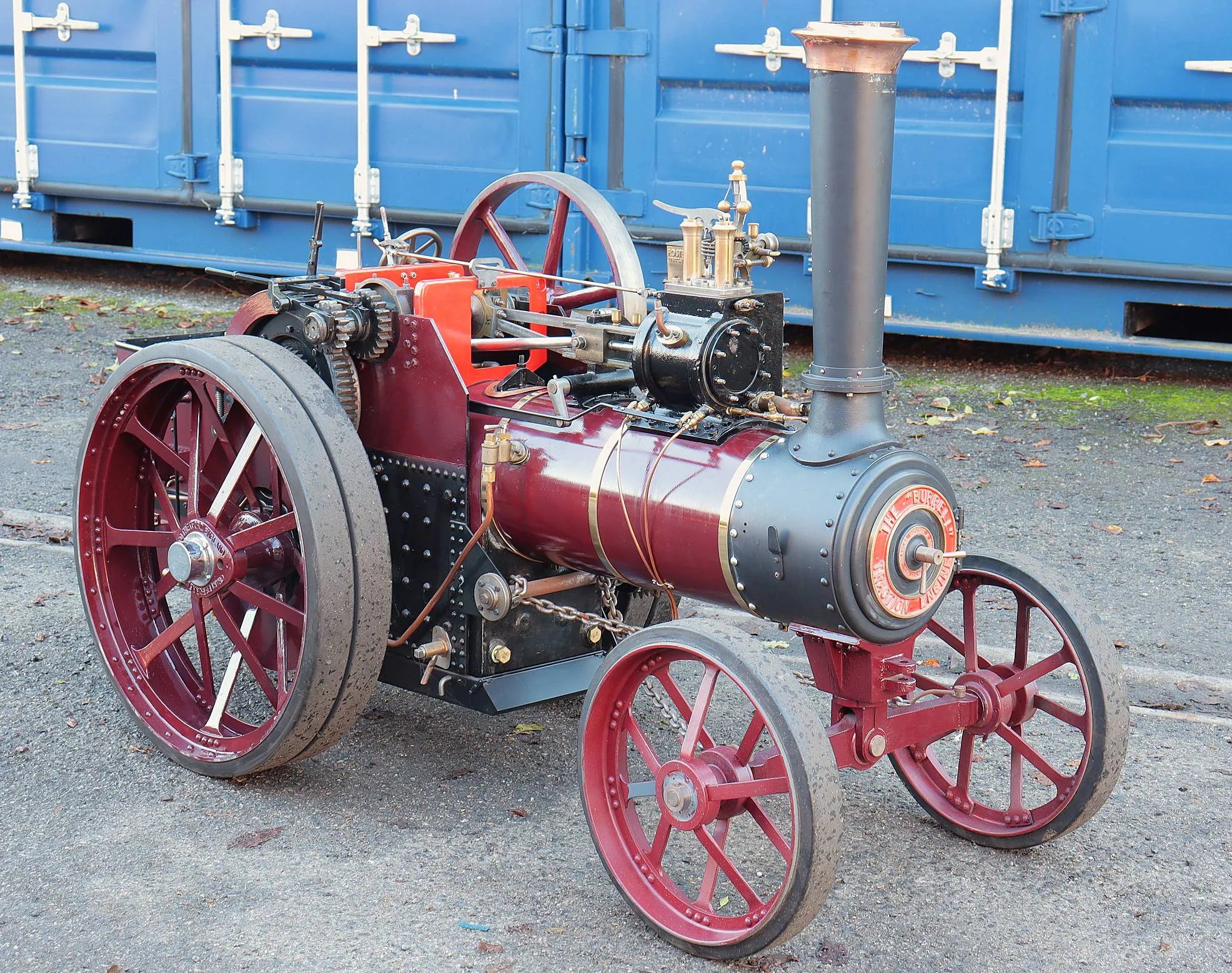

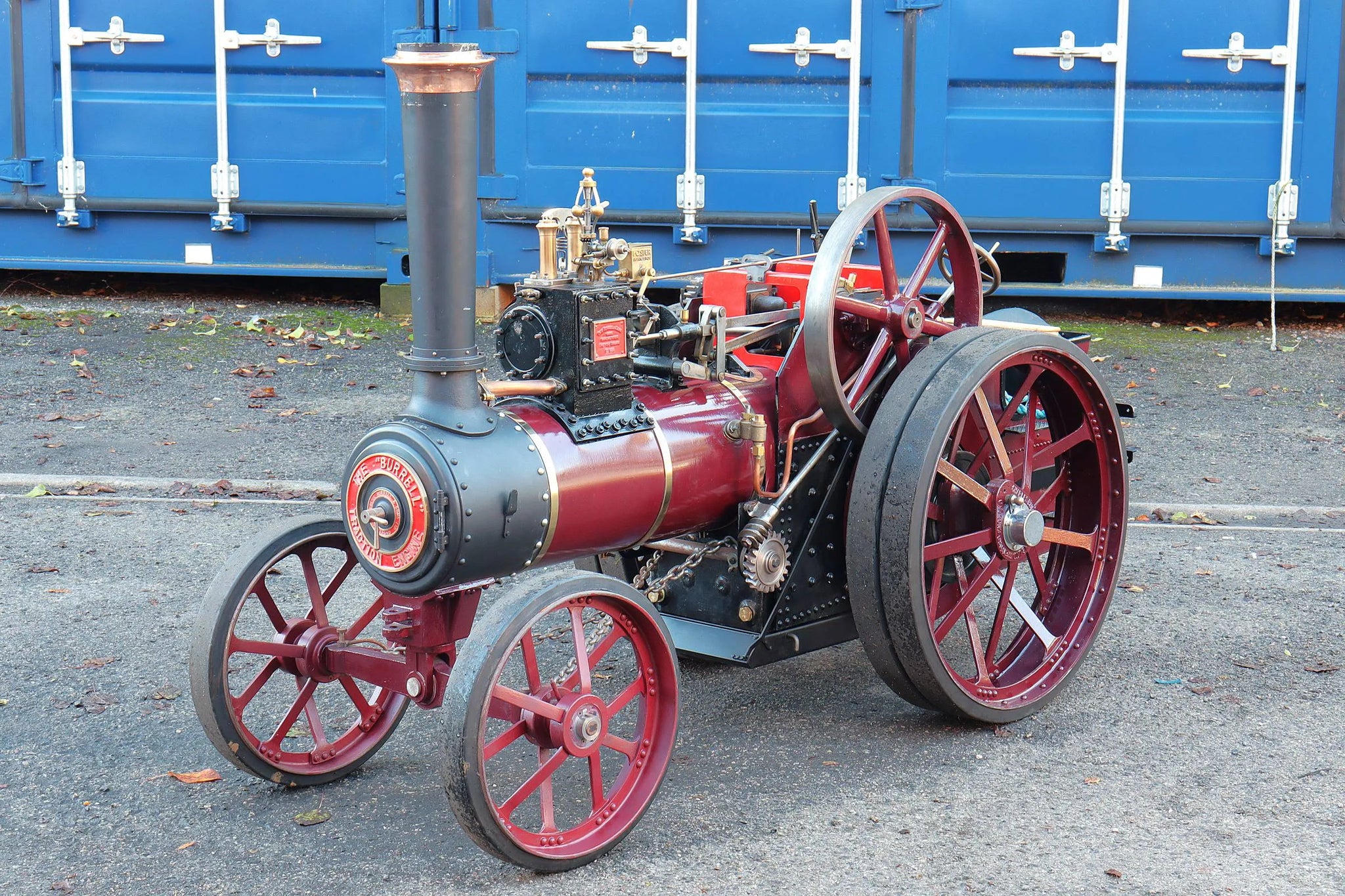

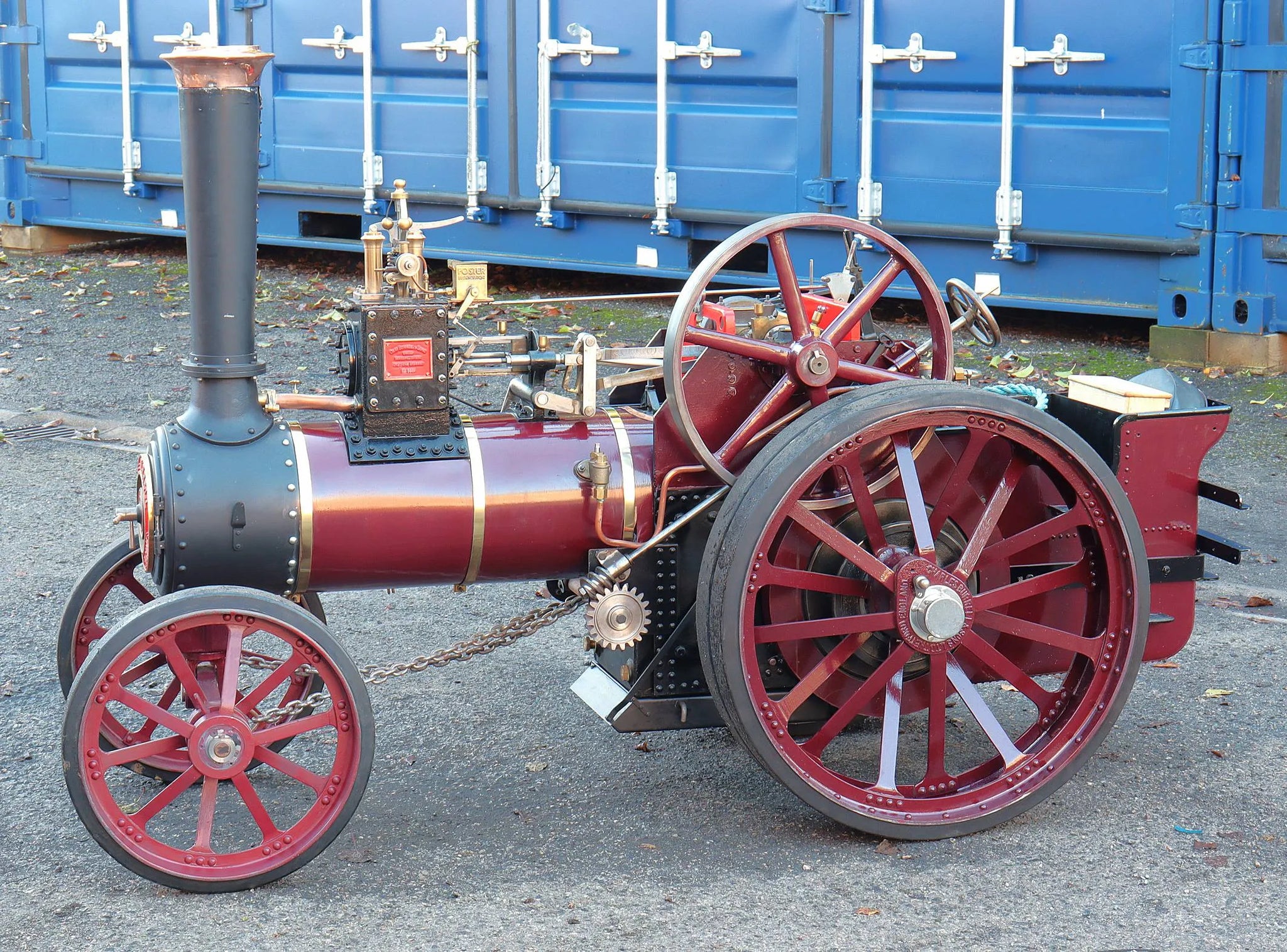

A 4 inch scale Burrell 6nhp agricultural engine by Steam Traction World kit, this one has come to us from the family of the builder.

At an advanced stage of assembly, the engine runs in both directions on compressed air. Steering and gear selectors are stiff to operate - we suspect assembled "straight from the box", they would ease off with light fettling and some lubrication.

Complete with driver's upholstered seat and associated bracketry, folder of assembly instructions and drawings, and manufacturer's boiler certificate.

Further information and a full technical specification is available on Steam Traction World's website here.

Technical information

Stock code

12426

Scale

4 inch

Length/inches

72

Width/inches

30

Height/inches

45

Weight/Kg

500

Wheel material

steel

Cylinder material

cast iron

Valve type

slide

Valve gear

Stephensons

Reverser type

pole

Boiler maker

Steam Traction World

Boiler type

locomotive

Boiler construction

welded, expanded tubes

Boiler material

steel

Working pressure

120

CE/UKCA mark

yes

Year built

2013

Boiler number

STW272

Safety valve type

spring

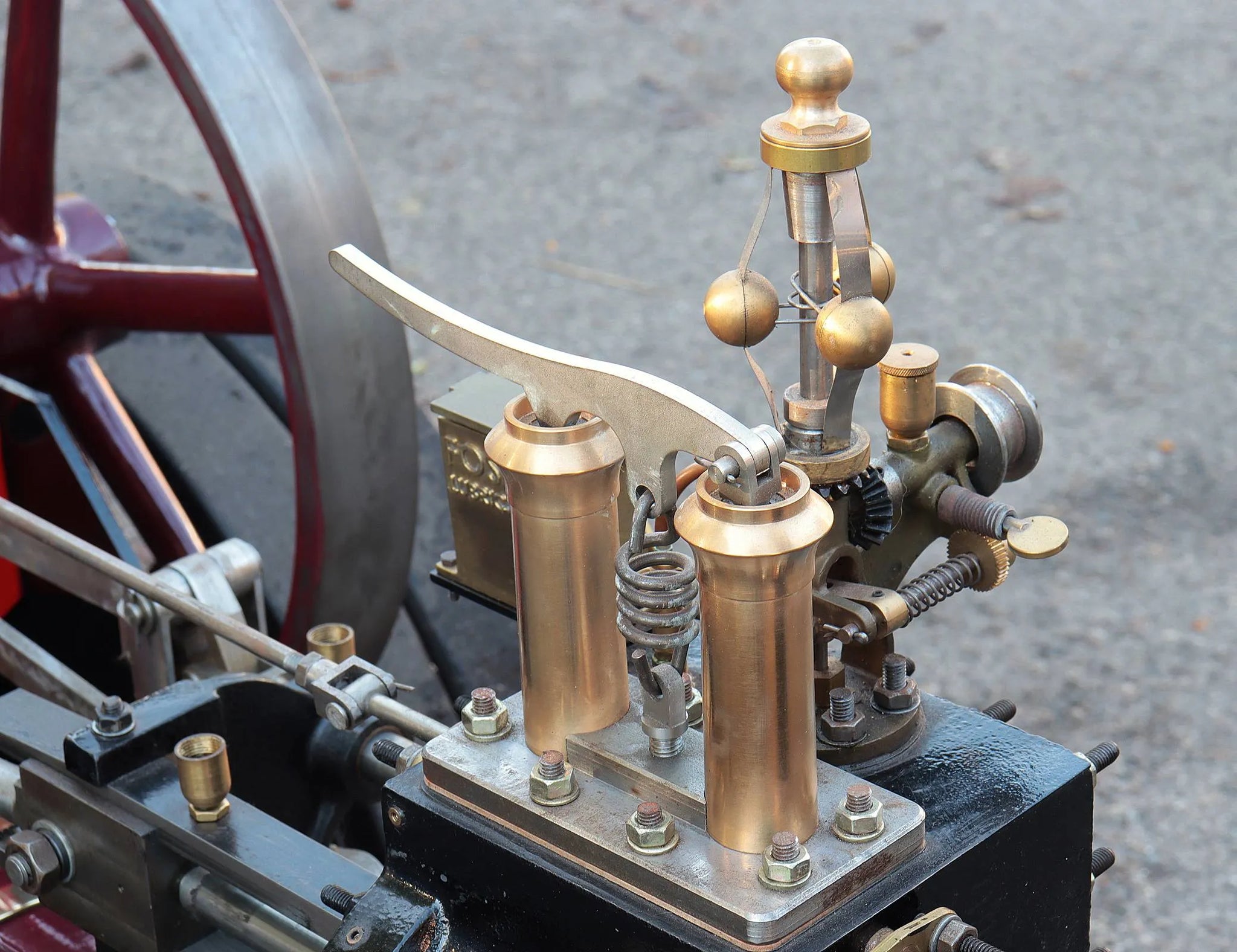

Safety valve

2

Governor type

Pickering

Bore x stroke

2 3/4 x 3 1/4

Differential

yes

Road speed

2

Whistle

yes

Mechanical pump

1

Date out

Oct-24
