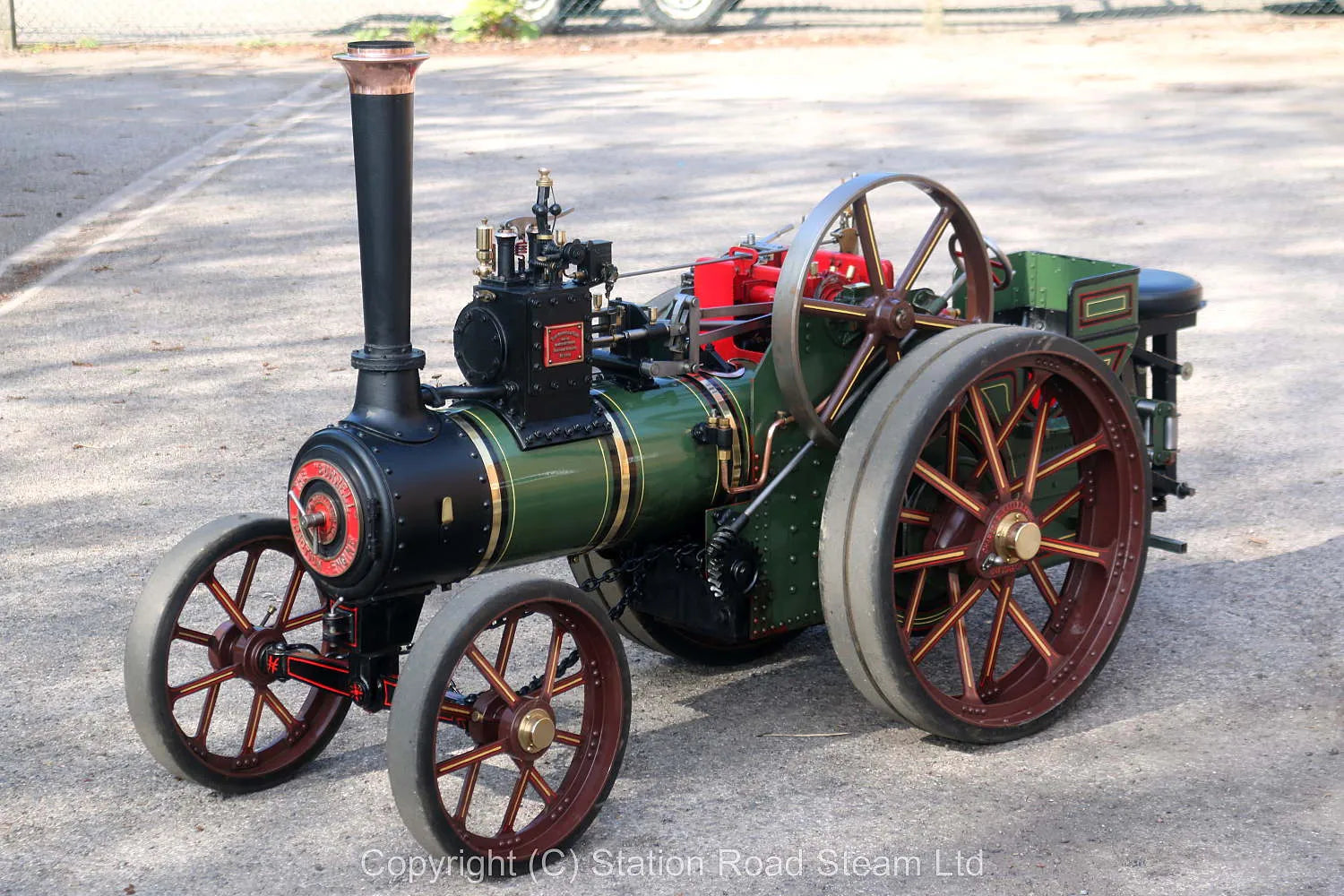

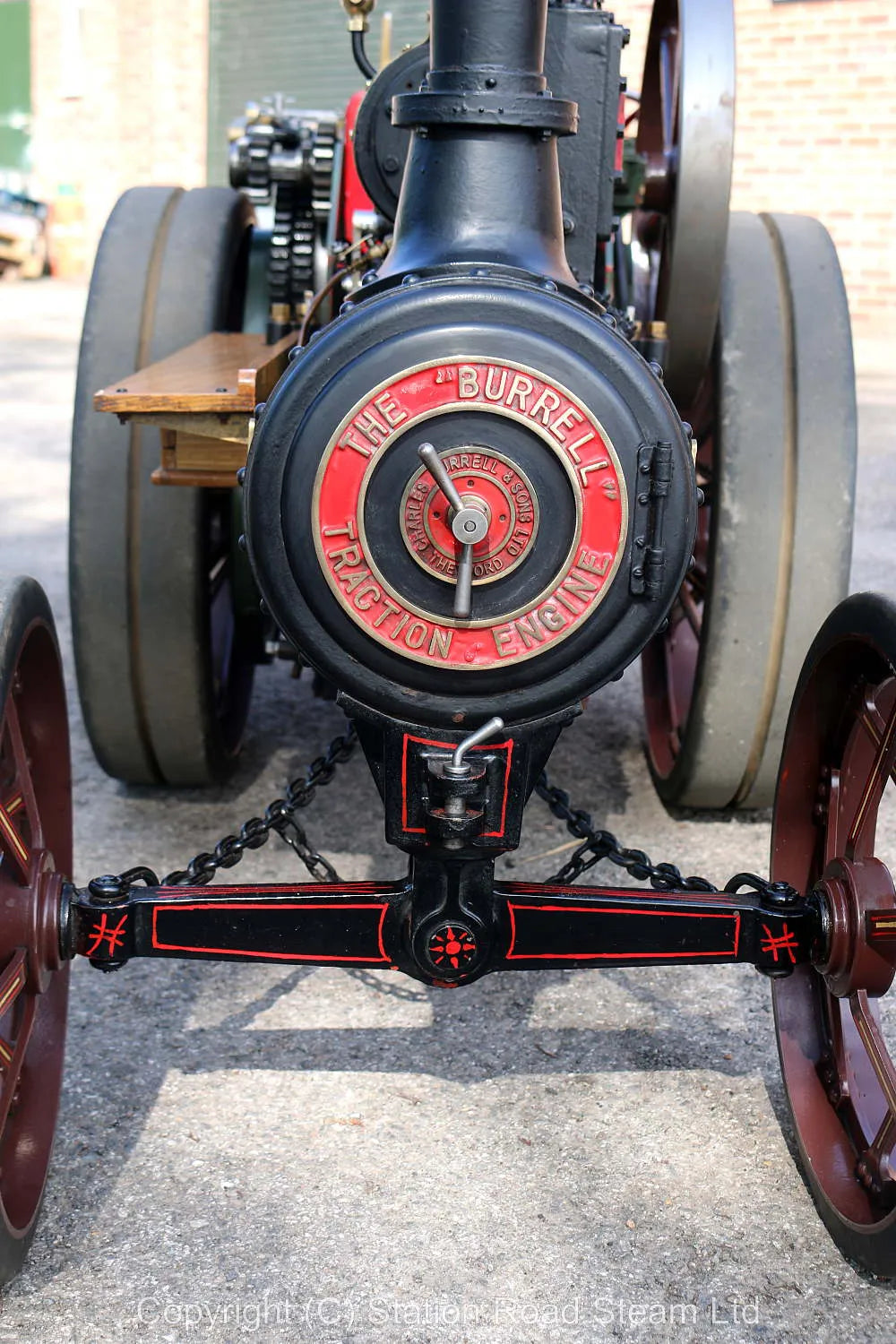

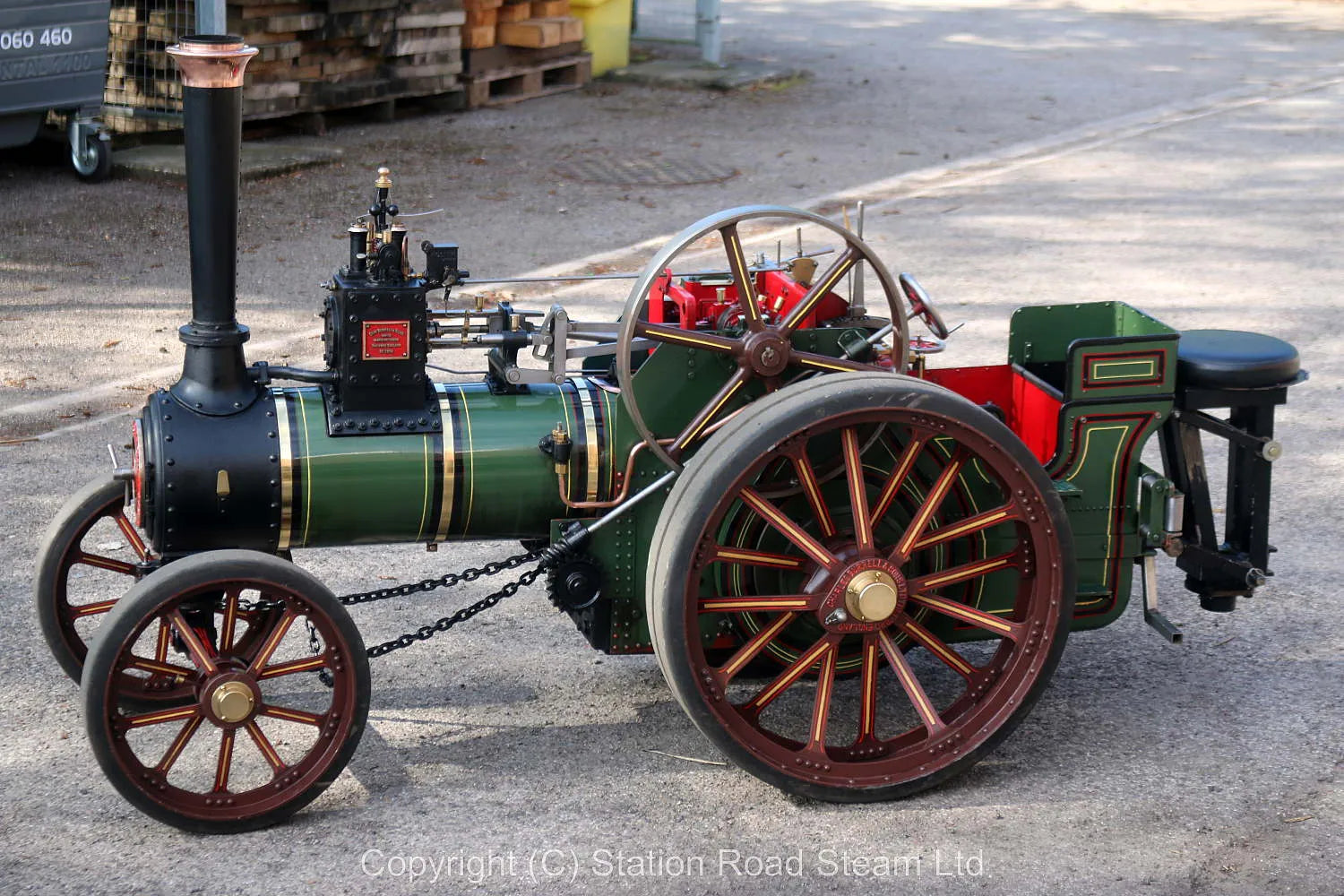

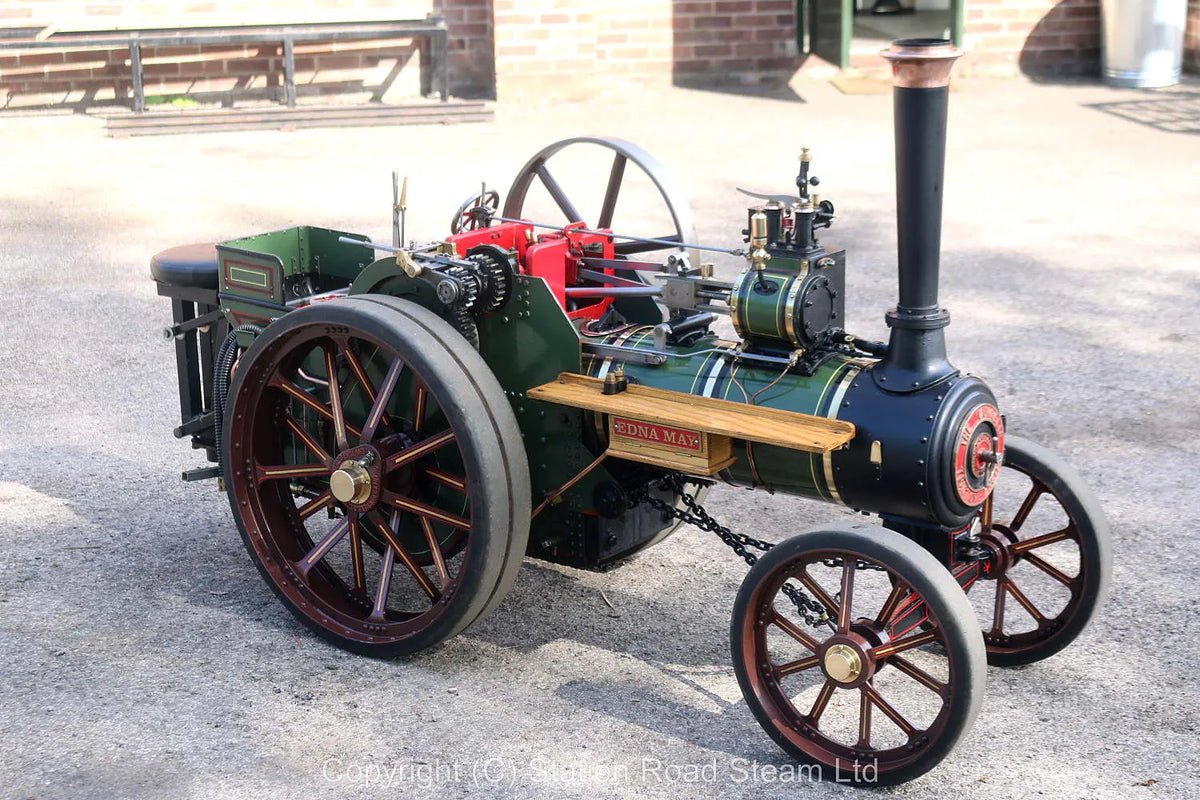

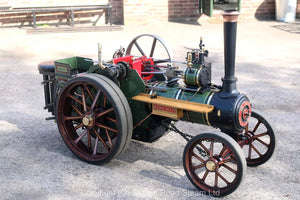

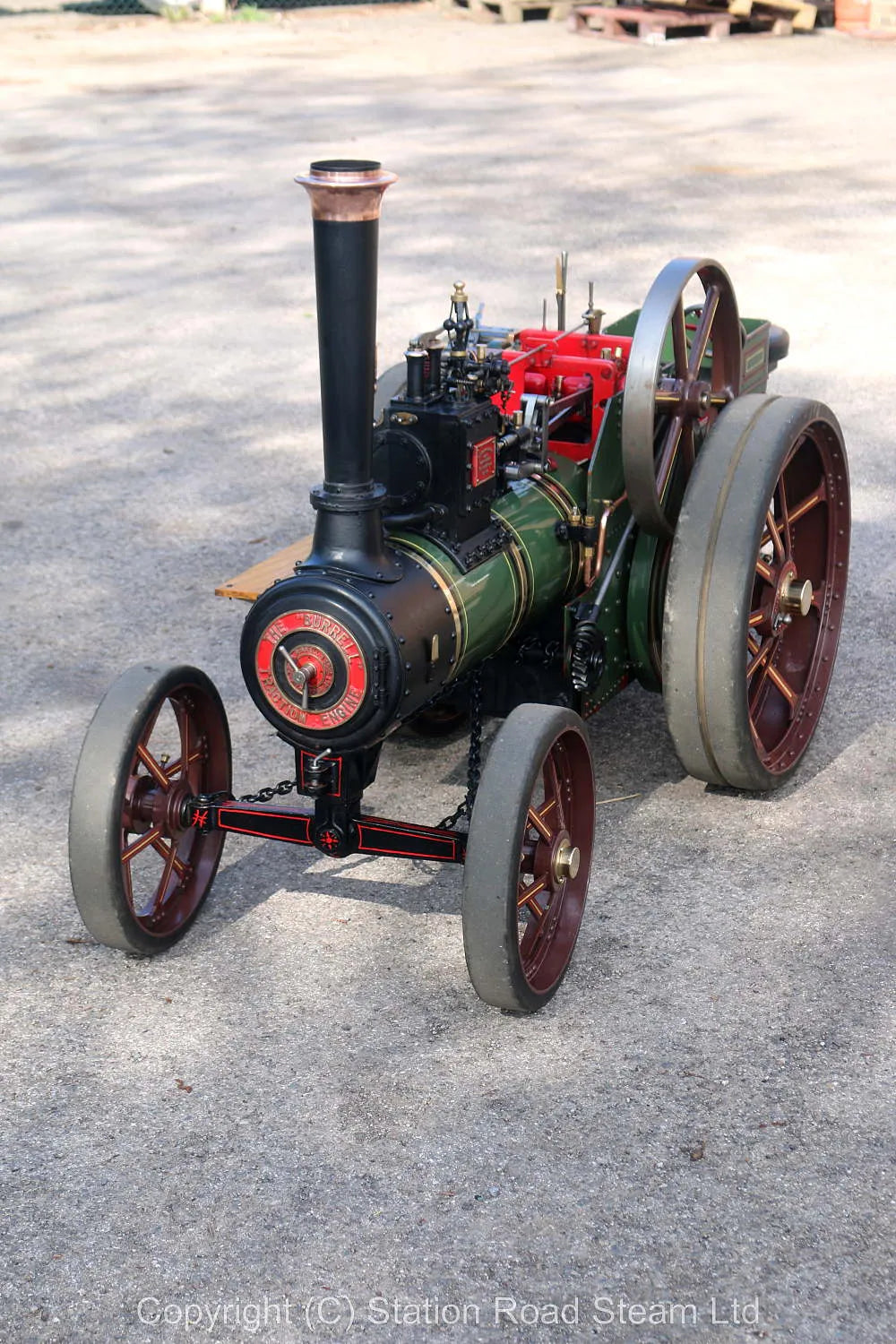

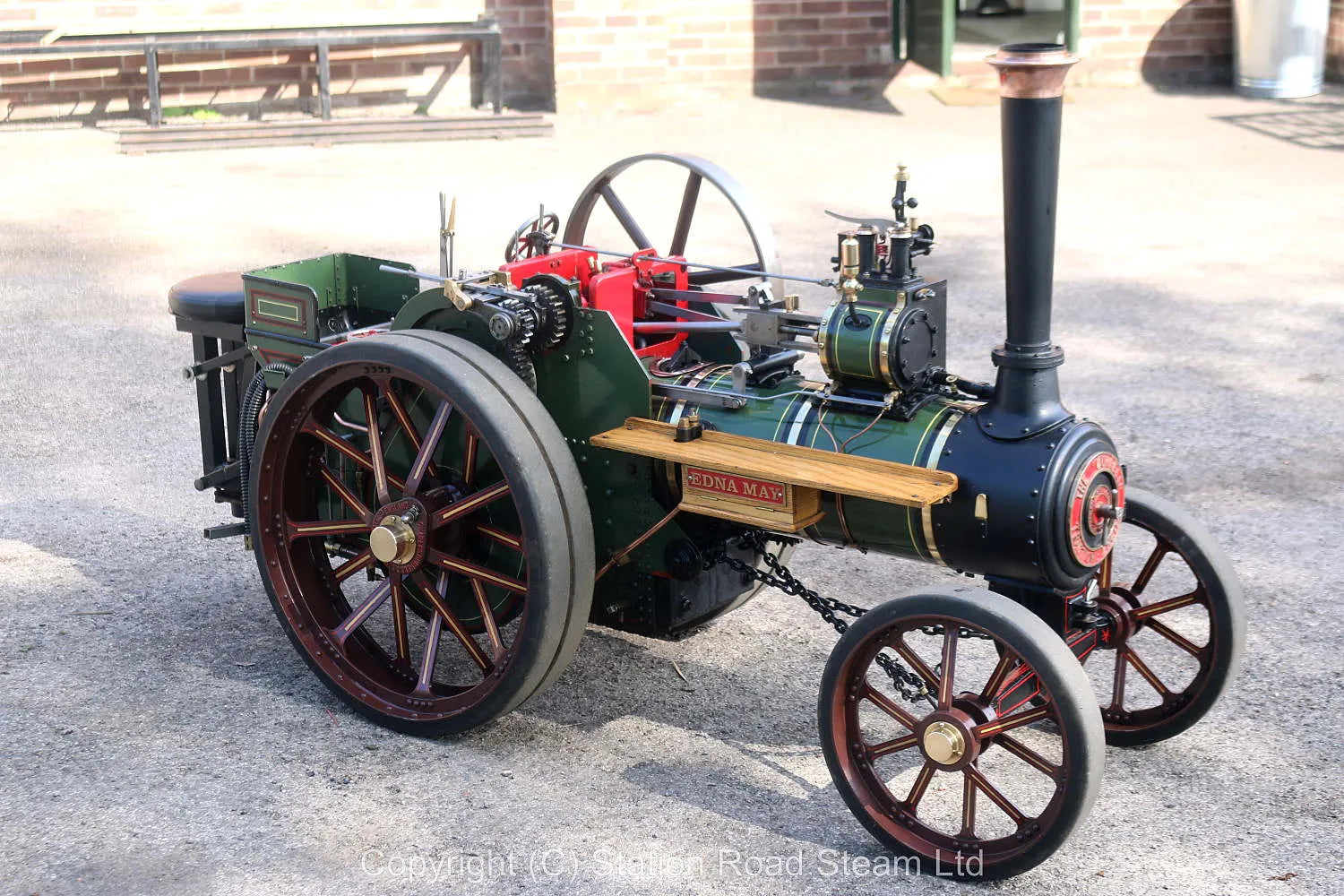

4 inch scale Burrell agricultural engine

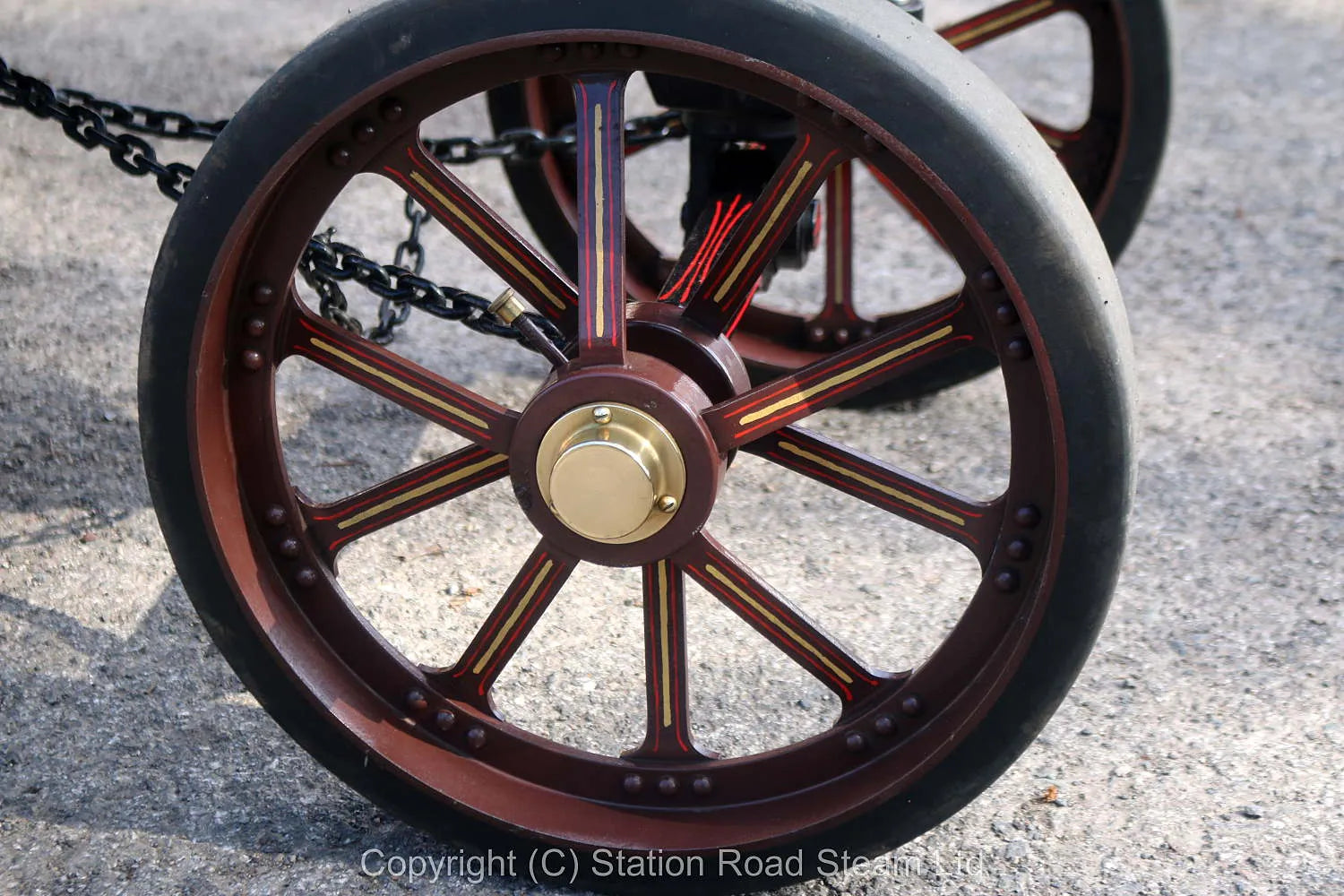

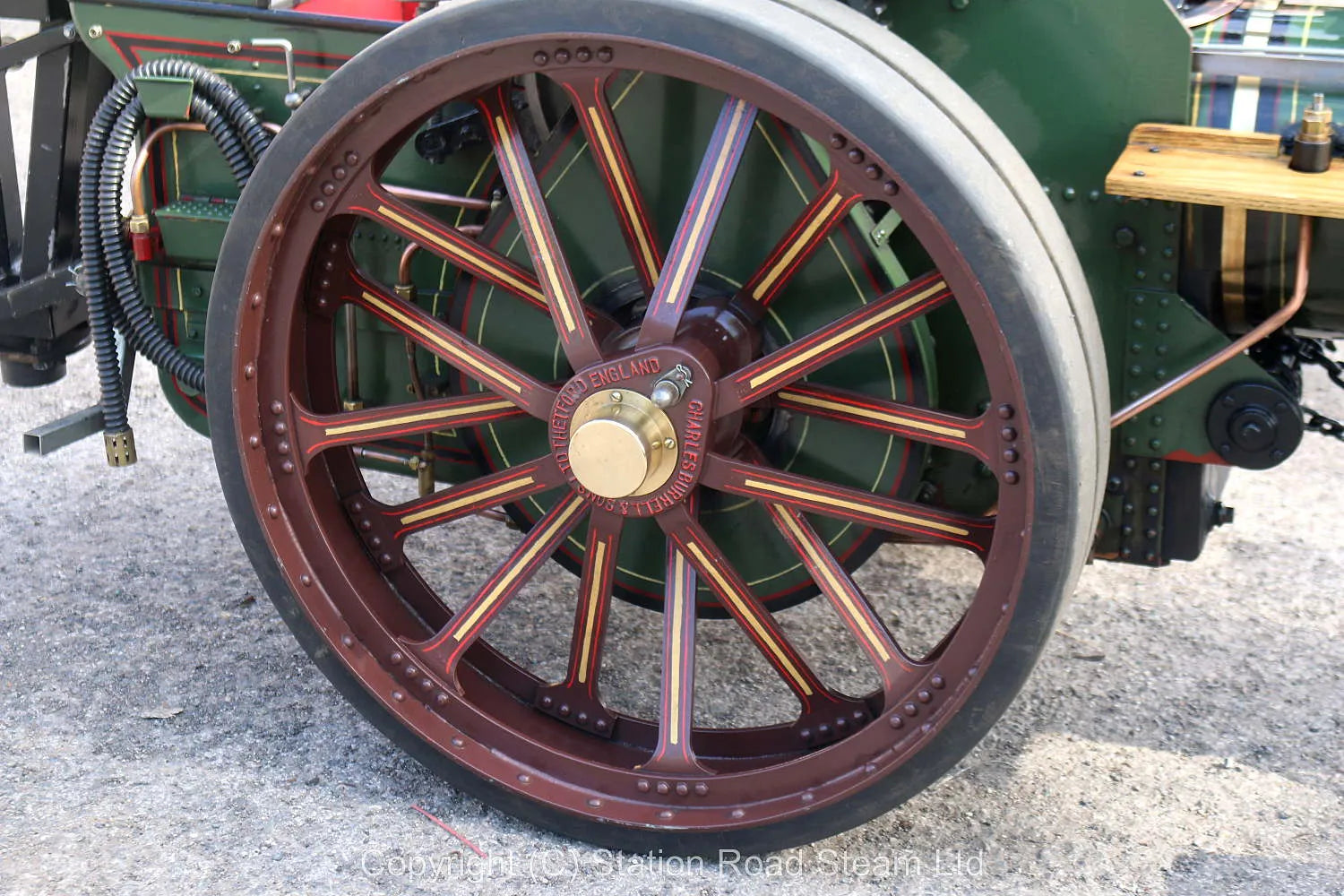

We sold this engine shortly after it appeared on our stand at the Doncaster Show last year. Built from a Steam Traction World kit, it goes very well - quiet on the road, running on rubber tyres. Mechanically it's in good order throughout, we re-tubed the boiler last year, it has new hydraulic and steam test certification.

Recently arrived back from the owner who moves on to smaller pursuits, the engine is in much the same condition now as when we last sold it - pictures opposite are from that time, there's some video of it here taken last week when we steam tested it.


Technical information

Stock code

7969

Scale

4 inch

Length/inches

72

Width/inches

30

Height/inches

45

Weight/Kg

500

Cylinder material

cast iron

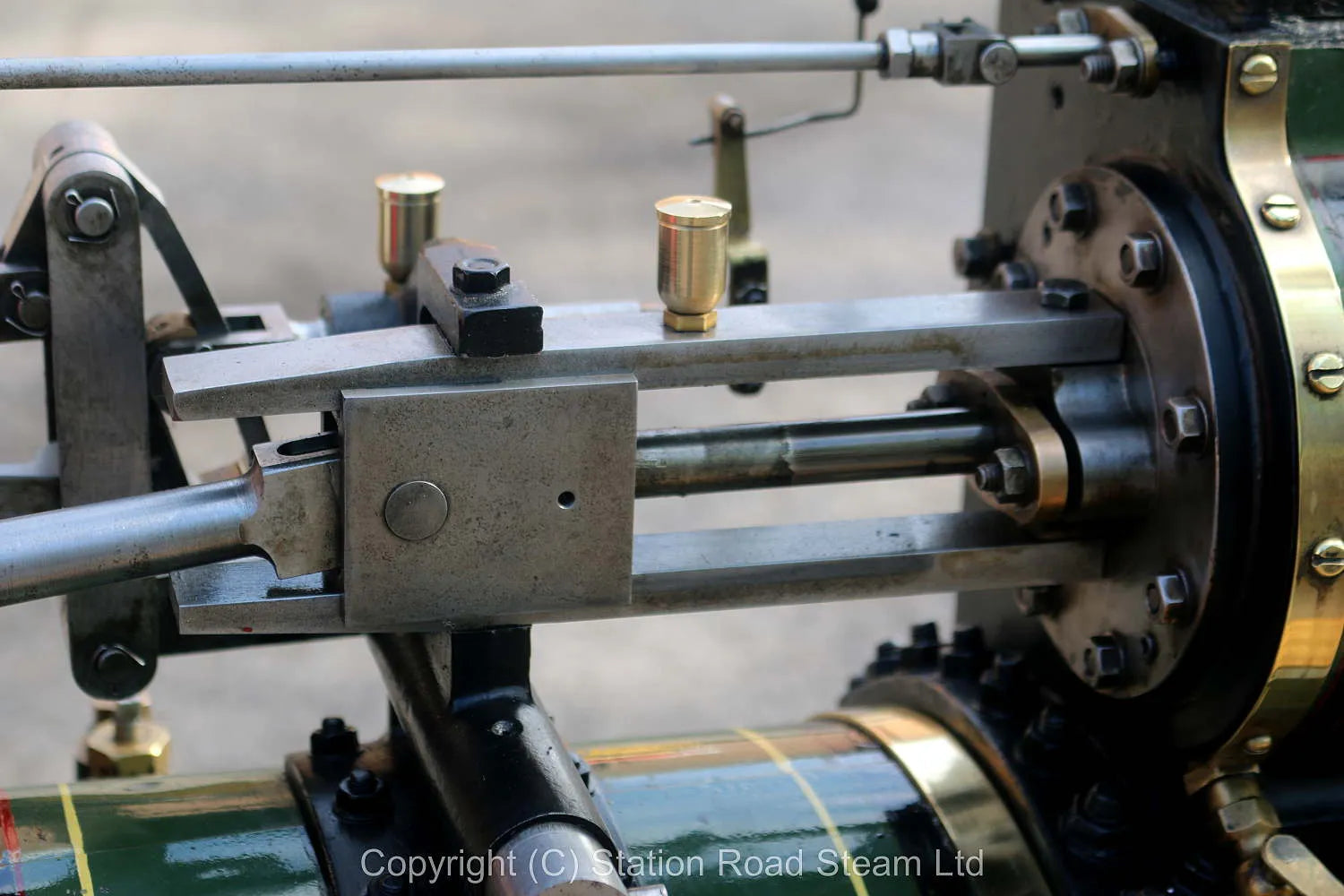

Valve type

slide

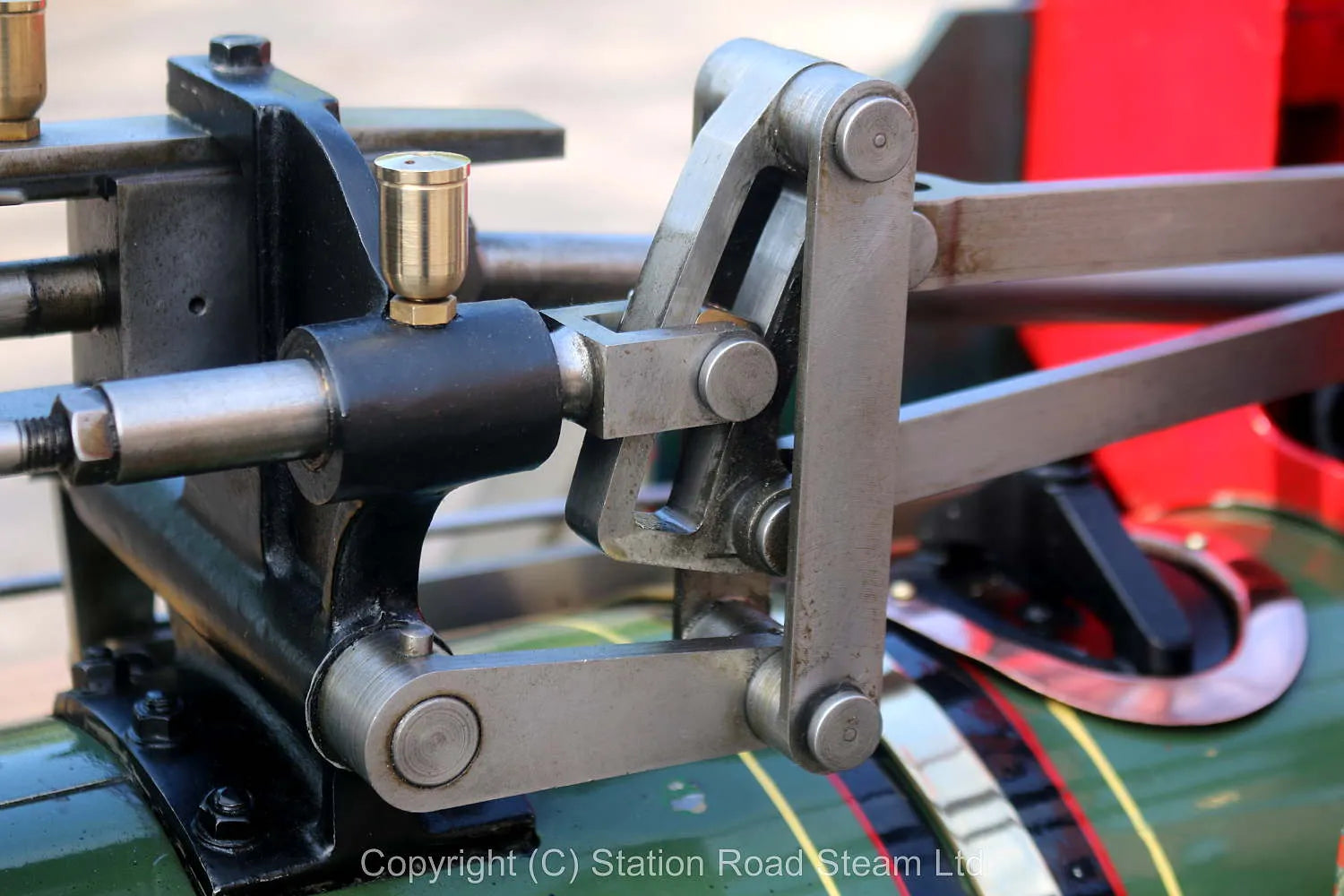

Valve gear

Stephensons

Reverser type

pole

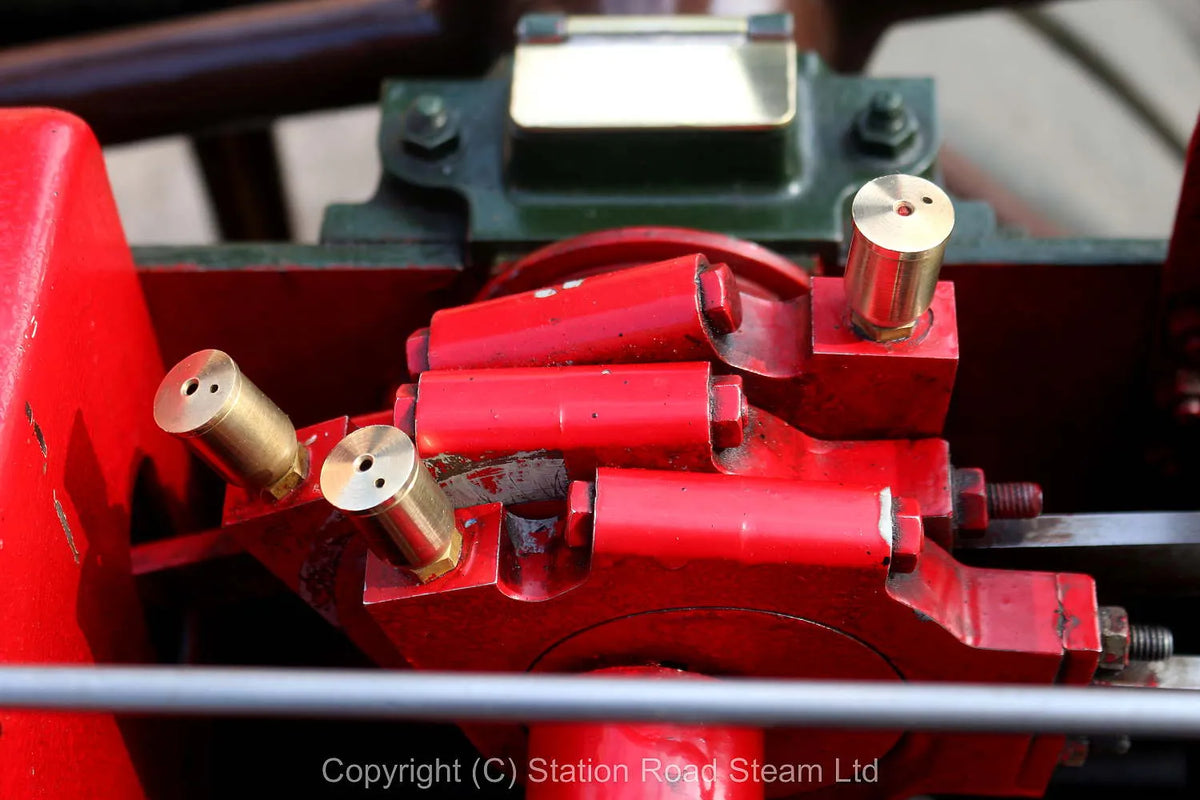

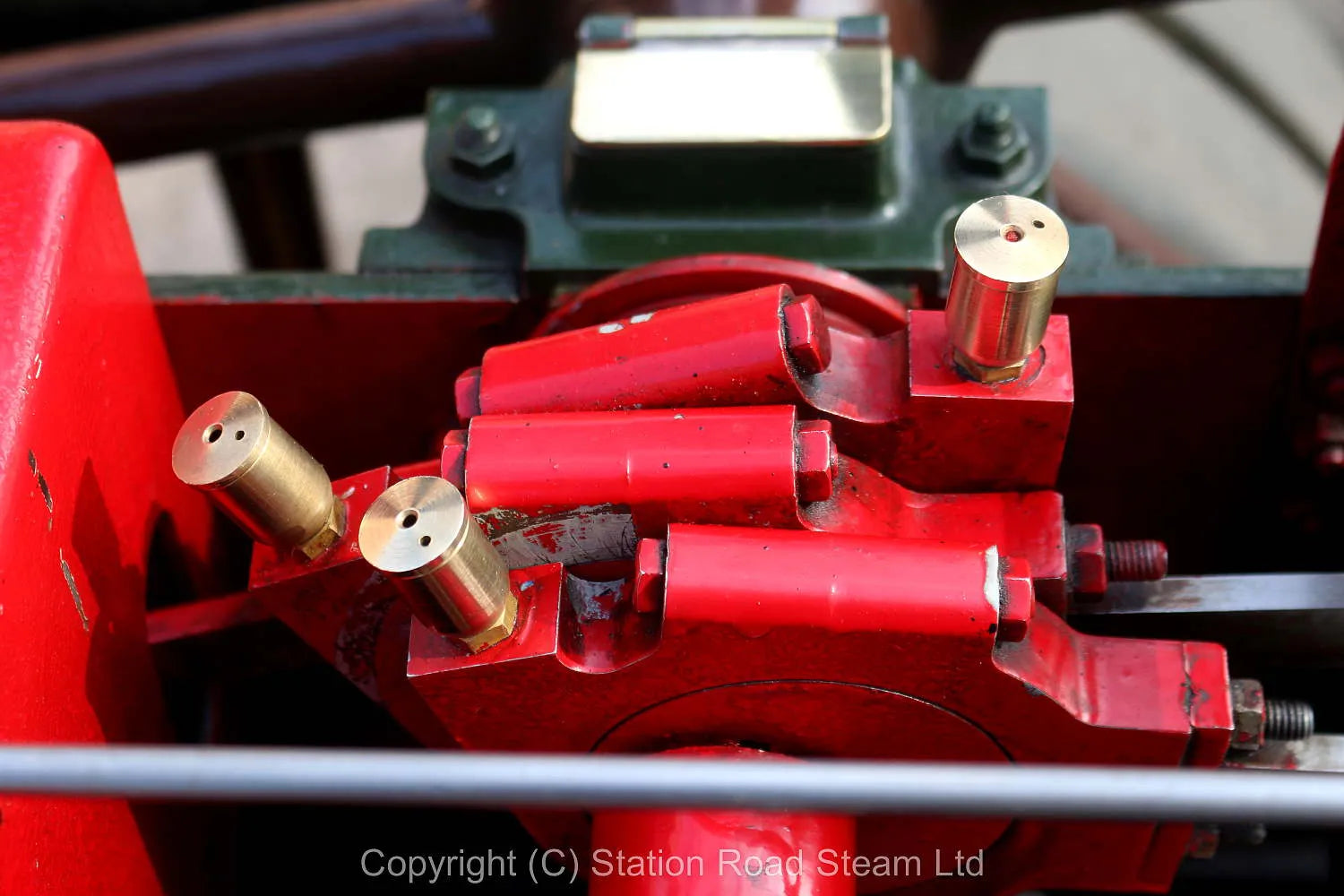

Lubricator type

mechanical

Boiler maker

Cope Engineering

Boiler type

locomotive

Boiler construction

welded, expanded tubes

Boiler material

steel

Working pressure

120

CE/UKCA mark

yes

Year built

2005

Boiler number

2069

Safety valve type

Ramsbottom

Safety valve

2

Fusible plug

yes

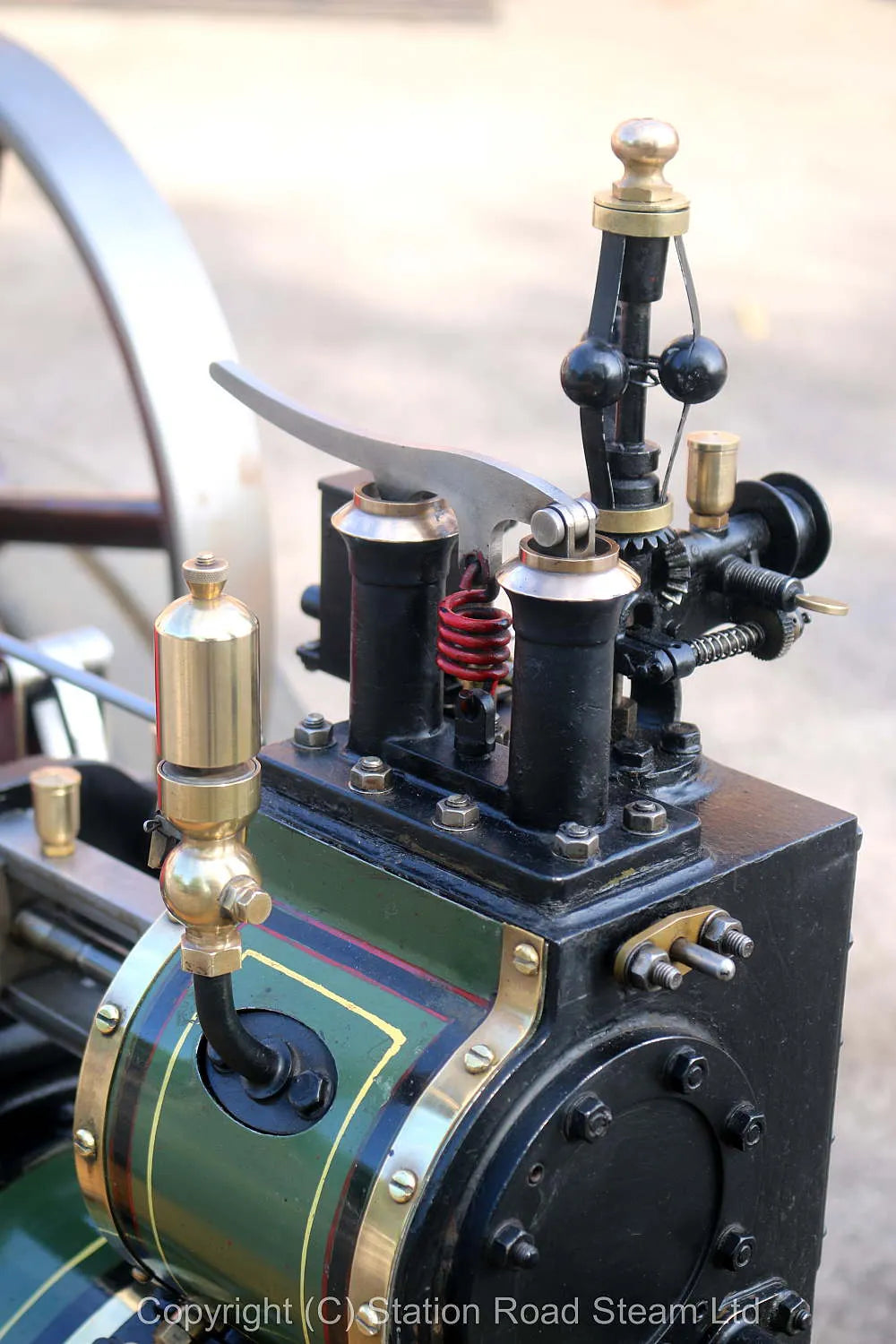

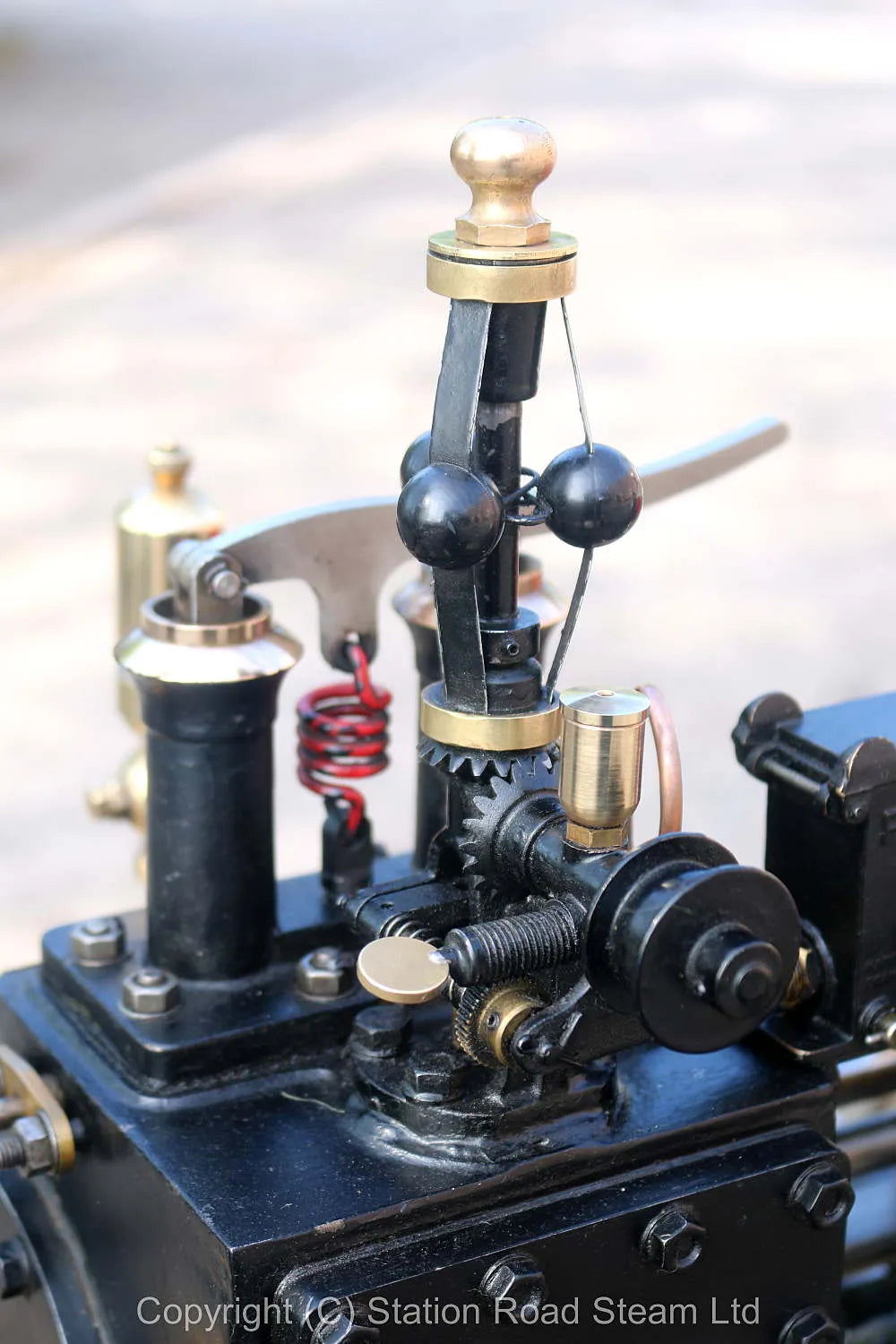

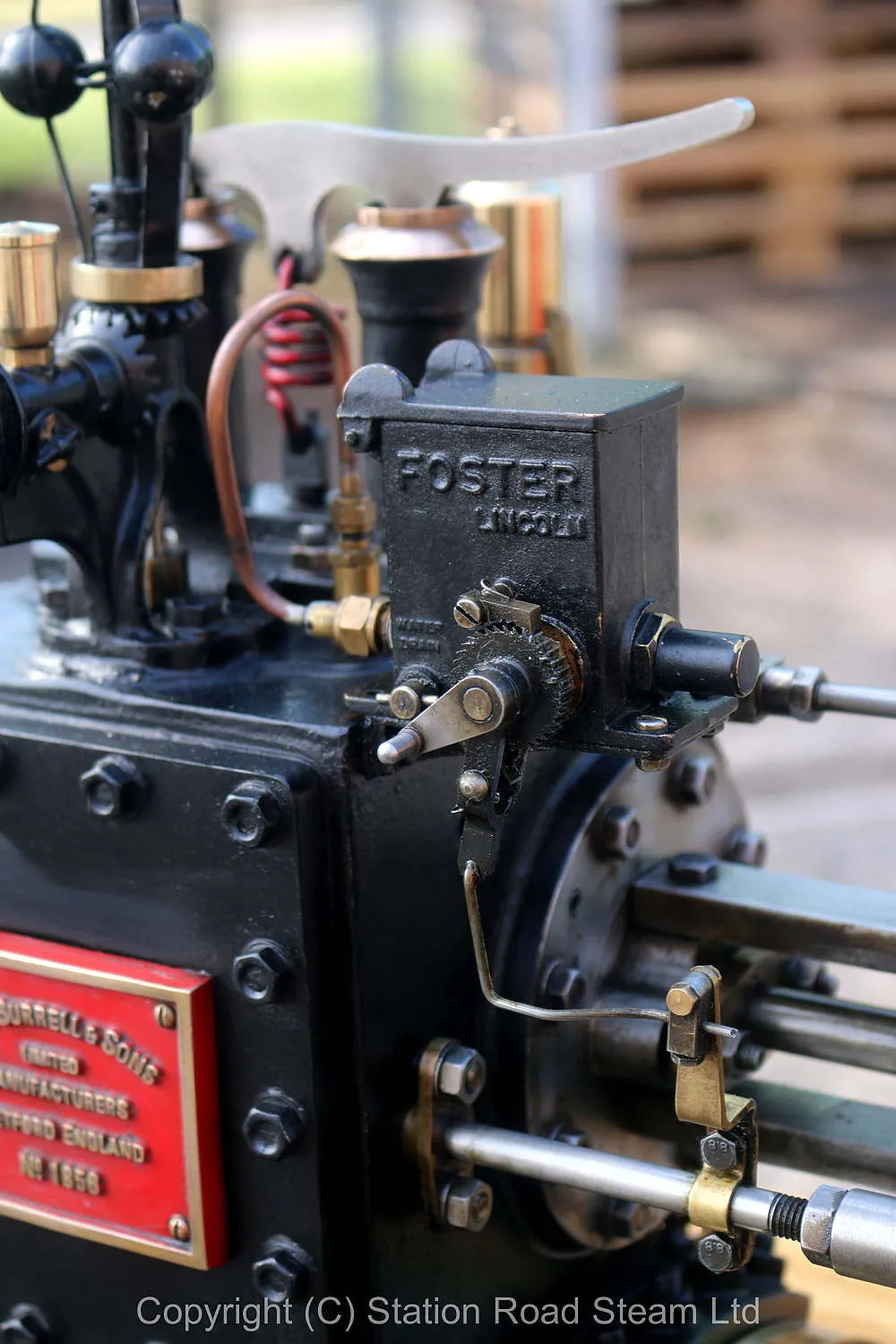

Governor type

Pickering

Bore x stroke

2 3/4 x 3 1/4

Differential

yes

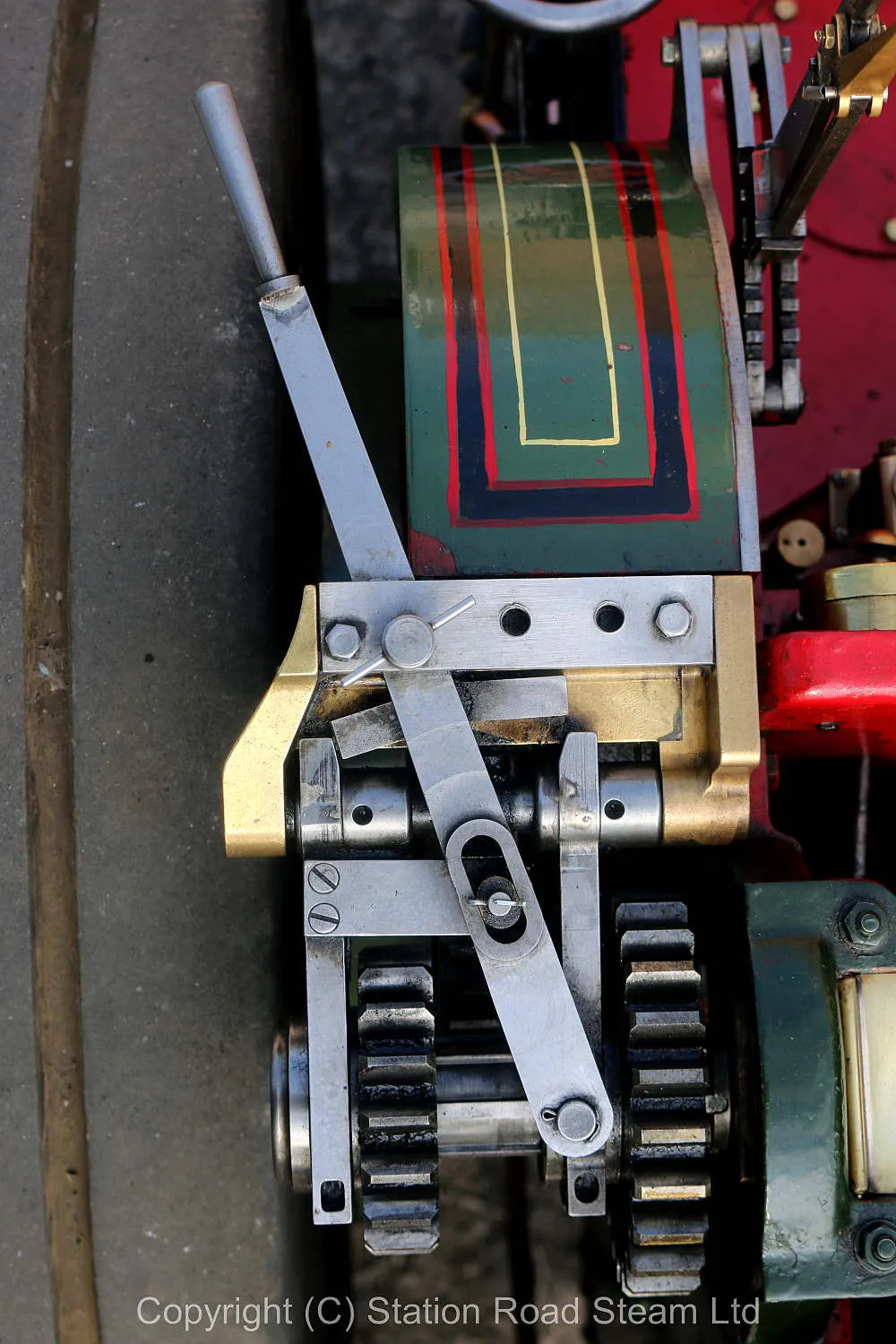

Road speed

2

Whistle

yes

Mechanical pump

1

Injector

1

Date out

May-18

Hydraulic test valid to

11-Apr-20

Steam test valid to

11-Jun-19
