Sold

8274

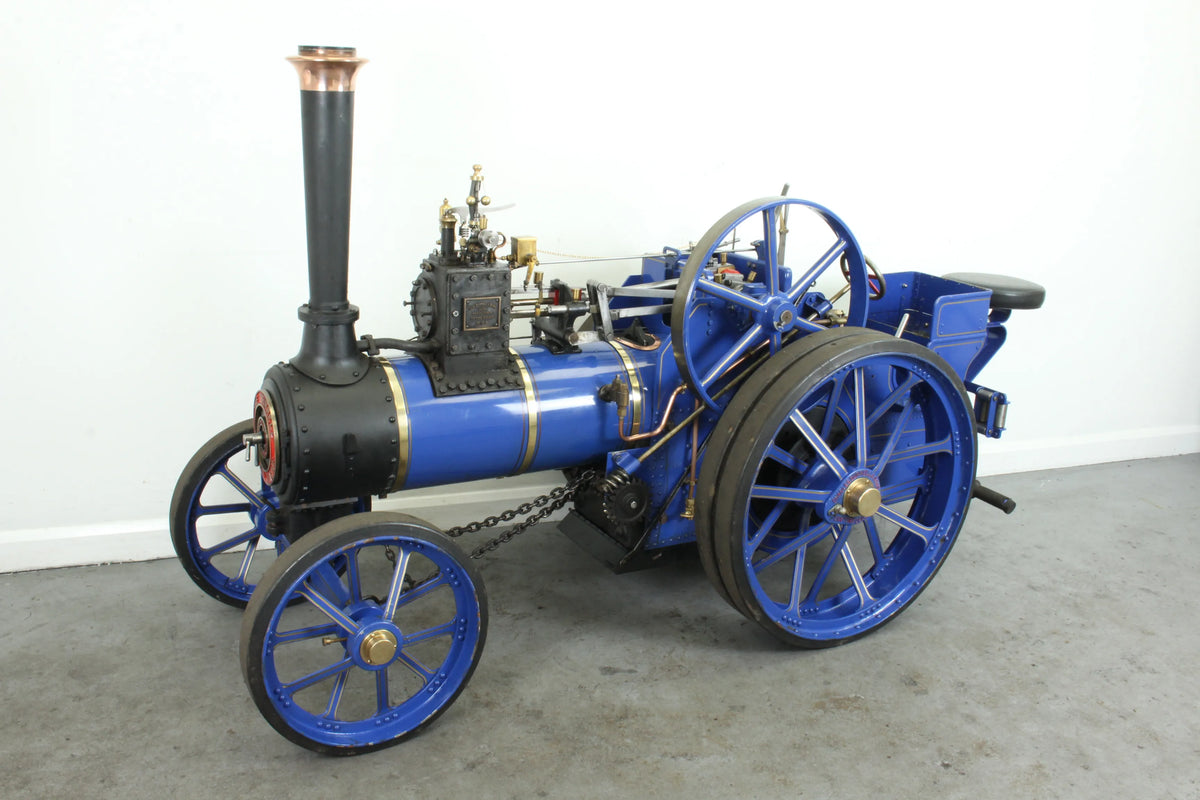

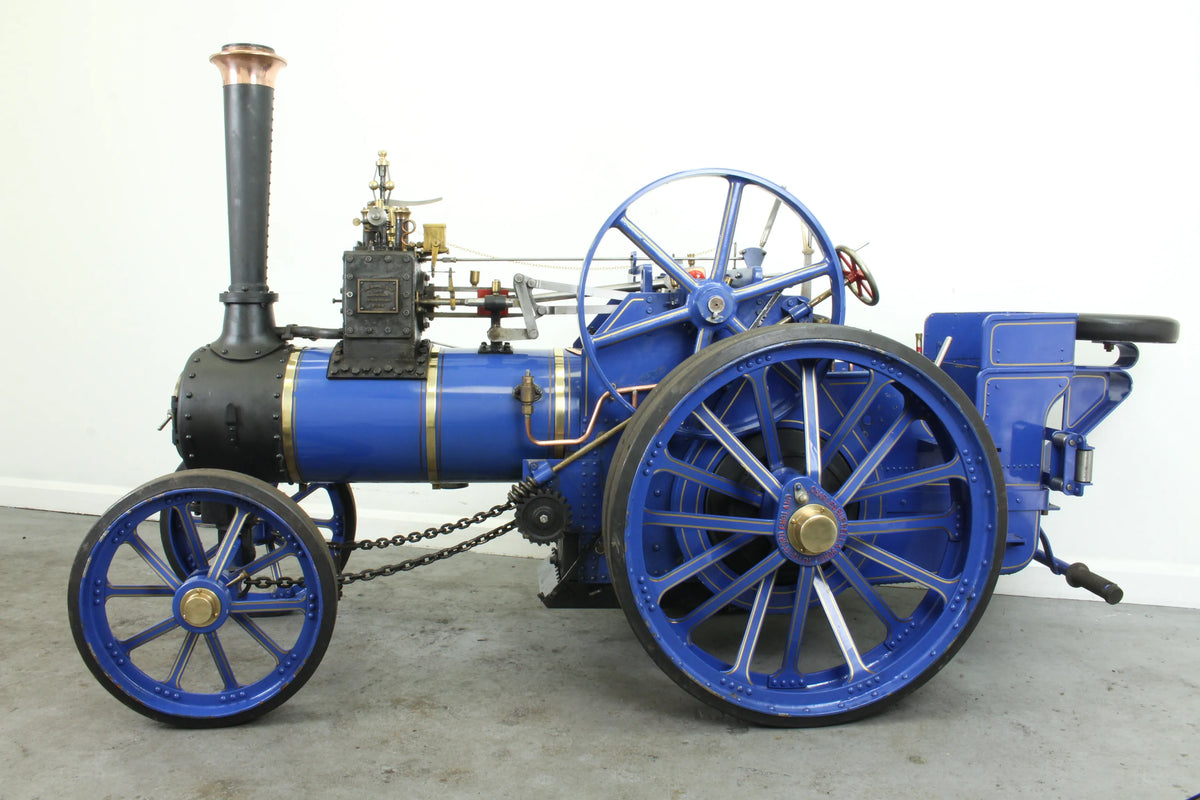

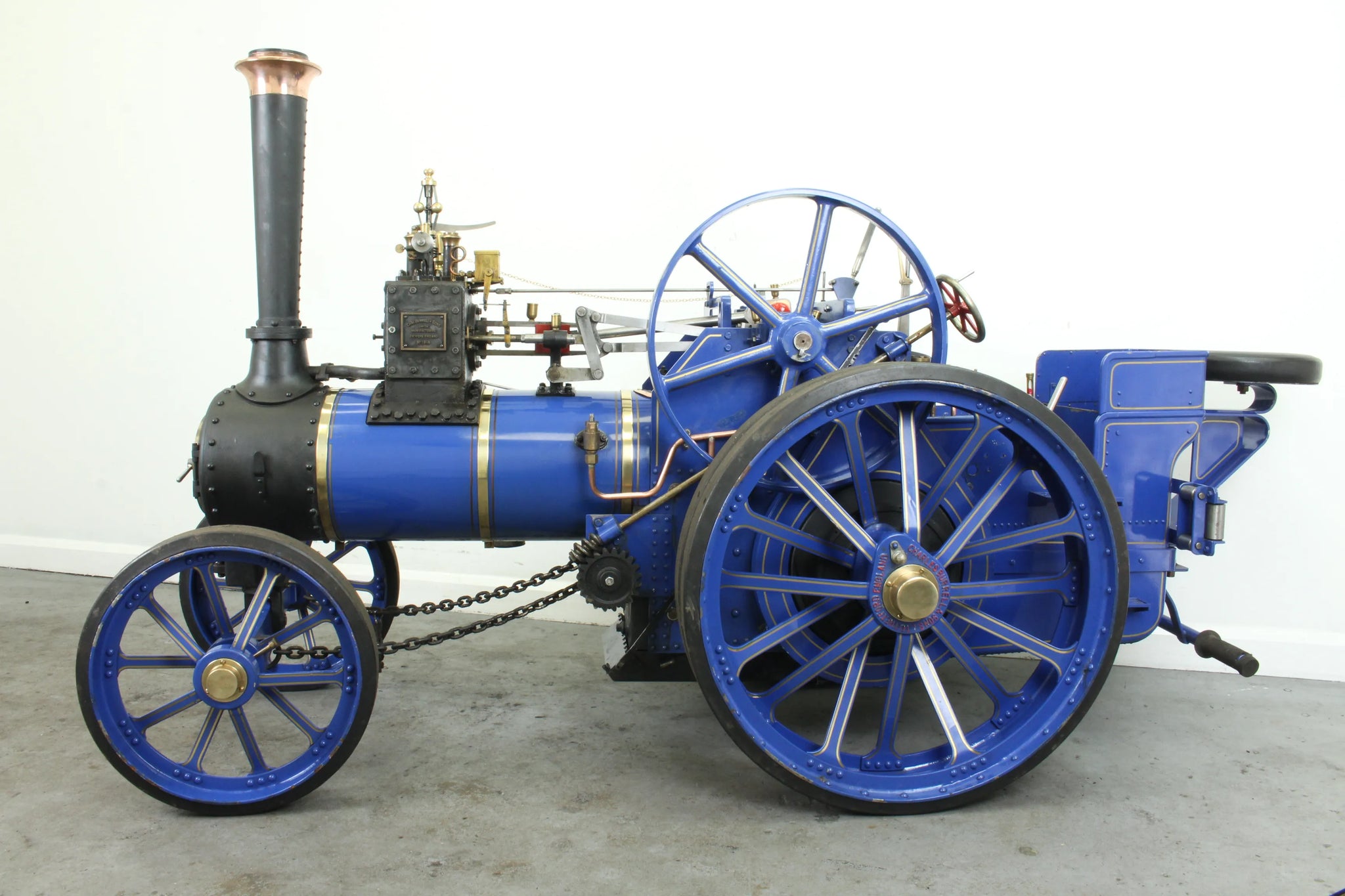

4 inch scale Burrell agricultural engine

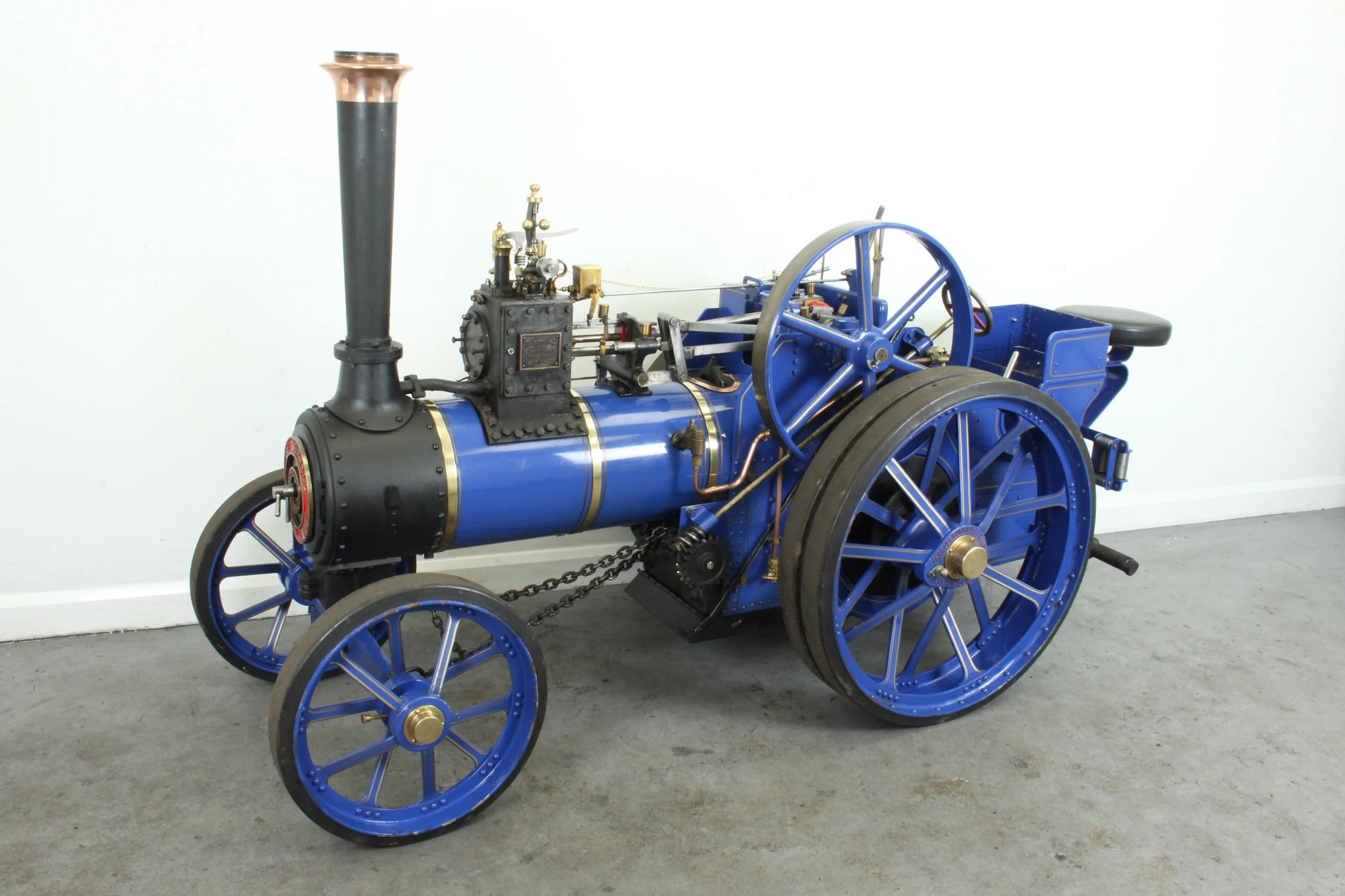

A 4 inch scale Burrell agricultural engine, assembled from a commercially-machined kit, with CE-marked boiler.

This one has come to us from a man still building models well into his eighth decade - having recently decided that the days of manhandling a half ton engine are behind him, he's moved on to miniatures of a more manageable size.

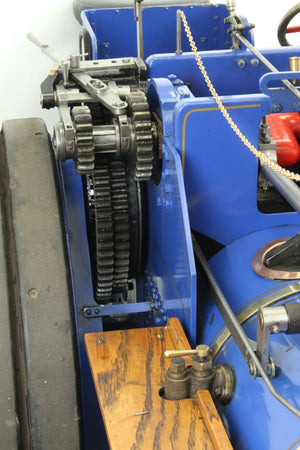

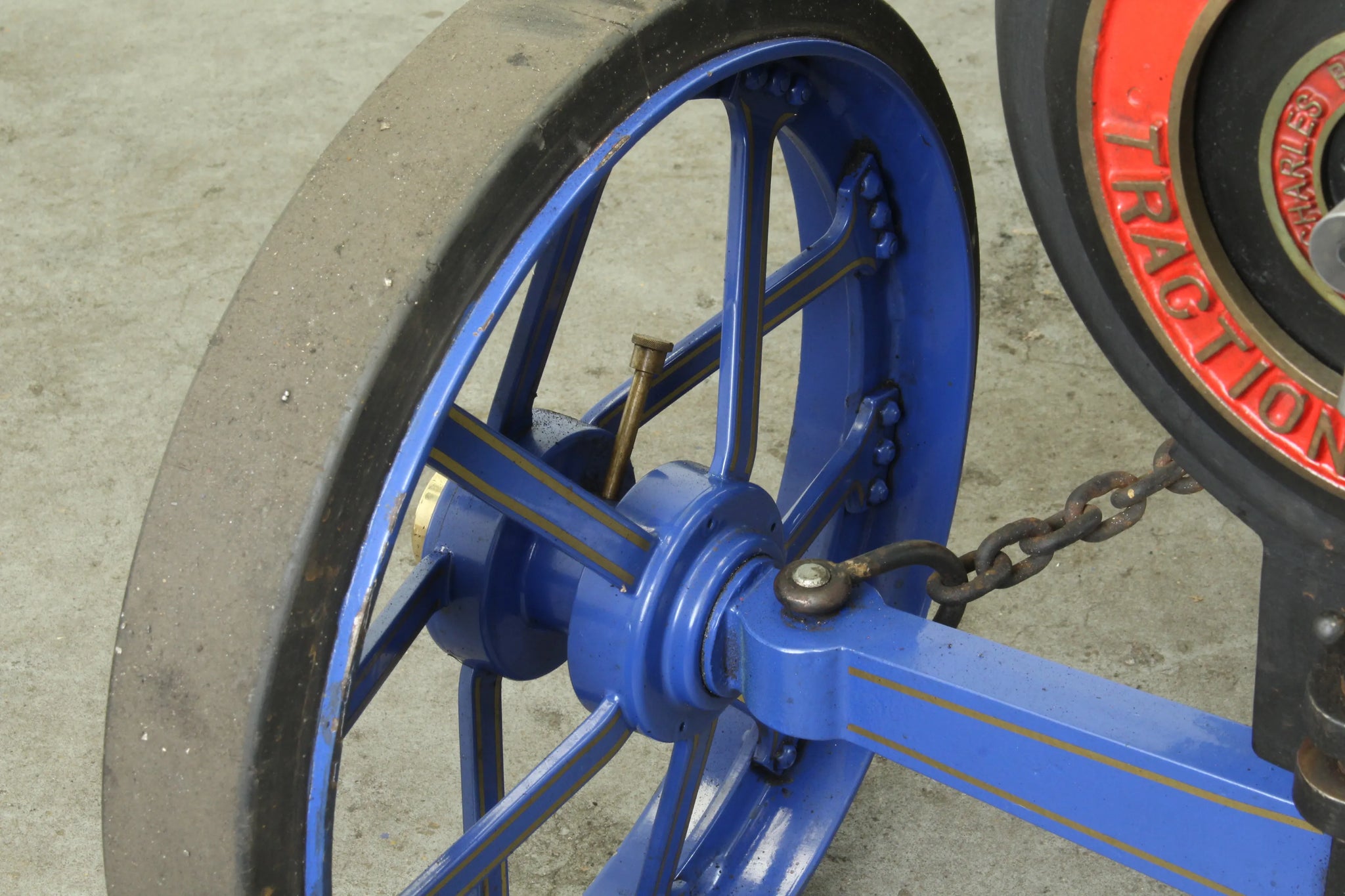

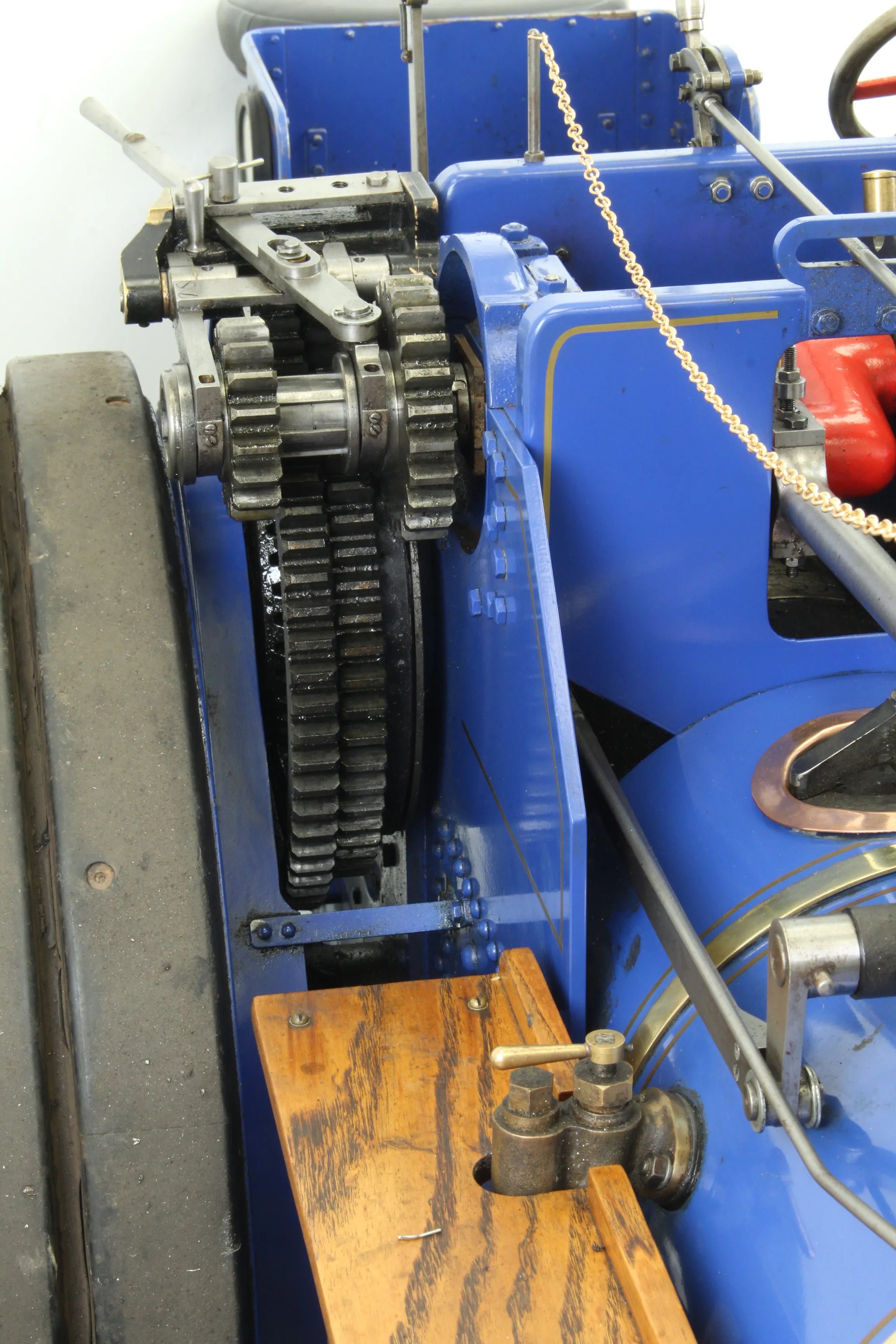

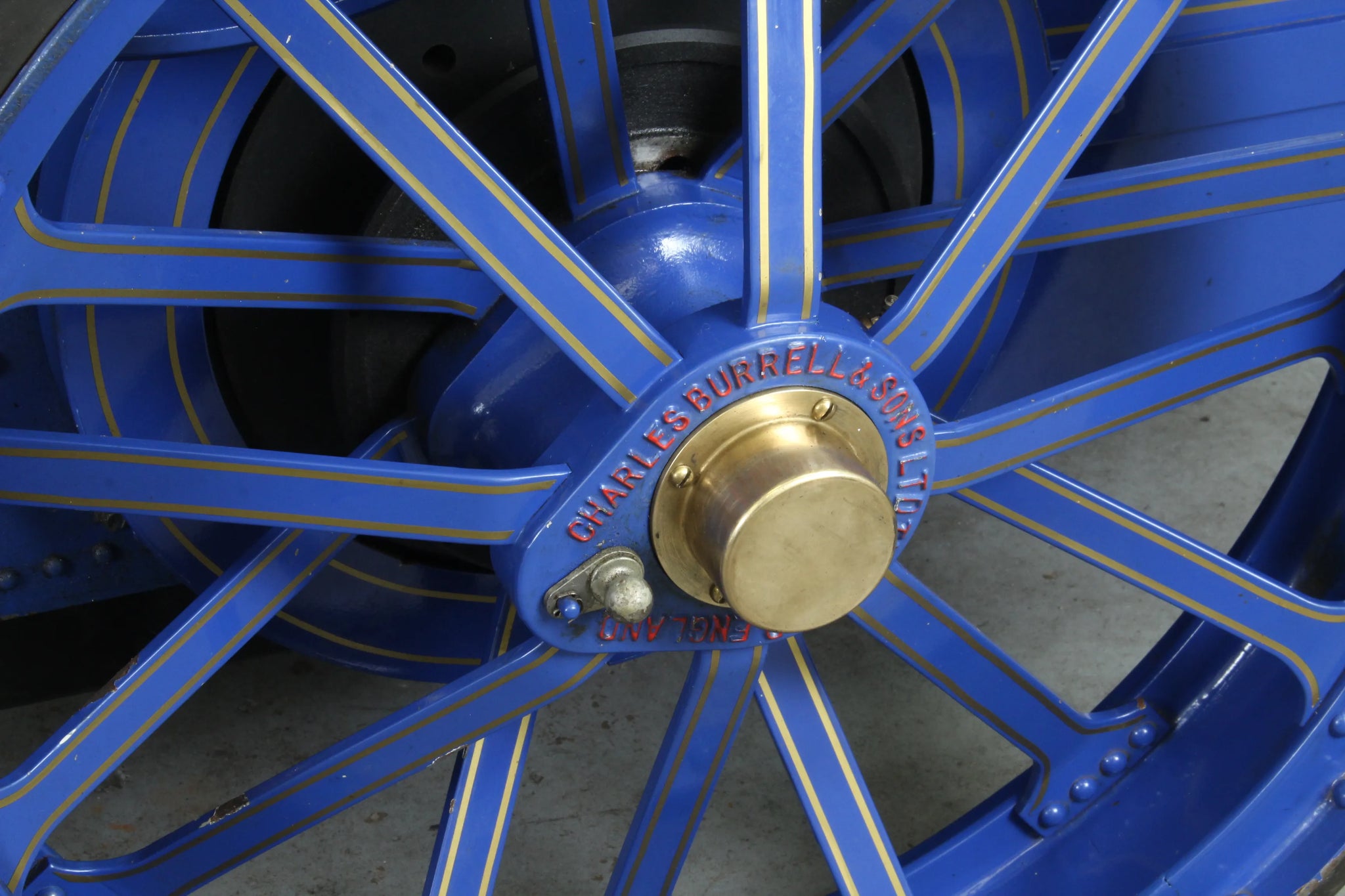

The engine is in good mechanical order - from the condition of tyres, gears and bearings it appears to have had little use and careful maintenance.

Complete with tender-mounted seat and footrests which provide a comfortable driving position, along with a large passenger trolley on pneumatic tyres with storage space for coal and other sundry equipment.

Technical information

Stock code

8274

Scale

4 inch

Length/inches

74

Width/inches

31

Height/inches

47

Weight/Kg

500

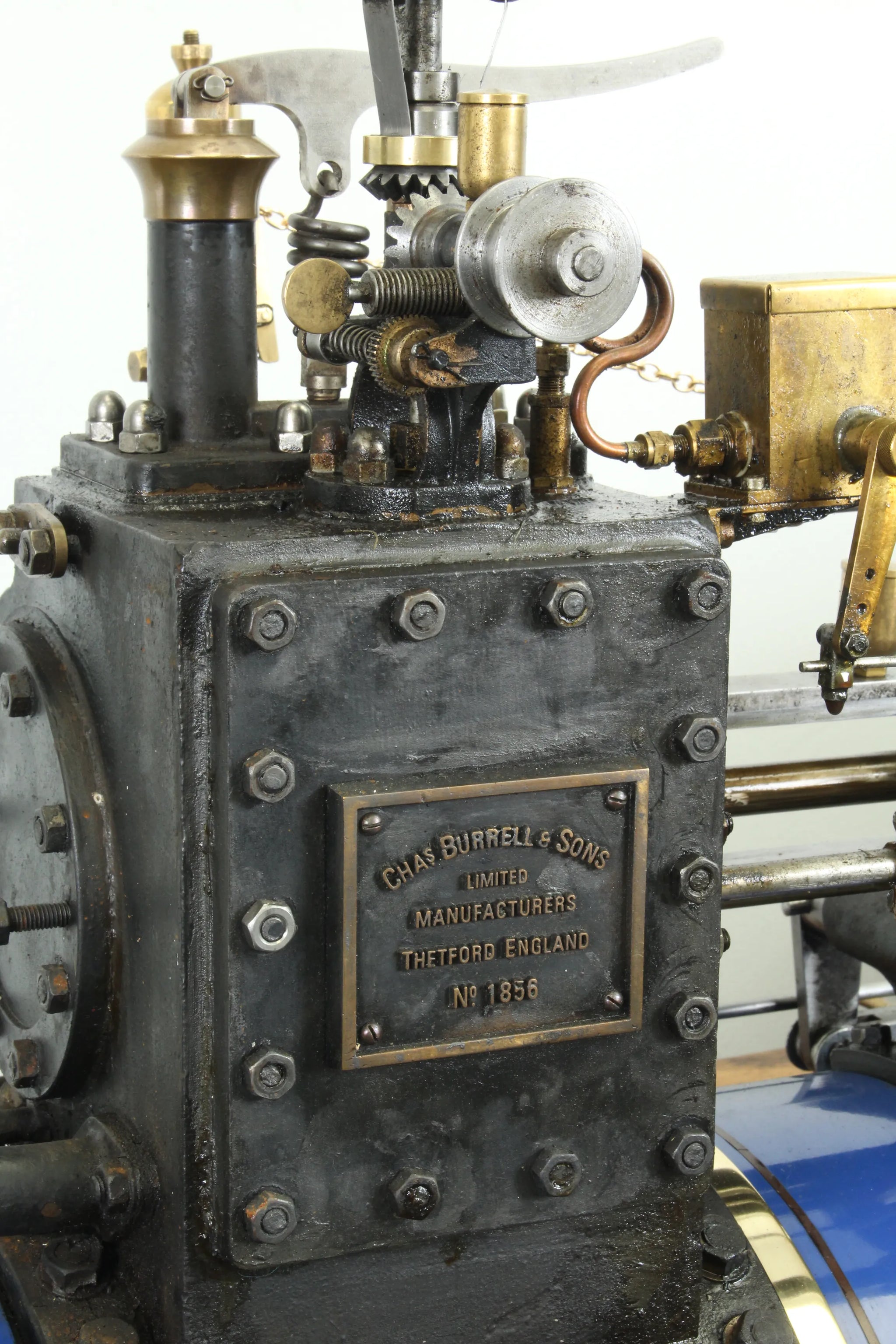

Cylinder material

cast iron

Valve type

slide

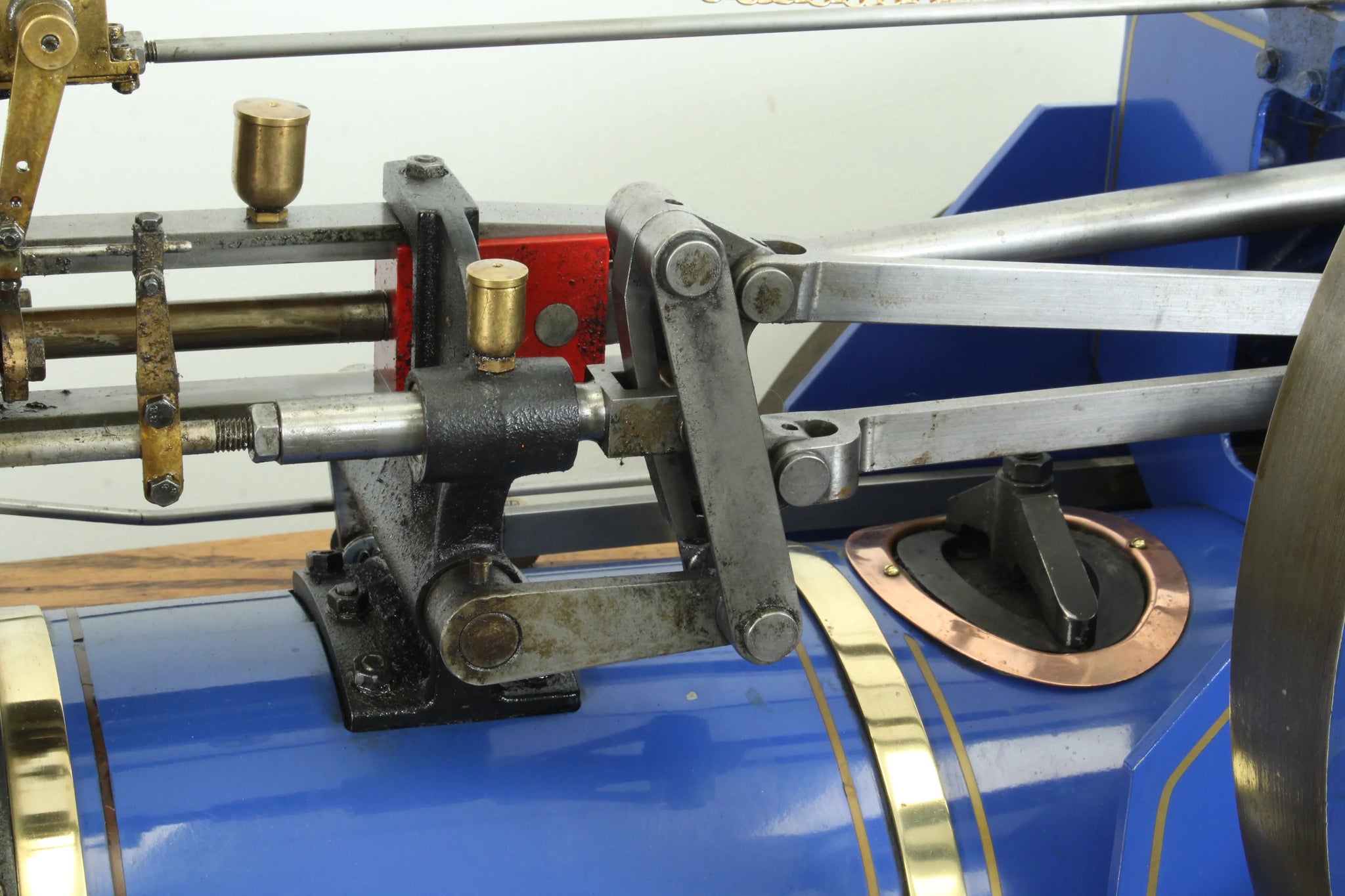

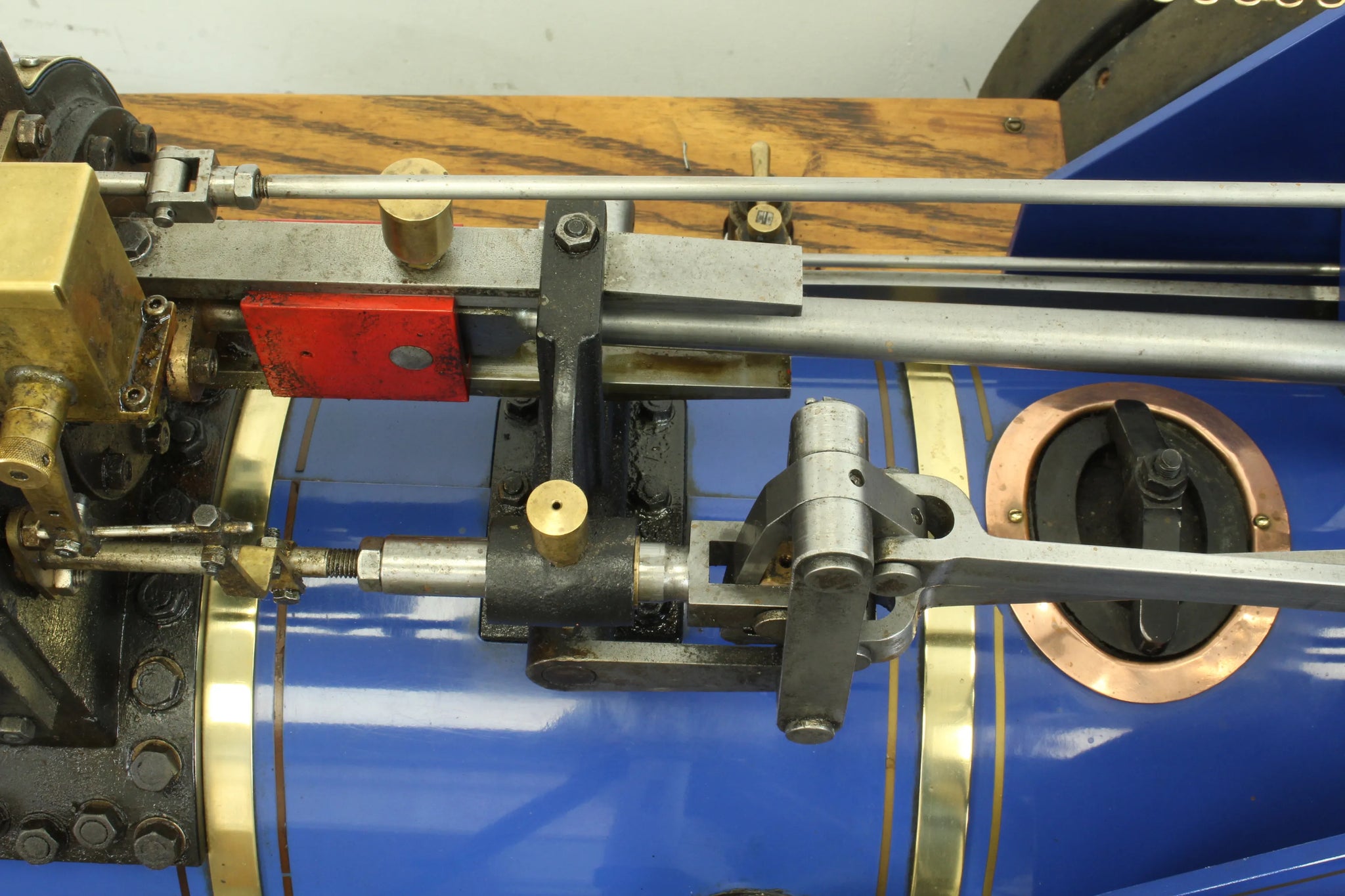

Valve gear

Stephensons

Reverser type

pole

Lubricator type

mechanical

Boiler maker

Cope Engineering

Boiler type

locomotive

Boiler construction

welded, expanded tubes

Boiler material

steel

Working pressure

120

CE/UKCA mark

yes

Year built

2005

Boiler number

2103

Safety valve type

Ramsbottom

Safety valve

2

Fusible plug

yes

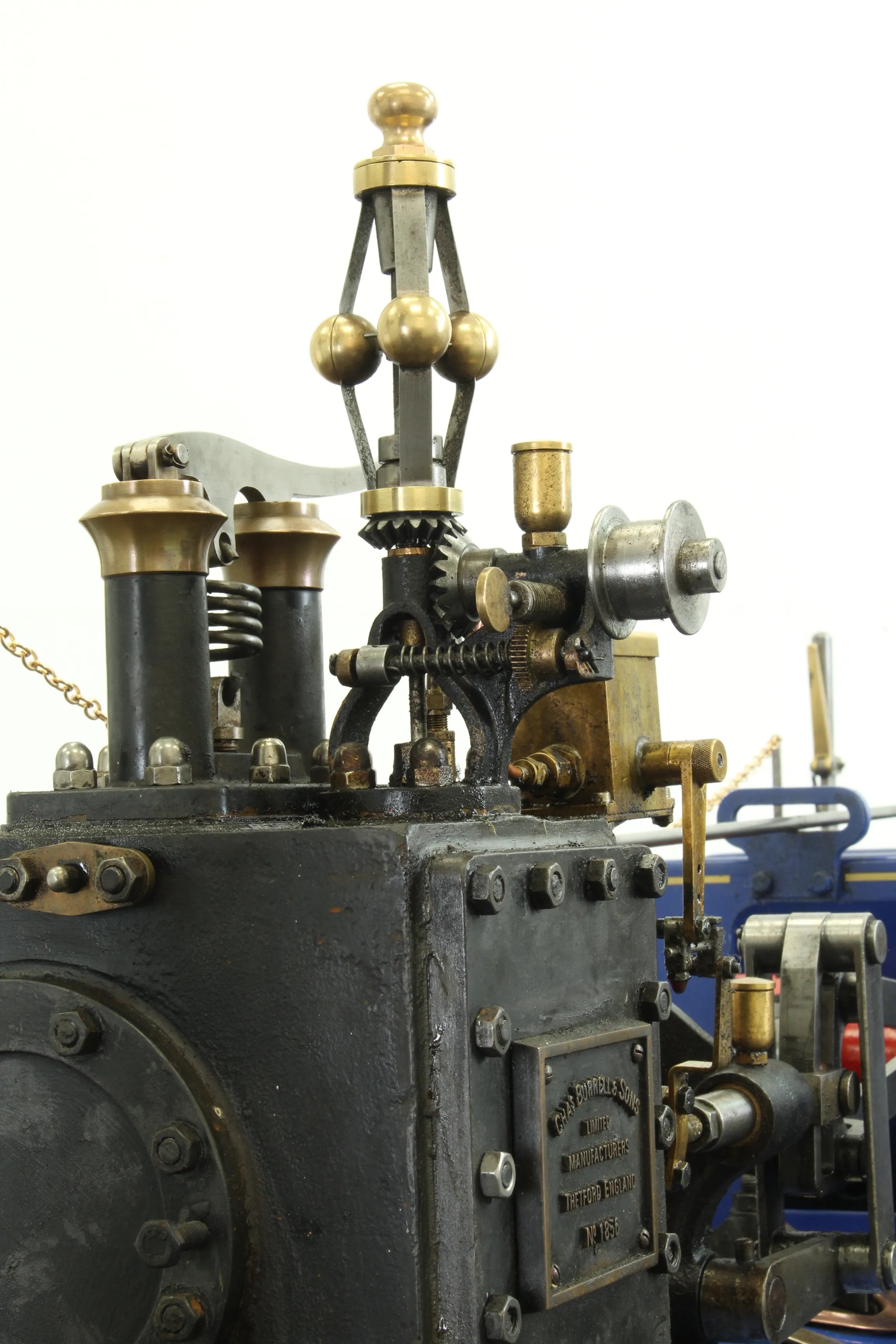

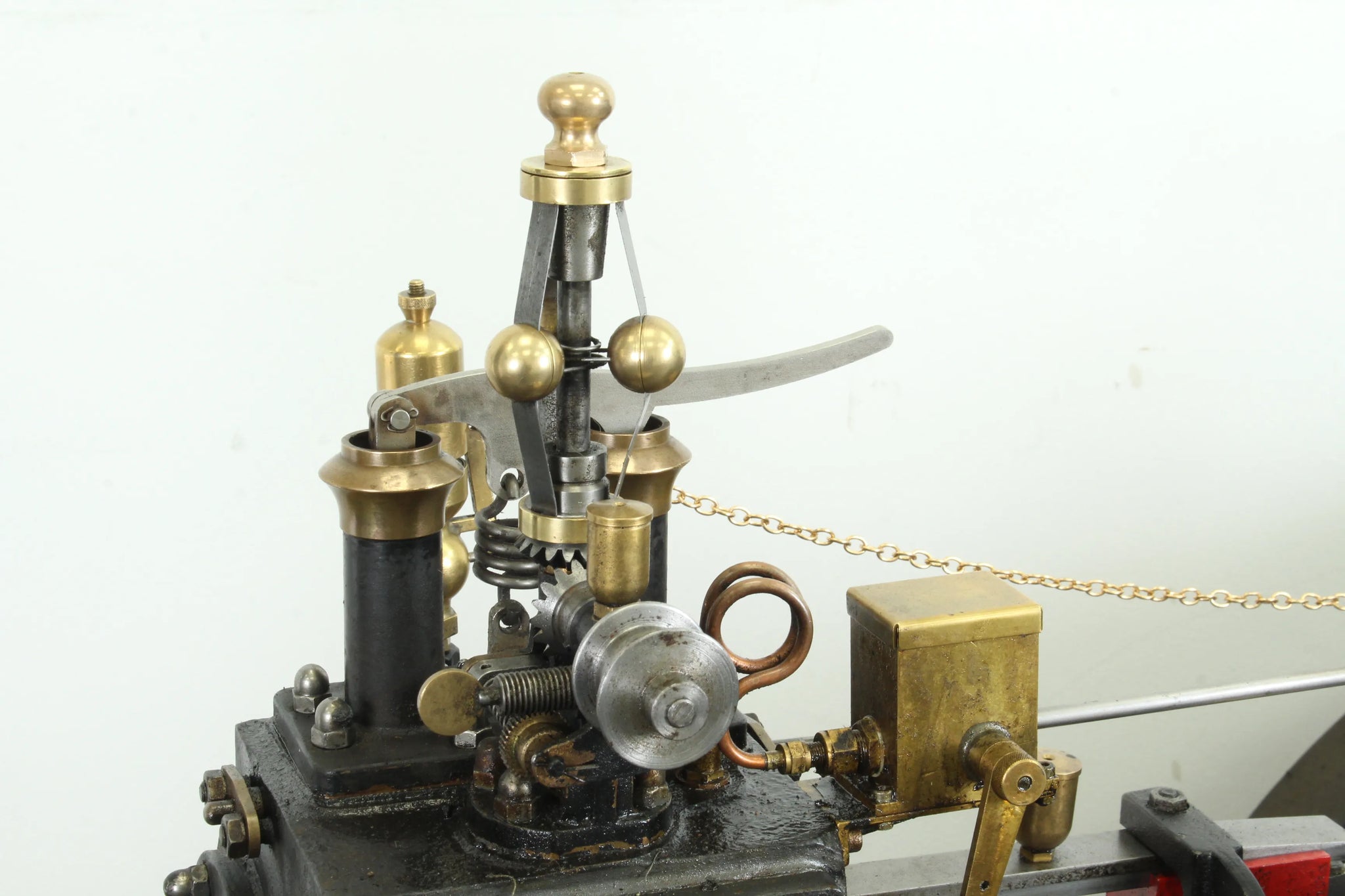

Governor type

Pickering

Bore x stroke

2 3/4 x 3 1/4

Differential

yes

Road speed

2

Whistle

yes

Hand pump

1

Mechanical pump

1

Injector

1

Date out

Jan-19

Hydraulic test valid to

25-Nov-20
