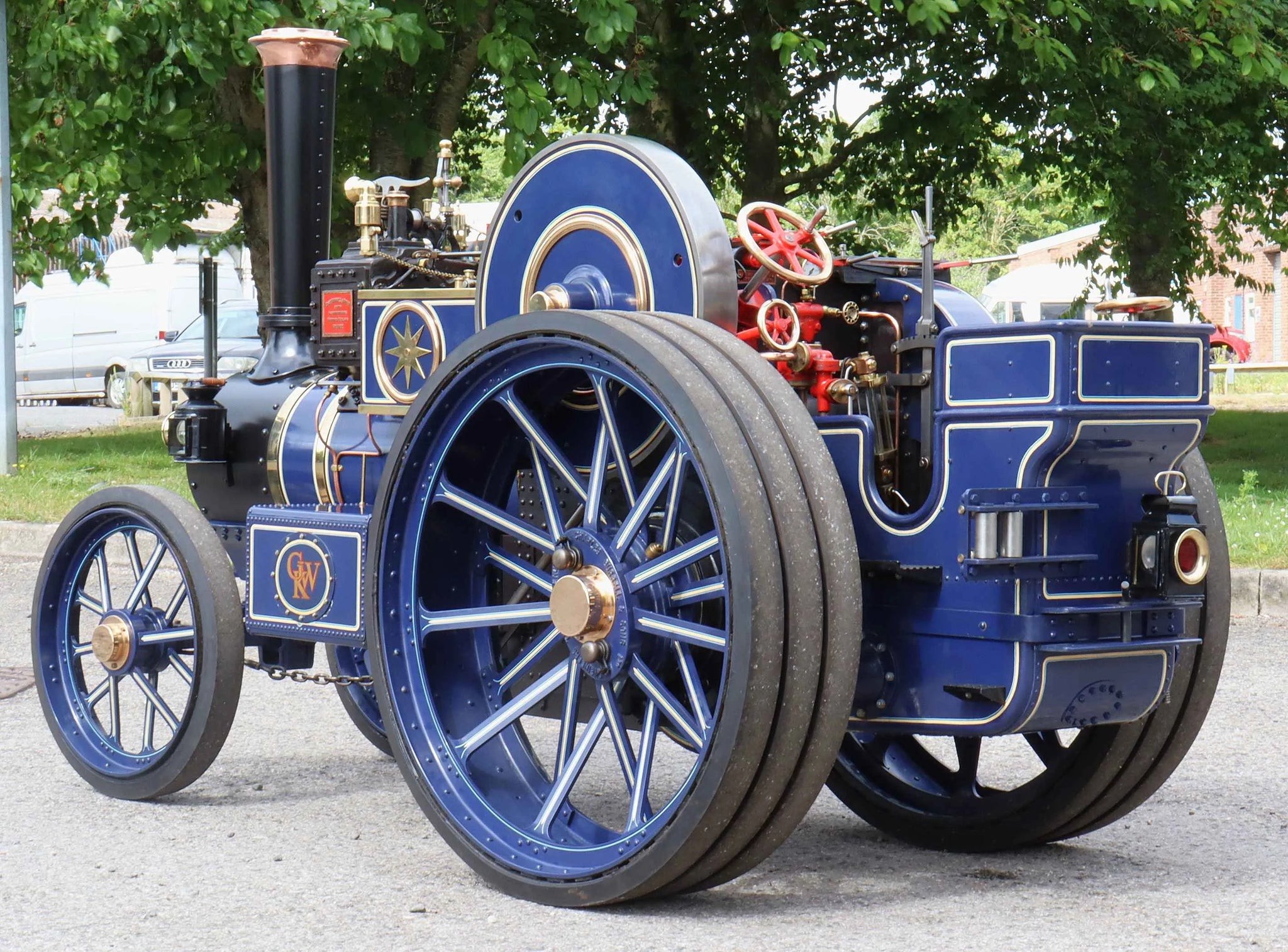

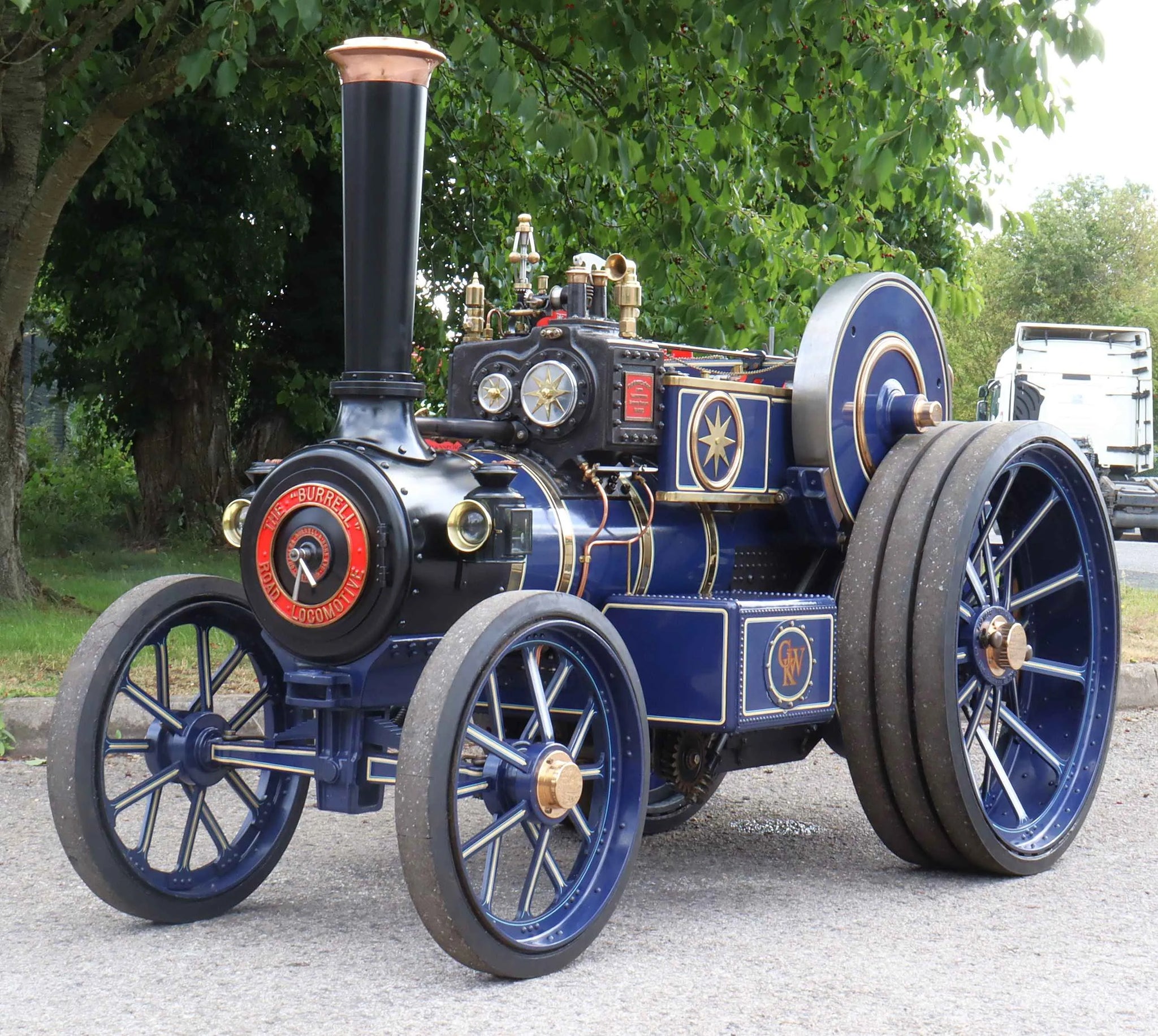

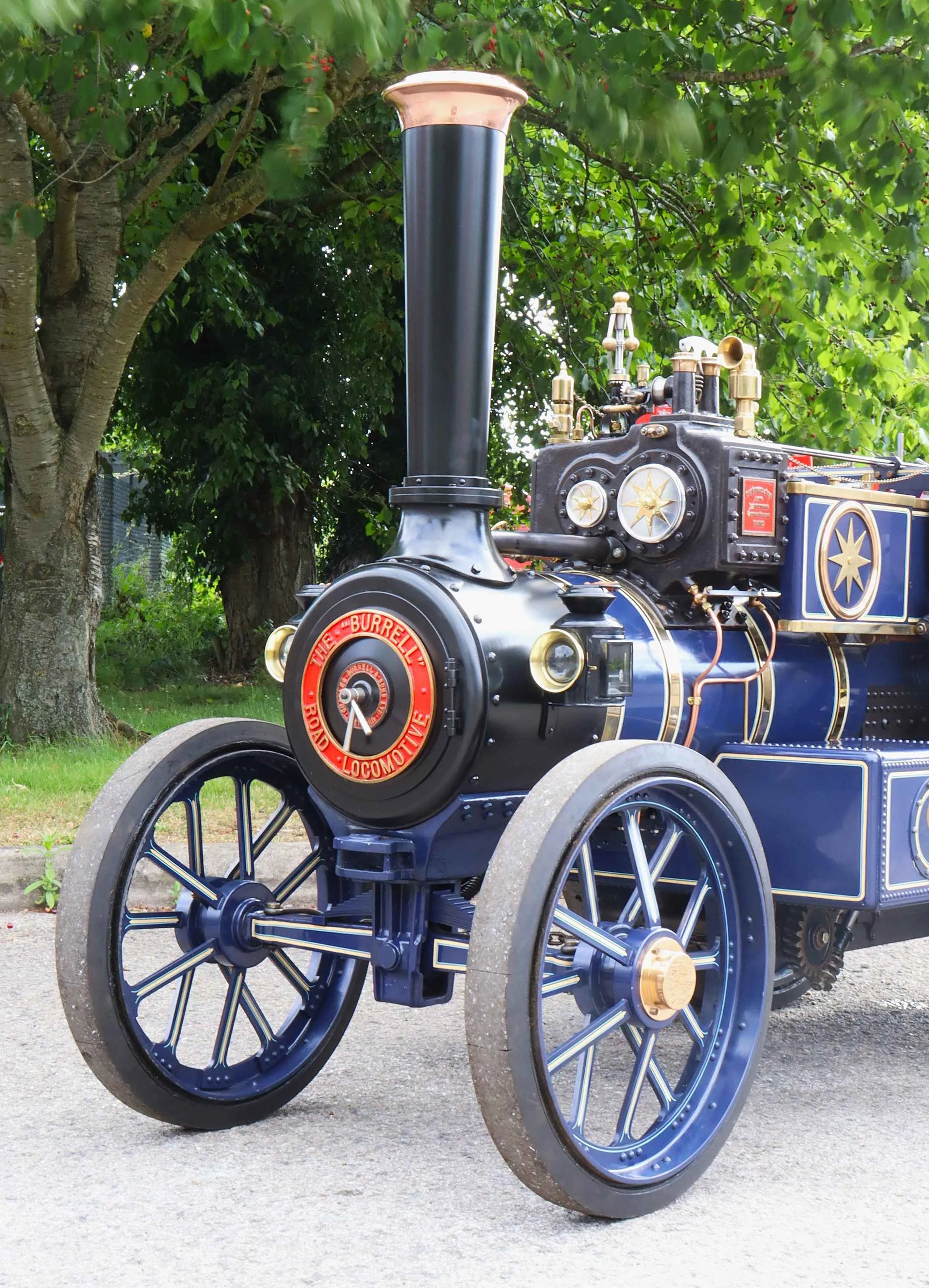

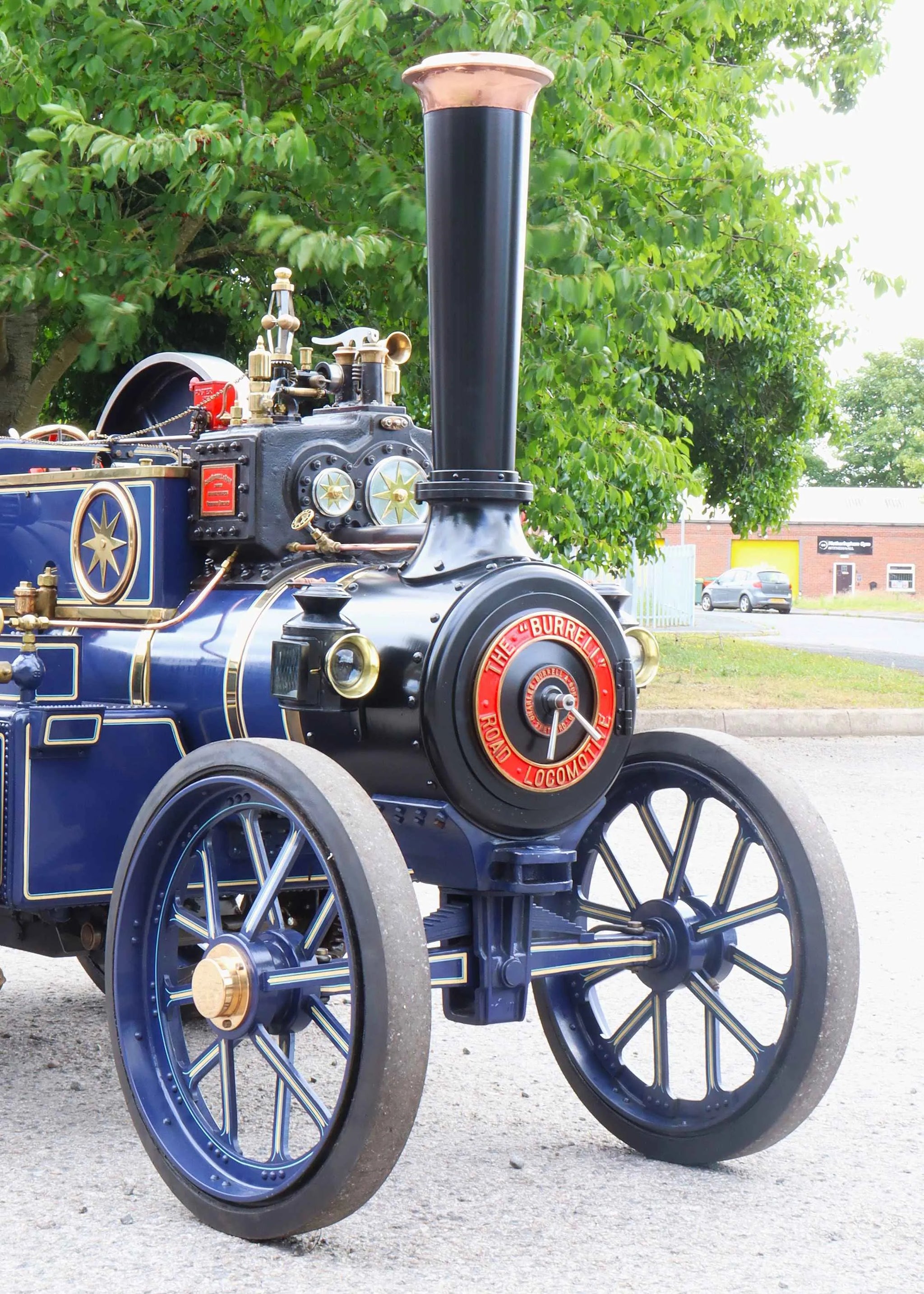

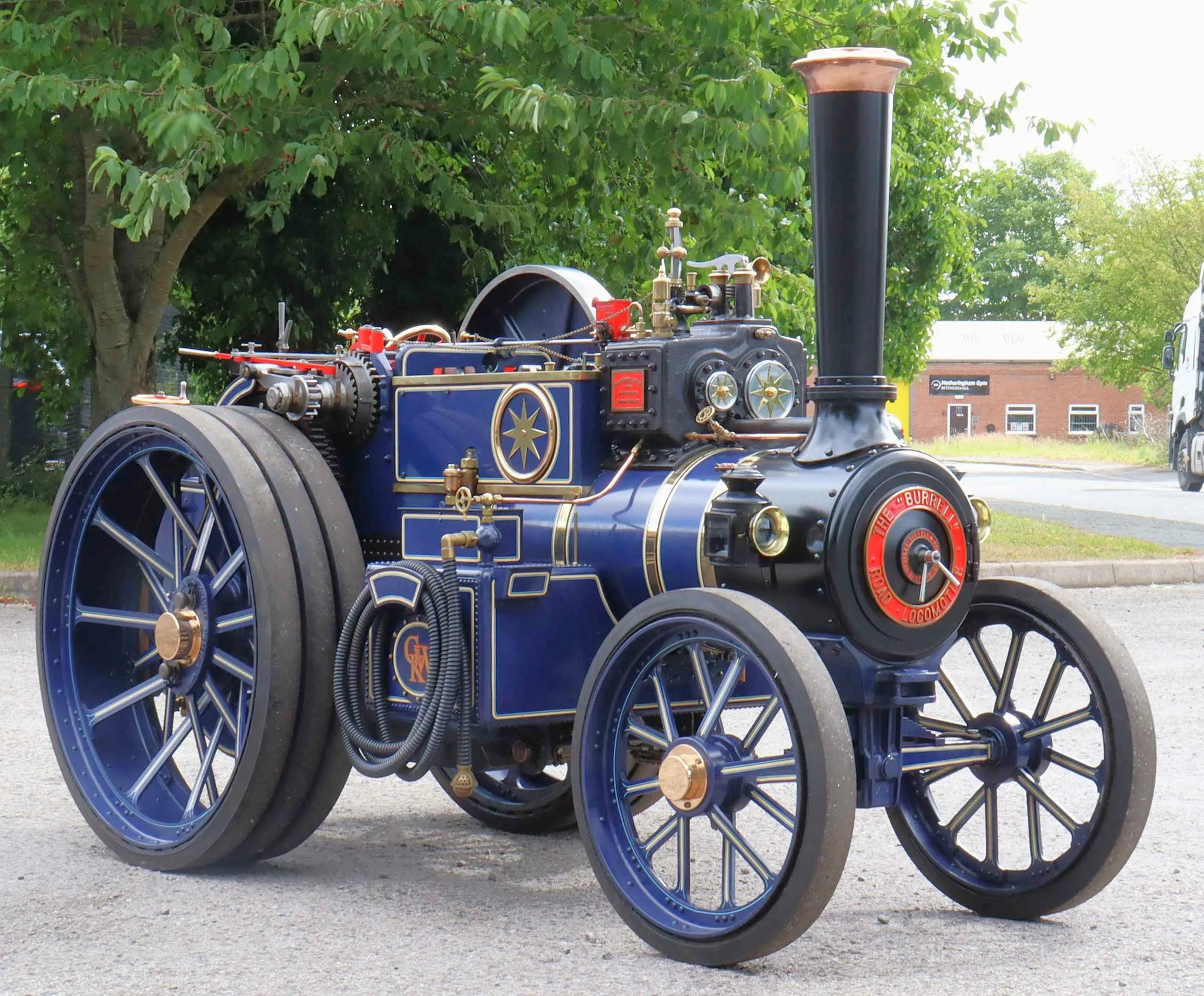

4 inch scale Burrell DCC road locomotive

A professionally built 8nhp three speed double crank compound Burrell Road Locomotive; a one owner engine, it was commissioned from a builder responsible for - amongst many other engines - the fine Standard Class 2 we've recently sold and a magnificent 7 1/4 inch gauge Lynton & Barnstaple "Yeo" currently in the workshop.

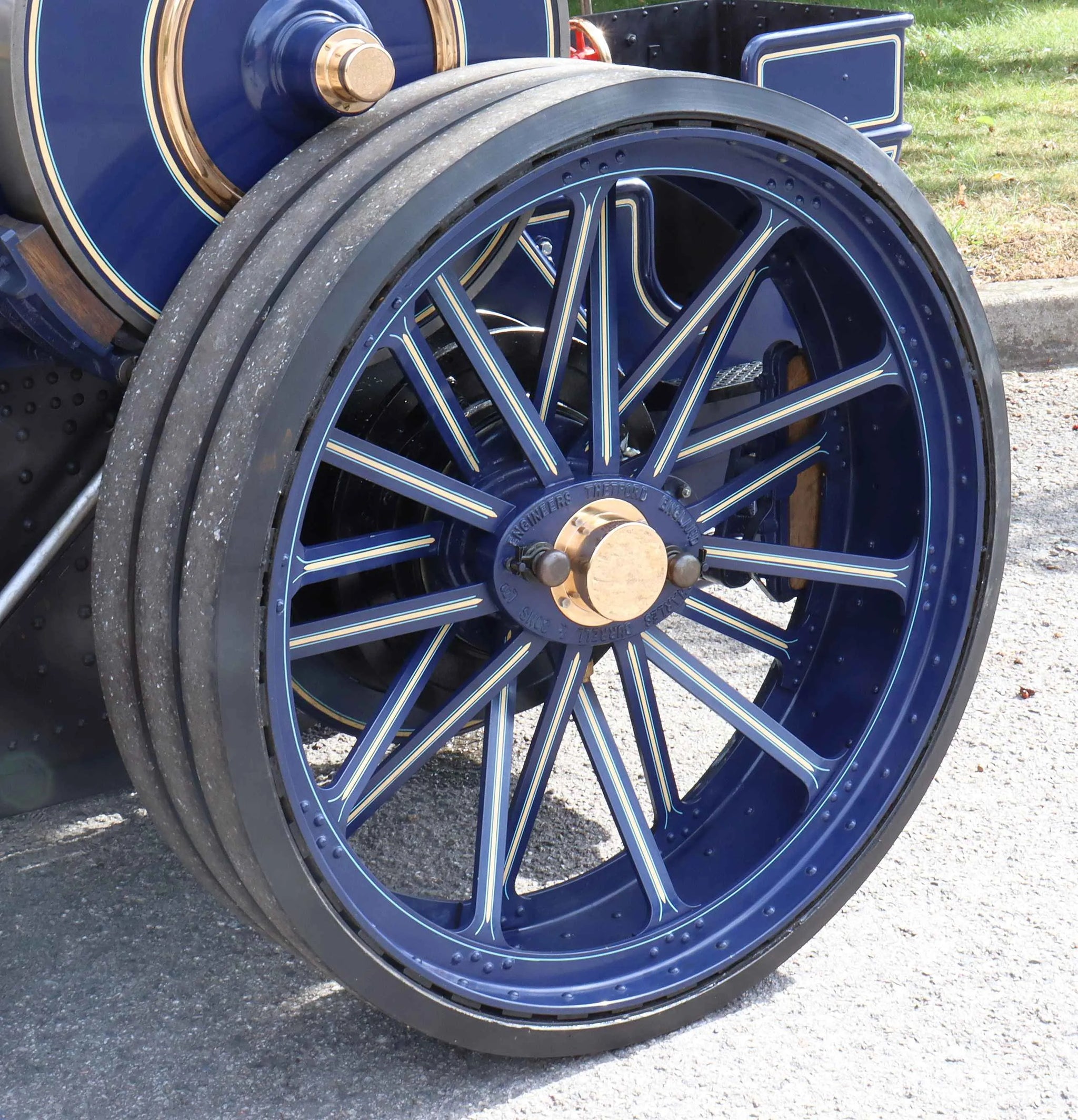

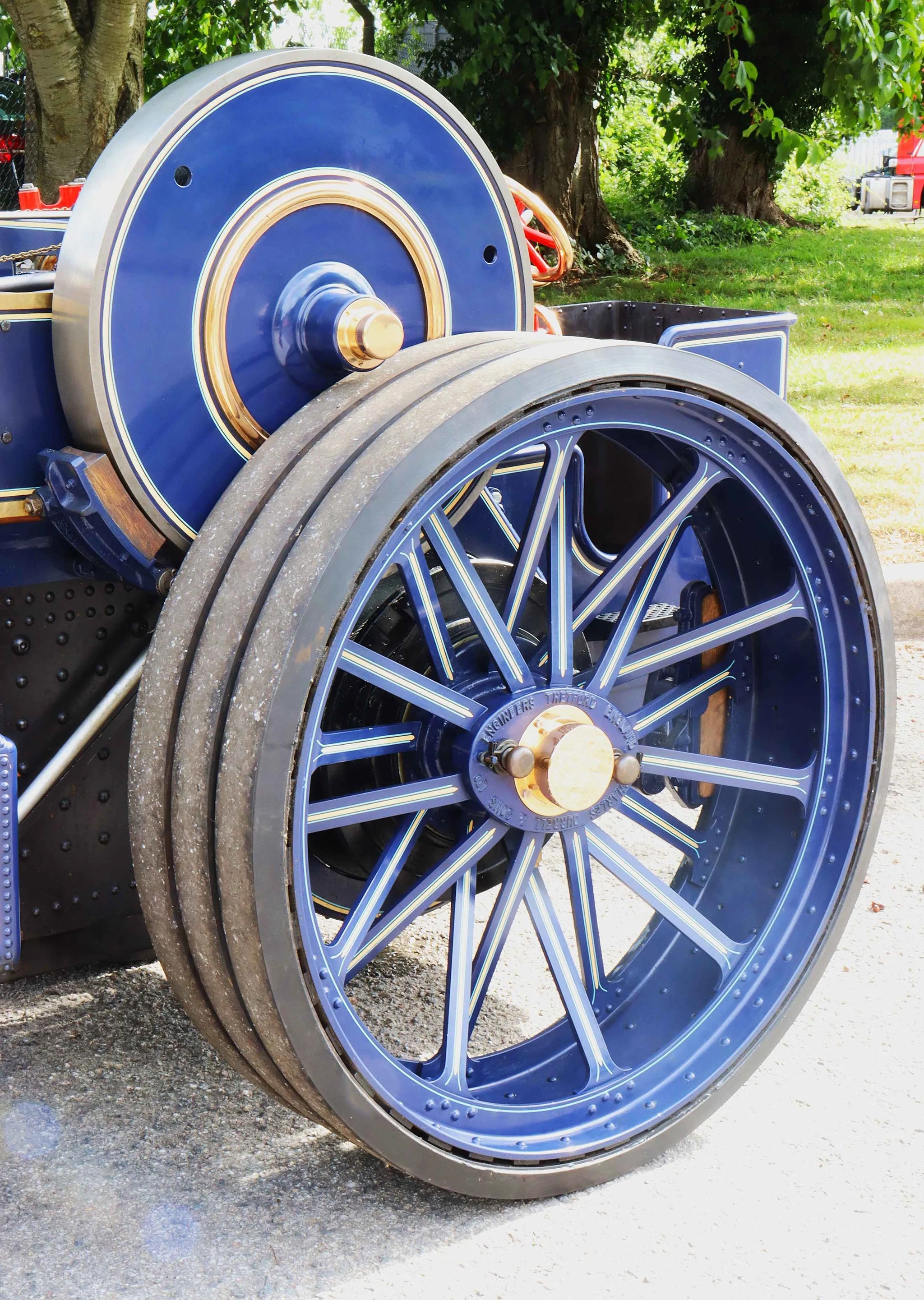

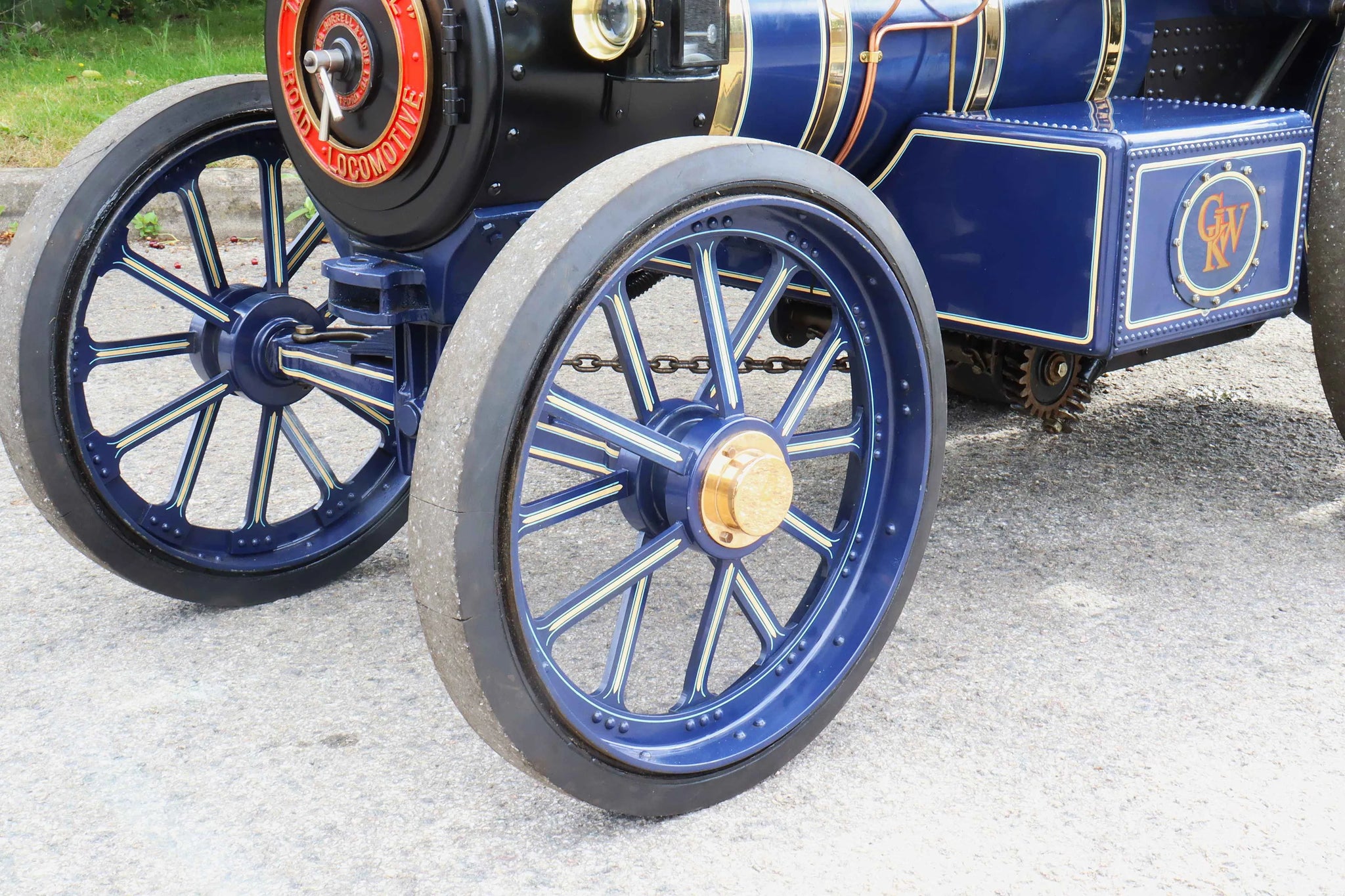

The engine has had little use from new; stored in a heated garage with the owner's sports car, it remains in excellent cosmetic and mechanical condition throughout - the rubber tyres virtually unmarked. The grate comprises individual cast firebars, as per prototype, with a stainless steel ashpan - they look to have had no more than a handful of steamings from new.

Unused in several years, we've put a new set of tubes in the boiler and done a full, cladding off hydraulic and steam test.

The engine goes as well as it looks, free-steaming and easy to drive - there's some video of it here. We rate this one - a super machine in first class condition which, looked after, should give many years of trouble free service.

Supplied with firing irons, a starter kit of coal and water treatment, and 12 months warranty. If required, we would be pleased to give a half day's training in the firing, driving and maintenance of the engine.

Technical information

Stock code

10528

Scale

4 inch

Length/inches

80

Width/inches

35

Height/inches

47

Weight/Kg

est 900

Wheel material

steel

Axlebox type

plain bearing

Cylinder material

cast iron

Valve type

slide

Valve gear

Stephensons

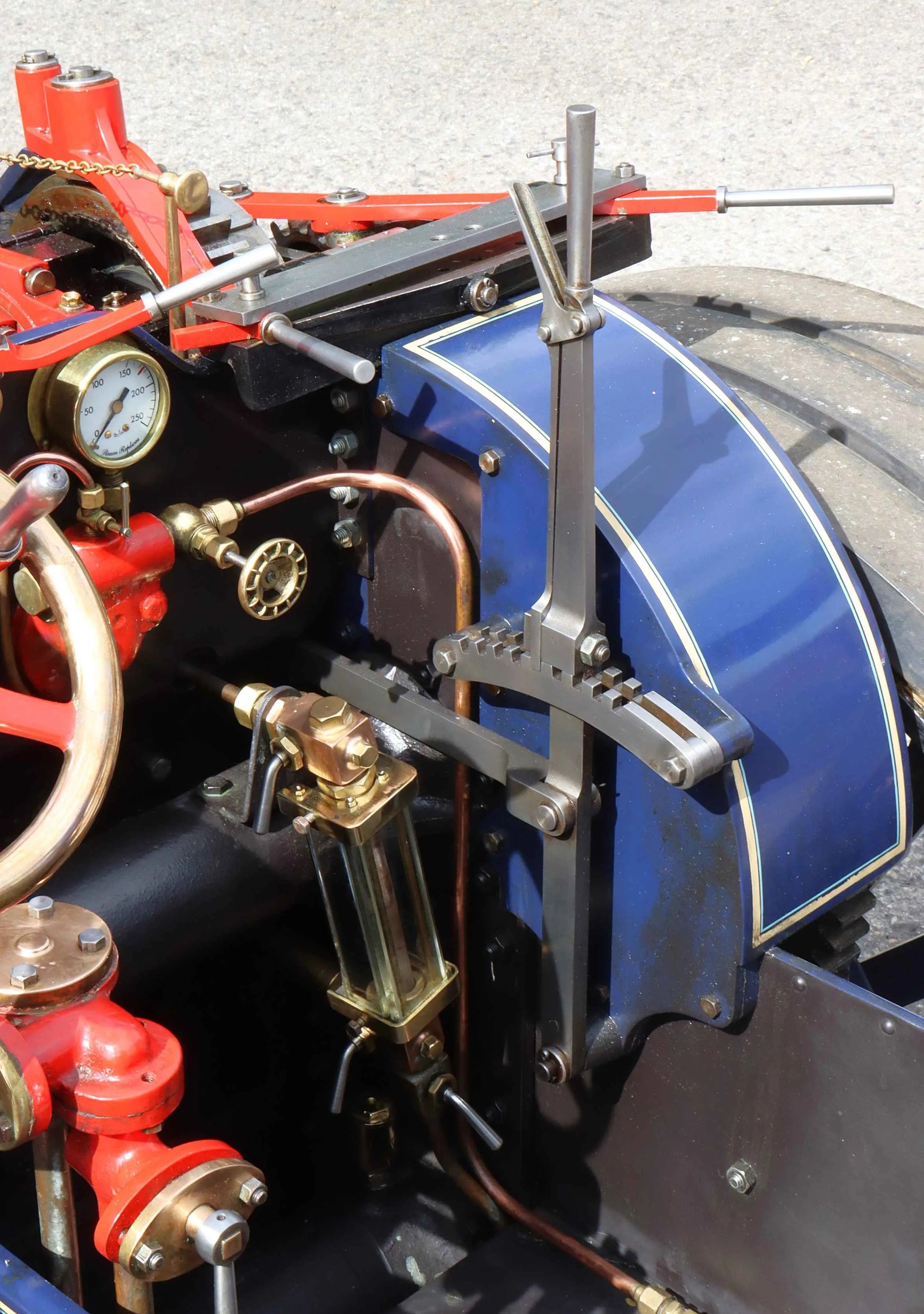

Reverser type

pole

Lubricator type

mechanical

Boiler maker

TRS Boiler Makers

Boiler type

locomotive

Boiler construction

welded, expanded tubes, retubed June 2022

Boiler material

steel

Working pressure

175

CE/UKCA mark

n/a - pre-2002

Year built

1997

Boiler number

10528

Safety valve type

Ramsbottom

Safety valve

2

Fusible plug

yes

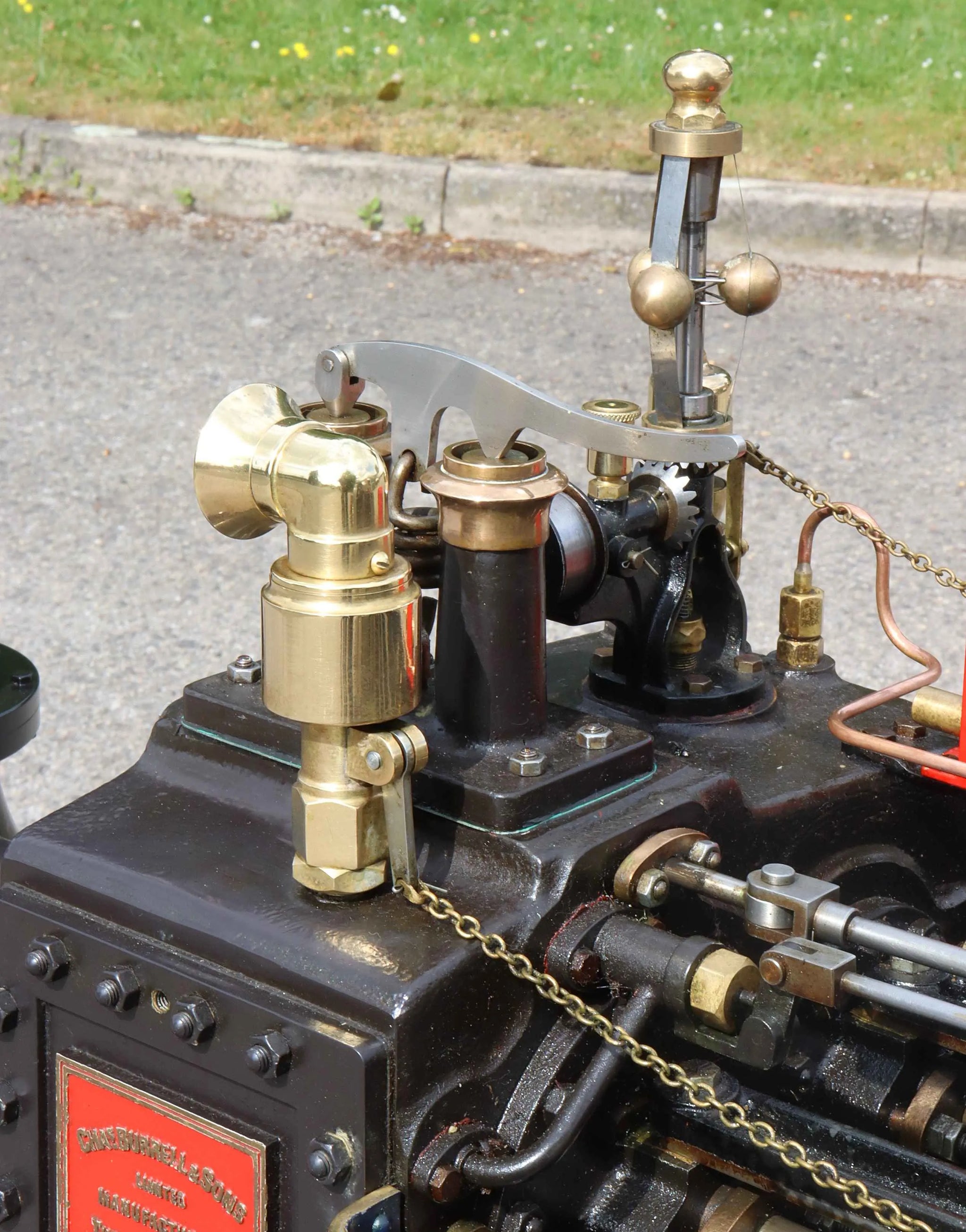

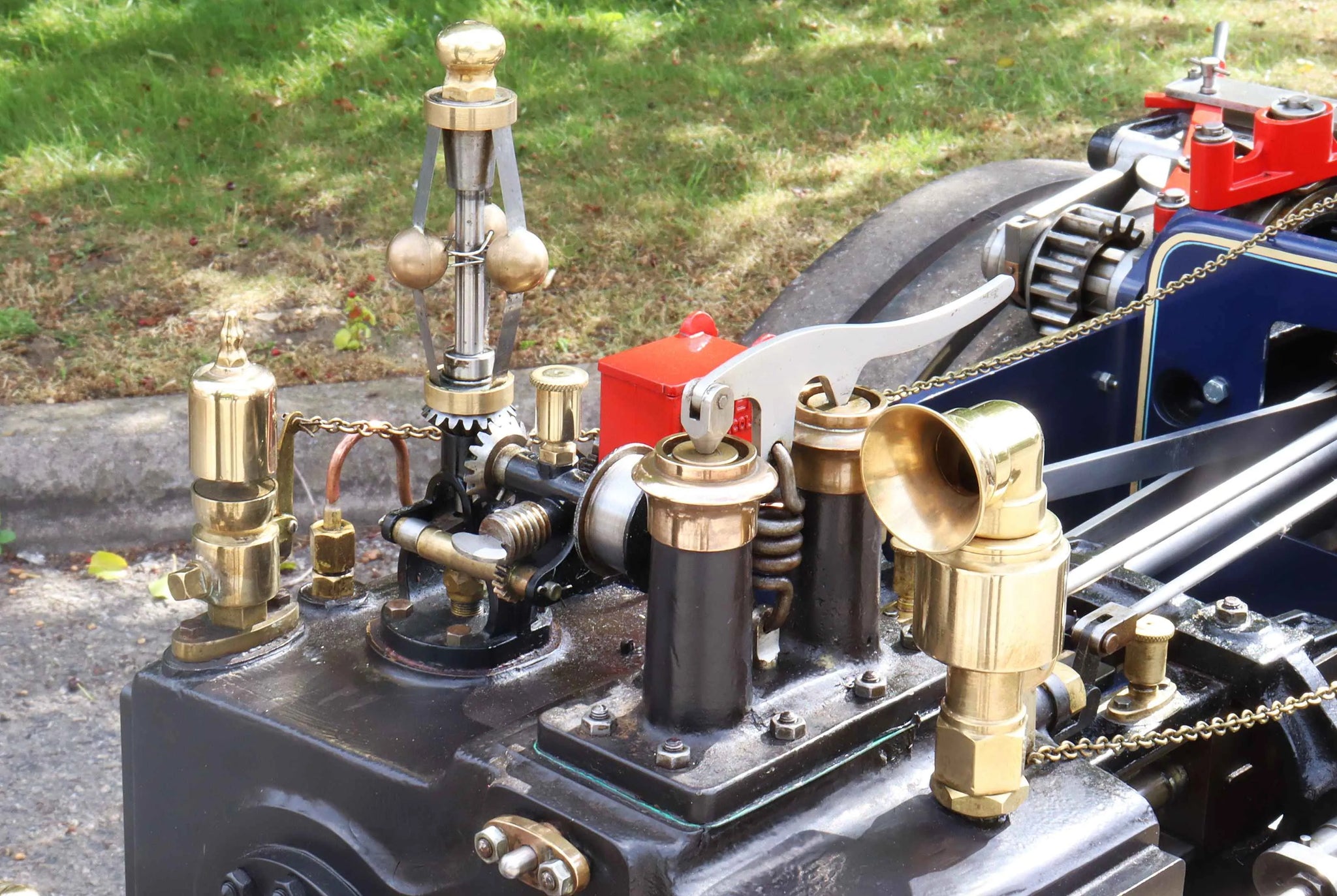

Governor type

Pickering

Differential

yes

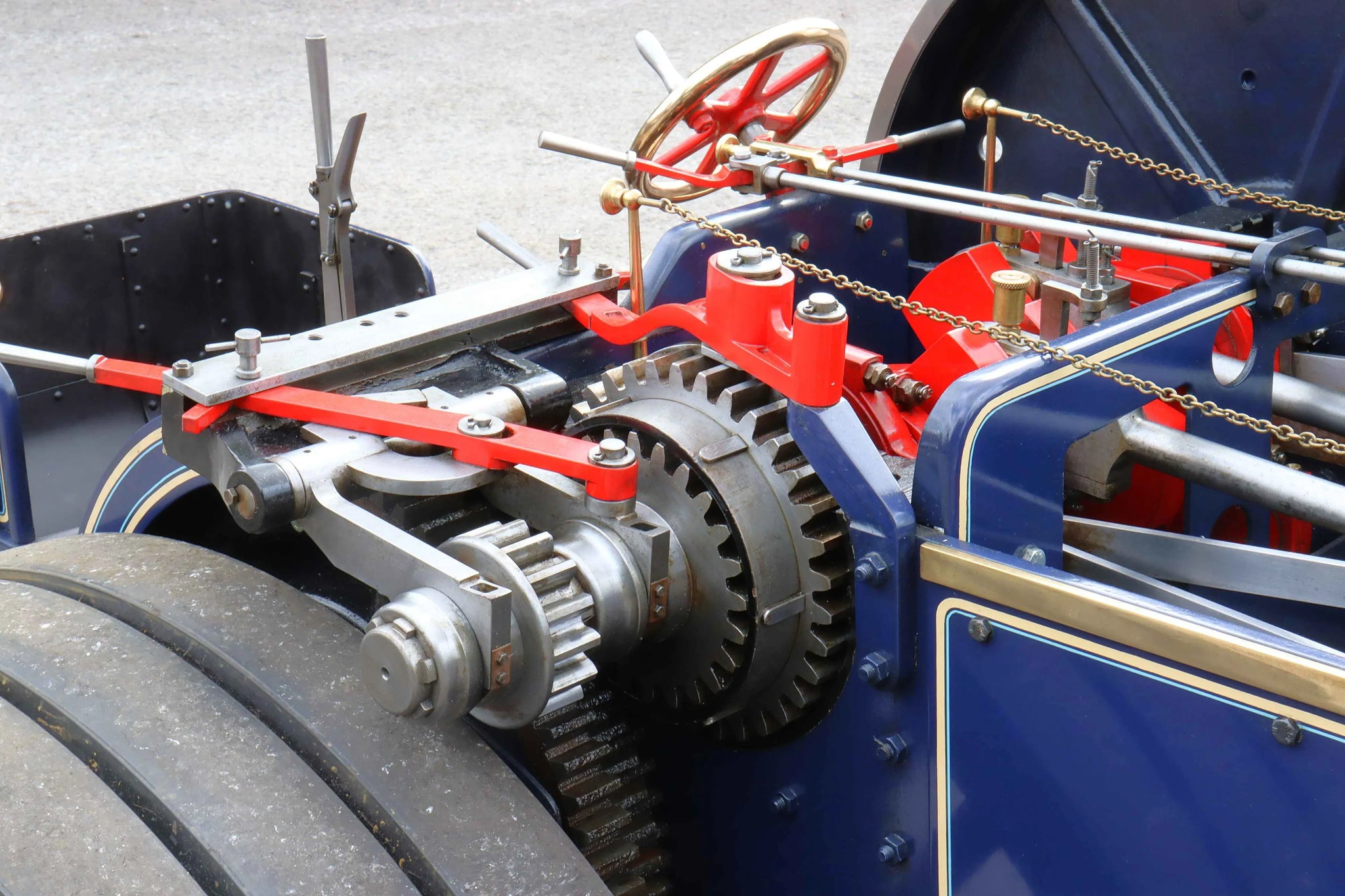

Road speed

3

Whistle

bell type + steam siren

Mechanical pump

1

Injector

1

Date out

Jul-22

Hydraulic test valid to

07-Jun-24
