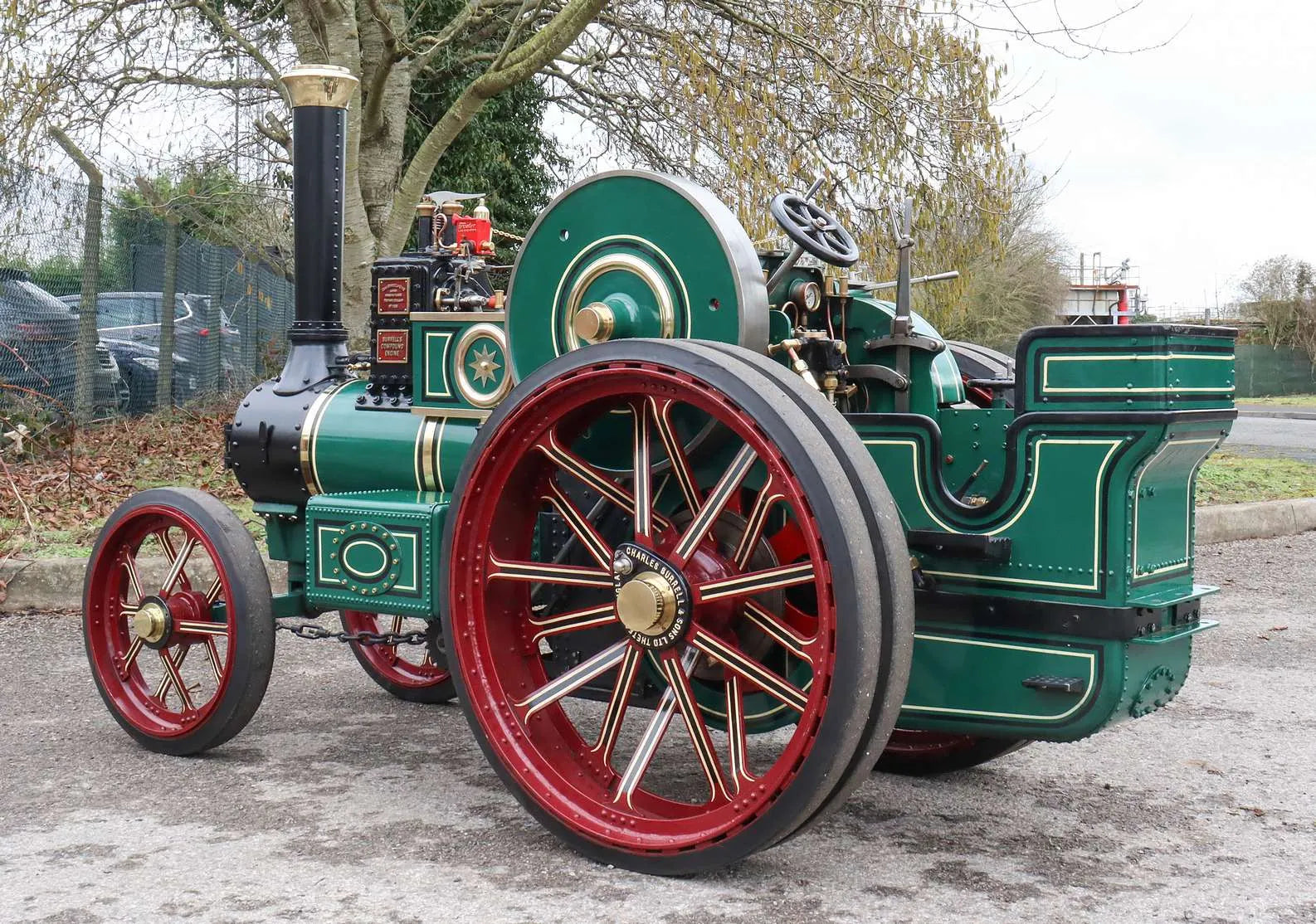

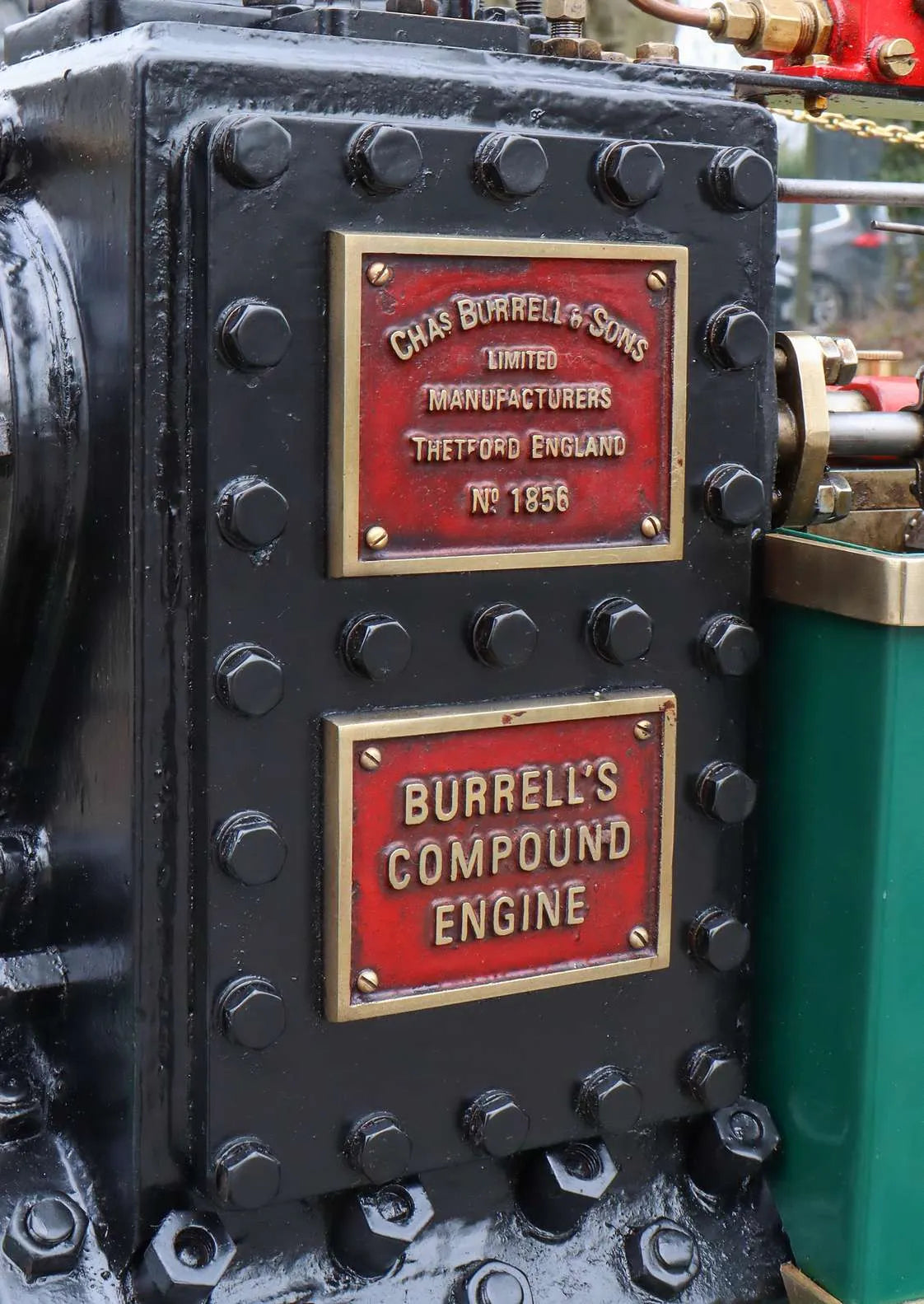

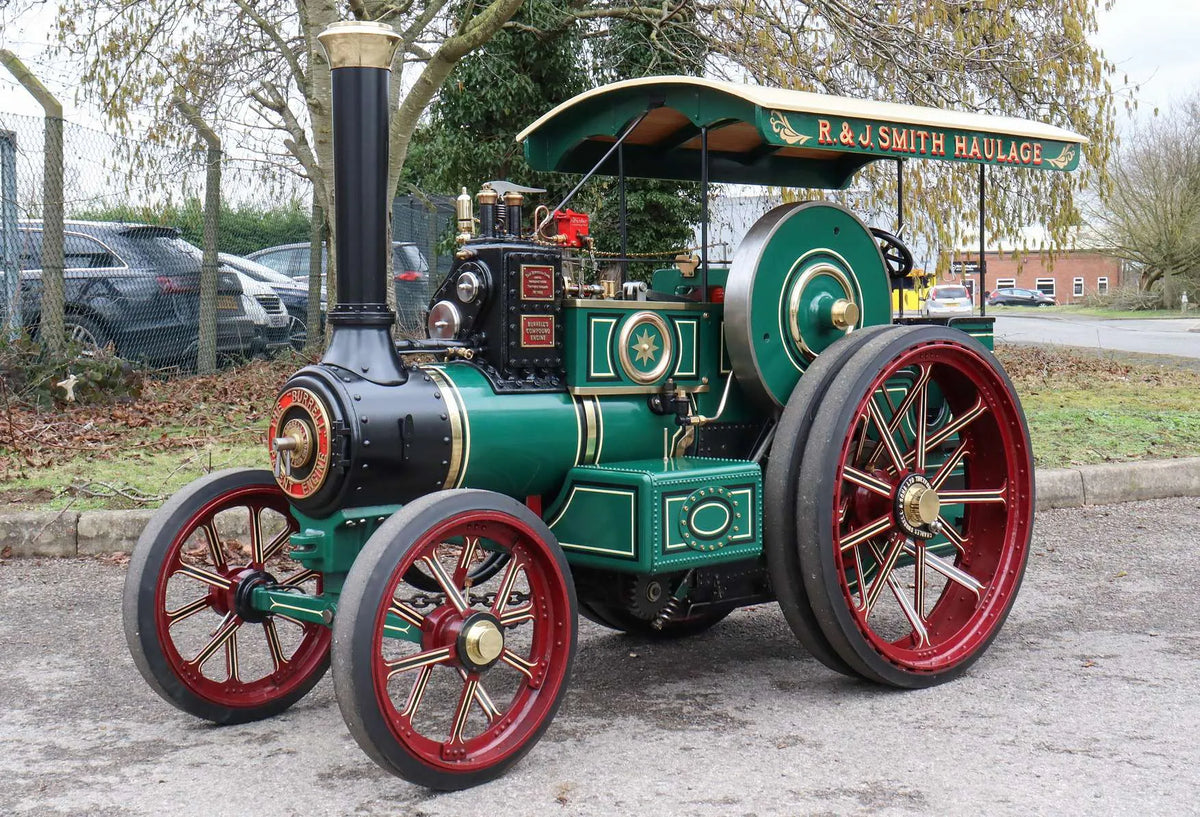

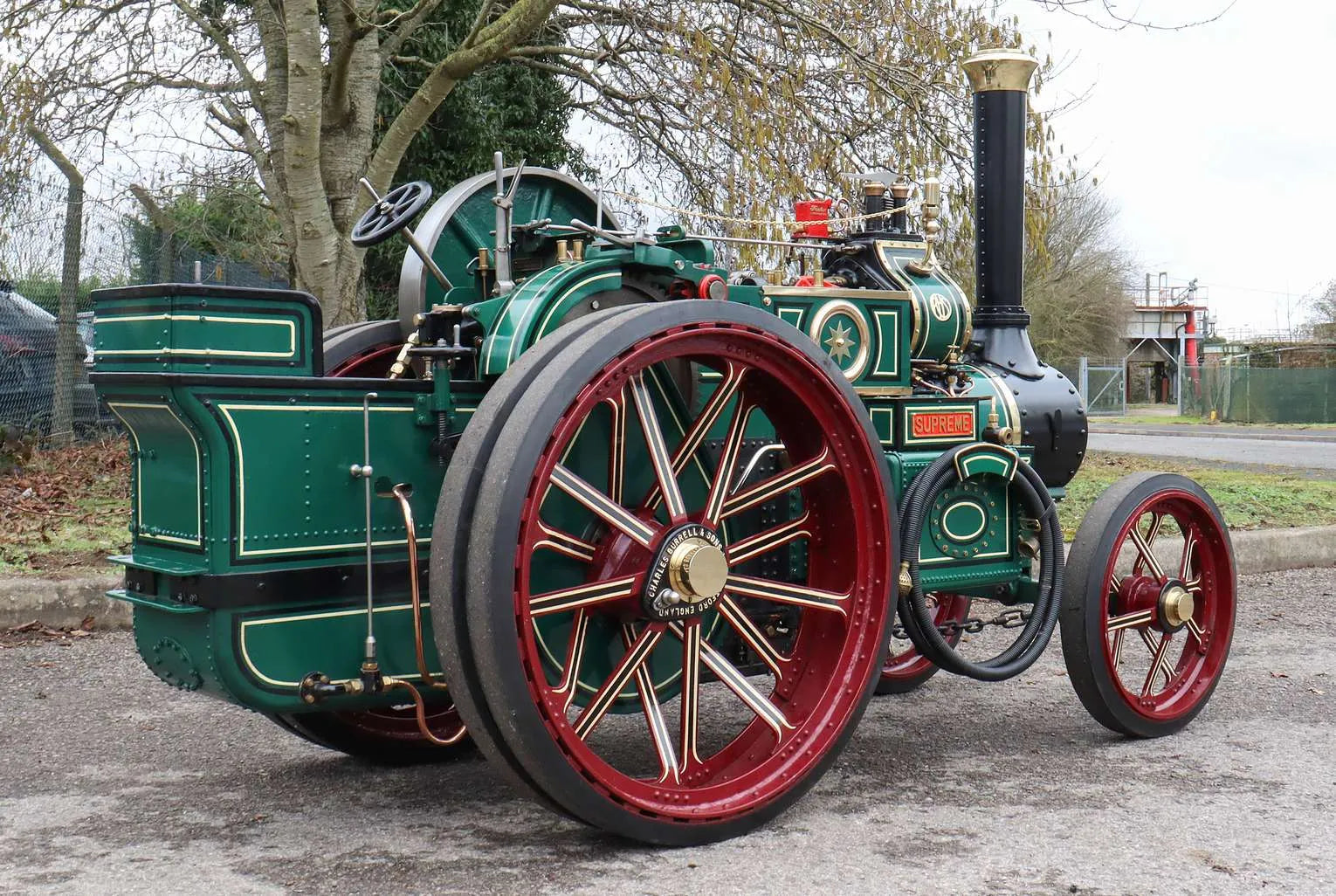

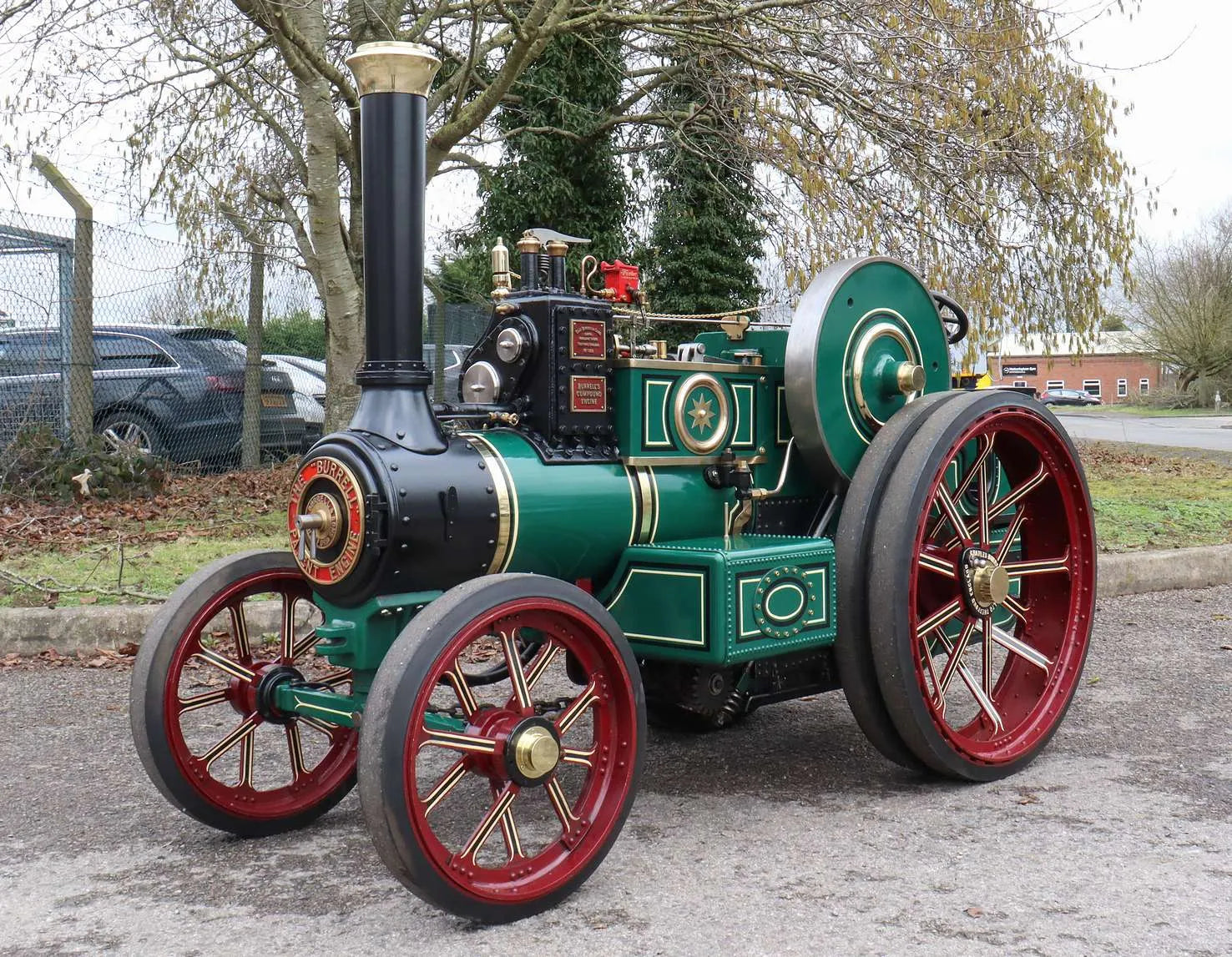

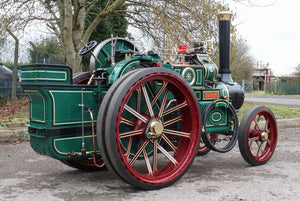

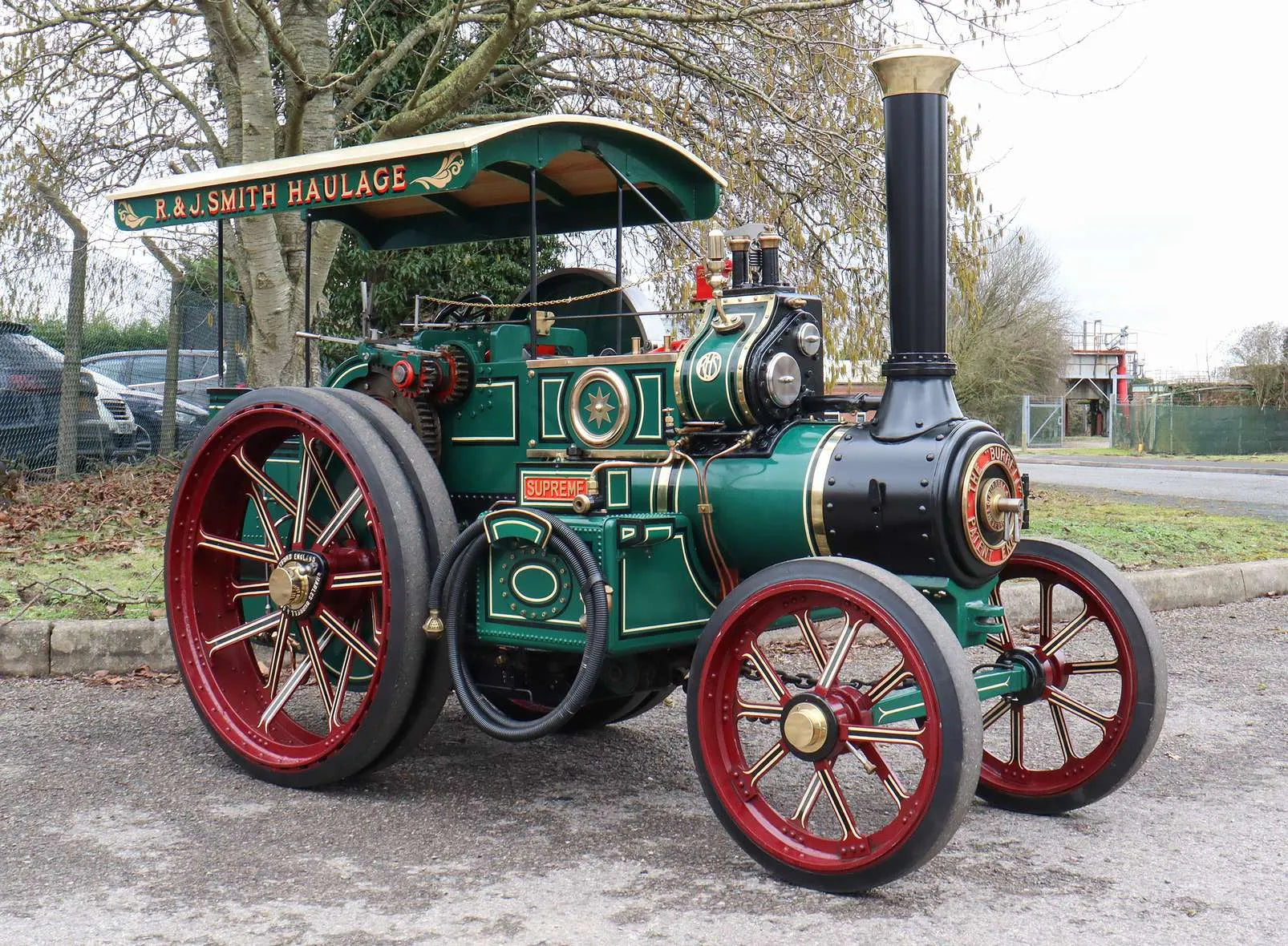

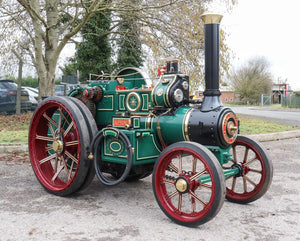

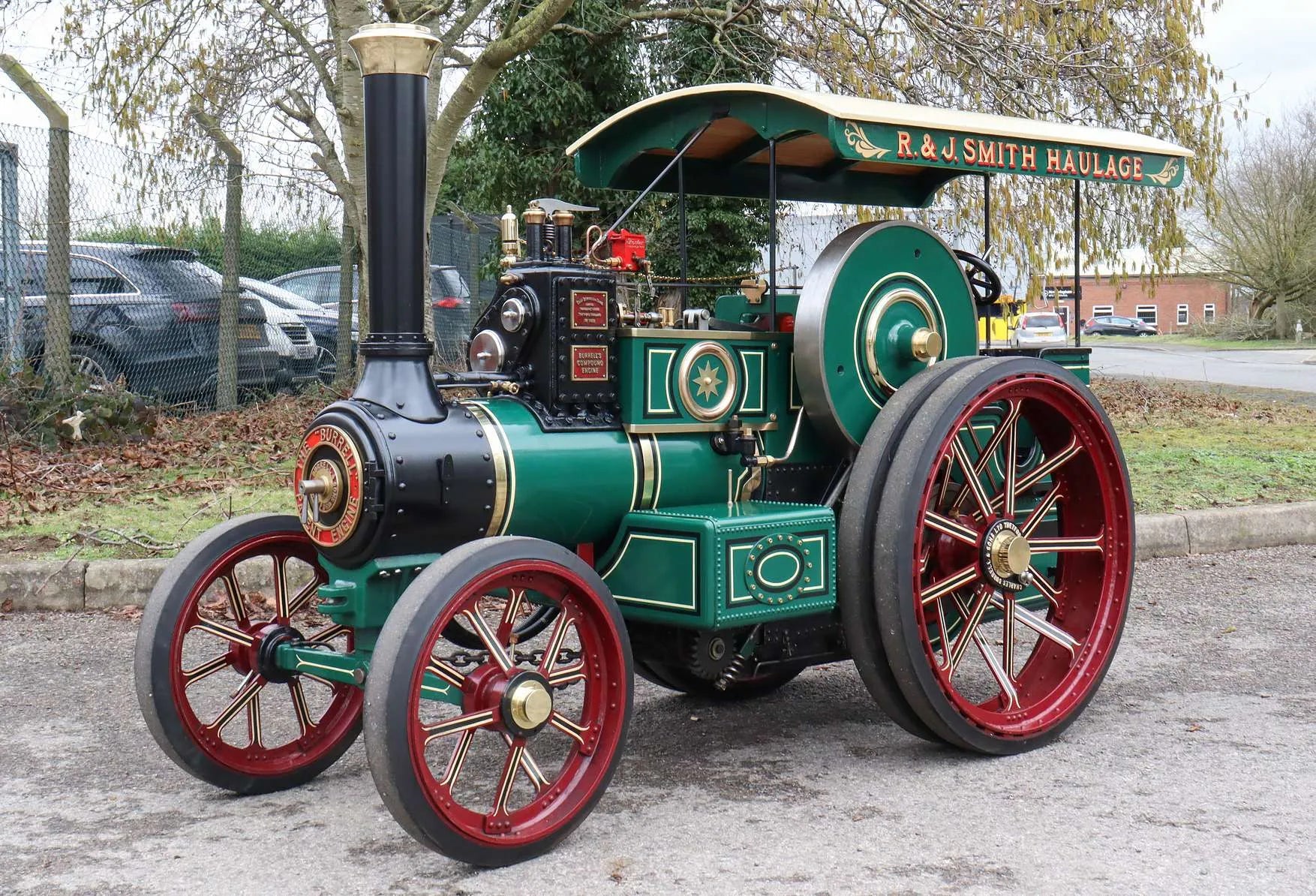

4 inch scale Burrell SCC traction engine

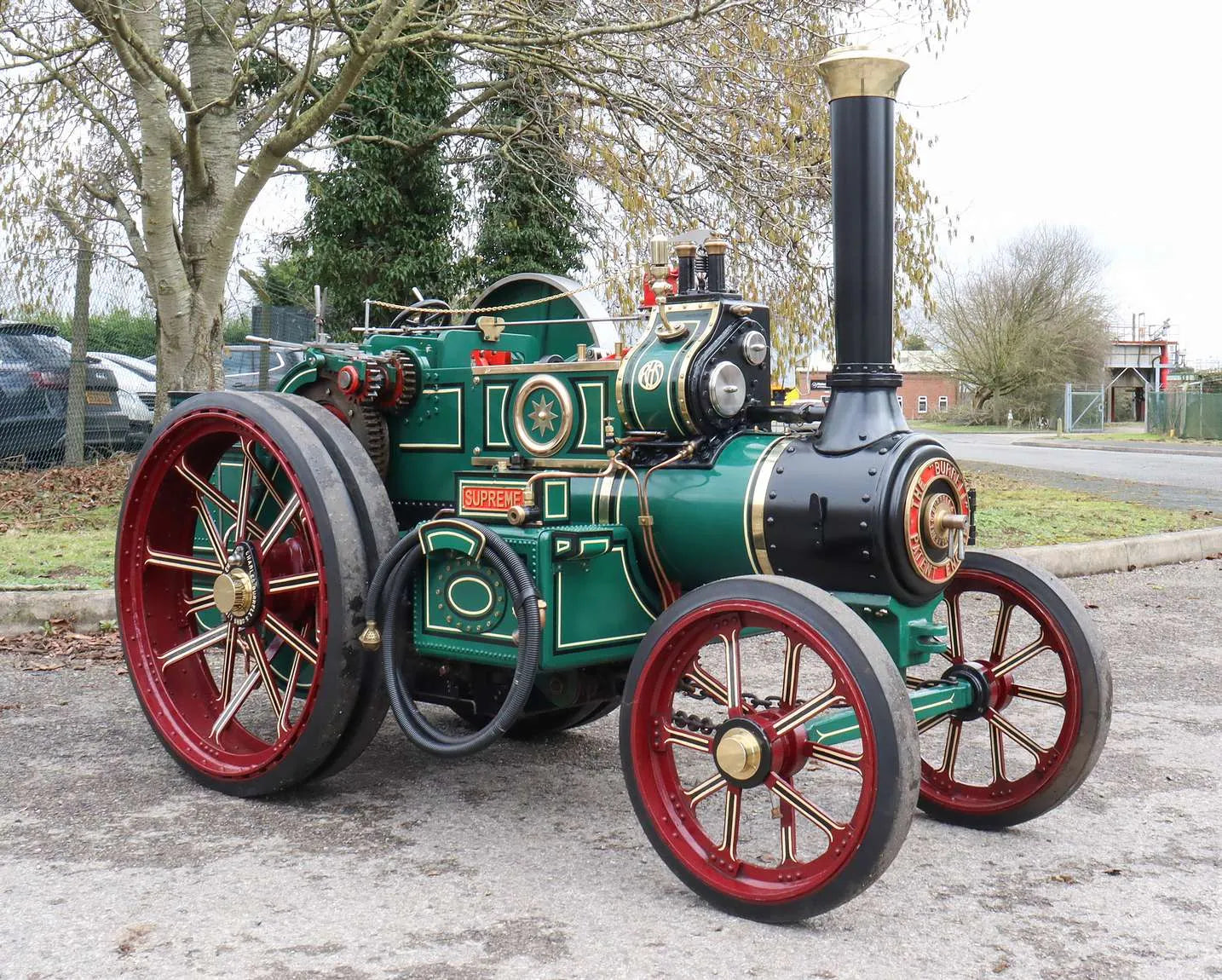

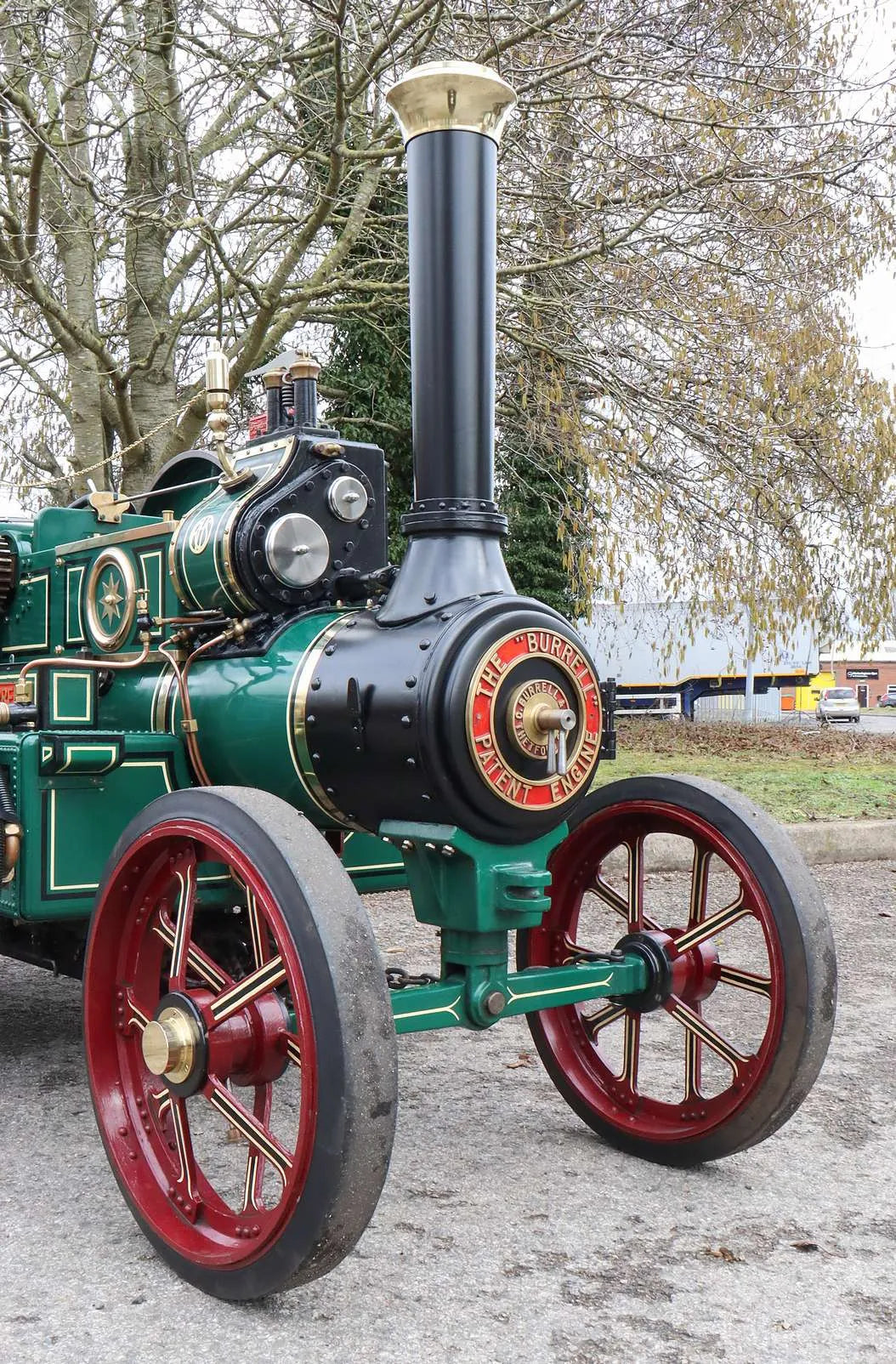

A 4 inch scale Burrell single crank compound traction engine, a well-built engine in excellent condition.

The commercially-built, CE-marked boiler by John Rex Model Engineers has had internal inspection and ultrasonic survey followed by hydraulic and steam tests in recent days, with new certification issued.

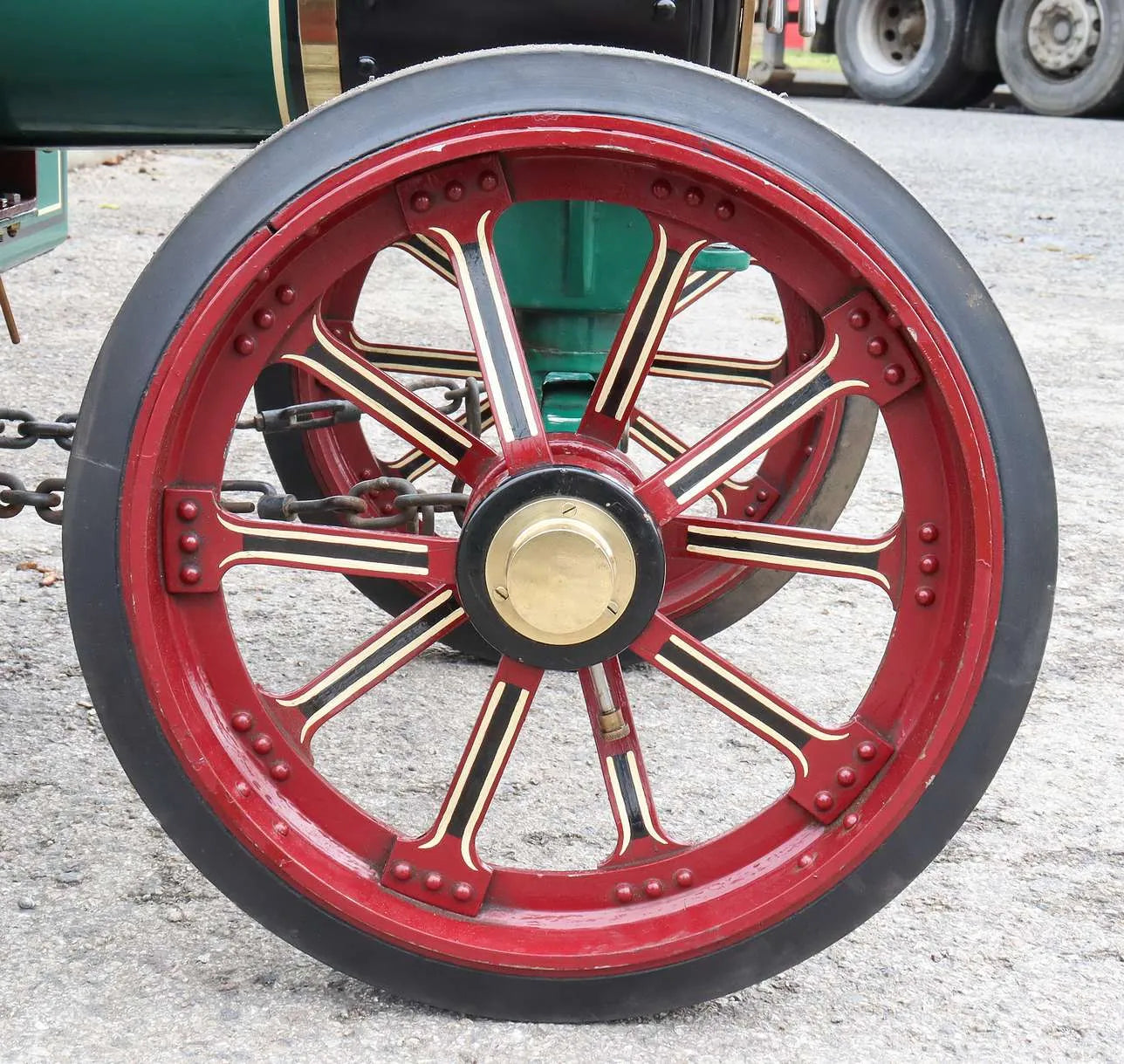

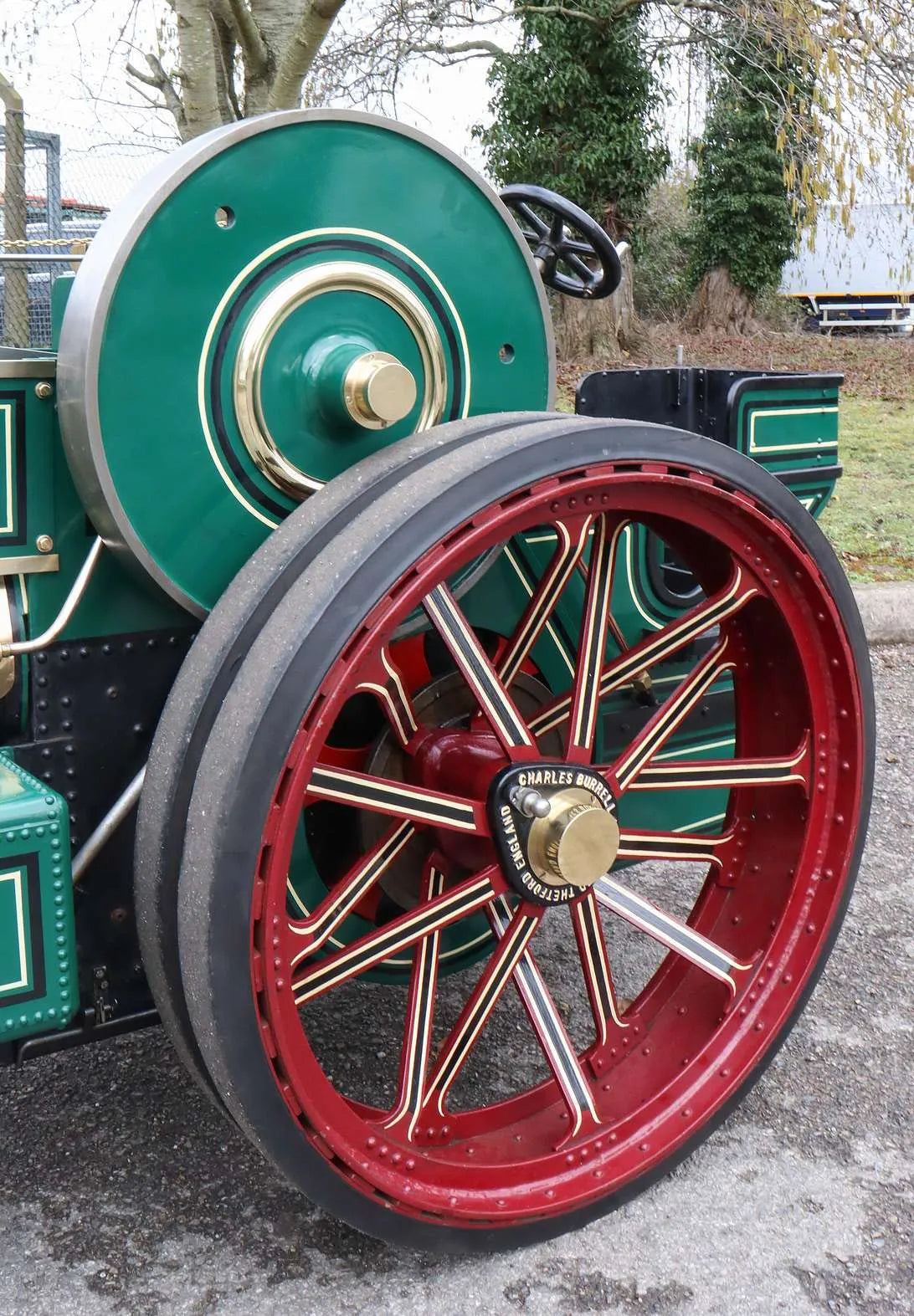

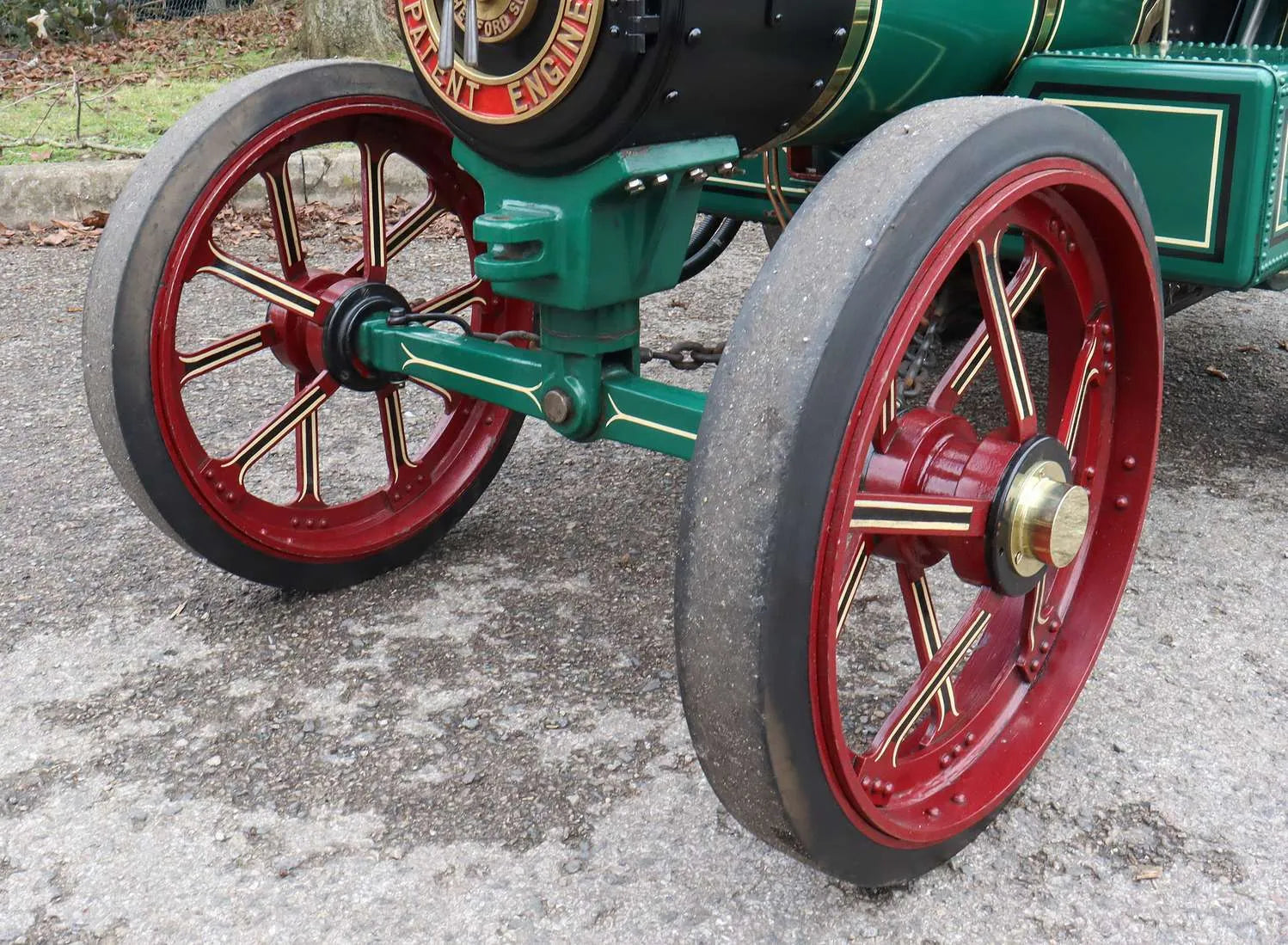

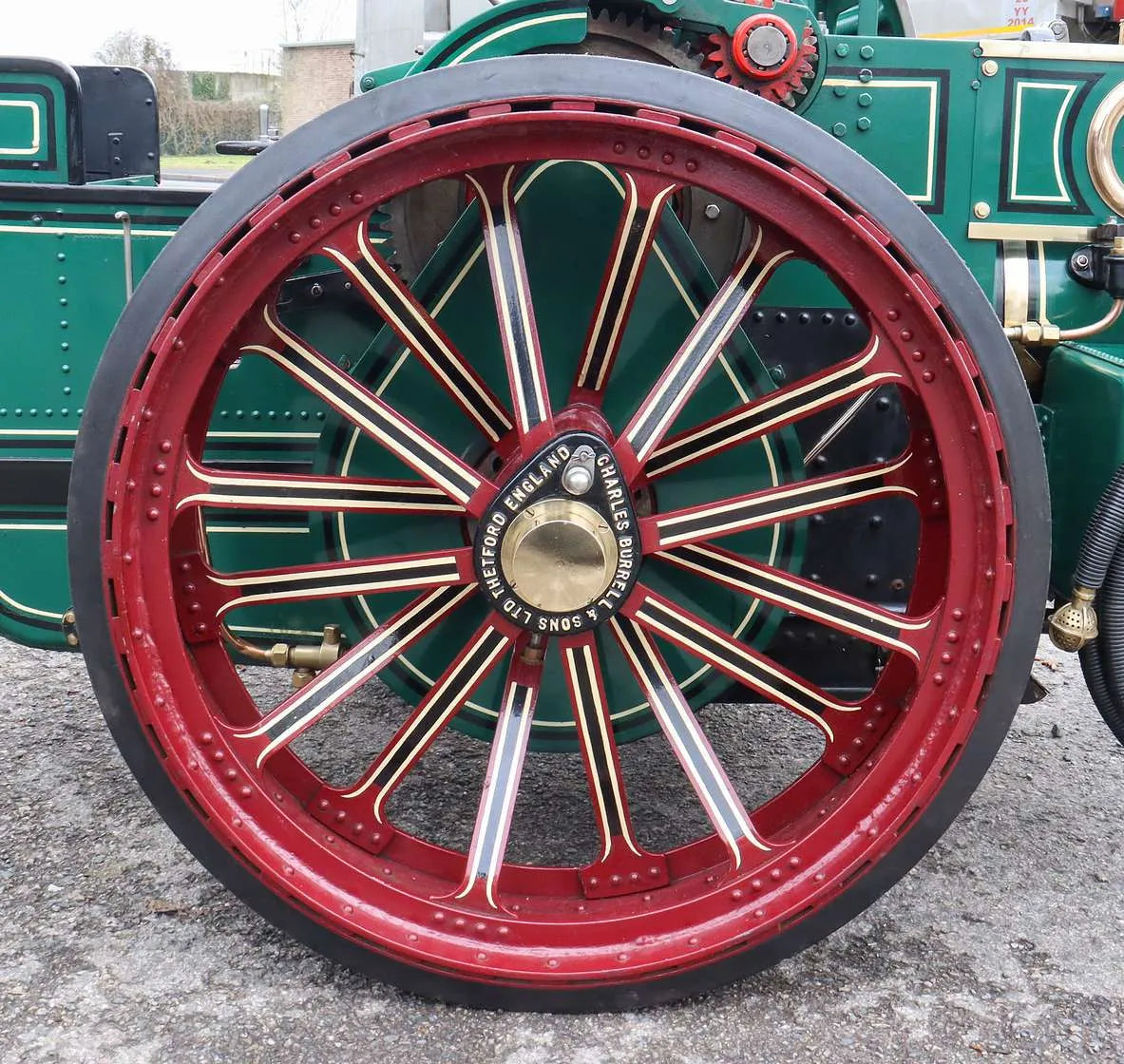

The rubber tyres remain in good condition, showing little sign of wear. Considerably quieter than steel strakes for road work, they also have the advantage of slightly raising the gearing.

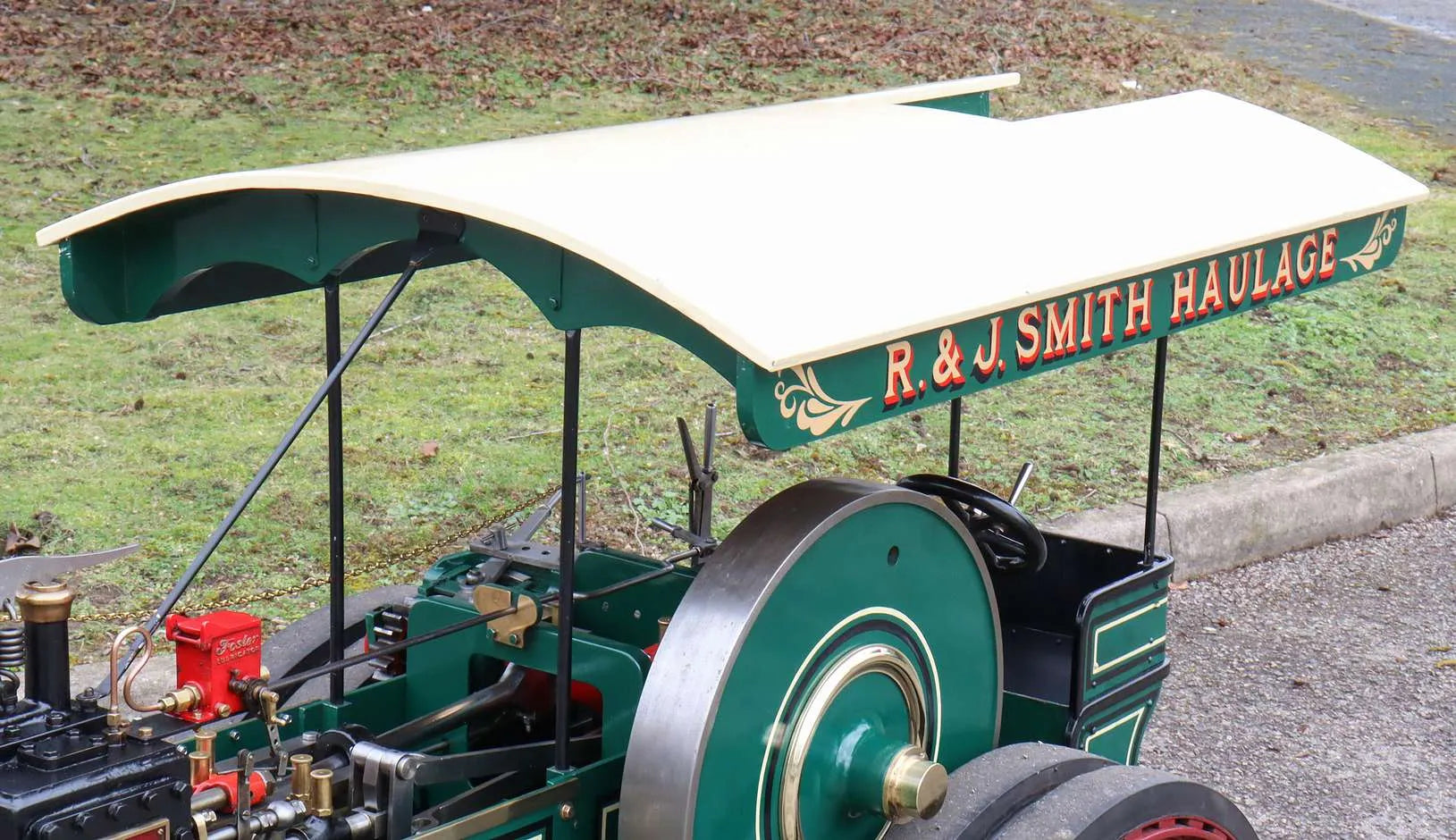

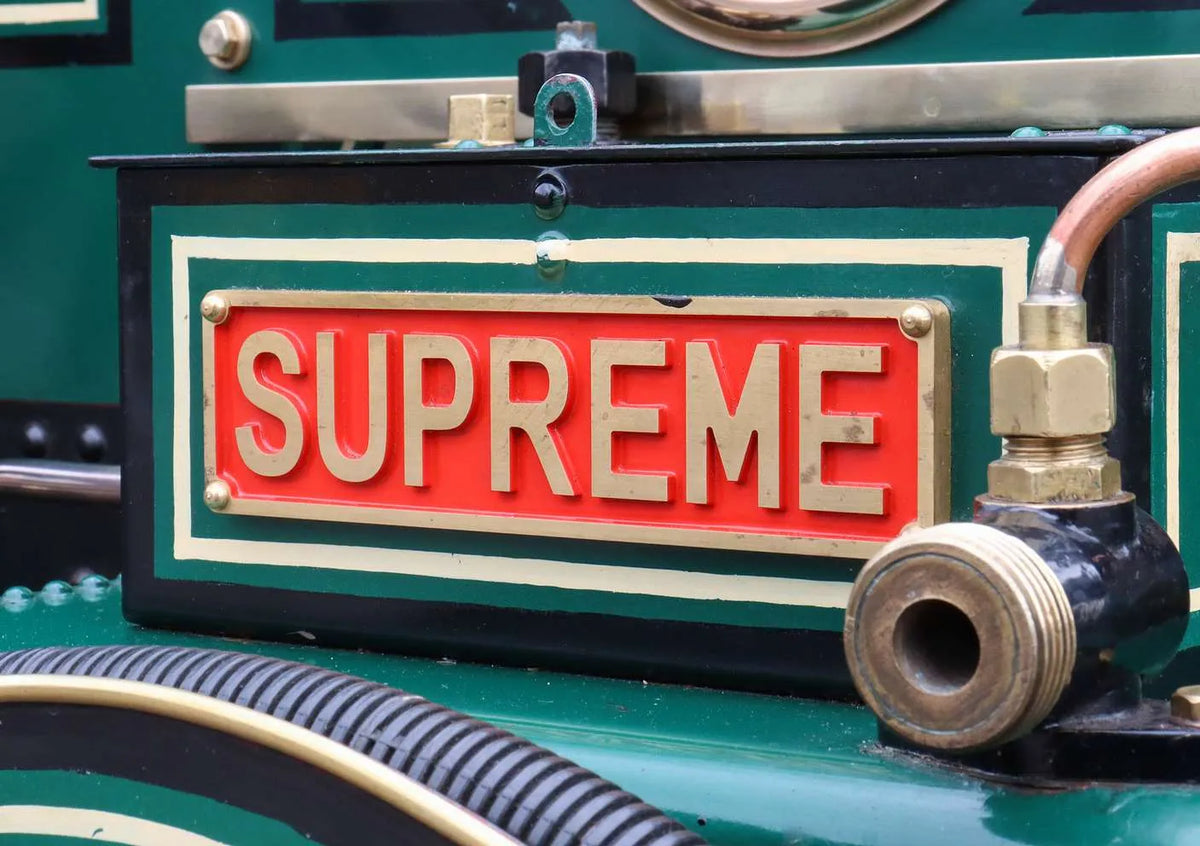

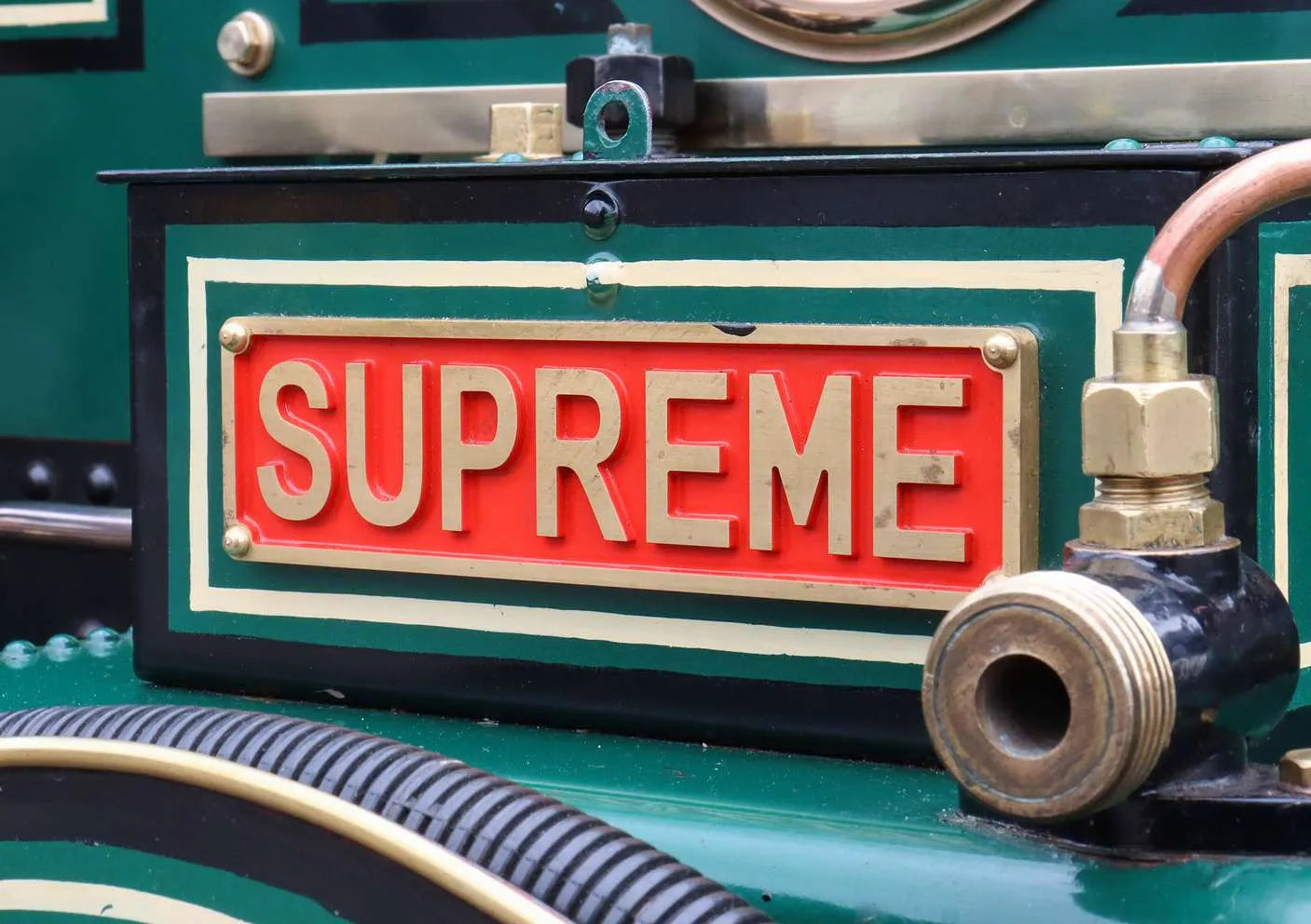

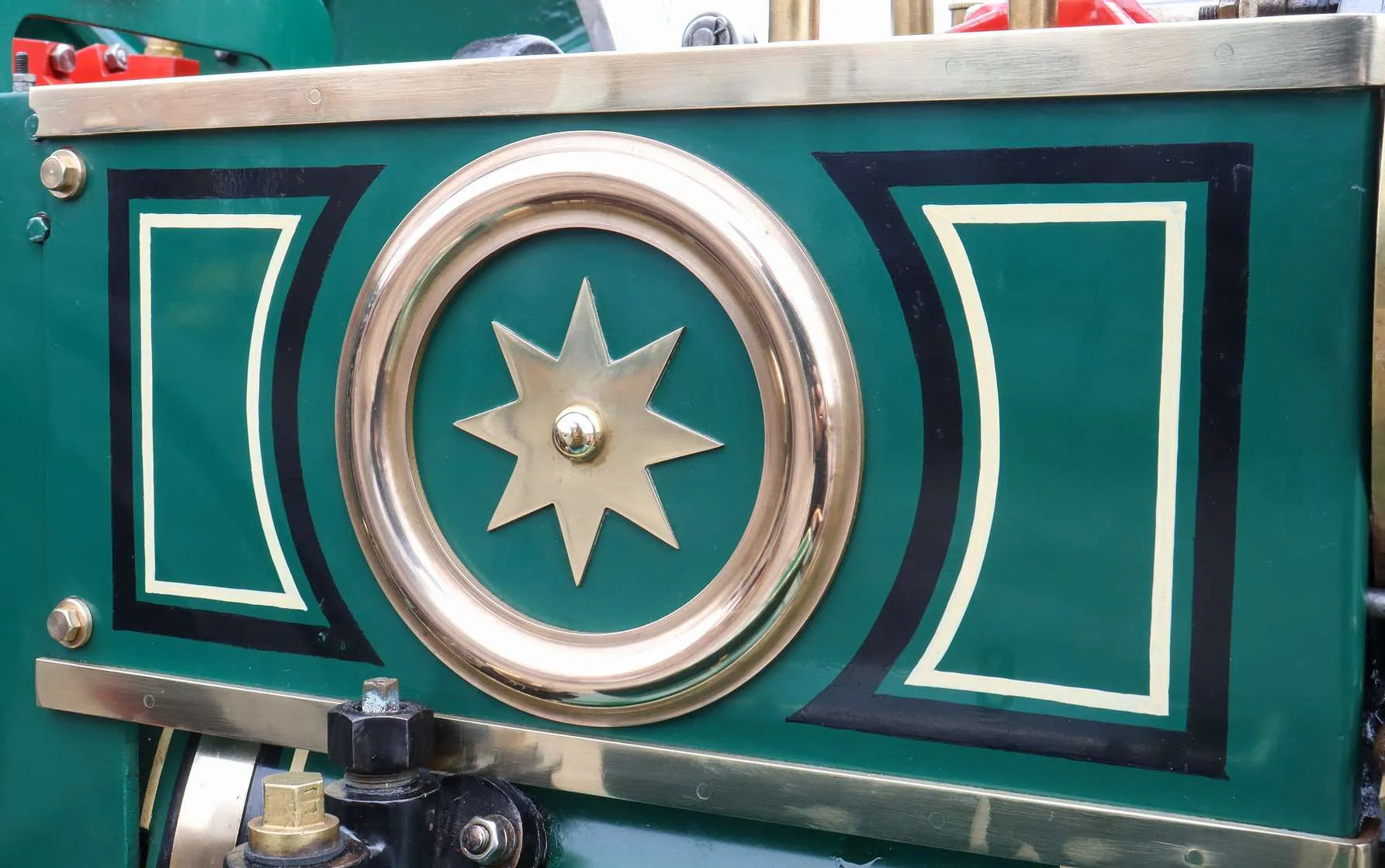

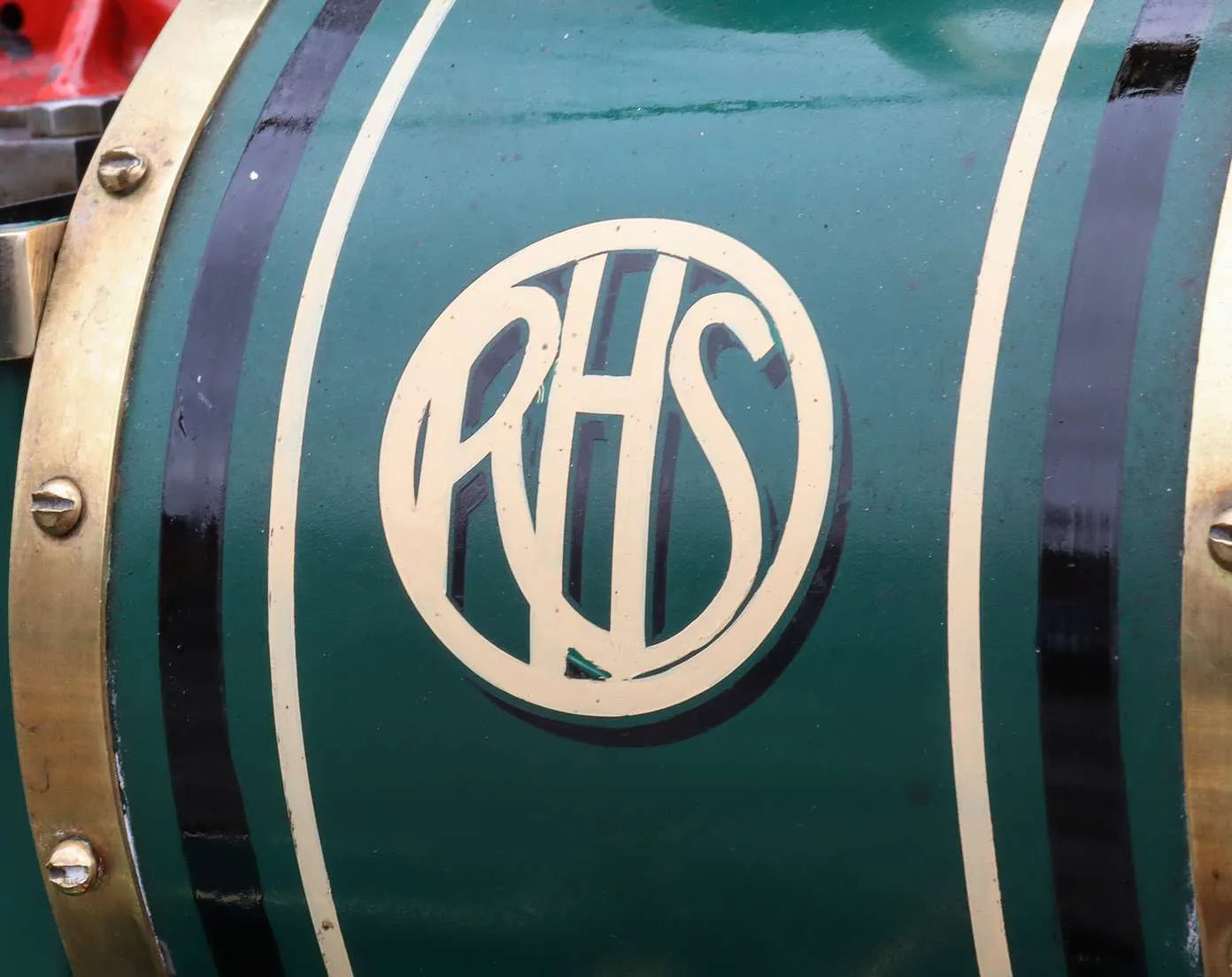

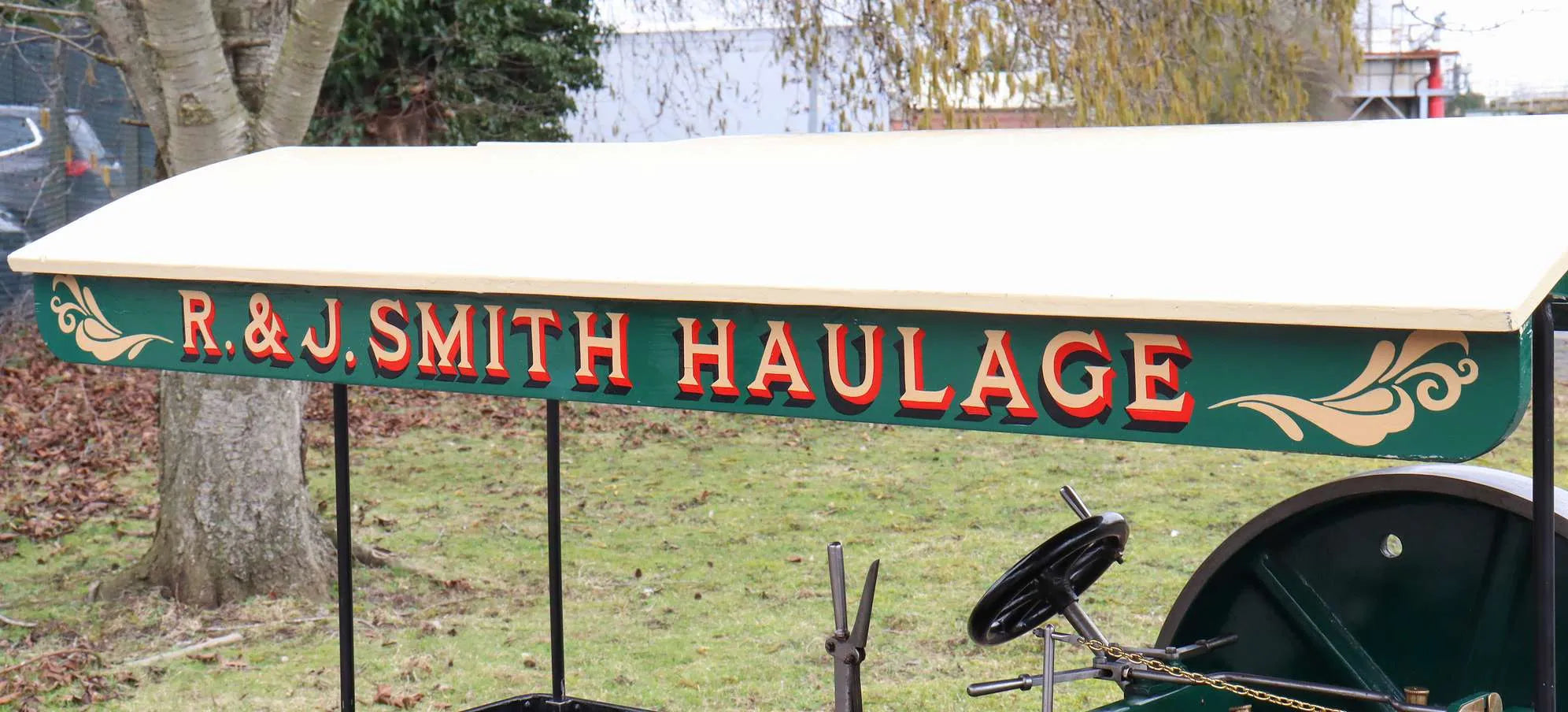

The paintwork, hand lined and signwritten, was done to a high standard originally and remains in excellent condition.

The engine runs very well, ticking over quietly at rest and pulling strongly on the road, the tender-mounted cast iron seat and light steering making it a delight to drive.

Offered with full certification, 12 months warranty, set of firing irons and a starter kit of coal and oil; we would be more than happy to give half a day's instruction on the steaming, running and disposal of the engine to a new owner if required.

Technical information

Stock code

11160

Scale

4 inch

Length/inches

74

Width/inches

32

Height/inches

44

Weight/Kg

580

Wheel material

steel

Axlebox type

plain bearing

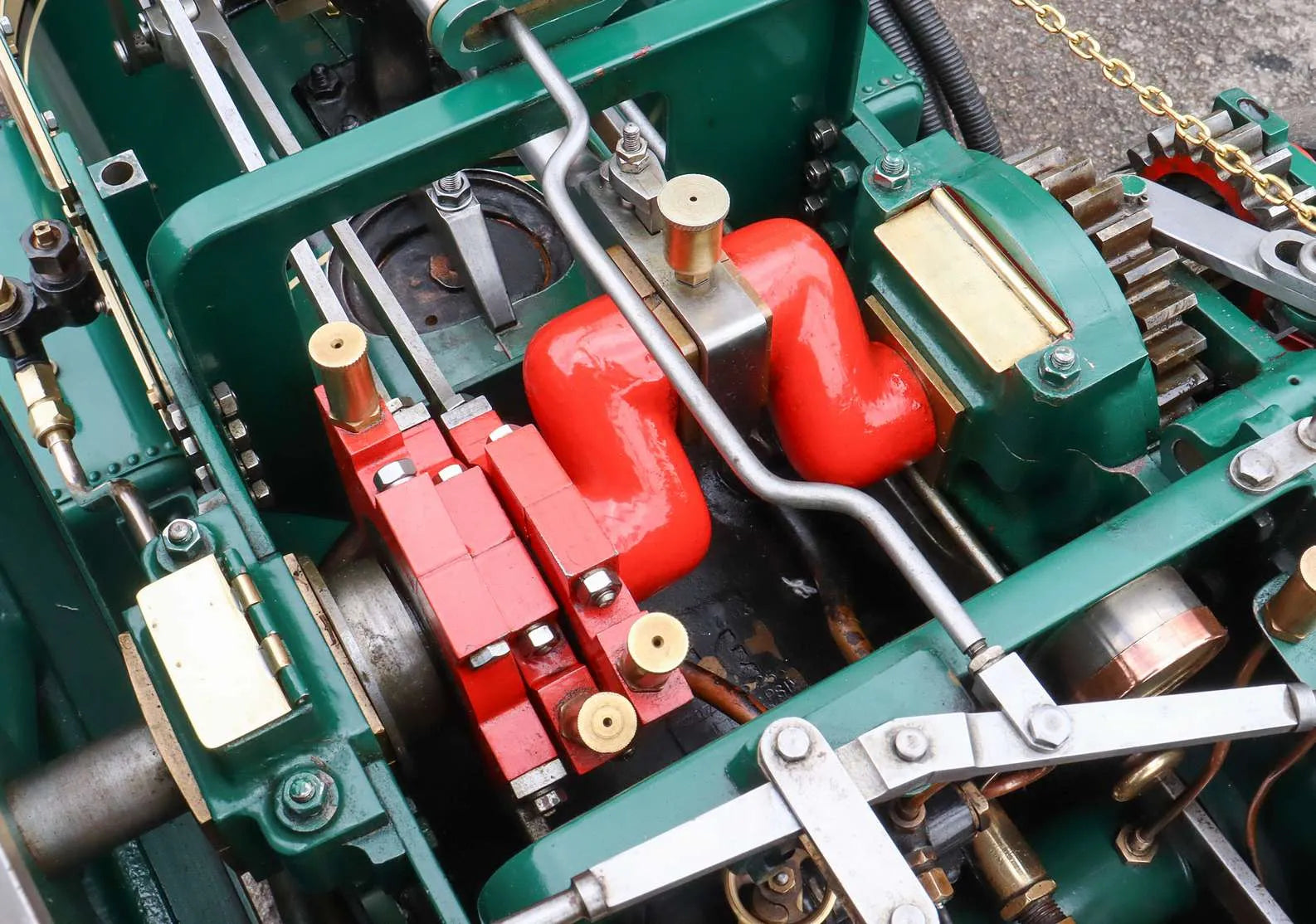

Cylinder material

cast iron

Valve type

slide

Valve gear

Stephensons

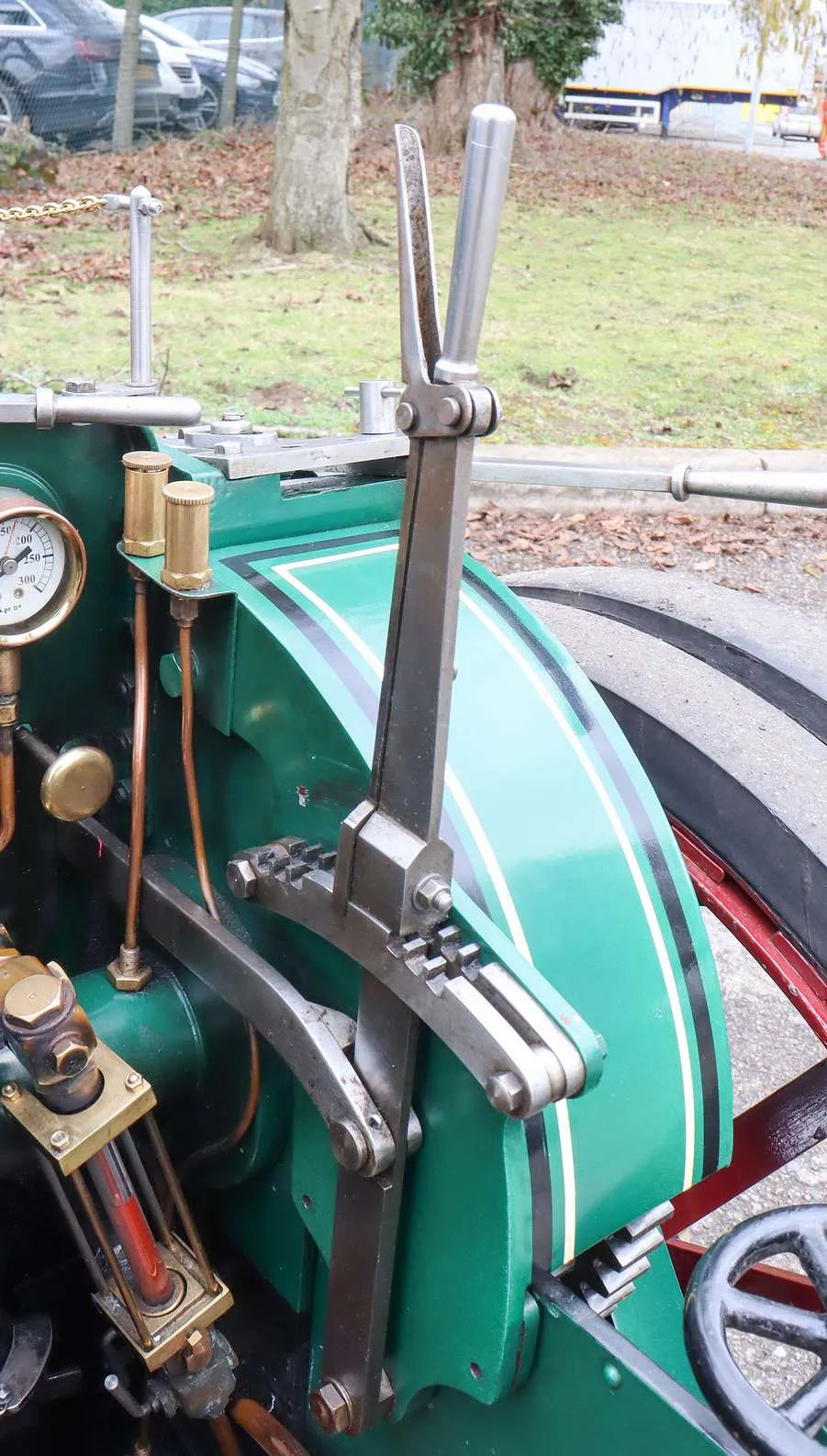

Reverser type

pole

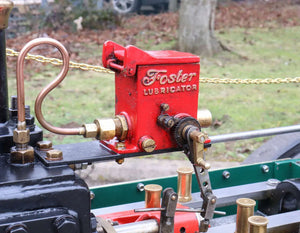

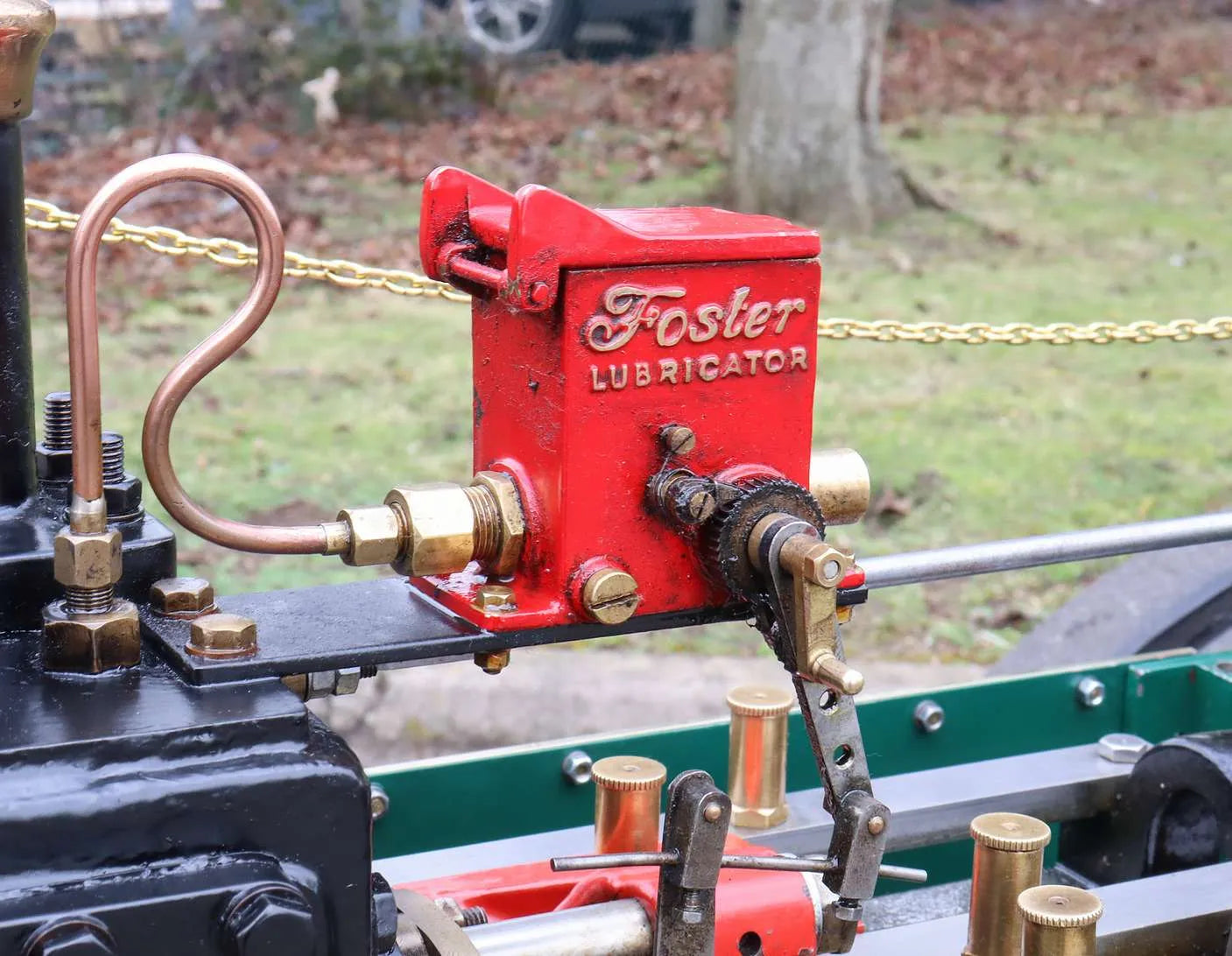

Lubricator type

mechanical

Boiler maker

John Rex Model Engineers

Boiler type

locomotive

Boiler construction

welded, expanded tubes

Boiler material

steel

Working pressure

170

Year built

2003

Boiler number

JRME001403

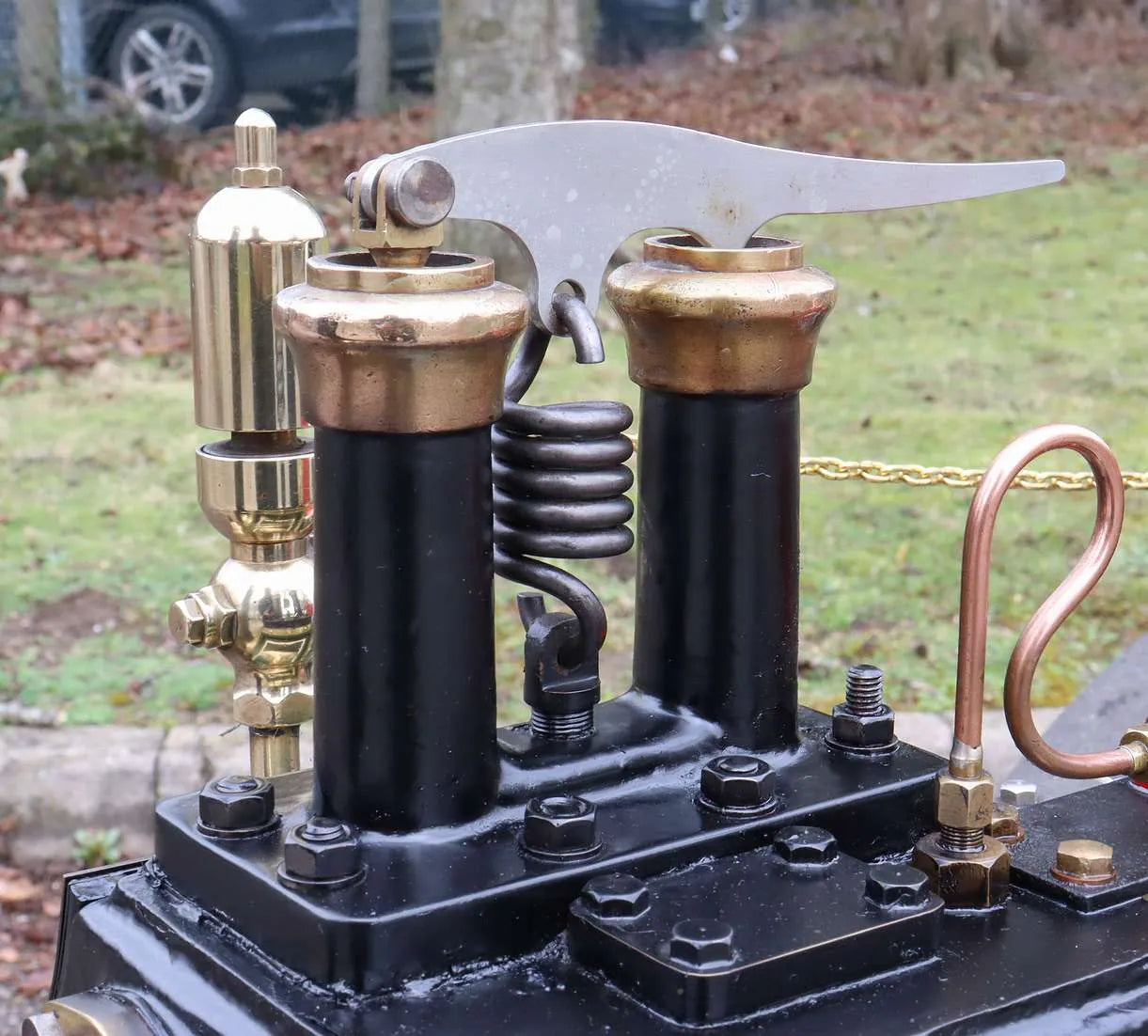

Safety valve type

Ramsbottom

Safety valve

2

Fusible plug

yes

Differential

yes

Road speed

2

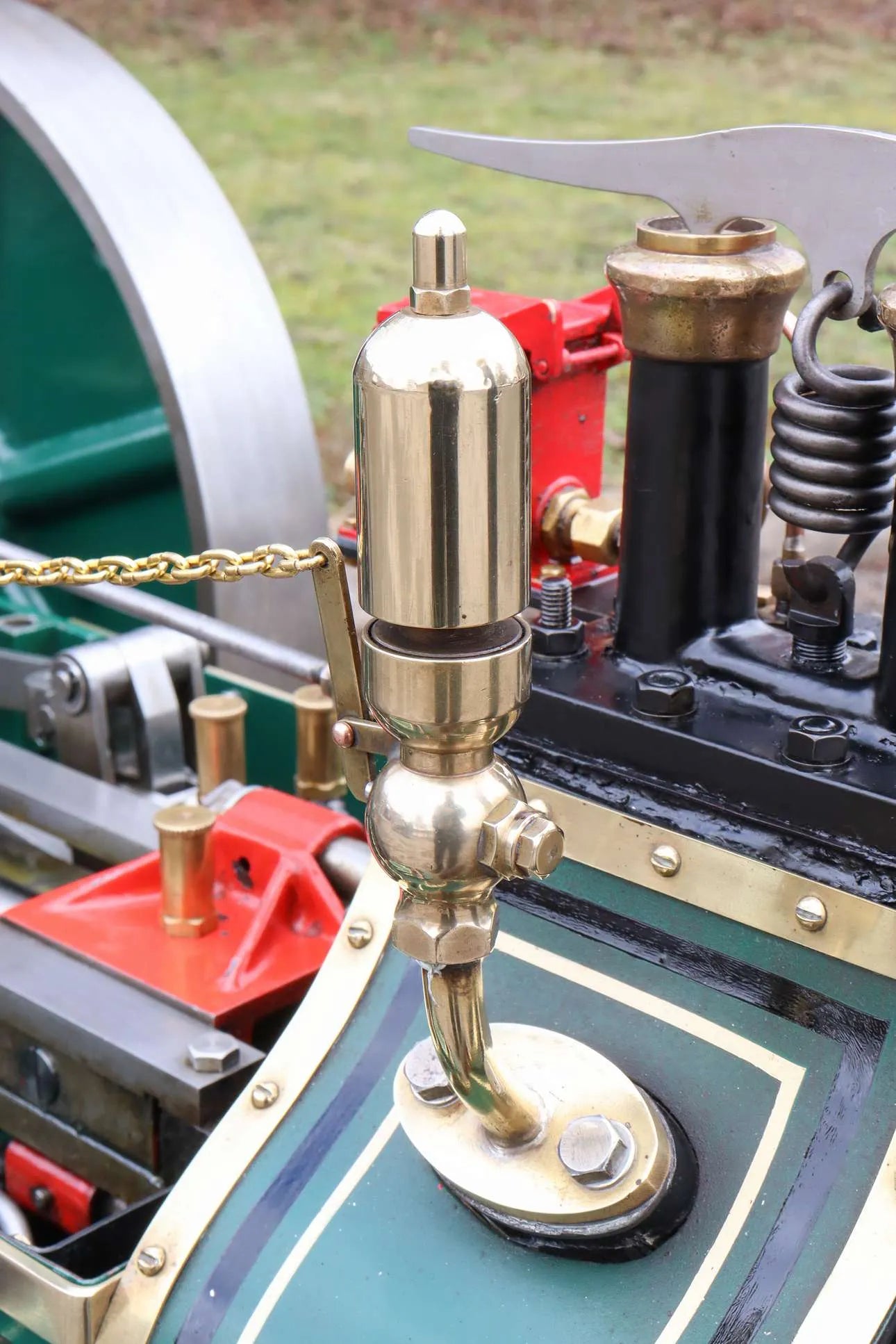

Whistle

yes

Hand pump

1

Mechanical pump

1

Injector

1

Date out

Apr-23

Hydraulic test valid to

27-May-25

Steam test valid to

02-May-24
