Sold

9103

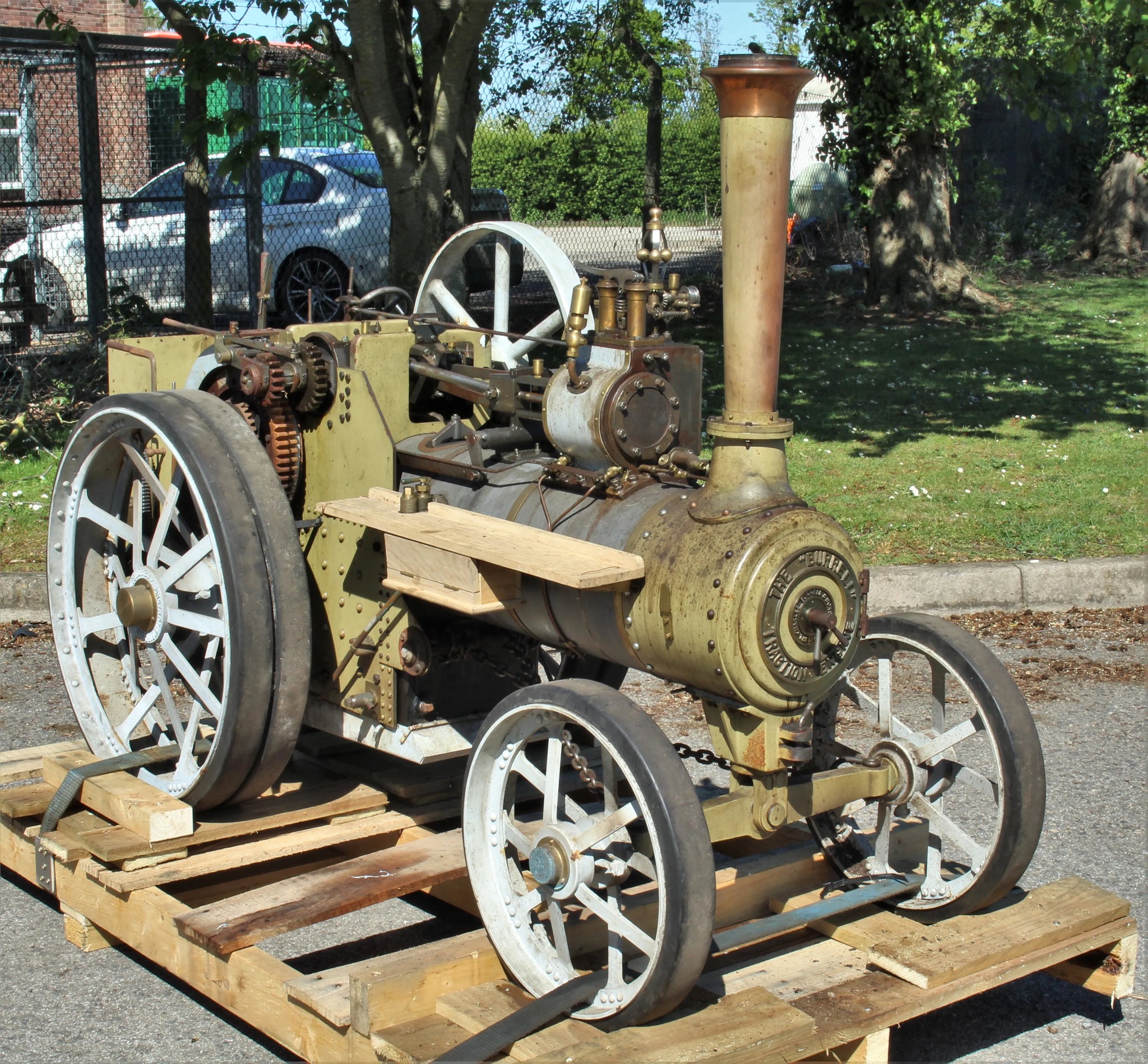

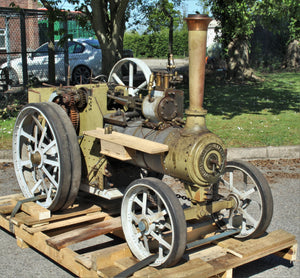

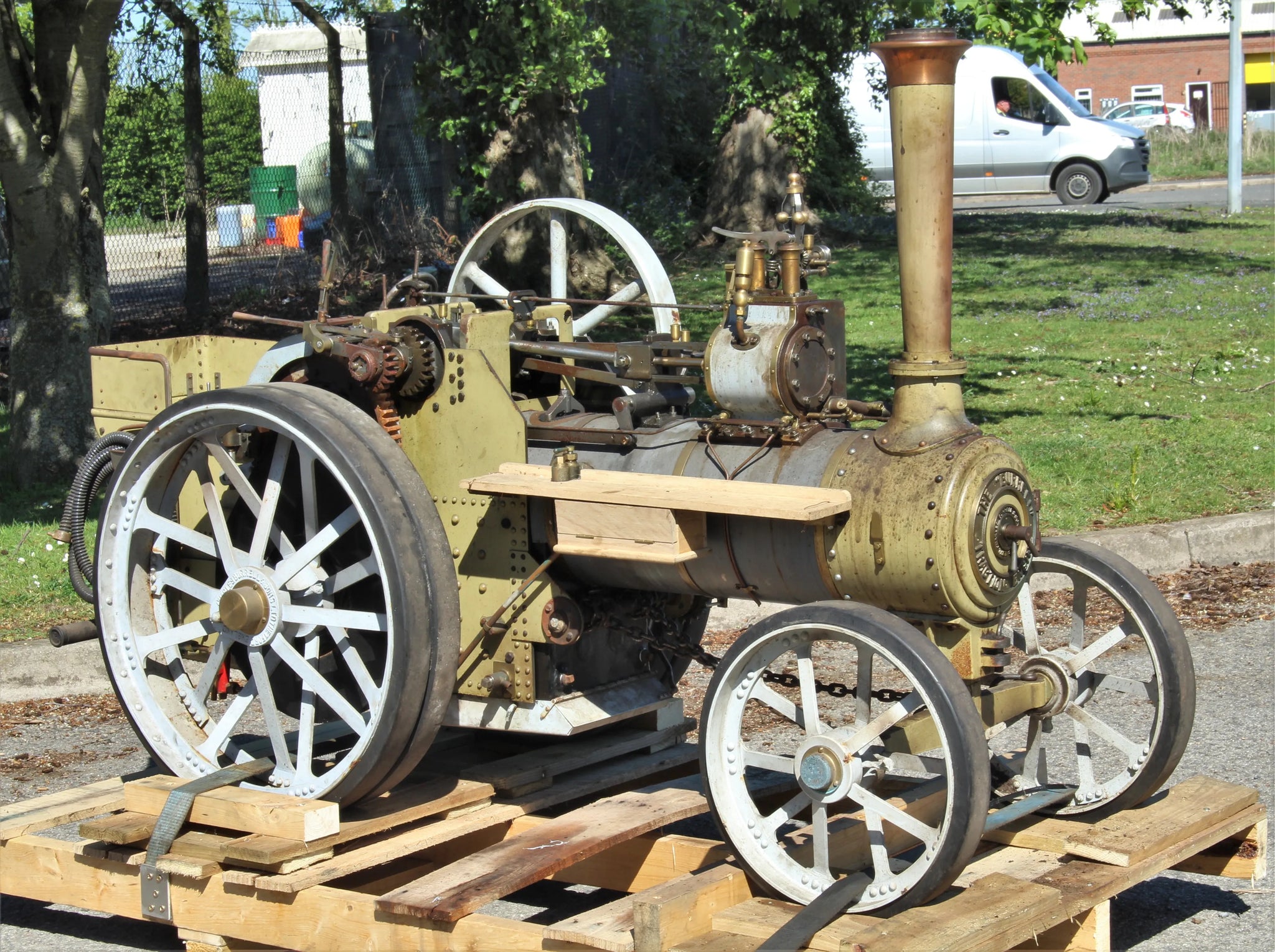

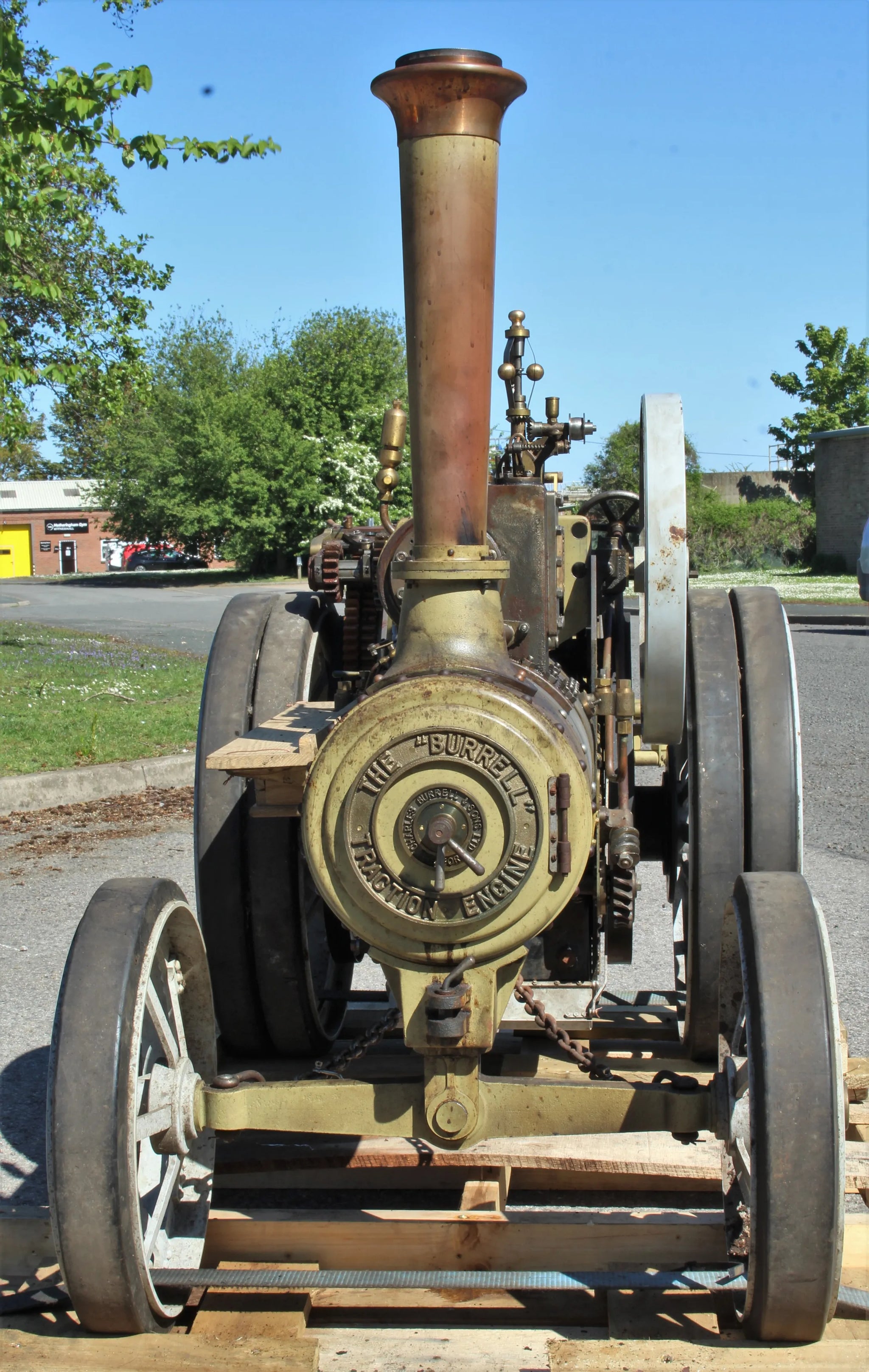

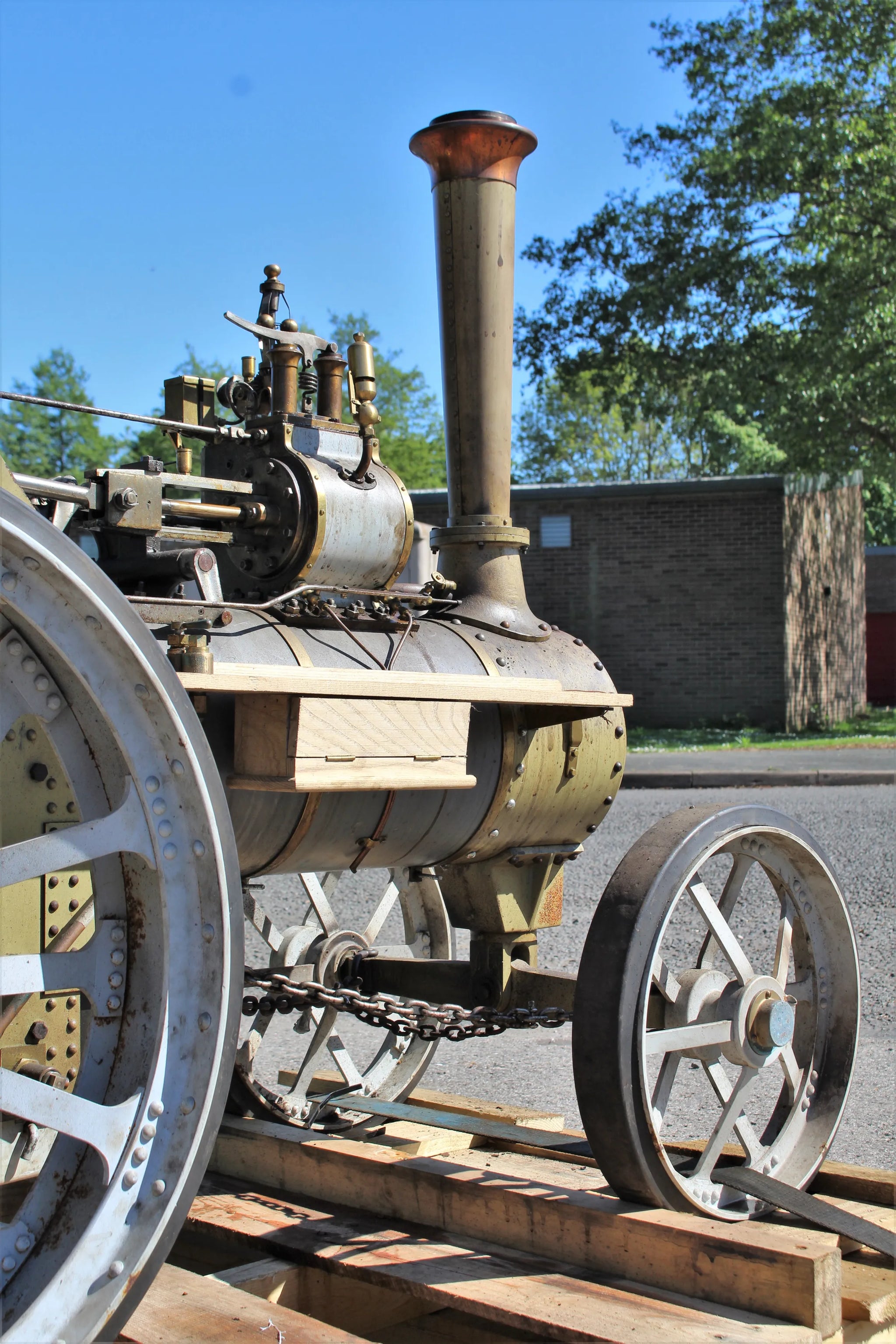

4 inch scale Burrell agricultural engine

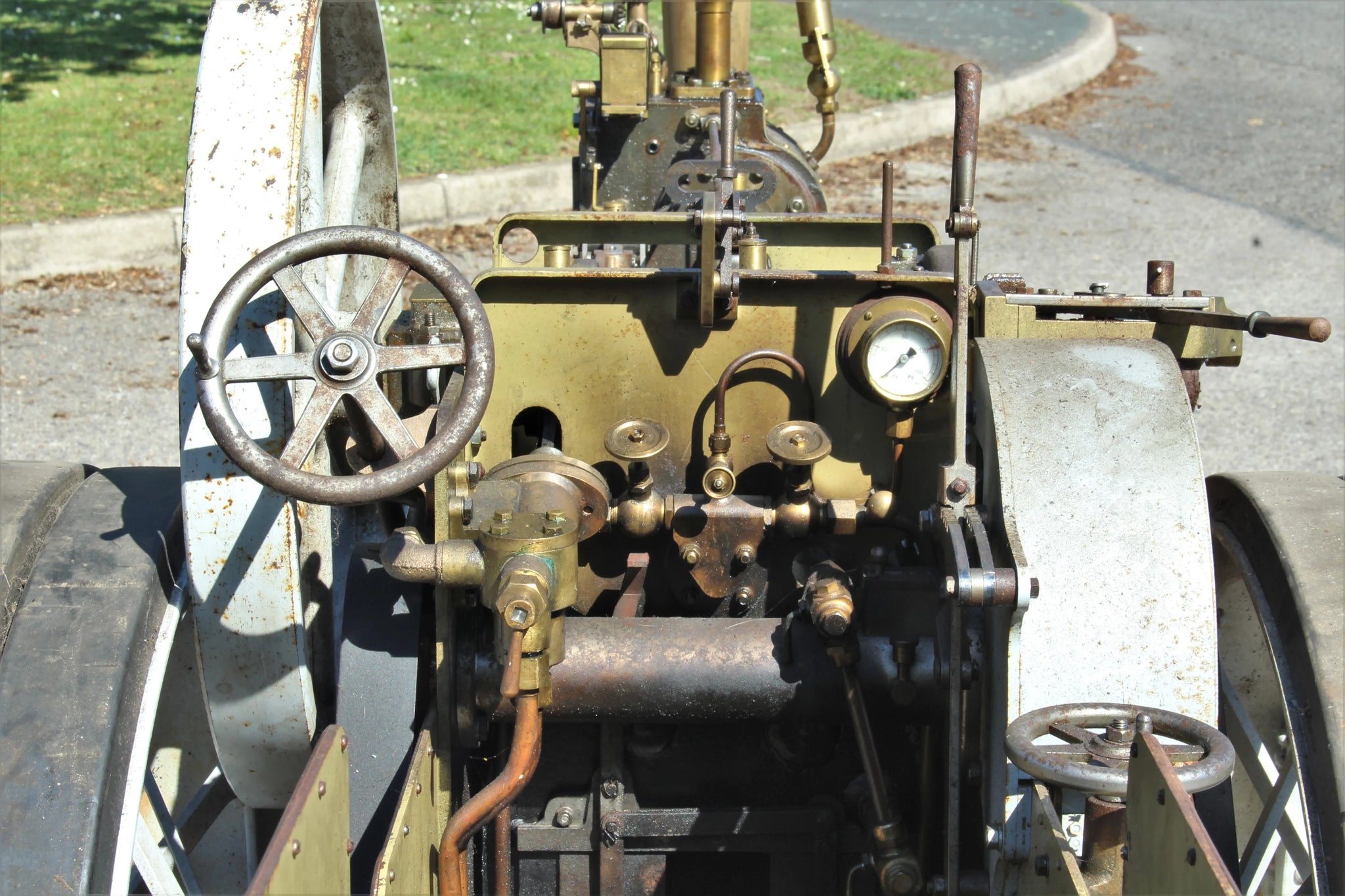

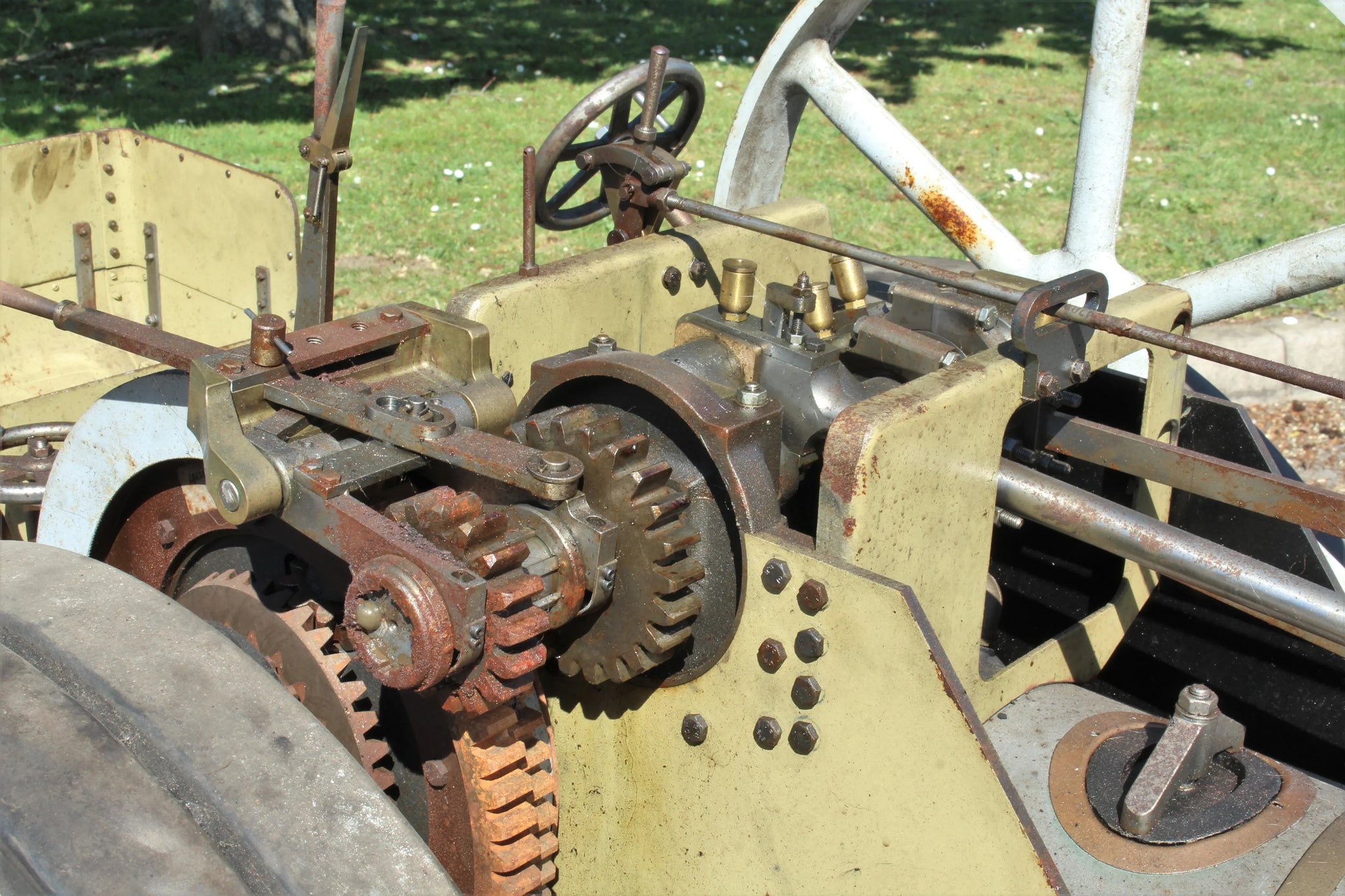

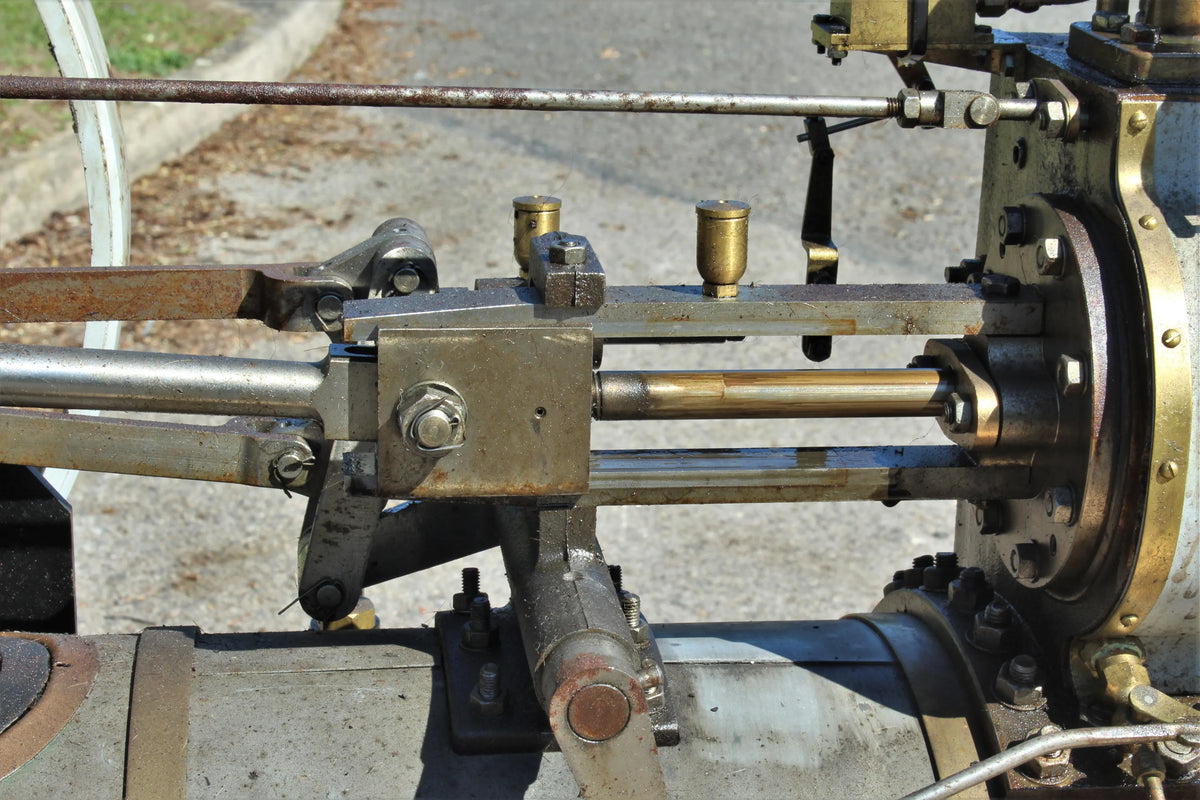

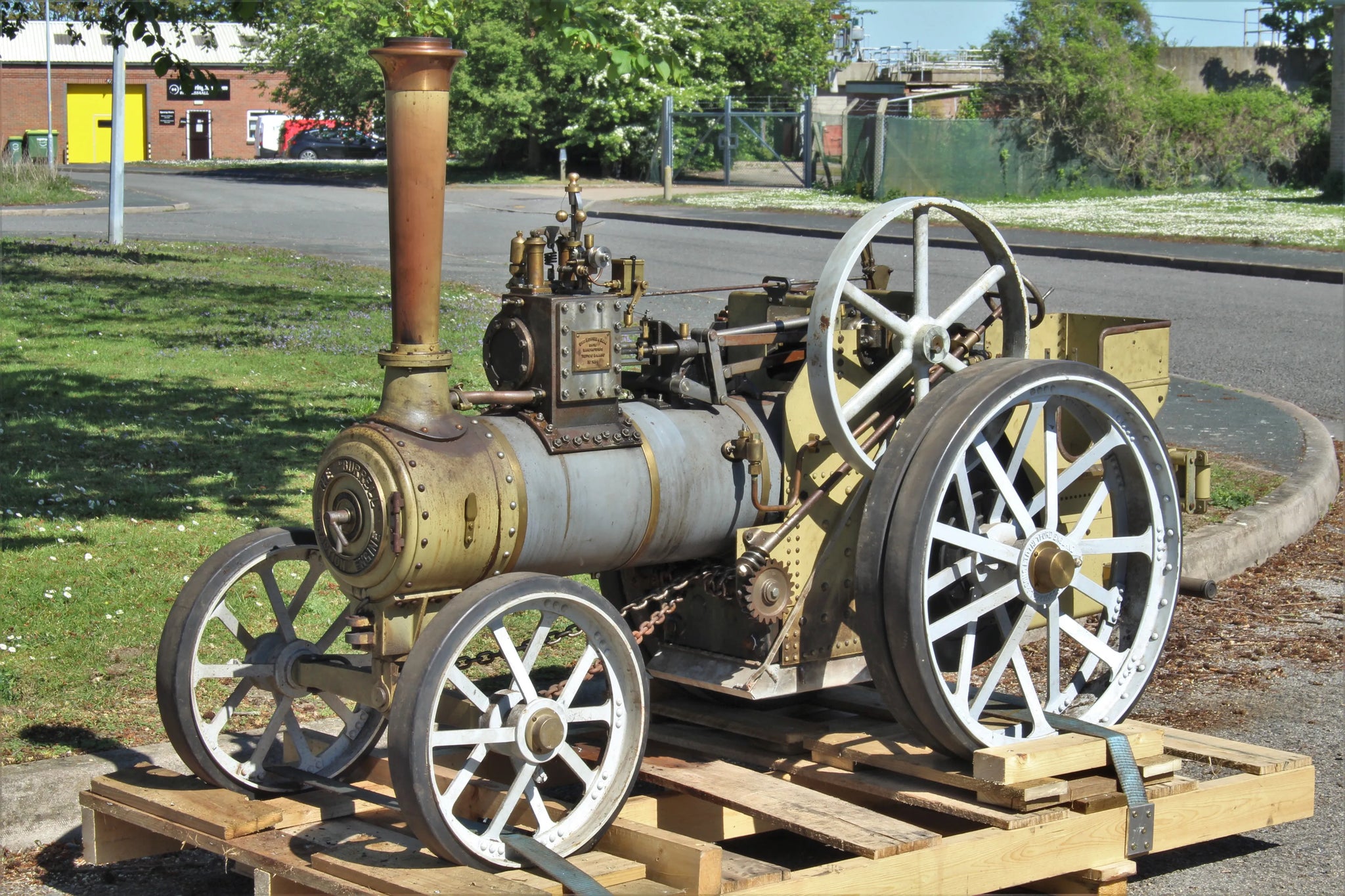

I think we'd have to classify this as "new - barn find" - a 4 inch scale Burrell agricultural engine, assembled from a ModelWorks kit some years ago and test steamed although never painted - from the look of the tyres it appears to have had little, if any, use.

It's spent the last few years in less than ideal storage conditions, collecting some light surface rust to the brightwork. It now needs some disassembly to clean and paint.

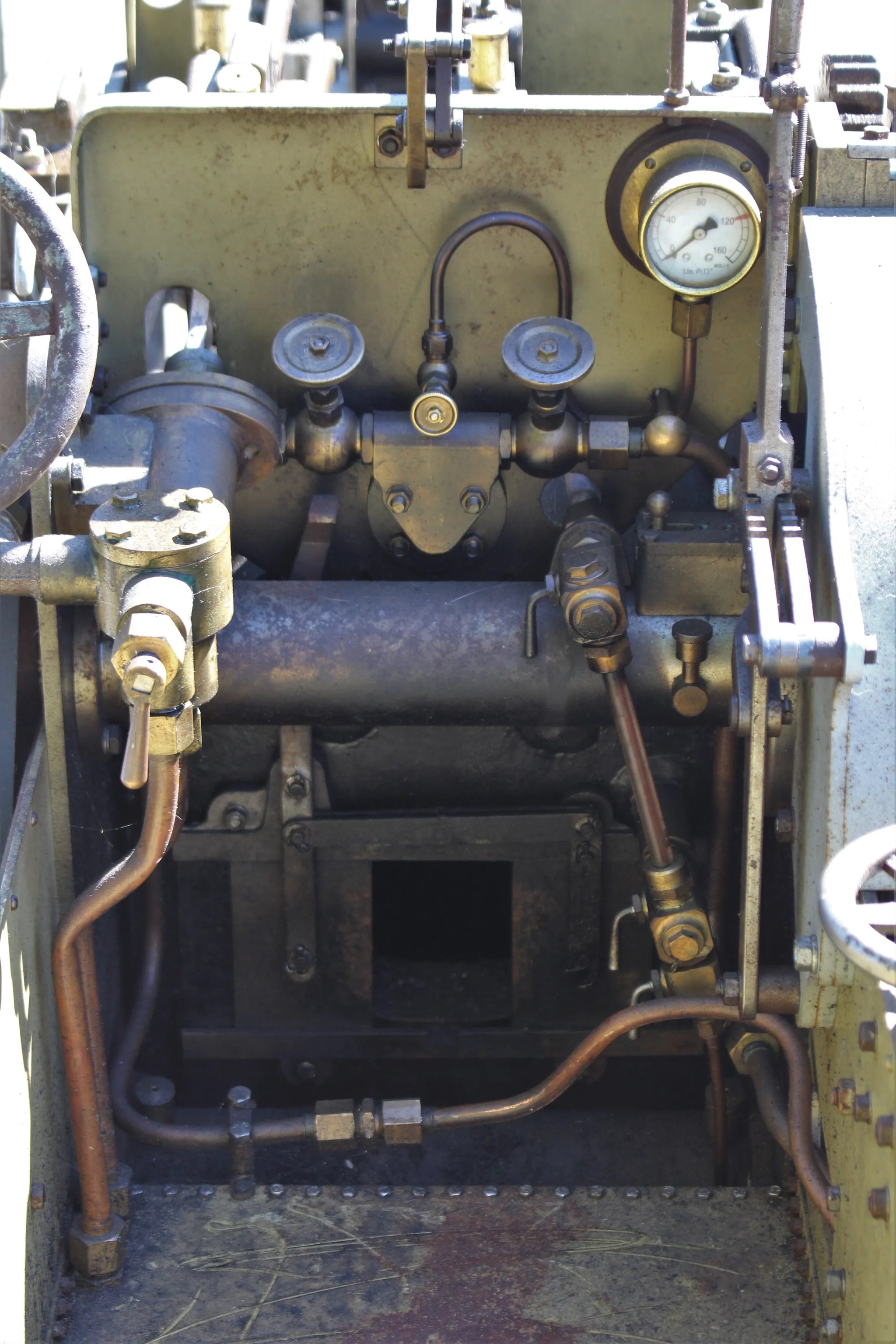

The engine is largely complete and runs well on air - there's some video of it here. Injector has yet to be fitted, it's included in a small bag of parts. The CE marked boiler is welded steel with expanded tubes, it's had a recent twice working pressure shell test and internal examination, it's like new inside.

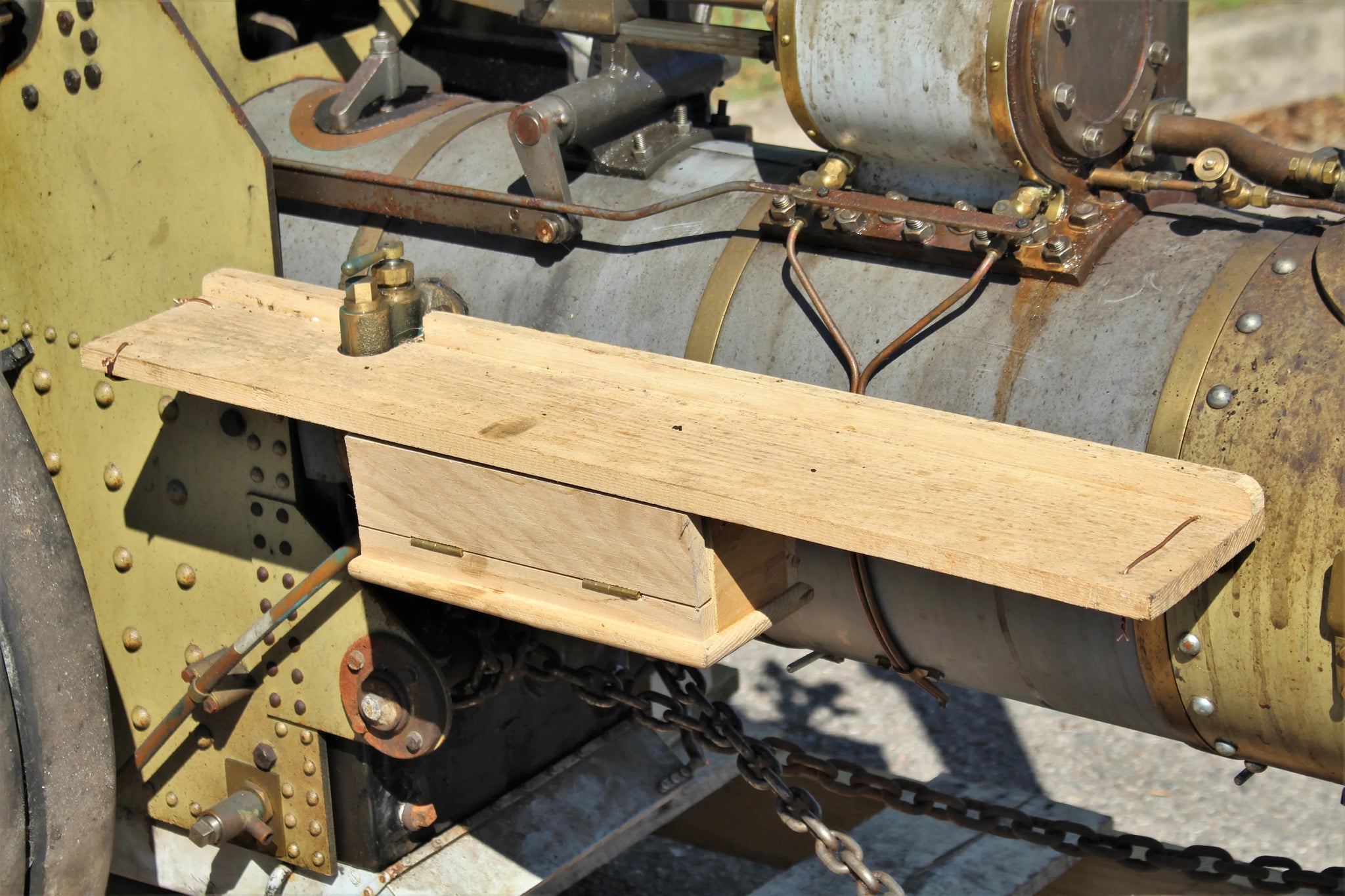

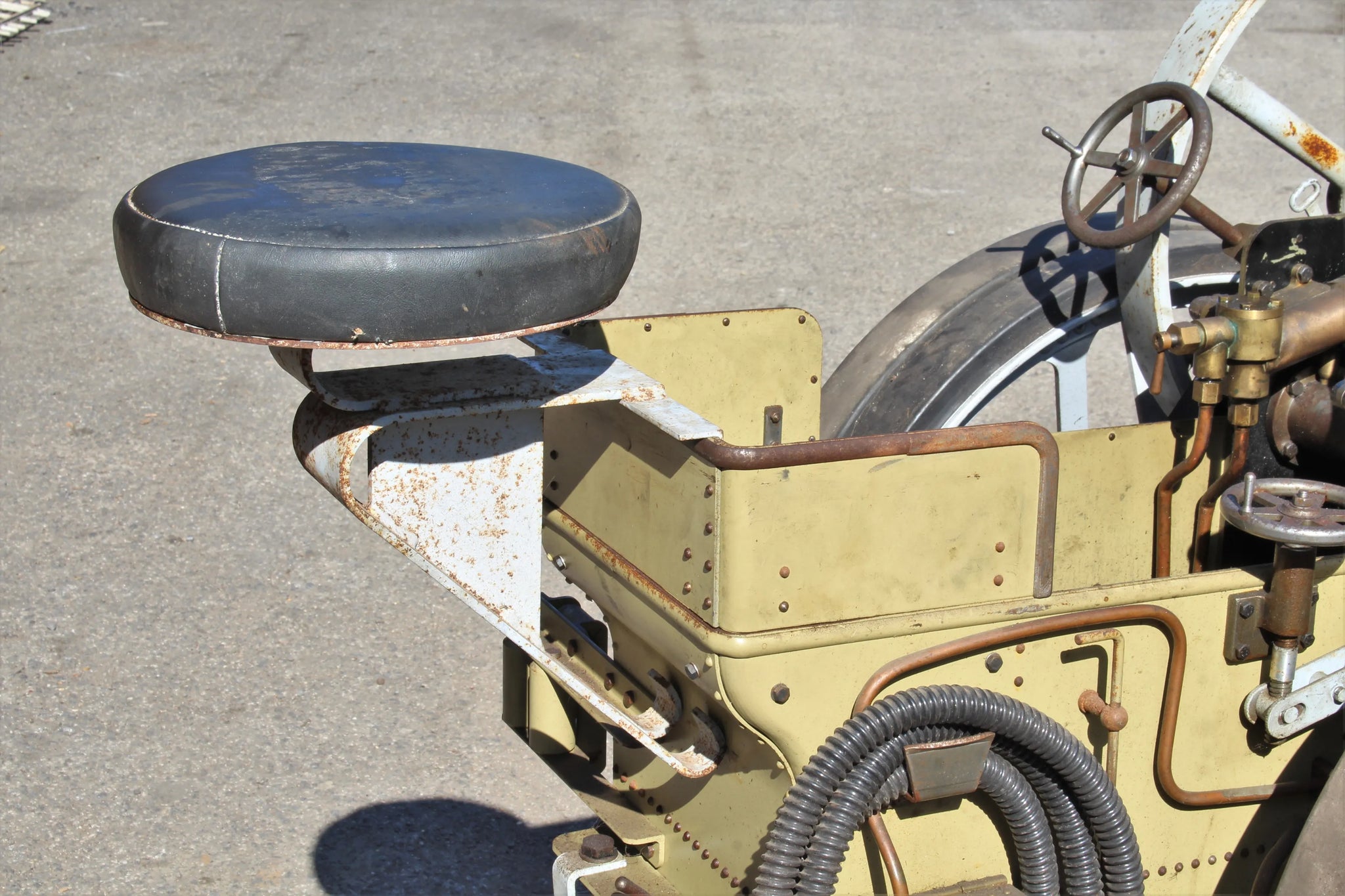

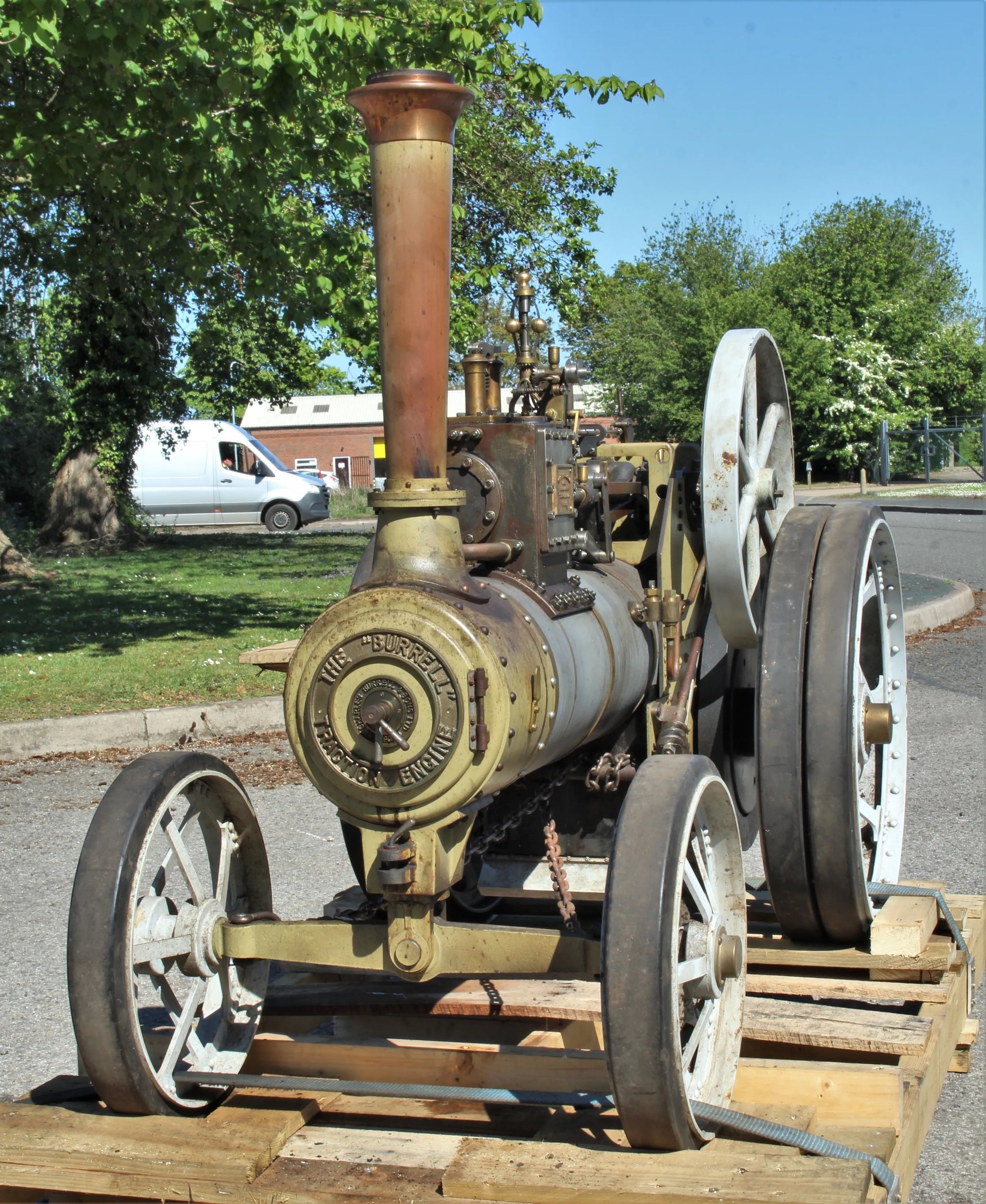

Complete with driver's seat and steam-raising extension chimney.

We've had several of the STW Burrells in over the years - they go well and can be finished to a high standard - there's a particularly nicely painted one shown in the archive here if you need some inspiration.

Technical information

Stock code

9103

Scale

4 inch

Length/inches

72

Width/inches

30

Height/inches

46

Weight/Kg

500kg

Cylinder material

cast iron

Valve type

slide

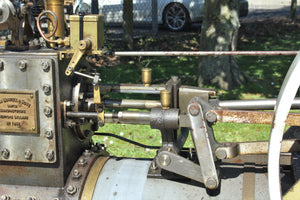

Valve gear

Stephensons

Reverser type

pole

Lubricator type

mechanical

Boiler maker

Cope Engineering

Boiler type

locomotive

Boiler construction

welded, expanded tubes

Boiler material

steel

Working pressure

120

CE/UKCA mark

yes

Year built

2005

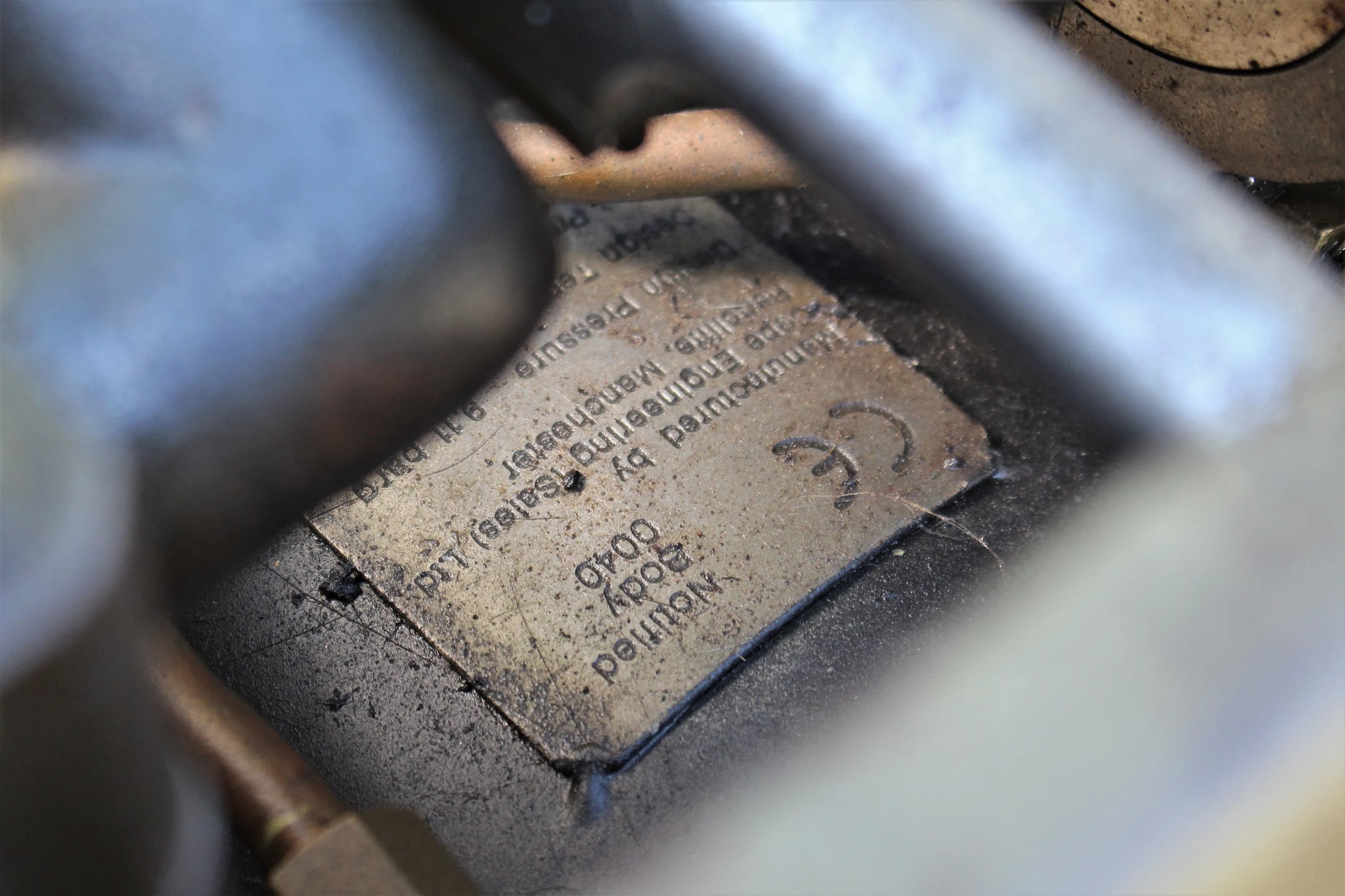

Boiler number

2055

Safety valve type

Ramsbottom

Safety valve

2

Fusible plug

yes

Differential

yes

Road speed

2

Whistle

yes

Mechanical pump

1

Injector

1

Date out

May-20

Hydraulic test valid to

05-May-22
