4 inch scale Garrett agricultural engine

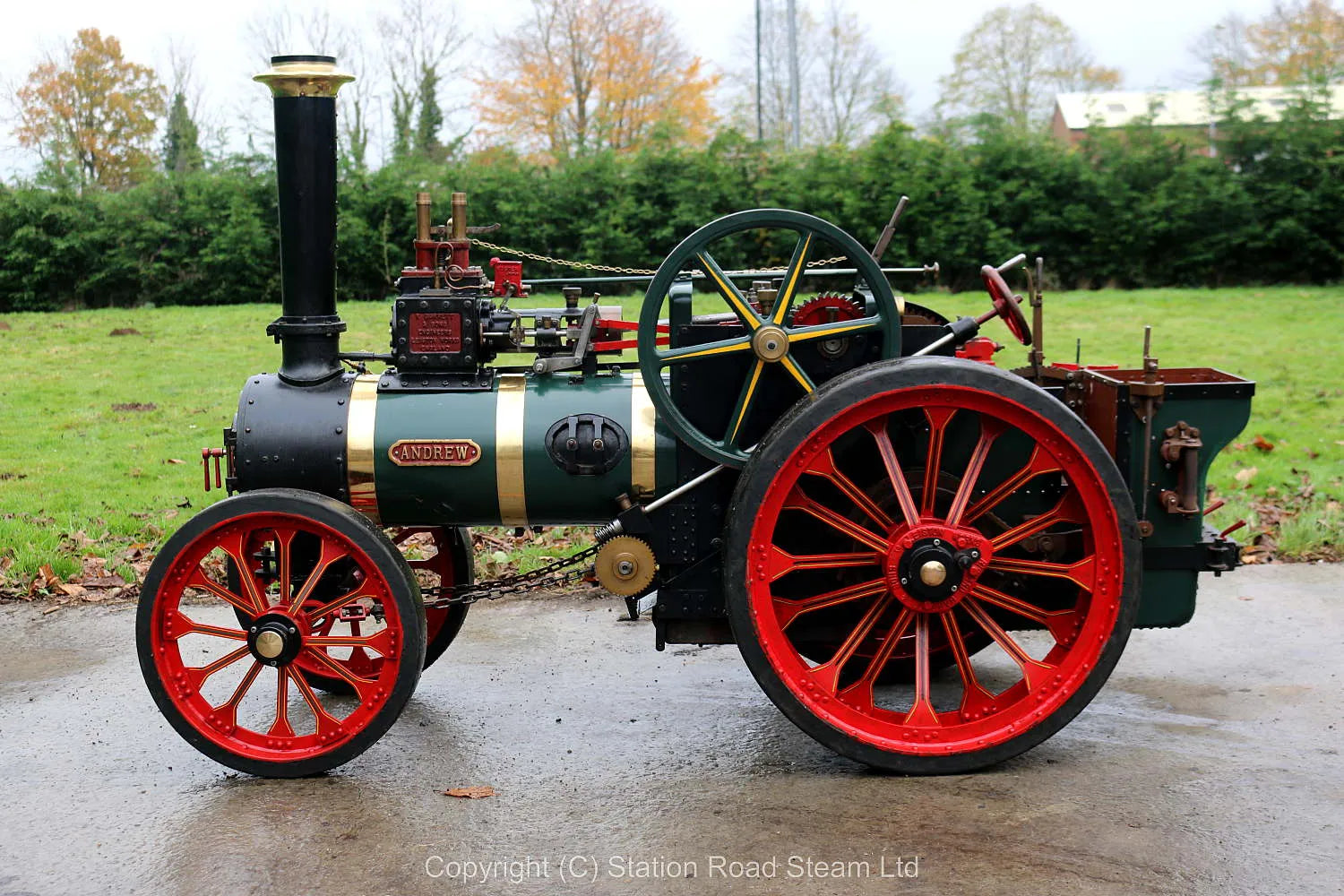

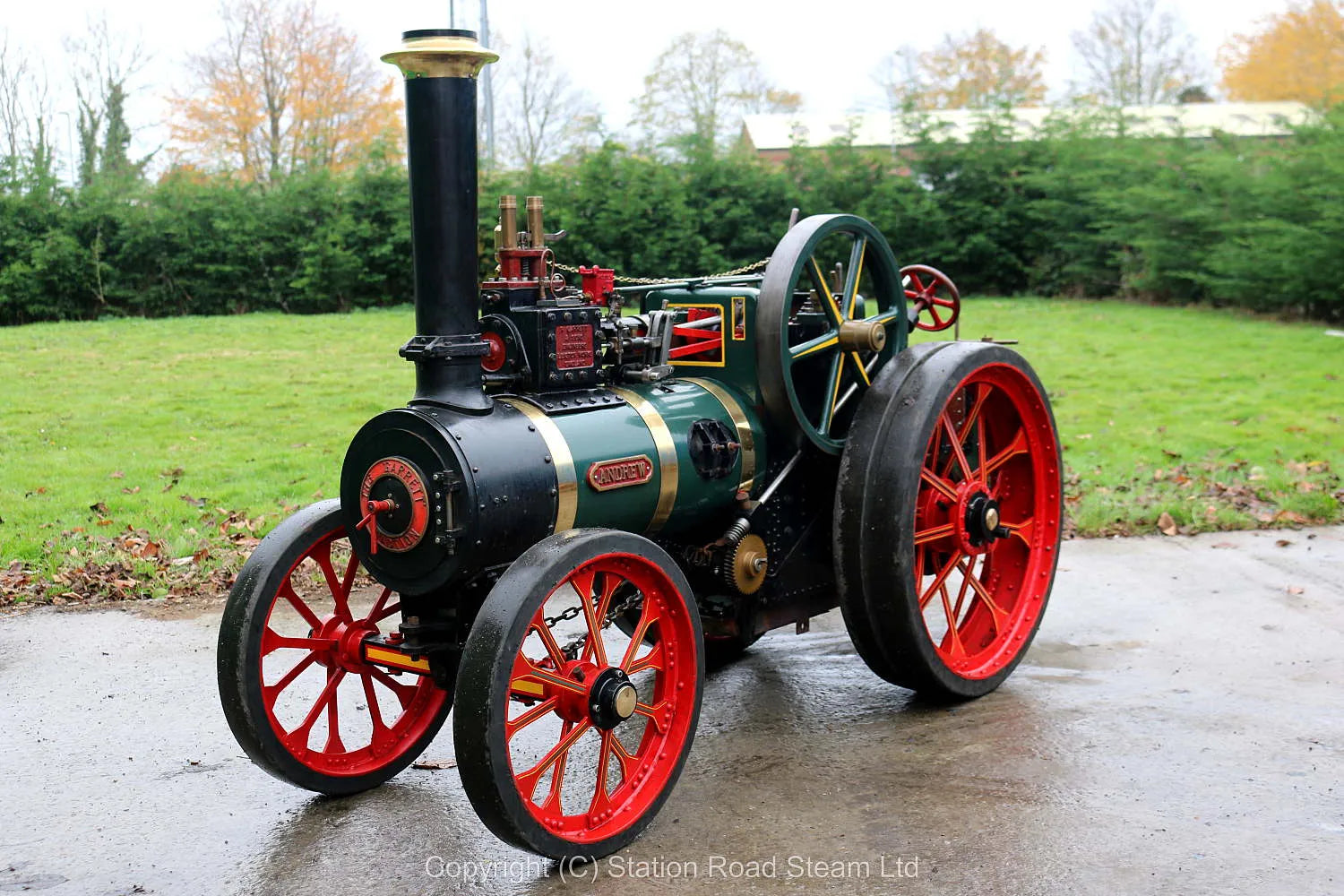

A 4 inch scale Garrett agricultural engine, an older engine in good mechanical order with sound boiler, it goes very well. The design is a particular favourite of ours - it produces a large engine in 4 inch scale, the heavy flywheel allows for a very slow tickover.

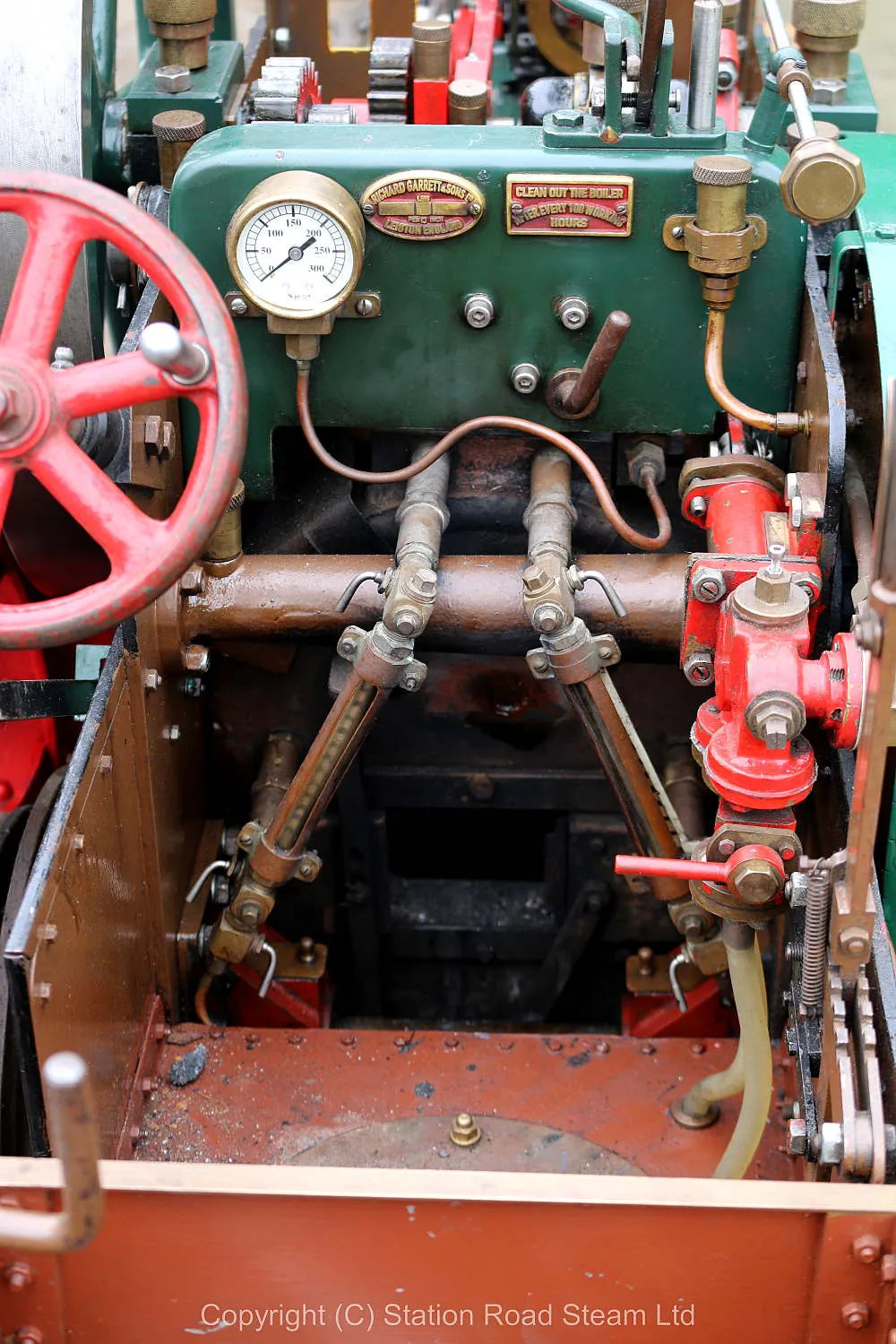

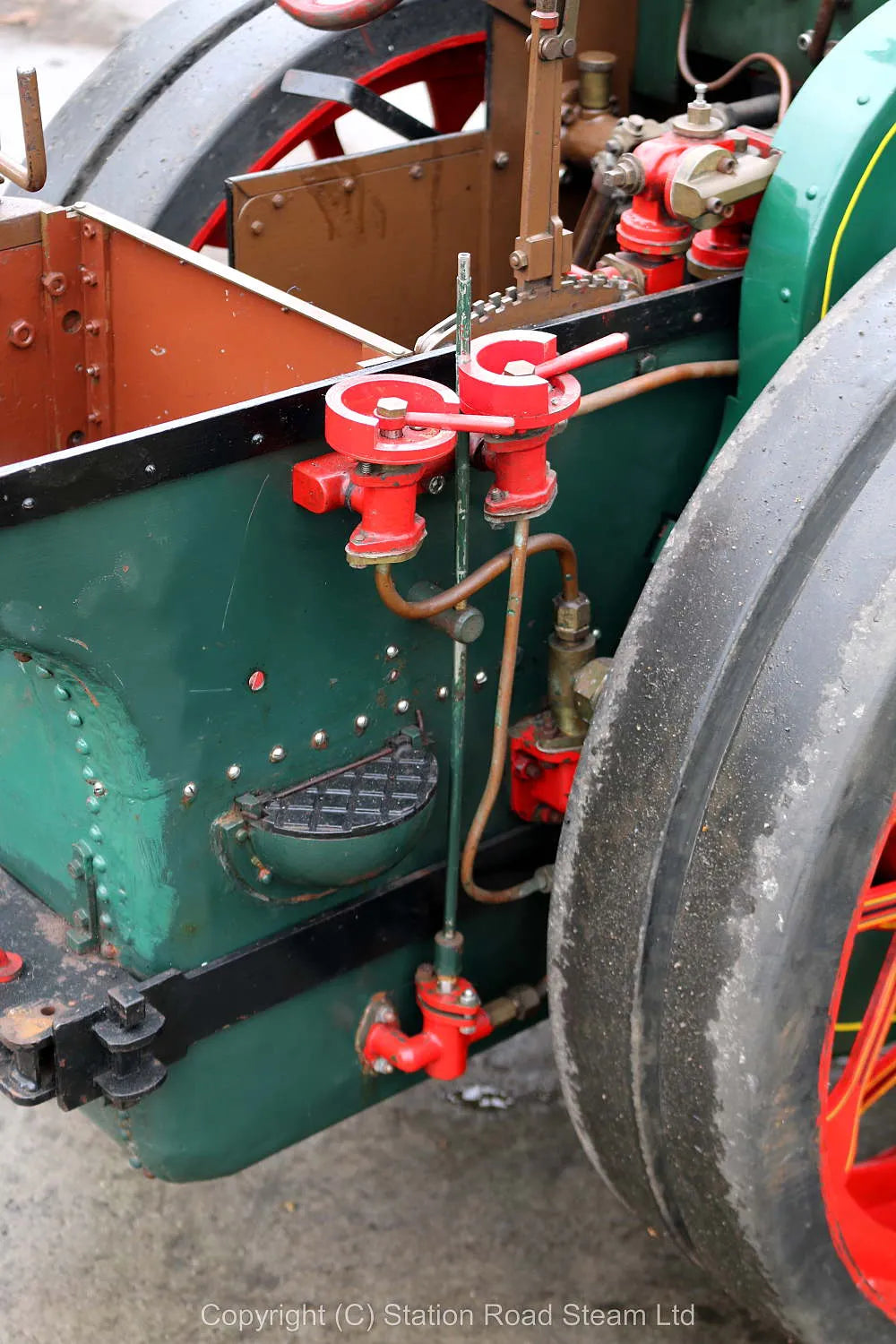

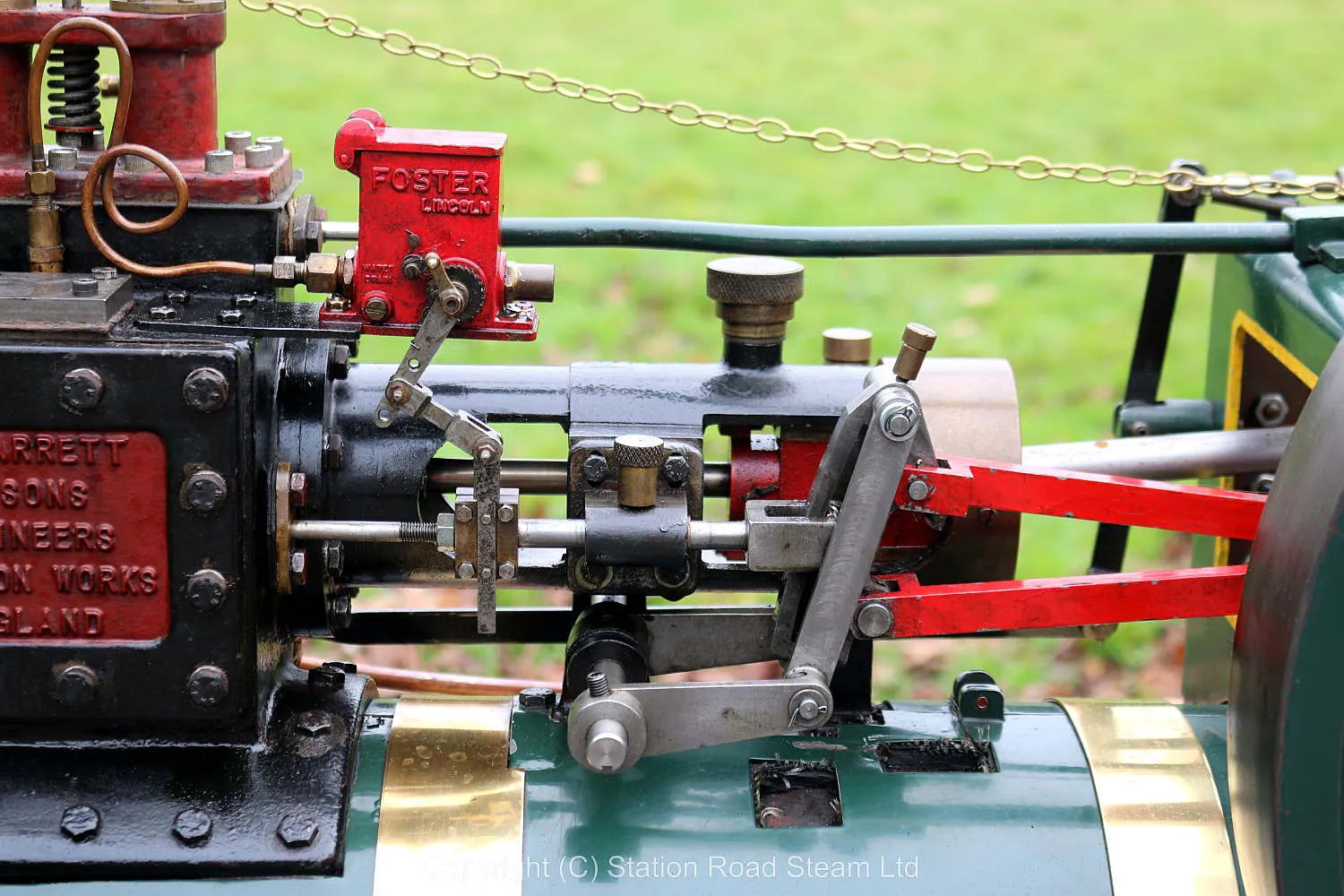

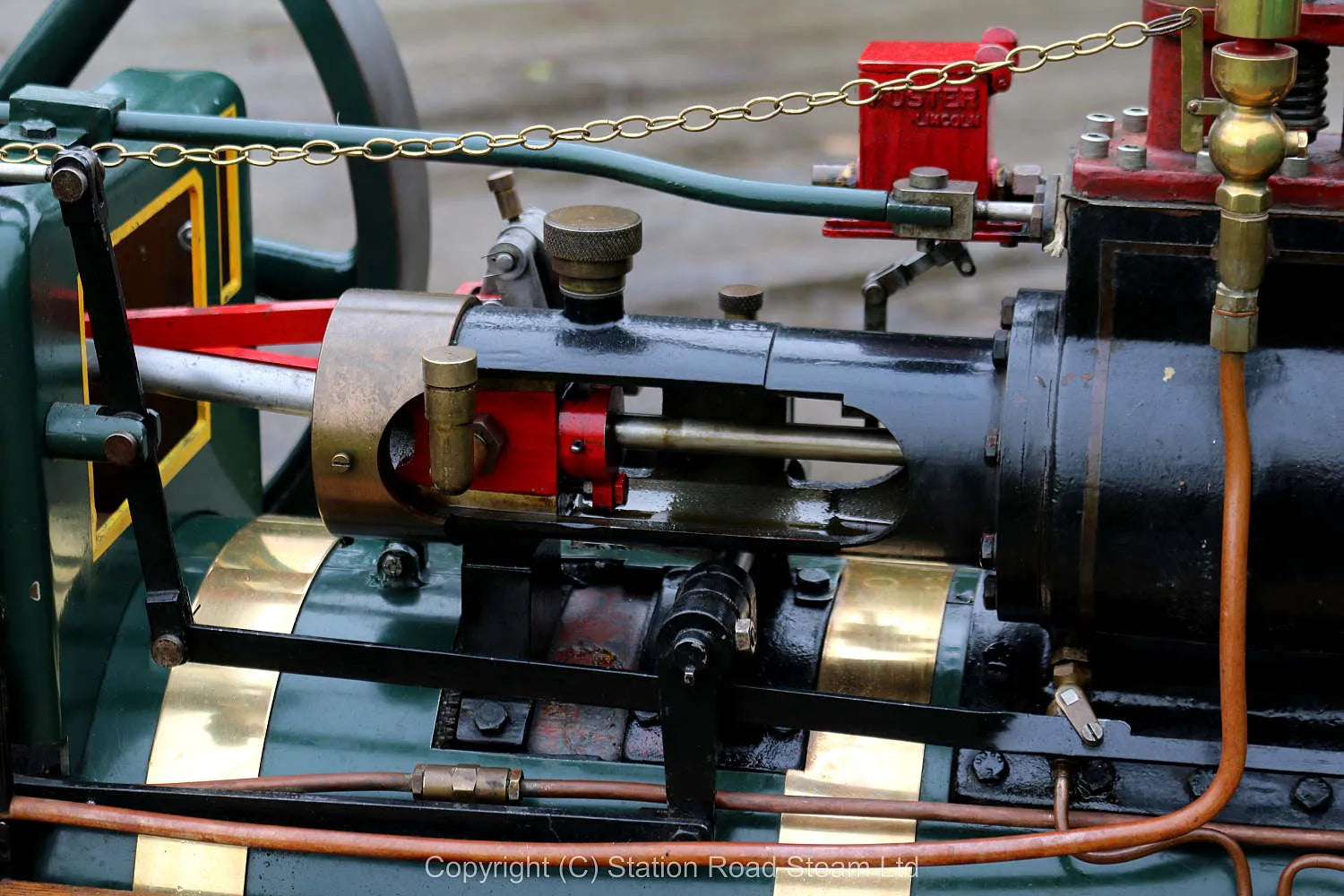

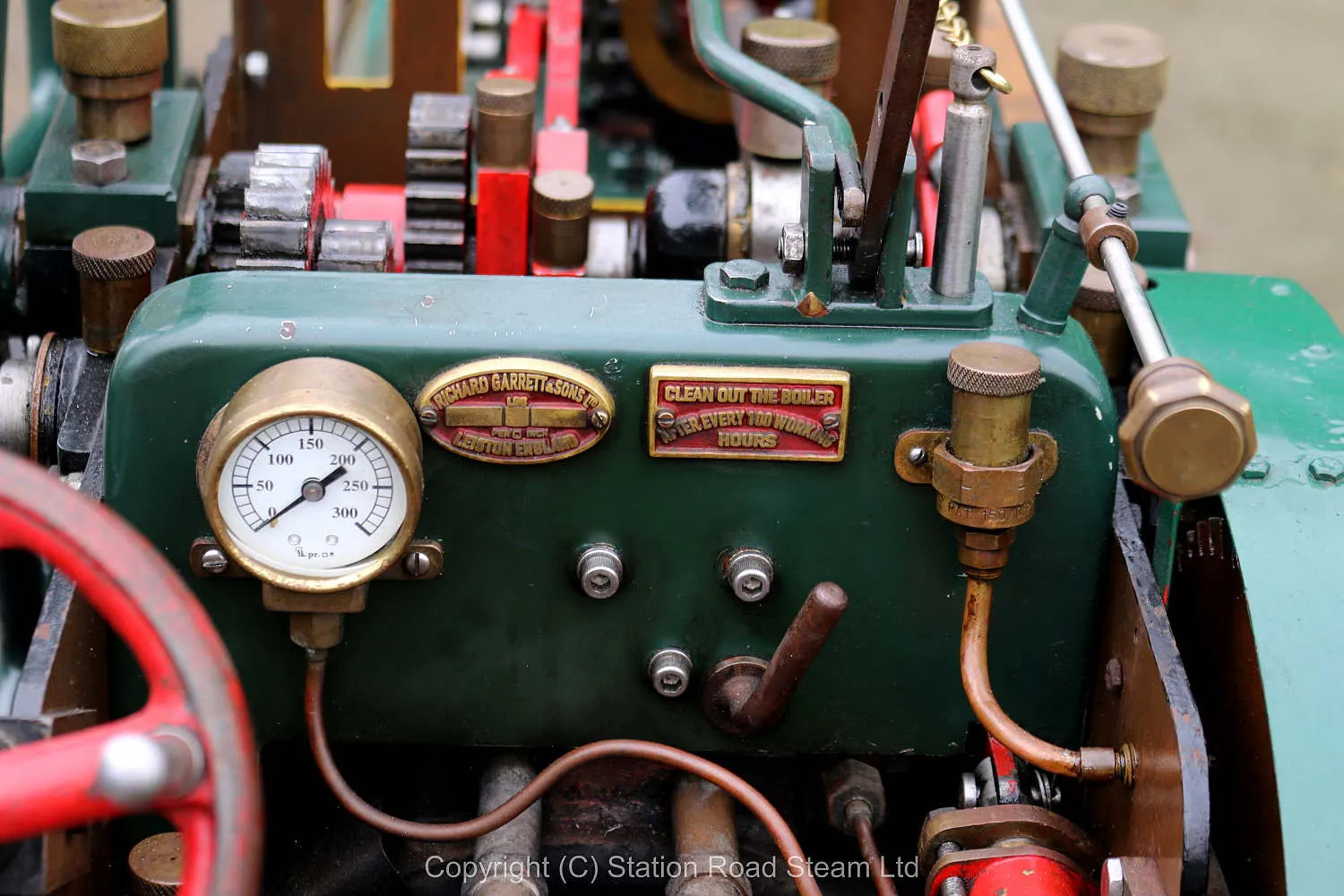

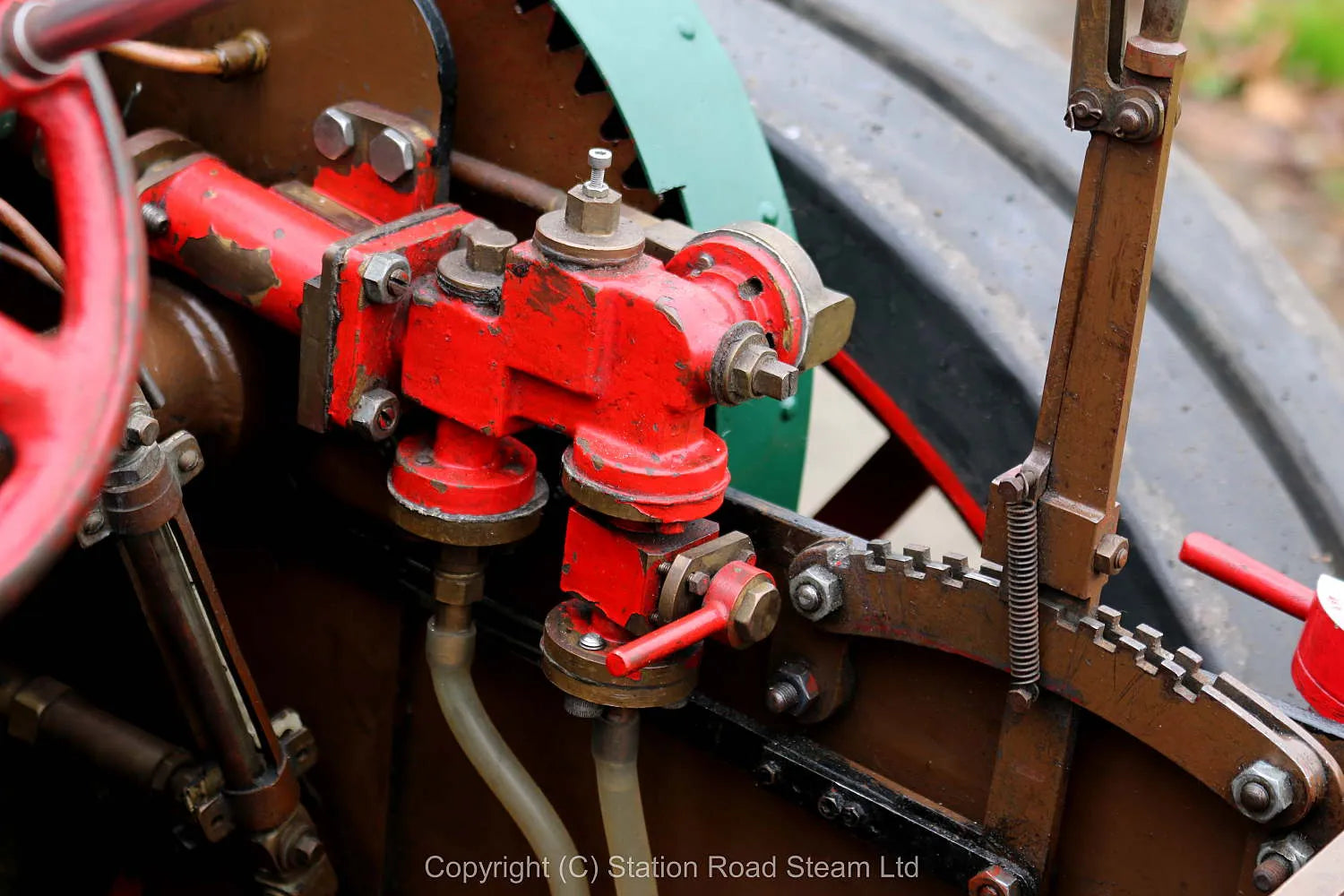

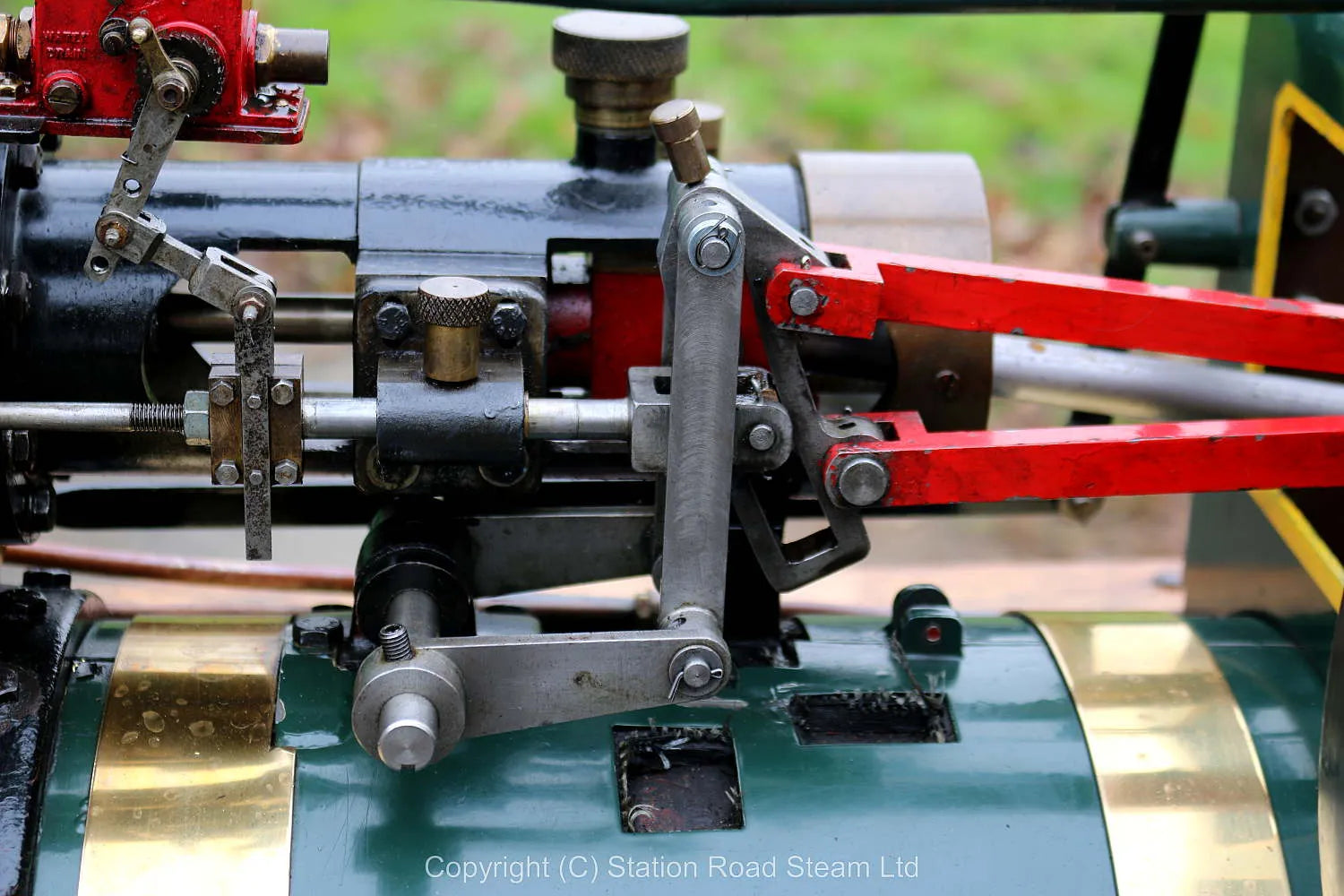

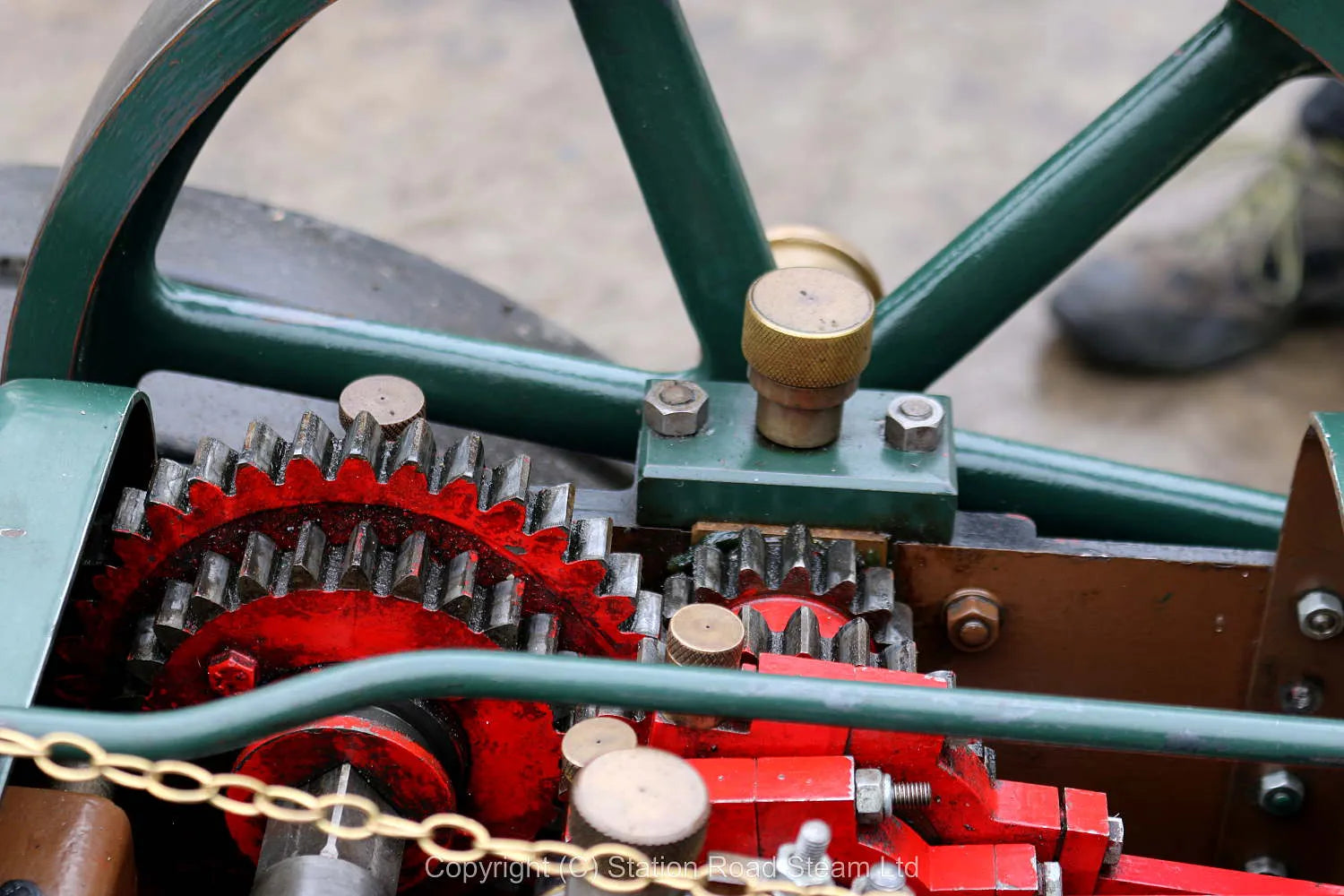

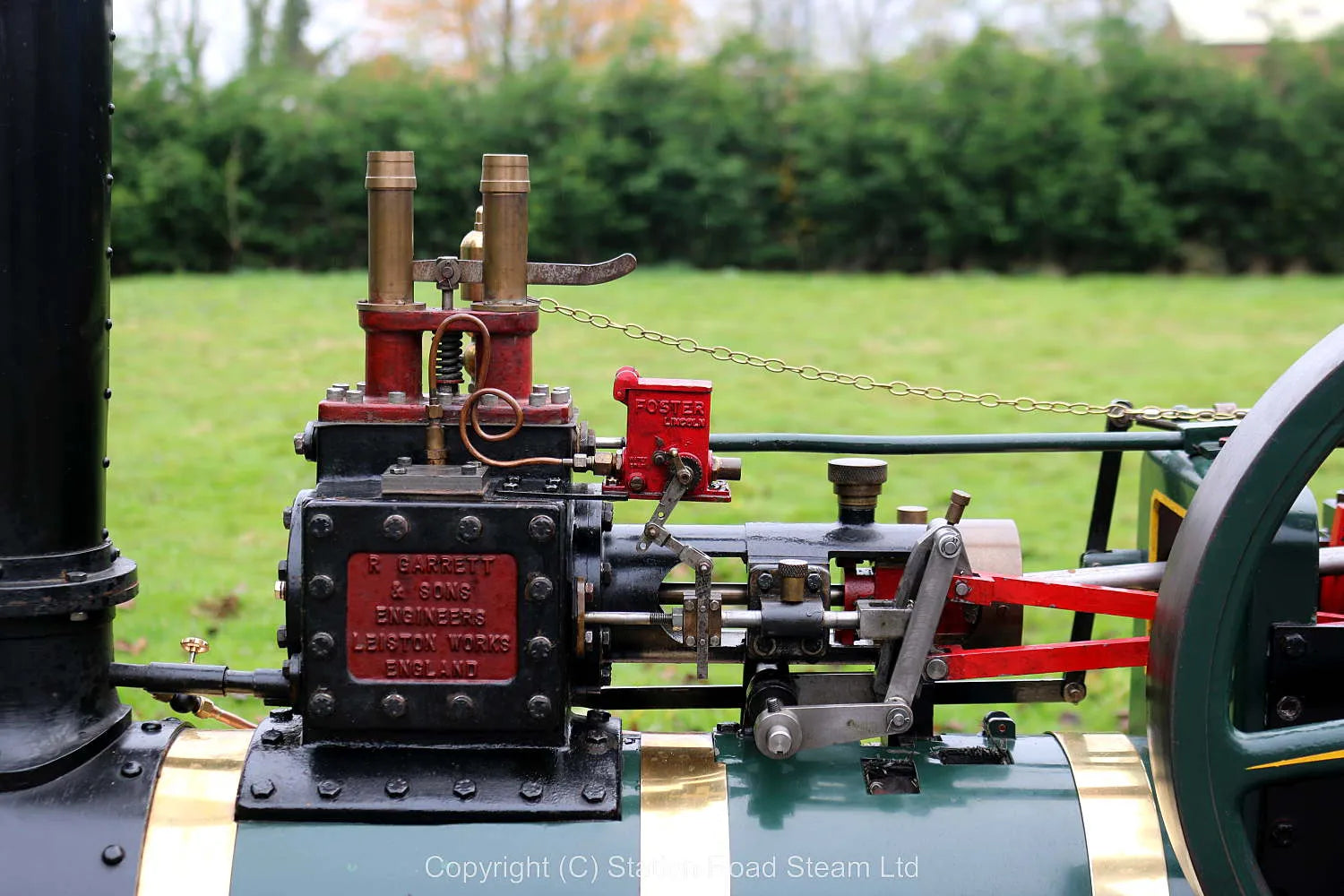

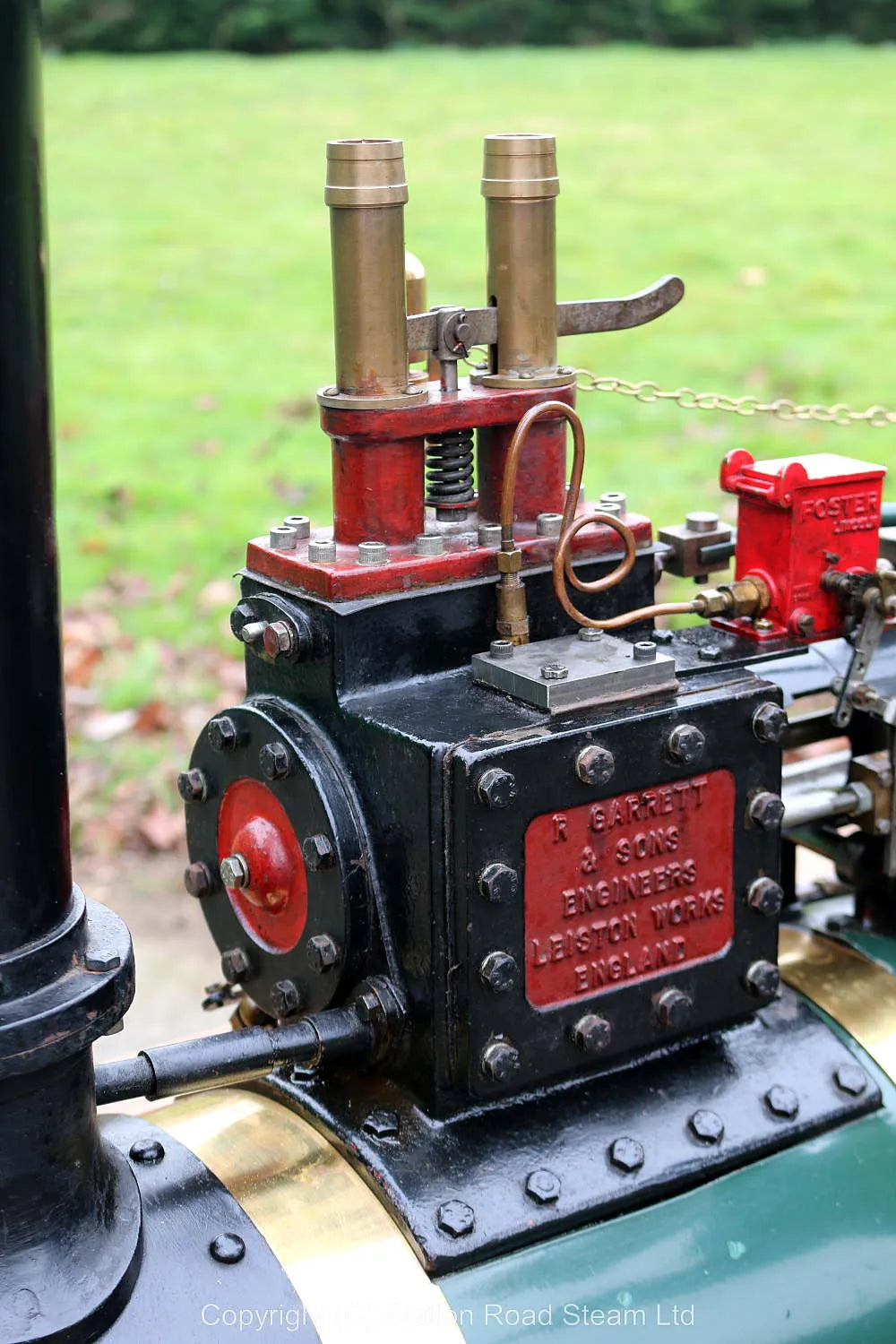

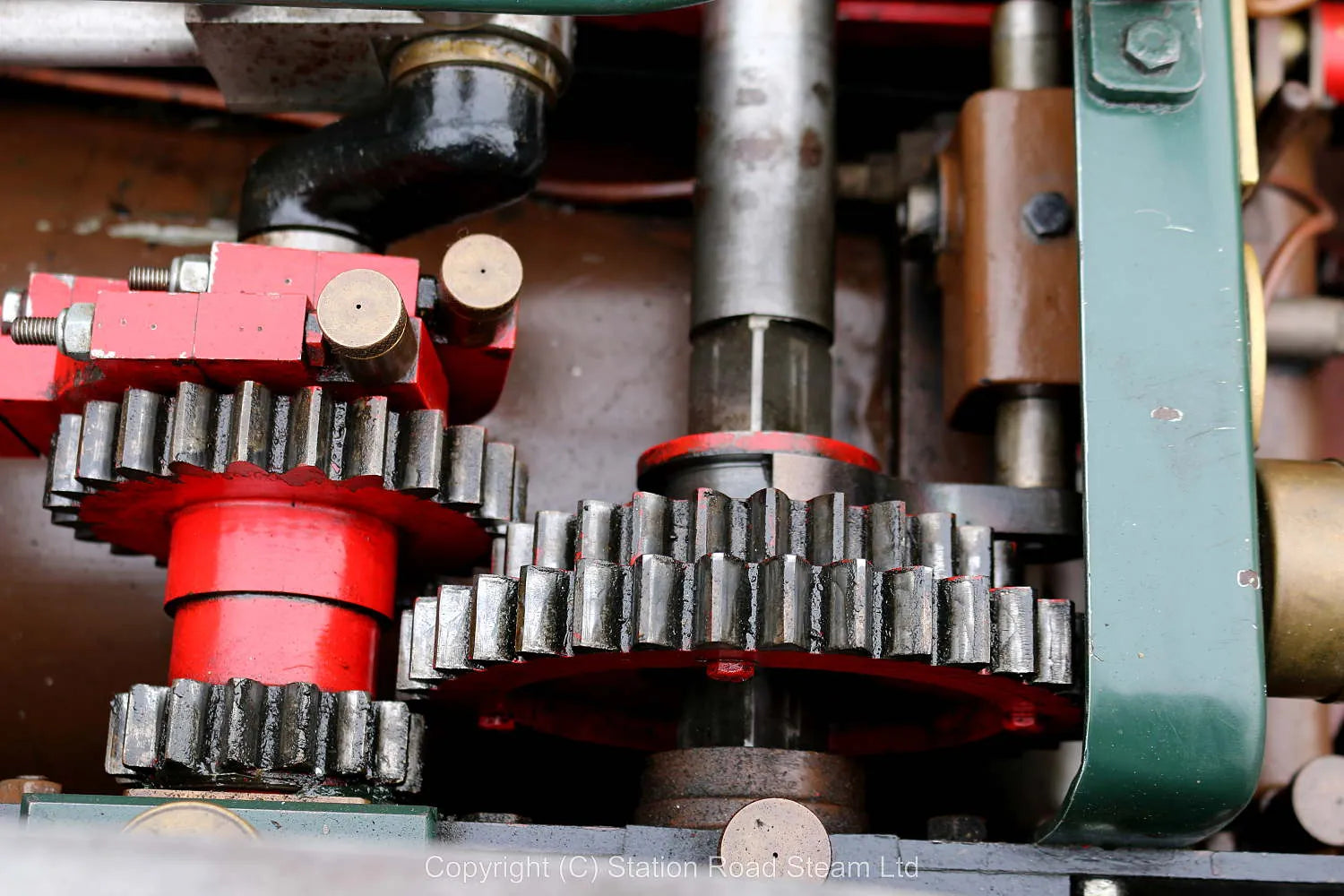

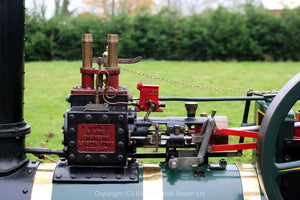

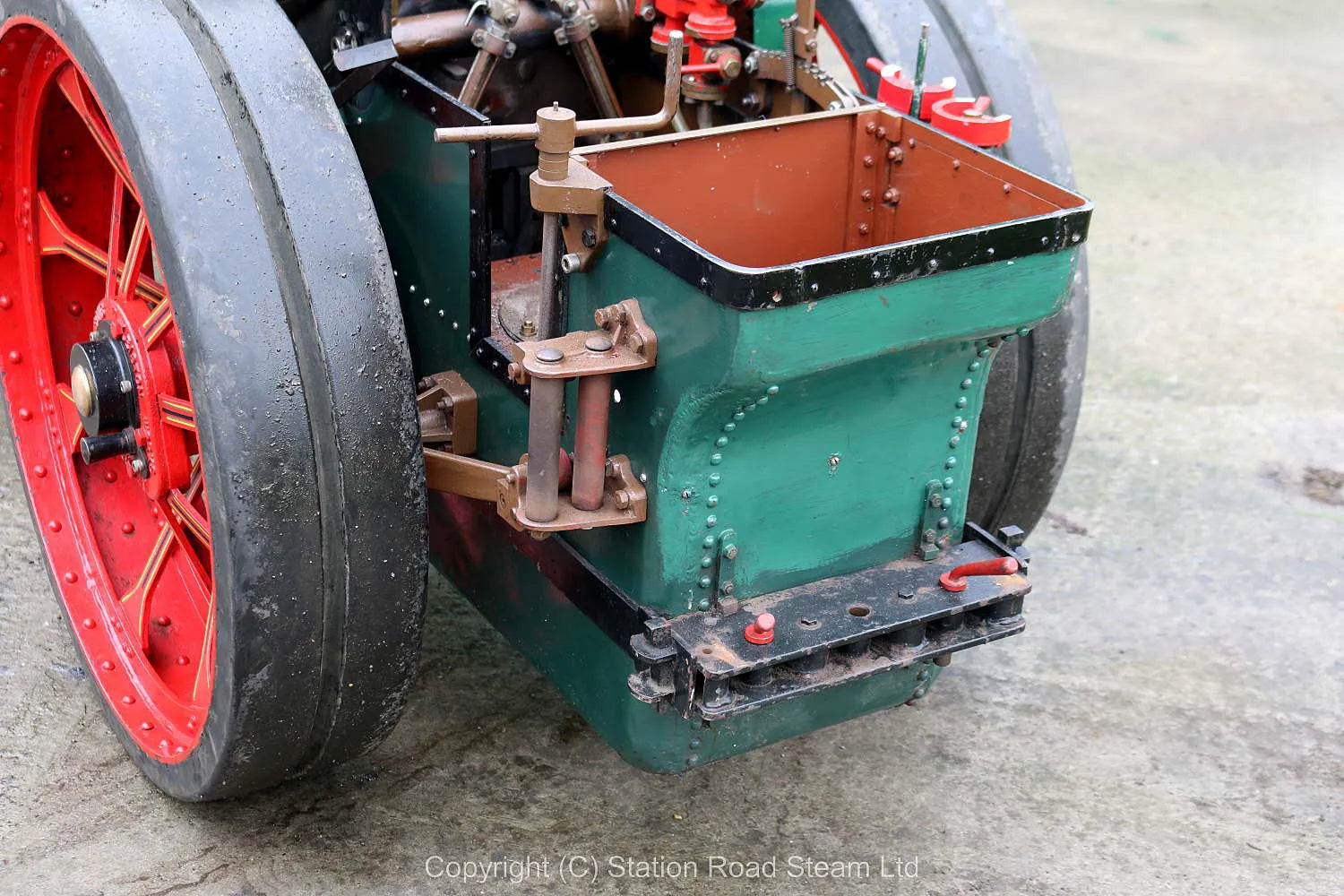

Welded steel boiler with expanded tubes, 120psi working pressure, feed by injector and mechanical pump. Cast iron cylinder with slide valve actuated by Stephensons gear. Mechanical lubricator. Two speed, four shaft transmission with differential, winch behind nearside rear wheel.

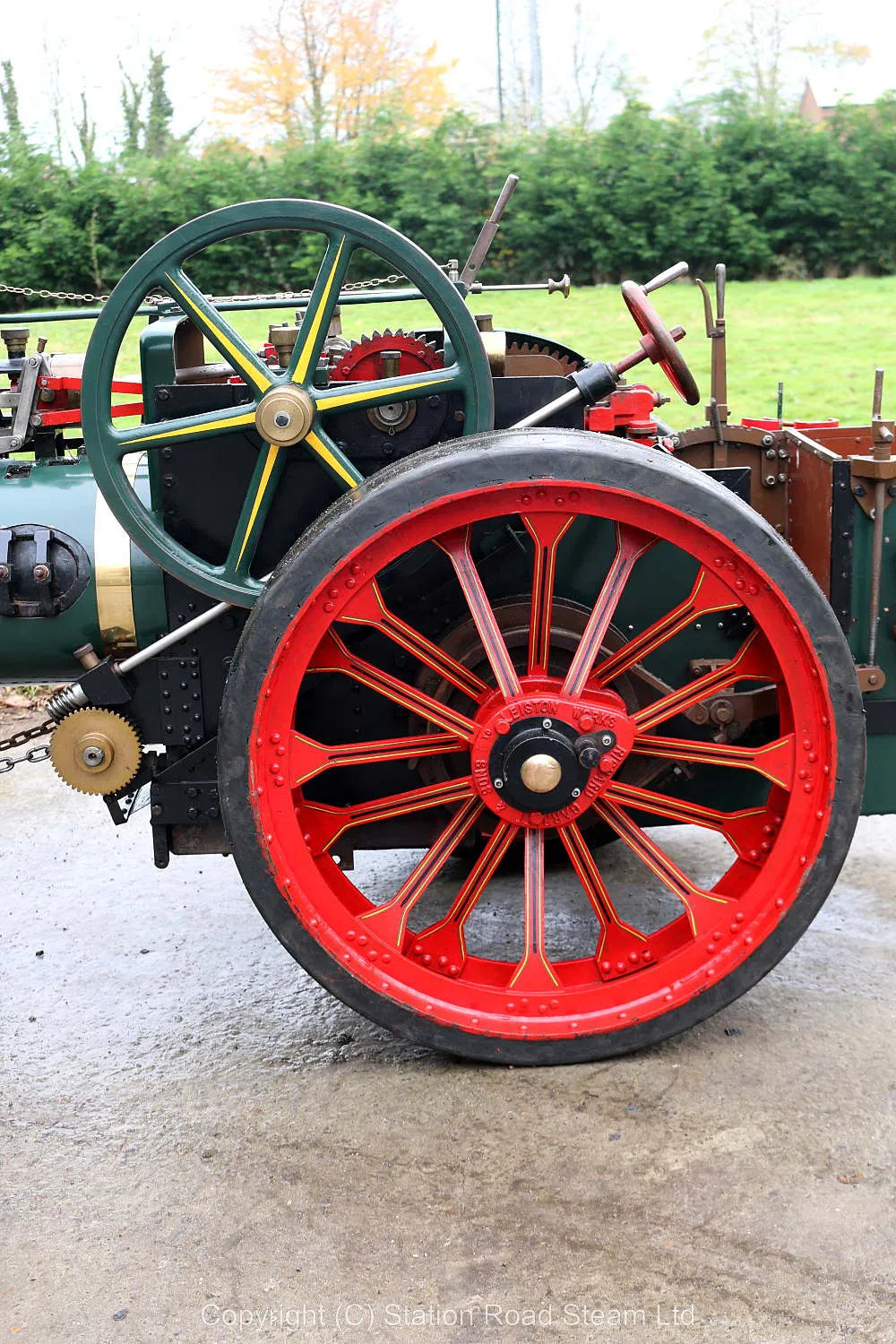

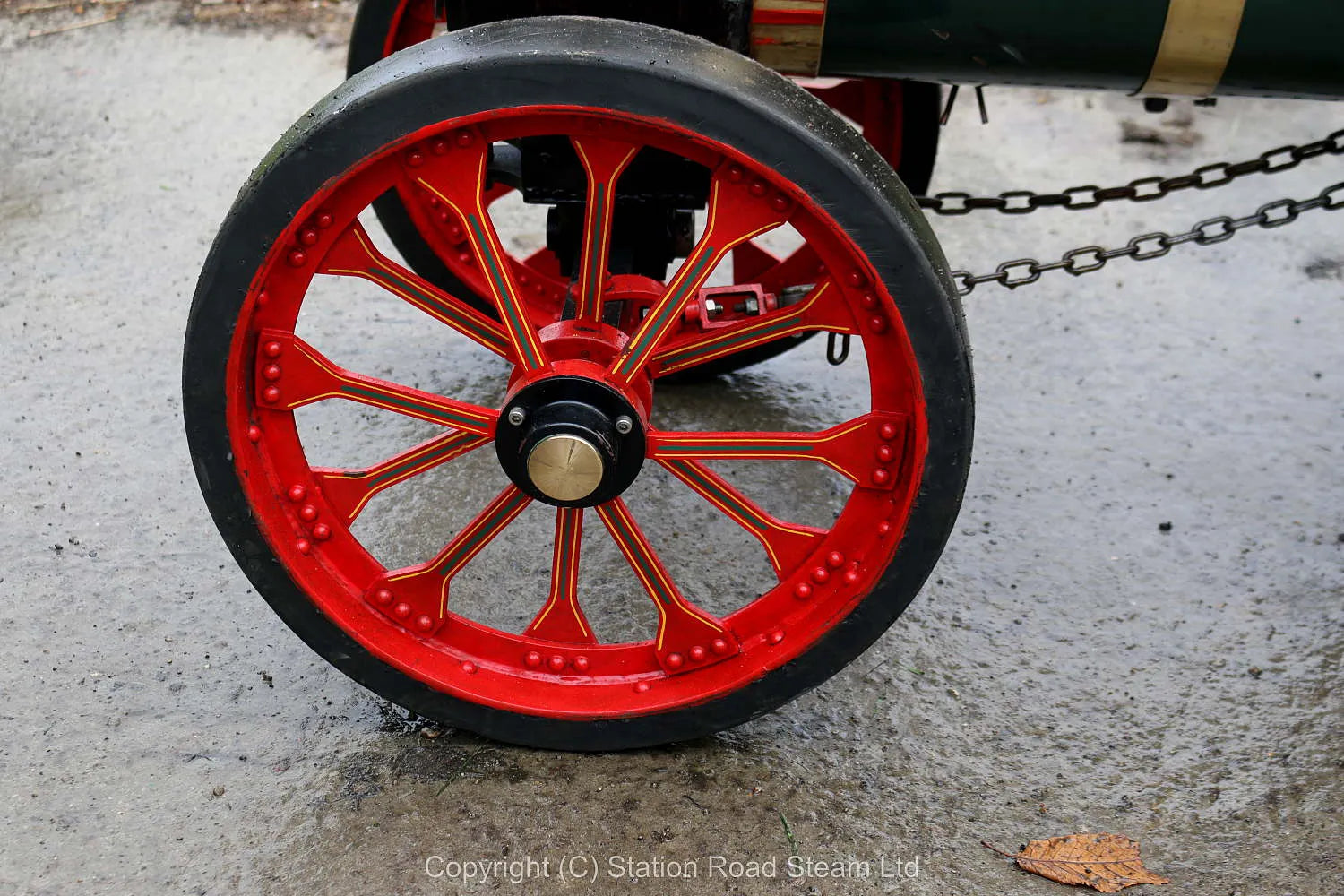

The engine is fitted with rubber tyres which are in good condition, it's had a recent cladding off twice working pressure hydraulic test, ultrasonic survey and steam test.


Technical information

Stock code

7697

Scale

4 inch

Cylinder material

cast iron

Valve type

slide

Valve gear

Stephensons

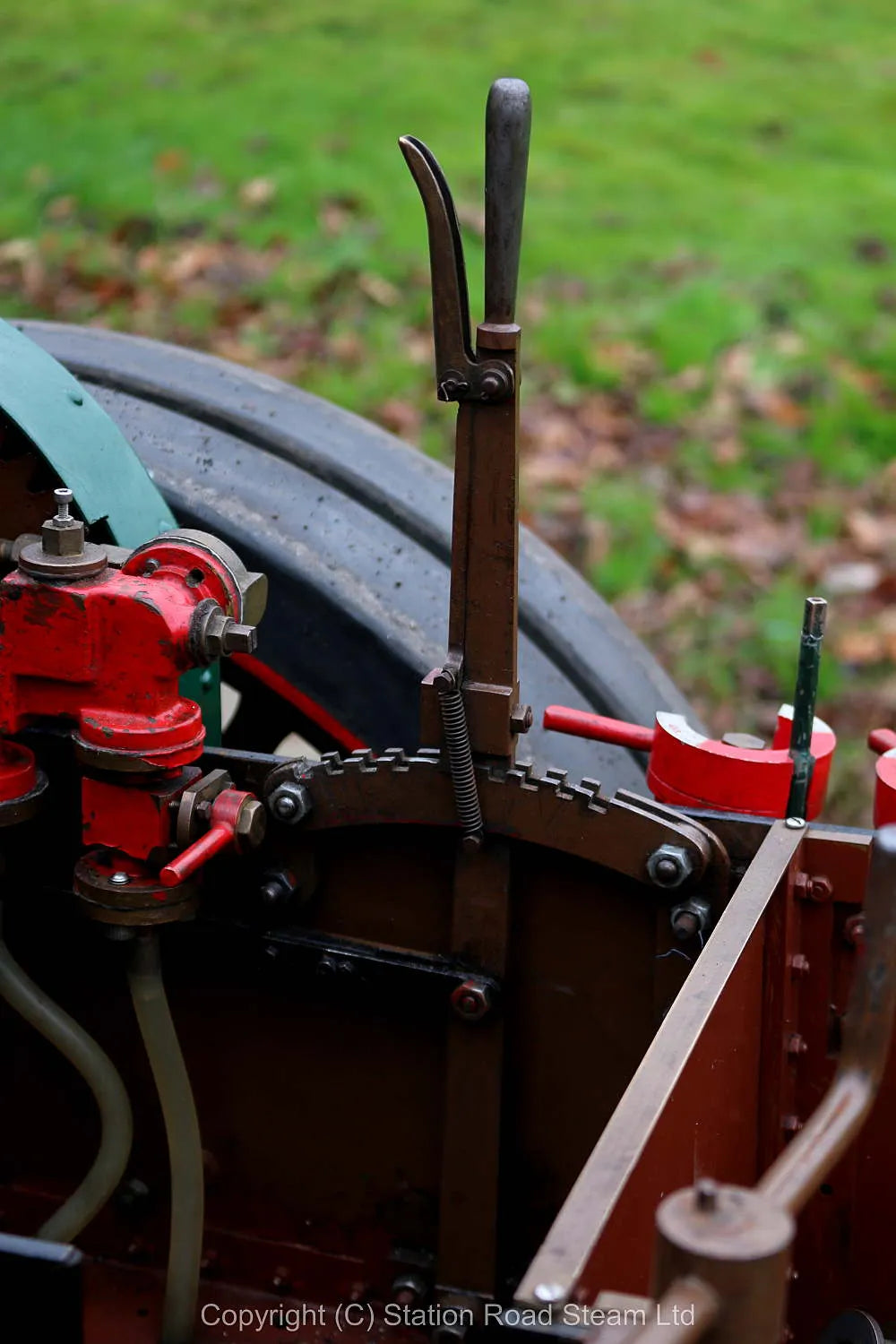

Reverser type

pole

Lubricator type

mechanical

Boiler maker

unknown

Boiler type

locomotive

Working pressure

120

CE/UKCA mark

n/a - non-commercial

Year built

unknown

Boiler number

7697

Safety valve type

Ramsbottom

Safety valve

2

Fusible plug

yes

Road speed

2

Whistle

yes

Mechanical pump

1

Injector

1

Pack

Double half pallet

Date out

Nov-17

Hydraulic test valid to

01-Nov-19

Steam test valid to

07-Jan-19
