4 inch scale overtype steam wagon

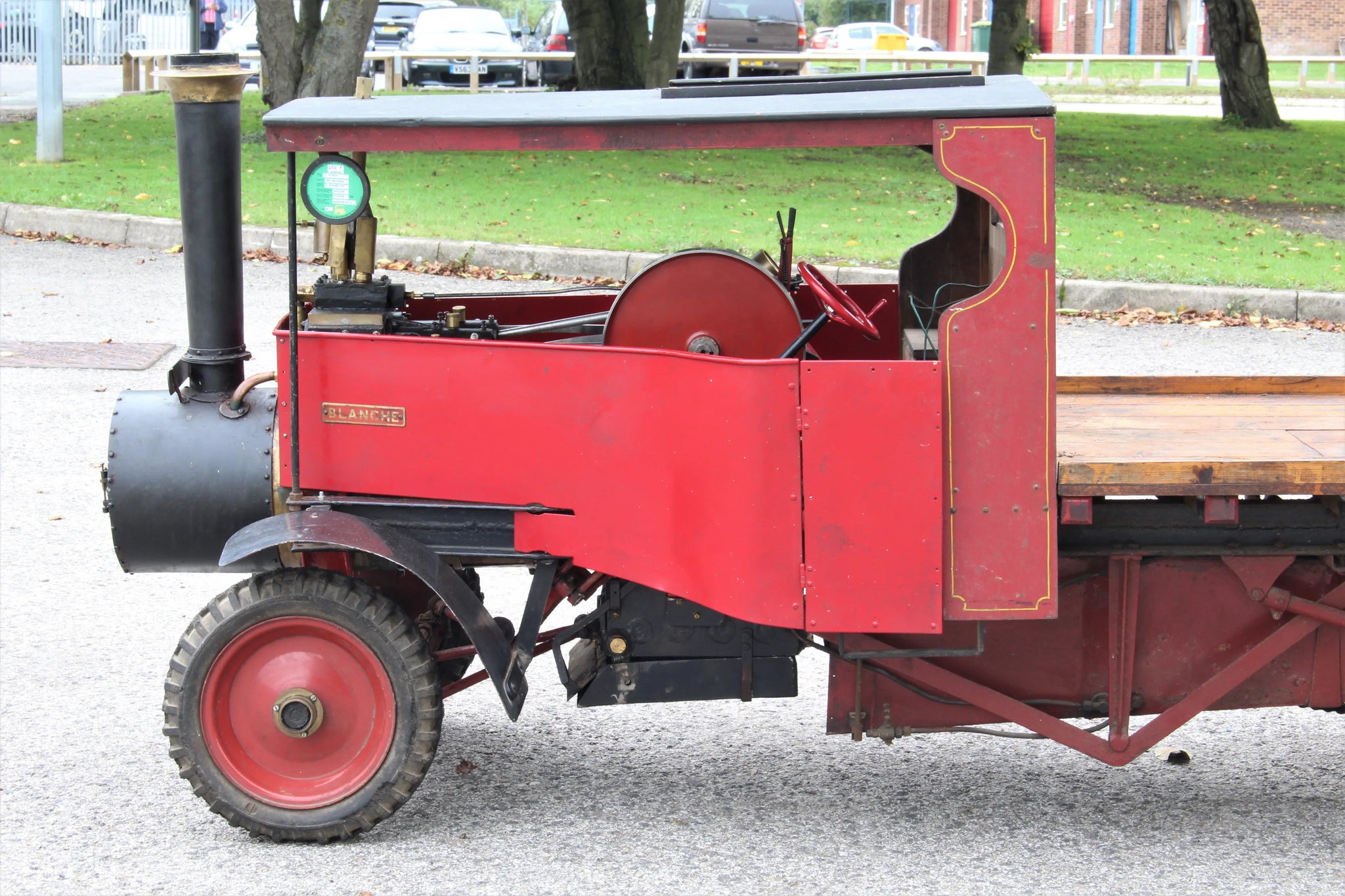

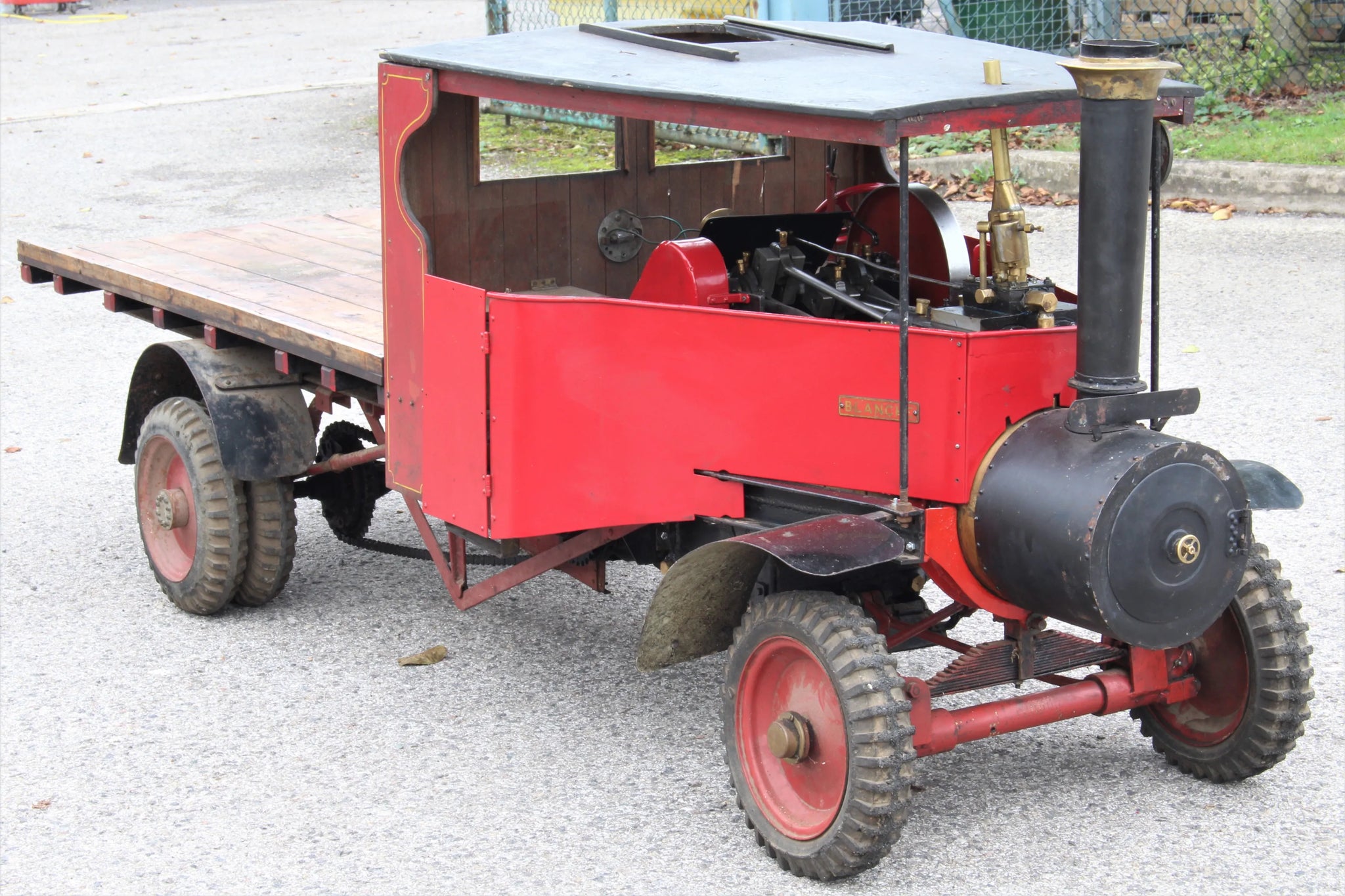

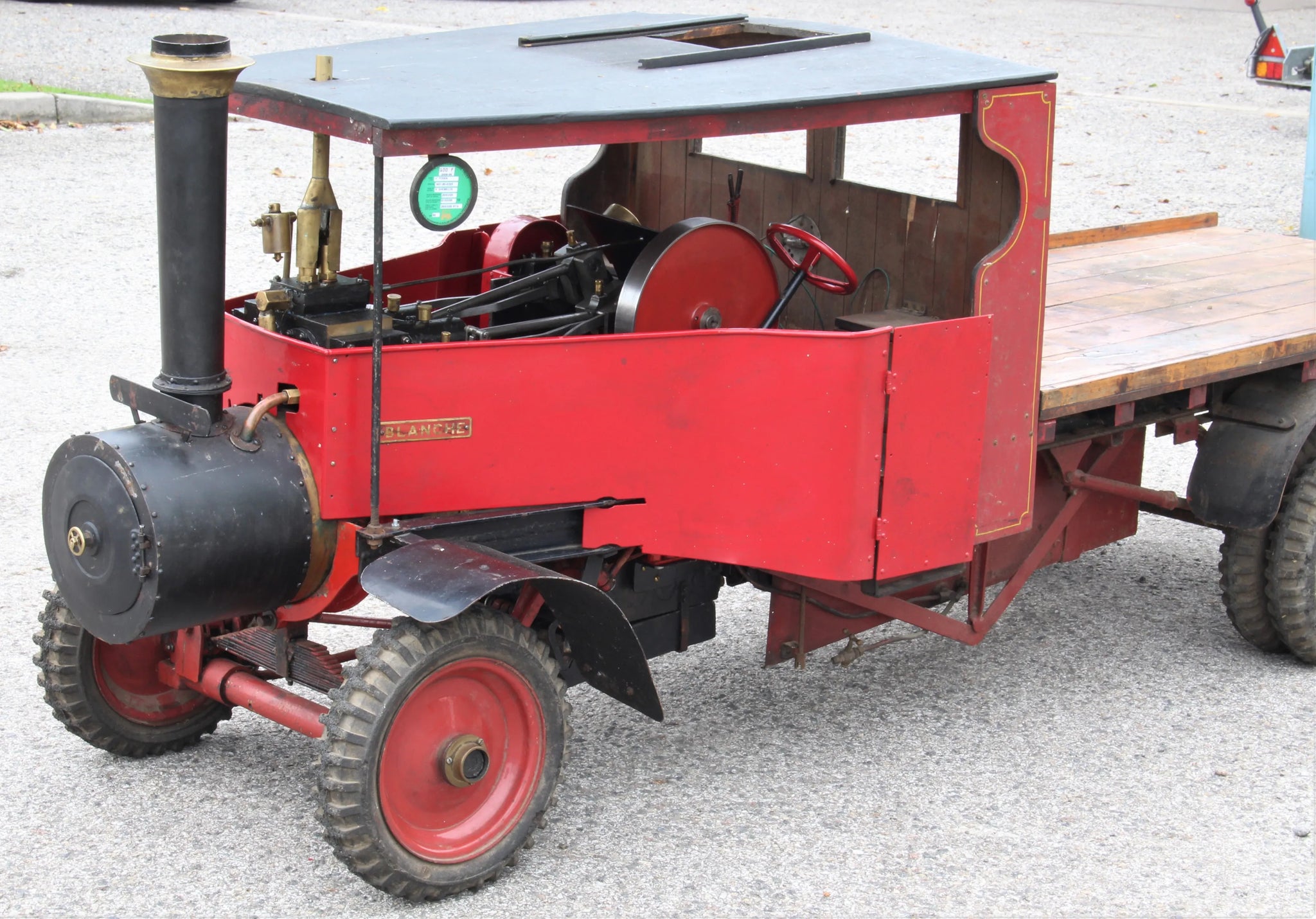

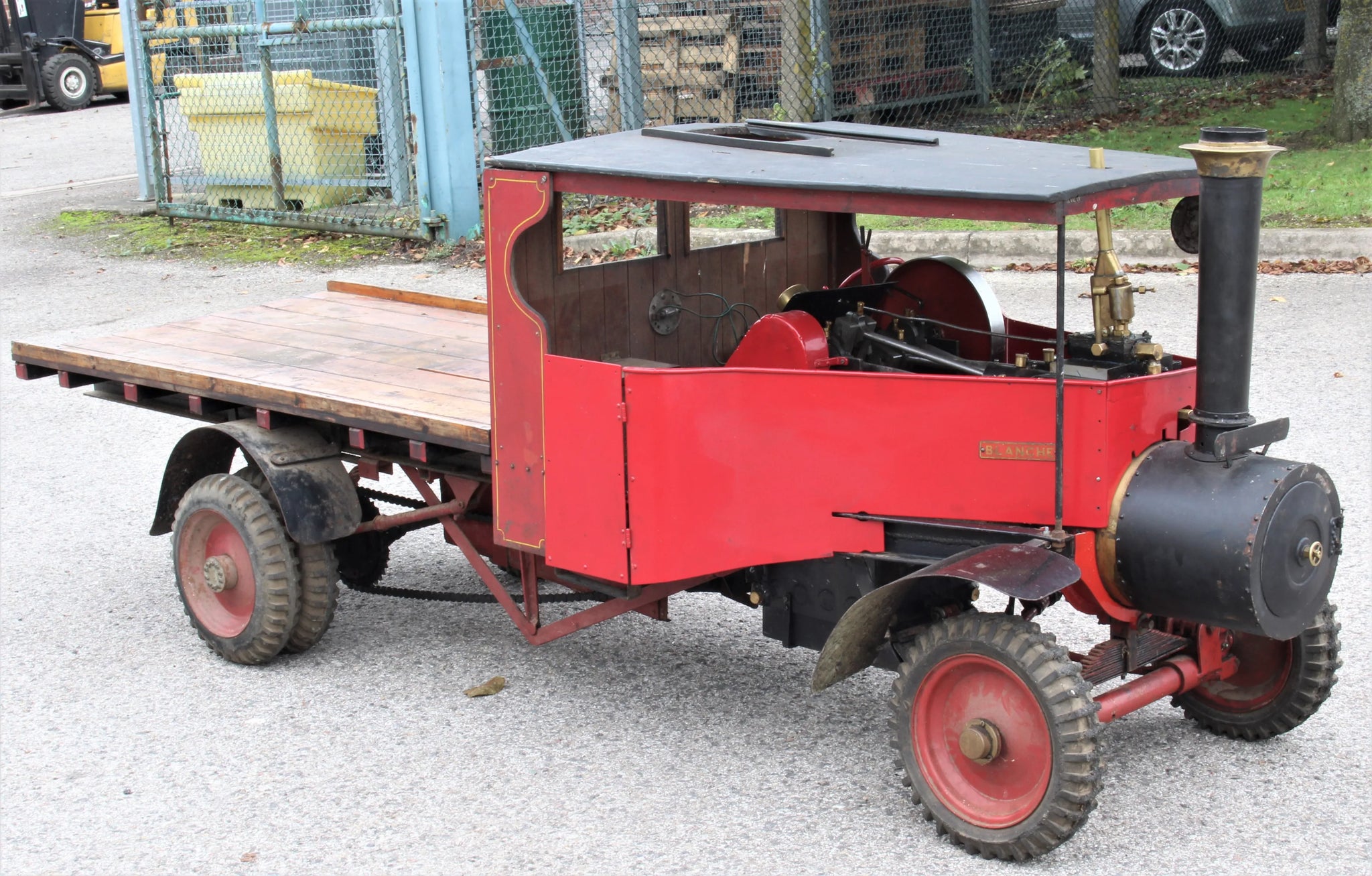

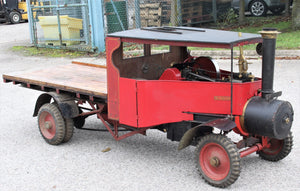

A 4 inch scale Foden style overtype steam wagon, it's recently come in along with a "Pride of Penrhyn".

Boiler components were cut out and machined by the builder, before being welded together and hydraulic tested by well-known boilermaker Terry Statham of TRS Welding - it's complete with certification for material, welder and hydraulic test.

Unused for some years, it has recently had new rings fitted. Runs well forwards, somewhat reluctant going in reverse.

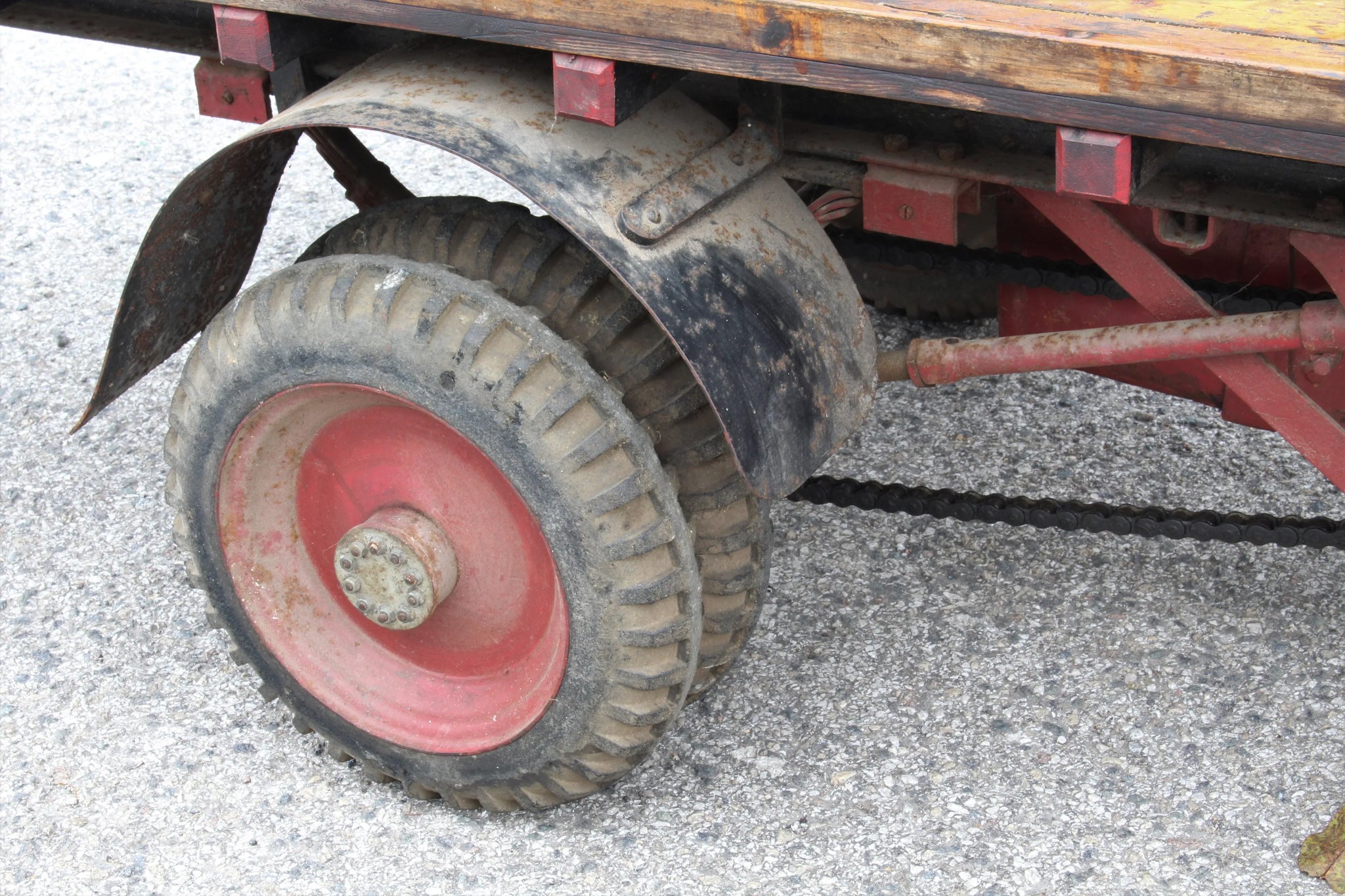

Transmission is by chain to a vintage gearbox tucked underneath the cab, thence by a second chain to the rear axle.

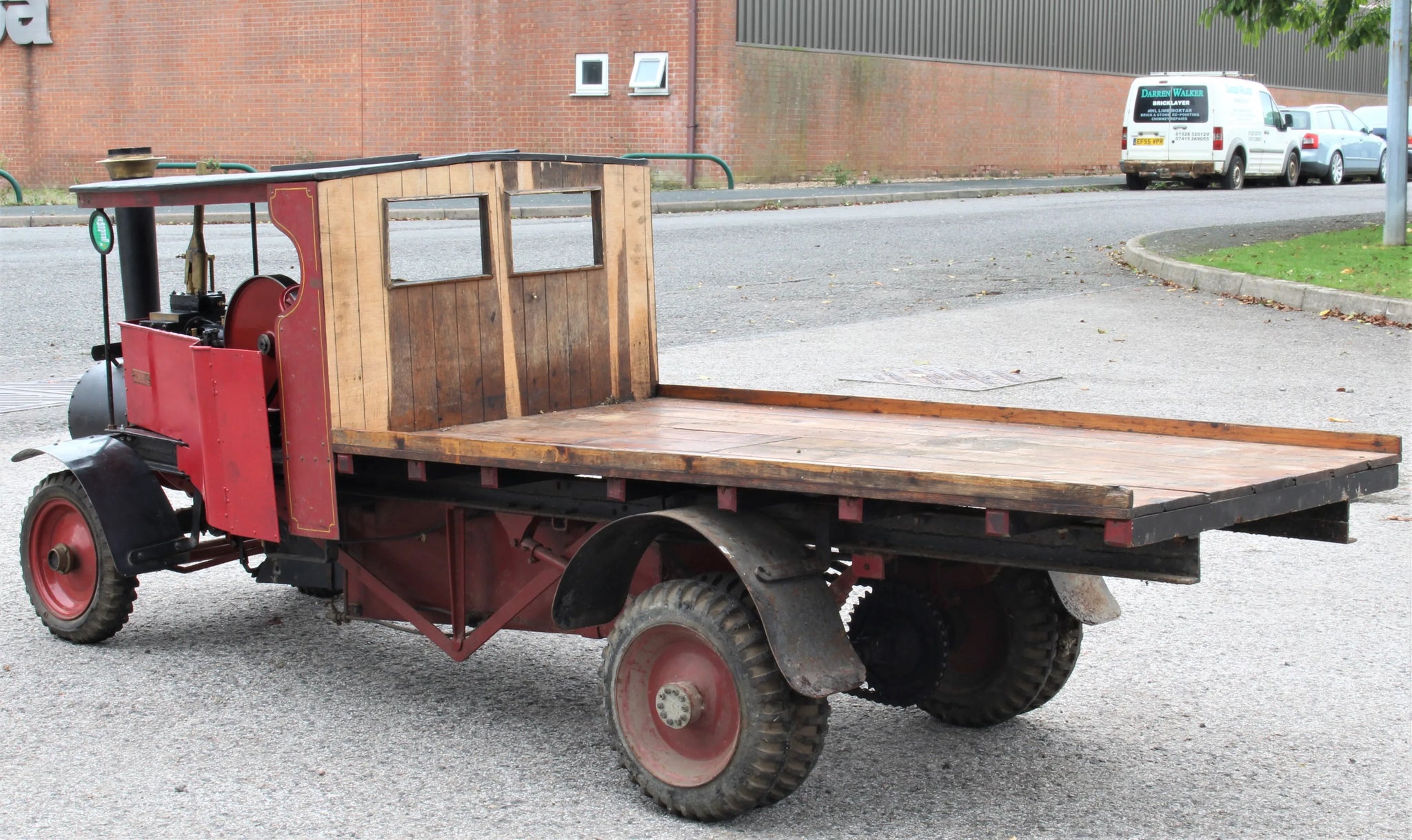

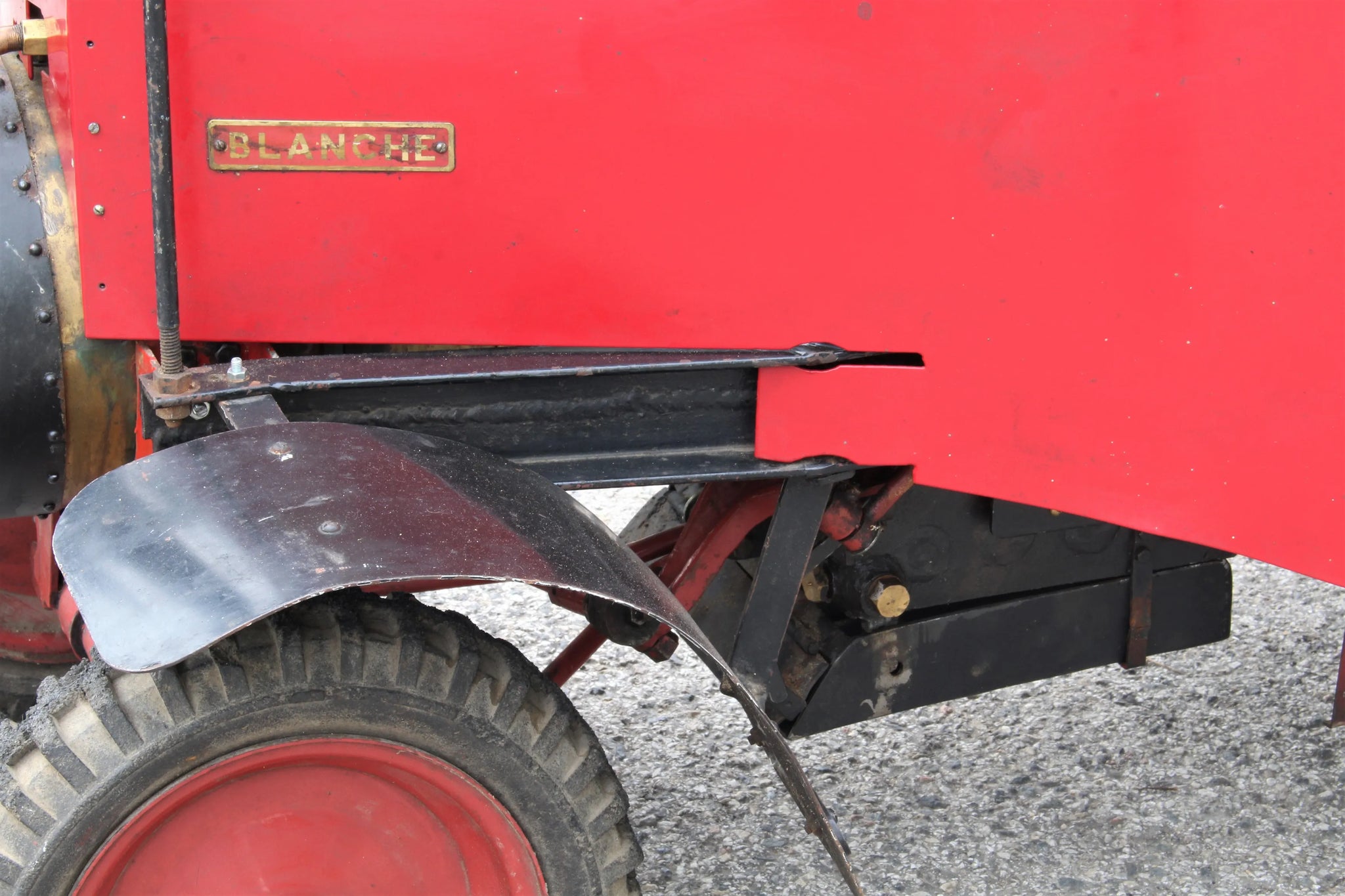

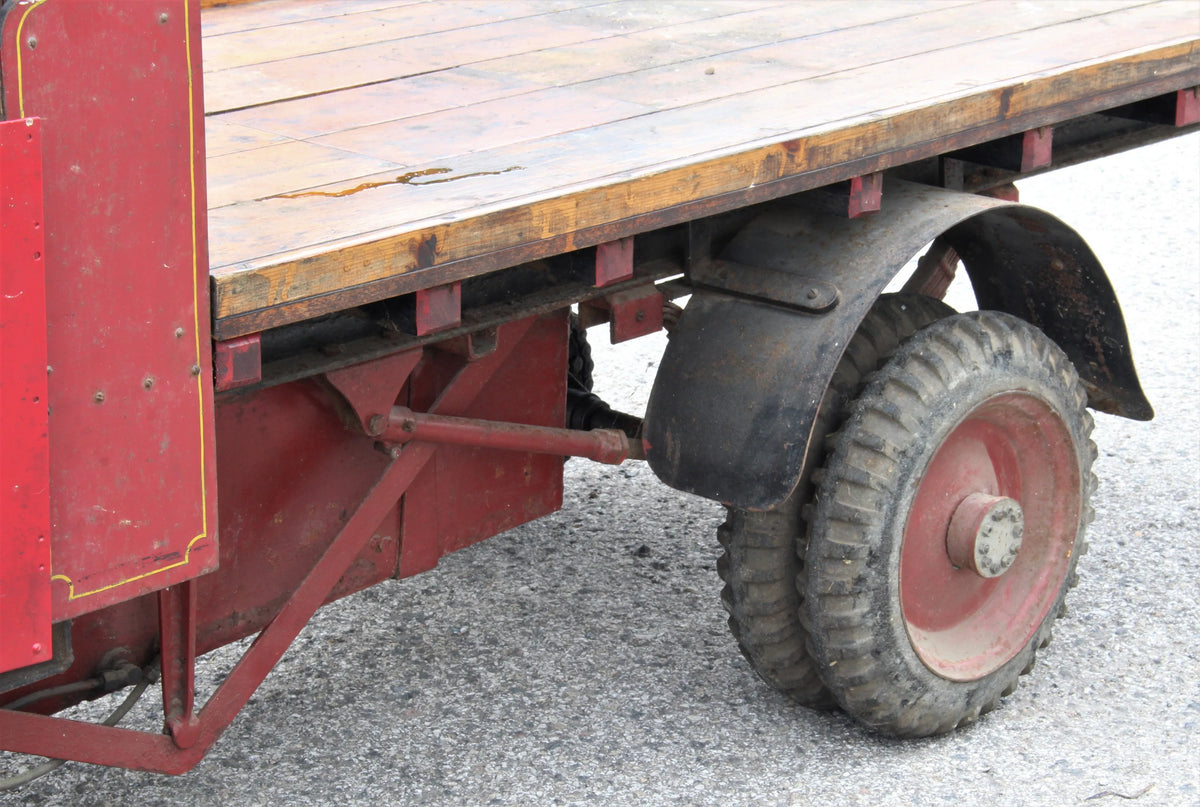

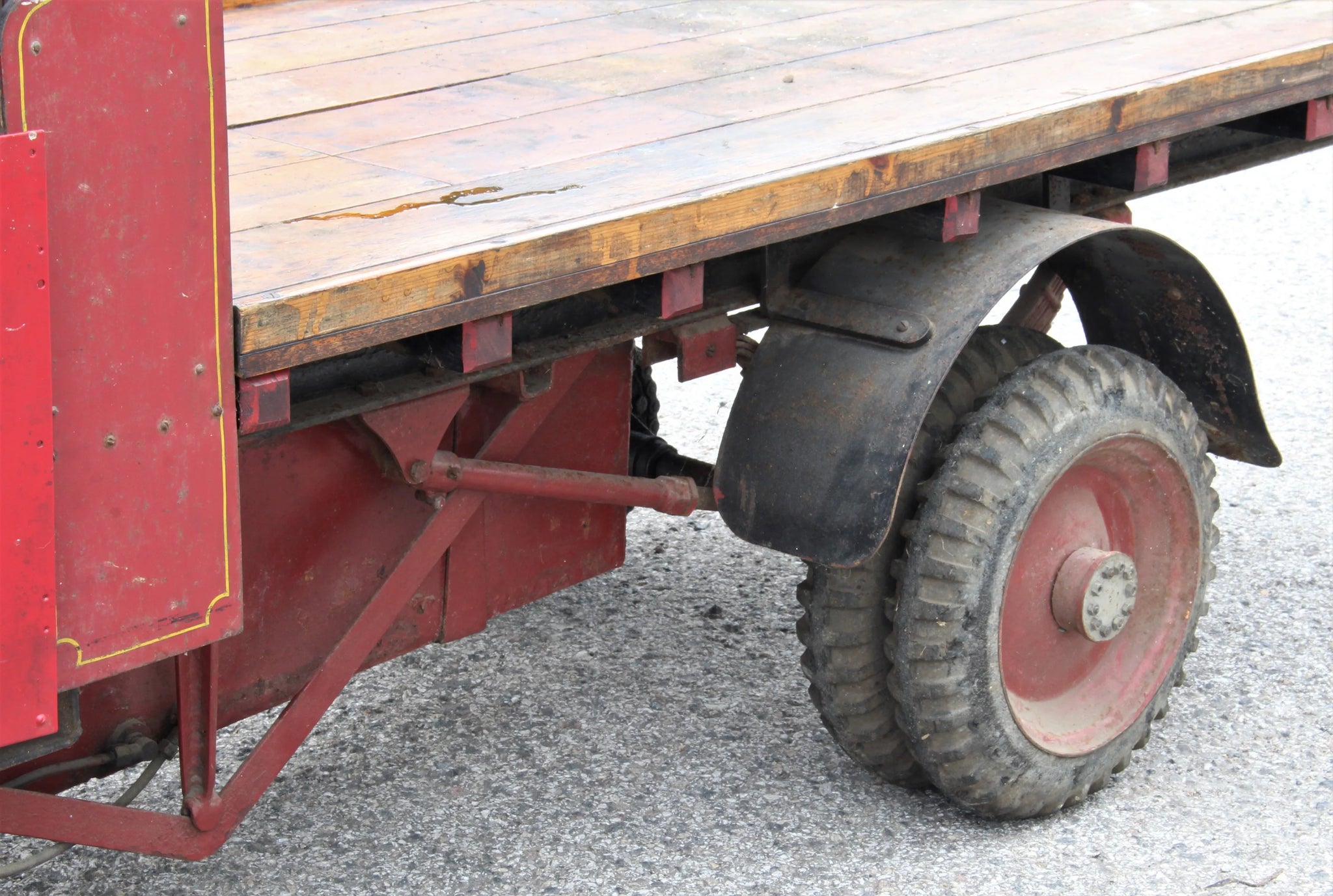

I can see potential in this one - despite some fairly agricultural engineering, overall proportions are representative of a Foden. Some new tinware for the bodywork, paint and a set of wheels would make a world of difference for modest outlay.

Technical information

Stock code

8767

Length/inches

100

Width/inches

30

Height/inches

36

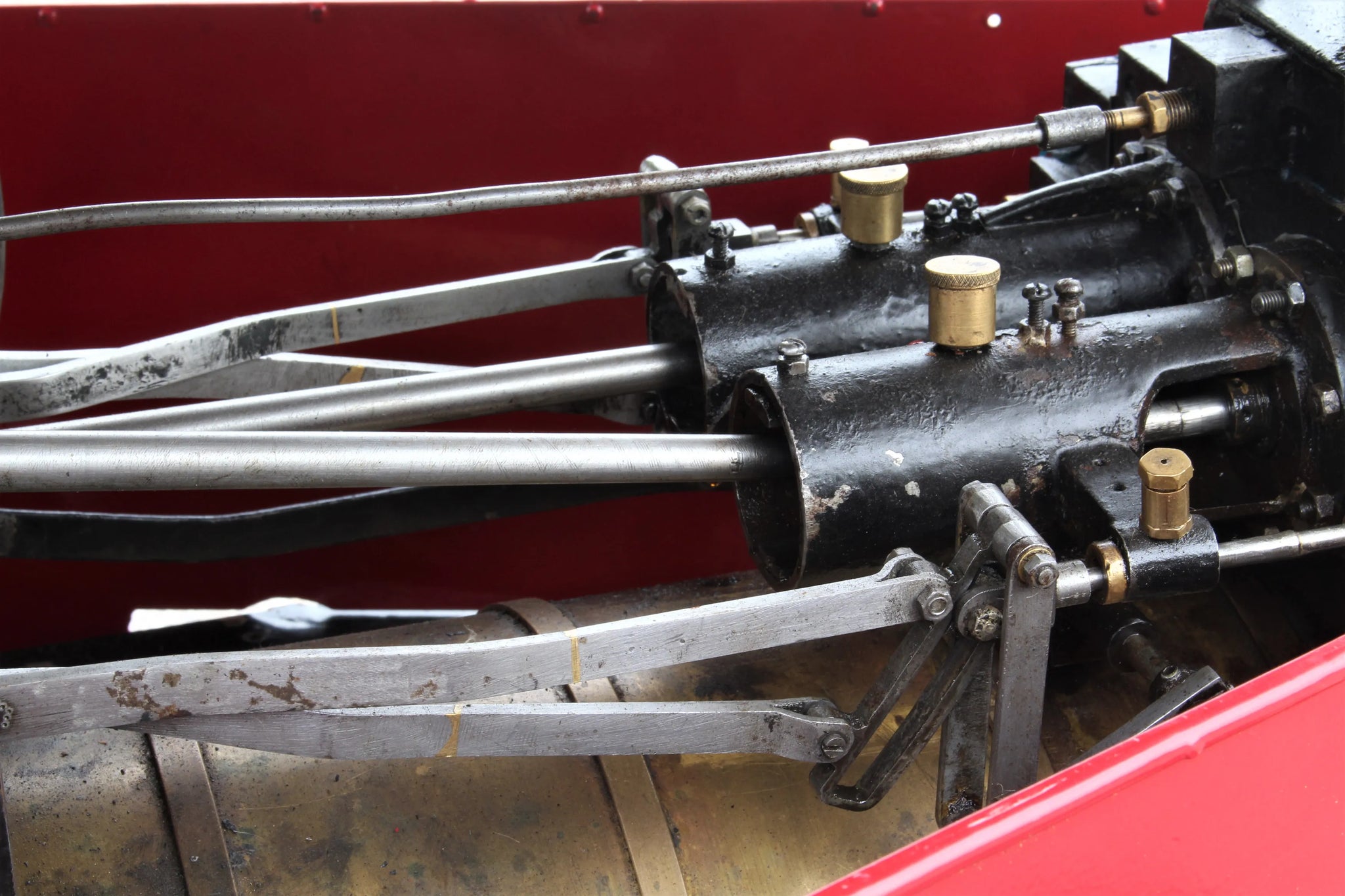

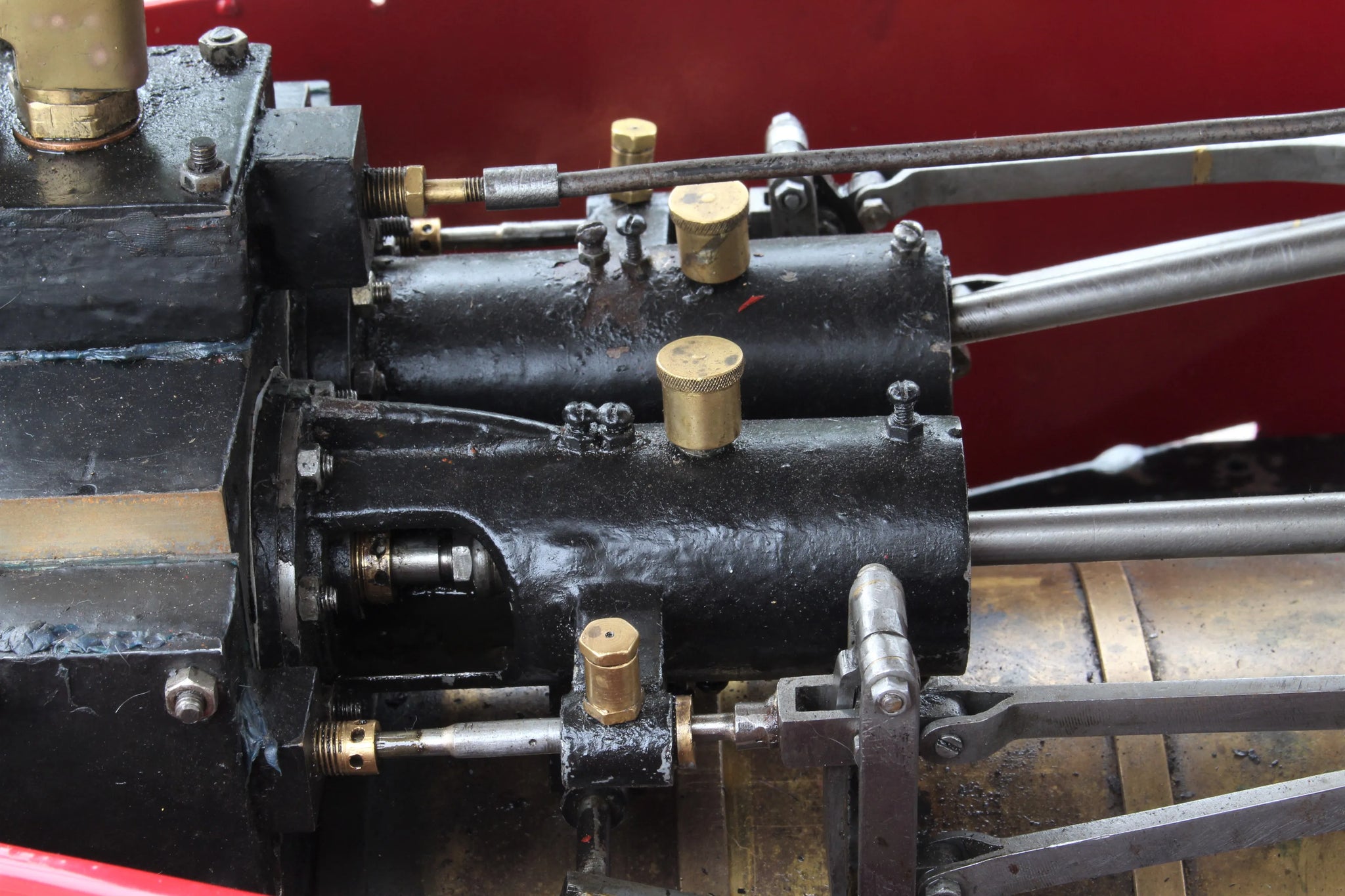

Cylinder material

cast iron

Valve type

slide

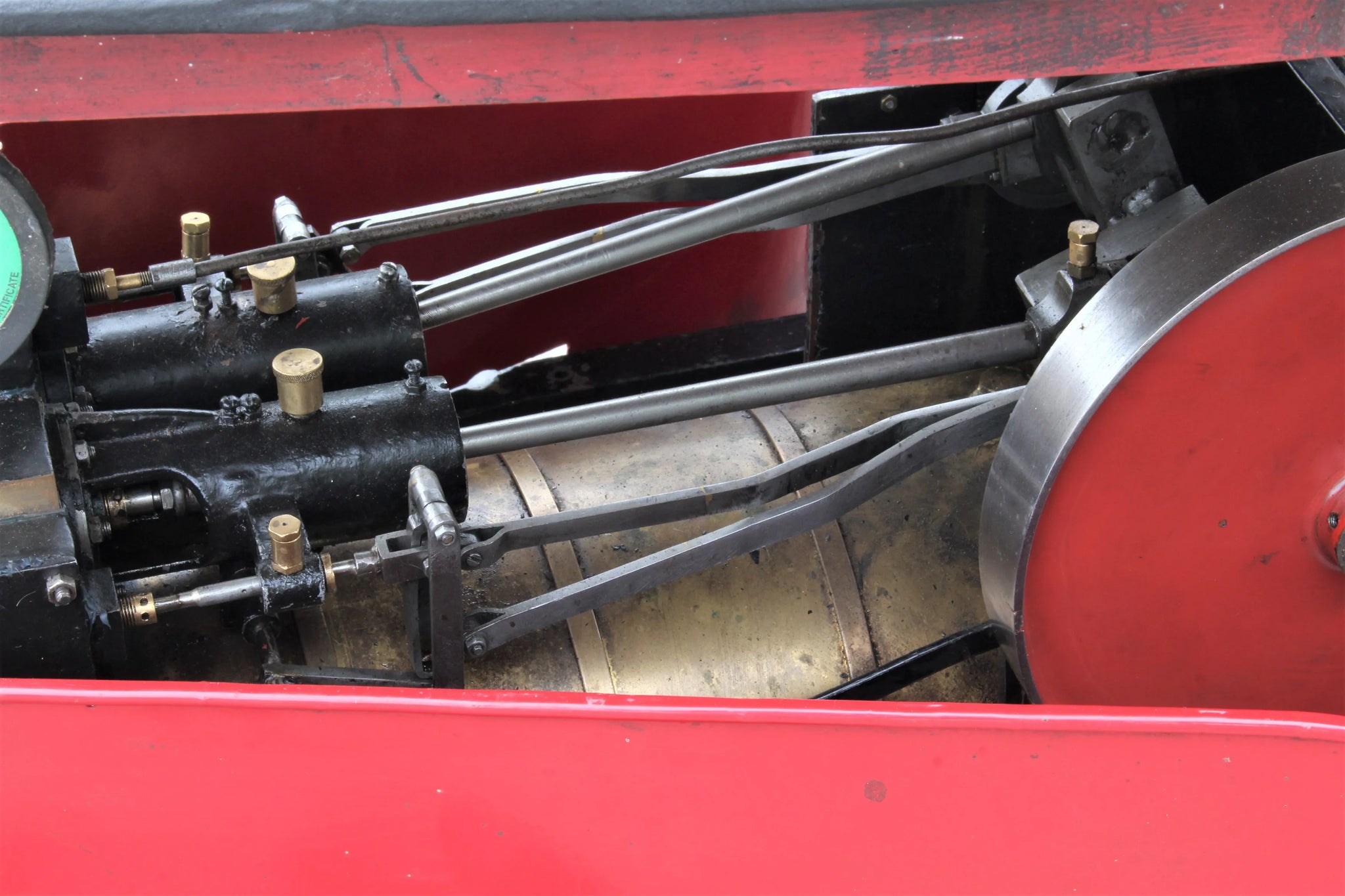

Valve gear

Stephensons

Reverser type

pole

Lubricator type

displacement

Boiler maker

M Shemelds/T Statham

Boiler type

locomotive

Boiler construction

welded, expanded tubes

Boiler material

steel

Working pressure

80

Safety valve type

spring

Safety valve

2

Mechanical pump

1

Date out

Nov-19
