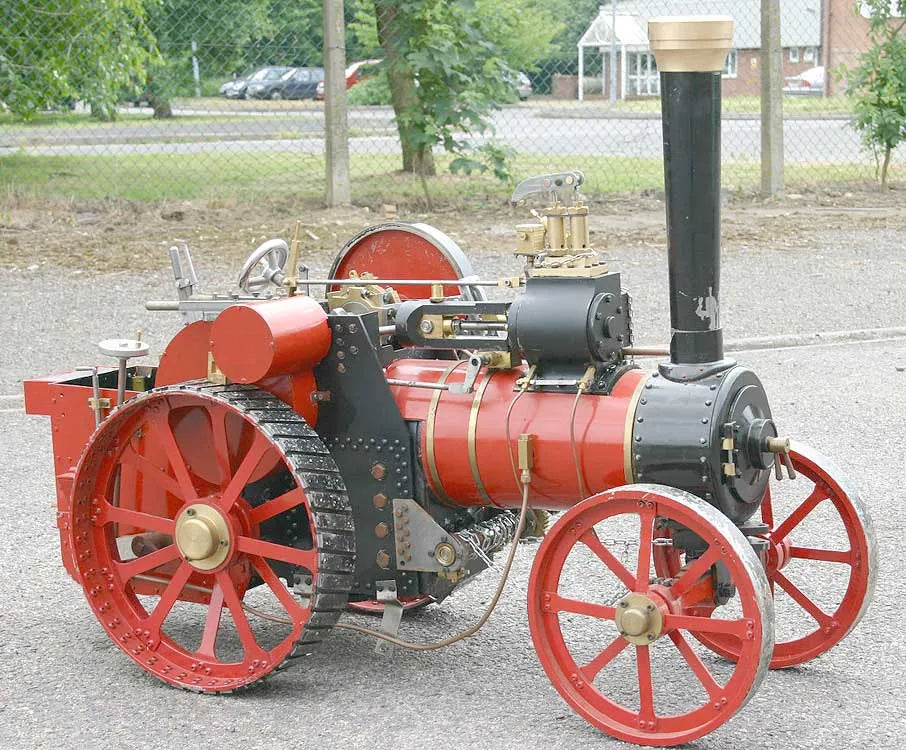

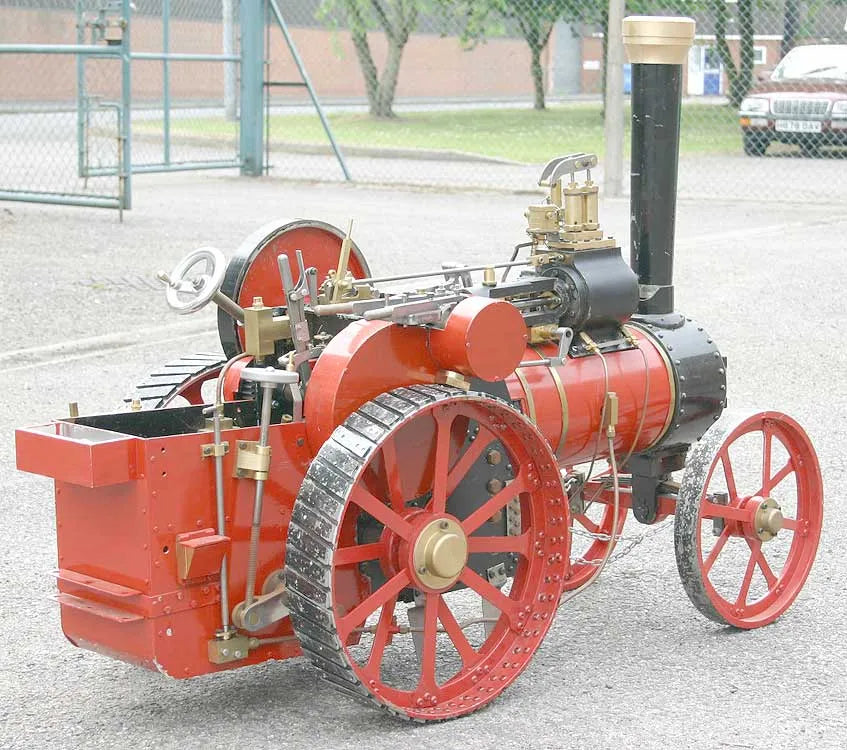

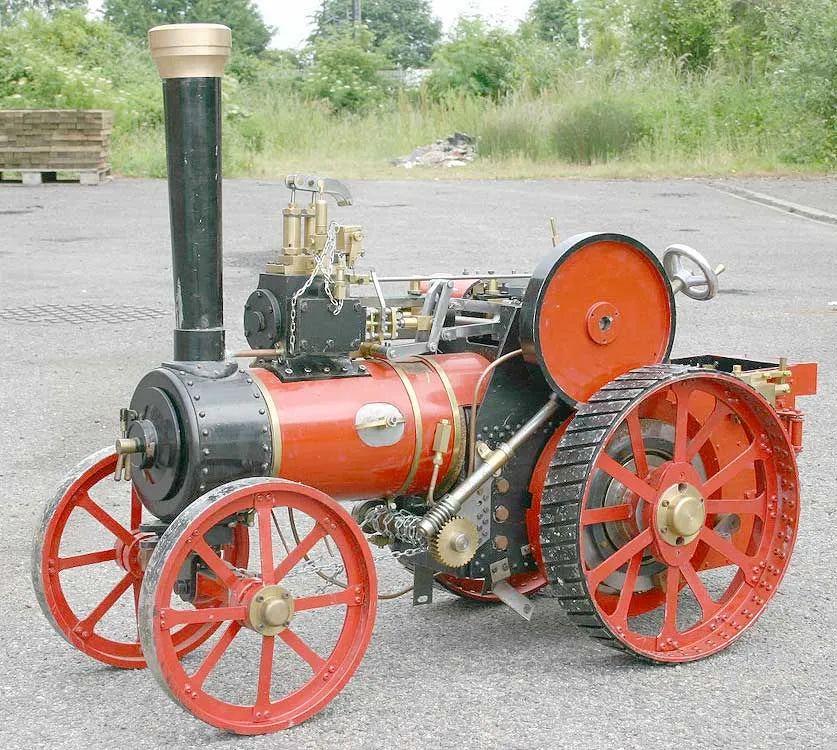

4 inch scale Ruston traction engine for completion

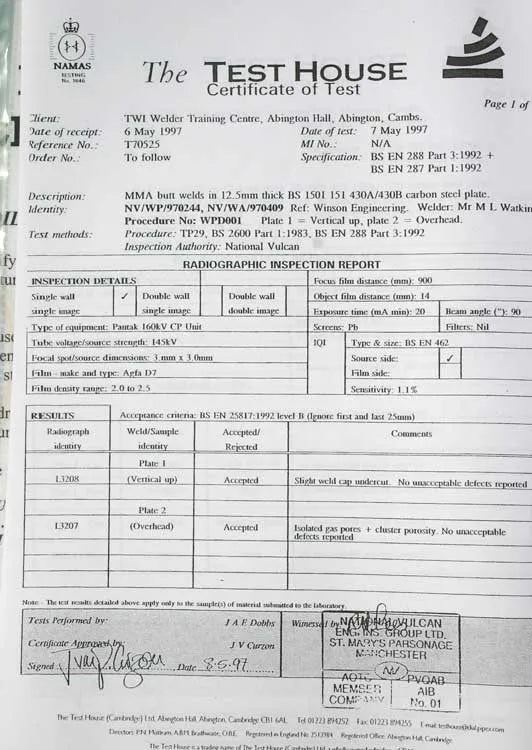

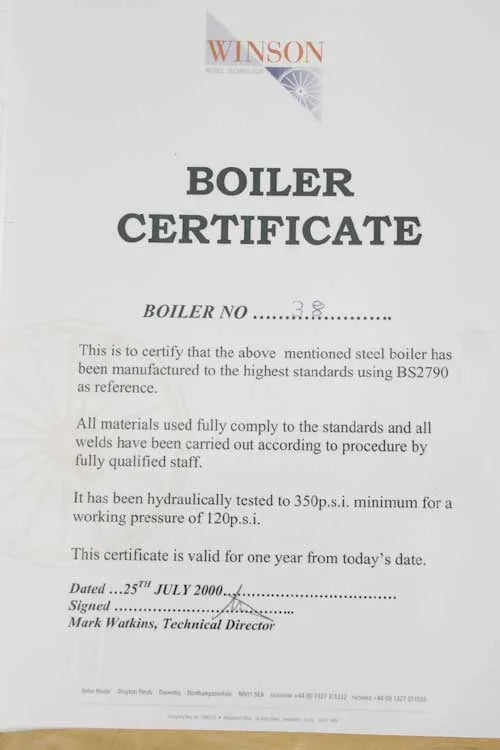

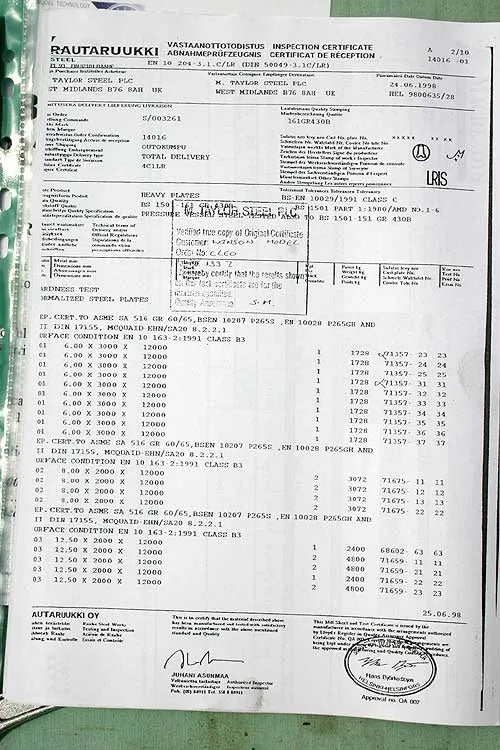

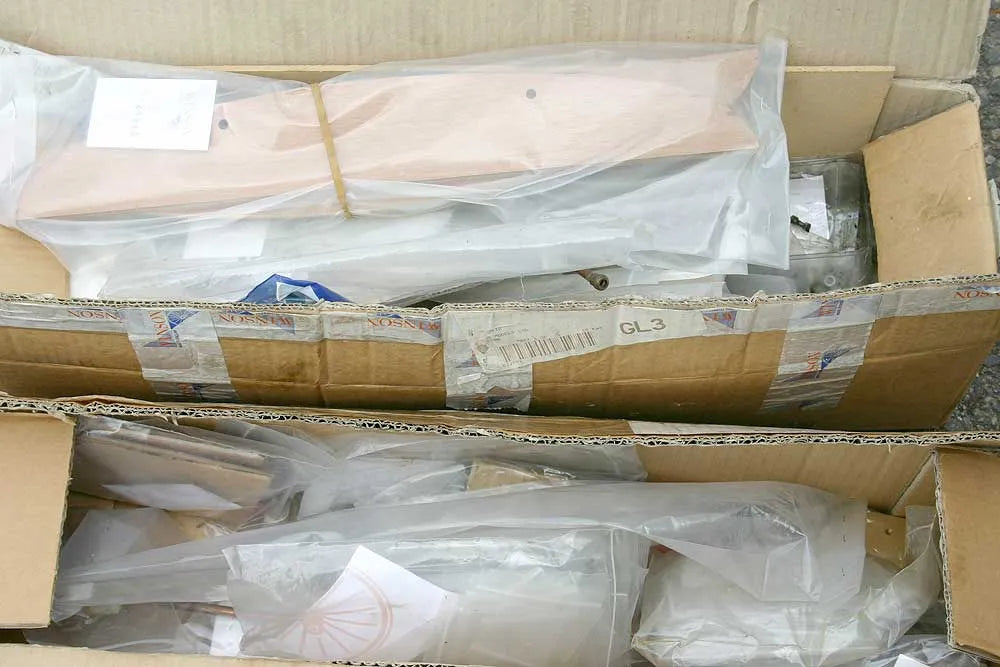

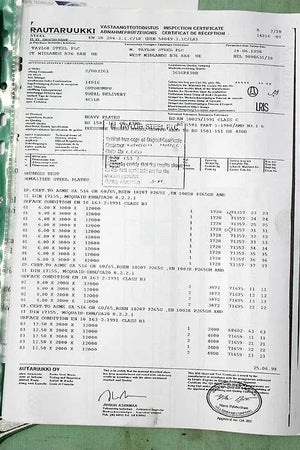

A complete, new kit-build 4 inch scale Ruston steam tractor, about 90% assembled with parts to finish, including assembly instructions for all stages and boiler paperwork including initial hydraulic test certificate, welder's and material certificates.

A diminutive engine in full size at only 3 1/2 tons, the Ruston makes for a similarly dinky model in 4 inch scale - it's more like a super-sized 3 inch engine, although with the advantage of more height which means less crouching over the controls.

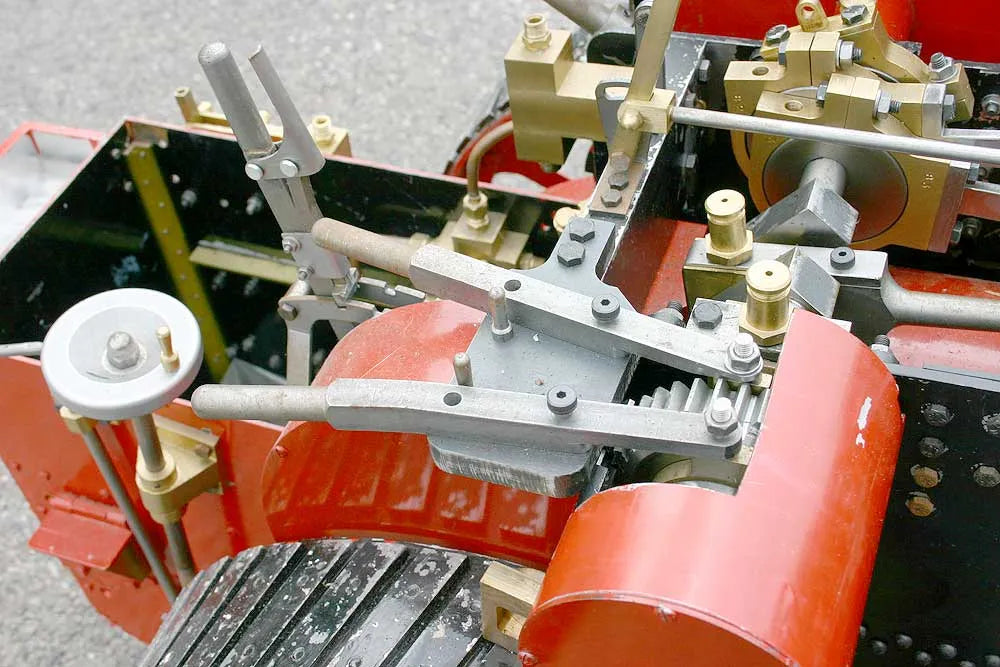

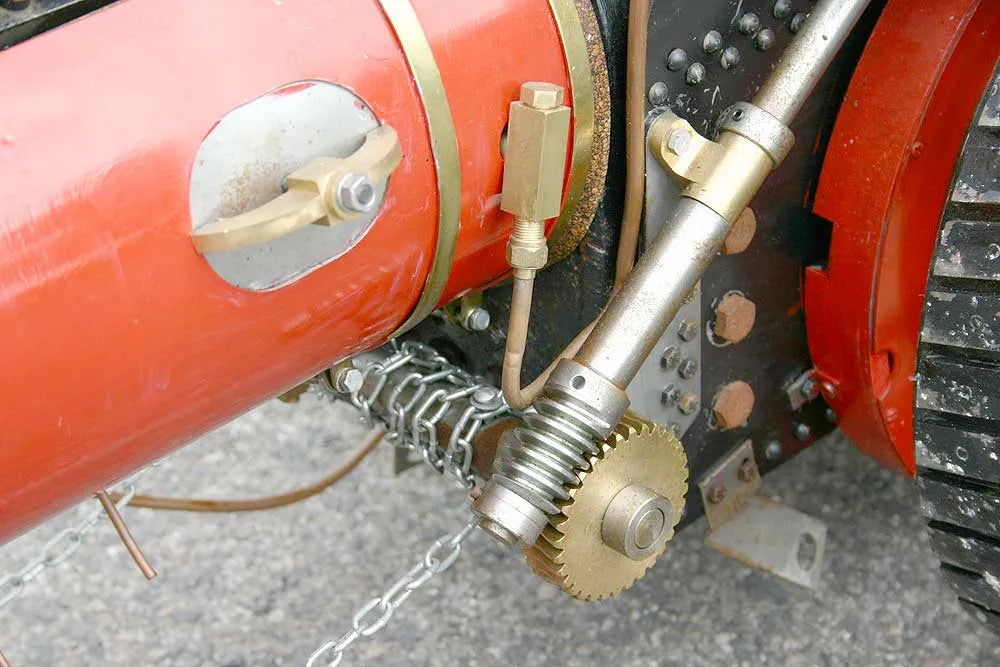

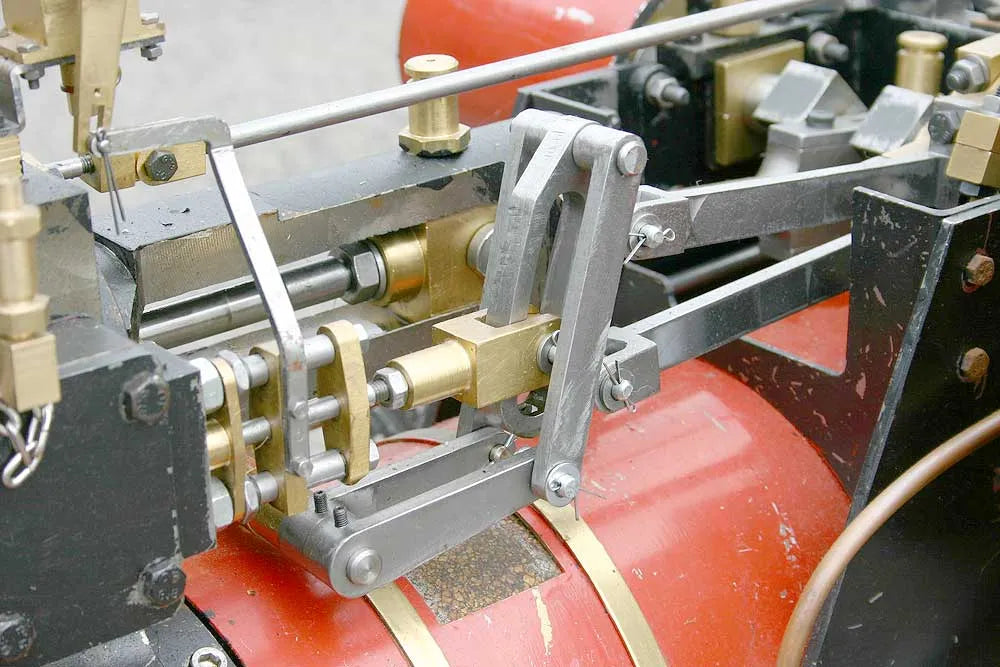

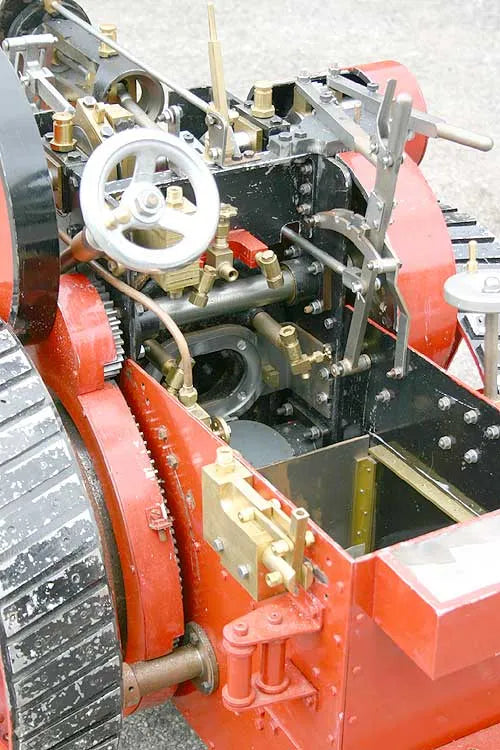

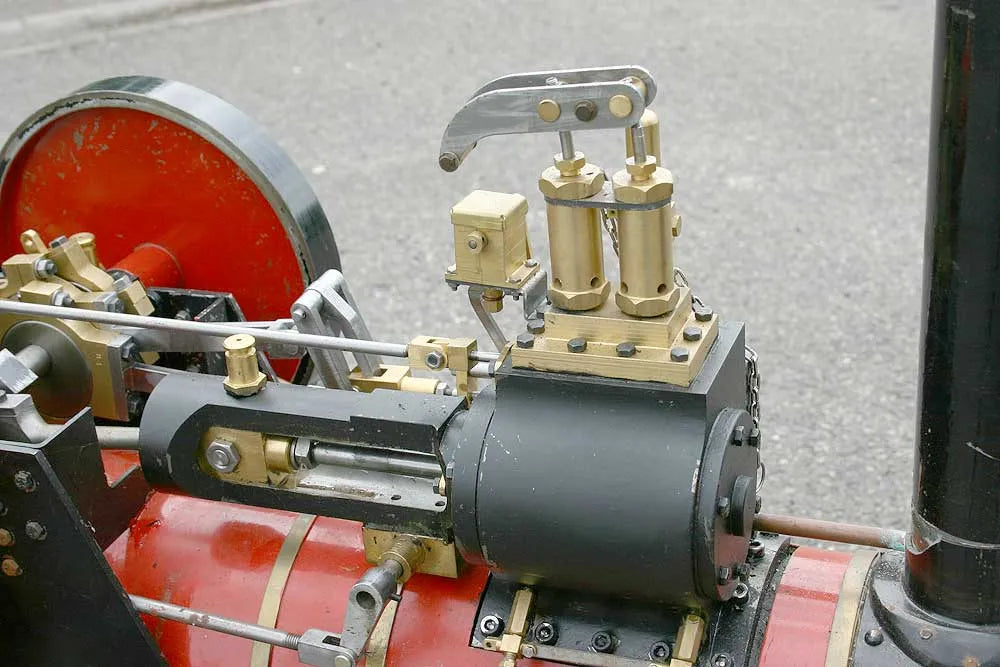

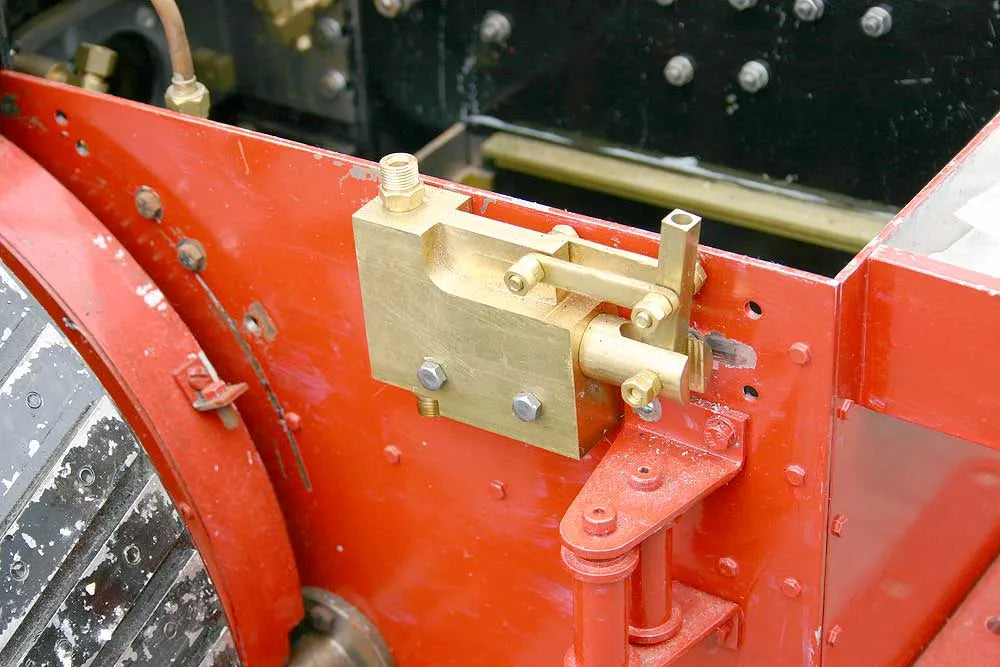

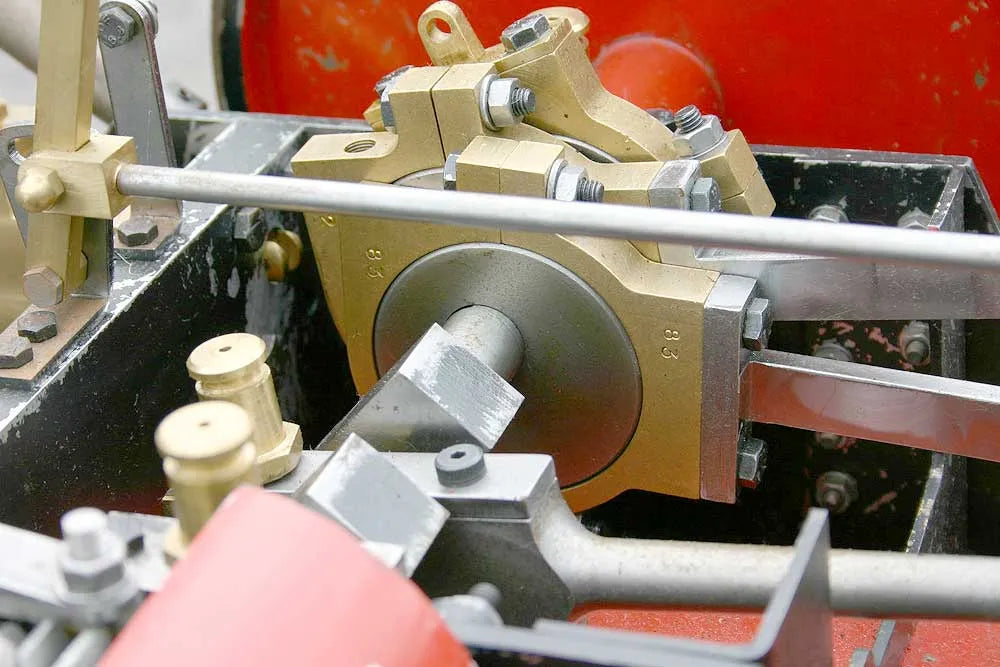

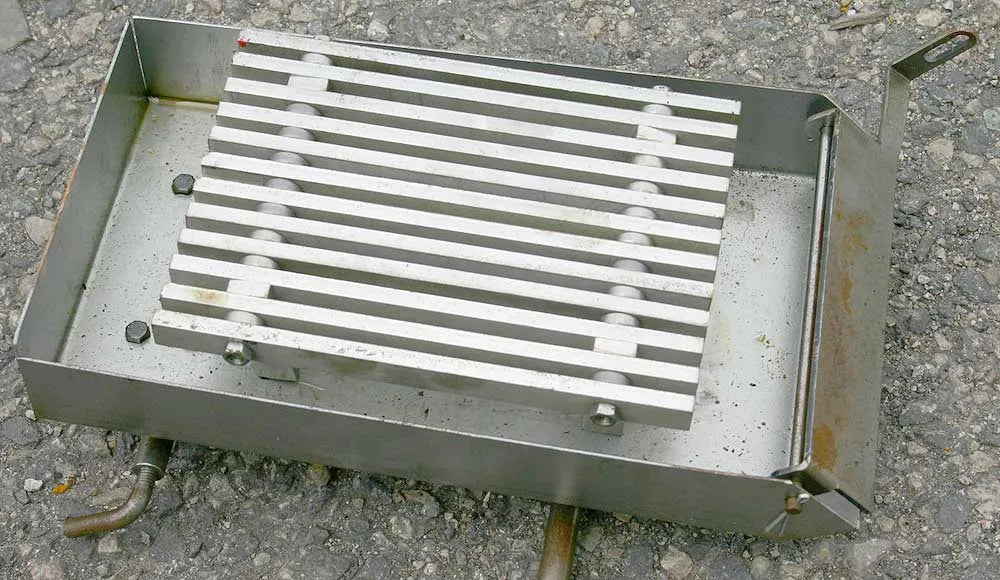

Steel boiler, 120 psi working pressure, initial hydraulic test certificate for 350 psi. Boiler fed by injector and mechnical pump with bypass, auxiliary hand pump mounted on side of tender. Stainless steel grate. Single cylinder, slide valve actuated by Stephenson's valve gear. Two speed transmission with winch behind nearside rear wheel and tender-mounted fairleads.

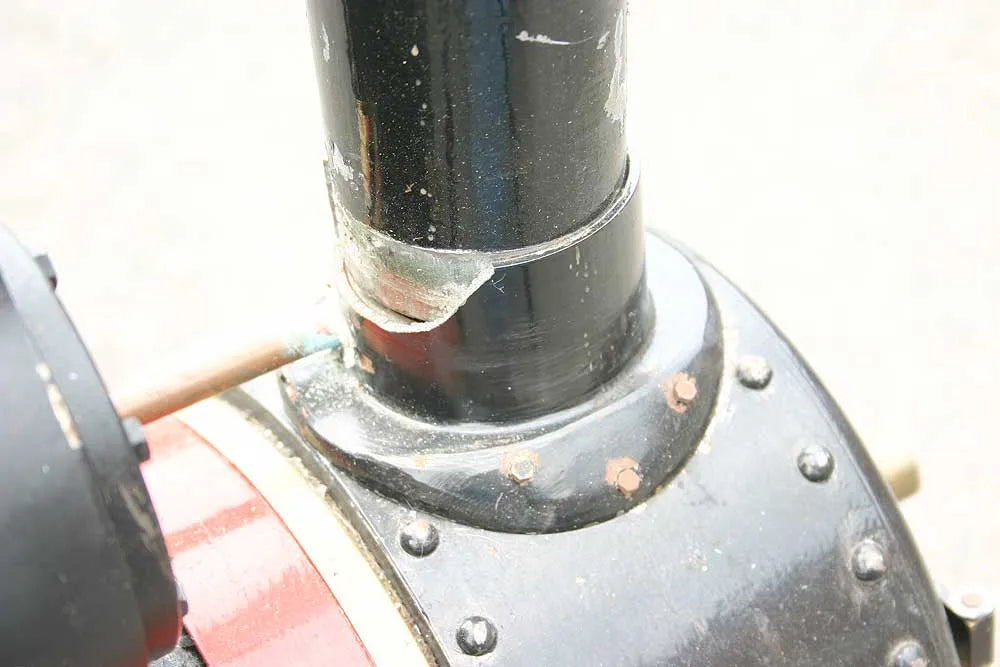

As with all kit-build engines, the parts benefit considerably from sympathetic fettling on assembly and careful checking at all stages for free running. There is damage to the chimney base casting, where the model was moved by somebody pulling on the chimney - not recommended. There is some surface rust which comes off easily.

Length 46 inches
Height 36 inches
Width 20 inches
Weight 400 pounds
