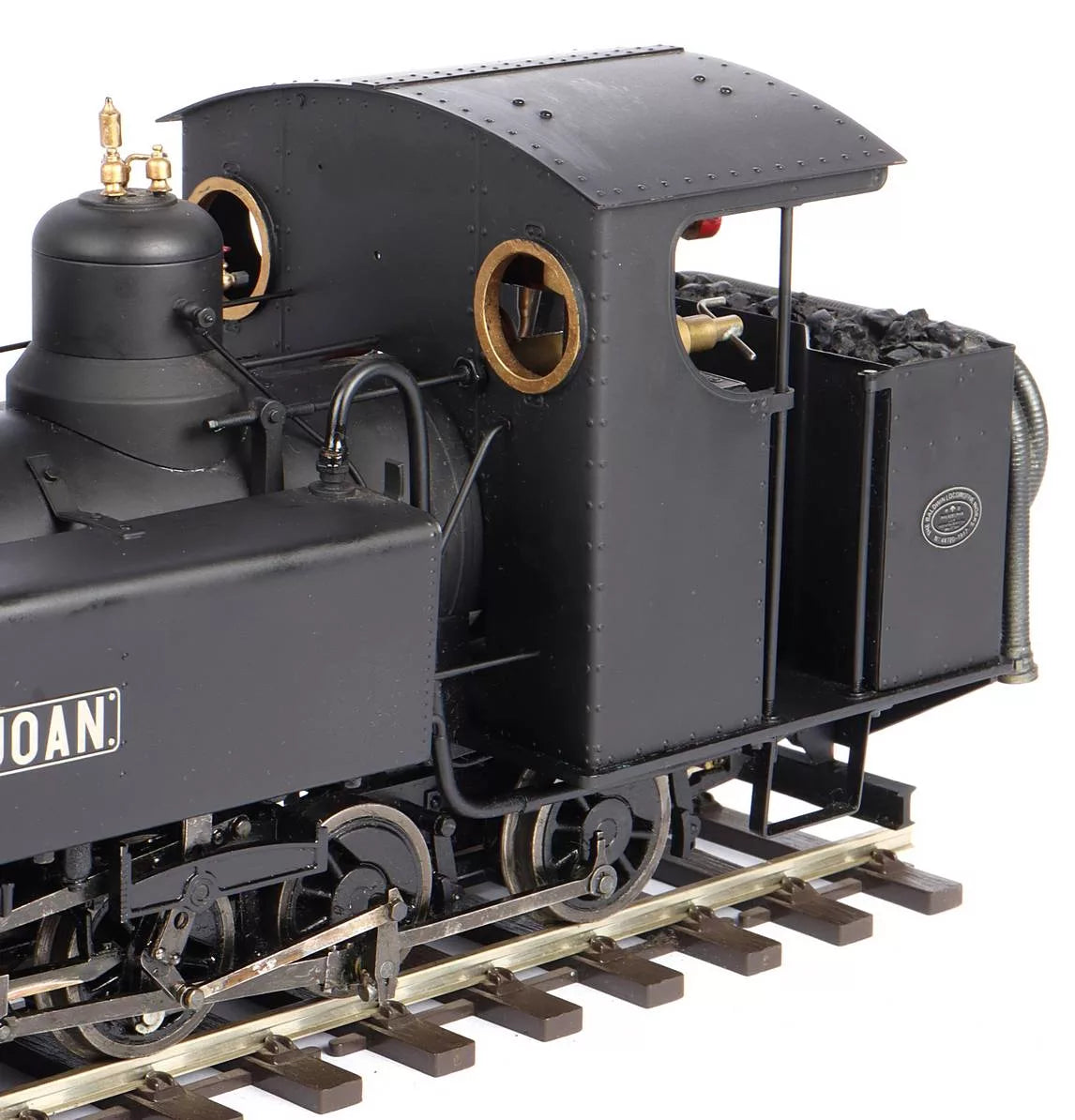

45mm narrow gauge Accucraft Baldwin 4-6-0

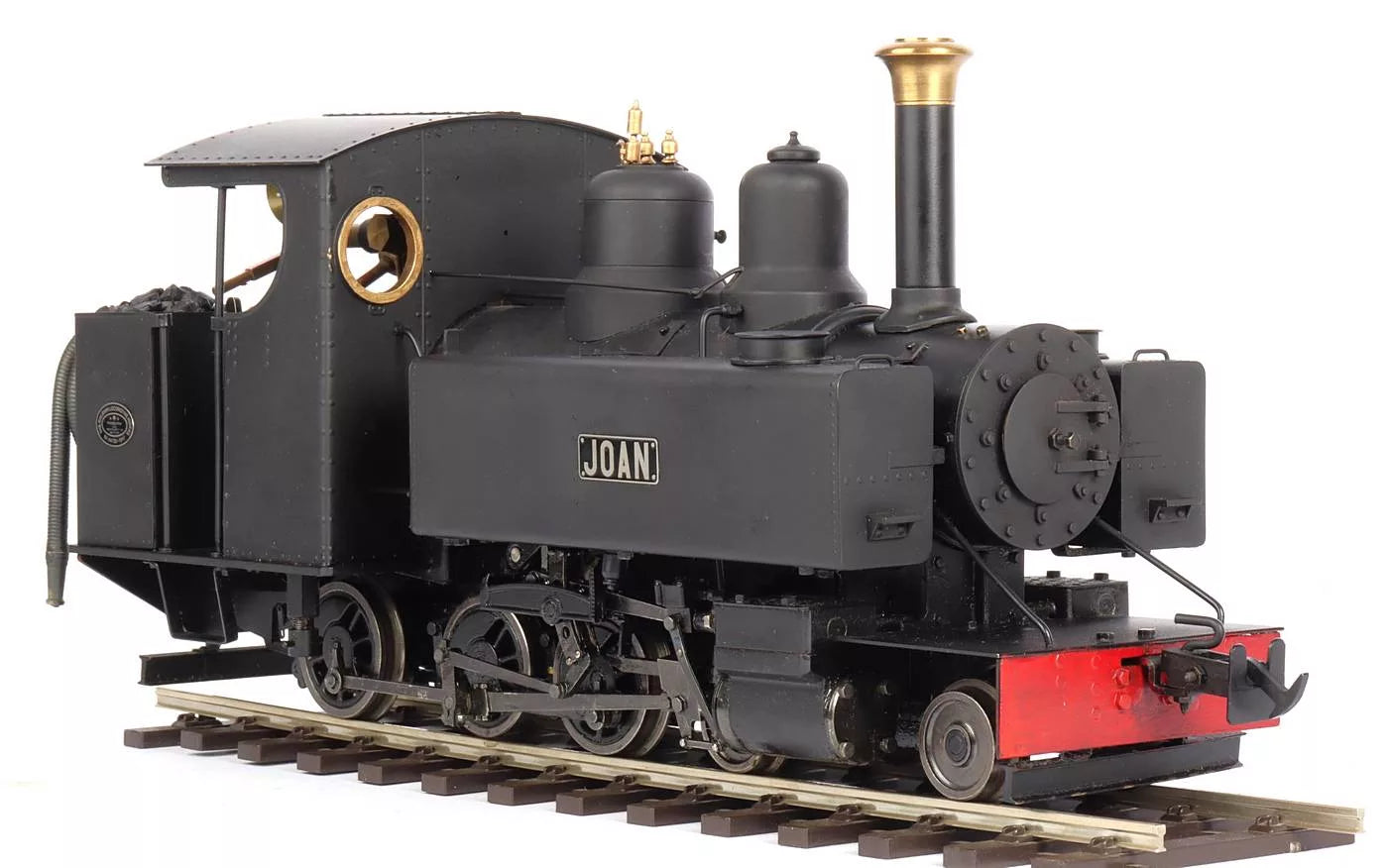

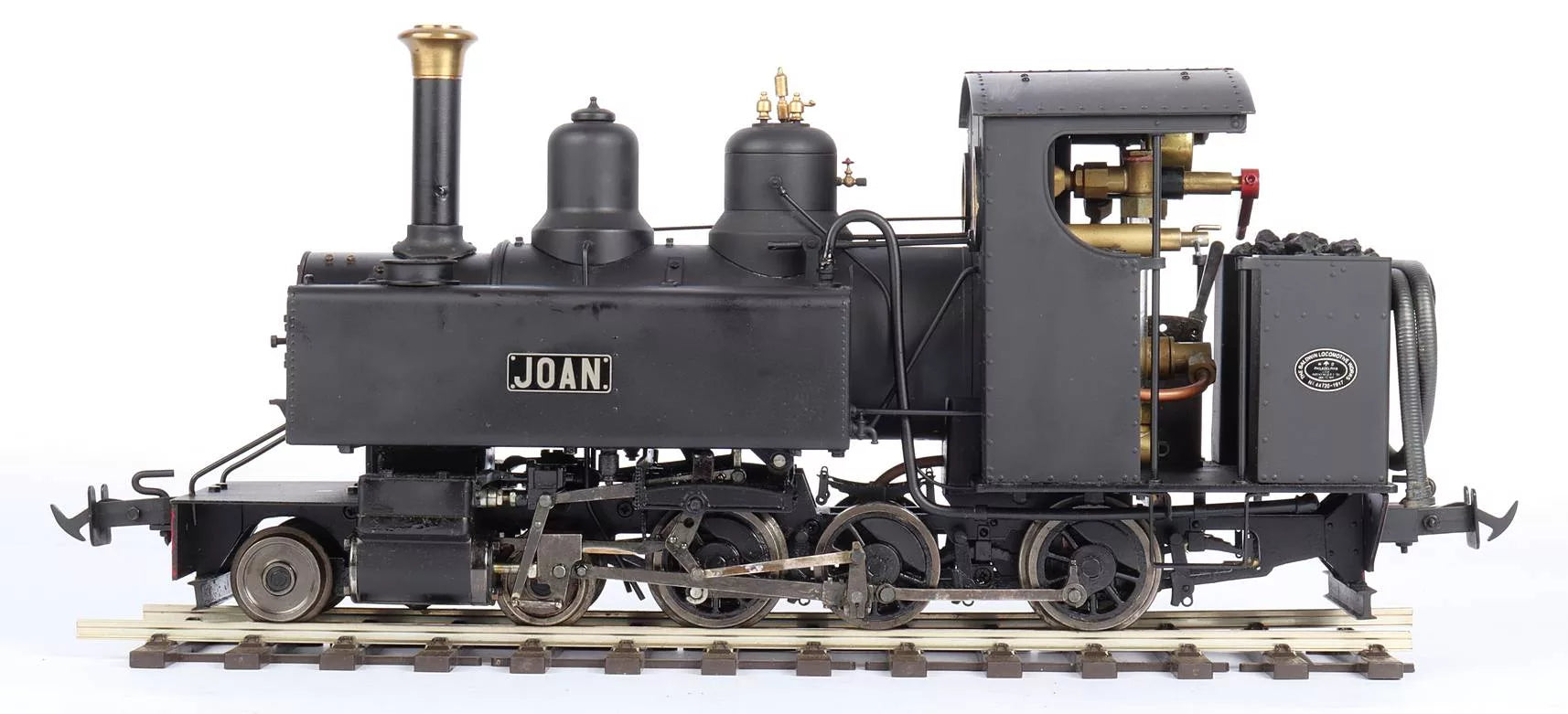

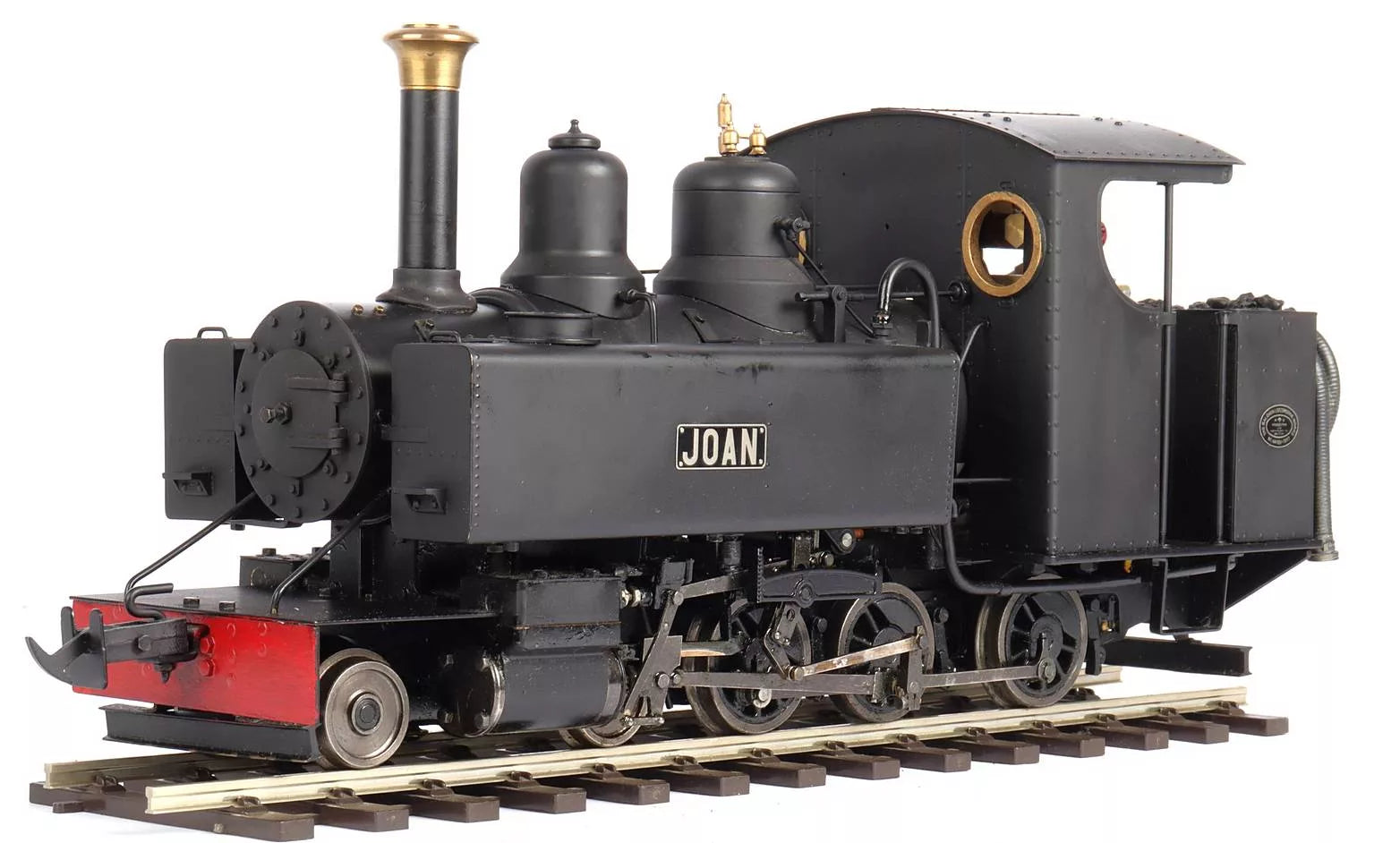

A 45mm narrow gauge WD Baldwin 4-6-0T by Accucraft.

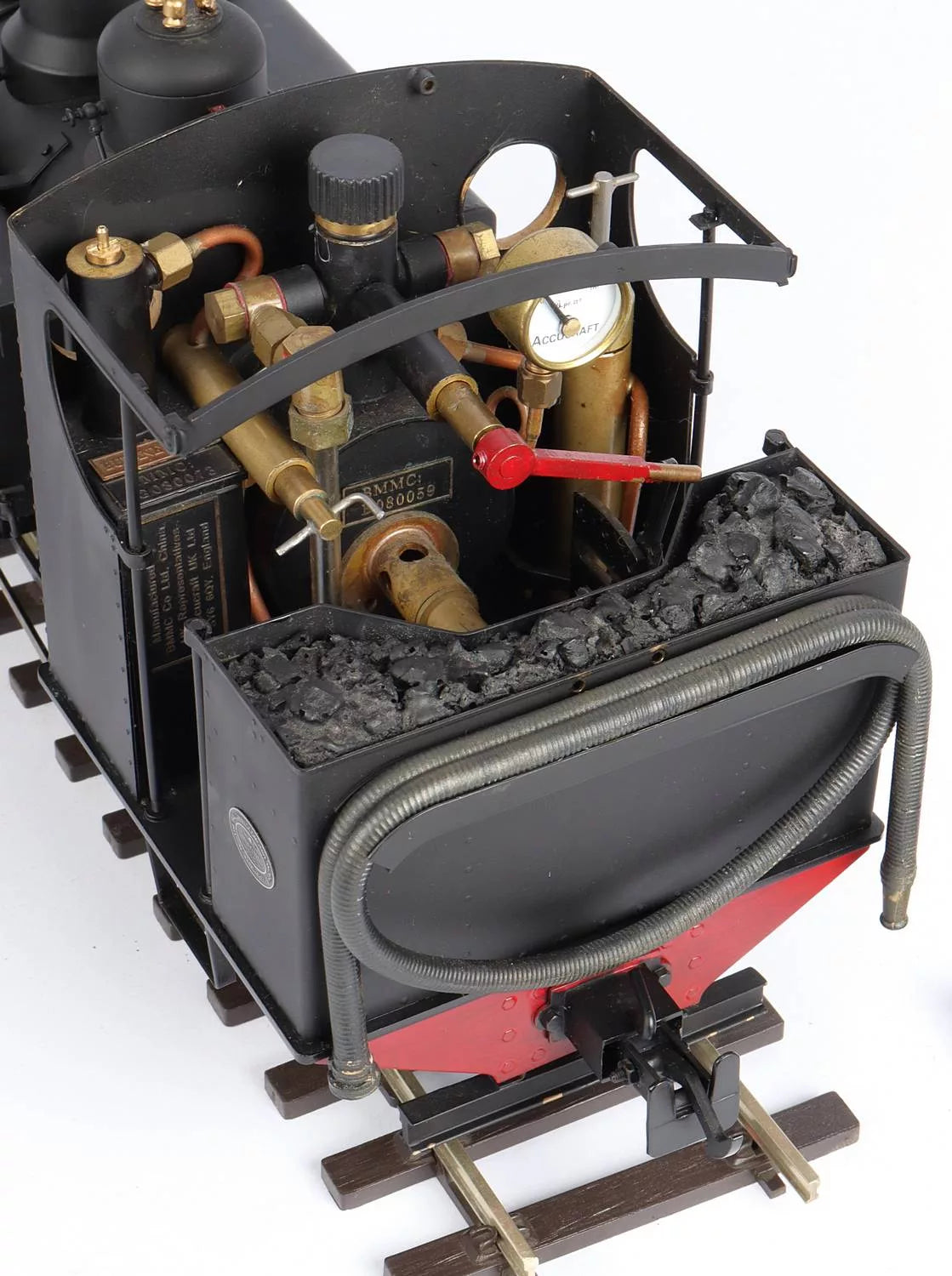

Well used in the past, it came to us with a blocked water gauge and was very stiff to turn over.

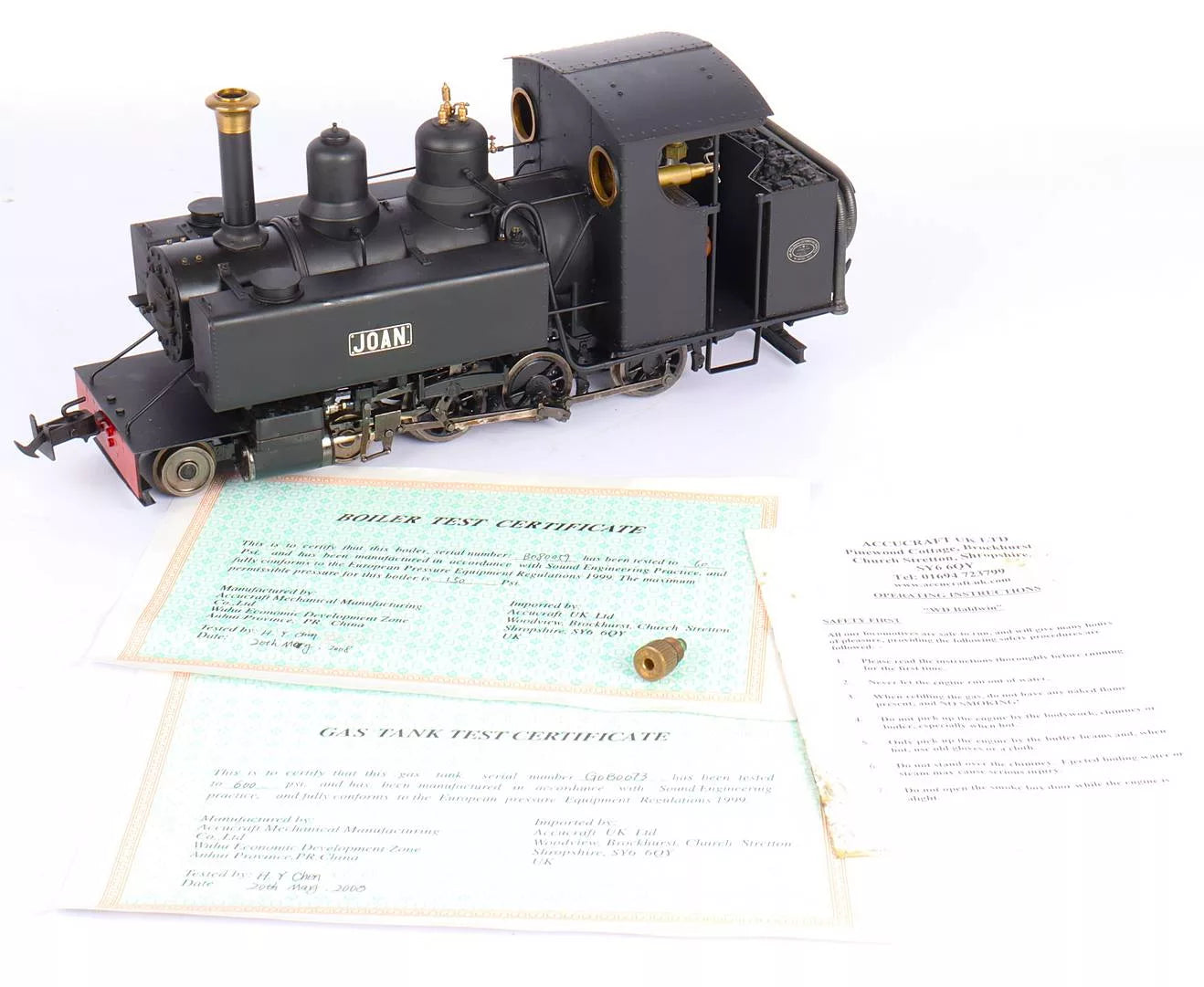

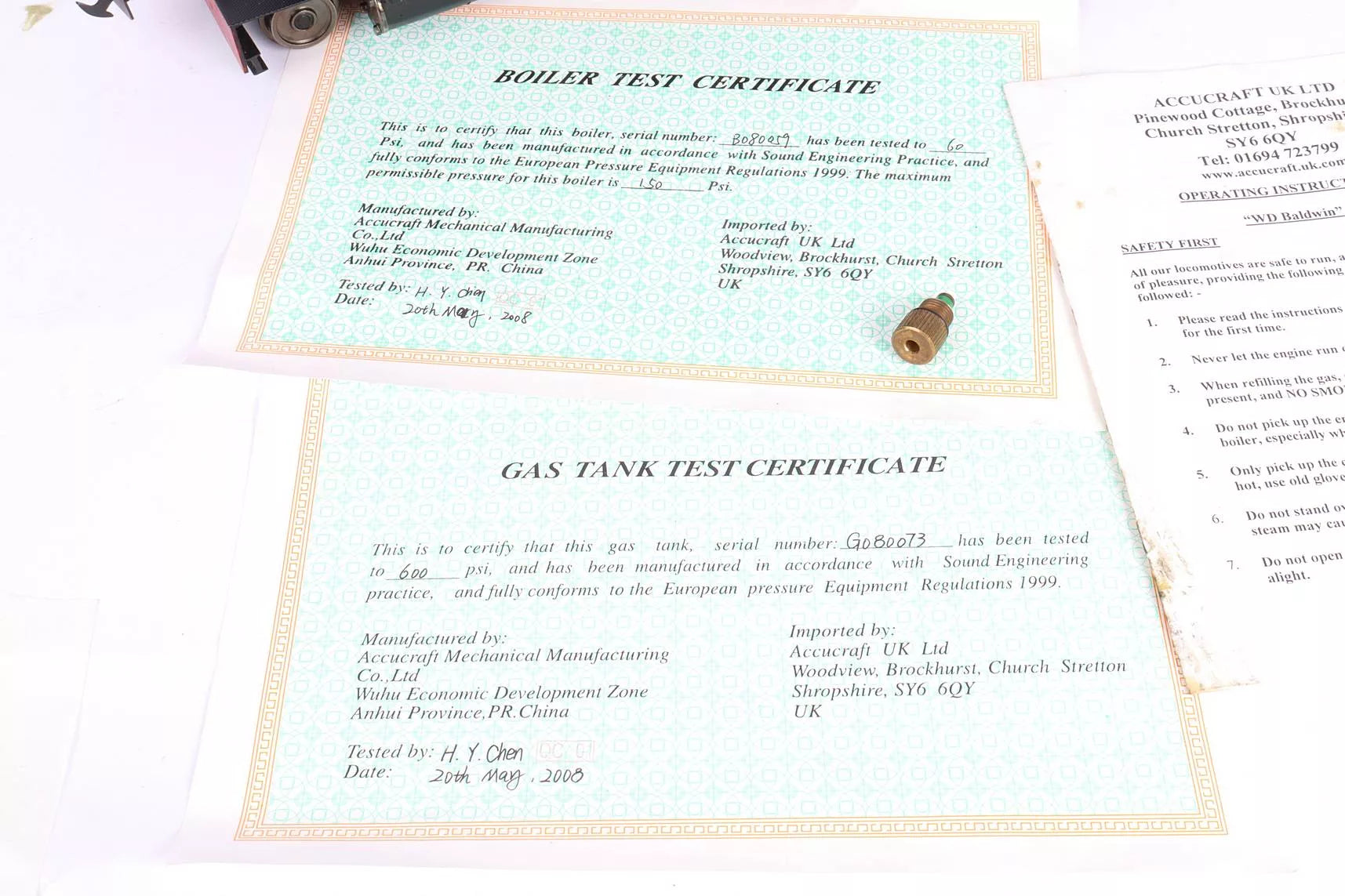

It's been through the workshop and now runs well - we've had it in steam and issued new certification.

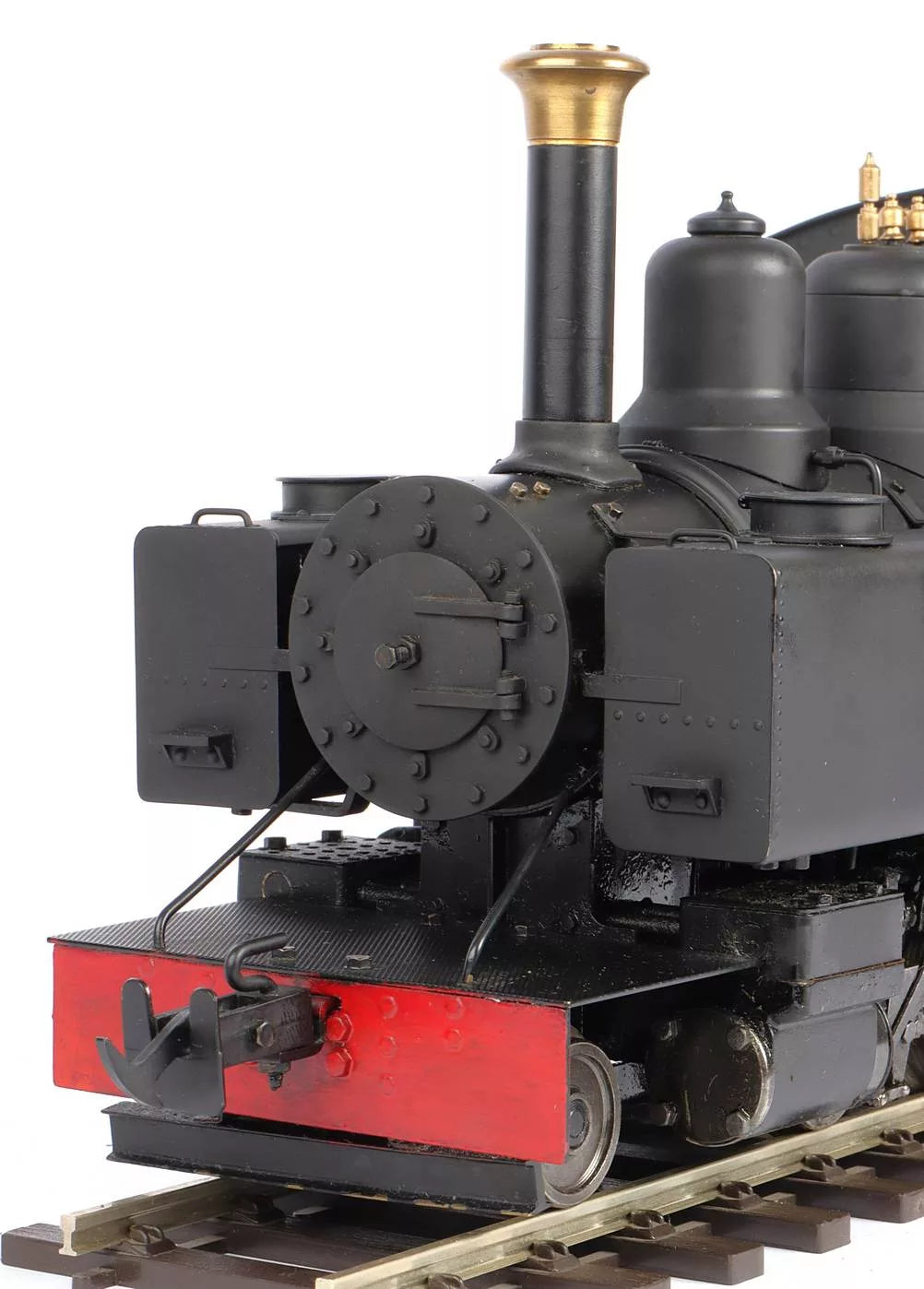

A couple of non-standard detailing quirks on this one - I don't think the War Department were big on bronze chimney caps...

There's more information, a technical specification and a copy of the instruction manual available from Maxitrak's website here.

Technical information

Stock code

13364

Length/inches

14 1/2

Width/inches

4 1/2

Height/inches

6 1/2

Weight/Kg

4 1/2

Wheel material

steel

Axlebox type

plain bearing

Cylinder material

brass

Valve type

piston

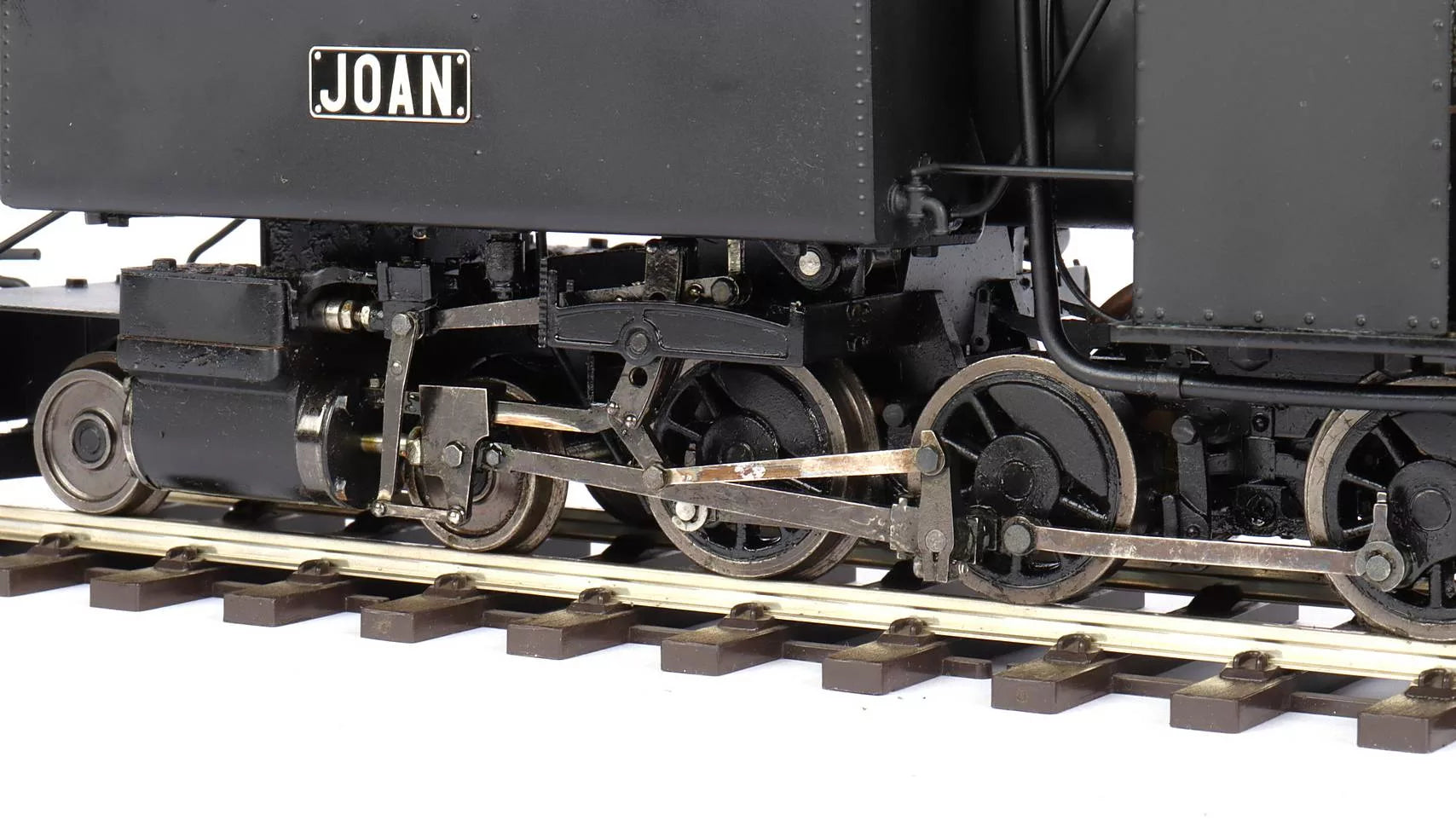

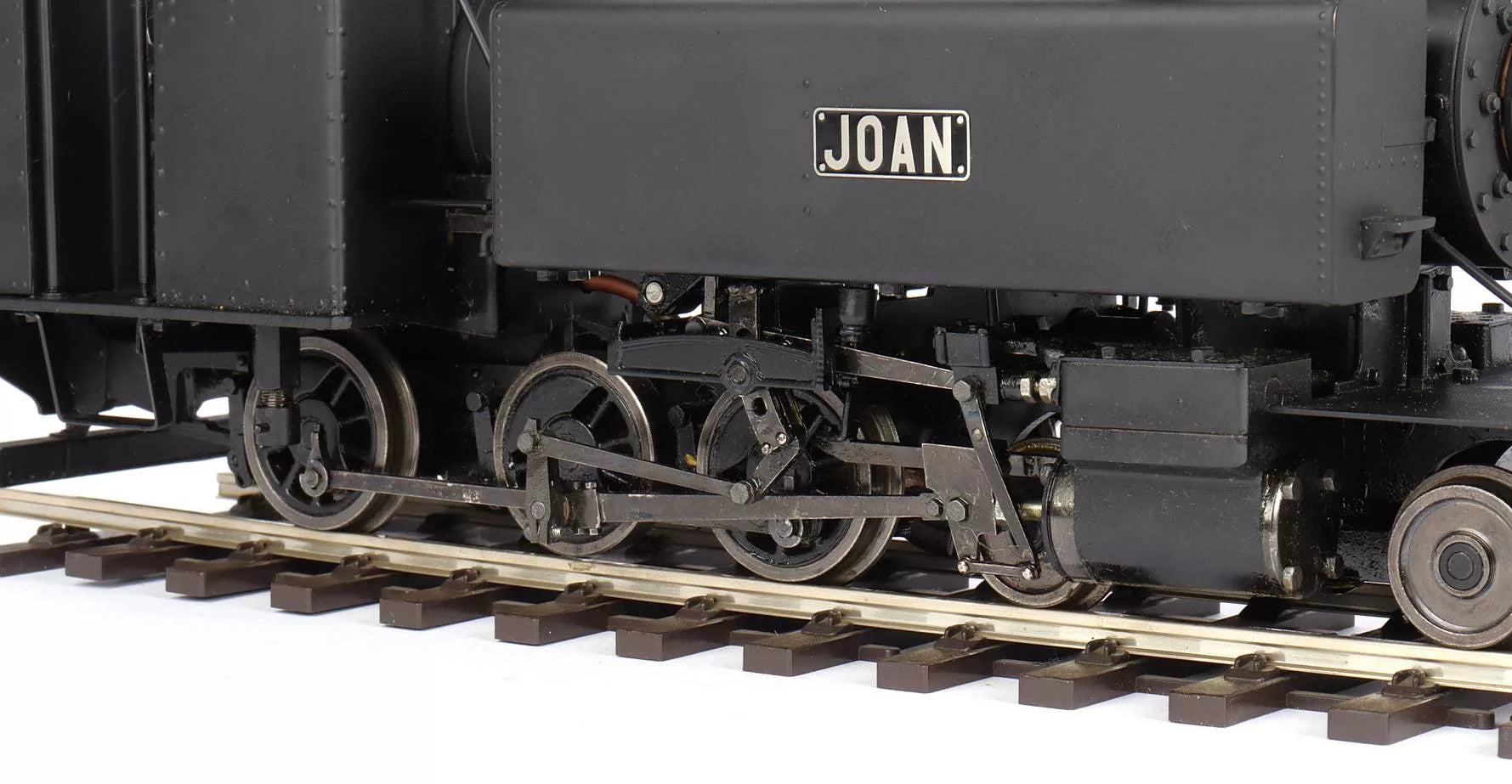

Valve gear

simplified walschaerts

Reverser type

pole

Boiler maker

Accucraft

Boiler type

centre flue

Boiler construction

silver soldered

Boiler material

copper

Working pressure

60

CE/UKCA mark

n/a - <2 litre capacity

Year built

2008

Boiler number

B080059

Safety valve

1

Steam test valid to

FALSE
